USER MANUAL C31POCKET4KDOCKPD i-TEC

Black cylindrical device with a curved handle and display ports, no visible text or symbols on the body.

User guide • Gebrauchsanweisung • Mode d'emploi Manual de instrucciones • Manuale • Uživatelská príručka Instrukcje obsługi • Užívatel'ská príručka • Vartotojo vadovas Handleiding

P/N: C31POCKET4KDOCKPD

EN Please read the entire instruction manual carefully. Detailed manual is available on our website www.i-tec.cz/en/ in the tab „Manuals, drivers“. In case of any issues, please contact our technical support at: [e-mail]

QR code image containing encoded data, no visible human-readable text

USB-C POCKET DOCK 4K HDMI OR VGA WITH PD

ENGLISH.... 08-11

DEUTSCH....12-15

FRANÇAIS....16-19

ESPAÑOL....20-23

ITALIANO....24-27

ČESKY 28-31

POLSKI.... 32-35

SLOVENSKY 36-39

LIETUVOS.... 40-43

NEDERLANDS....44-47

WEEE....48-49

Declaration of Conformity.... 50–51

FCC....52

Labeled diagram of a device with numbered parts, likely a cleaning or part handling tool.

ENGLISH

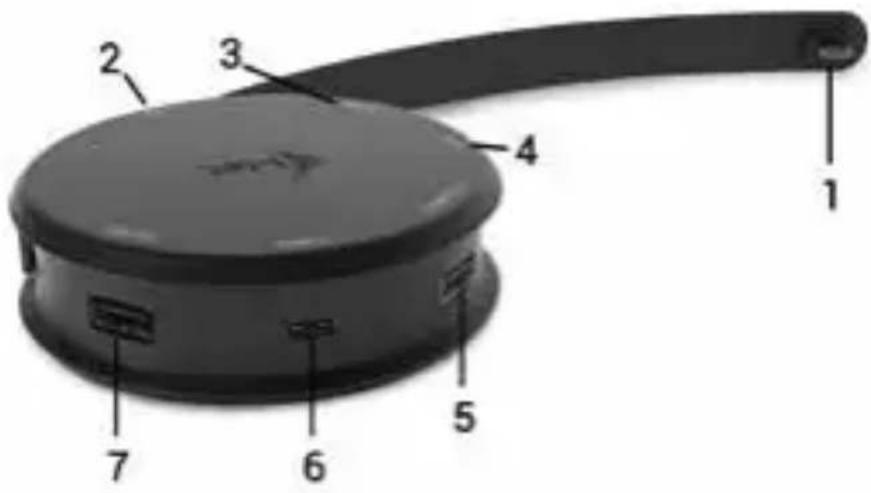

1. Integrated cable with USB-C connector
2. VGA port
3. HDMI port
4. Ethernet GLAN RJ-45 port
5. USB 3.0 port
6. USB-C Power Delivery port
7. USB 3.0 port

DEUTSCH

1. Anschlusskabel mit USB-C Konnektor
2. VGA Port
3. HDMI Port
4. Ethernet GLAN RJ-45 Port
5. USB 3.0 Port
6. USB-C Power Delivery Port
7. USB 3.0 Port

FRANÇAIS

Thank you for purchasing the i-tec docking station, our product allows you to connect your favourite devices via a single USB-C connector to a laptop, tablet or smartphone with a USB-C port. The docking station provides 1x HDMI 4K port, 1x VGA Full HD port, 2x USB-A 3.0 port, 1x Ethernet GLAN RJ-45 port, 1x USB-C Power Delivery port.

PACKAGE CONTENTS

- i-tec USB-C Docking Station with cable (24 cm)

- User Guide

SPECIFICATION

- Graphic interface: 1x HDMI (max. resolution 4K 3840x2160@30Hz, for connecting a HDMI monitor), 1x VGA (max. resolution Full HD 1980x1080@60Hz, for connecting a VGA monitor). It is not possible to use both graphic outputs simultaneously, a single monitor only can be connected to the docking station (HDMI or VGA).

• Mode: Extend, Mirror and Primary Display

• Supported colors 16 / 32 bit

- 2x USB-A 3.0 ports for connecting USB 3.1/3.0/2.0 devices for high-speed data transmission up to 5 Gbps

- 1x USB-C Power Delivery Port (max. 85 W) for charging laptops, tablets or smartphones with support for Power Delivery. To this port you can connect an original or a universal AC power adapter with USB-C connector, it ensures the constant charging of your laptop, tablet or smartphone during your work.

- 1x Ethernet GLAN RJ-45 port for fast network and Internet access with Gigabit Ethernet connection, it supports speeds of 10 / 100 / 1000 Mbps

- 1x integrated USB-C 3.1 cable for connecting the docking station to laptop, tablet or smartphone

- Powered through USB bus (no power adapter is needed) or through USB-C PD port

- Product dimensions: 90 x 22 mm

• Product weight: 98 g

SYSTEM REQUIREMENTS

Hardware requirements: Requires USB-C interface with „DisplayPort Alternate Mode“ and „Power Delivery“ support (not all devices / systems with USB-C interface support this as standard) or Thunderbolt 3 port

Operating system: Windows 10 32/64bit, macOS X, Linux, Google (Chrome OS and Android 6 and higher) with latest updates

DRIVER INSTALLATION

Windows 10 32/64bit: After connection, the drivers for the docking station are installed automatically on the system. Before installation make sure that your system has installed the latest drivers for your device and updated BIOS.

macOS X: Installation of the drivers in macOS X is automatic. Before installation make sure that your Mac has installed the latest OS for your device.

CONNECTING A HDMI MONITOR

The docking station is equipped with 1x HDMI 4K Ultra HD port for the connection of an external monitor or projector with a HDMI interface. For displaying your images you can use a modern plazma or LCD monitors and TVs. The graphic chip, which is the heart of the docking station, supports up to 4K resolution 3840x2160@30Hz. Connect the monitor to the docking station using a highquality HDMI cable. During installation of an additional monitor the screen of the notebook or tablet can flicker which is a standard condition.

CONNECTING A VGA MONITOR

The docking station is equipped with 1x VGA Full HD port for the connection of an external monitor or projector with a VGA interface. For displaying your images you can use a plazma or LCD monitors and TVs. Connect the monitor to the docking station using a VGA cable. During installation of an additional monitor the screen of the notebook or tablet can flicker which is a standard condition.

It is not possible to use both graphic outputs simultaneously, a single monitor only can be connected to the docking station (HDMI or VGA).

CONNECTING TO THE LAN

You can use the GLAN RJ-45 port for connecting the Ethernet to a router / switch and to the internet, it supports speeds of 10 / 100 / 1000 Mbps.

CONNECTING USB DEVICES

You can use USB 3.0 ports for connecting your keyboard, mouse, external hard drive, printer and other devices or you can use it for connecting a USB HUB, which will give you more free USB ports.

CHARGING

The docking station supports charging of USB mobile devices, such as smart phones, e-book readers, multimedia players, navigation devices, and tablets. Simply connect the device that you want to charge using the original cable to the USB port of the docking station. If the device is not charged, connect the original USB-C power adapter to the USB-C Power Delivery port of the docking station.

CHARGING THROUGH POWER DELIVERY

ThedockingstationoffersUSB-CPowerDeliveryport(max.

85 W), designed for charging of the connected "host" device using the original power adapter and for charging of devices connected through the USB ports.

AUDIO

Audio output devices, for listening through graphic output, need to be set / verified here: System Preferences-Sound-Output – select USB Audio Device.Setting the audio output device to both the earphones and the monitor simultaneously can be done in Open-Applications-Utilities-Audio settings MIDI.app – click on „+“ on the left at the bottom – Create device with multiple outputs and select the desired outputs from the offered options on the Device with multiple outputs.

The majority of problems with the docking station and the connected peripheral devices can be solved by disconnecting the USB-C cable of the docking station from the USB-C port of the PC / Mac / smartphone and reconnecting after approximately 10 s.

Quick Start / USB-C Pocket Docking Station EN

SAFETY INSTRUCTIONS

• Do not expose to extreme temperatures and air humidity.
• Use the device on flat surfaces – you will prevent it from slipping and falling to the ground.
• Save the user manual for a possible use later.

In cooperation with the service department:

• Check functionality after falling to water or to the ground.
• Check functionality when the cover is broken.
• Send the device back if it does not work in accordance with the user manual.

FREQUENTLY ASKED QUESTIONS

Available on our website www.i-tec.cz/en on the "FAQ" tab of this product.
