USER MANUAL OPK2 OmniMount

Diagram of a wall-mounted electrical outlet with a cable, showing connections to a square (no text or symbols)

Pure electrical circuit lines without any symbols

Components

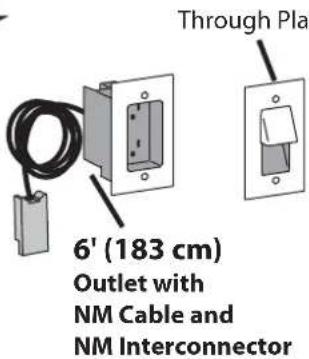

Through Pla 6' (183 cm) Outlet with NM Cable and NM Interconnector

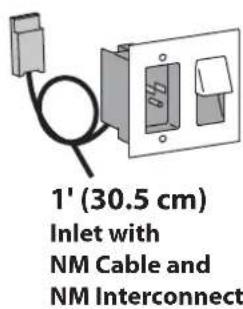

1' (30.5 cm) Inlet with NM Cable and NM Interconnect

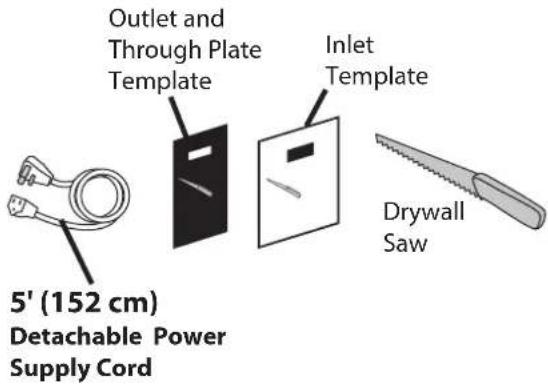

Outlet and Through Plate Template Inlet Template 5' (152 cm) Detachable Power Supply Cord Drywall Saw

Tools Needed

www.omnimount.com

1-800-MOUNT-IT (1-800-668-6848)

Disclaimer – Ergotron, Inc. has extended every effort to ensure the accuracy and completeness of this manual; OmniMount is a registered trademark and brand of Ergotron, Inc. However, Ergotron, Inc. does not claim that the information covers all installation or operational variables. The information contained in this document is subject to change without notice or obligation of any kind. Regarding the information contained herein, Ergotron, Inc. makes no representation of warranty, expressed or implied, and assumes no responsibility for accuracy, sufficiency, or completeness of the information contained in this document.

Ergotron Inc. the Manufacturer, its agents, suppliers, and affiliates, shall not be liable for any damages, not limited to; misuse, acts of nature, verbal and written expression and improper installation. Improper installation is determined such to include, not limited to, non-code compliant installation, product modifications, alterations, adjustments, and substitutions of components or materials.

Terminal Screw Tightened with Torque 2.3Nm

For Use Only In Walls, for support of 49lbs.

For use of the nonmetallic sheathed cable (with mark "N" on the inside back surface of the box)

Not for filed replacement use. For use only where not subject to flexing except for installation purpose

CAUTION-Risk of Fire and Shock-Only intended for use on 15A branch circuits.

WARNING:-Risk of Fire and Shock-Do not connect this box to any other circuits or outlets

CAUTION-Risk of Fire - Do Not Install Power Supply Cord Within the Wall Cavity

WARNING-Risk of Fire-Only Use Cord Set Provided With This Kit.

USE ONLY IN DRY LOCATIONS

DO NOT USE UNDER WET CONDITIONS

The insulation strip length is 11mm.

With wire NM-B 14AWG or 12AWG intended to be connected.

Copper wire only.

Ergotron Inc.

4409 East Baseline Road,

Suite 130

Phoenix, AZ 85042

1-800-MOUNT-IT

(1-800-668-6848)

www.omnimount.com

Model 915-466

OE120IW Lower

Electrical Assembly

Made in China

Intertek

3183011

ETL LISTED

CONFORMS TO

ANSI/UL STD

498 and 514D

CERTIFIED TO CSA

STD C22.2 NO. 42

STD.022.2 NO. CERTIFIED TO

CERTIFIED TO CANUGA STD

CAN/CSA STD

C22.2 NO.42.1

828-379-00

CAUTION

For Use Only In Walls, for support of 49lbs.

For use of the nonmetallic sheathed cable (with mark "N" on the inside back surface of the box)

CAUTION-Risk of Fire and Shock-Only intended for use on 15A branch circuits.

WARNING:-Risk of Fire and Shock-Do not connect this box to any other circuits or outlets

CAUTION-Risk of Fire - Do Not Install Power Supply Cord Within the Wall Cavity

WARNING-Risk of Fire-Only Use Cord Set Provided With This Kit

USE ONLY IN DRY LOCATIONS

DO NOT USE UNDER WET CONDITIONS

USE WITH 14AWG COPPER WIRE ONLY

Insulation strip length:11mm

Ergotron Inc.

4409 East Baseline Road,

Suite 130.

Phoenix, AZ 85042

1-800-MOUNT-IT

(1-800-668-6848

www.omnimount.com

|

Model 915-465

Recessed Outlet

Kit Assembly

Made in China

Intertek

3183011

ETL LISTED

CONFORMS TO

ANSI/UL STD.

498 and 514D

CERTIFIED TO CSA

STD.C22.2 NO. 42

CERTIFIED TO

CAN/CSA STD

C22.2 NO.42.1

828-380-00

WARNING: FAILURE TO READ, THOROUGHLY UNDERSTAND, AND FOLLOW ALL INSTRUCTIONS CAN RESULT IN

SERIOUS PERSONAL INJURY, DAMAGE TO PERSONAL PROPERTY, OR VOIDING OF FACTORY WARRANTY!

It is the responsibility of the installer to ensure all components are properly assembled and installed using the instructions provided. If you do not understand these instructions or have any questions or concerns, please contact customer service at 1-800-668-6848 or [e-mail].

Do not attempt to install or assemble this product if the product or hardware is damaged or missing. In the event that replacement parts or hardware are needed, please contact Customer Service at 1-800-668-6848 or [e-mail]. International customers needing assistance should contact the Dealer from which they purchased the product.

WARNING! THIS PRODUCT IS NOT TO BE INSTALLED, DIRECT WIRED, OR BRANCHED TO THE BUILDING ELECTRICAL CIRCUIT/WIRING SYSTEM!

DO NOT MODIFY OR ALTER ANY PORTION OF THE COMPONENTS OF THE FACTORY ASSEMBLED APPLIANCE.

Do not install this product near water, example, near a sink, tub, shower, swimming pool or laundry area.

Manufacturer is not liable for damages due to improper installation methods not followed herein.

This product does not have built-in electronic circuitry for surge protection or A/C filtering.

It is recommended that this product be connected to a quality surge-protector/power conditioner for equipment protection.

WARNING! DO NOT ATTEMPT TO SERVICE OR ALTER THIS PRODUCT. THIS PRODUCT IS TO ONLY BE SERVICED BY A PROFFESIONAL ELECTRICIAN.

CAUTION! Risk of Fire and Shock - Detachable Power Supply Cord is only intended for use with a 15 Amp Grounded recepticle.

CAUTION! Risk of Fire and Shock - Only intended for use on 15 ampere branch circuits.

CAUTION! Risk of Fire - Do Not Install Power Supply Cord Within the Wall Cavity.

CAUTION! Risk of Fire. Only Use Cord Set Provided with This Kit.

CAUTION! Not for fi led replacement use.

For use only where not subject to flexing except for installation purpose.

CAUTION! USE ONLY IN DRY LOCATIONS. DO NOT USE UNDER WET CONDITIONS.

WARNING! Risk of Fire and Shock. Do not connect this box to any other circuits or outlets.

WARNING! Check for firelock obstructions in the wall prior to cutting any holes.

Do not use section of wall with any firelock obstructions. Failure to follow these instructions may cause equipment damage and or personal injury.

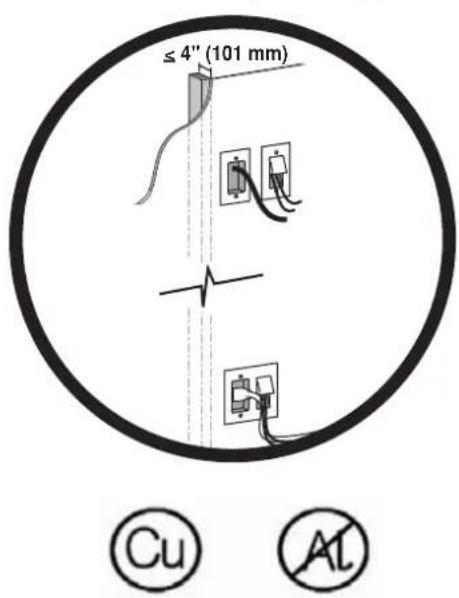

≤ 4" (101 mm) Cu Al

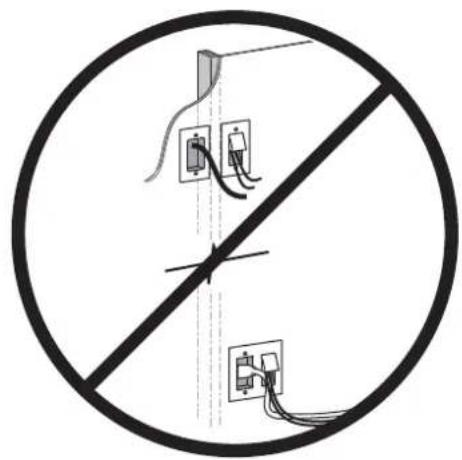

Diagram of a crossed-out electrical circuit with two plug outlets and wiring, no text or symbols present.

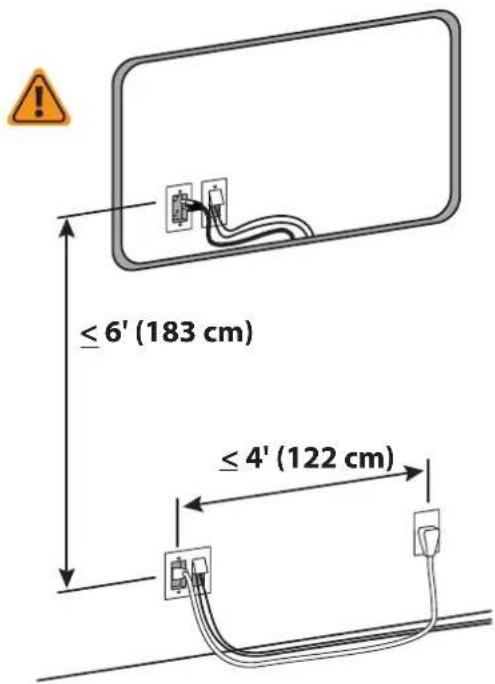

≤ 6' (183 cm) ≤ 4' (122 cm)

AVERTISSEMENT : OMETTRE DE LIRE, BIEN COMPRENDRE ET SUIVRE TOUTES LES INSTRUCTIONS PEUT

ENTRAÎNER DES BLESSURES GRAVES OU DES DOMMAGES MATÉRIELS, OU ANNULER LA GARANTIE D'USINE !

≤ 6' (183 cm) ≤ 4' (122 cm)

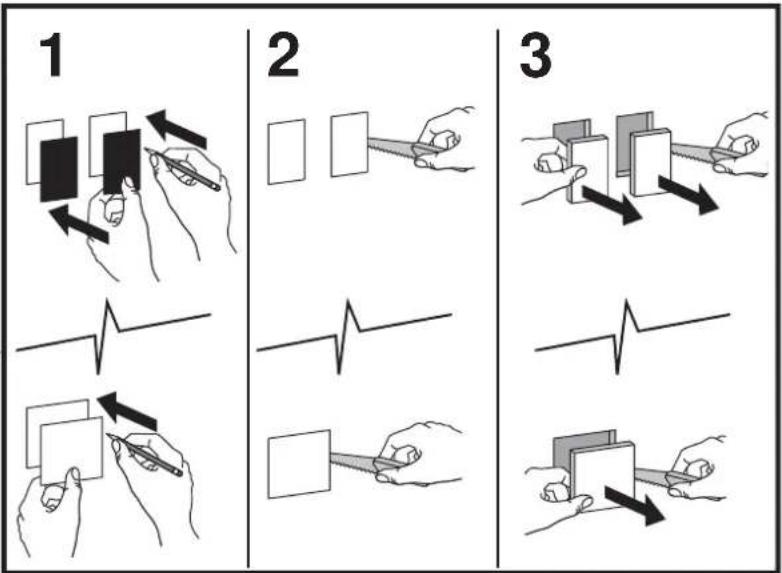

1. Use Templates to mark cut-outs on wall.
   NOTE: Allow for enough cable length to attach TV and audio components.
2. Cut wall with saw along marks
3. Remove wall cut-outs.

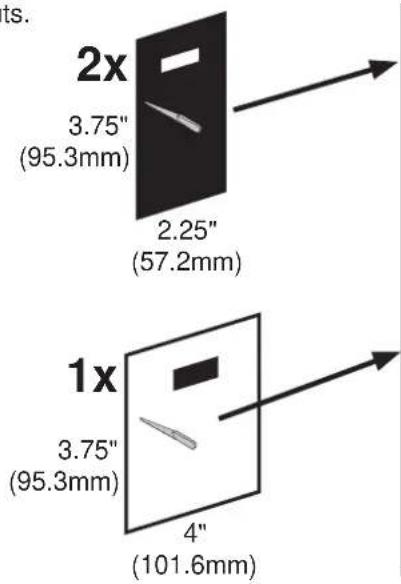

ts. 2x 3.75" (95.3mm) 2.25" (57.2mm) 1x 3.75" (95.3mm) 4" (101.6mm)

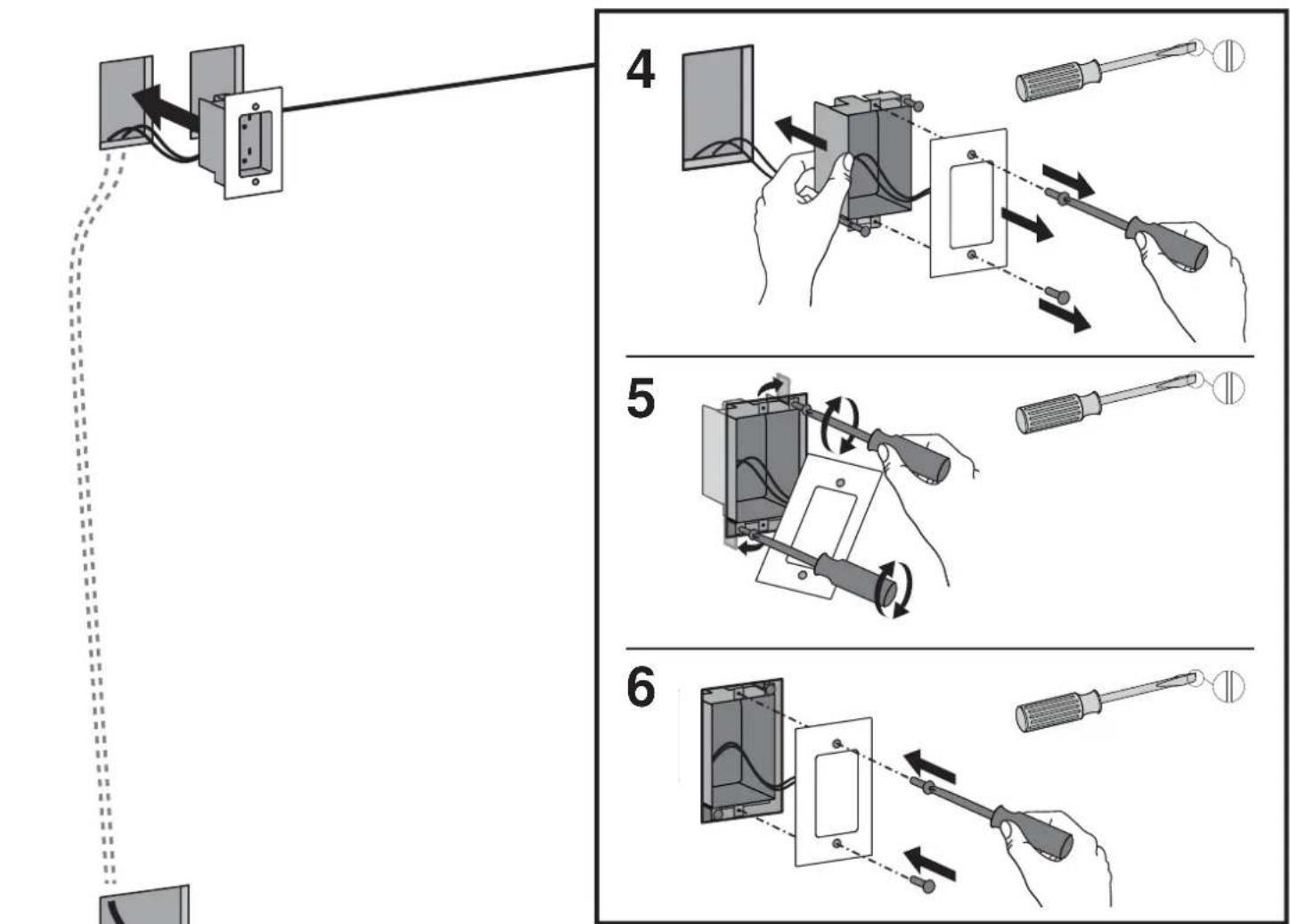

1 2 3

Allow for enough cable length to attach TV and audio components.

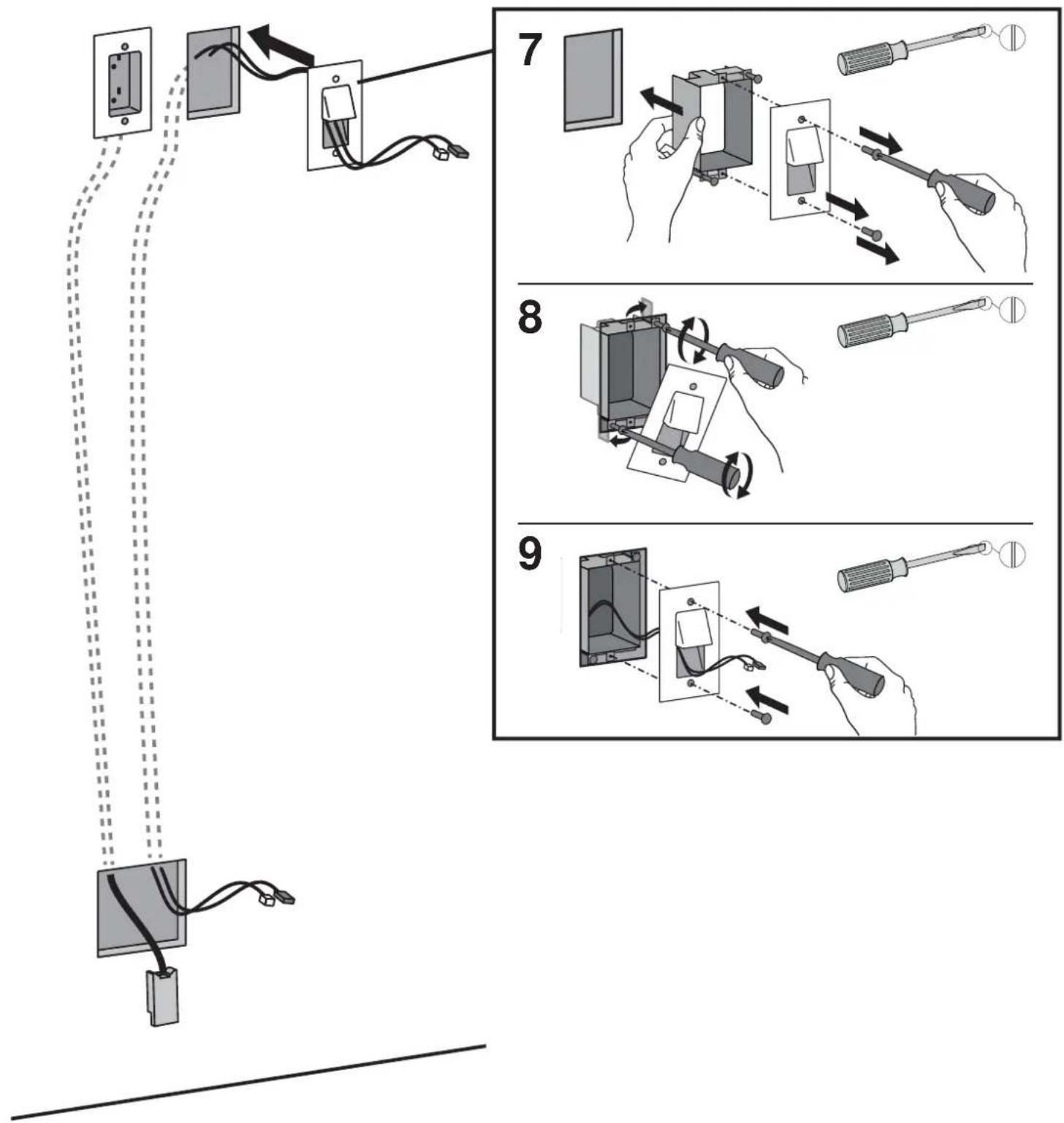

Diagram illustrating three-step electrical installation procedure: wire connection, switch switching, and circuit breakdown with labeled steps 7, 8, and 9.

WARNING: Make sure you have full engagement of power connectors. Failure to do so may result in product failure, damage and/or personal injury.

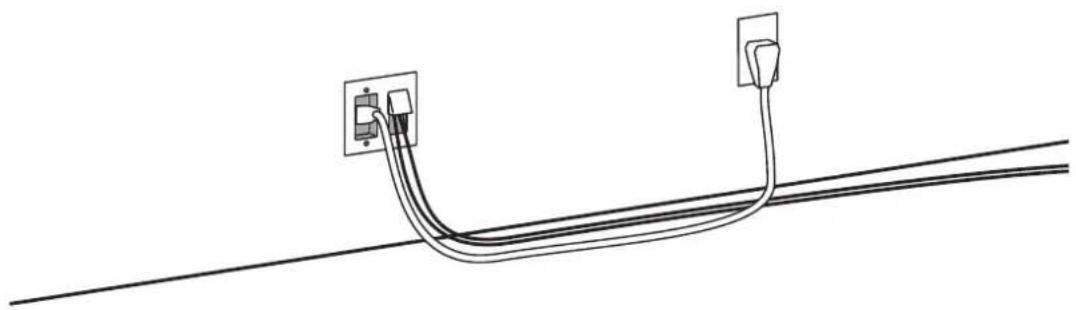

Plug power supply cord into existing grounded outlet or surge protector.

CAUTION! Risk of Fire and Shock -

Detachable Power Supply Cord is only intended for use with a 15 Amp Grounded recepticle.

CAUTION! Do not use another extension cord in place of or to extend this supplied cord.

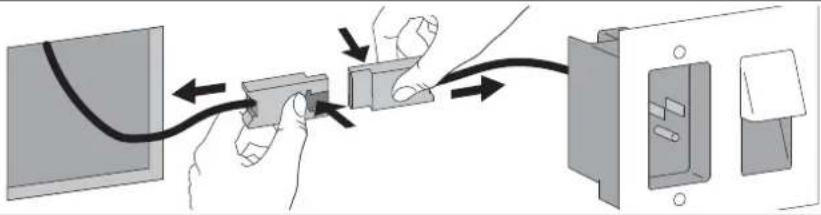

How to Disconnect Power Cables.

Push in tabs on both connectors and pull apart.

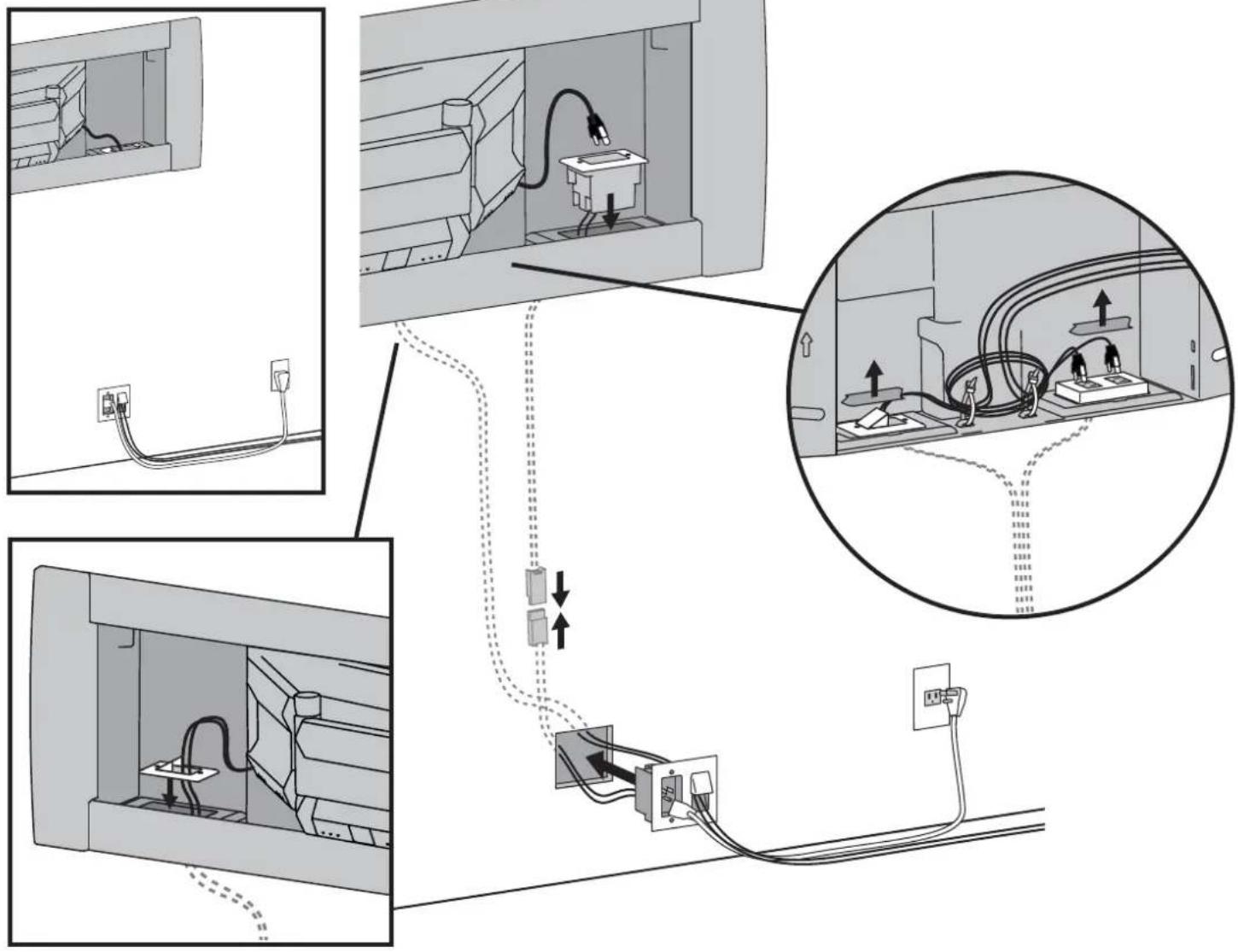

Diagram showing cable installation process with labeled components and directional arrows

OE120IW in wall series

Diagram illustrating cable installation and connection to a TV wall, showing cable routing and wiring connections with annotations.
