USER MANUAL TORINO 55 OmniMount

OMNI MOUNT

AV

INSTRUCTION MANUAL

MANUEL D'INSTRUCTIONS

BENUTZERHANDBUCH

INSTRUCTIEHANDLEIDING

MANUAL DE INSTRUÇÕES

BRUGERVEJLEDNING

ASENNUSOPAS

MONTERINGSANVISNING

MANUAL CU INSTRUCTIUNI

Black circular table with two shelves, one open and one closed, no visible text or symbols

Max weight 150 lbs - 45.4 kg

DISCLAIMER – WARNING INFORMATION - FURNITURE

1(800) MOUNT-IT (668-6848)

Disclaimer – OmniMount Systems, Inc. has extended every effort to ensure to accuracy and completeness of this manual. However, OmniMount Systems, Inc. does not claim that the information covers all installation and or operational variables. The information contained in this document is subject to change without notice or obligation of any kind. Regarding the information contained herein, OmniMount Systems, Inc. makes no representation of warranty, expressed or implied, and assumes no responsibility for accuracy, sufficiency, or completeness of the information contained in this document.

Furniture

Furniture items are heavy and should only be moved with two or more individuals using proper lifting techniques. Do not attempt to move furniture with items on top of or within the product. Furniture pads or glides are recommended when furniture is being used on laminate type flooring. This product is meant for indoor use only on a flat, level surface.

Tip protection (anti-tip device) is not provided for TV's placed on top of this piece of furniture. OmniMount recommends the use of our OESK Child Safety Kit where small children or animals may be present. Contact the dealer where this product was purchased for more information.

Product Care: To clean this product, wipe with a damp cloth and mild soap solution. Dry the product with a separate clean cloth. Glass surfaces may be cleaned with a quality glass cleaning solution and paper towels. Never use abrasive chemicals or household cleaners on materials surface, doing so may result in fading, discoloration, cracking or peeling of veneer. To prolong material finish, avoid the following: Direct heat applied to surfaces, Above average room temperatures, abrasive cleaner, Direct sunlight for prolonged periods, Liquid spills not removed properly, household cleaners.

ESPAÑOL

POUNDS (LBS) / KILOGRAMS (KG)MAX

100 (LBS) / 45.4 (KG)TOP SHEL

25 (LBS) / 11.3 (KG)GLASS SH

25 (LBS) / 11.3 (KG) BOTTOM SHELF

Two-panel cartoon showing a person reacting to a TV screen and another holding a table with an upward arrow, both marked with checkmarks.

USE WITH FLAT PANELS EXCEEDING THE MAXIMUM WEIGHT CAPACITY OF THIS PRODUCT MAY RESULT IN PRODUCT FAILURE CAUSING POSSIBLE INJURY AND OR PROPERTY DAMAGE.

EL USO CON TELEVISORES DE PANTALLA PLANA CUYO PESO EXCEDA LA CAPACIDAD MÁXIMA DEL PRODUCTO PUEDE OCASIONAR FALLAS EN ÉSTE Y CAUSAR LESIONES O DAÑOS MATERIALES.

SI VOUS UTILISEZ CE PRODUIT AVEC DES ÉCRANS PLATS DÉPASSANT LA CHARGE MAXIMALE AUTORISÉE, LE PRODUIT POURRAIT MAL FONCTIONNER, ENTRAÎNANT BLESSURES ET ENDOMMAGEMENT DE MATÉRIEL.

Line drawing of a screwdriver with a pointed tip and threaded shaft (no text or symbols)

CONTENTS

Part #	Qty	Description
1	1	Top
2	2	Sides
3	2	Top Support Tube
4	2	Bottom Support Tube
5	1	Glass Shelf
6	1	Bottom
7	2	Toe Kick

Exploded view diagram of a device with numbered parts for assembly or maintenance reference

HARDWARE

Screws / Hardware for Product (OM1100456vA)
Part #	Qty	Description
	8P-A	Plastic Washer
		Threaded Post (M6 x 47mm) 2P-B
		Threaded Post (M6 x 67mm) 2P-C
		Button Head Screw (M6 x 10mm)12P-D
		Button Head Screw (M6 x 35mm)2P-E
		Leveling Feet (M6 x18)6P-F
		Wood Screw (5/32" x 1-1/2")8P-G
		Shelf Pad4P-H
		Allen Wrench (4mm)1P-I

3D line drawing of a simple oval-shaped table with curved legs and a flat top (no text or symbols)

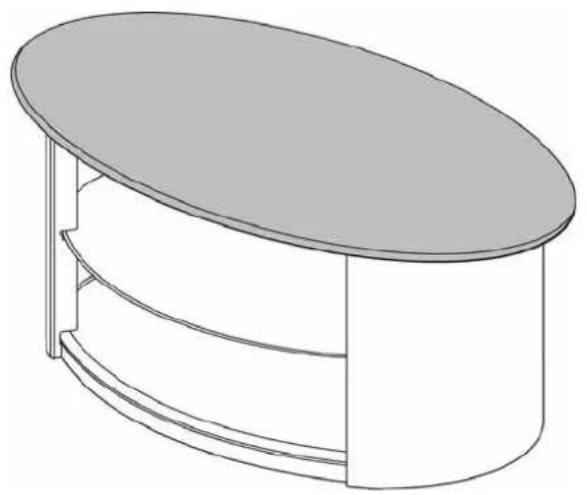

This is how the product looks assembled.

3D rendering of a cylindrical mechanical component with mounting brackets and a shaded base (no text or symbols)

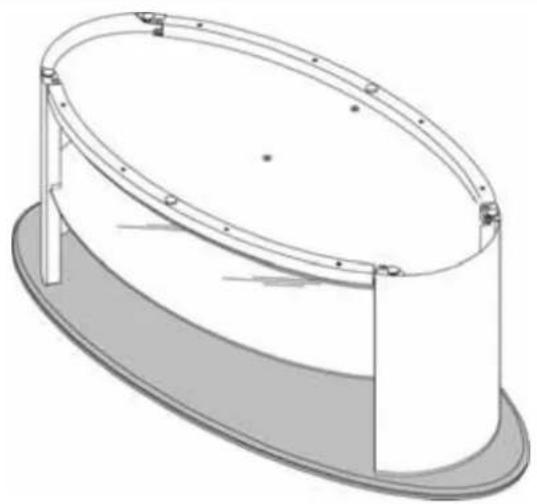

NOTE: You will be assembling this piece upside down.

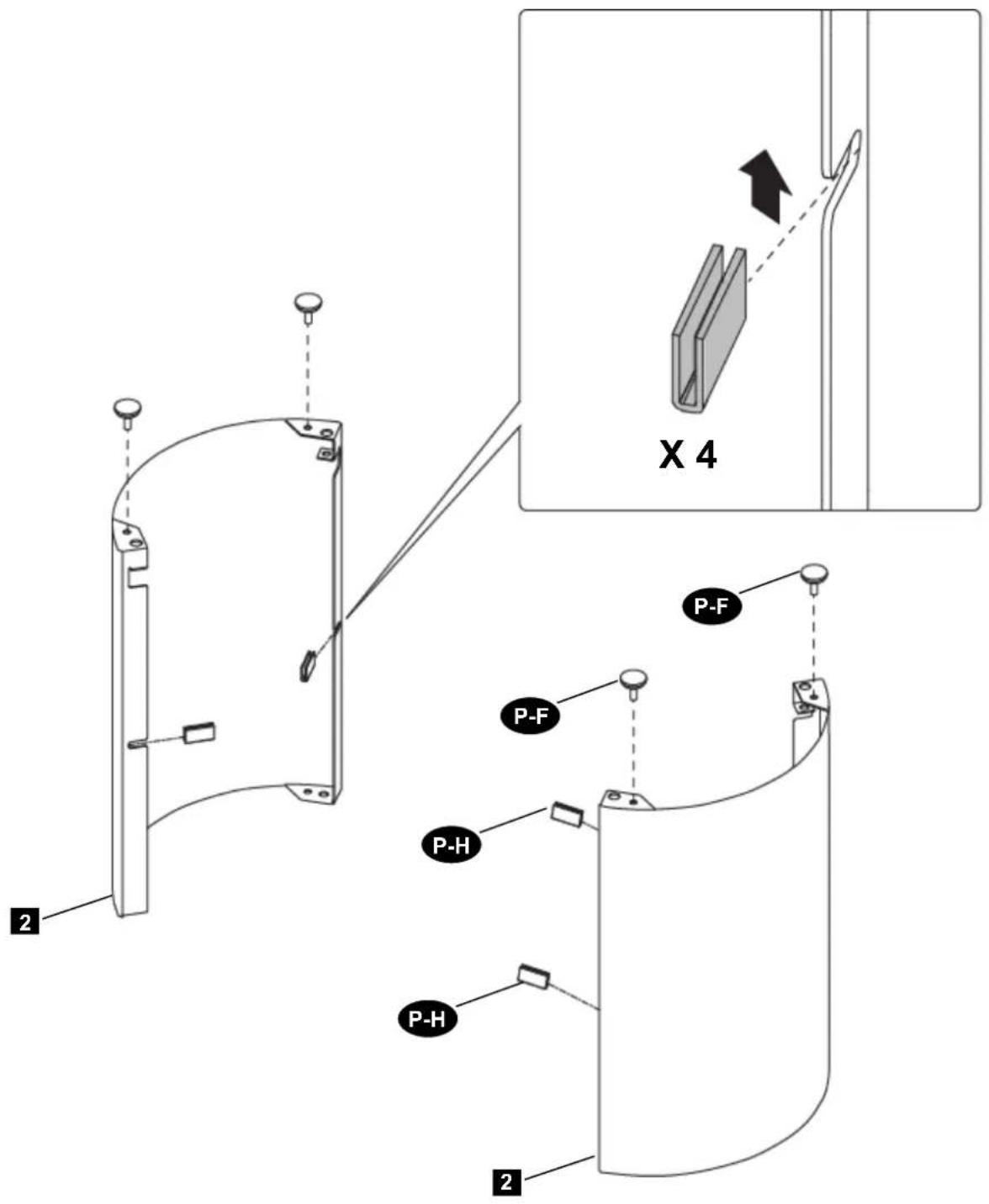

X 4 P-F P-F P-H P-H 2 2

STEP 2

P-I X 5

Build item on a soft surface to prevent damage.

P-A 3 P-B P-A P-B

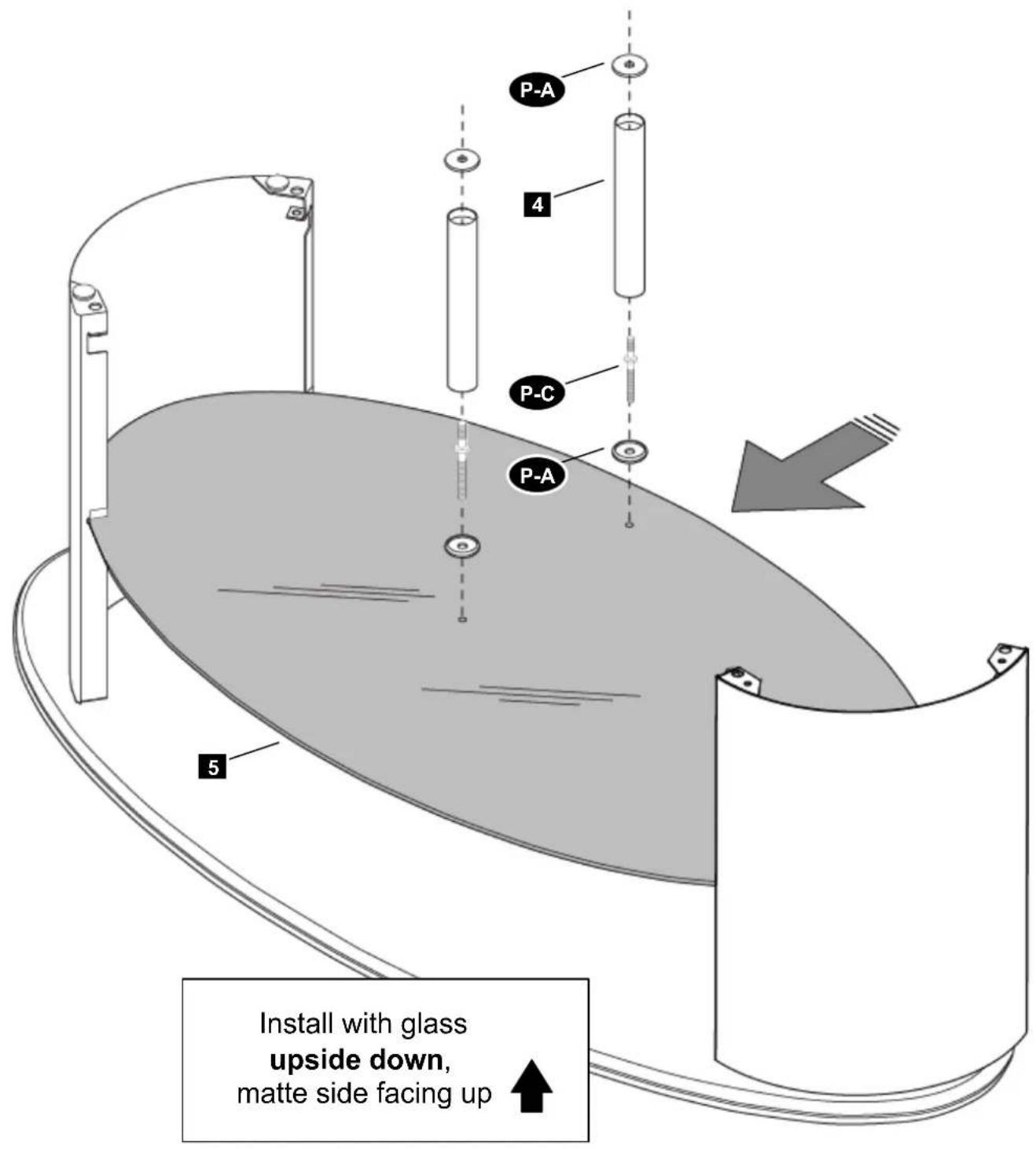

P-A 4 P-C P-A 5 Install with glass upside down, matte side facing up

STEP 5

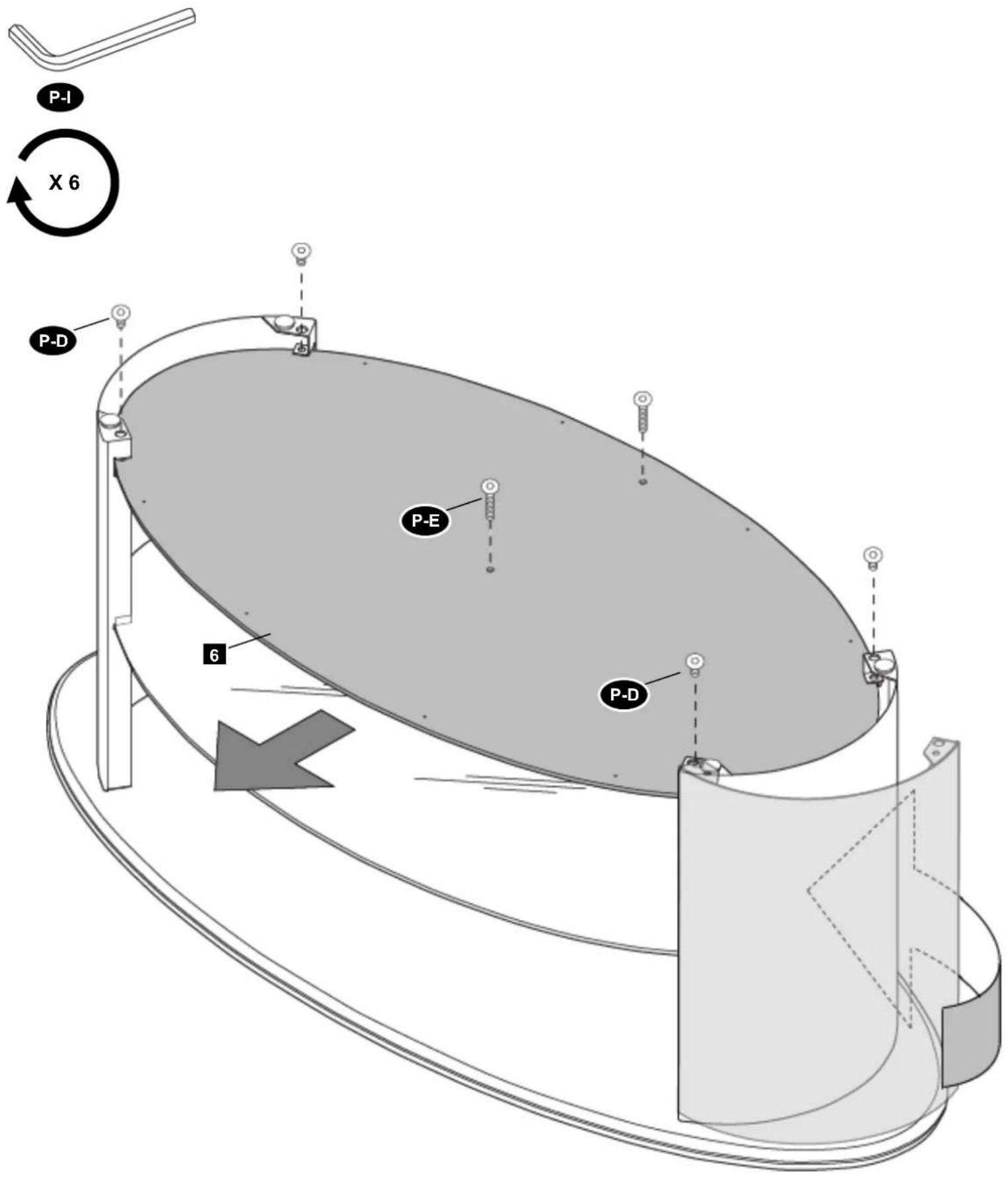

P-I X 6 P-D P-E 6 P-D

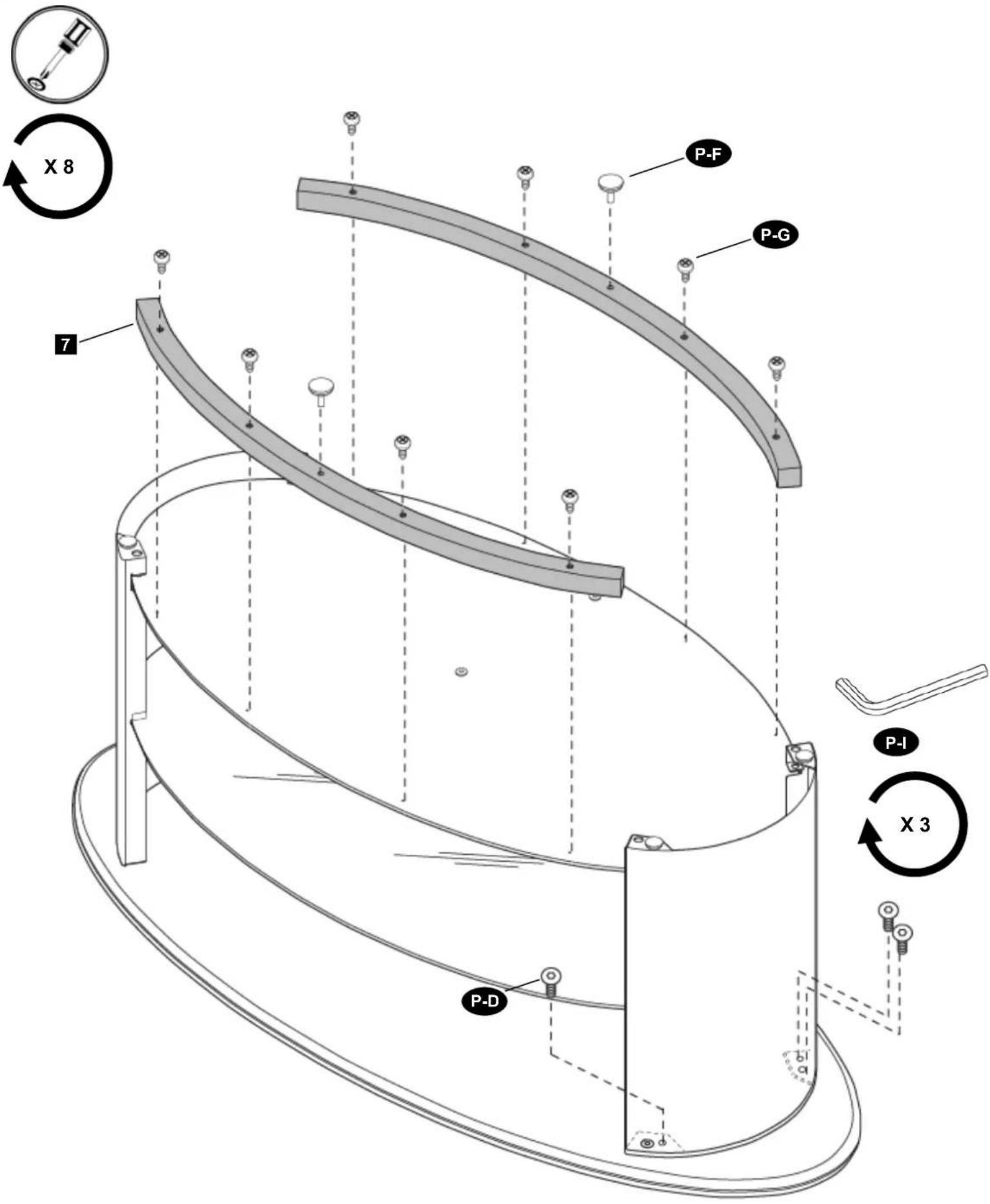

P-F P-G X 8 7 P-I X 3 P-D

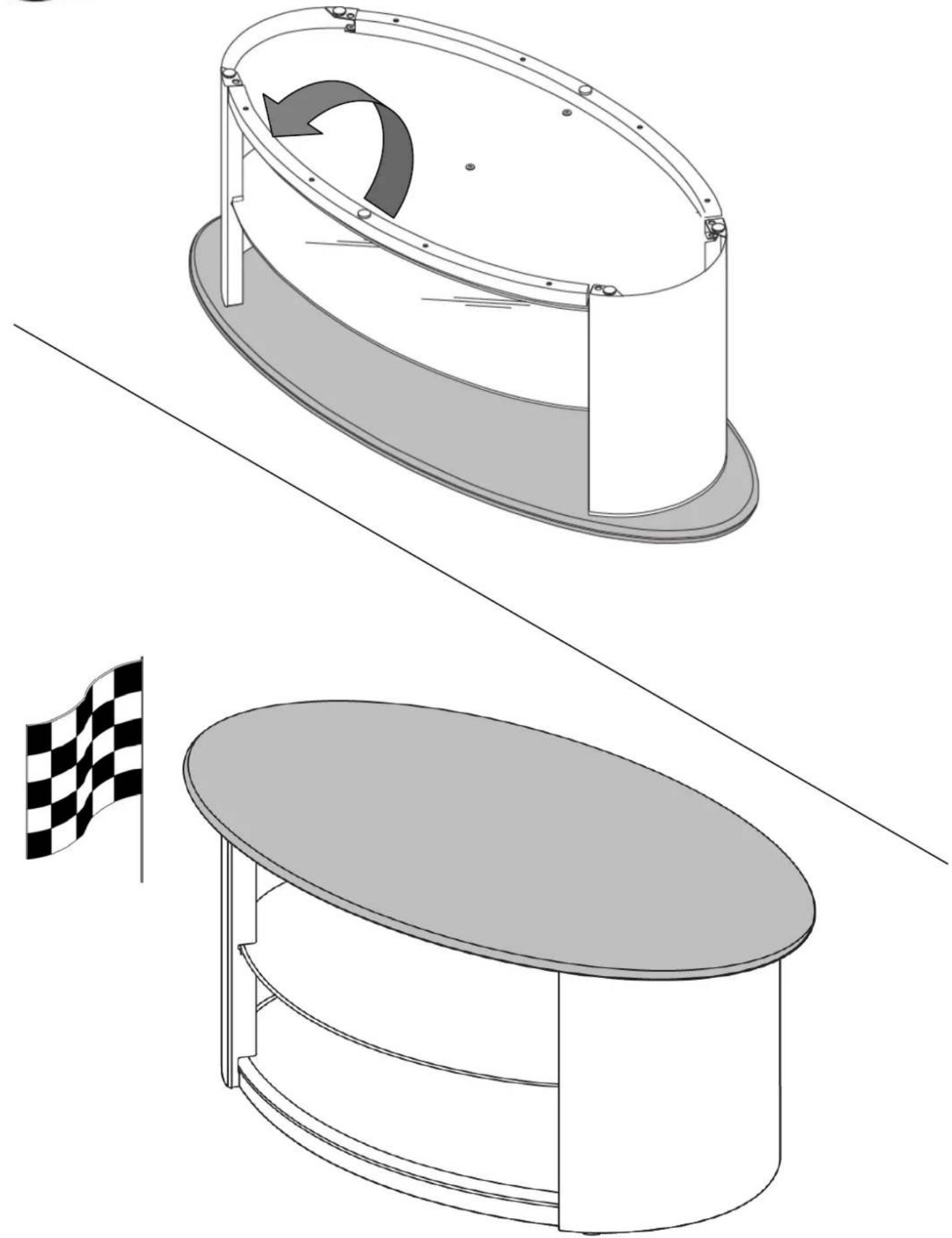

Technical illustration of a mechanical component with a rotating wheel and a checkered table, showing no text or symbols.

WARRANTY INFORMATION

This warranty applies to US Residents who purchase from an authorized OmniMount Dealer. OmniMount products are covered against defects in materials and workmanship for 5 years. OmniMount will repair or replace the defective component or product, at its sole discretion. Failure to follow product care instructions from OmniMount will result in void of warranty.
To obtain warranty service, contact OmniMount customer service at 800.MOUNT.IT (800.668.6848) or [e-mail]. You must supply a copy of your original receipt. If your product must be shipped to OmniMount for inspection, you will be responsible for the shipping charges. Replacement product shipped to you will be returned freight pre-paid.
- OmniMount disclaims any liability for modifications, improper installations, installations over the specified weight range, or failure to follow care instructions provided by OmniMount. To the maximum extent permitted by law, OmniMount disclaims any other warranties, expressed or implied, including warranties of fitness for a particular purpose and warranties of merchantability. OmniMount will not be liable for any damages arising out of the use of, or inability to use, OmniMount products. OmniMount bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of OmniMount products performed by anyone other than OmniMount.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
■ Specifications are subject to change without prior notice.

ESPAÑOL

Notice to customer outside the United States: Please contact the dealer where you purchased this product for details about how to obtain warranty service in your country.

THANK YOU FOR PURCHASING AN OMNIMOUNT PRODUCT

GRACIAS POR ADQUIRIR UN PRODUCTO DE OMNIMOUNT

MERCI D'AVOIR ACHETÉ UN PRODUIT OMNIMOUNT

TACK FÖR ATT DU KÖPTE EN OMNIMOUNT-PRODUKT

VĂ MULTUMIM CĂ ATI ACHIZIȚIONAT UN PRODUS OMNIMOUNT

TAKK FOR AT DU KJ∅PTE ET OMNIMOUNT-PRODUKT

BEHÖVER DU HJÄLP? RING

AVETI NEVOIE DE AJUTOR? SUNATI

НУЖДАЕТЕ СЕ ОТ ПОМОЩ? МОЛЯ, ОБАДЕТЕ СЕ

VAJATE ABI? PALUN HELISTAGE

NEPIECIEŠAMA PALÍDZÍBA? LÜDZU, ZVANIET

REIKIA PAGALBOS? SKAMBINKITE

ALI POTREBUJETE POMOČ? PROSIMO, POKLIČITE.

POTREBUJETE POMOC? PROSÍM, VOLAJTE

НУЖНА ПОМОЩЬ? ЗВОНИТЕ

YARDIM MI LAZIM? LÜTFEN BIZI ARAYIN

TRENGER DU HJELP? RING OSS
