Dishwasher

Instruction Manual

PART I : Generic Version

CONTENTS

01
02
03
04
05
06
07
3 SAFETY INFORMATION
8 PRODUCT OVERVIEW
9 USING YOUR DISHWASHER
9 Loading The Salt Into The Softener
11 Basket Loading Tips
15 MAINTENANCE AND CLEANING
15 External Care
15 Internal Care
18 Caring For The Dishwasher
19 INSTALLATION INSTRUCTION
19 Power Connection
20 Water Supply And Drain
21 Connection Of Drain Hoses
22 Positioning The Appliance
22 Built-In Installation (for the integrated model)
27 TROUBLESHOOTING TIPS
30 Availability Of Spare Parts
31 LOADING THE BASKETS

NOTE:

• Reviewing the section on will help you solve some common problems by yourself.
• If you cannot solve the problems by yourself, please ask for help from a professional technician.
• The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.
• If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible vendor.

SAFETY INFORMATION

WARNING

When using your dishwasher, follow the precautions listed below:

• Installation and repair can only be carried out by a qualified technician
- This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision. (For EN60335-1)

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1)

• Packaging material could be dangerous for children!
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is for indoor household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
• Please unplug before cleaning and maintenance the appliance. Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Earthing Instructions

• This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.
• Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.

• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

• Do not modify the plug provided with the appliance if it does not fit the outlet.

• Have a proper outlet installed by a qualified electrician.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.

- When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal; 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points facing down or placed in a horizontal position.

- Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open.

- Check that there are no detergent residues after completion of the wash cycle.

- Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent.

• For unmarked plastic items not so marked, check the manufacturer's recommendations.
• Use only detergent and rinse agents recommended for use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• The door should not be left open, since this could increase the risk of tripping.
• During installation, the power supply must not be excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance needs to be connected to the main water valve using new hose sets. Old sets should not be reused.
• To save energy, in stand by mode, the appliance will switch of automatically after 15 minutes without any user interaction.
• The maximum number of place settings to be washed is 14.
• The maximum permissible inlet water pressure is 1MPa.
• The minimum permissible inlet water pressure is 0.04MPa.

Disposal

- For disposing of package and the appliance please go to a recycling center. Therefore cut off the power supply cable and make the door closing device unusable.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

• Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
• For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.
• DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

PRODUCT OVERVIEW

IMPORTANT:

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

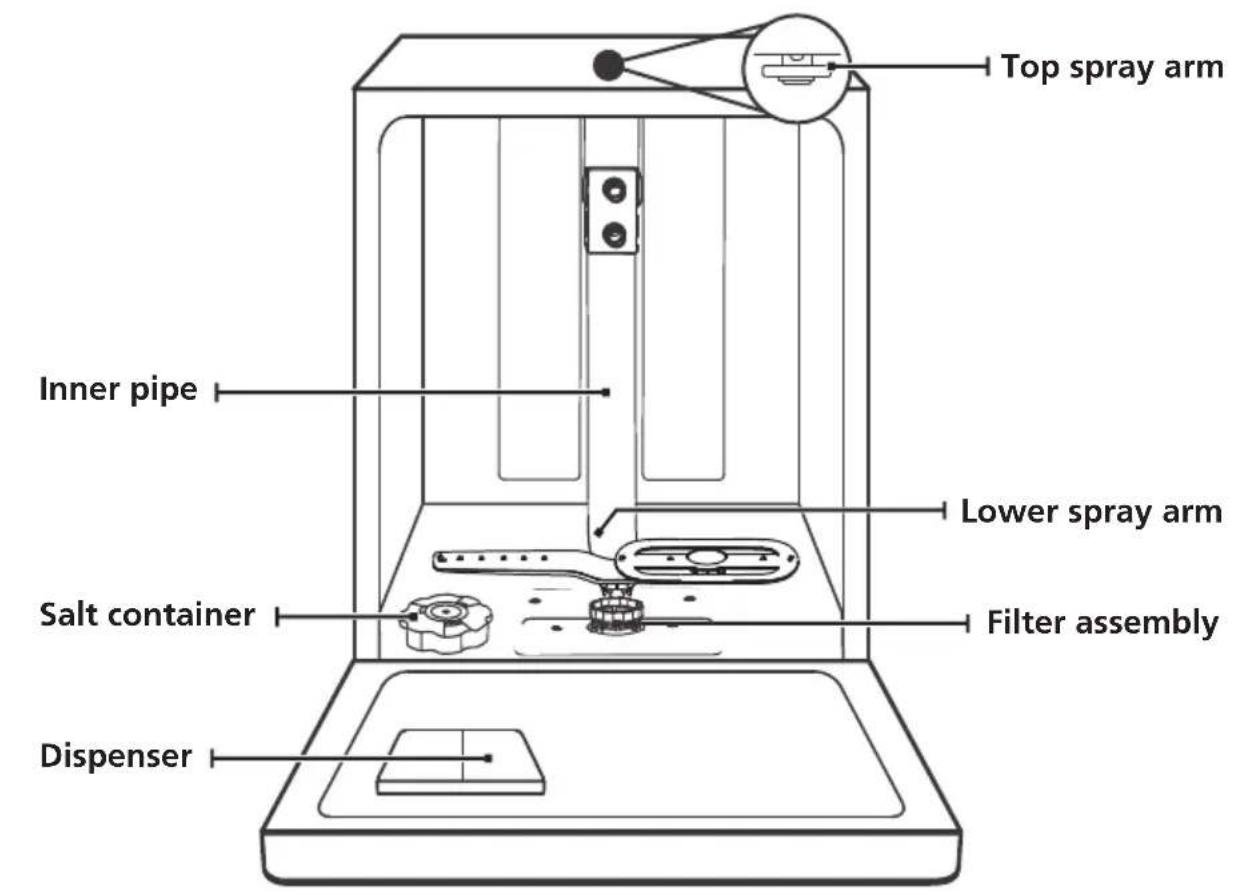

Top spray arm Inner pipe Lower spray arm Salt container Filter assembly Dispenser

Technical line drawing of a mechanical component with grid-like structure (no text or symbols)

Cutlery rack

Technical line drawing of a 3D structural framework with grid patterns and support columns (no text or symbols)

Upper spray arm
Cup rack
Upper basket

Line drawing of a wire mesh basket with multiple panes and handles (no text or symbols)

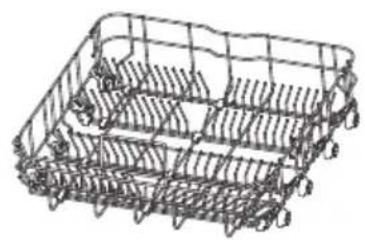

Lower basket

NOTE:

Pictures are only for reference, different models may be different.

USING YOUR DISHWASHER

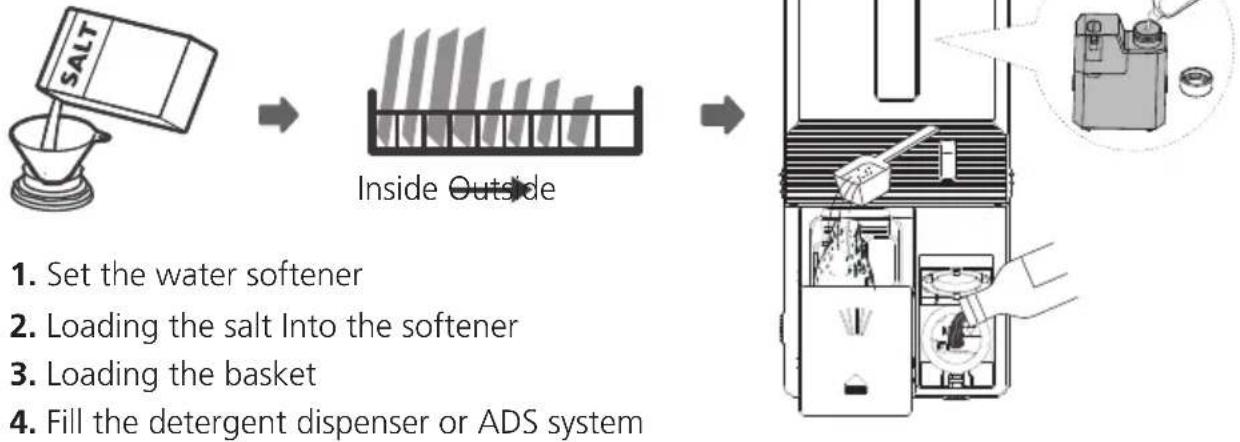

Before using your dishwasher :

1. Set the water softener
2. Loading the salt Into the softener
3. Loading the basket

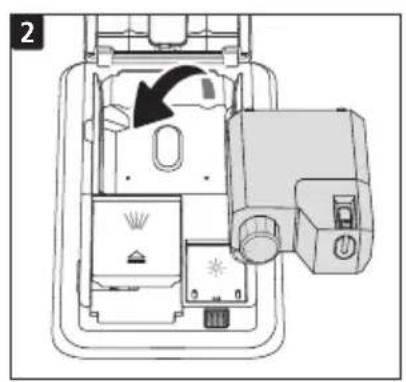

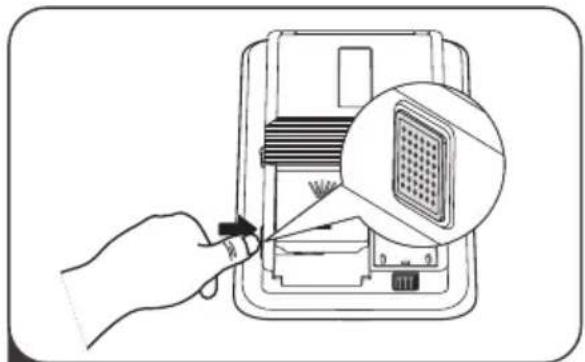

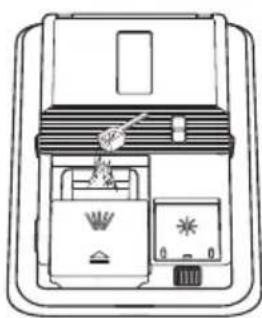

4. Fill the detergent dispenser or ADS system

Diagram showing a device being processed with a brush, accompanied by an inset image of a mechanical device and a hand holding a device.

Please check the section 1 "Water Softener" of PART II: Special Version, If you need to set the water softener.

Loading The Salt Into The Softener

NOTE:

If your model does not have any water softener, you may skip this section. Always use salt intended for dishwasher use.

The salt container is located beneath the lower basket and should be filled as explained in the following:

WARNING

• Only use salt specifically designed for dishwashers use!
  Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.
  • Only fill with salt before running a cycle.

This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

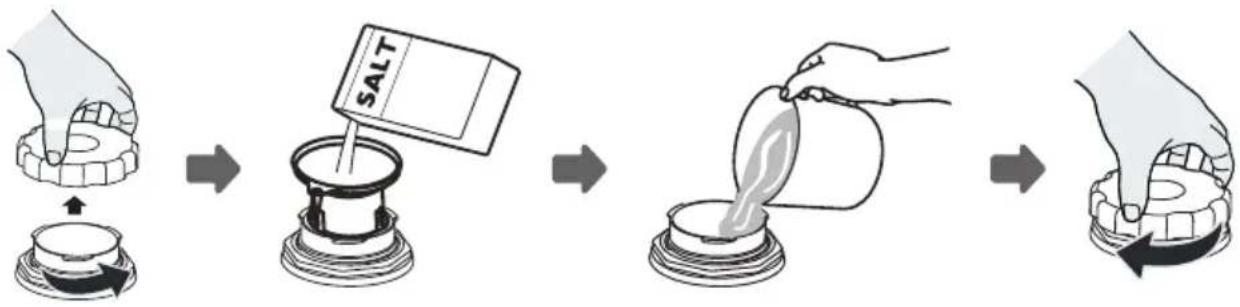

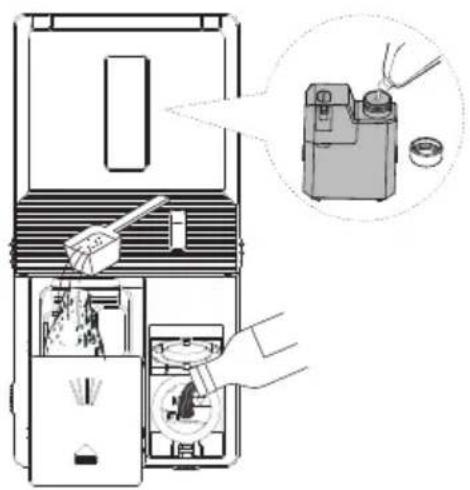

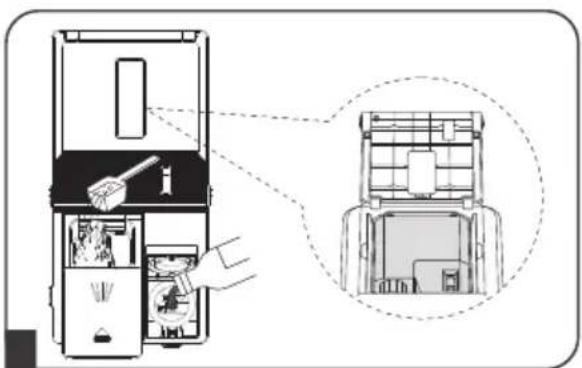

Please follow the steps below for adding dishwasher salt:

1. Remove the lower basket and unscrew the reservoir cap.

2. Place the end of the funnel (if supplied) into the hole and pour in about 1.5 kg of dishwasher salt.

3. Fill the salt container to its maximum limit with water, It is normal for a small amount of water to come out of the salt container.

4. After filling the container, screw back the cap tightly.

5. The salt warning light will turn off the salt container has been filled with salt.

6. Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

NOTE:

- The salt container must only be refilled when the salt warning light (⇨) in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled.

If there is no salt warning light in the control panel (for some model) can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.

• If salt has spilled, run a soak or quick program to remove it.

Basket TipsLoading

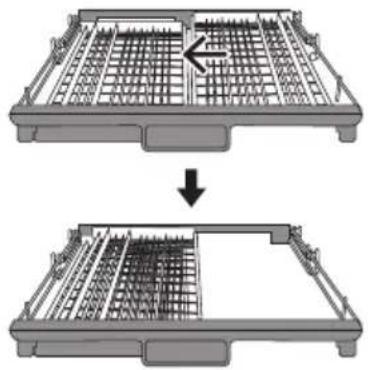

Adjusting cutlery rack

Two identical diagrams showing a grid structure before and after transformation, with no text or symbols present.

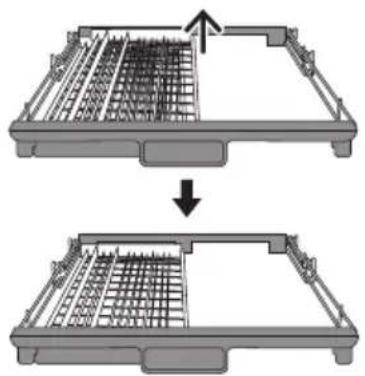

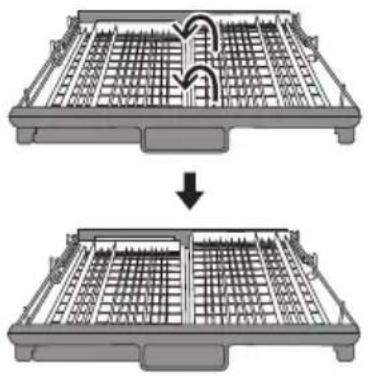

Lift the right basket up, both left and right baskets are flat.

Two-step diagram showing a grid structure before and after modification, with no text or symbols present.

Move the right basket from right to left, two basket are overlapping.

Two-step diagram showing a grid-patterned rack or tray with an arrow indicating direction (no text or symbols)

Remove the right basket from the tray, only has the left basket.

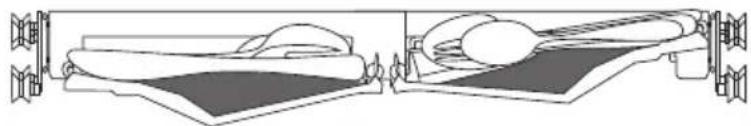

Easy removal of cutlery

Using the principle of crank slider mechanism, the cutlery are suspended. Convenient finger goes deep under the knife and fork, and holds several cutlery at a time.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

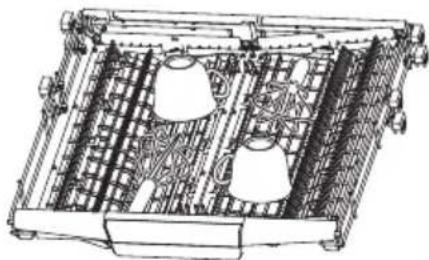

Make the most of space

It can accommodate dishes such as egg beaters, cups, etc., and does not affect the upper basket.

Technical line drawing of a mechanical assembly with two cylindrical components and grid-patterned surfaces (no text or symbols)

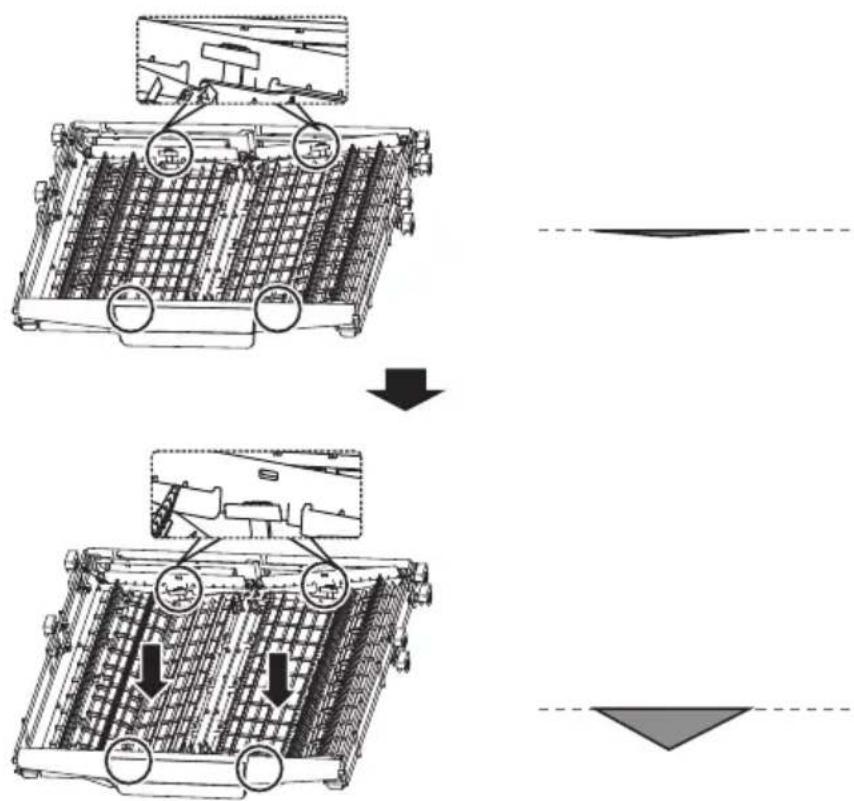

Adjust the height of the rack

Loosen the four buttons on the tray and press down gently.

Diagram illustrating the process of installing or maintaining a grid device, showing step-by-step assembly with labeled components and directional arrows.

Adjusting the upper basket

Type 1:

The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or lower basket.

To adjust the height of the upper rack, follow these steps:

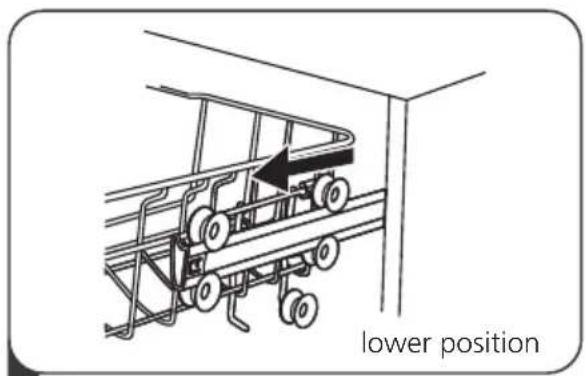

lower position

1 Pull out the upper basket.

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

2 Remove the upper basket.

Line drawing of a mechanical cart with wheels and an arrow indicating motion (no text or symbols)

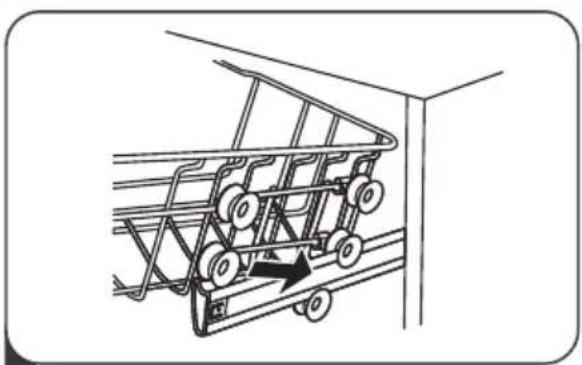

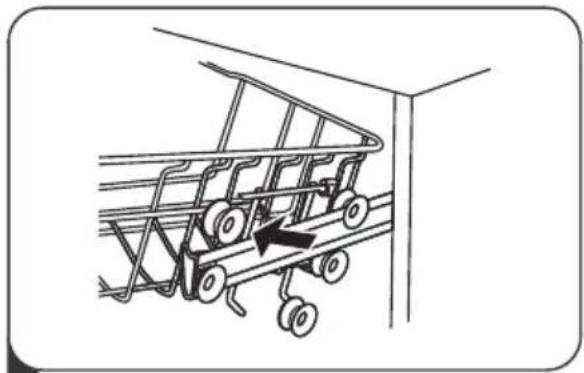

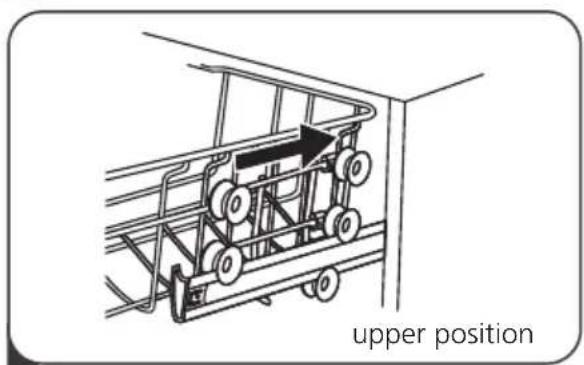

3 Re-attach the upper basket to upper or lower rollers.

upper position

4 Push in the upper basket.

Type 2:

Technical line drawing of a mechanical assembly with hands operating it (no text or symbols)

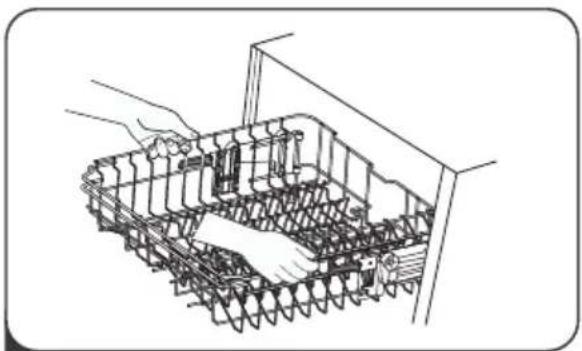

1 To raise the upper basket just lift, the upper basket at the center of each side until the basket locks into place in the upper position. It is not necessary to lift the adjuster handle.

Technical diagram showing a hand operating a tracked vehicle with circular annotations indicating components and an upward arrow.

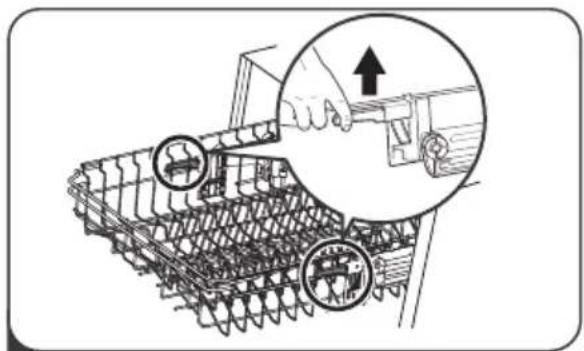

2 To lower the upper basket, adjust handles on each side to release the basket and lower it to the lower position.

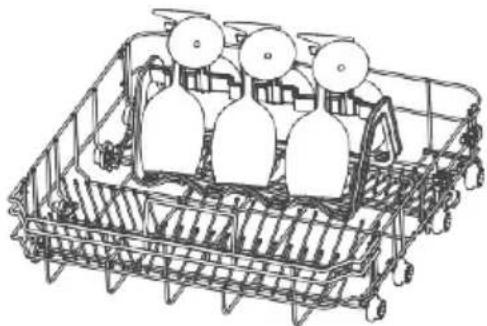

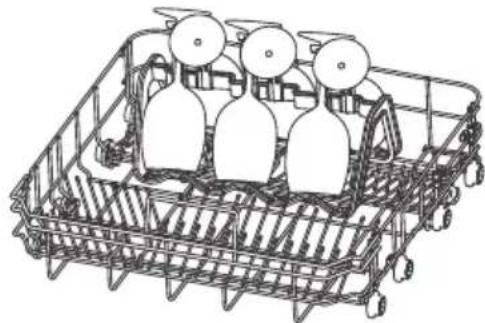

Win-wine glass rack

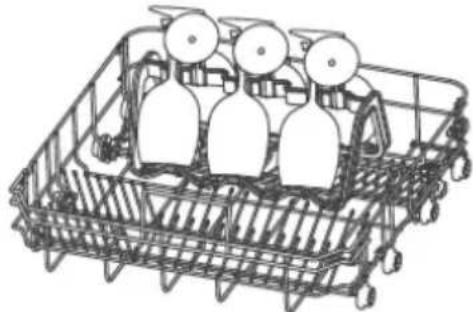

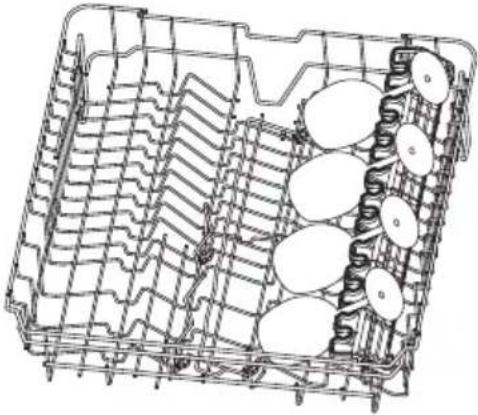

You can load cups or glasses onto the glass support. This is also very convenient for washing wine glasses. Hang your wine glasses onto the pegs of the glass support.

Technical line drawing of a mechanical assembly with grid lines and circular components (no text or symbols)

Upper basket

Line drawing of a multi-tiered plastic container with multiple bottles (no text or symbols)

Place the rack in the lower basket

After placing the wine glasses, remove the cup rack from the lower basket and put down the two rows of folding spikes, then you place the rack in the basket.

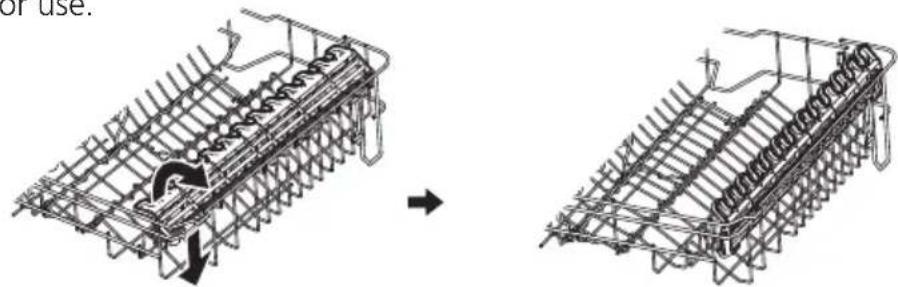

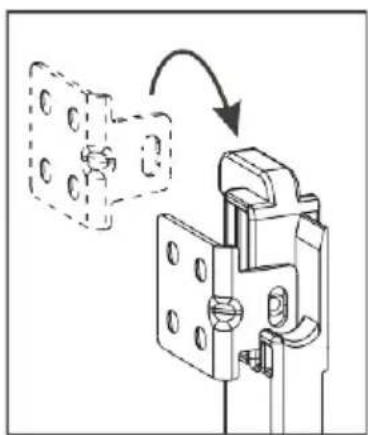

Folding back the cup shelves

To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use.

Diagram showing a wire mesh structure before and after use, with no visible text or symbols

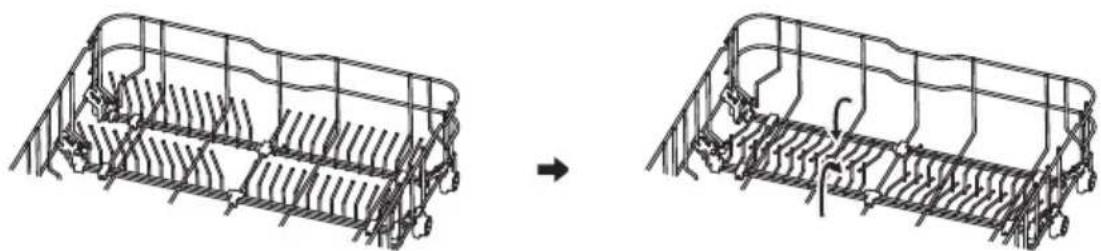

Folding back the rack shelves

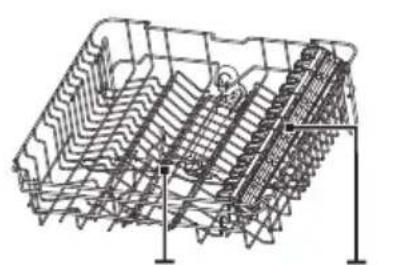

The spikes of the lower basket are used for holding plates and a platter. They can be lowered to make more room for large items.

raise upwards fold backwards

Diagram showing a structural change before and after assembly, with no visible text or symbols

MAINTENANCE AND CLEANING

External Care

The door and the door seal

Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed.

The control panel

If cleaning is required, the control panel should be wiped with a soft damp cloth only.

WARNING

• To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.
• Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface.

Internal Care

Filtering system

The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle, including foreign objects such as tooth picks or shards. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly, carefully remove foreign objects and clean the parts of the filtering system if necessary with water. Follow the steps below to clean the filter.

NOTE:

Pictures are only for reference, different models of the filtering system and spray arms may be different.

Open

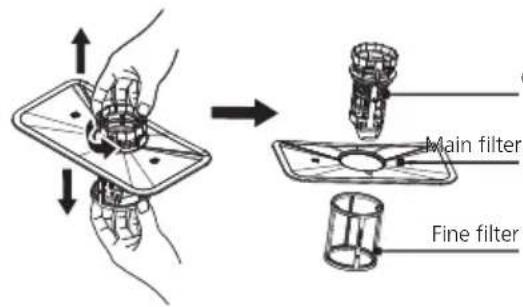

1 Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher.

Main filter Fine filter

2 The fine filter can be pulled off the bottom of the filter assembly. The coarse filter can be detached from the main filter by gently squeezing the tabs at the top and pulling it away.

Illustration of hands using a spray gun to clean a mechanical component (no text or symbols visible)

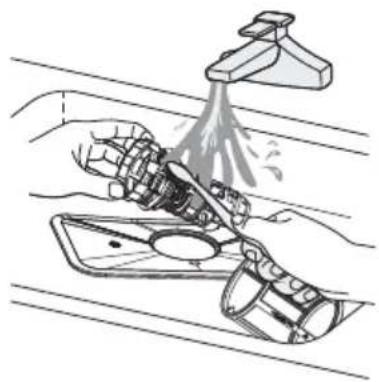

3 Larger food remnants can be cleaned by rinsing the filter under running water.

For a more thorough clean, use a soft cleaning brush.

Technical diagram of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

4 Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow.

WARNING

• Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage.
• Never use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Spray arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

To clean the spray arms, follow the instructions below:

Technical illustration of an airplane wing assembly with a magnified inset showing internal components (no text or symbols)

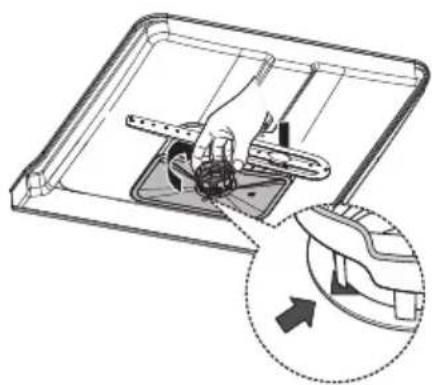

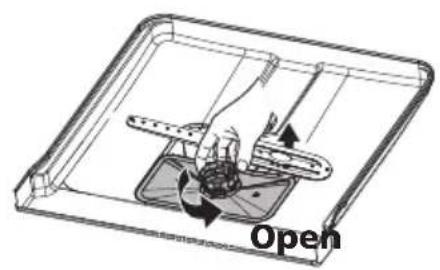

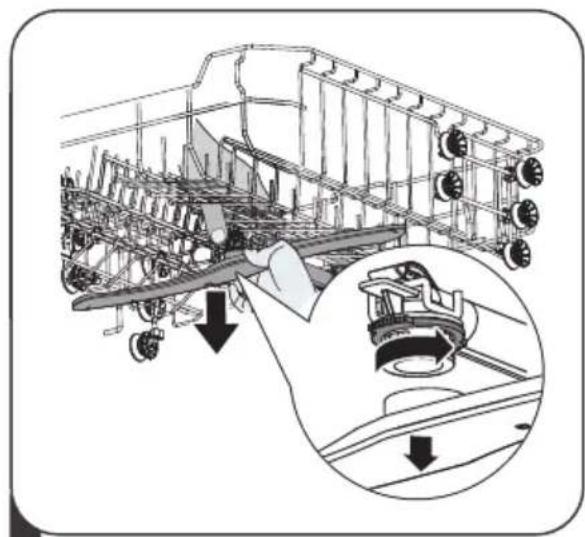

1 To remove the upper spray arm, hold the nut in the center still and rotate the spray arm counterclockwise to remove it.

Technical line drawing of a mechanical device with internal components and an upward arrow indicating motion (no text or symbols)

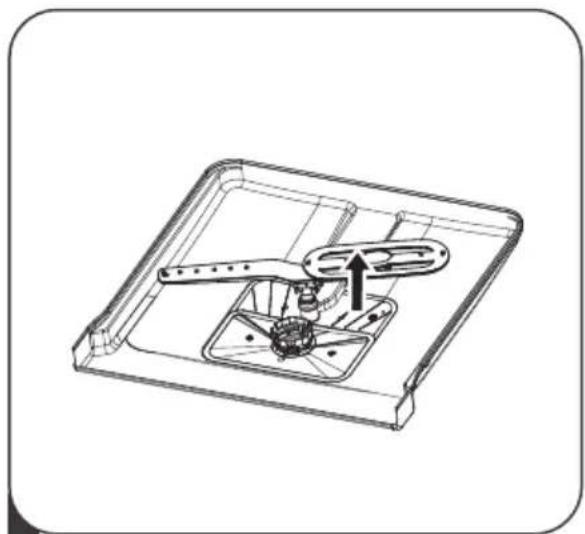

2 To remove the lower spray arm, pull out the spray arm upward.

Line drawing of a kitchen sink with hand cleaning the surface and a spray bottle pouring liquid (no text or symbols)

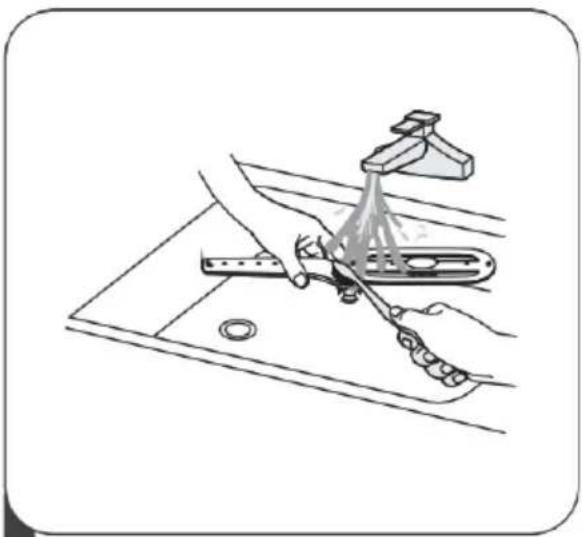

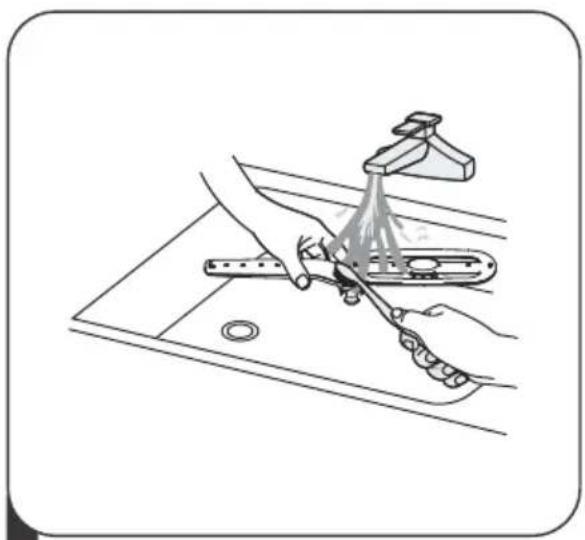

3 Wash the arms in soapy and warm water and use a soft brush to clean the jets.

Frost precaution

Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher at the supply source.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

After every wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside. for a while

Remove the plug

Before cleaning or performing maintenance, always remove the plug from the socket.

No solvents or abrasive cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

When not in use for a long time

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance.

Moving the appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

INSTALLATION INSTRUCTION

WARNING

Symbolic illustration of a hand with a lightning bolt and smoke trail (no text or numbers)

Electrical Shock Hazard

Disconnect electrical power before installing dishwasher.

Failure to do so could result in death or electrical shock.

Attention

The installation of the pipes and electrical equipments should be done by professionals.

• About Power Connection

WARNING

For personal safety:

• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing connection from the power cord.

Electrical requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

⚠ Ensure that proper earthing exists before use

Water Supply And Drain

Cold water connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

Line drawing of a hand holding a wrench, no text or symbols present

ordinary supply hose

Line drawing of a faucet with a handle and valve (no text or symbols)

safety supply hose

About the safety supply hose

The safety supply hose consists of the double walls. The system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

WARNING

A hose that attaches to a tapn burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

How to connect the safety supply hose

1. Pull tlsafety supply hoses out from storage compartment located at rear of dishwasher.
2. Tibletscrews of the safety supply hose to the faucet with thread 3/4inch.
3. Turn the water fully on before starting the dishwasher.

How to disconnect the safety supply hose

1. Turn off the water.
2. Unscrew the safety supply hose from the faucet.

Connection Of Drain Hoses

Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000 mm. The free end of the hose must not be immersed in water to avoid the back flow of it.

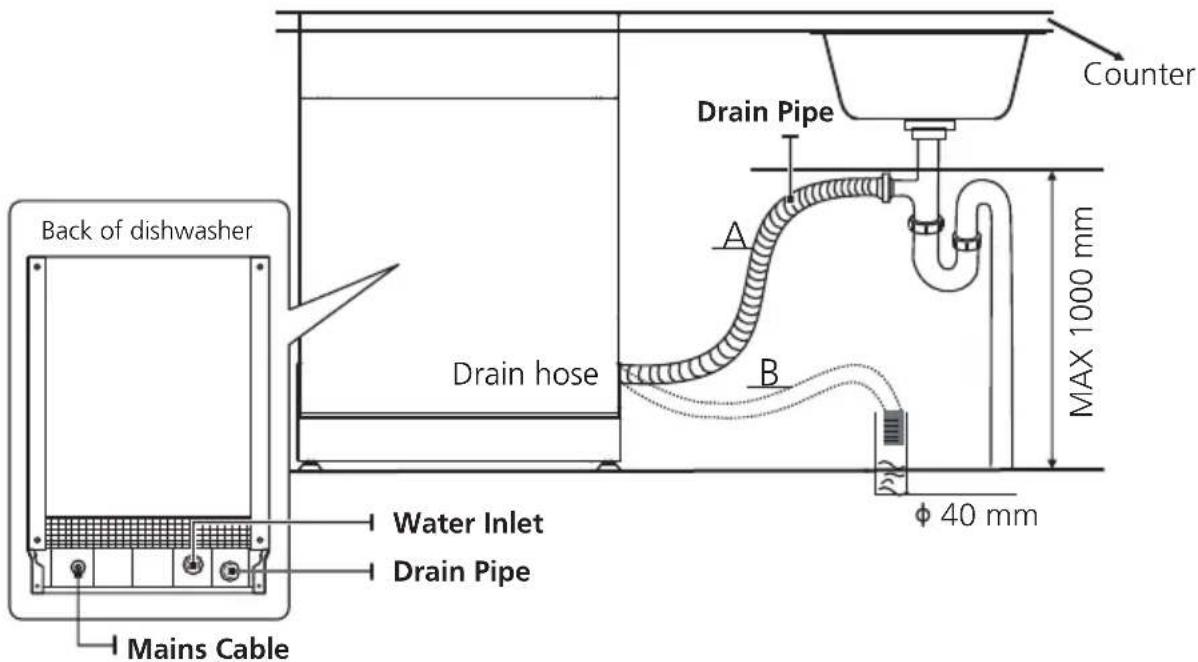

Please securely fix the drain hose in either position A or position B

Back of dishwasher Mains Cable Water Inlet Drain Pipe Drain hose A B Counter MAX 1000 mm φ 40 mm Drain Pipe

How to drain excess water from hoses

If the connection to the drain pipe is positioned higher than 1000 ~mm , excess water may remain in the drain hose. the hose It will be necessary to drain excess water from into a bowl or suitable container that is held outside and lower than the sink.

Water outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension hose

If you need a drain hose extension, make sure to use a similar drain hose. It must not be longer than 4 meters, otherwise the cleaning effect of the dishwasher could be reduced.

Syphon connection

The waste connection must be at a height less than 1000mm) from the bottom of the dishwasher

Positioning The Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Levelling the appliance

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2^ .

Diagram showing a hand holding a tool with an arrow indicating motion, enclosed in a dashed circle (no text or symbols)

Built-In Installation (for the integrated model)

Step 1. Selecting the best location for the dishwasher

The installation position of the dishwasher should be near the existing inlet and drain hose and power .

Illustrations of cabinet dimensions and installation position of the dishwasher.

1. Less than 5 mm between the top of dishwasher and cabinet and the outer door aligned to cabinet.

90° Electrical, drain and water supply line connection 820mm 580mm Space between cabinet bottom and floor 600 mm(for 60cm model) 450 mm(for 45cm model)

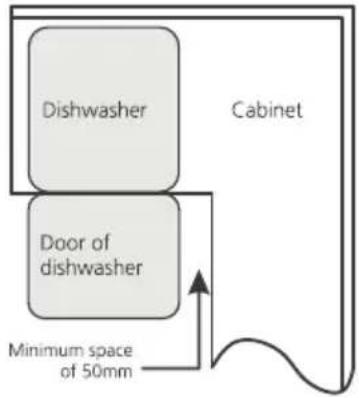

1. If dishwasher is installed at the corner of the cabinet, there should be some space when the door is opened.

NOTE:

Depending on where your electrical outlet is, you may need to cut a hole in the opposite cabinet side.

Step 2. Aesthetic panel's dimensions and installation

Follow the specific installation instruction for attaching the aesthetical door panel.

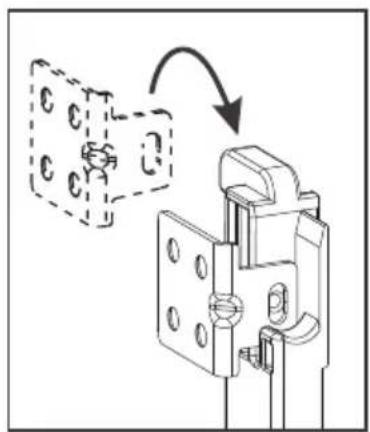

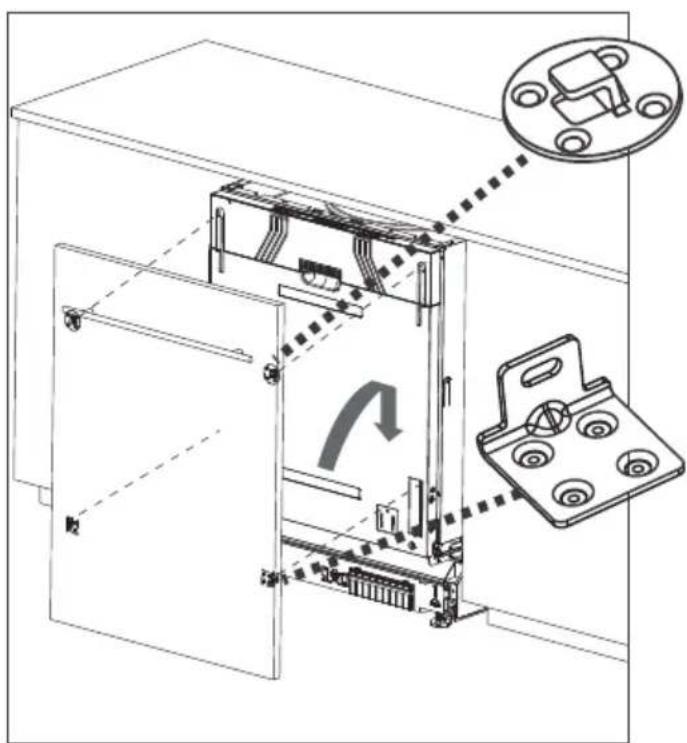

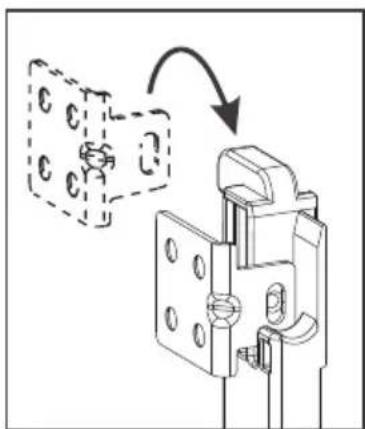

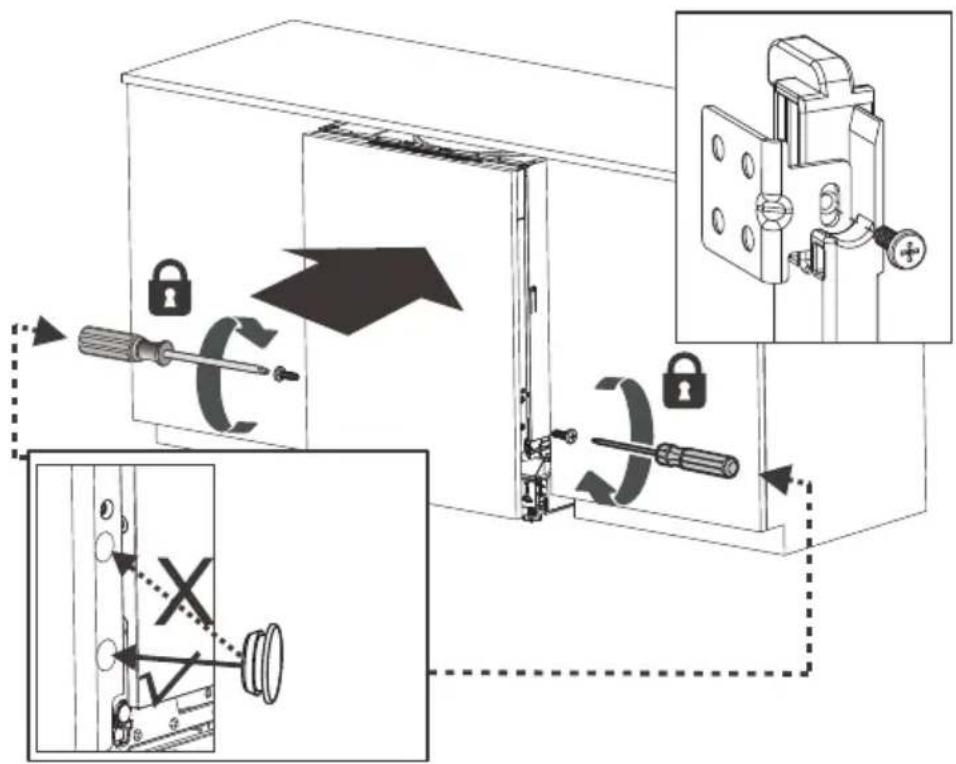

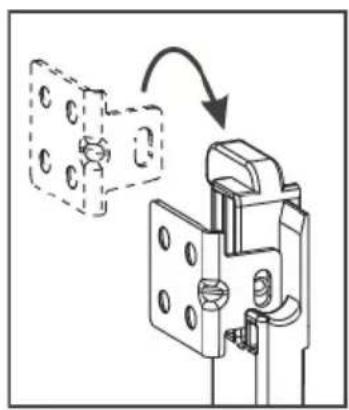

Install the hook on the aesthetic panel(see figure 4A) and put the hook into the slot of the outer door of dishwasher(see figure 4B). After positioning the panel, it should be fixed by two screws from two lower installation holes(see figure 4C). After tightening the screws, two rubber plugs should be plugged into the holes to avoid finger clamping.

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating movement or assembly.

Technical diagram showing a mechanical assembly with a dashed box and directional arrow indicating rotation or movement.

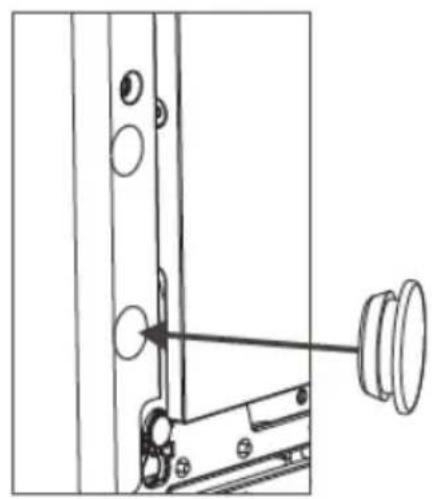

After tightening the screws, two rubber plugs should be plugged into the holes to avoid finger clamping.

Technical diagram illustrating door lock mechanism with labeled components and directional arrows indicating motion or assembly.

NOTE:

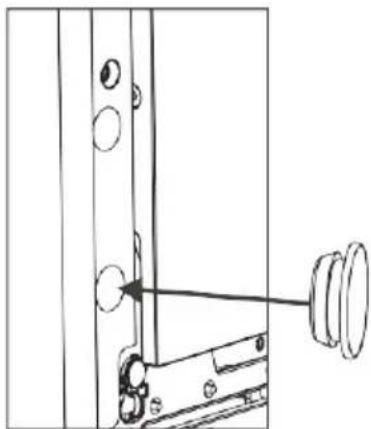

In any cases, please DO NOT insert the fingers into the side holes on dishwasher door, since that may cause serious hazard.

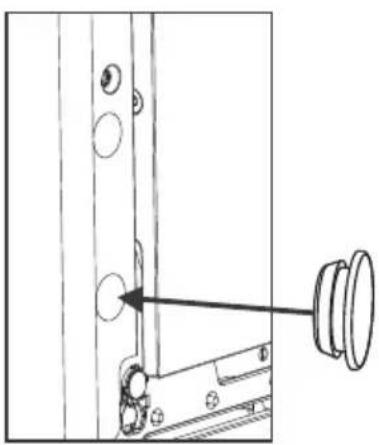

Please DO NOT leave the installation hole open after installation to avoid any potential hurt to children.

Safety warning symbols including warning triangle, no-smoking hand, and hand holding a ring with crossed lines

Technical line drawing of a door handle assembly with mounting holes and a close-up view of the lock (no text or symbols)

Step 3. Dishwasher installation steps

Please refer to the installation steps in the installation drawing.

1. Affix the condensation strip under the work surface of cabinet. Please ensure the condensation strip is flush with edge of work surface. (Step 2)

2. Connect the inlet hose to the cold water supply.

3. Connect the drain hose.

4. Connect the power cord.

5. Place the dishwasher into the cabinet

6. Level the dishwasher. The rear foot can be adjusted from the front of the dishwasher by turning the Philips screw in the middle of the base of dishwasher use Philips screw. To adjust the front feet, use a flat screw driver and turn the front feet until the dishwasher is level. (Step 5 to Step 6)

7. Install the furniture door to the outer door of the dishwasher. (Step 7 to Step 9)

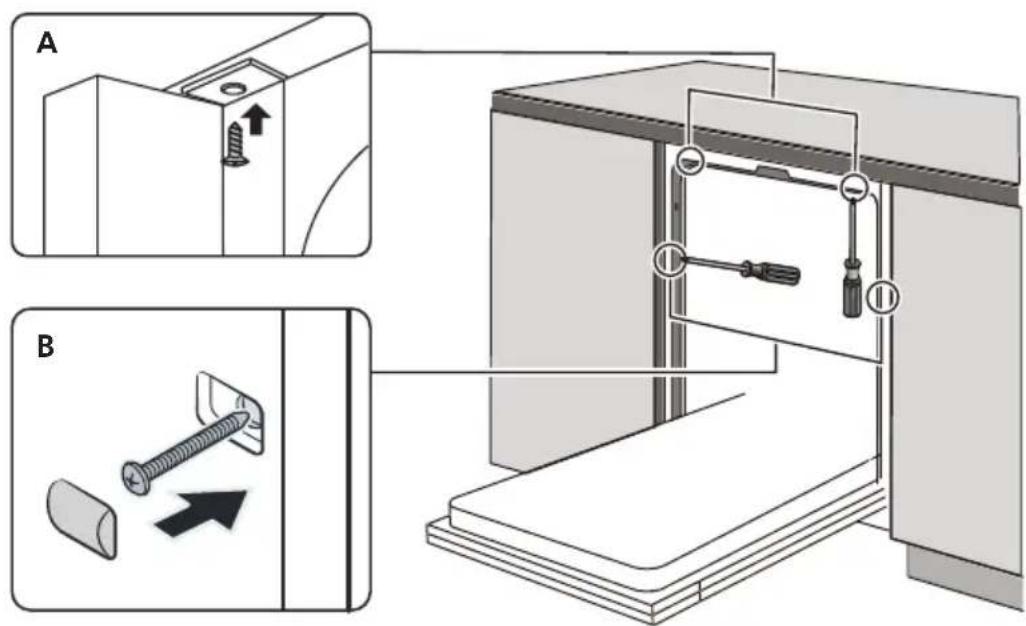

8. The dishwasher must be secured in place. There are two ways to do this:

A. Normal work surface: Put the installation hook into the slot of the side plane and secure it to the work surface with the screws. B. Marble or granite work top: Fix the side with screws

Technical diagram showing two steps of screw installation: (A) assembly with screw and pin, (B) assembly with screw and pin, both demonstrating a right-hand rule.

Step 4. Levelling the dishwasher

Dishwasher must be level for proper dish rack operation and wash performance.

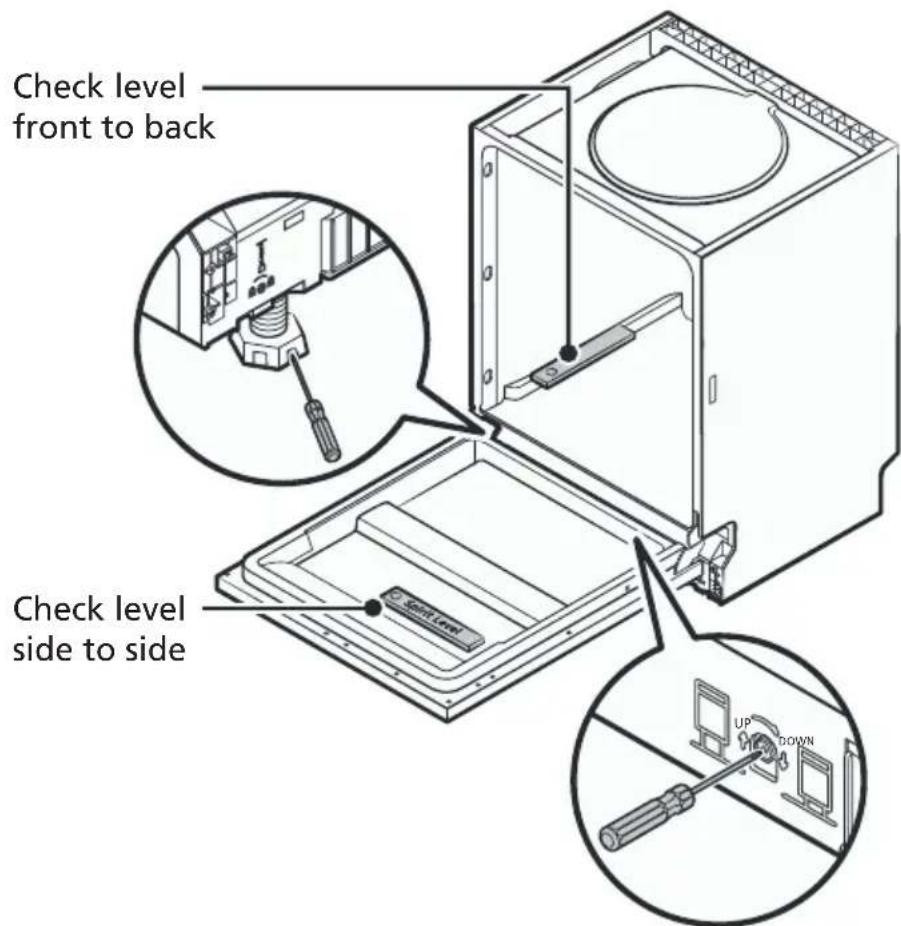

1. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level.
2. Level the dishwasher by adjusting the three levelling feedividually.
3. When level the dishwasher, please pay attention not to let the dishwasher tip over.

Check level front to back Check level side to side

NOTE:

The maximum adjustment height of the feet is 50 mm.

TROUBLESHOOTING TIPS

Before Calling For Service

Reviewing the charts on the following pages may save you from calling for service.

Problem Possible Causes What To Do
Dishwasher doesn't start	Fuse blown, or the circuit break tripped.	Replace fuse or reset circuit breaker.Remove any other appliances sharing the same circuit with the dishwasher.
	Power supply is not turned on.	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
	Water pressure is low	Check that the water supply is connected properly and the water is turned on.
	Door of dishwasher not properly closed.	Make sure to close the door properly and latch it.
Water not pumped form dishwasher	Twisted or trapped drain hose.	Check the drain hose.
	Filter clogged.	Check .the filter system
	Kitchen sink clogged.	Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink that is not draining, you may need a plumber rather than a serviceman for dishwashers.
Foam in the tub Wrong detergent.		Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 lit of cold water to the bottom of the dishwasher.Close the dishwasher door, then select any cycle. Initially, the dishwasher will drain out the water. Open the door after draining stage is complete and check if the suds have disappeared.Repeat if necessary.

Problem Possible Causes What To Do

	Spilled .rinse aid Always wipe up spills rinse aid immediately.
Stained tub interior Detergent with colourant may have been used.		Make sure that the detergent has no colourant.
White film on inside surface	Hard water minerals. To clean the interior, use the damp soft cloth with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent otherwise, it may cause foaming or suds.
There are rust stains on cutlery	The affected items are not corrosion resistant.	Avoid washing items that are not corrosion resistant in the dishwasher.
	A program was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle.	Always run a wash program without any crockery after adding salt. Do not select the Turbo function (if present), after adding dishwasher salt.
	The lid of the softer is loose.	Check the softener lid is secure.
Knocking noise in the dishwasher	A spray arm is knocking against an item in a basket	Interrupt the program and rearrange the items which are obstructing the spray arm.
Rattling noise in the dishwasher	Items of crockery are loose in the dishwasher.	Interrupt the program and rearrange the items of crockery.
Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on the dishwasher function. If in doubt, contact a qualified plumber.
The dishes are not clean	The dishes were not loaded correctly.	See PART II “Preparing And Loading Dishes”.
	The program was not powerful enough.	Select a more intensive program.
Problem Possible Causes What To Do
The dishes are not clean.	Not enough detergent was dispensed.	Use more detergent, or change your detergent.
	Items are blocking the movement of the spray arms.	Rearrange the items so that the spray can rotate freely.
	The filter combination is not clean or is not correctly fitted in the base of wash cabinet. This may cause the spray arm jets to get blocked.	Clean and/or fit the filter correctly. Clean the spray arm jets.
Cloudiness on glassware.	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean.
White spots appear on dishes and glasses.	Hard water area can cause limescale deposits.	Check water softener settings or fill status of salt container.
Black or grey marks on dishes	Aluminium utensils have rubbed against dishes	Use a mild abrasive cleaner to eliminate those marks.
Detergent left in dispenser	Dishes block detergent dispenser	Re-loading the dishes properly.
The dishes aren't drying	Improper loading	Use gloves if detergent residue can be found on dishes to avoid skin irritations.
	Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. Unload the lower basket first to prevent the dropping water from the upper basket.
Problem	Possible Causes What To Do
The dishes aren't drying	Wrong program has been selected.	With a short program, the washing temperature is lower, decreasing cleaning performance.Choose a program with a long washing time.
	Use of cutlery with a low-quality coating.	Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher.

WARNING

Self-repair or non-professional repair may cause serious risks to the safety of the user of the appliance and impact warranty.

• Availability Of Spare Parts

- Seven years after placing the last unit of the model on the market:

Motor, circulation and drain pump, heaters and heating elements, including heat pumps (separately or bundled), piping and related equipment including all hoses, valves, filters and aqua stops, structural and interior parts related to door assemblies (separately or bundled), printed circuit boards, electronic displays, pressure switches, thermostats and sensors, software and firmware including reset software.

- Ten years after placing the last unit of the model on the market:

Door hinge and seals, other seals, spray arms, drain filters, interior racks and plastic peripherals such as baskets and lids.

LOADING THE BASKETS ACCORDING TO EN60436:

Loading the dishwasher to its full capacity will contribute to energy and water savings.

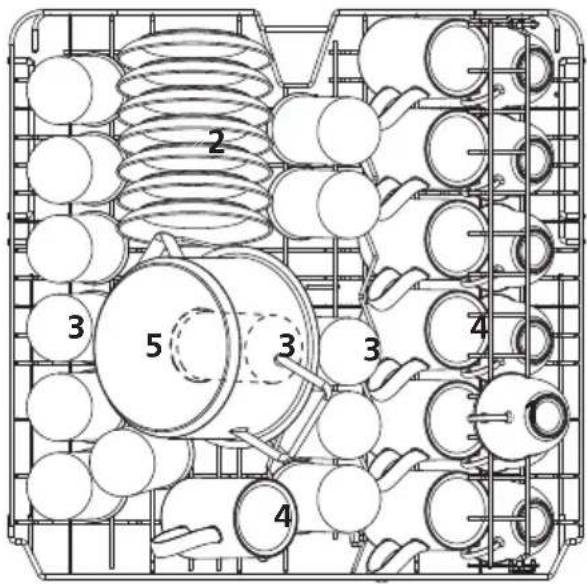

1. Upper basket:

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Number	Item
1	Cups
2	Saucers
3	Glasses
4	Mugs
5	Small pot

2. Lower basket:

10 11 12 7 7 8 3 13 14 12 9 6

Number	Item
6	Oven pot
7	Dessert plates
8	Dinner plates
9	Soup plates
10	Oval platter
11	Melamine dessert plates
12	Melamine bowls
13	Glass bowl
14	Dessert bowls

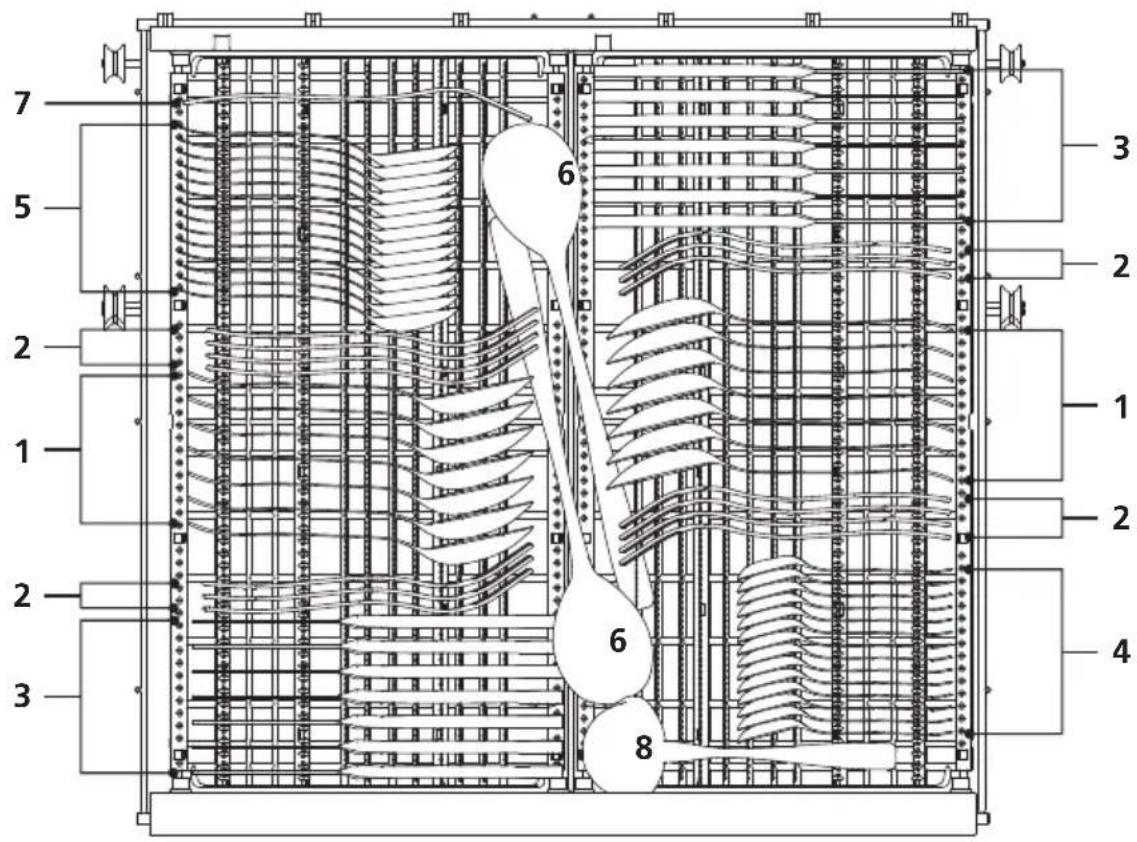

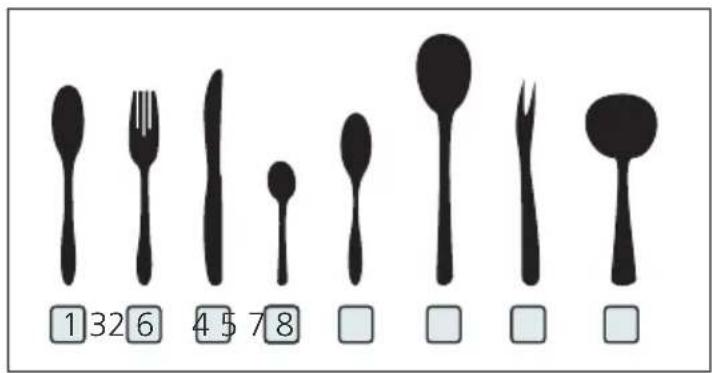

3.Cutlery rack:

7 5 2 1 2 3 6 6 8 3 2 1 2 4

1 32 6 4 5 7 8 □ □ □ □

Information for comparability

tests in accordance with EN60436

Capacity: 14 place settings

Position of the upper basket: lower position

Program: ECO

Rinse aid setting: Max

Softener setting: H3

Number	Item
1	Soup spoons
2	Forks
3	Knives
4	Tea spoons
5	Dessert spoons
6	Serving spoons
7	Serving fork
8	Gravy ladle

Simple line drawing of a kitchen appliance inside a circular frame (no text or symbols)

Dishwasher

Instruction Manual

PART II: Special Version

CONTENTS

01

4 USING YOUR DISHWASHER
4 Control Panel
7 Water Softener
8 Preparing And Loading Dishes
11 Function Of The Rinse Aid And Detergent
12 Filling The Rinse Aid Reservoir

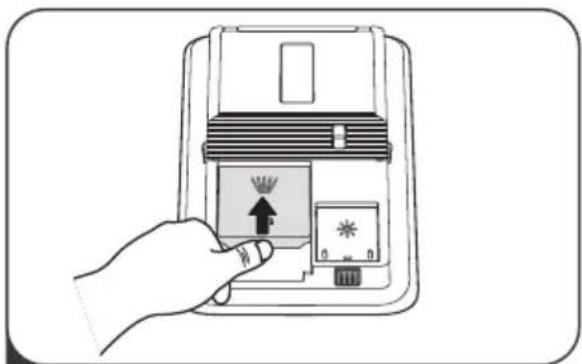

13 Filling The Detergent Dispenser
14 Filling The Detergent or Automatic Dosing System.
15 Wash Cycle Table
16 Saving Energy
16 Starting A Program
16 Changing The Program Mid-cycle

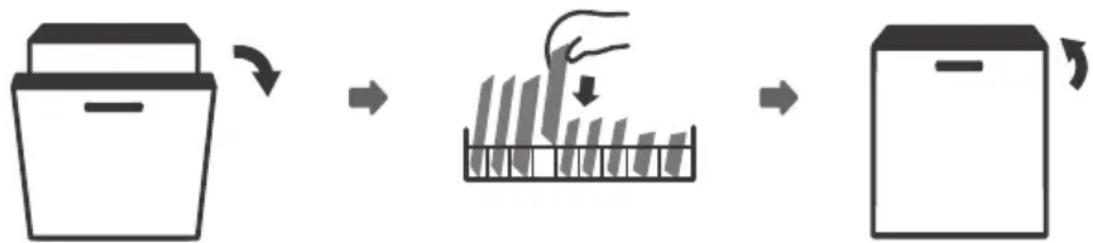

17 Forget To Add A Dish?
17 Auto Open
18 ERROR CODES

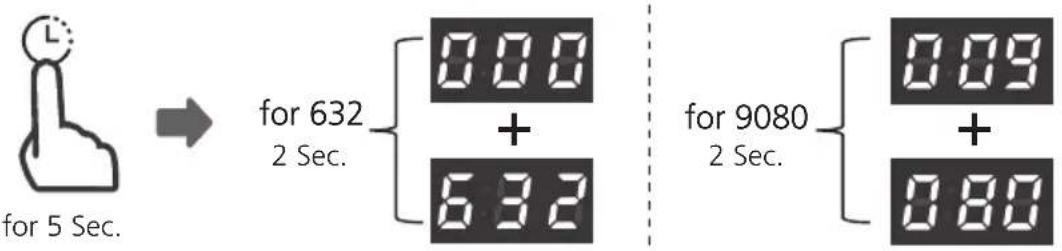

19 USAGE COUNTER

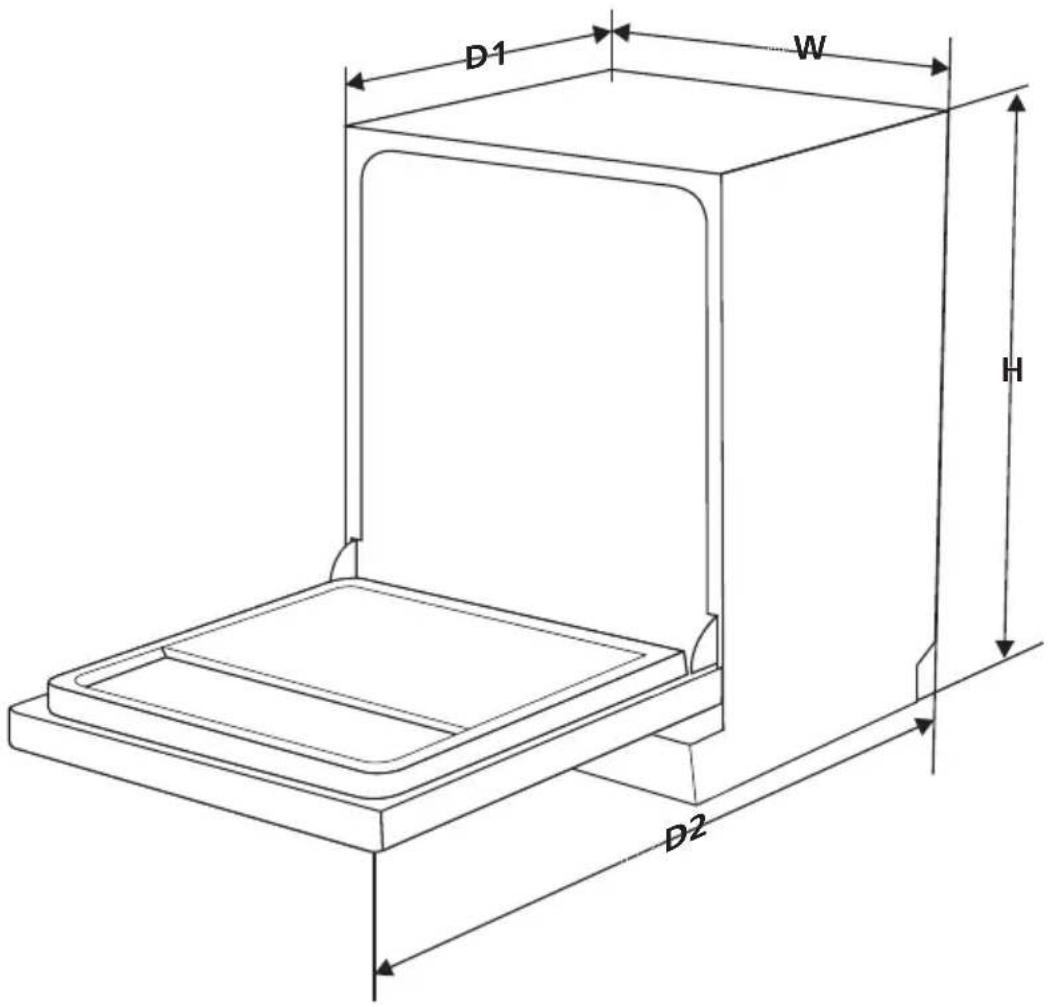

20 TECHNICAL INFORMATION

02

15 PROGRAM SELECTION

03

04

NOTE:

• If you cannot solve the problems by yourself, please ask for help from a professional technician.
• The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.
• If lost or out-of-date, you can receive a new user manual from the manufacturer or responsible vendor.

QUICK USER GUIDE

Please read the corresponding content the instruction manual for detailed operating method.

Pure technical diagram of a piping system with a cabinet and outlet (no text or symbols)

1 Install the dishwasher

(Please check the section 5 "INSTALLATION INSTRUCTION")

of PART I : Generic Version.)

Simple line drawing of a screw and a droplet on a surface, no text or symbols present

2 Remove larger residue from dishes. Avoid pre-rinsing.

Inside → Outside

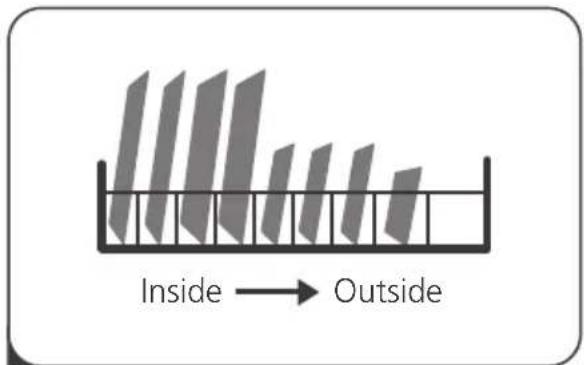

3 Load the baskets.

Diagram showing a refrigerator interior with labeled parts and an inset close-up of the device's exterior view.

4 Fill the dispenser with detergent(or liquid detergent in the Automatic Dosing System) and rinse aid.

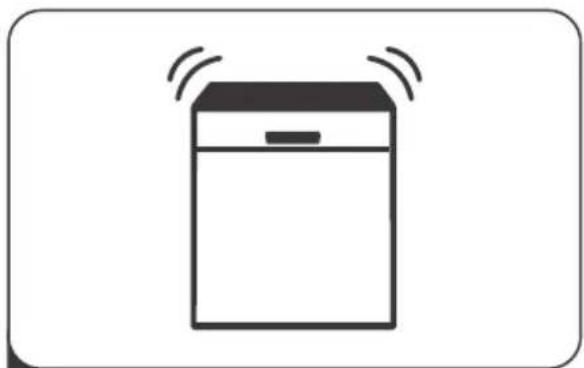

Simple line drawing of a refrigerator with sound waves (no text or symbols)

5 Select a suitable program and start the dishwasher.

USING YOUR DISHWASHER

Control Panel

Operation (Button)

1 Power	Press this button to turn on your dishwasher.
2 Program	Press this button to select the appropriate washing program, the corresponding program indicator will be lit.
3 Function	Press the button to select a function, or press the button for 3 seconds to select the Automatic Dosing System, and the corresponding indicator will be lit.
4 Alt	Press the button to select either upper basket or lower basket loaded, and the response indicators will be lit.
5 Delay	Press the Delay button to increase the delay start time. Delay a cycle for up to 24 hours in one-hour increments. After setting the delay time, press the Start button and close the door to start.
6 Start	Press the button to start the selected program.and close the door
7 Auto open	Press and hold the Alt and Delay buttons for 3 seconds to open or cancel this function. When the icon lights up, the function of Auto open is selected.

Display

8 Program indicator		ECOThis is standard program, it is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.
8 Program indicator		AutoAuto sensing wash, lightly, normally or heavily soiled crockery, with or with out dried-on food.
		HygieneUse to sanitize your dishes and glassware. The highest water temperature is 72°C.
		GlassFor lightly soiled crockery and glass.
		WhisperLower noise and normally energy consumption, used for washing in evening.
		RapidA shorter wash for lightly soiled loads that do not need drying.
		Self-cleaningThis program provides an effective cleaning of the dishwasher itself.
9 Function&Alt indicator		Turbo speed+Reduce the program time. (It can not be used with Auto, Rapid and Self-cleaning.)
		Power washTo wash very dirty and hard-to-clean dishes. (It can not be used with Auto, Rapid and Self-cleaning.)
		Automatic Dosing SystemThis function can dispense an appropriate amount of liquid detergent and rinse aid in each washing program automatically. When the Automatic Dosing System function indicator is lit, do not use other types (powder, tablet, etc) of detergents. You can choose or cancel this function by pressing Function button for 3 seconds.
		UpperWhen you select Upper, only the dishes in the upper rack will be washed. The spray system of the lower basket will not operate.
		LowerWhen you select Lower, only the dishes in the lower rack will be washed. The spray system of the upper basket will not operate.
10 Warning indicator	※ Rinse AidIf the “※” indicator is lit, it means the dishwasher is low on dishwasher rinse aid and needs to be refilled.≦ SaltIf the “≦” indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled.≦ Liquid detergentIf the “≦” indicator is lit, it means the liquid detergent is low on the dispenser and requires a refill.
11 Auto open indicator	Auto openAfter washing, the door will open automatically to achieve better drying effect (It can only be used with ECO, Auto, Hygiene, Glass, Whisper). Press and hold the Alt and Delay buttons for 3 seconds to open or cancel this function. When the indicator lights up, the function of Auto open is selected
12 Screen	8:88 To show therandelaytimeam timeerror code etc.

Function of Floor Indicator Lamp

NOTE:

Indicator lamp function

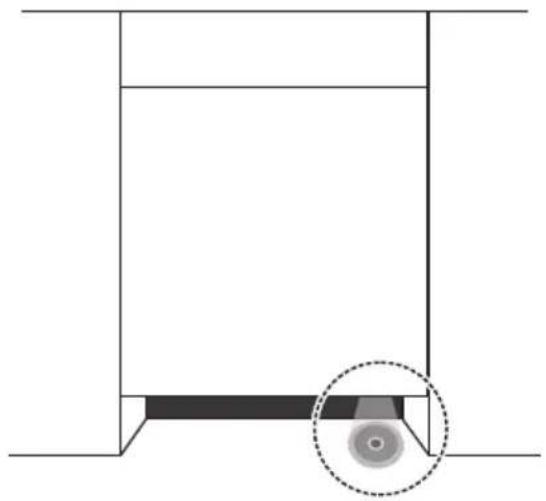

The Indicator lamp will be lit up during the washing program, then blink for 5 minutes and extinguished on the end of the program.

Pure technical diagram of a mechanical component with no text or symbols

Water Softener

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.

The more minerals there are, the harder your water is.

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting salt consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Please follow the steps below for adjustment in salt consumption.

1. Operdowitchon the appliance;

2. Within 60 seconds after the appliance was switched on press the Program button for more than 5 seconds to enter the water softener setting mode.

3. Press the Program button again to select the proper setting according to your local water hardness, the setting will change in the following sequence: H3->H4->H5->H6->H1->H2->H3;

4. Without operation in 5 seconds or press the Power button to complete the setup and exit the setup mode.

WATER HARDNESS				Water softner level	Regeneration occurs every X program sequence 1)	Salt consumption (gram/cycle)
German *dH	French *fH	British *Clarke	Mmol/Mmol/l
0 - 5	0 - 9	0 - 6	0 - 0.94	H1	No regeneration	0
6 - 11	10 - 20	7 - 14	1.0 - 2.0	H2	10	9
12 - 17	21 - 30	15 - 21	2.1 - 3.0	H3	5	12
18 - 22	31 - 40	22 - 28	3.1 - 4.0	H4	3	20
23 - 34	41 - 60	29 - 42	4.1 - 6.0	H5	2	30
35 - 55	61 - 98	43 - 69	6.1 - 9.8	H6	1	60

1^ = 1.25 Clarke=1.78 fH=0.178mmol/l

The setting: H3factory

1) Every cycle with a regeneration operation consumes additional 2.0 litres of water, the energy consumption increases by 0.02 kWh and the program extents by 4 minutes.

Please check the section 3 "Loading The Salt Into The Softener" of PART I: Generic Version, If your dishwasher lacks salt.

NOTE:

If your model does not have any water softener, you may skip this section. Water Softener

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.

The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

Preparing And Loading Dishes

• Consider buying utensils which are identified as dishwasher-proof.
• For particular items, select a program with the lowest possible temperature.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.

For washing the following cutlery/dishes

Are not suitable

• Cutlery with wooden, horn china or mother-of-pearl handles
• Plastic items that are not heat resistant
- Older cutlery with glued parts that are not temperature resistant
• Bonded cutlery items or dishes
- Pewter or cooper items
- Crystal glass
• Steel items subject to rusting
- Wooden platters
• Items made from synthetic fibres

Are of limited suitability

• Some types of glasses can become dull after a large number of washes
• Silver and aluminum parts have a tendency to discolor during washing
- Glazed patterns may fade if machine washed frequently

Recommendations for loading the dishwasher

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water.

For best performance of the dishwasher, follow these loading guidelines.

(Features and appearance of baskets and cutlery baskets may vary from your model.)

Place objects in the dishwasher in following way:the

• Items such as cups, glasses, pots, pans, etc. mfaste downwards.
• Curved items, or ones with recesses, should be loaded aslant so that water can run off.
• All utensils are stacked securely and can not tip over.
• All utensils are placed in the way that the spray arms can rotate freely during washing.
• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
• Dishes and items of cutlery must not lie inside one another, or cover each other.
  • To avoid damage, glasses should not touch one another.
• The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups.
• Long bladed knives stored in an upright position are a potential hazard!
• Long and sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
• Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

NOTE:

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Removing the dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first, followed by the upper basket.

WARNING

Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the program has ended.

Loading the upper basket

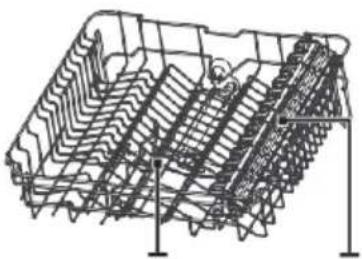

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

Technical line drawing of a mechanical component with no visible text or symbols

Loading the lower basket

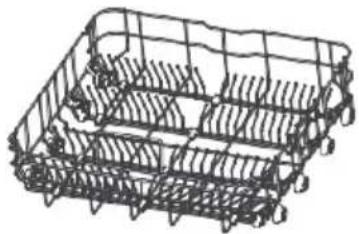

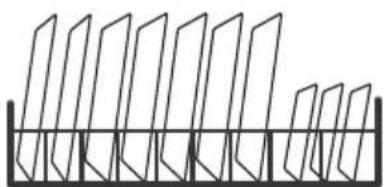

We suggest that you place large and difficult to clean items into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

The maximum diameter advised for plates in front of the detergent dispenser is of 19 cm, this not to hamper the opening of it.

Pure geometric diagram of vertical planes or panels arranged in a grid pattern (no text or symbols)

Loading the cutlery rack

Cutlery should be placed in the cutlery rack separate from each other in the appropriate positions. Avoid nesting of the cutlery to prevent insufficient cleaning performance.

For optimal cleaning and drying results, please refer to the standard loading options in the last section of PART I : General Instructions

Function of The Rinse Aid And Detergent

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to off the dishes. Your dishwasher is designed to use liquid rinse aids. run

WARNING

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to refill the rinse aid

The regularity of the dispenser needing to be refilled depends on how often dishes are washed and the rinse aid setting used.

• The Low Rinse Aid indicator ( ※ ) will be lit when more rinse aid is needed.
• Do not overfill the rinse aid dispenser.

Function of detergent

The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

WARNING

• Proper Use of Detergent
Use only detergent specifically made for dishwashers use. Keep your detergent fresh and dry.
Do not fill detergent into the dispenser until you are ready to start the dishwasher.

Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children.

• Filling The Rinse Aid Reservoir

Line drawing of a hand inserting a fan into a device with a crown and star symbol (no text or labels)

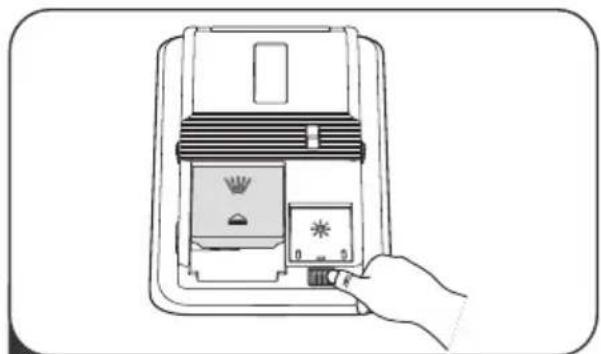

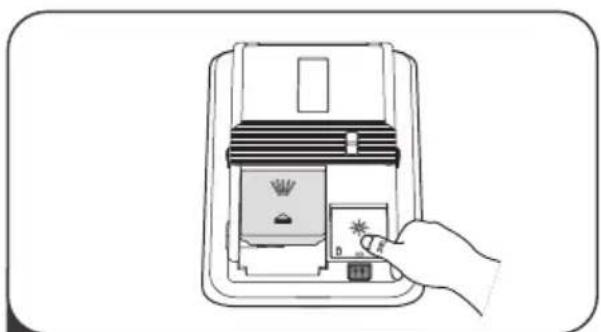

A Press this button as shown in the figure, and the lid of the rinse aid will open automatically.

Line drawing of a device with a hand inserting a component into a housing (no text or symbols)

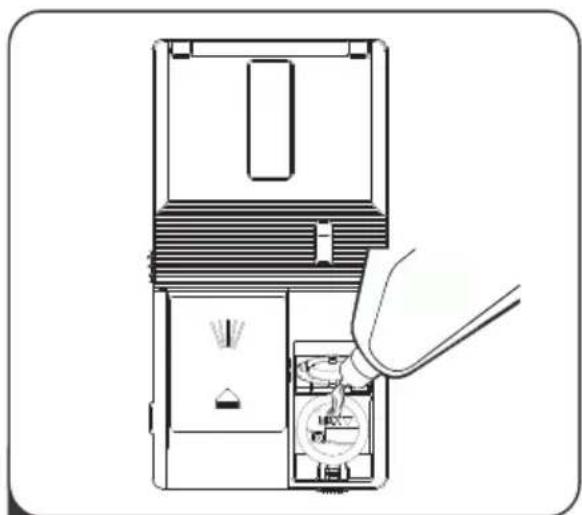

B Pour the rinse aid into the dispenser, being careful not to overfill.

Line drawing of a hand inserting a card into a device with a small screen (no text or symbols)

C Close the cap after all.

NOTE:

The rinse aid used in dishwashers is a special product that is recommended to increase drying efficiency and prevent water or lime stains on the washed items.

For this reason, care must be paid to have rinse aid in the rinse aid reservoir and to use rinse aids produced specially for dishwashers only.

Adjusting the rinse aid reservoir

To achieve a better drying performance with limited rinse aid, the dishwasher is designed to adjust the consumption by user. Follow the below steps.

1. Open the door, switch on the appliance
2. Within 60 seconds after the appliance was switched on press the Program button for more than 5 seconds, and then press the Delay button to enter the set model, the rinse aid indication blinks as 1Hz frequency.
3. Press the Program button again to select the proper set according to your using habits, the setting will change in the following sequence: d3->d4->d5->d1->d2->d3. The higher the number, the more rinse aid the dishwasher uses.
4. Without operation in 5 seconds or press the Power button to complete the setup and exit the setting mode.

Filling The Detergent or Automatic

Dosing System

Options 1. Filling the detergent

Illustration of a hand inserting a device into a device with an inset showing a grid-patterned component (no text or symbols)

1A

Press this button as shown in the figure, and the lid of the detergent will open automatically.

Diagram of a refrigerator internal compartments with no visible text or symbols

1B

Add detergent into the cavity as shown in the figure.

Please refer to the Wash Cycle Table for the specific quantity of detergents.

Line drawing of a hand inserting a card into a floppy disk (no text or symbols)

1C

Push in the direction of the arrow and close the cover.

NOTE:

If you want to use regular (powder, tablet, etc)detergent, please ensure the " √ √ √" function indicator light is off, otherwise the cleaning performance will be influenced.

Options 2. Filling the Automatic Dosing System

You should select " 🔍" function button on the control panel before using the Automatic Dosing System

Illustration of hands holding a floppy disk with a magnified inset showing internal components (no text or symbols)

2A

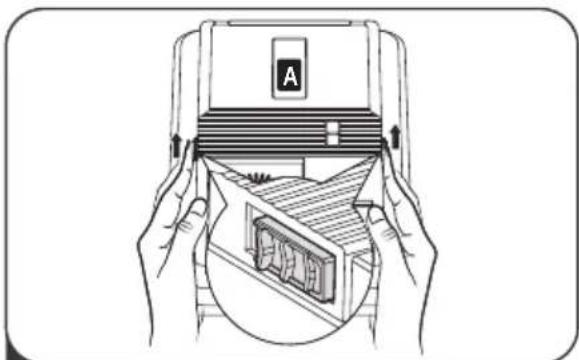

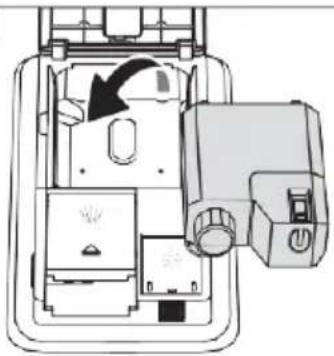

Push the left and right switches in the direction of the arrow in the picture simultaneously, the Automatic Dosing System cover will open.

Diagram showing internal components of a device with an arrow indicating direction and a magnified view of the device's internal structure.

Diagram of a device interior with labeled components and directional arrow indicating rotation or movement

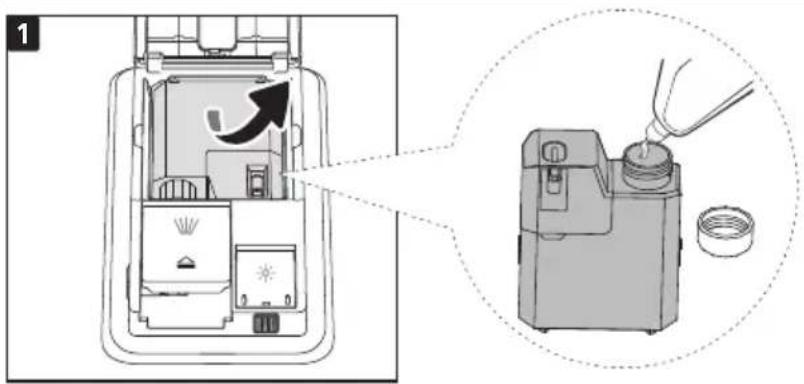

2B 1. Take out the empty liquid detergent bottle and put the liquid detergent into it as Figure 1(Use only liquid detergent for the dishwasher).

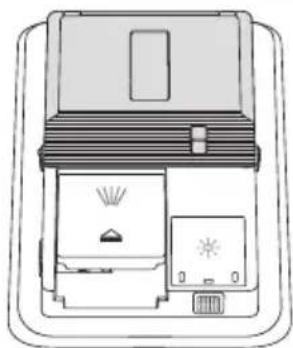

2. Install the refill bottle or a new bottle as Figure 2.

Diagram of a device with labeled components, showing front, side, and internal layout (no text or symbols)

2C Close the cover.

NOTE:

1. The capacity of the bottle of liquid detergent is 300ml.
2. Bottles are not consumables, and the liquid detergent inside can be refilled by oneself after use.
3. It is recommended to replace the bottle after filling 20 times (about 6-8 months).

NOTE:

1. Use only liquid detergent suitable for the dishwasher
2. Do not mix different brand s of liq uid detergents.
3. Do not fill the liquid detergent box with liquids or chemical cleaners (vineg ar, bleach er etc.) other than liquid detergent.
4. Liquid detergents that lost their fluidity and became firm must not be used in au tomatic liquid detergent dosing system.
5. If a different brand or type of liquid detergent will be used, make sure previous detergent is depleted completely and then remove and clean the liquid detergent tank under tap water.
6. The rinse aid used in dishwashers is a special product that is recommended to increase drying eficien cy and prevent water or lime stain s on the washed items. For this reason, care must be paid to have rinse aid in the rinse aid reservoir and to use rinse aids produced specially for dishwashers only.
7. Wipe clean any spilled rinse aid outside the reservoir. Otherwise, it will cause so foaming in the next washing cycle, reducing the washing performance of the product.

Wash Cycle Table

The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. Consumption values and program duration are only indicative except for the ECO program.

(●) indicates that the program uses rinse aid in the last rinse.

Program	Description Of Cycle	Detergent Pre/Main Wash	Running Time(min)	Energy (kWh)	Water (L)	Rinse Aid
	Wash(50°C)
	Rinse	22g	235 0.645 9.8			●
ECO (*EN60436)	Rinse(40°C)	1 tab
	Drying
	Pre-wash(45°C)
	Wash(55-65°C)
	Rinse	4/18	150 0.930 .470-1		10.3-16.9	●
	Rinse	1 or 2 tabs
Auto	Rinse(55-65°C)
	Drying
	Pre-wash
	Wash(72°C)
	Rinse	4/18	195	1.510-1.615 13.9		●
	Rinse(65-72°C)	1 or 2 tabs
Hygiene	Drying
	Pre-wash
	Wash(45°C)
	Rinse	4/18g	120	0.850-0.925	13.9	●
	Rinse(55-60°C)	1 or 2 tabs
	Drying
[Glass]	Wash(55°C)
	Rinse	22	240	1.030-1.180	9.5	●
	Rinse(55-65°C)	1 tab
	Drying
	Wash 4( 5°C)
	Rinse	12	30	0.584	10.3	○
	Rinse 45( °C)	1 tab
Whisper	Rinse 45( °C)
	Drying
	Wash 4( 5°C)
	Rinse	12	30	0.584	10.3	○
	Rinse 45( °C)	1 tab
[Rapid]	Pre wash-
	Wash(60°C)
	Rinse	4/18	130	1.235-1.265	15.1	●
	Rinse(70-72°C)	1 or 2 tabs
	Drying

NOTE:

ECO : The ECO program is suitable to clean normally soiled tableware, that (*EN60436) for this use, it is the most efficient program in terms of its combined energy and water consumption, and it is used to assess compliance with the EU ecodesign legislation.

Saving Energy

1. Pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.
2. Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the instructions.

Starting A Program

1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one.
2. Pour in the detergent.
3. Insert the plug into the socket. The power supply refer to last page "Product fiche". Make sure that the water supply is turned on to full pressure.
4. Open the door, Press the Power button.
5. Choose a program, the response light will turn on. Press the Start button and close the door, the dishwasher will start its cycle.

Changing The Program Mid-cycle

A program can only be changed if it has been running only for a short period of time, otherwise the detergent may have already been released or the wash water with detergent has already been drained. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:

1. Open the door a little to stop the dishwasher, after the spray arm stopped working, you can open the door completely.
2. Press Program button more than three seconds the machine will be in program selection mode.
3. You can change the program to the desired cycle setting.
4. Close the door, the dishwasher will restart.

Forget To Add A Dish?

A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

1. Open the door a little to stop the washing.
2. After the spray arms stopped working, you can open the door completely.
3. Add the forgotten dishes.
4. Close the door.
5. The dishwasher will continued to run after 10 seconds.

WARNING

Simple line drawing of a box with a lid and a droplet on top (no text or symbols)

It is dangerous to open the door mid-cycle, as hot steam may scald you.

Auto Open Door

The dishwasher door opens automatically at the end of some programs. When the door opens it does not mean that the program is finished. There is still time to dry. At the end of this remaining time a beep sounds indicating that your program is now finished. (If the dishwasher is built-in the surrounding furnishings must be resistant to any condensation.)

Simple line icon of a bin with a downward arrow indicating rotation (no text or symbols)

NOTE:

The dishwasher door must not be blocked when set to open automatically. This can disrupt door lock functionality.

NOTE:

You can return to factory settings at any time. Please to refer to the different settings pages.

ERROR CODES

If there is a malfunction the dishwasher will display an error code. The following table shows possible error codes and their causes.

Codes	Meanings	Possible Causes
E1	Longer inlet time.	Faucets is not opened, or water intake is restricted, or water pressure is too low.
E3	Not reaching required temperature.	Malfunction of heating element.
E4	Overflow.	Some element of dishwasher leaks.
E8	Failure of orientation of distributary valve.	Open circuit or break of distributary valve.
Ec	Washing control system fail.	PCB or motor fail.
Ed	Failure of communication between main circuit board with display circuit board.	Open circuit or break wiring for the communication

WARNING

• If overflow occurs, turn off the main water supply before calling a service.
• If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.
• If there is an error code that cannot be solved, please request professional assistance.

USAGE COUNTER

When the power cord is connected, but the dishwasher is not turned on, open the door, press and hold the Delay button for 5 seconds, the dishwasher display will show the usage count.

for 5 Sec. for 632 2 Sec. + 632 for 9080 2 Sec. + 009

Example:

632: Show "000" for two seconds, then show "632" for two seconds, at last it will be off. 9080: Show "009" for two seconds, then show "080" for two seconds, at last it will be off.

TECHNICAL INFORMATION

D1 W H D2

Height (H)	815 mm
Width (W)	598 mm
Depth (D1)	550 mm (with the door closed)
Depth (D2)	1150 mm (with the door opened 90°)

DATABASE ACCESS

In order to access to your model information stored in the product database, as set out in Regulation (EU) 2019/2017 and relating to energy labelling, please log on to the website: https://eprel.ec.europa.eu/

Look for the reference of your product on the website by putting the service reference that is indicated on your product rating plate.

Another means to access this information is to flash the "QR" code on the energy label of your product.

EN After Sales Service:

Any maintenance on your equipment should be undertaken by:

-Either your dealer,

-Or another qualified mechanic who is an authorized agent for the brand appliances.

When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.

INFORMATION

The minimum period of availability of spare parts listed in the European Regulation 2019-2022-EU and accessible in particular to the user of the appliance, is 10 years under the conditions layed down in the same regulation.

LAVE-VAISSELLE

Black-and-white photo of a set dining table with plates, fork, spoon, and knife (no text or symbols visible)

De Dietrich

CRÉATEUR D'ÉMOTIONS DEPUIS 1684

Simple line drawing of a kitchen appliance inside a circular frame (no text or symbols)

Lave-vaisselle

Mode d'emploi

Two views of a grid-patterned rack or tray device, showing structural change before and after (no text or symbols)

Two views of a mechanical component before and after assembly, showing grid structure and structural change (no text or symbols)

Diagram showing two steps of a grid-based structure transformation, with an arrow indicating the process (no text or symbols present)

Pure mechanical diagram showing two rollers and a housing (no text or symbols)

Technical line drawing of a mechanical assembly with grid-like components (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating motion (no text or symbols)

Illustration of a hand placing a mechanical component into a housing (no text or symbols visible)

Illustration of a tracked vehicle with a hand adjusting a tool, showing mechanical components and a magnified inset (no text or symbols)

Line drawing of a metal crate containing multiple eggs (no text or symbols)

Panier du haut

Line drawing of a multi-tiered shopping cart filled with three bottles, no text or symbols present

Two wire mesh structures showing structural deformation before and after (no text or symbols)

Rabattre les tiges

Illustration of hands cleaning a car with spray and handle (no text or symbols)

Diagram of a mechanical device with internal components and an inset showing a circular component (no text or symbols)

Technical illustration of a mechanical assembly with internal components and directional arrows (no text or symbols)

Illustration of a hand using a tool to lift a small mechanical component inside a tray (no text or symbols)

Line drawing of a kitchen sink with a hand cleaning the surface and a spray bottle pouring liquid (no text or symbols)

Symbolic illustration of a hand with a lightning bolt and serrated lines indicating electrical hazard (no text or labels)

Illustration of hands using a faucet to handle a pipe fitting (no text or symbols)

Line drawing of a faucet with handle and valve (no text or symbols)

Diagram showing a hand holding a tool with an arrow indicating motion, enclosed in a dashed circle (no text or symbols)

Technical diagram of an electronic device showing internal components and a close-up inset of a device with labeled parts.

B

Technical diagram showing a mechanical assembly with a dashed box and a directional arrow indicating rotation or movement.

C

Technical diagram illustrating door lock mechanism with labeled components and directional arrows indicating movement

REMARQUE :

Safety warning symbols including warning triangle, no hand gesture, and hand holding a ring with diagonal lines

Technical line drawing of a door hinge mechanism with no visible text or symbols

Technical diagram showing two views (A and B) of a mechanical assembly with screws, screwdriver, and pin components, likely illustrating assembly or repair instructions.

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Simple line drawing of a kitchen appliance inside a circular frame (no text or symbols)

Lave-vaisselle

Mode d'emploi

Technical line drawing of a double-bay air conditioner unit with piping and ventilation system (no text or labels)

Simple line drawing of a fish and a droplet on a surface (no text or symbols)

Diagram showing internal components of a mobile phone with labeled parts and an inset close-up view of the device casing.

Simple line drawing of a kitchen appliance with sound waves (no text or symbols)

Pure technical diagram of a mechanical component with no text or symbols

Adoucisseur d'eau

Technical line drawing of a mechanical component with no visible text or symbols

Pure diagram of vertical slats arranged in a grid pattern without any text, numbers, or symbols

Line drawing of a hand inserting a card into a device (no text or symbols visible)

Line drawing of a computer flash drive with a hand inserting a slot into the internal compartment (no text or symbols)

Line drawing of a hand inserting a card into a device with a warning symbol (no text or labels)

Illustration of a hand inserting a device into a device with an inset showing a grid pattern (no text or symbols)

Line drawing of a device interior with labeled components (no text or symbols)

Line drawing of a hand inserting a card into a floppy disk (no text or symbols)

Illustration of hands holding a floppy disk with a circular inset showing a device (no text or symbols)

2A

Diagram showing two steps of a device's internal components, including a close-up and a zoomed-in view with directional arrows.

Line drawing of a portable air conditioner unit with front panel and side panel (no text or symbols)

2C Fermez le capot.

REMARQUE :

Simple line drawing of a box with a lid and handle (no text or symbols)

Simple line icon of a bin with an arrow indicating rotation (no text or symbols)

REMARQUE :

Black and white photo of a set dining table with plates, fork, spoon, and knife (no text or symbols visible)

Simple line drawing of a kitchen appliance inside a circular frame (no text or symbols)

Umývačka riadu

Návod na použitie

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

PREHL'AD PRODUKTU

DÔLEŽITÉ:

Technical line drawing of a mechanical device with grid-like internal structure (no text or symbols)

Technical line drawing of a mechanical component with grid-like structure (no text or symbols)

Line drawing of a wire mesh basket with multiple slots and handles (no text or symbols)

Diagram showing a device's internal components and a magnified view of the device's internal structure, with Chinese labels.

Two-step diagram showing a grid-patterned container being lifted by a hook, with no text or symbols present.

Two-step diagram showing a grid-based structure before and after transformation, with no visible text or symbols.

Diagram showing two steps of a mechanical or structural assembly, with no visible text or symbols.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with grid-like components and no visible text or symbols

Diagram illustrating the process of a mechanical device with labeled parts and directional arrows indicating assembly or transformation.

Line drawing of a car chassis with wheels and an arrow indicating motion (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating motion (no text or symbols)

Illustration of a robotic platform with hands operating it (no text or symbols visible)

Illustration of a tracked military vehicle with an inset showing a hand operating a mechanical device (no text or symbols present)

Technical line drawing of a mechanical assembly with grid lines and circular components (no text or symbols)

Horný Kôš

Technical line drawing of a multi-stage agricultural machine with three cylindrical tanks and feeding racks (no text or symbols)

Umiestnite stojan do spodného koša Po umiestnení pohárov na víno vyberte stojan na poháre zo spodného koše a položte dve rady skladacích hrotov, potom stojan vložte do koša.

Sklopenie police na šálky

Two technical line drawings of a wire mesh structure, one showing a curved arrow and the other a straight grid pattern (no text or symbols)

Sklopenie třňov v koši

Illustration of a hand using a spray gun to spray liquid onto a surface (no text or symbols)

Diagram of a mechanical device with a hand operating a component, showing internal structure and an inset view of a gear mechanism (no text or symbols)

Technical illustration of an airplane fuselage with internal components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with internal fan and housing (no text or symbols)

2 Ak chcete vybrat' spodné ostrekovacie rameno, vytiahnite ho smerom hore.

Illustration of a kitchen sink with a hand cleaning the surface and a tool on a surface (no text or symbols)

3 Ramená umyte v teplé vode s mydlom a trysky vyčistite mäkkou kefkou.

Silhouette of a hand with a lightning bolt striking a piece of smoke (no text or symbols)

Line drawing of hands holding a pipe fitting with a handle (no text or symbols)

Line drawing of a faucet with a valve and handle (no text or symbols)

Diagram showing a hand holding a tool with an arrow indicating motion, no text or symbols present

Technical line drawing of an open refrigerator with internal components and a magnified inset showing a component detail (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism interacting with a bracket (no text or symbols present)

Technical diagram illustrating door lock mechanism with labeled components and directional arrows indicating motion or assembly.

POZNÁMKA:

Safety warning symbols including warning triangle, no/no sign, and hand holding a ring

Technical line drawing of a door hinge with mounting holes and a pull-up force (no text or symbols)

Technical diagram illustrating two steps of screw installation: (A) assembly with ↑ and (B) assembly with ↓, showing mechanical components and alignment.

Simple line drawing of a kitchen appliance inside a circular frame (no text or symbols)

Pure technical diagram of a mechanical or electrical component with no text, numbers, or symbols

1 Instalace myčky

Simple line drawing of a mechanical or electrical component with a hammer, screw, and droplet on a surface (no text or symbols)

Diagram of a refrigerator interior showing internal components and a close-up view of the exterior (no text or symbols)

Simple line drawing of a kitchen appliance with sound waves (no text or symbols)

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Zmäkčovač vody sa musí nastavit' ručne pomocou voliča tvrdosti vody.

Technical line drawing of a mechanical component with rollers and housing (no text or symbols)

Pure diagram of vertical panels arranged in a grid with no text, numbers, or symbols

Line drawing of a hand inserting a card into a device with a coffee cup and star-shaped label (no text or symbols)

Diagram of a hand inserting a device into a computer case, showing internal components and a button (no text or symbols)

Line drawing of a hand inserting a card into a device with a fan icon (no text or symbols)

C Veko nakoniec zatvorte.

POZNÁMKA:

Illustration of a hand inserting a device into a device with an inset showing a grid-patterned component (no text or symbols)

Line drawing of a refrigerator interior showing front, side, and top views with no text or symbols

Illustration of a hand inserting a floppy disk into a slot, showing the leftmost slot with an arrow and a star symbol (no text or labels)

Illustration of hands holding a device with a circular inset showing internal components (no text or symbols)

2A

Interior view of a mobile phone casing showing internal compartments and a directional arrow (no text or symbols)

Illustration of a mechanical device with a tool and a separate cylindrical component (no text or symbols)

2

Diagram of a device interior showing internal components and a directional arrow (no text or symbols)

Diagram of a device interior showing internal components and ports (no text or labels)

2C Veko nakoniec zatvorte.

POZNÁMKA:

Zabudli ste pridat' riad?

Simple line drawing of a box with a lid and handle (no text or symbols)

Simple line drawing of a bin with an arrow indicating rotation (no text or symbols)

POZNÁMKA:

Black-and-white photo of a set of kitchen utensils including a spoon, fork, and plate (no text or symbols visible)

De Dietrich
CRÉATEUR D'ÉMOTIONS DEPUIS 1684

Simple line drawing of a kitchen appliance inside a circular frame (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PŘEHLED PRODUKTU

! DŮLEŽITÉ:

Diagram showing a device being processed with a tool, including a magnified view of the device's internal components.

Diagram showing two steps of a grid-based structural change, one with an arrow indicating rotation or deformation (no text or symbols present)

Two-step diagram showing a grid structure before and after rebaring, with an arrow indicating the process (no text or symbols present)

Two-step diagram showing a grid-patterned rack system before and after processing, with an arrow indicating the process (no text or symbols present)

Diagram of a mechanical assembly or housing with two views, showing internal components and structural elements (no text or labels)

Technical line drawing of a mechanical assembly with two cylindrical components and grid-patterned surfaces (no text or symbols)

Diagram illustrating the process of installing or maintaining a grid device, showing step-by-step assembly with labeled components and directional arrows.

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a mechanical cart with wheels and a directional arrow (no text or symbols)

Technical line drawing of a mechanical assembly with hands operating it (no text or symbols)

Technical diagram showing a hand operating a tracked vehicle with labeled components and an upward arrow indicating motion direction.

Technical line drawing of a mechanical assembly with grid lines and circular components (no text or symbols)

Horní Koš

Line drawing of a multi-tiered plastic container filled with three bottles, no text or symbols present

Two technical line drawings of a mechanical component before and after assembly, showing internal structure and motion direction (no text or symbols)

Diagram showing a structural change before and after assembly, with no visible text or symbols

ÚDRŽBA A ČIŠTĚNÍ

• Péče o vnějšek

Illustration of hands using a spray gun to spray liquid onto a surface (no text or symbols)

Technical diagram of a mechanical assembly with an inset showing a close-up view of a component (no text or symbols present)

Technical illustration of an airplane wing assembly with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components and an upward arrow indicating motion (no text or symbols)

Line drawing of a kitchen sink with a hand using a tool to clean or wash the dish (no text or symbols)

Symbolic illustration of a hand with a lightning bolt and a curved line, representing electrical hazard (no text or labels)

Line drawing of a hand holding a wrench, no text or symbols present

Line drawing of a faucet with a handle and valve (no text or symbols)

Diagram showing a hand holding a tool with an arrow indicating motion, no text or symbols present

Technical diagram of a refrigerator interior with labeled components and directional arrows indicating movement or assembly.

Mechanical assembly diagram showing a clamping mechanism with a dashed box and arrow indicating rotation (no text or symbols)

Technical diagram illustrating door lock mechanism with labeled components and directional arrows indicating motion or assembly.

POZNÁMKA:

Safety warning symbols including warning triangle, no-smoking symbol, and hand holding a ring

Technical line drawing of a door handle assembly with mounting holes and a close-up view of the lock (no text or symbols)

Technical diagram showing two steps of screw installation: (A) assembly with screw and pin, (B) assembly with screw and pin, both demonstrating a right-hand rule.

Technical diagram of a mechanical or electrical component with numbered parts labeled 1 through 5.

Simple line drawing of a kitchen appliance inside a circular frame (no text or symbols)

Myčka nádobí

Návod k použití

Pure technical diagram of a piping system with a cabinet and outlet (no text or symbols)

1 Instalace myčky

Simple line drawing of a screw and a circular object above a surface, with no text or symbols present.

Diagram showing a refrigerator interior with labeled parts and an inset close-up of the interior structure, including a hand pointing to a cleaner.

Simple line drawing of a refrigerator with sound waves (no text or symbols)

Pure technical diagram of a mechanical component with no text, numbers, or symbols

• Změkčovač vody

Technical line drawing of a mechanical assembly with rollers and housing (no text or symbols)

Pure geometric diagram of vertical planes mounted on a horizontal base (no text or symbols)

Line drawing of a hand inserting a fan into a device with a crown and star symbol (no text or labels)

Line drawing of a computer case with a hand inserting a component into the case (no text or symbols)

Line drawing of a hand inserting a card into a device with a crown and starburst symbol (no text or labels)

Line drawing of a hand inserting a device into a device casing, with an inset showing a grid-patterned component (no text or symbols)

1A

Line drawing of a hand inserting a card into a floppy disk (no text or symbols)

1C

Line drawing of a refrigerator interior with no visible text or symbols

1B

Illustration of hands holding a floppy disk with a circular inset showing internal components (no text or symbols)

2A

Diagram showing internal components of a device with an arrow indicating direction and a magnified view of the device's internal structure.

Diagram of a device interior with labeled components and directional arrow indicating rotation or movement

Line drawing of a device with no visible text, numbers, or symbols

2C Zavřete víko.

POZNÁMKA:

Simple line drawing of a bucket with a lid and handle (no text or symbols)

Simple line icon of a trash bin with an arrow indicating rotation (no text or symbols)

POZNÁMKA:
