• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. Symbol definitions

1

1- Important information and useful hinds on use
2- Warning against dangerous situations in terms of life and property
3- Warning against fire risk
4- Warning against hot surfaces
5- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
  • Always place the appliance on to the flat and even surface.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.

• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.

• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

• This appliance is intended to be used in household and similar applications such as
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.
• Avoid spillage on the connector

II. Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Neither immerse the housing, which contains electrical components and the heating elements in water, nor rinse it under the tap.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.
• Be careful, while handling electrical appliances, as the surface of the heating element is subject to residual heat after use. Any misuse may cause potential injury to the user and may damage the appliance.
• Do not touch the outer surface of the appliance as it can get very hot during operation. Instead, use the handle or mitts.

III. Product use restrictions due to poor condition or breakdown

- Never immerse the appliance or the plug-in water or any other liquid. In

the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.

• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

IV. △Restrictions on use when used with children and elders

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Do not allow the children to use the appliance without supervision.

V. IMPORTANT WARNING

- To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.

- A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:

- The marked electrical rating of the cord must be at least as great as that of the product.

- Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

VI. △ Instructions to follow while using the device

• Do not place the appliance against a wall or against any other appliance. Leave at least 10 cm free space from the all sides before placing the appliance.
  • After cooking, frying basket and inner pot should not be placed directly on the countertop to avoid burning the countertop.
  Always put the ingredients to be fried in the basket, to prevent it from coming into contact with the heating elements.
• Do not cover the air inlet and the air outer openings while the appliance is operating.
• Do not fill the pan with oil as this may cause fire hazard
• Extreme caution must be taken when moving an appliance containing hot oil or other hot liquids.
• Never touch the internal part of the appliance while in use.
• The temperature of accessible surfaces may be high when the appliance is operating
• Do not place anything on top of the appliance to prevent from any type of burn cause of hot surface.
• During air frying, hot steam is released through the air outlet openings, Keep your hands and face at a safe distance from the steam and from the air outlet openings.
• Also be careful of hot steam and air when you remove the pan from the appliance.
• Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.
  • WARNING: Do not touch hot surfaces.
• WARNING: This equipment shall be used with CAUTION as this electrical appliance contains a heating function. Surface of this appliance is also different from other functional surfaces which can produce high temperatures. Since temperatures are differently perceived by different persons The equipment must be touch only at intended handles and gripping surfaces with the help of heat protectors like gloves or similar type of clothing. Otherwise let it for sufficient time cool down before touching the hot surfaces.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.

Introduction

This electric air fryer provides an easy and healthy way of preparing your favourite dishes. The best part of using the air fryer is that you can prepare as many types of fried dishes and have them without worry and or being conscious about consuming fatty foods, as it does not consume oil at all or if it consumes oil, then only a very little quantity. By using hot rapid air circulation, it is able to make numerous dishes. The best part is that the Air fryer heats food at all directions and most of the ingredients do not need any oil.

4. TECHNICAL SPECIFICATIONS

Voltage Power	Frequency Capacity
AC 220-240V 2460	W 50-60 Hz 11 L MAX

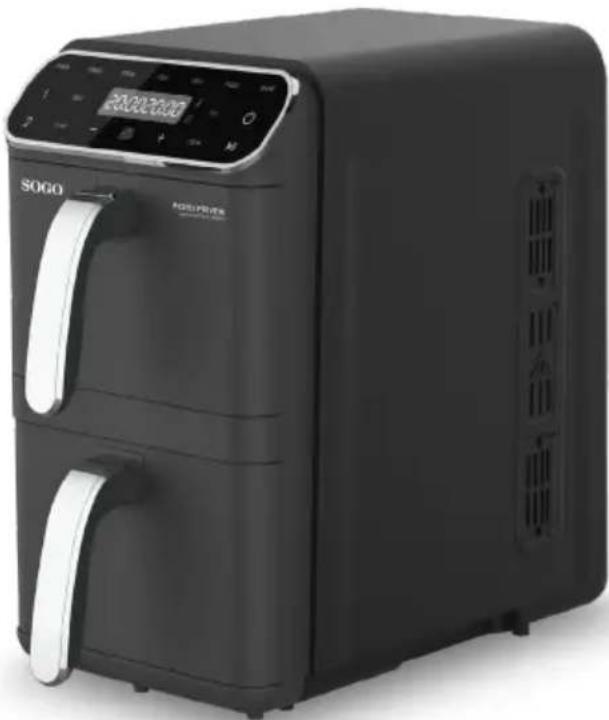

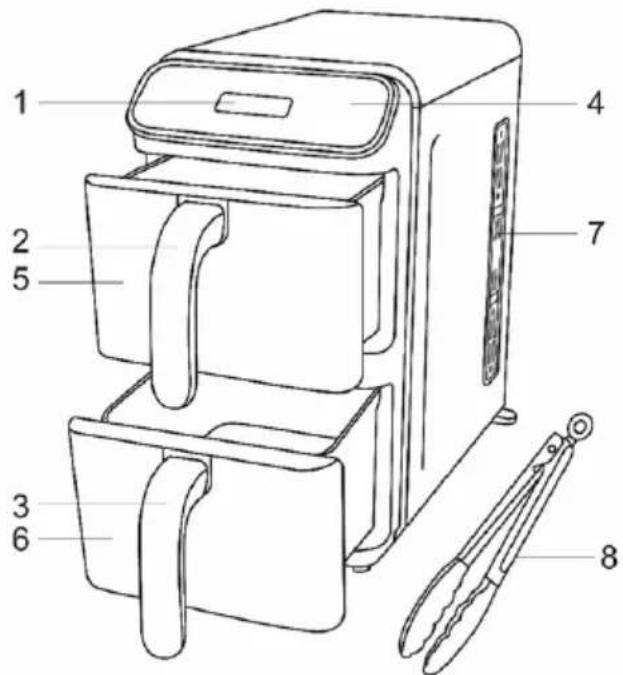

5. PARTS DESCRIPTION

1. LED display.
2. Removeable frying basket handle 1.
3. Removeable frying basket handle 2.
4. Touch control panel for operating.
5. Frying basket 1.
6. Frying basket 2.
7. Air Intake vent.
8. Food tong

Technical diagram of a multi-tiered kitchen appliance with numbered parts labeled 1 through 8

Food tong: This air fryer has been provided with food tong for user safety, which helps us to remove the food without touching the food and hot frying basket to avoid any scalding.

6. PREPERATION FOR USE

BEFORE FIRST USE

1- Remove all the packaging material.
2- Remove the glue, labels and stickers sticked on the product.
3- Clean the frying basket and the frying grill thoroughly with warm water, soft detergent and nonabrasive sponge.
4- Clean the inside and outside of the product with warm damp cloth.
5- This air fryer uses 360° hot air circulation technology, which helps user to cook the food in short span of time and without using the oil and if it uses, uses a very little amount.
6- Wipe down the outside of the device with a clean and damp cloth. Clean the drawers and racks with the detergent and warm water or in the dishwasher.
7- For the first time use, the device should be used without any food in it as it may produce some smoke or odours due to coating residues. Allow the device to heat up on the highest temperature setting for approx. 10 minutes without any food in it. Then clean it again before using first time with the food in it.

7. INSTRUCTION FOR USE

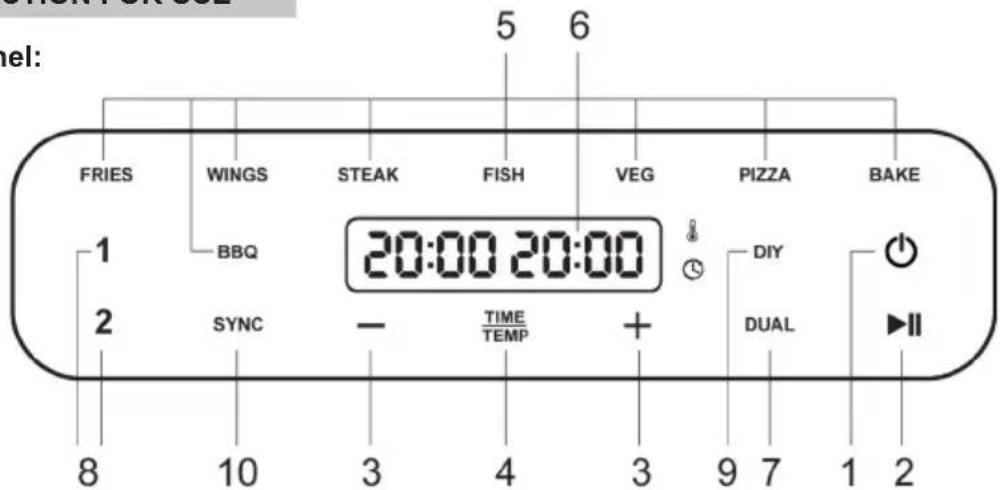

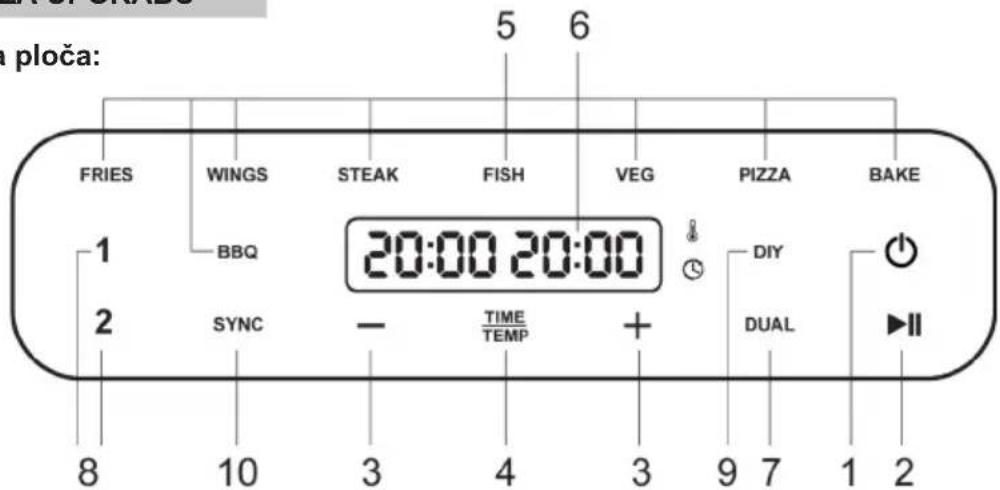

Control Panel:

FRIES WINGS STEAK FISH VEG PIZZA BAKE 1 BBQ 20:00 20:00 SYNC - TIME TEMP + DIY DUAL 8 10 3 4 3 9 7 1 2 5 6

1- Power button: Once the unit is plugged in, the Power Button will light up and screen enters into the sleeping mode. By pressing the Power Button once, it activates touch control panel and all the menu functions illuminates including digital display and first menu function starts blinking. Digital display shows the default time and temperature of first menu function. In order to stop the cooking process directly and switch off the appliance press this button again and it will turn off.
2- Play/Pause button: With the help of this button, we can start cooking function. To start cooking process press this button and the unit immediately starts cooking with selected menu function. While the air fryer is in working mode, by pressing this button cooking process stops.
3- Minus(-) and Plus(+) button: This Air fryer model has "+" and "-" Buttons. With the help of these buttons, we can change the time and temperature value of all the menu functions anytime. By long press or pressing it for long duration, the time can be changed rapidly by 15 minutes and temperature can be changed by 10°C.
4-Temperature / Time Control Button: There is one single button to control and change the temperature and time value. Once we press this button, Temperature / Time icon starts flashing and Temperature or Time starts flashing on the LED display. Now with the help of "+" and "-" button we can raise or lower cooking temperature by 10°C intervals and we can increase or decrease the time by 1 minute.

Note: The temperature and time can be changed depending on the menu function. We can change the temperature from 60^ C to 230^ C and we can change time from 1 minute to 60 minutes.

5- Preset Menu function Buttons: There are 9 pre-set menu functions in this air fryer. After turning on the air fryer default menu function, "FRIES" starts flashing. Digital display shows the default time and temperature of "FRIES" Function. By pressing play / pause button we can start cooking the food. To cook the food with some other menu function we need to press that specific Menu function. After pressing that specific menu function, its icon will start flashing and digital display will show the time and temperature of this menu function, the same way we can select any menu function and cook the food as per our need.
6- LED Digital Display: While pressing the power button Digital display activates and shows the default time and temperature of the menu functions. When we start cooking, the time unit of menu function starts reverse counting during whole cooking process. Digital display keeps showing the temperature and remaining time during the cooking process.
7- DUAL button: This function is useful when the same food or larger quantity food is about to be cooked in both the cooking zones. If you want to apply all the settings of cooking zone 1 to cooking zone 2, press DUAL button before starting the cooking process. Then you do not need to repeat the menu selection process again.

Step1: Select DUAL

Place food in the two baskets

Step2: Select a cooking function

Press ▶ to begin cooking.

8- 1 & 2 Buttons: Press button 1 or button 2 to select any specific cooking zone to adjust it's time / temperature settings.
9- DIY button: This appliance comes with a DIY function in which you can do the cooking on your own preferred Temperature / Time setting.

10- SYNC Function: This function is provided to sync the end of the cooking time for both the cooking zones of different cooking time and temperature. Place food in both baskets and then program them one by one with the menu of your choice. Then press the SYNC button before Press ▶ to begin cooking.

If the SYNC program is activated, the cooking zone with the longer time starts first. When the remaining time of this cooking zone matches with the other cooking zone, a beep sounds and then both the cooking zones align together to end the cooking at the same time. Until this point "HOLD" appears on the associated display.

Note: It is not possible to synchronize the cooking zones subsequently while the device is operating.

Menu functions, temperature and time setting

No.	Menu function Default	time Time Range		Default temperature (°C)	Temperature range (°C)
1 Fries	20 min. 1 – 60 min. 2	00°C 120-230°C
2 Wings	20 min. 1 – 60 min.	200°C 120-230°C
3 Steak	13 min.	1 – 60 min. 200°C	120-230°C
4 Fish	20 min.	1 – 60 min. 180°C	120-230°C
5	Veg	10 min.	1 – 60 min.	190°C	60-230°C
6	Pizza 20 min.	1 – 60 min. 180°C	120-230°C
7 Bake	15 min.	1 – 60 min. 170°C	120-230°C
8 DIY	15 min.	1 – 60 min. 200°C	60-230°C
9	BBQ	20 min. 1 – 60	min. 200°C 150-230°C

HOW TO OPERATE THE AIR FRYER

1. Place the appliance on a clean, dry, stable and heat-resistant surface.
2. Since the appliance becomes hot during the use, make sure that it is not too close to any other appliances and keep it at a distance of 20cm from all sides and 50cm from upper side.
3. Prepare the food for cooking.
4. Plug the power cord into the socket. A BEEP sound indicates the Air Fryer is turned on. Immediately after turning on the appliance, unit enters into standby state. In the standby mode, the light of "Power" remained illuminated.

NOTE: At this time, only the "Power" button can operate.

1. Press the "Power" button to enter into the working mode. By default, the first menu function activates and start flashing. All the menu function remains illuminated. In order to cook food in first menu function press the "Play/Pause" button and unit starts cooking. To cook the food in menu function other than default menu function, press that "Menu function Icon" and icon starts blinking, now the digital display shows the time and temperature of selected menu function. After selecting the corresponding menu function, press Time / Temperature Buttons to adjust the time and temperature with the help of "+" / "-" buttons. Once the menu function setting completes, press the "Play/Pause" button to start the cooking process.

NOTE:

A. During cooking process, we can press the "Play/Pause" button to stop cooking (Air fryer stop working and fan continue working for few seconds). To end the cooking process, press the power button and the air fryer will switch off.

B. After suspension of any menu function, with the help of Play/Pause button, we can replace it with any other menu function.

C. When we start cooking with any menu function, digital display shows "Selected menu" icon and "Time" display. Once the cooking process is completed, The Fan will continue to work for 30 seconds and air fryer will enter into the standby mode.

1. Remove the air fryer basket and place down on a heat-resistant surface. Do not place it on the Air fryer.
2. Turn off the device using the "Power/Start-Stop" button and pull the mains plug out of the plug socket.
3. Remove the food from the frying basket.
4. Allow the basket and rack to cool down and clean them as mentioned in cleaning and maintenance process.

Auto reminder function to shake the food in halfway through process:

To get the most out of your Air fryer and the best results, it is always recommended to shake or turn upside down the food half way through the process to get an evenly cooked final result. But most of the times it is not easy to remember to stop the air fryer, shake the food and start again. So, this model of air fryer has “auto reminder” function, which reminds you twice with the help of simply 5 times beep signal twice at in interval of 30 seconds and control panel flashing with “SHA” for about 60s to shake or stir the food.

Note: Following cooking programs (Veg, Pizza and Bake) do not have an automatic reminder function.

Functioning of the auto reminder function

The automatic reminder function is preestablished on the fryer in both pre-set and personalized menus. Assuming a 12-minute menu has been set. During the first 1/2 of the time (6 minutes) it will do the normal cooking and when 1/2 (6 minutes) of time remained left, the display will show “SHA”, it will begin to flash for about 60 seconds and a beep sound comes for “5” Times to remind you that you can shake or stir the food. This is time to remove the basket from the fryer. Once removed, the process will stop and the front panel will turn off. Stir the food and place the air fryer basket back into its position and the air fryer activates automatically in order to complete the cooking process where it had left off. And in case if you don’t want to stir the food, no need to do anything as the fryer keeps working until the completion of the cooking procedure. After passing of 60 seconds of reminder function, panel screen start showing again remaining cooking time.

Note: Preheating of the device is not necessary.

Tips

• Smaller size ingredients usually require a slightly shorter preparation time than large size ingredients
• A larger amount of ingredients only requires a slightly longer preparation time comparatively smaller amount of ingredients.
• Shaking smaller ingredients halfway through the preparation time optimizes the end result and can prevent unevenly fried ingredients.
• Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after you added the oil.
• Do not prepare extremely greasy ingredients such as sausages in the air fryer.
• Snacks that can be prepared in an oven can also be prepared in the air fryer.
• The optimal amount for preparing crispy fries is 500 grams. Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter preparation time than homemade dough.
• Place a baking tin or oven dish in the air fryer basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients.
• Before using the device, make sure that the device and the outsides of the frying baskets are clean and dry.
• Do not use the device longer than 4 hours without a break.
• Do not leave the device switched on when it is empty.
• Do not place food that is still wrapped in cling film or plastic bags into the device.
• Make sure that the food does not come into contact with the heating elements.
• Do not overfill the drawer so that the hot air can circulate optimally inside the cooking chamber. Fill it no more than 1/3 full.
• Make sure that foodstuffs containing oil and fats are not overheated. There are possibilities of ignition.

8. CLEANING AND MAINTENANCE

Cleaning

1. Clean the appliance after every use.
2. The pan and the non-stick coating basket: do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating.
3. Remove the mains plug from the wall socket and let the appliance cool down. Note: Pull out the basket to let the air fryer cool down more quickly.
4. After cooking, frying basket should not be placed directly on the countertop to avoid burning the countertop.

5. Wipe the outside of the appliance with a moist cloth.

6. Clean the Frying basket, grill and tong with warm water, some cleaning liquid and a non-abrasive sponge.

7. You can use degreasing liquid to remove any remaining dirt.

Tip: If dirt is stuck to the basket, fil the basket with hot water with some cleaning liquid. Place the frying grill into the basket and let them soak for few minutes.

1. After few minutes when the grease and dirt will come out, then wash it with the help of soap and non-abrasive sponge.
2. Clean the inside of the appliance with hot water and non-abrasive sponge.
3. Clean the heating element with a cleaning brush to remove any food residues.

Storage:

1. Unplug the appliance and let it cool down.
2. Make sure all parts are clean and dry.
3. Store in a cool and dry place.

9. TROUBLE SHOOTING

Problem Possible cause Solution
The Air fryer does not work	The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	You have not set the timer.	Set the time to the required preparation time to switch on the appliance.
The ingredients fried with the air fryer are not done.	The amount of ingredients is much more in the basket compare to the basket size.	Put smaller batches of ingredients in the basket. Smaller batches are fried more evenly.
	The set temperature is too low.	Set the temperature to the required temperature setting (See section ‘settings’ in chapter ‘Using the appliance’).
	The preparation time is too short.	Set the time to the required preparation time (see section ‘Settings’ in chapter’ Using the appliance’).
The ingredients are half fried or unevenly fried in the air fryer.	Certain types of ingredients need to be shaken halfway through the preparation time.	Ingredients that lie on top or across each other (e.g., fries) need to be shaken halfway through the preparation time. See section ‘Settings’ in chapter ‘Using the appliance’.
Fried snacks are not crispy when they come out of the air fryer.	You used a type of snacks meant to be prepared in a traditional deep fryer.	Use oven snacks or lightly brush some oil on to the snacks for a crispier result.
I cannot slide the pan into the appliance properly.	There are too much ingredients in the basket.	Do not fill the basket beyond the MAX indication even try to fill Little less
	The basket is not placed in the pan correctly.	Push the basket down into the pan until you hear a click.
White smoke comes out of the appliance.	You are preparing greasy ingredients.	When you fry greasy ingredients in the air fryer, a large amount of oil will leak into the pan. The oil produces white smoke and the pan may heat up more than usual. This does not affect the appliance or the end result
	The pan still contains grease residues from previous use.	White smoke is caused by grease heating up in the pan. make sure you clean the pan properly after each use.
French fries are fried unevenly in the air fryer.	You did not use the right potato type.	Use fresh potatoes and make sure they stay firm during frying.
	You did not rinse the potato sticks properly before you fried them.	Rinse the potato sticks properly to remove the starch from outside of the sticks.
French fries are not crispy when they come out of the air fryer.	The crispiness of the fries depends on the amount of oil and water in the fries.	Make sure you dry the potato sticks properly before you add the oil.
		Cut the potato sticks smaller for a crispier result.
		Add slightly more oil for a crispier result.

PORTANT:

Technical diagram of a multi-tiered kitchen appliance with numbered parts labeled 1 through 8

Technical diagram of a microwave oven with numbered parts labeled for identification.

Technical diagram of a multi-tiered kitchen appliance with numbered parts and a tool for cleaning or assembly.

Technical diagram of a multi-tiered kitchen appliance with numbered parts labeled 1 through 8

Technical diagram of a multi-tiered kitchen appliance with numbered parts labeled 1 through 8

Technical diagram of a multi-tiered kitchen appliance with numbered parts labeled 1 through 8

Technical diagram of a multi-tiered kitchen appliance with numbered parts labeled 1 through 8

Technical diagram of a multi-tiered kitchen appliance with numbered parts labeled 1 through 8

Hvataljka za hranu: Ova friteza ima hvataljku za hranu radi sigurnosti korisnika, koja nam pomaže izvaditi hranu bez dodirivanja i vruću košaru za prženje kako bismo izbjegli opekotine.

6. PRIPREMA ZA UPORABU

PRIJE PRVE UPOTREBE

1- Uklonite sav materijal za pakiranje.
2- Uklonite Ijepilo, etikete i naljepnice nalijepljene na proizvod.
3- Košaru za prženje i rešetku za prženje temeljito očistite toplom vodom, mekim deterdžentom i neabrazivnom spužvom.
4- Očistite proizvod iznutra i izvana toplom vlažnom krpom.
5- Ova friteza koristi tehnologiju kruženja vrućeg zraka od 360°, što pomaže korisniku da skuha hranu u kratkom vremenskom razdoblju i bez upotrebe ulja, a ako ga i koristi, koristi vrlo malu količinu.
6- Obrišite uređaj izvana čistom i vlažnom krpom. Očistite ladice i police deterdžentom i toplom vodom ili u perilici posuđa.
7- Prilikom prve uporabe, uređaj treba koristiti bez ikakvih namirnica jer može proizvoditi dim ili mirise zbog ostataka premaza. Pustite da se uređaj zagrijava na najvišoj postavci temperature cca. 10 minuta bez hrane. Zatim ga ponovno očistite prije prve uporabe s hranom u njemu.

7. UPUTE ZA UPORABU

Upravljačka ploča:

5 6 FRIES WINGS STEAK FISH VEG PIZZA BAKE 1 BBQ 2 SYNC TIME TIME TEMP + DIY DUAL 8 10 3 4 3 9 7 1 2 a ploča:

Technical diagram of a multi-tiered appliance with numbered parts and a tool for measuring or cleaning.

Technical diagram of a multi-tiered kitchen appliance with numbered parts and a tool for measuring or cleaning.

Technical diagram of a multi-tiered appliance with numbered parts and a tool for measuring or cleaning.

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
