SS-10770 - Rice cooker Sogo - Free user manual and instructions

Product type	Electric rice cooker
Brand	Sogo
Model	SS-10770
Voltage / Frequency	220-240V~ 50-60Hz
Power	1900W
Capacity (raw rice)	Up to 20 cups (measuring cup provided)
Accessories included	Measuring cup, rice spoon
Main functions	Rice cooking, steaming / stewing, automatic keep warm
Safety	Overheat protection (thermal fuse), automatic shut-off at end of cooking, safety lock lid
Care and cleaning	Removable inner pot washable with soapy water; heating base cleanable with a damp cloth; do not immerse the main body
Inner pot material	Stainless steel with non-stick coating
Control type	Mechanical buttons with indicator lights
Electrical class	Class I (with earthing)
Dimensions (L x W x H)	Approximately 30 x 30 x 30 cm
Weight	Approximately 4 kg
Country of manufacture	China
Warranty	To check with manufacturer (After-sales service: www.sogosat.com)

Frequently Asked Questions - SS-10770 Sogo

How to reset my Sogo SS-10770 rice cooker after a power outage?

Unplug the appliance for a few minutes, plug it back in, and press the On button (I) before starting cooking.

What is the recommended rice-to-water ratio?

Use the provided measuring cup: 1 cup of rice to 1 cup of water. Refer to the proportion table in the manual for large quantities.

Can I steam vegetables in this cooker?

Yes, the appliance has a steaming and stewing function. Place food in a suitable steamer basket or directly in the inner pot.

How to clean the heating base?

Unplug the appliance and let it cool. Use a soft cloth or fine sandpaper to remove residues. Never immerse the main body in water.

What to do if rice sticks to the bottom?

Check the water ratio and cooking time. After cooking, let it rest for 10-15 minutes in Keep warm mode. Clean the pot after each use.

Does the appliance shut off automatically?

Yes, at the end of cooking the cooking button pops up and the appliance switches to Keep warm mode. To turn off completely, press the Off button (O) and unplug.

Can I use a pot from another brand?

No, use only the provided inner pot to avoid damaging the appliance and ensure proper contact with the heating base.

How to maintain the lid gasket?

Clean the gasket with a damp cloth after each use. Make sure it is dry before closing. Do not use abrasive products.

What to do if the cooking indicator does not light up?

Check that the appliance is plugged in, the inner pot is properly placed, and the lid is closed. If the problem persists, contact after-sales service.

How to recycle my rice cooker at end of life?

Do not dispose of the appliance with household waste. Take it to an approved collection point for waste electrical and electronic equipment (WEEE).

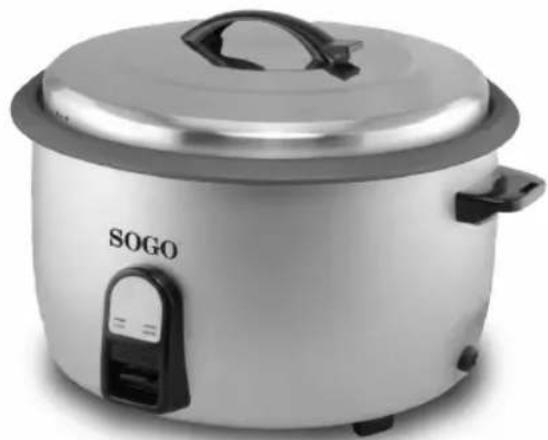

USER MANUAL SS-10770 Sogo

5.6L 10L

Electric Rice Cooker Electric Automatic Rice Cooker Electric Rice Cooker Electric Rice Cooker Electric Rice Cooker Electric Rice Cooker

Caution: please read and preserve these important instructions. This manual can be downloaded from our website, www.sogo.es, in the following languages: Spanish, Catalan, English, French, Portuguese, German, Italian.

Ref. SS-10770

SS-10780

IMPORTANT NOTICE:

• Always read the instruction book carefully before using. - This manual can be downloaded from our web page www.sogo.es.

IMPORTANT SAFEGUARDS

1. Read all instructions.
2. To protect against electrical shock, do not immerse cord, plug or base unit in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. Unplug from outlet when not in use and before cleaning. Unplug before putting on or taking off parts, and allow to cool before cleaning.
5. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the Service Center for examination, repair or adjustment. If the supply cord is damaged, it must be replaced by manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Non-recommended accessory may cause hazard.
7. Do not use outdoors.
8. Do not let cord hang over edge of table or counter, or touch hot surfaces.
9. Do not place on or near a hot gas or electric burner, or in a heated oven.
10. Extreme caution must be used when moving an appliance containing hot food, water, or other hot liquids.
11. Do not use appliance for other than intended use.
12. Lift and open cover carefully to avoid scalding, and allow water to drip into Rice Cooker.
13. Do not use steel, wood or any metallic scouring pad to clean the electrical pin terminals on the appliance. Metal slivers can reduce electrical spacings and cause a shock hazard.
14. To reduce the risk of electrical shock, cook only in removable container. Do not pour liquid into outer pan.
15. Never allow water or any liquid into the outer pot.
16. Never plug in the power cord without the inner pot inside the cooker.
17. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
18. Children should be supervised to ensure that they do not play with the appliance.
19. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
20. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
21. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
22. Do not use this appliance with a programmer, counter or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire.
23. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

ADDITIONAL IMPORTANT SAFEGUARDS

1. CAUTION: This appliance generates heat and escaping steam during use. Proper precautions must be taken to prevent the risk of burns, fire or other damage to persons or property.
2. All users of this appliance must read and understand this Owner's Manual before operating or cleaning this appliance.
3. The cord to this appliance should be plugged into a 220/230V AC electrical outlet only.
4. Always attach plug to the Rice Cooker first, then plug into the wall outlet. To disconnect, move the Warm/Cook lever to the Warm position (Mantener Caliente), then remove the plug from wall outlet.
5. When using this appliance, provide adequate air space above and on all sides for air

circulation. Do not allow this appliance to touch curtains, wall coverings, clothing, dish towels or other flammable materials during use.

1. Do not leave this appliance unattended during use.
2. This appliance generates steam. Do not operate uncovered.
3. If this appliance begins to malfunction during use, immediately unplug the cord. Do not use or attempt to repair the malfunctioning appliance! Do not use the Inner Pot if cracked or chipped.
4. THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY.

Instructions for use

Dear Customer, Please read this instruction manual carefully.

Please press the switch "I" (on) before cooking. Please press the switch "O" (off) after finished cooking.

ACCESSORIES Measuring Cup

Rice Scoop

SHORT CORD INSTRUCTIONS

A short cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. If an extension cord is necessary, it must be rated no less than the electrical rating of this appliance. Please take care to arrange the extension cord so that it will not drape over a counter or tabletop and become a potential hazard.

BEFORE USING FOR THE FIRST TIME

I. Clean the detachable Inner Lid, Inner Pot, Rice Scoop and Measuring Cup following the User Maintenance Instructions

DO NOT IMMERSE THE HEATING BODY OF THE RICE COOKER IN WATER OR ANY OTHER LIQUID!

II. How to operate the cooker

1. Wash the rice and put it into the cooker: Wash the rice in another container and put it into the cooker after washing. Generally, with one cup of rice, one and a half cups of water should be added. Do not wash rice directly in the aluminum cooker, so as to prevent the deformation of the cooker bottom by collision, affecting the normal operation. As per Fig.1.
2. Place the aluminum cooker correctly in position: Make sure there is no foreign matter sticking to the heating element and cooker bottom, then put the aluminum cooker into the outer shell.

At the same time, turn the aluminum cooker in clockwise and counterclockwise directions several times to ensure close contact between the inner pot bottom and the heating element. As per Fig.2.

1. Rice cooking: Insert the plug into the cooker, plug into the electric outlet, press the 'rice cooking' button, then press 'heating'. When the rice cooker indicating light turns on, the rice cooker is in the cooking process.
2. Function of heat preservation: After the 'rice cooking' indicating light turns off, the heat preservation indicating light turns on.

Fig.2

Make sure the lid is locked properly before carrying or cooking.

1. Steaming or stewing food: When the food is steamed or stewed to the required time, please pull up the 'heating' button to stop heating.

RICE COOKING PROCEDURE:

For your convenience, the inner cooking part features water measurement lines inside. We have also provided a handy cup to measure rice and water.

1. Measure the desired amount of rice using the measuring cup supplied with the rice cooker. One cup of raw rice will produce approximately 2 cups of cooked rice.
2. Rinse the rice with warm water to remove excess bran and starch.

NOTE: Many rice suppliers suggest that you should not rinse the rice as a vitamin loss may occur.

1. Put rice into the cooking pot. To achieve evenly cooked rice, raw rice should be levelled off in the cooking pot.
2. Add the correct amount of water by using either the measuring cup or by adding water to the appropriate line in the pot. Never add water higher than the top water line.
3. Set the unit on a stable surface. Place the cooking pot into the rice cooker. Make sure that the pot has direct contact with the heating plate by turning it slightly from right to left until the pot is properly positioned.
4. Close the lid and press down until the latch snaps shut. If the lid is not closed properly, cooking efficiency might be affected.
5. Plug the AC cord into a wall outlet. Do not plug the cord in until ready to cook. Any time this cooker is plugged in and the switch is not immediately set for cooking, the warming circuit is operating.
6. Press the switch. The rice cooking light will turn on indicating the rice is starting to cook.
7. When the cooking is finished, the switch button will pop up and a click will be heard. At the same time, the cook light will turn off and the warm light will turn on.
8. When cooking is under the keep warm setting, keep the lid closed for about 10-15 minutes.

NOTE: This is an important process to cook fluffy and tasty rice.

1. To open the lid, gently press the lid release button.
2. The keep warm cycle will continue to operate automatically until the A/C cord is removed from the wall outlet.
3. Keep leftover rice in the refrigerator. To reheat, put rice and 1/4 cup of water into the inner pot. Place the pot into the cooker, and press the switch.

RICE/WATER MEASUREMENT CHART

RAW RICE (WHITE)	WATER WITH MEASURING CUP PROVIDED	APPROX. COOKED RICE YEILD
20 Cups	20-20 1/2 Cups	40 cups
23 Cups	23-23 1/2 Cups	46 cups
28 Cups	28-28 1/2 Cups	56 cups
45 Cups	45-45 1/2 Cups	90 cups
55 Cups	55-55 1/2 Cups	110 cups

NOTE: Please do not use a standard cup for measuring rice or water. Always use the measuring cup that comes with your rice cooker. If the cup provided is lost or damaged, please contact our customer service representatives for a replacement.

POINTS FOR ATTENTION

1. This product is a Class-1 electric appliance. To ensure safe operation, the AC mains must be properly earthed. The power plug is a special plug; any alteration of the plug is not allowed.
2. The bottom and edge of the aluminum cooker and the heating element must not be hit by force; they should be kept clean.

Water drops or rice must not remain on the surface of the inner pot bottom or the heating element, as this affects efficiency and may even burn out the parts. See Fig. 3.

1. Do not wash the cooker shell or immerse it in water.

The non-stick inner pot can be wiped with a soft cloth and should never be cleaned with a sharp knife.

1. Do not use the rice cooker to cook any acidic or alkaline food at any time. Do not place the cooker in areas with corrosive air or high moisture. During operation, never place the cooker in or near flammable places or substances.
2. After placing the inner pot, the power plug can be inserted into the outlet. Before taking out the aluminum cooker, the power plug should be pulled out. This ensures greater safety.
3. A cover-heating fuse is installed in this rice cooker. In case of overheating, the fuse

will blow and the power will be automatically cut. Replace the fuse and the cooker can be used again.

1. Keep the cooker away from direct sources of heat or sunlight to prevent possible damage. Do not expose it to water or high humidity.
2. Do not cover or obstruct the steam vent. Do not touch hot steam from the steam vent while cooker is in use.
3. Always keep the rice cooker unplugged when not in use.
4. The retractable electric cord needs to be pulled to its full extension prior to use. Stop pulling when a colored band comes into view. To retract the cord into the appliance, pull the cord and release slowly.
5. To avoid damage to the cooker, do not use the cooking pot from any other brand or model of rice cooker (as this type of damage is not covered under the warranty).
6. Always keep the outside and bottom of the inner pot completely dry before placing into the cooker as a wet pot might cause a crack and damage the unit.
7. Make sure that there are no foreign objects in the cooker.
8. Never place the inner pot directly on gas or electric burners.

USER MAINTENANCE INSTRUCTIONS

This appliance should be cleaned after every use.

1. Unplug the Automatic Rice Cooker from the outlet when not in use or before cleaning. Never immerse the Heating Body in water or any other liquid! Allow the Automatic Rice

Cooker to cool completely before cleaning.

Note: If the cooking part is still wet on the outside, a crack may occur as the cooker heats up and it might damage the cooker. Keep the cooking part extremely clean, especially if salt or salty ingredients have been used. Salt is very corrosive and will damage the non-stick coating.

The non-stick coating will discolor after a period of use. This is normal and will not affect your health or the use of the cooker.

1. Gently remove the water collector (fitted onto the side of the rice cooker) by pulling downwards. Discard the water after each use. Clean and replace the collector.
2. Clean other surfaces with a damp cloth.
3. Make sure the heating plate is clean and free of food or other articles that could interfere with the proper functioning of the rice cooker. Residue could be removed by gently scrubbing the heating plate with a piece of wool, then wipe and dry the heating plate to ensure good contact with the cooking pan.
4. Do not immerse the rice cooker in water or any liquid.
5. NOTE: Never clean the cooker when it is still hot.
6. Do not use abrasive cleaners or scouring pads or steel wool to clean the Automatic Rice Cooker.
7. Heating Body: Lightly wipe the exterior with a damp cloth or sponge. DO NOT IMMERSE THE HEATING BODY INTO WATER OR ANY OTHER LIQUID.
8. Inner Pot: Fill with hot water and leave for a while, then wash in hot, soapy water with a sponge and dry thoroughly with a

cloth.

1. Heating Plate, Thermostat: Grains of rice or other foreign matters may stick to the heating plate. These must be removed to prevent inadequate cooking. To remove cooked rice, smooth sandpaper can be used. Smooth out and polish the spot for good contact between the heating plate and the bottom of the Inner Pot.
2. There are no user serviceable parts inside this appliance. Do not attempt to repair this appliance yourself as you could render it dangerous to use. Return it to the Service Center for repairs.

TECHNICAL SPECIFICATION

SS-10770

Voltage / Frequency: 220-240V~ 50-60Hz

Power: 1900W

SS-10780

Voltage / Frequency: 220-240V~ 50-60Hz

Power: 2950W

IMPORTANT:

Fig.1

Fig.2

Fig.3

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product cannot be disposed of as normal rubbish or household waste. All electrical, electronic equipment and battery-operated units must be recycled in a proper manner and according to local municipal laws. You can recycle them by taking them to government-authorized disposal centers or specialized bins, which you can find in any nearby large supermarkets, electronics or electro-domestic product stores, or malls that have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA After-sales service: www.sogosat.com / [e-mail] / 0034 902 222 161
