USER MANUAL SS-14280 Sogo

Exterior view of a modern office building (no signage)

Batidora Eléctrica Hand Mixer Batteur-Mixer Électrique Batidora Elétrica Elektromixer Frullatore Elettrico

Caution: please read and preserve these important instructions

- This instruction manual can also be downloaded from our web page www.sogo.es

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions carefully before you use the appliance.
2. This appliance is designed for domestic use only. No responsibility is accepted for damage resulting from use non-compatible with the instructions.
3. To protect against risk of electrical shock do not put the HAND MIXER in water or other liquid.
4. Do not operate the hand mixer with wet hands.
5. Close supervision is necessary when any appliance is used by or near children. Keep children away from the appliance.
6. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
7. Unplug before inserting or removing parts.
8. Avoid contacting moving parts.
9. Keep hands, hair, clothing, as well as spatulas and other utensils away from the beaters during operation to reduce the risk of injury to persons, and/or damaged to the mixer.

10. Remove the beaters or dough hooks from the hand mixer before washing them.

11. Do not continuously operate the hand mixer for too long. The motor may over heat.
    For 1 – 5 speed continuous working time must be less than 5 minutes. For Turbo speed the continuous working time must be less than 1 minute.

12. Do not use the beaters to mix very hard ingredients.
13. Do not let the electric cable come in contact with any hot surface (like a heated stove).
14. Do not let cord contact hot surface, including the stove.
15. Do not let cord hang over edge of table or counter.
16. Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
17. Do not put it in water.
18. Do not use outdoors.
19. Household use only.
20. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
21. Switch off the appliance before changing accessories or approaching parts that move in use.
22. The unit should not be used with individual timer or remote control.
23. Do not press eject button while the mixer is in operation.

IMPORTANT

• This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children

CAUTION

• Before using your appliance for the first time, clean the various accessories carefully with hot soapy water.
  • After 5 minutes of continuous use, allow a few minutes rest before next use.
• Do not operate more than 5 minutes at one time (and with Turbo switch not more than 1 min at one time).

SAVE THESE INSTRUCTIONS

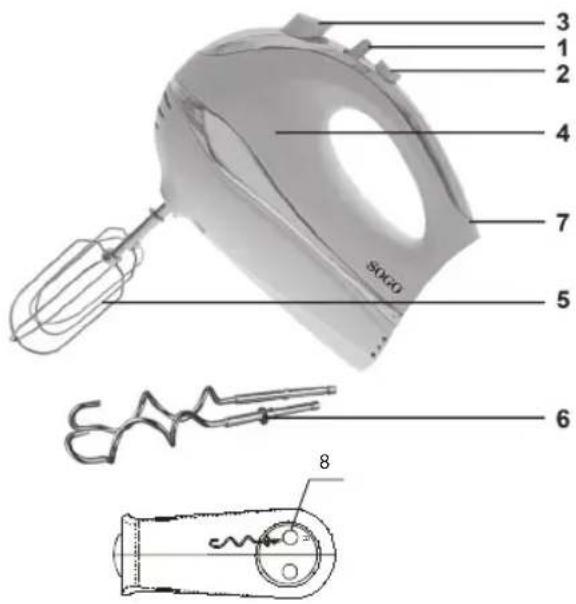

DESCRIPTION OF PARTS

1. Speed control
2. Turbo control
3. Ejed knob
4. Main housing
5. Beaters
6. Dough Hooks
7. Cord
8. Holes

SPECIFICATION

Model: SS-14280

Rating: 220\~240V\~50/60Hz, 300W

Work time: 1-5 speed, max 5 minutes continuous use.

Turbo: not more than 1 minute continuous use.

Revolution: 600\~1500 r.p.m

3 1 2 4 7 5 SOGO 6 8

MIXING GUIDE

SPEED DESCRIPTION

1 FOLD

2 BLEND

3 MIX

4 CREAM

5 WHIP

8 TURBO

This is a good starting speed for bulk and dry foods such as flour. butter and potatoes.

Best speed to start liquid ingredients for mixing salad dressings.

For mixing cakes. cookies and quick breads.

For creaming butter and sugar. Beating uncooked candy. desserts. etc.

For beating eggs. cooked icings. Whipping potatoes. whipping cream. etc.

Same as speed 5 (and for mixing minced meat or kneading heavy dough)

NOTE: Use hooks for mixing thick sticky flour. Use beaters for beating eggs.

USING YOUR HAND MIXER

1. Insert the beaters (5) or the dough hooks (6) to the two holes under hand mixer (Fig 2). The left one must be the piece with the plastic gear.
2. Plug in the appliance.
3. Hold the mixer handle. Lower the beaters or hooks into ingredient.
4. Switch on (1) and select the speed desired. The mixer begins to mix the ingredient in the bowl.
5. When you have finished mixing, stop the mixer by pushing the speed button to «0» immediately.

6. Wait until the beaters/hooks have stopped revolving, press the ejector knob (3) to remove the beaters/hook. «Switch off the appliance before changing accessories or approaching which move in use.»

7. You can press «turbo» button to accelerate the speed during mixing.

8. Unplug the appliance when you have finished mixing.

CLEANING

1. Unplug the appliance.
2. Clean the body of the appliance using only a damp cloth.
3. Clean the beaters or dough hooks under running water or in the dishwasher. Rinse and dry.
4. On completion of using your appliance it is strongly recommended that you clean the accessories immediately. This will remove any clinging food from the accessories, preventing drying up of the residual food. It makes cleaning easier and to avoid the possibility of bacterial growth.

IMPORTANTES MESURES DE SECURITE

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2. 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
