USER MANUAL J-151 Novus

Novus electric iron with visible branding and specifications (no text or symbols on the device itself)

Translation of the original operating instructions....7

Translation of the original operating instructions

1.2

Safety instructions and warnings

Ensure you read all of the instructions on safety and proper use

Failure to observe these instructions on safety and proper use could lead to electric shocks, fires and/or serious injury.

These operating instructions must be kept for later use.

Table of Contents

1. General information....7

1.2 Intended use 7

1.3 Safety instructions and warnings.....7

1.4 Key to pictograms 8

1.5 Technical data 9

1.6 Scope of supply....85

1. Standard operation....85

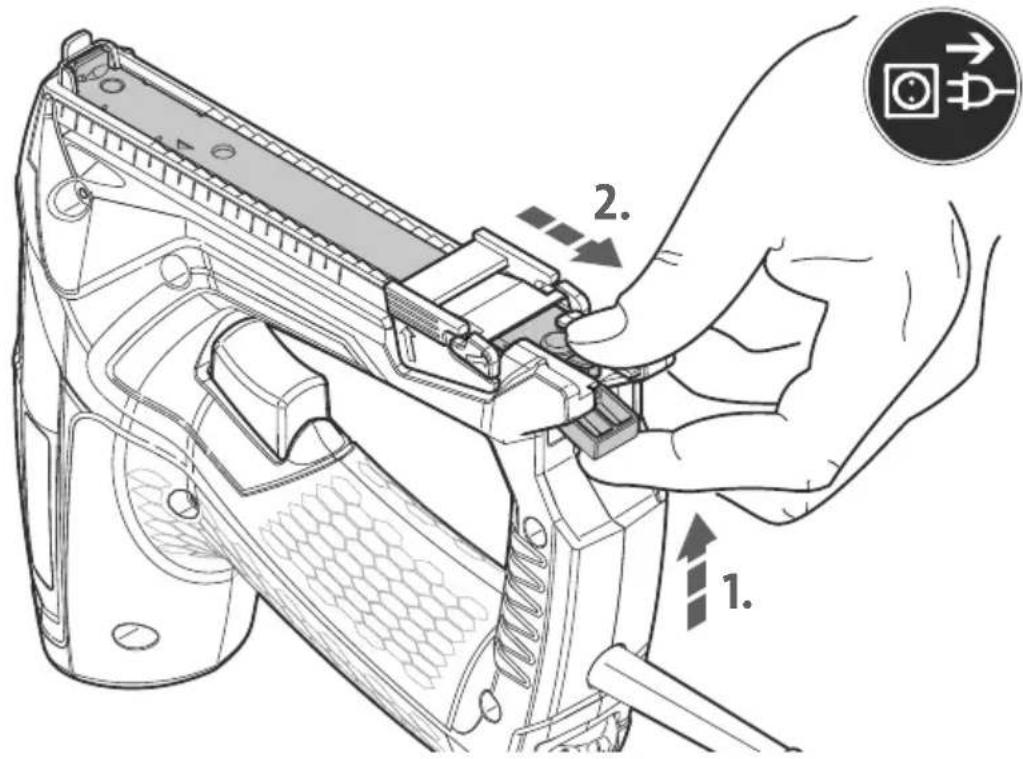

2.1 Opening magazine 85

2.2 Inserting fasteners 86

2.3 Adjusting impact power....86

2.4 Parallel guide 86

2.5 Releasing the trigger, firing a shot ..... 87

1. Maintenance/troubleshooting .....88

3.1 Troubleshooting....88

1.1 Intended use

This device is used to attach cardboard, insulating material, textiles, films, leather, wood and other similar non-brittle materials to wooden or wood-like surfaces. Please take care to ensure the workpiece is of a suitable size.

The device must only be used for the purpose intended by the manufacturer.

This device has been constructed and tested in accordance with all currently applicable technical regulations. It left the factory in perfect condition in terms of safety and reliability. To keep it in such a condition and to ensure risk-free operation, the user must observe the instructions and warnings given in the operating instructions.

• The device is not suitable for industrial use.

- The device is not a toy and must be kept away from children at all times.

- Check the device to ensure that it is in good condition any time before being put into operation.

- If it must be assumed that safe operation is no longer possible, take the unit out of operation and secure it against accidental use.

- Do not pull on the cable or use the cable to carry the device. Do not use the device if the power cable is damaged.

- Manipulation such as the removal or blockage of parts on the device is impermissible and will void the guarantee.

- Before switching on, ensure that the power source does not exceed the permissible values specified in the technical data.

- Do not point the device at yourself, other persons or animals.

• Use only original NOVUS fasteners.

- There is a risk of injury from the tips and edges of fasteners placed in the magazine, not fully driven in or jamming following a magazine fault.

- The device is only designed for short-term use. The device must therefore be allowed to cool down every 30 minutes when fired at a rate of 20 shots/min. in single-stroke mode.

- Protect against moisture and wetness.

• Unplug the device once you have finished working. Do not leave the device unattended while it is connected to the power supply.

• The device should be cleaned with a soft brush if necessary.

• Lubricate the staple outlet with a drop of light oil after approximately every 1000 shots.

• Only trained service personnel may open the device.

1.3

Key to pictograms

Read user information/safety precautions

IMPORTANT!

Disconnect device from the power supply

Use eye and ear protection

Important information

Standard operation

Maintenance instructions/troubleshooting

Connect device to the power supply

Compliance with the relevant EU safety directives

Intertek certifies that the product complies with the relevant device and product safety legislation Intertek certifies that the product complies with the relevant device and product safety legislation

Protection class II (double insulation, no earthed plug required)

Do not dispose of as household waste.

1.4 Technical data

• Mains voltage/frequency:

230V / 50Hz

• Mains power fuse protection:

10 A medium time-lag min.;

16 A medium time-lag max.

- Power cord:

Cable 3.0 m long, 2-core (2 x 1 mm ^2 ) 031-0361 plug CEE 7/17, power socket type EF

- Extension lead:

max. 10 m with core cross-section of 1.5 mm ^2

- Pulse repetition rate:

max. 20 shots/min, S2 30 min

• Electrical pulse generator:

radio-interference-suppressed

• Temperature range:

-10°C to 40°C

- Dimensions:

171 mm high, 196 mm long, 59 mm wide

• Weight:

1140 g

- Noise emission:

measured in accordance with EN 60745-1 A-weighted sound pressure level L_pA = 83dB(A) ; uncertainty K_pA = 3dB(A)

A-weighted sound power level L_WA = 94 dB(A) ; uncertainty K_wa = 3 dB(A)

Wear ear protection!

- Vibration:

Total vibration value measured in accordance with EN 60745-1 Vibration emission value ah = 2.4 m/s ^2 ; uncertainty K = 1.5 m/s ^2

- The total vibration value stated and the noise emission level stated were measured on the basis of a standardised testing method and can be used for comparing one power tool with another.

- The total vibration value stated and the noise emission level stated can also be used for making a preliminary estimate of load.

Warning:

- While actually using the power tool, vibration and noise emissions may vary from the values stated depending on the way in which the power tool is used, in particular the type of workpiece it is being used for.

- To protect the operator, define additional safety measures based on an estimate of vibration load under actual operating conditions (taking into account all parts of the operating cycle, such as cycles in which the power tool is switched off, and cycles in which it is switched on but not operating under load).

Negotovost K pA = 3 dB(A)

Do not dispose of as household waste.

1.4 Tehniskie dati

• Tikla spriegums/frekvence:

230V / 50Hz

Line drawing of a Novus air iron with attached cable and power cord (no text or symbols)

novus J-151 novus® 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

2

2.1

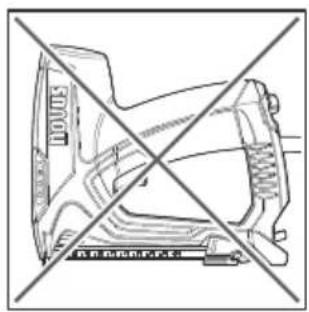

Cross-sectional diagram of a mechanical component with no visible text or symbols

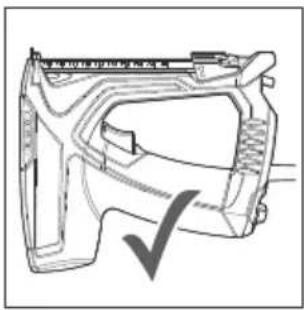

Technical line drawing of a mechanical component with a checkmark indicating selection (no text or symbols present)

Technical diagram showing a hand operating a device with labeled parts and directional arrows indicating assembly or operation.

2

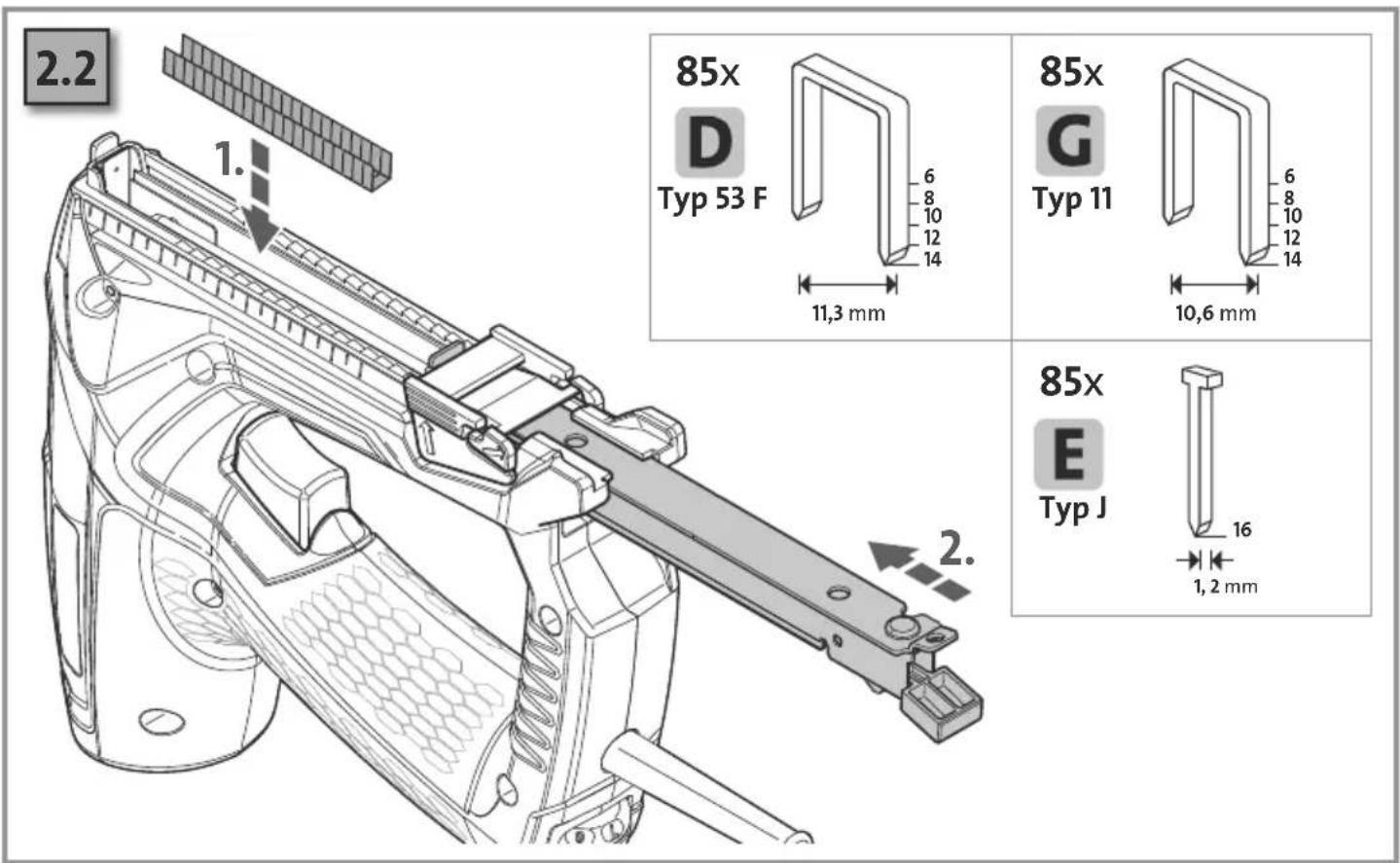

2.2 1. 85x D Typ 53 F 6 8 10 12 14 11,3 mm 85x G Typ 11 6 8 10 12 14 10,6 mm 85x E Typ J 16 1,2 mm

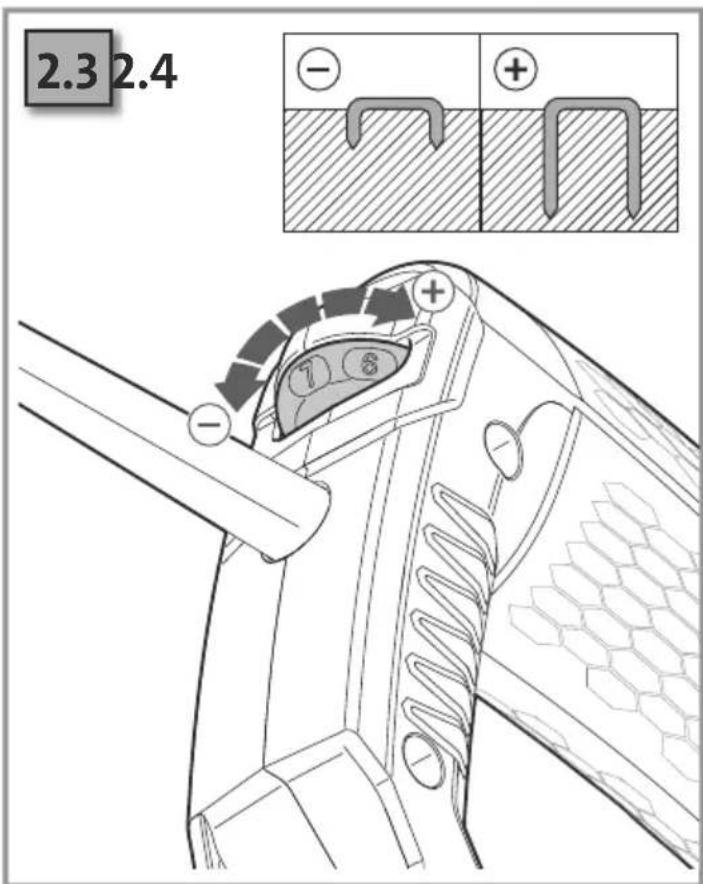

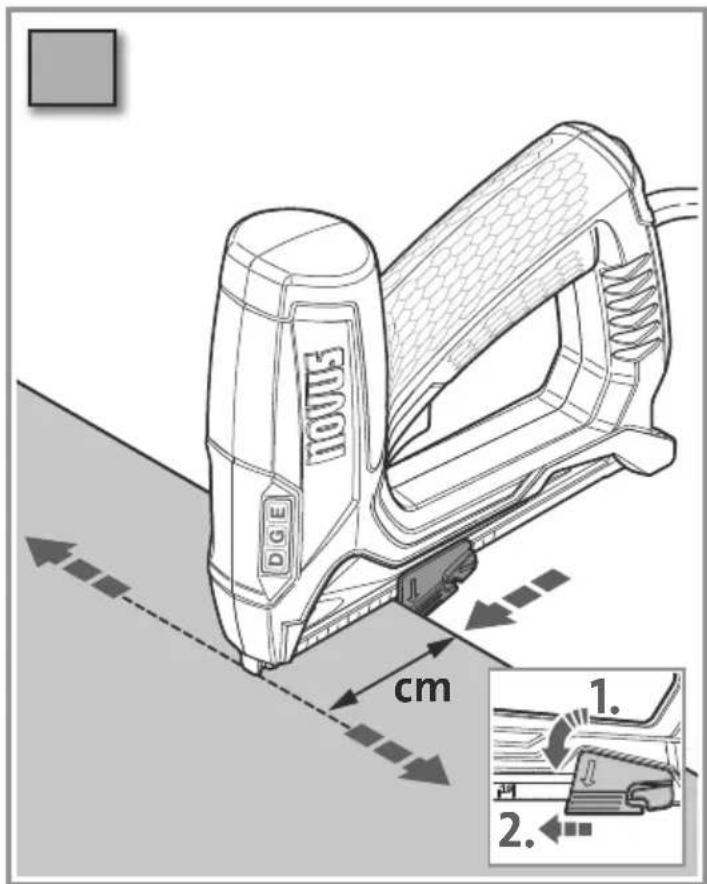

2.3 2.4 - - +

DGE 10005 cm 1. 2.

novus® J-151

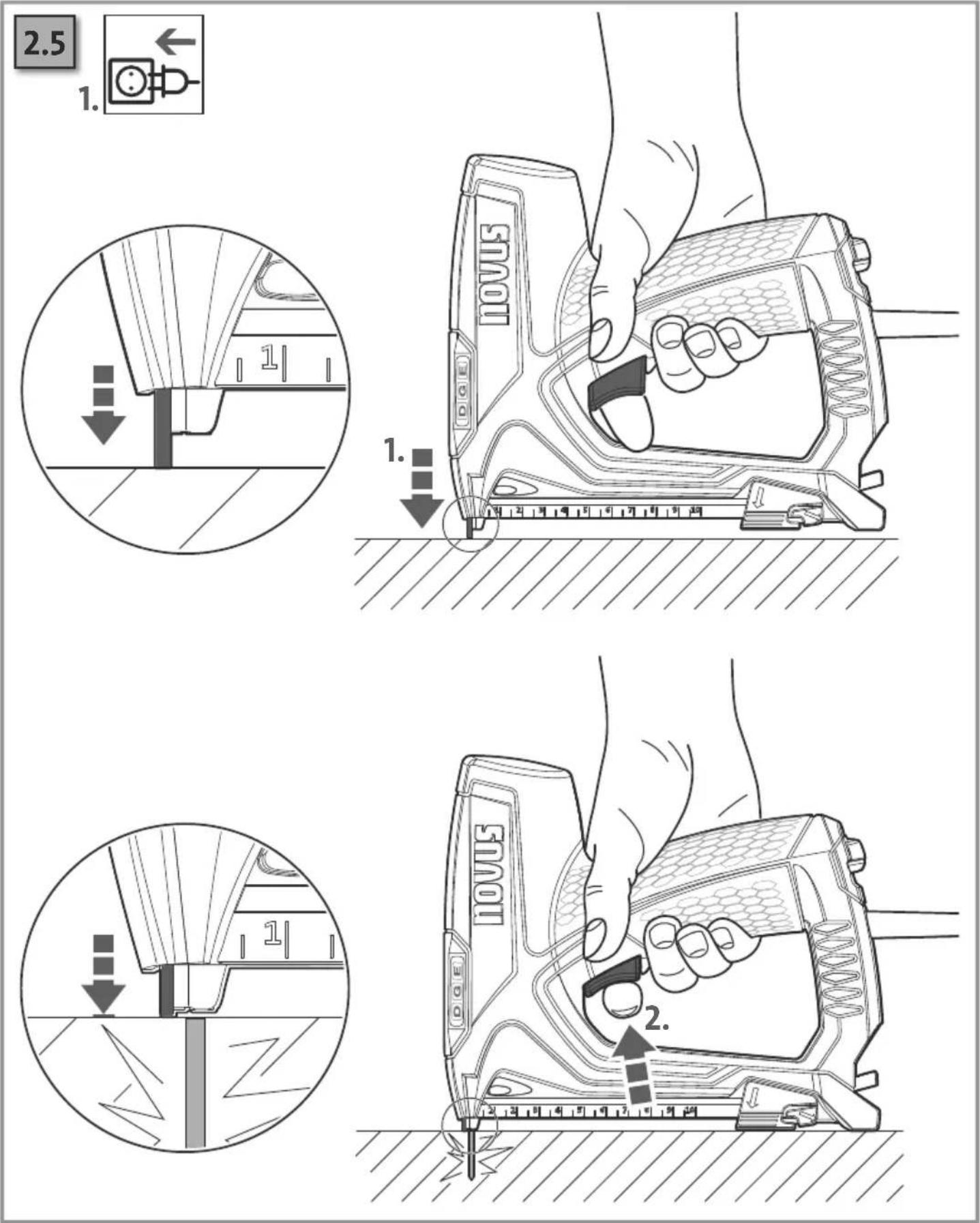

2.5 1. 1. 1. 1. 1. 1. 2. 2.

3

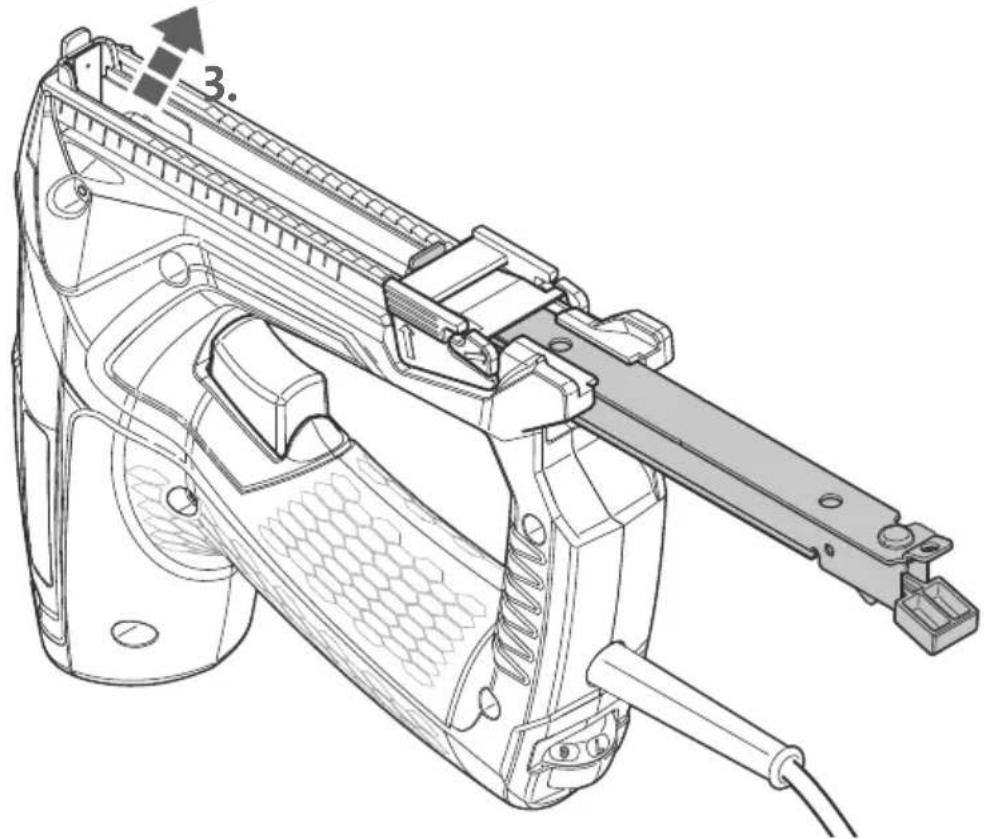

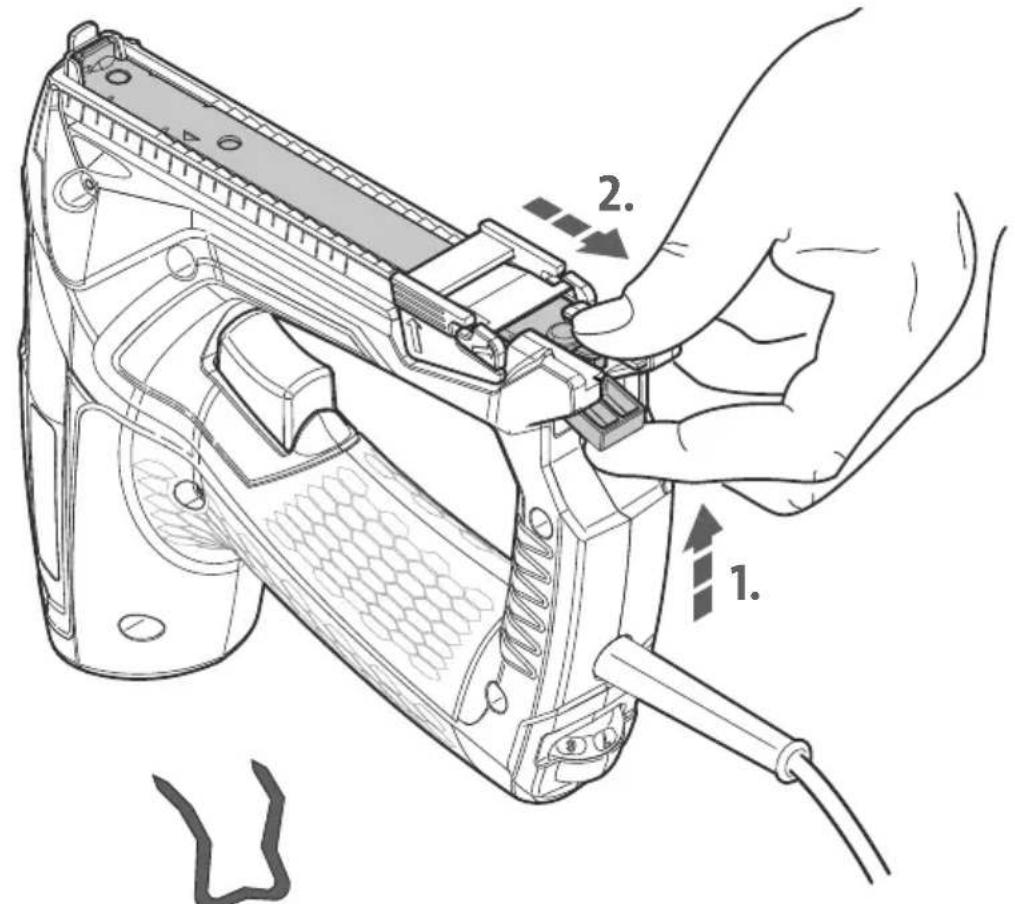

3.1

Technical diagram of a handheld device with labeled parts and directional arrows indicating assembly steps

Technical line drawing of a mechanical device with labeled component '3' (no text or symbols beyond label)

Blank grid paper with uniform square cells, no text or symbols present

Blank grid paper with uniform gray squares on white background (no text or symbols)

Blank grid paper with uniform square cells, no text or symbols present
