| Product type | Built-in gas hob |
| Brand | CANDY |
| Model | CPG 64SGX |
| Dimensions (W x D) | 595 x 510 mm |
| Estimated weight | 10 kg |
| Electrical supply | 220-240 V / 50-60 Hz, 15 W |
| Compatible gas type | Natural gas (G20) or butane/propane (G30/G31) |
| Number of burners | 4 |
| Burner types | 1 auxiliary (Ø 50 mm), 1 semi-rapid (Ø 75 mm), 1 rapid (Ø 100 mm), 1 quadruple crown (Ø 135 mm) |
| Total power | 9.25 kW (natural gas) / 673 g/h (butane) |
| Safety | Thermocouple on each burner, built-in electronic ignition, safety valve |
| Surface material | Stainless steel |
| Grilles | Chrome-plated, removable |
| Care and cleaning | Clean with soapy water or non-corrosive detergent; do not use steam cleaners |
| Installation class | Class 3 |
| Included accessories | Spare injectors, sealing gasket, fixing brackets |
| General information | Compliant with European directives 2006/95/EC, 2004/108/EC, 2009/142/EC |
Frequently Asked Questions - CPG 64SGX CANDY
User questions about CPG 64SGX CANDY
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hob in PDF format for free! Find your manual CPG 64SGX - CANDY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CPG 64SGX by CANDY.
USER MANUAL CPG 64SGX CANDY
BAPOUHbIE IOBEPXHOCTN
HCTPYKlIJI POJIb3OBATEJI R
NAVODILA ZA UPORABO
VGRADNJO IN PRIKLJUČITEV SL
PIANI COTTURA
ISTRUZIONI PER L'USO IT
PLACAS
INSTRUÇÉS DE UTILIZAZão PT
TÜZHELYLAPOK
Safety Instructions 05
1. Instructions For The Installer 06
1.1. Building In 06
1.2. Suitable Location 06
2. Electrical Connection (For U.K. Only) 06
2.1. Electrical Connection 06
2.2. Gas Connection (For U.K. Only). 07
2.3.Adapting The Hob To Different Types Of Gas 07
2.4.Regulating The Minimum Flame 07
3.Use Of Hob-User Instructions .07
3.1. Using The Gas Burner 07
4. Maintenance and Cleaning .07
5. Aftercare 07
6. Protection Of The Environment 08
OBSAH
CZ

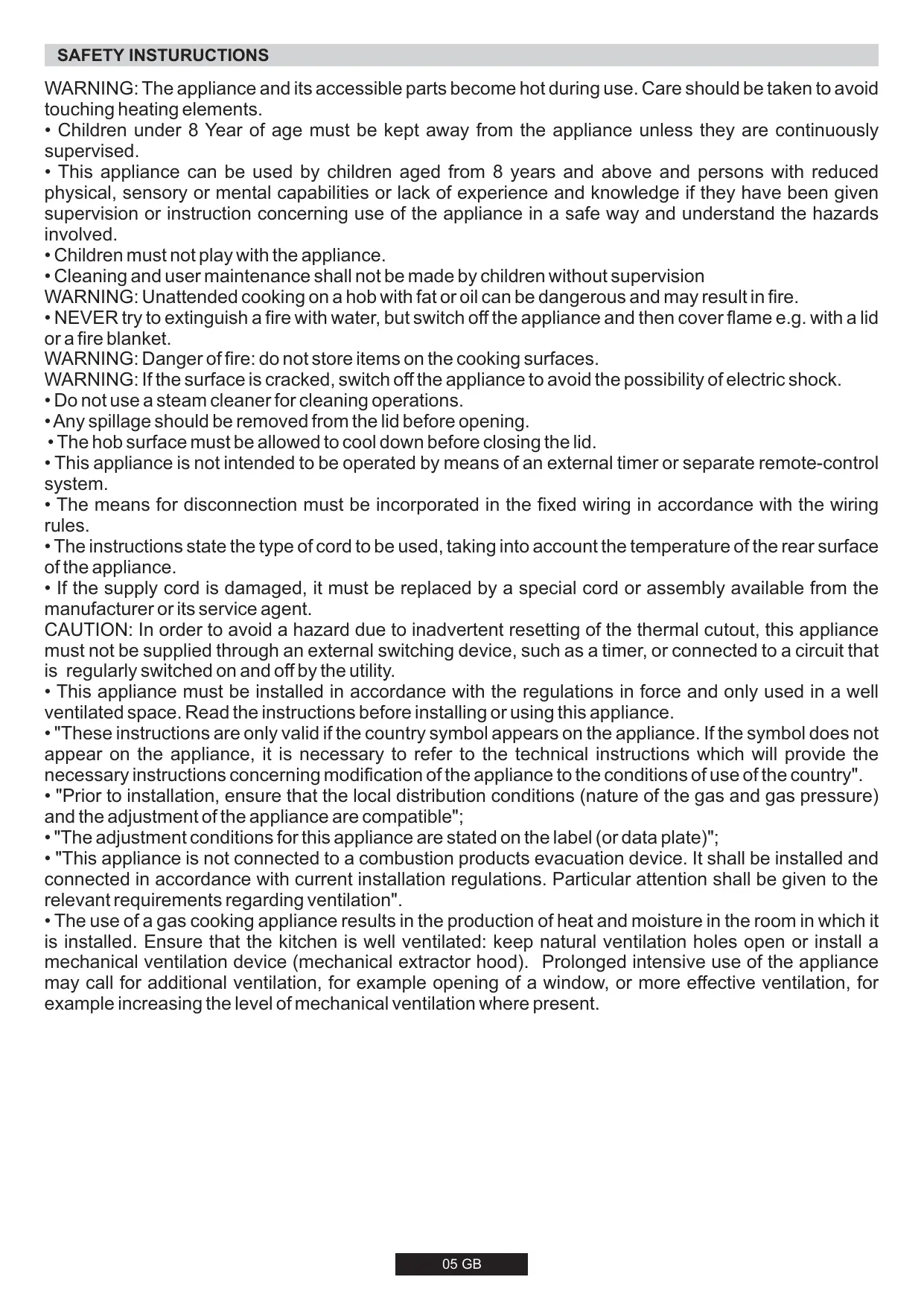

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
- Children under 8 Year of age must be kept away from the appliance unless they are continuously supervised.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Children must not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision
WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
- NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
WARNING: Danger of fire: do not store items on the cooking surfaces.
WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
- Do not use a steam cleaner for cleaning operations.
- Any spillage should be removed from the lid before opening.
- The hob surface must be allowed to cool down before closing the lid.
- This appliance is not intended to be operated by means of an external timer or separate remote-control system.
- The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
- The instructions state the type of cord to be used, taking into account the temperature of the rear surface of the appliance.
- If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
- This appliance must be installed in accordance with the regulations in force and only used in a well ventilated space. Read the instructions before installing or using this appliance.
- "These instructions are only valid if the country symbol appears on the appliance. If the symbol does not appear on the appliance, it is necessary to refer to the technical instructions which will provide the necessary instructions concerning modification of the appliance to the conditions of use of the country".
- "Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible";
- "The adjustment conditions for this appliance are stated on the label (or data plate)";
- "This appliance is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation".
- The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood). Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.
INSTALLING A DOMESTIC APPLIANCE CAN BE A COMPLICATED OPERATION WHICH IF NOT CARRIED OUT CORRECTLY, CAN SERIOUSLY AFFECT CONSUMER SAFETY. IT IS FOR THIS REASON THAT THE TASK SHOULD BE UNDERTAKEN BY A PROFESSIONALLY QUALIFIED PERSON WHO WILL CARRY IT OUT IN ACCORDANCE WITH THE TECHNICAL REGULATIONS IN FORCE. IN THE EVENT THAT THIS ADVICE IS Ignored and the INSTALLATION IS CARRIED OUT BY AN UNQUALIFIED PERSON, THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR ANY TECHNICAL FAILURE OF THE PRODUCT WHETHER OR NOT IT RESULTS IN DAMAGE TO GOODS OR INJURY TO INDIVIDUALS.
1.1 BUILDING IN
The hob may be installed in any worktop which is heat resistant to a temperature of 100^ , and has a thickness of 25-45 mm. The dimensions of the insert to be cut out of the worktop are in shown in Figure 2.
If the Hob is fitted next to a cabinet on either side, the distance between the Hob and the cabinet must be at least 15cm (see Figure 4); while the distance between the hob and the rear wall must be at least 5,5cm .
The distance between the hob and any other unit or appliance above it (e.g. An extractor hood) must be no less than 70 cm (Figure 4).
When there is an accessible space between the built-in hob and the cavity below, a dividing wall made of insulating material should be inserted (wood or a similar material) (Figure 3).
Important - The diagram in figure 1 shows how the sealant should be applied.
The Hob unit is fitted by attaching the Fixing Clamps supplied, using the holes at the base of the unit.
If a hob of 60~cm is fitted above an oven which is not equipped with fan cooling system it is recommended that openings are created within the built in furniture to ensure correct air circulation.
The size of these openings must be at least 300cm^2 and placed as shown in Figure 5.
When a 75 cm hob is fitted over a built in oven, the latter must be fan cooled.
1.2. SUITABLE LOCATION
This appliance must be installed in accordance with the regulations in force and only used in a well ventilated space. Read the instructions before installing or using this appliance.
A gas-powered cooking appliance produces heat and humidity in the area in which it is installed. For this reason you should ensure good ventilation either by keeping all natural air passages open or by installing an extractor hood with an exhaust flue. Intensive and prolonged use of the appliance may require extra ventilation, such as the opening of a window or an increase in speed of the electric fan, if you have one.
If a hood can not be installed, an electric fan should be fitted to an outside wall or window to ensure that there is adequate ventilation.
The electric fan should be able to carry out a complete change of air in the kitchen 3-5 times every hour. The installer should follow the relevant national standards.
2. ELECTRICAL CONNECTION (FOR U.K. ONLY)
Warning - this appliance must be earthed
This appliance is designed for domestic use only. Connection to the main supply must be made by a competent electrician, ensuring that all current regulations concerning such installations are observed.
The appliance must only be connected to a suitably rated spur point, a 3 pin 13 amp plug/socket is not suitable. A double pole switch must be provided and the circuit must have appropriate fuse protection. Further details of the power requirement of the individual product will be found in the users' instruction and on the appliance rating plate. In the case of built-in product you are advised, should you wish to use a longer cable than the one supplied, that a suitably rated heat resistant type must be used.
The wiring must be connected to the mains supply as follows:
CONNECT
TO SPUR TERMINAL
Green & Yellow Wire
Earth Connection
Blue Wire
Neutral Connection
Brown Wire
Live Connection
Note: We do not advocate the use of earth leakage devices with electric cooking appliances installed to spur points because of the «nuisance tripping» which may occur. You are again reminded that the appliance must be correctly earthed, the manufacturer declines any responsibility for any event occurring as a result of incorrect electrical installation.
2.1. ELECTRICAL CONNECTION
Check the data on the rating plate, located on the outside of the unit, to ensure that the supply and input voltage are suitable.
Before connection, check the earthing system.
By Law, this appliance must be earthed. If this regulation is not complied with, the Manufacturer will not be responsible for any damage caused to persons or property. If a plug is not already attached, fit a plug appropriate to the load indicated on the rating plate. The earth wire is coloured yellow/green. The plug should always be accessible.
Where the Hob is connected direct to the electricity supply, a circuit breaker must be fitted.
If the power supply cord is damaged this is to be replaced by a qualified engineer so as to prevent any potential risk.
The earth wire ( green and yellow coloured ) must be at least 10 mm longer than the live and neutral wires.
The section of the cable used must be of the correct size in relation to the absorbed power of the hob.
Please check rating plate for the power details and ensure that the power supply cord is of the type 3 × 0.75 ~mm^2 H05RR-F.
If an appliance is not fitted with a supply cord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, the instructions shall state that means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
When connecting the hob to the gas supply via use offlexible hoses please ensure that the maximum distance covered by the hose does not exceed 2 metres.
The flexible tube shall be fitted in such a way that it cannot come into contact with a moveable part of the housing unit (e.g. a drawer) and does not pass through any space where it may become crushed/ kinked or damaged in any way.
To prevent any potential damage to the hob please carry out the installation following this sequence (picture 6):
1)As illustrated, assemble parts in sequence:
A: 1/2 Male Adaptor Cylindrical
B:1/2 Seal
C: 1/2 Female Gas Adaptor Conical-Cylindrical or Cylindrical-Cylindrical
2) Tighten the joints with the spanner, remembering to twist the pipes into position.
3)Attach fitting C to mains gas supply using rigid copper pipe or flexible steel pipe.
IMPORTANT: carry out a final check for leaks on the pipe connections using a soapy solution. NEVER USE A FLAME. Also, make sure that the flexible pipe cannot come into contact with a moving part of the cabinet (eg.adrawer) and that it is not situated where it could be damaged.
Warning: If gas can be smelt in the vicinity of this appliance turn off the gas supply to the appliance and call the engineer directly. Do not search for a leak with a naked flame.
2.2. GAS CONNECTION
These instructions are for qualified personnel, installation of equipment must be in line with the relevant national standard. (For U.K. only: by law the gas installation\commissioning must be carried out by a "Gas Safe" installer)
All work must be carried out with the electricity supply disconnected.
The rating plate on the hob shows the type of gas with which it is designed to be used. Connection to the mains gas supply or gas cylinder should be carried out after having checked that it is regulated for the type of gas with which it will be supplied. If it is not correctly regulated see the instructions in the following paragraphs to change gas setting.
For liquid gas (cylinder gas) use pressure regulators which comply with the relevant national standards.
Use only pipes, washers and sealing washers which comply with the relevant national standards.
For some models a conic link is furnished to outfit for the installation in the countries where this type of link is obligatory; in picture 8 it is pointed out how to recognize the different types of links (CY = cylindrical, CO = conic). In every case the cylindrical part of the link has to be connected to the hob.
2.3. ADAPTING THE HOB TO DIFFERENT TYPES OF GAS
To adapt the Hob for use with different types of gas, carry out the following instructions:
- Remove the grids and burners
- Insert on hexagonal spanner (7 mm) into the burner support (Figure 7)
- Unscrew the injector and replace it with one suitable for the gas to be used (see gas type table)
2.4. REGULATING THE MINIMUM FLAME
After lighting the burners, turn the control knob to the minimum setting and then remove the knob (this can easily be removed by applying gentle pressure).
Using a small «Terminal» type screwdriver the regulating screw can be adjusted as in Figure 9. Turning the screw clockwise reduces the gas flow, whilst turning it anticlockwise increases the flow – Use this adjustment to obtain a flame of approximately 3 to 4mm in length and then replace the control knob.
When the gas supply available is LPG - the screw to set the idle flame must be turned (clockwise) to the end stop.
When you have carried out the new gas regulation, replace the old gas rating plate on your appliance with one (supplied with hob) suitable for the type of gas for which it has been regulated.
3. USE OF HOB - USER INSTRUCTIONS
This appliance must only be used for the purpose for which it is intended, domestic cooking, and any other use will be considered improper and could therefore be dangerous. The Manufacturer will not be responsible for any damage or loss resulting from improper use.
To ignite the burners, place a lighted taper close to the burner, press in and turn the control knob anti-clockwise.
If the burners have not been used for a couple of days, wait for a few seconds before lighting the burner, this will allow any air present in the pipes to escape.
For appliances fitted with electronic ignition carry out the following:
- Push in and turn the knob anticlockwise to the ignition symbol.
- ignite the burner by pressing the sparker button.
For hobs fitted with automatic ignition simply push in and turn the knob to the ignition symbol.
The ignition system will continue to generate sparks as long as the control knob is being pressed.
If the burner has not ignited within 5 seconds, turn the knob to the 0 position and repeat the operation.
For models fitted with a safety tap (which cuts-off the flow of gas if the flame is accidentally extinguished) the burners are ignited and described above, but care must be taken.
Prior to switching on the gas hob ensure that the burners and burner caps are correctly placed within their position.
GENERAL ADVISE
For best results, use cooking vessels with a flat surface. The size of the surface should match the gas burner side as follows. TableA.
Table A
| Burner Type | Ø pan/pot (cm) | Power (kW) | G20/20 mbar (methane) | G30/28-30 mbar (LPG) |
| AUX Auxiliary | 12 - 18 | 1,00 | 95 l/h | 73 g/h |
| SR Semi Rapid | 18 - 24 | 1,75 | 167 l/h | 127 g/h |
| R Rapid | 24 - 26 | 2,50 | 238 l/h | 182 g/h |
| UR Ultra Rapid | 24 - 28 | 3,50 | 333 l/h | 255 g/h |
| QC Double Ring | 24 - 28 | 4,00 | 381 l/h | 291 g/h |
For smaller containers the gas burner should be regulated so that the flame does not overlap the base of the pan. Vessels with a concave or convex base should not be used.
WARNING: If a flame is accidentally extinguished, turn the knob to the off position and do not attempt to re-ignite if for at least 1 minute.
If over the years the gas taps become stiff to turn it is necessary to lubricate them.
Such operation must be carried out only by qualified Service Engineers.
4. MAINTENANCE AND CLEANING
Before cleaning the hob, ensure the appliance has cooled down. Remove the plug from the socket or (if connected directly) switch off the electricity supply.
Cleaning and user maintenance shall not be made by children without supervision
Never use abrasives, corrosive detergents, bleaching agents or acids. Avoid any acid or alkaline substances (lemon, juice, vinegar etc.) on the enamelled, varnished or stainless steel sections.
When cleaning the enamelled, varnished or chrome sections, use warm soapy water or a non caustic detergent. For stainless steel use an appropriate cleaning solution.
The burners can be cleaned with soapy water. To restore their original shine, use a household stainless steel cleaner. After cleaning, dry the burners and replace.
It is important the Burners are replaced correctly.
Chromed grids and burners
Chromed grids and burners have a tendency to discolour with use.
This does not jeopardize the functionality of the hob.
Our After Sales Service Centre can provide spare parts if required.
5. AFTERCARE
Before calling out a Service Engineer please check the following:
- that the plug is correctly inserted and fused;
- that the gas supply is not faulty.
If the fault cannot be detected:
Switch off the appliance and call the After Service Centre. DO NOT TAMPER WITH THE APPLIANCE.
6. PROTECTION OF THE ENVIRONMENT
This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
Declaration of compliance: This equipment, in the parts intended to come into contact with food, complies with the regulations laid down in EEC directives 89/109.
CE Appliance complies with European Directives 2006/95/EC, 2004/108/EC and 2009/142/EC, and subsequent amendments.
The Manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.
Table 1
| BUILT IN HOBS | |||||
| Burner | 1 | 1 | 2 | 3 | 2 |
| 4 gas QC / R / SR / AUX | 4 gas R / 2SR / AUX | 5 gas QC / 2R / SR / AUX | 4 gas QC / R / SR / AUX | 5 gas UR / 2R / SR / AUX | |
| Type / reference | S67 / HBGPL2X | S67 / HBGPL2X | S67 / HBGPL2X | S67 / HBGPL2X | S67 / HBGPL2X |
| Flame failure device | YES | YES | YES | YES | YES |
| Auxiliary burner ( AUX Ø 50 mm) | 1 | 1 | 1 | 1 | 1 |
| Double ring burner ( QC Ø 135 mm) | 1 | - | 1 | 1 | - |
| Ultra rapid burner ( UR Ø 110 mm) | - | - | - | - | 1 |
| Semirapid burner ( SR Ø 75 mm) | 1 | 2 | 1 | 1 | 1 |
| Rapid burner ( R Ø 100 mm) | 1 | 1 | 2 | 1 | 1 |
| Installed Gas Type / Power: | |||||
| Power | 9.25 kW | 7.00 kW | 11.75 kW | 9.25 kW | 11.25 kW |
| G 20/20 mbar (methane) | 881 L/h | 666 L/h | 1119 L/h | 881 L/h | 1071 L/h |
| G 30/28-30 mbar (LPG) | 673 g/h | 509 g/h | 854 g/h | 673 g/h | 818 g/h |
| Installation Class | 3 | 3 | 3 | 3 | 3 |
| Voltage / Frequency V / Hz | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz | 220-240 V / 50-60 Hz |
| Electrical input power | 15 W | 15 W | 15 W | 15 W | 15 W |
| Electric ignition | YES | YES | YES | YES | YES |
| Product dimension | 595 x 510 | 595 x 510 | 745 x 510 | 745 x 510 | 745 x 510 |
This appliance has been designed for non-professional, i.e. domestic, use.
1.2 VHODNÉ MISTO INSTALACE
Cihaz, 2006/95/EC, 2004/108/EC ve 2009/142/EC
Ceyehne npoBOHnKOB Ka6eJIa NITaHn DOnXHo COOTBeTCTByET MOUHOCTN,Notpe6JIaEMO BApOCHNo NOBepxHOCTbIO.
Пюверътебауншости,notpeблгемолдярпорпбогом,уka3aHHoeВ nacnpthoT tabnueke,a taKke пюверът,eTOncnoIb3yetycaKa6eJIb nitaHna Tnna 3x0.75 mm² HO5RR-F.
I KJIACC 3aunTbI OT IopaxeHnTOKOM.
3NeKtpnueckoe NOkNIOHcHHe 6bITOBoI npbOpa DOJIKHO 6bITb BbIIOJIHEO C NcIOJIb3OBAHHeM pa3BeINHInTeJBHO yCTpoIcTBA B COOTBeTCTBUN C DeIcTByUOuIMN IpaBnIaMn HOpMaMn 3NeKtpo6e3OanchoCTn.
Ecnn 3neKtpponpnbop noctabnIeTcB 63 Ka6bIe NITaHnC BvNkoI, INI 6e3 dpynx yCTPOINCTB IJy OTCOeINHeHnO T 3neKTPocETn C OTCoEOHNHEm BCEx faz3, YTO oBCNEuHBaET PONHO EOTCOeHNHeHne 3neKTPponpnbopa OT 3neKTPocETn B Clyyae BO3HKnHOBeHnna HpeHApnpKeHn KaterOpIn III, To 3neKTPponpnbop DOnJxeh NODKNUOATbCS Yepe3 pa3beINHIOUe ee yCTPOINCTBO C JeeCTKO 3neKTPponpOBoDKoM CMOHTPOBAHHO B COOTBECTCBN C npABUNAMn POKkndkn 3neKTPponpOBoDKn.
4. MANUTENÇÂO E LIMPEZA
Antes de limpar a plac, certifique-se de que ela ja está fria. Desligue a ficha do cabo de alimentacao da tomada de rede ou, no caso de a plac estar directamente ligada à rede, corte a alimentacao de energia à plac..
The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of con sumption, without prejudice to the characteri stics relating to safety or function.
