KÄRCHER Home & Garden app

The device can be controlled by direct operation on the high-pressure gun or via a mobile device equipped with Bluetooth ^® wireless technology. The KÄRCHER Home & Garden app is required for this.

The app also contains:

• Installation and initial startup information
• Information about the areas of application

• Tips & Tricks
  • FAQ with detailed troubleshooting
  • Connection to the KÄRCHER Service Centre
  The app can be downloaded here:

GET IT ON Google Play Download on the App Store

Trademarks

• Bluetooth® wordmarks and logos are registered trademarks of Bluetooth SIG, Inc. Any use of these trademarks by Alfred Kärcher SE & Co. KG is under license.
• Google Play™ and Android™ are trademarks or registered trademarks of Google Inc.
• Apple ^® and App store ^® are trademarks or registered trademarks of Apple Inc.

General notes

Read these original operating instructions and the enclosed safety instructions before using the device for the first

time. Proceed accordingly.

Keep both books for future reference or for future owners.

Safety devices

⚠ WARNING

Danger of injury!

Serious injuries due to missing, modified or ineffective safety devices.

Do not bypass or remove the safety devices and do not render them ineffective. Safety devices are provided for your own protection.

Power switch

The power switch prevents unintentional operation of the device.

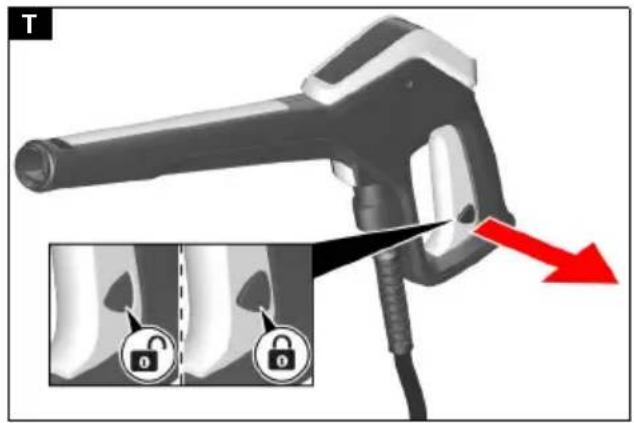

High-pressure gun lock

The lock locks the lever of the high-pressure gun and prevents the device from starting unintentionally.

Auto-stop function

If the lever of the high-pressure gun is released, the pressure switch turns off the pump and the high-pressure jet stops. The pump switches on again when the lever is pressed.

Motor circuit breaker

The motor circuit breaker shuts off the device if power consumption it too high.

Symbols on the device

Do not aim the high-pressure jet may at persons, animals, live electrical equipment or the device itself.

Protect the device against frost.

The device may not be connected to the public drinking water network.

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic devices contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish.

Cleaning work producing in oily waste water, e.g. washing engines, washing undercarriages etc., may only be performed at washing stations with an oil separator.
Working with detergents may only be performed on watertight surfaces with connection to the waste water sewage system. Do not allow detergent to enter waterways or the soil.
Extraction of water from public waterways is not permitted in some countries.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.de/REACH

Intended use

Use the high-pressure cleaner in private households only.

The high-pressure cleaner is intended for cleaning machines, vehicles, buildings, tools, façades, terraces, garden machines etc. using a high-pressure water jet.

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Description of the device

The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging).

For the illustrations, refer to the graphics page

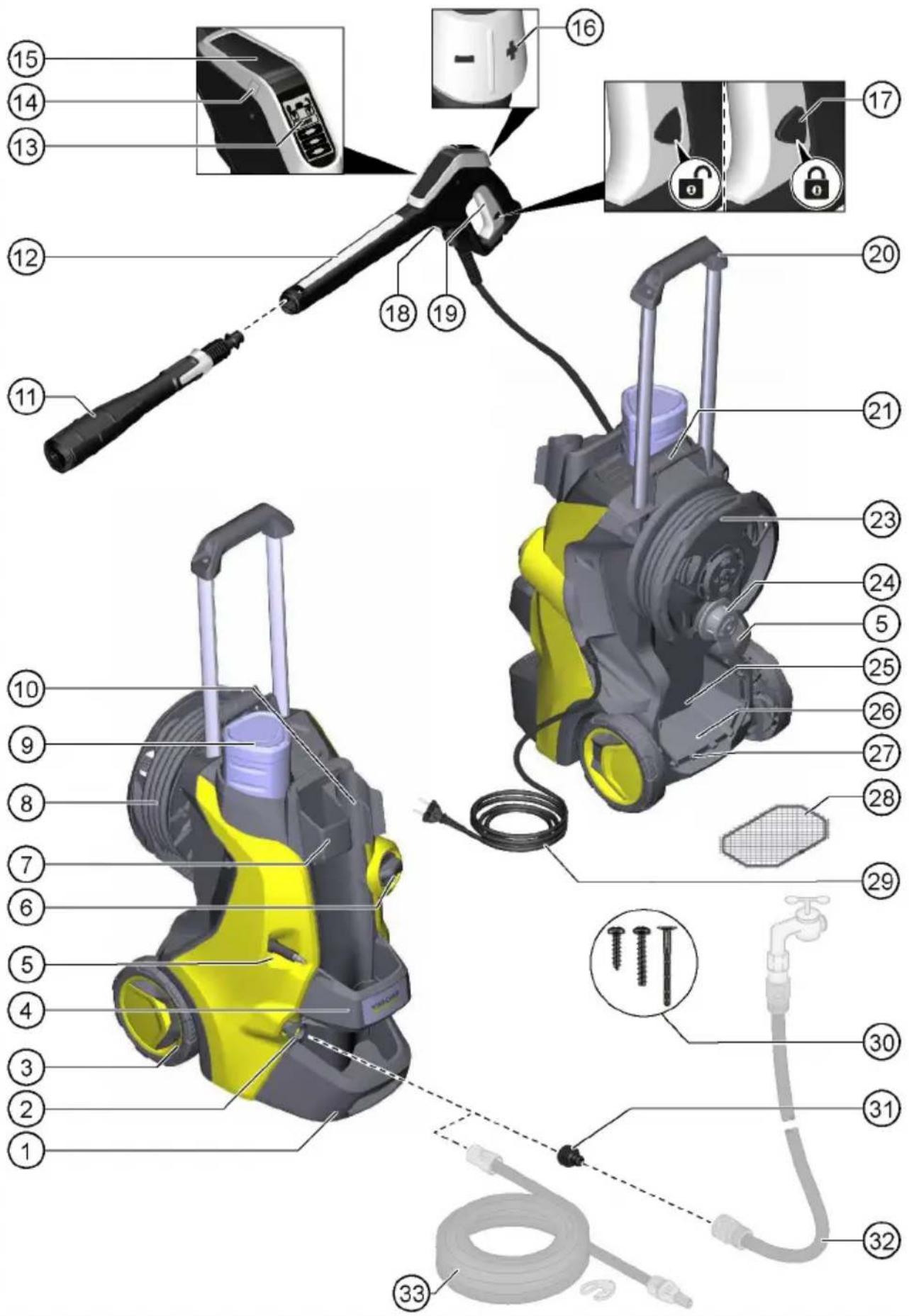

Illustration A

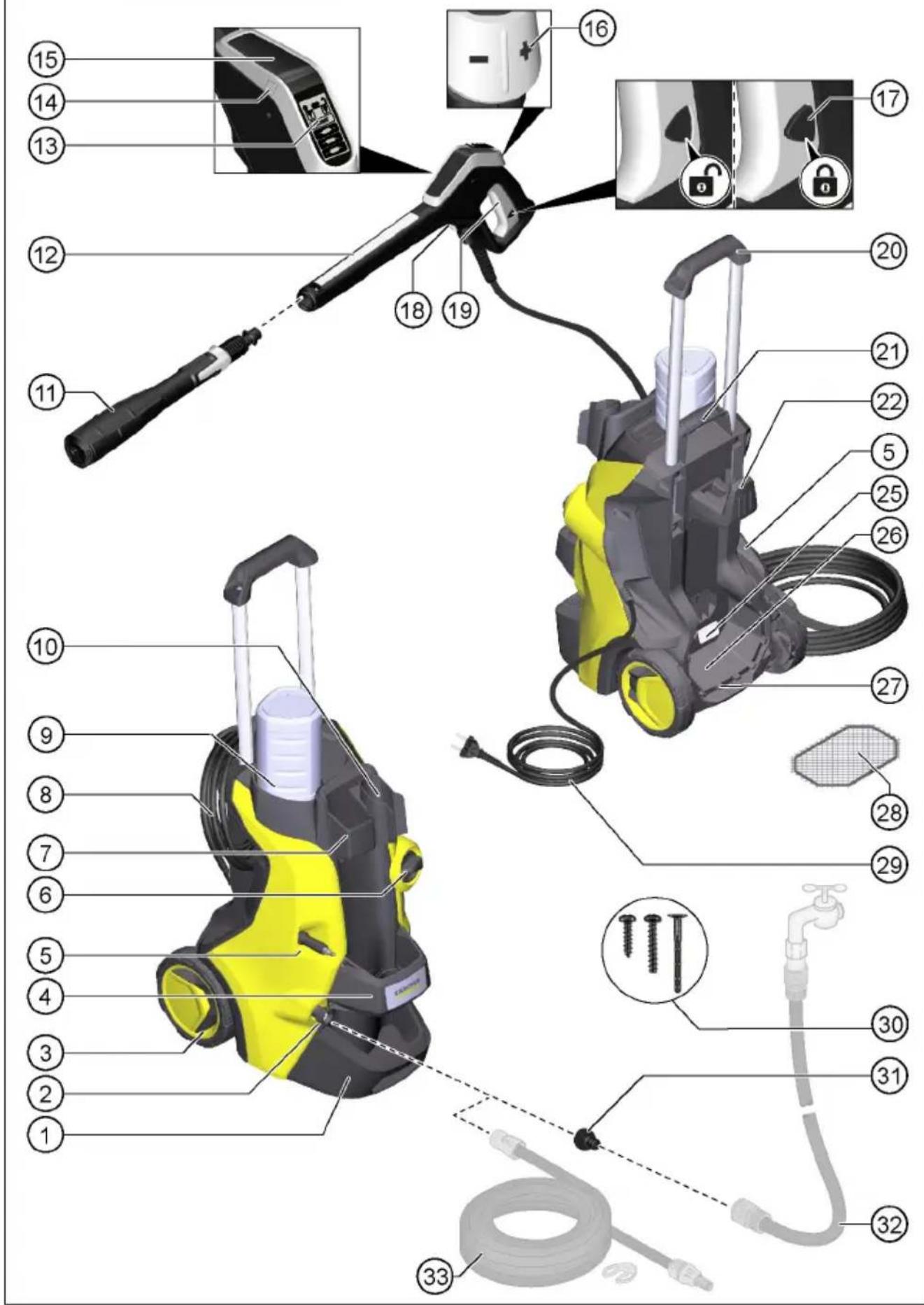

Illustration B

① Stand with carrying handle

② Water connection with integrated sieve

③ Transport wheel

④ Visor

⑤ Hose guide

⑥ Trigger "0/OFF" / "I/ON"

⑦ Storage for spray lance

⑧ High-pressure hose

⑨ Plug 'n' Clean detergent bottle

⑩ Storage / parking position for high-pressure gun

⑪3-in-1 multi-jet spray lance with 3 spray types (see also chapter Smart Control System)

⑫Smart Control high-pressure gun

⑬ LCD display (see also chapter LCD display)

⑭Battery compartment lock

⑮Battery compartment

⑯“+/-” buttons for pressure control

⑰ High-pressure gun lock

⑱ Button for separating the high-pressure hose from the high-pressure gun

19 High-pressure gun lever

⑳Transport handle, telescoping

21 Carrying handle

22 Hose holder

23 High pressure hose reel

⑳Crank handle for hose reel

25Type plate

26 Accessory compartment

27 Hook for net attachment

28 Accessory compartment net

29 Mains connection with mains plug

30 Supplied screws and dowels

③1 Water connection coupling

32* Garden hose (fabric reinforced, diameter at least 1/2 inch (13 mm), length at least 7.5 m, with commercially available quick coupling)

③3* KÄRCHER suction hose for water supply from open containers (order no. 2.643-100.0)

* additionally required

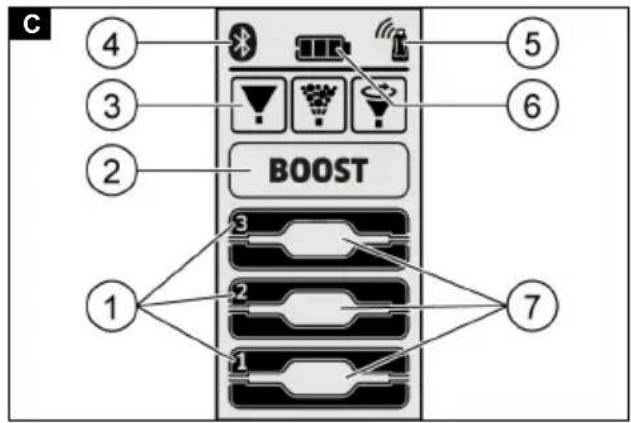

LCD display

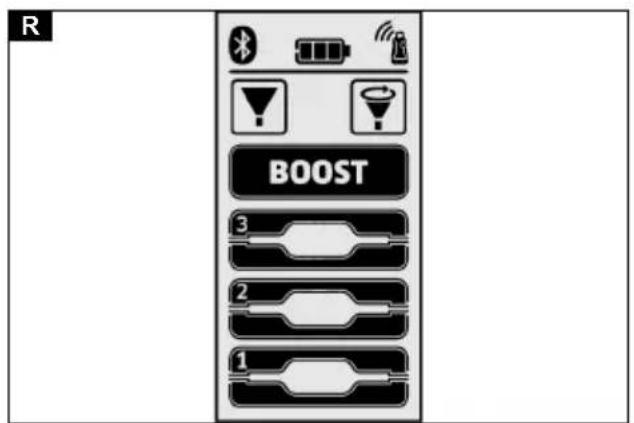

Illustration C

① Area of application (1-SOFT / 2-MEDIUM / 3-HARD with 2 pressure levels each)
② BOOST function indicator
③ Spray type recommendation (flat stream/detergent/dirt blaster)
④ Display Bluetooth ^® connection

⑤ Signal strength status (four levels)

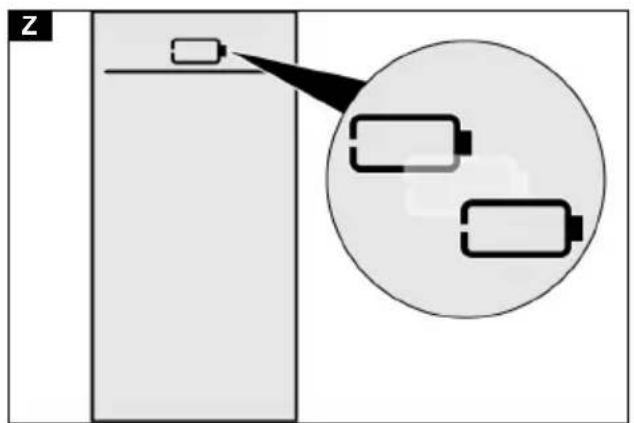

⑥ Battery status (empty, almost empty, medium, full)
⑦ Detergent level (1 / 2 / 3)

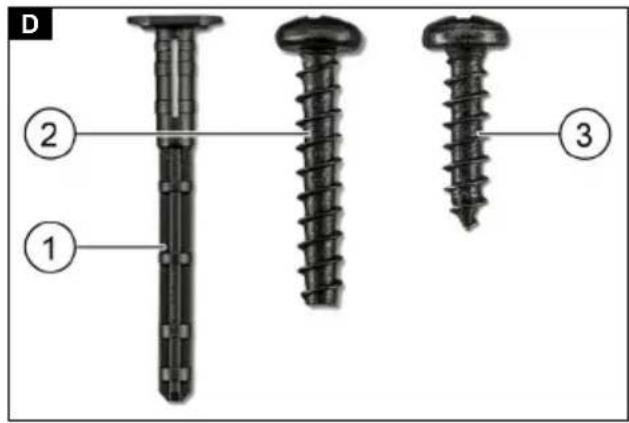

Supplied screws and dowels

Illustration D

① Stand dowels (2 pieces)
② Screw 4x22 (2 pieces)
③ Screw 4x16 (10 pieces)

Installation

For the illustrations, refer to the graphics page.

Fit the supplied loose parts onto the device before starting up the device.

Have the included screws and the appropriate screw-driver ready.

Fitting the wheels

1. Insert the wheels.

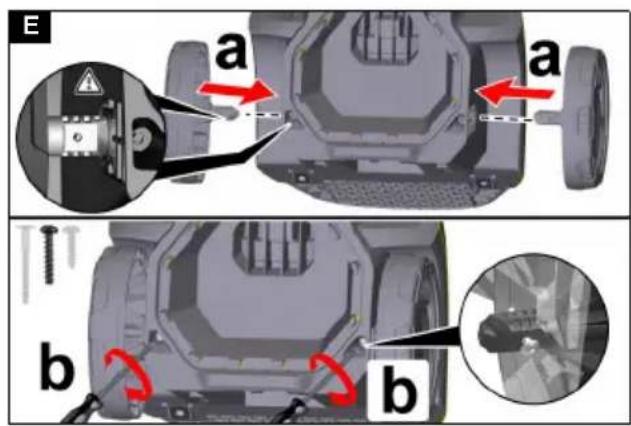

   Pay attention to the alignment of the hole. Illustration E

Note

1. Secure the wheels with 1 screw each.

Mounting the stand

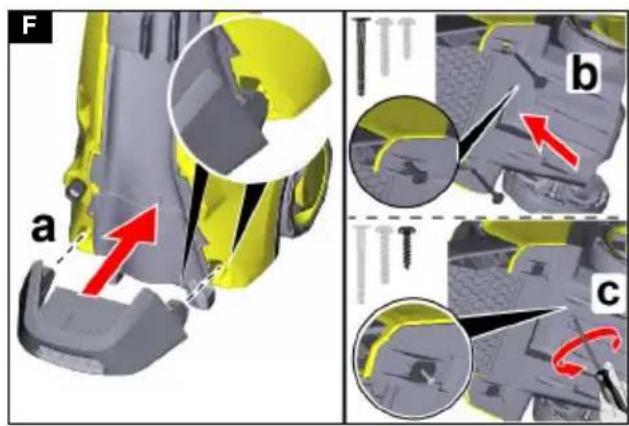

1. Insert the stand. Illustration F
2. Insert the 2 dowels into the holes as far as they will go.
3. Secure the base with 2 screws.

Mounting the storage for spray lances

1. Hook in the storage for the spray lances.

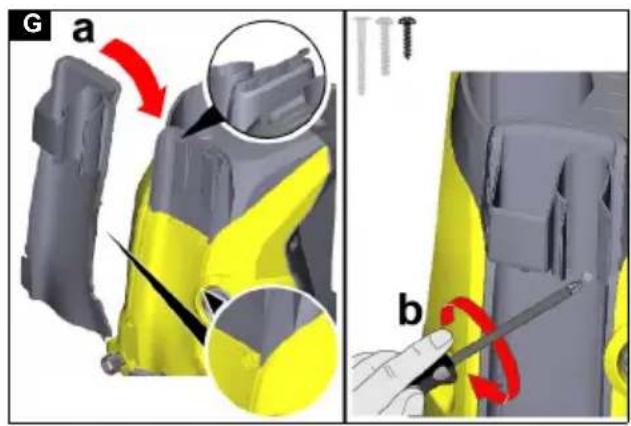

2. Secure the storage with 2 screws. Illustration G

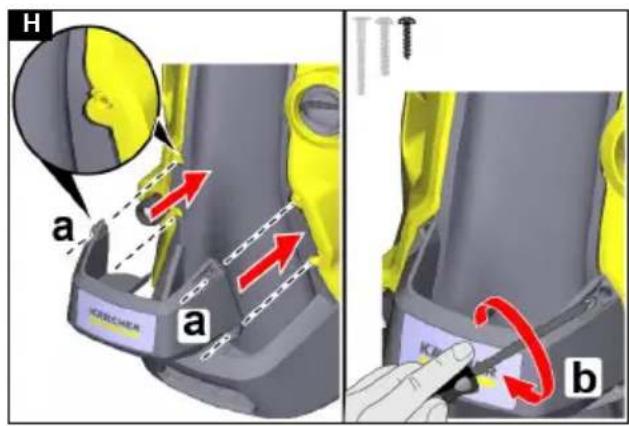

3. Secure the cover with 4 screws. Illustration H

Mounting the transport handle

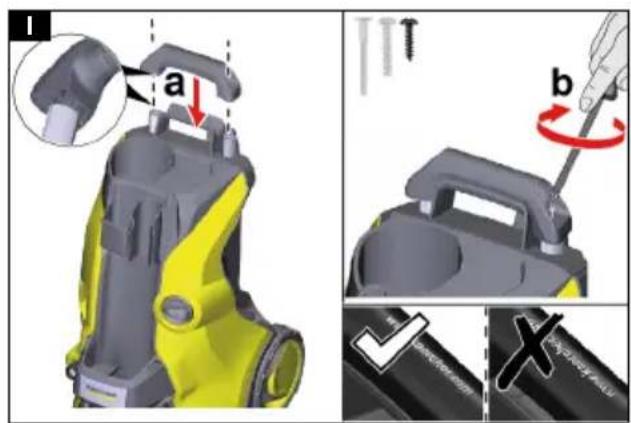

1. Attach the transport handle. Illustration I

Mounting the accessory net

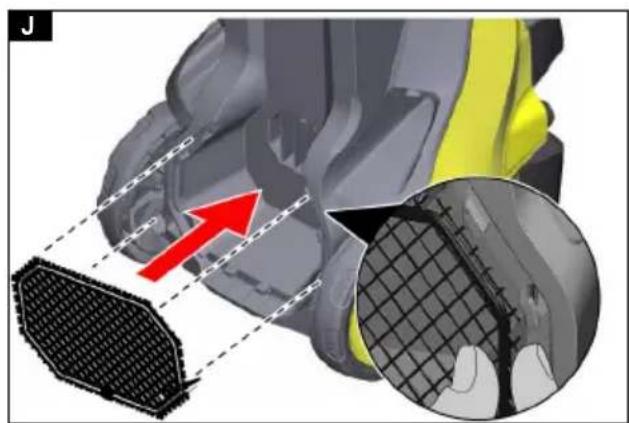

1. Hang the accessory net on the hooks. Illustration J

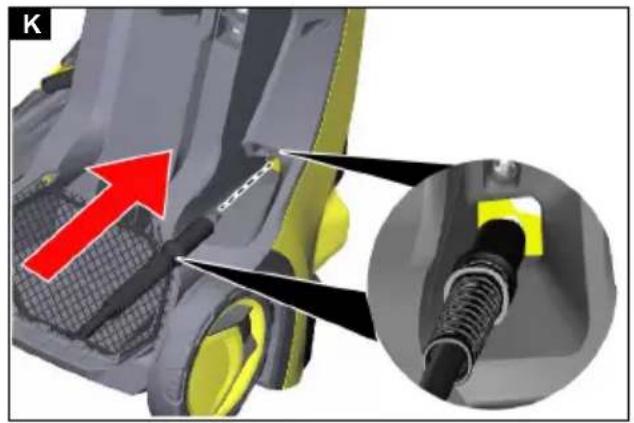

Push the high-pressure hose through the hose guide

1. Insert the high-pressure hose through the hose guide from the rear. Illustration K

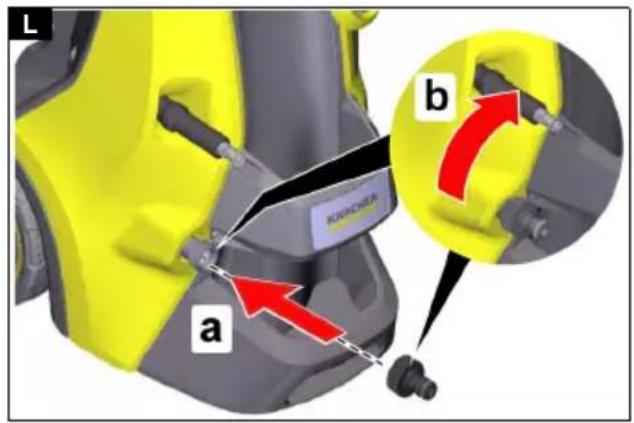

Installing the water connection coupling

1. Screw the water connection coupling onto the water connection on the device. Illustration L

Initial Start-Up

Note

If you do not want to control the device by mobile device via a Bluetooth® connection, you only have to follow the steps in the section "Connecting the high-pressure gun".

Download the app and register your device

1. Download the KÄRCHER Home & Garden app (see chapter KÄRCHER Home & Garden app).

2. Start the KÄRCHER Home & Garden app.

3. Log in to the KÄRCHER Home & Garden app. If necessary, create an account for this.

4. Scan the enclosed QR code. The high-pressure cleaner is registered.

Note

If you do not have the enclosed QR code at hand, you can also register the device with the part number and serial number. Both numbers are given on the type plate.

1. Follow the instructions of the KÄRCHER Home & Garden app.

Note

Be sure to do this before connecting the high-pressure gun Bluetooth® Activate on your mobile device.

Connecting the high-pressure gun Note

You can find a detailed description of the connection at https://www.kaercher.com/FCR.

1. Plug the mains plug for the high-pressure cleaner into a socket. The device switches to coupling mode for 60 s. During this time it is possible to couple the high-pressure gun.

2. Press the "+" key and the "-" key on the high-pressure gun simultaneously for at least 3 s. If the coupling is successful, the pressure levels, as well as the radio and the Bluetooth® symbol, will be shown on the display.

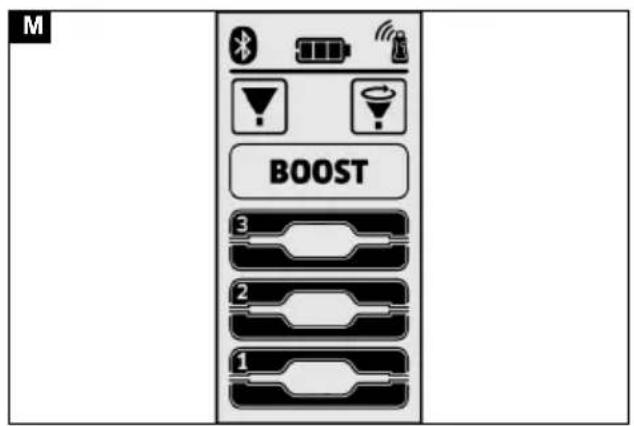

Illustration M

The Bluetooth ^® connection between the mobile device and the high-pressure cleaner is established automatically.

Note

If necessary, you can also establish the Bluetooth® connection at a later time by pressing the "-" key for 10 s.

1. If the coupling attempt failed:
   a Pull the mains plug for the high-pressure cleaner out of the socket.
   b Wait 20 s.
   c Couple the high-pressure gun again.

Initial startup

1. Place the device on a level surface.
2. Completely unwind the high-pressure.
3. Pull the high-pressure hose completely forward through the hose guide and eliminate any loops and twists.

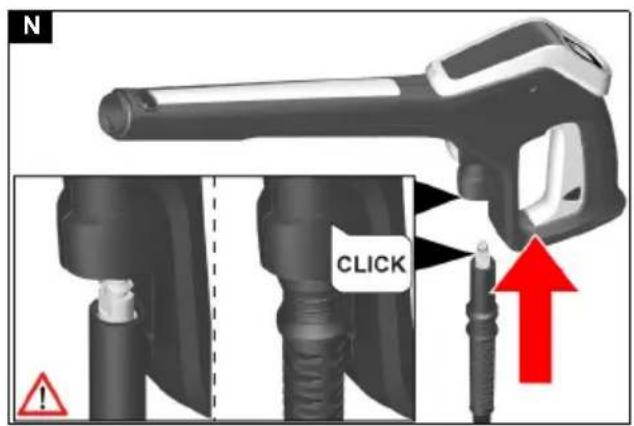

4. Insert the high-pressure hose into the high-pressure gun until it audibly clicks into place.

Note

Take care to ensure the correct alignment of the nipple. Illustration N

1. Check the secure connection by pulling on the high-pressure hose.

2. Plug the mains plug into a mains socket.

Water supply

For the connection values, see the type plate or chapter Technical data. Observe the water distribution company regulations.

ATTENTION

Damage through contaminated water

Contamination in the water can damage the pump and the accessories.

KÄRCHER recommends using the KÄRCHER water filter for protection(special accessory, order number 4.730-059).

Connection to the water line

ATTENTION

Hose coupling with Aquastop on the water connection of the device

Damage to the pump

Never use a hose coupling with Aquastop on the water connection of the device.

You can use an Aquastop coupling on the tap.

1. Plug the garden hose onto the water connection coupling.

2. Connect the garden hose to the water line.

3. Open the water tap fully.

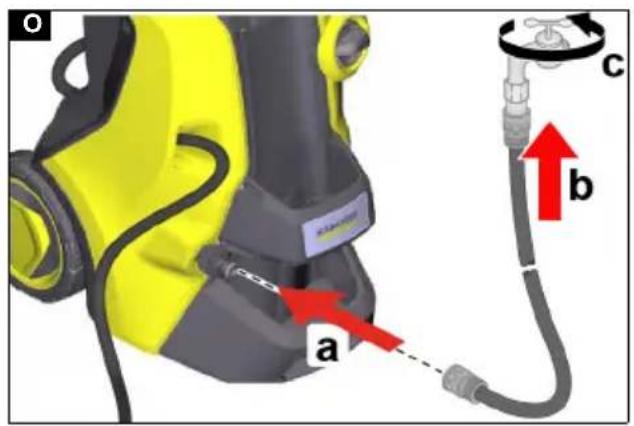

Illustration O

Suck water from open containers

This high-pressure cleaner with the KÄRCHER suction hose is suitable for sucking in surface water, e.g. from water butts or ponds (for maximum suction height, see Technical data).

1. Unscrew the coupling on the water connection.

2. Fill the suction hose with water.

3. Screw the suction hose onto the water connection of the device and hang it in a water source (e.g. rain barrel).

Vent the device

1. Switch the device on "I/ON".

2. Unlock the lever of the high-pressure gun.

3. Press the lever of the high-pressure gun.

The device switches on.

1. Allow the device for run a maximum of 2 minutes until the water escaping from the high-pressure gun is free of air bubbles.

2. Release the lever of the high-pressure gun.

3. Lock the lever of the high-pressure gun.

Operation

ATTENTION

Risk of damage!

Damaging the pump during dry running.

Switch off the device if it does not build up pressure within 2 minutes.

Proceed according to the instructions in chapter Troubleshooting guide.

Smart Control System

The "+/-" buttons on the high-pressure gun can be used to select the pressure and detergent dosing levels. The spray type can be changed by turning the 3-in-1 multi jet spray lance.

Note

The sensitivity of materials can vary greatly depending on age and condition. The recommendations are therefore not binding.

Flat jet nozzle
Pressure level	Display Recommended for e.g.
		Stone terraces, asphalt, metal surfaces, garden utensils (wheelbarrow, spade, etc.)

Flat jet nozzle
Pressure level	Display Recommended	ended for e.g.
		Cars / motorcycles, brick surfaces, plastered walls, plastic furniture
		Wooden surfaces, bicycle, sandstone surfaces, rattan furniture

Dirt blaster
Pressure level	Display Recommended for e.g.
		For particularly stubborn dirt on stone terraces, asphalt, metal surfaces, garden utensils (wheel-barrow, spade, etc.)

Detergent nozzle
Pressure level	Display Recommended	ended for e.g.
		Operation with deter-gent. Dosing the deter-gent concentration as needed

Detergent nozzle
Pressure level	Display Recommended for e.g.
		Operation with detergent. Dosing the detergent concentration as needed

High-pressure operation

ATTENTION

Damage to painted or sensitive surfaces

Surfaces can be damaged when the jet is too close to the surface or an unsuitable spray lance is used.

Maintain a minimum spray distance of 30 cm when cleaning painted surfaces.

Do not clean car tyres, paint or sensitive surfaces such as wood with the dirt blaster.

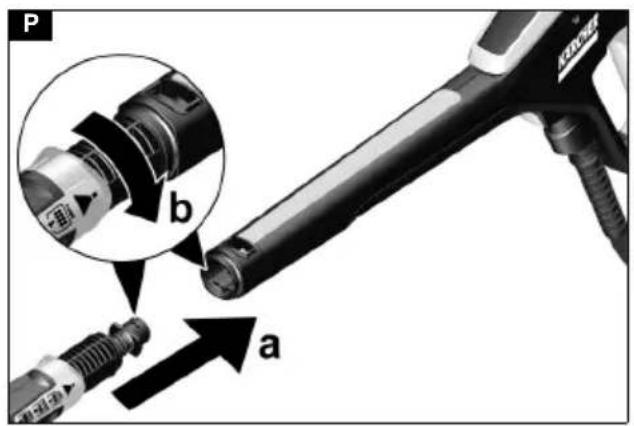

1. Insert the 3-in-1 Multi Jet spray lance and turn it 90° to fix it in place. Be aware of the orientation! Illustration P

ATTENTION

Spray type change when the lever of the high-pressure gun is pressed

Damage to the spray lance

Let go of the lever of the high-pressure gun before changing the spray type.

1. Select the spray type. Do this by turning the 3-in-1 Multi Jet spray lance until the required spray display is visible above.

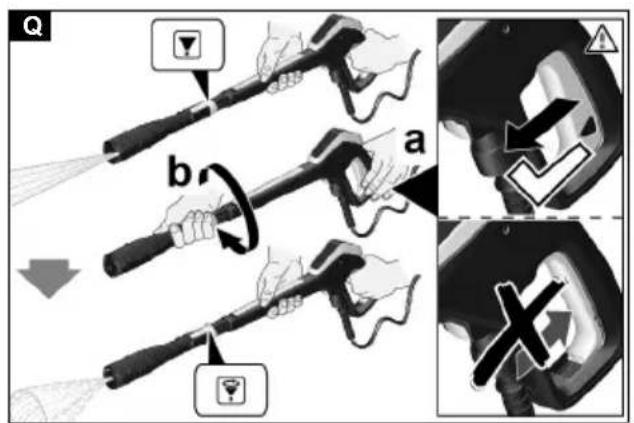

Illustration Q

1. Switch the device on ("I/ON").

2. Unlock the lever of the high-pressure gun.

3. Press the lever of the high-pressure gun.

The device switches on.

Activating the BOOST function

For cleaning stubborn dirt, the BOOST function can be activated for 30 seconds regardless of the pressure level set. This increases the water pressure.

1. Hold down the “+” button on the high-pressure gun until BOOST is highlighted on the LCD display.

Illustration R

After the BOOST function has expired, the device works with the previously set pressure level.

As soon as the display stops flashing, the BOOST function is available again.

Operation with detergent

⚠️DANGER

Failure to adhere to the safety data sheet

Incorrect handling of the detergent can seriously damage your health

Observe the safety data sheet of the detergent manufacturer, in particular the instructions on personal protective equipment.

Note

Detergent can only be mixed into the jet at low pressure.

Note

A Plug 'n' Clean detergent bottle is required for operating with detergent. KÄRCHER detergent can be purchased ready to use in a Plug 'n' Clean detergent bottle.

1. Remove the cover from the Plug 'n' Clean detergent bottle.

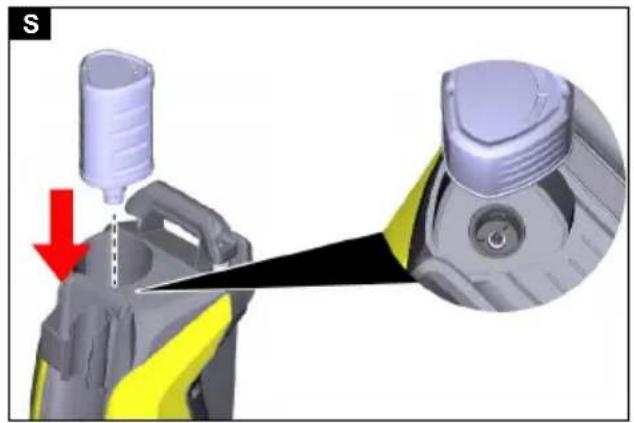

2. Plug the detergent bottle into the Plug 'n' Clean detergent connection with the opening facing down. Illustration S

3. Turn the 3-in-1 Multi Jet spray lance to the "MIX" cleaning nozzle until the "MIX" LCD on the pressure indicator of the high-pressure gun lights up. The detergent solution is mixed with the water jet during operation.

4. Using the “+/-” buttons of the high-pressure gun, set the desired detergent concentration.

Recommended cleaning method

1. Spray the detergent sparingly on the dry surface and let it work for a while (do not let it dry).

2. Rinse off the loosened dirt with the high-pressure jet.

After operation with detergent

1. Pull the Plug 'n' Clean detergent bottle out of the holder and close it with the lid.

2. For storage, place the detergent bottle in the holder with the lid facing upwards.

3. Rinse the device with clean water for about 30 seconds.

Interrupting operation

1. Release the lever of the high-pressure gun. When the lever is released, the device switches off. The high-pressure in the system is maintained.

2. Lock the lever of the high-pressure gun. Illustration T

3. Set the high-pressure gun with the spray lance in the parking position.

4. For work breaks longer than 5 minutes, switch off the device "0/OFF".

Ending operation

△CAUTION

Danger of injury!

Injuries due to uncontrolled water escaping under high pressure.

Only disconnect the high-pressure hose from the high-pressure gun or the device if there is no pressure in the system.

1. Release the lever of the high-pressure gun.

2. Close the water tap.

3. Press the lever of the high-pressure gun for 30 seconds.

The pressure in the system is released.

1. Release the lever of the high-pressure gun.

2. Lock the lever of the high-pressure gun.

3. Switch off the device "0/OFF".

4. Disconnect the device from the water supply.

5. Pull the mains plug out of the outlet.

Transport

△CAUTION

Risk of injury or damage due to the weight of the device!

Injury and damage.

Be aware of the weight of the device during transport and storage.

Carrying the device

1. Lift up the device by the carrying handle, and carry it.

Pulling device

1. Pull out the transport handle until it audibly engages.

2. Pull the device by the transport handle.

Transporting the device in a vehicle

1. Before horizontal transport, pull the Plug 'n' Clean detergent bottle out of the holder and close it with the lid.

2. Secure the device against shifting and tipping.

Storage

⚠CAUTION

Risk of injury or damage due to the weight of the device!

Injury and damage.

Be aware of the weight of the device during transport and storage.

Storing the device

1. Place the device on a level surface.

2. Disconnect the spray lance from the high-pressure gun.

3. Press the separation button on the high-pressure gun and disconnect the high-pressure hose from the high-pressure gun.

4. Without a hose reel: Store the high-pressure hose on the device.

ATTENTION

Damage to the high-pressure hose

Damage to the high-pressure hose through incorrect direction of rotation

Observe the correct direction of rotation of the hose reel when winding on the hose.

1. With a hose reel: Use the crank handle to turn the hose reel counterclockwise and wind up the high-pressure hose.

2. Stow the mains connection and accessories on the device.

Before prolonged storage, observe additional instructions, see chapter Care and service.

Frost protection

ATTENTION

Danger of frost

Incompletely emptied devices can be destroyed by frost.

Completely empty the device and accessories.

Protect the device from frost.

The following must be met:

• The device is disconnected from the water supply.

• The high-pressure gun is separated from the high-pressure hose.

• Switch on the device "I/ON".

• Wait a maximum of 1 minute until no more water comes out of the high-pressure hose.

• Switch off the device.

• Store the device with all accessories in a frost-proof room.

Care and service

⚠️DANGER

Danger of electric shock

Injuries due to touching live parts

Switch off the device.

Remove the mains plug.

The device is maintenance-free, i.e. you do not need to perform any maintenance work.

Clean the sieve in the water connection

ATTENTION

Risk of damage!

Damage to the sieve due to improper cleaning.

Clean the sieve only under running water against its flow direction.

Do not use sharp or hard objectse.g. needles or wire brushes.

ATTENTION

Risk of damage!

Damage to the device and accessories when operating without a sieve or with a damaged sieve.

Check the sieve for damage before inserting it into the water connection. Replace a damaged sieve immediately.

Do not operate the device without a sieve.

Clean the sieve in the water connection if necessary.

1. Unscrew the coupling on the water connection.

2. Pull out the sieve.

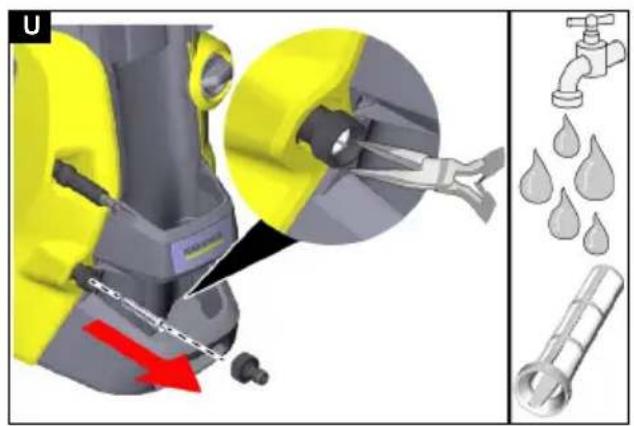

Illustration U

1. Clean the sieve under running water.

2. Insert the sieve into the water connection.

Replacing the batteries of the high-pressure gun

Two non-rechargeable or rechargeable AAA batteries are required.

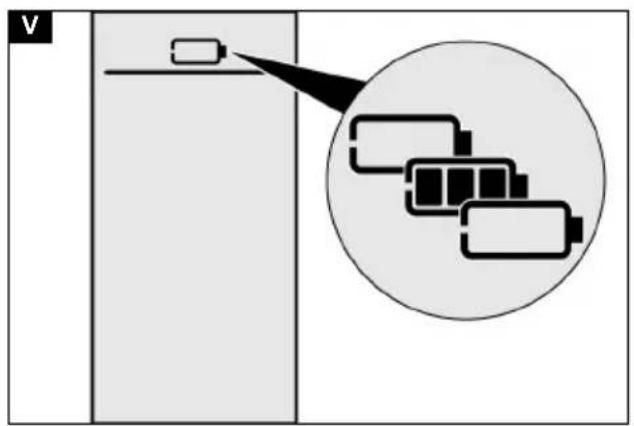

Illustration V

1. Press the locking slide.

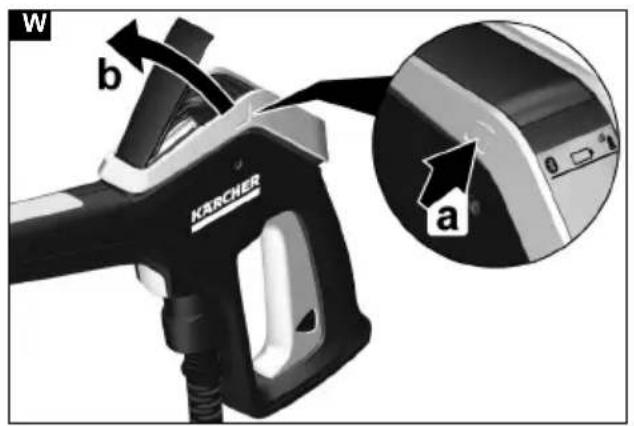

Illustration W

1. Open the battery compartment.

2. Remove the battery.

3. Insert new batteries, while paying attention to the correct alignment of the poles.

4. Close the battery compartment.

5. Dispose of the used batteries in accordance with statutory provisions.

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorized Customer Service.

⚠️DANGER

Danger of death!

Fatal injuries due to electric shock when touching live parts.

Do not touch any live parts.

Switch off the device.

Pull the mains plug out of the mains socket.

Device not running

1. Press the lever of the high-pressure gun. The device switches on.
2. Check that the voltage specified on the type plate corresponds to the voltage of the power source.
3. Check the mains connection cable for damage.
4. If the motor is overloaded and the motor circuit breaker has triggered:
   a Switch off the device "0/OFF".
   b Allow the device to cool down for 1 hour.
   c Switch the device on "I/ON" and resume operation.
   Have the device checked by Customer Service if this fault occurs repeatedly.

The device does not start up, the motor buzzes

Voltage drop due to a weak mains grid or when using an extension cable

1. When switching on, first press the lever on the high-pressure gun and then switch on the device "I/ON".

Device does not reach required pressure

The water supply is too low.

1. Open the water tap fully.
2. Check the water inlet for an adequate flow rate.

3. Check the setting at the spray lance.

4. Check that the maximum suction height is not exceeded.

The sieve in the water connection is dirty.

1. Pull the sieve in the water connection out using flat pliers.

2. Clean the sieve under running water.

Illustration U

Air is in the device.

1. Vent the device:
   a Switch on the device without a connected spray lance for a maximum of 2 minutes.
   b Press the high-pressure gun and wait until the water escaping from the high-pressure gun is free of air bubbles.
   c Connect the spray lance.

Strong pressure fluctuations

1. Cleaning the high-pressure nozzle:

a Remove contamination from the nozzle drill with a needle.
b Rinse the high-pressure nozzle with water from the front.

1. Check the water supply volume.

Device leaking

1. The device leaks a small amount for technical reasons. If the leak is severe, request authorised Customer Service.

Detergent is not sucked in

1. Turn the 3-in-1 Multi Jet spray lance to detergent nozzle "MIX".
2. Check that the Plug 'n' Clean detergent bottle is sitting correctly with the opening facing down in the detergent connection.

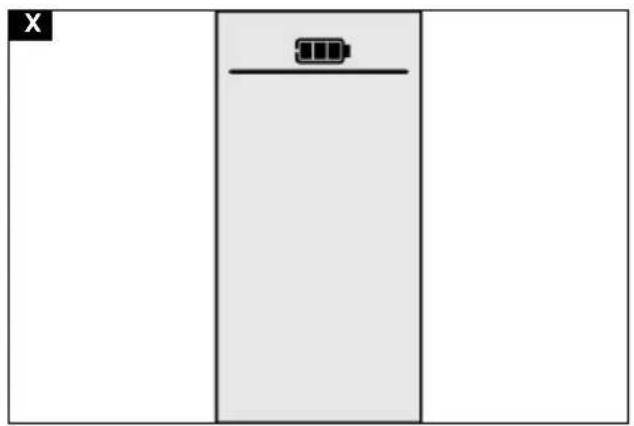

No pressure indicator on the high-pressure gun Illustration X

1. Check the batteries and replace them if necessary.
2. Reduce the distance between the high-pressure gun and the high-pressure cleaner.
3. Re-establish the connection to the high-pressure cleaner, see chapter Initial Start-Up.

BOOST function is not shown on the display and cannot be started via the KÄRCHER Home & Garden app

The device is overheated.

1. Check the water supply temperature (for maximum water inlet temperature, see chapter Technical data).
2. Reduce the water supply temperature to give the motor more cooling.

Error messages

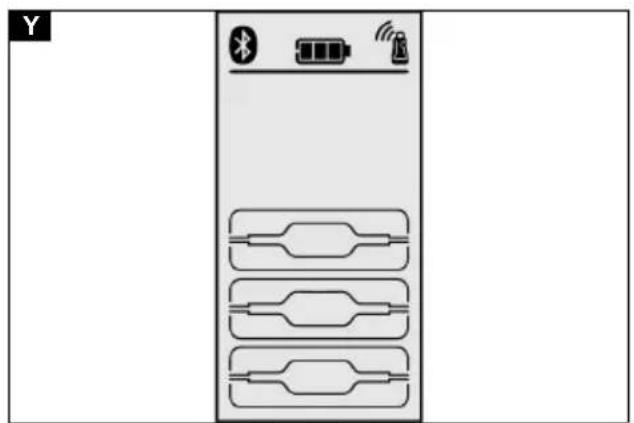

Illustration Y

1. Switch off the device "0/OFF".
2. Pull the mains plug out of the socket.
3. After 20 seconds, insert the mains plug back into the socket.
4. Switch the device on "I/ON". Have the device checked by Customer Service if this fault occurs repeatedly.

Emergency operation

If the pressure regulation on the high-pressure gun is defective, the high-pressure cleaner works at maximum level.

1. Deactivating emergency operation:
   a Switch off the device "0/OFF".
   b Pull the mains plug out of the socket.
   c After 20 seconds, insert the mains plug back into the socket.
   d Switch the device on "I/ON".
   Have the device checked by Customer Service if this fault occurs repeatedly.

The high-pressure gun is not working properly Illustration Z

An internal error has occurred in the electronics of the high-pressure gun.

1. Press the locking slide.

Illustration W

1. Open the battery compartment.
2. Remove the battery.

3. Insert the batteries, paying attention to the correct alignment of the poles.

4. Close the battery compartment. Have the high-pressure gun checked by Customer Service if this fault occurs repeatedly.

Warranty

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing flaw is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Further warranty information (if available) can be found in the service area of your local Kärcher website under "Downloads".

Technical data

K 5SmartControlFlex

K 5 Pre-miumSmartControlFlex

Electrical connection

Voltage	V	230
Phase ~ 1 1
Frequency Hz 50 50
Power rating kW 2,1	2,1
Degree of protection	IPX5	IPX5
Protection class	I	I
Power protection (slow-blowing)	A 10	10

Water connection

Feed pressure (max.) MPa	1,2	1,2
Input temperature (max.)	°C	40 40
Input amount (min.)	l/min	10 10
Suction height (max.)	m	0,5	0,5

Device performance data

Operating pressure	MPa	12,5	12,5
Max. permissible pressure	MPa	14,5	14,5
Water flow rate	l/min	7,5	7,5
Maximum flow rate	l/min	8,3	8,3
Detergent flow rate	l/min	0,3	0,3
High-pressure gun recoil force	N	20	20

Dimensions and weights

Typical operating weight	kg	15,3	15,5
Length	mm	405 417
Width	mm	306 306
Height	mm	584 584

Radio module SRD

Frequency MHz	868,7-			868,7-
			869,2	869,2
Transmitting power ERP		mW	0,53	0,53

Bluetooth radio module

Frequency GHz	2,45	2,45
Transmitting power ERP		mW	6,3	6,3

Determined values in acc. with EN 60335-2-79

Hand-arm vibration value	m/s ^2	1,2	1,2
Uncertainty K	m/s ^2	0,6	0,6
Sound pressure level L _pA	dB(A)	77 77
Uncertainty K _pA	dB(A)	3 3
Sound power level L _WA + uncertainty K _WA	dB(A)	93 93

Exception according to Regulation (EU) 2019/1781 Annex I Section 2 (12): j)

Subject to technical changes without notice.

EU Declaration of Conformity

We hereby declare that the product named below complies with the relevant provisions of the directives and regulations listed. This declaration is invalidated by any changes made to the product that are not approved by us.

Product: High-pressure cleaner

Type: 1.324-xxx

Directives and Regulations

2006/42/EC (+2009/127/EC)

2014/53/EU

2011/65/EU

2000/14/EC

2009/125/EC

Commission Regulation(s)

(EU) 2019/1781

Harmonised standards used

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 300 220-2 V3.1.1

EN 300 328 V2.2.2

EN IEC 63000: 2018

Applied conformity evaluation method

2000/14/EG: Annex V

Sound power level dB(A)

Measured: 90

Guaranteed: 93

Name and address

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Contenu

KÄRCHER Home & Garden App.... 21

Download on the
App Store

Marque déposée

2006/42/CE (+2009/127/CE)

2014/53/UE

2011/65/UE

2000/14/CE

2009/125/CE

Ordonnance(s) appliquée(s)

(UE) 2019/1781

71364 Winnenden (Germany)

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Indice

App KÄRCHER Home & Garden 29

Download on the App Store

Marchi

71364 Winnenden (Germania)

Tel.: [phone]

Fax: [phone]

H. Jenner

Chairman of the Board of Management

Winnenden, 2021/06/01

S. Reiser

Manager Regulatory Affairs & Certification

Download on the
App Store

Marcas registradas

2006/42/CE (+2009/127/CE)

2014/53/UE

2011/65/UE

2000/14/CE

2009/125/CE

71364 Winnenden (Germany)

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Indice

Download on the App Store

Marca registada

71364 Winnenden (Germany)

Telephone: [phone]

Fax: [phone]

Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Inhoud

KÄRCHER Home & Garden App .... 51

⑥ Apparaatschakelaar "0/OFF" / "I/ON"

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

İçindekiler

KÄRCHER Home & Garden Uygulaması...... 59

GET IT ON Google Play Download on the App Store

Ticari marka

2006/42/AT (+2009/127/AT)

2014/53/AB

2011/65/AB

2000/14/AT

2009/125/EG

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Innehåll

KÄRCHER Home & Garden-app.... 66

Allmän information.... 66

Download on the App Store

Varumärke

71364 Winnenden (Germany)

Telefon: [phone]

Fax: [phone]

H. Jenner

Chairman of the Board of Management

Winnenden, 2021/06/01

S. Reiser

Manager Regulatory Affairs & Certification

Sisältö

KÄRCHER Home & Garden App 73

Yleisiä ohjeita 73

Turvalaitteet 73

GET IT ON Google Play Download on the App Store

Tavaramerkit

71364 Winnenden (Germany)

Puhelin: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Indhold

KÄRCHER Home & Garden-app 80

Generelle merknader 80

1. Sett inn standfoten.

Figur F

1. Sett de 2 pluggene inn i hullene til anslag.

2. Fest standfoten med 2 skruer.

BOG BOG BOOST

2006/42/EF (+2009/127/EF)

2014/53/EU

2011/65/EU

2000/14/EF

2009/125/EF

2000/14/EF: Vedlegg V

Lydeffektnivå dB(A)

Målt: 90

Garantert: 93

Navn og adresse

71364 Winnenden (Germany)

Telefon: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Indhold

KÄRCHER Home & Garden App 86

2006/42/EF (+2009/127/EF)

2014/53/EU

2011/65/EU

2000/14/EF

2009/125/EF

71364 Winnenden (Germany)

Telefon: [phone]

Fax: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Sisukord

KÄRCHER Home & Garden App 93

Üldised juhised 94

Ohutusseadised 94

Download on the
App Store

Kaubamärk

Toode: Körgsurvepesur

Tüüp: 1.324-xxx

2006/42/EÜ (+2009/127/EÜ)

2014/53/EL

2011/65/EL

2000/14/EÜ

2009/125/EÜ

71364 Winnenden (Germany)

Tel: [phone]

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Saturs

KÄRCHER Home & Garden lietotne 100

Download on the
App Store

Preču zīme

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Turinys

„KÄRCHER Home & Garden“ programa...... 107

Download on the App Store

Prekės ženklas

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Spis treści

GET IT ON Google Play Download on the App Store

Znak towarowy

2006/42/WE (+2009/127/WE)

2014/53/UE

2011/65/UE

2000/14/WE

2009/125/WE

71364 Winnenden (Germany)

Telefon: [phone]

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Tartalom

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Obsah

Aplikace KÄRCHER Home & Garden 129

Obecné pokyny 130

2006/42/ES (+2009/127/ES)

2014/53/EU

2011/65/EU

2000/14/ES

2009/125/ES

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Obsah

KÄRCHER Home & Garden App 136

Všeobecné upozornenia 137

Bezpečnostné zariadenia.... 137

2006/42/ES (+2009/127/ES)

2014/53/EÚ

2011/65/EÚ

2000/14/ES

2009/125/ES

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Kazalo

Download on the App Store

Blagovna znamka

⑥ Stikalo naprave "0/OFF" / "I/ON"

2006/42/ES (+2009/127/ES)

2014/53/EU

2011/65/EU

2000/14/ES

2009/125/ES

Uporabljena(-e) uredba(-e)

(EU) 2019/1781

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Cuprins

71364 Winnenden (Germania)

Telefon: [phone]

Fax: [phone]

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Sadržaj

Aplikacija KÄRCHER Home & Garden...... 158

Opće napomene.... 158

Sigurnosni uređaji.... 158

2006/42/EZ (+2009/127/EZ)

2014/53/EU

2011/65/EU

2000/14/EZ

2009/125/EZ

Primijenjene uredbe

(EU) 2019/1781

Primijenjene uskladene norme

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 300 220-2 V3.1.1

EN 300 328 V2.2.2

EN IEC 63000: 2018

71364 Winnenden (Germany)

Tel.: [phone]

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Sadržaj

KÄRCHER Home & Garden aplikacija	165
Opšte napomene	165
Sigurnosni uređaji	165
Simboli na uređaju	166
Zaštita životne sredine	166
Namenska upotreba	166
Pribor i rezervni delovi	166
Obim isporuke	166
Opis uređaja	166
Montaža	167
Prvo puštanje u rad	167
Puštanje u pogon	167
Rad	168
Transport	169
Skladištenje	169
Nega i održavanje	170
Pomoć u slučaju smetnji	170
Garancija	171
Tehnički podaci	171
EU izjava o usklađenosti	172

KÄRCHER Home & Garden aplikacija

2006/42/EZ (+2009/127/EZ)

2014/53/EU

2011/65/EU

2000/14/EZ

2009/125/EZ

Primenjena(e) odredba(e)

(EU) 2019/1781

Primenjene harmonizovane norme

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 300 220-2 V3.1.1

EN 300 328 V2.2.2

EN IEC 63000: 2018

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Περιεχόμενα

KÄRCHER Home & Garden App 172

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Содержание

KÄRCHER Home & Garden App.... 180

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Мазмуны

Download on the App Store

Сауда белгісі

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Съдържание

Приложение KÄRCHER Home & Garden...... 196

Общи указания.... 196

Download on the
App Store

Търговска марка

71364 Winnenden (Germany)

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

إرشادات عامة

Download on the App Store

علامة تجارية

www.kaercher.com/FCR

Black and white line drawing of a hand giving a thumbs-up gesture (no text or symbols)

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

Icon showing a gear and wrench inside a square frame (no text or symbols)

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)

QR code image with a central logo, likely linking to a digital resource or website.
