Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions or improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 36

Notes on Refrigerant R290 38

Device Overview 39

Control Panel and Remote Control 40

Installation of the Exhaust Air Hose 41

Fixing the Window Seal 43

Drainage Methods 45

Commissioning and Operation 49

Device Control by Smartphone 53

Self-diagnosis 55

Cleaning and Care 56

Troubleshooting 58

Product Data Sheets 59

Disposal Considerations 63

Declaration of Conformity 63

TECHNICAL DATA

Item number 10048073, 10	048074 10048075, 10048076
Power supply 220-240 V ~	50Hz
Dimensions	450 x 745 x 396 cm
Cooling capacity	12.000 BTU 14.000 BTU

Symbol Explanation
	This symbol indicates that this appliance uses a flammable refrigerant. If the refrigerant leaks and is exposed to an external ignition source, there is a risk of fire.
	This symbol indicates that this manual should be read carefully.
	This symbol indicates that the equipment should be handled by service personnel with reference to the installation manual.
	This symbol shows that information is available such as the operating manual or installation manual.

SAFETY INSTRUCTIONS

Special notes

• Only use agents recommended by the manufacturer for defrosting or cleaning.
• Never store the appliance in a room in which there are permanent sources of ignition (e.g. open flames, a switched on gas appliance or a switched on electric heater).
• Do not puncture or burn the appliance.
  • Note that coolant may be odourless.

Note: Only use the unit in rooms larger than X m² (see table):

Model X ( m^2 )
5000 BTU/h, 7000 BTU/h, 8000 BTU/h 10 m^2
9000 BTU/h, 10000 BTU/h, 10500 BTU/h 13 m^2
12000 BTU/h, 14000 BTU/h, 16000 BTU/h,18000 BTU/h 18 m^2

General safety instructions

• Check the voltage specification on the rating plate before use. Connect the appliance only to sockets that correspond to the voltage of the appliance.
• The appliance is intended for household use only. Use the appliance only indoors and in a dry environment.
• Do not use the product if it needs to be repaired or if it has not been installed properly.
• Do not place heavy objects on the power cord, as damage to the cord may cause an electric shock.
• Do not operate the appliance with wet hands or touch the plug and cable with wet hands.
• Do not use the product in the following areas:
  -near heat sources,
  -in areas where oil can splash,
  -in areas exposed to direct sunlight,
  -in areas where splash water can occur,
  -near bathtubs, in washrooms, near showers or swimming pools.
• Never insert your fingers or other objects into the ventilation openings. In particular, warn children of the dangers this may cause.
• Ensure that the appliance is held vertically during transport and storage so that the compressor is correctly positioned.
• Always turn off the appliance before cleaning and unplug it from the wall outlet.
• Switch off the appliance before moving it and unplug it from the wall outlet. Move the appliance slowly and carefully.
• To avoid the risk of fire, do not cover the appliance.

• Do not overload the power outlet by operating the appliance simultaneously with too many powerful electrical appliances.

• All fan connections must comply with local electrical safety regulations. If necessary, refer to these regulations.

• If the power cord or plug is damaged, it must be replaced by the manufacturer, an authorised specialist company or a similarly qualified person.
• Children over the age of 8 and persons with reduced physical, sensory or mental capabilities or those with a lack of experience and knowledge may only use the appliance if they are instructed on how to do so by a person responsible for their safety, or if they are supervised and understand the hazards associated with the use of the appliance. Children may not clean or carry out user maintenance without supervision. Supervise children so that they do not play with the unit.
• Never drink condensation water that leaks from the appliance.
• The appliance must be installed in accordance with national wiring regulations.
• Do not pull the power cord, deform or modify it, or immerse it in water. Incorrect handling of the power cord may result in damage to the equipment and/or electric shock.
• National gas regulations must be observed. If gas leakage should happen, open the window for ventilation before running the appliance.
• Do not block the ventilation openings.
• Do not operate the appliance solely by inserting or removing the power plug, as this may result in electric shock or fire due to heat.
• Immediately unplug the appliance from the wall outlet if it emits strange noises, odours or smoke.

Instructions for handling damage

• In case of damage to the device, contact the manufacturer, the customer service or a similarly qualified person.
• If damage occurs, turn off the power, unplug the power cord, and contact the manufacturer, the service representative, or a similarly qualified person.
• The power cord must be securely earthed.
• If the power cord is damaged, turn off the power to avoid danger and unplug the power cord from the wall outlet. The power cord must be replaced by the manufacturer, customer service or a similarly qualified person.

WARNING

Risk of injury! Repairs to the coolant circuit may only be carried out by trained specialist personnel. Never attempt to repair the unit yourself!

NOTES ON REFRIGERANT R290

Warnings

• The air conditioning system must be kept and transported upright. Otherwise, irreparable compressor damage may occur. Leave the unit for at least 24 hours before putting it into operation.
• Switch off the device and disconnect it from the power supply before cleaning.
• Make sure that the product creates a steady stream of air. Ensure the air inlets and outlets are not blocked.
• To prevent leaks, operate this unit on a horizontal surface.
• Any person performing work on a refrigerant circuit should have a current certificate from an industry-accredited assessment body. This ensures competence for the safe handling of refrigerants according to an industry-recognised assessment specification.
• If the device stops working, dispose of it properly.
• Store the device in a well-ventilated place when not in use.
• Store the device so that it is not damaged.
• Repairs may only be carried out by the manufacturer or an authorised specialist company.
• Do not damage any components of the refrigerant circuit. Escaping refrigerant may not be noticed because it is odourless.
• Maintenance and repairs must be carried out under the supervision of specialists in the use of flammable refrigerants.

Information for rooms with refrigerant pipes

• Limit the piping to a minimum.
• Be careful not to damage the piping.
• Appliances with flammable refrigerants may only be installed in a well-ventilated room.
• Comply with national gas regulations.
• All mechanical connections must be freely accessible for maintenance purposes.

CAUTION

Risk of fire! This device contains the flammable refrigerant R290. If the refrigerant escapes and is exposed to an external ignition source, there is a risk of fire.

DEVICE OVERVIEW

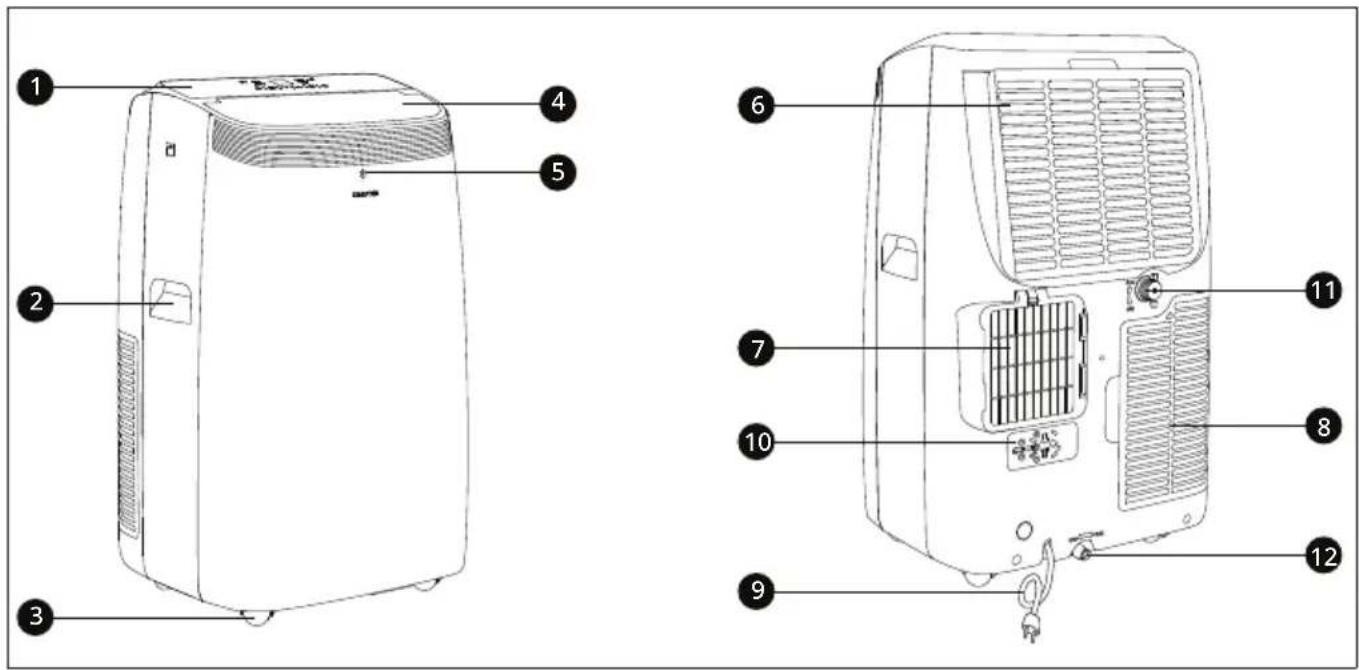

1	Control panel	7	Air outlet grille
2	Handle (on both sides)	8	Air inlet grille
3	Castors	9	Power cord
4	Air guide vane	10	Plug fixer
5	Remote control receiver	11	Middle water outlet
6	Air inlet grille	12	Lower water outlet

Accessories

Parts Part name Quantity
		Exhaust hoseHose outletHose inlet	1 set
		Window slider kit 1 set
		Remote Control	1 set
		Drain Hose 1 set

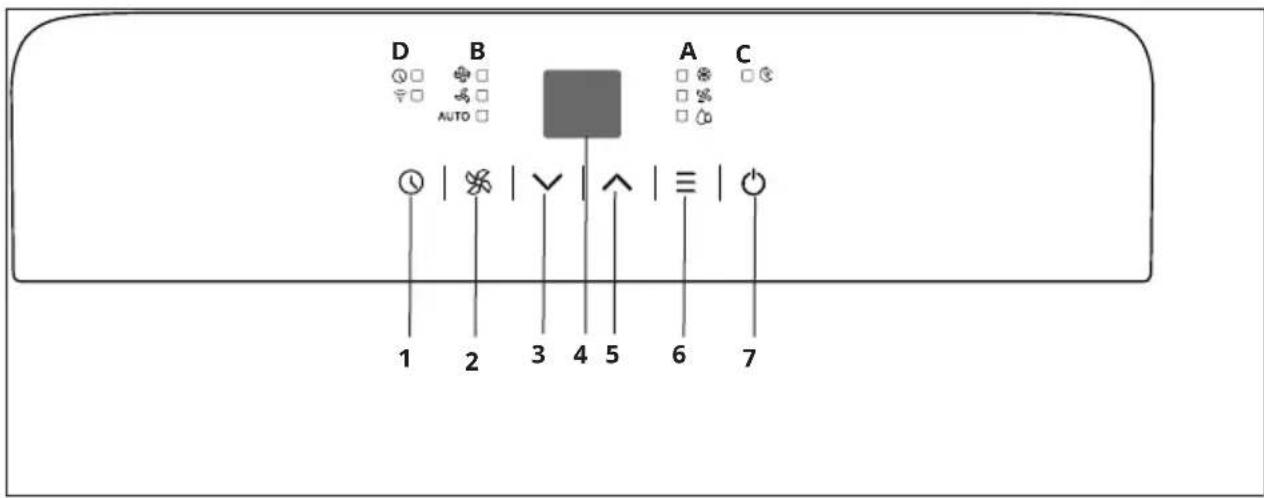

CONTROL PANEL AND REMOTE CONTROL

Control panel

D B A C 1 2 3 4 5 6 7

	Buttons Indicators
1	TIMER	A	Mode
2	FAN SPEED	B	Fan speed
3	- (reduce)	C	Sleep function
4	Display	D	Timer
5	+ (increase)
6	MODE
7	ON/OFF

INSTALLATION OF THE EXHAUST AIR HOSE

1	2

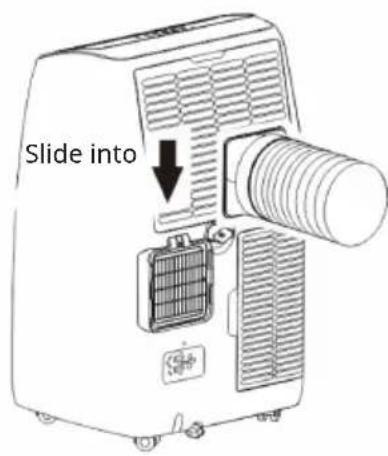

Estend the side of the hose. Attach the hose inlet by tightening it to the exhaust air hose. Turn at least three full times.
3	4
Attach the hose outlet by tightening it to the exhaust air hose by turning it at least three full times.	Attach the hose inlet to the device by inserting it into the opening and sliding it down.

The exhaust air hose can be extended. However, it is best to limit the length to the required minimum. Also make sure that the exhaust hose does not have any sharp bends or sagging.

Technical line drawing of a mechanical device connected to a vertical support structure (no text or symbols)

Important notes on installation

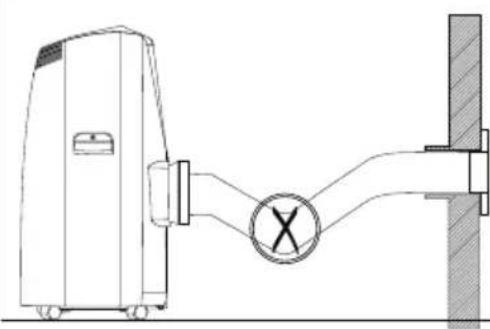

In cooling mode, the unit must be placed near a window or an opening so that the warm exhaust air can be directed outside. First place the appliance on a flat floor and ensure that there is a minimum distance of 45 cm around the appliance and that it is close to a power outlet.

- The device should be placed on a solid foundation to minimise noise and vibrations.

- Place the unit on a smooth, level floor that is strong enough to support the unit.

- The unit is equipped with castors to make it easy to set up, but should only be rolled over smooth, flat surfaces. Use caution when rolling the unit over a carpeted floor. Be careful and protect the floor when rolling over wooden floors. Do not attempt to roll the unit over objects.

- The appliance must be installed near a power outlet.

- Keep a minimum distance of 45 cm around the appliance and upwards from walls or other objects.

- Close the windows and doors in the room to be air-conditioned.

- If you use the unit continuously during the season, leave one door slightly open to ensure adequate ventilation.

- Protect the room from direct sunlight by partially closing curtains or blinds to make the operation of the unit much more economical.

- Do not place any objects on top of the device.

- Do not block the air inlet or outlet of the unit. Reduced airflow will result in poor performance and could damage the unit.

• Make sure that there are no heat sources in the room.

FIXING THE WINDOW SEAL

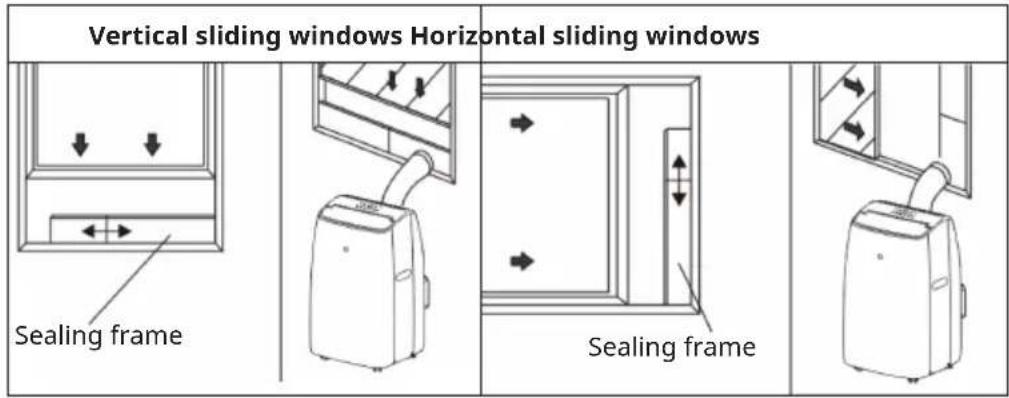

Fixing the sealing frame for sliding windows

The sliding window sealing frame is designed to fit most standard vertical and horizontal windows. However, you may need to change some aspects of the installation for certain types of windows. The sealing frame can be fixed with screws.

Vertical sliding windows Horizontal sliding windows Sealing frame Sealing frame

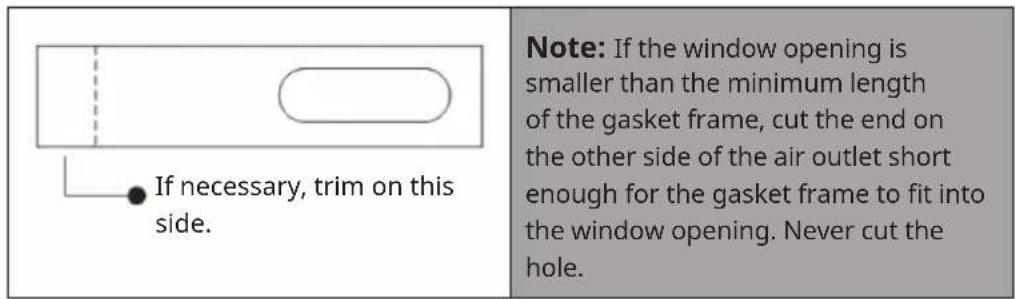

If necessary, trim on this side. Note: If the window opening is smaller than the minimum length of the gasket frame, cut the end on the other side of the air outlet short enough for the gasket frame to fit into the window opening. Never cut the hole.

Adjusting the sealing frame for sliding windows

Slide frame (B) into frame (A) and adjust the size of the frame to the width of your window. Lock the locking screw (C) in the holes corresponding to the measured width to ensure that there are no gaps or air pockets between the window and sealing frame after installation.

Fixing the seal for side-opening windows and roof windows

The installation of the window seal is simple. You can attach the seal to a tilted window, a side-opened window or a roof window. We have chosen a side-opened window for demonstration purposes. It is particularly suitable because the exhaust hose can be attached to the side far down.

The Velcro tape is attached to the three open sides. The side where the window is against the frame is left out. Clean and dry the window frame beforehand so that the tape adheres.

123
Attach the Velcro tape on the left, on the top and on the bottom of the window frame.We recommend that you cut the tape into strips for each window side first.	Now attach the Velcro tape to the inner window sides.	Stick the window sealing to the Velcro strips on the window frame first (starting with the top), then on the Velcro strips on the window.Push the exhaust air tube of the air conditioner through the hole, which can be adjusted in height and size.

DRAINAGE METHODS

If there is excessive water condensation in the unit, the unit will stop running and indicate that the water tank is full. In this case, the condensed water must be drained off using one of the following methods.

Manual drainage

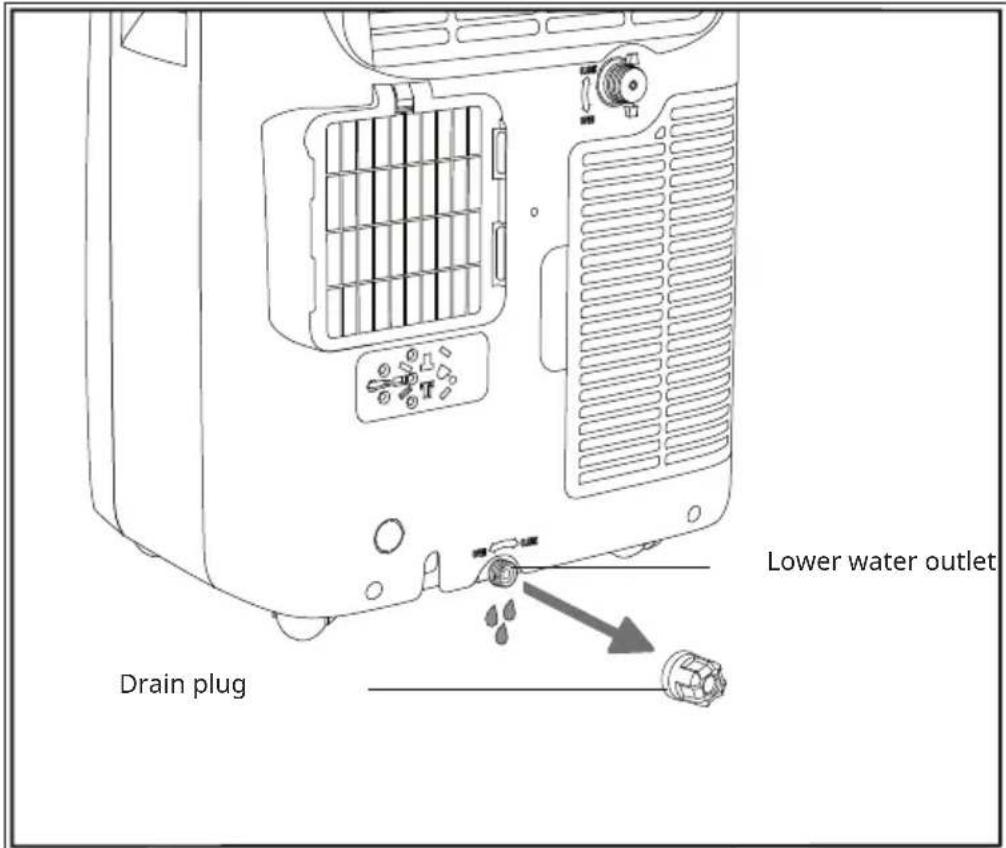

Lower water outlet Drain plug

1	Switch off the device and unplug the power cord from the wall outlet.
2	Place a collection container under the lower water outlet.
3	Remove the lower drain plug.
4	The water will drain off and collect in the collection container.
5	After the water has been drained, screw the drain screw back on.
6	Switch on the device again.

Permanent drainage via the lower water outlet

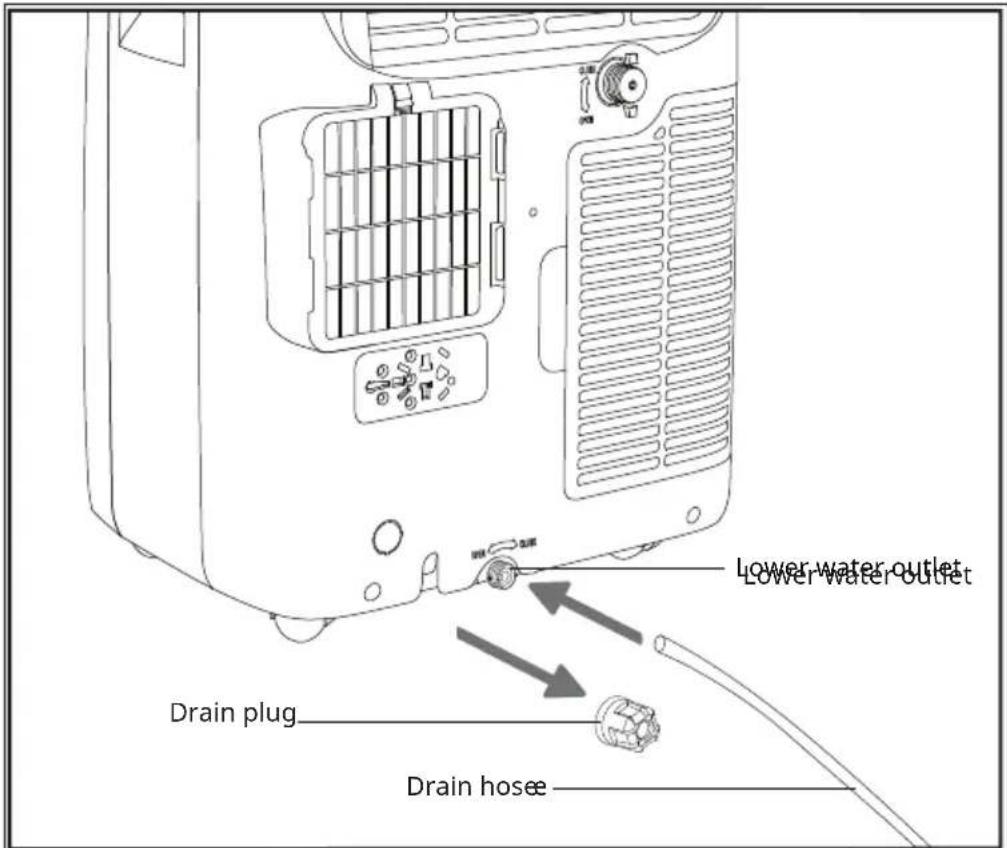

Lower-water outlet Lower water outlet Drain plug Drain hose

1	Switch off the device and unplug the power cord from the wall outlet.
2	Place a collection container under the lower water outlet and remove the lower drain screw.
3	Connect the drain hose.
4	The water can now be continuously drained through the hose into a floor drain or collection container. Make sure that the floor drain or collection container is not closer than the water outlet, otherwise the water tank cannot be emptied.
5	Switch on the device again.

Permanent drainage via the middle water outlet

1	Switch off the device and pull the plug out of the socket.
2	Place a collection container under the middle water outlet and remove the lower drain screw.
3	Connect the drain hose.
4	The water can now be continuously drained through the hose into a floor drain or collection container. Make sure that the floor drain or collection container is not closer than the water outlet, otherwise the water tank cannot be emptied.
	Switch on the device again.
5

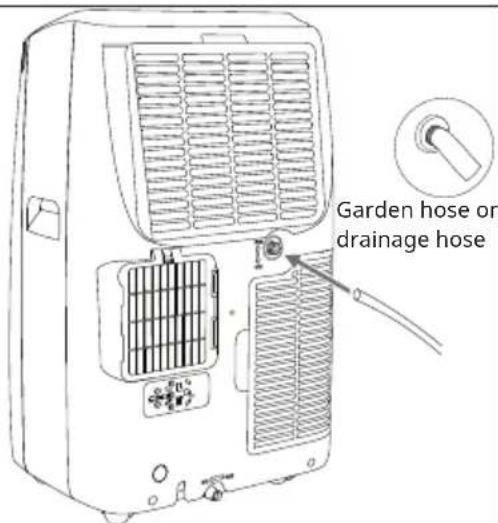

Garden hose or drainage hose

Simple line drawing of a vertical air conditioner unit with a curved ramp and a checkmark (no text or symbols)

Simple line drawing of a server emitting a cable with a cross symbol (no text or labels)

Remote Control

	Fan speed
	Oscillation function
	Sleep function
	Increase
	Reduce
	On/Off
	Mode
	Timer
°C/°F	Change temperature unit

Inserting and replacing batteries

Remove the cover on the back of the remote control. Insert two AAA (1.5V) batteries in the correct position (see instructions inside the battery compartment). Batteries are not included in the scope of delivery.

• When the remote control is replaced or disposed of, the batteries must be removed and disposed of in accordance with applicable regulations, as they are harmful to the environment.
• Old and new batteries must not be mixed. Do not mix alkaline batteries, standard batteries (carbon-zinc) or rechargeable batteries (nickel-cadmium).
• Do not dispose of batteries in fire. Batteries may explode or leak.
• If the remote control will not be in use for a longer period of time, remove the batteries.

COMMISSIONING AND OPERATION

Switching on the device

Insert the plug into the socket. Press the ON/OFF button to turn on the device. The device remembers the last operating status.

COOL mode

Ideal in hot and humid weather when you want to cool down and dehumidify the room. To activate the cooling mode, press the MODE button repeatedly until the COOL indicator lights up. Use the (+) and (-) buttons to set the desired temperature between 18-32 °C (64-90 °F). Then press the FAN SPEED button repeatedly to select one of the four speed levels High > Medium > Low > Auto. The recommended room temperature during the summer is between 24-27°C (75-81°F). We also recommend that you do not set the temperature significantly lower than the outdoor temperature.

FAN mode

Note: If the device is only used in this mode, the exhaust hose does not need to be connected.

Press the MODE button repeatedly until the FAN indicator lights up. Then press the FAN SPEED button several times to select one of three speed levels High > Low>Auto.. The display shows the selected speed in the form of bars:

High Low

DRY mode

This mode is ideal for reducing the humidity in the room. In dry mode, the device should be installed in the same way as in cooling mode. For this purpose, the exhaust air hose must be connected so that the moisture can be discharged to the outside. Press the MODE button several times until the DRY indicator lights up. The display shows [dh].

Note: In this mode, the fan speed is regulated automatically and cannot be adjusted manually.

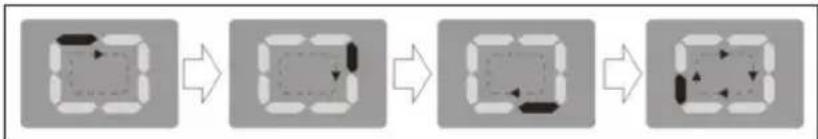

SMART mode

The device automatically selects whether to operate in cooling mode, heating mode or fan mode. To activate the mode, press the MODE button repeatedly until the following indicator lights up on the display:

Then press the FAN SPEED button repeatedly to select one of the three speed levels High > Low > Auto.

Room temperature Operation mode
Below 23 °C (73 °F) FAN mode
Above 23 °C (73 °F) COOL mode

Setting the on timer

To save electricity during cooling and heating periods, the timer can be set to switch the device on or off after a certain period of time.

• Switch the device on and set the desired mode and fan speed. Then switch the device off again.
• Then press the TIMER button. The timer symbol and the hour display will flash in the display. Press the TIMER button repeatedly to set the time (0.5-24 hours) after which the device will automatically turn on.
• Then wait briefly until the time is saved. The TIMER symbol in the display is permanently lit and the device switches to standby mode.
• To deactivate the timer, press the ON/OFF or TIMER button. The timer symbol disappears from the display.

Setting the off timer

• Turn on the device and set the desired mode and fan speed.
• Then press the TIMER button. The timer symbol and the hour display will flash in the display. Press the TIMER button repeatedly to set the time (0.5-24 hours) after which the device will automatically turn off.
• Then wait briefly until the time is saved. The TIMER symbol in the display is permanently lit and the display shows the current mode. When the set time has expired, the device will switch off automatically.
• To deactivate the timer, press the ON/OFF or TIMER button. The timer symbol disappears from the display.

Changing the temperature unit

When the device is in operation, press and hold the remote control button to change the temperature unit or press and hold the increase and decrease buttons simultaneously for 3 seconds to change the temperature unit. Before the change is made, the display will display "24" as shown in figure 1. After the change, the display will display "75" as shown in figure 2.

1	2
24	75

Swing function

This function allows you to swing the air guide lamella up and down so that the air is better distributed in the room. First select the desired mode (Cool, Dry or Fan) and then press the swing function button on the remote control. Press the button again to stop the swing function.

Sleep function

This function is suitable for falling asleep as it continuously reduces the operation of the device. The function keeps the room at an optimal temperature without excessive temperature or humidity fluctuations during silent operation. The fan speed is reduced to the lowest speed while the room temperature and humidity vary slightly to ensure the best possible sleeping comfort.

• First select the desired mode (Cool or Heat) and then press the Sleep button on the remote control. The brightness of the display is reduced and the fan speed is reduced to the lowest level.
• In Cool mode, the selected temperature increases by 1^ (1°F) per hour for a period of 2 hours. This new temperature is maintained for the next 6 hours. Then the device switches off automatically.
• In heating mode, the selected temperature decreases by 1^ (1 °F) per hour over a period of 3 hours. This new temperature is maintained for the next 5 hours. Then the device switches off automatically.
• The sleep function can be cancelled at any time during operation by pressing the sleep function button, MODE (mode) or FAN SPEED (fan speed).
• In FAN or DRY mode, the sleep function cannot be set.

DEVICE CONTROL BY SMARTPHONE

If you integrate the device into your home WiFi, you can conveniently operate it via the associated Klarstein app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to recipes and additional information.

Follow these steps to connect your smartphone to your Klarstein device:

1 Download the Klarstein app first by scanning the QR code with your smartphone (see below), or download it directly from App Store or Google Play.
2 Make sure your smartphone is connected to the same WiFi network that your Klarstein device is to be connected to.
3 Open the Klarstein app.
4 Sign in to your account. If you do not have an account, sign up in the Klarstein app.
5 Follow the instructions from the app.

App Download

Use the scan function of your smartphone to scan the QR code and save the app on your smartphone.

Note: The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.

iOS Android

Troubleshooting connection problems

If your Klarstein device cannot be found in the WiFi, check the following:

1 The device is not plugged in. Make sure that your device is plugged into an electric socket.
2 The device is not in pairing mode. Make sure that the WiFi indicator (LED) on the smart device control panel is blinking as described in the 'Reset WiFi settings' instruction of your smart device (instructions are usually available on device connection process).
3 The WiFi access point does not operate on 5 GHz. Make sure that your access point operates on 2.4 GHz band and you have a separate SSID on 2.4 GHz band. If you are not sure about the operating band of your access point, please contact your internet provider company.

Important: please note that if your WiFi router is dual band - operating on both 2.4 GHz and 5 GHz band - you need to separate the SSIDs for each band and use the 2.4 GHz SSID for connection.

4 Firewall settings of your WiFi network; the firewall setting of your WiFi network may not allow the Klarstein app to configure the WiFi settings on your smart device. Please make sure that you are not using a public WiFi network, e.g. airports, dormitories, companies, etc.

5 Different credentials used in smartphone and the app. Make sure that the WiFi credentials entered in the Klarstein app are the same as the ones that your smartphone is connected to.

Following the above mentioned points, if your smart device still fails to connect to the app, please contact us via email for support: [e-mail]

SELF-DIAGNOSIS

The device has a self-diagnostic system to identify a number of malfunctions. The error messages are shown on the display.

Error message Bedeutung What to do?
Pf	Probe failure If this is displayed, contact the manufacturer or a qualified electrician.
Ft	Full tank Empty the tank as described in the DRAINING METHODS chapter.

CLEANING AND CARE

• Turn off the device and unplug the power cord from the wall outlet.
• Do not use gasoline or other chemicals to clean the device.
• Do not wash the device directly.
• If the device is damaged, contact customer service.

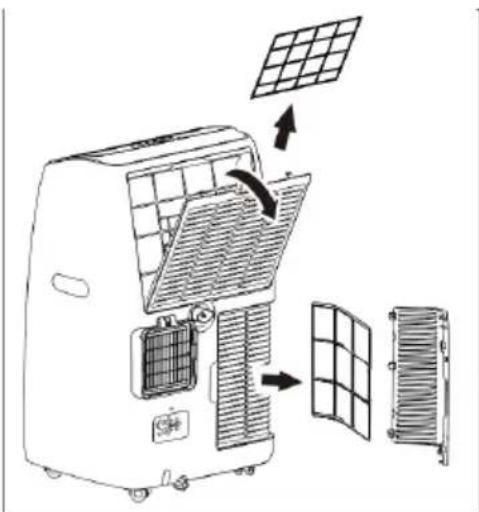

Cleaning the air filter

• The air filter can be blocked by dust/protection and should be cleaned once every two weeks.
• Use a vacuum cleaner to remove dust accumulations from the filter.
• If the filter is very dirty, open the ventilation grille and remove the air filter.
• Clean the air filter with a neutral detergent and lukewarm water. Then dry the filter in the shade.
• Replace the air filter and all other components.

Diagram of an air conditioner unit with solar panel and cooling unit (no text or symbols)

Cleaning the unit surface

Clean the device surface with a neutral cleaning agent and a damp cloth. Then rub the surface of the device dry with a dry cloth.

At the end of the season

• Turn off the device and unplug the power cord from the wall outlet.
• Place a collection container under the lower water outlet.
• Remove the lower drain plug.
• The water will drain off and collect in the collection container.
  • After the water has been drained, screw the drain screw back on.
  • Finally, clean the air filter.

Storage and transportation

• The unit should be used and stored in a way that protects it from moisture, e.g. condensation or splashed water. Unplug the unit immediately if this occurs.
• Always transport your appliance in a vertical position, placing it on a stable, level surface during use. If the unit is transported lying on its side, it should be stood up and left unplugged for six hours.

TROUBLESHOOTING

Problem Possible cause	Suggested solution
The unit does not start when the On/Off button is pressed.	The water level indicator light flashes because the water tank is full.	Empty the water from the water tank.
	The room temperature is higher than the set temperature (electric heating mode).	Reset the temperature setting.
	The room temperature is lower than the set temperature (cooling mode).	Reset the temperature setting.
The unit does not cool properly.	The doors or windows have not been closed properly.	Make sure all doors and windows are closed.
	There are heat sources in the room.	If possible, remove the heat sources.
	The exhaust hose has not been connected or is blocked.	Connect or clean the hose.
	The temperature setting is too high.	Reset the temperature setting.
	The air inlet is blocked. Clean the air inlet.
The unit is very loud. The floor of the site is not level or flat enough.		If possible, place the unit on a flat, level surface.
		This is normal.
There is an unpleasant smell in the room during operation.	The air filter is dirty. Clean the air filter.

Information according to regulation (EU) No. 626/2011

Supplier's trademark: Klarstein

Supplier's model identifier: 10048073, 10048074

Inside sound power levels at standard rating conditions on cooling mode in dB:

65 dB

Refrigerant (R290) leakage contributes to climate change. Refrigerant with lower global warming potential (GWP) would contribute less to global warming than a refrigerant with higher GWP, if leaked to the atmosphere. This appliance contains a refrigerant fluid with a GWP equal to 3. This means that if 1 kg of this refrigerant fluid would be leaked to the atmosphere, the impact on global warming would be 3 times higher than 1 kg of CO_2 , over a period of 100 years. Never try to interfere with the refrigerant circuit yourself or disassemble the product yourself and always ask a professional.

Energy efficiency ratio ( EER_rated ): 3.1

Energy efficiency class: A

Energy consumption 1,1 kWh per 60 minutes, based on standard test results. Actual energy consumption will depend on how the appliance is used and where it is located.

Cooling capacity P_rated in kW: 3.5 kW

Information according to regulation (EU) No. 206/2012

Model identifier(s) 10048073, 10048074
Description Symbol Value Unit
Rated capacity for cooling P	rated for cooling	3.5 kW
Rated capacity for heating P	rated for heating	-	kW
Rated power input for cooling P	EER	1.1 kW
Rated power input for heating P	COP	-	kW
Rated Energy efficiency ratio EERd 3.1 -
Rated Coefficient of performance COPd -
Power consumption in thermostat-off mode	P_TO	-	W
Power consumption in standby mode P	SB	0.33 W
Electricity consumption of single/double duct appliances (indicate for cooling and heating separately)	DD: Q_DD SD: Q_SD	-1.1	DD: kWh/a SD: kWh/h
Sound power level L	WA	65	dB(A)
Global warming potential	GWP	3	kgCO2 eq.
Contact details for obtaining more information	Chal-Tec GmbH, Mühlenstraße 25, 10243 Berlin, Germany.

Supplier's trademark: Klarstein

Supplier's model identifier: 10048075, 10048076

Inside sound power levels at standard rating conditions on cooling mode in dB:

64 dB

Refrigerant (R290) leakage contributes to climate change. Refrigerant with lower global warming potential (GWP) would contribute less to global warming than a refrigerant with higher GWP, if leaked to the atmosphere. This appliance contains a refrigerant fluid with a GWP equal to 3. This means that if 1 kg of this refrigerant fluid would be leaked to the atmosphere, the impact on global warming would be 3 times higher than 1 kg of CO _2 , over a period of 100 years. Never try to interfere with the refrigerant circuit yourself or disassemble the product yourself and always ask a professional.

Energy efficiency ratio ( EER_rated ): 2.6

Energy efficiency class: A+

Energy consumption 1,6 kWh per 60 minutes, based on standard test results. Actual energy consumption will depend on how the appliance is used and where it is located.

Cooling capacity P_rated in kW: 4.1 kW

Information according to regulation (EU) No. 206/2012

Model identifier(s) 10048075, 10048076
Description Symbol Value Unit
Rated capacity for cooling P	rated for cooling	4.1 kW
Rated capacity for heating P	rated for heating	-	kW
Rated power input for cooling P	EER	1.6 kW
Rated power input for heating P	COP	-	kW
Rated Energy efficiency ratio EERd 2.6 -
Rated Coefficient of performance COPd - -
Power consumption in thermostat-off mode	P_TO	-	W
Power consumption in standby mode P	SB	0.5 W
Electricity consumption of single/double duct appliances (indicate for cooling and heating separately)	DD: Q_DD SD: Q_SD	-1.6	DD: kWh/a SD: kWh/h
Sound power level L	WA	64	dB(A)
Global warming potential	GWP	3	kgCO2 eq.
Contact details for obtaining more information	Chal-Tec GmbH, Mühlenstraße 25, 10243 Berlin, Germany

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer & Importer for Great Britain:

Chal-Tec GmbH, Mühlenstraße 25, 10243 Berlin, Germany.

Contact: [e-mail]

Hereby, Chal-Tec GmbH declares that the radio equipment type Grand Breeze Smart is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use. berlin/10048073

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Grand Breeze Smart is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10048073

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Technical line drawing of a mechanical device connected to a vertical support structure (no text or symbols)

Diagram of an air conditioner unit with solar panel and cooling unit (no text or labels)

Energy efficiency ratio ( _EER rated): 3,1

Energy efficiency ratio ( _EER rated): 2,6

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Technical line drawing of a mechanical device connected to a vertical support structure (no text or symbols)

Simple line drawing of a cabinet or drawer with two downward arrows and a double-headed arrow pointing to the bottom (no text or symbols)

Cadre d'étanchéité

Line drawing of a portable air conditioner unit with a rack and handle (no text or symbols)

Simple line drawing of a door with arrows indicating direction and a vertical double-headed arrow on the right side (no text or symbols)

Cadre d'étanchéité

Simple geometric shape with a vertical dashed line and an oval outline (no text or symbols)

Diagram of an air conditioner unit with solar panel and ventilation slots (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

DÉCLARATION DE CONFORMITÉ

Fabricant :

QR code image containing encoded data, no visible human-readable text

INDICE

Diagram of an air conditioner unit with solar panel and cooling unit (no text or labels)

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)
