USER MANUAL TW525 Tonor

UHF Wireless Microphone Instruction Manual

TW515 / TW525

ABOUT THIS MANUAL

Thank you for purchasing TONOR wireless microphone. This manual is intended to help you understand all about this microphone and how to use it. TONOR always strives for the ultimate user experience. All our knowledge and passion for audio technology are incorporated into building microphones with high performance for you. The TONOR microphone is high quality and easy to use to achieve the best user experience.

Enjoy your microphone!

TONOR Team

CATALOGUE

English 02\~06
Deutsch 07\~11
Français 12\~16
Italiano 17\~21
Español 22\~26
Holenderski 27\~31
Polski 32\~36
Svenska 37\~41
Türkçe 42\~46

English

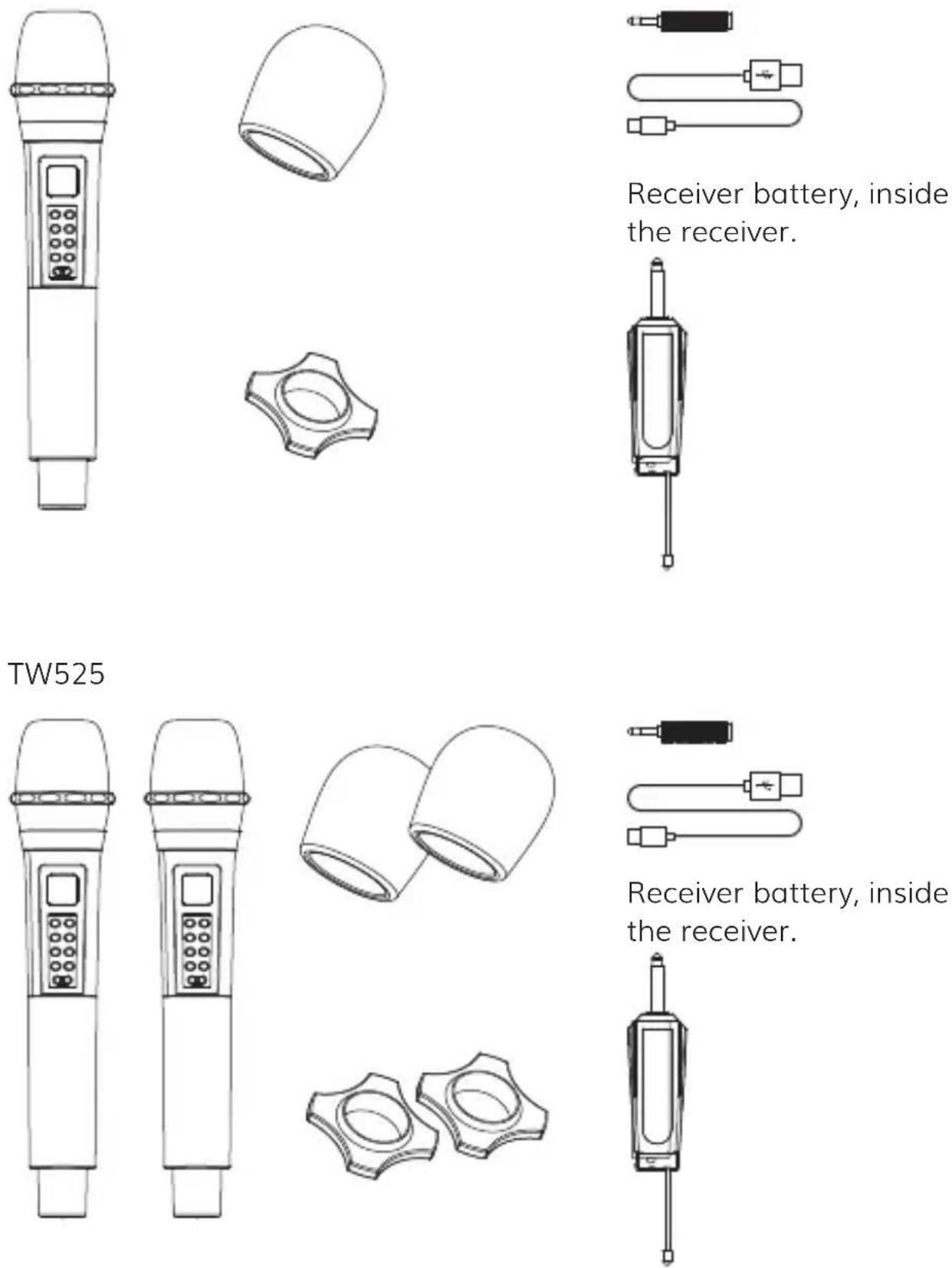

Package Including

TW515

OPERATING ENVIRONMENTS & NOTES

When using this device, keep it away from water.

Use the device in ventilated environment, keep it away from fire.

Since it's a wireless device, please keep it away from other interfering sources.

Don't take apart the device.

Please use the standard power supply, high voltage may damage the device.

Please place the used batteries into the recycle bin, don't litter them.

SPECIFICATIONS

Frequency Response: 40Hz-18Khz

Operating Frequency: A: 520.5MHz-549.5MHz; B: 550.5MHz-579.5MHz

Operating Range: Up to 60m

Frequency Stability: ±10ppm

SNR: ≥96dB

Sound Distortion: ≤0.03%

Mic Input Sensitivity: -52dB±3dB(0dB=1v/μ bar at 1KHz)

RF Sensitivity: -95dBm

Operating Temperature: 0°C to +55°C

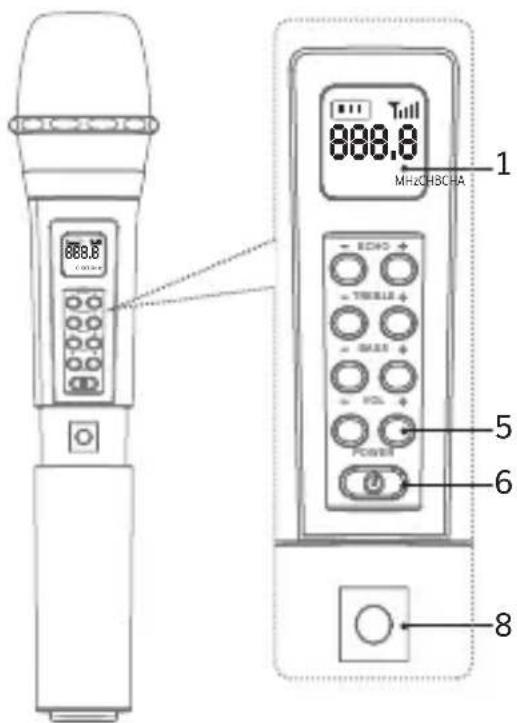

As shown in the pictures:

1. Display Screen

2. ECHO-/ECHO+

3. Treble-/Treble+

4. Bass-/Bass+

5. Volume -/Volume +

6. Power Button

7. Tail Tube

8. Setting Button

9. Battery Compartment

Technical diagram of a handheld device with labeled parts and directional arrows indicating assembly or operation.

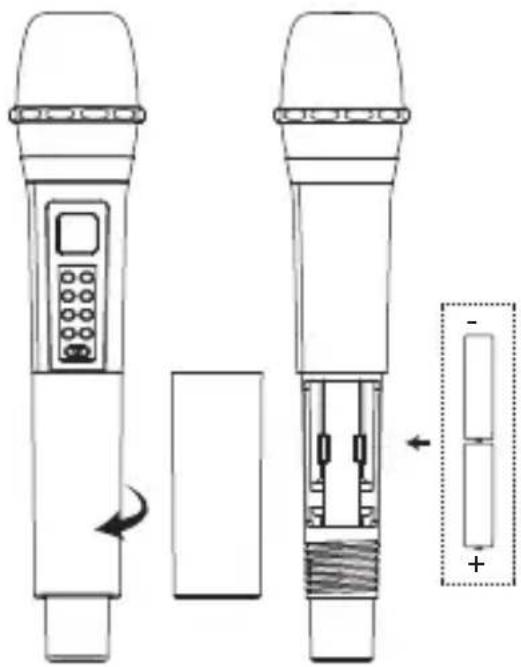

Install 2*AA batteries before using the wireless microphone and installing instruction is as follows:

1. Take down the tail tube of mic.
2. Install the batteries and tighten tail tube of mic.

Note: The positive and negative polarity of battery cannot be reversed.

888.8 Tull 888.8 MHzCHBCHA 1 5 6 8

Instruction:

1. Press button 6 for 2s to turn it on/off.
2. Press the button 8, then the frequency on the screen will be changed.
3. Press button 5 to adjust volume.

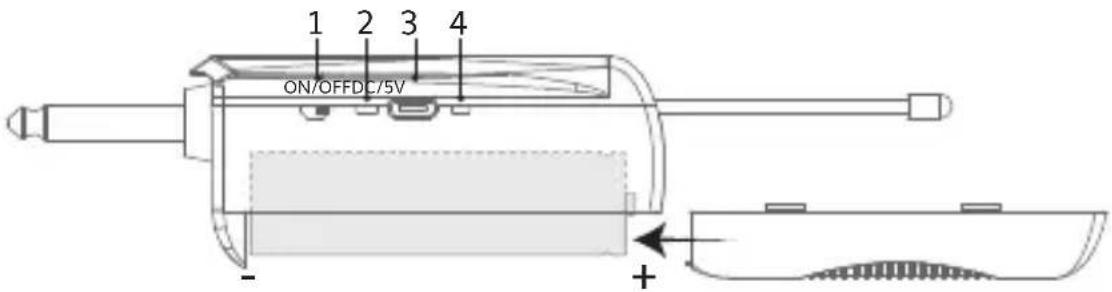

RECEIVER INSTRUCTION FOR TW515 AND TW525

1 2 3 4 ON/OFFDC/5V - +

Receiver battery, inside the receiver.

1. POWER BUTTON

2. BATTERY INDICATOR

3. USB-C CHARGING PORT

4. SIGNAL INDICATOR

LIGHT INSTRUCTION

Signal light 4

Turns off: The receiver is not connected to the microphone.

Stays on red: The receiver and microphone A are successfully connected.

Stays on green: The receiver and microphone B are successfully connected.

Battery indicator 2

Red and green lights: Power on and charge. (It is not recommended to power on and charge.)

Stays on red: Power off and charge. When the receiver is fully charged, the red light turns off.

Stays on green: The receiver is power on. The receiver is fully charged. Turs off: The receiver is power off.

TROUBLESHOOTING

No sound for TW515 (The batteries of microphone have already been installed, but the signal light still turns off.)

▶ Wireless Microphone ID Pairing Steps:

1. Make sure that the receiver and microphone are turned OFF.
2. Unscrew the microphone tail tube and install the batteries into the mic's battery compartment.
3. Turn on the microphone, and press setting button ⑤ (on the microphone), until the microphone screen flashes quickly, then release settling buttons.
4. Turn on the receiver's power button, waiting for red signal light

flashing 4 times, then press the setting button ⑤ (on the microphone) once. The microphone screen becomes steady and no longer flashes, the signal light on the receiver turns steady, indicating that the pairing is successful.

1. Tighten the microphone tail tube. Pairing is now completed.

No sound for TW525 (The batteries of microphone have already been installed, but one of the microphone has on sound.)
▶ Wireless Microphone ID Pairing Steps:
1. Make sure that the receiver and microphone are turned OFF.
2. Unscrew the microphone tail tube and install the batteries into the mic's battery compartment.
3. Turn on the microphone, and press setting button ⑤ (on the microphone), until the microphone screen flashes quickly, then release settling buttons.
4. Turn on the receiver's power button, waiting for signal light flashing 4 times( red light for A mic and green light for B mic), then press the setting button ⑤ (on the microphone) once. The microphone screen becomes steady and no longer flashes, the signal light on the receiver turns steady, indicating that the pairing is successful.
5. Tighten the microphone tail tube.
6. Pairing is now completed for one mic, then repeat 2-5 steps for another mic pairing.

▶ Received signal with noise or interference
▶ Change to other channels;
▶ Check if receiving distance exceeds the maximum range.
▶ Microphone cannot be turned on
▶ Check if batteries are installed reversely;
▶ Change to new batteries.

WARRANTY

TONOR provides 2 years of after-sales service, free replacement to products that are NOT damaged resulting from accident, alteration, misuse, negligence, or abuse. If exceeding 30 days of Amazon return policy, you can still contact us through our Shopify TONORMIC. We will serve you with full sincerity!

Deutsch

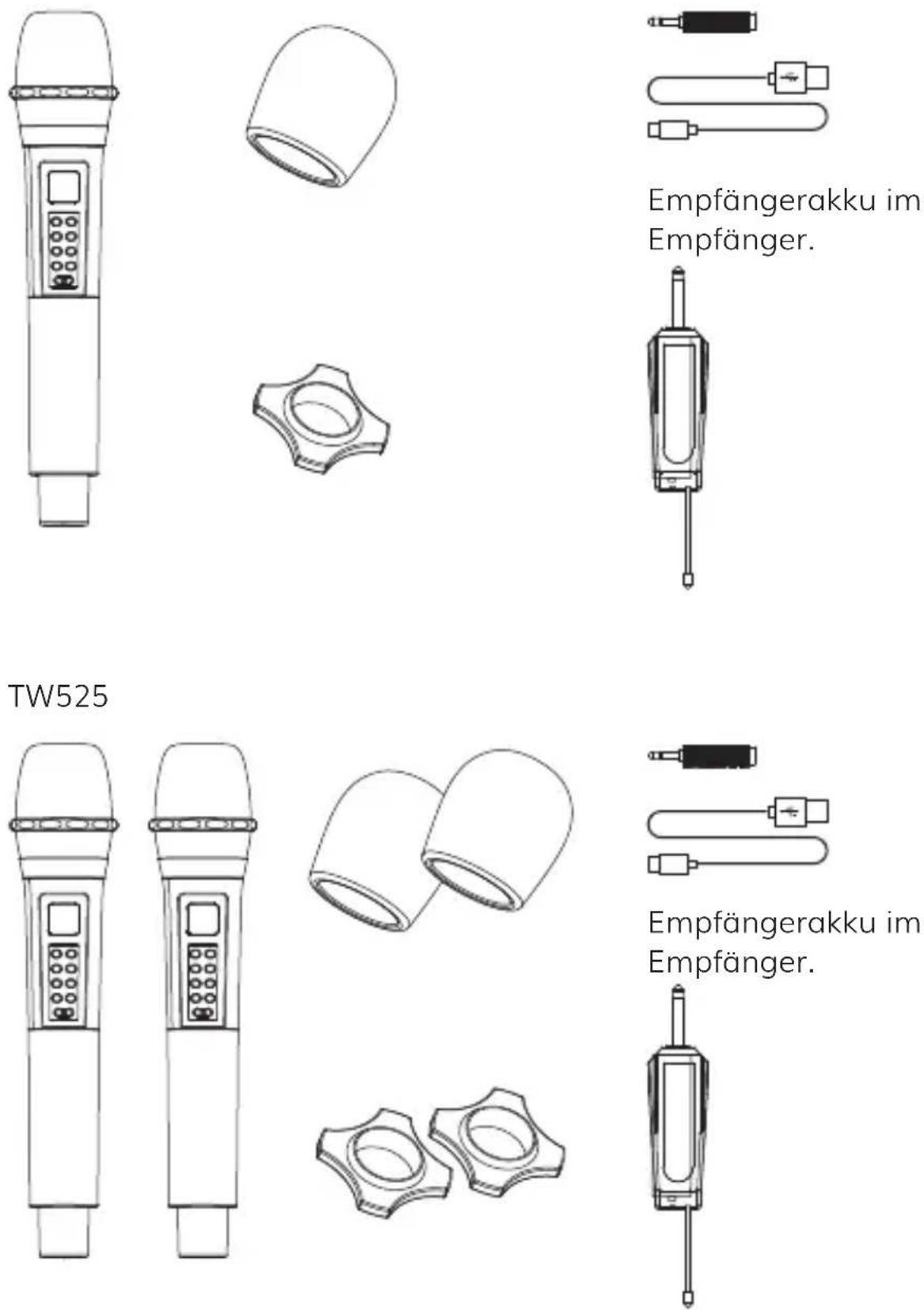

Lieferumfang

TW515

Technical diagram of a handheld device with labeled components and directional arrows indicating motion or assembly.

888.8 MHz CHSCHA 1 5 6 8

Anleitung:

Diagram of a device with labeled parts and directional arrows indicating motion or assembly.

888.8 MHz HSCHA 1 888.8 5 6 8

Instruction :

Line drawings of a handheld microphone, a cylindrical lens, and a gear-shaped component (no text or symbols)

Pure electrical circuit lines without any symbols

Line drawings of three handheld devices with control knobs and two separate views of them (no text or symbols)

Pure electrical circuit lines without any symbols

Diagram showing two types of wireless devices with labeled components and directional arrows indicating movement or change.

Line drawing of a handheld microphone with control panel and speaker (no text or symbols)

Simple line drawing of a cylindrical object with rounded edges (no text or symbols)

Pure electrical circuit lines without any symbols

Simple line drawing of a cylindrical device with a vertical shaft and a central screen (no text or symbols)

TW525

Line drawing of a handheld electronic device with a display and keypad (no text or symbols)

Line drawing of a handheld electronic device with a digital display and keypad (no text or symbols)

Simple line drawing of two cylindrical objects with rounded tops (no text or symbols)

Two identical mechanical gear components with circular cutouts (no text or symbols)

Pure electrical circuit lines without any symbols

Simple line drawing of a cylindrical object with a protruding rod (no text or symbols)

Technical line drawing of a handheld device with internal components and directional arrows indicating motion (no text or symbols)

888.8 MHz CHSCHA 1 5 6 8

Instrucciones:

Line drawing of a handheld electronic device with a digital display and keypad (no text or symbols)

Simple line drawing of a cylindrical object with rounded edges (no text or symbols)

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

TW525

Line drawing of a handheld microphone with control panel and display (no text or symbols)

Line drawing of a handheld microphone with control panel and keypad (no text or symbols)

Simple line drawing of two overlapping cylindrical objects (no text or symbols)

Two identical mechanical gear components with circular cutouts (no text or symbols)

Pure electrical circuit lines without any symbols

Pure line drawing of a cylindrical object with a protruding rod (no text or symbols)

ŚRODOWISKO PRACY I UWAGI

Diagram showing two types of wireless devices with labeled components and directional arrows indicating movement or change.

Technical diagram of a handheld device with labeled parts and directional arrows indicating movement or assembly.

888.8 MHz/HSCHA 1 888.8 5 6 8

Anvisningar:

Diagram showing two types of wireless devices with labeled components and directional arrows indicating movement or change.

Technical diagram of a handheld device with labeled components and directional arrows indicating motion or assembly.

888.8 MHzCHSCHA 1 5 6 8

Talimatlar:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
