USER MANUAL UEAP Videotec

Technical line drawing of a mechanical bracket with mounting holes and side connectors (no text or symbols)

EN English - Instruction manual
IT Italiano - Manuale di istruzioni
FR Français - Manuel d'instructions
DE Deutsch - Bedienungsanleitung
RU Русский - Руководство по эксплуатации

1 About this manual

Read all the documentation supplied carefully before installing and using this unit. Keep the manual in a convenient place for future reference.

1.1 Typographical conventions

CAUTION!

Medium level hazard.

This operation is very important for the system to function properly. Please read the procedure described very carefully and carry it out as instructed.

INFO

Description of system specifications.

We recommend reading this part carefully in order to understand the subsequent stages.

2 Notes on copyright and information on trademarks

The mentioned names of products or companies are trademarks or registered trademarks.

3 Safety rules

CAUTION! Device installation and maintaining must be performed by specialist technical staff only.

• The manufacturer declines all responsibility for any damage caused by an improper use of the appliances mentioned in this manual.
  Furthermore, the manufacturer reserves the right to modify its contents without any prior notice. The documentation contained in this manual has been collected and verified with great care. The manufacturer, however, cannot take any liability for its use. The same thing can be said for any person or company involved in the creation and production of this manual.
• Before starting any operation, make sure the power supply is disconnected.
• Use only original spare parts. Non-original spare parts could cause fire, electrical discharge or other hazards.

4 Identification

4.1 Product description and type designation

Pole adaptor module in stainless steel sheeting AISI 316L. For UEBW (ULISSE EVO) and NVX, NTX cameras.

5 Preparing the product for use

Any change that is not expressly approved by the manufacturer will invalidate the guarantee.

5.1 Unpacking

When the product is delivered, make sure that the package is intact and that there are no signs that it has been dropped or scratched.

If there are obvious signs of damage, contact the supplier immediately.

When returning a faulty product we recommend using the original packaging for shipping.

Keep the packaging in case you need to send the product for repairs.

5.2 Safely disposing of packaging material

The packaging material can all be recycled. The installer technician will be responsible for separating the material for disposal, and in any case for compliance with the legislation in force where the device is to be used.

5.3 Contents

Check the contents to make sure they correspond with the list of materials as below:

• Pole mount adaptor
• Stainless steel clamps
• Bolts and screws
• Instruction manual

6 Installation

Take special care when attaching and fastening down the apparatus. The fastening system must be capable of supporting at least 4 times the weight of the entire equipment (pan & tilt, lens, camera, supports and adapters).

The adaptor can be assembled on poles with a minimum diameter of 60mm and a maximum diameter of 200mm and should be fastened using the metal clips supplied. To facilitate assembly, you can cut the excess parts of the clips.

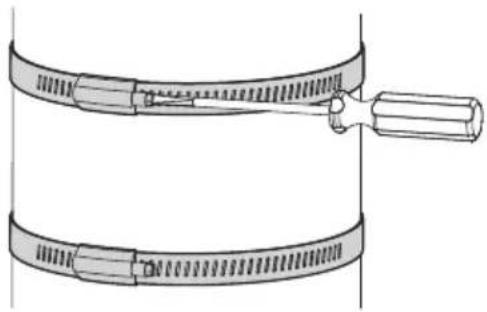

Fasten the adaptor to the pole, using the 2 metal clips supplied.

Diagram of a mechanical assembly with two parallel strips and a central pin (no text or symbols)

Fig. 1

Based on the product you want to install, the clips should be applied using the specific compartments (03) (Fig. 2 Fastening for UEBW (ULISSE EVO), page 2 and Fig. 3 Fastening for NVX, NTX, page 3).

Fasten the support of the PTZ unit or the fixed camera to the adaptor using the screws and washers supplied (02), using the 4 threaded holes (01). Make sure the thread are free of dirt and debris.

Put some thread-locker into the holes for screws (Loctite 243®).

Pay attention to the fixing. Tightening torque: 10.5Nm (±0.25Nm).

03 01 02

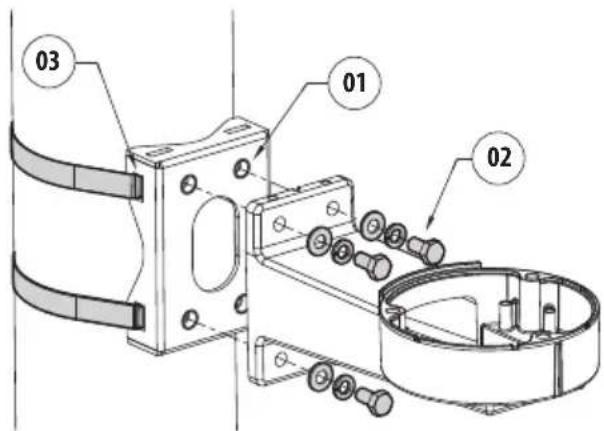

Fig. 2 Fastening for UEBW (ULISSE EVO)

03 01 02

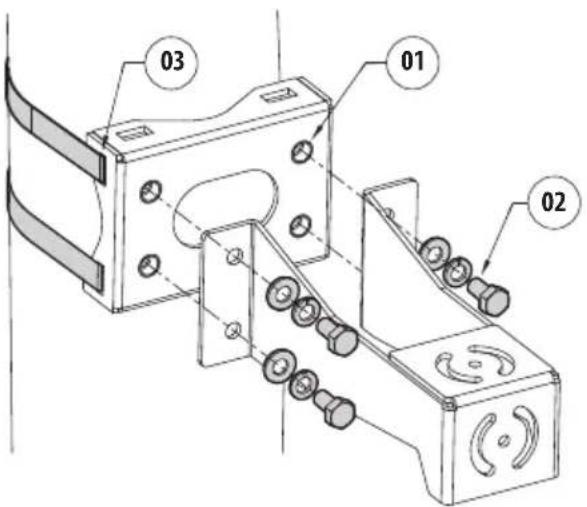

Fig. 3 Fastening for NVX, NTX

7 Technical data

7.1 Mechanical

Bracket for UEBW (ULISSE EVO) and for NVX, NTX cameras

AISI 316L stainless steel construction

Poles diameter: from 60mm to 200mm

Dimensions: 121x85mm (4.7x3.3in)

Unit weight: 0.35kg (0.77lb)

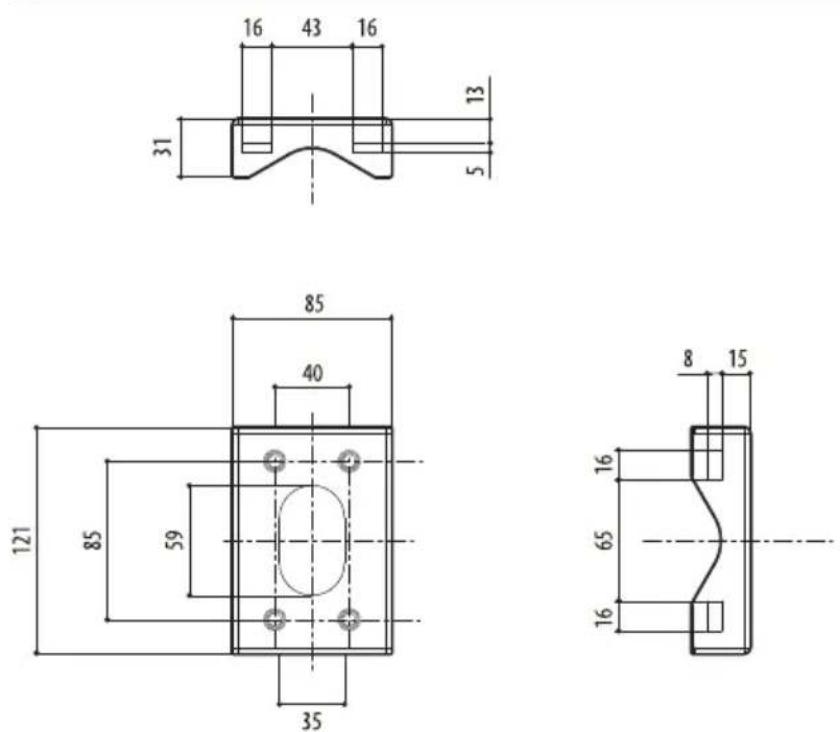

8 Technical drawings

The indicated measurements are expressed in millimetres.

Fig. 4 UEAP.

Diagram of a mechanical assembly with two parallel bands and a central rod (no text or symbols)

Fig. 1

Diagram of a mechanical assembly with two parallel strips and a central pin (no text or symbols)

Fig. 1

Dimensions: 121x85mm

Poids net: 0.35kg

8 Dessins techniques

Diagram of a mechanical assembly with two parallel strips and a central pin (no text or symbols)

Abb. 1

Diagram of a mechanical assembly with two parallel bands and a central pin (no text or symbols)

Рис. 1
