Product Type	Child Seat Adapter for Electric Cargo Bike
Brand	Urban Arrow
Model	Baby Seat Adaptor
Compatibility	Urban Arrow Family bikes manufactured after September 2013
Maximum Child Weight Capacity	13 kg
Recommended Age	0 to 12 months (group 0+)
Mounting Configuration	Attachment on both sides of the cargo bike
Available Adjustments	Lower and upper adjustment (upper for use with another child on the main bench)
Child Seat Orientation	Child's feet facing the cyclist
Included Parts	2 brackets, 2 adapters, 2 lobe buttons, 2 M6 bolts, 2 M5 bolts, 2 anti-vibration washers
Fasteners	M6 and M5 bolts with anti-vibration washers
Safety	Check tightness before each use, fasten child seat belt, adjust speed
Warning	Strong crosswinds may affect handling; do not leave child unattended
Maintenance	Regularly check bolt tightness; replace any bent or broken parts
Storage	Do not place under heavy load; store away from loads
Warranty	24 months from date of purchase (subject to conditions in the manual)
Prohibitions	Do not modify the adapter or its components (voids warranty)
In case of defect	Contact dealer; do not use defective adapter
Product Return	Contact Urban Arrow partner before return; return within 2 weeks for warranty

Frequently Asked Questions - Baby Seat Adaptor Urban Arrow

Which bikes are compatible with the Urban Arrow Baby Seat Adapter?

This adapter is compatible only with Urban Arrow Family bikes manufactured after September 2013.

What is the maximum child weight for this adapter?

The maximum child weight is 13 kg, corresponding to age group 0+ (up to about 12 months).

Up to what age can I use this adapter?

The adapter is intended for children up to 12 months (group 0+).

How do I install the adapter on my Urban Arrow Family bike?

Attach the brackets on both sides of the cargo bike with M6 bolts, orienting the arrows in the direction of travel. Insert the lobe buttons into the adapters with the anti-vibration washers, then attach the adapters. Ensure both sides have the same adjustment.

How do I adjust the adapter for a second child on the bench?

Use the upper adjustment of the adapters when another child is sitting on the main bench. Both adapters must be at the same adjustment.

How do I check that the adapter is properly secured?

After installation, pull the child seat upward to verify that both adapters are secure. Before each use, check the bolt tightness.

What should I do if a part of the adapter is bent or broken?

If the adapter or any critical part is bent or broken, replace all parts and do not continue riding. Contact your dealer.

Can I modify the adapter?

No, it is prohibited to modify the adapter or its components. This would void the warranty.

What is the warranty period?

The warranty is 24 months from the date of purchase. The defective product must be returned to the manufacturer within 2 weeks.

What safety precautions should I take?

Before each ride, properly fasten the child seat belt, check the tightness of all bolts, adjust your speed to road conditions, and never leave the child unattended. Strong crosswinds may affect handling.

USER MANUAL Baby Seat Adaptor Urban Arrow

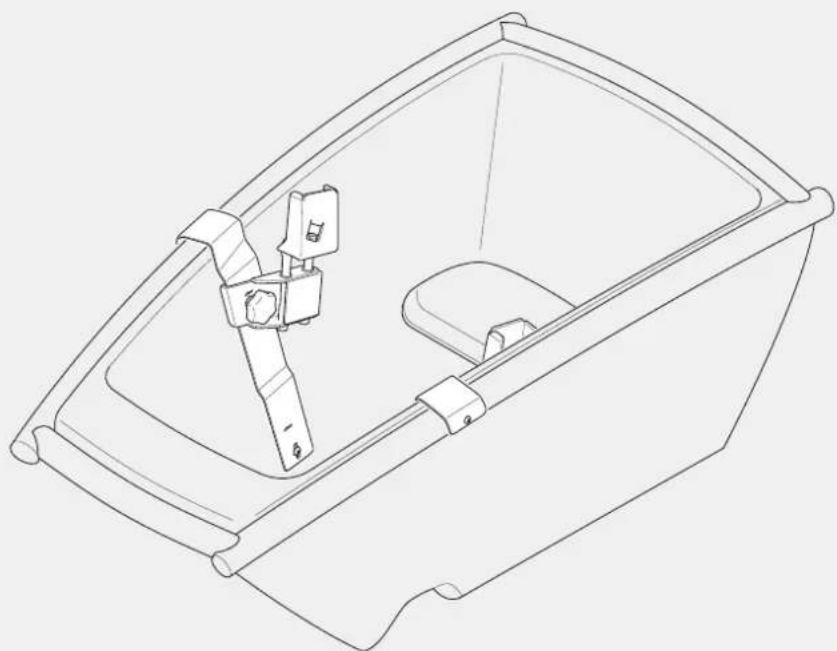

Urban Arrow baby seat adapter

Installation and User Instruction

EN Installation and User Instruction 6
NL Installatie- en gebruikersinstructies 9
DE Installations- und Benutzeranleitung 12
FR Instructions d'installation et d'utilisation 15

1

Urban Arrow baby seat adapter4

Installation and User Instruction 5

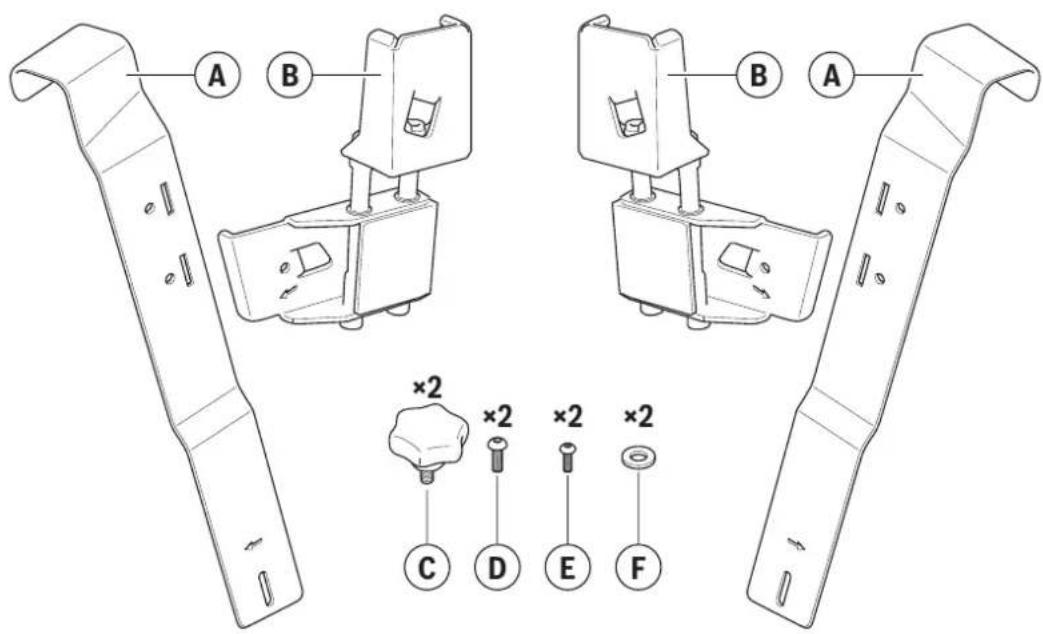

1. Product Parts 2. Safety Instructions

Part Letter
Bracket A
Adapter B
Lobed Knob C
M6 bolt D
M5 bolt E
Anti loss washer F

Please read these instructions carefully before installing and using the baby seat adapter.

• This product is only suitable for use on the “Urban Arrow Family” bikes of Urban Arrow manufactured after September 2013. The connections of the baby seat adapter shall be checked every time the bike is used.
• Never leave children unattended in a baby seat. Make sure that they are always supervised by a person responsible for their safety.
  • Strong crosswinds can have an effect on the riding behavior of the bike. Adjust your speed if necessary.
  • If the baby seat adapter or any of its important parts are bent or broken, replace all the parts.
  • Make sure that the baby seat adapter is free during storage and is not placed under heavy equipment.
  • In the event of a defect, we recommend that you contact your dealer. Do not continue driving if the baby seat adapter is defective.
• Modifications to the baby seat adapter or its components are not permitted. This will void the warranty.

3. Installation

4. Use

EN

1. Check if the packaging contains the following components:

2. 2x brackets

3. 2x adapters
4. 2x lobed knobs
5. 2x M6 bolts
6. 2x M5 bolts

7. 2x anti loss washers

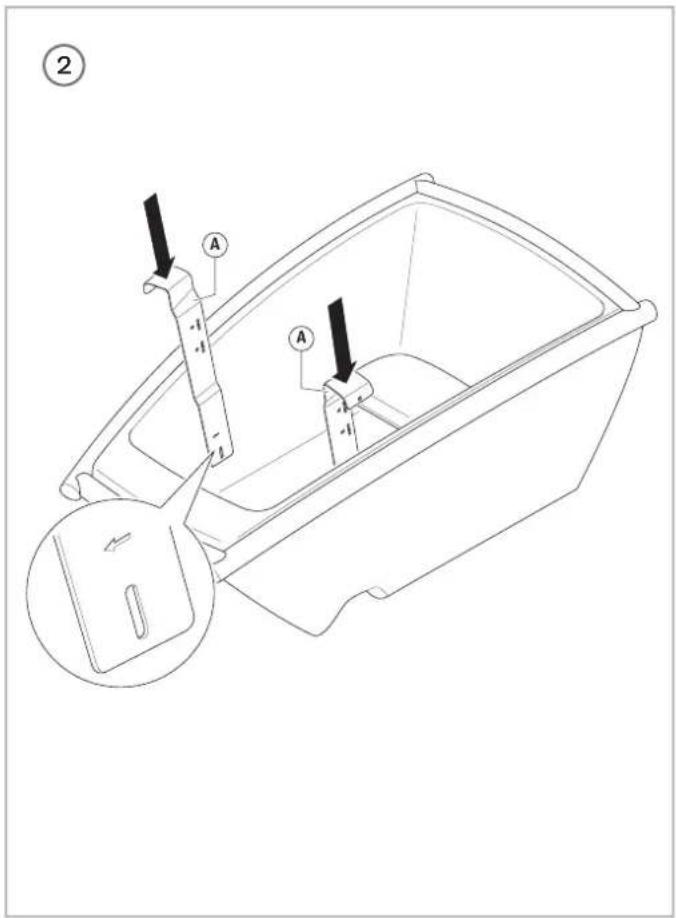

8. Place the brackets ⑨ on both sides of the bike box. NOTICE Make sure the arrows on the bottom of the brackets ⑨ are pointing in the direction of travel. ②

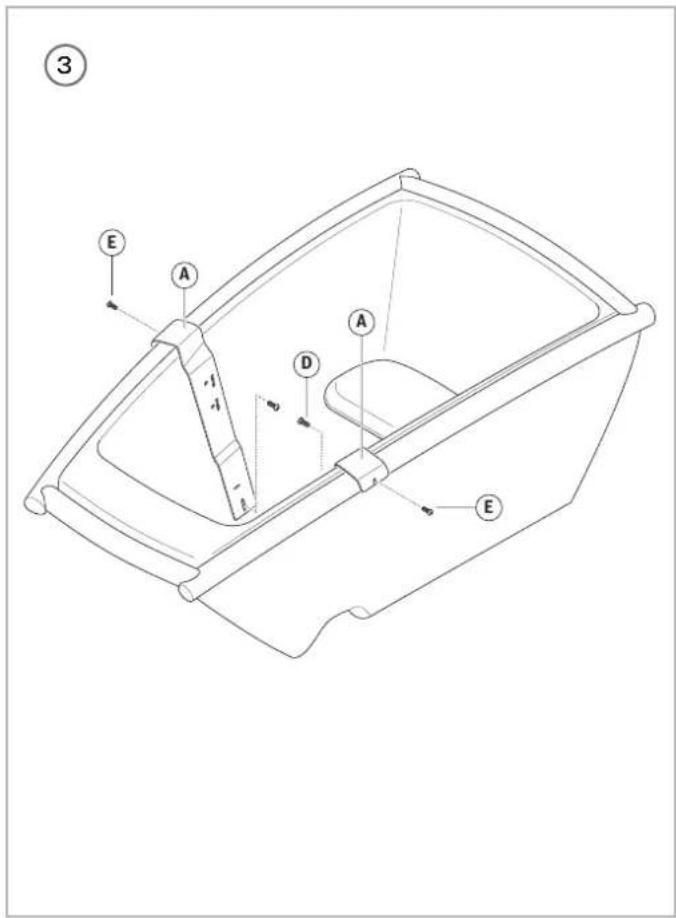

9. Use the M6 bolts ① to fasten the brackets ② to the bottom and to the top tube of the bike box. ③

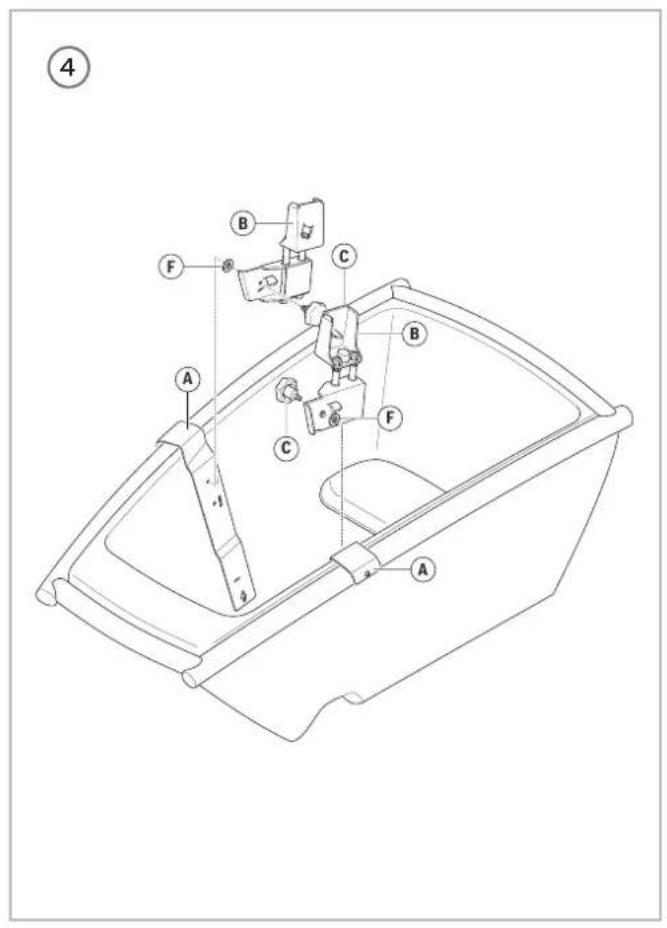

10. Put the lobed knobs © in the adapters ® and put anti loss washers F on the lobed knobs. Attach the adapters ® with the lobed knobs © and fasten firmly. NOTICE There is a low and a high setting. Only use the high setting when another child is seated on the main bench of the bike. Make sure the adapters ® have the same setting on both sides. ④

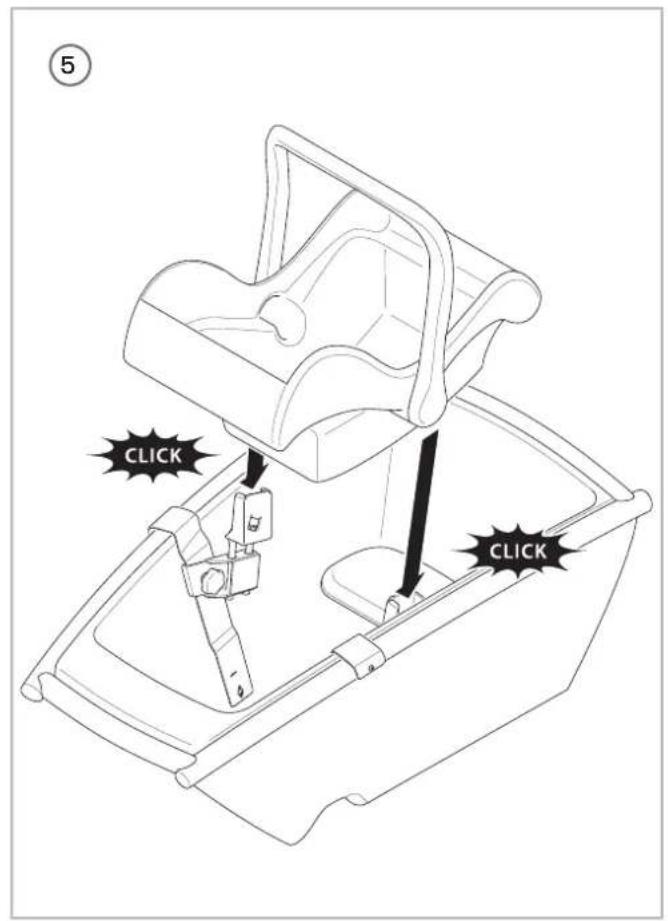

Place the baby seat on top of the adapters Ⓑ, with the feet of the child facing the rider. WARNING! Do not place the baby seat with the feet of the child pointing in the direction of travel.

NOTICE Check if both adapters ⑧ are secured by pulling the baby seat upward. ⑤

WARNING!

• Make sure the baby seat is compatible with the baby seat adapter.
- Make sure that the bolts and screws of the system are tightened securely, before every use.
- Make sure to always fasten the baby seat harness correctly before every ride.
- Intended for use with a baby seat for children up to 12 months with a maximum weight of 13kg (age group 0+).
- Always adapt your speed to the road conditions when the baby seat is attached to the bike.

5. Warranty

Contact your Urban Arrow partner before returning the product. The warranty covers 24 months from the date of purchase. The defective product must be sent to the manufacturer within 2 weeks. The warranty will be void in the following cases:

• External force
• Improper maintenance
  • Failure to comply with operating instructions
  • Discoloration caused by UV-radiation

Modifications to the baby seat adapter or its components are not permitted. This will void the warranty.
