Product type	Mobile LED projector
Brand	Brennenstuhl
Model	EL 4050 M
Rated voltage	220 V-240 V~ 50/60 Hz
Protection class	I
Protection rating	IP65 (water jet proof)
Impact resistance	IK08
Temperature range	-20°C to +45°C
Power	49.9 W
Max current	0.213 A
Power factor	0.9
Maximum projected area	130 cm²
Weight	1.3 kg
Cable length	1.5 m
Power plug	Schuko (type F)
Tripod mounting	Possible (tripod not included)
Handle	Yes, integrated
Tilt adjustment	Yes, by screw
Ignition	Automatic on plug-in
Usage	Indoor and outdoor
Light source	Integrated non-replaceable LED
Maintenance	None, projector to be replaced at end of life
Cleaning	Dry or slightly damp cloth

Frequently Asked Questions - EL 4050 M BRENNENSTUHL

How to turn on the projector?

The projector turns on automatically as soon as the power plug is inserted into a suitable power outlet. No switch is required.

Can I use this projector outdoors?

Yes, thanks to its IP65 protection rating, it is protected against water jets and dust, making it suitable for outdoor use.

What to do if the cable is damaged?

The cable of this projector cannot be replaced. If the cable is damaged, the projector must be disposed of in accordance with environmental regulations.

Can I replace the bulb or light source?

No, the LED light source of this projector is integrated and cannot be replaced. At end of life, replace the entire projector.

How to clean the projector?

Before cleaning, unplug the projector. Only use a dry or slightly damp cloth. Do not use solvents or abrasive products.

Can I mount the projector on a tripod?

Yes, the projector has mounting holes (mark D) allowing it to be mounted on a Brennenstuhl tripod (not included).

What is the power of the projector?

The projector has a power of 49.9 W with a maximum current of 0.213 A and a power factor of 0.9.

Does the projector get hot?

Yes, the surface of the projector can become hot. Keep a minimum distance from illuminated objects to avoid overheating. The ambient temperature range is -20°C to +45°C.

What to do in case of malfunction?

First check that the projector is not damaged. If the problem persists, contact a qualified electrician or the manufacturer's after-sales service. Never open the projector.

How to dispose of the device at end of life?

In accordance with European directive 2012/19/EU, do not dispose of the device in household waste. Take it to a collection point for recycling of electrical and electronic equipment.

USER MANUAL EL 4050 M BRENNENSTUHL

GB Operating instructions 6

FR Mode d'emploi 9

Technical line drawing of a mechanical device with a star-shaped component and a circular head, labeled with dimension 71 (no text or symbols beyond the number)

REINIGUNG

Operating Instructions Mobile LED Light

EL 750 M / EL 2050 M / EL 4050 M EL 2052 M / EL 4052 M EL 753 M / EL 2053 M / EL 4053 M

Attention: Before use of the light, please carefully read the operating instructions and store them at a proper location!

SAFETY INSTRUCTIONS

- Always check the product for damage before use. Never use the product in case of any damage. In case you find the product to be damaged, please refer to an electrician or the manufacturer's service address.

Non-compliance poses a risk of fatal injury from electrical current!

• Do not use the product in potentially explosive atmospheres – danger of death!
• Keep the light away from children. Children are not aware of the risks posed by electric current.
• Please never look directly into the light.
• A destroyed protective cover cannot be replaced. The light has to be disposed of.
• The external flexible line of this lamp cannot be exchanged; if the line is damaged, the lamp has to be scrapped.

Hot surface.

Not suitable for applications with external dimmers.

If the minimum distance is not complied with, illuminated objects may overheat.

TECHNICAL DATA

Nominal voltage: 220 V-240 V\~ 50/60 Hz

Protection class: I

IP class/shock resistance: IP65, IK08

Temperature range: -20 °C to +45 °C

Connection cable: H07RN-F 3G1,0

Type: EL 750 M EL 2050 M EL 4050 M EL 2052 M
Mains plug: Schuko Schuko Schuko CH
Cable length (m): 1.5 1.5 1.5 5.0
Power consumption (W): 9.9 29.8 49.9 29.8
Max. current (A): 0.06 0.127 0.213 0.127
Power factor: 0.7 0.9 0.9 0.9
Max. projected area ( cm^2 ):	35	88	130	88
Weight (kg):	0.8 1.1 1.3 1.5

Type: EL 4052 M EL 753 M EL 2053 M EL 4053 M
Mains plug:	CH	BS	BS	BS
Cable length (m): 5.0 1.5 1.5 1.5
Power consumption (W): 49.9 9.9 29.8 49.9
Max. current (A): 0.213 0.06 0.127 0.213
Power factor: 0.9 0.7 0.9 0.9
Max. projected area ( cm^2 ):	130	35	88	130
Weight (kg):	1.7 0.8 1.1 1.3

This LED light is suitable for indoor and outdoor lighting purposes.

COMMISSIONING

Place the light on a dry and level surface. As soon as the main plug is inserted into a suitable socket, the light is automatically switched on.

CONTROL ELEMENTS

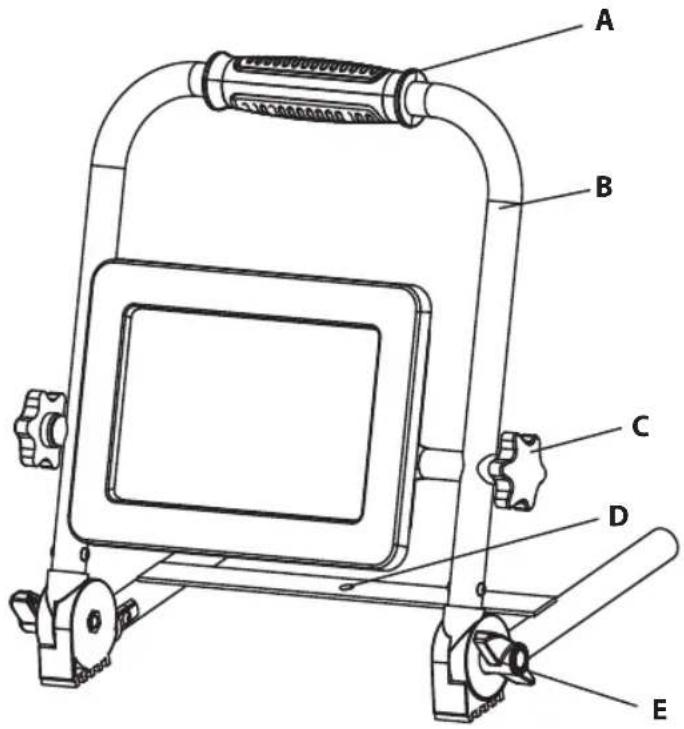

A Handle
B Frame
C Adjustment screw light inclination
D Tripod fastening
E Adjustment screw for frame inclination

TRIPOD MOUNTING

By means of the holes in the holding bracket (D in the figure), the light can be mounted on a Brennenstuhl tripod (fastening material not included in the scope of delivery).

CLEANING

Before cleaning, disconnect the product from the power supply.

Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.

MAINTENANCE

ATTENTION: The LED lamp does not contain components that require maintenance. The light source of this lamp cannot be replaced If the light source has reached the end of its service life, the entire lamp has to be replaced. The lamp may not be opened.

EU DECLARATION OF CONFORMITY

The declaration of conformity is deposited with the manufacturer.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.

For possibilities of disposal of the used appliance, please contact your local or municipal administration.

MANUFACTURER

For more information, we recommend the Service/FAQs section on our homepage www.brennenstuhl.com.
