USER MANUAL Realishot C130 AGFAPHOTO

Black C130 digital camera with visible lens and aperture (no text or symbols beyond branding)

Realishot C130

User manual

Please carefully read the instruction manual before using this product. It contains important information, so keep it safe for future reference.

• Do not use the product in case it has any damage, or unusual conditions like smoke, abnormal sound, peculiar smell.
• To prevent shock, do not open the casing. There are no user serviceable parts inside. Servicing must be performed by a qualified technician.
• Avoid exposing the product to extreme temperatures, humidity, or strong vibrations. This can cause sensor damage, as well as malfunctioning of internal circuitry.
• Do not use any corrosive chemicals or solvent to clean the product.
• Do not disassemble, repair, or transform the product without authorization.
• Do not operate it for a long time while it's being charged.
• Do not let magnetic objects such as magnets approach the product to avoid faults and data loss.
• Prevent dust or dirt from entering the slot and USB port. Promptly wipe off or remove them in case of such condition to avoid conditions like poor contact.
• Keep the product, accessories, and packing materials out of the reach of children to avoid possible suffocations.
• Charge within the temperature range of 10^ to 35^ ; otherwise longer charging times or charging malfunction can occur.
• Do not use any USB cable other than the accessories. Use the USB cable specified only and pay attention to the followings:
• Do not damage or process the USB cable.
• Do not heat, pull, or bend the USB cable to avoid possible fire or electric shock.

It is recommended to copy your important recorded data to other memory cards or a PC frequently.

Be sure to follow the guidelines below to prevent corruption or damage to your recorded data.

EN

• Do not use, replace, or store the card in locations that are exposed to, strong magnetic field, static electricity or electrical noise.
• Do not turn off the camera power during shooting, playback, or when otherwise accessing the micro-SD card.
• Do not store the card in locations with high temperatures or high humidity.

INTRODUCTION

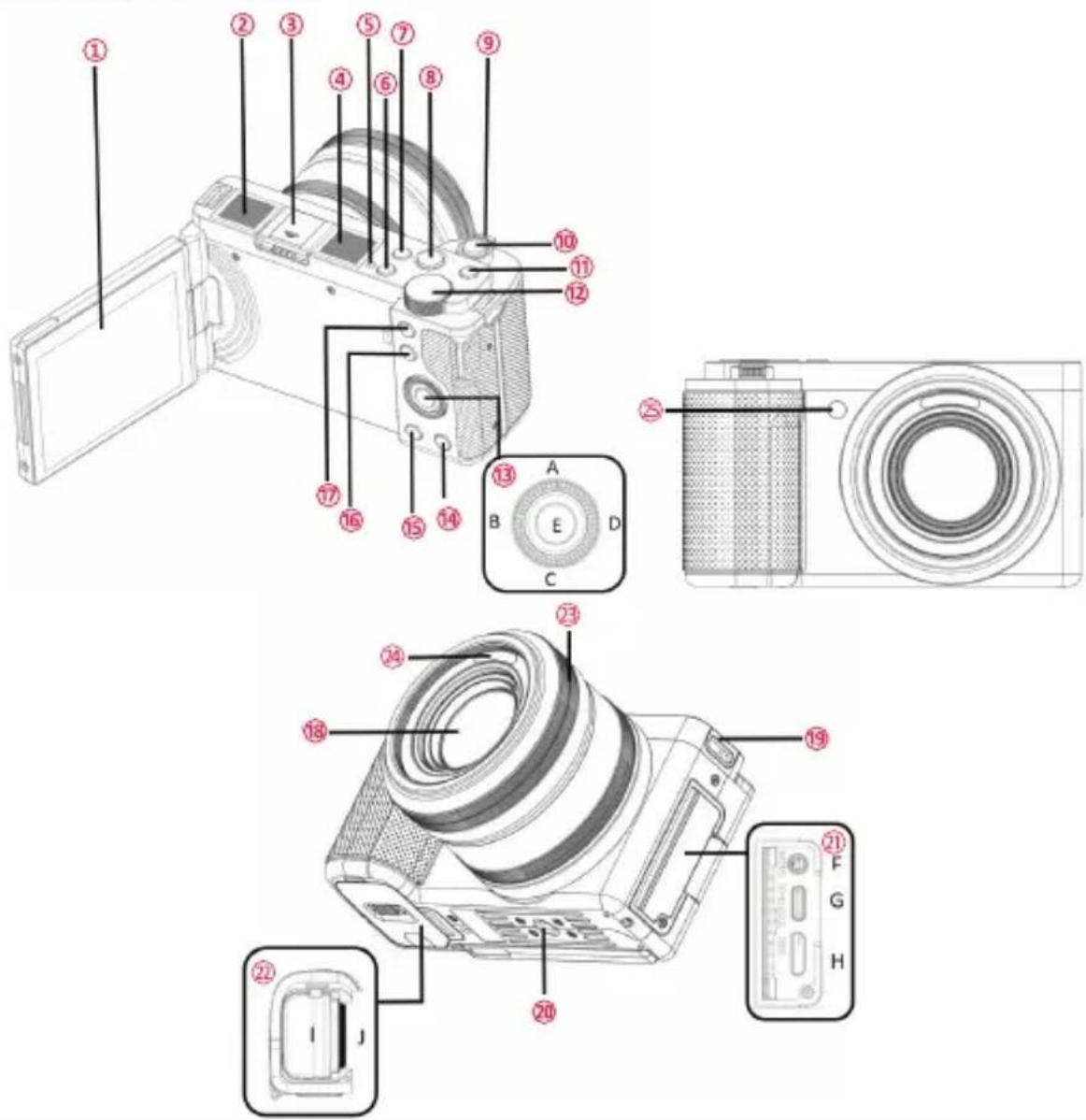

Technical diagram of a digital camera with numbered parts and labeled control panel

EN

1		IPS Touch Panel Screen preview and video/photo playback
2		Microphone Recording sound
3		Hot Shoe Interface Mount hot shoe products
4		Speaker Play sound
5		State Light Green light always on: Standby;Green light continuously flashing:In the recording:Green light flashes once: take a photo;Red light always on: during charging, it turns off when fully charged
6		POWER Button Power On/Off
7		DISP Button Press to switch screen display mode
8		VIDEO Button START/STOP recording
9		T/W Zoom Button In video/photo Mode, pull left/right to zoom in/out;In playback, pull left to switch to grid preview
10		Shutter button Two-stage button, tap to focus and press to photo in photo mode
11		MODE Button Call up Shooting Modes list
12		Adjusting knob P (Program Mode) mode: adjust exposure,A (Aperture Priority) mode: adjust the aperture;S (Shutter Priority) mode: adjust the shutter speed,M (Manual Exposure) mode: adjust the shutter speed and aperture(switch between the exposure button)Video mode: adjust exposure;SCN (Scene Selection) mode: select the scene;Macro mode: Adjust exposure
13	A Drive Mode Button	In standby: enter the burst/self-timer option;_In the function menu: select the function upwards
	B AE-L Button	In standby: lock the current exposure value,In the function menu: select function to the left
	C Exposure Button	In standby: enter the exposure value option;In the function menu: select the function downwards
	D AFL Button	In standby: lock the current focus;In the function menu: select the function to the right
	E OK Button	In standby: enter the effects, contrast, saturation, and sharpness options,In the function menu: confirm the selection of functions; In playback mode: start/pause playback
14		Delete Button Delete recent files.
15		Playback Button Enter the playback mode
16		Fn shortcut function ButtonEnter the shortcut function menu
17		MENU ButtonIn standby: enter the function menu; playing a video: stop playing
18		Lens Framing
19		Strap Mounting Hole Install adjustable strap
20		1/4 Tripod Socket Tripod installation
21	F MIC Interface Access to external microphones
	G TYPE-C USB Interface External USB cable
	H HD interface External HDMI cable
22	I Battery Compartment Load Battery
	J SD slot Insert the SD Card
23		Manual focusing wheel Manually focus in MF mode
24		IR Night Vision Button Switch night vision
25		AF auxiliary lightAuxiliary focusing

LOADING BATTERY & CHARGING

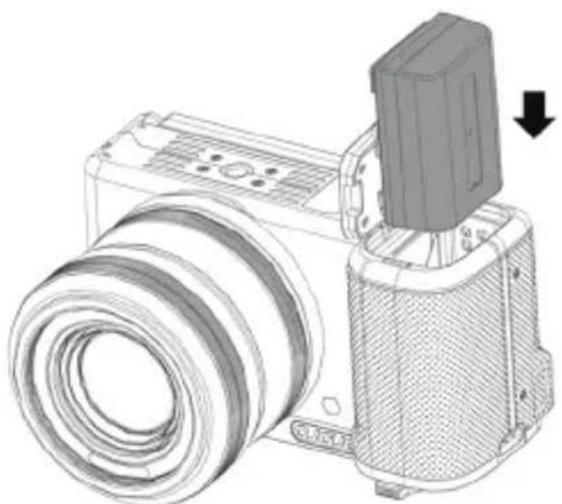

- Loading the battery

Install the battery into the camera in the direction shown in the diagram

Technical line drawing of a digital camera with a mounted sensor module and cable housing (no text or symbols)

EN

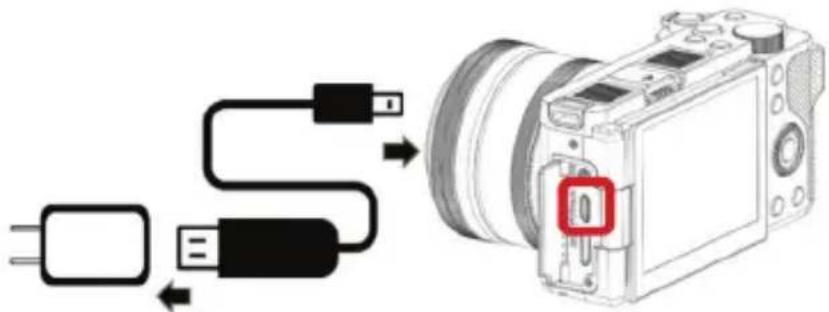

- Battery charging

Diagram showing cable connection to a camera with labeled connector and red button

USING A MEMORY CARD

Line drawing of a digital camera with a flat screen and external casing (no text or symbols)

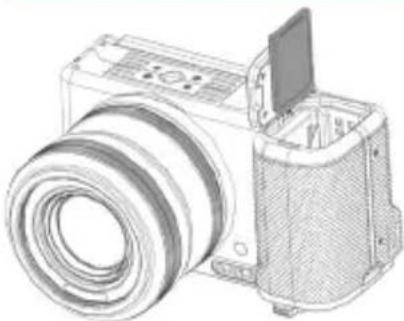

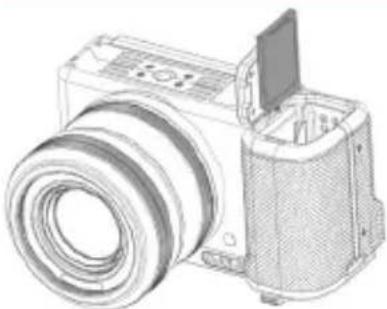

- Inserting a memory card

Insert the memory card as shown in the diagram.

When using the memory card for the first time, please format it on the camera.
A U3 512GB memory card is recommended, and any memory card below U3 may not function properly.

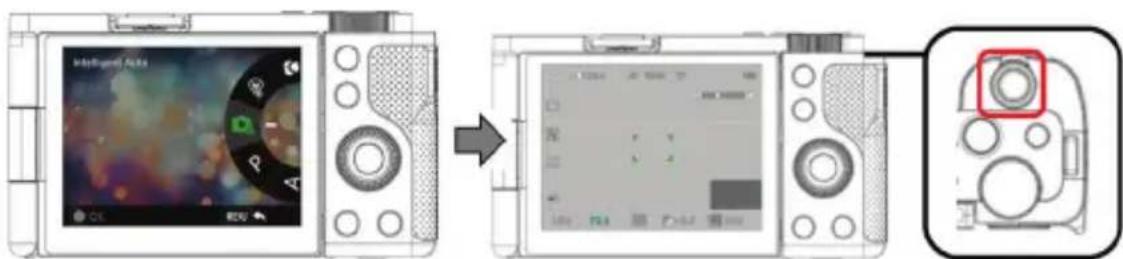

Press the MODE Button to select the Shooting Modes

Intelligent Audio

Half press the shutter button to focus, then fully press the Photo button again to take a photo

Diagram showing device transformation from a photo editing interface to a camera mode selection screen with shooting mode settings.

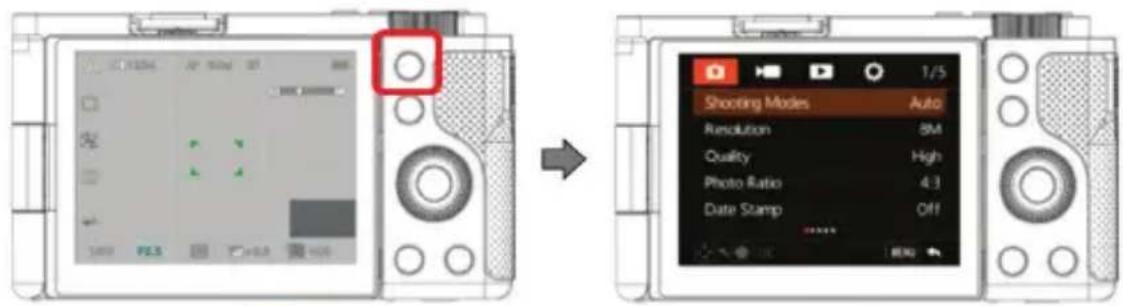

Press the MENU Button to enter the settings

Shooting Modes	Automatic Mode/Program Mode/Aperture Priority/Shutter Priority/Manual Exposure/Video/Scene Selection/Macro/Infrared Night Vision/
Resolution 24M / 20M /13M / 10M / 8M / 5M / 3M / 2M
Photo Ratio 4:3/16:9
Focus Modes AF/MF/AF + MF/AF + MF2
White Balance	Auto/Daylight/Cloudy/Tungsten Light/Fluorescent(H)/Fluorescent(L)/Color Temperature
WDR Off/On
Exposure Compensation -3.0~+3.0
ISO Auto / 100 / 200 / 400 / 800 / 1600 / 3200
Metering Modes Average/Center/Spot
Flash Mode Off/ Auto Flash/ Fill Flash (External flash is required before use)
Drive Modes	Single Shootings/Continious Shootings:3/Continious Shootings:5/Continious Shootings:7/Self-timer:2 sec/Self-timer:5 sec/Self-timer:10 sec
Interval Timer Shooting Off/3 Sec/5 Sec/10 Sec/30 Sec/1Min
Interval Mode Duration Unlimited/5 Min/10 Min/15 Min/20 Min/30 Min/60 Min

VIDEO

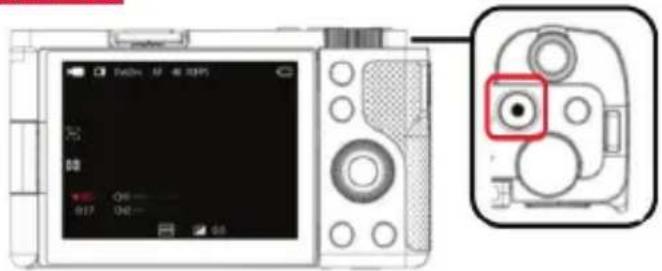

Diagram showing a camera module with display screen and close-up of the camera's face highlighting a red eye.

Press the Video Button to start/stop recording

EN

Resolution 4K30/2.7K60/2.7K30/1080P120/1080P60/1080P30/720P120/720P60/720P30
Date Stamp Off/Date/Date&Time
Mic 1~20
Slow Motion Off/1080P 4X/1080P 2X/720P 4X/720P 2X
Loop Record Off/1 Min/3 Min/5 Min
Time-Lapse Video Off/1 Sec/3 Sec/5 Sec/10 Sec/30 Sec/1 Min
Duration Unlimited/5 Min/10 Min/15 Min/20 Min/30 Min/60 Min

PLAYBACK

Press the PLAYBACK Button while in standby

Press the OK Button to play the video

Press the AEL and AFL Buttons to browse the files; Press the MENU Button to display the file options

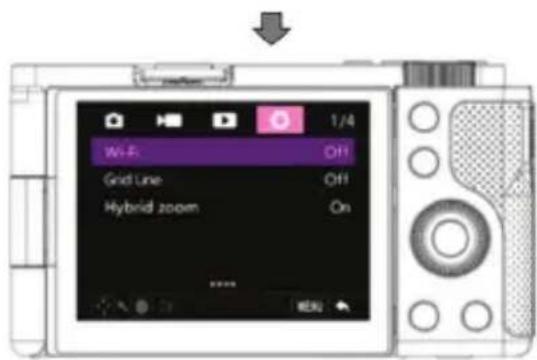

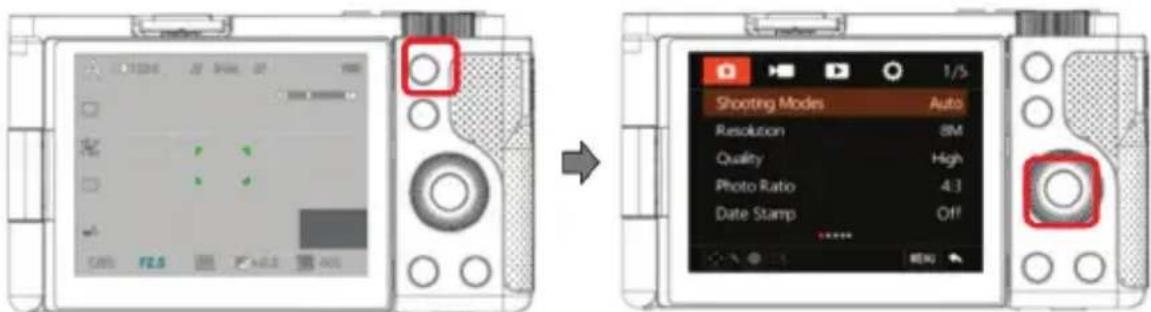

SYSTEM SETTINGS

Press the MENU button to open the settings

Shooting Modes Auto Resolution 8M Quality High Photo Ratio 4:1 Date Stamp Off

Press the EXPOSURE Button+AFL Button to browse the settings

Wi-Fi Grid Line Hybrid zoom 1/4 Off Off On

FLASH

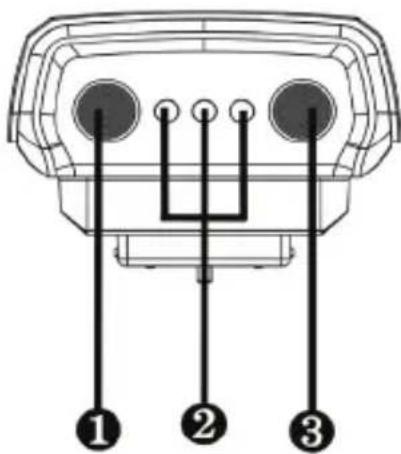

Diagram of a device's top panel with three labeled pins (1, 2, 3) pointing to the ports.

① Power button: Press and hold for 3 seconds to turn on/off, short press to switch flash modes.
② Flash mode indicator light (1st mode: Low / 2nd mode: Medium / 3rd mode: High).
③ Flash test button.

EN

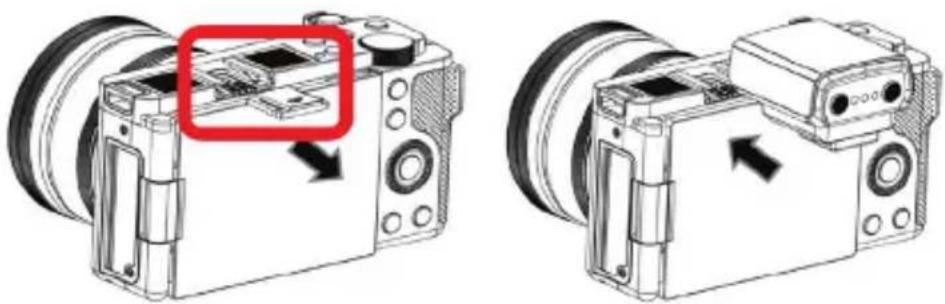

Two views of a digital camera showing internal components and directional arrows (no text or symbols)

Remove the hot shoe cover from the camera and mount the flash onto the camera.

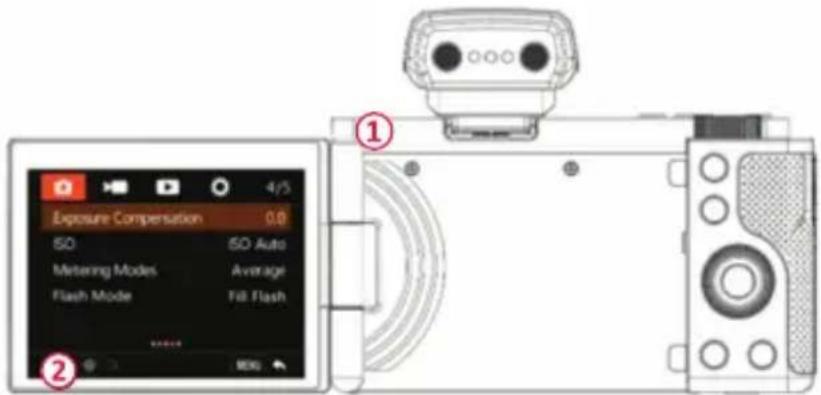

Exposure Compensation 0.0 ISO ISO Auto Metering Modes Average Flash Mode Fill Flash ① ②

Long press the power button to turn on the flash, and then turn on the flash mode in the camera's photo settings to use it.

MOBILE APPLICATION

QR code with a blue logo in the center containing the letters 'OD'

- Download And Install the App:

Scan the QR code below to download and install directly Or

Search and install «OD CAM» directly through the App Store or Google Play Store.

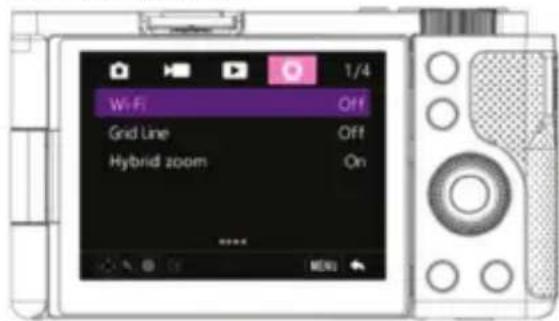

- Wi-Fi connection

Wi-Fi Grid Line Hybrid zoom 1/4 Off Off On

Turn on the Wi-Fi function in the system settings and connect your smartphone. Find the Wifi name shown on the camera in your phone's Wi-Fi settings and enter the password to connect. Once connected, open the application OD CAM.

After connecting the device for the first time, please change the default Wi-Fi password on the camera to ensure the security of your device.

For Android users, please select (Yes) for all possible questions like (Allow the App to obtain the permission?)
The Wi-Fi function is point-to-point wireless connection within effective distance. The maximum distance is about 6m. Please use the function within the effective distance.
Because of various phone brands or configurations, the process to enter the main interface may be slow or the connection may fail. Please try the connection process again.

Q&A

Q1: A video may be automatically divided into several files. How can I combine them into one?

A1: You can combine them by using a video combiner software on your computer.

Q2: Which operating systems or mobile phones is the App compatible with?

A2: The App is compatible with the following operating systems: Android: Android 5.0, Android 6.0, Android 7.0, Android 8.0, Android 9.0, Android 10.0, Android 11.0, Android 12.0, Android 13.0 and Android 14.0; iOS: iOS 9, iOS 10, iOS 11, iOS 12, iOS 13, iOS 14, iOS 15, iOS 16, iOS 17 and iOS 18; Regardless of the systems it is compatible with, the stability of the App depends on the configurations of the phone as well as network conditions. The App is not Applicable to computers.

Q3: Why does my Android phone always fail in connecting to the App?

A3: After successfully connecting your phone to the Wi-Fi, please select (Yes) in case it prompts (Wi-Fi) is not connected to the Internet.

EN

TROUBLESHOOTING

Fault Possible	Cause and Solution
Failure to switch on	- The Camera has low battery. Please recharge it immediately.- Check whether the operating environment temperature is within 0~40°C.
Failure to switch off	- If the ambient temperature is high or the camera is used for an extended period, it may have excessively high temperature. Please wait a moment.
Automatic shutdown	- It's normal that the camera automatically shuts down after standing by for three minutes.- Check whether the operating environment temperature is within 0~40°C.- If the Camera is used for an extended period, it may have excessively high temperature. Please wait a moment and switch it on after it cools down.
Rapid battery drain	- Battery performance degrades in low temperature. Please use it after it is preheated.- The battery is not fully charged. Please recharge it.- The battery is reaching the end of its usable life, please buy a new battery.
Wi-Fi signals are unstable	- The distance is too long. Please use it within 6m (effective distance).- The Camera has low battery. Please recharge it immediately.- The wireless signals are interfered because the camera is placed on a metal table or stand. Keep it away from metal.- The Wi-Fi signals of the phone are weak. Please use another phone.
Video voice is too low	- The sound equipment is poor or the volume is not properly adjusted. Please use other equipment or adjust the volume.- The distance to the sound source is too long. Please record your videos within 5m (effective distance).

TECHNICAL SPECIFICATIONS

Sensor Sony 13	MP CMOS sensor
Aperture and focal length	F.no 1.8 ~ 2.6 f: 5.76mm~57.6mm
Lens thread diameter	49mm
Screen 2.8"IPS HD touch screen
Zoom 10X Optical zoom
Photographing distance	wide: 0.15m~INF Tele: 0.4m~INF
File format Video	MP4 Photo: JPEG
Video Resolution	4K30/2.7K60/2.7K30/1080P120/1080P60/1080P30/720P120/720P60/720P30
Photo Pixel 24M/20M/13M/10M/8M/5M/3M/2M
Memory medium	SDHC memory card/SDXC memory cardUHS-III,512GB (maximum)
IR Night Vision Built-in
Microphone Built-in
Speaker Built-in
Wi-Fi Built-in
USB Type-C USB 2.0
HDMI Built-in
Hot Shoe Built-in
Computer OS Windows 7/8/10/11 Mac OSX10.5 and above
Mobile OS Android 5.0 and above; iOS 9.0 and above
Power input DC5V/2A Type-C USB
Dimensions L 117mm W 84mm H 66mm
Weight 360±5g (Excluding battery)
Working temperature	0~40°C
Frequencies used WiFi - 2.4 GHz IEEE 802.11b/g/n
Maximum power used	WiFi (2.4G): 16dBM
