USER MANUAL JEHCCU0300CM1 DAIKIN

J&E Hall International for DAIKIN

Installation Manual

Operation Manual

(Original Instruction)

Reciprocating condensing unit for medium temperature application

Series 1

JEHCCU0040CM1

JEHCCU0050CM1

JEHCCU0051CM1

JEHCCU0063CM1

JEHCCU0067CM1

JEHCCU0077CM1

JEHCCU0095CM1

JEHCCU0100CM1

JEHCCU0113CM1

Series 2

JEHCCU0140CM1

JEHCCU0140CM3

JEHCCU0150CM1

JEHCCU0150CM3

JEHCCU0225CM1

JEHCCU0225CM3

JEHCCU0300CM1

JEHCCU0300CM3

Reciprocating condensing unit for low temperature application

Series 1 JEHCCU0115CL1

Scroll condensing unit for medium temperature application

Series 2

JEHSCU0200CM1

JEHSCU0200CM3

JEHSCU0250CM1

JEHSCU0250CM3

JEHSCU0300CM1

JEHSCU0300CM3

JEHSCU0350CM3

Series 3

JEHSCU0400CM3

JEHSCU0500CM3

JEHSCU0600CM3

JEHSCU0680CM3

Series 4

JEHSCU0800CM3

JEHSCU1000CM3

Scroll condensing unit for low temperature application

Series 2 JEHSCU0200CL3 JEHSCU0300CL3

Series 3 JEHSCU0400CL3 JEHSCU0500CL3 JEHSCU0600CL3

Series 4 JEHSCU0750CL3 JEHSCU0950CL3 EVI

Contents

1. Nomenclature 2
2. Safety and Health 2
3. Installation & commissioning 2
4. Decommissioning & Disposal 9
5. Checklist 9
6. Service and Maintenance 9
7. F gas Regulations 10
8. Trouble Shooting 10
9. Specifications 11

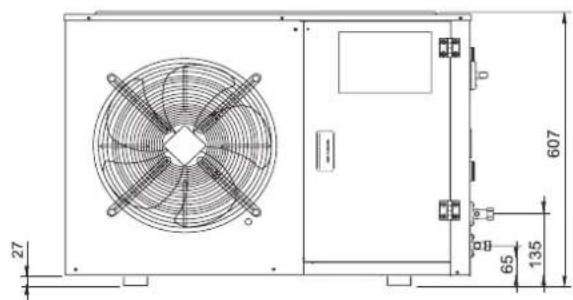

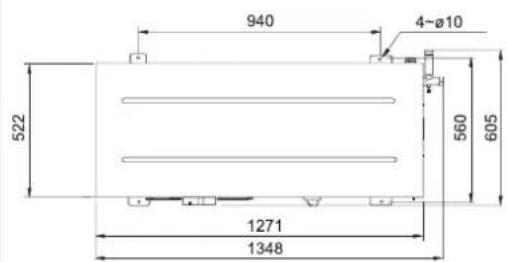

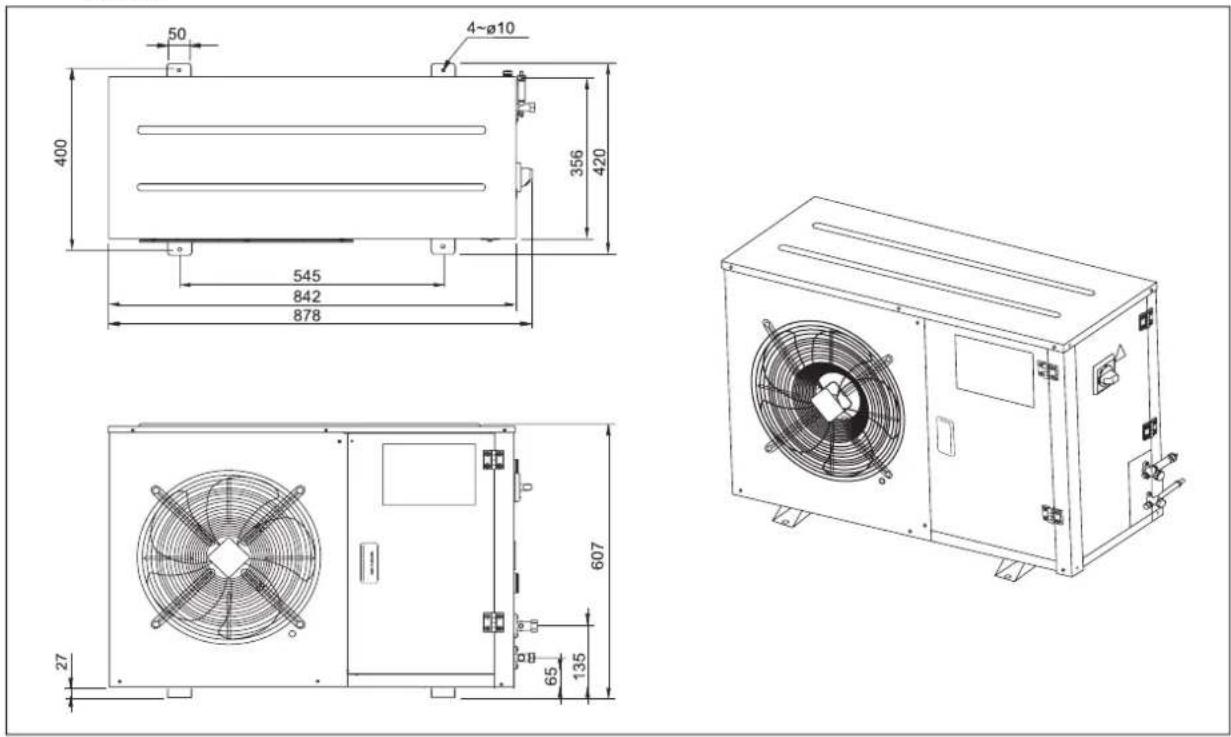

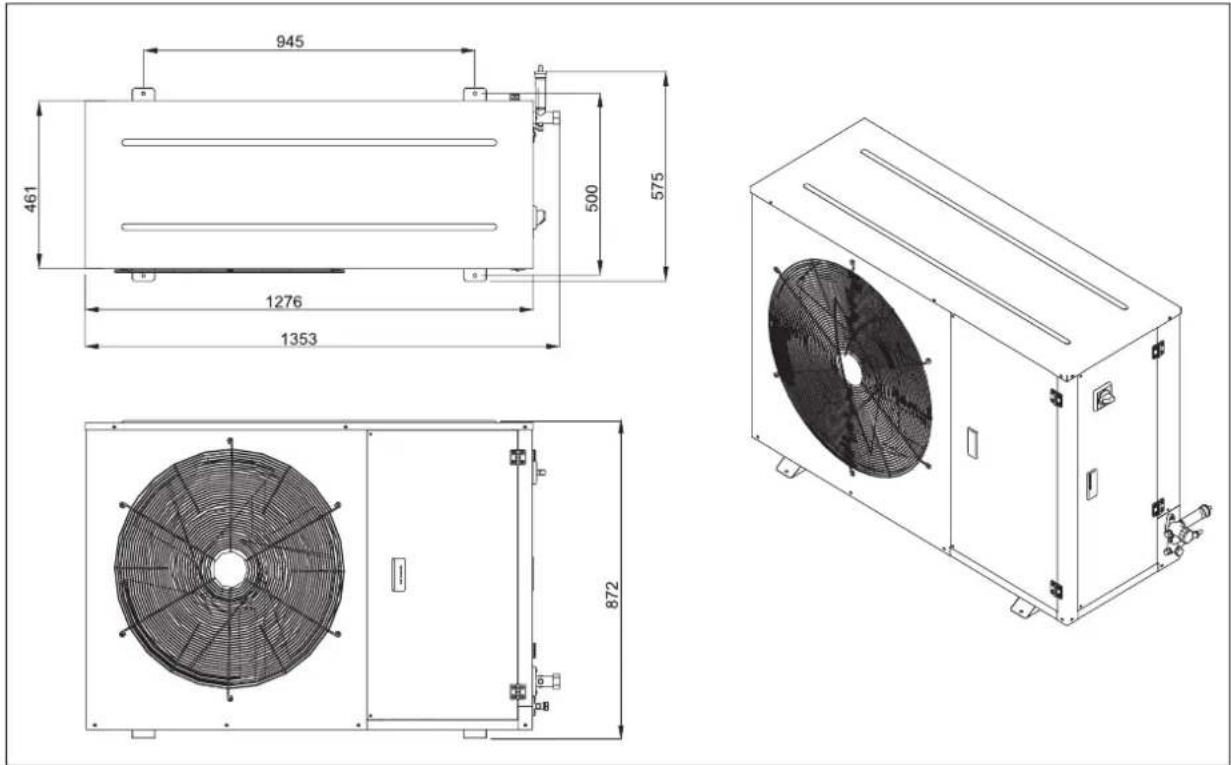

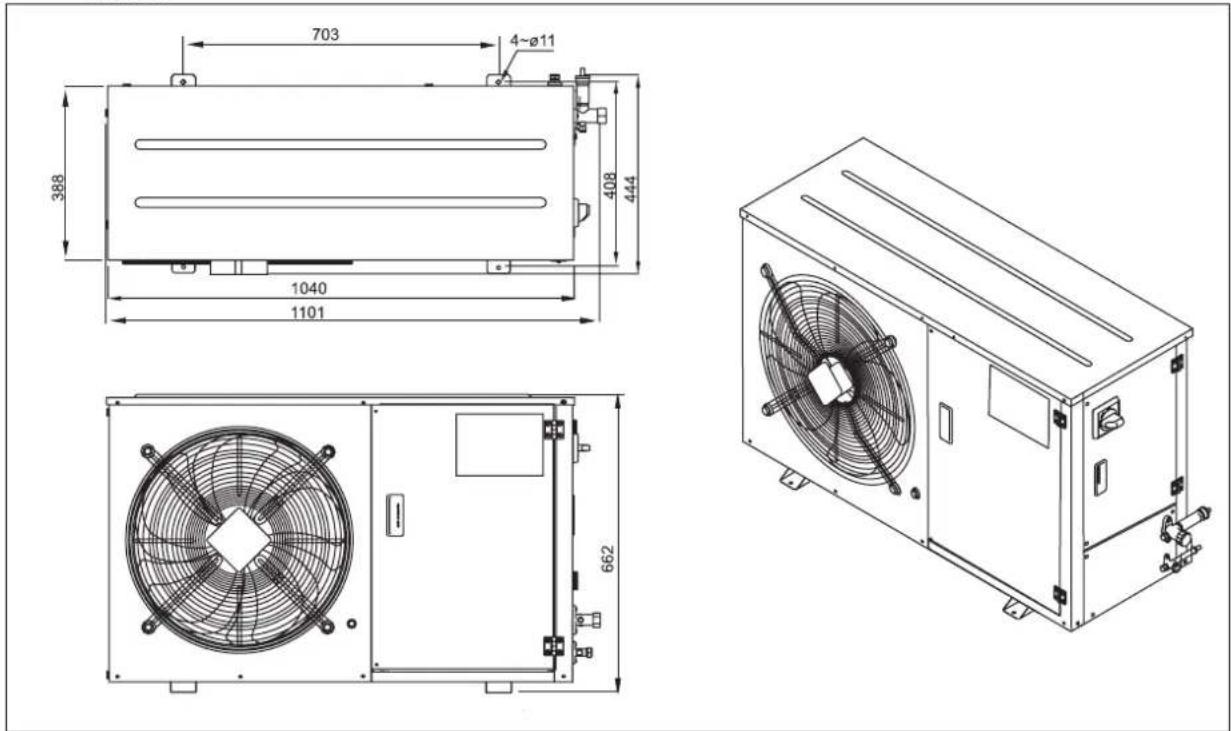

10. Outline Drawings 13

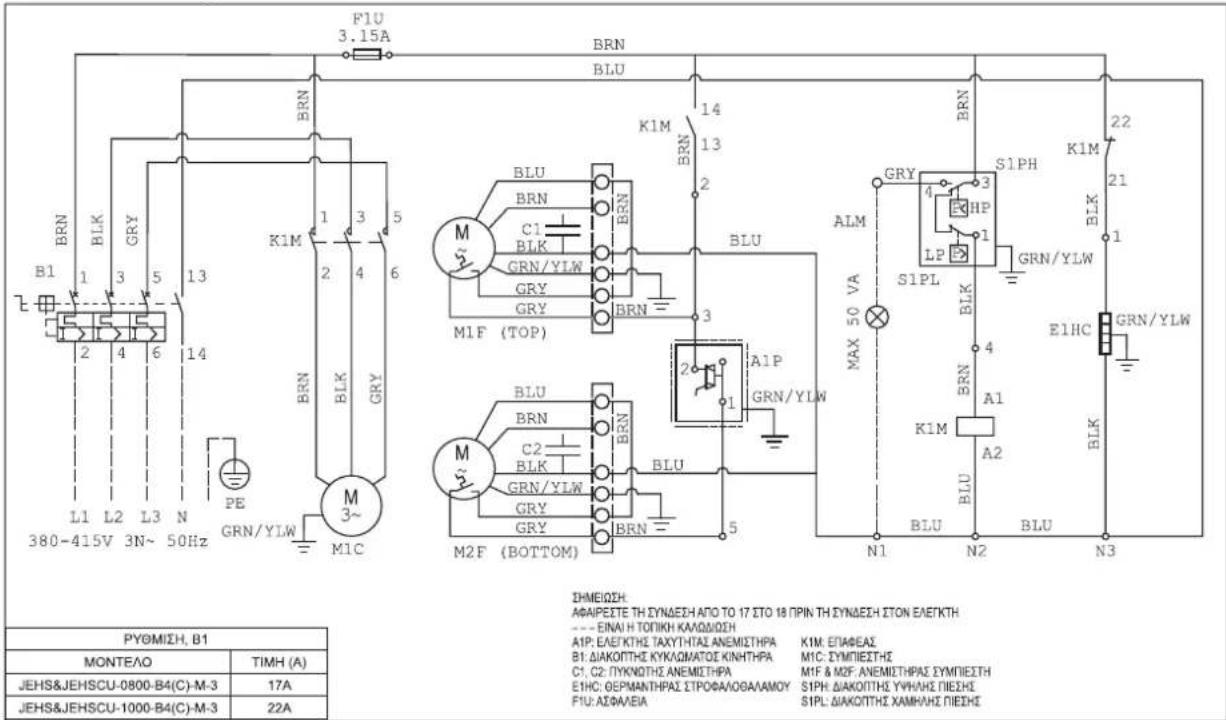

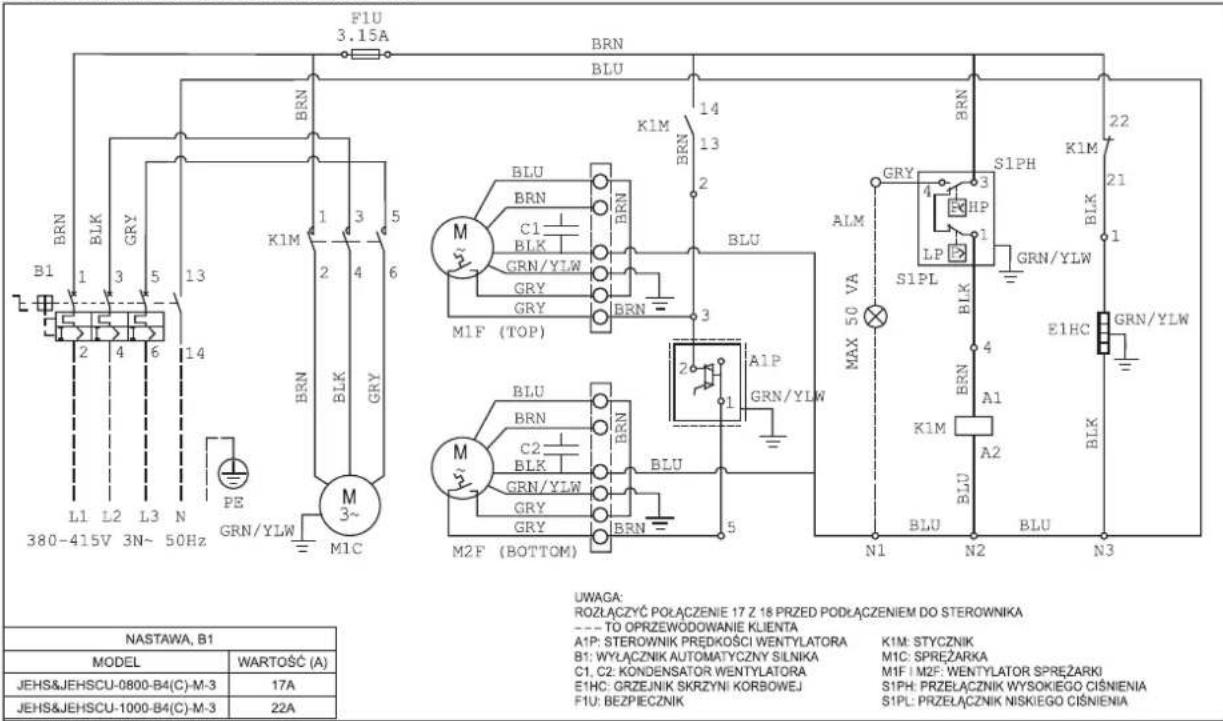

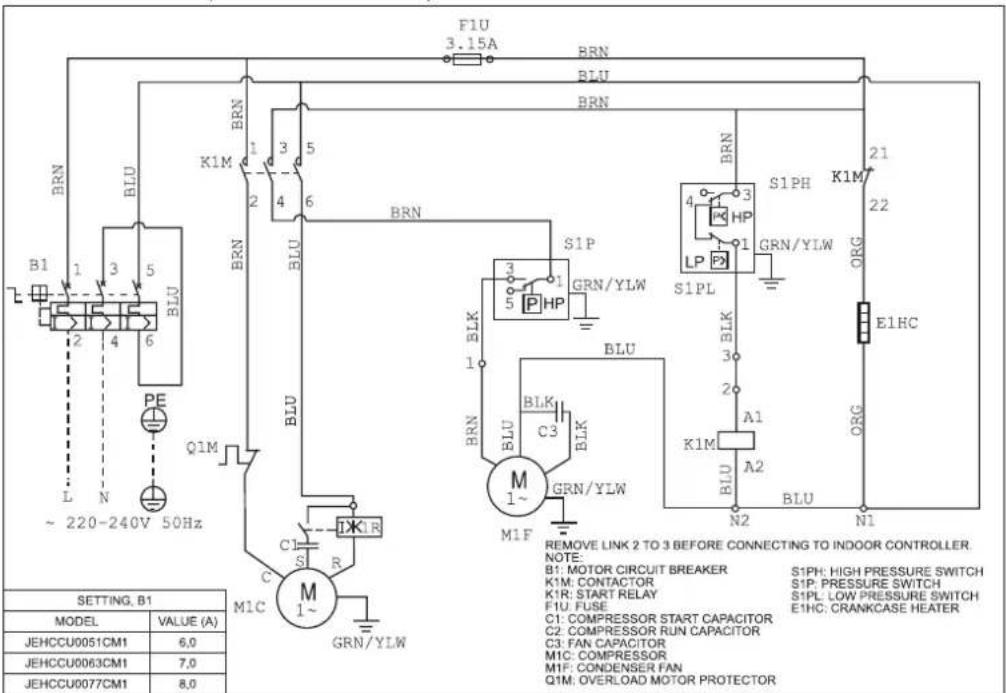

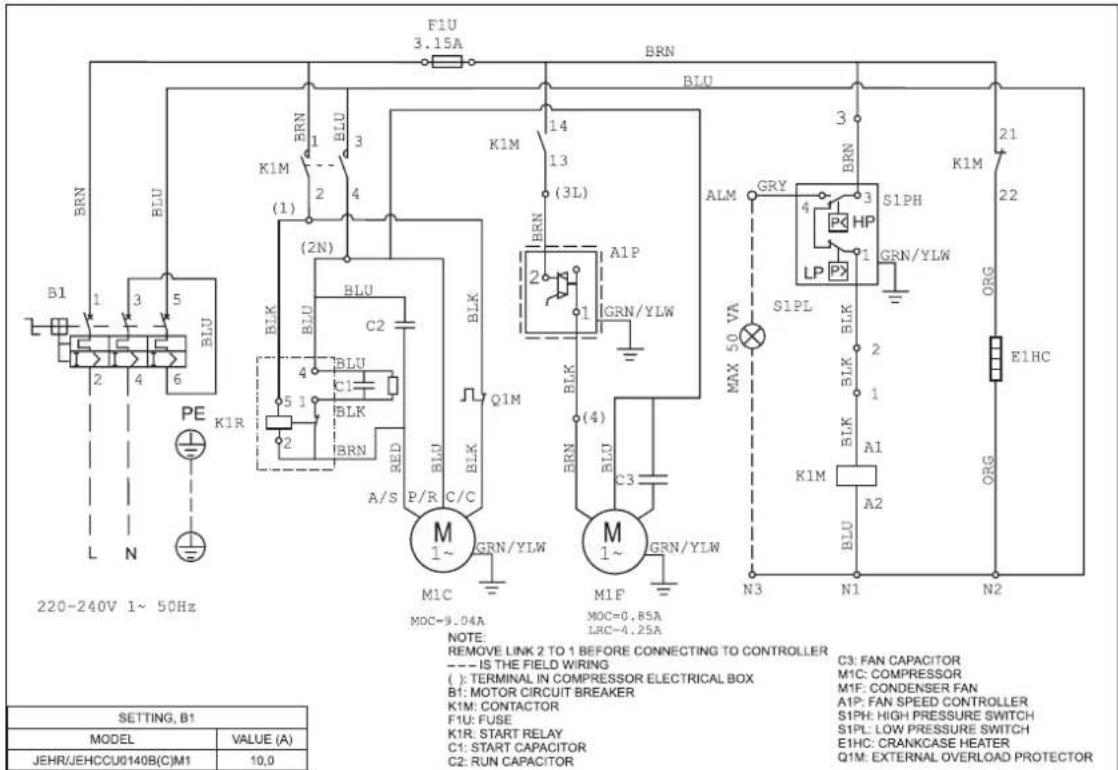

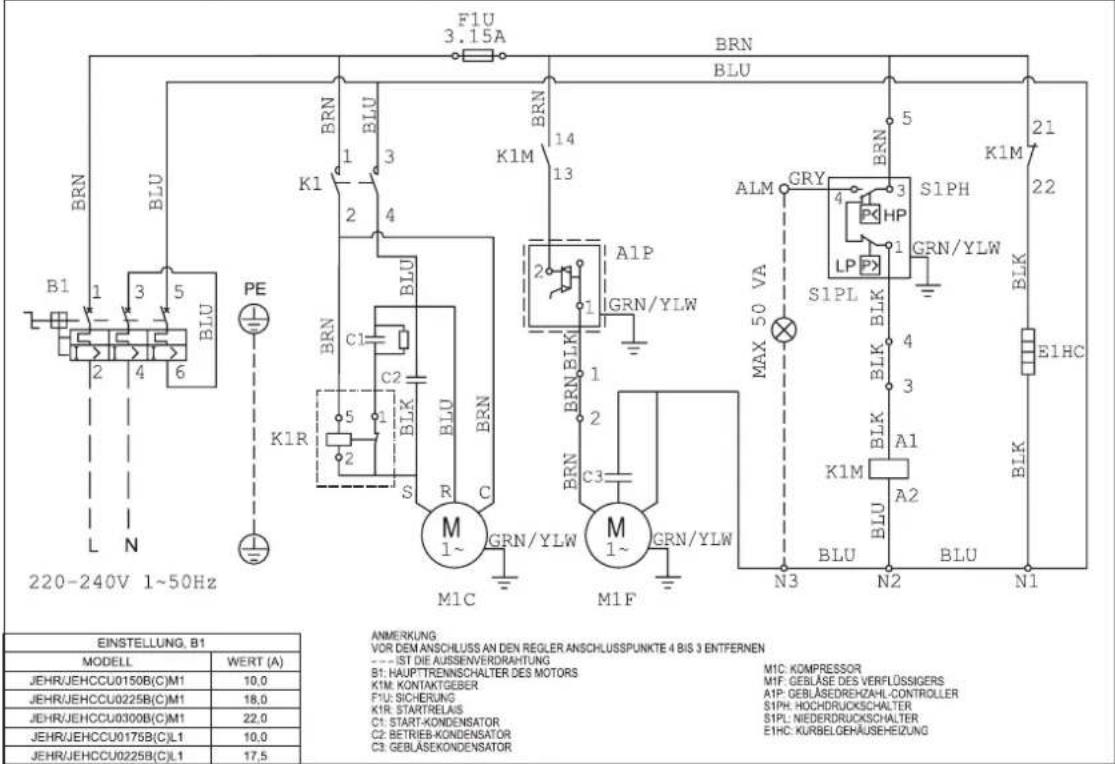

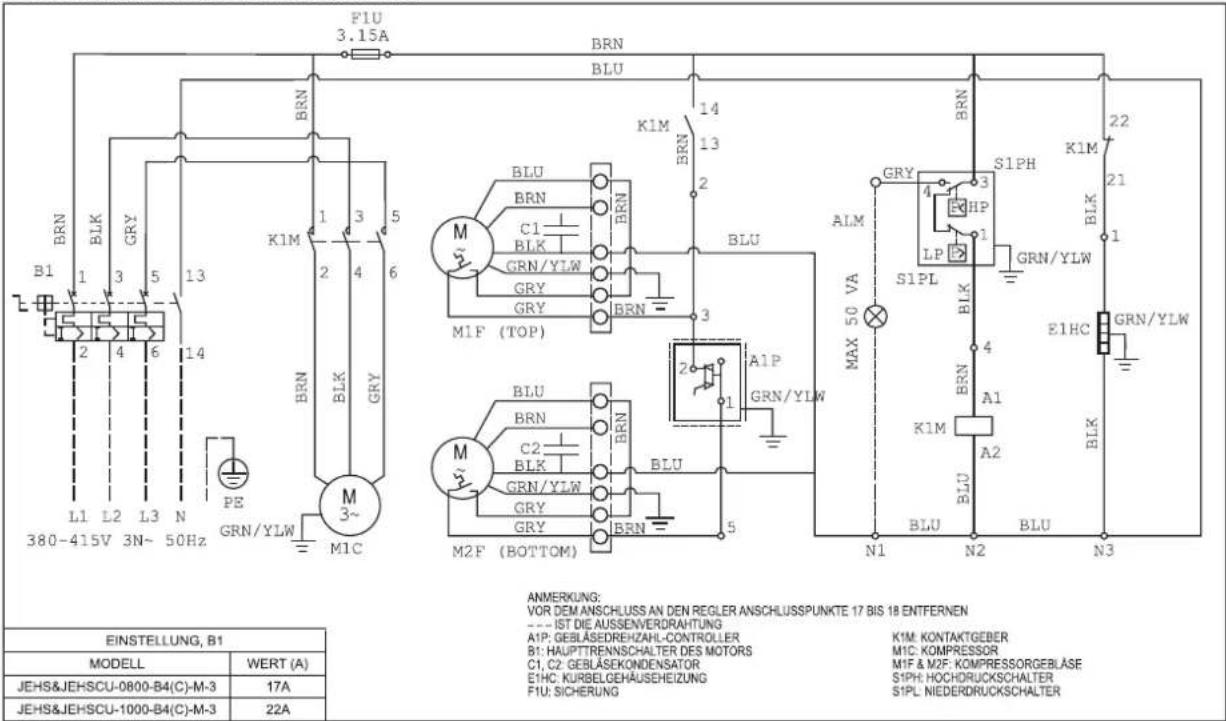

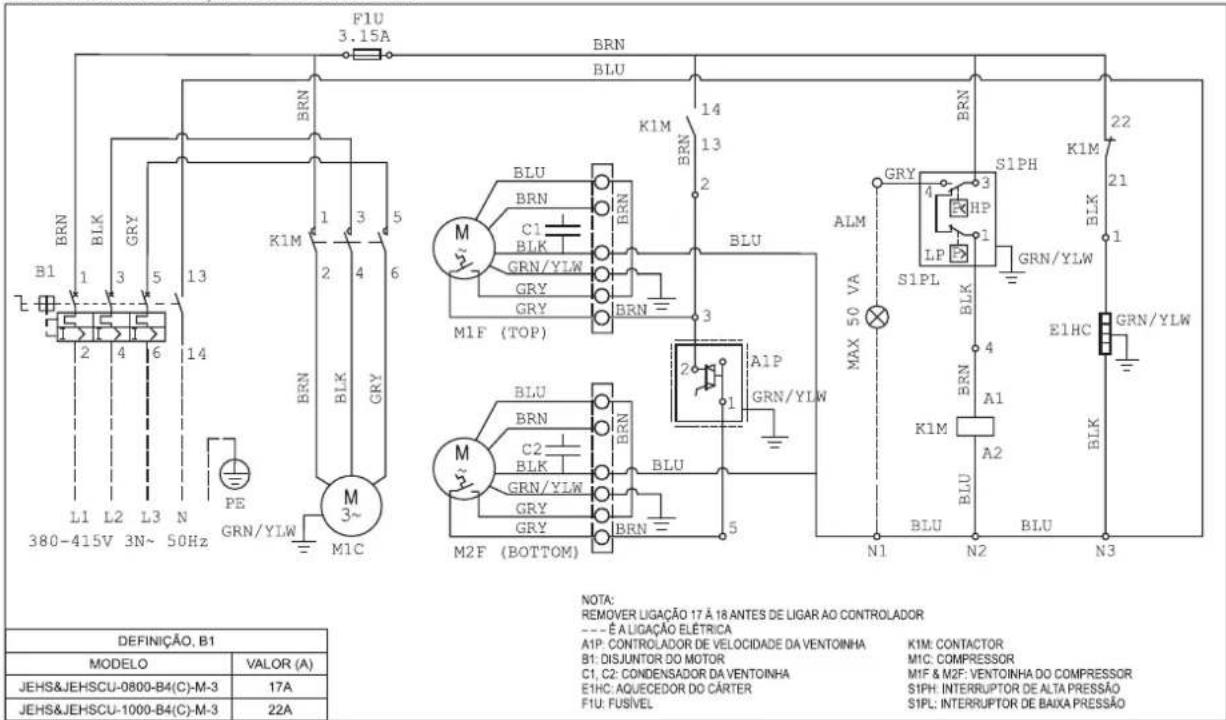

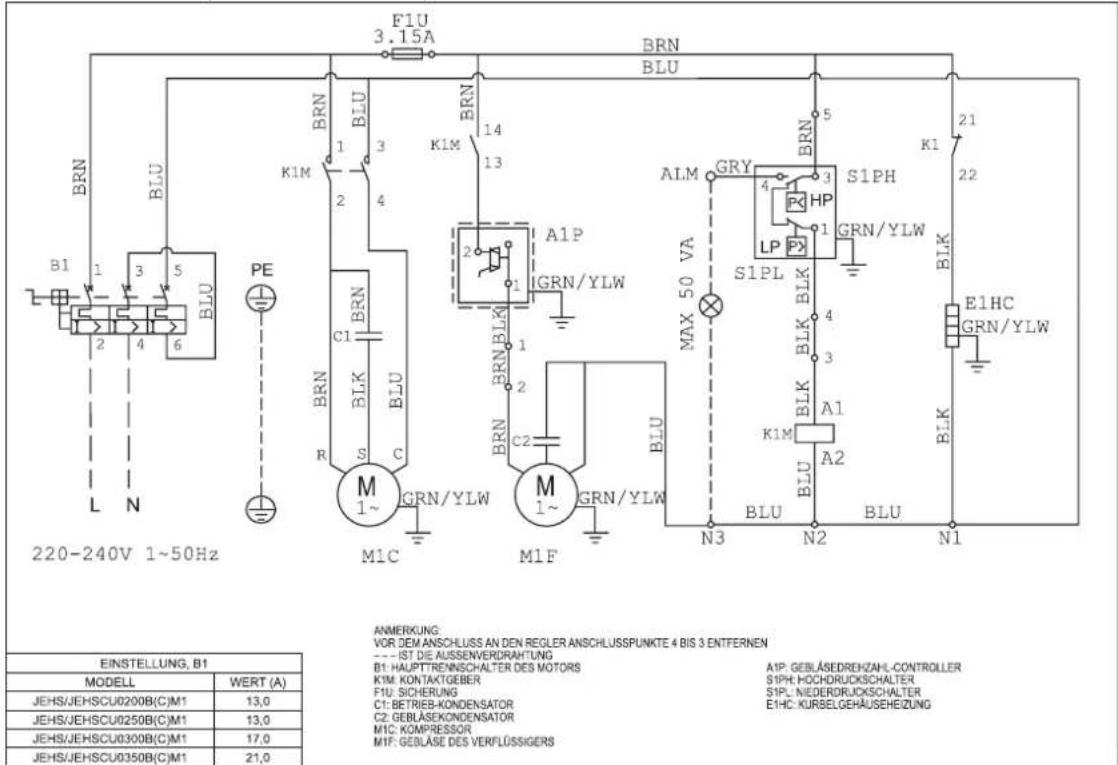

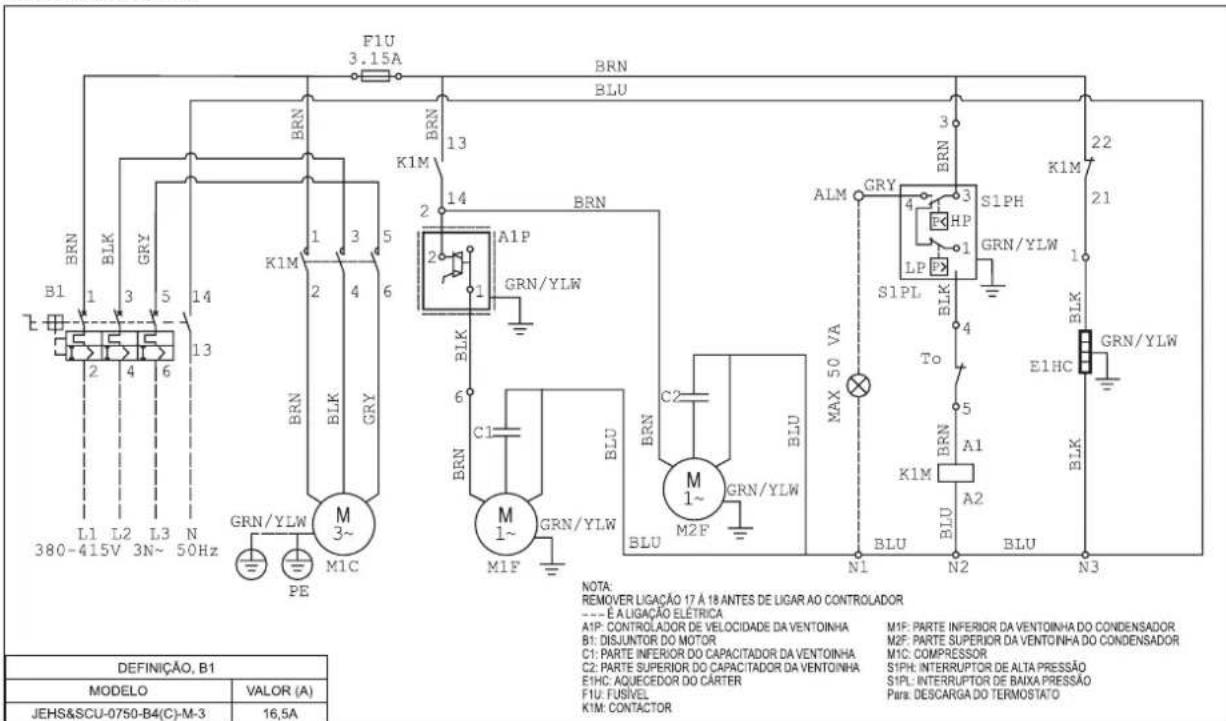

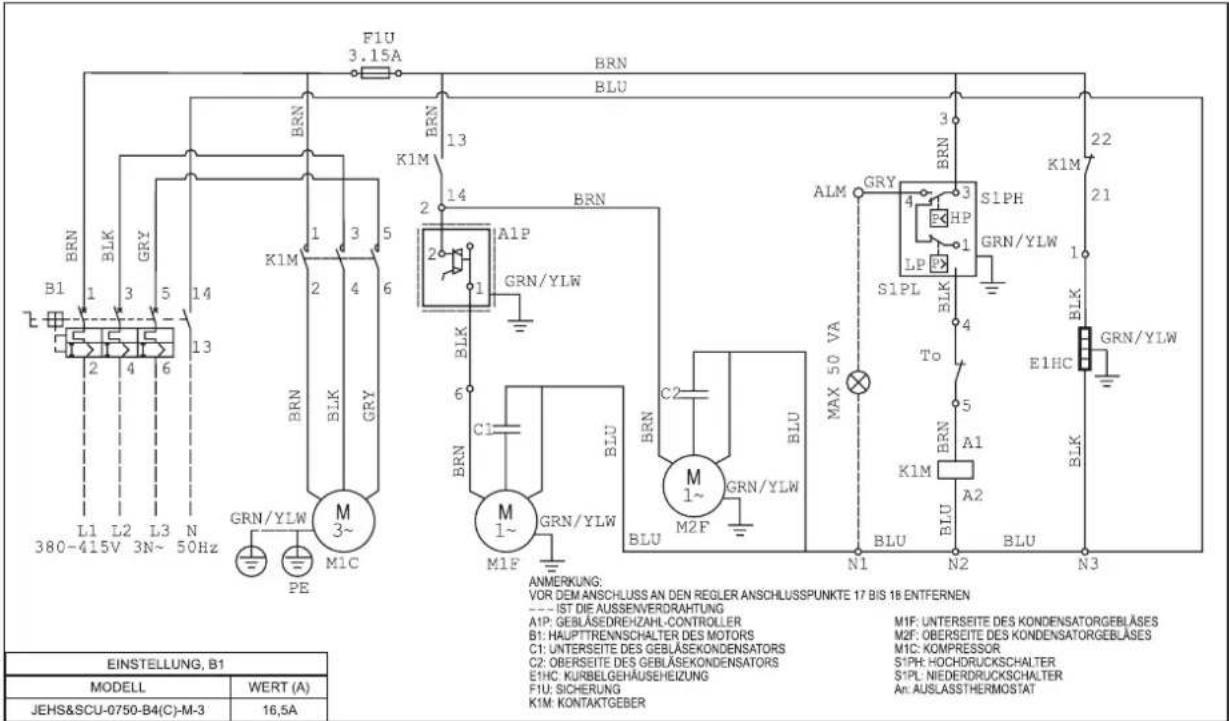

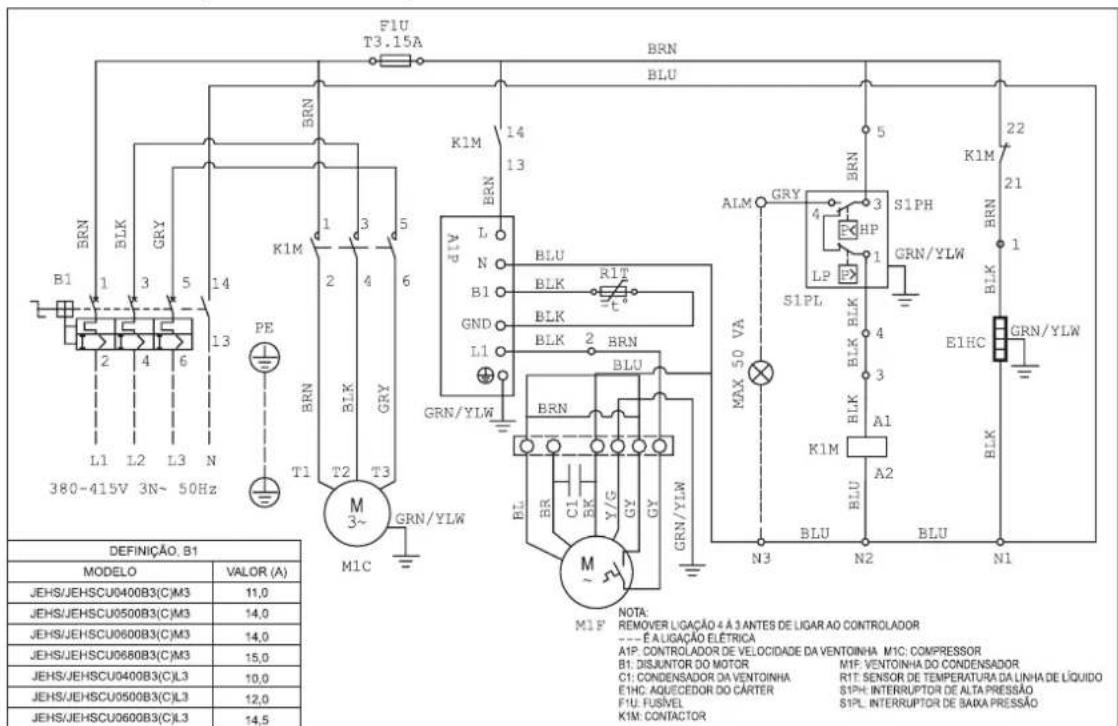

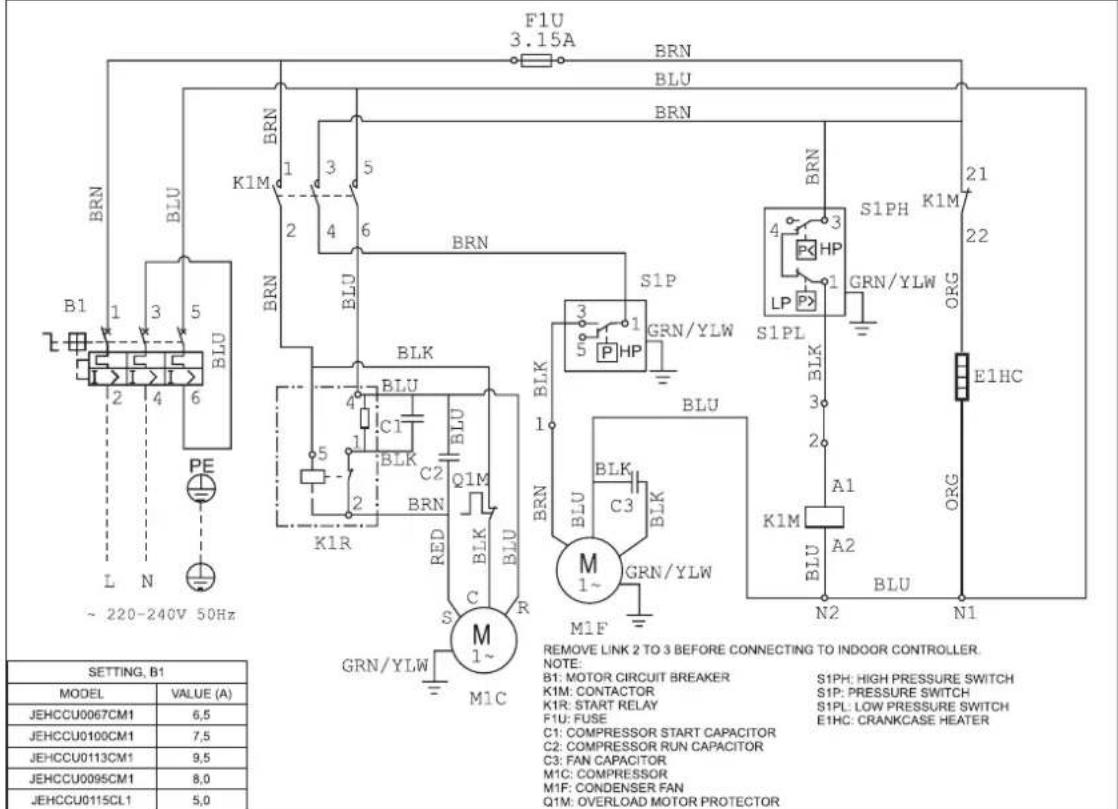

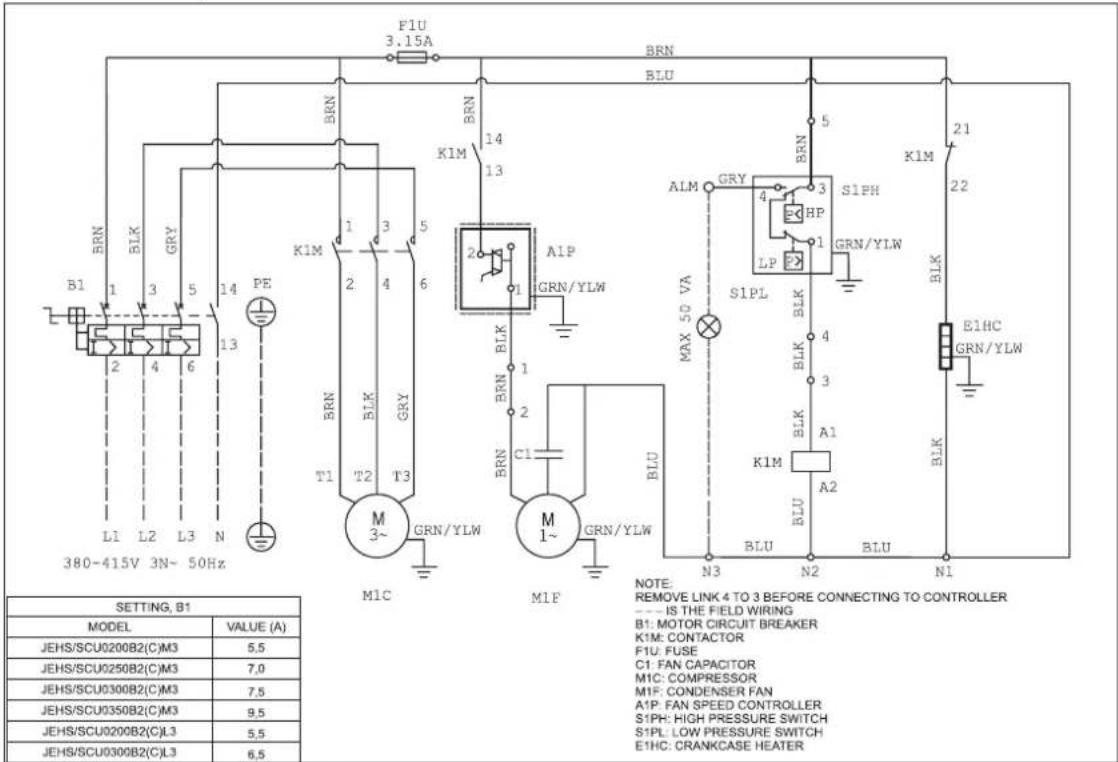

11. Electrical Data 16
12. Appendix 23

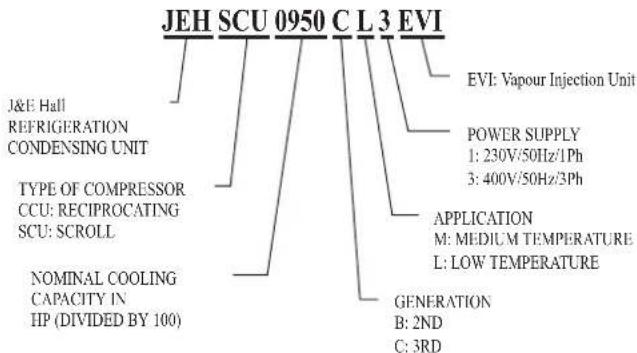

1. Nomenclature

JEH SCU 0950 CL3 EVI J&E Hall REFRIGERATION CONDENSING UNIT TYPE OF COMPRESSOR CCU: RECIPROCATING SCU: SCROLL NOMINAL COOLING CAPACITY IN HP (DIVIDED BY 100) EVI: Vapour Injection Unit POWER SUPPLY 1: 230V/50Hz/1Ph 3: 400V/50Hz/3Ph APPLICATION M: MEDIUM TEMPERATURE L: LOW TEMPERATURE GENERATION B: 2ND C: 3RD

2. Safety and Health

General Information

Important Note

Only a qualified refrigeration engineer who is familiar with refrigeration systems and components, including all controls should perform the installation and start-up of the system. To avoid potential injury, use care when working around coil surfaces or sharp edges of metal cabinets. All piping and electrical wiring should be installed in accordance with all applicable codes, ordinances and local by-laws.

This appliances is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Ensure the unit received is the correct model for the intended application.
• Ensure refrigerant, voltage, are suitable for the proposed application and environment.

• Installation and maintenance are to be performed only by qualified personnel who are familiar with local codes and regulations, and experienced with this type of equipment.
  • The condensing unit is delivered with a nitrogen holding charge.

• The condensing unit contains moving machinery and electrical power hazards. May cause severe injury or death. Disconnect and shut off power before installation or service of the equipment.

• Refrigerant release into the atmosphere is illegal. Proper evacuation, handling and leak testing procedures must be observed at all times.
• Condensing unit must be earthed Improper earthing may result in electric or fire.
• Be sure to switch off the unit before touching any electrical parts. Touching a live part may result in electric shocks or fire.
• The electrical covers and condenser fan guard must remain fitted at all times.
• Use of the condensing unit outside of design conditions and application for which units were intended may be unsafe and be detrimental to the unit, regardless short or long term operation.
• The condensing units are not designed to withstand loads or stresses from other equipment or personnel. Such extraneous loads or stress may cause failure / leak / injury. In some circumstances, a suction accumulator (not supplied) component may be required, it offers protection against refrigerant flood back during operation. It helps protect against off-cycle migration by adding internal free volume to the low side of the system.
• Test must be conducted to ensure the amount of off-cycle migration to the compressor does not exceed the compressor's charge limit.
• Wherever possible the system should be installed to utilize a pump down configuration. For unit Series 1 JEHCCU040CM1 and JEHCCU0050CM1, it is advisable to connect with thermostat cut off configuration using the reserved terminal in control box.
• After installation, the system should be allowed to run for 3 – 4 hours. The oil level should be checked after 3 – 4 hours run time and topped up as necessary. The oil level should not be lower than quarter of the compressor oil sight glass.

3. Installation & Commissioning

3.1 Unit site location

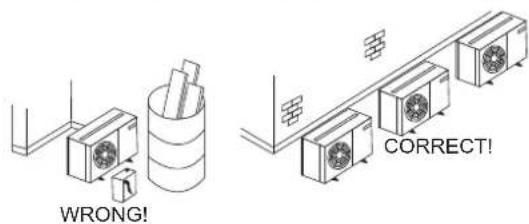

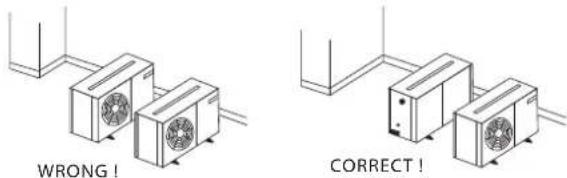

• In order to achieve maximum cooling capacity, the installation location for condensing unit should be carefully selected.
• Install the condensing unit in such a way so that hot air distributed by the condensing unit cannot be drawn in again (as in the case of short circuit of hot discharge air). Allow sufficient space for maintenance around the unit.

WRONG! CORRECT!

- Ensure that there is no obstruction of air flow into or out of the unit. Remove obstacles which block air intake or discharge.

WRONG! CORRECT!

- The location must be well ventilated, so the unit can draw in and distribute plenty of air thus lowering the condensing temperature.

- To optimize the unit running conditions, the condenser coil must be cleaned at regular intervals.

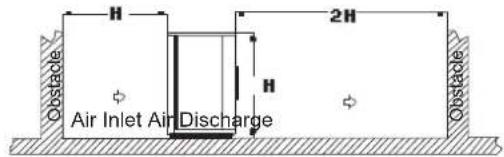

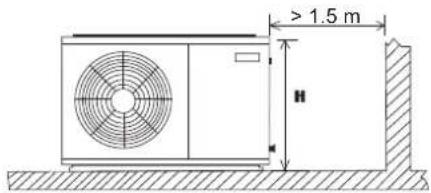

3.2 Installation Clearance

- The installation location should allow sufficient space for air flow and maintenance around the unit.

H 2H Air Inlet Air Discharge Obstacle H Obstacle

- To allow sufficient space for doing service or installation.

> 1.5 m H

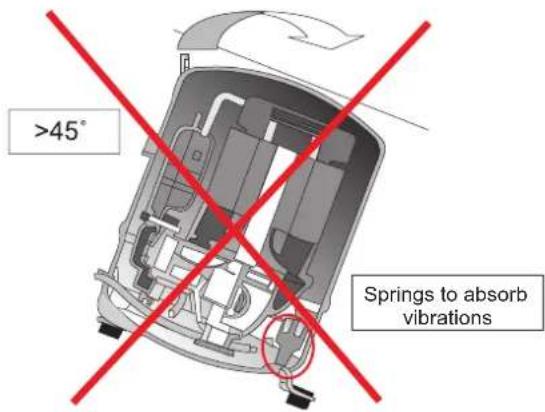

3.3 Compressor handling

To ensure compressor reliability, the condensing unit and the compressor must not be tilt greater than an angle of 45^ . Otherwise, the compressor can fall from its 3 compressor housing spring, which results in noisyvibrations during operation and possible to breakdown.

>45° Springs to absorb vibrations

3.4 Field Piping

To

ensure

Important Note Line sizing should only be determined by qualified personnel. All local codes of practice must be observed in the installation of refrigerant piping.

satisfactory operation and performance, the following points should be noted for field piping arrangements,

- Couples one indoor unit with one outdoor condensing unit only.

- Release all the pre-charged nitrogenbefore pipework connection.

- Connecting pipe size for suction and liquid line must same as attaches to the condensing unit. Correct line sizing will minimize the pressure drop and maintain sufficient gas velocity for proper oil return.

- Pipework routes must be as simple and as short as possible. Avoid low points on pipework where oil can accumulate.

- Use only clean, dehydrated refrigeration grade copper tube with large radius elbows. The piping shall be kept with enough bending radius.

• Braze without over filling to ensure there is no excess solder into the tube.
• To prevent oxidation, blow nitrogen through pipework when brazing.
  • Install insulation on all suction lines after pressure test.
• Adequately support all pipe work at a maximum of 2 meter intervals.
• For the condition where the outdoor condensing unit is above the indoor unit, the height difference between units shall be less than 25 m and install oil trap on suction pipe every 4 m height. The suction pipe must always be fitted with U-trap at the bottom.
• For the condition where the outdoor condensing unit is below the indoor unit, the height difference between units shall be less than 4 m. Pipe trap shall be installed upward on outlet of indoor unit (suction pipe).
  • The recommended piping length is 25 m or less.
• Additional oil might be required in case field piping is long or with many oil traps. Check the oil level of the compressor to decide to add the oil after minimum 2 hours operation.
• It is recommended as well to install the MOP (Maximum Operation Pressure), expansion valve for medium evaporating temperature units, if the working suction pressure during start procedure especially after defrost cycle, is out of the limit, as refer to the table provided.

Recommend compressor working pressure range:

Medium Temperature

Compressor Model	AE/AJ ZBMTZ
Refrigerant	R404A	R134a	R404A	R134a	R407C	R404A	R134a
Working Pressure Range High Side, (barg)	13.2-27.7	6.7-15.8	13.2-27.7	7.9-15.8	12.5-29.4	7.14-27.6	6.6-15.8
Working Pressure Range Low Side, (barg)	1.5-8.3	0.1-3.9	1.0-7.2	0.6-4.7	1.4-6.6	1.98-7.14	0.6-3.8

Low Temperature

Compressor Model	AJ	NTZ	ZF
Refrigerant	R404A	R404A	R404A
Working Pressure Range High Side, (barg)	13.2-27.7	13.2-27.7	13.2-27.7
Working Pressure Range Low Side, (barg)	0.1-3.3	0.1-3.3	0.1-3.3

3.5 Pressure testing

• Make sure unit are isolated when pressure test on field piping, always use an inert, dry gas such as Nitrogen. Check for leak if there is reduction in holding pressure.
• The pressure differential between the high and low side of system shall not exceed below value.

Compressor	Pressure differential
AE/AJ	19 barg(275 psig)
MTZ/ZB/ZF	30 barg(435 psig)

- Test pressures used in factory as shown follows.

Test pressure
High side	Low side
28 barg(405 psig)	19 barg(275 psig)

3.6 Leak detection

• Make sure that all isolation valves are open.
- Perform a leak test of the system using nitrogen mixed with the approved refrigerant for the unit.
- Do not use CFC for leak testing the condensing unit which intended for used with HFC refrigerants.
- The use of leak testing fluids is not recommended as this may interact with the lubricants own additives.

3.7 Vacuum - moisture removal

Important Note

Moisture prevents proper functioning of the compressor and the refrigeration system.

Air and moisture reduce service life and increase condensing pressure causing abnormally high discharge temperatures likely to destroy the oil's lubricating properties. The risk of acid formation is also increased by air and moisture and copper plating can be generated in this way. All these phenomena can cause mechanical and electrical failure.

Important Note

Ensure that a good quality vacuum pump is used to pull a minimum vacuum of -0.1 barg (250 microns) or less. Ensure that no pressure increase during 1 hour or more after stop vacuuming. If pressure increase, there is moisture or leakage along the pipeline.

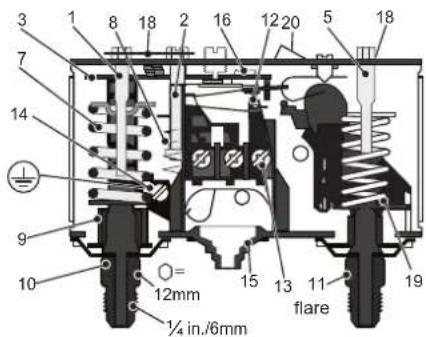

3.8 Safety pressure switch settings

The pressure switch fitted to condensing units with auto reset for low pressure and manual reset for high pressure are NOT factory preset.

3 1 8 18 2 16 12 20 5 18 7 14 9 10 = 12mm 15 13 11 flare 19 ¼ in./6mm

1. Low pressure (LP) setting spindle
2. Differential setting spindle, LP
3. Main arm
4. High pressure (HP) setting spindle
5. Main spring
6. Differential spring
7. Bellows
8. LP connection

9. HP connection

10. Switch

11. Terminals
12. Earth terminal
13. Cable entry
14. Tumbler
15. Locking plate
16. Arm
17. Manual reset button

High pressure safety (Manual reset)

The high pressure safety switch is required to protect the compressor from working out of its envelope. The high pressure switch shall set equal or lower than below values depending on the type of refrigerant, application and the ambient condition.

Model	AE/CAJ/TAJ MTZ/ZB/ZF
Refrigerant	R404A	R134a	R404A	R134a
Cut Out (barg)	27.7	18	27.7	18
Cut Out (psig)	402	261	402	261

Low pressure safety (Auto reset)

The low pressure safety switch is used to avoid compressor operate at too low suction pressure or a vacuum condition. The low pressure safety cut out should never be set lower than value shown in following table. If pump down is used, the electrical circuitry should be arranged so that compressor restart is triggered by demand from thermostat rather than a reset low pressure switch.

* M: Medium temperature; L: Low temperature

Model	AE/CAJ/TAJ MTZ		ZB/ZF
Refrigerant			R134a	R404AR	404A R	34a R40	7C R404A R134a
Application	M*	L*	M*	M*	M*	M*	M*	L*	M*
Cut out (barg)	1.5	0.1	0.5	1.0	0.6	1.4	2.0	0.1	0.6
Cut out (psig)	21.8	1.5	7.3	14.5	8.7	20.3	29.0	1.5	8.7

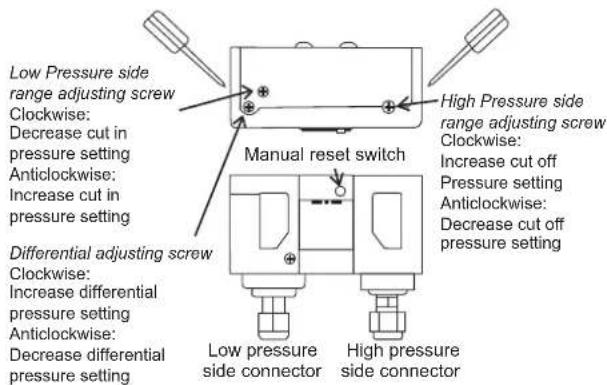

Low Pressure side range adjusting screw Clockwise: Decrease cut in pressure setting Anticlockwise: Increase cut in pressure setting Differential adjusting screw Clockwise: Increase differential pressure setting Anticlockwise: Decrease differential pressure setting Manual reset switch High Pressure side range adjusting screw Clockwise: Increase cut off Pressure setting Anticlockwise: Decrease cut off pressure setting Low pressure side connector High pressure side connector

The low pressure cut off pressure is the setting of cut in minus the differential.

Important Note

There must be no more than 10 compressor starts per hour. A higher number reduces the service life of the compressor. If necessary, use an anti-short-cycle timer in the control circuit. Minimum a 2 minutes runtime after each start of compressor and a 3 minute idle time after each stop & start are recommended. Only during the pump down cycle may the compressor run for much shorter intervals.

3.9 Fan speed controller setting

The fan speed controller control the condensing head pressure via speed regulating according to the ambient temperature. The setting for fan cut off should be set higher than the recommended value in table below, to maintain enough liquid sub cooling ahead of TXV for low ambient application.

The fan speed controller is factory set to 19 bar for operation with R4*** series refrigerant to ensure compressor always operates within envelope at all declared working condition.

Higher energy efficiency as shown in eco design sheet can be obtained with the setting shown in below table:

For model in Series 1:

Refrigerant	R404A	R134a
Setting (bar) Cut in	16*	10
Setting (bar) Differential	7*	7

*Factory default setting

For model in Series 2, 3 and 4:

Application	Medium Temp Low Temp
Refrigerant	R404A/R407F/R407A/R448A/R449A	R134a	R404A/R407F/R407A/R448A/R449A
Setting (barg)	19*(Series 2)	13(Series 2 &3)	13(except EVI unit)
	10(Series 3 & 4)	10(Series 4)	17(JEHSCU0950CL3 EVI)

*Factory default setting

Cut off: Fan motor stops when the pressure decreases below the value Pmin.

Note:

F.V.S. = Full Voltage Set Point (pressure setting for maximum speed)

E.P.B. = Effective Proportional Band (6 bar)

Pmin = (F.V.S. - 6)

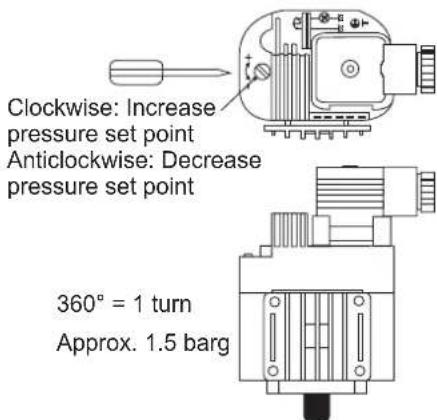

Clockwise: Increase pressure set point Anticlockwise: Decrease pressure set point 360° = 1 turn Approx. 1.5 barg

3.10 Commissioning of the Condensing Unit

Please make sure that all manual service valves are fully opened before starting the system for the first time. This includes external and internal shut off valves as well as liquid receiver valve in the unit. The ball valve open position is shown as below:

Open position Max 150°C

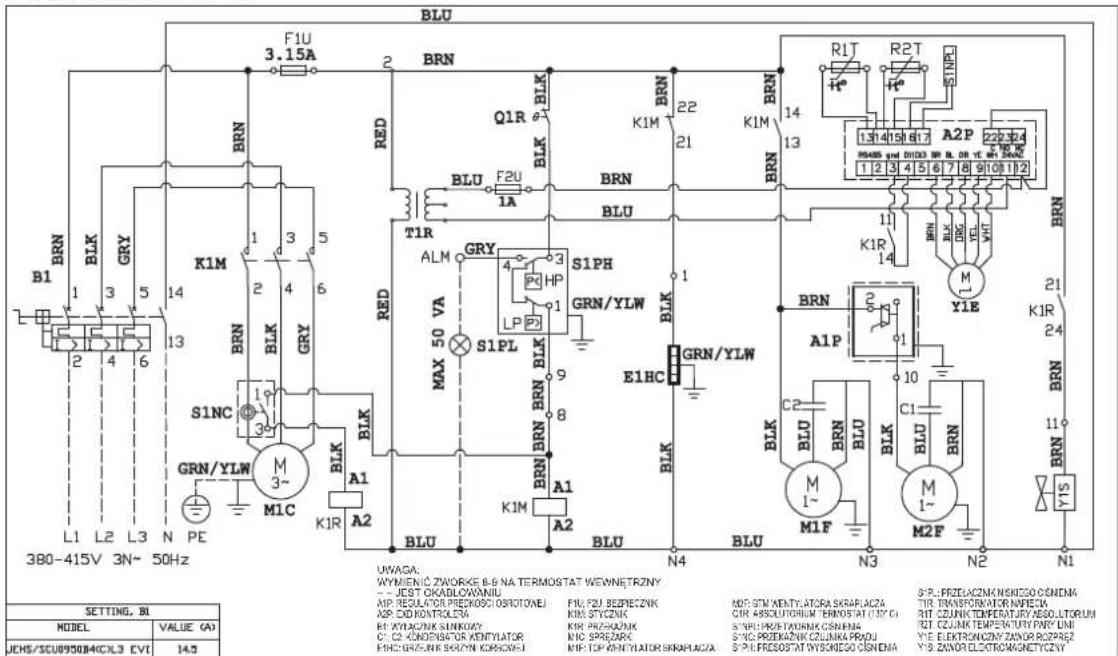

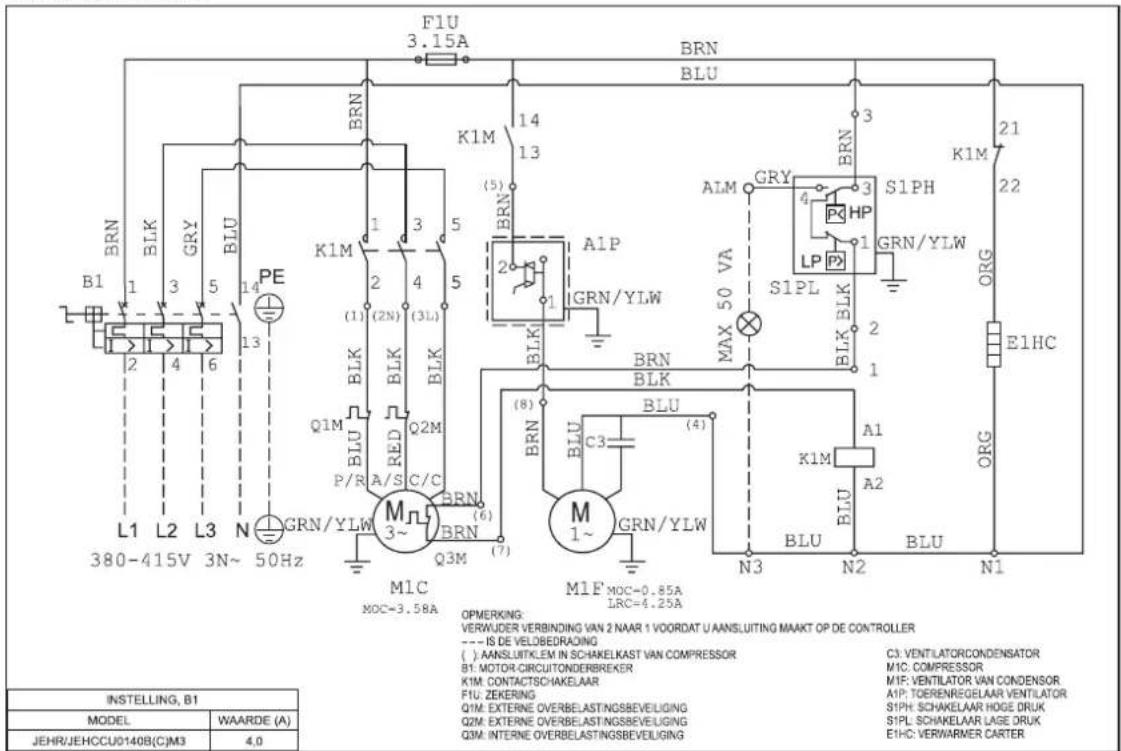

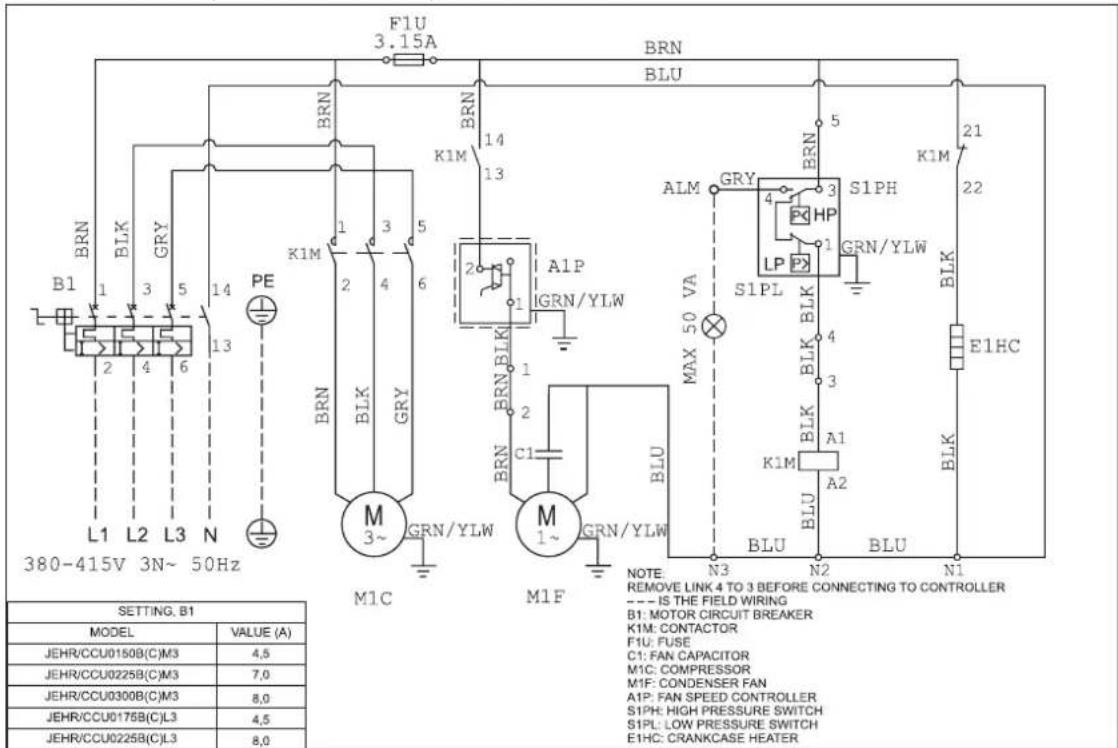

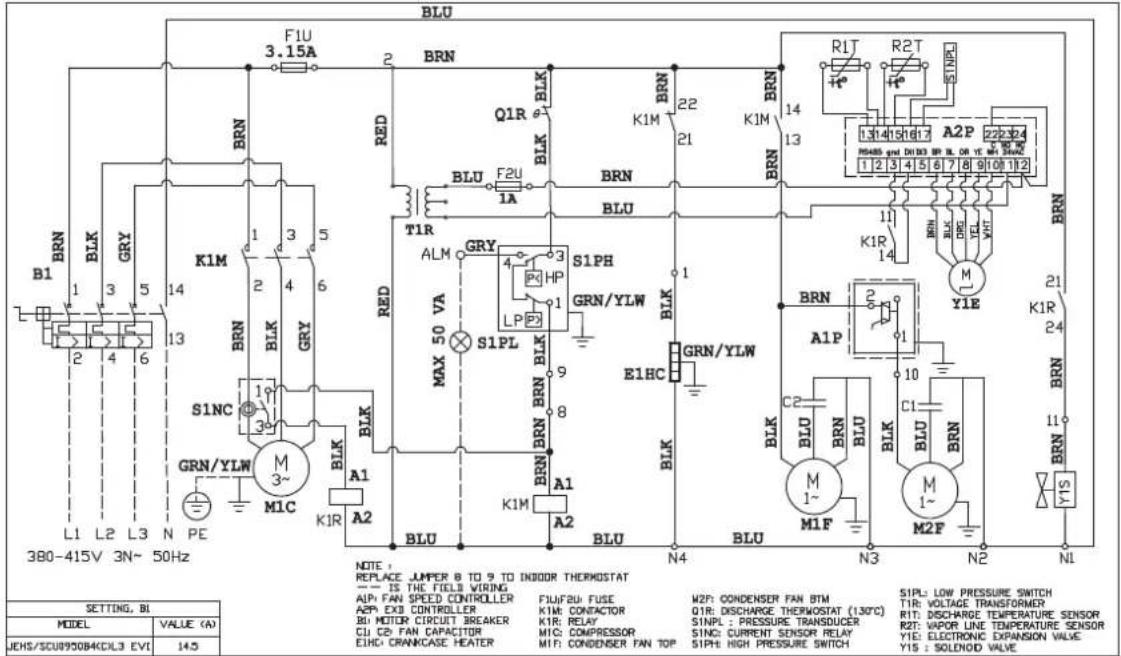

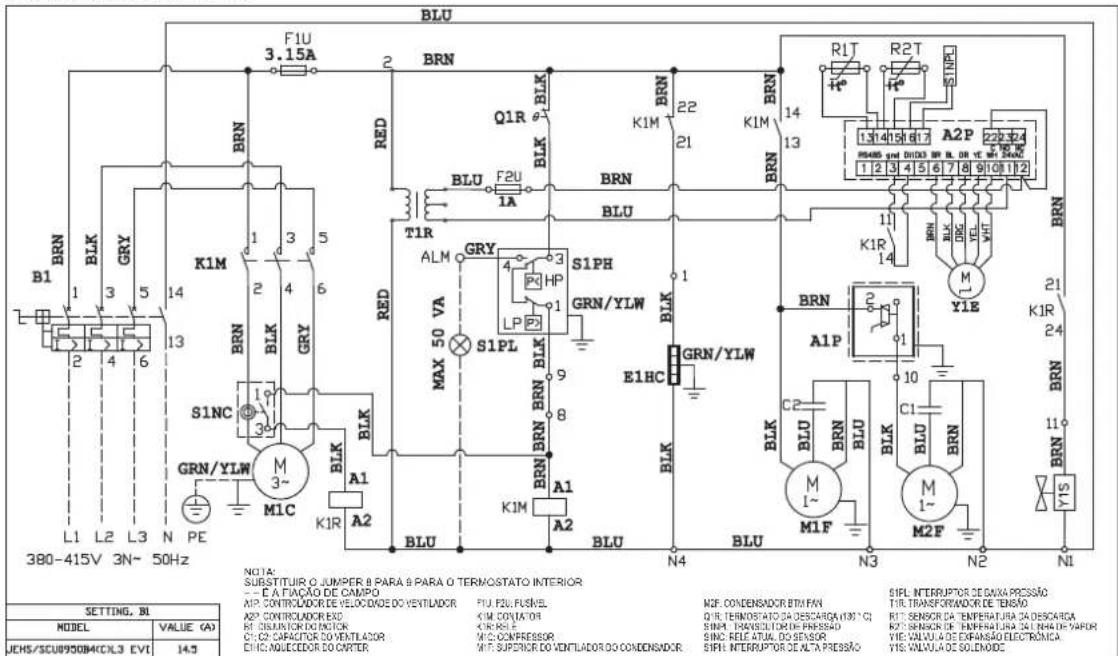

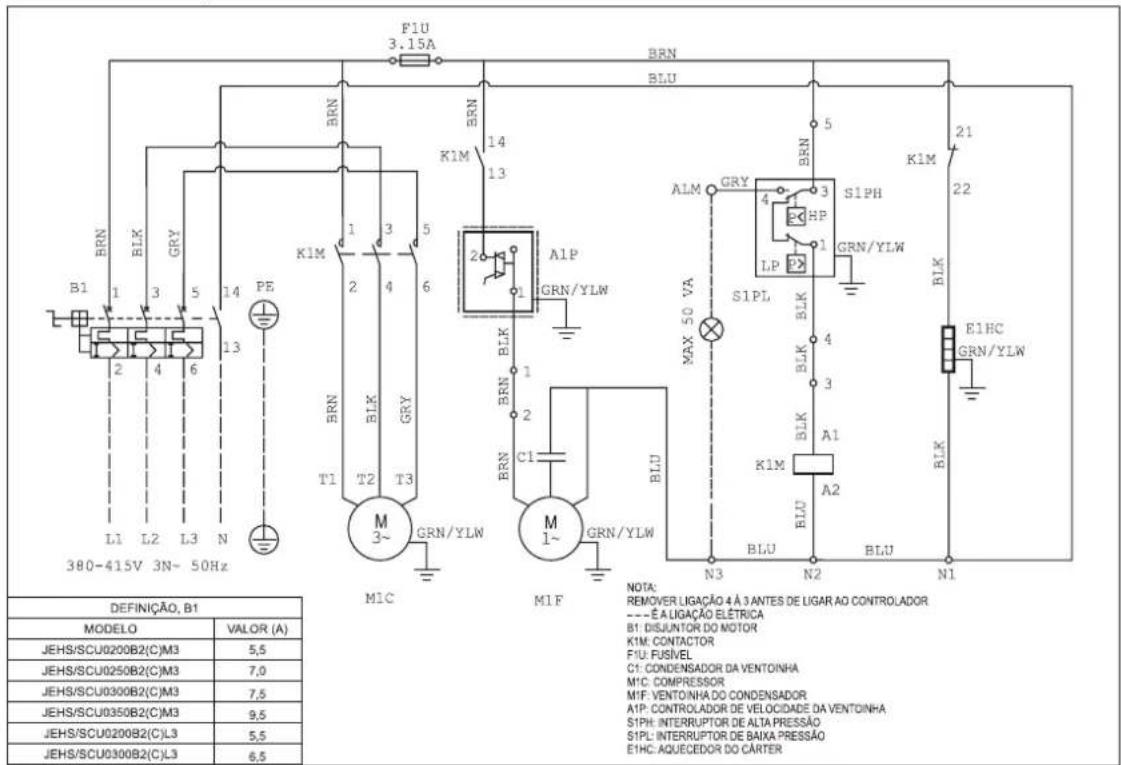

3.11 Compressor electrical wiring

Verification of proper rotation direction is made by observing that suction pressure drops and discharge pressure rises when the compressor is energized. Reverse rotation of a scroll compressor also results in substantially reduced current draw. Suction temperature will be high, discharge temperature will be low and the compressor may generate abnormal noise.

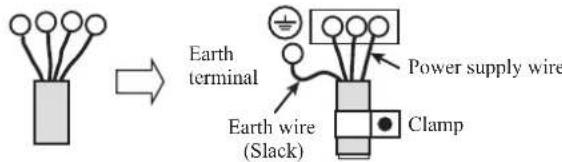

3.12 Earthing of Condensing Unit

Installation of earth wire must be made to grounding screw (labelled with earth label) before connecting the live wires. The earth wire shall be slack as shown in below diagram.

Earth terminal Power supply wire Earth wire (Slack) Clamp

3.13 Tightening torque - rotolock connection

Unit Model		Series	Compressor Model	Rotolock (Suction) Thread: Tightening Torque (N.m)	Rotolock (Discharge) Thread: Tightening Torque (N.m)
Medium TemperatureLow Temperature	JEHCCU0050CM1	1	AE4460Z-FZ1C	NOT APPLICABLE(BRAZED - CONNECTION)
	JEHCCU0067CM1		CAJ9480Z
	JEHCCU0100CM1		CAJ9510Z
	JEHCCU0113CM1		CAJ9513Z
	JEHCCU0040CM1		AE4440Y-FZ1A
	JEHCCU0051CM1		CAJ4461Y
	JEHCCU0063CM1		CAJ4476Y
	JEHCCU0077CM1		CAJ4492Y
	JEHCCU0095CM1		CAJ4511Y
	JEHCCU0140CM1	2	CAJ4517Z
	JEHCCU0140CM3		TAJ4517Z
	JEHCCU0150CM1		MTZ18-5VM	NOT APPLICABLE(BRAZED - CONNECTION)	1"-14 UNS(70-80N.m)
	JEHCCU0150CM3		MTZ18-4VM
	JEHCCU0225CM1		MTZ28-5VM
	JEHCCU0225CM3		MTZ28-4VM
	JEHCCU0300CM1		MTZ36-5VM
	JEHCCU0300CM3		MTZ36-4VM
	JEHSCU0200CM1		ZB15KQE-PFJ	NOT APPLICABLE(BRAZED - CONNECTION)
	JEHSCU0200CM3		ZB15KQE-TFD
	JEHSCU0250CM1		ZB19KQE-PFJ
	JEHSCU0250CM3		ZB19KQE-TFD
	JEHSCU0300CM1		ZB21KQE-PFJ
	JEHSCU0300CM3		ZB21KQE-TFD
	JEHSCU0350CM3		ZB26KQE-TFD
	JEHSCU0400CM3	3	ZB29KQE-TFD
	JEHSCU0500CM3		ZB38KQE-TFD
	JEHSCU0600CM3		ZB45KQE-TFD
	JEHSCU0680CM3		ZB48KQE-TFD
	JEHSCU0800CM3	4	ZB58KCE-TFD	1-3/4"-12UNF(135-160 N.m)	1-1/4"-12UNF(110-135 N.m)
	JEHSCU1000CM3		ZB76KCE-TFD
	JEHCCU0115CL1	1	CAJ2446Z	NOT APPLICABLE(BRAZED - CONNECTION)
	JEHSCU0200CL3	2	ZF06K4E-TFD	1-1/4"-12UNF(110-135 N.m)	1"-14 UNS(70-80N.m)
	JEHSCU0300CL3		ZF09K4E-TFD
	JEHSCU0400CL3	3	ZF13K4E-TFD
	JEHSCU0500CL3		ZF15K4E-TFD
	JEHSCU0600CL3		ZF18K4E-TFD
	JEHSCU0750CL3	4	ZF25K5E-TFD		1-1/4"-12UNF(110-135 N.m)
	JEHSCU0950CL3 EVI		ZF18KVE-TFD-EVI		1"-14 UNS(70-80N.m)

3.14 Series 4 EVI Unit

3.14.1 Piping Size Selection

Sizing of liquid and suction lines for EVI model will be different from standard scroll models. Piping sizes of this model need to follow the recommended correction coefficient of cooling capacity. This is vital as if the pipework selected is oversized, especially for the suction pipe, the gas velocity will be decreased at low mass flow rate / low evaporating temperature, causing oil return problems. Undersized suction lines will also cause decreased capacity due to increased pressure drop.

The correction factor of refrigerant R404A is shown as below table:

Ta\Te	(Watts)	-40	-35	-30	-25	-20
27	CF	0.64	0.66	0.68	0.70	0.72
32	CF	0.61	0.63	0.65	0.67	0.69
35	CF	0.59	0.61	0.63	0.65	0.67
38	CF	0.57	0.59	0.61	0.63	0.65
43	CF	0.54	0.55	0.57	0.58	0.60

For instance,

At condition of Te -35°C, Ta +32°C

Refrigerant R404A

Published cooling capacity = 5.9kW.

Cooling capacity = Correction factor x Published cooling capacity

$$ = 0. 6 3 \times 5. 9 \mathrm{kW} $$

$$ = 3. 7 0 7 \mathrm{kW} $$

Therefore, the pipe sizes should be selected against the corrected capacity of 3.71kW.

The correction factor of refrigerant R407A is shown as below table:

Ta\Te	(Watts)	-40	-35	-30	-25	-20
27	CF	0.73	0.73	0.73	0.73	0.73
32	CF	0.68	0.69	0.69	0.70	0.70
35	CF	0.65	0.66	0.67	0.67	0.68
38	CF	0.62	0.63	0.64	0.65	0.66
43	CF	0.57	0.58	0.60	0.61	0.63

The correction factor of refrigerant R407F is shown as below table:

Ta\Te	(Watts)	-40	-35	-30	-25	-20
27	CF	0.72	0.73	0.73	0.73	0.72
32	CF	0.68	0.68	0.69	0.69	0.69
35	CF	0.65	0.66	0.66	0.67	0.67
38	CF	0.62	0.63	0.64	0.65	0.65
43	CF	0.57	0.58	0.60	0.61	0.62

The correction factor of refrigerant R448A/R449A is shown as below table:

Ta\Te	(Watts)	-40	-35	-30	-25	-20
27	CF	0.71	0.72	0.71	0.72	0.72
32	CF	0.67	0.68	0.68	0.68	0.69
35	CF	0.65	0.65	0.65	0.66	0.67
38	CF	0.62	0.63	0.63	0.64	0.65
43	CF	0.58	0.59	0.59	0.60	0.61

3.14.2 Insulation Selection

The liquid pipe connecting CCU service valve to the evaporator must be well insulated with recommended wall thickness of minimum 34 .

3.14.2 Expansion Valve Selection

The lower liquid temperature of the EVI unit can increase evaporator expansion valve capacities. Selection of the expansion valve needs to be done based on the expected amount of sub-cooling shown in below tables:

(A.) R404A

Amount of Sub-cooling (K)
Ta\Te	-40	-35	-30	-25	-20
27	39.9	36.9	33.9	30.9	27.9
32	40.9	37.9	34.9	31.9	28.9
35	41.5	38.5	35.5	32.5	29.5
38	42.1	39.1	36.1	33.1	30.1
43	43.1	40.1	37.1	34.1	31.1

(B.) R407A

Amount of Sub-cooling (K)
Ta\Te	-40	-35	-30	-25	-20
27	33.1	32.8	32.4	32.1	31.8
32	38.0	37.0	35.9	34.9	33.8
35	41.0	39.5	38.0	36.5	35.0
38	43.9	42.0	40.1	38.1	36.2
43	48.9	46.2	43.5	40.9	38.2

(C.) R407F

Amount of Sub-cooling (K)
Ta\Te	-40	-35	-30	-25	-20
27	33.8	33.5	33.1	32.8	32.5
32	38.8	37.8	36.7	35.7	34.6
35	41.9	40.4	38.8	37.3	35.8
38	44.9	42.9	41.0	38.9	37.0
43	50.0	47.2	44.5	41.8	39.0

(D.) R448A/R449A

Amount of Sub-cooling (K)
Ta\Te	-40	-35	-30	-25	-20
27	33.1	32.8	32.4	32.1	31.8
32	37.9	36.9	35.8	34.8	33.8
35	40.9	39.4	37.9	36.4	34.9
38	43.8	41.9	40.0	38.0	36.1
43	48.8	46.1	43.4	40.8	38.1

3.14.3 Controller EXD-HP1

The controller EXD-HP1 used in the Series 4 EVI unit operates as an economizer control. The setting of controller is preset by the factory and is password protected. Users are not allowed to change any settings in the controller.

Safety Instructions:

1. Read installation instruction carefully. Failure to comply can result in device failure, system damage or personal injury.
2. Only person having appropriate knowledge and skill are allowed to manipulate the controller.
3. Disconnect all voltages from system before installation.

3.14.2 Electrical Installation

• Do not operate system before all cable connections are completed.

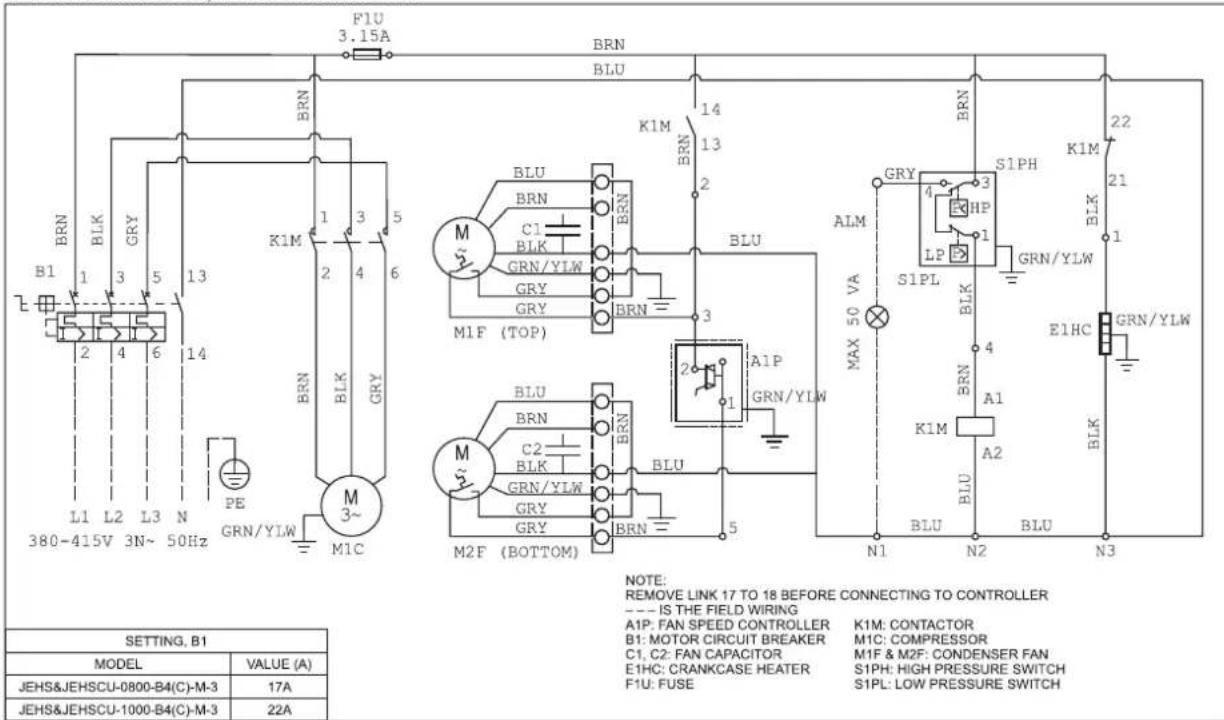

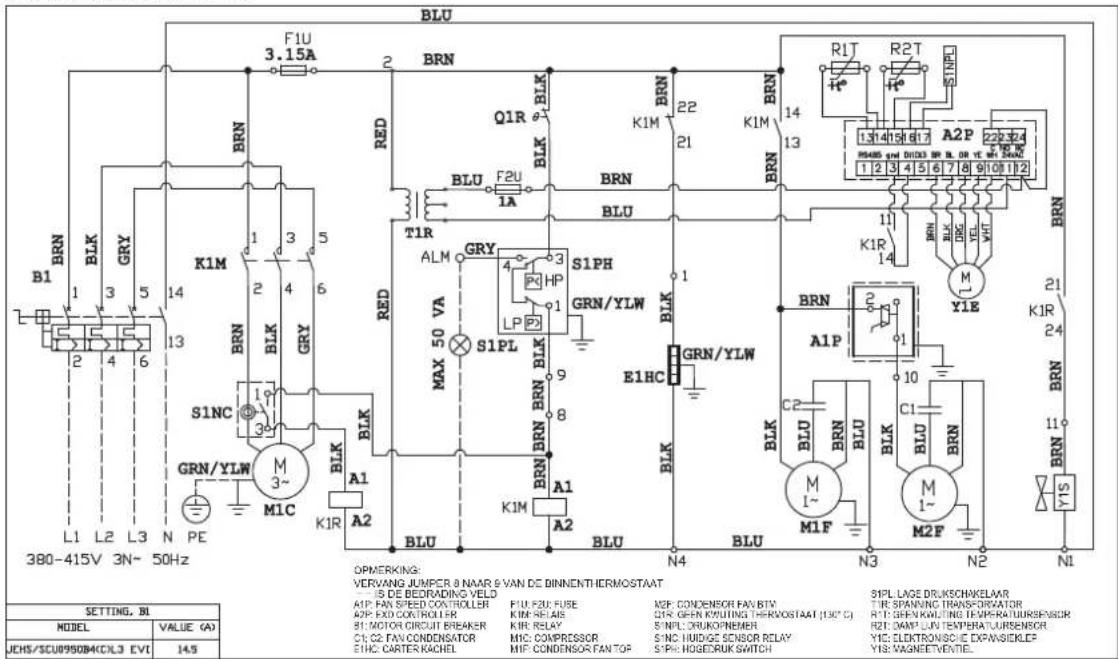

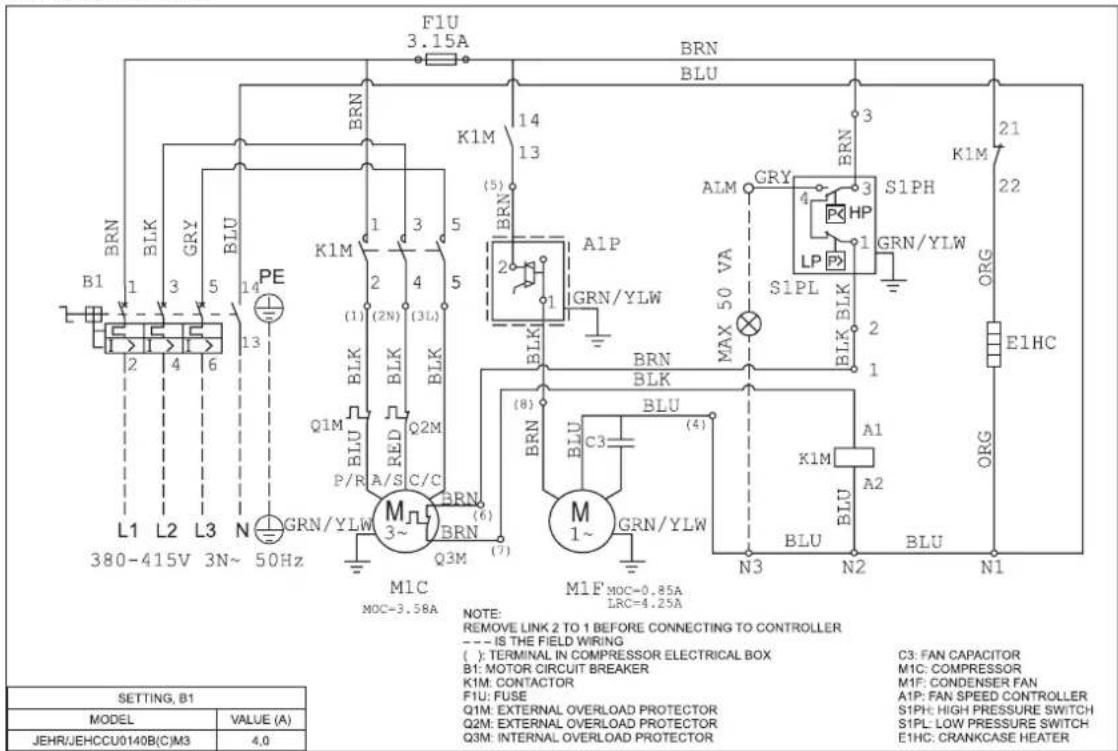

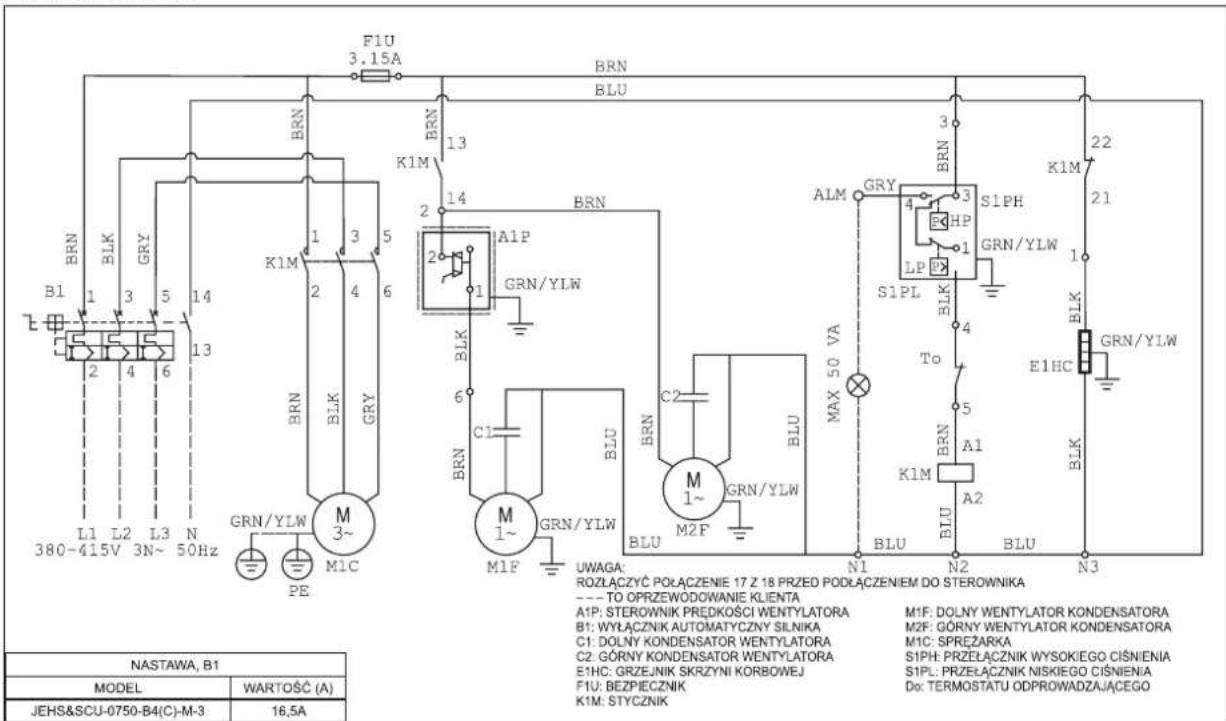

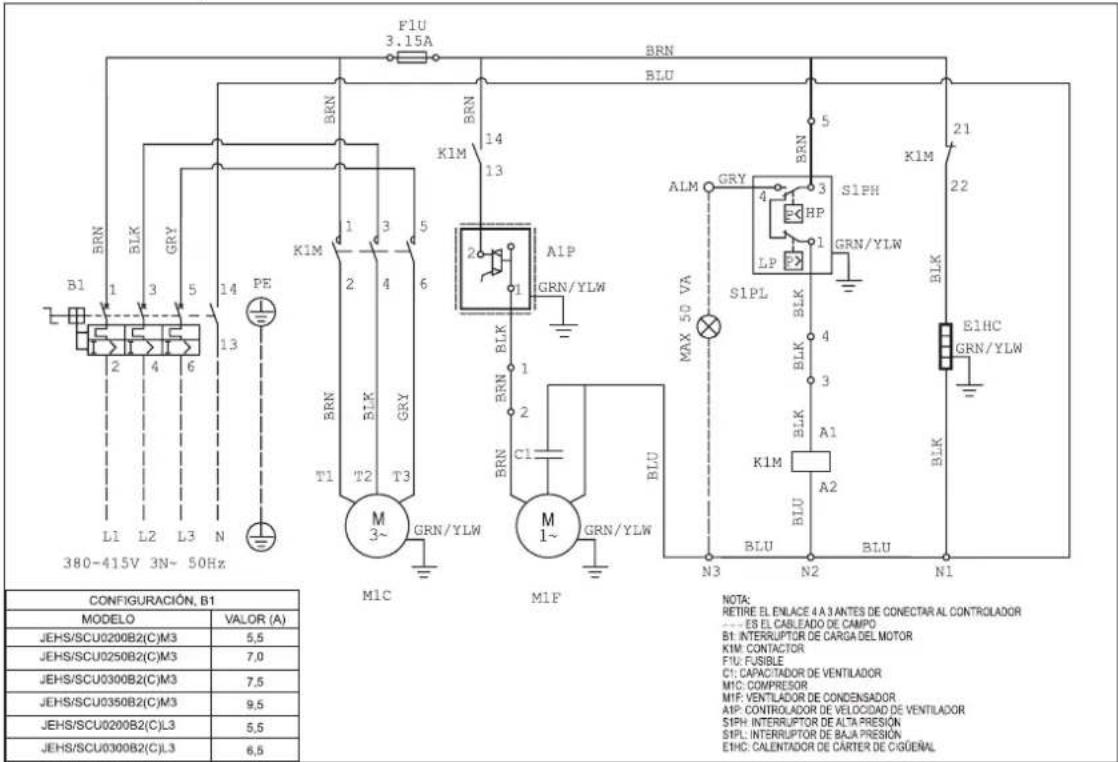

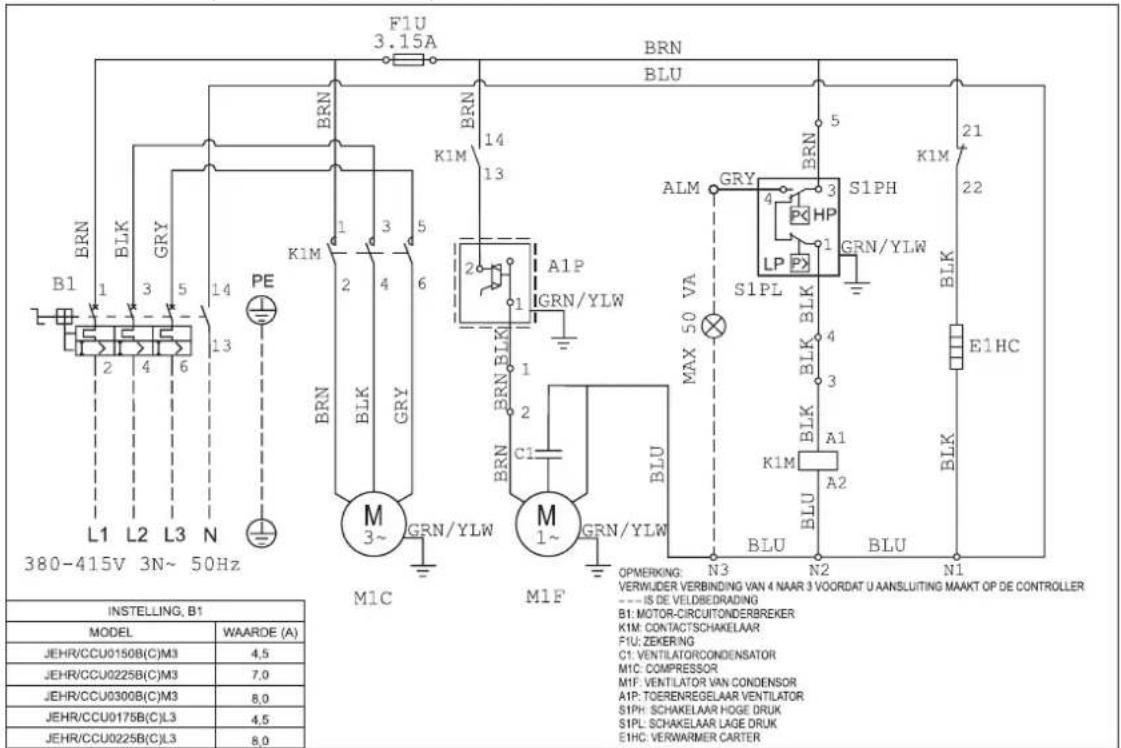

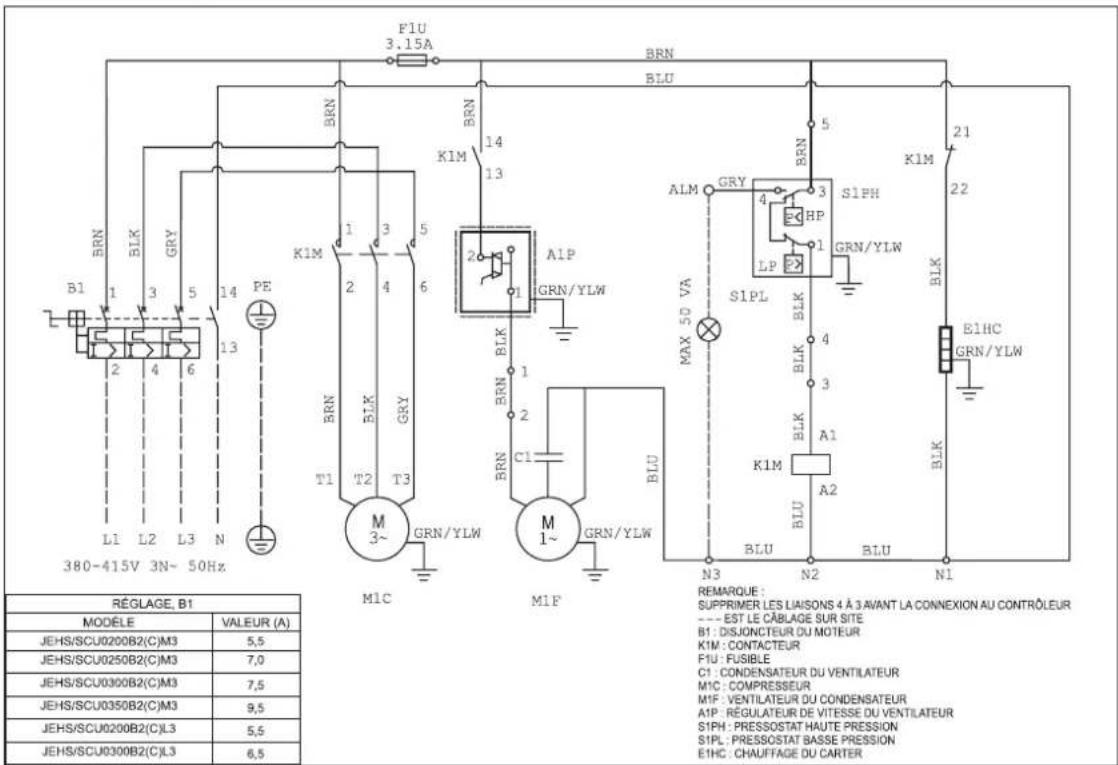

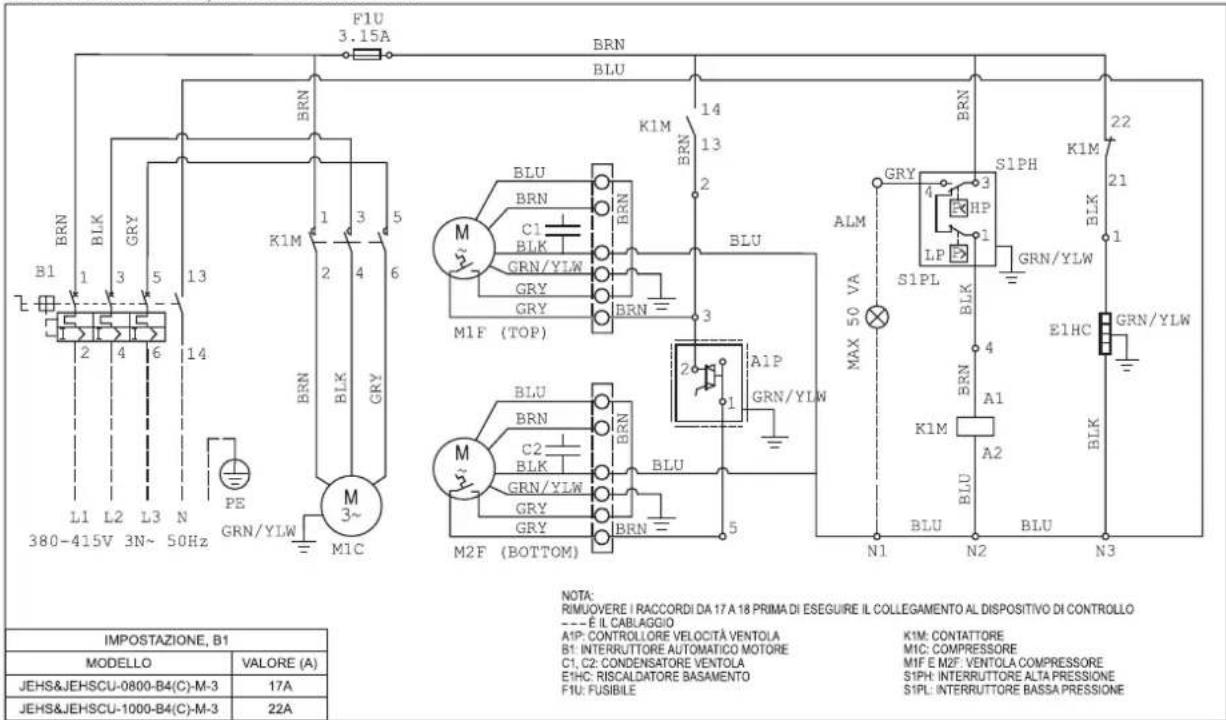

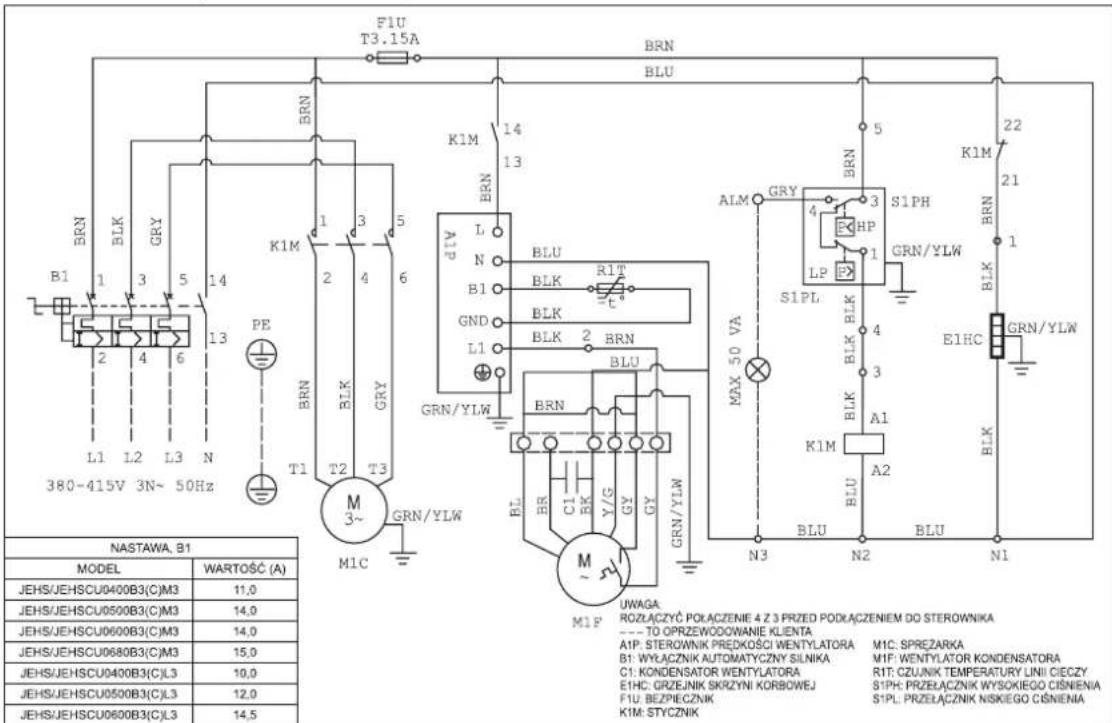

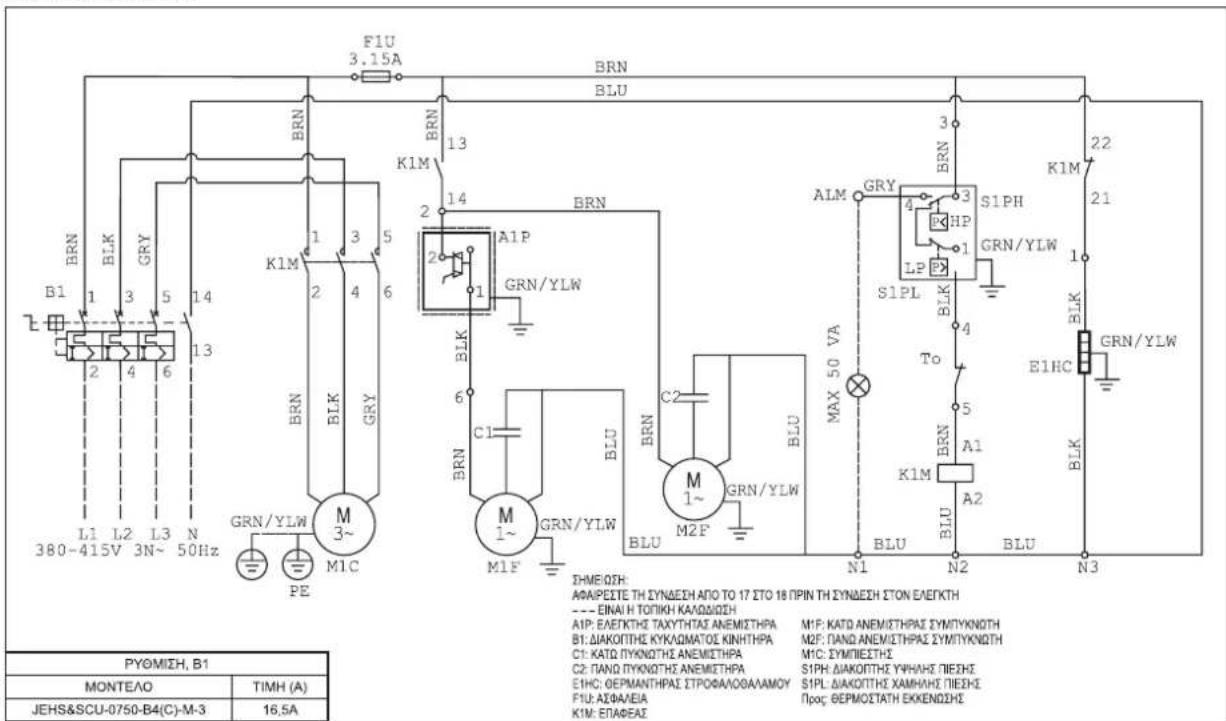

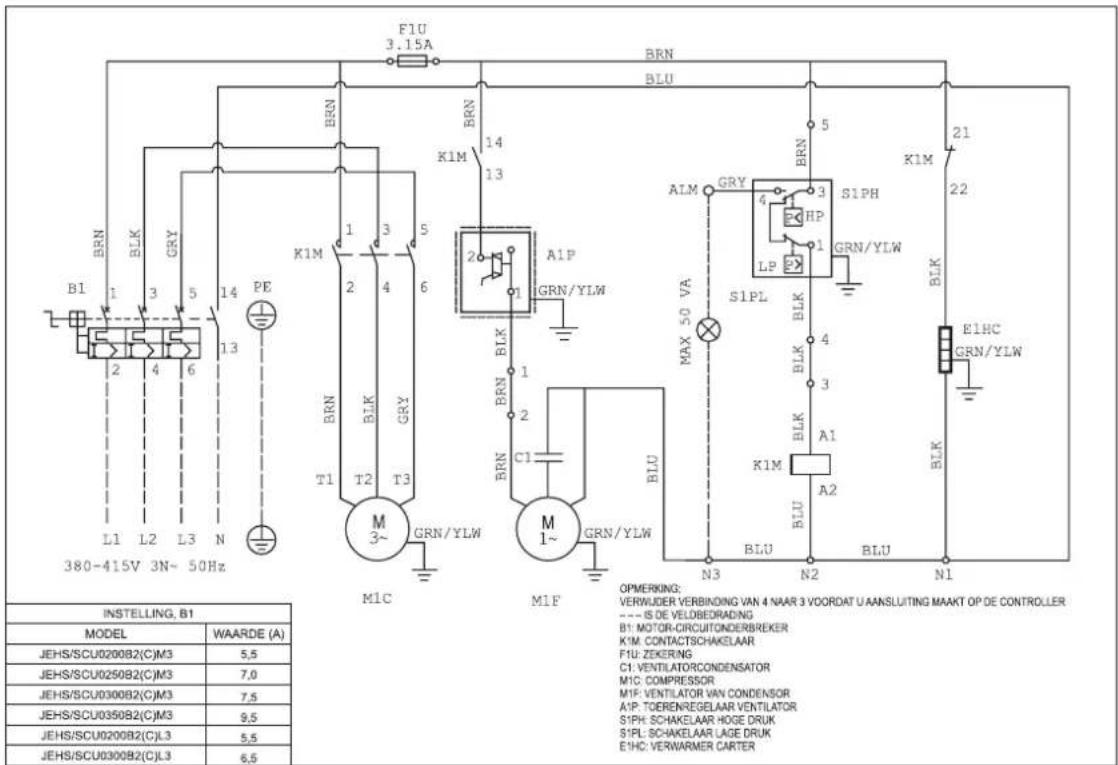

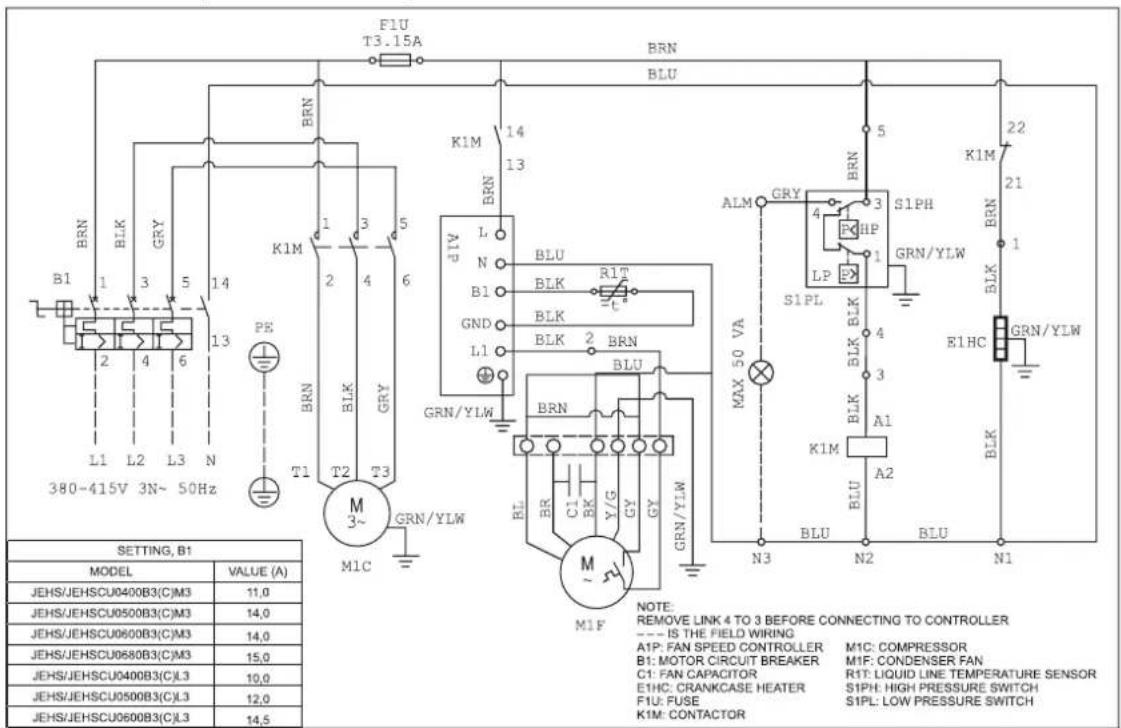

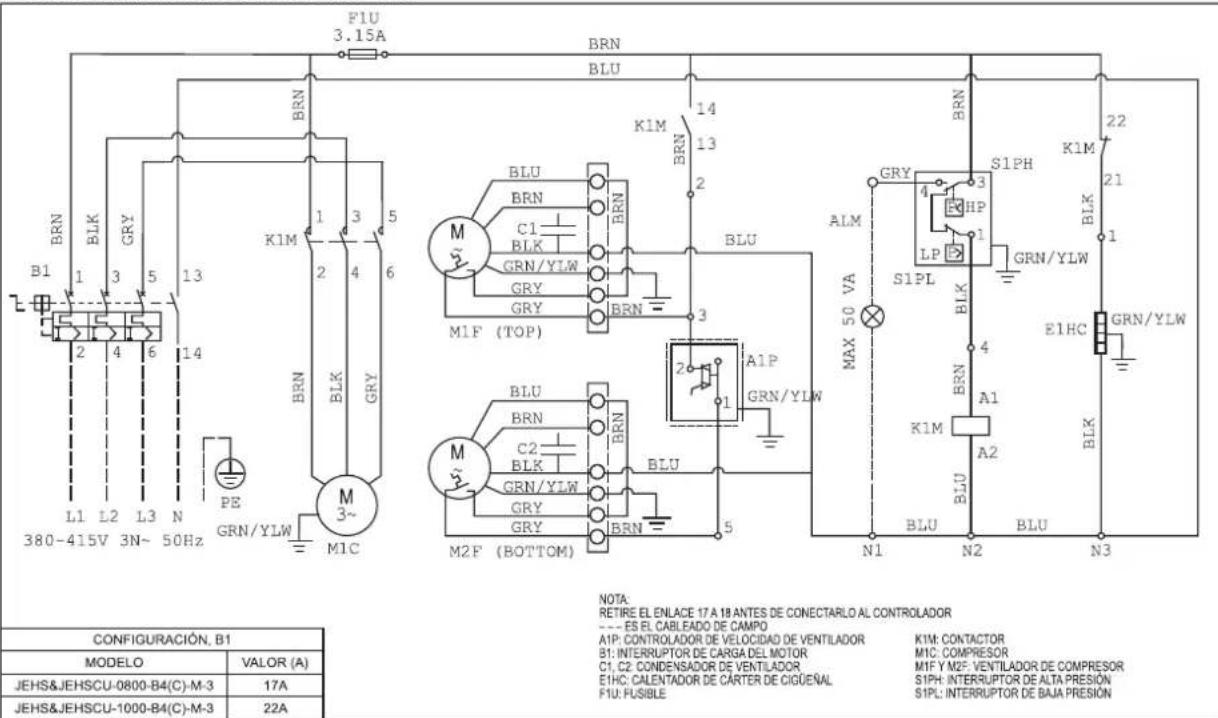

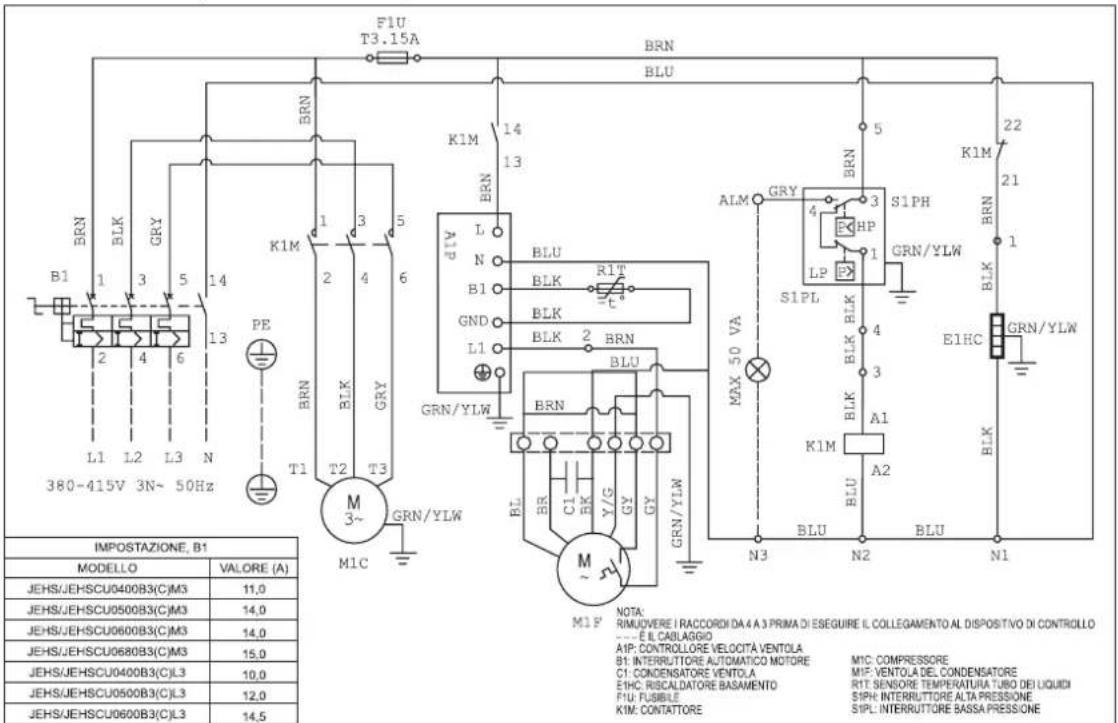

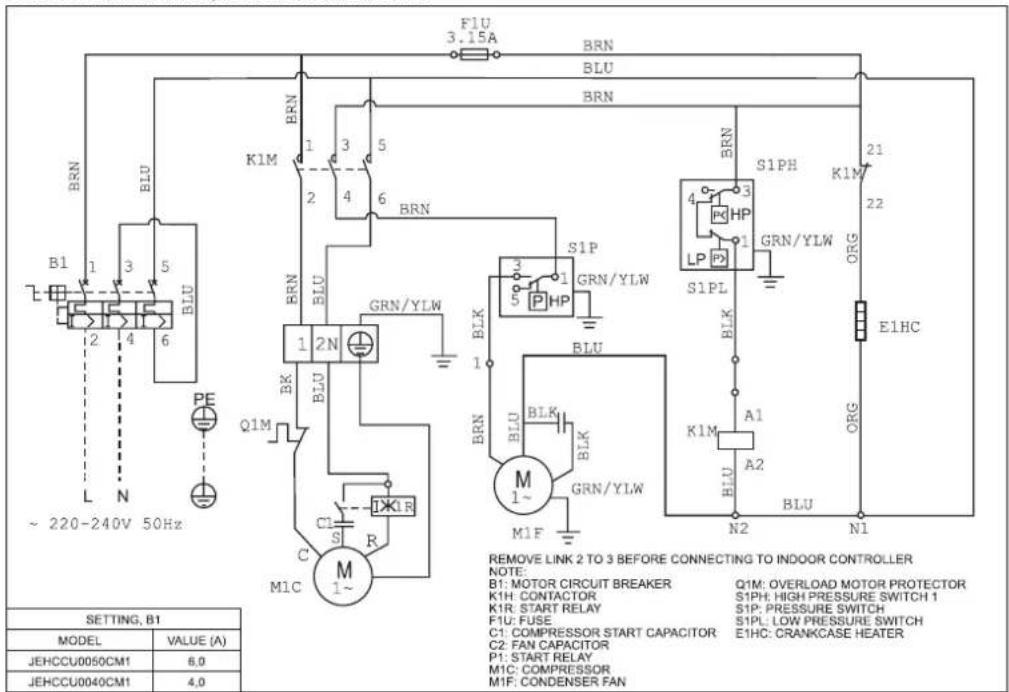

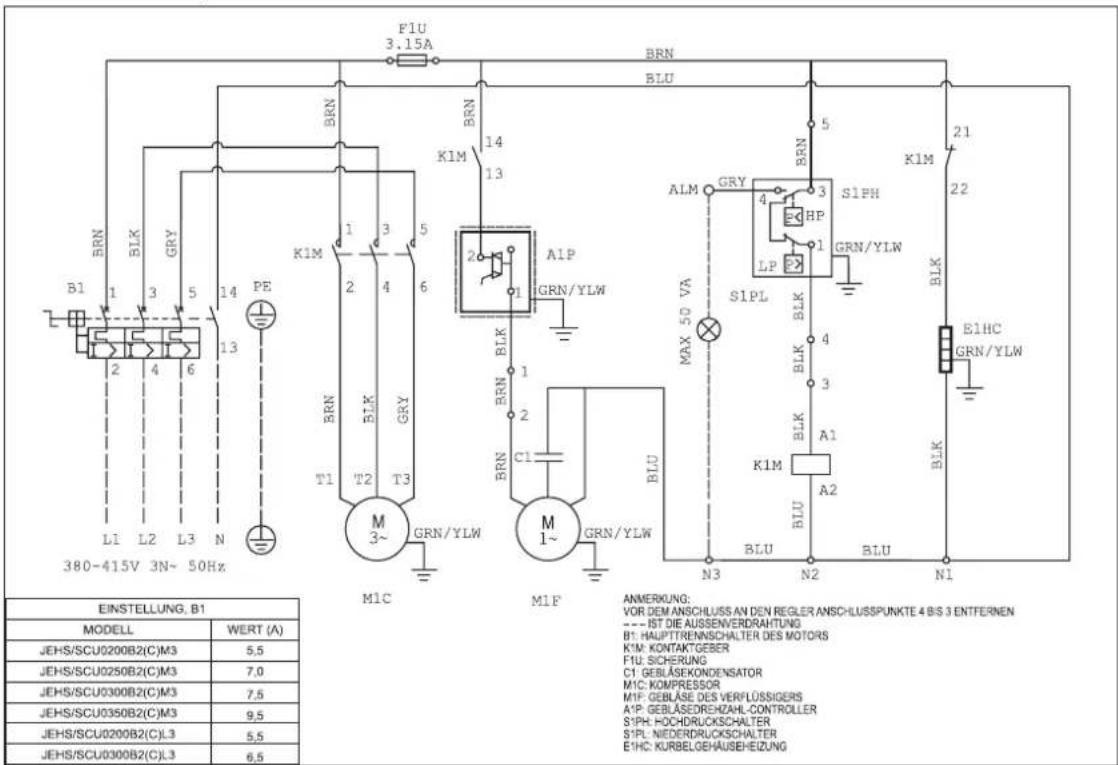

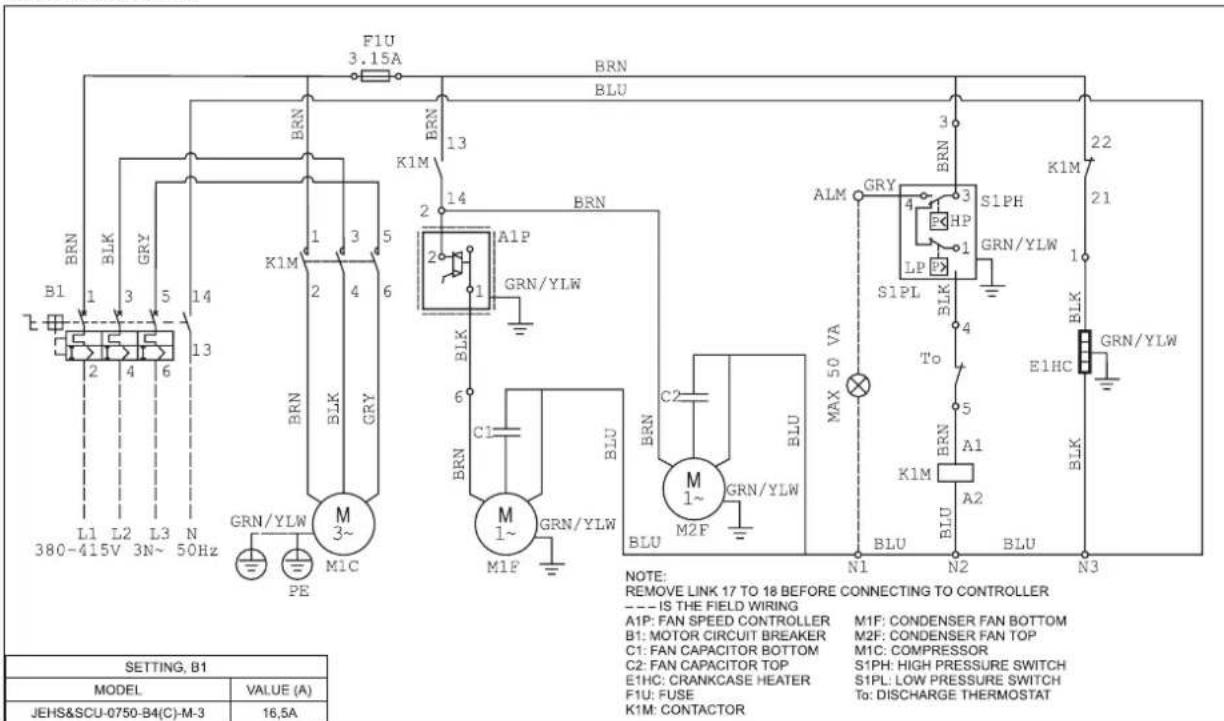

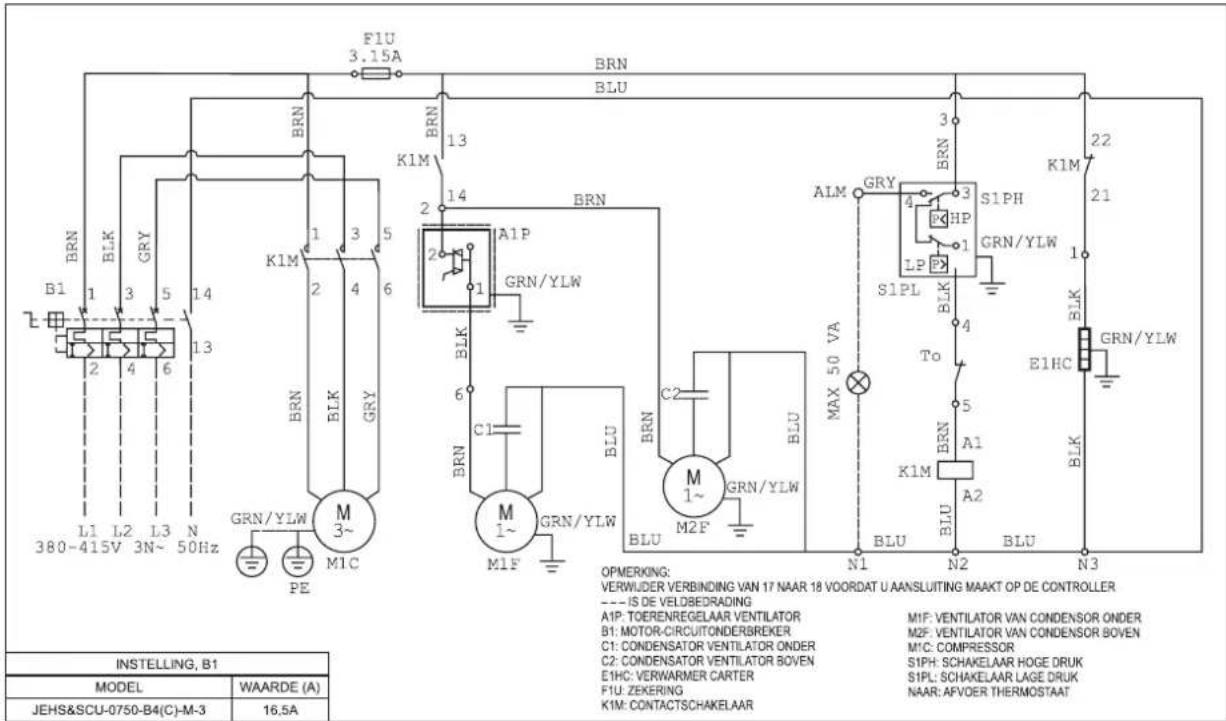

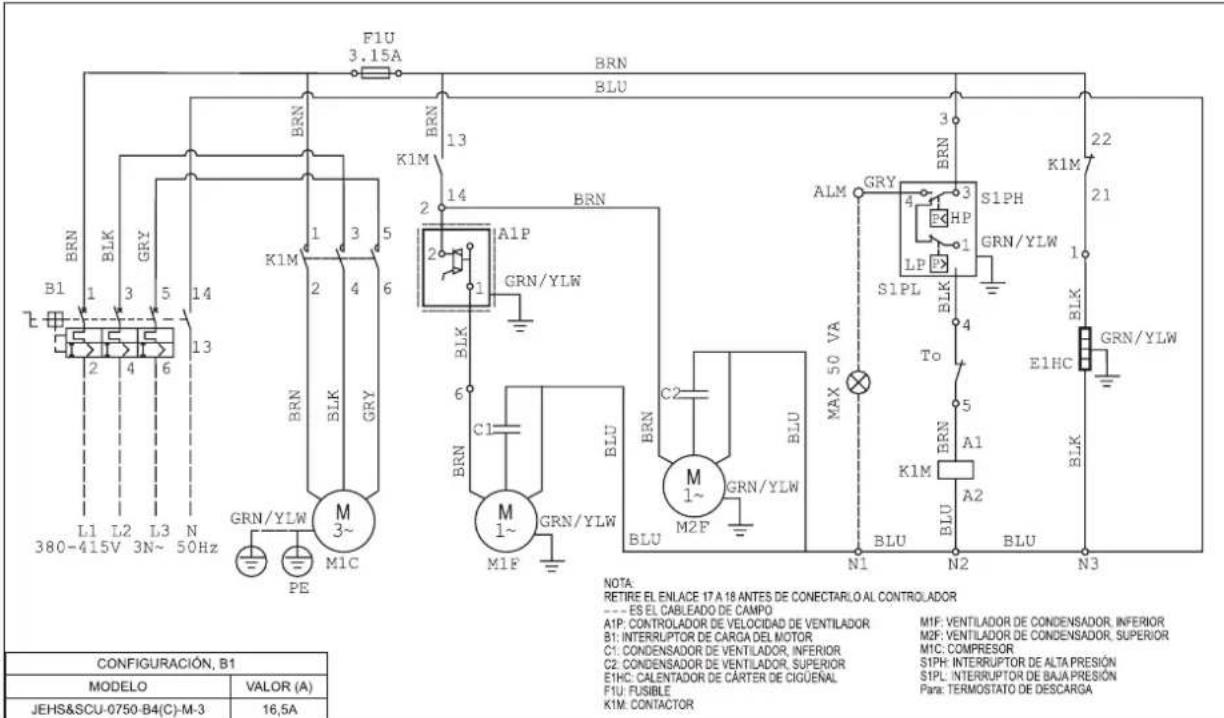

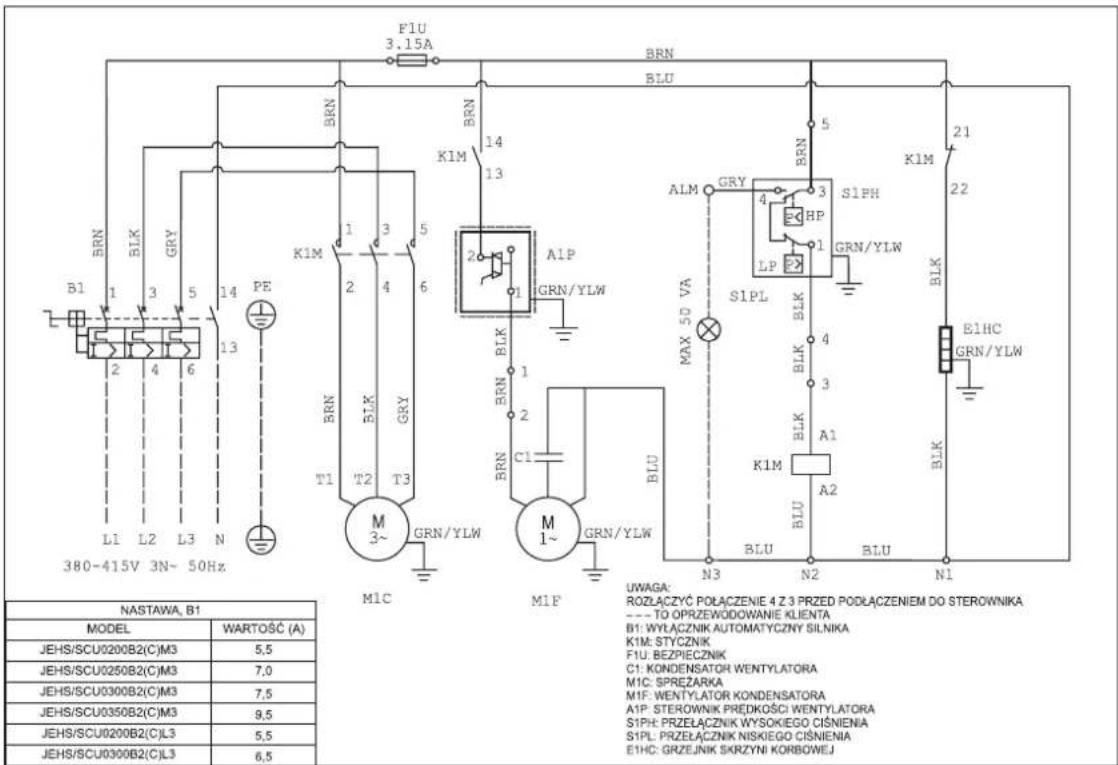

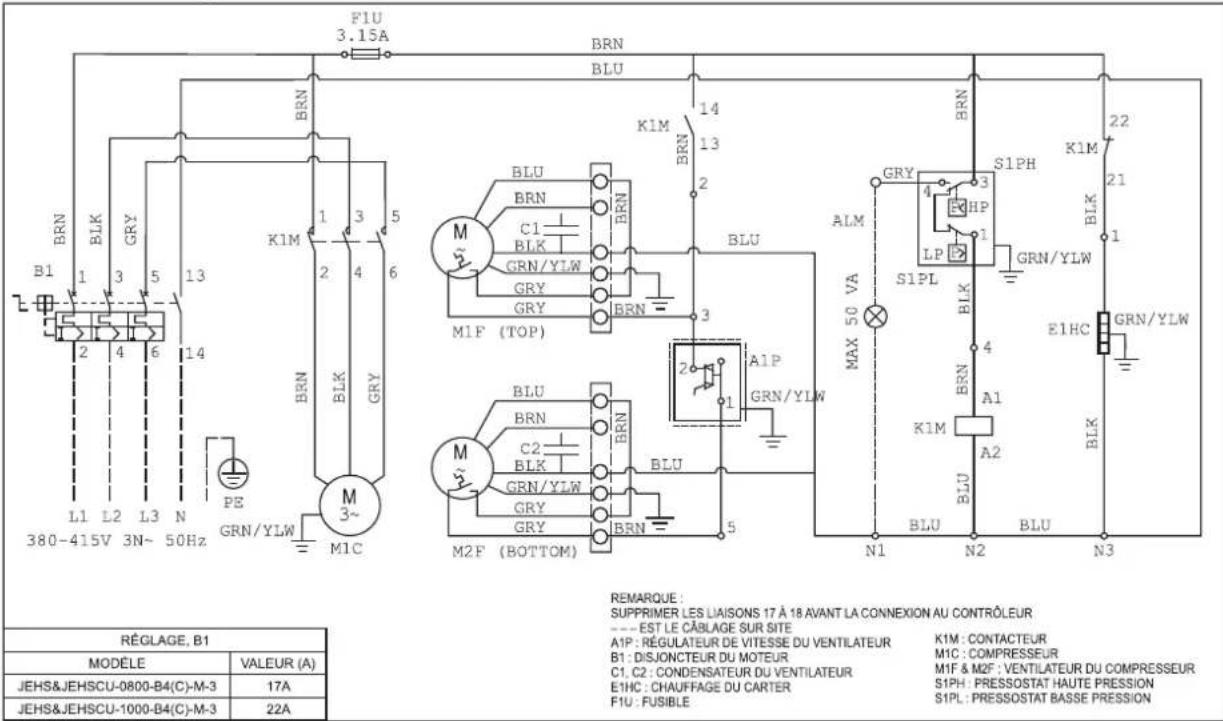

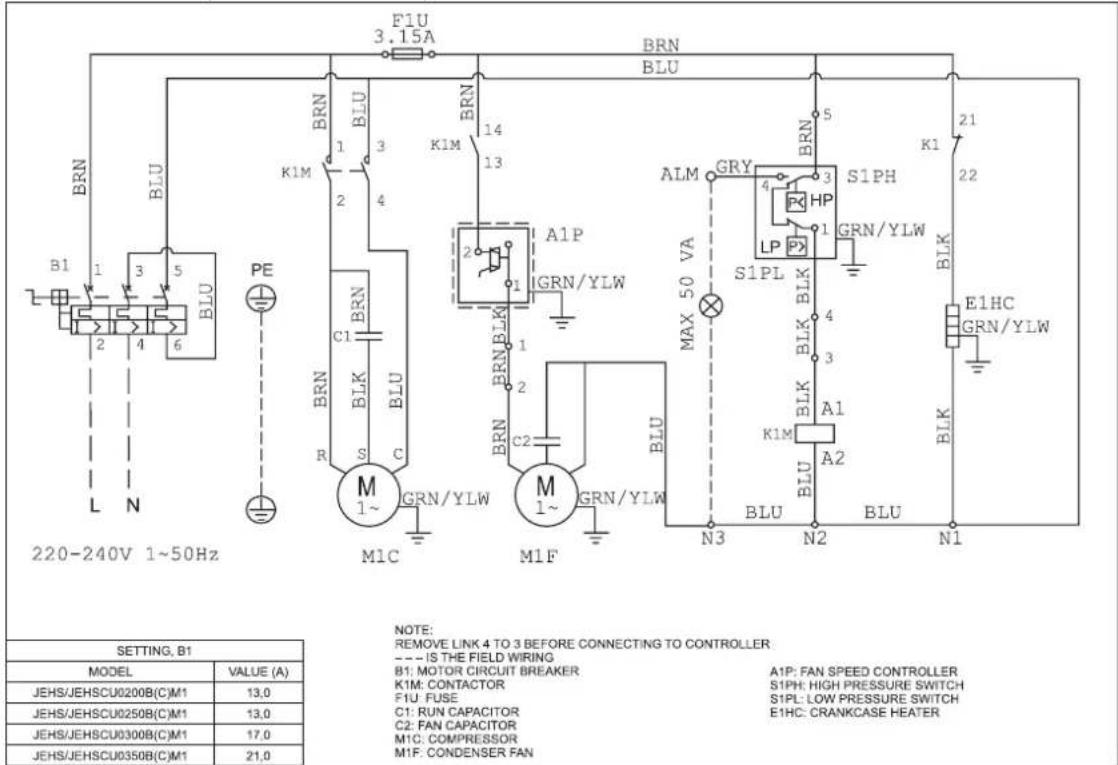

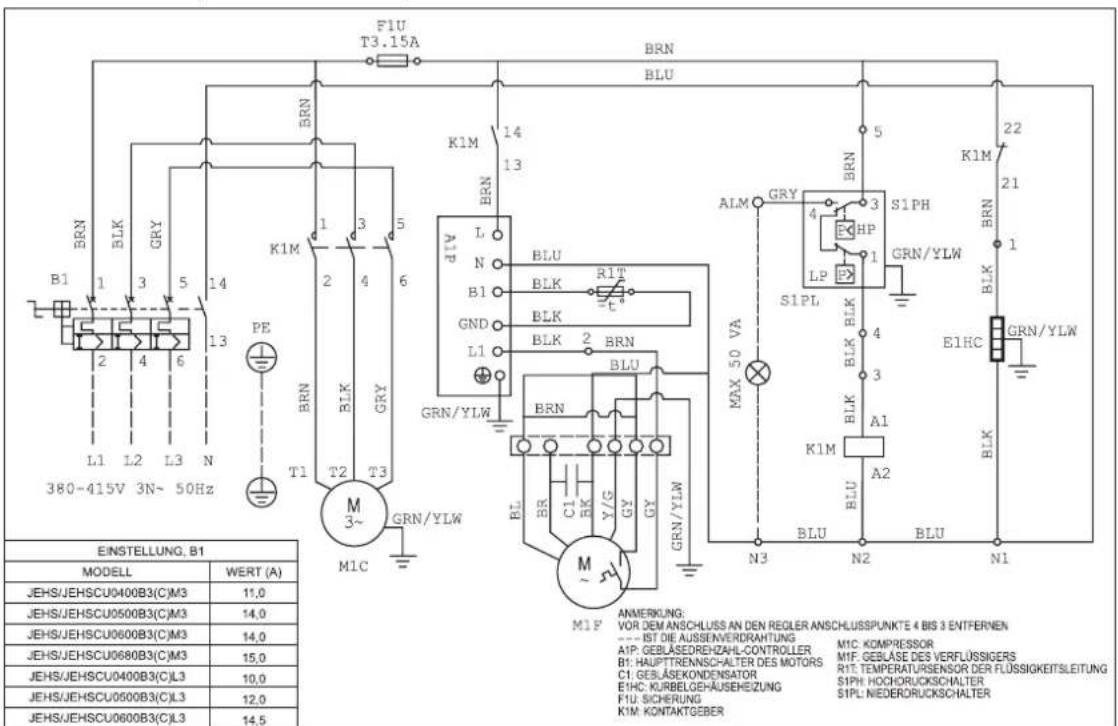

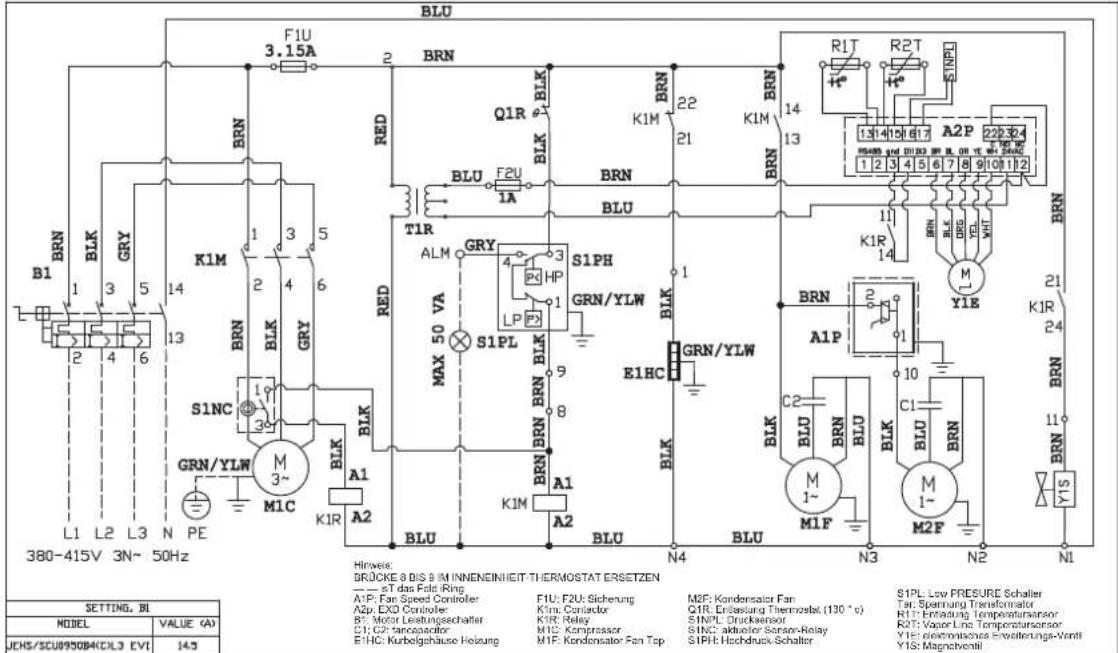

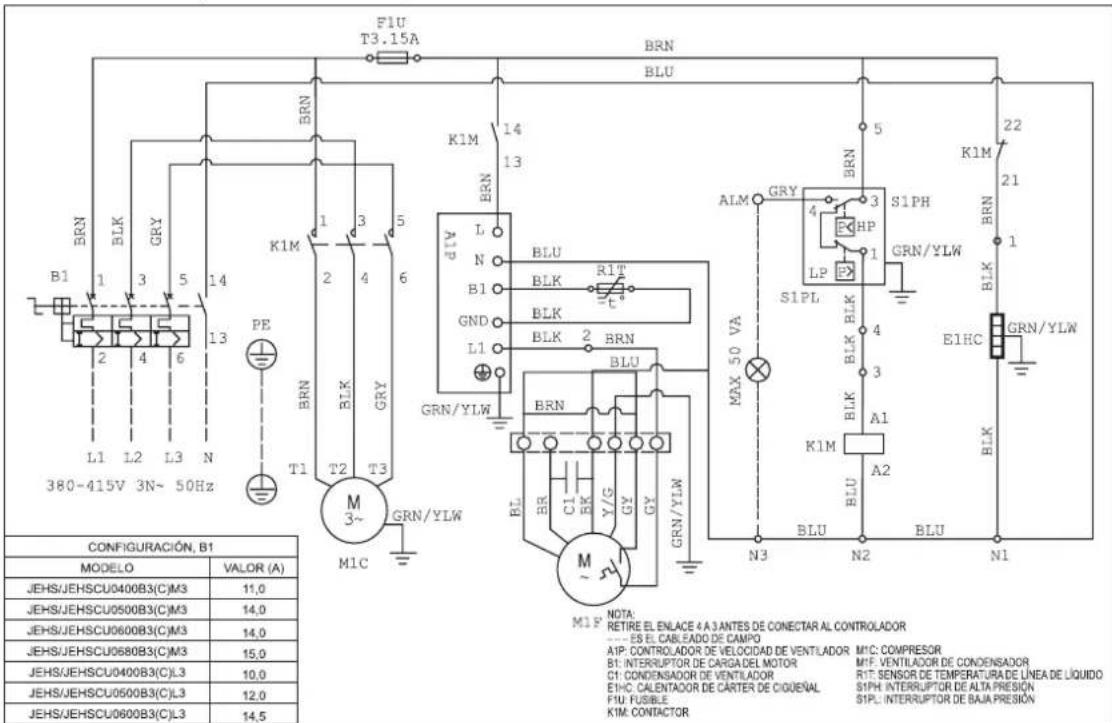

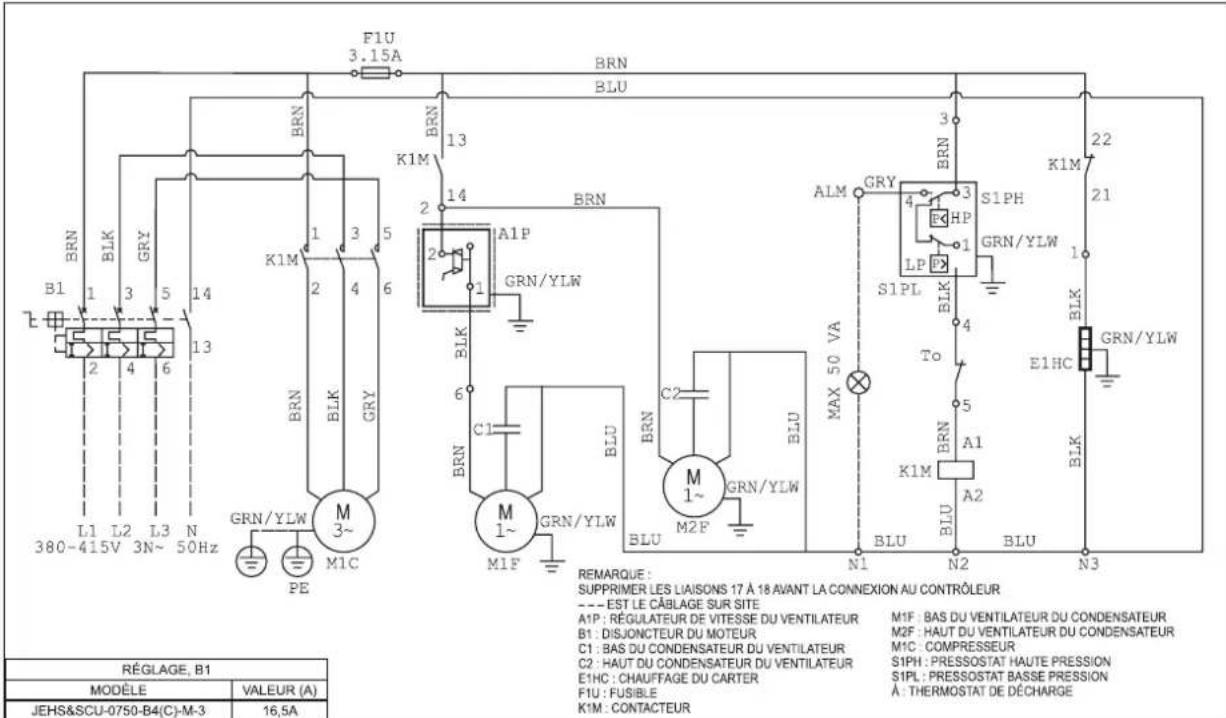

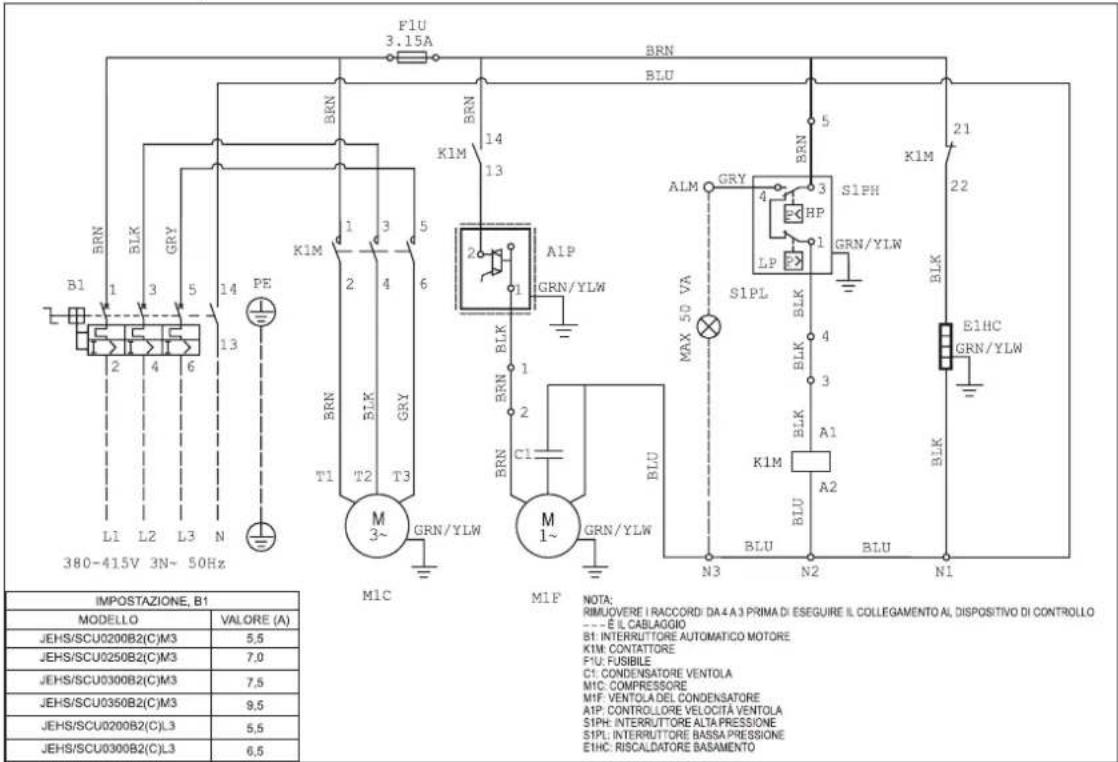

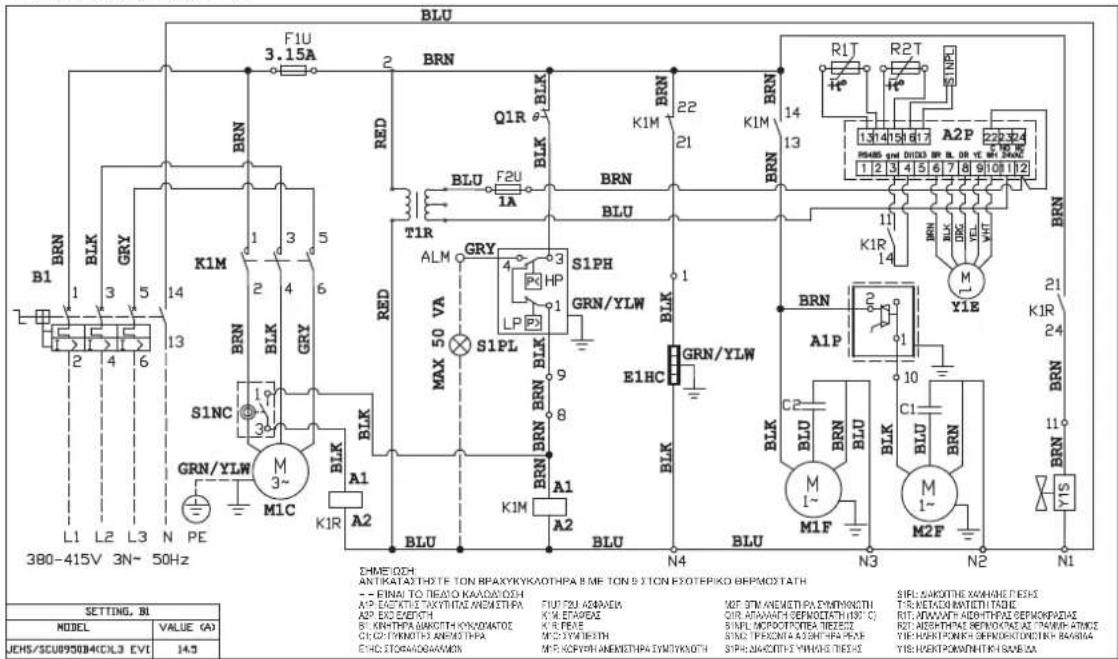

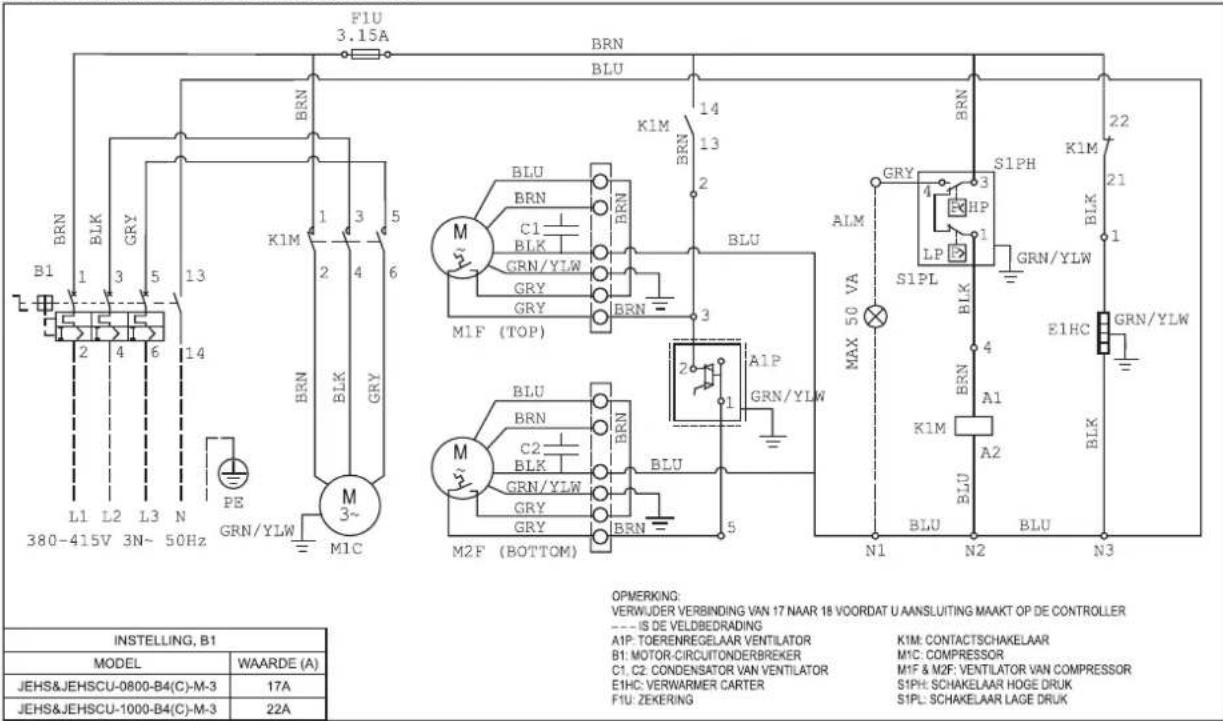

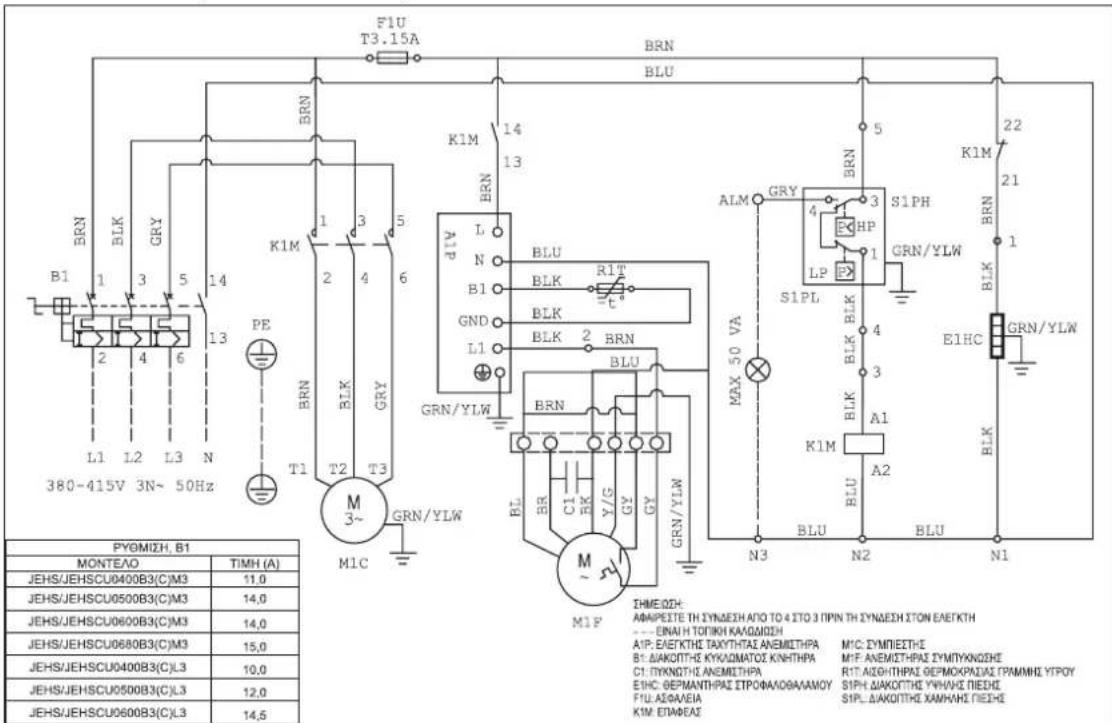

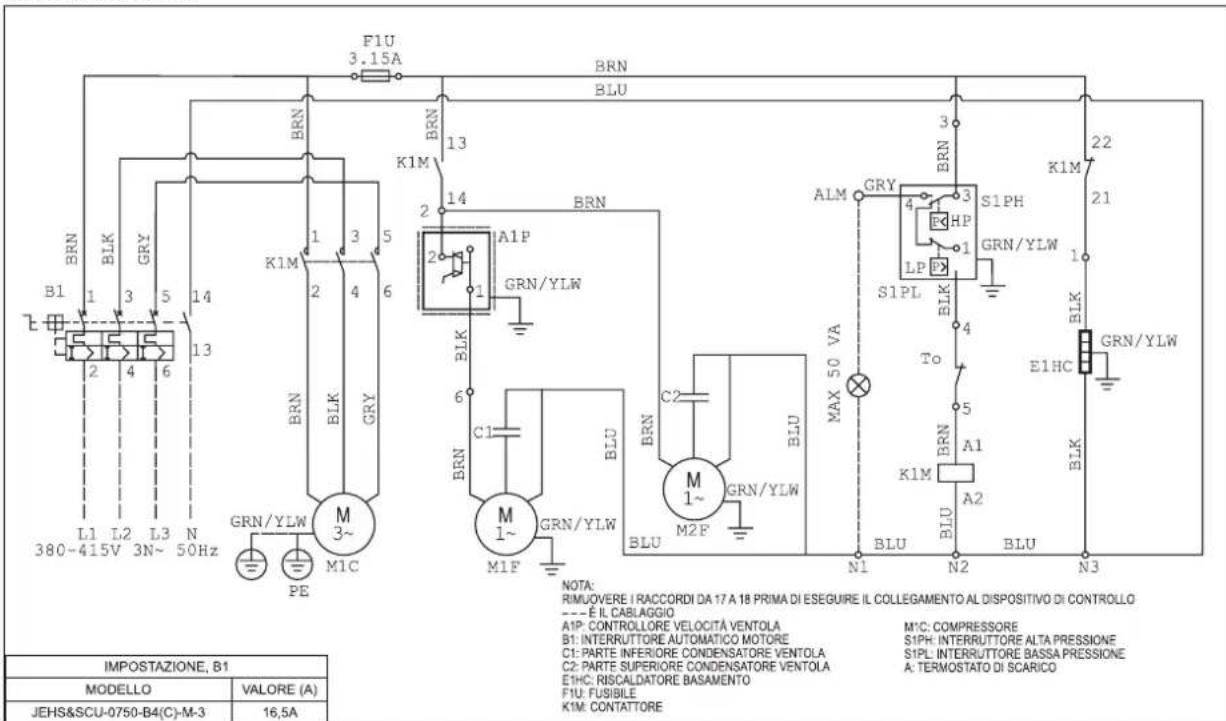

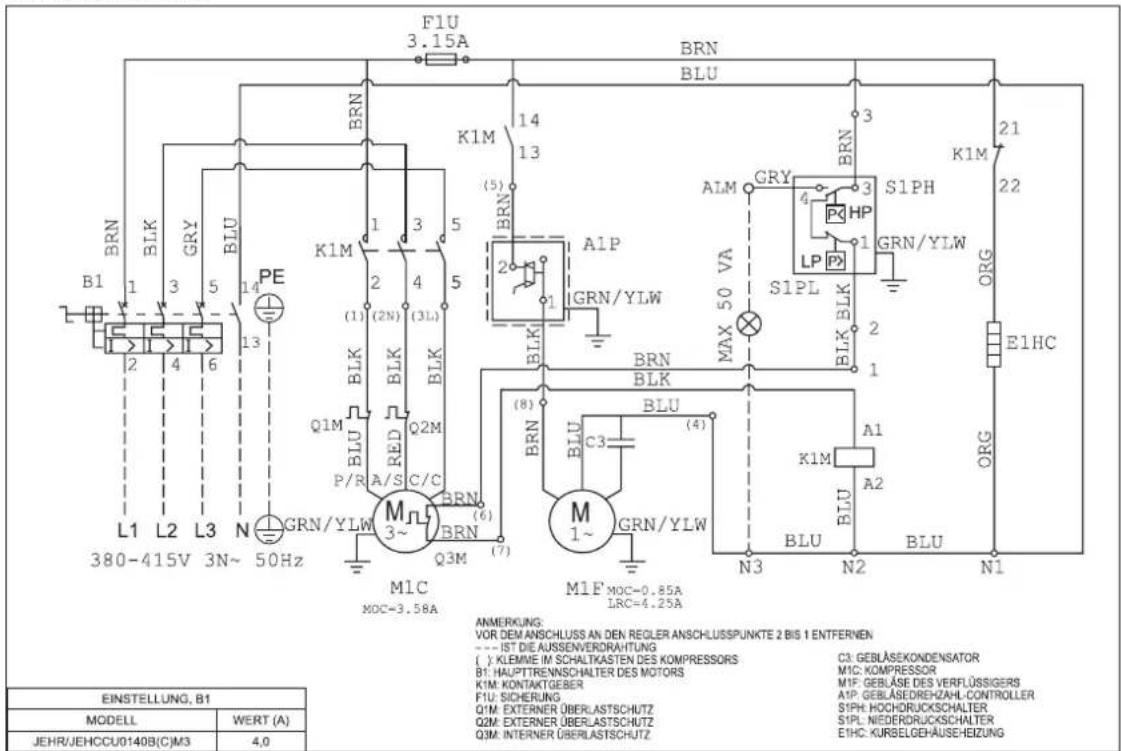

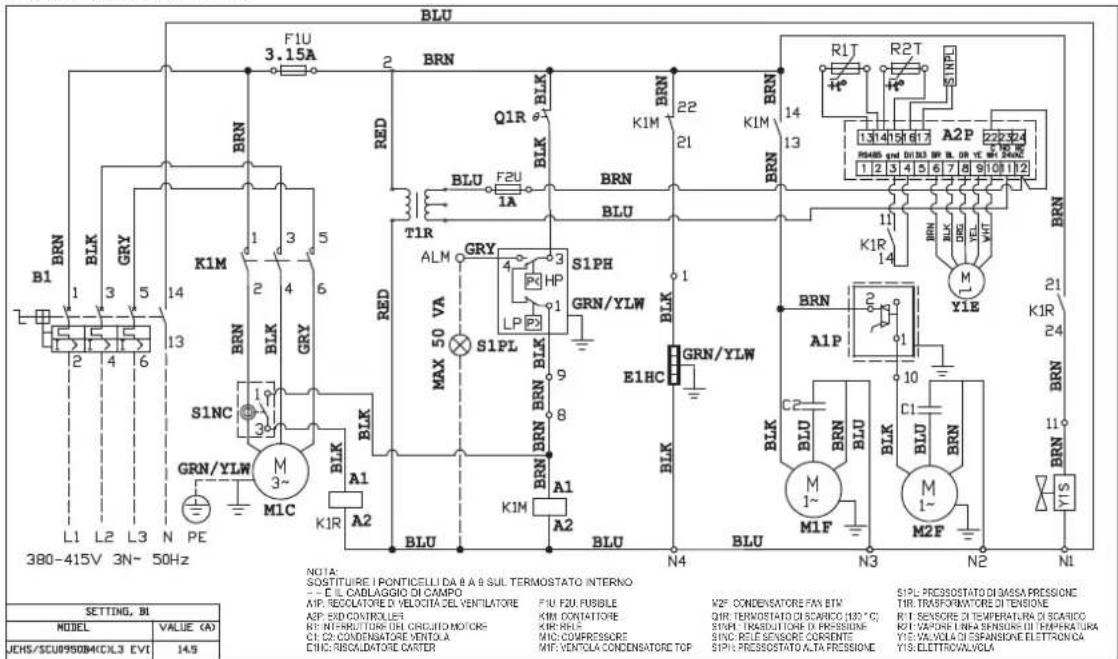

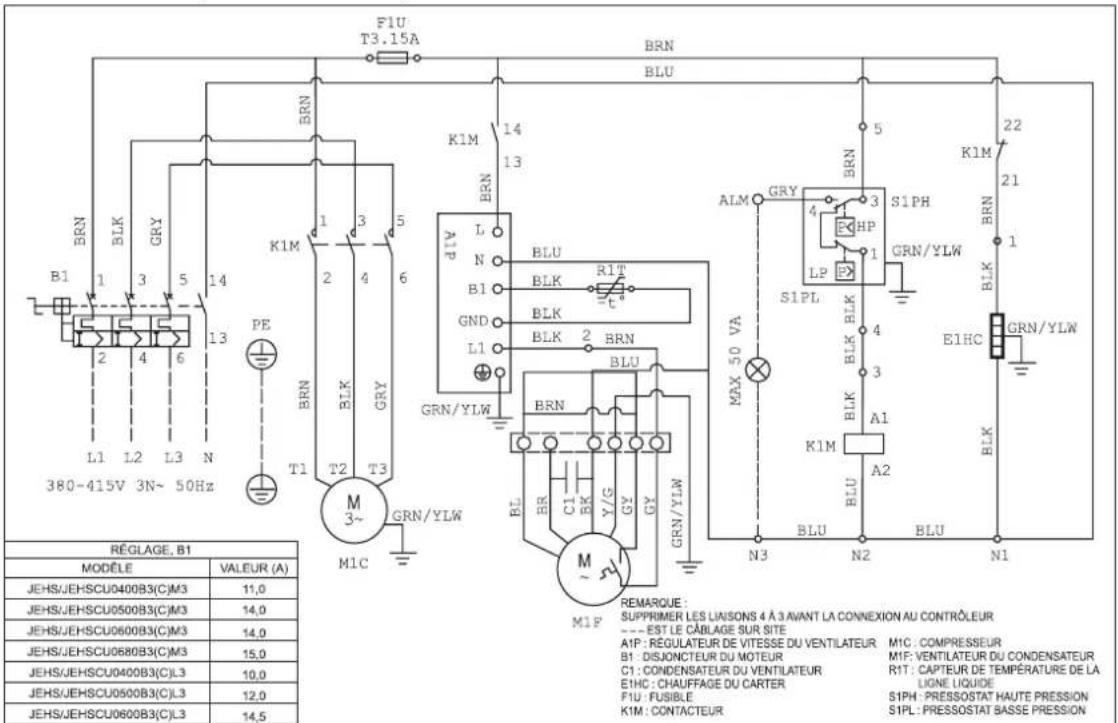

  • Refer to wiring diagram for electrical connections.
• Class II category transformer is required for 24VAC power supply
• Do not connect any EXD-HP1 input to main voltage as it will permanently damage the controller.

• When connecting wires of expansion valve and pressure sensor, consider color coding as follow:

• EXM : BR: BROWN; BL: BLUE, OR: ORANGE; YE: YELLOW; WH: WHITE

• PT5 : BN: BROWN; WH: WHITE

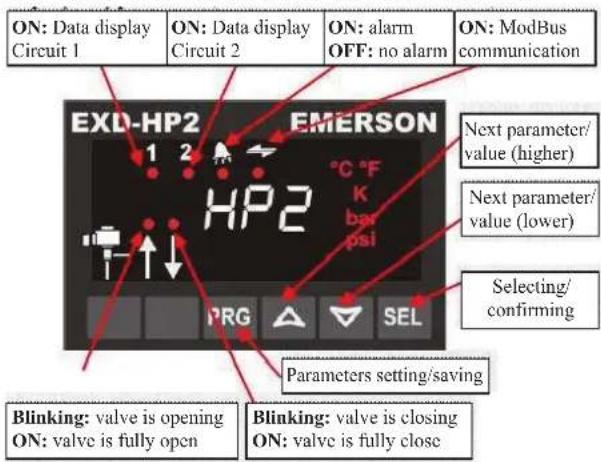

3.14.3 Display / keypad unit (LEDs and button functions)

ON: Data display Circuit 1 ON: Data display Circuit 2 ON: alarm OFF: no alarm ON: ModBus communication EXD-HP2 EMERSON 1 2 °C °F HP2 K bar psi PRG SEL Next parameter/ value (higher) Next parameter/ value (lower) Selecting/ confirming Parameters setting/saving Blinking: valve is opening ON: valve is fully open Blinking: valve is closing ON: valve is fully close

• In standard mode the superheat is shown at the display. In case of liquid injection and economizer function this changes to discharge temperature.
• To display other data of EXD-HP1 press "SEL" button for 1 second until index number according to below table appears. Release "SEL" button and the next variable data will appear. By repeating the procedure variable data can be displayed in sequence as measured superheat (K) → Measured suction pressure (bar) → valve position (%) → Measured suction gas temperature (°C) → Calculated saturated temperature (°C) → Measured discharge temperature (°C) (if economizer function is selected) → REPEATING

Variable data	Controller EXD-HP1
Default Superheat, K	1 1
Suction pressure, bar	1 0
Valve position, %	1 0
Suction gas temperature, °C	1 0
Saturation temperature, °C	1 0
Discharge temperature, °C	1 0

3.14.4 Digital Input Di1/Di2

• The digital input Di1 is the interface between controller EXD-HP1 and system controller if Modbus communication has not been used.
• The digital status is dependent to operation of system's compressor or demand.

Operating Condition	Digital input status
Compressor starts	Closed (Start)
Compressor stops	Open (Stop)

3.14.5 Manual mode operation

Warning: All alarms are disabled during manual control. We do not recommend unattended operation of system during manual control.

• Press PRG and ▼ together for 5 seconds to access to manual mode operation.
• List of parameters in scrolling sequence by pressing button

Code	Parameter description and choices	Min	Max	Factory setting	Field setting
1Ho	Manual mode operation; circuit 1 00 = disabled; 1 = Enabled		1	0
1HP	Valve opening (%)	0	100	0
2Ho	Manual mode operation; circuit 20 = disabled; 1 = Enabled	0	1	0
2HP	Valve opening (%)	0	100	0

Manual alarm reset clearing functional alarms (except hardware error)

- Press PRG and together for 5 seconds. When the clearing is done, "CL" message appears for 2 seconds.

3.14.6 EXD-HP1 Error/Alarm handling

Alarm code	Description	Related parameter	Valve W	What to do?	Requires manual reset after resolving alarm
1E0/2E0	Pressure sensor 1/2 error	-	Fully close	Check wiring connection and measure the signal 4 to 20 mA No
1E1/2E0	Temperature sensor 1/2 error	-	Fully close	Check wiring connection and measure the resistance of sensor	No
1Ed	Discharge hot gas temperature sensor 3 error	-	Operating	Check wiring connection and measure the resistance of sensor	No
1AII/2AII	EXM/EXL electrical connection error	-	-	Check wiring connection and measure the resistance of winding	No
1Ad	Discharge hot gas temperature above limit		Operating	Check valve opening/ check liquid flow for flash gas free/check discharge hot gas temperature sensor	No
AF	Freeze protection	1P4/2P4: 1	Fully close	Check the system for cause of low pressure such as insufficient load on evaporator	No
AF blinking		1P4/2P4: 2	Fully close		Yes
AL	Low superheat (<0.5K)	1uL/2uL: 1	Fully close	Check wiring connection and operation of valve	No
AL blinking		1uL/2uL: 2	Fully close		Yes
AH	High superheat	1uII/2uII: 1	Operating	Check the system	No
AP	Low pressure	1P9/2P9: 1	Operating	Check the system for cause of low pressure such as refrigerant loss	No
AP blinking		1P9/2P9: 2	Operating		Yes

Note: When multiple alarms occur, the highest priority alarm is displayed until being cleared.
Then the next highest alarm is displayed until all alarms are cleared.
Only then will parameters will be shown again

O-CU06-AUG17-3

All specifications are subjected to change by the manufacturer without prior notice. The English text is the original instruction. Other languages are the translations of the original instructions.

ENGLISH

4 Decommissioning & Disposal

At the end of the unit's useful life, a suitably qualified engineer should decommission it. The refrigerant and compressor oil are classed as hazardous waste and as such must be reclaimed and disposed of in the correct manner, including completion of waste transfer paperwork. The unit components must be disposed of or recycled as appropriate in the correct manner.

5. Checklist

• Ensure the high low pressure controls are configured properly.
• Ensure crankcase heater is energized minimum 12 hours prior to start up and permanently energized.
• Check the refrigerant is correct for intended use.
• Check all electrical connections.
• Check all electrical termination and circuits are correct.
• Check compressor oil level via compressor sight glass, the oil level should not be lower than quarter of sight glass.
• Check the TXV capacity sizing based on indoor unit capacity. Check TXV applicable refrigerant. Check position and condition of the sensing bulb fixing
• Observed the system pressures during the charging and initial operation process.
• Ensure that suction pressure will decrease, discharge pressure will increase. No abnormal noise from the compressor.
• Continue to charge the system until sight glass is clear. Make sure that high pressure is > 14 barg for R404A and > 8 barg for R134a when doing this charge adjustment operation. Continuous flow of clear refrigerant through the sight glass, with perhaps an occasional bubble at very high temperature indicates the refrigerant is at optimum.
• Check the compressor's discharge and suction pressure, to ensure it is within operating range. Discharge temperature should be within 50 to 90 °C and pressure should be around 15 to 26 barg (for system charged with R404A) and 8 to 16 barg (for system charged with R134a).
• Check the current of condensing unit and ensure it is below the motor circuit breaker setting value.
• Check condenser fan, ensure warm air blowing off the condenser coil.
• Check evaporator blower, ensure it's discharging cool air.
• Check suction superheat and adjust expansion valve to prevent liquid flood back to the compressor. Recommended 5 to 20 K of suction superheat.
• Do not leave the system unattended until the system has reached its normal operating condition and the oil charge has properly adjusted itself to maintain the proper level in the sight glass.
• Check periodically the compressor performance and all the moving components during the first day of operation.
• Check the liquid line sight glass and expansion valve operation. If there is an indication that the system is low on refrigerant, thoroughly check the system for leaks before adding refrigerant.

6. Service and Maintenance

Important Note

Warning! – Disconnect the mains electrical supply before servicing or opening the unit

Warning! – Ensure there is no refrigerant in refrigerant circuit before dismantle it

Warning! - If the supply cord is damaged, it must be replaced by the qualified service agent in order to avoid a hazard.

The condensing units are designed to give long life operation with minimum maintenance. However, they should be routinely checked and the following service schedule is recommended under normal circumstances:

Important Note

For scroll compressor: wiring for 3 phases must be controlled. Supply phase sequence L1, L2 and L3 will affect the rotating direction of scroll compressor and damage the compressor.

Service technician should be present at initial start-up to verify that the supply power is properly phased and that compressor is rotating in the correct direction.

The removal of the top, side and front panels ensures that all parts are accessible.

1. Compressor – Inspect at regular intervals

- Check for refrigerant leaks on all joints and fittings.

- Ensure that no abnormal noise or vibration is detected during test run.

- Check the compressor oil levels and top up if required. The oil level should not be lower than quarter of the compressor oil sight glass. Not applicable to AE/AJ compressor.

1. Condenser Coil – Clean and inspect at regular intervals

- Remove surface dirt, leaves, fibers, etc. with a vacuum cleaner (preferably with a brush or other soft attachment rather than a metal tube), compressed air blown from the inside out, and/or a soft bristle (not wire!) brush. Do not impact or scrape the coil with the vacuum tube, air nozzle, etc. It may be beneficial to blow or vacuum out the rinse water from MCHE to speed drying and prevent pooling.

1. Power Supply – Inspect at regular intervals

- Check the running current and voltage for the condensing unit.

- Check the electrical wiring and tighten the wires onto the terminal blocks if necessary.

Under normal circumstances:

- Clean condenser coil every three months

• To assure no leakage

- Check and verify operation of all safety devices every three months, ensure crankcase heater is operational

- Check sight glass and operating conditions

- Check security of compressor mountings and the bolts that hold down the unit each year

1. Compact Brazed Heat Exchanger (BPHE)

** For JEHSCU0950CL3 EVI Unit ONLY

- Any soldering process done on the heat exchanger needs to be brazed with minimum 45% silver solder at maximum 450°C (840°F) when soft soldering and 450-800°C (840-1470°F) when hard soldering.

- Do not direct flame at BPHE and use wet rag to avoid overheating of BPHE.

7. F-Gas Information

• From 1/1/2015, a new F-Gas Regulation (EU) No 517/2014 comes into force repealing Regulation (EC) No 842/2006. This will affect system labelling, information supplied within documentation and also the way in which thresholds for frequency of leak testing.
• For systems with a charge below 3kg, the changes to the leak checking regime will not apply until 2017. Currently, there is no requirement for regular leak testing of systems with a total charge below 3kg.
  • Changes to leak testing requirements are as follows:

OLD LEGISLATION	NEW LEGISLATION	LEAK CHECKING FREQUENCY
	5-50 TCO_2Eq 3-30Every 12 months but can be increased to 24 months if fitted with a fixed leak detection system.
30-300 kgs	50-500 TCO_2Eq	Every 6 months but can be increased to 12 months if fitted with a fixed leak detection system.
	500+ TCO_2Eq 300Every 6 months - however automatic leak detection system is mandatory which requires servicing every 12 months.

Important information regarding the refrigerant used

Its functioning relies on fluorinated greenhouse gases

• This product is factory charged with N2.
- The refrigerant system will be charged with fluorinated greenhouse gases. Do not vent gases into the atmosphere.

The GWP (Global Warming Potential) values of refrigerants which are specified for use in this equipment along with the three new thresholds for leak testing requirements based on TCO_2Eq (Tonnes CO_2 Equivalent) are as follows:

Refrigerant	GWP (1)	Refrigerant Charge - kg
		5T	50T	500T
		CO_2Eq	CO_2Eq	CO_2Eq
R404A	3921.6	1.3	12.7	127
R407A	2107	2.4	23.7	237
R407F	1824.5	2.7	27.4	274
R134a	1430	3.5	35.0	350
R448A	1387	3.6	36.0	360
R449A	1397	3.6	35.8	358

Please fill in with indelible ink, on the refrigerant charge label supplied with the product.

total refrigerant charge & the TCO charged refrigerant.

2 equivalent for

The filled out label must be adhered in the proximity of the product charging port.

Contains Fluorinated Greenhouse Gases

Ref.	GWP	Charge (kg)	CO2Eq.
R404A	3922
R407A	2107
R407F	1825
R448A	1387
R449A	1397
R134a	1430

8. Trouble Shooting

This troubleshooting guide describes some common condensing unit failure. Consult qualified personnel before any corrective actions are taken.

Failure Possible Causes
Fan does not work	Improper wiring
Compressor does not start	Improper wiringSystem stopped because of tripped of safety device.
Insufficient cooling	Incorrect TXV size and SH settingMiss matching of indoLow refrigerant chargeCondenser coil dirtyObstacle blocking air inlet/outletImproper thermostat settingCompressor rotating direction is incorrect

Important Note Warning! – Immediately shut off power of the unit if there is any event of accident or breakdown.

9. Specifications

Medium Temperature

Model		Series	COP/SEPR						Compressor			Oil type	Electrical Data							Airflow (m3/h)	Receiver	Connection Dimensions					Weight (kg)	Sound pressure dB( A) ^2 at 10 meter
			R404A	R407A	R407F	R448A	R449A	RL346	Type	Displacement (m3/h)	Oil Charge (Liber)		Power Input	Nominal Current* (A) R404A	Nominal Current* (A) R407A	Nominal Current* (A) R407F	Nominal Current* (A) RL34a	Lock Rotor current (A) RL34a	MFA ^3 (A)			Volume (Liter)	Suction (Inch)	Liquid (Inch)	Width (mm)	Depth (mm)	Height (mm)
Median temperature	JEHCCU0050CM1	1	1,45	1,33	1,47	N/A	1,44	N/A	AE4460Z-FZ1C	1,80	0,28	230W/- Oil A'	230V/1~50Hz	3,79	3,74	3,78	N/A	19,4	10	1300	2,4	3/8"	1/4"	876	420	807	47	29
	JEHCCU0087CM1	1	1,51	1,37	1,49	N/A	1,45	N/A	CAJ8480Z	2,64	0,475		230V/1~50Hz	3,53	3,32	3,53	N/A	24,1	10	1300	2,4	1/2"	3/8"	876	420	807	54	28
	JEHCCU0100CM1	1	1,51	1,43	1,51	N/A	1,45	N/A	CAJ8510Z	3,18	0,475		230V/1~50Hz	4,26	4,60	4,21	N/A	29,5	10	1300	2,4	1/2"	3/8"	876	420	607	55	28
	JEHCCU0113CM1	1	1,60	1,52	1,58	N/A	1,53	N/A	CAJ8513Z	4,21	0,475		230V/1~50Hz	5,27	4,88	5,11	N/A	33,5	12	1300	2,4	1/2"	3/8"	876	420	607	56	28
	JEHCCU0400CM1	1	N/A	N/A	N/A	N/A	N/A	1,28	AE4440Y-FZ1A	1,8	0,26		230V/1~50Hz	N/A	N/A	N/A	2,55	13,2	10	1300	2,4	3/8"	1/4"	876	420	607	47	29
	JEHCCU0051CM1	1	N/A	N/A	N/A	N/A	N/A	1,53	CAJ961Y	3,18	0,475		230V/1~50Hz	N/A	N/A	N/A	3,65	19	10	1300	2,4	3/8"	1/4"	876	420	807	55	29
	JEHCCU0083CM1	1	N/A	N/A	N/A	N/A	N/A	1,55	CAJ1470Y	3,79	0,475		230V/1~50Hz	N/A	N/A	N/A	4,65	24	10	1300	2,4	3/8"	1/4"	876	420	607	54	29
	JEHCCU0077CM1	1	N/A	N/A	N/A	N/A	N/A	1,63	CAJ1492Y	4,51	0,475		230V/1~50Hz	N/A	N/A	N/A	5,25	28	10	1300	2,4	1/2"	3/8"	876	420	807	56	29
	JEHCCU0095CM1	1	N/A	N/A	N/A	N/A	N/A	1,65	CAJ4511Y	5,69	0,475		230V/1~50Hz	N/A	N/A	N/A	4,17	29,5	10	1300	2,4	1/2"	3/8"	876	420	807	55	29
	JEHCCU0140CM1	2	1,68	1,57	1,75	N/A	1,96	N/A	CAJ4517Z	4,52	0,475		230V/1~50Hz	5,90	5,19	6,97	N/A	38,5	16	2700	4,5	5/8"	3/8"	1101	444	662	67	34
	JEHCCU0140CM3	2	1,80	1,50	1,67	N/A	1,88	N/A	TAJ4517Z	4,52	0,475		400V/3~50Hz	2,94	2,37	2,96	N/A	18	10	2700	4,5	5/8"	3/8"	1101	444	662	67	34
	JEHCCU0150CM1	2	1,78	1,77	1,78	N/A	N/A	1,57	MTZ18-5VM	5,26	0,95	Oil B'	230V/1~50Hz	7,08	6,89	7,03	5,23	40	12	2700	4,5	5/8"	3/8"	1101	444	662	68	37
	JEHCCU0150CM3	2	1,81	1,83	1,85	N/A	N/A	1,71	MTZ18-4VM	5,26	0,95		400V/3~50Hz	3,23	2,99	3,06	2,47	20	10	2700	4,5	5/8"	3/8"	1101	444	662	68	37
	JEHCCU0225CM1	2	1,86	1,85	1,86	N/A	N/A	1,81	MTZ28-5VM	8,36	0,95		230V/1~50Hz	11,40	9,94	10,45	8,28	51	20	2700	4,5	5/8"	3/8"	1101	444	662	70	38
	JEHCCU0225CM3	2	1,90	1,92	1,93	N/A	N/A	1,82	MTZ28-4VM	8,36	0,95		400V/3~50Hz	4,52	4,15	4,28	3,35	23	10	2700	4,5	5/8"	3/8"	1101	444	662	70	38
	JEHCCU0300CM1	2	1,90	1,80	1,80	N/A	N/A	1,91	MTZ36-5VM	10,52	0,95		230V/1~50Hz	15,66	12,14	12,60	10,68	60	25	2700	4,5	3/4"	3/8"	1101	444	662	72	39
	JEHCCU0300CM3	2	1,94	1,87	1,87	N/A	N/A	1,95	MTZ36-4VM	10,52	0,95		400V/3~50Hz	5,46	4,99	5,17	3,64	30	10	2700	4,5	3/4"	3/8"	1101	444	662	72	39
	JEHSCU0200CM1	2	2,25	2,13	1,88	1,96	1,96	1,85	ZB15KQE-PTD	5,90	1,24	400V/3~50Hz	230V/1~50Hz	7,68	8,10	8,98	5,45	58	16	2700	4,5	3/4"	3/8"	1101	444	662	70	33
	JEHSCU0200CM3	2	2,06	2,07	1,81	1,96	1,96	2,12	ZB15KQE-PTD	5,90	1,24		230V/1~50Hz	3,51	3,43	3,65	2,94	26	10	2700	4,5	3/4"	3/8"	1101	444	662	70	33
	JEHSCU0250CM1	2	2,00	2,01	1,79	1,87	1,87	2,14	ZB19KQE-PTD	6,80	1,30		230V/1~50Hz	9,87	9,70	10,35	6,24	61	16	2700	4,5	3/4"	3/8"	1101	444	662	72	34
	JEHSCU0250CM3	2	2,07	1,95	1,79	1,87	1,87	2,13	ZB19KQE-PTD	6,80	1,34		230V/1~50Hz	4,75	4,41	4,71	3,36	32	10	2700	4,5	3/4"	3/8"	1101	444	662	72	34
	JEHSCU0300CM1	2	1,88	1,89	1,69	1,79	1,79	2,13	ZB21KQE-PTD	8,60	1,45		230V/1~50Hz	12,83	12,32	13,13	7,44	82	20	2700	4,5	3/4"	3/8"	1101	444	662	74	36
	JEHSCU0300CM3	2	1,94	1,86	1,65	1,79	1,79	2,10	ZB21KQE-PTD	8,60	1,45		230V/1~50Hz	4,97	4,80	5,06	3,75	40	10	2700	4,5	3/4"	3/8"	1101	444	662	74	36
	JEHSCU0350CM3	2	2,61	N/A	N/A	2,28	2,28	2,08	ZB26KQE-PTD	9,90	1,5		400V/3~50Hz	6,43	N/A	N/A	4,28	46	10	2700	4,5	3/4"	3/8"	1101	444	662	74	36
	JEHSCU0400CM3	3	1,36	3,73	3,48	3,08	3,08	2,29	ZB29KQE-PTD	11,30	1,36		400V/3~50Hz	8,20	8,20	6,31	5,20	50	16	4250	7,6	7/8"	1/2"	1353	575	872	79	37
	JEHSCU0500CM3	3	3,08	3,16	3,05	2,92	2,92	2,69	ZB38KQE-PTD	14,40	2,07		400V/3~50Hz	9,11	8,30	8,40	6,57	65,5	16	4250	7,6	7/8"	1/2"	1353	575	872	123	38
	JEHSCU0600CM3	3	3,08	3,15	3,09	2,90	2,90	2,63	ZB45KQE-PTD	17,10	1,89		400V/3~50Hz	9,56	8,62	9,21	6,87	74	16	4100	7,6	1-1/8"	1/2"	1353	575	872	125	40
	JEHSCU0660CM3	3	3,04	2,90	2,87	2,62	2,62	2,57	ZB48KQE-PTD	18,80	1,8		400V/3~50Hz	12,33	11,50	11,80	8,67	101	20	4100	7,6	1-1/8"	1/2"	1353	575	872	126	40
	JEHSCU0660CM3	4	3,35	3,08	2,93	2,83	2,83	3,04	ZB58KQE-PTD	22,10	2,5		400V/3~50Hz	13,00	12,57	12,33	12,41	95	20	8500	13,6	1-1/8"	3/4"	1348	641	1727	222	43
	JEHSCU1000CM3	4	3,15	2,71	2,73	2,77	2,77	3,29	ZB76KQE-PTD	29,10	3,2		400V/3~50Hz	16,20	15,67	15,76	12,90	118	25	8500	13,6	1-3/8"	3/4"	1348	641	1727	226	43

* Refer to condition: Outside ambient temperature= 32°C. Evaporation temperature = -10°C (medium temperature application).
" MFA = Maximum Fuse Amps
Sound pressure level measured in anechoic room
^1 Oil A = Unigema Emkarate RL32CF
Oil B = Polyester oil 160PZ
^1 Oil C = Polyester oil (Copeland Ultra 22 CC, Copeland Ultra 32 CC, Copeland Ultra 32-3MAF, Mobil EAL ^TM Arctic 22 CC, Uniqema Emkarate RL32CF)
Note: condensing units are pre-charged with oil as stated in table

O-CU06-AUG17-3

All specifications are subjected to change by the manufacturer without prior notice. The English text is the original instruction. Other languages are the translations of the original instructions.

ENGLISH

Low Temperature

Model		Series	COP/SEPR					Compressor			Oil type	Electrical Data					Airflow (m^3/h)	Receiver	Connection		Dimensions		Weight(kg)	Sound pressure dB(A^2) at 10 motor
			R404A	R407A	R407F	R448A	R448A		Type	Displacement (m^3/h)	Oil Charge(Liter)								Volume(Liter)	Suction(Inch)	Liquid(Inch)	Width(mm)	Depth(mm)	Height(mm)
Low temperature	JEHCCU0115CL1 1 0,96		N/A	N/A	N/A	N/A CA12446Z 4,55 0,887 Oil A						"	230W/1~/50Hz	4,00	N/A	30	10	1300	2,4	3/8"	1/4"	876	420	607	57	31
	JEHSCU0200CL3	2	0,97	0,89	0,93	0,86	0,86	ZF06K4E-TFD	5,9	1,3	Oil C	400V/3~/50Hz	3,30	3,22	26	10	2700	4,5	3/4"	3/8"	1101	444	662	76	32
	JEHSCU0300CL3	2	1,09	0,85	0,91	0,92	0,92	ZF09K4E-TFD	8,0	1,5		400V/3~/50Hz	4,40	4,39	40	10	2700	4,5	3/4"	3/8"	1101	444	662	78	33
	JEHSCU0400CL3	3	1,88	1,67	1,65	1,67	1,67	ZF13K4E-TFD	11,8	1,9		400V/3~/50Hz	5,79	5,39	51,5	10	4250	7,6	7/8"	1/2"	1353	575	872	132	37
	JEHSCU0500CL3	3	1,79	1,67	1,64	1,53	1,53	ZF15K4E-TFD	14,5	1,9		400V/3~/50Hz	7,59	6,58	64	16	4250	7,6	7/8"	1/2"	1353	575	872	132	39
	JEHSCU0600CL3	3	1,80	1,52	N/A	1,53	1,53	ZF18K4E-TFD	17,1	1,9		400V/3~/50Hz	8,51	7,00	74	16	4250	7,6	7/8"	1/2"	1353	575	872	133	41
	JEHSCU0750CL3	4	1,82	1,51	N/A	1,64	1,64	ZF25K5E-TFD	21,4	1,9		400V/3~/50Hz	9,15	8,75	102	16	5750	13,6	1-1/6"	1/2"	1348	605	1727	203	41
	JEHSCU0950CL3 EVI	4	1,79	1,76	1,63	1,76	1,76	ZF18KVE-TFD-EVI	17,1	1,9		400V/3~/50Hz	8,50	8,10	74	16	5870	13,6	7/8"	1/2"	1348	605	1727	200	37

^a Refer to condition: Outside ambient temperature=32°C, Evaporation temperature = -35°C (low temperature application)
b MFA = Maximum Fuse Amps
^c Sound pressure level measured in anechoic room
^1 Oil A = Unigenna Emkarale RL32CF
Oil C = Polyester oil (Copeland Ultra 22 CC. Copeland Ultra 32 CC. Copeland Ultra 32-3MAF. Mobil EAL™ Arctic 22 CC. Uniqema Emkarate RLS2CF)
Note: condensing units are pre-charged with oil as stated in table

O-CU06-AUG17-3

12

All specifications are subjected to change by the manufacturer without prior notice. The English text is the original instruction. Other languages are the translations of the original instructions.

ENGLISH

10. Outline drawings

Series 1

Series 2

Series 3

Series 4

Medium Temperature

940 522 1271 1348 560 641

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

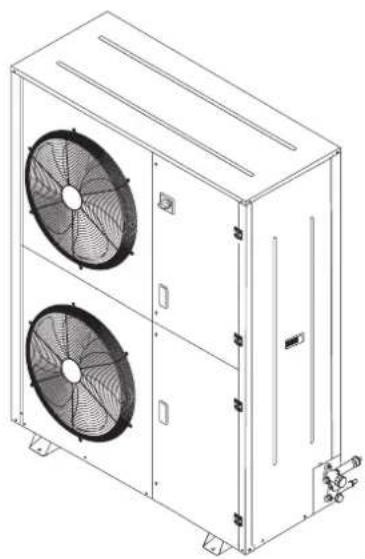

Technical line drawing of a dual-panel air conditioning unit with fans and cooling fins (no text or symbols)

Low Temperature

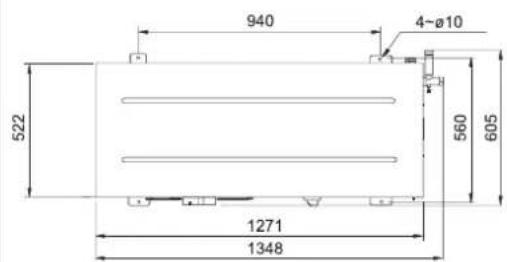

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension annotations (no text or symbols on the fan itself)

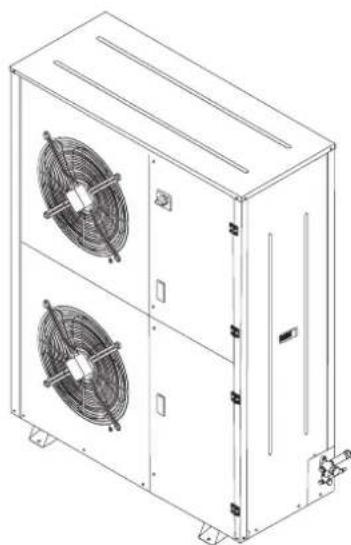

Technical line drawing of a dual-panel industrial cooling unit with two fans (no text or symbols)

11. Electrical Data

Important Note: All wiring and connections to the condensing unit must be made in accordance to the local codes.

Single Phase

JEHCCU0040CM1; JEHCCU0050CM1

F1U 3.15A BRN BLU BRN BRN S1PH K1M 21 22 ORG E1HC S1PL 4 HP GRN/YLW GRN/YLW S1P 1 GRN/YLW S1P 3 BLK BLU BRN BRN Q1M: OVERLOAD MOTOR PROTECTOR S1PH: HIGH PRESSURE SWITCH 1 S1P: PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER Q1M: OVERLOAD MOTOR PROTECTOR S1PH: HIGH PRESSURE SWITCH 1 S1P: PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER BEICCU0050CM1 6.0 JEHCCU0040CM1 4.0 JEHCCU0050CM1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 B1 BLU BLU BRN BRN BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/THEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/HEAT/IEC M1C M1~ C1 S R M1F M1~

JEHCCU0051CM1; JEHCCU0063CM1; JEHCCU0077CM1

F1U 3.15A BRN BLU BRN BRN K1M 1 3 5 2 4 6 BRN BLU BRN S1P GRN/YLW S1PL 4 HP 1 GRN/YLW ORG E1HC B1 1 3 5 2 4 6 BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN M1C 1~ GRN/YLW C1 S R C3 C3R M1F BRN/YPW BLU/YPW BLU/YPW BLU/YPW BLU/YPW BLU/YPW BLU/YPW B1: MOTOR CIRCUIT BREAKER S1PH: HIGH PRESSURE SWITCH K1M: CONTACTOR S1P: PRESSURE SWITCH K1R: START RELAY S1PL: LOW PRESSURE SWITCH F1U: FUSE E1HC: CRANKCASE HEATER C1: COMPRESSOR START CAPACITOR C2: COMPRESSOR RUN CAPACITOR C3: FAN CAPACITOR M1C: COMPRESSOR M1F: CONDENSER FAN Q1M: OVERLOAD MOTOR PROTECTOR

JEHCCU0067CM1; JEHCCU0095CM1; JEHCCU0100CM1; JEHCCU0113CM1, JEHCCU0115CL1

F1U 3.15A BRN BLU BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN (220-240V 50Hz) L N ~ 220-240V 50Hz B1 1 3 5 2 4 6 PE K1M 1 3 5 2 4 6 BLU BRN BLU BRN BLU BLK C1 BLK BLU Q1M BRN RED BLK BLU S C R GRN/YLW M1~ M1C BRN/YLW GRN/YLW BLK BLU BLK C3 BLK M1~ GRN/YLW M1F BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

JEHCCU0140CM1

F1U 3.15A BRN BLU BRN K1M (1) BLU 3 (2N) BLU C2 BLU C1 BLK BRN RED A/S P/R C/C M 1~ M1C M1- GRN/YLW M1~ GRN/YLW Q1M BRN ALM GRY S1PH HP GRN/YLW S1PL ORG MAX 50 VA BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK M1C M1- M1F M1- M1C=9.04A MOC=0.85A LRC=4.25A NOTE: REMOVE LINK 2 TO 1 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING (:) TERMINAL IN COMPRESSOR ELECTRICAL BOX B1: MOTOR CIRCUIT BREAKER K1M: CONTACTOR F1U: FUSE K1R: START RELAY C1: START CAPACITOR C2: RUN CAPACITOR C3: FAN CAPACITOR M1C: COMPRESSOR M1F: CONDENSER FAN A1P: FAN SPEED CONTROLLER S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER Q1M: EXTERNAL OVERLOAD PROTECTOR 220-240V 1~ 50Hz B1 L N PE K1R M1C NO. VALUE (A) JEHR/JEHCCU0140B(C)M1 10,0

JEHCCU0150CM1, JEHCCU0225CM1, JEHCCU0300CM1

F1U 3.15A BRN BLU BRN 1 3 K1 2 4 BRN K1M 14 13 BRN 1 3 K1R C1 C2 BLU S BLU BRN BRN/YLW BRN/YLW M 1~ M1C GRN/YLW M 1~ M1F ALM GRY BRN 5 S1PH HRP GRN/YLW LP S1PL BLK BLK MAX 50 VA 4 3 K1M BLK BLK BLU N3 N2 BLU N1 E1HC B1 1 3 5 6 2 4 PE L N 220-240V 1~50Hz MODEL VALUE (A) JEHR/JEHCCU0150B(C)M1 10.0 JEHR/JEHCCU0225B(C)M1 18.0 JEHR/JEHCCU0300B(C)M1 22.0 JEHR/JEHCCU0175B(C)L1 10.0 JEHR/JEHCCU0225B(C)L1 17.5 NOTE: REMOVE LINK 4 TO 3 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING B1: MOTOR CIRCUIT BREAKER K1M: CONTACTOR F1U: FUSE K1R: START RELAY C1: START CAPACITOR C2: RUN CAPACITOR C3: FAN CAPACITOR M1C: COMPRESSOR M1F: CONDENSER FAN A1P: FAN SPEED CONTROLLER S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER

JEHSCU0200CM1, JEHSCU0250CM1, JEHSCU0300CM1

F1U 3.15A BRN BLU BRN 1 3 K1M BRN 14 13 BRN 1 BRN C1 BRN BLK BLU PE BRN R S C M 1~ GRN/YLW M1C M1F ALM GRY BRN 5 S1PH HP LP GLK GRN/YLW BLK E1HC GRN/YLW BLK MAX 50 VA S1PL BLK BLK BLK A1P BRN/ YLW BRN/ YLW A1M BRN/ YLW BLU N3 N2 BLU N1 NOTE: REMOVE LINK 4 TO 3 BEFORE CONNECTING TO CONTROLLER. --- IS THE FIELD WIRING B1: MOTOR CIRCUIT BREAKER A1P: FAN SPEED CONTROLLER K1M: CONTACTOR S1PH: HIGH PRESSURE SWITCH F1U: FUSE S1PL: LOW PRESSURE SWITCH C1: RUN CAPACITOR C2: FAN CAPACITOR E1HC: CRANKCASE HEATER M1C: COMPRESSOR M1F: CONDENSER FAN

Three Phase

JEHCCU0140CM3

F1U 3.15A BRN BLU BRN K1M 14 13 (5) BRN ALM GRY 3 S1PH 21 22 P HP LP GRN/YLW ORG E1HC L1 L2 L3 N 380-415V 3N~ 50Hz Q1M BLK Q2M BRN/YLW A/S C/C BRN Q3M M1C MOC=3.58A M1F MOC=0.85A LRC=4.25A NOTE: REMOVE LINK 2 TO 1 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING ( : ) TERMINAL IN COMPRESSOR ELECTRICAL BOX B1: MOTOR CIRCUIT BREAKER K1M: CONTACTOR F1U: FUSE Q1M: EXTERNAL OVERLOAD PROTECTOR Q2M: EXTERNAL OVERLOAD PROTECTOR Q3M: INTERNAL OVERLOAD PROTECTOR C3: FAN CAPACITOR M1C: COMPRESSOR M1F: CONDENSER FAN A1P: FAN SPEED CONTROLLER S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER MODEL VALUE (A) JEHR/JEHCCU0140B(C)M3 4.0

JEHCCU0150CM3, JEHCCU0225CM3, JEHCCU0300CM3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE 2 4 6 13 BRN BLK GRY 2 4 6 M 3~ GRN/YLW M1C M1F ALM GRY S1PH BRN/ YLW LP BLK BLK MAX 50 VA S1PL 4 3 A1 K1M A2 BLU BLU N3 N2 N1 E1HC NOTE REMOVE LINK 4 TO 3 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING B1: MOTOR CIRCUIT BREAKER K1M: CONTACTOR F1U: FUSE C1: FAN CAPACITOR M1C: COMPRESSOR M1F: CONDENSER FAN A1P: FAN SPEED CONTROLLER S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER JHER/CCU0150B(C)M3 4,5 JEHR/CCU0225B(C)M3 7,0 JEHR/CCU0300B(C)M3 8,0 JEHR/CCU0175B(C)L3 4,5 JEHR/CCU0225B(C)L3 8,0

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE B1 1 2 3 4 5 6 T1 L1 L2 L3 N 380-415V 3N~ 50Hz BRN BLK GRY GRI BRN BRN/YLW T2 T3 M 3~ GRN/YLW M1C M1F ALM GRY BRN S1PH HRP GRN/YLW LP EPL BLK MAX 50 VA S1PL BLK 4 3 A1 K1M BLK A2 BLU N3 N2 BLU N1 B1HC GRN/YLW NOTE: REMOVE LINK 4 TO 3 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING B1: MOTOR CIRCUIT BREAKER K1M: CONTACTOR F1U: FUSE C1: FAN CAPACITOR M1C: COMPRESSOR M1F: CONDENSER FAN A1P: FAN SPEED CONTROLLER S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN B1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 K1M BRN BRN/ YLW BRN/ YLW M1C M1F M3~ T1 T2 T3 PE BRN BLK GRY BRN/ YLW ALM GRY BRN S1PH HP GRN/YLW BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 380-415V 3N~ 50Hz MODEL VALUE (A) JEHS/JEHSCU0400B3(C)M3 11,0 JEHS/JEHSCU0500B3(C)M3 14,0 JEHS/JEHSCU0600B3(C)M3 14,0 JEHS/JEHSCU0680B3(C)M3 15,0 JEHS/JEHSCU0400B3(C)L3 10,0 JEHS/JEHSCU0500B3(C)L3 12,0 JEHS/JEHSCU0600B3(C)L3 14,5 NOTE: REMOVE LINK 4 TO 3 BEFORE CONNECTING TO CONTROLLER. --- IS THE FIELD WIRING. A1P: FAN SPEED CONTROLLER M1C: COMPRESSOR B1: MOTOR CIRCUIT BREAKER M1F: CONDENSER FAN C1: FAN CAPACITOR R1T: LIQUID LINE TEMPERATURE SENSOR E1HC: CRANKCASE HEATER S1PH: HIGH PRESSURE SWITCH F1U: FUSE S1PL: LOW PRESSURE SWITCH K1M: CONTACTOR

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY GRY BRN M1F (TOP) M1C BRN C2 BLK GRN/YLW GRY GRY BRN M2F (BOTTOM) ALM S1PL BRN A1P GRN/YLW MAX 50 VA S1PH 4 HP LP GRN/YLW E1HC BRN/YLW N1 N2 BLU N3 NOTE: REMOVE LINK 17 TO 18 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING A1P: FAN SPEED CONTROLLER K1M: CONTACTOR B1: MOTOR CIRCUIT BREAKER M1C: COMPRESSOR C1, C2: FAN CAPACITOR M1F & M2F: CONDENSER FAN E1HC: CRANKCASE HEATER S1PH: HIGH PRESSURE SWITCH F1U: FUSE S1PL: LOW PRESSURE SWITCH BEHSCU-0800-B4(C)-M-3 17A JEHS&JEHSCU-1000-B4(C)-M-3 22A

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN K1M 13 BRN 14 BRN 13 K1M 1 2 14 BRN/YLW A1P GRN/YLW BRN C1 BRN/YLW BRN C2 BRN/YLW M1~ M2F BLU MAX 50 VA S1PH GRN/YLW ALM GRY 4 3 BRN S1PL BLK To E1HC GRN/YLW A1P: FAN SPEED CONTROLLER B1: MOTOR CIRCUIT BREAKER C1: FAN CAPACITOR BOTTOM C2: FAN CAPACITOR TOP E1HC: CRANKCASE HEATER F1U: FUSE K1M: CONTACTOR NOTE: REMOVE LINK 17 TO 18 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING M1F: CONDENSER FAN BOTTOM M2F: CONDENSER FAN TOP M1C: COMPRESSOR S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH To: DISCHARGE THERMOSTAT BEHSC-415V 3N~ 50Hz L1 L2 L3 N PE GRN/YLW M1C GRY BLK GRY BLK BRN/YLW A1P MRN/YLW M1F BLU M1~ M2F BLU N1 N2 N3

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN BRN 14 13 R1T R2T STINP 1 3 4 5 6 7 8 9 10 11 12 A2P 22 32 4 FR485 grnd D103 SP IL OR VT WNT 1 2 3 4 5 6 7 8 9 10 11 12 BRN 11 K1R 14 BRN M Y1E 21 K1R 24 BRN BRN BRN/YLW M 3~ M1C S1PC ALM MAX 50 VA BRN BRN BLK BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRB A1P C2 BLO BRN BLO BLK BLK BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU

12. Appendix

CHECKLIST BEFORE START-UP

No.	Description	Record
1	Is the unit in good condition and without any visible damage?	☐ Yes
2	Has the unit been transported in upward position?	☐ Yes
3	Is the crankcase oil level between 1/4 and 3/4 of the compressor sight glass?	☐ Yes
4	Is the power supply on site in line with the unit specification?	☐ Yes
5	Is air short circuit and/or air blockage avoided?	☐ Yes
6	Is the location well ventilated?	☐ Yes
7	Is there sufficient space for air flow and maintenance?	☐ Yes
8	Is all the pre-charged nitrogen released before the field pipe connection started?	☐ Yes
9	Has nitrogen been blown through the pipes during brazing?	☐ Yes
10	Is there only 1 indoor unit connected to the CDU?	☐ Yes
11	Does the field piping has the same diameter as the pipes coming from the CDU?	☐ Yes
12	Is the suction pipe insulated?	☐ Yes
13	Does the bends have enough bending radius?	☐ Yes
14	Is the total pipe length less than 25 m?	☐ Yes
15	Is the height difference within the specifications? [Refer page 7]	☐ Yes
16	Are the oil traps in the vertical suction line correctly positioned? [Refer page 3]	☐ Yes
17	Does the CDU capacity matches the indoor unit capacity?	☐ Yes
18	Does the TXV capacity matches the indoor unit capacity?	☐ Yes
19	Is the TXV sensing bulb fixing in good position/condition?	☐ Yes
20	Is there a MOP expansion valve installed? [Refer page 3]	☐ Yes
21	Was inert, dry gas (e.g. Nitrogen) used when pressure testing?	☐ Yes
22	Could the leak test pressures be reached?	☐ Yes
23	Did the test pressure stayed stable after at least 24 hours?	☐ Yes
24	Could the vacuum condition (< -0.1 barg for 2 hours) be reached?	☐ Yes
25	Did the pressure stayed stable for at least 1 hour, when turning off the vacuum pump?	☐ Yes
26	Is the high/low pressure safety on the pressure switch set correctly? [Refer page 4]	☐ Yes
27	Is the fan speed controller set correctly? [Refer page 4]	☐ Yes
28	Is the correct circuit breaker been used?	☐ Yes
29	Is there an earth connection foreseen?	☐ Yes
30	Are all terminal connections good/tight connected?	☐ Yes
31	Is the crankcase heater been energized for minimum 12 hours before start up?	☐ Yes
32	Is the refrigerant correct for intended use?	☐ Yes
33	Is the high pressure above the minimum limit when charging the system? [Refer page 5]	☐ Yes
34	Is the refrigerant charge amount correct (clear sight glass)?	☐ Yes

Remarks: The system may only be started up if all questions can be answered with "Yes".

CHECKLIST BEFORE COMMISSIONING

No.	Description	Record
1	Is the suction pressure decreasing and the discharge pressure increasing?	☐ Yes
2	Is the compressor rotation (only for scroll type) correct (no abnormal noise)?	☐ Yes
3	Is the crankcase oil level between 1/4 and 3/4 of the compressor sight glass? (after 3 or 4 hours of operation)	☐ Yes
4	Is the discharge temperature within the limits (between 50 °C and 90 °C)?	☐ Yes
5	Is the suction superheat within the limits (between 5K and 20K) during normal operation?	☐ Yes
6	Is the suction superheat within the limits (between 5K and 20K) after defrost operation?	☐ Yes
7	Is the running current below isolator setting value?	☐ Yes
8	Is warm air blowing out from the condenser fan?	☐ Yes
9	Is the compressor On/Off cycle within the specification? [Refer page 4]	☐ Yes

Remarks: The system may only be handed over to user/owner if all questions can be answered with "Yes".

Additional advice:

1. Do not leave the system unattended until the system has reached its normal operating condition and the oil charge has properly adjusted itself to maintain the proper level in the sight glass.
2. Check periodically the compressor performance and all the moving components during the first day of operation.
3. Check the liquid line sight glass and expansion valve operation. If there is an indication that the system is low on refrigerant, thoroughly check the system for leaks before adding refrigerant.

SITE RECORDINGS

Customer name	:	Field Settings
Installer name	:	Pressure switch settings	:
Installation date	:	Cut Out (High Side)	:
		Cut In (Low Side)	:
Unit model name	:	Differential (Low Side)	:
Unit serial number	:
		Fan speed controller setting	:
Indoor unit	:
Expansion valve	:	Running conditions
		Discharge temperature	:
Refrigerant type	:	Suction superheat normal operation	:
Ambient temp.	:	Minimum suction superheat after defrost operation	:
Thermostat setting	:
		Running current before defrost	:
Unit location/Field piping		Running current after defrost	:
Piping length	:	Suction pressure (Pe)	:
Position of CDU	:Above/below indoor unit	Liquid line pressure (Pc)	:
Height difference	:

J&E Hall International for DAIKIN

Installationshandbuch

Bedienungsanleitung

Diagram of two air conditioning units with fan blades, connected by lines (no text or symbols)

FALSCH!

Technical line drawing of two air conditioning units connected by a pipe, labeled 'RICHITIGI' below (no other text or symbols)

RICHTIG!

At condition of Te -35°C, Ta +32°C

Refrigerant R404A

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

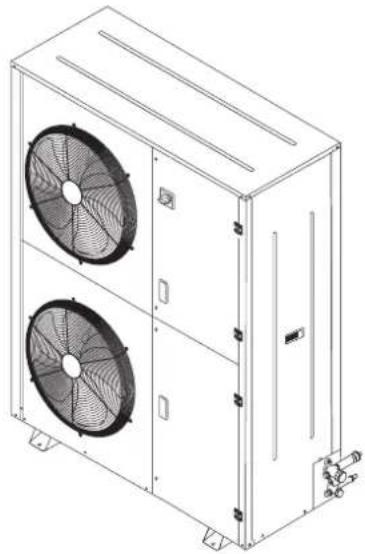

Technical line drawing of a dual-panel air conditioning unit with two fans (no text or symbols)

Niedrige Temperatur

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension lines (no text or symbols)

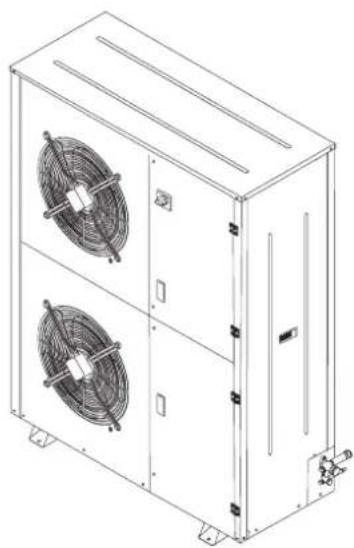

Technical line drawing of a dual-panel air conditioning unit with two fans (no text or symbols)

11. Elektro-Daten

F1U 3.15A BRN BLU BRN K1M 1 BLU 3 (1) (2N) BLU C2 BLU C1 BLK BLR Q1M BLK BLU BLR BLK A/S RED P/R C/C M 1~ M1C M1F GRN/YLW M1~ GRN/YLW MOC=0.85A LRC=4.25A ALM GRY 3 BRN S1PH HP GRN/YLW LP S1PL 2 MAX 50 VA S1C BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK

JEHCCU0150CM1, JEHCCU0225CM1, JEHCCU0300CM1

F1U 3.15A BRN BLU BRN K1 1 3 BRN 14 13 K1M BRN BRN K1R C1 2 4 BLU BRN C2 5 1 S BLU BRN BRN/YLW BRN/YLW M1~ M1C M1F ALM GRY 4 3 S1PH HP LP GRN/YLW S1PL BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK

JEHSCU0200CM1, JEHSCU0250CM1, JEHSCU0300CM1

F1U 3.15A BRN BLU BRN K1M 1 3 4 BRN 14 13 BRN 1 2 3 4 BRN 1 2 3 4 BRN 1 2 3 4 BRN 14 13 BRN 14 13 BRN 14 13 BRN 14 13 BRN 14 13 BRN 14 13 BRN 14 13 BRN 14 13 BRN 14 13 BRN 14 13 BRN 14 13 BRN 14 13

Dreiphasig

JEHCCU0140CM3

F1U 3.15A BRN BLU BRN K1M 14 13 (5) BRN ALM GRY 3 S1PH 21 22 Pd HP 1 GRN/YLW LP Px ORG E1HC Q1M BRN/YLW BRN/YLW BRN BLK MAX 50 VA S1PL BLK ORG Q1M BRN/YLW BRN/YLW Q3M (6) (7) BRN BLK (8) BLU C3 (4) M1F MOC=0.85A LRC=4.25A M1C MOC=3.58A M1F MOC=0.85A LRC=4.25A ANMERKUNG: VOR DEM ANSCHLUSS AN DEN REGLER ANSCHLUSSPUNKTE 2 BIS 1 ENTFERNIEN --- IS TIE AUSSENVERDRAHTUNG ( ) KLEMME IM SCHALTKASTEN DES KOMPRESSORS C3 GEBLÄSEKONDENSATOR B1: HAPPTTRENNSCHALTER DES MOTORS M1C KOMPRESSOR K1M: KONTAKTGEBER M1F GEBLÄSE DES VERFLÜSSIGERS FU: SICHERUNG A1P GEBLÄSEDREHZAHL-CONTROLLER Q1M: EXTERNER ÜBERLASTSCHUTZ S1PH: HOCHDRUCKSCHALTER Q2M: EXTERNER ÜBERLASTSCHUTZ S1PL: NIEDERDRUCKSCHALTER Q3M: INTERNER ÜBERLASTSCHUTZ E1HC: KURBELGEHÄUSEHEIZUNG EINSTELLUNG, B1 MODELL WERT (A) JEHR/JEHCCU0140B(C)M3 4,0

JEHCCU0150CM3, JEHCCU0225CM3, JEHCCU0300CM3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 2 4 6 PE BRN BLK GRY M 3~ GRN/YLW M1C M1F ALM GRY S1PH HRP GRN/YLW S1PL BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 6 2 4 GRY 14 PE BRN T1 T2 T3 M 3~ GRN/YLW M1C M1F ALM GRY 4 HP LP S1PL BLK S1PH GRN/YLW 4 3 A1 K1M BLK A2 BLU N3 N2 BLU N1 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 B51 B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 ANMERUNG: VOR DEM ANSCHLUSS AN DEN REGLER ANSCHLUSSPUNKTE 4 B/S 3 ENTFERNEN --- IST DIE AUSSEVERDRAHTUNG B1: HAUPTTRENNSCHALTER DES MOTORS KIM: KONTAKTGEBER F1U: SICHERUNG C1: GEBLÄSEKONDENSATOR MIC: KOMPRESSOR MIF: GEBLÄSE DES VERFLÜSSIGERS AIP: GEBLÄSEDREDAHL-CONTROLLER S1PH: HOCHDRUCKSCHALTER S1PL: NIEDERDRUCKSCHALTER E1HC: KURBELGEHÄUSEHEIZUNG

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN K1M 14 13 L N B1 1 3 5 14 2 4 6 PE BRN BLK GRY 13 T1 T2 T3 M 3~ GRN/YLW M1C EINSTELLUNG, B1 MODELL WERT (A) JEHS/JEHSCU0400B3(C)M3 11,0 JEHS/JEHSCU0500B3(C)M3 14,0 JEHS/JEHSCU0600B3(C)M3 14,0 JEHS/JEHSCU0680B3(C)M3 15,0 JEHS/JEHSCU0400B3(C)L3 10,0 JEHS/JEHSCU0600B3(C)L3 12,0 JEHS/JEHSCU0600B3(C)L3 14,5 FRS L1 L2 L3 N 380-415V 3N~ 50Hz BRN BLK GRY K1M R1" GND BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLk ALM GRY BRN S1PH GRN/YLW ALM GLP LP S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL s1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls ANMERUNG: VOR DEM ANSCHLUSS AN DEN REGLER ANSCHLUSSPUNKTE 4 BIS 3 ENTFERNEN MIF: KOMPRESSOR AIP: GEBLASEDREHZahl-CONTROLLER MIF: GEBLASE DES VERFLÜSSIGERS B1: HAUPTTRENNSCHALTER DES MOTORS RIT: TEMPERATURSENSOR DER FLÜSSIGKEITSLEITUNG C1: GEBLASEKONDENSATOR EHC: KURBELGEHÄUSEHEZUNG S1PH: HOCHORUCKSCHALTER F1U: SICHERUNG S1PL: NIEDERORUCKSCHALTER KIM: KONTAKTGEBER

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY BRN M1F (TOP) M1M BRN C2 BLK GRN/YLW GRY BRN M2F (BOTTOM) ALM S1PH GLP GRN/YLW ALM S1PL BRN A1P GRN/YLW MAX 50 VA BLK E1HC GRN/YLW BLK N1 N2 N3 ANMERKUNG: VOR DEM ANSCHLUSS AN DEN REGLER ANSCHLUSSPUNKTE 17 BIS 18 ENTFERNEN --- IST DIE AUSSENDERDAHTUNG A1P: GEBLÄSEDREHZahl-CONTROLLER B1: HAUPTTRENNSCHALTER DES MOTORS C1, C2: GEBLÄSEKONDENSATOR E1HC: KURBELGEHÄUSEHEIZUNG F1U: SICHERUNG K1M: KONTAKTGEBER M1C: KOMPRESSOR M1F & M2F: KOMPRESSORGEBLÄSE S1PH: HOCHDRUCKSCHALTER S1PL: NIEDERDRUCKSCHALTER E1HC GRN/YLW BLK N3 EINSTEELLUNG, B1 MODELL WERT (A) JEHS&JEHSCU-0800-B4(C)-M-3 17A JEHS&JEHSCU-1000-B4(C)-M-3 22A

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN K1M 13 BRN 14 BRN 13 K1M 14 BRN 13 K1M 14 BRN 13 K1M 14 BRN 13 K1M 14 BRN 13 K1M 14 BRN 13 K1M 14 BRN 13 K1M 14 BRN 13 K1M 14 BRN 12 BRN 13 BRN 13 BRN 13 BRN 12 BRN 13 BRN 13 BRN 12 BRN 13 BRN 13 BRN 12 BRN 13 BRN 13 BRN 12 BRN 13 BRN 13 BRN 12 BRN 13 BRN 13 BRN 12 BRN 13 BRN (L1 L2 L3 N 380-415V 3N~ 50Hz) GRN/YLW M 3~ PE GRN/YLW M 1~ MLC BRN/YLW GRN/YLW GRN/YLW GRN/YLW GRN/YLW GRN/YLW GRN/YLW GRN/YLW GRN/YLW GRN/YLW GRN/YLW GRN/YLW GRN/YLW GRN/YLW GRN/YLW GRN/YLW GRN/YLW GRN/YLW GRN/YLW GRN/YLW GRN/YLW GRN/Y L W A M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L M A L S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S U S V I N T E R E N T E R E N T E R E N T E R E N T E R E N T E R E N T E R E N T E R E N T E R E N T E R E N T E R E N T E R E N T E R E N T E R E N T E R E N T E R E N T E R E N T E R E N T E R E N T E R E N T E R F O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O P O C K I M G R Y B R N 3 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN RED Q1R BLK BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN (14) 13 12 11 10 9 8 7 6 5 4 3 2 1 0 8 7 6 5 4 3 2 1 0 8 7 6 5 4 3 2 1 0 8 7 6 5 4 3 2 1 0 8 7 6 5 4 3 2 1 0 8 7 6 5 4 3 2 1 0 8 7 6 5 6 7 8 7 6 5 6 7 8 7 6 5 6 7 8 7 6 5 6 7 8 7 6 5 6 7 8 7 6 5 6 7 8 7 6 5 6 7 8 7 6 5 6 7 8 7 6 5 6 7 8 6 6 5,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100, BLU F2U BLK BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRB BLU F2U BLK BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Brn Br n-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-3- TIR ALM GRY S1PH GRN/YLW GRIN/YLW GRIN/YLW GRIN/YLW GRIN/YLW GRIN/YLW GRIN/YLW GRIN/YLW GRIN/YLW GRIN/YLW GRIN/YLW GRIN/YLW GRIN/YLW GRIN/YLW GRIN/YLW GRIN/YLW GRIN/YLW GRIN/YLW GRIN/YLW GRIN/YLW GRIN/YLW GRin YIe M YIE B RBN A P A B C D E F G H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W T H I N E W V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V T V BLU F2U BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLk BLkBL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL##BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL#BL*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*Bl*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb*BIb* JHES/SCU0950B4CIL3 EVI: L4.5 380~415V 3N~50Hz L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 L12 L13 L14 L15 L16 L17 L18 L19 L20 L21 L22 L23 L24 L25 L26 L27 L28 L29 L30 L31 L32 L33 L34 L35 L36 L37 L38 L39 L40 L41 L42 L43 L44 L45 L46 L47 L48 L49 L50 L51 L52 L53 L54 L55 L56 L57 L58 L59 L60 L61 L62 L63 L64 L65 L66 L67 L68 L69 L70 L71 L72 L73 L74 L75 L76 L77 L78 L79 L80 L81 L82 L83 L84 L85 L86 L87 L88 L89 L90 L91 L92 L93 L94 L95 L96 L97 L98 L99 L100 HIWA: BROCKE B DIS B IM INNEINHEIT THERMOSTAT ERSETZEN - sT das Folc Ring A P: Fan Speed Controller F U: F ZU: Sicherung K I M: Conductor K M: Reiter K M: Kompressor K M: Kondensator Fan Top M P: Kondensator Fan Q R: Erdasung Thermostat (130 °C) S I N P: Druckensor S I N C: akteler Sensor Relay S I P H: Hochdruck Schaller S I P S: Low PRESSURE Schaller Tar: Spannung Transistorator R: Entanglungs Transistorator R: Vapor Line Temperature Sensor YI:E: electronices Verwertenungs-Venti YI:S: Magnetventi

12. Anhang

CHECKLISTE VOR DEM START

J&E Hall International for DAIKIN

Diagram of two air conditioning units with fan blades, connected by lines (no text or symbols)

Diagram of two air conditioning units connected by lines, with 'CORRECT!' text below (no other symbols or labels)

Technical line drawing of a mechanical air conditioning unit with fan and control panel (no text or symbols)

27 607 65 135

Série 2

703 4~Ø11 388 408 444 1040 1101

Technical line drawing of a mechanical air conditioning unit with fan and cooling unit (no text or symbols)

Technical line drawing of a fan assembly with internal blades and mounting bracket (no text or symbols)

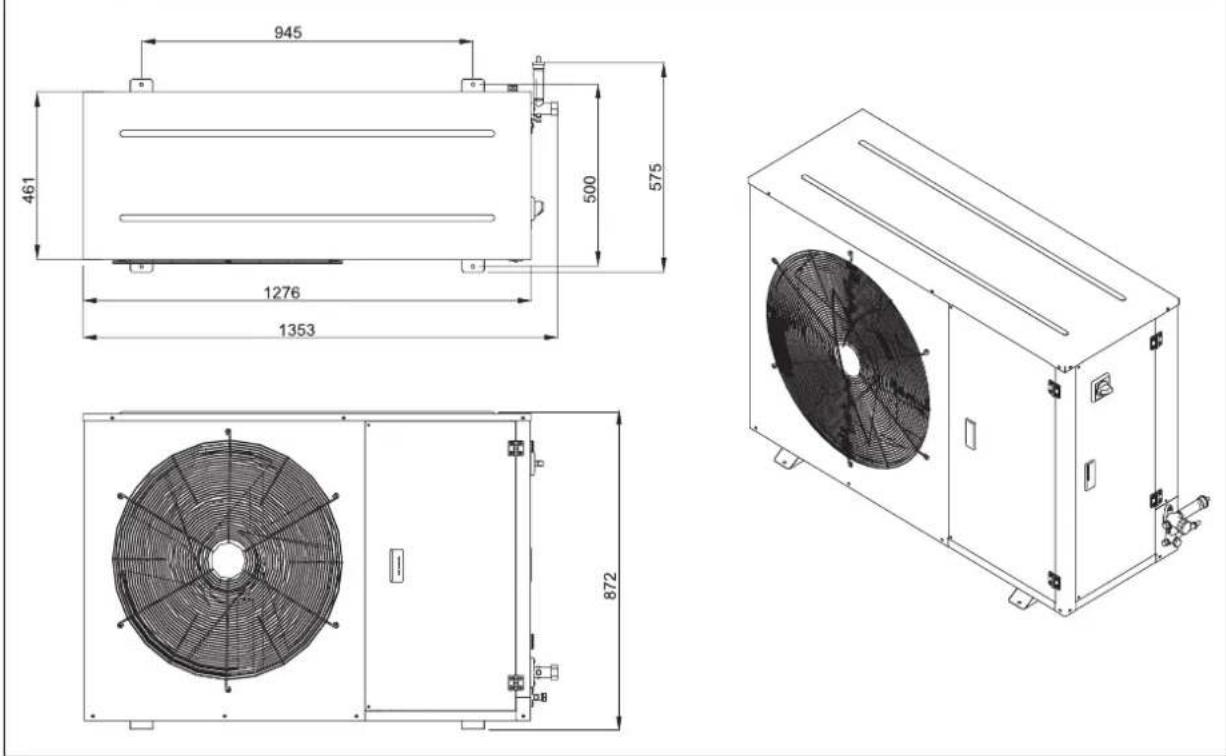

Série 3

945 461 500 575 1276 1353 872

Technical drawing of a dual fan installation with mounting holes and dimension label (no text or symbols beyond measurement markers)

Technical line drawing of a multi-level industrial air conditioning unit with two fans (no text or symbols)

Basse Température

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension lines (no text or symbols)

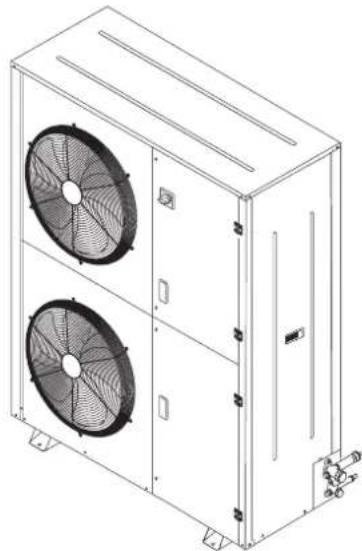

Technical line drawing of a dual-chamber HVAC unit with two fans (no text or symbols)

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 K1M 1 2 4 6 PE BRN T1 T2 T3 M 3~ GRN/YLW M1C BRN BLK BRN C1 BRN A1P GRN/YLW M1F GRN/YLW ALM GRY 4 HP LP S1PL BLK BLK S1PH GRN/YLW KL BLK K1M A1 A2 BLU BLU N3 N2 N1 B1HC GRN/YLW LEI0-415V 3N~ 50Hz REGLAGE, B1 MODELE VALEUR (A) JEHS/SCU0200B2(C)M3 5,5 JEHS/SCU0250B2(C)M3 7,0 JEHS/SCU0300B2(C)M3 7,5 JEHS/SCU0350B2(C)M3 9,5 JEHS/SCU0200B2(C)L3 5,5 JEHS/SCU0300B2(C)L3 6,5 REMARQUE: SUPPRIMER LES LIAISONS 4 À 3 AVANT LA CONNEXION AU CONTRÔLEUR ---- EST LE CÂBLAGE SUR SITE B1 : DISJONCTEUR DU MOTEUR K1M : CONTACTEUR F1U : FUSIBLE C1 : CONDENSATEUR DU VENTILATEUR M1C : COMPRESSEUR M1F : VENTILATEUR DU CONDENSATEUR A1P : RÉGULATEUR DE VITESSE DU VENTILATEUR S1PH : PRESSOSTAT HAUTE PRESSION S1PL : PRESSOSTAT BASSE PRESSION E1HC : CHAUFFAGE DU CARTER

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN K1M 14 13 BRN L N BLU BLK R1# t GND BLK BRN L1 BRN/YLW BRN/YLW M 3~ T1 T2 T3 PE BRN BRN/YLW M1C REMARQUE: SUPPRIMER LES LINSONS 4 À 3 AVANT LA CONNEXION AU CONTRÔLEUR --- EST LE CÂBLAGE SUR SITE A1P : RÉGULATEUR DE VITESSE DU VENTILATEUR B1 : DISJONCTEUR DU MOTEUR C1 : CONDENSATEUR DU VENTILATEUR E1HC : CHAUFFAGE DU CARTER F1U : FUSIBLE K1M : CONTACTEUR ALM GRY BRN S1PH GRN/YLW LP LP BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLk BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB BRB

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY GRY BRN M1F (TOP) M1C BRN C2 BLK GRN/YLW GRY GRY BRN M2F (BOTTOM) BRN BLU BRN A1P GRN/YLW BRN BRN ALM MAX 50 VA S1PL GLR LR GP LP GRN/YLW BRN BRN A1 K1M A2 BLU N1 N2 BLU N3 B1 L1 L2 L3 N 380-415V 3N~ 50Hz PE GRN/YLW M3~ REGLAGE, B1 MODELE VALEUR (A) JEHS&JEHSCU-0800-B4(C)-M-3 17A JEHS&JEHSCU-1000-B4(C)-M-3 22A REMARQUE : SUPPRIMER LES LIAISONS 17 À 18 AVANT LA CONNEXION AU CONTRÔLEUR ---- EST LE CÂBLAGE SUR SITE A1P : RÉGULATEUR DE VITESSE DU VENTILATEUR B1 : DISJONCTEUR DU MOTEUR C1, C2 : CONDENSATEUR DU VENTILATEUR E1HC : CHAUFFAGE DU CARTER F1U : FUSIBLE K1M : CONTACTEUR M1C : COMPRESSEUR M1F & M2F : VENTILATEUR DU COMPRESSEUR S1PH : PRESSOSTAT HAUTE PRESSION S1PL : PRESSOSTAT BASSE PRESSION

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN K1M 13 BRN 14 BRN 13 K1M 14 BRN 14 A1P GRN/YLW BRN 6 BRN C1 BRN M 1~ M1F GRN/YLW BLU BRN C2 BRN M 1~ M2F BLU MAX 50 VA S1PH GRN/YLW ALM GRY 3 BRN 4 HP LP BLK To 4 S1PL E1HC BRN/YLW BLK BLU N1 N2 BLU N3 REMARQUE: SUPPRIMER LES LIAISONS 17 À 18 AVANT LA CONNEXION AU CONTRÔLEUR ---- EST LE CÂBLAGE SUR SITE A1P: RÉGULATEUR DE VITESSE DU VENTILATEUR B1: DISJONCTEUR DU MOTEUR C1: BAS DU CONDENSATEUR DU VENTILATEUR C2: HAUT DU CONDENSATEUR DU VENTILATEUR E1HC: CHAUFFAGE DU CARTER F1U: FUSIBLE K1M: CONTACTEUR M1F : BAS DU VENTILATEUR DU CONDENSATEUR M2F : HAUT DU VENTILATEUR DU CONDENSATEUR M1C : COMPRESSEUR S1PH : PRESSOSTAT HAUTE PRESSION S1PL : PRESSOSTAT BASSE PRESSION À : THERMOSTAT DE DÉCHARGE RÉGLAGE, B1 MODELE VALEUR (A) JEHS&SCU-0750-B4(C)-M-3 16,5A

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN BRN 14 13 R1T R2T STINP3 131415617 A2P 222324 FRS485 gnd DHD0 BR BL 08 1E 1E 1E 1E 1E 1234156789108112 BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

12. Annexe

LISTE DE VÉRIFICATION AVANT DÉMARRAGE

J&E Hall International for DAIKIN

Diagram of two air conditioning units with fan-like heat sinks, connected by a line (no text or symbols)

Diagram of two industrial air conditioning units connected by lines, with no visible text or symbols.

$$ = 3. 7 0 7 \mathrm{kW} $$

Technical line drawing of a mechanical air conditioning unit with fan and control panel (no text or symbols)

27 607 65 135

Serie 2

703 4~Ø11 388 408 444 1040 1101

Technical line drawing of a mechanical air conditioning unit with fan and cooling unit (no text or symbols)

Technical line drawing of an air conditioning fan assembly with mounting bracket (no text or symbols)

Serie 3

945 461 500 575 1276 1353 872

Technical drawing of a dual fan assembly with mounting holes and dimension lines (no text or symbols)

Technical line drawing of a dual air conditioning unit with two fans (no text or symbols)

Lage Temperatuur

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension lines (no text or symbols)

Technical line drawing of a multi-level industrial air conditioning unit with two fans (no text or symbols)

F1U 3.15A BRN BLU BRN K1M 1 3 4 BRN 14 13 BRN 1 2 3 4 BRN C1 BRN BLU BRN R S C BRN BRN/BLW M1~ GRN/YLW M1~ GRN/YLW M1F BLU ALM GRY BRN 5 S1PH HP 1 GRN/YLW LP S1PL 4 MAX 50 VA BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK

Driefasig

JEHCCU0140CM3

F1U 3.15A BRN BLU BRN K1M 14 13 (5) BRN ALM GRY 3 S1PH 21 22 Pd HP GP LP Px GRN/YLW ORG E1HC Q1M BRN/YLW BRN/YLW BRN/YLW BRN BLK MAX 50 VA S1PL BLK BLK BLK BRN BLK BRN C3 (8) BLU (4) M1F MOC=0.85A LRC=4.25A M1C MOC=3.58A OPMERKING: VERWUDER VERBINDING VAN 2 NAAR 1 VOORDAT U AANSLUITING MAAKT OP DE CONTROLLER --- IS DE VELOBEDRAOING ( ) AANSLUITKLEM IN SCHAKELKAST VAN COMPRESSOR B1: MOTOR-CIRCUITONDERBREKER K1M: CONTACTSCHAKELAAR F1U: ZEKERING Q1M: EXTERNE OVERBELASTINGSBEVEILIGING Q2M: EXTERNE OVERBELASTINGSBEVEILIGING Q3M: INTERNE OVERBELASTINGSBEVEILIGING C3: VENTILATORCONDENSATOR M1C: COMPRESSOR M1F: VENTILATOR VAN CONDENSOR A1P: TOERENREGELAAR VENTILATOR S1PH: SCHAKELAAR HOGE DRUK S1PL: SCHAKELAAR LAGE DRUK E1HC: VERWARMER CARTER INSTEILLING, B1 MODEL WAARDE (A) JEHR/JEHCCU0140B(C)M3 4.0

JEHCCU0150CM3, JEHCCU0225CM3, JEHCCU0300CM3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE 2 4 6 13 BRN BLK GRY M 3~ GRN/YLW M1C BRN BRN ALM GRY S1PH HRP LP GRN/YLW MAX 50 VA S1PL BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN K1M 21 22 S1PH GRN/YLW ALM GRY BRN 4 HP LP S1PL BLK 4 3 A1 K1M BLK A2 BLU N3 N2 BLU N1 BRN/YLW M1C M1F M10 BRN/YLW T1 T2 T3 BRN/YLW GLR/NYLW GLR/YLW MLC OPMERKING: VERWUDER VERBINDING VAN 4 NAAR 3 VOORDAT U AANSLUITING MAAKT OP DE CONTROLLER: --- IS DE VELDBEDRADING B1: MOTOR-CIRCUITONDERBREKER K1M: CONTACTSCHAKELAAR F1U: ZEKERING C1: VENTILATORCONDENSATOR M1C: COMPRESSOR M1F: VENTILATOR VAN CONDENSOR A1P: TOERENREGELAAR VENTILATOR S1PH: SCHAKELAAR HOGE DRUK S1PL: SCHAKELAAR LAGE DRUK E1HC: VERWARMER CARTER

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN BRN K1M 14 13 L N B1 1 3 5 14 2 4 6 PE BRN BLK GRIY 13 T1 T2 T3 GRN/YLW M 3~ M1C INSTEELING, B1 MODEL WAARDE (A) JEHS/JEHSCU0400B3(C)M3 11,0 JEHS/JEHSCU0500B3(C)M3 14,0 JEHS/JEHSCU0600B3(C)M3 14,0 JEHS/JEHSCU0680B3(C)M3 15,0 JEHS/JEHSCU0400B3(C)L3 10,0 JEHS/JEHSCU0500B3(C)L3 12,0 JEHS/JEHSCU0600B3(C)L3 14,5 F1U T3.15A ALM GRY BRN S1PH HP GRN/YLW LP S1PL 4 3 A1 K1M BLU A2 BLU N3 N2 BLU N1 MAX 50 VA BRN/YLM BRN/YLM BRN/YLM OPMERKING: VERMUDER VERBINDING VAN 4 NAAR 3 VOORDAT U AANSLUITING MAKT OP DE CONTROLLER --- IS DE VELDBEDRADING A1P: TOERENREGELAAR VENTILATOR B1: MOTOR-CIRCUITONDERBREKER C1: CONDENSATOR VAN VENTILATOR E1HC: VERWARMER CARTER F1U: ZEKERING K1M: CONTACTSCHAKELAAR M1C: COMPRESSOR M1F: VENTILATOR VAN CONDENSOR R1T: TEMPERATURSENSOR VLOEISTOFLEIDING S1PH: SCHAKELAAR HOGE DRUK S1PL: SCHAKELAAR LAGE DRUK

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY GRY BRN M1F (TOP) M1M BRN C2 BLK GRN/YLW GRY GRY BRN M2F (BOTTOM) BRN BLU BRN A1P GRN/YLW BLU BRN M1F (TOP) BRN BRN ALM MAX 50 VA S1PL BLK GRN/YLW E1HC BRN/YLW N1 N2 N3 OPMERKING: VERWJDER VERBINDING VAN 17 NAAR 18 VOORDAT U AANSLUITING MAAKT OP DE CONTROLLER --- IS DE VELDBEDRADING A1P: TOERENREGELAAR VENTILATOR B1: MOTOR-CIRCUITONDERBREKER C1, C2: CONDENSATOR VAN VENTILATOR E1HC: VERWARMER CARTER F1U: ZEKERING KIM: CONTACTSCHAKELAAR MIC: COMPRESSOR M1F & M2F: VENTILATOR VAN COMPRESSOR S1PH: SCHAKELAAR HOGE DRUK S1PL: SCHAKELAAR LAGE DRUK INSTEILLING, B1 MODEL WAARDE (A) JEHS&JEHSCU-0800-B4(C)-M-3 17A JEHS&JEHSCU-1000-B4(C)-M-3 22A

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN K1M 13 14 BRN 1 2 3 4 5 6 BRN 1 2 3 4 5 6 BRN 1 2 3 4 5 6 BRN 1 2 3 4 5 6 BRN 1 2 3 4 5 6 BRN 1 2 3 4 5 6 BRN 1 2 3 4 5 6 BRN 1 2 3

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN 22 BRN 14 BRN R1T R2T S1NP 131 145 16 17 A2P 220 324 HAB80 and DIXO BR BL DR YE WTR 1 2 3 4 5 6 7 8 9 10 11 12 BRN BLU F2U 1A BRN BLU BRN/YLW GRY GLM BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/T1R ALM GRY MAX 50 VA S1PL GP HP GRN/YLW E1HC BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BRLM1-2-3-4-5-6-7-8-9-10-11-12-13-14-15-16-17-18-19-20-21-22-23-24-25-26-27-28-29-30-31-32-33-34-35-36-37-38-39-40-41-42-43-44-45-46-47-48-49-50-51-52-53-54-55-56-57-58-59-60-61-62-63-64-65-66-67-68-69-70-71-72-73-74-75-76-77-78-79-80-81-82-83-84-85-86-87-88-89-90-91-92-93-94-95-96-97-98-99-100- OPMERKING: VERWANG JUMPER 8 NAAR 9 VAN DE DINNENTHERMOSTAAT. 5 DE BEDRADING VELD. AIP PAN SPEED CONTROLLER FLU-FZIFUSE M2F CONDENSOR FAW BTV SIPL LAGE DRIUKSONKELAAR A2P EXO CONTROLLER KIN RELAIS QTR GENEK KVUTING THERVOSTAAT (J30' CI) B1 MOTOR CIRCUIT BREAKER KIR RELAY SINPL DRIUKOPNEBER TUR SPANDING TRANSFORDATOR C1 C2 FAN CONDENSATOR MIO COMPRESSOR SINC HUDIDE SENSOR RELAY R2T GREEN KOUTING TEMPERATURSENSOR E1HC CARTER RACHEL MIF CONDENSOR FANTOR SPRO HOEGEDRUK SWITCH R2T DAM PLOW TEMPERATUREURSENSOR YIE ELEKTRONSCHE EXPANSICKLES YIS WAGNEETVENTIL. JEH5/SCU0950B4CCL3 EVI 14.5

12. Bijlage

CONTROLELIJST VOORAFGAAND AAN OPSTARTEN

J&E Hall International for DAIKIN

Technical line drawing of two air conditioning units with fan-like blades, connected by lines (no text or symbols)

¡INCORRECTO!

Diagram of two air conditioning units with a labeled correct model (no text or symbols on the devices themselves)

¡CORRECTO!

$$ = 3. 7 0 7 \mathrm{kW} $$

Technical line drawing of a mechanical air conditioning unit with fan and control panel (no text or symbols)

27 607 65 135

Serie 2

703 4~Ø11 388 408 444 1040 1101

Technical line drawing of a multi-compartment air conditioning unit with fan and cooling unit (no text or symbols)

Technical line drawing of an air conditioning fan assembly with mounting bracket (no text or symbols)

Serie 3

945 461 500 575 1276 1353 872

Serie 4
Temperatura Media

940 522 1271 1348 560 641

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

Technical line drawing of a dual-panel air conditioning unit with two fans (no text or symbols)

Temperatura Baja

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension lines (no text or symbols)

Technical line drawing of a dual-chamber HVAC unit with two fans (no text or symbols)

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE BRN 2 4 6 T1 T2 T3 M 3~ GRN/YLW M1C M1F ALM GRY 4 HP 1 GRN/YLW S1PL BLK 4 3 A1 KLK BLK BLU N3 N2 BLU N1 B1HC GRN/YLW B1 L1 L2 L3 N 380-415V 3N- 50Hz CONFIGURACIÓN, B1 MODELO VALOR (A) JEHS/SCU0200B2(C)M3 5,5 JEHS/SCU0250B2(C)M3 7,0 JEHS/SCU0300B2(C)M3 7,5 JEHS/SCU0350B2(C)M3 9,5 JEHS/SCU0200B2(C)L3 5,5 JEHS/SCU0300B2(C)L3 6,5 NOTA: RETIRE EL ENLACE 4 A 3 ANTES DE CONECTAR AL CONTROLADOR -- ES EL CABLEADO DE CAMPO B1: INTERRUPTOR DE CARGA DEL MOTOR KIM: CONTACTOR F1U: FUSIBLE C1: CAPACITADOR DE VENTILADOR MIC: COMPRESOR MIF: VENTILADOR DE CONDENSADOR AIP: CONTROLADOR DE VELOCIDAD DE VENTILADOR S1PH: INTERRUPTOR DE ALTA PRESIÓN SIFL: INTERRUPTOR DE BAJA PRESIÓN EHC: CALENTADOR DE CARTER DE CIGUEÑAL

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN (1) 3 5 14 13 PE L1 L2 L3 N 380-415V 3N~ 50Hz L1 L2 L3 N M1C M14 M15 M16 M17 M18 M19 M20 M21 M22 M23 M24 M25 M26 M27 M28 M29 M30 M31 M32 M33 M34 M35 M36 M37 M38 M39 M40 M41 M42 M43 M44 M45 M46 M47 M48 M49 M50 M51 M52 M53 M54 M55 M56 M57 M58 M59 M60 M61 M62 M63 M64 M65 M66 M67 M68 M69 M70 M71 M72 M73 M74 M75 M76 M77 M78 M79 M80 M81 M82 M83 M84 M85 M86 M87 M88 M89 M90 M91 M92 M93 M94 M95 M96 M97 M98 M99 M100 M101 M102 M103 M104 M105 M106 M107 M108 M109 M110 M111 M112 M113 M114 M115 M116 M117 M118 M119 M120 M121 M122 M123 M124 M125 M126 M127 M128 M129 M130 M131 M132 M133 M134 M135 M136 M137 M138 M139 M140 M141 M142 M143 M144 M145 M146 M147 M148 M149 M150 A: EEL CABLEADO DE CAMPO JEHS/JEHSCU0400B3(C)M3 11,0 JEHS/JEHSCU0500B3(C)M3 14,0 JEHS/JEHSCU0600B3(C)M3 14,0 JEHS/JEHSCU0680B3(C)M3 15,0 JEHS/JEHSCU0400B3(C)L3 10,0 JEHS/JEHSCU0500B3(C)L3 12,0 JEHS/JEHSCU0600B3(C)L3 14,5 MIA NOTA: RETIRE EL ENLACE 4 A 3 ANTES DE CONECTAR AL CONTROLADOR MIF: COMPRESOR MIF: VENTILADOR DE CONENSADOR MIF: SENSOR DE TEMPERATURA DE LÍNEA DE LIQUIDO SIPH: INTERRUPTOR DE ALTA PRESIÓN SPL: INTERRUPTOR DE BAJA PRESIÓN

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY BRN M1F (TOP) M1M BRN C2 BLK GRN/YLW GRY BRN M2F (BOTTOM) A1P GRN/YLW BLU BRN C1 BLK GRN/YLW GRY BRN M1F (TOP) ALM S1PL BRN A1 K1M A2 BLU N1 N2 BLU N3 B1 L1 L2 L3 N 380-415V 3N~ 50Hz PE GRN/YLW M1C NOTA. RETIRE EL ENLACE 17 A 18 ANTES DE CONECTARLO AL CONTROLADOR --- ES EL CABLEADO DE CAMPO A1P: CONTROLADOR DE VELOCIDAD DE VENTILADOR B1: INTERRUPTOR DE CARGA DEL MOTOR C1, C2: CONDENSADOR DE VENTILADOR E1HC: CALENTADOR DE CÁRTER DE CIGUEÑAL F1U: FUSIBLE K1M: CONTACTOR M1C: COMPRESOR M1F Y M2F: VENTILADOR DE COMPRESOR S1PH: INTERRUPTOR DE ALTA PRESIÓN S1PL: INTERRUPTOR DE BAJA PRESIÓN

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN 13 K1M 14 BRN 1 2 13 BRN/YLW GRN/YLW MLC PE GRN/YLW M1~ M1F BRN C1 BRN C2 BRN M1~ M2F GRN/YLW BLU ALM GRY S1PH GP LRP S1PL BLK To A1 BRN K1M BLU A2 BLU N1 N2 N3 22 21 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 NOTA: RETIRE EL ENLACE 17 A 18 ANTES DE CONECTARLO AL CONTROLADOR. --- ES EL CABLEADO DE CAMPO. A1P: CONTROLADOR DE VELOCIDAD DE VENTILADOR. B1: INTERRUPTOR DE CARGA DEL MOTOR. C1: CONDENSADOR DE VENTILADOR, INFERIOR. C2: CONDENSADOR DE VENTILADOR, SUPERIOR. E1HC: CALENTADOR DE CARTER DE CIGUEÑAL. F1U: FUSIBLE. K1M: CONTACTOR. NOTE: RETIRE EL ENLACE 17 A 18 ANTES DE CONECTARLO AL CONTROLADOR. --- ES EL CABLEADO DE CAMPO. A1P: CONTROLADOR DE VELOCIDAD DE VENTILADOR. B1: INTERRUPTOR DE CARGA DEL MOTOR. C1: CONDENSADOR DE VENTILADOR, INFERIOR. C2: CONDENSADOR DE VENTILADOR, SUPERIOR. E1HG: CALENTADOR DE CARTER DE CIGUEÑAL. F1U: FUSIBLE. K1M: CONTACTOR. M1F: VENTILADOR DE CONDENSADOR, INFERIOR. M2F: VENTILADOR DE CONDENSADOR, SUPERIOR. M1C: COMPRESOR. S1PH: INTERRUPTOR DE ALTA PRESIÓN. S1PL: INTERRUPTOR DE BAJA PRESIÓN. Para: TERMOSTATO DE DESCARGA

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

12. Apéndice

J&E Hall International for DAIKIN

3.4 Tubature in loco

Nota importante

$$ = 3. 7 0 7 \mathrm{kW} $$

1. PT5 : BR: MARRONE; WH: BIANCO

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

Technical line drawing of a dual-panel air conditioning unit with two fans (no text or symbols)

Temperatura Bassa

940 4-ø10 522 560 605 1271 1348

1727

Technical line drawing of a dual-panel air conditioning unit with two fans (no text or symbols)

11. Dati elettrici

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE B1 1 2 3 4 5 6 T1 T2 T3 M 3~ GRN/YLW M1C BRN BRN A1P GRN/YLW BRN BLK BRN C1 M1F ALM GRY 4 HP S1PH GRN/YLW LP BLK BLK 4 3 A1 K1M BLU A2 BLU N3 N2 BLU N1 B1HC GRN/YLW BLK MAX 50 VA S1PL BLK BLK BLK BLK BLK BLK B1HCC GRN/YLW IMPOSTAZIONE, B1 MODELLO VALORE (A) JEHS/SCU0200B2(C)M3 5,5 JEHS/SCU0250B2(C)M3 7,0 JEHS/SCU0300B2(C)M3 7,5 JEHS/SCU0350B2(C)M3 9,5 JEHS/SCU0200B2(C)L3 5,5 JEHS/SCU0300B2(C)L3 6,5 NOTA: RIMUOVERE I RACCORDI DA 4 A 3 PRIMA DI ESEGUIRE IL COLLEGAMENTO AL DISPOSITIVO DI CONTROLLO -- - E IL CABLAGGIO B1: INTERRUPTORE AUTOMATICO MOTORE K1M CONTATTORE F'U: FUSIBILE C1: CONDENSATORE VENTOLA M1C: COMPRESSORE M1F: VENTOLA DEL CONDENSATORE A1P: CONTROLLORE VELOCITA VENTOLA S1PH: INTERRUPTTORE ALTA PRESSIONE S1PL: INTERRUPTTORE BASSA PRESSIONE ETHC: RISCALDATORE BASAMENTO

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN K1M 14 13 L N B1 BLK GRY 1 3 5 14 PE 2 4 6 13 L1 L2 L3 N 380-415V 3N~ 50Hz BRN BLK GND L1 BRN/ YLW T1 T2 T3 M 3~ M1C GRN/YLW IMPOSTAZIONE, B1 MODELLO VALORE (A) JEHS/JEHSCU0400B3(C)M3 11,0 JEHS/JEHSCU0500B3(C)M3 14,0 JEHS/JEHSCU0600B3(C)M3 14,0 JEHS/JEHSCU0680B3(C)M3 15,0 JEHS/JEHSCU0400B3(C)L3 10,0 JEHS/JEHSCU0500B3(C)L3 12,0 JEHS/JEHSCU0600B3(C)L3 14,5 K1M BRN BLU R1" Tc BLK BLK BRN BLU BRN C1 BK Y/G GY GY M1F NOTA: RIMUOVERE I RACCORDI DA 4 A 3 PRIMA DI ESEGUIRE IL COLLEGAMENTO AL DISPOSITIVO DI CONTROLLO --- EL CABLAGGIO A1P: CONTROLLORE VELOCITÀ VENTOLA B1: INTERRUTTORE AUTOMATICO MOTORE C1: CONDENSATORE VENTOLA, EHC: RISCALDATORE BASAMENTO F1U: FUSIBLE K1M: CONTATTORE M1C: COMPRESSORE M1P: VENTOLA DEL CONDENSATORE RIT: SENSORSE TEMPERATURA TUBO DEI LIQUIDI S1PH: INTERRUTTORE ALTA PRESSIONE SIPL: INTERRUTTORE BASSA PRESSONE

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN BLU K1M 14 13 2 BRN C1 BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) M1F (TOP) S1PH ALM GRY 4 HP LP GRN/YLW S1PL BLK E1HC GRN/YLW MAX 50 VA 4 BRN A1 K1M A2 BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN 13 K1M 14 BRN 1 2 3 4 5 6 13 BRN 1 2 3 4 5 6 14 BRN/YLW GRN/YLW M 3~ M1C PE L1 L2 L3 N 380-415V 3N~ 50Hz NOTA: RIMUOVERE I RACCORDI DA 17 A 18 PRIMA DI ESEGUIRE IL COLLEGAMENTO AL DISPOSITIVO DI CONTROLLO --- É IL CABLAGGIO A1P: CONTROLLORE VELOCITÀ VENTOLA B1: INTERRUPTTORE AUTOMATICO MOTORE C1: PARTE INFERIORE CONDENSATORE VENTOLA C2: PARTE SUPERIORE CONDENSATORE VENTOLA E1HC: RISCALDATORE BASAMENTO F1U: FUSIBLE K1M: CONTATTORE S1PH: INTERRUTTORE ALTA PRESSIONE S1PL: INTERRUPTTORE BASSA PRESSIONE A: TERMOSTATO DI SCARICO

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN 22 BRN 14 BRN R1T R2T S1PR 131 141 15 16 17 A2P 222 324 FR480 am DTR3 BR N DR YI 91 08 12 1 2 3 4 5 6 7 8 9 10 12 BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

12. Appendice

J&E Hall International for DAIKIN

$$ = 3. 7 0 7 \mathrm{kW} $$

Technical line drawing of a mechanical air conditioning unit with fan and control panel (no text or symbols)

27 607 65 135

Série 2

703 4~Ø11 388 408 444 1040 1101

Technical line drawing of a mechanical air conditioning unit with fan and cooling unit (no text or symbols)

Technical line drawing of an air conditioning fan assembly with mounting bracket (no text or symbols)

Série 3

945 461 500 575 1276 1353 872

Série 4
Temperatura Média

940 522 1271 1348 560 641

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

Technical line drawing of a dual-panel air conditioning unit with two fans (no text or symbols)

Temperatura Baixa

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension lines (no text or symbols)

Technical line drawing of a dual-panel industrial cooling unit with two fans (no text or symbols)

11. Dados Elétricos

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN K1M 1 3 5 14 PE 2 4 6 13 BRN T1 T2 T3 M 3~ GRN/YLW M1C M1F ALM GRY BRN S1PH GP LP GRN/YLW S1PL BLK 4 3 A1 K1M A2 BLU BLU N3 N2 BLU N1 E1HC GRN/YLW B1 L1 L2 L3 N 380-415V 3N~ 50Hz NOTA: REMOVER LIGAÇÃO 4 À 3 ANTES DE LIGAR AO CONTROLADOR --- E A LIGAÇÃO ELÉTRICA B1: DISJUNTOR DO MOTOR KIM: CONTACTOR F1U: FUSÍVEL C1: CONDENSADOR DA VENTONHA MIC: COMPRESSOR MIF: VENTONHA DO CONDENSADOR A1P: CONTROULADOR DE VELOCIDADE DA VENTONHA S1PH: INTERRUPTOR DE ALTA PRESSÃO S1PL: INTERRUPTOR DE BAIXA PRESSÃO E1HC: AQUECEDOR DO CÁRTER MODELO VALOR (A) JEHS/SCU0200B2(C)M3 5,5 JEHS/SCU0250B2(C)M3 7,0 JEHS/SCU0300B2(C)M3 7,5 JEHS/SCU0350B2(C)M3 9,5 JEHS/SCU0200B2(C)L3 5,5 JEHS/SCU0300B2(C)L3 6,5

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN K1M 14 13 BRN L N BLU BLK R1T L1 GND BLK 2 BRN GRN/YLM BRN BLU MAX 50 VA ALM GRY BRN S1PL HP LP BLK BLK 4 3 A1 K1M BLU A2 BLU BLK E1HC GRN/YLM BLK N3 N2 N1 B1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 PE BRN BLK GRY T1 T2 T3 M 3~ GRN/YLM M1C M1F NOTA: REMOVER LIGAÇÃO 4 A 3 ANTES DE LIGAR AO CONTROLADOR --- É ALIGAÇÃO ELÉTRICA A1P. CONTROLADOR DE VELOCIDADE DA VENTOINHA M1C: COMPRESSOR B1: DISJUNTOR DO MOTOR M1F: VENTOINHA DO CONDENSADOR C1: CONDENSADOR DA VENTOINHA R1F: SENSOR DE TEMPERATURA DA LINHA DE LÍQUIDO E1HC: AQUECEDOR DO CARTER S1PH: INTERRUPTOR DE ALTA PRESSÃO F1U: FUSÍVEL S1PL: INTERRUPTOR DE BAIXA PRESSÃO K1M: CONTACTOR

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY BRN M1F (TOP) M1C BRN C2 BLK GRN/YLW GRY BRN M2F (BOTTOM) ALM S1PL BRN/YLW ALP GRN/YLW MAX 50 VA 4 A1 K1M A2 BLU BLU N1 N2 BLU N3 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 L1 L2 L3 N 380-415V 3N~ 50Hz PE GRN/YLW M3~ NOTA: REMOVER LIGAÇÃO 17 À 18 ANTES DE LIGAR AO CONTROLADOR --- É A LIGAÇÃO ELETRICA A1P: CONTROLADOR DE VELOCIDADE DA VENTOINHA B1: DISJUNTOR DO MOTOR C1, C2: CONDENSADOR DA VENTOINHA E1HC: AQUECEDOR DO CÁRTER F1U: FUSÍVEL K1M: CONTACTOR M1C: COMPRESSOR M1F & M2F: VENTOINHA DO COMPRESSOR S1PH: INTERRUPTOR DE ALTA PRESSÃO S1PL: INTERRUPTOR DE BAIXA PRESSÃO

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN K1M 13 14 BRN 1 2 3 4 5 6 BRN 1 2 3 4 5 6 BRN/YLW M 3~ GRY GLK GRY BRN/YLW MLC PE L1 L2 L3 N 380-415V 3N~ 50Hz NOTA: REMOVER LIGAÇÃO 17 A 18 ANTES DE LIGAR AO CONTROLADOR --- ÉALIGAÇÃO ELÉTRICA A1P: CONTROLADOR DE VELOCIDADE DA VENTOINHA B1: DISJUNIOR DO MOTOR C1: PARTE INFERIOR DO CAPACITADOR DA VENTOINHA C2: PARTE SUPERIOR DO CAPACITADOR DA VENTOINHA E1HC: AQUECEDOR DO CÁRTER F1U: FUSÍVEL K1M: CONTACTOR M1F: M2F: GRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/THP GRN/YLW ALM GRY BRN S1PH S1PL LP BLK BLK TO 4 S1HC E1HC GRN/YLW BLK BLK N3 MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MINI PARE DESCARGA DO TERMOSTATO

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN (1) 380-415V 3N~ 50Hz L1 L2 L3 N PE VER B1 BLK GRY K1M BRN BLK GRY S1NC GRN/YLW M 3~ M1C BLK A1 BLK A2 BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BL U BLT R1 T R2 T Q1R F2U F2R Q1R F2R Q1R F2R Q1R F2R Q1R F2R Q1R F2R Q1R F2R Q1R F2R Q1R F2R Q1R F2R Q1R F2R Q1R F2R Q1R F2R Q1R F2R Q1R F2R Q1R F2R Q1R F2R Q1R F2R S1PRS 1344567 A2P 228324 FR480 good DDDO BR NBL OR 97 W 9108 112 1 2 3 4 5 6 7 8 9 VHT 1 2 3 4 5 6 7 8 9 VHT 1 2 3 4 5 6 7 8 9 VHT 1 2 3 4 5 6 7 8 9 VHT 1 2 3 4 5 6 7 8 9 VHT 1 2 3 4 5 6 7 8 9 V HT 1 2 3 4 5 6 7 8 9 VHT 1 2 3 4 5 6 7 8 9 VHT 1 2 3 4 5 6 7 8 9 VHT 1 2 3 4 5 6 7 8 9 VHT 1 2 3 4 5 6 7 8 9 V H T 1 2 3 4 5 6 7 8 9 V H T 1 2 3 4 5 6 7 8 9 V H T 1 2 3 4 5 6 7 8 9 V H T 1 2 3 4 5 6 7 8 9 V H T 1 2 3 4 5 6 7 7.5 V H T 1.50000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 NOTA: SUBSTITUIR O JUMPER B PARA B PARA O TERMOSTATO INTERIOR -- E A FAÇÃO DE CAMPO MP CONTRALDO DE VELOCONE DO VENTILADOR FU FLI PUSHEL MIF CONDENSADOR BRN FLN AP CONTRALDO RED KM COYATOR QTR CINCE PABLO DO DESCARGA (MIN °C) QTR TERMINOSATO DA DESCARGA (MIN °C) RF INSULATOR DO ROTOR CHC CAPACITOR DO VENTILADOR MIF CONDFESSOR SINC RELE ATUA DO SENSOR MIF SUPERIOR DO VENTILADOR DO CONDENSADOR SIFL INTERRUPTOR DE ALTA PRESSÃO SIPL INTERRUPTOR DE GAVA PRESSÃO TIR TRANSFORMO DE TENSO SIPL TRANSFORMO DE TENSO RD Sensor de TFENATURA DA DESCARGA KIF SENSOR DE INFRAFURA DA NHA DE PAPOR YIE VALUA DE EXSPANSAO ELECTRONICA YIE VALUA DE SOLONDE

12. Apêndice

J&E Hall International for DAIKIN

Méy. 150°C ANOIKTH 6E0η

$$ = 3. 7 0 7 \mathrm{kW} $$

Technical line drawing of a mechanical air conditioning unit with fan and control panel (no text or symbols)

27 607 65 135

Σειρά 2

703 4-Ø11 388 408 444 1040 1101

Technical line drawing of a multi-compartment air conditioning unit with fan and cooling unit (no text or symbols)

Technical line drawing of an air conditioning fan assembly with mounting bracket (no text or symbols)

Σειρά 3

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

Technical line drawing of a dual-panel air conditioning unit with fans and cooling fins (no text or symbols)

Χαμηλή θερμοκρασία

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension annotations (no text or symbols on the fan bodies)

Technical line drawing of a multi-level industrial cooling unit with two fans (no text or symbols)

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE BRN BLK GRY 13 2 4 6 13 BRN GLR GRY 1 2 4 6 2 1 1 A1P IGRN/YLW BRN BLK BRN BLK M 3~ GRN/YLW M1C M1F BRN BLK BRN BLK ALM GRY S1PH HR GP LP GRN/YLW MAX 50 VA S1PL BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 6 2 4 KIM BRN ALM GRY S1PH GP LP GRN/YLW S1PL BLK 4 3 A1 K1M BLK A2 BLU N3 N2 BLU N1 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 B51 B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62 B63 B64 B65 B66 B67 B68 B69 B70 B71 B72 B73 B74 B75 B76 B77 B78 B79 B80 B81 BHMEΩDH: ΑΦΑΡΕΣΤΕ ΤΗ ΣΥΝΔΕΣΗ ΑΠΟ ΤΟ 4 ΙΤΟ 3 ΠΡΙΝ ΤΗ ΣΥΝΔΕΣΗ ΙΤΟ ΕΛΕΓΚΤΗ :--- ΕΝΑΙ Η ΤΟΠΙΚΗ ΚΑΛΩΔΩΣΗ B1: ΔΑΚΟΤΗΣ ΚΥΚΛΩΜΑΤΟΣ ΚΙΝΗΤΗΡΑ KIM: ΕΤΑΜΕΑΣ F1U: ΑΦΑΛΕΙΑ C1: ΠΥΚΝΩΤΗΣ ΑΝΕΜΙΤΗΡΑ M1C: ΣΥΜΠΙΕΤΗΣ M1F: ΑΝΕΜΙΤΗΡΑΣ ΣΥΜΨΥΚΝΩΤΗΣ A1P: ΔΕΓΚΤΗΣ ΤΑΧΧΥΤΗΣ ΑΝΕΜΙΤΗΡΑ S1PRL: ΔΑΚΟΤΗΣ ΥΨΗΛΗΣ ΠΕΣΗΣ S1PRL: ΔΑΚΟΤΗΣ ΧΑΜΗΛΗΣ ΠΕΣΗΣ E1HC: ΘΕΡΜΑΝΤΗΡΑΣ ΙΤΡΟΦΑΛΟΘΑΛΑΜΟΥPYGMIZH, B1MONTEAOTIMH (A)JEHS/SCU0200B2(C)M35.5JEHS/SCU0250B2(C)M37.0JEHS/SCU0300B2(C)M37.5JEHS/SCU0350B2(C)M39.5JEHS/SCU0200B2(C)L35.5JEHS/SCU0300B2(C)L36.5

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN BLU K1M 14 13 2 BRN C1 BLK GRN/YLW GRY GRY BRN M1F (TOP) M1M BRN C2 BLK GRN/YLW GRY GRY BRN M2F (BOTTOM) ALM S1PL BRN/YLW ALP GRN/YLW MAX 50 VA S1PH 4 HP LP ALM BRN/YLW E1HC BRN/YLW N1 N2 N3 PYΘΜΙΣΗ, B1 MONTEΛΟ TIMH (A) JEHS&JEHSCU-0800-B4(C)-M-3 17A JEHS&JEHSCU-1000-B4(C)-M-3 22A L1 L2 L3 N 380-415V 3N~ 50Hz PE GRN/YLW BRN BLK GRY BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BL U BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLU BRN BLB FRMENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHEN CHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHENCHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CHEN CIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CHIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN c111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111109999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999 6 7 8 9 0 7 8 0 7 8 0 7 8 0 7 8 0 7 8 0 7 8 0 7 8 0 7 8 0 7 8 0 7 8 0 7 8 0 7 8 0 7 8 0 7 8 0 7 8 0 7 8 0 7 8 0 6 6 0 6 0 6 0 6 0 6 0 6 0 6 0 6 0 6 0 6 0 6 0 6 0 6 0 6 0 6 0 6 0 6 0 6 0 6 0 6 0 6 0 6 0

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN K1M 13 BRN 14 BRN 1 2 3 4 5 6 13 BRN BLK GRY K1M 1 2 3 4 5 6 14 BRN/YLW M 3~ M1C PE L1 L2 L3 N 380-415V 3N~ 50Hz BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRB ALM GRY BRN S1PH GRN/YLW K1M 22 S1PL BLK To 4 S1HC GRN/YLW BLK E1HC GRN/YLW BLK N3 BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/THEΩΣH: ΑΦΑΡΕΣΤΕ ΤΗ ΣΥΝΔΕΣΗ ΑΠΟ ΤΟ 17 ΣΤΟ 18 ΠΡΙΝ ΤΗ ΣΥΝΔΕΣΗ ΣΤΟΝ ΕΛΕΓΚΤΗ :--- ΕΝΑΙ Η ΤΟΠΙΚΗ ΚΑΛΩΔΙΩΣΗ A1P: ΕΛΕΓΚΤΗΣ ΤΑΧΥΤΗΤΑΣ ΑΝΕΜΙΣΤΗΡΑ M1F: ΚΑΤΩ ΑΝΕΜΙΣΤΗΡΑΣ ΣΥΜΠΥΚΝΟΤΗ B1: ΔΙΑΚΟΠΤΗΣ ΚΥΚΑΩΜΑΤΟΣ ΚΙΝΗΤΗΡΑ M2F: ΠΑΝΩ ΑΝΕΜΙΣΤΗΡΑΣ ΣΥΜΠΥΚΝΟΤΗ C1: ΚΑΤΩ ΠΥΚΝΟΤΗΣ ΑΝΕΜΙΣΤΗΡΑ M1C: ΣΥΜΠΙΕΣΤΗΣ C2: ΠΑΝΩ ΠΥΚΝΟΤΗΣ ΑΝΕΜΙΣΤΗΡΑ S1PH: ΔΙΑΚΟΠΤΗΣ ΥΨΗΛΗΣ ΠΙΕΣΗΣ E1HC: ΘΕΡΜΑΝΤΗΡΑΣ ΣΤΡΟΦΑΛΟΘΑΛΑΜΟΥ F1U: ΑΣΦΑΛΕΙΑ Προς: ΘΕΡΜΟΣΤΑΤΗ ΕΧΚΕΝΩΣΗΣ K1M: ΕΛΑΦΕΑΣ

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

12. Παράρτημα

J&E Hall International for DAIKIN

NIEPRAWIDŁOWO! PRAWIDŁOWO!

NIEPRAWIDŁOWO! PRAWIDŁOWO!

$$ = 3. 7 0 7 \mathrm{kW} $$

All specifications are subjected to change by the manufacturer without prior notice. The English text is the original instruction. Other languages are the translations of the original instructions.

POLSKI

Technical line drawing of a mechanical air conditioning unit with fan and control panel (no text or symbols)

27 607 65 135

Seria 2

703 4~Ø11 388 408 444 1040 1101

Technical line drawing of a multi-compartment air conditioning unit with fan and cooling unit (no text or symbols)

Technical line drawing of an air conditioning fan assembly with mounting bracket (no text or symbols)

Seria 3

945 461 500 575 1276 1353 872

Technical drawing of a dual fan installation with mounting holes and dimension label (no text or symbols beyond measurement markers)

Technical line drawing of a multi-level industrial air conditioning unit with two fans (no text or symbols)

Niskotemperaturowe

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension annotations (no text or symbols on the diagram itself)

Technical line drawing of a multi-level industrial air conditioning unit with two fans (no text or symbols)

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 6 2 4 KIM BRN ALM GRY 3 S1PH GP LP GRN/YLW S1PL BLK BLK 4 3 A1 K1M BLK A2 BLU N3 N2 BLU N1 B1HC GRN/YLW B1 L1 L2 L3 N 380-415V 3N- 50Hz M1C M1F M3~ GRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN K1M 14 13 BRN L N B1 2 3 4 5 6 14 PE BRN T1 L2 L3 N 380-415V 3N~ 50Hz M 3~ GRN/YLW M1C WRTOŚĆ (A) NEHS/JEHSCU0400B3(C)M3 11.0 JEHS/JEHSCU0500B3(C)M3 14.0 JEHS/JEHSCU0600B3(C)M3 14.0 JEHS/JEHSCU0680B3(C)M3 15.0 JEHS/JEHSCU0400B3(C)L3 10.0 JEHS/JEHSCU0500B3(C)L3 12.0 JEHS/JEHSCU0600B3(C)L3 14.5 NASTAWA, B1 ULAWA ROZŁACZYĆ POLĄCZENIE 4 Z 3 PRZED PODLĄCZENIEM DO STEROWNIKA --- TO OPRZEWODOWANIE KLENTA A1P: STEROWNIK PREDKOŚCI WENTYLATORA M1C: SPREŻARKA B1: WYRĄCZNIK AUTOMATYCZNY SILNIKA M1F: WENTYLATOR KONDENSATORA C1: KONDENSATOR WENTYLATORA RIT: CZUJNIK TEMPERATURY LINII CIECZY E1HC: GRZEJNIK SKRZYNI KORBOWEJ S1PH: PRZEŁĄCZNIK WYSOKIEGO CŚNIENIA F1U: BEZPIECZNIK S1PL: PRZEŁĄCZNIK NISKIEGO CŚNIENIA K1M: STYCZNIK

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY GRY M1F (TOP) M1M BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN K1M 13 BRN 14 BRN 13 K1M 1 2 14 BRN/YLW GRN/YLW GLK 6 BRN C1 BRN M1~ M1F GRN/YLW BLU BLU BRN C2 BRN/YLW M1~ M2F BLU ALM GRY BRN S1PH HP GRN/YLW LP BLK To E1HC GRN/YLW BLK N1 N2 N3 UWAGA: ROZŁACZYĆ POŁĄCZENIE 17 Z 18 PRZED PODŁĄCZENIEM DO STEROWNIKA --- TO OPRZEWODOWANIE KIENTA A1P: STEROWNIK PREDKOŚCI WENTYLATORA B1: WYŁĄCZNIK AUTOMATYCZNY SILNIKA C1: DOLNY KONDENSATOR WENTYLATORA C2: GÓRNY KONDENSATOR WENTYLATORA E1HC: GRZEJNIK SKRZYNI KORBOWEJ F1U: BEZPIECZNIK M1F: DOLNY WENTYLATOR KONDENSATORA M2F: GÓRNY WENTYLATOR KONDENSATORA M1C: SPREŻARKA S1PH: PRZEŁĄCZNIK WYSOKIEGO CIŚNIENIA S1PL: PRZEŁĄCZNIK NISKIEGO CIŚNIENIA Do: TERMOSTATU ODPROWADZAJĄCEGO NEHS&SCU-0750-B4(C)-M-3 16,5A NASTAWA, B1 MODEL WARTOŚĆ (A)

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

12. Załącznik

LISTA KONTROLNA CZYNNOŚCI DO WYKONANIA PRZED ROZRUCHEM
