Product type	Range hood with exhaust or recirculation
Brand	Broan
Model	B5330SSC
Estimated width	76.2 cm (30 in)
Recommended mounting height	76.2 cm to 91.4 cm (30 to 36 in) above the cooking surface
Exhaust duct diameter	15.2 cm (6 in) round, steel
Control type	Push buttons (off, slow, medium, high, light)
Lighting	2 halogen bulbs 12 V, 20 W max, type JC, G4 base
Grease filters	Aluminum filters, dishwasher safe
Recirculation filter	Optional filters (model RK56 or S97018030) for non-ducted installation
Motor	Permanently lubricated, with thermal overload protection
Power supply	120 V, 60 Hz, grounding required
Material	Stainless steel
Weight	Not specified in the manual
Appliance dimensions	See installation diagram for exact measurements
Warranty	1 year against material and workmanship defects

Frequently Asked Questions - B5330SSC BROAN

At what height should the hood be installed above the cooktop?

The hood must be installed between 76.2 cm (30 in) and 91.4 cm (36 in) above the cooking surface. The minimum height is 76.2 cm, and 91.4 cm is recommended for better vapor capture.

How to clean the grease filters?

The aluminum grease filters should be cleaned frequently with a warm detergent solution or in the dishwasher. Use a phosphate-free detergent to prevent discoloration.

How to replace the bulbs?

Turn off the hood and let the bulbs cool. Gently push the bulb cover upward and turn it counterclockwise to remove it. Replace with halogen bulbs 12 V, 20 W max, type JC, G4 base.

Can I use the hood without an exhaust duct?

Yes, with the optional recirculation kit (model RK56). In this case, install specific recirculation filters (S97018030) and a flexible aluminum duct. Replace these filters every 3 to 6 months.

What duct diameter should be used for installation with exhaust?

Use a round steel duct of 15.2 cm (6 in) diameter. Seal all joints with duct tape.

What to do if the motor stops intermittently?

The motor is equipped with overload protection that automatically shuts off in case of overheating. If the motor restarts after cooling but continues to stop, have the hood repaired.

Does the warranty cover bulbs and filters?

No, the 1-year warranty does not cover halogen bulbs, filters, ducts, or separate accessories.

Can I use a speed controller with this hood?

No, do not use a solid-state speed control device (dimmer). Use only the provided push buttons.

How to maintain the stainless steel?

Clean with a damp cloth and mild soap, following the grain direction. Rinse with clean water and dry. Avoid steel wool, abrasive cleaners, or those containing bleach.

Where to order spare parts?

Parts can be ordered on the www.broan.com website using the part numbers listed in the manual.

USER MANUAL B5330SSC BROAN

To register this product visit: www.broan.com

Isometric line drawing of a rectangular box mounted on a base (no text or symbols)

READ AND SAVE THESE INSTRUCTIONS

⚠️ INTENDED FOR DOMESTIC COOKING ONLY. ⚠️

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSON(S) OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service disconnecting means to prevent power from being switch on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
5. This product may have sharp edges. Be careful to avoid cuts and abrasions during installation or cleaning.
6. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
7. Ducted fans must always be vented to the outdoors.
8. Do not use this unit with any other solid-state speed control device.
9. To reduce the risk of fire, use only steel ductwork.
10. This unit must be grounded.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when cooking flaming foods (i.e. Crêpes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filters.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

⚠ WARNING

TO REDUCE THE RISK OF INJURY TO PERSON(S) IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING\*:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metaltray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN – You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels – This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
   A. You know you have a Class ABC extinguisher and you know how to operate it.
   B. The fire is small and contained in the area where it started.
   C. The fire department has been called.
   D. You can fight the fire with your back to an exit.
   * Based on "Kitchen Fire Safety Tips" published by NFPA.

CAUTION

1. For indoor use only.
2. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
3. To avoid motor bearing damage and noisy and/or unbalanced impeller, keep drywall spray, construction dust, etc. off power unit.
4. Do not use over cooking equipment greater than 60,000 BTU/hr. as the blower motor will shut down intermittently.
5. Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it will cool down. If the motor continues to shut off and restart, have the hood serviced.
6. A maximum height of 36" above the cooktop is recommended for best capture of cooking impurities. The bottom of the hood MUST NOT BE LESS than 30" above the cooktop.
7. Two installers are recommended because of the size of this hood.
8. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
9. Be careful when installing the decorative flue and hood, they may have sharp edges.
10. Please read specification label on product for further information and requirements.

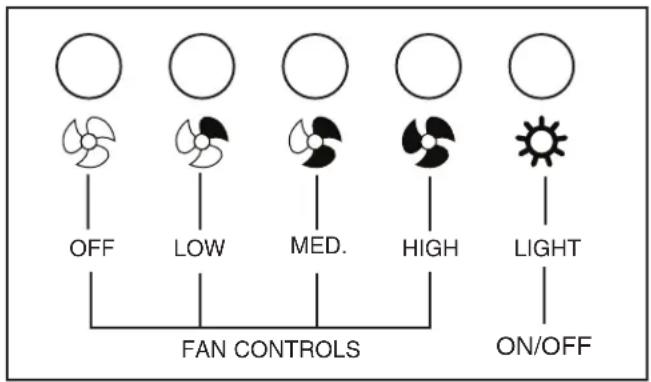

OPERATION

The hood is operated using the push buttons on the front panel.

Push the light button to turn the lights on and off.

Push the fan controls to select low, medium, or high blower speed.

Push the OFF button to turn the blower off.

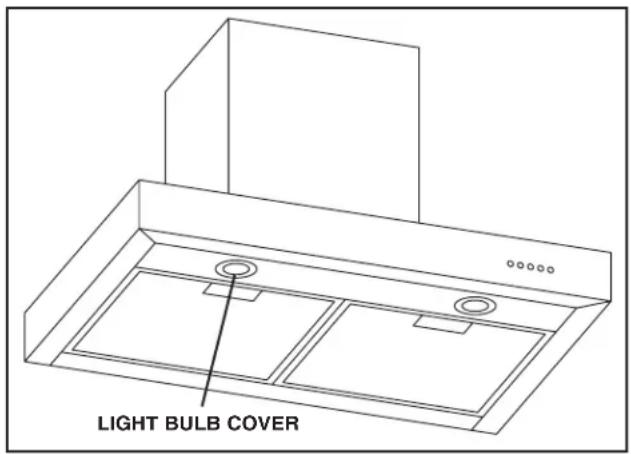

LIGHT BULBS

LIGHT BULB COVER

WARNING

Bulbs may be hot. Always allow bulbs to cool down before removing them.

This range hood requires two halogen bulbs (Type JC, 12V, 20W Max, G-4 Base - included).

To change bulbs:

1. Remove light bulb cover by gently pushing it upward and turning it counterclockwise.
2. Replace bulb.
3. Re-install light bulb cover by gently pushing it upward and turning it clockwise.

CLEANING AND MAINTENANCE

Proper maintenance of the Range Hood will assure proper performance of the unit.

MOTOR

The motor is permanently lubricated and never needs oiling. If the motor bearings make excessive or unusual noise, replace the motor with the exact service motor. The impeller should also be replaced.

GREASE FILTER

The grease filter should be cleaned frequently. Use a warm detergent solution. Grease filter is dishwasher safe.

Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergents, or as a result of local water conditions - but this will not affect filter performance. This discoloration is not covered by the warranty.

Remove grease filter by pushing back on the metal latch tab. This will disengage the filter from the hood. Tilt the filter downward and remove.

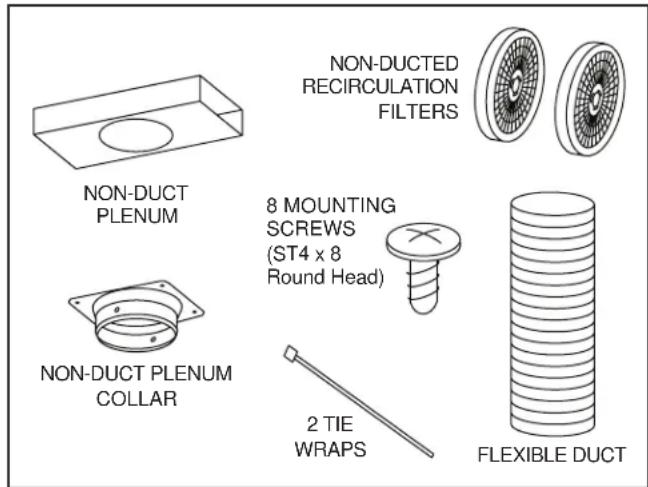

NON-DUCTED RECIRCULATION FILTERS

The non-ducted recirculation filters should be changed every 3-6 months. Replace more often if your cooking style generates extra grease, such as frying and wok cooking.

Rotate the filters to remove them from the blower and replace.

STAINLESS STEEL CLEANING

DO:

• Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.
  • Always clean in the direction of original polish lines.
• Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.
• You may also use a specialized household stainless steel cleaner.

DON'T:

• Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction residues reach the hood. During construction/renovation, cover the range hood to make sure no dust sticks to the stainless steel surface.

Avoid: When choosing a detergent

• Any cleaners that contain bleach will attack stainless steel
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

INSTALL THE DUCTWORK (Ducted Hoods Only)

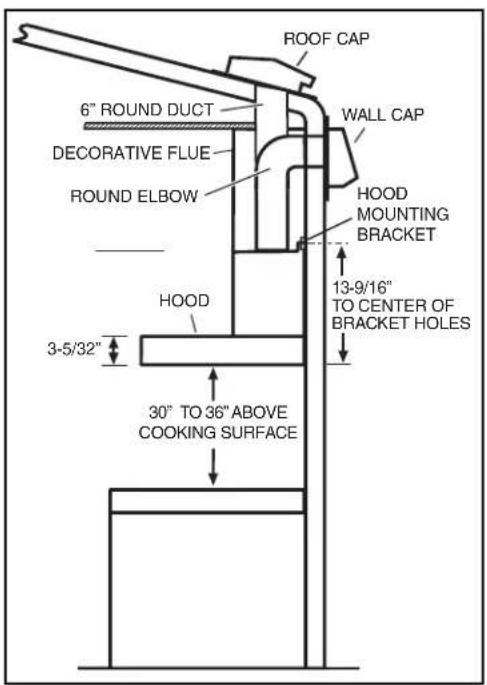

1. Decide where the ductwork will run between the hood and the outside.
2. A straight, short duct run will allow the hood to perform most efficiently.
3. Long duct runs, elbows and transitions will reduce the performance of the hood. Use as few of them as possible. Larger ducting may be required for best performance with longer duct runs.
4. Install wall cap or roof cap. Connect round metal ductwork to cap and work back towards the hood location. Use duct tape to seal the joints between ductwork sections.

MEASURE THE INSTALLATION

ROOF CAP 6" ROUND DUCT WALL CAP DECORATIVE FLUE ROUND ELBOW HOOD MOUNTING BRACKET 13-9/16" TO CENTER OF BRACKET HOLES 3-5/32" HOOD 30° TO 36" ABOVE COOKING SURFACE

A maximum of 36" above cooktop is recommended for best capture of cooking impurities. The bottom of the hood MUST NOT BE LESS than 30" above the cooktop.

Distances over 36" are at the installer and users discretion; providing that the ceiling height permits.

PREPARE THE HOOD

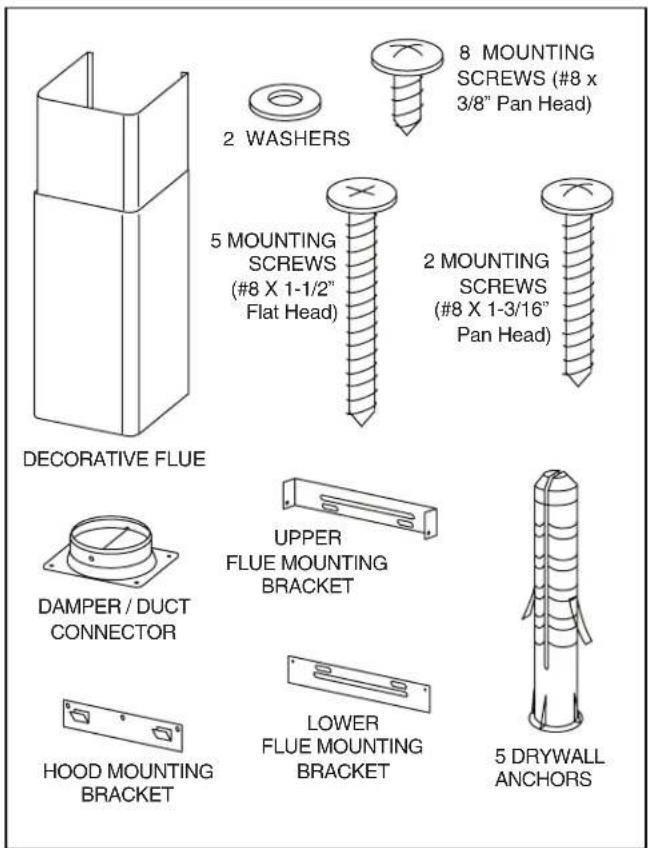

Unpack hood and check contents. You should receive:

1 - Hood
1 - Decorative Flue Assembly
1 - Damper / Duct Connector
1 - Lower Flue Mounting Bracket
1 - Upper Flue Mounting Bracket
1 - Hood Mounting Bracket
2 - Aluminum Grease Filters (installed in hood)
1 - Parts Bag containing:

8 - Mounting Screws (#8 x 3/8" Pan Head)
5 - Mounting Screws (#8 x 1-1/2" Flat Head)
2 - Mounting Screws (#8 x 1-3/16" Pan Head)
5 - Drywall Anchors
2 - Washers

1 - Installation Manual

8 MOUNTING SCREWS (#8 x 3/8" Pan Head) 2 WASHERS 5 MOUNTING SCREWS (#8 X 1-1/2" Flat Head) 2 MOUNTING SCREWS (#8 X 1-3/16" Pan Head) DECORATIVE FLUE UPPER FLUE MOUNTING BRACKET DAMPER / DUCT CONNECTOR HOOD MOUNTING BRACKET LOWER FLUE MOUNTING BRACKET 5 DRYWALL ANCHORS

INSTALL THE WIRING

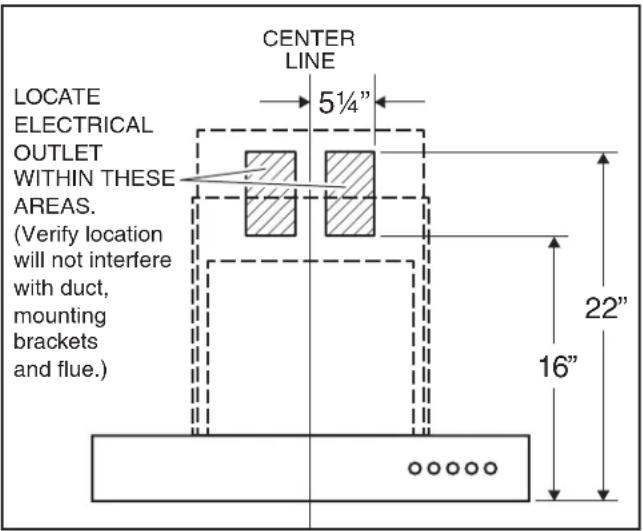

CENTER LINE LOCATE ELECTRICAL OUTLET WITHIN THESE AREAS. (Verify location will not interfere with duct, mounting brackets and flue.) 5¼" 22" 16"

1. GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

NOTE:

A recessed "clock" outlet is recommended.

1. Position the electrical outlet within the space covered by the decorative flue and where it will not interfere with the round duct. Make sure the outlet is no further than 14" from where the cord exits from the hood and that the outlet does not interfere with a mounting bracket fastening area or where the decorative flue touches the wall.

INSTALL THE HOOD MOUNTING BRACKET

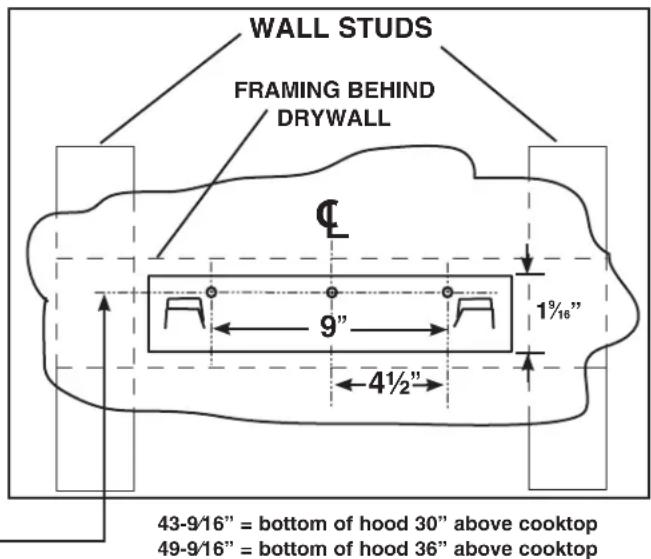

WALL STUDS FRAMING BEHIND DRYWALL C 9" 4½" 1½" 43-9/16" = bottom of hood 30" above cooktop 49-9/16" = bottom of hood 36" above cooktop

1. Construct wood wall framing that is flush with interior surface of wall studs.

Make sure:

a) the framing is centered over installation location.
b) the height of the framing will allow the mounting bracket to be secured to the framing within the dimensions shown.

1. After wall surface is finished, carefully center and level the hood mounting bracket and secure it to wall framing with (3) #8 x 1-1/2" mounting screws. Tighten the screws completely.

Desired Hood Distance Above 36" High Cooktop (see note 1)

		30"	31"	32"	33"	34"	35"	36"
Ceiling Height	Duct Method	Mounting Bracket Mounting Holes Location Above 36" High Cooktop —
8 Feet	Ducted	43-9/16"	44-9/16"	45-9/16"	46-9/16"	47-9/16"	48-9/16"	49-9/16"
	Non-Ducted	43-9/16"	44-9/16"	45-9/16"
9 Feet	Ducted	43-9/16"	44-9/16"	45-9/16"	46-9/16"	47-9/16"	48-9/16"	49-9/16"
	Non-Ducted	43-9/16"	44-9/16"	45-9,16"	46-9/16"	47-9/16"	48-9/16"	49-9/16"
10 Feet (see note 2)	Ducted	43-9/16"	44-9/16"	45-9/16"	46-9/16"	47-9/16"	48-9/16"	49-9/16"
	Non-Ducted	43-9/16"	44-9/16"	45-9/ 16"	46-9/16"	47-9/16"	48-9/16"	49-9/16"

Notes:

1 A maximum height of 36" above the cooktop is recommended for best capture of cooking impurities. The bottom of the hood MUST NOT BE LESS than 30" above the cooktop. Distances over 36" above the cooktop are at the installer's and user's discretion - providing that the ceiling height and flue length permit.
2 Requires 10-ft. flue extension accessory - Model Number FXN53SS.

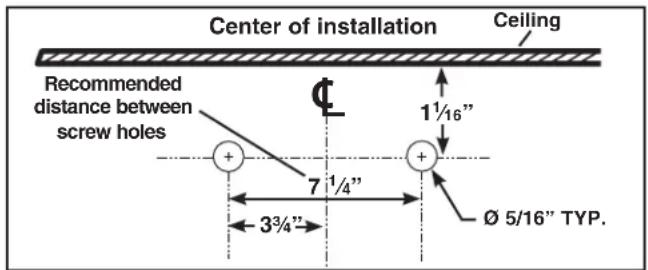

INSTALL UPPER FLUE MOUNTING BRACKET

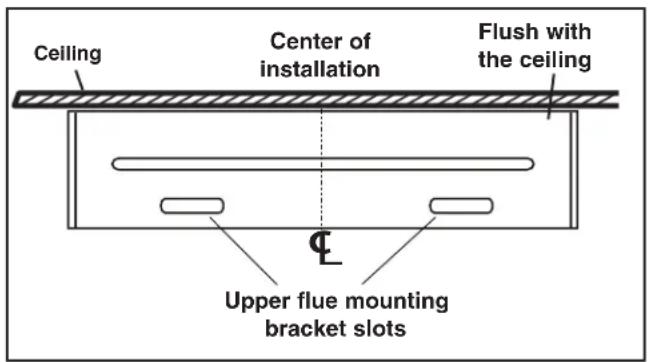

Center of installation Ceiling Recommended distance between screw holes 7 1/4" 3 3/4" 1 1/16" Ø 5/16" TYP.

Ceiling Center of installation Flush with the ceiling Upper flue mounting bracket slots

1. Drill two 516 " diameter holes where shown. Insert drywall anchors into the holes.
2. Center the bracket over the hood location and flush with the ceiling. Make sure that the slots of the upper flue bracket are at the bottom. Secure the upper flue bracket to the wall using (2) #8 x 1½" mounting screws.
3. Tighten the screws completely. Make sure that the bracket is tight against the wall.

INSTALL THE HOOD (Horizontally Ducted Hoods Only)

1. DO NOT REMOVE the protective plastic film covering the decorative flue and the hood at this time.
2. Lay the back side of the hood flat on a table. Use a piece of cardboard to avoid damaging the table or the hood.
3. Attach damper / duct connector to top of hood using (4) #8 x 3/8" Pan Head mounting screws.
4. Remove the grease filters by pushing back the metal latch tab and tilting filters downward to remove.
5. Carefully rotate hood upright.

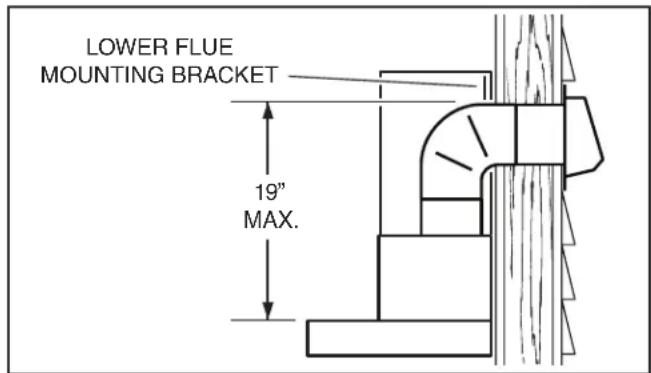

LOWER FLUE MOUNTING BRACKET 19" MAX.

1. To make sure there will be adequate clearance between top of hood and lower flue mounting bracket for ductwork: Elbow must be located below lower flue mounting bracket.
2. Align the hood and center it above the hood mounting bracket. Gently lower the hood until it securely engages the bracket.

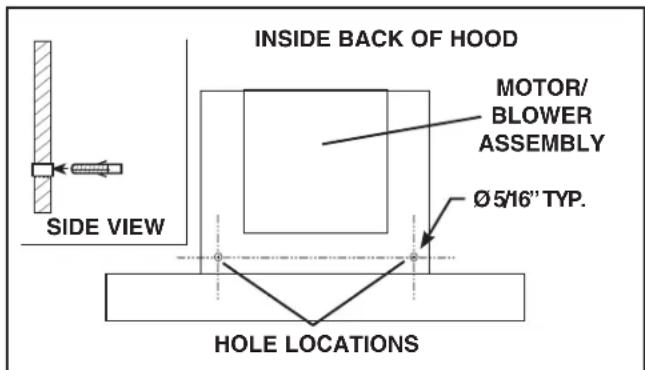

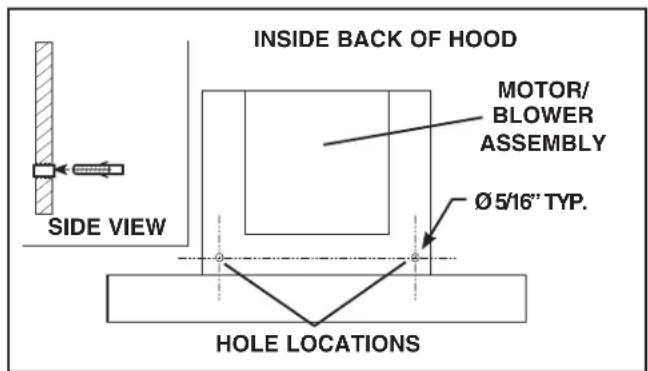

INSIDE BACK OF HOOD MOTOR/ BLOWER ASSEMBLY Ø 5/16" TYP. SIDE VIEW HOLE LOCATIONS

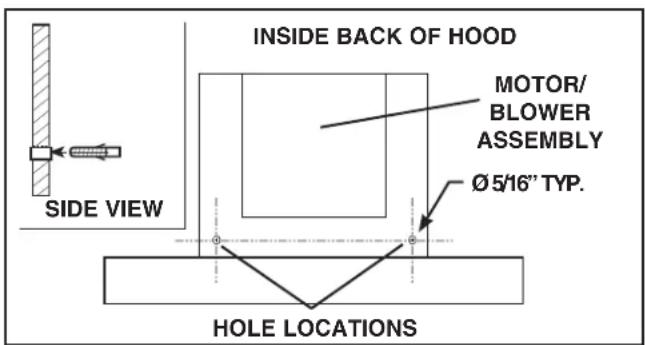

1. With the hood hanging in place, drill through both holes located in the inside lower back of hood using a 5/16" drill bit. Insert the included drywall anchors into the drilled holes (one for each hole). Install (2) washers and (2) #8 x 1-3/16" pan head mounting screws through the hood back and into the drywall anchors. Verify that the hood is centered and leveled. Tighten all screws completely.
2. Reinstall grease filters by aligning rear filter tabs with slots in the hood. Push back the metal latch tab, push filter into position and release. Make sure filters are securely engaged after installation.

6" ROUND DUCT ELBOW

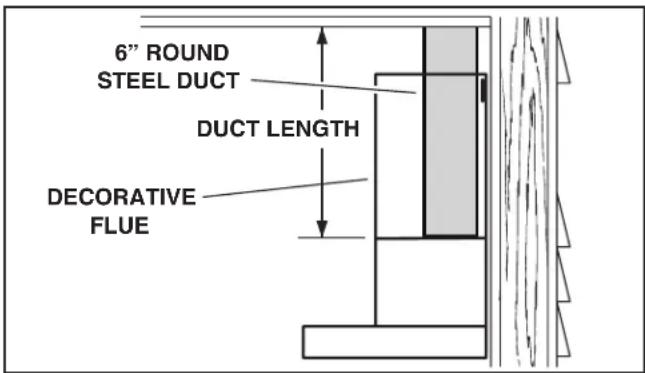

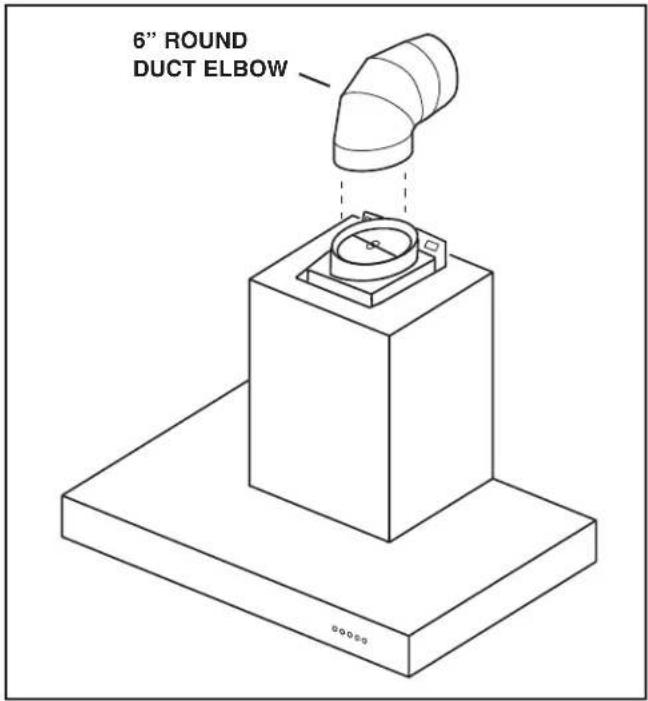

1. Measure and install 6" round steel ductwork to roof cap or wall cap and 90° elbow over duct collar on hood. Use duct tape to make all joints secure and air tight.

2. Plug hood power cord into the outlet.

LOWER FLUE MOUNTING BRACKET LOWER FLUE

NOTE: 10-ft. ceilings require 10-ft. Flue Extension Model FXN53SS (purchase separately). Discard the upper flue supplied with your hood and replace it with the Model FXN53SS flue extension.

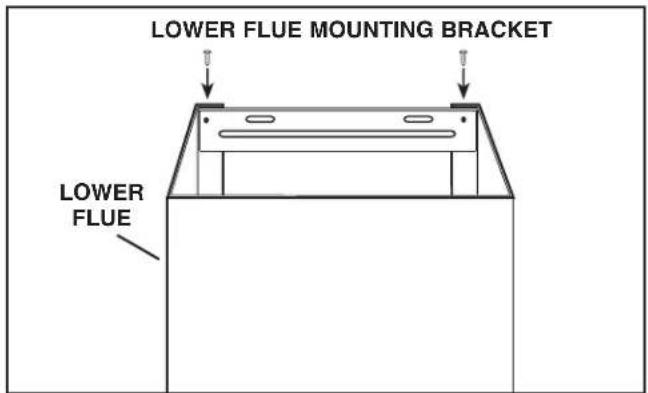

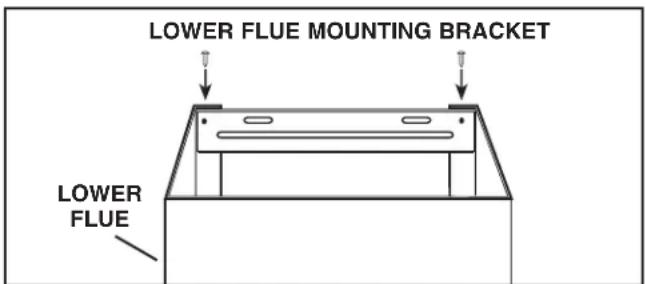

1. Remove the upper flue from inside the lower flue. Install the lower flue bracket to the lower flue using (2) flue bracket screws #8 x 3/8", make sure that the slots are at the top. Remove protective plastic film covering the lower flue only. Carefully replace the upper flue inside the lower flue.

2. Carefully place both flues into the recessed area of hood top. Make sure tabs on the lower flue are pointing down and engage with the slots on the top of the hood.

UPPER FLUE MOUNTING BRACKET UPPER FLUE

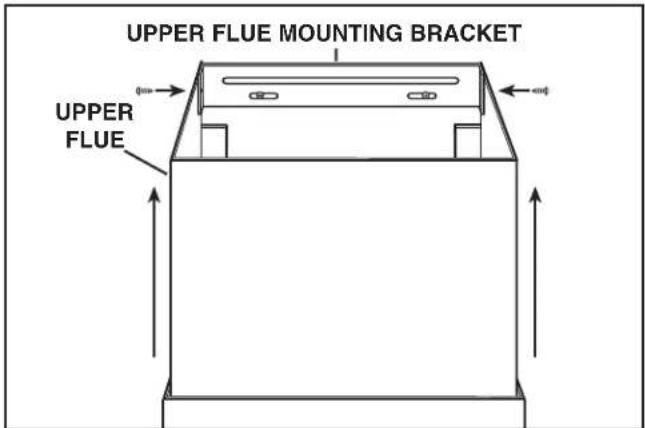

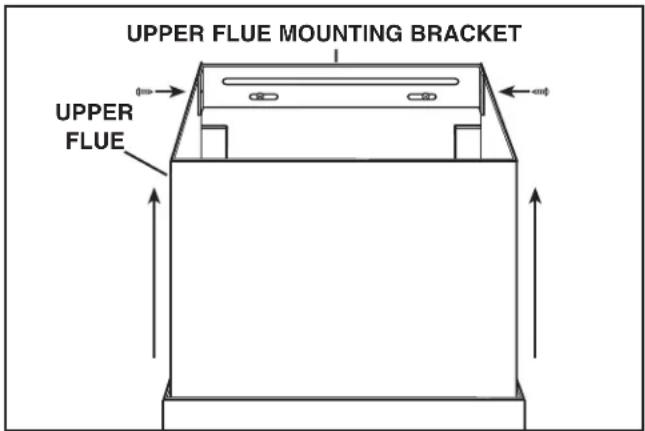

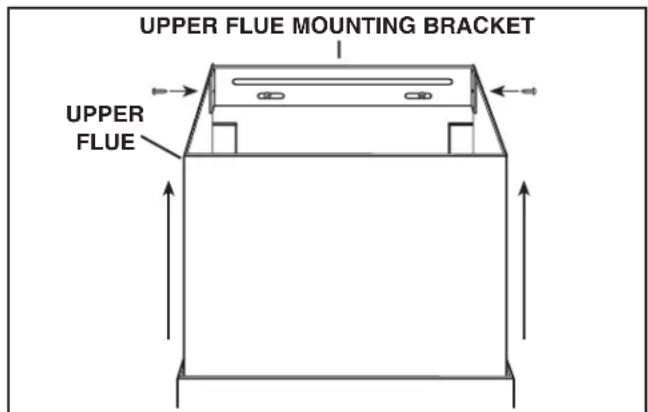

1. Slide the upper flue upward until it is aligned with its upper mounting bracket. The bracket should be inside the flue. Secure the upper flue to the upper flue mounting bracket using (2) #8 x 3/8" mounting screws.

2. Remove any protective plastic remaining on hood.

INSTALL THE HOOD (Vertically Ducted Hoods Only)

1. DO NOT REMOVE the protective plastic film covering the decorative flue and the hood at this time.
2. Lay the back side of the hood flat on a table. Use a piece of cardboard to avoid damaging the table or the hood.
3. Attach damper / duct connector to top of hood using (4) #8 x 3/8" Pan Head mounting screws.
4. Remove the grease filters by pushing back the metal latch tab and tilting filters downward to remove.
5. Carefully rotate hood upright.

LOWER FLUE MOUNTING BRACKET LOWER FLUE

NOTE: 10-ft. ceilings require 10-ft. Flue Extension Model FXN53SS (purchase separately). Discard the upper flue supplied with your hood and replace it with the Model FXN53SS flue extension.

1. Remove the upper flue from inside the lower flue. Install the lower flue bracket to the lower flue using (2) flue bracket screws #8 x 3/8", make sure that the slots are at the top. Remove protective plastic film covering both flues. Carefully replace the upper flue inside the lower flue.
2. Carefully place both flues into the recessed area of hood top. Make sure tabs on the lower flue are pointing down and engage with the slots on the top of the hood.

6" ROUND STEEL DUCT DUCT LENGTH DECORATIVE FLUE

1. Measure and install steel ductwork to hood duct connector. Use duct tape to make all joints secure and air tight.
2. Hold hood up close to wall mounting location and plug power cord into wall outlet.
3. Align the hood and center it above the hood mounting bracket. Make sure ductwork on hood lines up and attaches to ductwork in ceiling. Gently lower the hood until it securely engages the bracket.
4. Use duct tape to make all joints secure and air tight.

INSIDE BACK OF HOOD MOTOR/ BLOWER ASSEMBLY Ø5/16" TYP. SIDE VIEW HOLE LOCATIONS

1. With the hood hanging in place, drill through both holes located in the inside lower back of hood using a 5/16" drill bit. Insert the included drywall anchors into the drilled holes (one for each hole). Install (2) washers and (2) #8 x 1-3/16" pan head mounting screws through the hood back and into the drywall anchors. Verify that the hood is centered and leveled. Tighten all screws completely.
2. Reinstall grease filters by aligning rear filter tabs with slots in the hood. Push back the metal latch tab, push filter into position and release. Make sure filters are securely engaged after installation.

UPPER FLUE MOUNTING BRACKET UPPER FLUE

1. Slide the upper flue upward until it is aligned with its mounting bracket. The bracket should be inside the flue. Secure the upper flue to the upper flue mounting bracket using (2) #8 x 3/8" mounting screws.
2. Remove any protective plastic remaining on hood.

INSTALL THE HOOD (Non-Ducted Hoods Only)

NON-DUCT KIT MODEL RK56 CONTENTS

NON-DUCT PLENUM NON-DUCT PLENUM COLLAR NON-DUCTED RECIRCULATION FILTERS 8 MOUNTING SCREWS (ST4 x 8 Round Head) 2 TIE WRAPS FLEXIBLE DUCT

NOTE: Non-ducted installations require Non-Duct Kit, Model RK56 (purchase separately).

1. CAUTION: Do not use plastic or rigid metal duct.
2. Do not remove the protective plastic film covering the decorative flue and the hood at this time.
3. Lay the back side of the hood flat on a table. Use a piece of cardboard to avoid damaging the table or the hood.
4. Attach damper / duct connector to top of hood using (4) #8 x 3/8" Pan Head mounting screws.

5. Remove damper flaps from damper / duct connector and discard flaps.

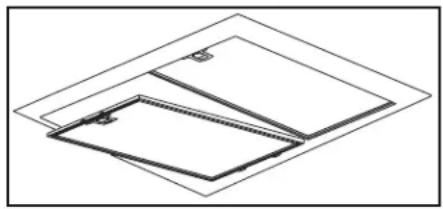

6. Remove the grease filters by pushing back the metal latch tab and tilting filters downward to remove.

Pure technical line drawing of a mechanical component or assembly (no text or symbols)

1. Attach non-duct collar to non-duct plenum using (4) ST4 x 8 round head screws.

2. Measure distance "A". This will be the length of the extended flex duct.

3. Attach aluminum flexible duct to the damper / duct connector with a tie wrap.

4. Attach flexible duct to non-duct plenum collar and secure with tie wrap. Tape all joints with duct tape.

NON-DUCT PLENUM 3-5/8" 6" ALUMINUM FLEX DUCT A DAMPER / DUCT CONNECTOR

NOTE: 10-ft. ceilings require 10-ft. Flue Extension Model FXN53SS (purchase separately). Discard the upper flue supplied with your hood and replace it with the Model FXN53SS flue extension.

LOWER FLUE MOUNTING BRACKET LOWER FLUE

1. Remove the upper flue from inside the lower flue. Install the lower flue bracket to the lower flue using (2) flue bracket screws #8 x 3/8", make sure that the slots are at the top. Remove protective plastic film covering both flues. Carefully replace the upper flue inside the lower flue.
2. Carefully place both flues into the recessed area of hood top. Make sure tabs on the lower flue are pointing down and engage with the slots on the top of the hood.

3. Attach non-duct plenum with collar to upper flue using (4) ST4 x 8 round head screws.

4. Hold hood up close to wall mounting location and plug power cord into wall outlet.

5. Align the hood and center it above the hood mounting bracket. Gently lower the hood until it securely engages the bracket.

INSIDE BACK OF HOOD MOTOR/ BLOWER ASSEMBLY Ø 5/16" TYP. SIDE VIEW HOLE LOCATIONS

1. With the hood hanging in place, drill through both holes located in the inside lower back of hood using a 516 " drill bit. Insert the included drywall anchors into the drilled holes (one for each hole). Install (2) washers and (2) #8 x 1-3/6" pan head mounting screws through the back of the hood and into the drywall anchors. Verify that the hood is centered and leveled. Tighten all screws completely.
2. Attach (2) two non-duct recirculation filters to sides of blower by aligning key lock slot and rotating until filters lock into place.

For replacement

non-duct recirculation filters - purchase S97018030 or ROUNDFILTER.

1. Reinstall grease filters by aligning rear filter tabs with slots in the hood. Push back the metal latch tab, push filter into position and release. Make sure filters are securely engaged after installation.

UPPER FLUE MOUNTING BRACKET UPPER FLUE

1. Slide the upper flue upward until it is aligned with its mounting bracket. The bracket should be inside the flue. Secure the upper flue to the upper flue mounting bracket using (2) #8 x 3/8" mounting screws.
2. Remove any protective plastic remaining on hood.

SERVICE PARTS

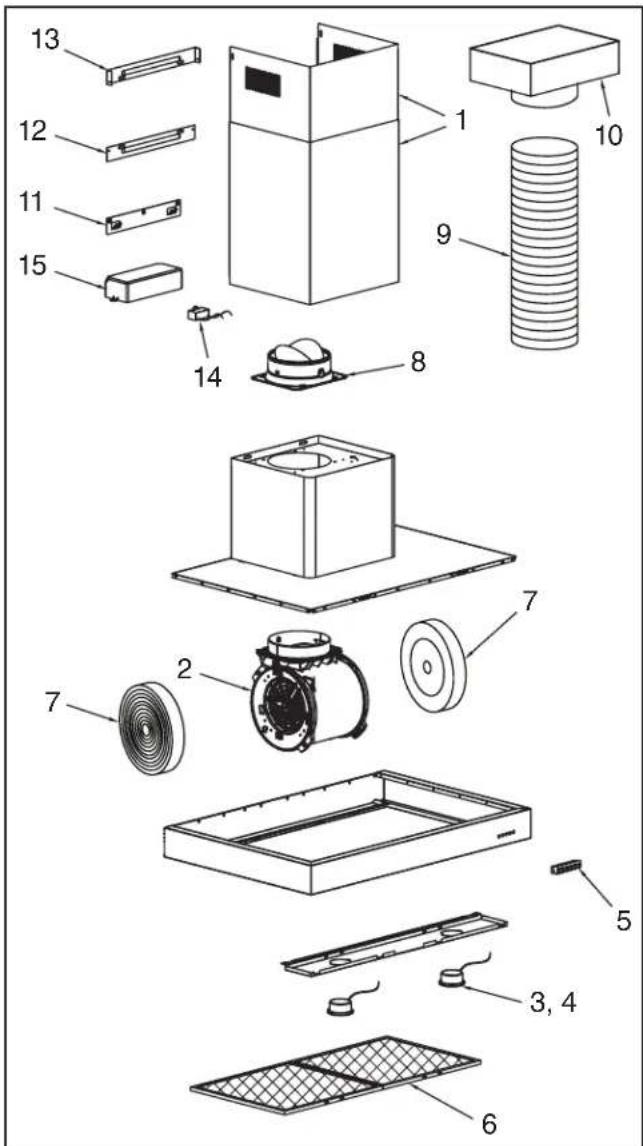

KEY PART NO. DESCRIPTION QTY.

1	S99528454	Decorative Upper and Lower Flues 1
2	S99526974	Motor / Blower Assembly 1
3	S99526975	Light Socket Assembly 2
4	S99527010	Light Trim Ring / Lens Assembly 2
5	S99526976	Push Button Assembly 1
6	S97018027	Aluminum Grease Filters (2 per hood) B5330SS 1
	S97018028	Aluminum Grease Filters (3 per hood) B5336SS 1
7	S97018030	Non-Duct Recirculation Filters (pair) 1
8	S99526983	Damper / Duct Connector 1
9	S99526984	6" Dia. Expandable Flexible Aluminum Duct	1
10	S99526985	Non-Duct Plenum Assembly	1
11	S99526987	Hood Mounting Bracket	1
12	S99526989	Lower Flue Mounting Bracket	1
13	S99526991	Upper Flue Mounting Bracket	1
14	S99527012	Capacitor	1
15	S99527013	Plastic Cover	1
	S99527011	Transformer (not shown)	1
	S99528455	Parts Bag (not shown)	1

Order service parts by Part No. - not by Key No.

Exploded view diagram of a refrigerator with numbered parts for identification

Replacement parts can be ordered on our website: www.broan.com

HOTTE DE

CUISINE À CHEMINÉE

Isometric line drawing of a rectangular box mounted on a base (no text or symbols)

LIRE CES DIRECTIVES ET LES CONSERVER

POUR USAGE DOMESTIQUE SEULEMENT.

⚠ AVERTISSEMENT

AFIN DE RÉDUIRE LES RISQUES D'INCENDIE, DE CHOC ÉLECTRIQUE OU DE BLESSURES CORPORELLES, VEUILLEZ OBSERVEZ LES DIRECTIVES SUIVANTES :

Pure technical line drawing of two overlapping rectangular panels without any text, numbers, or symbols

Diagram of a mechanical device showing three stages: top, side, and bottom with rotational arrows indicating motion (no text or symbols)

Exploded view diagram of a refrigerator with numbered parts for identification

Technical line drawing of a mechanical component with a base and top (no text or symbols)

LEA Y CONSERVE ESTAS INSTRUCCIONES

INDICADA SOLAMENTE PARA COCINAR EN CASA.

ADVERTENCIA

PARA REDUCIR EL RIESGO DE INCENDIOS, DESCARGAS ELÉCTRICAS O LESIONES PERSONALES OBSERVE LAS SIGUIENTES PRECAUCIONES:

Pure technical line drawing of two overlapping rectangular panels without any text, numbers, or symbols

Diagram of a cylindrical device with internal components and directional arrows indicating motion (no text or symbols)

Exploded view diagram of a refrigerator with numbered parts for identification

Warranty Period and Exclusions: Broan-NuTone LLC (the "Company") warrants to the original consumer purchaser of its product ("you") that the product (the "Product") will be free from material defects in the Product or its workmanship for a period of one (1) year from the date of original purchase.

The limited warranty period for any replacement parts provided by the Company and for any Products repaired or replaced under this limited warranty shall be the remainder of the original warranty period. This warranty does not cover fluorescent lamp starters, tubes, halogen and incandescent bulbs, fuses, filters, ducts, roof caps, wall caps and other accessories for ducting that may be purchased separately and installed with the Product. This warranty also does not cover (a) normal maintenance and service. (b) normal wear and tear. (c) any Products or parts which have been subject to misuse, abuse, abnormal usage, negligence, accident, improper or insufficient maintenance, storage or repair (other than repair by the Company). (d) damage caused by faulty installation, or installation or use contrary to recommendations or instructions. (e) any Product that has been moved from its original point of installation. (f) damage caused by environmental or natural elements. (g) damage in transit. (h) natural wear of finish. (i) Products in commercial or nonresidential use, or (j) damage caused by fire, flood or other act of God. This warranty covers only Products sold to original consumers in the United States by the Company or U.S. distributors authorized by the Company.

This warranty supersedes all prior warranties and is not transferable from the original consumer purchaser

No Other Warranties: This Limited Warranty contains the Company's sole obligation and your sole remedy for defective products. The foregoing warranties are exclusive and in lieu of any other warranties, express or implied. THE COMPANY DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS WARRANTIES. AND DISCLAIMS AND EXCLUDES ALL WARRANTIES IMPLIED BY LAW. INCLUDING WITHOUT LIMITATION THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the period specified for the express warranty above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Any oral or written description of the Product is for the sole purpose of identifying it and shall not be construed as an express warranty.

Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as to be effective and valid under applicable law, but if any provision is held to be prohibited or invalid, such provision shall be ineffective only to the extent of such prohibition or invalidity, without invalidating the remainder of such provision or the other remaining provisions of the Limited Warranty.

Remedy: During the applicable limited warranty period, the Company will, at its option, provide replacement parts for, or repair or replace, without charge, any Product or part thereof, to the extent the Company finds it to be covered by and in breach of this limited warranty under normal use and service. The Company will ship the repaired or replaced Product or replacement parts to you at no charge. You are responsible for all costs for removal, reinstallation and shipping, insurance or other freight charges incurred in the shipment of the Product or part to the Company. If you must send the Product or part to the Company, as instructed by the Company, you must properly pack the Product or part—the Company is not responsible for damage in transit. The Company reserves the right to utilize reconditioned, refurbished, repaired or remanufactured Products or parts in the warranty repair or replacement process. Such Products and parts will be comparable in function and performance to an original Product or part and warranted for the remainder of the original warranty period.

Exclusion of Damages: THE COMPANY'S OBLIGATION TO PROVIDE REPLACEMENT PARTS, OR REPAIR OR REPLACE, AT THE COMPANY'S OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY AND THE COMPANY'S SOLE AND EXCLUSIVE OBLIGATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE OR PERFORMANCE

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

This warranty covers only replacement or repair of defective Products or parts thereof at the Company's main facility and does not include the cost of field service travel and living expenses.

Any assistance the Company provides to or procures for you outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of such terms, limitations or exclusions, nor will such assistance extend or revive the warranty.

The Company will not reimburse you for any expenses incurred by you in repairing or replacing any defective Product, except for those incurred with the Company's prior written permission.

How to Obtain Warranty Service: To qualify for warranty service, you must (a) notify the Company at the address or telephone number stated below within seven (7) days of discovering the covered defect, (b) give the model number and part identification and (c) describe the nature of any defect in the Product or part. At the time of requesting warranty service, you must present evidence of the original purchase date. If you cannot provide a copy of the original written limited warranty, then the terms of the Company's most current written limited warranty for your particular product will control. The most current limited written warranties for the Company's products can be found at www.bran.com.

Broan-NuTone LLC 926 West State Street, Hartford, WI 53027 www.broan.com 800-637-1453

Garantie limitée

Broan-NuTone LLC 926 West State Street, Hartford, WI 53027 www.broan.com 800-637-1453
