USER MANUAL Guilietta Bugatti
Manuale istruzioni
Owner's guide
BUGATTI® giulietta
Visit Bugatti website to find
SERVICE CENTRES - OWNER'S GUIDES- WARRANTY REGISTRATION - VIDEO
www.casabugatti.it
d
1) COLLEGARE LA BASE (5) ALLA PRESA DI CORRENTE
Dear Customer, thank you for choosing Giulietta, the kettle from Bugatti. Like any domestic appliance, this kettle must be used with care and attention to prevent people getting burnt and the kettle getting damaged.
BEFORE USING THE KETTLE FOR THE FIRST TIME, READ ALL THE INSTRUCTIONS ON INSTALLATION, USE AND MAINTENANCE AND THE SAFETY INSTRUCTIONS CAREFULLY. DO NOT USE THE KETTLE UNLESS YOU ARE THOROUGHLY FAMILIAR WITH THE INSTRUCTIONS.
WARNING
No liability is accepted for damage due to:
- incorrect use or use other than for its intended purpose
- using the kettle continuously
- repairs carried out by unauthorized persons
- use of non-original spare parts or accessories
- plug-in the kettle in a non-earthed socket
For further information, or in the event of problems that have not been sufficiently addressed in these instructions, contact Customer Care at BUGATTI:
on line at http://www.casabugatti.com/home-appliance-service or send an email to diva@casabugatti.it
SAVE THESE INSTRUCTIONS CAREFULLY
and remember to pass
them on to those who will use the kettle after you. If the instructions are lost before you use the kettle, request the instruction booklet from Customer Care at BUGATTI or send an e-mail to diva@casabugatti.it or download it from www.casabugatti.it. On the first page of the cover you will find the illustrations relating to the text. Keep the first page open as you read the instructions on use.
Contents
Pag. 13
Technical Features
Pag. "
ription of kettle parts
Pag. "
Kettle control
Pag. 16
allation and starting up
Pag. 17
ce and recommendation on use
Pag. 17
Connect the base to power socket
Pag. 17
Water level indication
Pag. 17
Boiling Function
Pag. 17
matic shutdown & Safety system
Pag. 18
ing and maintenance
Pag. 19
Troubleshooting
Pag. 20
Warranty and Service Centre
ATTENTION:
All the details of the text have been carefully checked. Our company reserves the full right to provide any explanation if there is any printing error or misleading information. Note: please be reminded that our company keeps updated every product detail shown on the instruction book, including technical specification. We reserve to revise the instruction book without prior notice. All product's outlook, shape and color are based on the standard of actual physical products.
TECHNICAL FEATURES
Power supply See rating plate underneath machine
Power rating See rating plate underneath machine
Dimensions 175x235x h210mm - 7"x9"x8" approximately
Body Pressed Solid 18/10 Stainless Steel
Weight 0,9 Kg - 2 Pounds approximately
Length of power supply cord 0,75 meter - 30 inches approximately
Thermal overload protection Built in
Kettle capacity 1,20 litres / 40.58 US fl.oz / 42.23 UK fl.oz
Certifications See rating plate underneath machine
Warranty As per attached certificate
DESCRIPTION OF KETTLE PARTS
Lid and filter ①
Water level windows ②
Stay-cool handle ③
18/10 stainless steel kettle ④
Power base unit ⑤
Connector 5a
Plug ⑥
Spout ⑦
Water maximum level mark ⑧
KETTLE CONTROL
On/Off button ⑨
IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS CAREFULLY. THE KETTLE MUST BE USED ONLY BY ADULTS WHO HAVE BEEN TRAINED IN ITS USE.SAVE THESE INSTRUCTIONS CAREFULLY.
- TO PREVENT SERIOUS INJURIES, ELECTRIC SHOCKS AND FIRE DO NOT IMMERSE CORDS, PLUGS, POWER BASE OR THE KETTLE ITSELF IN WATER OR OTHER LIQUIDS, EITHER PARTIALLY OR TOTALLY.
WARNING: DANGER OF BURNS!
PAY ATTENTION TO HOT SURFACES!
Do not touch hot surfaces. Use only the handle to pick-up the kettle. Use an oven glove when touching hot parts such as body (4), lid (1) and all surfaces of the kettle:
DANGER OF BURNS!
- The kettle has been designed for HOUSEHOLD USE ONLY.
This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.
Use kettle only for its intended use. The appliance is only to be used with the stand provided. Do not make any technical modifications that might cause risks.
-
This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance, the base (5) and its cord out of reach of children aged less than 8 years. Close supervision is necessary when any appliance is used by or near children. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
-
A short power cord with plug is supplied to reduce the risk of becoming entangled in objects, to prevent people from tripping over it and to prevent the cord from wrapping around a longer cord. Long detachable power cords or extension cords are available but they may be used only if a QUALIFIED ELECTRICIAN can confirm that they comply with wiring regulations. DO NOT USE plug/socket adapters. If a long detachable power cord or extension cord is used:
a) The electrical rating of the detachable power cord or extension cord should be at least as powerful as the electrical rating of the kettle indicated underneath the kettle itself.
b)The extension cord must be of the 3-wire/pole type and must be earthed. A long cord or extension cord must never protrude from furniture or over counter tops or table tops where it may be pulled on by children or tripped over.
c) Do not place kettle or cords on or near a hot gas ring or electric hotplate, or in or near the oven.
d) Do not use outdoors. Do not let the cords hang over the edge of the table or counter, or touch hot surfaces.
Do not operate the kettle with a damaged cord or plug or after the appliance develops faults, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination or repair. The use of accessory attachments not recommended by the appliances manufacturer may result in fire, electric shock or serious injuries to persons.
e) If the power cable or plugs are damaged, they must be replaced by the manufacturer or with authorized service centre or by a qualified person in order to prevent all risks.
- Never touch live electrical parts. They may cause electric shocks and serious personal injury. Connect the power base unit (5) to a wall socket having the appropriate voltage. The voltage must correspond to the voltage indicated on the rating plate underneath the kettle (4). Make sure that the socket that you are using is earthed 📋.
Do not use the kettle with bare or wet feet.
-
WARNING: avoid spillage of water or other liquids on the base (5) and on the connector (5a).
-
WARNING: Never fill the kettle above 1200 ml (40.58 US fl.oz / 42.23 UK fl.oz), the «MAX» mark (8).
-
WARNING: Never fill the kettle with water when it is positioned on the power base unit (5).
-
WARNING: Only fill the kettle with clean water. No milk, coffee or others.
-
WARNING: Never operate the kettle unattended. Do not move while the kettle is switched on.
-
WARNING: Never operate the kettle without water. A misuse limits the life of the kettle.
-
WARNING: Never boil water if the kettle is overfilled or with the lid (1) open. Boiling water may splash out and hurt people.
-
Always be careful to pour hot water slowly and carefully. WARNING: potential injury may be caused from misuse.
-
To prevent burns avoid to open the lid (1) when the water is being boiled or just after the kettle has switched off.
STEAM MAY BURN! Be careful when opening the lid (1), if the kettle is still hot and you wish to refill it with water. Boiling water can cause burns.
- After every boiling session empty the kettle completely. Never leave water in the kettle for a long period of time.
-
Be careful: hot surfaces. Use handles or knobs or wear oven gloves. Be very careful when touching very hot parts such as lid (1), body (4) and all surfaces of the kettle. WARNING! DANGER OF BURNS! The kettle body (4) and lid (1) become very hot during use.
-
The heating element surface placed on the internal kettle bottom, is subject to residual heat marks after use.
-
To disconnect verify that the kettle is switched off and remove the plug (6) from the wall outlet. Always unplug the appliance by holding the plug not the cord. Note: Remove plug from wall outlet when you are not using the kettle.
-
Place the kettle on a flat surface, making sure that the feet adhere firmly to the support surface so that the appliance cannot be overturned. Do not place the kettle on or near hot surfaces or near naked flames. CAUTION: Do not operate the kettle on an inclined surface.
-
To be sure that the kettle works correctly, place it on a flat surface in an adequately lighted and hygienic environment with an easily accessible electrical socket. Keep the kettle at least 10 cm (4 inches) away from the walls.
-
Do not use the kettle under or near flammable material such as curtains, wallpaper, walls.
-
In the event of faults, defects or suspected faults after a fall, unplug the kettle immediately. Never switch on a faulty appliance. The repairs must be carried out by the BUGATTI Service Centre. Contact your dealer and/or contact Customer Care at BUGATTI or send an e-mail to diva@casabugatti.it. In the event of fire, use carbondioxide (CO2) extinguishers. Do not use water or powder extinguishers.
-
Detailed information on cleaning the appliance can be found in the section cleaning and maintenance.
-
CAUTION: To prevent damage to the appliance do not use alkaline cleaning agents when cleaning, use a soft cloth and a mild detergent.
SAVE THESE INSTRUCTIONS CAREFULLY
Installation and starting up
The original packaging has been designed for dispatch by post. Keep it in case you need to return the kettle to the supplier. Before installing the kettle, comply with all the points of the safety instructions on the previous pages. After removing the kettle from its packaging, make sure that it is in perfect condition and make sure that no kind of matter, packaging material, warranty sheets or the like have accidentally fallen inside the kettle during transport or while opening the packaging.
The plastic bag in which the kettle is packaged should be kept out of reach of children as it poses a suffocation hazard. Be sure that the kettle is in perfect conditions. In order to remove dust that may have accumulated on the exterior surfaces of the kettle, simply dust it off with a dry soft cloth.
After you have carried out the above steps and have strictly followed the safety standards, proceed to connect to the power supply. Connecting to power supply: electric current can kill! Follow safety instructions! Plug the power cord (6) of the kettle into a power socket of the same voltage of the one indicated on the rating plate underneath the kettle. Rinse out carefully all the internal surfaces and the spout of the kettle: fill the kettle with water until the maximum level (1200 ml/ 40.58 US fl.oz / 42.23 UK fl.oz), boil it and empty the boiler. Repeat at least two times.

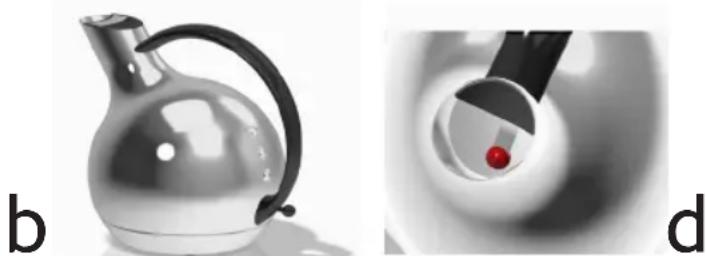

FILL THE KETTLE:
a) remove the kettle body from the power base unit (5). Hold it by the handle (3)
b) remove the lid pulling the knob (picture "b"). The lid (1) is removable.
c) fill the kettle with water directly under the tap or fill it by pouring water from a bottle, jug or jar to the needed level. Do not overfill the kettle. Be careful not to go over 1200 ml (40.58 US fl.oz / 42.23 UK fl.oz), please do not exceed the water maximum level mark (picture "d").
Advice and recommendations on use
1) CONNECT THE BASE (5) TO POWER SOCKET
a) WARNING: Make sure that the electric socket that you are using is suitably earthed. Never allow parts carrying live voltage to come into contact with water: it may cause a short circuit!!! (follow all the safety instructions specified before). To disconnect, make sure that the kettle is not running. Do not unplug the kettle from the wall outlet by pulling on the cord. Always unplug the appliance by holding the plug (6). To switch off the device completely, the plug (6) has to be removed from the socket.
b) To plug in the power base (5) insert the plug (6) into the socket.
2) WATER LEVEL INDICATION
The water level mark (8) is visible, when lid (1) removed from the kettle body (4), inside the kettle.
ATTENTION: NEVER OPERATE WHEN KETTLE IS OVERFILLED WITH MORE THAN 1,2 liters / 40.58 US fl.oz / 42.23 UK fl.oz OF WATER: DURING HEATING YOU MAY HAVE HOT WATER SPLASHED FROM THE SPOUT. DANGER OF BURN.
3) BOILING FUNCTION
a) Place the kettle (4) on the power base unit (5) and press the “ON/OFF button (9)” to start the boiling/heating cycle. The water windows (2) light will turn ON.
b) When the boiling/heating cycle is finished the water windows (2) light will turn OFF.
c) At any time, the function boiling water can be stopped by lifting the ON/OFF button (9).
d) POURING OUT WATER: Remove the kettle from the power base unit (5), holding it by its handle (3). Ensure that the kettle body remains steady while lifting it from the power base unit (5). Pour the water from the spout (7) with the lid (1) closed.
ATTENTION: boiling water can cause burns. Always ensure to pour boiling water slowly and carefully, taking care not to tilt the spout too rapidly.
Automatic shutdown
The kettle is equipped with a system that automatically switches off the device shortly after the water is boiled.
If warm water is desired, the heating process can be stopped anytime by pressing the on/off button (9). The shutdown takes place automatically as the kettle is removed from its base (5).
Safety system
A thermostat protects the kettle from overheating: if the device is accidentally switched on empty, this system automatically switches off the device. The device will restart its normal functions in around 10 minutes.
If the first thermostat protection would not function due to improper use, another temperature limiter ensures protection.
Cleaning and maintenance
CAUTION: Always disconnect the kettle from the electrical outlet before cleaning.
Before cleaning, be sure the kettle is cold. Clean the exterior surface of the kettle with a clean, damp cloth to preserve its original highly polished finish. Dry and polish with a soft cloth.
Do not use abrasive cleansers or scouring agents of any kind on the interior or exterior of the kettle.
Do not immerse the kettle or power base in water or other liquid, and be sure that the electric kettle plug (6) and connector (5a) of the power base (5) is kept dry.
a) Lid and Filter (1)
Scale, or calcium, is a natural substance that forms when hard water is boiled. The filter (1) is projected to retain the calcium of water. It is important to clean the filter (1) regularly. The mesh of the filter (1) is fixed inside the lid (1). To clean it, deep a small brush in vinegar and gently brush the filter (1). Rinse under running water.
ATTENTION: This operation can be performed only when the kettle is not working and when the kettle has cooled down. BOILED WATER AND STEAM CAN BURN!!!
b) Decalcification
Decalcification refers to removing the calcium/scale deposits which may form in the interior metal parts of the kettle.
TO GET THE BEST PERFORMANCE FROM YOUR KETTLE, DECALCIFY YOUR UNIT FROM TIME TO TIME.
Frequency depends on the hardness of your tap water and how often you use the kettle. We suggest to do it every 100-200 boiling cycles, or every two weeks or every time you see white spots on the internal bottom surface of the kettle: it means that there is limestone sediment.
We suggest the use of a kettle descaler in order to dissolve these chalky deposits or lime build up.
Follow the instructions on the descaler package.
By the way BUGATTI suggests the following natural way: if a commercial descaler is not available, fill the kettle with 500 ml (16,90 US oz/ 17,59 UK oz) white vinegar and 500 ml (16,90 US oz/ 17,59 UK oz) water. Use a soft brush together with vinegar to clean to help to remove the chalky deposit. Bring the vinegar to a boil. You may need to repeat this several times with cooled vinegar to remove the calcium build up completely. When the descaling process is complete, empty the kettle and rinse out several times with clean water. Any other servicing should be performed by an authorized service representative.
Troubleshooting
If the kettle develops faults or defects or if irregularities are suspected, unplug it immediately. If you cannot eliminate the fault by following the instructions in this manual, contact Customer Care at BUGATTI: on line at http://www.casabugatti.com/home-appliance-service or send an email to diva@casabugatti.it Repairs carried out incorrectly expose the user to grave danger. No liability is accepted for damage or injury caused by repairs carried out incorrectly and in such cases warranty rights are voided.
| TROUBLE | POSSIBLE CAUSE | SOLUTION |
| The kettle does not work pro-perly or stops before boiling.Water tastes bad. | There is lime scale into the kettle.1) Water is in the kettle for more then 12 hours.2) The kettle is not well washed after the descaling cycle. | Make the descaling as for point b) of the Cleaning and maintenance chapter.1) We suggest to change the residual water after each boling cycles.2) Rinse the kettle sufficient times in order to remove completely the descaling product. |
| The kettle is switched on and after a few seconds it automatically switches off.The water windows (2) light doesn't switch on. | The kettle is empty and the protection system of the heating element is working.The kettle is not well positioned on the power base (5) and/or the plug (6) is not well insert in the socket. | Wait approximately 10 minutes, fill the kettle with water and switch it on.Check if the plug (6) of the power base (5) is well connected to the wall socket. Check if there is electricity in your system. |
| The water inside the kettle, du-ring the heating, comes to the boil but the temperature is lower than 99°C. | The kettle is used at an altitude over 500/1000 meter on the sea level. | Water boiling temperature varies according to the altitude than at see level as the below list. In altitude the water boils at a lower temperature than 100°C (212,0 °F) due to the pressure difference . |
| Altitude Meter | °C °F Altitude Feet | |
| 0 100 21 | 2,00 0 | | |
| 500 ÷ 1.500 98 | ÷ 95 208,40 | ÷ 203,00 1.640 ÷ 4 | .291 | |
| 1.500 ÷ 2.500 95 | ÷ 91 203,00 | ÷ 195,80 4.291 ÷ | 8.202 | |
| 2.500 ÷ 4.000 91 | ÷ 85 195,80 | ÷ 185,00 8.202 ÷ | 13.123 | |
| * These dates are only for reference |
Warranty
1) A warranty is deemed to be the replacement or repair free of charge of the parts making up the kettle that were faulty at the time of purchase due to manufacturing faults.
2) In the case of irreparable or repeated faults which are due to manufacturing faults as above, at the manufacturer's sole discretion, the machine will be replaced.
3) The warranty does not cover damage due to:
a) incorrect or faulty use
b) defects caused by accidental breakages or carelessness
c) failure to follow instructions and warnings, incorrect installation, cleaning and maintenance
d) maintenance and/or modifications performed by unauthorized personnel
e) use of non-original spare parts
f) carriage
g) using any kettle function without water continuously
h) any other circumstance that cannot be ascribed to manufacturing faults. Any claims not envisaged by law are excluded.
4) The warranty does not cover damage due to improper use and in particular due to non-domestic use.
5) The manufacturer accepts no liability for any direct or indirect harm or injury to persons, things and domestic animals that may arise from failure to abide by all the safety instructions contained in this manual, especially failure to abide by the instructions on installation, use and maintenance of the kettle.
6) Replacement or repair shall not extend the warranty period. The warranty does not cover the replacement of consumables, such as the resistances, battery, etc.
7) The warranty runs from the date of receipt of evidence of purchase and of receipt of the warranty card by BUGATTI.
8) JOIN CASABUGATTI: WE KINDLY INVITE YOU TO REGISTER YOUR PRODUCT/WARRANTY ON OUR WEB SITE.
Select "REGISTER YOUR PRODUCT" from menu "PRODUCTS"
The link is: http://www.casabugatti.com/web_eng/registra_prodotto.asp
SERVICE CENTRE
In the event of a kettle fault, contact an authorized BUGATTI dealer, who will return the kettle to the manufacturer. The purchaser is responsible for all carriage and/or dispatch costs for all repairs covered or not covered by warranty. If possible, keep the kettle's original packing for dispatch. Important: If the nonconforming product is to be serviced by someone other than contact an authorized dealer, please remind the service to call our Consumer Service Center to ensure that the problem is properly diagnosed, the product serviced with the correct parts, and to ensure that the product is still under warranty.
In case of any need, PLEASE, contact us on-line at http://www.casabugatti.com/home-appliance-service or send an email to diva@casabugatti.it
DISPOSAL OF THE PRODUCT IN CONFORMITY TO EUROPEAN DIRECTIVE 2002/96/EC.
At the end of its working life the product must not be disposed of alongside urban waste. It can be delivered to local-authority separated waste collection centres or to dealers who provide this service. Separated disposal of a household appliance enables possible negative consequences for the environment and health arising from improper disposal to be eliminated and enables the materials of which it is made to be recovered in order to make significant power and resource savings. The symbol of a moveable waste bin marked with a cross displayed on the product indicates that as a household appliance it must be disposed of separately.
AVIS IMPORTANTS
1) CONNECTER LA BASE (5) À LA PRISE DE COURANT
ÉLIMINATION DU PRODUIT EN CONFORMITÉ AVEC LA DIRECTIVE EUROPÉENNE 2002/96/CE.
d
d
1) CONECTAR LA BASE (5) A LA TOMA DE CORRIENTE
d
1) ANSLUTANDE AV BASEN TILL ELUTTAGET
d
OHJEITA JA KÄYTTÖSUOSITUKSIA
1) JALUSTAN LIITTÄMINEN VIRTUALÄHTEESEEN
d
使用建议和忠告
1）将底座（5）连接到电源插座
b
(3) وظيفة الغلي
People are being the most successful.
사용에 관한 조엔 및 권쟁사항
Zasady użytkowania
1) PODŁĄCZANIE BAZY (5) DO GNIAZDA ZASILANIA
d
1) ZAPOJENÍ ZÁKLADNY (5) DO ZÁSUVKY
fax +39.030.89.28.250
www.casabugatti.com
diva@casabugatti.it
