USER MANUAL K 2 Horizontal Kärcher

Yellow KARCHER industrial vacuum cleaner with gray casing and mounting base (no visible text or symbols beyond brand label)

Deutsch 5

English 10

Français 15

Italiano 20

Español 25

Português 30

Nederlands 35

Türkçe 40

Svenska 45

Suomi 49

Norsk 54

Dansk 58

Eesti 63

Latviešu 67

Lietuviškai 72

Polski 77

Magyar 82

Čeština 87

Slovenčina 91

Slovenščina 96

Românește 101

Hrvatski 106

Srpski 110

Ελληνικά 115

Русский 120

Українська 125

Қазақша 130

Български 136

العربيya 142

A

8 9 10 11 10 7 6 5 4 KARCHER 10 12 13 14

Close-up of two screws with a label pointing to the number 15 (no text or symbols on the screws themselves)

Diagram of an electric motor with numbered parts and a water tap, showing wiring and component labels.

B RUP

3D mechanical assembly diagram showing a yellow component with two gray parts and a magnified inset highlighting a red arrow labeled 'a' and 'b' (no text or symbols beyond labels)

D a b c

E b a d c

F CLICK

G a b

Yellow plastic container connected to a bottle with a red arrow indicating fluid flow (no text or symbols)

Close-up of a yellow fuel nozzle with a red arrow indicating a cable or plug, showing internal components and lock icons (no text or symbols)

J a b

K 100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Illustration of a yellow plastic bottle with a white tool and a water droplet, alongside a water tap diagram showing liquid flow (no text or symbols)

Inhalt

KÄRCHER Home & Garden App.... 5

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2024/09/01

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Technische Daten

Symbols on the device 10

Environmental protection.... 10

Intended use.... 10

Accessories and spare parts 10

Scope of delivery.... 11

Device description 11

Installation 11

Initial startup 11

Operation.... 11

Transport 12

Storage.... 12

Care and service 13

Troubleshooting guide.... 13

Warranty 13

Declaration of Conformity 13

Technical data 14

KÄRCHER Home & Garden App

The KÄRCHER Home & Garden app can be used to control smart Kärcher products and access supporting content:

• Product information and operating instructions
• Individual device settings
• Usage statistics
- Tips & tricks
• Online shop and much more

Scan the code with a smartphone to access the Kärcher Home & Garden app and further information.

1.600-941.0

1.600-942.0

General notes

Read these original operating instructions and the enclosed safety instructions before using the device for the first

time. Proceed accordingly.

Keep both books for future reference or for future owners.

Safety devices

⚠ WARNING

Danger of injury!

Serious injuries due to missing, modified or ineffective safety devices.

Do not bypass or remove the safety devices and do not render them ineffective. Safety devices are provided for your own protection.

Power switch

The power switch prevents unintentional operation of the device.

High-pressure gun lock

The lock locks the lever of the high-pressure gun and prevents the device from starting unintentionally.

Auto-stop function

If the lever of the high-pressure gun is released, the pressure switch turns off the pump and the high-pressure jet stops. The pump switches on again when the lever is pressed.

Symbols on the device

Do not aim the high-pressure jet may at persons, animals, live electrical equipment or the device itself.

Protect the device against frost.

The device may not be connected to the public drinking water network.

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic devices contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish.

Cleaning work producing in oily waste water, e.g. washing engines, washing undercarriages etc., may only be performed at washing stations with an oil separator.

Working with detergents may only be performed on watertight surfaces with connection to the waste water sewage system. Do not allow detergent to enter waterways or the soil.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.de/REACH

Intended use

Use the high-pressure cleaner in private households only.

The high-pressure cleaner is intended for cleaning machines, vehicles, buildings, tools, façades, terraces, garden machines etc. using a high-pressure water jet.

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

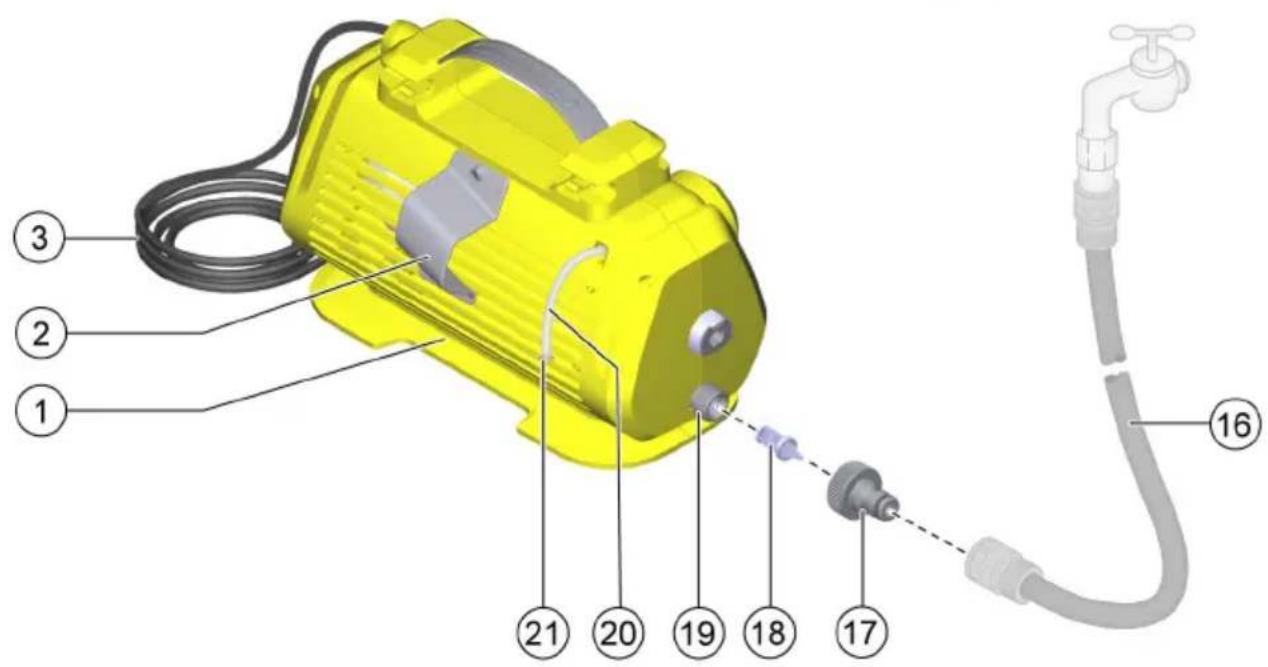

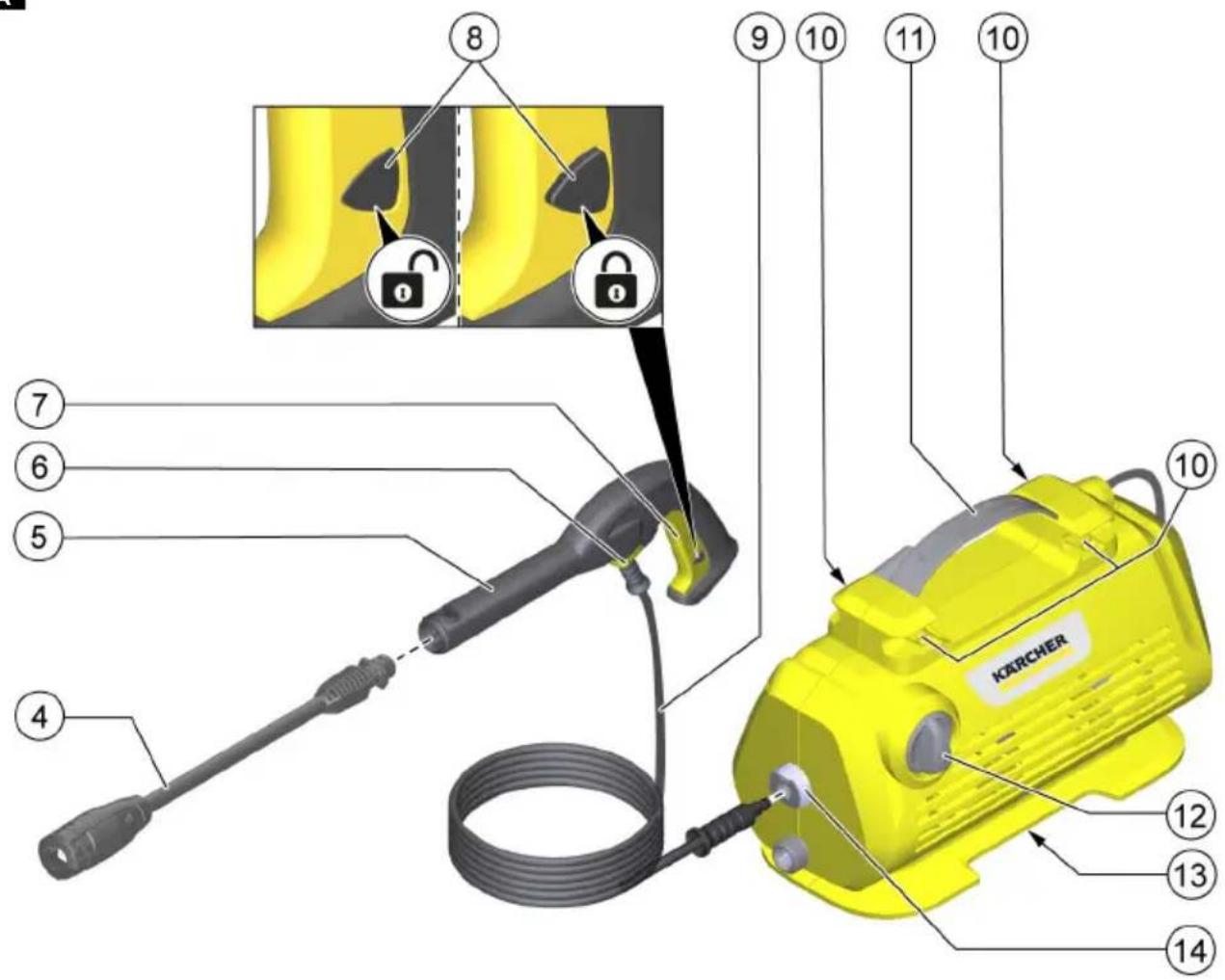

Device description

For the figures, please refer to the graphics page Illustration A

① Storage for the mains connection cable
② Storage for the high-pressure gun
③ Mains connection cable with mains plug
④ Vario Power spray lance for common cleaning tasks The working pressure can be continuously increased from "SOFT" to "HARD". To adjust the working pressure, release the trigger gun lever and turn the spray lance to the desired position. Detergent can be added to the water jet when the spray lance is turned all the way in the SOFT direction.

⑤ High-pressure gun
⑥ Clamp for separating the high-pressure hose from the high-pressure gun

⑦ High-pressure gun lever

⑧ High-pressure gun lock

⑨ High-pressure hose

⑩ Storage for the spray lance

⑪ Transport handle

⑫ Device switch "0/OFF" / "I/ON"

⑬Type plate

⑭ Quick coupling for the high-pressure connection

⑮ Screws

^16 *Garden hose (fabric-reinforced, diameter at least 1/2 inch (13 mm), length at least 7.5 m, with commercially available quick coupling)

⑰ Coupling for the water connection

⑱ sieve

⑲Water connection

20 Detergent suction hose

21 Detergent filter

* additionally required

Installation

For the illustrations, refer to the graphics page. Fit the supplied loose parts onto the device before starting up the device. Have the included screws and the appropriate screw-driver ready.

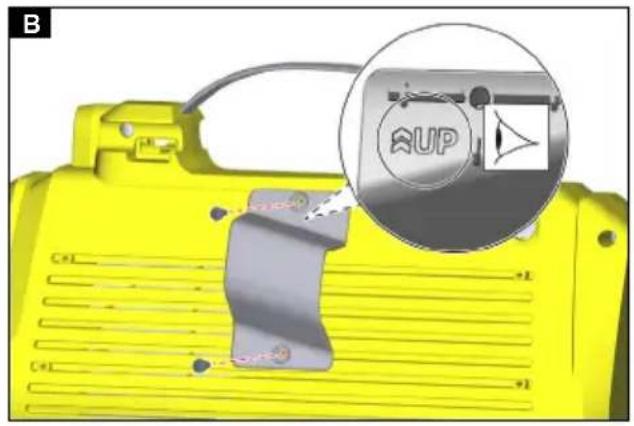

Mounting the storage option for the high-pressure gun

1. Attach the storage for the high-pressure gun to the device with the two screws.
   Illustration B

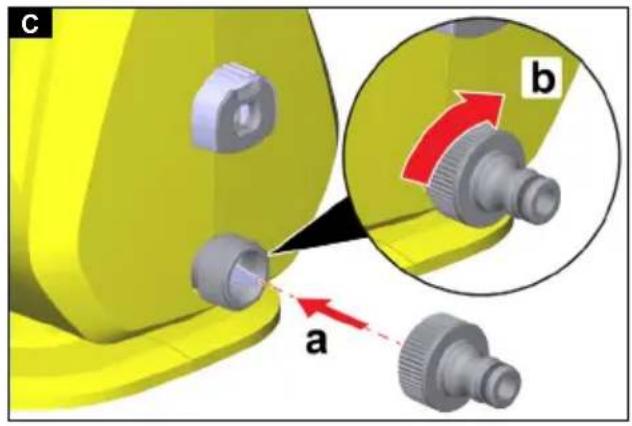

Installing the water connection coupling

1. Screw the water connection coupling onto the water connection on the device.
   Illustration C

Initial startup

1. Place the device on a level, horizontal surface.

ATTENTION

Risk of damage during operation with wound-up high-pressure hose!

Damage on the high-pressure hose.

Unwind the high-pressure hose completely and lay it out without knots, loops or twists before operating the device.

1. Unwind the high-pressure hose completely and eliminate any possible knots, loops and twists.

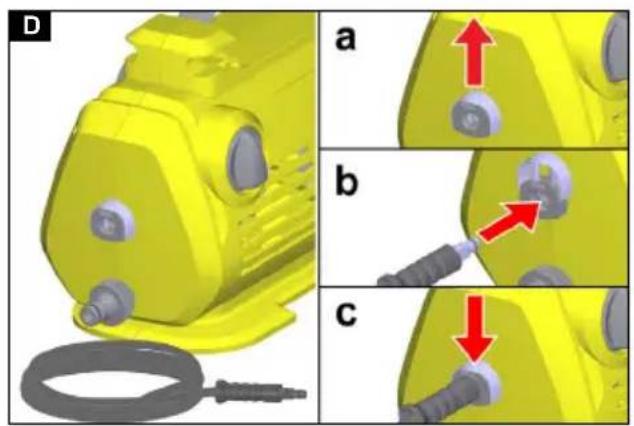

2. Connect the high-pressure hose to the device.

a Pull up the clamp on the coupling.
b Insert the high-pressure hose into the coupling.
c Press down the clamp on the coupling.

Illustration D

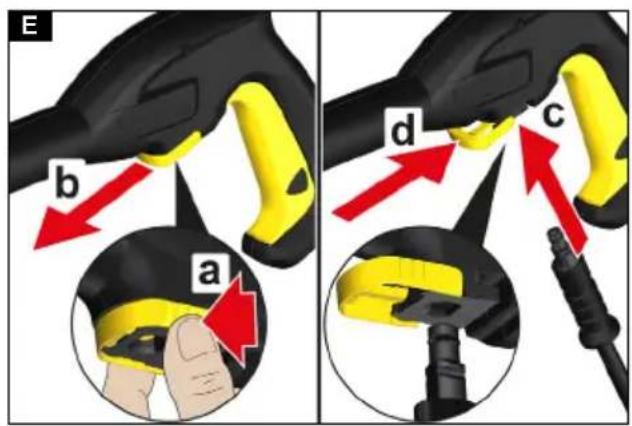

1. Connect the high-pressure hose to the high-pressure gun.

a Squeeze the clamp.
b Pull out the clamp.
c Insert the high-pressure hose.
d Press the clamp in until it latches into place.

Illustration E

1. Check for a secure connection by pulling on the high-pressure hose.
2. Plug the mains plug into a mains socket.

Water supply

For the connected load, see Technical data or type plate.

Observe the water distribution company regulations.

ATTENTION

Risk of damage!

Damage to the device and accessories in case of contamination in the water or use of salt water.

Use only clean water and no salt water.

Note

Kärcher recommends the use of an optional Kärcher water filter.

Connection to the water line

ATTENTION

Risk of damage!

Damage to the pump when using a hose coupling with aquastop on the water connection of the device.

Do not use a hose coupling with aquastop on the water connection of the device.

Use a hose coupling with "aquastop" on the tap only.

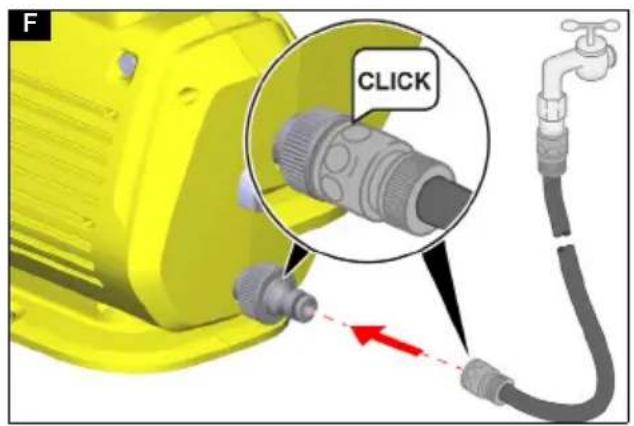

1. Plug the garden hose onto the water connection coupling.

Illustration F

1. Connect the garden hose to the water line.
2. Open the water tap completely.

Operation

ATTENTION

Risk of damage due to the pump running dry!

Pump damage

Switch off the device if it does not build up pressure within 2 minutes.

Proceed according to the instructions in Troubleshooting guide.

ATTENTION

Risk of damage if the device is not positioned correctly.

Pump damage

Place the device on a level, horizontal surface and only operate it in a horizontal position.

High-pressure operation

ATTENTION

Damage to painted or sensitive surfaces

Surfaces can be damaged when the jet is too close to the surface or an unsuitable spray lance is used.

Maintain a minimum spray distance of 30 cm when cleaning painted surfaces.

Do not clean car tyres, paint or sensitive surfaces such as wood with the dirt blaster.

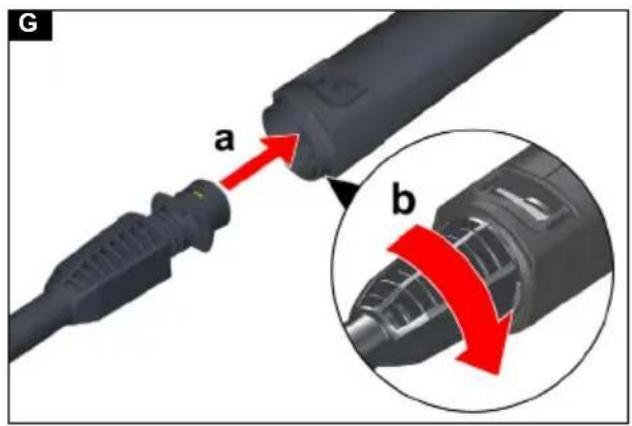

1. Insert a spray lance into the high-pressure gun and lock it by turning it 90°.

Illustration G

1. Switch the device on ("I/ON").

2. Unlock the lever of the high-pressure gun.

3. Press the lever of the high-pressure gun. The device switches on.

Operation with detergent

⚠️DANGER

Risk of injury from detergent

Serious damage to health due to improper use of detergents.

Observe the detergent manufacturer's safety data sheet.

Wear the prescribed personal protective gear.

Note

KÄRCHER detergents guarantee trouble-free work. Ask us for a consultation, request our catalogue and our detergent information sheets.

Note

Detergents may only be added at low pressure.

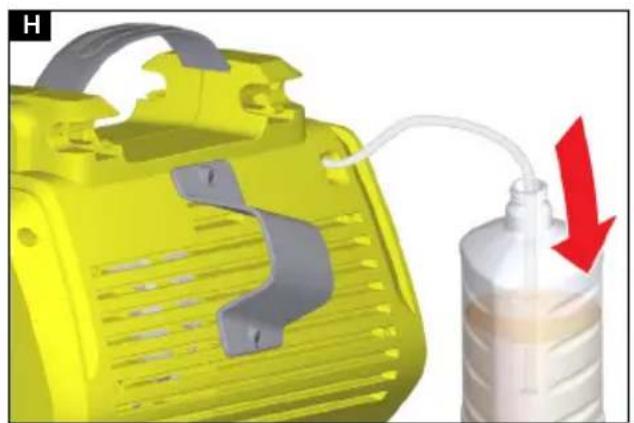

1. Pull the detergent suction hose out of the casing to the desired length.

Illustration H

1. Hang the detergent suction hose in a container with detergent solution.

2. Use the Vario Power spray lance.

3. Turn the spray lance all the way into the "SOFT" position.

The detergent solution is mixed with the water jet during operation.

Recommended cleaning method

1. Spray the detergent sparingly on the dry surface and let it work for a while (do not let it dry).

2. Rinse off the loosened dirt with the high-pressure jet.

After operation with detergent

1. Flush the device with clear water for approx. 30 seconds.

Interrupting operation

1. Release the lever of the high-pressure gun. The device switches off when the lever is released. The high pressure in the system is retained.

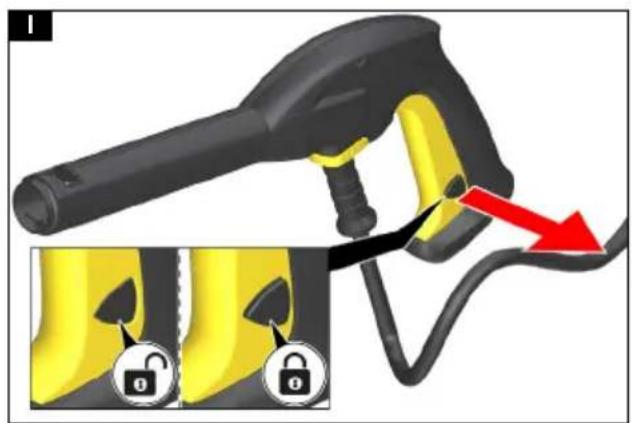

2. Lock the lever of the high-pressure gun. Illustration I

3. Switch the device off "0/OFF" during work breaks longer than 5 minutes.

Ending operation

△CAUTION

Risk of injury from escaping water under high pressure!

Injuries

Only disconnect the high-pressure hose from the high-pressure gun or the device if there is no pressure in the system.

1. Release the lever of the high-pressure gun.

2. Close the water tap.

3. Press the lever of the high-pressure gun for 30 seconds.

The pressure in the system is released.

1. Release the lever of the high-pressure gun.

2. Lock the lever of the high-pressure gun.

3. Switch off the device "0/OFF".

4. Disconnect the device from the water supply.

5. Pull the mains plug out of the outlet.

Transport

△CAUTION

Risk of injury or damage due to the weight of the device!

Injury and damage.

Be aware of the weight of the device during transport and storage.

Carrying the device

1. Lift up the device by the carrying handle, and carry it.

Transporting the device in a vehicle

1. Secure the device against slipping and tipping over.

Storage

△CAUTION

Risk of injury or damage due to the weight of the device!

Injury and damage.

Be aware of the weight of the device during transport and storage.

Storing the device

1. Wind up the mains connection cable at the storage for the mains connection cable.

2. Place the device on a level surface.

3. Disconnect the high-pressure hose from the high-pressure gun.

4. Disconnect the spray lance from the high-pressure gun.

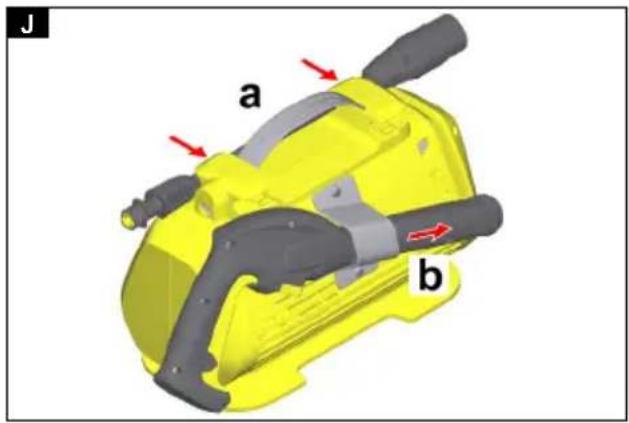

5. Stow the accessories on the device:

a Snap the spray lance into the storage for the spray lances.

b Push the high-pressure gun into the high-pressure gun storage compartment.

Illustration J

1. Disconnect the high-pressure hose from the device.

Observe the additional notes before storing the device for a long period of time, see Care and service.

Frost protection

ATTENTION

Risk of damage!

Damage to the device and accessories due to freezing water.

Completely empty the device and accessories after each use.

Protect the device and accessories from temperatures below or equal to 0 °C (32 °F).

1. Disconnect the water supply from the device.
2. Remove the high-pressure hose from the device.
3. Switch the device on ("I/ON").
4. Wait for a maximum of 1 minute until no more water escapes from the high-pressure connection.
5. Switch off the device ("0/OFF").
6. Store the device and accessories in a frost-protected room.

Care and service

⚠️DANGER

Danger of electric shock

Injuries due to touching live parts

Switch off the device.

Remove the mains plug.

The device is maintenance-free, i.e. you do not need to perform any maintenance work.

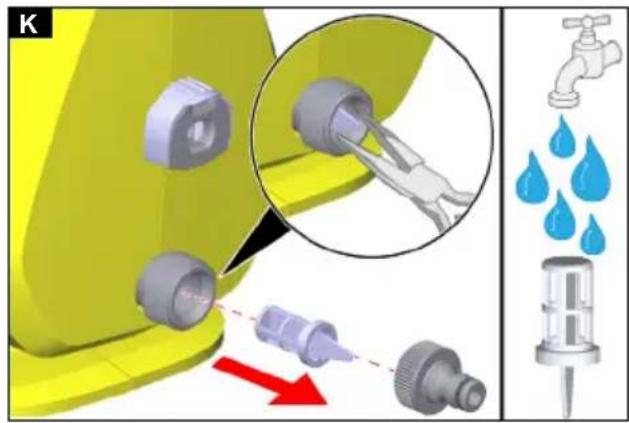

Clean the sieve in the water connection

ATTENTION

Risk of damage!

Damage to the sieve due to improper cleaning.

Clean the sieve only under running water against its flow direction.

Do not use sharp or hard objectse.g. needles or wire brushes.

ATTENTION

Risk of damage!

Damage to the device and accessories when operating without a sieve or with a damaged sieve.

Check the sieve for damage before inserting it into the water connection. Replace a damaged sieve immediately.

Do not operate the device without a sieve.

Clean the sieve in the water connection if necessary.

1. Unscrew the coupling on the water connection.
2. Pull out the sieve.

Illustration K

1. Clean the sieve under running water.
2. Insert the sieve into the water connection.

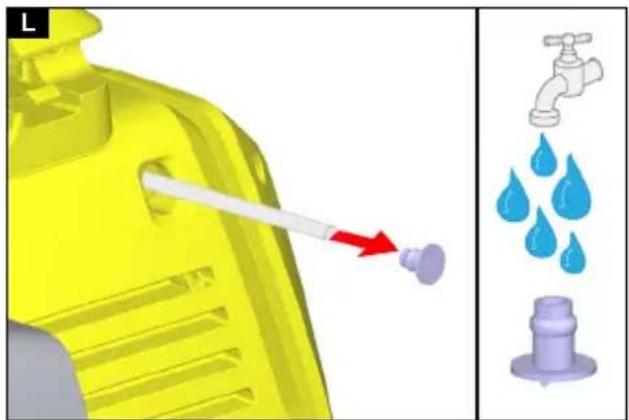

Cleaning the detergent filter

Clean the detergent filter before prolonged storage.

1. Remove the detergent filter from the detergent suction hose.
2. Clean the detergent filter under running water. Illustration L

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorized Customer Service.

⚠️DANGER

Danger of death!

Fatal injuries due to electric shock when touching live parts.

Do not touch any live parts.

Switch off the device.

Pull the mains plug out of the mains socket.

Device not running

1. Press the lever of the high-pressure gun. The device switches on.

2. Check that the voltage specified on the type plate corresponds to the voltage of the power source.

3. Check the mains connection cable for damage.

The device does not reach required pressure

1. Open the water tap completely.

2. Check the water inlet for sufficient flow rate.

1. Clean the sieve in the water connection, see Clean the sieve in the water connection.

Im Gerät ist Luft.

1. Vent the device:

a Switch on the device for a maximum of 2 minutes without the spray lance connected.
b Press the lever of the high-pressure gun and wait until water comes out of the high-pressure gun without bubbles.
c Connect the spray lance.

Strong pressure fluctuations

1. Clean the high-pressure nozzle:

a Use a needle to remove dirt from the nozzle drill.
b Rinse the high-pressure nozzle from the front with water.

1. Check the water supply volume.

Device leaking

1. The device leaks a small amount for technical reasons. If the leak is severe, request authorised Customer Service.

Detergent is not sucked in

1. Use the Vario Power spray lance and turn it all the way in the "SOFT" direction.
2. Clean the detergent filter, see Cleaning the detergent filter.
3. Check the detergent suction hose for kink points.

Warranty

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing flaw is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Further warranty information (if available) can be found in the service area of your local Kärcher website under "Downloads".

Declaration of Conformity

EU Declaration of Conformity

We hereby declare that the product named below complies with the relevant provisions of the directives and regulations listed. This declaration is invalidated by any changes made to the product that are not approved by us.

Product: High-pressure cleaner

Type: 1.60x-xxx.0

Directives and Regulations

2000/14/EC

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

Harmonised standards used

EN 60335-1
EN 60335-2-79
EN IEC 63000: 2018
EN 55014-1: 2017 + A11: 2020
EN 55014-2: 1997 + A1: 2001 + A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

Applied conformity evaluation method

2000/14/EG: Annex V

Sound power level dB(A)

K 2 (Premium) Horizontal, K 3 Horizontal

Measured: 87

Guaranteed: 90

Name and address

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2024/09/01

The undersigned act on behalf of and with the authority of the Board of Directors.

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Declaration of Conformity (UK)

We hereby declare that the product named below complies with the relevant provisions of the directives and regulations listed. This declaration is invalidated by any changes made to the product that are not approved by us.

Product: High-pressure cleaner

Type: 1.60x-xxx.0

Directives and Regulations

S.I. 2001/1701 (as amended)

S.I. 2008/1597 (as amended)

S.I. 2012/3032 (as amended)

S.I. 2016/1091 (as amended)

Designated standards used

EN 60335-1

EN 60335-2-79

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

Applied conformity assessment procedure

S.I. 2001/1701 (as amended): Schedule 8

Sound power level dB(A)

K 2 (Premium) Horizontal, K 3 Horizontal

Measured: 87

Guaranteed: 90

Name and address

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2024/09/01

The undersigned act on behalf of and with the authority of the Board of Directors.

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Technical data

Electrical connection
Voltage	V
Phase ~ 1
Frequency Hz 50-60
Current consumption A 6
Degree of protection IPX5
Protection class II
Power protection (slow-blowing) A 10
Water connection
Feed pressure (max.) MPa 1,2
Input temperature (max.) °C	40
Input amount (min.)	l/min	7
Device performance data
Operating pressure	MPa 7,4
Max. permissible pressure	MPa 11
Water flow rate	l/min	5,2
Maximum flow rate	l/min	6,0
Detergent flow rate	l/min	0,3
High-pressure gun recoil force	N	11
Dimensions and weights
Typical operating weight	kg	4,1
Length	mm	380
Width	mm	197
Height	mm	248
Determined values in acc. with EN 60335-2-79
Hand-arm vibration value	m/s ^2	2,2
Uncertainty K	m/s ^2	0,7
Sound pressure level L _pA	dB(A)	75
Uncertainty K _pA	dB(A)	3
Sound power level L _WA + uncertainty K _WA	dB(A)	90

Subject to technical modifications.

Contenu

Application KÄRCHER Home & Garden 15

QR code image containing encoded data, no visible human-readable text

1.600-941.0

1.600-942.0

Remarques générales

2006/42/CE (+2009/127/CE)

2011/65/UE

2014/30/UE

71364 Winnenden (Germany)

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, le 01/09/2024

71364 Winnenden (Germany)

71364 Winnenden (Germania)

Tel.: [phone]

Fax: [phone]

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 01/09/2024

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Dati tecnici

QR code image containing encoded data, no visible human-readable text

1.600-941.0

1.600-942.0

Avisos generales

2006/42/CE (+2009/127/CE)

2011/65/UE

2014/30/UE

71364 Winnenden (Germany)

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 01/09/2024

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Datos técnicos

Conexión eléctrica

2006/42/CE (+2009/127/CE)

2011/65/UE

2014/30/UE

71364 Winnenden (Germany)

Telephone: [phone]

Fax: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 01/09/2024

⑫ Apparaatschakelaar "0/OFF" / "I/ON"

⑬ Typeplaatje

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2024/09/01

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Technische gegevens

2006/42/AT (+2009/127/AT)

2011/65/AB

2014/30/AB

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2024/09/01

71364 Winnenden (Germany)

Telefon: [phone]

Fax: [phone]

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 01.09.2024

D-71364 Winnenden (Germany)

Tfn: [phone]

Fax: [phone]

Tekniska data

QR code image containing encoded data, no visible human-readable text

1.600-941.0

1.600-942.0

Yleisiä ohjeita

71364 Winnenden (Germany)

Puhelin: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 1.9.2024

71364 Winnenden (Germany)

Puh.: [phone]

QR code image containing encoded data, no visible human-readable text

1.600-941.0

1.600-942.0

Generelle merknader

⑩ Holder for lansene

⑪ Transporthändtak

⑫ Apparatbryter «0/OFF» / «I/ON»

⑬ Typeskilt

2006/42/EF (+2009/127/EF)

2011/65/EU

2014/30/EU

Anvendte harmoniserte standarder

EN 60335-1

EN 60335-2-79

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

2000/14/EF: Vedlegg V

Lydeffektnivå dB(A)

K 2 (Premium) Horizontal, K 3 Horizontal

Mält: 87

Garantert: 90

Navn og adresse

71364 Winnenden (Germany)

Telefon: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2024/09/01

71364 Winnenden (Germany)

Tlf.: [phone]

2006/42/EF (+2009/127/EF)

2011/65/EU

2014/30/EU

71364 Winnenden (Germany)

Telefon: [phone]

Fax: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2024/09/01

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Tekniske data

⑫Seadmelüliti "0/OFF" / "I/ON"

⑬Tüübisilt

Toode: Körgsurvepesur

Tüüp: 1.60x-xxx.0

2006/42/EÜ (+2009/127/EÜ)

2011/65/EL

2014/30/EL

71364 Winnenden (Germany)

Tel: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2024/09/01

71364 Winnenden (Germany)

Tel: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Vinendene (Winnenden), 01.09.2024.

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

2006/42/WE (+2009/127/WE)

2011/65/UE

2014/30/UE

71364 Winnenden (Germany)

Telefon: [phone]

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 01.09.2024 r.

71364 Winnenden (Germany)

Tel.: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2024/09/01

2006/42/ES (+2009/127/ES)

2011/65/EU

2014/30/EU

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2024/09/01

QR code image containing encoded data, no visible human-readable text

1.600-941.0

1.600-942.0

Všeobecné upozornenia

2006/42/ES (+2009/127/ES)

2011/65/EÚ

2014/30/EÚ

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 01.09.2024

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Technické údaje

Elektrická prípojka

QR code image containing encoded data, no visible human-readable text

1.600-941.0

1.600-942.0

Splošna navodila

Pred prvo uporabo naprave preberite ta originalna navodila za uporabo in priložena varnostna navodila ter jih upošte-

vajte.

2006/42/ES (+2009/127/ES)

2011/65/EU

2014/30/EU

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 1. 9. 2024

Podpisniki ravnajo po navodilih in s pooblastilom upra-ve.

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germania)

Telefon: [phone]

Fax: [phone]

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2024/09/01

71364 Winnenden (Germania)

Tel.: [phone]

Fax: [phone]

Date tehnice

Conexiune electrică

QR code image containing encoded data, no visible human-readable text

.600-941.0

1.600-942.0

Opće napomene

Prije prve uporabe Vašeg uređaja pročitajte ove originalne upute za rad i priložene Sigurnosne naputke. Postupajte u

skladu s njima.

2006/42/EZ (+2009/127/EZ)

2011/65/EU

2014/30/EU

Primijenjene uskladene norme

EN 60335-1

EN 60335-2-79

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

71364 Winnenden (Germany)

Tel.: [phone]

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 01.09.2024.

2006/42/EZ (+2009/127/EZ)

2011/65/EU

2014/30/EU

Primenjene harmonizovane norme

EN 60335-1

EN 60335-2-79

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2024/09/01

Potpisnici deluju po nalogu i uz punomoć upravnog odbora.

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

QR code image containing encoded data, no visible human-readable text

1.600-941.0

1.600-942.0

Γενικές υποδείξεις

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2024/09/01

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Τεχνικά στοιχεία

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2024/09/01

QR code image containing encoded data, no visible human-readable text

1.600-941.0

1.600-942.0

Общи указания

71364 Winnenden (Germany)

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Виненден, 2024/09/01

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Технически данни

Black and white line drawing of a hand giving a thumbs-up gesture (no text or symbols)

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

Icon showing a gear and wrench inside a square frame (no text or symbols)

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)

QR code image with a central logo, likely linking to a digital resource or website.
