Handheld Thermal Camera 2

Deutsch

QR code image containing encoded data, no visible human-readable text

FAQ

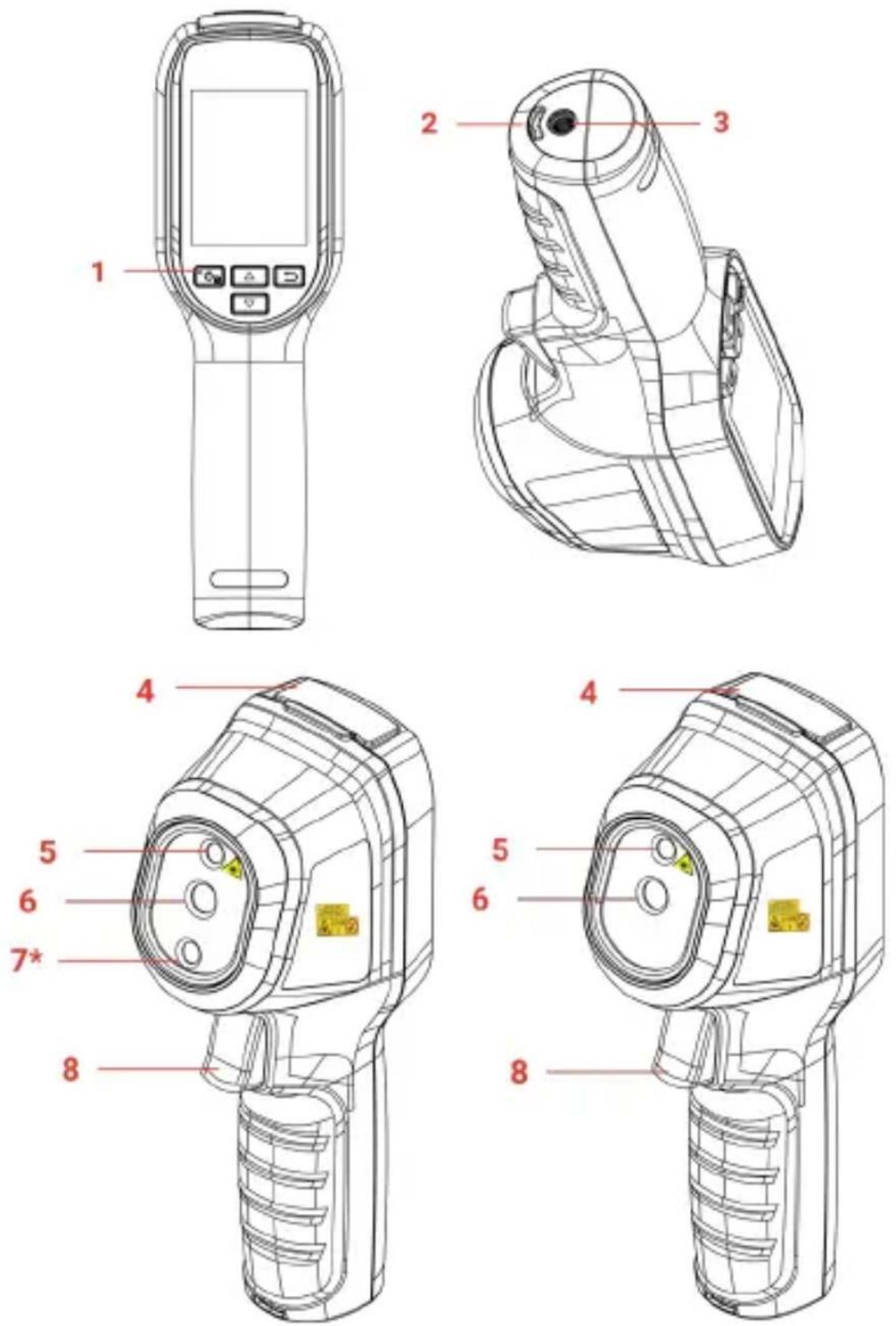

Appearance (Page 1)

No.	Description	Function
1	ChargingIndicator	Solid Red: Charging.Solid Green: Fully charged.
2	Wrist Strap Hole	Mount the wrist strap.
3	Tripod Mount	Connect to UNC 1/4"-20 tripod.
4	Type-C Interface	Charge the battery or export files.
5 Laser		Locate the target position with laser light.
6	Thermal Lens	View the thermal image.
7*	Visual Lens*	View the visual image (only supported by certain models).
8 Trigger		In live view:Press: Capture snapshots.Hold: Locate the target with laser light, and release to capture snapshots.In menu mode, press the trigger to go back to live view.

Charge Camera

The camera is equipped with a built-in battery. It is recommended to charge the camera with the included USB cable and the Type-C interface on camera. Do not use the USB-C to USB-C cable of other manufacturers. The power adapter (not included) should meet the following standards:

Output Voltage/Current: 5 VDC/2 A
Power Output: 10 W

If the camera is not in use for an extended period and is over-discharged, it is recommended to charge for at least

30 min before powering it on.

It is recommended to use the USB cable included in the package for both charging and data transfer.

Temperature Measurement

You should first set target E Emissivity and Distance and before measuring temperatures. Refer to the user manual for more information.

More Tools and Information

Colorful abstract logo with swirling ribbon design (no text or symbols)

Download HIKMICRO Analyzer (https://www.hikmicrotech.com/en/industrial-products/hikmicro-analyzer-software.html) to analyze files.

QR code image containing embedded text '中国银行' in the center

Scan QR Code to get the user manual of the thermal camera.

Not all the camera models of a series support the mobile applications, software, and all their functions mentioned (or not mentioned) in this manual. Please refer to the compatibility list of the software for more detailed information in HIKMICRO website.

Technical Support
