Index

1 Safety instruction....42
2 Parts description....45
3 Control Panel....45
4 Usage....46
6 Cleaning....47
7 Bug fixing....49
8 Warranty / Disposal / Technical change 50

1. SAFETY INSTRUCTION

EN

Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference.

Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly. This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.

Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.

VERY IMPORTANT! Wait at least 12 hours after unpacking the device before using it! Please do not install or use your dehumidifier before you have carefully read this manual. Please keep this instruction manual for possible warranty claims and for future reference.

WARNING:

• The device shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn the device.
• Be aware that refrigerants may be odourless.

Specific information regarding appliances with R290 refrigerant gas:

– Thoroughly read all the warnings.
- When defrosting and cleaning the device, do not use any tools other than those recommended by the manufacturing company.
- The device must be placed in an area without any continuously operating sources of ignition (for example: open flames, gas or electrical appliances in operation).
- Do not pierce or burn the device.
- R290 is a refrigerant gas that complies with the European directives on the environment. Do not puncture any part of the refrigerant circuit.
- If the device is installed, operated or stored in a non-ventilated area, the room must be designed to prevent the accumulation of leaking refrigerant as it poses a risk of fire or explosion if the refrigerant is ignited by electric heaters, stoves or other sources of ignition.
- The device must be stored in such a way as to prevent mechanical failure.
- Individuals who operate or work on the refrigerant circuit must have the appropriate certification issued

by an accredited organisation that ensures competence in handling refrigerants according to a specific evaluation recognised by the associations in the industry.

- Repairs must be performed based on the recommendation from the manufacturing company. Maintenance and repairs that require the assistance of other qualified personnel must be performed under the supervision of an individual specified in the use of flammable refrigerants.

Safety Awareness:

1. Do not use the device on a socket which is under repair or not installed properly.
2. Do not use the device in the following situations:

A: Near sources of fire.
B: In an area where oil is likely to splash.
C: In an area exposed to direct sunlight.
D: In an area where water is likely to splash.
E: Near a bath, a shower or a swimming pool.

1. Never insert your fingers, sticks or similar objects into the air outlet. Take special care with and warn children of these dangers.
2. Keep the unit upright during transport and storage so the compressor remains properly positioned.
3. Before cleaning the dehumidifier, always turn off or disconnect the power supply.
4. When moving the dehumidifier, always turn it off first, disconnect the power supply and move it slowly.
5. To avoid a fire hazard, do not cover the dehumidifier.
6. All the sockets for the air conditioner must comply with the local electric safety requirements. If necessary, please check the requirements.

7. Young children should be supervised to ensure that they do not play with the device.

8. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

9. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
10. The appliance shall be installed in accordance with national wiring regulations.
11. Details of type and rating of fuses: T, 250V AC, 2A.
12. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
13. GWP: R290: 3
14. Contact an authorised service technician for repair or maintenance of this device.
15. Do not pull, deform or modify the power cord or immerse it in water. Pulling or misuse of the power cord can result in damage to the device and cause electrical shock.
16. Compliance with national gas regulations shall be observed.
17. Keep ventilation openings clear of any obstruction.
18. Any person involved in working on or accessing a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an assessment specification recognised by the industry.
19. Servicing shall only be performed as recommended by the manufacturer of the device. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.
20. Do not operate or stop the device by inserting or pulling out the power plug, as it may cause electric shock

or fire due to heat generation.

1. Unplug the device if strange sounds, smell, or smoke come from it.

Notes:

• If any parts are damaged, please contact the dealer or a designated repair shop.
  – In case of any damage, please turn off the air switch, disconnect the power supply and contact the dealer or a designated repair shop.
  – The power cord must always be firmly grounded.
• To avoid any hazard resulting from a damaged power cord, please turn off the air switch and disconnect the power supply. It must be replaced by the dealer or a designated repair shop.

TECHNICAL DETAILS

Model......SECCO 7000

Tension....220-240 V

Frequency....50 Hz

Power 1000 Watt

Dimensions....74 x 46 x 32 cm

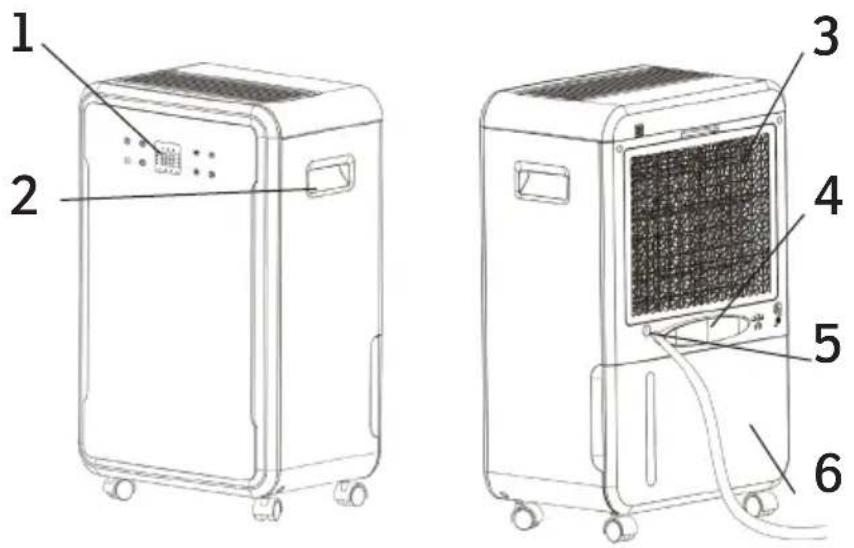

2. PARTS DESCRIPTION

Technical diagram of a two-port air purifier with labeled components including front panel, side panel, and rear panel.

1 Operation
2 Transport handle
3 Air inlet
4 Power supply
5 Direct drain
6 Water tank

EN

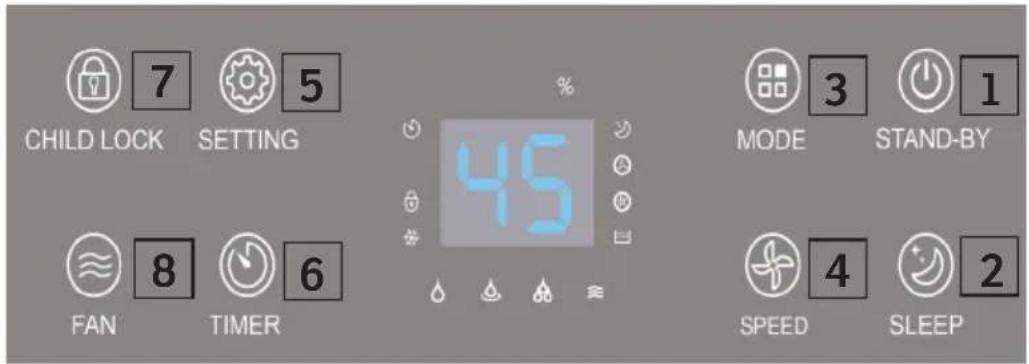

3. CONTROL PANEL

CHILD LOCK SETTING FAN TIMER 45% MODE STAND-BY SPEED SLEEP

1. Start up / shutdown
2. After the transition to sleep mode, the unit runs with minimum wind speed.
3. Nominal dehumidification (in this mode, wind speed and humidity are adjustable).

Continuous dehumidification (In this mode, the compressor runs, the wind speed is low and the humidity is not adjustable.)

Strong dehumidification (In this mode, the wind speed is high for strong dehumidification and the humidity is not adjustable).

1. Select the current wind speed (The wind speed button is only effective in normal dehumidification mode and in fan mode.

2. Set humidity, set the range from 30%-80% (5% each time).

3. The timing can be set between 0 and 24 hours.
4. Press for 5 seconds to lock press again to unlock. Press for 5 seconds
5. In this mode the fan runs, the compressor stops

4. USAGE

EN

Note fan

The fan never switches off. Even when the humidity has been reached. The unit needs this to maintain optimum air circulation.

NOTE: DO NOT ALLOW THE DEVICE TO BE USED BEFORE THE FIRST COMMISSIONING AT LEAST 12 HOURS.

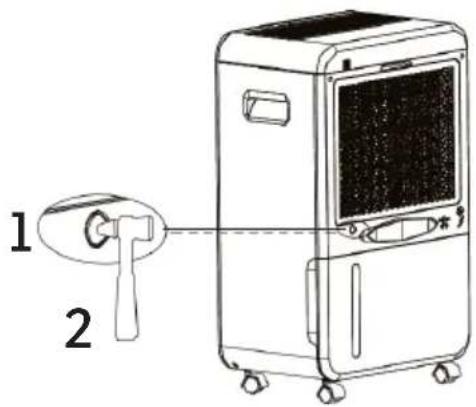

Direct drain

The unit can be operated without a water tank by connecting it to the direct drain. First tap the lid carefully with a hammer. To do this, connect a plastic hose ( 10 mm) to the valve provided above the water tank. Make sure that the hose is correctly installed and that there is no kink.

1 Lid

2 hammer

1 2

Water tank

If no direct drain is connected, the water runs into the water tank. The machine has a built-in water level sensor that switches off all functions after 3 seconds when the water tank is full and emits a beep 15 times. At the same time, the water level indicator lights up on the control panel.

Emptying the water tank

When the water level indicator flashes, the water tank is full and the machine will not continue to run. To empty it, press both sides of the tank slightly together and pull the water tank out in parallel. Now empty the water as described in the illustration:

Technical line drawing of a mechanical device with internal components and no visible text or symbols

6. CLEANING

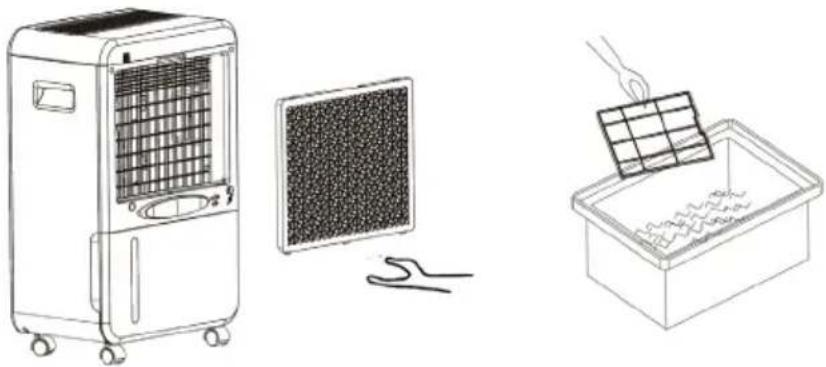

Change filter (Every 6 months)

The dehumidification performance is reduced if the air purification filter is clogged. Remove the rear cover of the unit and remove the filter holder. Then remove the air purification filter and the rear filter.

Line drawings of three household air purifiers: a front-mounted heater, a grid-patterned panel, and a small box with a hand holding a tray (no text or symbols)

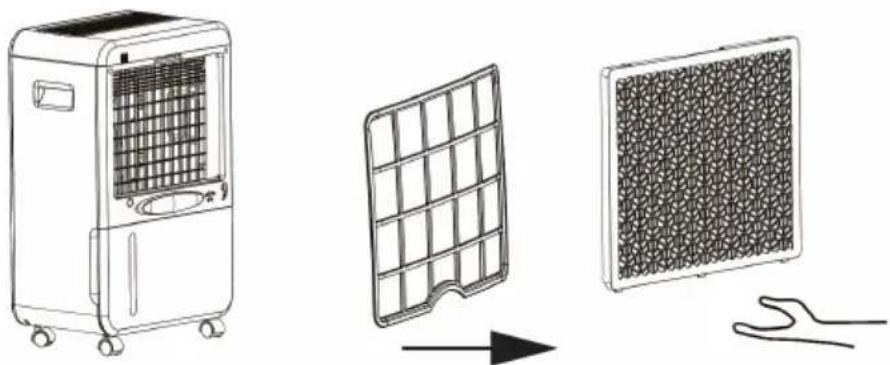

Pull the side cover towards you and remove it from the unit. Remove the side channel filter from the unit.

Use a hoover to remove the dust from these filters or tap them lightly.

If the filters are very dirty, wash them in water with neutral detergent, rinse them well with water and let them dry.

Tap the air filter and remove the dust.

Diagram showing three types of household air purifiers: a front-mounted heater, a grid-patterned panel, and a mesh-patterned panel with a hand underneath (no text or symbols)

EN

Reference

• Disconnect the unit from the mains before cleaning it.
• Do not use petrol or other chemical cleaning agents for cleaning.
• Do not clean the unit wet.
• If the air conditioner is defective, please contact the dealer or a specialist company.

EN

Air filters

• The air filter should be cleaned every two weeks or when it is dirty.
• Disassemble: Press the filter slightly downwards and remove it.
• Cleaning: First vacuum the filter with a vacuum cleaner and then rub it with a mild detergent and lukewarm water (40°C). Then let it dry in the air.
• Assemble: Replace the filter in the air inlet and engage.

Cleaning the device from the outside

- Clean the unit with a mild detergent and a damp cloth. Then wipe with a dry cloth.

DO NOT LEAVE THE FILTER UNUSED AFTER REMOVING IT FROM THE BAG.

7. BUG FIXING

PROBLEM POSSIBLE CAUSES	PROPOSED SOLUTIONS
The machine doesn't work.	The power supply is not connected correctly.	Connect power supply correctly or check for damage
	The water tank is full. Empty water tank
	The room temperature is below 5°C or above 35°C	Regulate room temperature
The dehumidification function cannot be started.	The filter is blocked. Clean the filter according to the instructions
	The air inlet or outlet is blocked.	Remove the obstruction from the air inlet or outlet.
No wind The filter is blocked.	Clean the filter according to the instructions
The device is louder than usual	The device is tilted. Transport the device onto a flat, level surface.
	The filter is blocked. Clean the filter according to the instructions
E1 Code Short circuit or interruption of the coil sensor		Check if the cable is loose have the coil sensor replaced by a certified technician.

EN

8. WARRANTY / DISPOSAL / TECHNICAL CHANGE

Warranty

The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.

Disposal

The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.

Technical changes

We reserve the right to modify the price, the design and the technical features.

Please save the packaging materials of the unit.

CE declaration of conformity

This device complies with the following standards

EN 55014-1:2017

EN 55014-2:2015

EN 60335-1:2012/A13:2017

EN 60335-2-40:2003/A13:2012

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 62233:2008

2015/863

2014/30/EU

2014/35/EU

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT

In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC and the Law of 4 March 2014 implementing Directive 2011/65/EC on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send the purchase of new, equivalent devices back to the dealer in a one-to-one process. L'adeguata separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal, helps to avoid possible adverse effects on the environment and health and promote the reuse and/or recycling of the materials to which they belong. composed the equipment. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that it is prohibited to dispose of used batteries in household waste.

Batteries and batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. The service is free. In this way, legal requirements will be respected and the environment will be protected. The symbols identifying hazardous materials that may be present in batteries and accumulators are as follows: Hg= Mercury, Cd= Cadmium, Pb= Lead.
