USER MANUAL 320/1300 Güde

Top-down view of a black and red lawn mower with red wheels and black handle (no visible text or symbols)

ENGLISH Please read the instructions carefully before starting the machine.

GTX GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX® GTX®, GTX® GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTX®, GTC

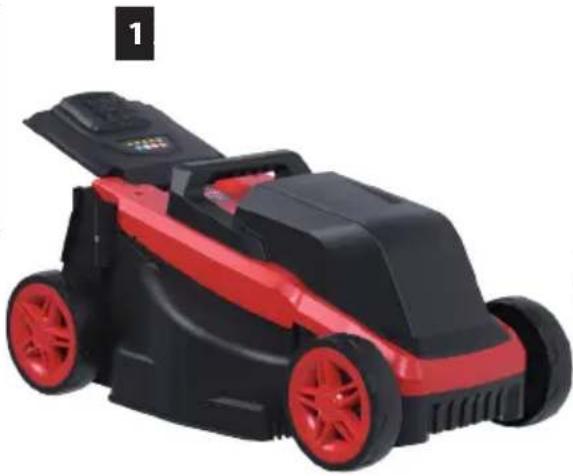

Red and black lawn mower with red wheels and black casing (no visible text or symbols)

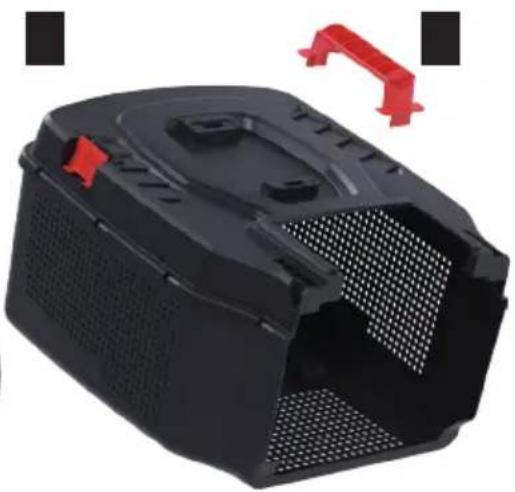

Black plastic container with mesh grille and red adjustment knobs, no visible text or symbols

Black and red bicycle support device with attached cable and handle (no text or symbols visible)

Two black curved lines on white background, no text or symbols present

7

DE Montage

EN Assembly

FR Assemblage

IT Montaggio

ES Montaje

NL Montage

CZ Montáž

SK Montáž

PL Montaż

HU Szerelés

1

6-10

DE Inbetriebnahme

EN Starting-up the device

FR Mise en service

EN Cutting instructions

FR Consignes de tonte

Illustration of an open cardboard box with an upward arrow and a small icon above it (no text or symbols)

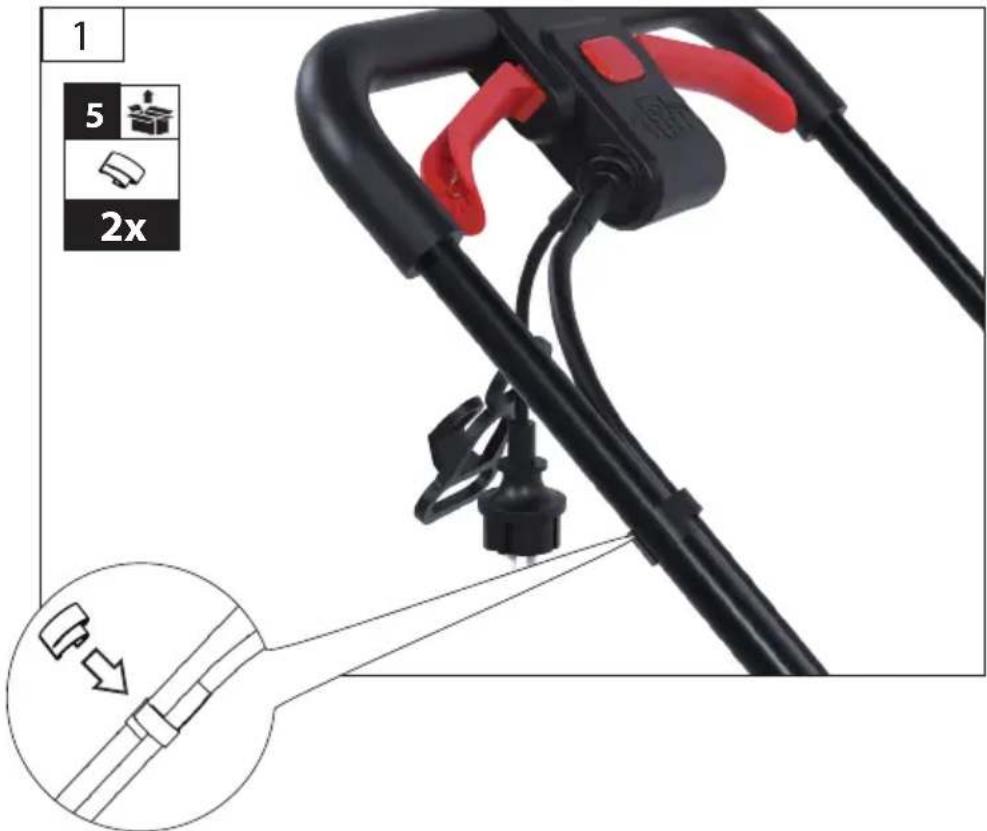

1 5 2x

DE Montage

EN Assembly

FR Assemblage

IT Montaggio

ES Montaje

NL Montage

cz Montáž

SK Montáž

PL Montaż

HU Szerelés

1

2

7 2x

1

DE Montage

EN Assembly

FR Assemblage

IT Montaggio

ES Montaje

NL Montage

CZ Montáž

SK Montáž

PL Montaż

HU Szerelés

3

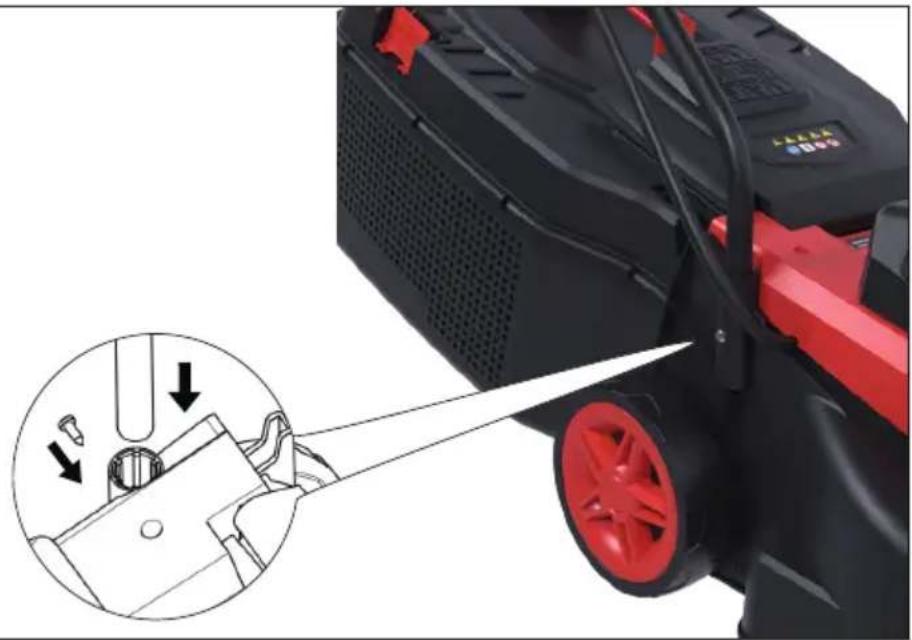

Close-up of a red and black lawn mower with a close-up inset showing mechanical components (no text or symbols visible)

SL Montaža

DE Montage
EN Assembly
FR Montage
IT Montaggio
NL Montage
CZ Montáž
SK Montáž
HU Szerelés

1

5

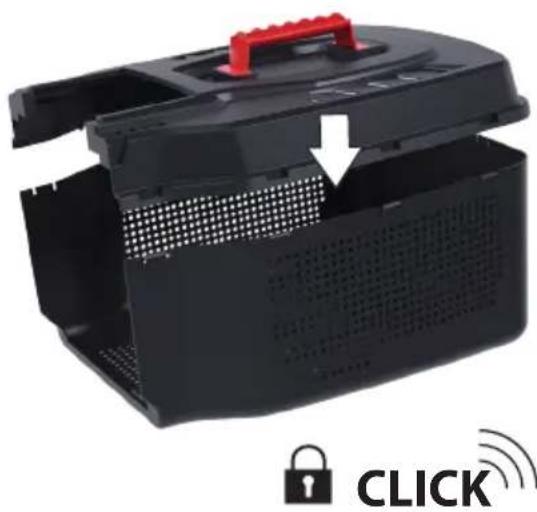

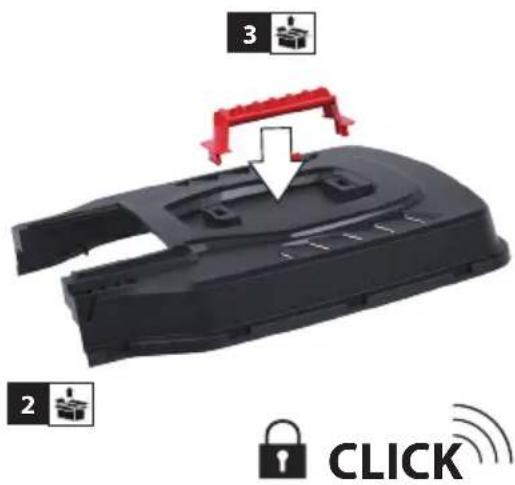

3 2 CLICK

6

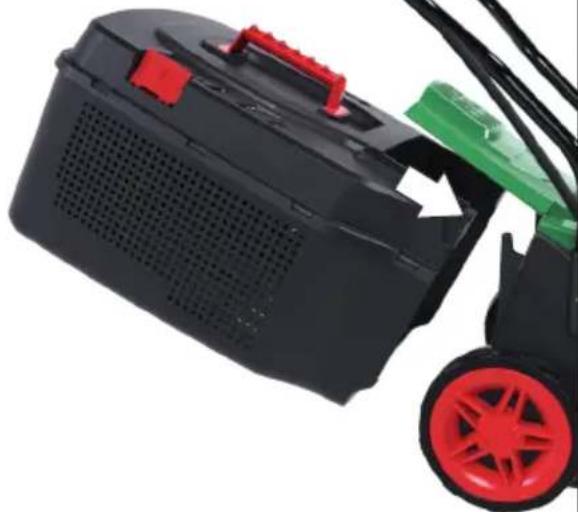

Black plastic robot casing with red handle and white arrow pointing to a button, labeled 'CLICK' below (no other text or symbols)

7

Close-up of a black lawn mower with red handle and green blade, no visible text or symbols

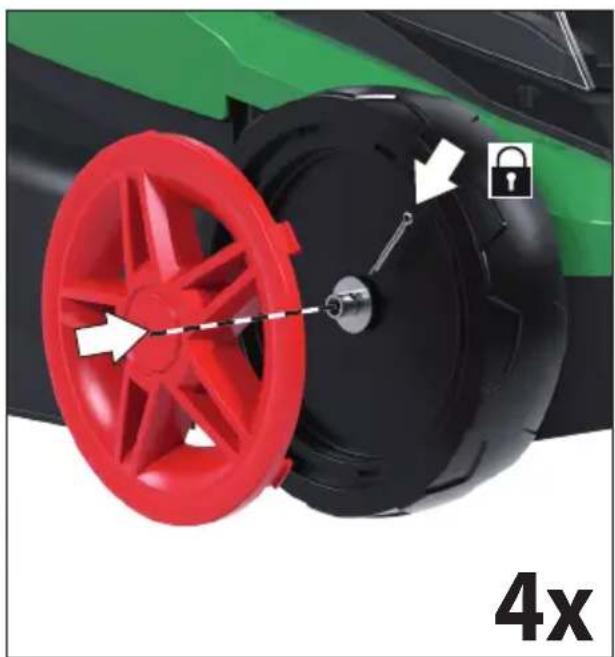

Close-up of a red and black tire with a lock mechanism, labeled '4x' (no text or symbols on the diagram itself)

Diagram illustrating the working principle of a robotic car, showing how to move and rotate the wheels with numbered components.

	1	2	3
	25 mm	45 mm	65 mm

DE Inbetriebnahme

EN Starting-up the device

FR Mise en service

1 STOP 1 2

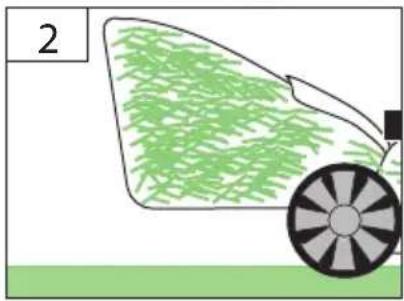

Diagram showing a car wheel with a green leafy area and a numbered label '2' (no text or symbols on the diagram itself)

Illustration of a black box pouring green leafy material, labeled with number 3 (no text or symbols on the object itself)

2

DE Inbetriebnahme

EN Starting-up the device

FR Mise en service

Illustration of a grassy field with a small robot and red arrows indicating movement or force (no text or symbols)

DE Mähanweisungen

EN Cutting instructions

FR Consignes de tonte

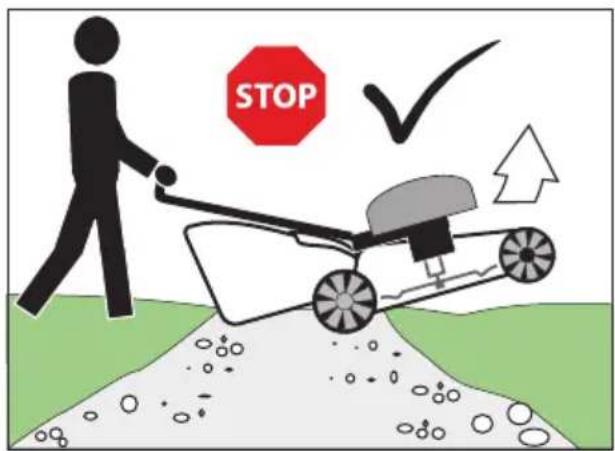

Safety warning illustration showing a grass lawn tractor with no pollution, including hazard symbols and crop diagrams.

Diagram illustrating a lawn mower with directional arrows and pictograms of manual and manual lawn mowing methods.

STOP

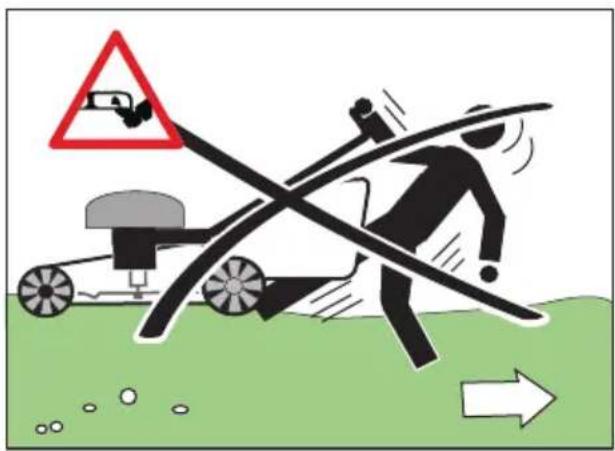

Safety warning illustration showing a person crossing a road with a traffic sign and directional arrow, indicating hazard or accident.

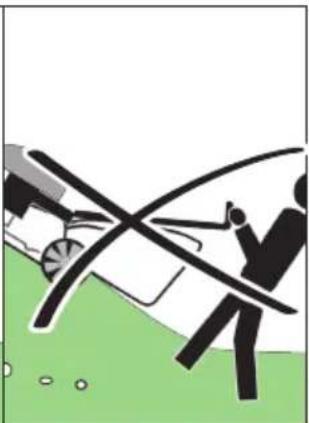

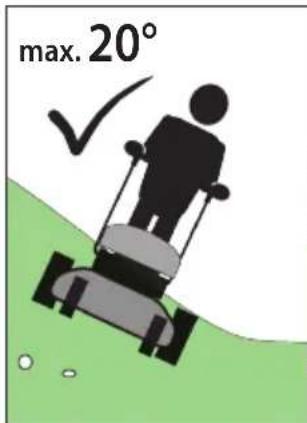

max. 20°

Illustration of a person pulling a cart with a curved ramp, set against a green and white background (no text or symbols)

Illustration of a person using a plow with a warning sign (no text or symbols on the diagram itself)

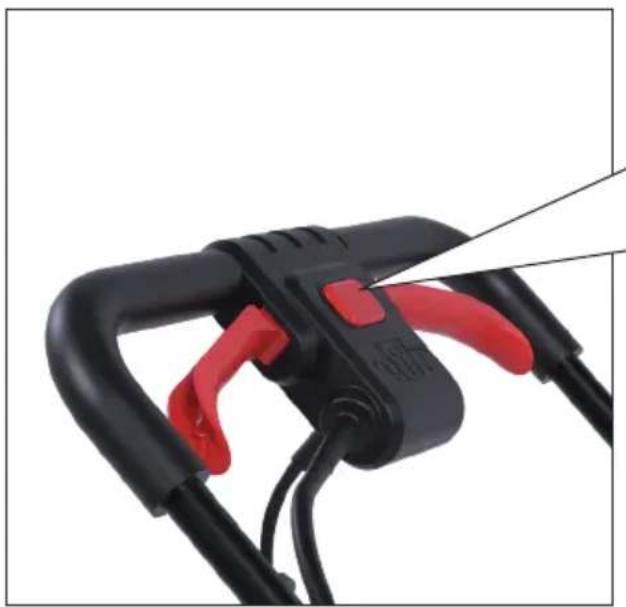

	DE Betrieb	CZ Provoz
	EN Operation	SK Prevádzka
	FR Fonctionnement	PL Operacja
	IT Esercizio	HU Üzemeltetés
	ES Operação
	NL Gebruik

Close-up of a black and red automotive charging plug with attached cable (no text or symbols visible)

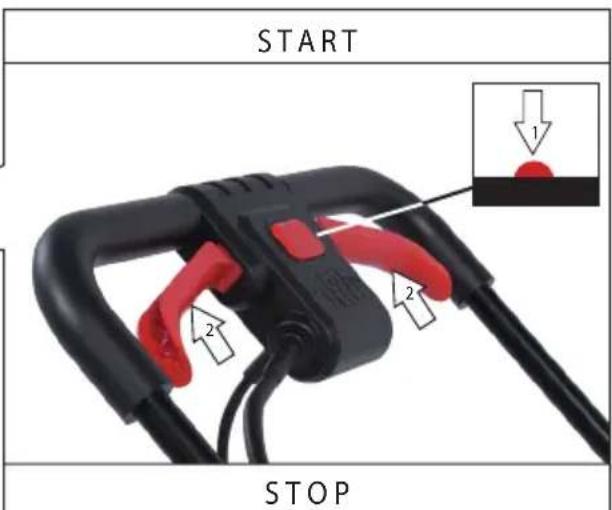

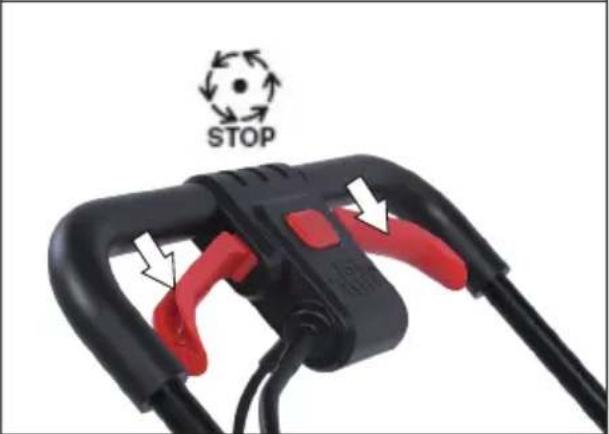

START STOP

STOP

Illustration of a black container with green leafy material being poured into it (no text or symbols)

2

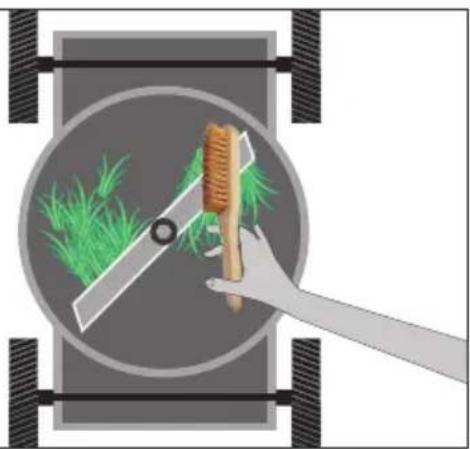

Illustration of a hand using a tool to clean grass inside a container, with no text or symbols present.

3

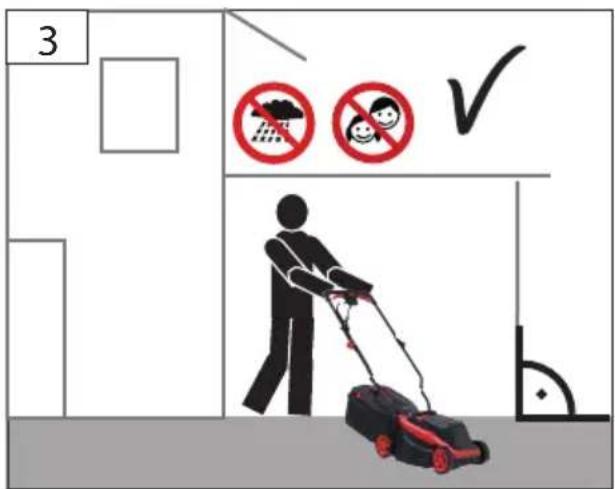

Silhouette of a person pushing a lawn mower (no text or symbols visible)

3 ✓

Technische Daten

WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

This appliance is not intended for use by children.

The machine may not be used by persons with reduced physical, sensory or mental capabilities or persons with a lack of knowledge or experience unless they are supervised by a person responsible.

Children must be supervised in order not to play with the machine.

Specified Conditions Of Use

The lawn mower has been designed to cut small to medium-sized grass areas in private gardens by the house or in hobby gardens. Due to the physical danger to the user and other persons, the lawn mower may not be used for other purposes.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

The mower must not be used for cutting ashes, hedges and thickets, for cutting and lching creepers or lawns on roofs or in cony boxes. The mower must also not be used a crusher for mulching tree cuttings and dges or levelling any terrain roughness.

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 18 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Residual risks

Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).

Rotating blades may lead to serious injuries by cutting or amputating parts of the body.

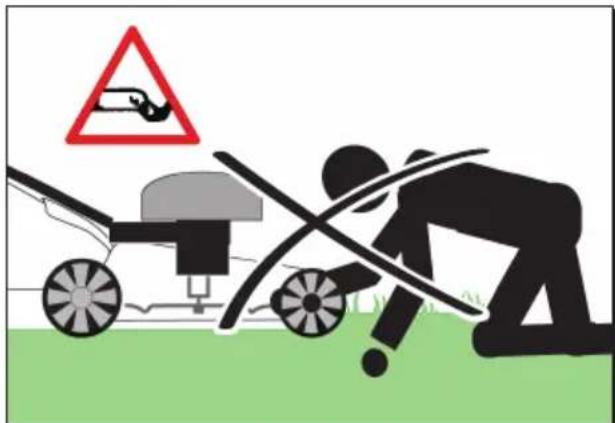

Never touch under the housing body when the engine is running. Wear protective shoes. Never remove the collection bag when the machine is being operated.

⚠️ Thrown-off stones or soil may lead to injuries.

Before mowing, check the area to be mowed for any undesirable objects. Make sure the collection bag is properly suspended. Wear safety goggles when working.

⚠️ Poor lighting/light conditions represent a high safety risk.

Provide adequate lighting or good lighting conditions when working with the machine.

Emergency procedure

Danger of injury!

Never put your hands and feet near the rotating parts. Keep a distance from the ejection opening at all times.

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Symbols

Warning/caution!

Read the Operating Instructions

Unplug the machine before any work on it.

Caution! Blades run down. Wait until all rotating parts have stopped.

Keep the connecting cable out of reach of the cutting blades.

Caution, risk of drawing-in

Always keep children and unauthorised persons out of reach of the appliance.

Protect against humidity Never expose tool to rain.

Wear eye protective goggles!

Wear ear protectors!

Wear protective gloves!

Wear safety cut through resistant shoes with safety sole and steel toe!

Warning against thrown-off items

Warning against sharp knives. Knives keep running for a short time after the appliance is switched off.

Keep bystanders in safe distance from the appliance (at least 5 m)

CE marking

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Protect against humidity

This side up

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

The term „power tool“ in the warnings refers to your mains-operated (cordepower tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (groundepower tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCprotected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Treat electric tools carefully. Check whether the moving parts work perfectly and do not drag, whether not broken or damaged to such an extent that functioning of electric tools could be affected. Have any damaged parts repaired before using the machine. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety instructions for lawn mower

Keep children and other persons including animals in a safe distance when using the appliance. Minimum safe distance is 5 m.

Wear personal protective equipment. Wear solid shoes and long trousers. Never use the appliance when barefooted or in light sandals. Wear protective gloves if necessary.

Carefully check the terrain where the appliance is going to be used and remove all objects that could get caught or thrown off by the appliance such as stones, branches, wires, animals, etc.

Avoid operating the equipment in wet grass, where feasible;

Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not blunt, worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance;

The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conflict with the designation and it is prohibited to attach any protective equipment of other manufacturers.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Do not start the engine before your feet are in a safe distance from the cutting tools.

Do not incline the appliance when being started.

Do not start the appliance when you are standing in front of the ejection opening.

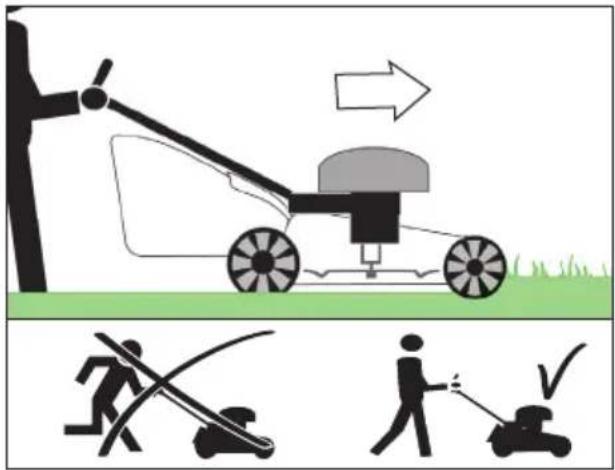

Walk! Never run!

Make sure your posture is safe, especially on slopes. Do not cut on too steep slopes. Be particularly careful when changing travelling direction on slopes.

Pay maximum attention when turning around and pulling the appliance to you.

Switch the mower off whenever carrying or inclining it or when being outside a grass area. Wait until all rotating parts have stopped.

If an undesirable item is encountered or the appliance starts vibrating, the appliance must be switched off. Check whether the appliance is not damaged. Repair any damage.

Switch the appliance immediately off after finishing your work.

• To release a blocked blade.
• To adjust the mowing height.
• To empty the collection bag.
- Check the machine if working perfectly after catching an undesirable object. Repairs must be executed before putting the machine into operation again.
• To lift the machine or take it away.
- To flip the mower over or carry it (e.g. from lawn to lawn or across a road).

- Clean the mower or do any other works before checking the mower.

The ON/OFF switch and safety switch must not be locked.

Do not use the device near flammable liquids or gases. Risk of fire and explosion in case of short circuit.

Do not use the machine in adverse weather conditions, particularly if there is a risk of lightning.

Maintenance

Rotating blade

Any works / adjusting on the machine to be only performed with the engine switched off, contact key taken out and when the mowing blade is not moving.

Switch the appliance off and remove the contact key before any adjustment, cleaning and servicing work. Wait until all rotating parts have stopped and the appliance cooled down. After each use, clean carefully the cutter bar. Wipe it with a cloth moistened in oil or apply metal treatment spray on it.

Keep the machine clean. Regularly clean the grass ejection chute and machine body.

Apply environment-friendly oil to all moving parts.

Check the collection bag at regular intervals for any wear and aging.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Disposal

The disposal instructions are based on the icons placed on the appliance or its package.

Any damaged or disposed devices must be delivered to appropriate collection centres.

Transport packaging disposal

The packaging protects the machine against damage during transport. Packaging materials are usually chosen based on environment aspects and waste treatment principles and are therefore recyclable. Returning the packaging into material circulation saves raw materials and reduces waste production. Parts of packagings (e.g. foils, styropor®) can be dangerous for children.

Risk of suffocation!

Keep parts of the packagings out of reach of children and dispose them as soon as possible.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Failure removal

Defect	Cause	Removal
The motor does not start	Main switch or safety arch is not controlled	See „Operation“ below → 4
Unsteady running, strong vibrations	Blade is damaged Replace the blade
	Blade is loose Check and tighten the blade clamping
Poor mowing/catching performance	Blade is blunt Have the blade sharpened or replaced
	Collection bag is blocked	Empty the collection bag → 5
	Mowing height adjustment not regulated	Adjust the mowing height → 2
Grass is not collected	Blocked channel	Clean the ejection channel
	Full collection bag	Empty the collection bag
	Too wet grass	Cut in dry weather
