USER MANUAL Big Wheeler 534.2 R Güde

Translation of the original instructions Petrol Lawnmower

Black-and-white photo of a lawn mower with a circular icon showing an open book (no text or symbols on the main image)

BIG WHEELER 534.2 R

95464

ENGLISH Please read the instructions carefully before starting the machine.

Scanned document with a title page and a small icon, likely a form or report section.

Mechanical component with three screws above it, no visible text or symbols

Six numbered diagrammatic views of mechanical components, including brackets, gears, and bolts (no text or symbols)

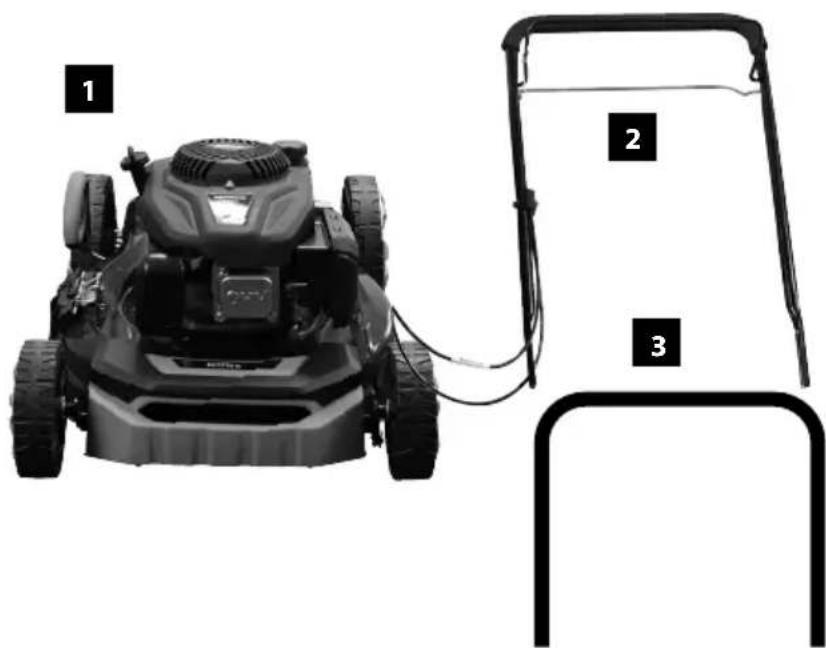

Top-down view of a grass lawn mower with attached water heater and frame (no text or symbols visible)

Two mechanical components: a black plastic component with a handle and a metallic T-shaped tool (no text or symbols visible)

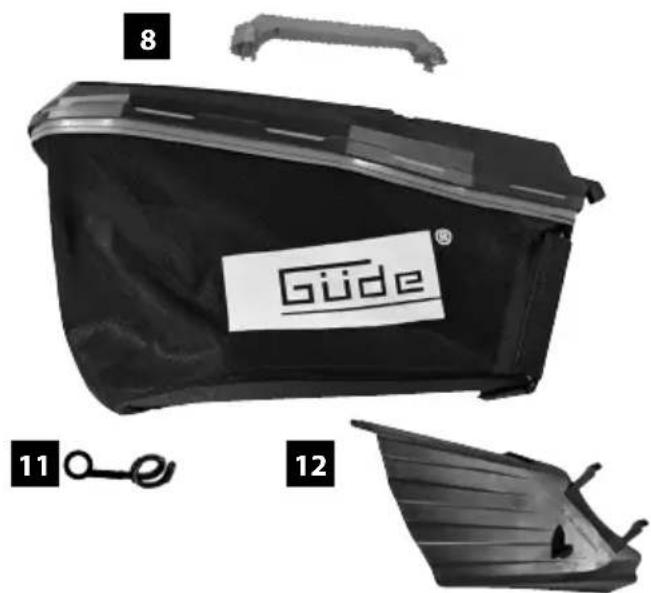

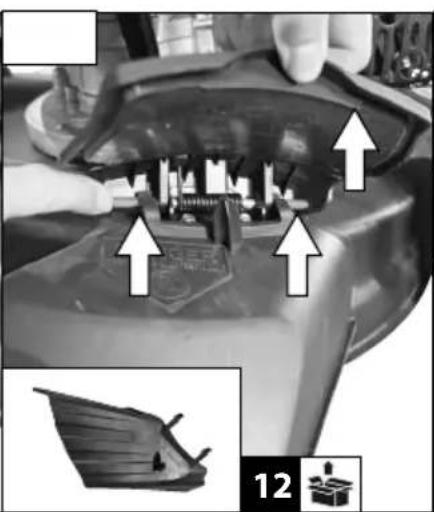

8 Guide® 11 12

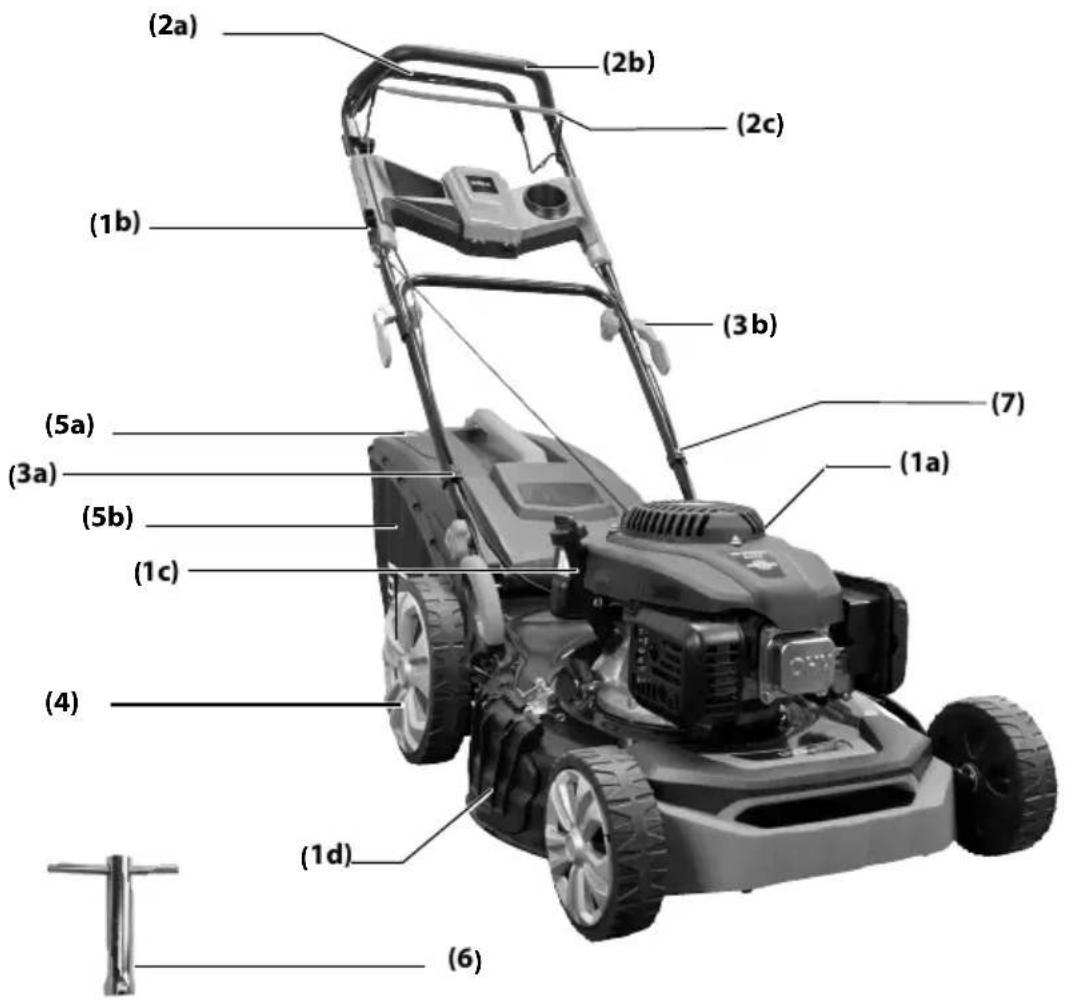

Gerätebeschreibung

EN Device description FR Description du dispositif IT Dotazione ES Descripción del dispositivo NL Beschrijving van het apparaat CZ Popis zařízení SK Opis zariadenia PL Opis urządzenia HU Eszközleírás

(2a) (2b) (2c) (1b) (3b) (7) (5a) (3a) (5b) (1c) (4) (1d) (6)

(1a) Kraftstofftank

EN Fuel Tank FR Réservoir carburant e IT Serbatoio del carburante ES Depósito de combustible NL Brandstoftank CZ Palivová nádrž SK Palivová nádrž PL Zbiornik paliwa HU Üzemanyagtartály

(1b) Reversierstarter

EN Recoil starter FR Démarrage inversé IT Avvio invertito ES Arranque inverso NL Omkeerstarter CZ Reverzní start SK Reverzný štart PL Rozrusznik nawrotny HU Berántó fogantyú

(1c) Ölmesstab

EN Oil dipstick FR Jauge d'huile IT Asta di livello dell'olio ES Varilla de aceite NL Oliepeilstok CZ Olejová měrka SK Tyčka na meranie oleja PL Prętowy wskaźnik poziomu oleju HU Olajszintmérő pálca

(1d) Seitenauswurf

EN Lateral ejection FR Éjection latérale IT Espulsione laterale ES Expulsión lateral NL Zijdelingse uitwerping CZ Boční výhoz SK Bočné vyhadzovanie PL Wyrzut boczny HU Oldalsó kidobás

EN starting-up the device FR Mise en service IT Messa in funzione

ES Puesta en marcha NL Toestel in gebruik nemen cz Uvedení do provozu

Diagram showing a robotic lawn mower with a ramp and open box, no text or symbols present

Two-panel black-and-white image showing a lawn guard and a lawn mower, with no visible text or symbols.

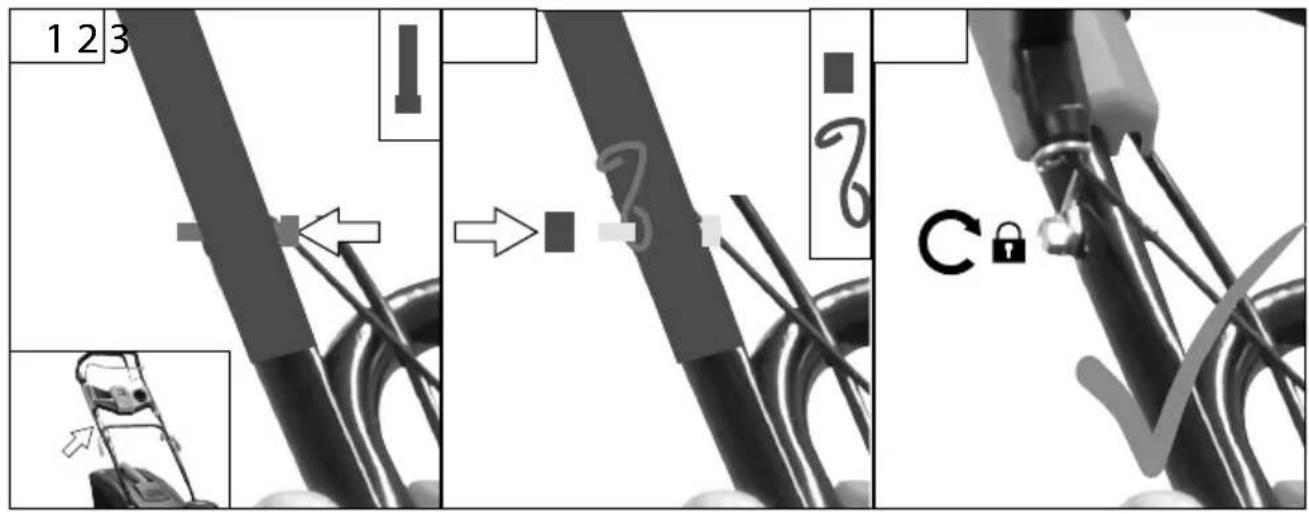

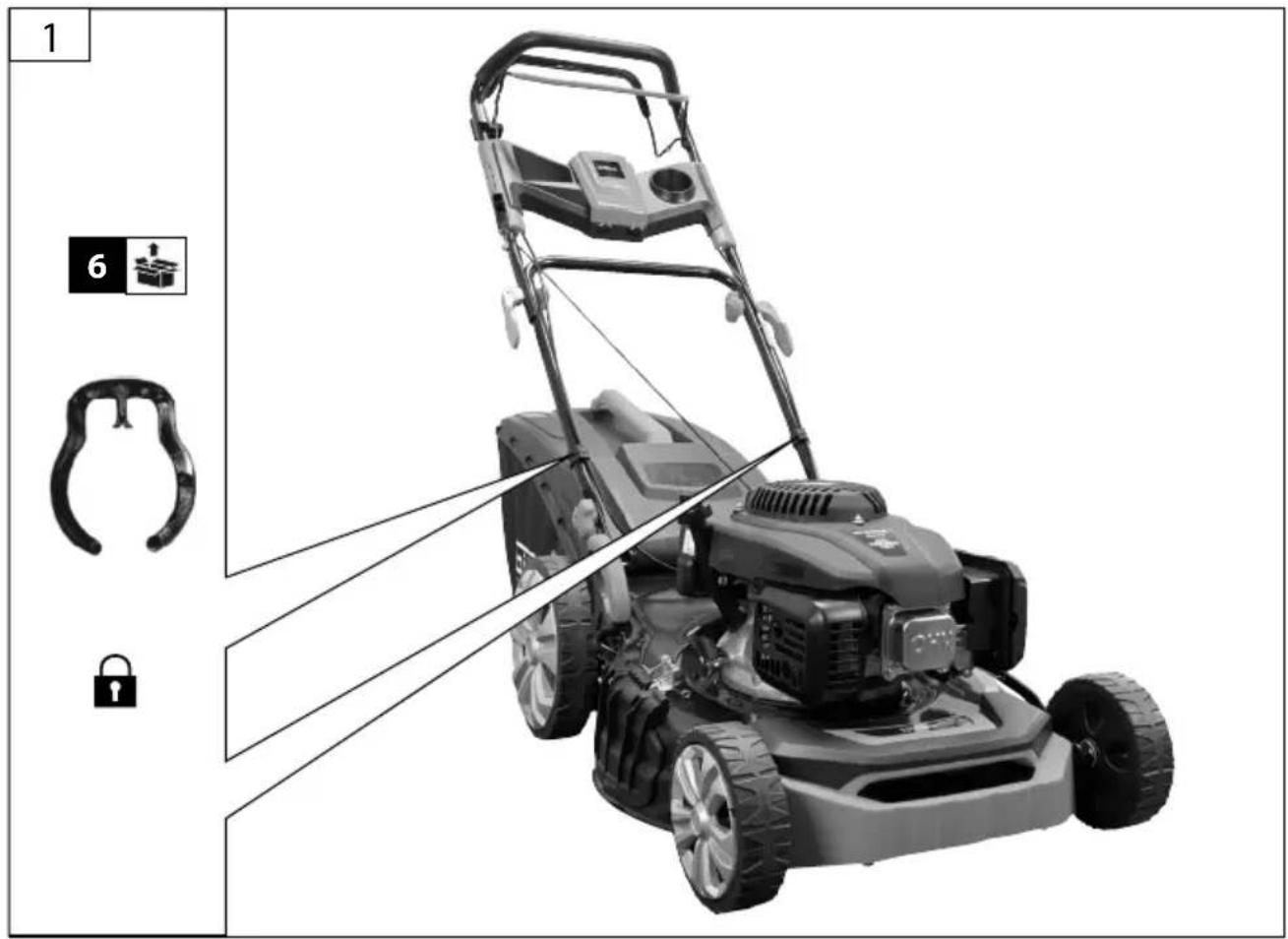

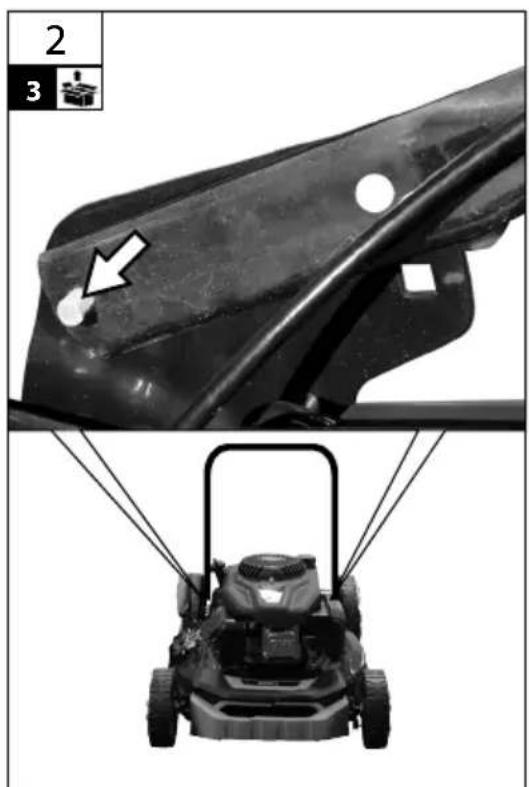

3 5 1 2 3

Close-up of a mechanical switch with lock and padlock icons (no text or symbols)

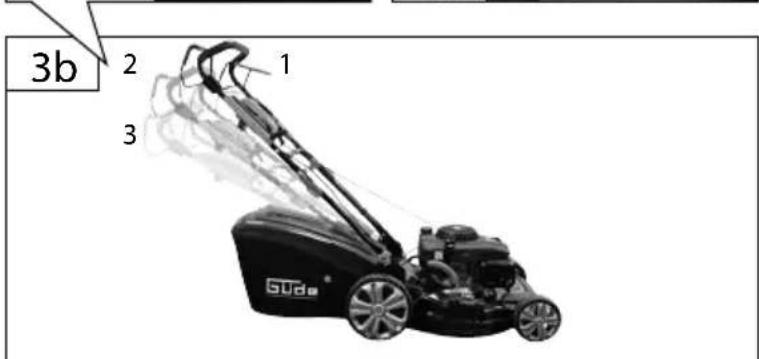

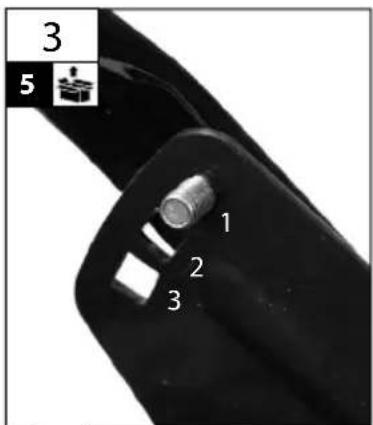

3b 2 1 3 GUB

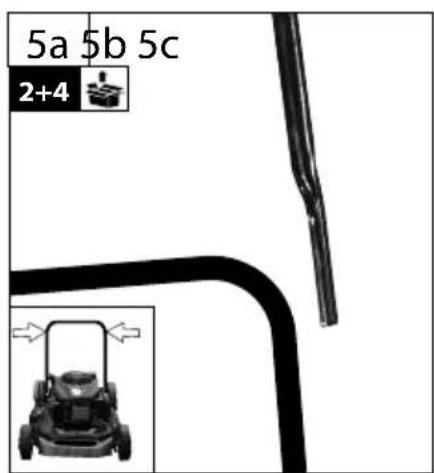

5a 5b 5c 2+4

C

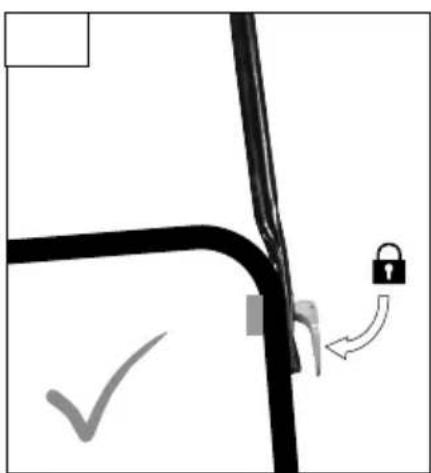

Diagram showing a lock mechanism with checkmark and curved arrow indicating motion or adjustment

1 2 3 → 3 C

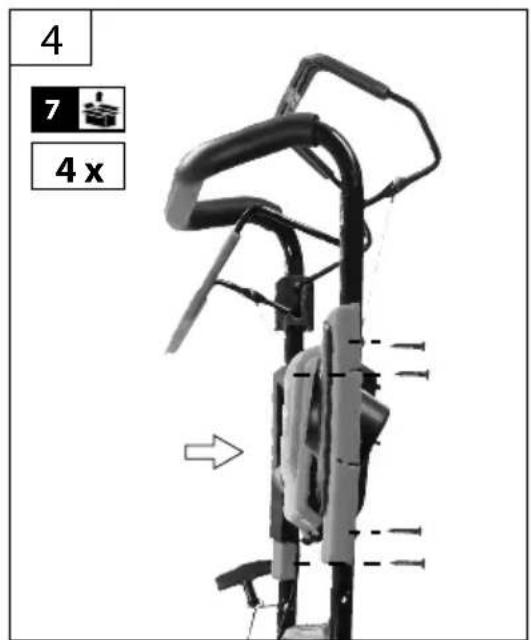

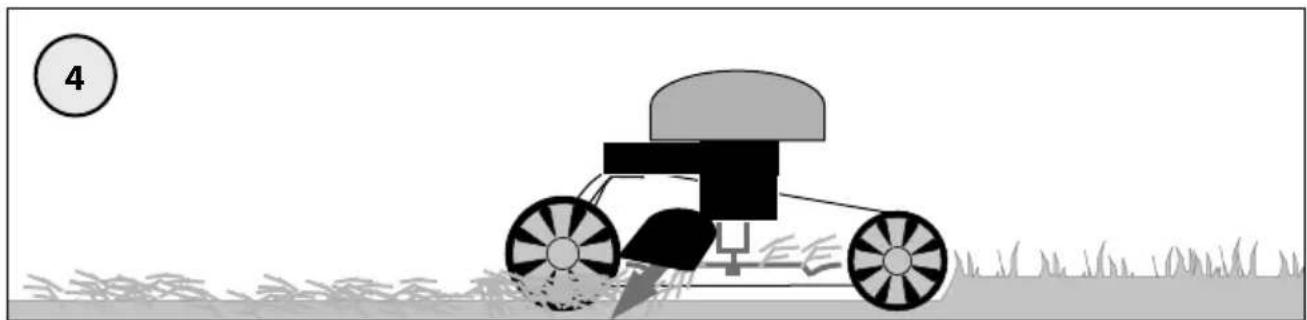

4 7 4 x

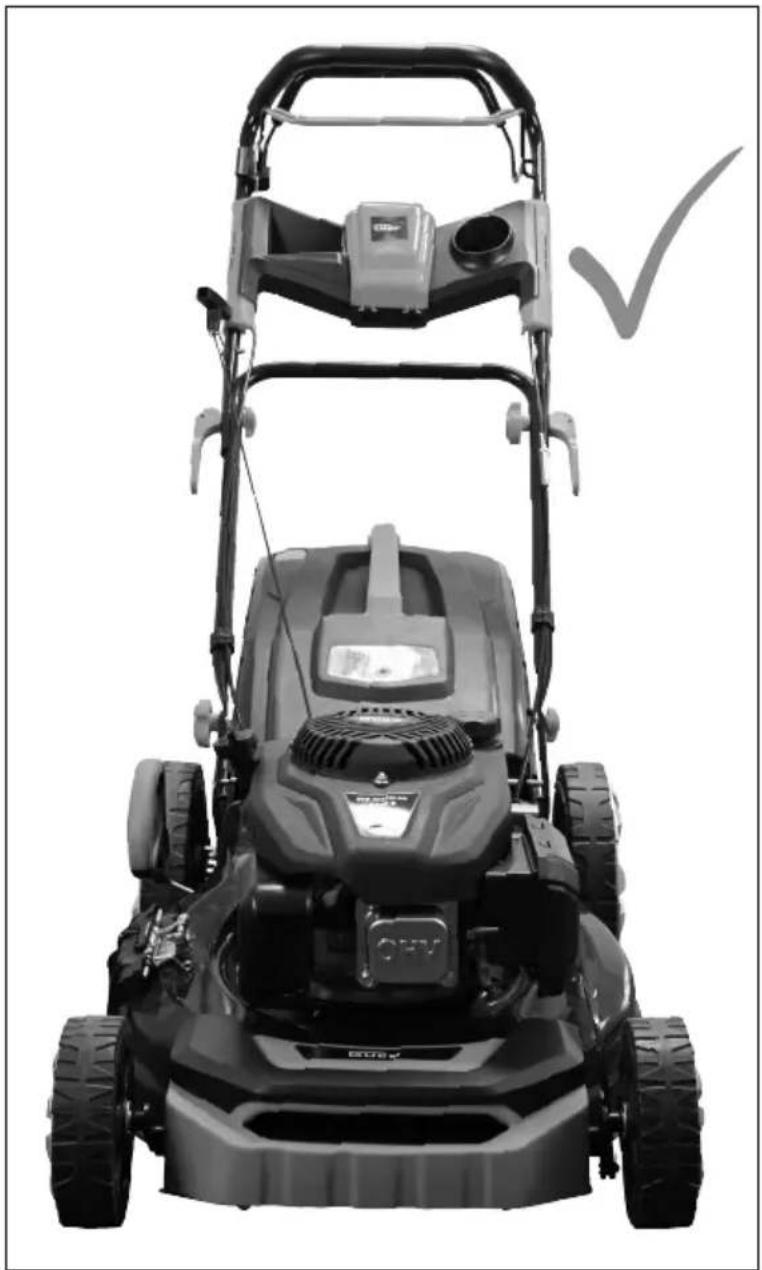

Top-down view of a black lawn mower with visible blade and headrest, no text or symbols present.

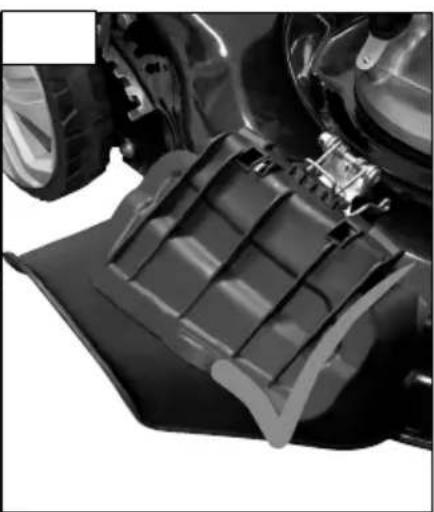

5 4 x C

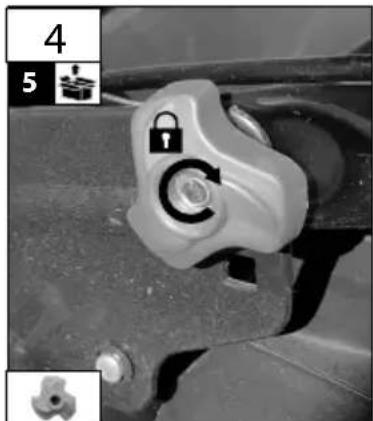

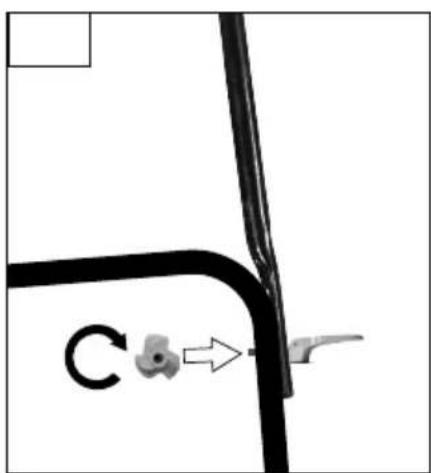

1 6 6 Lock

10W-40

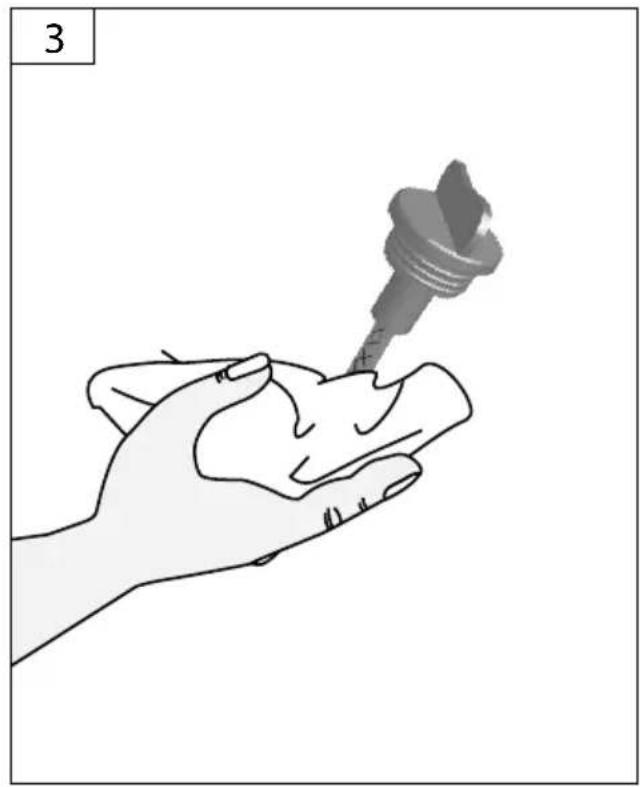

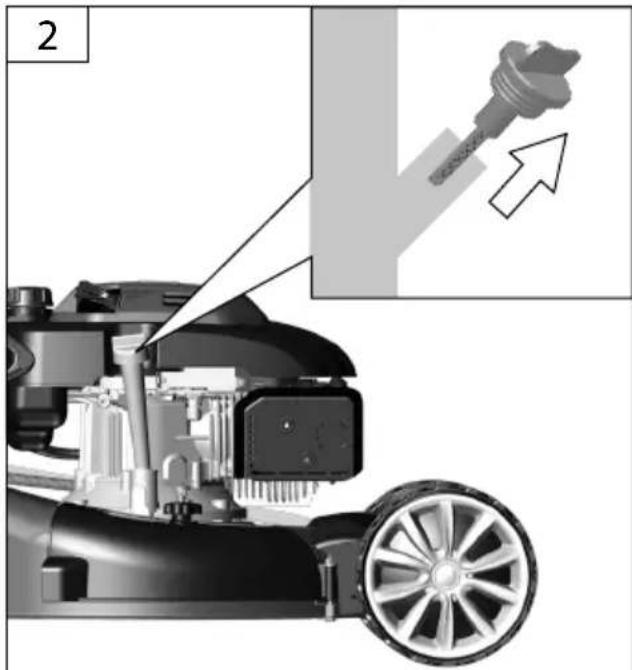

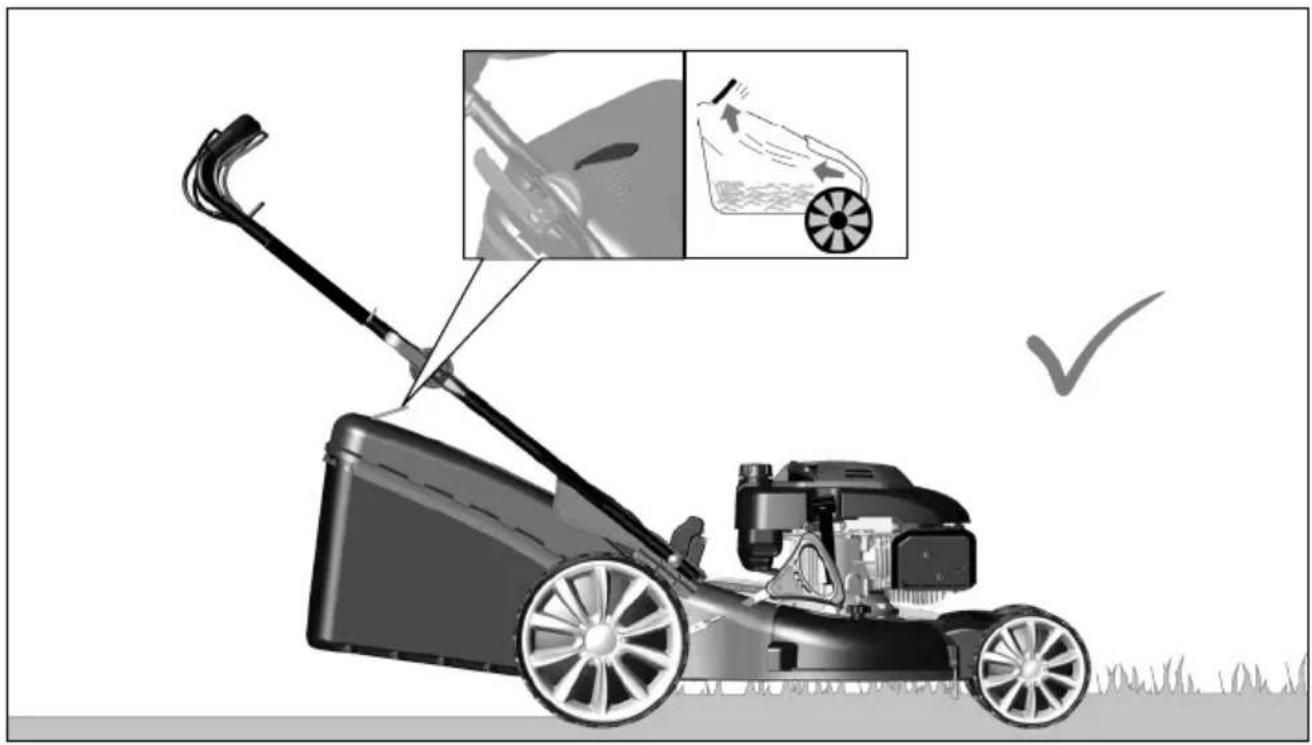

EN Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary. Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

Simple line drawing of a lawn mower with a checkmark indicating completion (no text or symbols)

2

2

Illustration of a hand holding a small object with a pipette inserted, no text or symbols present

4 Test MAX 0,5 l MIN

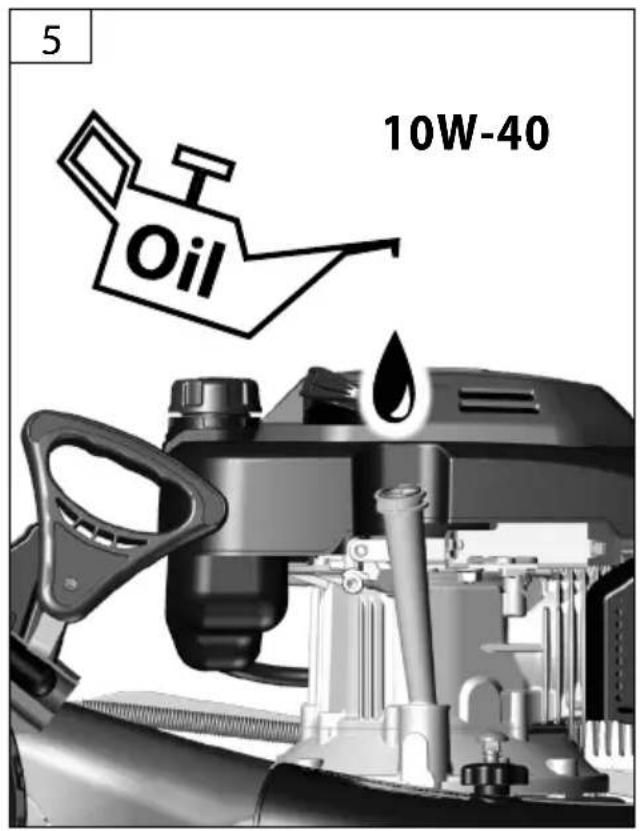

5 10W-40 Oil

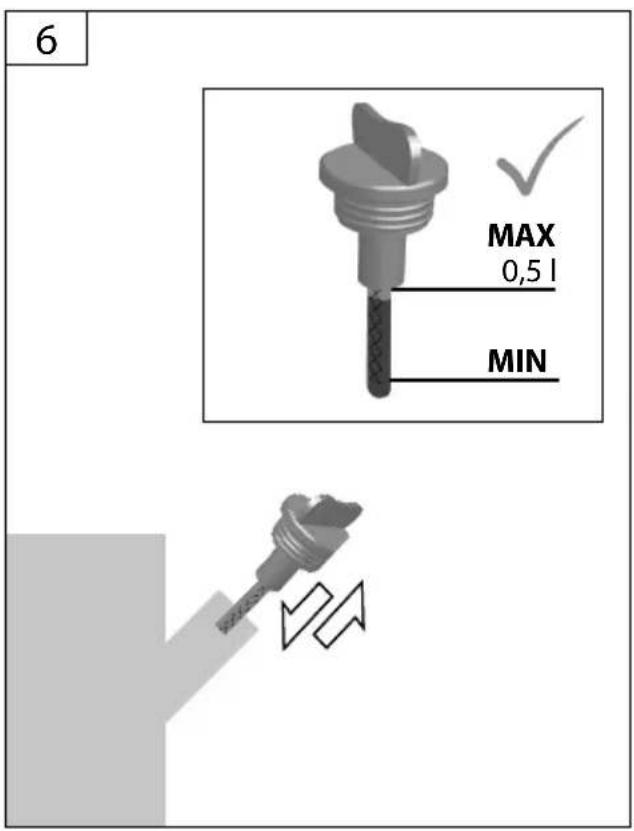

6 MAX 0,5 l MIN

EN To ensure quality, every piece of equipment is subject to a test operation and filled with motor oil. Oil is drained before transport; however, there can be some motor oil remains on the dip stick. Please check carefully the oil level and add motor oil again. → 6

Simple line drawing of a water spray bottle with a droplet falling (no text or symbols)

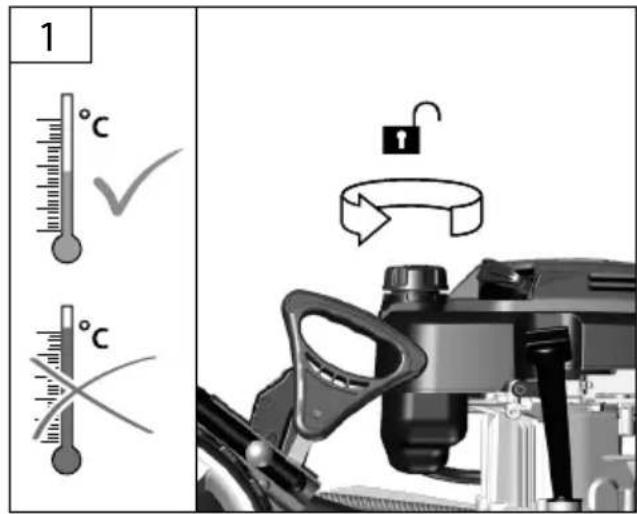

1 °C °C

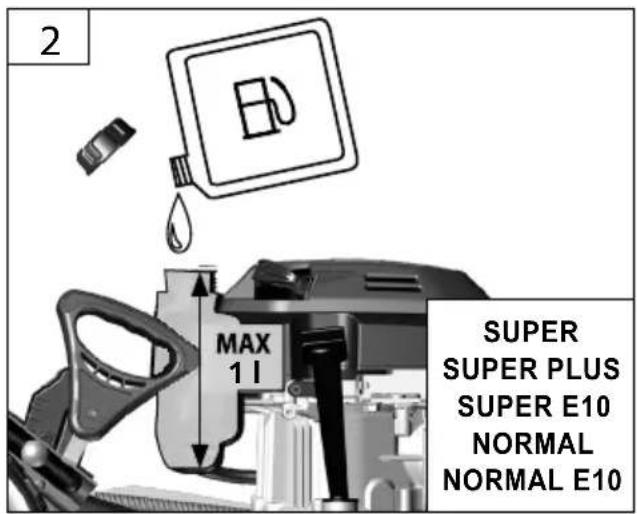

2 MAX 1 I SUPER SUPER PLUS SUPER E10 NORMAL NORMAL E10

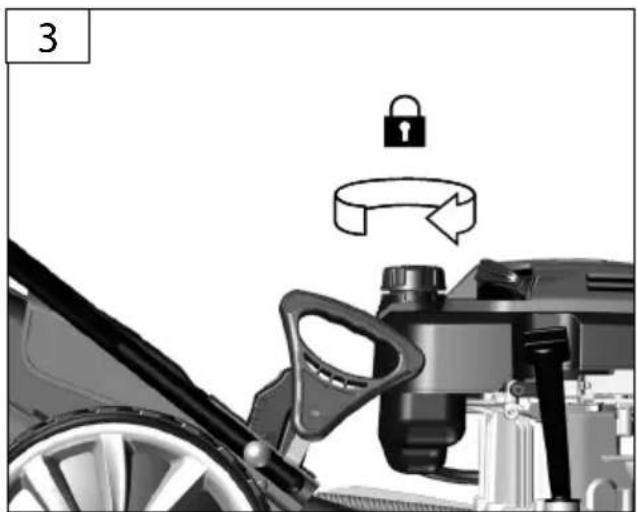

Mechanical assembly diagram showing a lock and belt mechanism (no text or symbols)

Two-panel illustration showing a hand adjusting a mechanical component with a warning symbol (no text or labels)

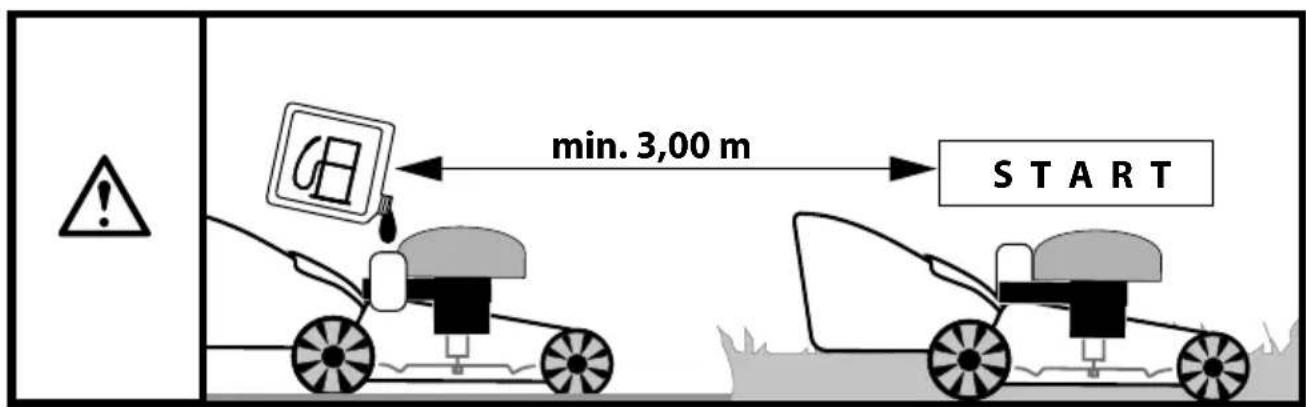

min. 3,00 m START

Close-up of a car wheel with directional arrows indicating movement or change (no text or symbols present)

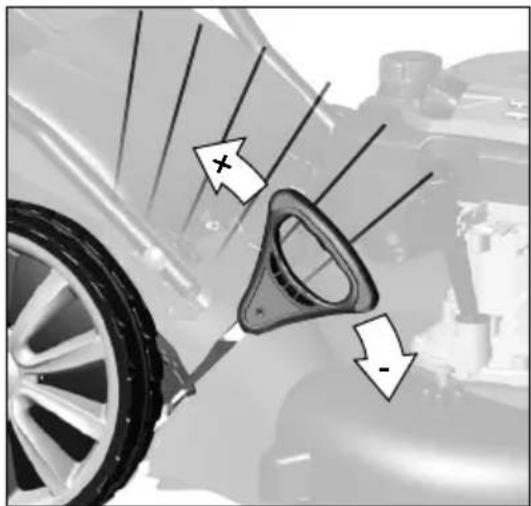

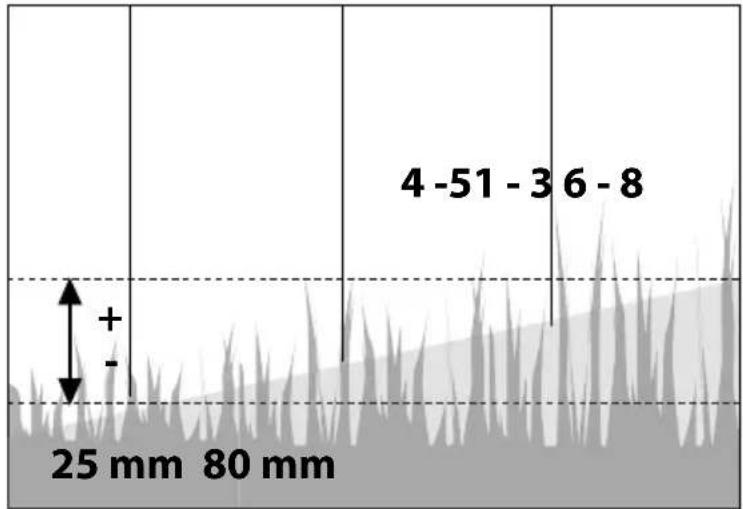

4-51 - 3 6 - 8 + - 25 mm 80 mm


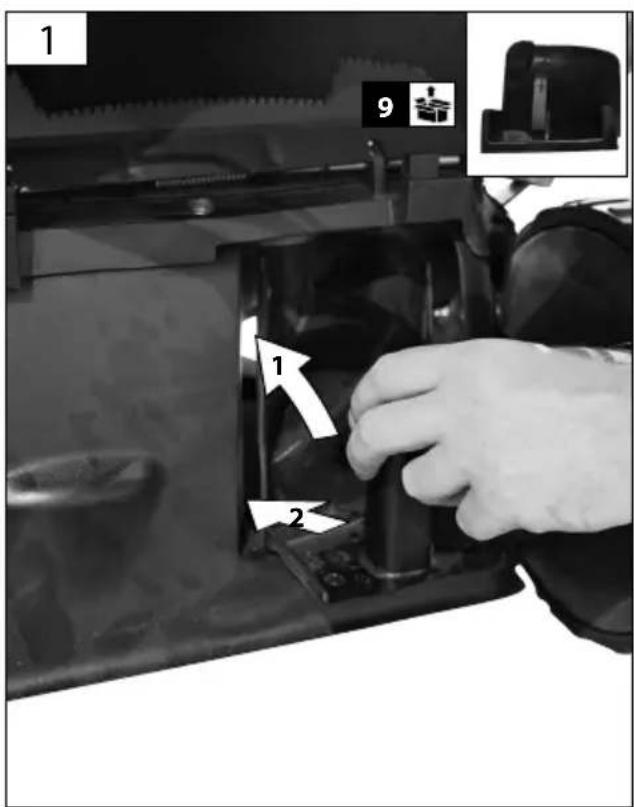

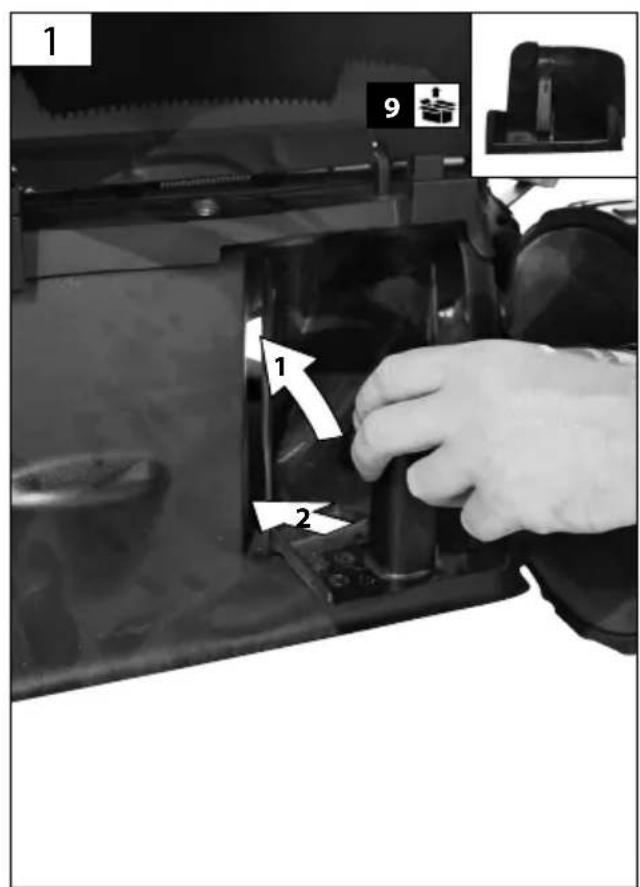

1 9 1 2

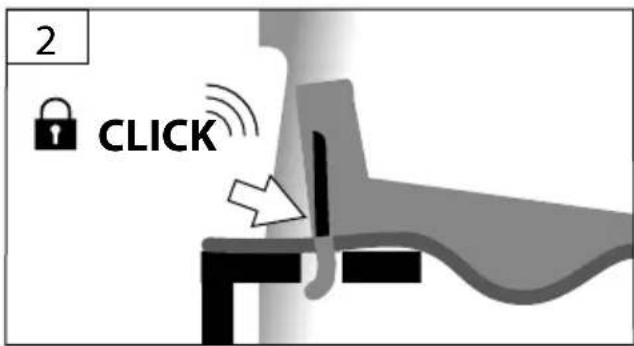

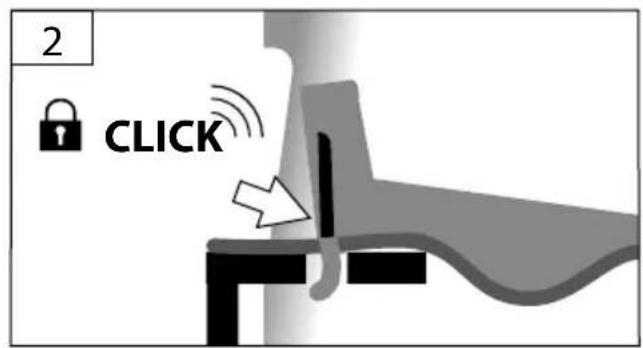

2 CLICK

2 8

Hand pressing down on a black plastic container with an arrow indicating the process (no text or symbols visible)

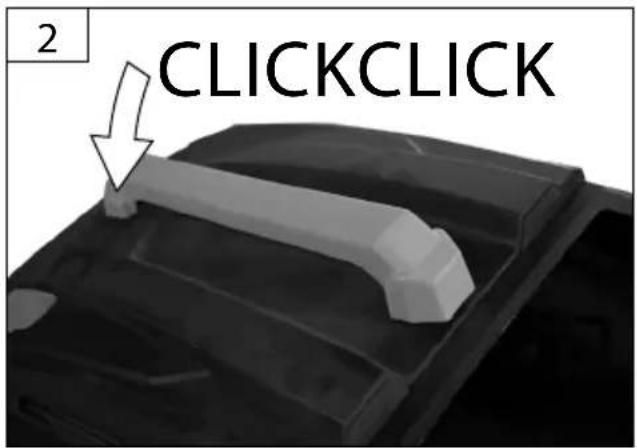

2 CLICKCLICK

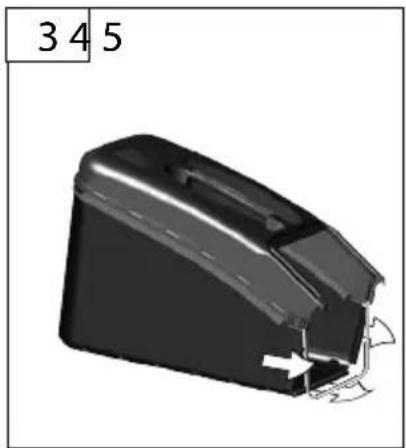

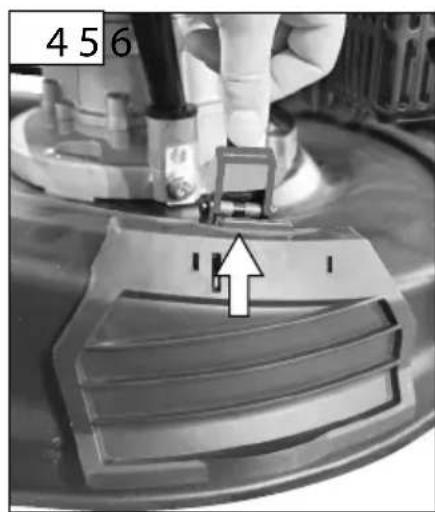

3D rendered mechanical component with angular cutouts and numbered label (3, 4, 5), no readable text or symbols beyond labels

3D rendered object resembling a computer mouse with a checkmark indicating selection (no text or symbols)

Mechanical assembly diagram showing a vehicle chassis with labeled component '1' (no text or symbols beyond label)

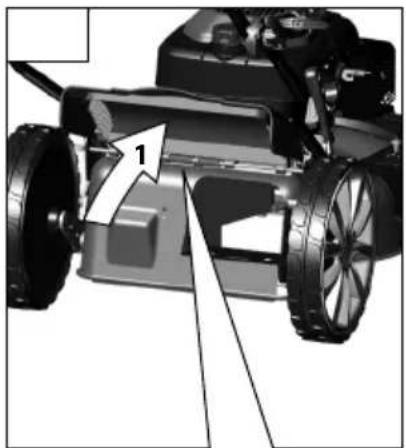

4 1 2

Close-up of a mechanical component with a numbered arrow pointing to a section (no visible text or symbols)

Illustration of a lawn mower with a tool and close-up inset showing the blade and wheel (no text or symbols)

Illustration of a lawn mower with a blade and bucket, showing mechanical components and a close-up of the blade (no text or symbols present)

Illustration of a tractor pulling crops in a field, with no visible text or symbols

Close-up of a mechanical component with textured surface and control panel (no visible text or symbols)

Illustration of a tractor with wheels and a dome-shaped roof, standing on grass (no text or symbols)

1 9 1 2

2 CLICK

Close-up of a mechanical device with visible tire and control panel (no text or symbols)

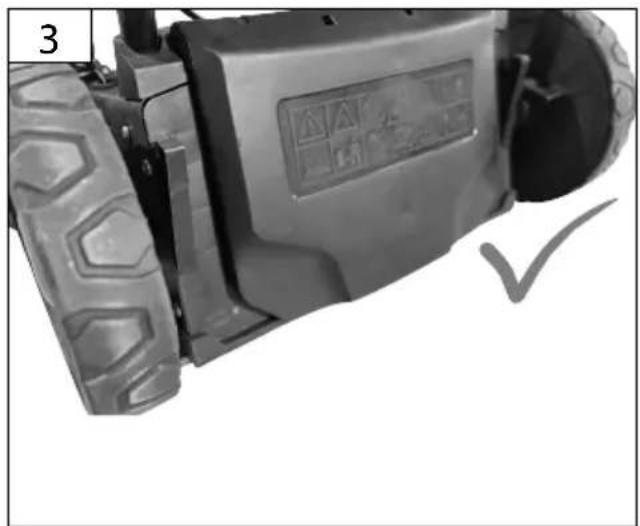

Close-up of a gloved hand using a sewing machine to press or install a metal component, with no visible text or symbols.

Close-up of a mechanical component with arrows indicating assembly or inspection, no visible text or symbols

Close-up of a mechanical component with visible internal channels and mounting features (no text or symbols)

Safety warning illustration showing a manual lawn mower with hazard symbols and environmental protection icons

Illustration of a grass law enforcement vehicle with motion capture and checkmark indicators (no text or symbols)

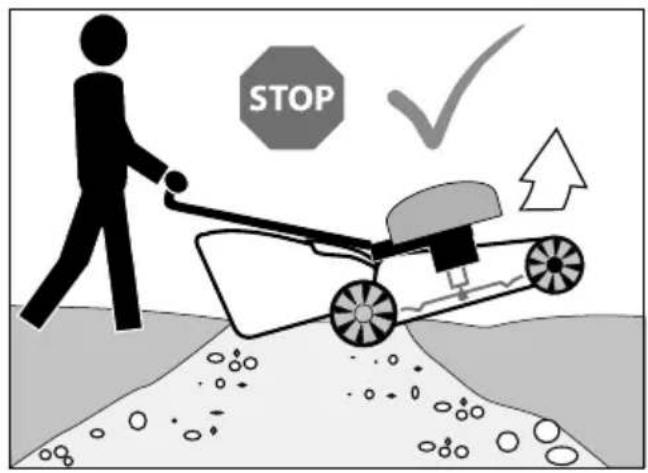

STOP

Illustration of a person crossing a road with a construction vehicle and warning sign, no text or symbols present

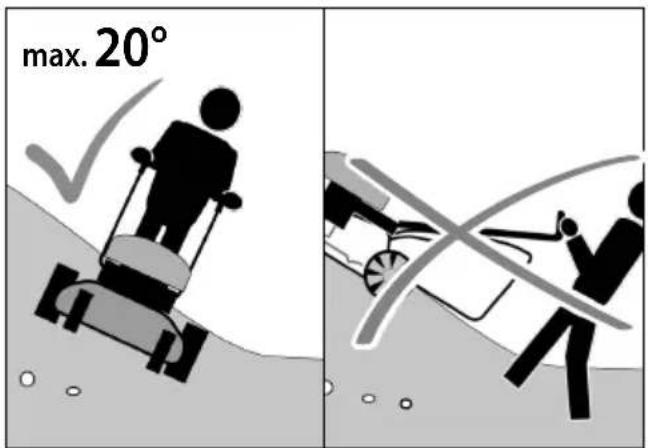

max. 20°

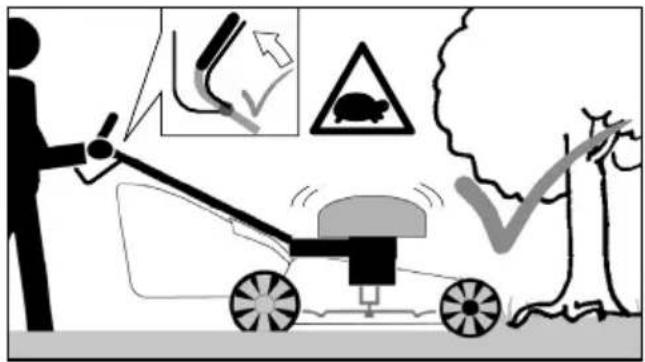

Illustration of a person using a tool to cut a vehicle, with a warning sign and hazard symbol (no text or labels)

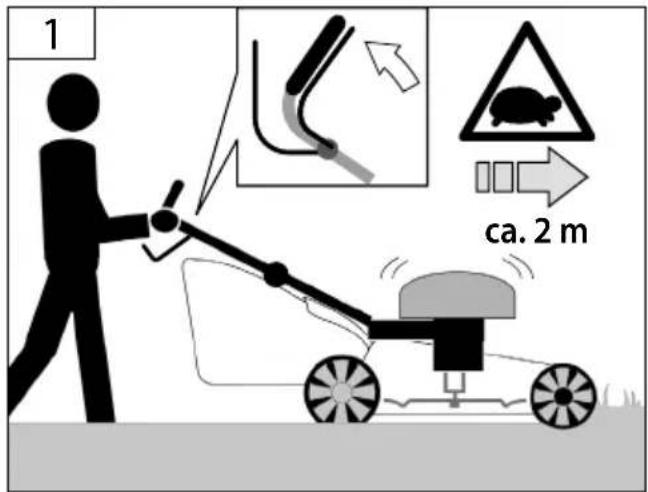

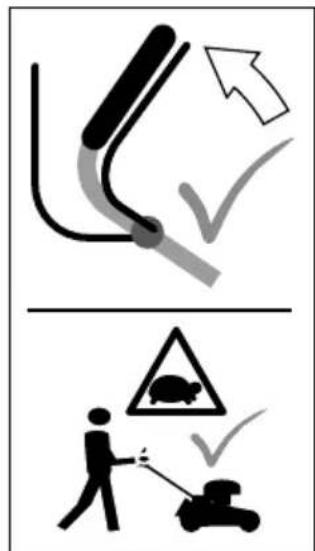

1 ca. 2 m

2

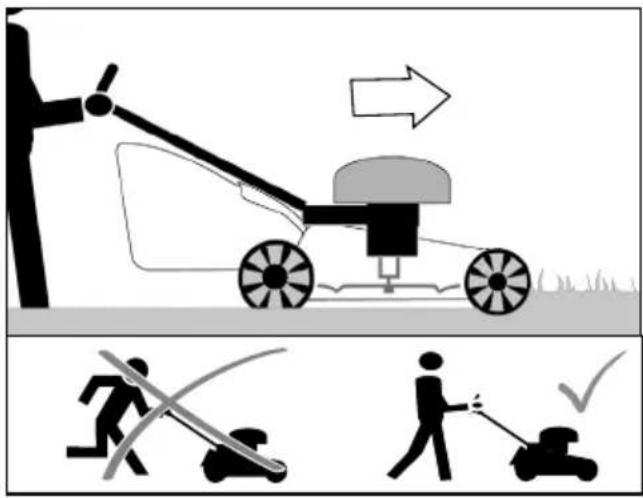

Safety warning illustration showing a person using a lawn mower with hazard symbols and safety instructions

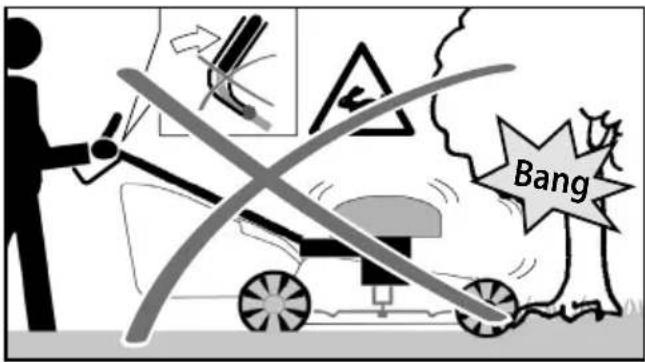

Bang

Safety warning symbols for vehicle accident detection, including tool, checkmark, and hazard symbol

Simple line drawing of a tree with a curved arrow below it, no text or symbols present.

Simple line drawing of a rock with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a tree with a curved arrow indicating rotation or cycle (no text or symbols)

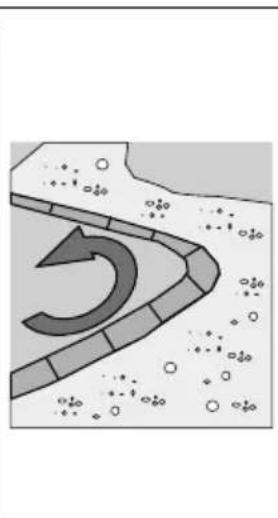

Diagram of a curved road with directional arrow and scattered circular symbols (no text or labels)

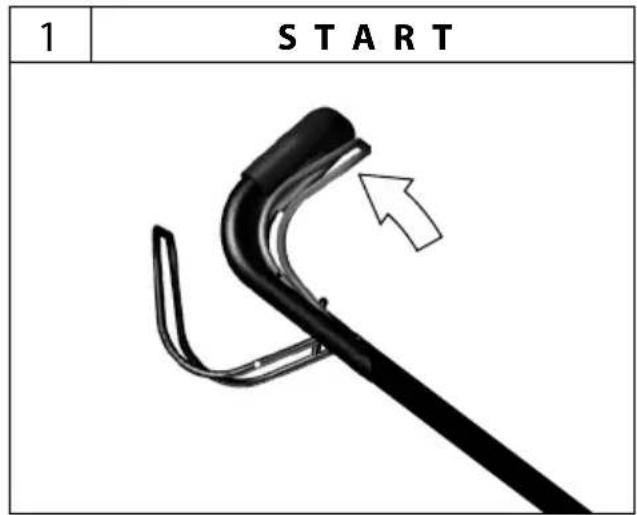

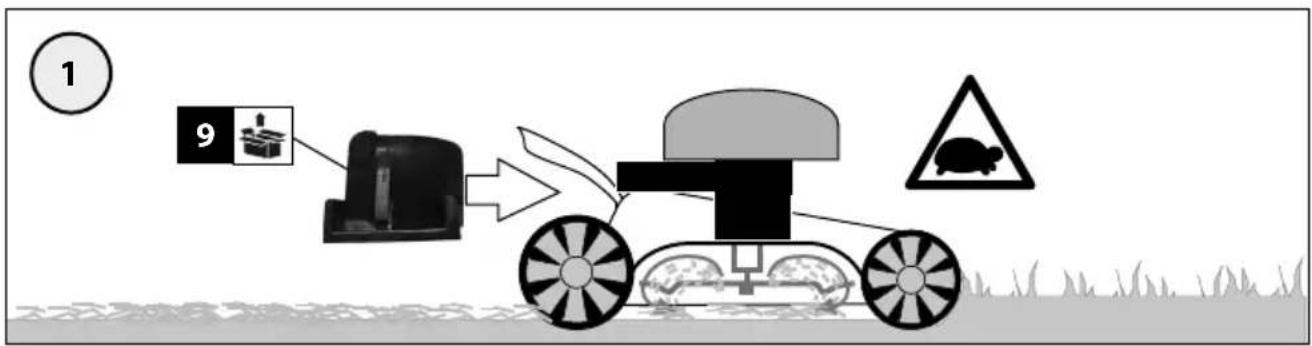

1 | START | ↑

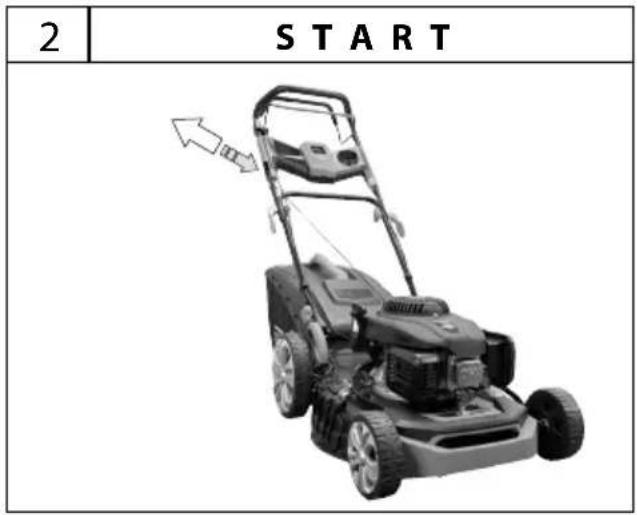

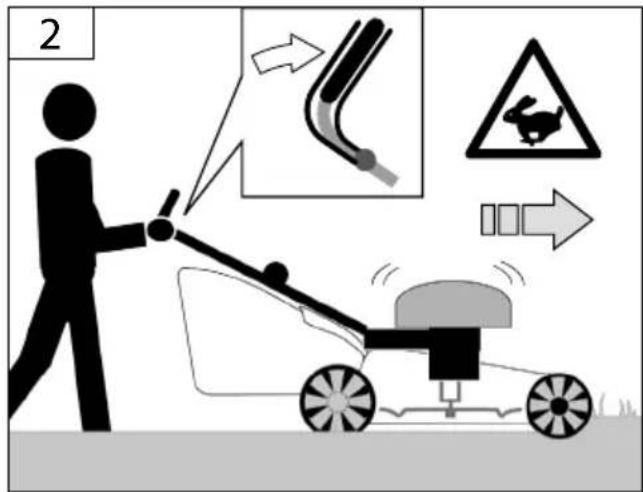

2 | START | →

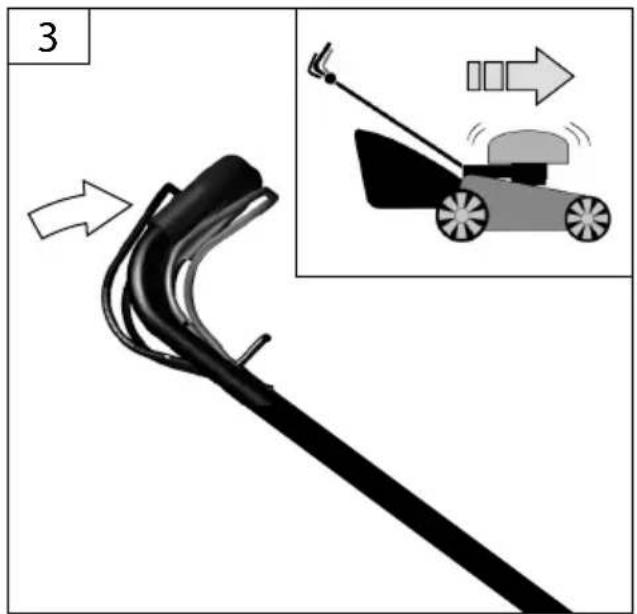

Diagram showing a black lawn mower being pulled by a tool, with an inset image of a grasshopper cart (no text or symbols present)

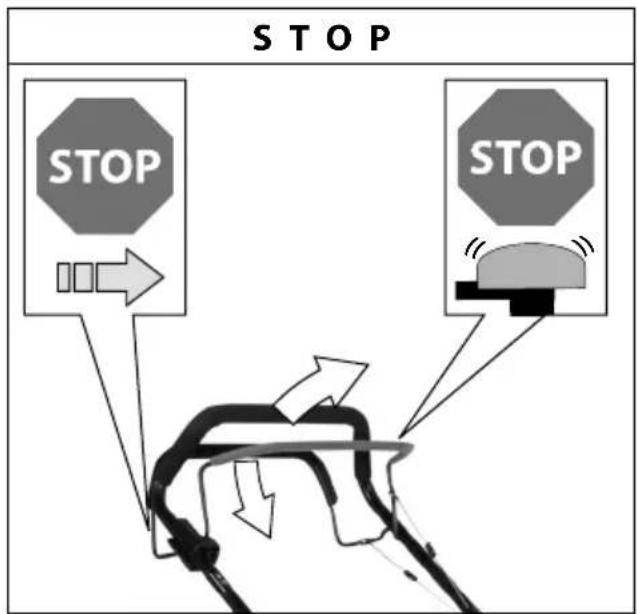

STOP STOP STOP

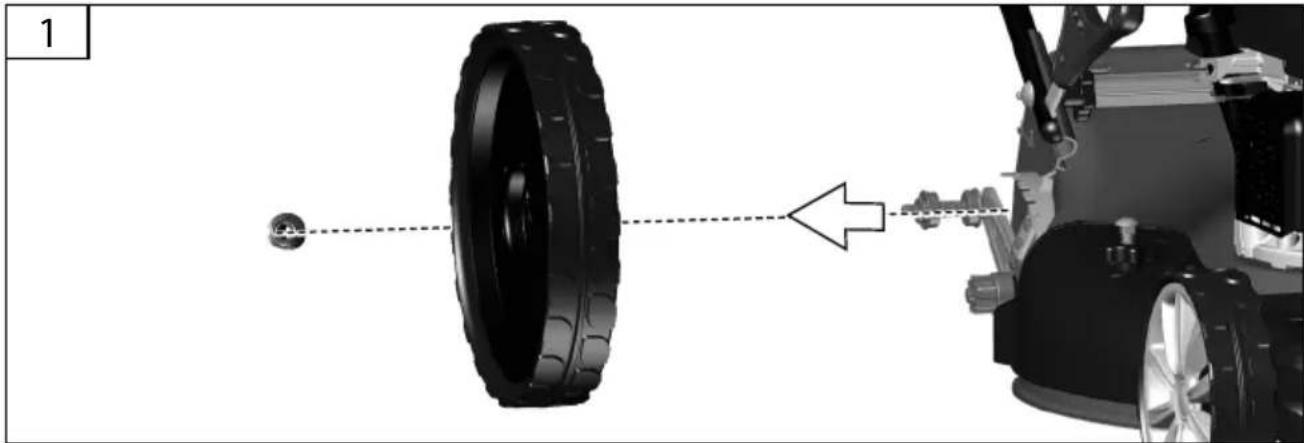

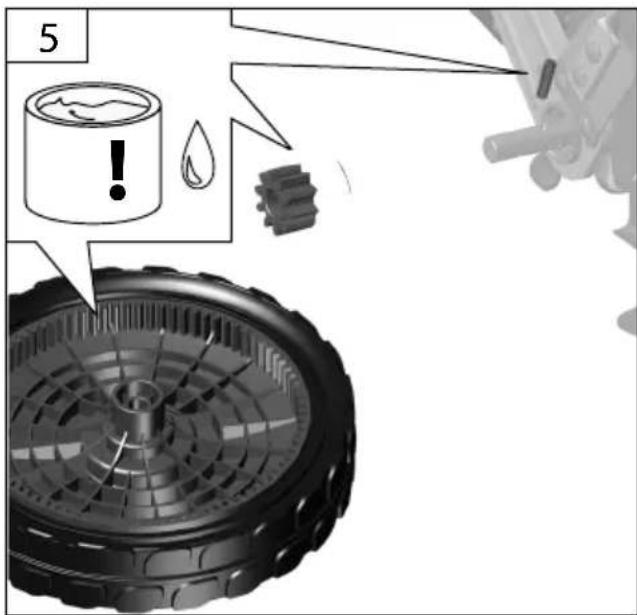

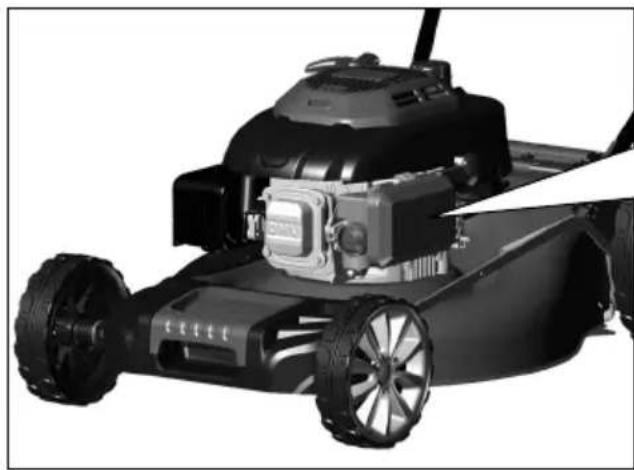

Mehrzweckfett

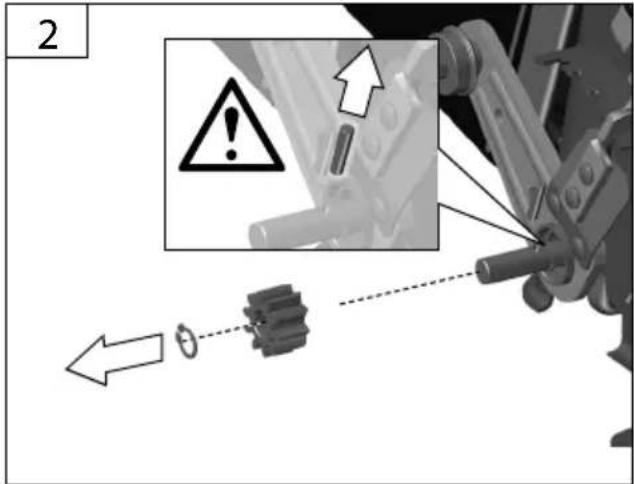

EN Multi-purpose grease FR Graisse multi-usage IT Grasso multiuso ES Grasa multiusos NL Universeelvet CZ Víceúčelové mazivo SK Viacúčelový tuk PL Smar uniwersalny HU többcélú zsír

Mechanical assembly diagram showing a tire and motor components with a dashed arrow indicating motion direction (no text or symbols)

2

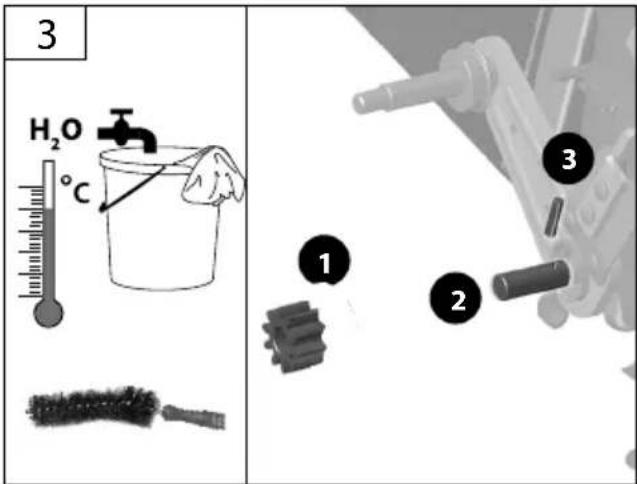

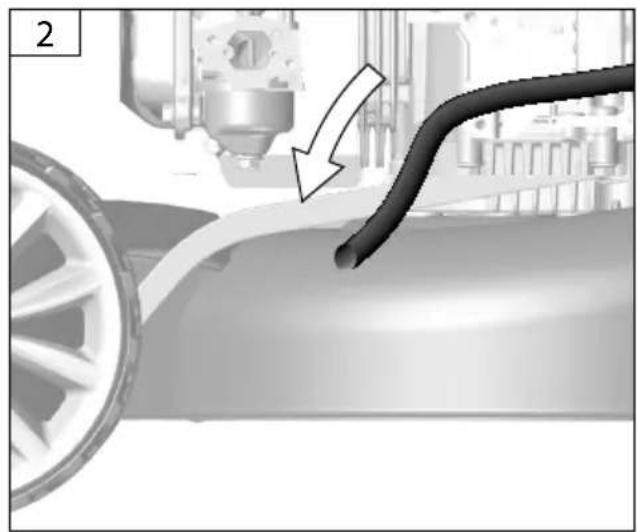

3 H₂O °C 1 2 3

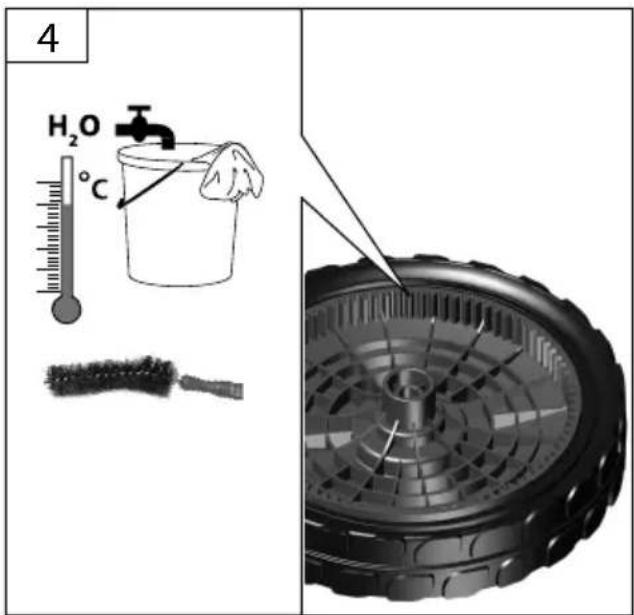

4 H₂O °C

5

Four safety warning symbols: triangular warning triangle, crossed-out circuit board with lightning bolt, no-smoking symbol, and lightning triangle.

Technical diagram showing engine cooling system with temperature and heat indicators, including a component labeled '1' and directional arrows.

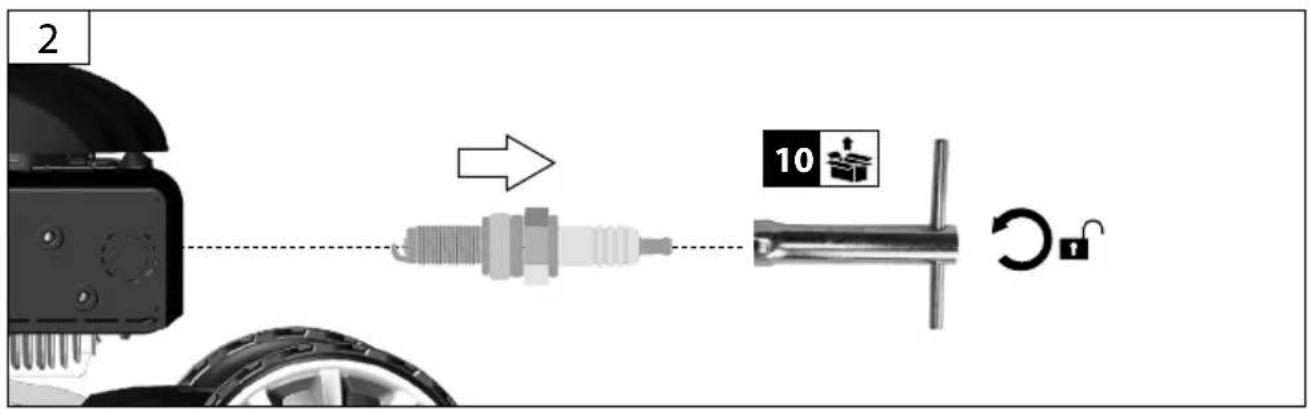

2 10

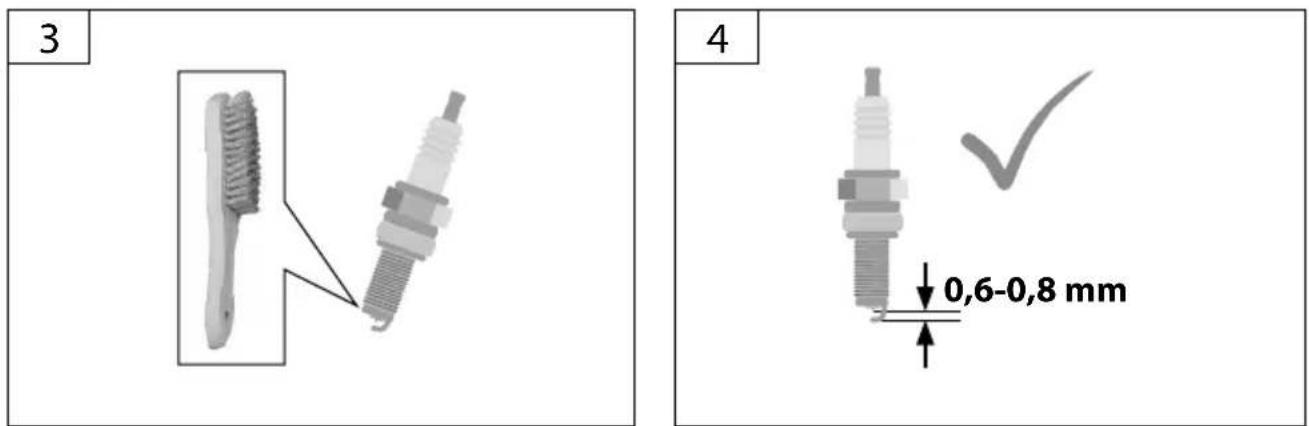

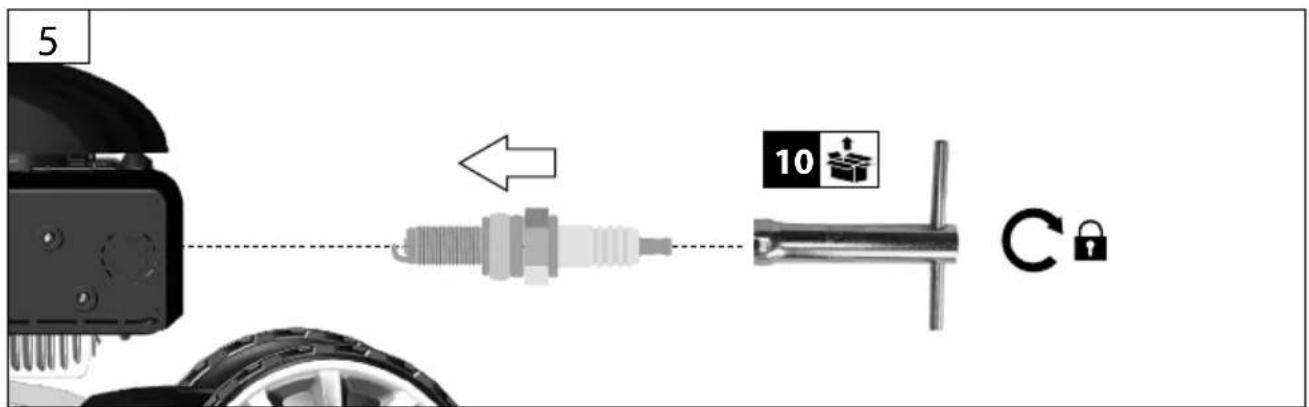

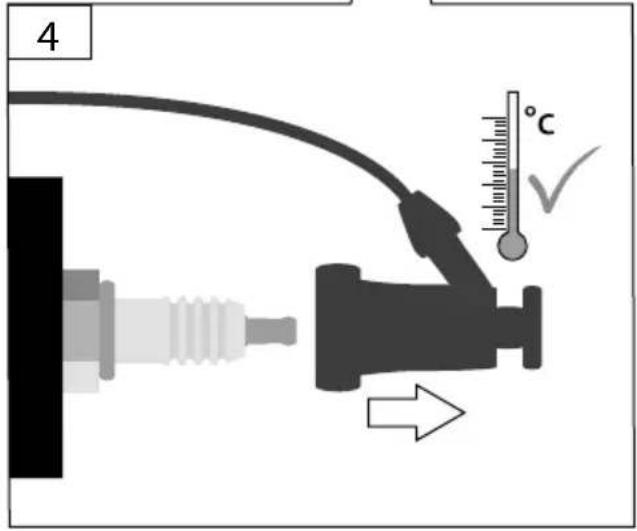

3 4 0,6-0,8 mm

5 10 C

Black-and-white photo of a lawn mower with visible blades and wheels (no text or symbols)

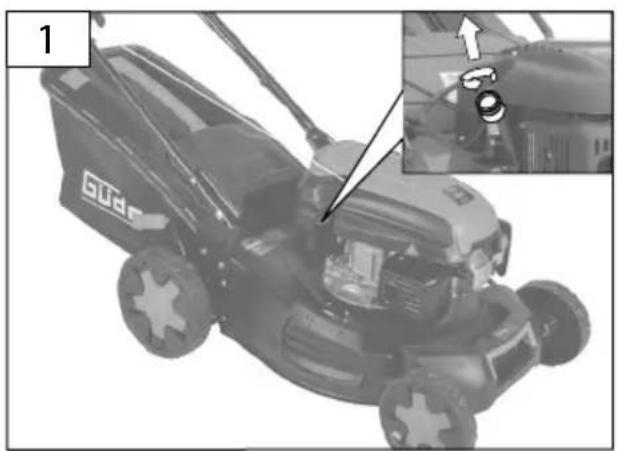

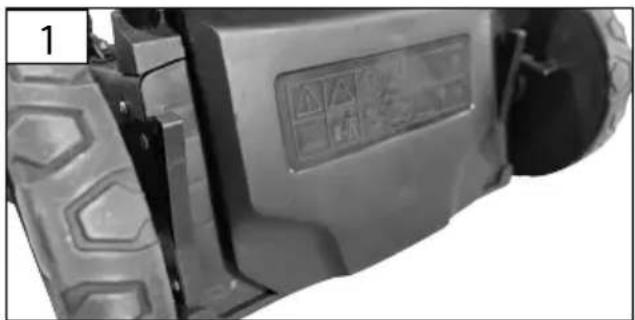

1 1 2 3

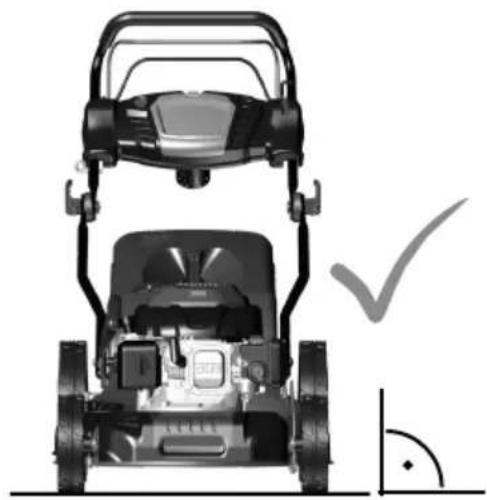

2a

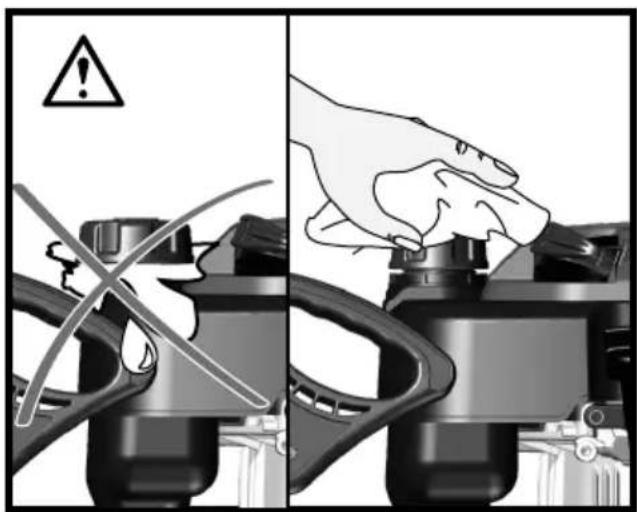

Two-panel illustration: top shows a hand cleaning water droplets, bottom shows sunlight shining on a brick (no text or symbols)

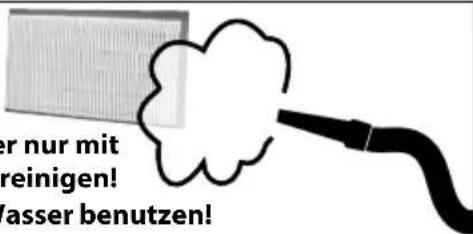

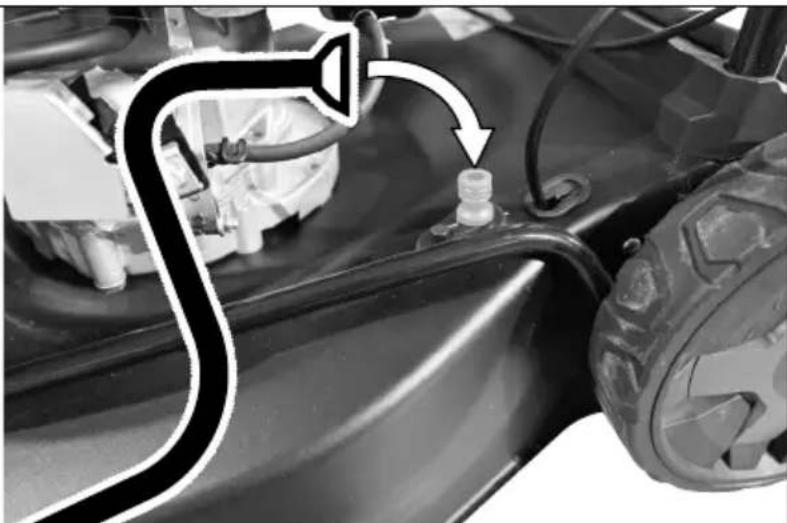

2b

Close-up of a mechanical device with a highlighted component and arrow indicator (no visible text or symbols)

Close-up of a mechanical assembly with a highlighted component and arrow indicator (no visible text or symbols)

Lhouette of a grass lawn mower with a close-up inset showing the engine and components (no text or symbols visible)

Person using a power tool on an electric scooter (no visible text or symbols)

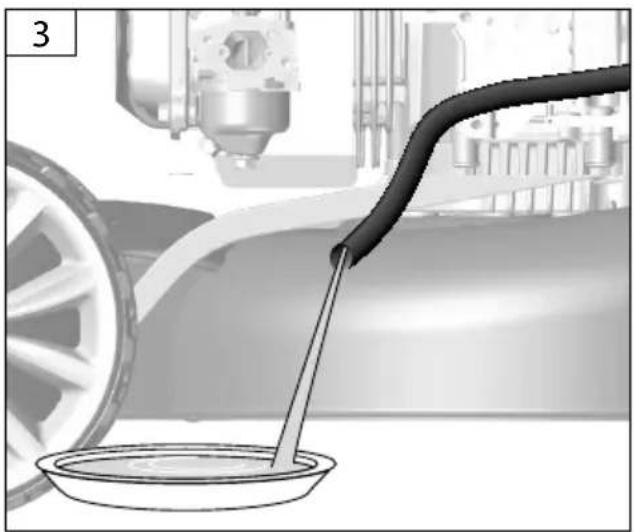

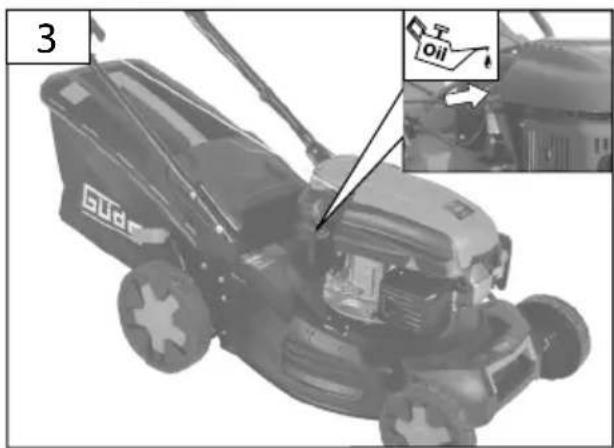

3 Oil

4 Oil 10 max 0,5 5 6 7

Lhouette of a grass lawn mower with a close-up inset showing the blade and handle (no text or symbols visible)

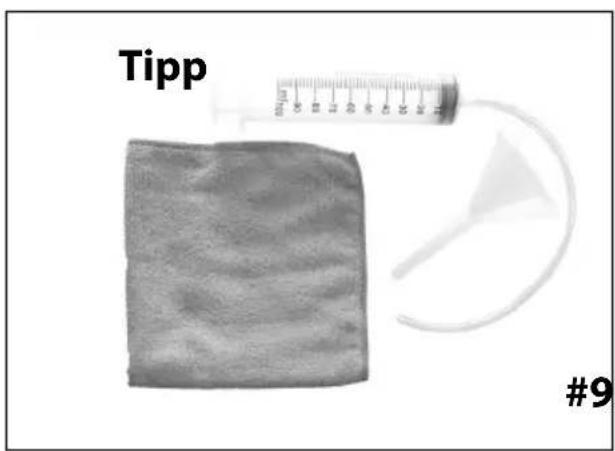

Tipp #9

Diagram illustrating a vehicle-mounted sensor or sensor system with three labeled components and directional arrows indicating motion paths.

Diagram illustrating a lawnshawing tool with labeled parts and directional arrows indicating movement or motion.

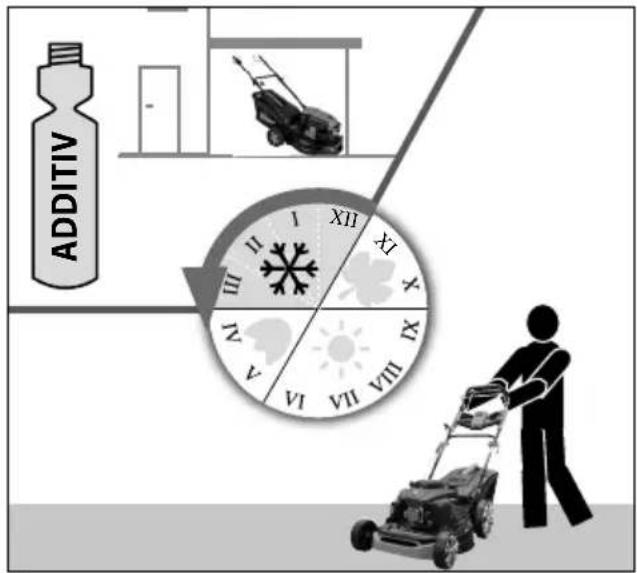

ADDITIV I II III IV V VI VII IX X Y Z XI XII XIII XIVIII XVIII XVI XVII XVIII XVIIII XVIIIII XVIIIIII XVIIIIIII XVIIIIIIII XVIIIIIIIIII

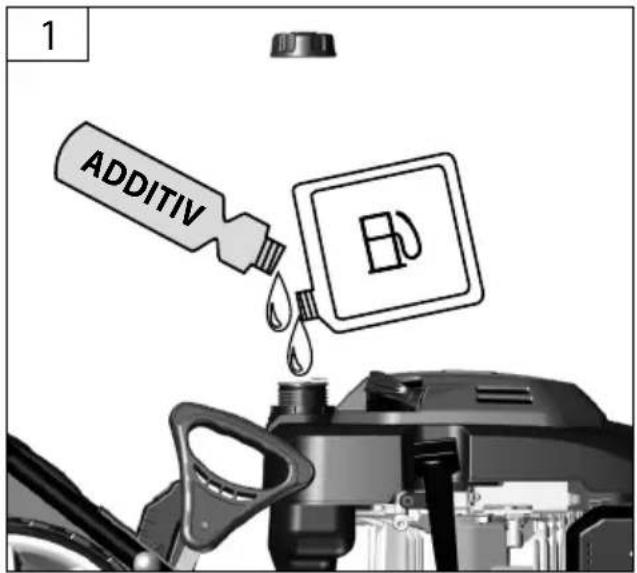

1 ADDITIV E

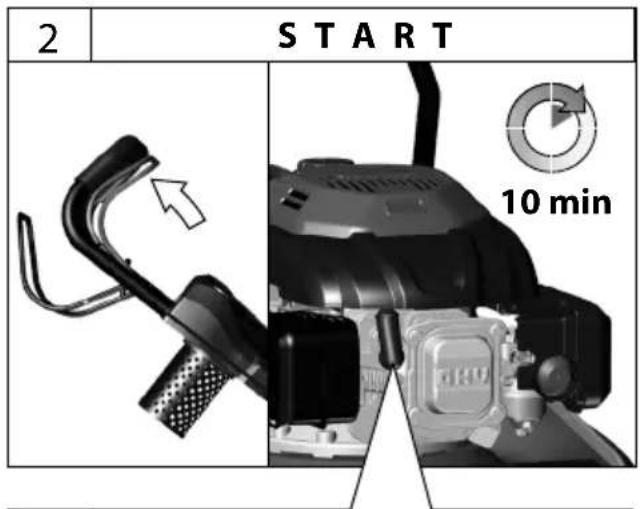

2 | START | 10 min

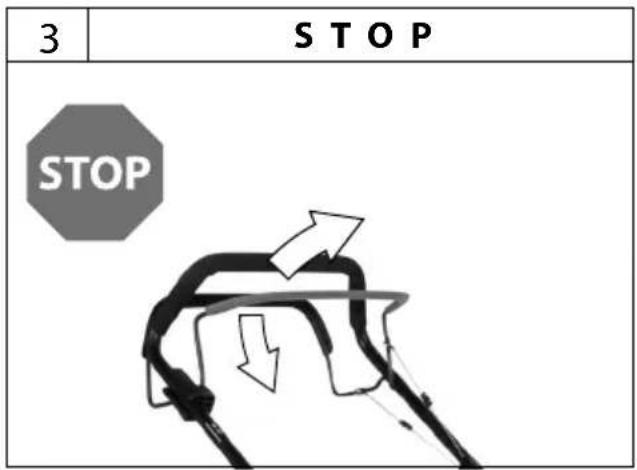

3 | STOP STOP

4 °C

1

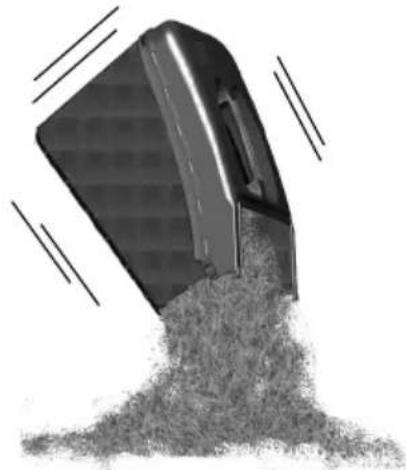

Black-and-white illustration of a mechanical device pouring granular material from a container (no text or symbols)

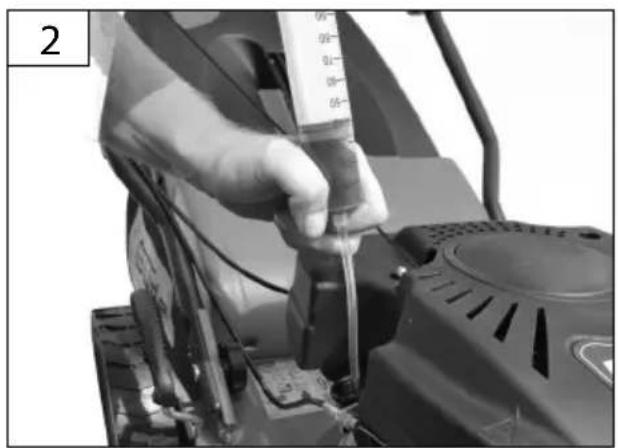

2

max. 30^

Close-up of a mechanical electronic component with visible circuitry and mounting brackets (no text or symbols)

Top-down technical illustration of a lawn mower showing front wheel, rear wheels, and mounting hardware (no text or symbols)

Diagram showing a truck with an arrow indicating direction, alongside a road intersection (no text or symbols)

3

Close-up of a car's engine compartment with a speaker icon and pipe connection (no text or symbols)

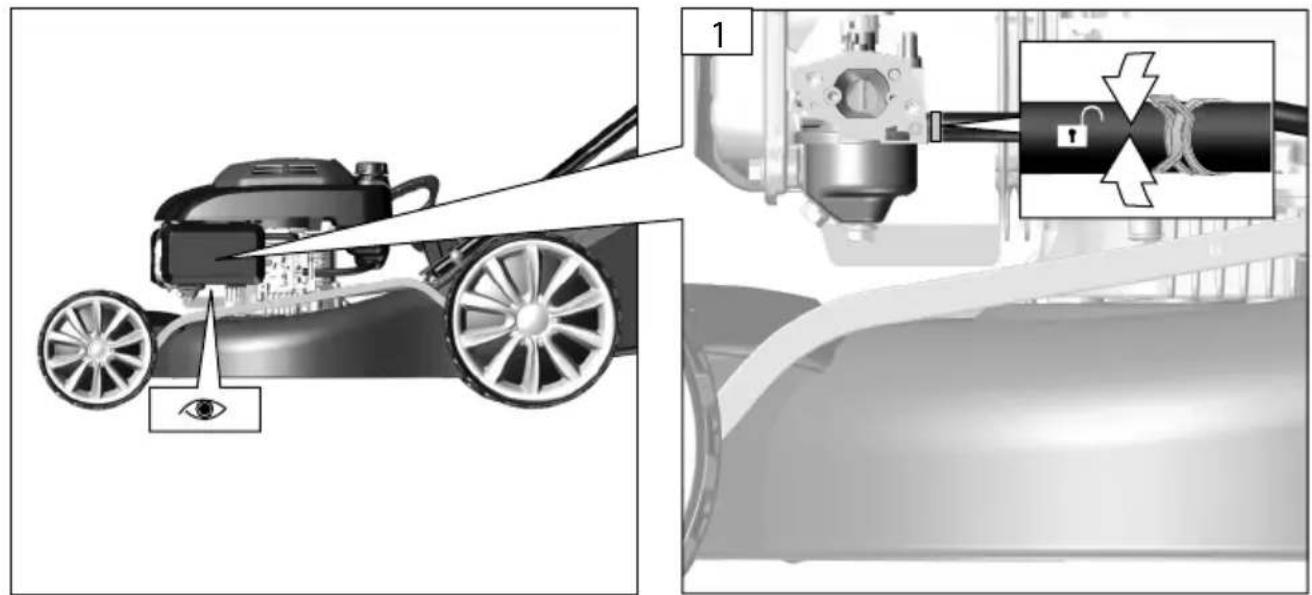

Technical diagram of a lawn mower with labeled parts and an eye symbol, showing mechanical components and a lock mechanism.

Close-up of a car's engine component with a black cable being inserted, showing mechanical assembly and wiring (no text or symbols visible)

Diagram showing a car engine spraying liquid into a bowl, with no visible text or symbols

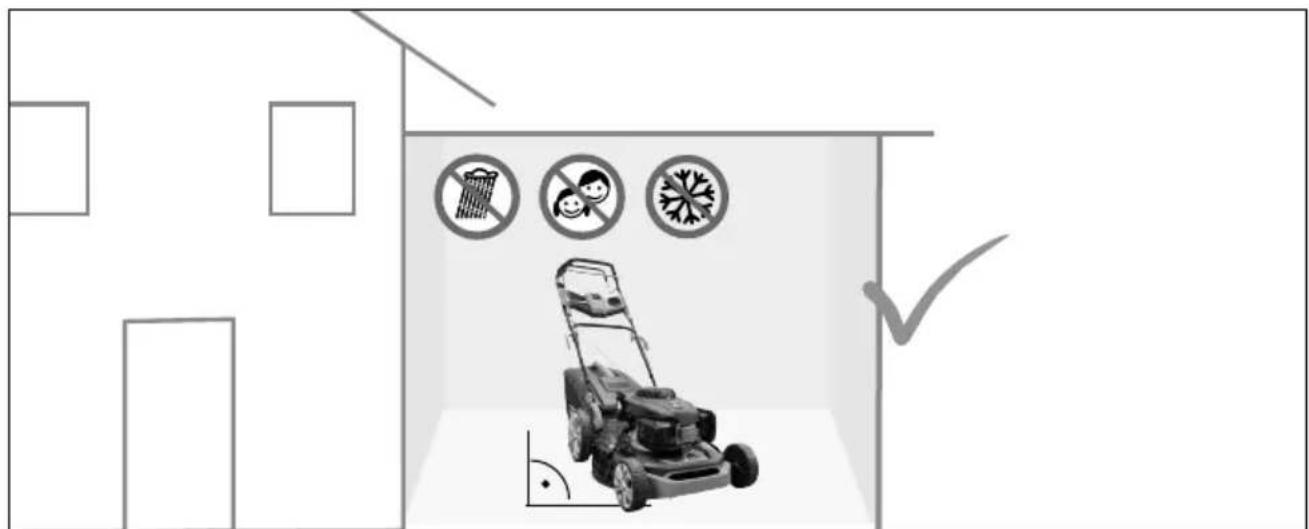

Diagram showing a lawn mower in a garage with three prohibition symbols: no litter, family photo, and snowflake.

Technische Daten

WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet. The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the control

elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties. The operator is responsible for accidents or risks to third parties. In case of any doubts about connection and operation refer please to our customer center

Specified Conditions of Use

The mower is intended for the cutting of lawns and grassy areas with a maximum terrain inclination of 20^ in private household and hobby gardens.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

⚠️ Use the appliance only outside, never use it in confined and bad ventilated areas.

The mower must not be used for cutting bushes, hedges and thickets, for cutting and mulching creepers or lawns on roofs or in balcony boxes. The mower must also not be used as a crusher for mulching tree cuttings and hedges or levelling any terrain roughness.

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or insufficient experience and/or knowledge unless they are supervised by a person who is responsible for their safety or have been instructed by them in the safe use of the appliance.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Local regulations may stipulate the minimum age of the user.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Emergency procedure

Risk of injury

Never put your hands and feet near the rotating parts. Keep a distance from the ejection opening at all times.

Danger of burns!

Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler.

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Symbols

Caution!

To reduce the risk of injury, user must read instruction manual

Wear ear protectors. Wear goggles.

Wear safety cut through resistant shoes with safety sole and steel toe!

Quickly

Slow

Switch the engine off and remove the socket plug before any work on the engine.

Warning against thrown-off items

①. Check the oil level, fill it up if required.

② Fill up with petrol.

Activate the primer 3x if the motor is warm.

Activate the primer 6x if the motor is cold.

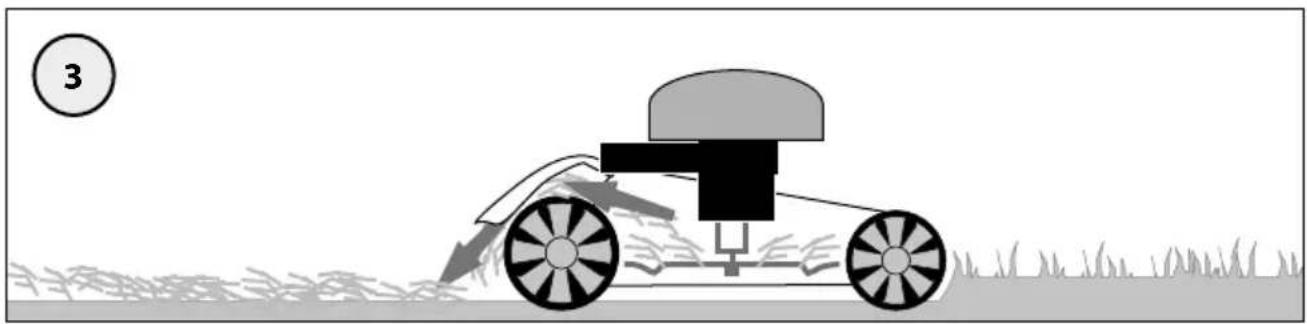

Mulching

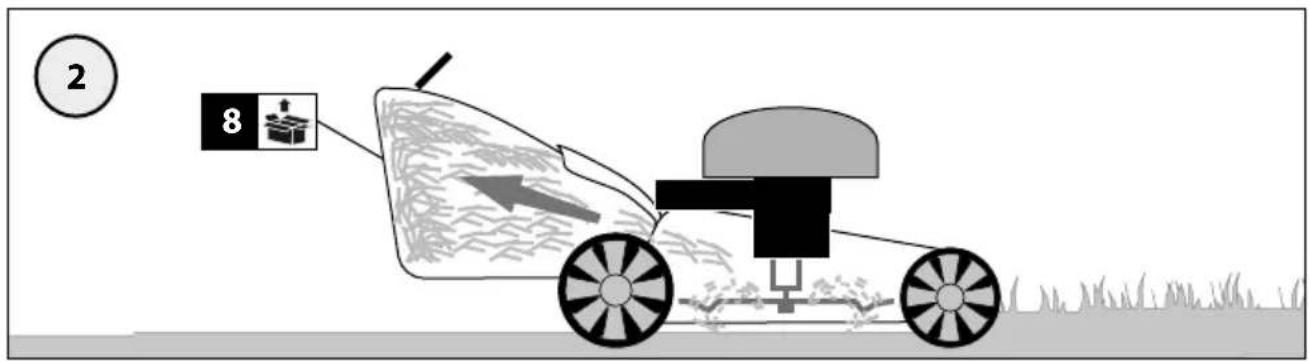

Collecting

Mowing

Ejecting

Warning against hot surfaces!

Warning against dangerous voltage!

Warning against sharp knives. Knives keep running for a short time after the appliance is switched off.

Ensure others are a safe distance away from the machine (min. 5 m).

Switch off the engine before any work on it.

Prohibited smoking and open fire using.

Keep the machine out of reach of children.

The appliance must be stored in a dry place and protected from frost.

Guaranteed sound power level L_WA

Keep dry at all times.

This side up

Safety Warnings

Warning

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Keep children and other persons including animals in a safe distance when using the appliance. Minimum safe distance is 5 m.

Wear personal protective equipment.

Wear suitable protective clothing such as sturdy shoes with non-slip sole, robust long trousers, gloves, safety glasses and hearing protection!

Wear protective gloves if necessary.

Use the appliance in broad daylight or in a well-lit environment.

The appliance must be carefully inspected before use. Only work with appliances that are in a good condition. If you notice any defects on the appliance that may possibly represent a danger for the operator, then you may only use the appliance after the defect has been rectified.

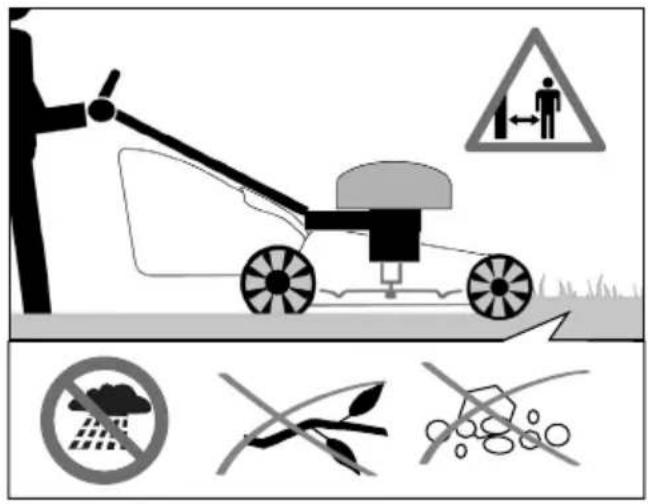

Check carefully the terrain where the appliance is being used and remove any items that could get caught and be thrown away.

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

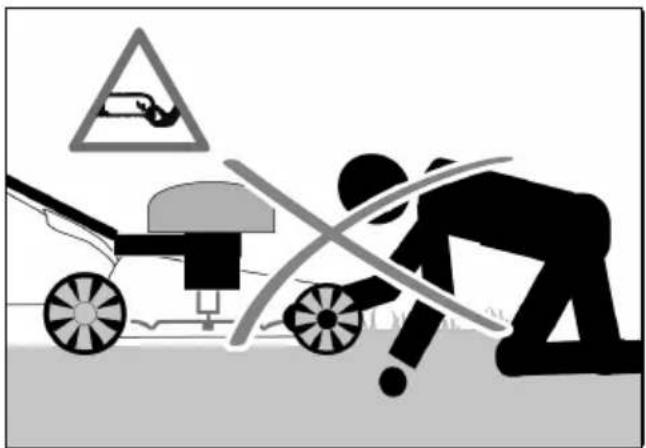

Never touch under the housing body when the engine is running. Keep a distance from the ejection opening at all times.

Avoid any inadvertent starting of the engine. Make sure, that the control lever is always in 'Start' position when you pull the starter rope.

Fuel is highly flammable.

Keep the fuel in suitable containers only.

The appliance may only be refuelled outdoors and not near open fire or burning cigarettes.

Emergency procedure

Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated.

The engine must be filled with engine oil before the initial commissioning.

Check the oil level every time before commissioning. Fill with engine oil if required.

Risk of poisoning!

Exhaust fumes, fuel and lubricants are toxic substances. Breathing in exhaust fumes may be fatal!

Use the appliance only outside, never use it in confined and bad ventilated areas.

Do not operate the unit in closed spaces where dangerous carbon monoxide gases may accumulate.

Always carry out a visual inspection before use, to check whether the appliance is damaged, in particular the cutting tools, the fastening components or the entire cutting unit.

The mower must not be operated without either the complete grass capture device or the self-closing removable protection device for the ejection opening being attached.

⚠️ Check all screw and plug-in connections and protective equipment if firm and tightened properly and whether all moving parts are running smooth whenever the appliance is to be put into operation.
⚠️ Check all start locking mechanisms and pushbuttons for their correct functioning every time before starting up.
The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conflict with the designation and it is prohibited to attach any protective equipment of other manufacturers.
⚠ It is strictly prohibited to alter or manipulate any of the sealed devices for motor speed.
The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Do not start the engine before your feet are in a safe distance from the cutting tools.

Do not incline the appliance when being started.

Do not start the appliance when you are standing in front of the ejection opening.

Provide a safe posture, especially on slopes. Do not work on too steep slopes. Be particularly careful when changing travelling direction on slopes.

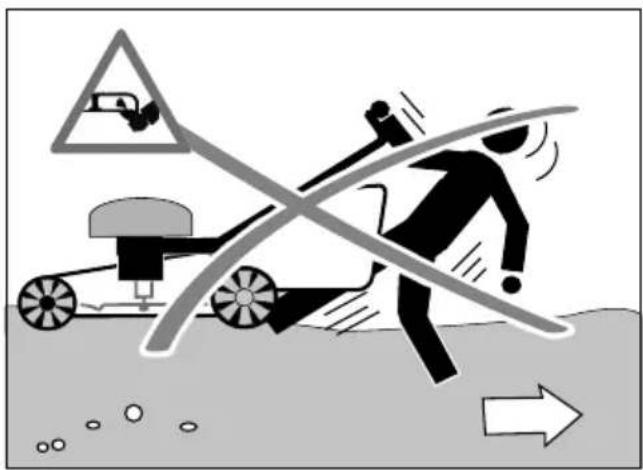

It is dangerous to mow on slopes, ditches, dykes or in the vicinity of rubbish dumps or similar places.

Do not overreach. Keep proper footing and balance at all times. Be careful when going backwards – risk of tripping!

Provide adequate lighting or good lighting conditions when working with the machine. Poor lighting/light conditions represent a high safety risk.

Do not use the appliance in bad weather, especially when there is a risk of storm.

Avoid operating the equipment in wet grass, where feasible.

Walk! Never run!

Pay maximum attention when turning around and pulling the appliance to you.

Switch the mower off whenever carrying or inclining it or when being outside a grass area. Wait until all rotating parts have stopped.

If an undesirable item is encountered or the appliance starts vibrating, the appliance must be switched off and the socket plug removed. Check whether the appliance is not damaged. Repair any damage.

Switch the appliance immediately off after finishing your work.

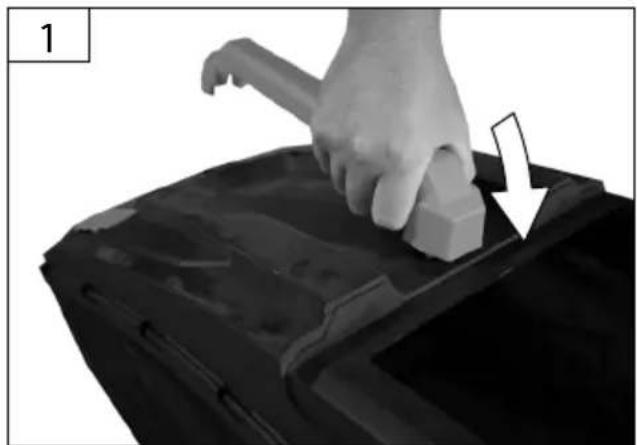

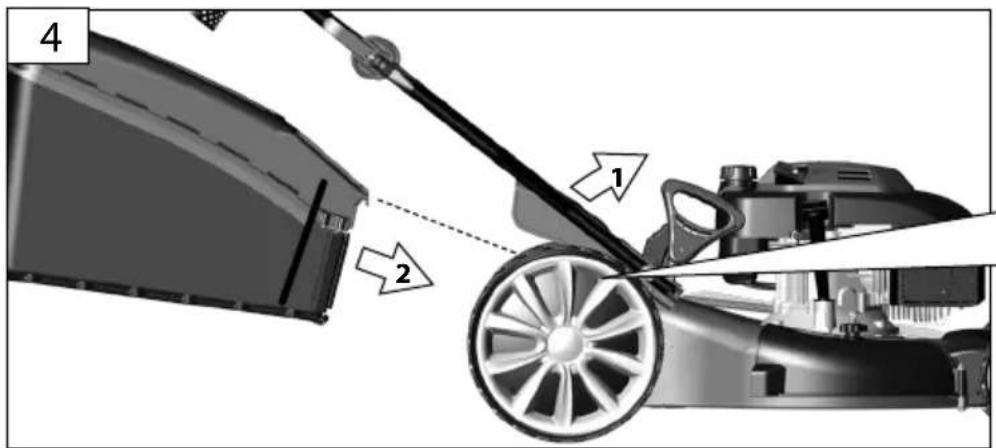

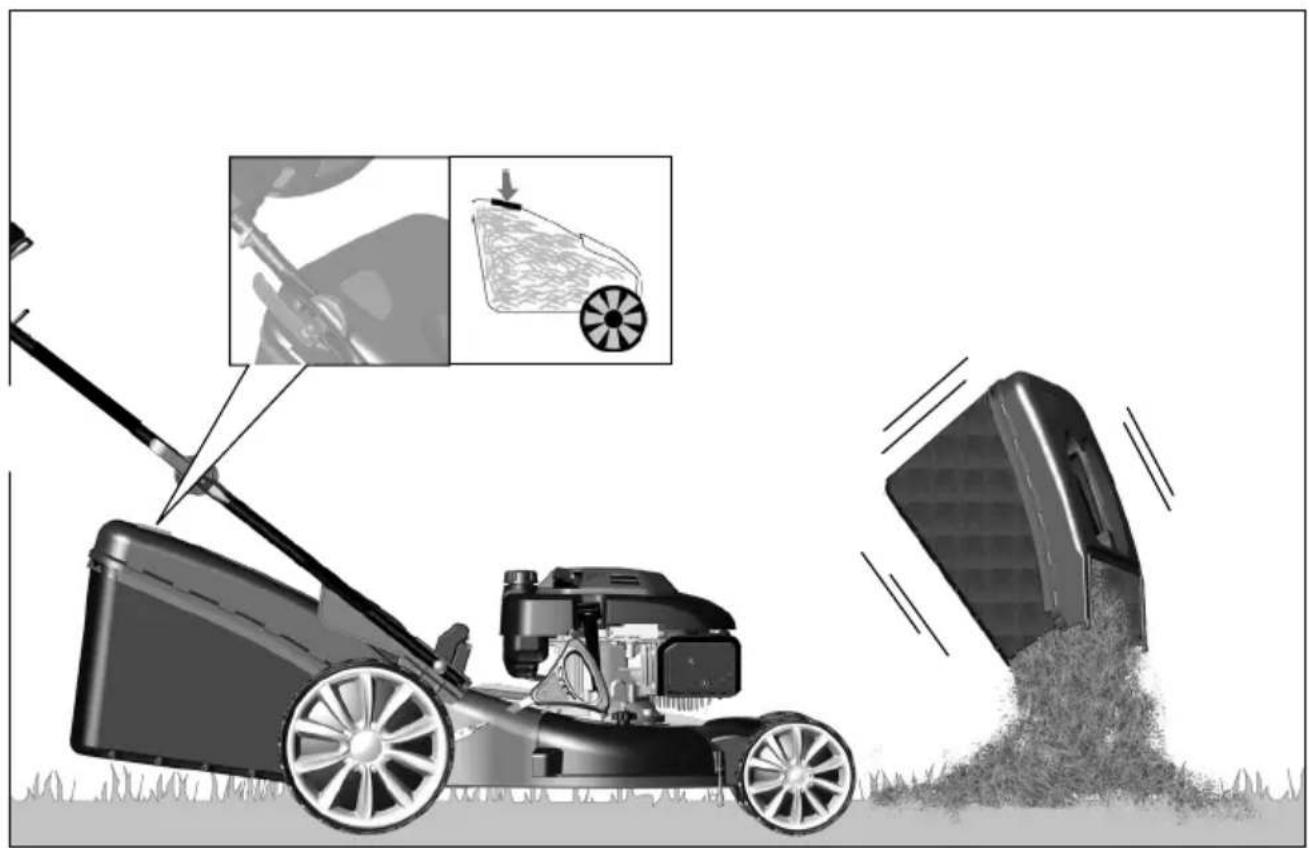

Never remove the collection bag when the machine is being operated. Always switch the machine off before attaching or removing the collection bag.

Do not store the appliance in enclosed places just after being switched off but let it cool down outdoors instead.

Never keep the unit with petrol in the tank inside a building where petrol vapours could get in contact with open fire or sparks.

When the appliance is not going to be used for a long time, store it with an empty tank.

Replace any defective muffler.

Do not change the controlled engine setting and do not rev the engine up.

Maintenance

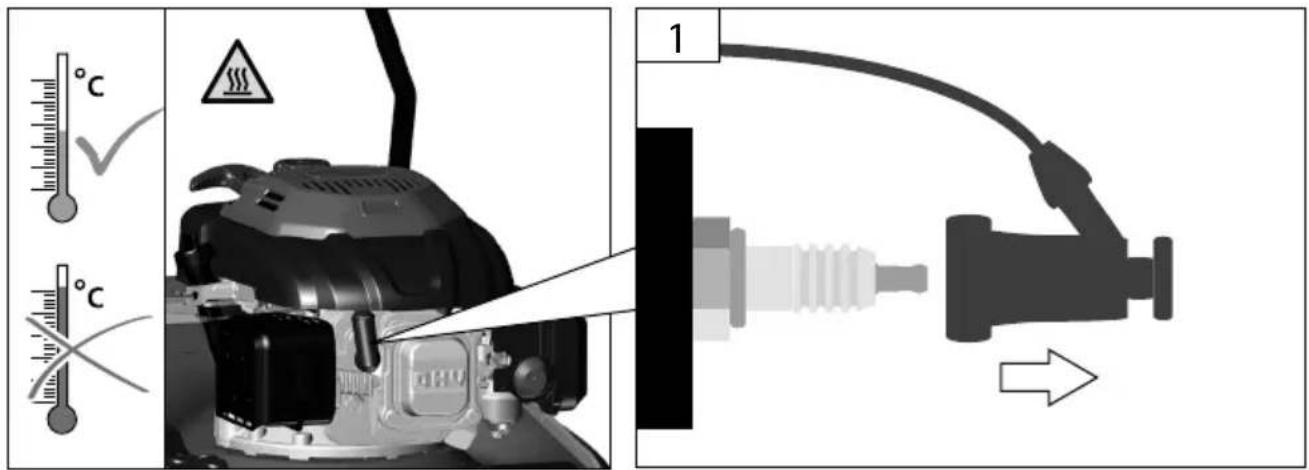

Switch the engine off and remove the socket plug before any work on the engine. Wait until all rotating parts have stopped and the

appliance has cooled down.

Keep the appliance, especially the tank and engine, clean at all times. Clean the ejection opening and cover at regular intervals.

Regularly remove any remainders of grass and weed to avoid an overheating of the shaft tube. Remainders of grass and weeds get caught under the protection cover avoiding a sufficient cooling of the shaft tube. Remove the remainders carefully with a screwdriver or a similar tool.

To reduce fire risks, periodically clean the cylinder flaps with compressed air and clear the silencer area to get rid of sawdust, branches, leaves or other debris.

To keep the danger of fire as low as possible the engine and exhaust pipe must be free from grass, leaves and excess grease.

Apply environment-friendly oil to all moving parts.

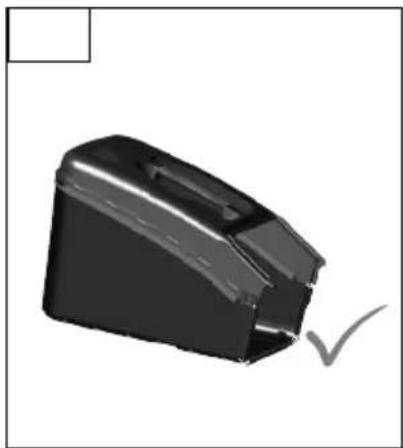

Check the collection bag at regular intervals for any wear and aging.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts. Components for which there are no instructions for exchanging should be replaced by the manufacturer only.

The use of non-original replacement parts is not permitted. We cannot guarantee correct functioning if non-original replacement parts are used.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Guarantee

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. To always have these data at hand, please enter them below.

Serial No.:

Art. No:

Year of production:

Inspection and maintenance plan

Non-compliance with the maintenance plan may result in damage to the motor!

Regular servicing period Before		any start-up	After 1 month	After 3 months	After 6 months	After 12 months	After 24 months
			5 Hours of operation	25 Hours of operation	50 Hours of operation	100 Hours of operation	250 Hours of operation
Engine oil (10W-40)	Inspection	√
	Change		√		√

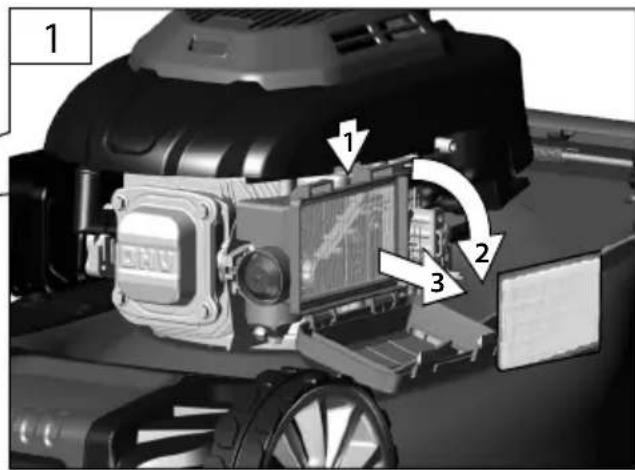

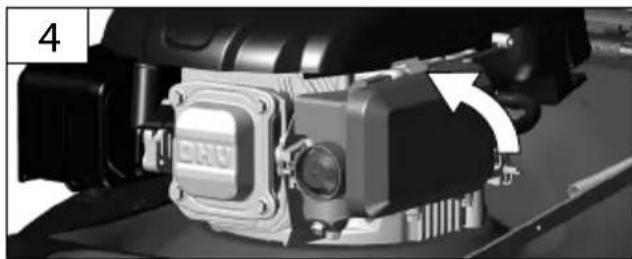

Air filter Inspection		√
	Change				√
Spark plug Inspection Clean						√
	Change						√

Carry out the appropriate maintenance in the month specified or after being operated for the number of operating hours specified, depending on which occurs first.

Defects searching

Failures Causes		Removal
The motor does not start	Start-Stop lever has not been pressed Press	the Start-Stop lever
	Primer pump not activated Activate primer pump
	Lack of fuel Add some fuel
	Bowden cables are too long Adjust the Bowden cables using the coupling nut.
	Wrong fuel, storing without petrol tank being drained	Drain the fuel tank and carburettor. Add fresh petrol.
	Sooted spark plug (carbon residues on electrodes), electrodes distance too big	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm
	The spark plug is wet from petrol (oversaturated engine).	Dry the spark plug out and refit it.
Automatic feed does not function	Bowden cables are too long Adjust the Bowden cables using the coupling nut.
Grass is not collected	Blocked channelFull collection bagToo wet grass	Clean the ejection channelEmpty the collection bagCut in dry weather

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.
