USER MANUAL BP9200T AEG

Line drawing of a kitchen oven with Wi-Fi signal icon (no text or symbols)

BP9200B BP9200T TT9PB83FAB TT9PB83FAT

QR code with a document icon in the center, likely linking to a digital resource or webpage.

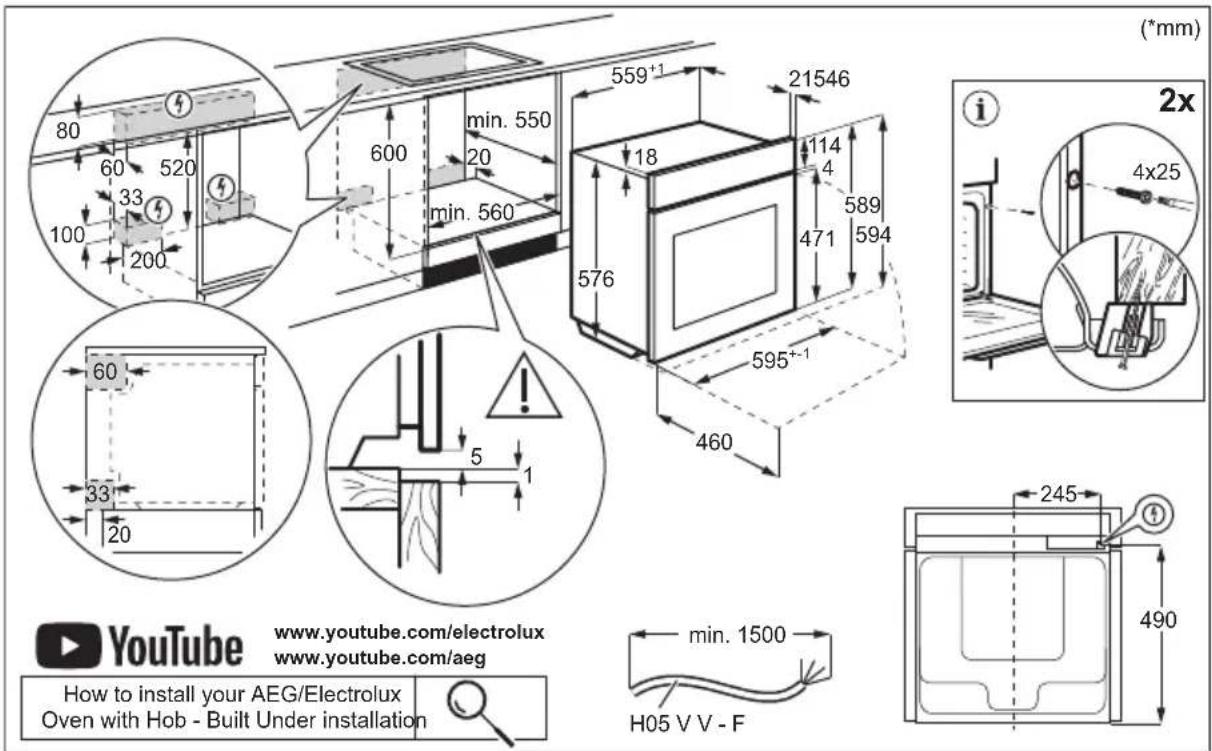

INSTALLATIE / INSTALLATION / INSTALLATION

80 60 520 33 100 200 600 min. 550 20 min. 560 559⁺¹ 18 21546 114 4 589 471 594 576 595⁺¹ 460 60 33 20 5 1 min. 1500 H05 V V - F 245 490 (*mm) 2x i 4x25 YouTube www.youtube.com/electrolux www.youtube.com/aeg How to install your AEG/Electrolux Oven with Hob - Built Under installation

70 60 520 33 100 200200 min. 578 max. 590 min. 550 20 min. 560 559⁺¹ 18 21546 114 4 589 471 594 576 595⁺¹ 460 60 33 20 5 1 min. 1500 H05 V V - F 245 490 (*mm) 2x 4x25 YouTube www.youtube.com/electrolux www.youtube.com/aeg

3. PRODUCTBESCHRIJVING

QR code image containing encoded data, no visible human-readable text

Technical illustration of a roof drainage system with two magnified views of the structure (no text or symbols)

1. Druk op .OK

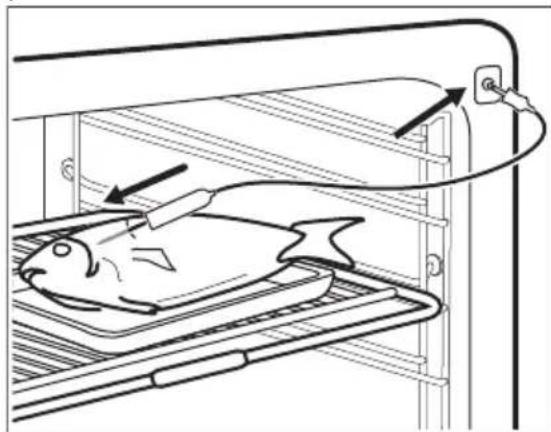

Line drawing of a fish inside an oven with a hanging device attached (no text or symbols)

Stoofschotel

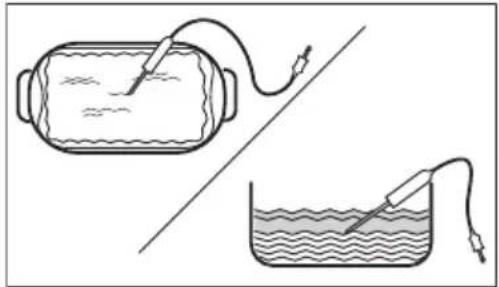

Illustration of a test tube setup with probe and tubing, showing liquid level before and after discharge (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and directional arrows, including section A.

Diagram of a hand pressing down on a folded paper sheet with an upward arrow indicating motion (no text or symbols)

12. PROBLEEMOPLOSSING

WAARSCHUWING!

Technical line drawing of a car front panel with no visible text or symbols

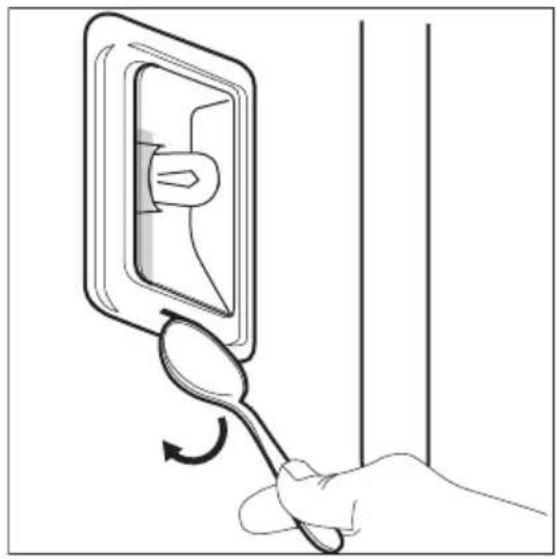

Hand holding a spoon inside an electrical outlet, with a curved arrow indicating rotation (no text or symbols)

Welcome to AEG! Thank you for choosing our appliance.

Get usage advice, brochures, troubleshooting, service and repair information:

www.aeg.com/support

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......26
2. SAFETY INSTRUCTIONS.... 28
3. PRODUCT DESCRIPTION.... 31
4. CONTROL PANEL....31
5. BEFORE FIRST USE....32
6. DAILY USE....33
7. ADDITIONAL FUNCTIONS......35
8. CLOCK FUNCTIONS.... 36
9. USING THE ACCESSORIES....37
10. HINTS AND TIPS....38
11. CARE AND CLEANING.... 40
12. TROUBLESHOOTING....43
13. ENERGY EFFICIENCY......44
14. ENVIRONMENTAL CONCERNS......46

1. ⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall

be kept away from the appliance unless continuously supervised.

• Children should be supervised to ensure that they do not play with the appliance and mobile devices with the app.
• Keep all packaging away from children and dispose of it appropriately.
• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for cooking purposes only.
- This appliance is designed for single household domestic use in an indoor environment.
- This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
- Only a qualified person must install this appliance and replace the cable.
- Do not use the appliance before installing it in the built-in structure.
- Disconnect the appliance from the power supply before carrying out any maintenance.
- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
- WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements or the surface of the appliance cavity.

• Always use oven gloves to remove or insert accessories or ovenware.
• Use only the food sensor (core temperature sensor) recommended for this appliance.
• To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• Before pyrolytic cleaning, remove all accessories and excessive deposits/spills from the appliance cavity.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions available on our website.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
  • Install the appliance in a safe and suitable place that meets installation requirements.
• Keep the minimum distance from other appliances and units.
• Before mounting the appliance, check if the appliance door opens without restraint.
• The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
  • Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation.

Make sure that there is access to the mains plug after the installation.

• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
• Fully close the appliance door before you connect the mains plug to the mains socket.
• This appliance is supplied with a main plug and a main cable.

2.3 Use

WARNING!

Risk of injury, burns and electric shock or explosion.

• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the door.
  • Always use glass and jars approved for preserving purposes.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

- Do not share your Wi-Fi password.

WARNING!

Risk of damage to the appliance.

- To prevent damage or discoloration to the enamel:

– do not put ovenware or other objects in the appliance directly on the bottom.
– do not put aluminium foil directly on the bottom of cavity of the appliance.
– do not put water directly into the hot appliance.
– do not keep moist dishes and food in the appliance after you finish the cooking.
– be careful when you remove or install the accessories.

• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.
• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
  • Always cook with the appliance door closed.
• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

2.4 Care and cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.

• Be careful when you remove the door from the appliance, the door is heavy.

• Clean regularly the appliance to prevent the deterioration of the surface material.

• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, follow the safety instructions on its packaging.

2.5 Pyrolytic cleaning

WARNING!

Risk of Injury / Fires / Chemical Emissions (Fumes) in Pyrolytic Mode.

• Before carrying out the pyrolytic cleaning and initial preheating remove from the oven cavity:
  – any excess food residues, oil or grease spills / deposits.
  – any removable objects (including shelves, side rails, etc., provided with the appliance) especially any non-stick pots, pans, trays, utensils, etc.
• Read carefully all the instructions for pyrolytic cleaning.
• Keep children away from the appliance while the pyrolytic cleaning operates. The appliance becomes very hot and hot air is released from the front cooling vents.
• Pyrolytic cleaning is a high temperature operation that can release fumes from cooking residues and construction materials, as such consumers are advised to:
  – provide good ventilation during and after the pyrolytic cleaning.
  – provide good ventilation during and after the initial preheating.
• Do not spill or apply water on the oven door during and after the pyrolytic cleaning to avoid damaging the glass panels.
• Fumes released from all pyrolytic ovens / cooking residues as described are not harmful to humans, including children, or persons with medical conditions.
• Keep pets away from the appliance during and after the pyrolytic cleaning and initial

preheating. Small pets (especially birds and reptiles) can be highly sensitive to temperature changes and emitted fumes.

- Non-stick surfaces on pots, pans, trays, utensils etc., can be damaged by the high temperature pyrolytic cleaning operation of all pyrolytic ovens and can be also a source for low level harmful fumes.

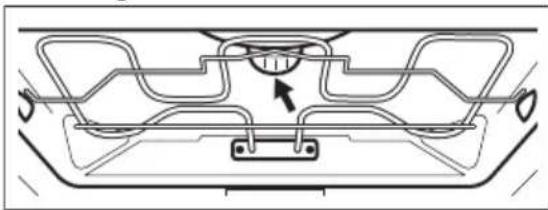

2.6 Internal lighting

WARNING!

Risk of electric shock.

• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.
• This product contains a light source of energy efficiency class G.
• Use only lamps with the same specifications.

2.7 Service

• To repair the appliance contact the Authorised Service Centre.

- Use original spare parts only.

2.8 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

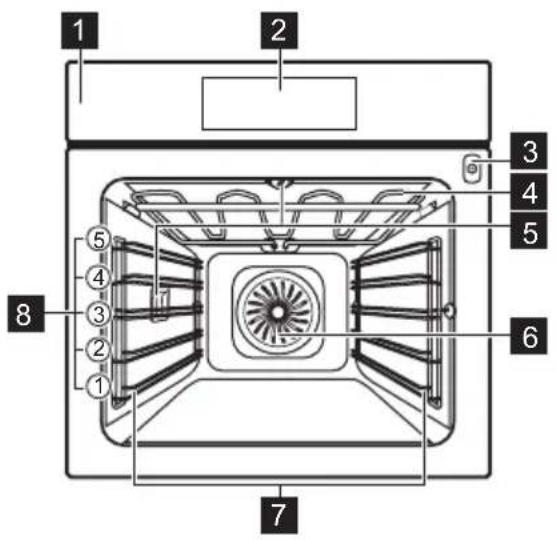

3. PRODUCT DESCRIPTION

3.1 General overview

1 2 3 4 5 6 7 8 1 2 3 4 5

1 Control panel
2 Display
3 Socket for the food sensor
4 Heating element
5 Lamp
6 Fan
7 Shelf support, removable
8 Shelf positions

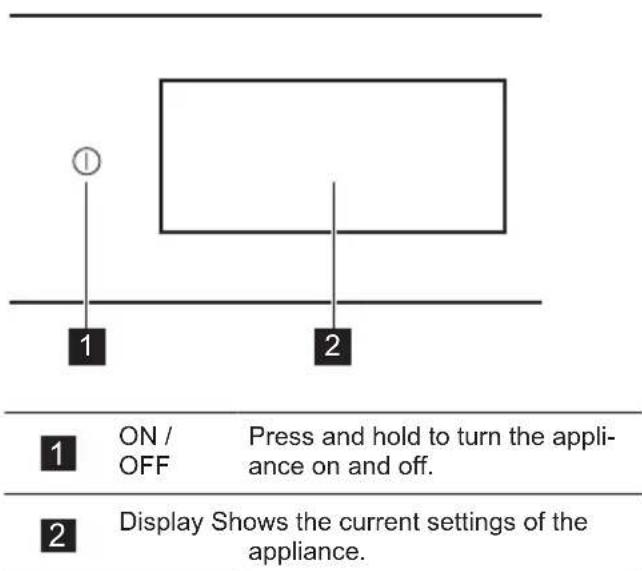

4. CONTROL PANEL

4.1 Control panel overview

① 1 ON / OFF Press and hold to turn the appli- ance on and off. 2 Display Shows the current settings of the appliance.

The control panel provides access to various cooking functions and dishes. It also displays the information about its current operating status.

4.2 Display

The display is fully interactive, scrollable and divided into defined sections. You can swipe across the screen to navigate left or right.

OK	To confirm the selection / setting.
> <	To navigate to the next or previous level in the menu.
^ ∨	To access and adjust additional settings.
	To save current settings in: Favourites.
	To delete current settings in: Favourites.
	To go to menu: Settings.
	To turn the lamp on and off.
	To turn the options on and off.
	The appliance is locked.
	Sound Alarm function is activated.
	Sound Alarm and stop cooking function is activated.
	Pop up message only is activated.
	Delayed start function is activated.
×	To close the pop-up message or cancel the setting.
	Wi-Fi connection is turned on.
	Wi-Fi connection is turned off.

	Remote Operation is turned on.
	Function with energy saving mode.

5. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

5.1 First connection

The display shows welcome message after the first connection. You can choose between starting or skipping the onboarding process. The settings can be revisited and modified whenever it is necessary.

Adjust the settings: Language, Time of Day, Wireless connection.

5.2 Wireless connection

The appliance enables Wi-Fi network connection and mobile device linking. You can receive notifications, control and monitor your appliance from your mobile device.

To connect the appliance you need:

• Wireless network with the Internet connection.

• Mobile device connected to the same wireless network.

• To download the app scan the QR code located on the back cover. You can also download the app directly from the app store.

• Follow the app onboarding instructions.

• Turn on the appliance.

• Press the display to enter menu and press ⚙️ Settings / Connections.

• Press to turn on or off: Wi-Fi. The appliance wireless module starts within 90 sec.

Frequency	2.4 GHz WLAN : 2400 - 2483.5 MHz
	Bluetooth : 2400 - 2483.5 MHz

Max Power	2.4 GHz WLAN : EIRP < 20 dBm (100 mW)
	Bluetooth : EIRP < 20 dBm (100 mW)

Protocol 2.4 GHz WLAN : IEEE 802.11bgn

5.3 Software licences

The software in this product contains components that are based on free and open source software. AEG acknowledges the contributions of the open software and robotics communities to the development project.

To access the source code of these free and open source software components whose license conditions require publishing, and to see their full copyright information and applicable license terms, visit: http://aeg.opensoftwarerepository.com (folder NIU6).

5.4 Initial preheating and cleaning

Preheat the empty appliance before the first use and contact with food. The appliance can emit unpleasant smell and smoke. Ventilate the room during preheating.

1. Remove all accessories and removable shelf supports from the appliance.
2. Enter menu and select: Functions.
3. Set the function .Set the maximum temperature. Let the appliance operate for 1 h.
4. Set the function . Set the maximum temperature. Let the appliance operate for 15 min.

5. Turn off the appliance and wait until it is cold.

6. Clean the appliance and the accessories only with a microfibre cloth, warm water and a mild detergent.

6. DAILY USE

WARNING!

Refer to Safety chapters.

6.1 Menu

Press the display or the ON / OFF button to enter menu.

• Home
- Functions
- Dishes
- Settings

6.2 Home

Submenu includes programmes, functions, dishes and settings.

6.3 Functions

Submenu includes a list of cooking functions.

The list of functions may vary depending on the software version.

1. Enter menu and select: Functions.
2. Select the heating function.
3. Adjust the settings.
4. Press . You can plug the Food Sensor at any time before or during cooking. Refer to "Using the accessories, Food sensor" chapter.
5. ^ - press to adjust the settings during cooking.
6. • press to turn off the heating function.

Fast Preheat is available only for some heating functions. For more information on preheat options refer to "Daily use" chapter, Settings, Submenu: Preferences.

1. Put the accessories and removable shelf supports back to their initial position.

Top

Intense heat for rapid browning on top.

Bottom

Evenly brown bottom of food. Good for pizza or pie, and finishing cakes or quiches. Preheat the oven and use lowest shelf level.

Hot Air

For everyday cooking on multiple levels. Get evenly cooked dishes without mixing flavours. Set a lower temperature than for Top & Bottom.

Top & Bottom

For everyday cooking on a single level. Good for all foods, like casseroles and baked goods.

Hot air & Top

Roast larger meat joints and poultry with bones for tender results and crispy surface.

Hot air & Bottom

Evenly bake dough with a crispy crust. Good for pizza, quiche, tart, or pie.

Hot air, Top & Bottom

This function is ideal for ready meals.

Heat Save Fan

Save energy by using residual heat to cook. Best for pastries.

Reheat

This function gently reheats leftovers.

Grill

Evenly grill or brown vegetables or meat. Also good for toasting bread.

Dough Prove

Optimized temperature for fast rising.

Refresh

Bring back a fresh smell and soft inside to day-old bread or baked goods.

Defrost

Gentle defrosting for further preparation.

Stew

Get tender, juicy stews by simmering the ingredients all together.

	RoastGet a crispy outside and tender inside for meat, poultry, or vegetables.
	Bread BakingUse this function to prepare bread and bread rolls with professional-like result in terms of crispiness, colour and crust gloss.
	Slow cookSlow cooking increases the cooking time, but you will get a better cooking result. Before you put the meat in the oven, sear it.
	PreserveGet juicy fruits and vegetables canned at a low temperature. Put the heat resistant can-ning jars on a baking tray filled with water.
	Plate warmingTo preheat plates before serving.
	Keep WarmKeep dishes warm to be served. Please note that some dishes may continue to cook and dry out while being kept warm. Cover the dishes if necessary.
	DehydrateEvenly dry out fruits, herbs, and vegetables at a low temperature. Open the door occasional-ly during drying to improve the drying result.
	iThe lamp may turn off automatically at a temperature below 80 °C during some heating functions.

6.4 Dishes

Dishes submenu consists of a set of programmes that are designed for dedicated dishes. Each dish in this submenu is provided with a suitable setting. The time and temperature can be adjusted during cooking.

For some of the dishes you can also cook with Food Sensor.

1. Enter menu and select: Dishes.
2. Choose a dish or a food type.
3. Adjust settings according to cooking preferences. Adjust the weight. Option is available for selected dishes. Press OK.
4. Place the food inside the appliance according to the instructions available on the screen.
5. Press . START

When the function ends, check if the food is ready. Extend the cooking time, if needed.

6.5 Favourites

This functionality is available for selected models only.

You can save up to 20 of your favourite settings, such as heating function, dish or cleaning function.

To save the setting select the preferred setting and press ♥.

Select: Favourites

1. Enter menu and press: Home section and move the scroll bar to the right.
2. Press: View favourites to check the saved settings.
3. Select one of the saved settings.
4. Press to start cooking.

Delete: Favourites

1. Enter menu and select: Home section and move the scroll bar to the right.
2. Press: View favourites to check the saved settings.
3. Press: to delete the saved settings.

6.6 Settings

This submenu includes a list of settings.

Press the display or the ON / OFF button to enter menu and press Settings.

Submenu: Maintenance programmes

Pyrolytic cleaning

This programme burns off residual dirt in the appliance. You can choose from different cleaning levels. Refer to "Care and Cleaning" chapter.

Submenu: Setup

Language To set the appliance language.

Time of Day To set the current time.

Display Brightness	To set the display brightness.
Key Tones To turn the tone of the touch fields on and off. It is not possible to mute the tones for ➊
Buzzer Vol-ume	To set the volume of key tones and signals.
Temperature unit	To show the current temperature unit.

Submenu: Service

Demo Mode Activation / deactivation code: 2468
Software Version	Information about software version.
Reset All Settings	Restores factory settings.

Submenu: Preferences

Light Turns the lamp on and off.
Child Lock Prevents accidental activation of the appliance.
Preheat/ HeatUp	None - conventional way of preheating the appliance. It is set as default and available for all cooking functions. The preference can be changed to another preheat type.
	Eco - preheating the appliance with less energy consumption. It is available for all cooking functions.
	Fast - shortens the heat up time. It is available for some of the functions only.
Cleaning Re-minder	Reminds you when to clean the appli-ance.

7. ADDITIONAL FUNCTIONS

7.1 Child Lock

This function prevents accidental operation of the appliance. It can be activated at any time.

1. Enter menu.
2. Select / Preferences / Child Lock.

Standby Screen Personalisation

To customize the screen features and shortcuts.

Submenu: Connections

Connect To Wi-Fi	To connect the appliance with the wireless network.
Wi-Fi To enable and disable: Wi-Fi.
Network To check network status and the signal power of: Wi-Fi.
Forget Network	To disable current network from auto connection with the appliance.
Remote Operation	To start remote operation automatically after pressing START.Option visible only after you turn on: Wi-Fi.

6.7 Notes on: Heat Save Fan

This function was used to comply with the energy efficiency class and ecodesign requirements (according to EU 65/2014 and EU 66/2014). Tests according to: IEC/EN 60350-1.

The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible.

When you use this function the lamp automatically turns off after 30 sec.

For the cooking instructions refer to "Hints and tips" chapter, Heat Save Fan. For general energy saving recommendations refer to "Energy Efficiency" chapter, Energy saving tips.

Child Lock is activated. To enable the use of the appliance, press the code letters in an alphabetical order.

7.2 Automatic switch-off

For safety reasons, if the heating function is active and no settings are changed, the

appliance will turn off automatically after a certain period of time.

(°C) (h)

30 - 115 12.5

120 - 195 8.5

200 - 245 5.5

250 - maximum 3

If you intend to run a heating function for a duration exceeding the automatic switch-off time, set the cooking time. Refer to the 'Clock functions' chapter.

7.3 Cooling fan

When the appliance operates, the cooling fan turns on automatically to keep the surfaces of the appliance cool. If you turn off the appliance, the cooling fan can continue to operate until the appliance cools down.

8. CLOCK FUNCTIONS

8.1 Clock functions description

Function Description

Timer To set the cooking duration. Maximum is 23 h 59 min. To set what happens when the time is up select preferred: End Action. Timer can be used independently, even when the oven is not running.

End Action

Sound Alarm

When the time is up the signal sounds. This function can be set at any time, even when the appliance is turned off.

Sound Alarm and stop cooking

When the time is up the signal sounds and the heating function turns off.

Pop up message only

When the time is up the message appears on the display. This function has no effect on the operation of the appliance.

Delayed start

To postpone the start and / or end of cooking.

Time Extension

To extend the cooking time.

Uptimer To show how long the appliance operates. Maximum is 23 h 59 min. It starts automatically when an oven process is started and stops when the process is finished. It is visible on the main screen in case where no other timer is set. This function has no effect on the operation of the appliance.

8.2 Timer

1. Choose the heating function and set the temperature.
2. Press: Timer.
3. Set the duration. You can select the preferred end action by pressing one of the symbols.
4. Press to confirm and return to the main screen.

8.3 Delayed start

1. Choose the heating function and set the temperature.
2. Press
3. Press: Delayed start.
4. Scroll to set desired start time and press OK
5. You can now set desired End time or press OK to skip this step.
6. Press to return to the main screen.

8.4 Time of Day

1. Turn on the appliance.
2. Press / Setup / Time of Day.
3. Set the time.
4. Press .OK

8.5 Changing timer settings

You can change the set time during cooking at any time.

1. Press /Timer.
2. Set new timer value. Press OK.

9. USING THE ACCESSORIES

WARNING!

Refer to Safety chapters.

9.1 Inserting accessories

Accessories available depending on model. Scan the QR code to check how to use accessories supplied with your appliance. You can order optional accessories separately. For more information, please contact your local supplier.

QR code image containing encoded data, no visible human-readable text

A small indentation at the top increases safety and provides tilt protection. The indentations are also anti-tip devices. The rim around the shelf prevents cookware from slipping off the shelf.

Insert the accessory (wire shelf / tray) between the guide bars of the shelf support. Make sure that the shelf touches the back of the oven interior.

Technical diagram showing layered structure with two magnified views of a pipe or pipe connection (no text or symbols)

If your tray has a slope, position it towards the back of the oven interior.

If there is an inscription on the accessory, make sure it is facing you.

If you are using a tray with holes place the tray / pan underneath, to collect dripping liquids.

9.2 Food Sensor

It measures the temperature inside the food.

There are two temperatures to be set:

• ^ C - the temperature inside the appliance. It should be at least 25^ C higher than the food core temperature.
• -the food core temperature.

Recommendations:

• Ingredients should be at room temperature.
• Do not use it for liquid dishes.
• During cooking the needle of the food sensor must be fully inserted in the dish.

Cooking with: Food Sensor

WARNING!

There is a risk of burns as Food Sensor and shelf supports become hot. Do not touch Food Sensor handle with bare hands. Always use oven gloves.

1. Select a heating function from the menu: Functions or a dish from the menu: Dishes.
2. Set the oven temperature and cooking time, if needed.
3. Press .OK
4. Press START.
5. Insert Food Sensor inside the dish: Meat, poultry and fish Insert the entire needle of the Food Sensor into the meat or fish at its thickest part.

Line drawing of a fish inside an oven with an electrical outlet, showing no text or symbols

Casserole

Insert the tip of Food Sensor exactly in the centre of the casserole. Food Sensor should be stabilized in one place during

cooking. Use a solid ingredient to achieve that. Use the rim of the baking dish to support the silicone handle of Food Sensor. The tip of Food Sensor should not touch the bottom of a baking dish.

Two diagrams showing a container with a probe inserted into a liquid-filled beaker, connected to a wire and a separate wire-wrapped device (no text or symbols present)

1. Plug Food Sensor into the socket located inside the appliance. Refer to "Product description" chapter.
   The display shows the symbol and the current temperature of Food Sensor.
2. • press to adjust the settings.

3. Select Food Sensor card to set the core temperature of the sensor or set up the preferred option:

4. Sound Alarm - when food reaches the core temperature, the signal sounds.
   • Sound Alarm and stop cooking - when food reaches the core temperature, the signal sounds and the cooking stops.

5. Pop up message only - when food reaches the core temperature, the message appears on the display.

9. Press .OK

1. When the food reaches the set temperature, the signal sounds. Check if the food is ready. Extend the cooking time, if needed.
2. S T O P s tress to turn off the heating function.
3. Remove Food Sensor plug from the socket and remove the dish from the appliance.

10. HINTS AND TIPS

10.1 Cooking recommendations

The temperature and cooking times in the tables are for guidance only. They depend on the recipes, quality and quantity of the ingredients used.

Your appliance may bake or roast differently than your previous appliance. The hints below show recommended settings for temperature, cooking time and shelf position for specific types of the food.

Count the shelf positions from the bottom of the oven floor.

If you cannot find the settings for a specific recipe, look for a similar one.

For energy saving tips refer to "Energy efficiency" chapter.

Symbols used in the tables:

	Food type
	Heating function
	Temperature

Accessory

Shelf position

Cooking time (min)

10.2 Heat Save Fan - recommended accessories

Use dark and non-reflective tins and containers. They have better heat absorption than light colour and reflective dishes.

• Pizza pan - dark, non-reflective, diameter 28cm
• Baking dish - dark, non-reflective, diameter 26cm
• Ramekins - ceramic, diameter 8cm, height 5 cm
• Flan base tin - dark, non-reflective, diameter 28cm

10.3 Heat Save Fan

For the best results follow suggestions listed in the table below.

		☐	°C	1
Pasta gratin Wire shelf 1 200 40 - 60
Potato gratin Wire shelf 1 180 80 - 100
Moussaka Wire shelf 1 180 70 - 90
Lasagne Wire shelf 1 180 80 - 100
Cannelloni Wire shelf 1 200 80 - 100
Bread pudding Wire shelf 1 190 60 - 80
Rice pudding Wire shelf 1 180 80 - 100
Apple Cake	Wire shelf 1)	1 160 110 - 120
White bread	Baking tray 2)	1 200 80 - 100
Pork joint, 1 kg	Wire shelf 3)	1 180 110 - 130

1) Place springform pan ( 26 cm) on wire shelf.

2) Place the baking tray with the slope towards the door.

3) Place the food in the glass dish and add 200 ml of water.

10.4 Information for test institutes

Tests according to: EN 60350-1, IEC 60350-1.

			-	°C
Small cakes, 20 per tray1)	Top & Bottom	Baking tray2)	3 150 25 - 35
Small cakes, 20 per tray Hot Air		Baking tray2)	4 140 33 - 43
Small cakes, 20 per tray1)	Hot Air	Baking tray2)	2	150 22 - 32
		Universal pan 4
Fatless sponge cake1)	Top & Bottom	Wire shelf	1 180 25 - 35
Fatless sponge cake3)	Hot Air	Wire shelf	2 180 28 - 38
Fatless sponge cake1)	Hot Air	Baking tray4)	1	170 28 - 38
		Wire shelf	3
Apple pie5)	Top & Bottom	Wire shelf	3 170 70 - 90
Apple pie5)	Hot Air	Wire shelf	3 160 70 - 90

Toast 1) 6)		Top Wire shelf 4 300 2 - 4

1) Preheat the appliance until set temperature is reached using the setting: Preheat / None. Do not use: Preheat / Fast and Eco. Refer to "Daily use" chapter, Settings, Submenu: Preferences.
2) Place the baking tray with the slope towards the door.
3) Preheat the appliance until set temperature is reached. Use the function: Preheat / Fast. Refer to "Daily use" chapter, Settings, Submenu: Preferences.
4) Place the baking tray with the slope towards the door. Cakes are positioned in line above each other.
5) 2 tins placed diagonally. The left one to be positioned more in the front than the right one.
6) According to: IEC 60350-1:2016 and IEC 60350-1:2023.

Additional tests

	[6002]	[OYYS]	[HKBK]	[8DBY]	[OYXA]
Meringues 1) 2)	Top & Bottom	Baking tray 3)	3 100 90 - 180
Meringues 1) 2)	Hot Air	Baking tray 3)	3 100 90 - 180
Scones 4)	Top & Bottom	Baking tray 3)	4 180 11 - 21
Scones 4)	Hot Air	Baking tray 3)	3 170 10 - 20
Chicken, 1.1 kg 1)5)	Hot air & Top	Wire shelf 6)	2 200 70 - 90
Pork joint, 1 kg Hot air & Top		Wire shelf 7)	2 170 110 - 130

1) Preheat the appliance until set temperature is reached using the setting: Preheat / None. Do not use: Preheat / Fast and Eco. Refer to "Daily use" chapter, Settings, Submenu: Preferences.
2) Use baking paper.
3) Place the baking tray with the slope towards the door.
4) Preheat the appliance for 10 min using the setting: Preheat / None. Do not use: Preheat / Fast and Eco. Refer to "Daily use" chapter, Settings, Submenu: Preferences.
5) Turn the meat upside down halfway through the cooking time.
6) Use the baking tray to catch dripping liquids, place it on the first shelf position with the slope towards the fan cover.
7) Place the food in the glass dish and add 200 ml of water.

11. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

11.1 Notes on cleaning

Cleaning Agents

• Clean the front of the appliance only with a microfibre cloth with warm water and a mild detergent.
• Use a cleaning solution to clean metal surfaces.
• Clean stains with a mild detergent.

Everyday Use

• Clean the interior of the appliance after each use. Fat accumulation or other residue may cause fire.
• Do not store food in the appliance for longer than 20 minutes. Dry the interior of the appliance only with a microfibre cloth after each use.

Accessories

• Clean all accessories after each use and let them dry. Use only a microfibre cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher.
• Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.

11.2 Removing the shelf supports

Remove the shelf supports to clean the appliance.

1. Turn off the appliance and wait until it is cold.
2. Pull the front of the shelf support away from the side wall.
3. Pull the rear end of the shelf support away from the side wall and remove it.

1 2

1. Install the shelf supports in the opposite sequence.

If the telescopic runners are supplied, its retaining pins must point to the front.

11.3 Pyrolytic cleaning

This programme burns off residual dirt in the appliance. When the cleaning cycle ends and the appliance cools down, wipe away the ash. Use it whenever your appliance needs a deep cleaning.

WARNING!

There is a risk of burns.

CAUTION!

If a hob is installed above the oven or if there are other appliances installed in the same cabinet, do not use them at the same time as this function. It can cause damage to the oven.

Do not start the function if you did not fully close the oven door.

1. Make sure the appliance is cold.
2. Remove all accessories and removable shelf supports.

3. Clean the oven floor and the inner door glass to remove any remaining food particles. Use warm water, a soft cloth and a mild detergent.

4. Press Settings / Maintenance / Pyrolytic cleaning.

5. Select the cleaning mode and press START. Follow the instruction on the display.

Option Duration

Pyrolytic cleaning, quick 1 h

Pyrolytic cleaning, normal 1 h 30 min

Pyrolytic cleaning, intense 3 h

When the cleaning starts, the oven door is locked. The cooling fan works at a higher speed.

1. The signal sounds when the cleaning ends.
2. When the appliance is cold, clean the oven floor with a wet soft cloth.

When this function works, the lamp is off.

11.4 Cleaning Reminder

When the reminder appears, cleaning is recommended.

Use the function: Pyrolytic cleaning.

11.5 Removing and installing door

You can remove the door and the internal glass panels to clean it. The number of glass panels is different for different models.

WARNING!

The door is heavy.

CAUTION!

Carefully handle the glass, especially around the edges of the front panel. The glass can break.

1. Make sure the appliance is cold.
2. Fully open the door.

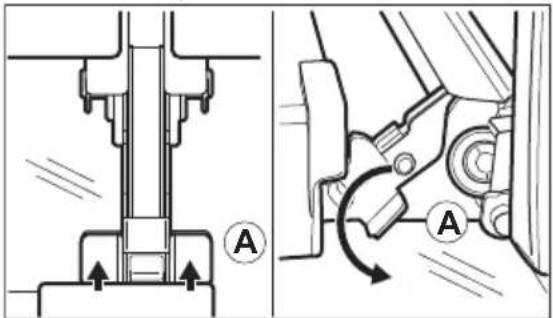

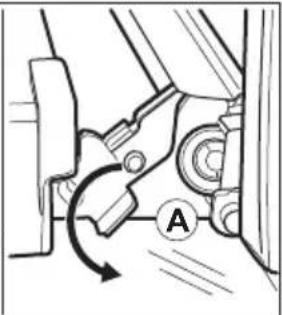

3. Press the clamping levers A on the two door hinges.

Technical diagram showing mechanical assembly with sectional view and rotation arrow, labeled with points A and B

1. Close the oven door to the first opening position (at approximate angle: 70^ ).

2. Hold the door with one hand on each side and pull it away from the oven at an upwards angle.

3. Put the door with the outer side down on a soft cloth on a stable surface.

4. Hold the door trim B on the top edge of the door at the two sides and push inwards to release the clip seal.

2 B 1

1. Pull the door trim to the front to remove it.
2. Hold the door glass panels on their top edge one by one and pull them up out of the guide.

Diagram of a hand pressing down an upward arrow on a folded paper or sheet (no text or symbols)

1. Clean the glass panel with water and soap. Dry the glass panel carefully. Do not clean the glass panels in the dishwasher.

After cleaning, do the above steps in the opposite sequence. Install the smaller panel first, then the larger and the door.

11.6 Replacing the lamp

WARNING!

Risk of electric shock. The lamp can be hot.

1. Turn off the appliance and wait until it is cold.
2. Disconnect the appliance from the mains.
3. Place the cloth on the oven floor.

Top lamp

1. Turn the glass cover to remove it.

Technical line drawing of a mechanical component with no visible text or symbols

1. Clean the glass cover.
2. Replace the lamp with a suitable 300^ C heat-resistant lamp.
3. Install the glass cover.

Side lamp

1. Remove the left shelf support to get access to the lamp.
2. Use a narrow, blunt object (e.g. a teaspoon) to remove the glass cover.

Hand holding a spoon inside a wall-mounted electrical outlet, with a curved arrow indicating rotation (no text or symbols)

12. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

12.1 What to do if...

Problem description Cause and remedy
You cannot activate or operate the appliance.	The appliance is not connected to an electrical supply or it is connected incorrectly.
The appliance does not heat up. The clock is not set.To set the clock refer to "Clock functions" chapter.
The lamp is turned off. The lamp is burnt out. Replace the lamp.For details refer to "Care and Cleaning" chapter.
i Power cut always stops cleaning. Repeat cleaning if it's interrupted by power failure.
Trouble with wireless network signal.	Check if your mobile device is connected to the wireless network. Check your wireless network and router.Restart the router.
New router installed or router configuration changed.	To configure appliance and mobile device again, refer to "Before first use" chapter, Wireless connection.
The wireless network signal is weak.	Move router as close to the appliance as possible.

Problem description Cause and remedy

The wireless signal is disrupted by microwave oven placed near the appliance.

Turn off the microwave oven.Avoid using microwave oven and the Remote operation of the appliance at the same time. Microwaves disrupt WiFi signal.

12.2 Error codes

When the software error occurs, the display shows error message. You will find the list of problems in the table below.

Code and description Remedy

F102 - the door is not fully closed or the door lock is broken. 1)	Close the door.Turn the appliance off and on.
F111 - Food Sensor is not correctly inserted into the socket.	Fully plug Food Sensor into the socket.
F240, F239 - the touch fields on the display do not work properly.	Clean the surface of the display. Make sure there is no dirt on the touch fields.
F908 - the appliance system cannot connect with the control panel.	Turn the appliance off and on.
F602, F603 - Wi-Fi is not available. 1)2)	Turn the appliance off and on.

1) When the following error message continues to appear on the display, it means a faulty subsystem may have been disabled. In such a case contact your dealer or an Authorized Service Centre.
2) If one of these errors occurs, the rest of the appliance functions will continue to work as usual.

12.3 Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is located on the front frame of the appliance. It is visible when you open the door. Do not remove the rating plate from the appliance.

We recommend that you write the data here:

Model (MOD.):

Product number (PNC):

Serial number (S.N.):

13. ENERGY EFFICIENCY

13.1 Product Information Sheet and Product Information according to EU Energy Labelling and Ecodesign Regulations

IEC/EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Methods for measuring performance.
Supplier's name AEG

Model identification	BP9200B 944035032
	BP9200T 944035031
	TT9PB83FAB 944035022
	TT9PB83FAT 944035033
Energy Efficiency Index 61.2
Energy efficiency class A++
Energy consumption with a standard load, conventional mode 1.09 kWh/cycle
Energy consumption with a standard load, fan-forced mode 0.52 kWh/cycle
Number of cavities 1
Heat source Electricity
Volume 71 l
Type of oven Built-In Oven
Mass	BP9200B 36.0 kg
	BP9200T 35.5 kg
	TT9PB83FAB 37.0 kg
	TT9PB83FAT 37.0 kg

13.2 Product Information for power consumption and maximum time to reach applicable low power mode

Power consumption in standby 0.8 W

Power consumption in network standby 2.0 W

Maximum time needed for the equipment to automatically reach the applicable low power mode 20 min

For guidance on how to activate and deactivate the wireless network connection, refer to "Before first use" chapter.

13.3 Energy saving tips

Following tips below will help you save energy when using your appliance.

Make sure that the appliance door is closed when the appliance operates. Do not open the appliance door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.

Use metal cookware and dark, non-reflective tins and containers to improve energy saving.

Do not preheat the appliance before cooking unless specifically recommended.

Keep breaks between baking as short as possible when you prepare a few dishes at one time.

Cooking with fan

When possible, use the cooking functions with fan to save energy.

Residual heat

When the cooking duration is longer than 30 min, reduce the appliance temperature to minimum 3 - 10 min before the end of cooking. The residual heat inside the appliance will continue to cook.

Use the residual heat to keep the food warm or warm up other dishes.

When you turn off the appliance, the display shows the residual heat or temperature.

If a programme with Timer is activated and the cooking time is longer than 30 min, the heating elements automatically turn off earlier in some appliance functions.

Keep food warm

Choose the lowest possible temperature setting to use residual heat and keep the food warm. The residual heat indicator or temperature appears on the display.

Cooking with the lamp off

Turn off the lamp during cooking. Turn it on only when you need it.

Heat Save Fan

Function designed to save energy during cooking.

When you use this function the lamp automatically turns off after 30 sec. You may turn on the lamp again but this action will reduce the expected energy savings.

14. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol .Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

QR code image containing encoded data, no visible human-readable text

Technical illustration of a roof drainage system with two magnified views showing internal structure (no text or symbols)

Line drawing of a fish inside an incubator with arrows indicating motion or movement (no text or symbols)

Ragoût

Diagram showing a cylindrical device connected to a wire and connected to a beaker with a probe, both without any text or symbols.

Technical diagram of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a rotating component with labeled point A (no text or symbols beyond label)

Line drawing of a hand pressing down on a folded paper or document with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a car front bumper with no text or symbols

Hand holding a spoon inside a wall-mounted electrical socket, with a curved arrow indicating rotation (no text or symbols)
