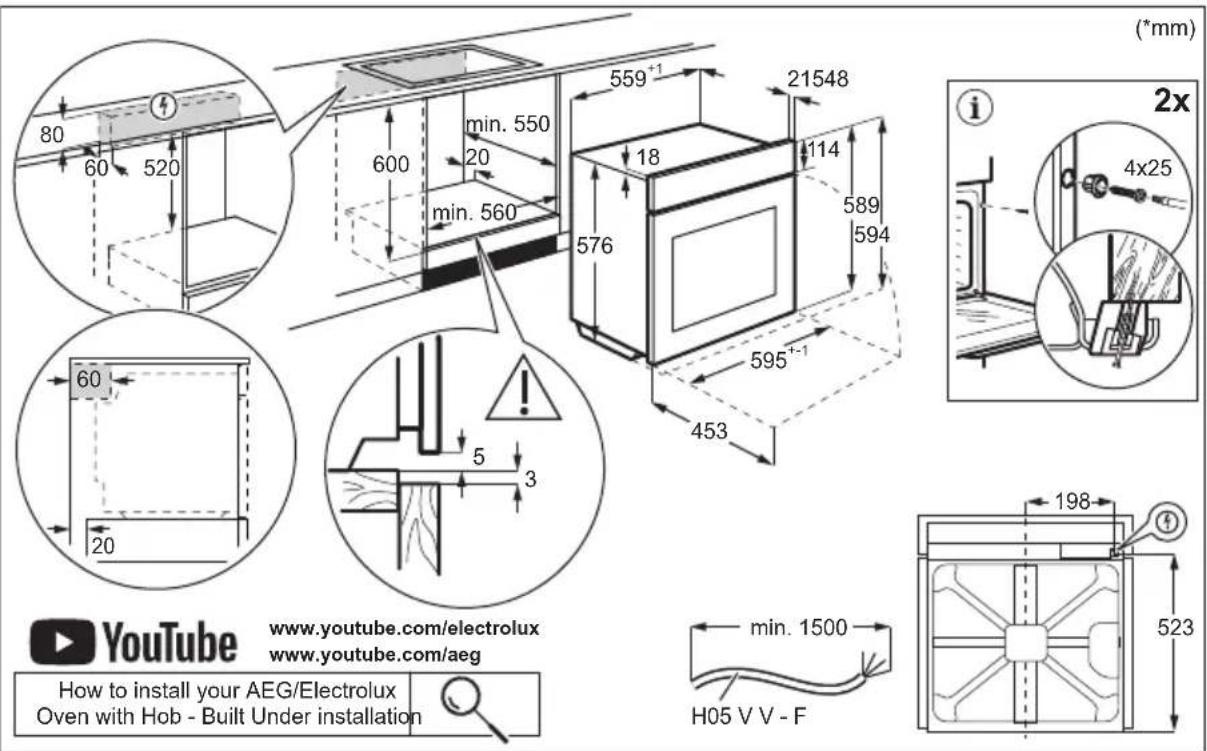

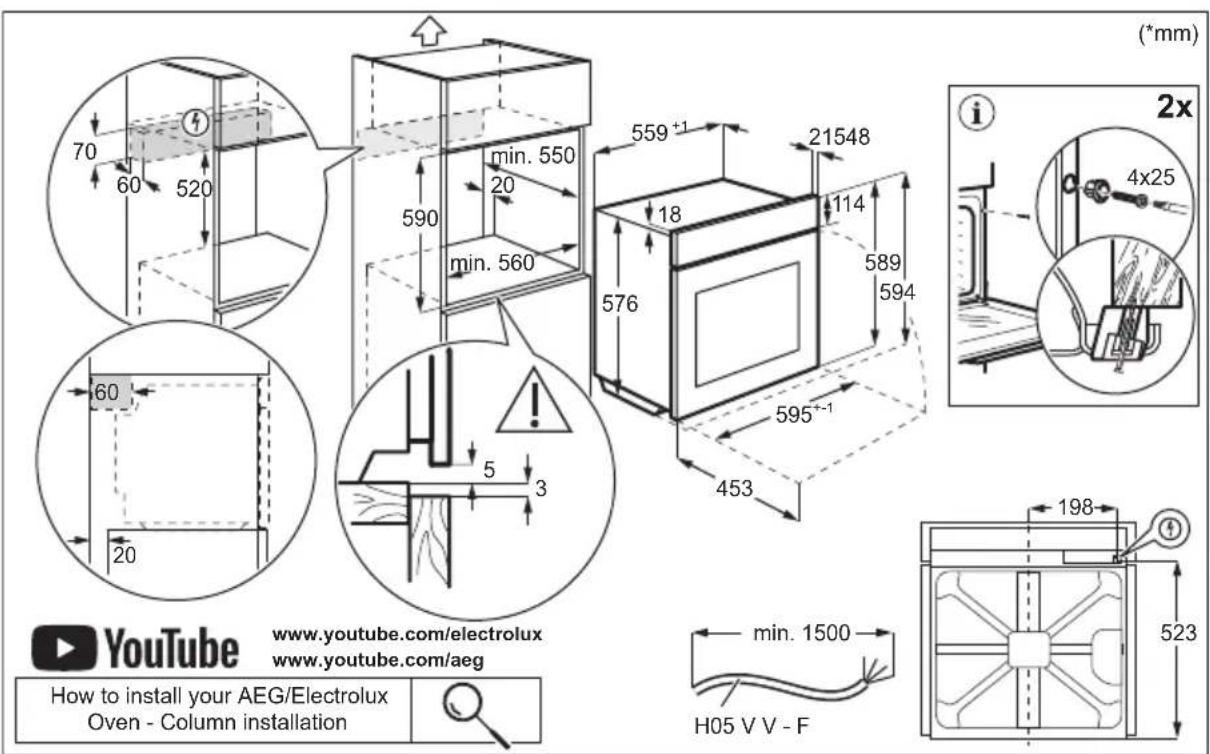

80 60 520 min. 550 20 min. 560 559⁺¹ 18 21548 114 589 594 576 595⁺¹ 453 60 20 5 3 min. 1500 H05 V V - F (*mm) 2x 4x25 YouTube www.youtube.com/electrolux www.youtube.com/aeg How to install your AEG/Electrolux Oven with Hob - Built Under installation

70 60 520 min. 550 20 590 min. 560 559⁺¹ 21548 18 114 589 594 576 595⁺¹ 453 60 20 5 3 min. 1500 H05 V V - F How to install your AEG/Electrolux Oven - Column installation (*mm) 2x 4x25 i 198 523

Technical line drawing of a structural connection with two circular insets showing detailed detail (no text or symbols)

Pure technical line drawing of a mechanical component or bracket assembly without any text, numbers, or symbols

Technical diagram showing mechanical assembly with an inset close-up of a component (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating rotational motion (no text or symbols)

Illustration of a hand holding a folder with curved arrows indicating rotation (no text or symbols)

Diagram of a hand pressing a curved arrow on a layered rectangular object (no text or symbols)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

12. FEHLERSUCHE

WARNUNG!

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Recycling symbol with three arrows forming a triangle (no text or labels)

Modern kitchen interior with white cabinets, a large stainless steel refrigerator, and a black oven (no visible text or symbols)

INHOUD

1. VEILIGHEIDSINFORMATIE 3
2. VEILIGHEIDSVOORSCHRIFTEN 4
3. BESCHRIJVING VAN HET PRODUCT 6
4. DAGELIJKS GEBRUIK 8
5. NUTTIGE AANWIJZINGEN EN TIPS 10
6. ONDERHOUD EN REINIGING 11
7. PROBLEEMOPLOSSING 11
8. MONTAGE-INSTRUCTIES 13
9. TECHNISCHE INFORMATIE 14

VOOR PERFECTE RESULTATEN

2. ⚠️ VEILIGHEIDSVOORSCHRIFTEN

2.1 Montage

WAARSCHUWING!

Diagram showing a cooking process with a rising line, a pot, and a magnifying glass, alongside a clock icon.

4.6 Timer

7. PROBLEEMOPLOSSING

R 5mm 55mm 490⁺¹mm 560⁺¹mm

Diagram showing a beam supported by a tray with circular holes, with an inset circle highlighting the beam direction (no text or symbols)

Technical diagram showing assembly steps of a mechanical component with no visible text or symbols

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com

Register your product for better service: www.aeg.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend that you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.

1.2 General Safety

• The appliance and its accessible parts become hot during use. Do not touch the heating elements.
• Do not operate the appliance by means of an external timer or separate remote-control system.

• Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

• Never try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• Do not store items on the cooking surfaces.
• Do not use a steam cleaner to clean the appliance.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• If the glass ceramic surface is cracked, switch off the appliance to avoid the possibility of electric shock.

2. ⚠️ SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.

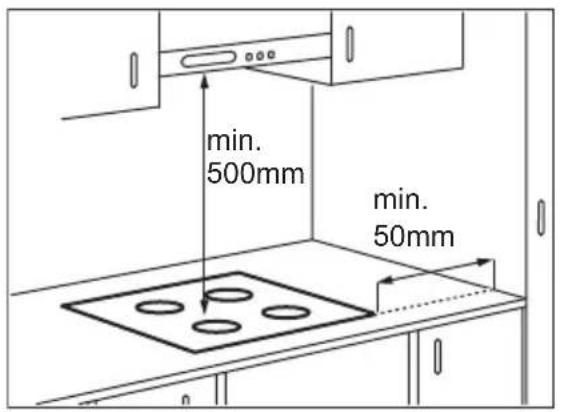

• Keep the minimum distance from the other appliances and units.
  • Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Seal the cut surfaces with a sealant to prevent moisture to cause swelling.
• Protect the bottom of the appliance from steam and moisture.
• Do not install the appliance adjacent to a door or under a window. This prevents hot cookware to fall from the appliance when the door or the window is opened.

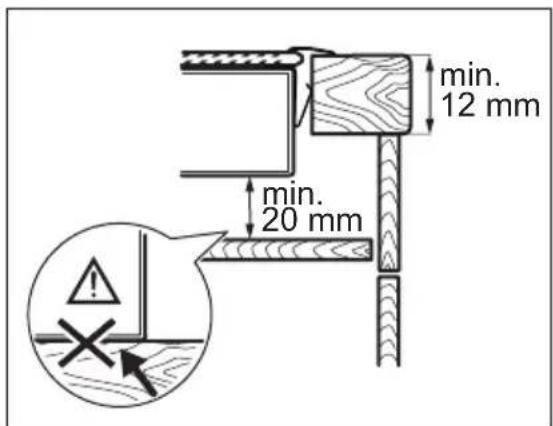

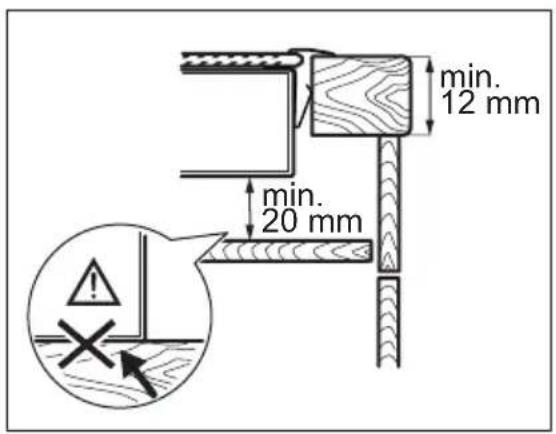

• If the appliance is installed above drawers make sure that the space, between the bottom of the appliance and the upper drawer, is sufficient for air circulation.
• The bottom of the appliance can get hot. We recommend to install a non-

combustile separation panel under the appliance to prevent access to the bottom.

Electrical connection

WARNING!

Risk of fire and electrical shock.

• All electrical connections must be made by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make sure that the appliance is disconnected from the power supply.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.
• Make sure that a shock protection is installed.
• Use the strain relief clamp on cable.
• Make sure not to cause damage to the mains plug (if applicable) or to the

mains cable. Contact the Service or an electrician to change a damaged mains cable.

• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

2.2 Use

WARNING!

Risk of injury, burns or electric shock.

• Use this appliance in a household environment.
• Do not change the specification of this appliance.
• Do not use an external timer or a separate remote-control system to operate the appliance.
• Do not let the appliance stay unattended during operation.

- Do not operate the appliance with wet hands or when it has contact with water.

- Do not put cutlery or saucepan lids on the cooking zones. They become hot.

- Set the cooking zone to "off" after use.

- Do not use the appliance as a work surface or as a storage surface.

- If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.

WARNING!

Risk of fire or explosion.

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause spontaneous combustion.
• Used oil, that can contain food remnants, can cause fire at a lower tem-

perature than oil used for the first time.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not try to extinguish a fire with water. Disconnect the appliance and cover the flame with a lid or a fire blanket.

WARNING!

Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.
• Do not let cookware to boil dry.
• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.
• Do not activate the cooking zones with empty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass ceramic. Always lift these objects up when you have to move them on the cooking surface.

2.3 Care and Cleaning

WARNING!

Risk of damage to the appliance.

• Clean regularly the appliance to prevent the deterioration of the surface material.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

2.4 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.

- Cut off the mains cable and discard it.

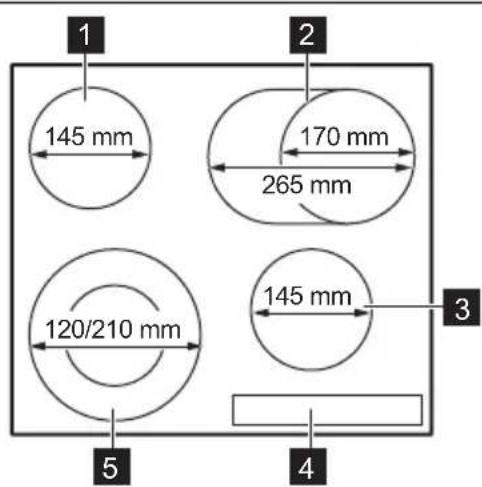

3. PRODUCT DESCRIPTION

1 145 mm 2 170 mm 265 mm 3 120/210 mm 145 mm 5 4

1 Cooking zone
2 Cooking zone
3 Cooking zone
4 Control panel
5 Cooking zone

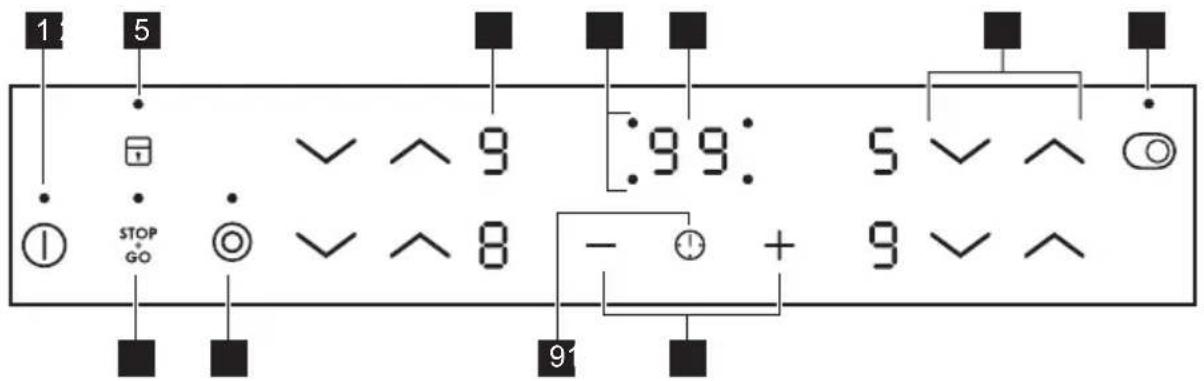

3.1 Control panel layout

1 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6

Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate.

sensor field function
1	➊	To activate and deactivate the appli-ance.
2		To lock/unlock the control panel.
3	A heat setting display	To show the heat setting.
4	Timer indicators of cooking zones	To show for which zone you set the time.
5	The timer display	To show the time in minutes.
6	/	To increase or decrease the heat set-ting.
7		To activate and deactivate the outer ring.
8	+/-	To increase or decrease the time.
9		To select a cooking zone.
10		To activate and deactivate the outer ring.
11	STOP+GO	To activate and deactivate the STOP +GO function.

3.2 Heat setting displays

Display Description
0	The cooking zone is deactivated.
1 - 92. - 6.	The cooking zone operates.
u	The stop function operates.
R	The Automatic Heat Up function operates.
E	There is a malfunction.
H	A cooking zone is still hot (residual heat).
L	Lock / The Child Safety Device operates.
-	The Automatic Switch Off operates.

3.3 Residual heat indicator

WARNING!

H The risk of burns from residual heat!

4. DAILY USE

4.1 Activation and deactivation

Touch for 1 second to activate or deactivate the appliance.

4.2 Automatic Switch Off

The function deactivates the appliance automatically if:

• All cooking zones are deactivated (☐).
• You do not set the heat setting after you activate the appliance.
• You spill something or put something on the control panel for more than 10 seconds, (a pan, a cloth, etc.). An

acoustic signal sound some time and the appliance deactivates. Remove the object or clean the control panel.

• You do not deactivate a cooking zone or change the heat setting. After some time - comes on and the appliance deactivates. See below.
• The relation between heat setting and times of the Automatic Switch Off function:

• ☐, ☐ -26 hours
• 3 -4-5 hours
• 5 — 4 hours
- 6 - 9 - 1.5 hours

4.3 The heat setting

Touch ∧ to increase the heat setting. Touch ∨ to decrease the heat setting. The display shows the heat setting. Touch ∧ and ∨ at the same time to deactivate the cooking zone.

4.4 Activation and deactivation of the outer rings

You can adjust the surface you cook to the dimension of the cookware.

To activate the outer ring touch the sensor field Ⓞ / ⓄThe indicator comes on.

Do the procedure again to deactivate the outer ring. The indicator goes out.

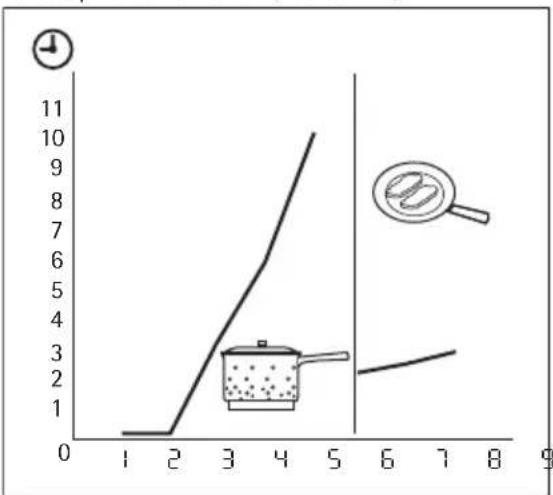

4.5 Automatic Heat Up

You can get a necessary heat setting in a shorter time if you activate the Automatic Heat Up function. This function sets the highest heat setting for some time (see the diagram), and then decreases to the necessary heat setting.

To start the Automatic Heat Up function the cooking zone must be cold (no H in the display). Touch ^ of the cooking zone again and again until the necessary heat setting comes on. After 3 seconds A comes on in the display.

To stop the function, touch ∨.

Diagram showing a cooking process with a rising line, a pot, and a magnifying glass icon, alongside a clock icon.

4.6 Timer

Count Down Timer

Use the Count Down Timer to set how long the cooking zone operates for only this one time.

Set the Timer after the selection of the cooking zone.

You can set the heat setting before or after you set the timer.

• To set the cooking zone: touch ① again and again until the indicator of a necessary cooking zone comes on.

- To activate or change the Timer: touch + or - of the timer to set the time (00 - 99 minutes). When the indicator of the cooking zone starts to flash slow, the time counts down.

- To deactivate the Timer: set the cooking zone with ⏻ and touch —to deactivate the Timer. The remaining time counts back to 00 . The indicator of the cooking zone goes out.

- To see the remaining time: set the cooking zone with ⚠️. The indicator of the cooking zone starts to flash quickly. The display shows the remaining time.

When the time comes to an end, the sound operates and 00 flashes. The cooking zone deactivates.

• To stop the sound: touch ⏻

Minute Minder

You can use the Timer as a Minute Minder while the cooking zones do not operate. Touch ⏻. Touch or to set the time. When the time comes to an end, the sound operates and 00 flashes

• To stop the sound: touch ⏻

4.7 STOP+GO

The STOP function sets all cooking zones that operate to the lowest heat setting (☐).

When + operates, you cannot change the heat setting.

The + function does not stop the timer function.

• To activate this function touch STOP + GO The symbol ⬤ comes on.
• To deactivate this function touch STOP + GO. The heat setting that you set before comes on.

4.8 Lock

When the cooking zones operate, you can lock the control panel. It prevents an accidental change of the heat setting. Set the heat setting first.

To activate this function touch 🔒. The symbol ⏻ comes on for 4 seconds. The Timer stays on.

To deactivate this function touch 🔒. The heat setting that you set before comes on.

When you deactivate the appliance, you also deactivate this function.

4.9 The Child Safety Device

This function prevents an accidental operation of the appliance.

To activate The Child Safety Device

- Activate the appliance with ①. Do not set the heat settings.

• Touch ☐ for 4 seconds. The symbol Ⓛ comes on.
• Deactivate the appliance with ①.

To deactivate The Child Safety Device

• Activate the appliance with ⏻. Do not set the heat settings. Touch 📋 for 4 seconds. The symbol 📁 comes on.
• Deactivate the appliance with ①.

To override The Child Safety Device for only one cooking time

• Activate the appliance with Ⓘ. The symbol Ⓛ comes on.
• Touch for 4 seconds. Set the heat setting in 10 seconds. You can operate the appliance.
• When you deactivate the appliance with ①, The Child Safety Device operates again.

5. HELPFUL HINTS AND TIPS

5.1 Cookware

Information about the cookware

• The bottom of the cookware must be as thick and flat as possible.
  • Cookware made of enamelled steel and with aluminium or copper bottoms can cause the colour change on the glass-ceramic surface.

5.2 Energy saving

How to save energy

• If it is possible, always put the lids on the cookware.
• Put cookware on a cooking zone before you start it.
• Stop the cooking zones before the end of the cooking time to use residual heat.
  • The bottom of pans and cooking zones must have the same dimension.

5.3 The Examples of cooking applications

The data in the table is for guidance only.

Heat setting	Use to: Time Hints
1	Keep warm the food you cooked	as required	Put a lid on a cookware
1-2	Hollandaise sauce, melt: butter, chocolate, gelatine	5-25 min	Mix from time to time
1-2	Solidify: fluffy omelettes, baked eggs	10-40 min	Cook with a lid on
2-3	Simmer rice and milkbased dishes, heating up ready-cooked meals	25-50 min	Add the minimum twice as much liquid as rice, mix milk dishes part procedure through
3-4	Steam vegetables, fish, meat 20-45	min	Add some tablespoons of liquid
4-5	Steam potatoes 20-60	min	Use max. 1⁄4 l water for 750 g of potatoes
4-5	Cook larger quantities of food, stews and soups	60-150 min	Up to 3 l liquid plus ingredients
6-7	Gentle fry: escalope, veal cor-don bleu, cutlets, rissoles, saus-ages, liver, roux, eggs, pan-cakes, doughnuts	as necessary	Turn halfway through
7-8	Heavy fry, hash browns, loin steaks, steaks	5-15 min	Turn halfway through
9	Boil large quantities of water, cook pasta, sear meat (goulash, pot roast), deep-fry chips

Information on acrylamides

Important! According to the newest scientific knowledge, if you brown food (specially the one which contains starch),

acrylamides can pose a health risk. Thus, we recommend that you cook at the lowest temperatures and do not brown food too much.

6. CARE AND CLEANING

Clean the appliance after each use. Always use cookware with clean bottom.

Scratches or dark stains on the glass-ceramic cause no effect on how the appliance operates.

To remove the dirt:

1. – Remove immediately: melted plastic, plastic foil, and food with sugar. If not, the dirt can cause damage to the appliance. Use a special scraper for the glass. Put

the scraper on the glass surface at an acute angle and move the blade on the surface.

- Remove after the appliance is sufficiently cool: limescale rings, water rings, fat stains, shiny metallic discolorations. Use a special cleaning agent for glass ceramic or stainless steel.

1. Clean the appliance with a moist cloth and some detergent.

3. At the end rub the appliance dry with a clean cloth.

1. TROUBLESHOOTING

Problem Possible cause Remedy
You cannot activate the appliance or operate it.	The appliance is not connected to an electrical supply or it is connected incorrectly.	Check if the appliance is correctly connected to the electrical supply (refer to connection diagram).
Activate the appliance		again and set the heat setting in less than 10 seconds.
You touched 2 or more	sensor fields at the same time.	Touch only one sensor field.
The STOP+GO function	operates.	Refer to the chapter “Daily Use”.
There is water or fat	stains on the control panel.	Clean the control panel.
An acoustic signal sounds and the appli-ance deactivates.An acoustic signal sounds when the appli-ance is deactivated.	You put something on one or more sensor fields.	Remove the object from the sensor fields.
The appliance deactivates.	You put something on the sensor field ➀ .	Remove the object from the sensor field.
The residual heat indica-tor does not come on.	The cooking zone is not hot because it operated only for a short time.	If the cooking zone oper-ated sufficiently long to be hot, speak to the serv-ice centre.
The Automatic Heat Up function does not operate.	The cooking zone is hot.	Let the cooking zone be-come sufficiently cool.
The highest heat setting	is set.	The highest heat setting has the same power as the Automatic Heat Up function.
You decreased the heat setting from ➁ .		Start from ➁ and only in-crease the heat setting.
You cannot activate the outer ring.	Activate the inner ring	first.
The sensor fields be-come hot.	The cookware is too large or you put it too near to the controls.	Put large cookware on the rear cooking zones if necessary.
- comes on.	The Automatic Switch Off operates.	Deactivate the appliance and activate it again.
L comes on.	The Child Safety Device or the Lock function op-erates.	Refer to the chapter “Dai-ly Use”.
E and a number come on.	There is an error in the appliance.	Disconnect the appliance from the electrical supply for some time. Discon-nect the fuse from the electrical system of the house. Connect it again. If E comes on again, speak to the service cen-tre.

If you tried the above solutions and cannot repair the problem, speak to your dealer or the customer service. Give the data from the rating plate, three digit letter code for the glass ceramic (it is in the corner of the glass surface) and an error message that comes on.

Make sure, you operated the appliance correctly. If not the servicing by a customer service technician or dealer will not be free of charge, also during the warranty period. The instructions about the customer service and conditions of guarantee are in the guarantee booklet.

8. INSTALLATION INSTRUCTIONS

WARNING!

Refer to the Safety chapters.

WARNING!

Refer to "Safety information" chapter.

Before the installation

Before the installation of the appliance, record the information below from the rating plate. The rating plate is on the bottom of the appliance casing.

• Model ......
• PNC ....
• Serial number ....

8.1 Built-in appliances

• Only use the built-in appliances after you assemble the appliance into correct built-in units and work surfaces that align to the standards.

8.2 Connection cable

• The appliance is supplied with the connection cable.
• Replace the damaged mains cable with a special cable (type H05BB-F Tmax 90°C; or higher). Speak to your local Service Centre.

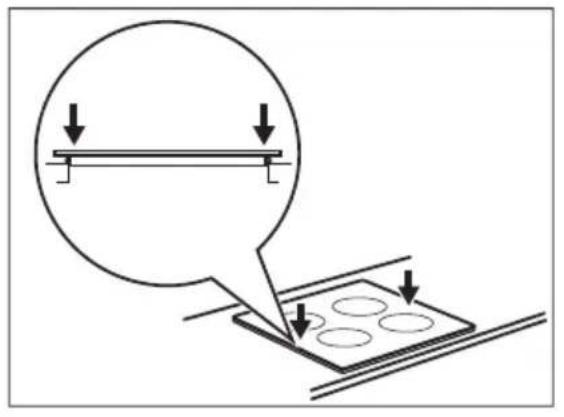

8.3 Assembly

R 5mm 55mm 490+1mm 560+1mm

Diagram showing a beam supported by a tray with four circular holes, with an inset magnified view of the load (no text or symbols)

Technical diagram showing two mechanical components with downward arrows indicating assembly or alignment (no text or symbols present)

If you use a protection box (an additional accessory 1), the protective floor directly below the appliance is not necessary. You can not use the protection box if you install the appliance above an oven.

1) The protection box accessory may not be available in some countries. Please contact your local supplier.

9. TECHNICAL INFORMATION

Recycle the materials with the symbol ⚙. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic

appliances. Do not dispose appliances marked with the symbol ✉ with the household waste. Return the product to your local recycling facility or contact your municipal office.

SOMMAIRE

1. CONSIGNES DE SÉCURITÉ 30
2. INSTRUCTIONS DE SÉCURITÉ 31
3. DESCRIPTION DE L'APPAREIL 33
4. UTILISATION QUOTIDIENNE 35
5. CONSEILS UTILES 37
6. ENTRETIEN ET NETTOYAGE 38
7. EN CAS D'ANOMALIE DE FONCTIONNEMENT 39
8. INSTRUCTIONS D'INSTALLATION 41
9. CARACTERISTIQUES TECHNIQUES 42

POUR DES RÉSULTATS PARFAITS

Diagram showing a cooking process with a rising line, a pot, and a magnifying glass highlighting food items at time 6.

4.6 Minuteur

Minuteur dégressif

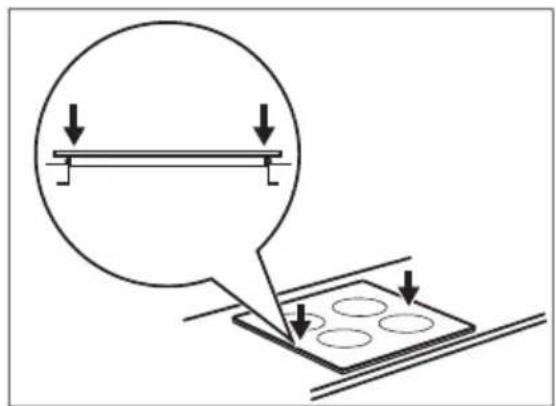

R 5mm 55mm 490+1mm 560+1mm

Diagram showing a beam supported by a tray with circular holes, with an inset circle highlighting the beam direction (no text or symbols)

Technical diagram showing assembly steps of a mechanical component with labeled parts and directional arrows

www.aeg.com/productregistration

Diagram showing a cooking process with a rising line, a pot, and a magnifying glass highlighting a food item near the top.

4.6 Timer

Kurzzeitmesser

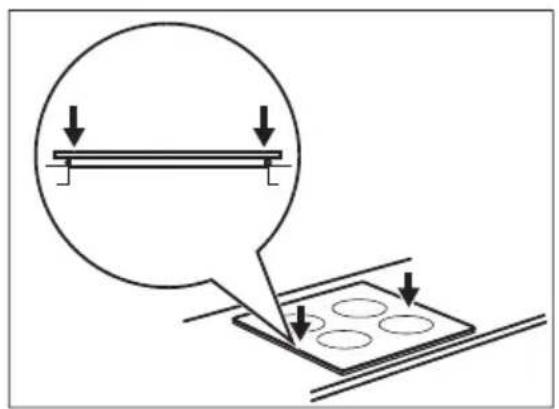

R 5mm 55mm 490⁺¹mm 560⁺¹mm

Diagram showing a beam supported by a tray with four circular holes, with an inset circle highlighting the beam direction (no text or symbols)

Technical diagram showing two mechanical components with downward arrows indicating assembly or alignment (no text or symbols present)

Diagram showing a cooking process with a rising line, a pot, and a magnifying glass highlighting a food item near the top.

4.6 Temporizador

Temporizador

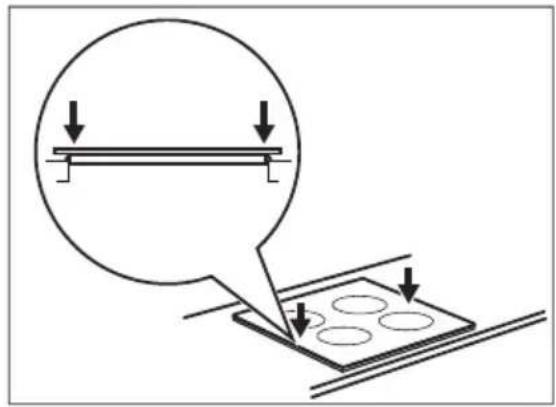

R 5mm 55mm 490+1mm 560+1mm

Diagram showing a beam supported by a tray with circular holes, and a magnified inset illustrating the load direction (no text or symbols)

Technical diagram showing assembly steps of a mechanical component with no visible text or symbols
