USER MANUAL RCCS-500M Royal Catering

MANUAL CUP SEALING MACHINE

Abstract white line drawing of a mythical creature on a blue background (no text or symbols)

DE	Produktname	Manuelle Becherverschließmaschine
EN	Product name	Manual cup sealing machine
PL	Nazwa produktu	Ręczna maszyna do zamykania kubków
CZ	Název výrobku	Ruční stroj na uzavírání kelímků
FR	Nom du produit	Machine à sceller manuelle
IT	Nome del prodotto	Macchina sigilla tazze manuale
ES	Nombre del producto	Máquina de sellado de tazas manual
HU	Termék neve	Kézi csészelezáró gép
DA	Produktnavn	Manuel kopforseglingsmaskine
FI	Tuotteen nimi	Käskäyttöinen kuppitiivistyskone
NL	Productnaam	Handmatige bekerverzegelmachine
NO	Produktnavn	Manuell koppforseglingsmaskin
SE	Produktnamn	Manuell koppförseglingsmaskin
PT	Nome do produto	Máquina manual de selagem de copos
SK	Názov produktu	Ručný uzatvárací stroj na poháre
BG	Име на продукта	Ръчна машина за запечатване на чаши
EL	Όνομα προϊόντος	Χειροκίνητο μηχάνημα σφράγισης κυπέλλων
HR	Naziv proizvoda	Ručno zatvarač za šalice
LT	Produkto pavadinimas	Rankinis puodelių sandarinimo aparatas
RO	Numele produsului	Maşină de sigilat manuală pentru pahare
SL	Ime izdelka	Ročni stroj za tesnjenje skodelic
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtėlo προϊόντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka		RCCS-500M
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Κατασκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec		expondo Polska sp. z o.o. sp. k.
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produsentens adresse | SE Tillverkarens adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адрес на производителя | EL: Διεύθυνση κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca		ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

Technical diagram of a mechanical device with numbered components and labeled parts

1 9 10

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	Manual cup sealing machine
Model	RCCS-500M
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	300
Max. Height of Cups/Mugs [mm]	180
Temperature range [°C]	0 - 250
Dimensions [width x depth x height; mm]	480 x 270 x 560
Weight [kg]	10.85

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.

(general warning sign)

ATTENTION! Electric shock warning!

ATTENTION! Hand crush hazard!

ATTENTION! Hot surface, risk of burns!

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Manual cup sealing machine

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
g) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
h) Do not use in very humid environments or in the direct vicinity of water tanks.
i) Prevent the device from getting wet. Risk of electric shock!
j) The device should be connected to an electrical outlet with a grounding wire.
k) Before the first use, please check whether the main voltage type and current comply with the indicated data on the type plate.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. The device generates sparks which may ignite dust or fumes.
c) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
d) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
e) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
g) Keep packaging elements and small assembly parts in a place not available to children.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.

b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
d) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
e) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. Safe device use

a) Do not overload the device. Use the appropriate tools for the given task. A correctly-selected device will perform the task for which it was designed better and in a safer manner.
b) Do not use the device if the "ON/OFF" switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
c) Make sure the plug is disconnected from the socket before attempting any adjustments, accessory replacements or before putting the device aside. Such precautions will reduce the risk of accidentally activating the device.
d) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
e) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
h) Do not touch articulated parts or accessories unless the device has been disconnected from the power source.
i) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
j) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
k) Keep the device away from sources of fire and heat.
I) Do not cover the ventilation openings!
m) NOTE: During operation, some elements of the device become very hot – scalding hazard!
n) Do not insert hands into the machine's workspace while it is operating. Risk of injury.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The machine is designed for sealing drinks in plastic cups with standard diameters of 95/90 mm or 95/75 mm. The machine seals the cups with film (not included), which is placed on the sealing mould by means of spools and fed through the machine.

The product is intended for home use only.

The user is liable for any damage resulting from unintended use of the device.

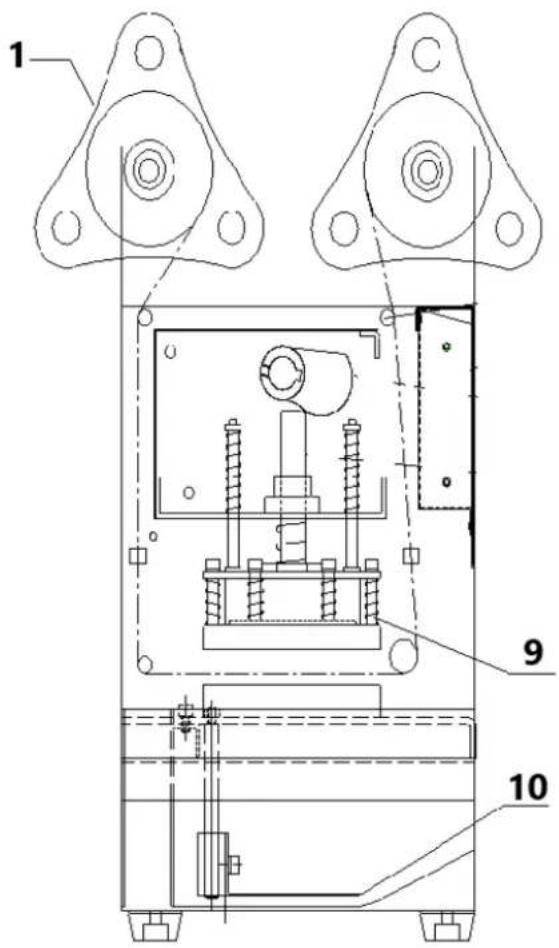

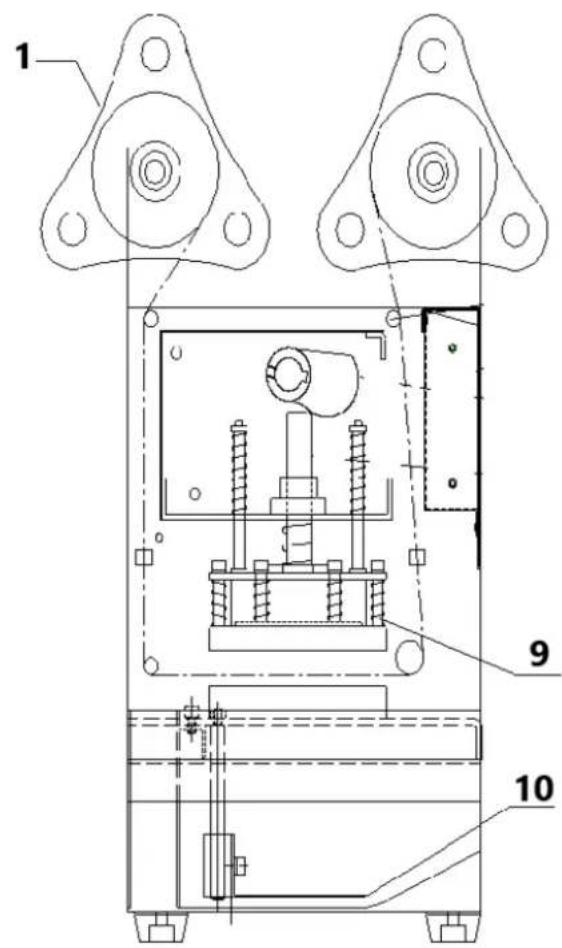

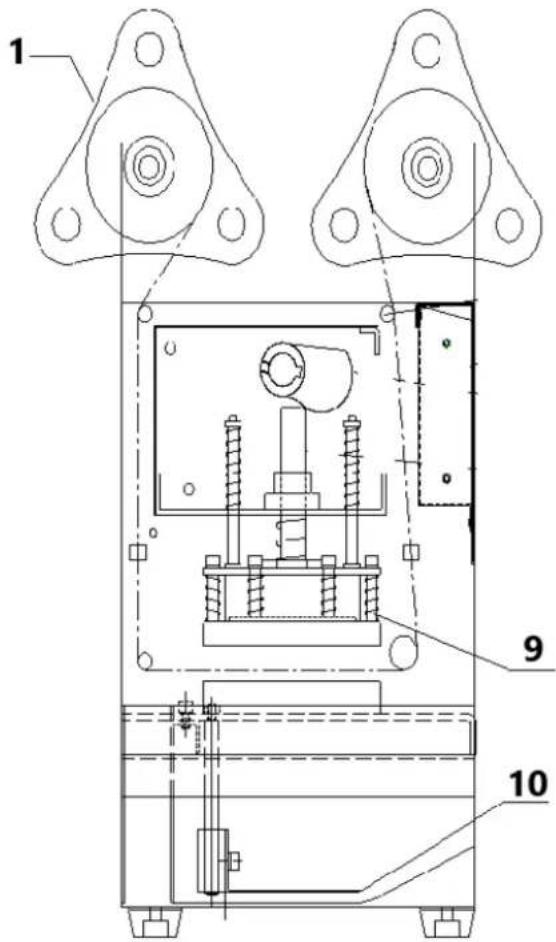

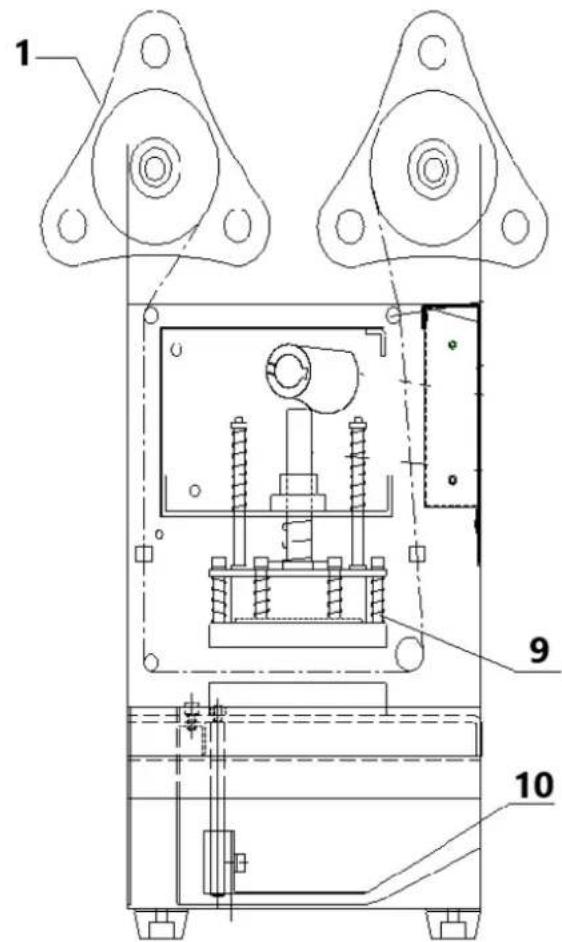

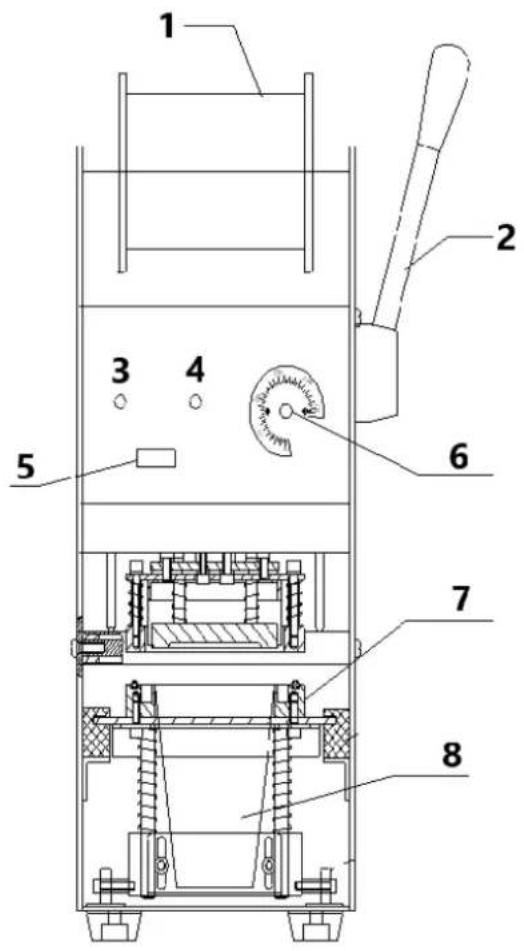

3.1. Device description

Technical diagram of a mechanical device with numbered components and labeled parts

1 9 10

1. Spool rollers
2. Heating indicator light
3. ON/OFF switch
4. Lower matrix

5. Inverted mould

6. Lever

7. Temperature indicator light
8. Temperature setting knob
9. Plastic cup
10. Plate for plastic cup

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

3.3. Device use

• Make sure that the direction of retraction is clockwise, place the film on the holder and then fix it. (Turn off the power at the same time).
• Make sure the attached plate binds the film well, also remember to use a rubberised cloth to stick the film firmly to the film take-up roll.
• Connect the power, turn on the power switch, the indicator light will illuminate, the lower mould and the sliding plastic plate will slide out automatically. Set the temperature control to the

desired temperature, the green preheat light will illuminate. When the temperature of the heated plate reaches the pre-set temperature, the red "keep warm" indicator light will illuminate.

(During operation, the heated appliance will alternate between heating and keeping warm, so the "green preheat" indicator light and the red keep warm indicator light will illuminate alternately).

- Place a plastic cup in the lower cup holder. Press the 'Fully Auto' button, the cup holder will automatically slide into the machine and hit the movement switch.

The upper mould will push in to seal the cup when it receives the signal sent by the movement switch.

When the upper mould hits another movement switch when pressed down, it will seal for one second and then rise, hit the upper movement switch and stop.

The film reel motor will then start, rotate to a predetermined distance, the electronic sensor will control the film reel motor to stop automatically.

- After pressing the 'semi-automatic' button, press the 'start' button to start the working cycle.

- Pressing the 'stop' button at any time will automatically eject the lower cup holder.

Suggested temperature values for different film materials:

• PE polyethylene : 170°C
• PP polypropylene : 170°C\~200°C
• PS polystyrene : 180°C
- Easy -tear film : 120°C\~180°C
• PET polyester : 160°C\~200°C

3.4. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
- Wait for the rotating elements to stop.
b) Use only non-corrosive cleaners to clean the surface.
c) Use only mild, food-safe detergents to wash the device.
d) After cleaning the device, all parts should be dried completely before using it again.
e) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
f) Do not spray the device with a water jet or submerge it in water.
g) Do not allow water to get inside the device through vents in the housing of the device.
h) Clean the vents with a brush and compressed air.
i) The device must be regularly inspected to check its technical efficiency and spot any damage.
j) Use a soft, damp cloth for cleaning.
k) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
I) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.
