Product type	Electric sausage stuffer
Brand	Royal Catering
Model	RCSS-025E
Rated voltage	230 V / 50 Hz
Rated power	350 W
Cylinder capacity	25 L
Number of filling tubes	4
Dimensions (L x D x H)	515 x 435 x 920 mm
Weight	46.35 kg
Cylinder material	Stainless steel
Control	Foot pedal and switch
Direction of operation	Reversible (piston up/down)
Speed adjustment	Yes, via knob (clockwise: fast, counterclockwise: slow)
Automatic stop	Yes, at end of piston stroke
Main function	Sausage filling
Safety	Stop by releasing the pedal
Cleaning	Unplug, remove cylinder, hand wash
Spare parts available	Cylinder, piston, nozzles, pedal
Warranty	According to dealer
Usage	Professional / catering

Frequently Asked Questions - RCSS-025E Royal Catering

How to use the RCSS-025E sausage stuffer?

Place the device on a dry surface. Connect it to the mains. Turn the switch to UP to raise the piston. Tilt the cylinder, add the meat, then put it back in place. Turn to DOWN and press the pedal to lower the piston. Adjust speed if necessary. Release the pedal to stop.

What is the cylinder capacity?

The cylinder has a capacity of 25 liters, ideal for semi-professional production.

How to adjust the piston speed?

Use the speed adjustment knob: turn clockwise to speed up, counterclockwise to slow down.

What if the piston does not descend?

Check that the switch is on DOWN and the pedal is pressed. Make sure the cylinder is properly in place. If the problem persists, consult the manual.

How to clean the device?

Always unplug the device before cleaning. Remove the cylinder and hand wash it with warm water and mild detergent. Never immerse the pedal or motor unit in water.

Can I use the device without the pedal?

No, the pedal is required to operate the piston. The device only works when the pedal is pressed, ensuring safety.

What types of casings can I use?

The device comes with 4 filling tubes of different diameters, suitable for most natural or synthetic casings.

Does the device stop automatically?

Yes, the piston stops automatically when it reaches the bottom of the cylinder. You must then raise the piston with the UP switch.

How to reverse the piston direction?

Use the toggle switch: position UP to raise the piston, position DOWN to lower it.

Where to find spare parts?

Spare parts (cylinder, piston, nozzles, pedal) are available from your Royal Catering dealer or on specialized kitchen equipment websites.

USER MANUAL RCSS-025E Royal Catering

Abstract white line drawing of a stylized creature or creature on a dark blue background (no text or symbols)

DE	Produktname	Elektrischer Wurstfüller
EN	Product name	Electric sausage stuffer
PL	Nazwa produktu	Elektryczna nadziewarka do kielbas
CZ	Název výrobku	Elektrický plnič klobás
FR	Nom du produit	Poussoir à saucisses électrique
IT	Nome del prodotto	Insaccatrice elettrica per salsicce
ES	Nombre del producto	Embutidora de salchichas eléctrica
HU	Termék neve	Elektromos kolbásztöltő
DA	Produktnavn	Elektrisk pølsestopper
FI	Tuotteen nimi	Sähköinen makkaratäytin
NL	Productnaam	Elektrische worstenstopper
NO	Produktnavn	Elektrisk pølsestapper
SE	Produktnamn	Elektrisk korvstoppare
PT	Nome do produto	Enchedora de salsichas elétrica
SK	Názov produktu	Elektrický plnič klobás
BG	Име на продукта	Електрическа машина за пълнене на наденици
EL	Όνομα προϊόντος	Ηλεκτρική μηχανή γεμίσματος λουκάνικων
HR	Naziv proizvoda	Električna punilica za kobasice
LT	Produkto pavadinimas	Elektrinė dešru kimšimo mašina
RO	Numele produsului	Maşină electrică de umplut cârnați
SL	Ime izdelka	Električni polnilnik klobas
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtélo προϊόντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka		RCSS-020E RCSS-025E RCSS-030E
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Κατασκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec		expondo Polska sp. z o.o. sp. k.
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produsentens adresse | SE Tillverkarens adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адрес на производителя | EL: Διεύθυνση κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca		ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

1

Vordere Ringmutter

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Electric sausage stuffer
Model	RCSS-020E	RCSS-025E	RCSS-030E
Rated voltage [V~] / Frequency [Hz]	230 / 50
Rated power [W]	300	350	400
Capacity [L]	20	25	30
Filling tubes [Pc]	4
Dimensions [Width x Depth x Height; mm]	510 x 440 x 815	515 x 435 x 920	510 x 440 x 995
Weight [kg]	44.45	46.35	47.8

Important Safety Precautions:

When using electrical appliances, basic safety precautions should always be followed:

1. Read all instructions before using this appliance.
2. Do not operate the appliance if the cord, plug, or appliance is damaged or malfunctioning.
3. To protect against electrical shock, do not immerse the foot switch, cord, plug, or stuffer in water or other liquids.
4. This appliance is not intended for use by children.
5. Keep fingers and hands clear of all moving parts.
6. Unplug the appliance when not in use or before cleaning.

How to Use:

1. Place the foot pad in a dry location.
2. Connect the appliance to electrical power.
3. Turn the reverse switch to the "UP" position to move the piston to the top.
4. Tilt the cylinder and place the meat inside.
5. Return the cylinder back onto the frame.
6. Turn the REVERSE switch to the "DOWN" position and press the foot pad to start the piston moving down.
7. Adjust the speed using the speed switch (knob) if the piston is moving too fast or slow.
8. While filling the casing, remove your foot from the foot pad to stop the piston.
9. When the piston reaches the bottom of the cylinder, the appliance will automatically stop. Then, turn the REVERSE switch to "UP" to raise the piston back to the top.
10. Repeat the process starting at step No.4 if more filling is required.

How to Clean:

1. Unplug the machine before cleaning.
2. Remove the cylinder carefully for cleaning.

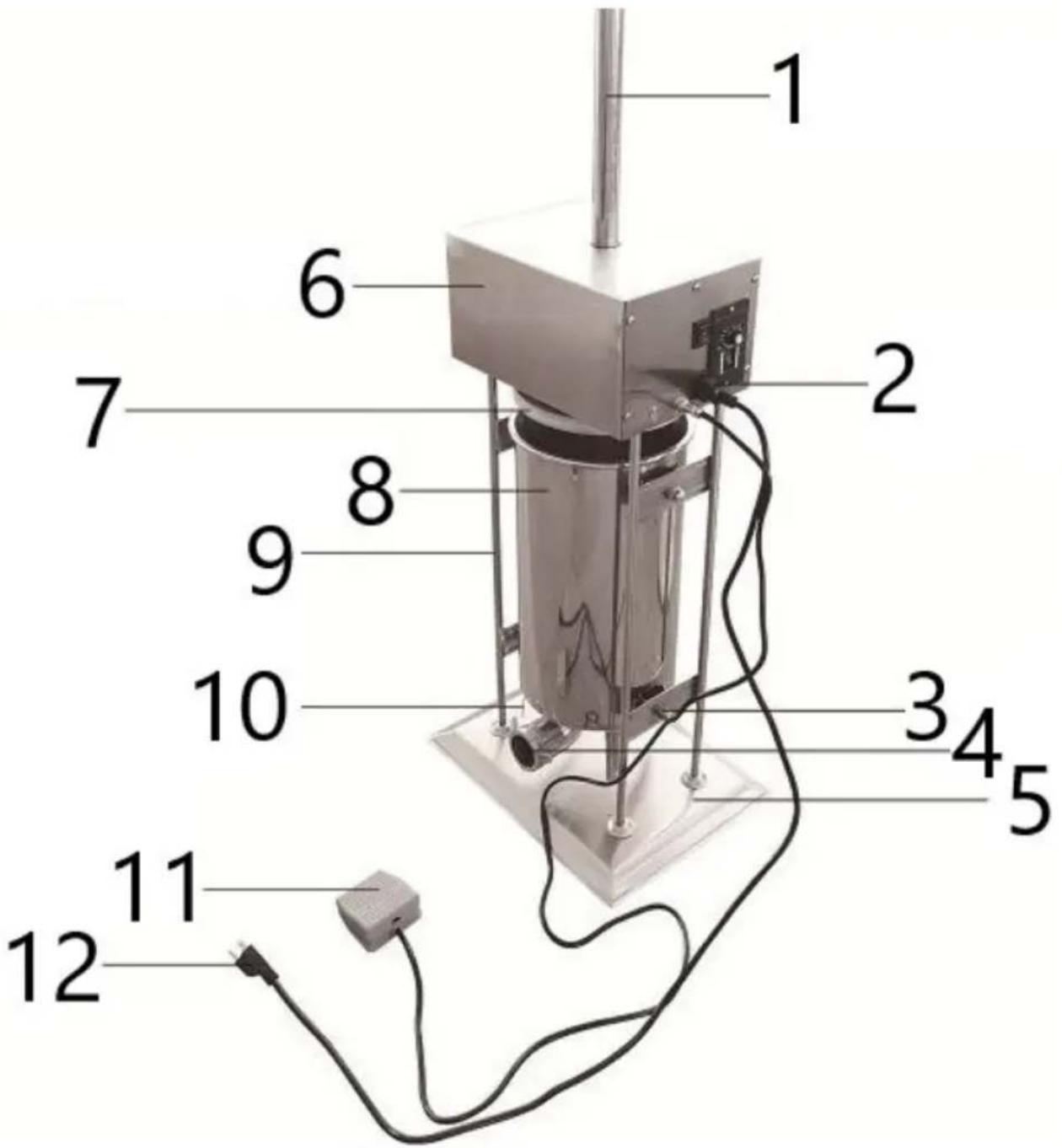

1.	Plunger Shaft	2.	Power cord
3.	Canister Fastener	4.	Emema Nozzle
5.	Stuffer Base	6.	Motor Housing Cover
7.	Pluger	8.	Stainless Steel Canister
9.	Canister Support	10.	Canister support
11	Foot Pedal	12.	Plug

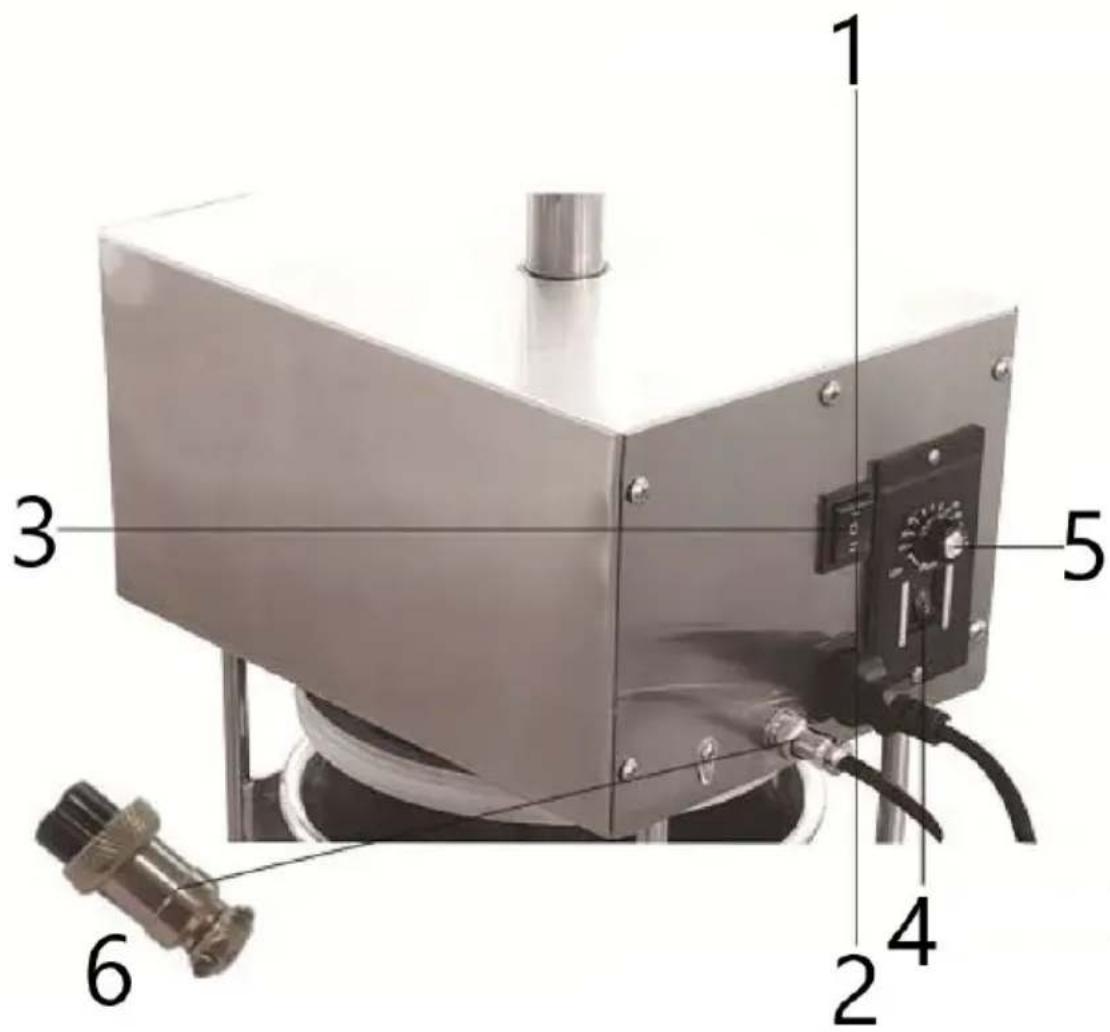

1	Plunger Shaft Raise I
2	Plunger Shaft Down II
3	Stop
4	Power Switch
5	Speed adjustmentClockwise: FastCounter-Clockwise: Slow
6	Plug without joint Foot Pad

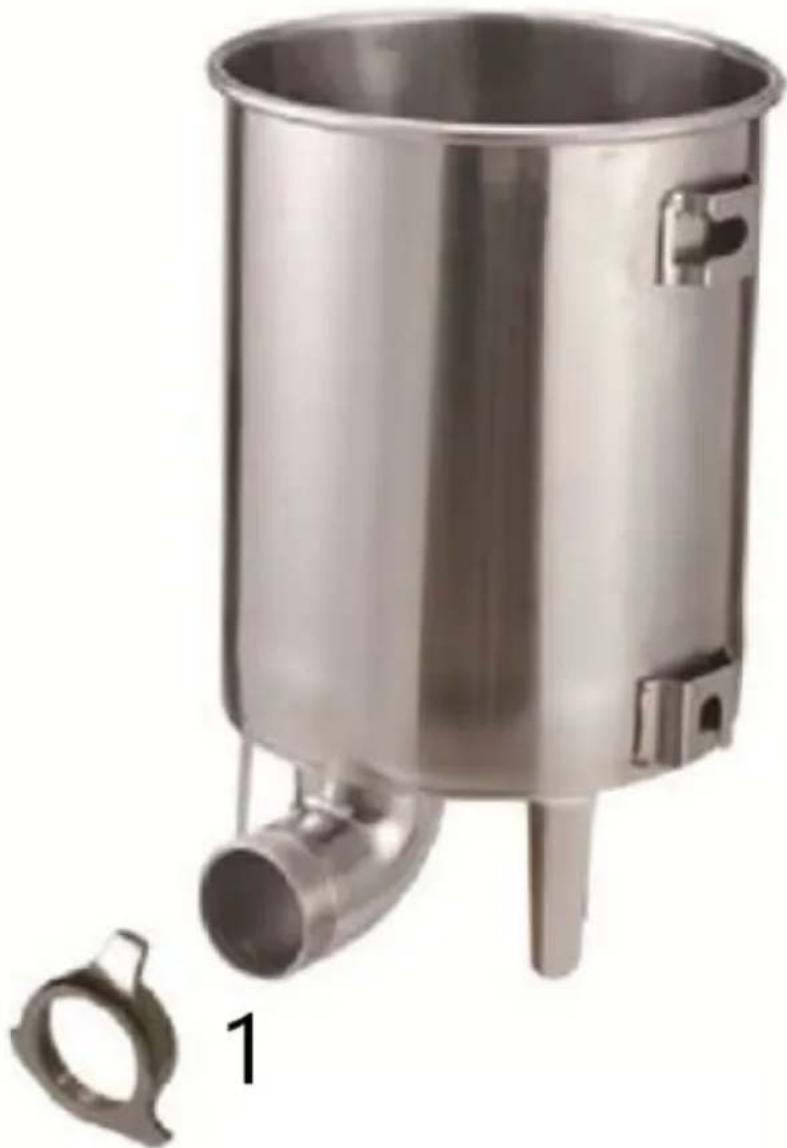

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the container itself)

1

Front Ring Nut

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the container itself)

1

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

1

Ghiera anteriore

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the device itself)

1

Tuerca de anillo delantera

Metallic cylindrical container with three legs and a side outlet, labeled '1' (no text or symbols on the container itself)

1

Első gyúrúanya
