USER MANUAL WAX-C61150 MSW

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

Labeled diagram of a black cooking pot with seven numbered parts for identification.

1 2 3 4 5 6 7 8 Sankey Heating

Close-up of a metallic cylindrical object with a flared rim, resting on a reflective surface (no text or symbols visible)

Close-up of a metallic circular object with concentric rings and a small star-shaped hole at the center (no text or symbols visible)

MSW-WAX-C61150

Assorted automotive parts and tools laid out on a flat surface, including a black cylindrical container, tubing, and a WAX MELDER package (no visible text or symbols)

Two views of a black mechanical knob: one showing the central screw and the other a flanged knob (no text or symbols visible)

Close-up of a black plastic mechanical component with two screws, placed on a metallic surface (no text or symbols visible)

Close-up of a metallic valve component with a handle, shown from two angles (no text or symbols visible)

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	Wax melter
Model	MSW-WAX-C10400	MSW-WAX-C61150	MSW-WAX-C71500
Rated voltage [V~] / frequency [Hz]	230 / 50
Rated power [W]	400	1200	1520
Protection class	I
IP protection rating	IPX3
Dimensions [width x depth x height; mm]	360 x 390 x 400	275 x 300 x 250	265 x 280 x 370
Weight [kg]	3.2	2.5	1.95
Capacity [L]	10	5	6.5
Temperature range [°C]	35-80	0-150	30-110

Device description

MSW-WAX-C10400

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

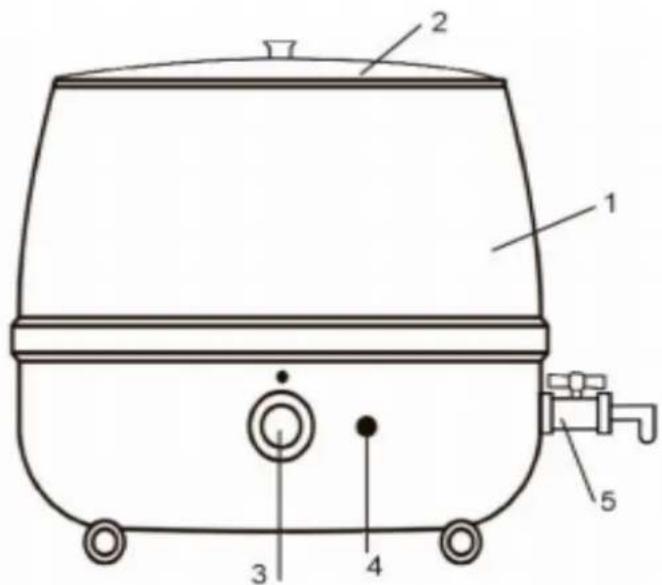

1. Housing
2. Transparent lid with vent hole
3. Temperature control knob
4. Power indicator light
5. Ball valve faucet

Labeled diagram of a black cooking pot with seven numbered parts for identification.

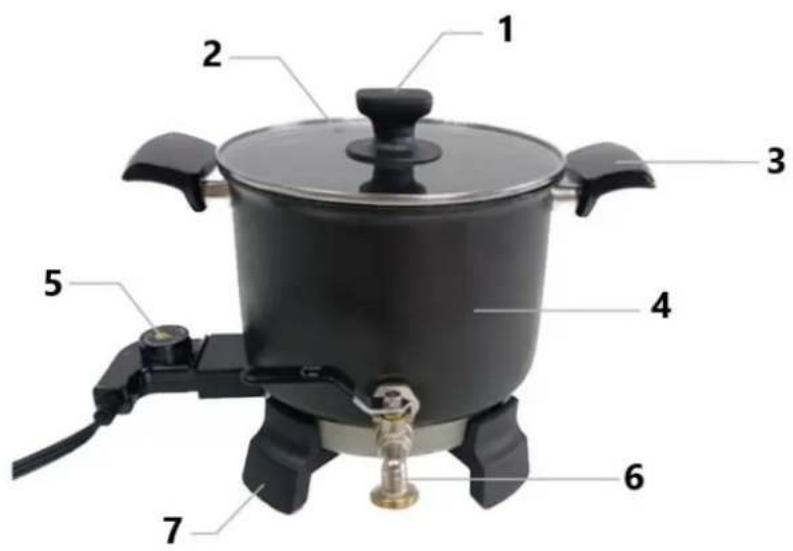

1. Transparent lid
2. Air vent hole
3. Lifting handle (x2)
4. Housing
5. Temperature control knob
6. Ball valve faucet
7. Foot (x4)

MSW-WAX-C71500

1 2 3 4 5 6 7 8 Sankey Heating

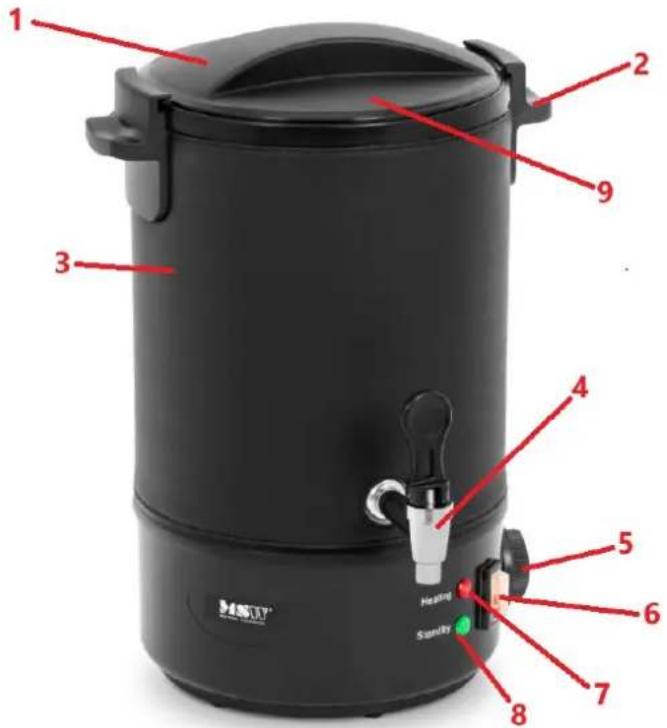

1. Lid
2. Lifting handle (x2)
3. Housing with insulation shell

4. Faucet

5. Temperature control knob

6. Power switch
7. Heating indicator light
8. Stand-by indicator light

Preparing for use

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

MSW-WAX-C10400

• After unpacking assemble the temperature controller knob by putting it on the controller pin.

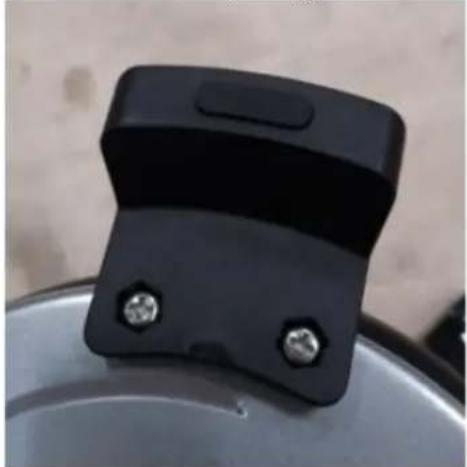

• Fix the lid handle as shown on the pictures below:

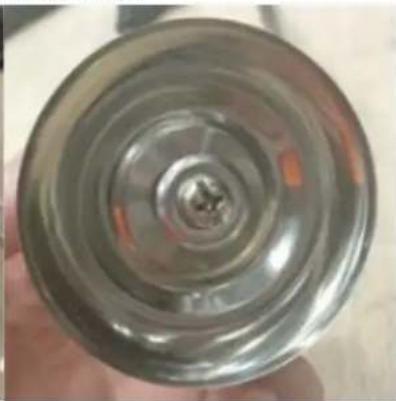

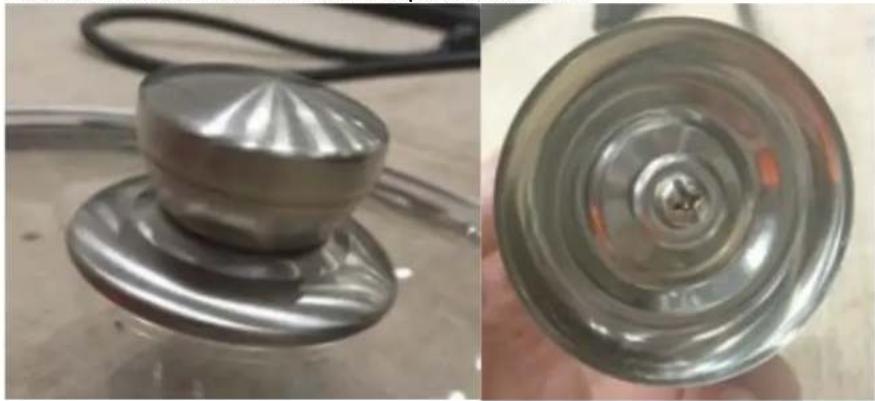

Close-up of a metallic mechanical component with a conical top and flange, shown from two angles (no text or symbols visible)

MSW-WAX-C61150

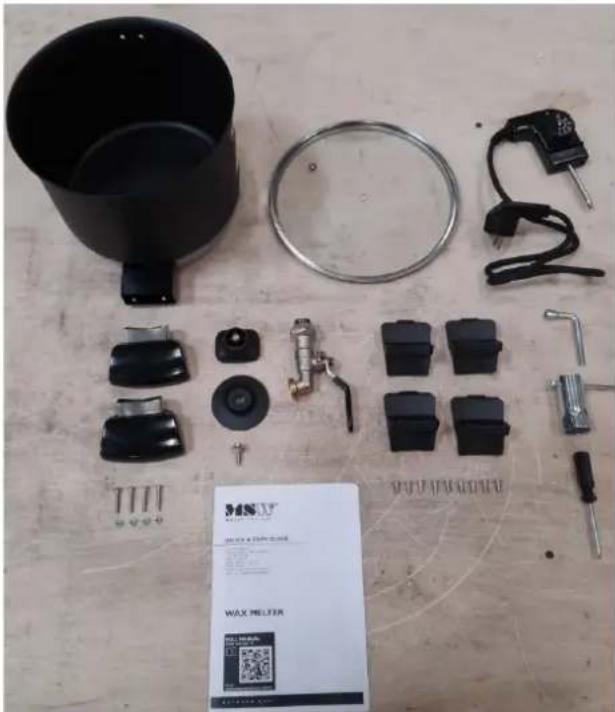

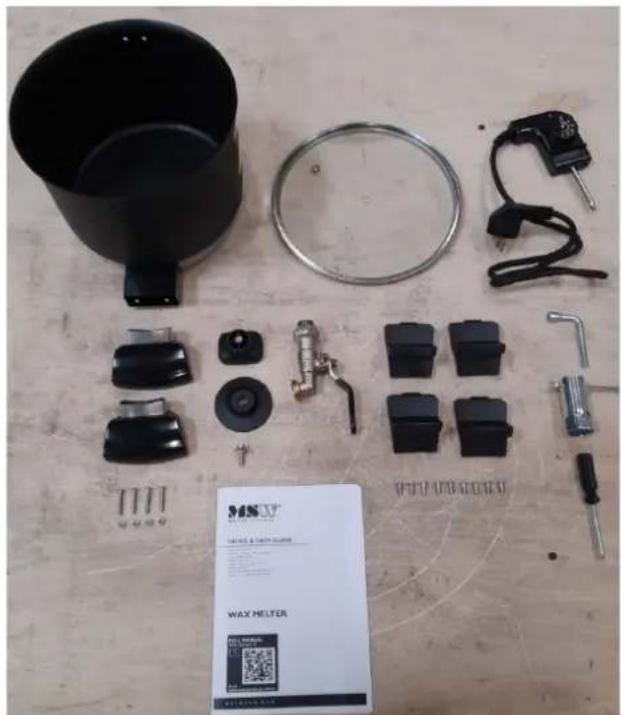

Assorted automotive parts including a black spray gun, metal hose, and WAX MELTER box on a wooden surface (no text or symbols visible on main objects)

• After unpacking fix the lid handle as shown on the pictures below:

Close-up of a hand holding a black mechanical knob with a metallic screw, shown from two angles (no text or symbols visible)

- Mount the 4 feet by using provided bolts as shown below:

Close-up of a black plastic mechanical component with two screws, placed on a metallic surface (no text or symbols visible)

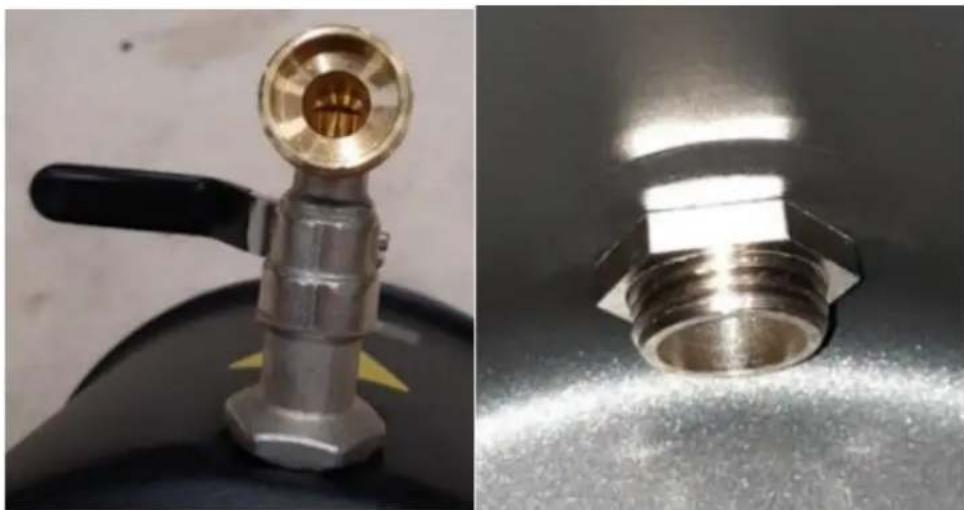

- Screw in the faucet to the housing:

Close-up of a metallic valve component with a black handle, shown from two angles (no text or symbols visible)

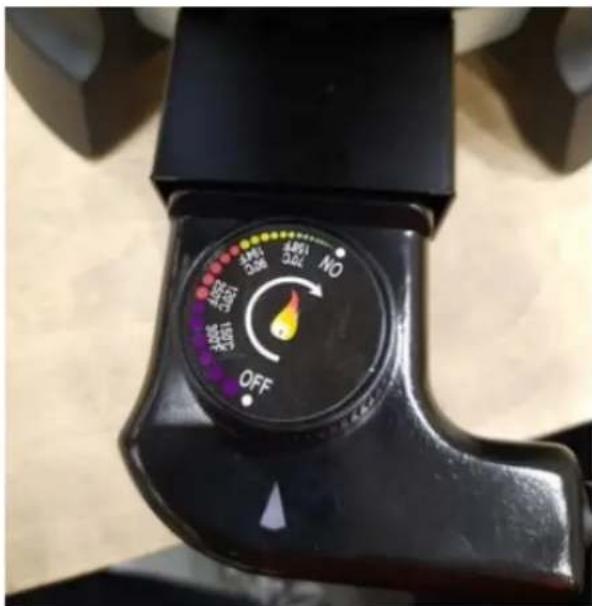

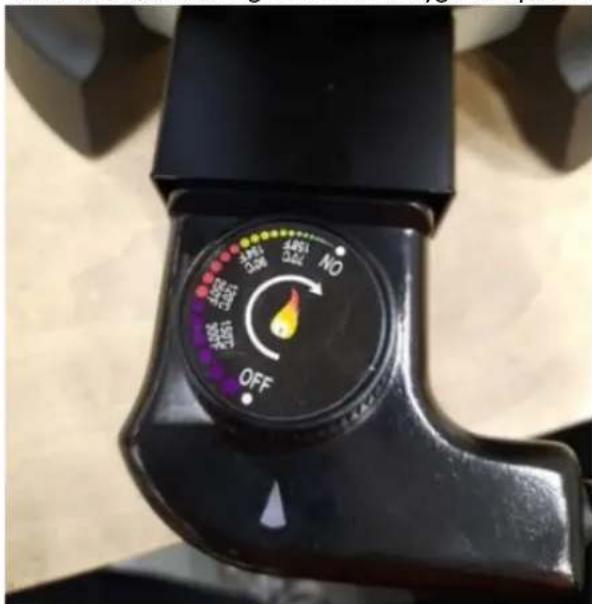

- Connect the power cord with build in temperature knob:

• For assembly use the included wrenches.

MSW-WAX-C71500

This product is being delivered already assembled and ready for use.

Device use

MSW-WAX-C10400:

1. Turn the appliance temperature control knob between range 0°C-80°C and the power indicator light will turn on signalling working.

2. Turn the appliance off when finishing melting.

3. CAUTION: The lid must be placed on when the wax is dissolved. Do not mix wax with water when melting. Wipe the water off before adding wax pieces.

MSW-WAX-C61150 / MSW-WAX-C71500:

1. Turn the lid anti-clockwise to open.
2. Fill the wax melter not above the MAX level indicator.
3. Replace the lid and turn clockwise to lock into place.
4. Connect the plug to the socket.

5. Switch on the appliance by setting the temperature control knob to the desired value or set the power switch to the 'I' position. The wax will start to heat up.

6. The wax will reach the set temperature.

7. Stand your cup on the hold close to the faucet to prevent wax splashing.

8. Use the faucet to dispense wax.

9. When the wax is topped up the wax melter will automatically reheat.

10. When the wax is completely melted, turn the appliance off, unplug it from the electric outlet, and pour out all the wax.

11. Make sure there is at least 500 ml wax in the tank when heating to prevent overheating.

12. The appliance can be very heavy when filled with wax. It should not be carried or moved when full of wax as the weight and unsteady load can cause injury or strain. The product should never be moved when filled with more than 5L (5L=5 kg approximately).

13. CAUTION: The lid must be placed on when the wax is dissolved. Do not mix wax with water when melting. Wipe the water off before adding wax pieces.

14. NOTE: MSW-WAX-C71500 is protected by a thermal limiter with automatically reset function to prevent accidental dry-heating. If the wax in the tank is boiled dry, it will be activated and the appliance will turn itself off, although the lamp with remain on. The appliance must be unplugged before it can be reset. To reset it, wait until the appliance has cooled down, then power on the appliance again, check if the heating indicator light is on. If it is on, it indicates the unit has recovered to normal working condition; if the light is still off, unplug the cord and try to power on again. Repeat this operation several times until the appliance will be in normal working condition.

Maintenance

• Only perform cleaning once the plug has been removed and the wax melter has completely cooled down.
  • Never immerse the wax melter into water.
• Pour hot water into the melter, brush sides, Melt the wax completely then pour out the water.
• Do not use any cleaning products which can cause a health hazard.
• Use a soft cloth to wipe the urn body dry. Do not use abrasive materials to avoid scratches.

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

Labeled diagram of a black cooking pot with seven numbered parts for identification

Close-up of a metallic mechanical component with a conical top and circular base, shown from two angles (no text or symbols visible)

MSW-WAX-C61150

Assorted automotive parts and tools laid out on a flat surface, including a black cylindrical container, tubing, and a WAX MELDER package (no visible text or symbols)

Two views of a black mechanical knob or knob device, one open and one closed, both with metallic pins (no text or symbols visible)

Close-up of a black plastic mechanical component with two screws, placed on a metallic surface (no text or symbols visible)

Close-up of a metallic valve component with a handle, shown from two angles (no text or symbols visible)

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

Labeled diagram of a black cooking pot with seven numbered parts for identification.

1 2 3 4 5 6 7 8 Heating Sankey

Close-up of a metallic mechanical component with a stethoscope and circular dial, shown from two angles (no text or symbols visible)

MSW-WAX-C61150

Assorted automotive parts including a black spray gun, metal hose, and WAX MELTER box on a workbench (no readable text or symbols)

Close-up of a hand holding a black mechanical knob with a metallic screw, shown from two angles (no text or symbols visible)

Close-up of a black plastic mechanical bracket with two screws, mounted on a metallic surface (no text or symbols visible)

Close-up of a metallic valve component with a black handle, shown from two angles (no text or symbols visible)

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

Labeled diagram of a black ceramic pot with seven numbered parts for cooking or heating.

1 2 3 4 5 6 7 8 MRSV Heating Sankey

Close-up of a metallic cylindrical object with a flared rim, resting on a reflective surface (no text or symbols visible)

Close-up of a metallic cylindrical object with concentric rings and a small central hole, held by a hand (no text or symbols visible)

MSW-CIRE-C61150

Assorted automotive parts and tools laid out on a flat surface, including a black cylindrical container, tubing, and a WAX MELDER package (no visible text or symbols)

Two views of a black mechanical knob or knob device, one open and one closed, both with metallic pins (no text or symbols visible)

Close-up of a black plastic mechanical component with two screws, placed on a metallic surface (no text or symbols visible)

Close-up of a metallic valve component with a handle, shown from two angles (no text or symbols visible)

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

Labeled diagram of a black cooking pot with seven numbered parts for identification.

1 2 3 4 5 6 7 8 Heating Sankey

Close-up of a metallic mechanical component with a conical top and flange, shown from two angles (no text or symbols visible)

MSW-CERA-C61150

Assorted automotive components including a black spray bottle, hose, and tools laid out on a light surface (no visible text or symbols)

Close-up of a hand holding a black mechanical knob with a metallic screw, shown from two angles (no text or symbols visible)

Close-up of a black plastic mechanical bracket with two screws, mounted on a metallic surface (no text or symbols visible)

Close-up of a metallic valve component with a handle, shown from two angles (no text or symbols visible)

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

Labeled diagram of a black cooking pot with seven numbered parts for identification.

Close-up of a metallic mechanical component with a conical top and flange, shown from two angles (no text or symbols visible)

CERA MSW-C61150

Assorted automotive parts and tools laid out on a flat surface, including a black cylindrical container, tubing, and a WAX MELDER package (no visible text or symbols)

Two views of a black mechanical knob or knob device, one showing the central screw and the other the base (no text or symbols visible)

Close-up of a black plastic mechanical component with two screws, placed on a metallic surface (no text or symbols visible)

Close-up of a metallic valve component with a handle, shown from two angles (no text or symbols visible)

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

Labeled diagram of a black coffee pot with seven numbered parts for cooking or heating.

Close-up of a metallic mechanical component with a conical top and flange, shown from two angles (no text or symbols visible)

MSW-WAX-C61150

Assorted automotive parts and tools laid out on a flat surface, including a black cylindrical container, tubing, and a WAX MELDER package (no visible text or symbols)

Two views of a black mechanical knob or knob device, one open and one closed, both with metallic pins (no text or symbols visible)

Close-up of a black plastic mechanical component with two screws, placed on a metallic surface (no text or symbols visible)

Close-up of a metallic valve component with a handle, shown from two angles (no text or symbols visible)

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

Labeled diagram of a black coffee pot with seven numbered parts for identification

1 2 3 4 5 6 7 8 Heating Sankey

1. Låg
2. Løftehåndtag (x2)
3. Hus med isoleringsskal

4. Vandhane

5. Temperaturregulator

6. Strømafbryder
7. Varmekontrollampe
8. Standby-indikatorlampe

Klargøring til brug

Close-up of a metallic mechanical component with a conical top and flange, shown from two angles (no text or symbols visible)

MSW-WAX-C61150

Assorted automotive components including a black spray bottle, hose, valve, and WAX MELTER box (no visible text or symbols on main objects)

Two views of a black mechanical knob or knob device, one open and one closed, both with metallic pins (no text or symbols visible)

Close-up of a black plastic mechanical bracket with two screws, mounted on a metallic surface (no text or symbols visible)

• Skru vandhanen fast på huset:

Close-up of a metallic valve component with a black handle, shown from two angles (no text or symbols visible)

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

Labeled diagram of a black cooking pot with seven numbered parts for identification

1 2 3 4 5 6 7 8 Heating Sankey

Close-up of a metallic cylindrical object with a flared rim, resting on a glass surface (no text or symbols visible)

Close-up of a metallic cylindrical object with concentric rings and a small central hole, held by a hand (no text or symbols visible)

MSW-WAX-C61150

Assorted automotive parts and tools laid out on a flat surface, including a black cylindrical container, tubing, and a WAX MELDER package (no visible text or symbols)

Two views of a black mechanical knob or knob device, one open and one closed, both with metallic pins (no text or symbols visible)

Close-up of a black plastic mechanical component with two screws, placed on a metallic surface (no text or symbols visible)

Close-up of a metallic valve component with a handle, shown from two angles (no text or symbols visible)

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

Labeled diagram of a black cooking pot with seven numbered parts for identification.

1. Transparant deksel
2. Luchtgat
3. Hefhandvat (x2)
4. Huisvesting
5. Temperaturregulator
6. Kogelkraan kraan
7. Voet (x4)

MSW-WAX-C71500

1 2 3 4 5 6 7 8 Sankey Heating

Close-up of a metallic cylindrical object with a flared rim, resting on a reflective surface (no text or symbols visible)

Close-up of a metallic cylindrical object with concentric rings and a small central hole, held in hand (no text or symbols visible)

MSW-WAX-C61150

Assorted automotive components including a black spray bottle, hose, and tools laid out on a light surface (no visible text or symbols)

Close-up of a hand holding a black mechanical knob with a metallic screw, shown from two angles (no text or symbols visible)

Close-up of a black plastic mechanical bracket with two screws, mounted on a metallic surface (no text or symbols visible)

Close-up of a metallic valve component with a handle, shown from two angles (no text or symbols visible)

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

Labeled diagram of a black cooking pot with seven numbered parts for identification

1 2 3 4 5 6 7 8 Heating Sundry

1. Lokk

2. Løftehåndtak (x2)

3. Hus med isolasjonsskall

4. Kran
5. Knott for temperaturinnstilling
6. Strømbryter
7. Oppvarmingsindikatorlys
8. Standby-indikatorlampe

Close-up of a metallic cylindrical object with a flared rim, resting on a reflective surface (no text or symbols visible)

Close-up of a metallic circular object with concentric rings and a small central hole, held by a hand (no text or symbols visible)

MSW-WAX-C61150

Assorted automotive parts and tools laid out on a flat surface, including a black cylindrical container, tubing, and a WAX MELDER package (no visible text or symbols)

Two views of a black mechanical knob or knob device, one open and one closed, both with metallic pins (no text or symbols visible)

Close-up of a black plastic mechanical component with two screws, placed on a metallic surface (no text or symbols visible)

Close-up of a metallic valve component with a handle, shown from two angles (no text or symbols visible)

- Koble til strømledningen med innebygd temperaturknapp:

OFF 3.5V 4.0V 4.5V 5.0V NO

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

Labeled diagram of a black cooking pot with seven numbered parts for identification

Close-up of a metallic cylindrical object with a conical top, resting on a reflective surface (no text or symbols visible)

Close-up of a metallic circular object with concentric rings and a small central hole, held by a hand (no text or symbols visible)

MSW-WAX-C61150

Assorted automotive parts and tools laid out on a flat surface, including a black cylindrical container, tubing, and a WAX MELBER card (no visible text or symbols)

Two views of a black mechanical knob or knob device, one showing the central screw and the other the base (no text or symbols visible)

Close-up of a black plastic mechanical component with two screws, placed on a metallic surface (no text or symbols visible)

Close-up of a metallic valve component with a handle, shown from two angles (no text or symbols visible)

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

Labeled diagram of a black cooking pot with seven numbered parts for identification

1 2 3 4 5 6 7 8 Heating Sundry

Close-up of a metallic mechanical component with a conical top and flange, shown from front and side views (no text or symbols visible)

MSW-CERA-C61150

Assorted automotive parts and tools laid out on a flat surface, including a black cylindrical container, tubing, and a WAX MELDER package (no visible text or symbols)

Two views of a black mechanical knob or knob device, one showing the central screw and the other the base (no text or symbols visible)

Close-up of a black plastic mechanical component with two screws, placed on a metallic surface (no text or symbols visible)

Close-up of a metallic valve component with a handle, shown from two angles (no text or symbols visible)

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

Labeled diagram of a black cooking pot with seven numbered parts for identification

1 2 3 4 5 6 7 8 Heating Sankey

Close-up of a metallic mechanical component with a conical top and flange, shown from two angles (no text or symbols visible)

MSW-WAX-C61150

Assorted automotive parts including a black spray gun, metal hose, and WAX MELTER box on a wooden surface (no text or symbols visible on main objects)

Close-up of a hand holding a black mechanical knob with a metallic screw, shown from two angles (no text or symbols visible)

Close-up of a black plastic mechanical bracket with two screws, mounted on a metallic surface (no text or symbols visible)

- Priskrutkujte kohútik k puzdru:

Close-up of a metallic valve component with a black handle, shown from two angles (no text or symbols visible)

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

Labeled diagram of a black cooking pot with seven numbered parts for identification.

Close-up of a metallic cylindrical object with a flared rim, resting on a reflective surface (no text or symbols visible)

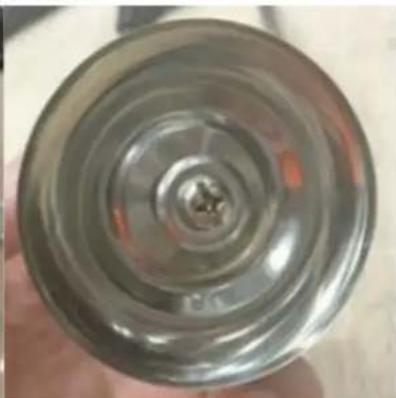

Close-up of a metallic cylindrical object with concentric rings and a small central hole, held by a hand (no text or symbols visible)

MSW-WAX-C61150

Assorted automotive components including a black spray bottle, hose, and tools laid out on a light surface (no visible text or symbols)

Close-up of a hand holding a black mechanical knob with a metallic screw, shown from two angles (no text or symbols visible)

Close-up of a black plastic mechanical bracket with two screws, mounted on a metallic surface (no text or symbols visible)

Close-up of a metallic valve component with a brass fitting and handle, alongside a close-up of its threaded metal fitting (no text or symbols visible)

Technical diagram of a portable water heater with labeled components including ports, valves, and control panel

Labeled diagram of a black cooking pot with seven numbered parts for identification.

Close-up of a metallic cylindrical object with a flared rim, resting on a reflective surface (no text or symbols visible)

Close-up of a metallic circular object with concentric rings and a small central hole, held by hands (no text or symbols visible)

MSW-WAX-C61150

Assorted automotive components including a black spray bottle, hose, and tools laid out on a light surface (no visible text or symbols)

Close-up of a hand holding a black mechanical knob with a metallic screw, shown from two angles (no text or symbols visible)

Close-up of a black plastic mechanical bracket with two screws, mounted on a metallic surface (no text or symbols visible)

Close-up of a metallic valve component with a brass fitting and handle, alongside a close-up of its threaded metal fitting (no text or symbols visible)

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

1. Kućište
2. Prozirni poklopac s otvorom za ventilaciju
3. Gumb za kontrolu temperature
4. Indikator napajanja
5. Slavina s kuglastim ventilom

Labeled diagram of a black cooking pot with seven numbered parts for identification.

1. Prozirni poklopac
2. Otvor za ventilaciju
3. Ručka za podizanje (x2)
4. Kućište
5. Gumb za kontrolu temperature
6. Slavina s kuglastim ventilom
7. Stopalo (x4)

MSW-WAX-C71500

1 2 3 4 5 6 7 8 Heating Sankey

1. Poklopac
2. Ručka za podizanje (x2)
3. Kućište s izolacijskom školjkom

4. Pipa

5. Gumb za kontrolu temperature

6. Prekidač napajanja
7. Indikator grijanja
8. Svjetlo indikatora pripravnosti

Priprema za upotrebu

Temperatura okoline ne smije biti viša od 40°C, a relativna vlažnost zraka manja od 85%. Osigurajte dobru ventilaciju u prostoriji u kojoj se uređaj koristi. Razmak između svake strane uređaja i zida ili drugih predmeta mora biti najmanje 10 cm. Uređaj uvijek treba koristiti postavljen na ravnu, stabilnu, čistu, vatrostalnu i suhu površinu, te biti izvan dohvata djece i osoba s ograničenim mentalnim i osjetilnim funkcijama. Postavite uređaj tako da uvijek imate pristup utikaču. Kabel za napajanje spojen na uređaj mora biti pravilno uzemljen i odgovarati tehničkim podacima na etiketi proizvoda.

MSW-WAX-C10400

Close-up of a metallic mechanical component with a conical top and flange, shown from front and side views (no text or symbols visible)

MSW-WAX-C61150

Assorted automotive parts including a black cylindrical tank, hose, valve, and a Wax Meltzer box on a wooden surface (no text or symbols visible on main objects)

Close-up of a hand holding a black mechanical knob with a metallic screw, shown from two angles (no text or symbols visible)

• Montirajte 4 stopice pomoću isporučenih vijaka kao što je prikazano u nastavku:

Close-up of a black plastic clamp with two screws, placed on a metallic surface (no text or symbols visible)

- Pričvrstite slavinu na kućište:

Close-up of a metallic valve component with a brass fitting and black handle, shown from two angles (no text or symbols visible)

- Spojite kabel za napajanje s ugrađenim gumbom za temperaturu:

OFF 1.00 2.00 3.00 4.00 5.00 6.00 NO

• Za sastavljanje koristite priložene ključeve.

MSW-WAX-C71500

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

Labeled diagram of a black cooking pot with seven numbered parts for identification.

1 2 3 4 5 6 7 8 Heating Sankey

Close-up of a metallic mechanical component with a conical top and flange, shown from two angles (no text or symbols visible)

MSW-WAX-C61150

Assorted automotive parts and tools laid out on a flat surface, including a black cylindrical container, hoses, and a WAX MELDER package (no visible text or symbols)

Two views of a black mechanical knob or knob device, one open and one closed, both with metallic pins (no text or symbols visible)

Close-up of a black plastic mechanical component with two screws, placed on a metallic surface (no text or symbols visible)

Close-up of a metallic valve component with a handle, shown from two angles (no text or symbols visible)

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

1. Locuinte
2. Capac transparent cu orificiu de aerisire
3. Buton de control al temperaturii
4. Indicator luminos de alimentare
5. Robinet cu robinet cu bilă

Labeled diagram of a black coffee pot with seven numbered parts for identification

1. Capac transparent
2. Orificiu de aerisire
3. Mâner de ridicare (x2)
4. Locuinte
5. Buton de control al temperaturii
6. Robinet cu robinet cu bilă
7. Picion (x4)

MSW-WAX-C71500

1 2 3 4 5 6 7 8 Heating Sankey

Close-up of a metallic mechanical component with a conical top and flange, shown from two angles (no text or symbols visible)

MSW-WAX-C61150

Assorted automotive parts and tools laid out on a flat surface, including a black cylindrical container, tubing, and a WAX MELDER package (no visible text or symbols)

Two views of a black mechanical knob or knob device, one open and one closed, both with metallic pins (no text or symbols visible)

Close-up of a black plastic mechanical component with two screws, placed on a metallic surface (no text or symbols visible)

Close-up of a metallic valve component with a handle, shown from two angles (no text or symbols visible)

Technical diagram of a water heater with labeled components including inlet, outlet, and control panel

Labeled diagram of a black cooking pot with seven numbered parts for identification

1 2 3 4 5 6 7 8 Heating Sankey

Close-up of a metallic mechanical component with a conical top and circular base, shown from two angles (no text or symbols visible)

MSW-WAX-C61150

Assorted automotive parts and tools laid out on a flat surface, including a black cylindrical container, tubing, and a WAX MELDER package (no visible text or symbols)

Two views of a black mechanical knob or knob device, one open and one closed, both with metallic pins (no text or symbols visible)

Close-up of a black plastic mechanical component with two screws, placed on a metallic surface (no text or symbols visible)

- Privijte pipo na ohišje:

Close-up of a metallic valve component with a handle, shown from two angles (no text or symbols visible)

- Priključite napajalni kabel z vgrajenim temperaturnim gumbom:

OFF OK NO OFF OK NO

• Za montažo uporabite priložene ključe.

MSW-WAX-C71500

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
