USER MANUAL QPFA10 HAIER

Installation Instruction

Technical line drawing of a vertical industrial or storage unit with a gridded top panel and mounting base (no text or symbols)

Design may vary by model number. La conception peut varier

IMPORTANT SAFETY INFORMATION....4

USING THE AIR CONDITIONER....5

CARE AND CLEANING 8

INSTALLATION INSTRUCTIONS 10

TROUBLESHOOTING 14

LIMITED WARRANTY 16

RECORD KEEPING

Thank you for purchasing this Haier product. This user manual will help you get the best performance from your new air conditioner.

Staple your proof of purchase to this manual to aid in obtaining warranty service if needed.

Model number

Serial number

Date of purchase

HAIER WEBSITE

Have a question or need assistance with your appliance? Try the Haier Website 24 hours a day, any day of the year! You can also shop for more great Haier products and take advantage of all our on-line support services designed for your convenience. In the US: Haierappliances.com

SAFETY INFORMATION

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, injury to persons, or damage when using the air conditioner, follow basic precautions, including the following:

• Read all of the instructions before using this appliance.
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Do not operate the air conditioner if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.

• Haier does not support any servicing of the air conditioner. Refer to warranty information for refund or exchange options.

• Service of all other components may ONLY be completed by a qualified technician.

• Disconnect power before servicing or cleaning.

NOTE: Turning off power by pressing the Power button does NOT disconnect the appliance from the power supply.

• Do not install or use the air conditioner in any area where the atmosphere contains combustible gases or where the atmosphere is contaminated. Avoid any chemicals coming in contact with your air conditioner.
• Do not store anything directly on top of the air conditioner.
• Use two or more people to move and install air conditioner.
• Never operate the air conditioner without the filters in place.
• Do not use the air conditioner near a bathtub, shower or wash basin or other wet area.

WARNING

Risk of Fire or Explosion. This unit contains flammable refrigerant. Additional safety precautions must be followed.

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.
• Do not pierce or burn refrigerant tubing. Be aware that refrigerants may not contain an odor.
• Keep ventilation openings clear of obstruction.

• When handling, installing, and operating the appliance, care should be taken to avoid damage to the refrigerant tubing.

• Do not drill holes in the unit.

• Maintenance, cleaning, and service should only be performed by technicians properly trained and qualified in the use of flammable refrigerants.
• GE Appliances does not support any servicing of the air conditioner.
• Dispose of air conditioner in accordance with Federal and Local Regulations. Flammable refrigerants require special disposal procedures. Contact your local authorities for the environmentally safe disposal of your air conditioner.

WARNING

How to Insert the Batteries in the Remote Control

• Remove the battery cover by sliding it according to the arrow direction.
• Insert new batteries, making sure that the (+) and (-) of battery are installed correctly.
• Reattach the cover by sliding it back into position.

NOTES:

• Use 2 "AAA" (1.5 volt) alkaline batteries. Do not use rechargeable batteries
• Remove the batteries from the remote control if the system is not going to be used for a long time.
• Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (ni-cad, ni-mh, etc) batteries.

WARNING

Caution for Ingestion. The battery may cause suffocation if swallowed by children.

READ AND SAVE THESE INSTRUCTIONS

CONTROLS

Features and appearance will vary.

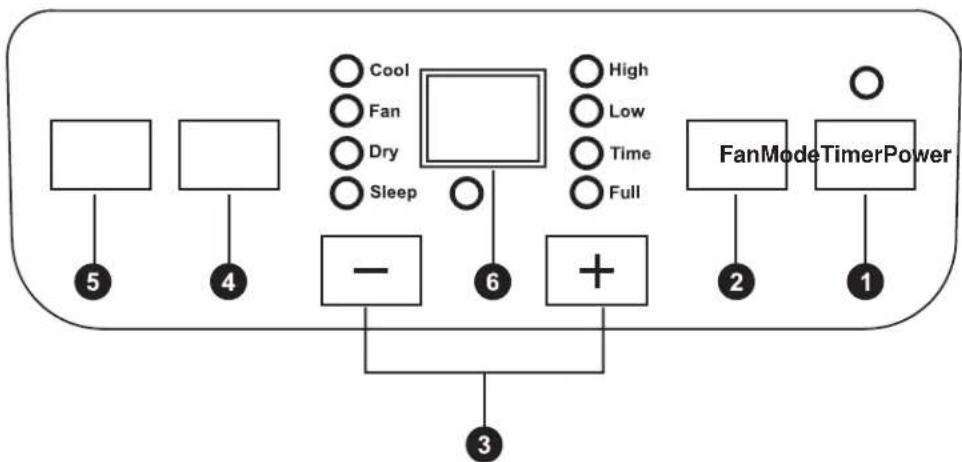

Lights next to the touch pads on the air conditioner control panel indicate the selected settings.

1. Power Button

Press the POWER button to turn unit ON/OFF.

2. Fan Speed Button

Press the FAN button to choose High/Low speed.

3. + / - Button for Temperature and Timer

In Cooling mode, press the + or - button to increase or decrease the temperature setting.

In Timer mode, press the + or - button to set time to turn the unit on.

Pressing the + or - buttons together will switch between °C and °F.

4. Mode Button

Press the Mode button to choose Cool, Fan, or Dry.

5. Timer Button

Pressing the Timer button in Standby mode will set the time for the unit to turn ON.

Pressing the Timer button in ON mode would set the time for the unit to turn OFF.

6. Temperature and Timer Display

The window will indicate temperature and time.

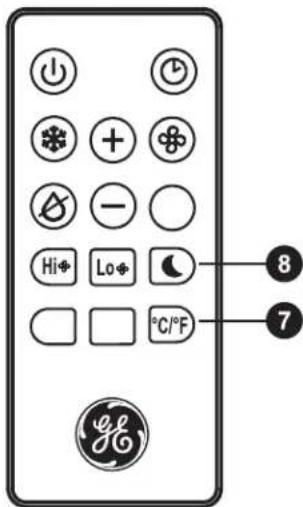

7. Temperature Switch Button (on remote)

Pressing the °C/°F button will switch between °C and °F.

8. Sleep button (on remote)

Pressing the Sleep button is to choose sleep mode.

Hi Lo °C/°F 8 7

CONTROLS

Set Temperature will be shown when unit is in operation.

Cool Mode

Use the COOL mode for cooling.

To set the COOL mode:

1. Press the MODE pad until the COOL indicator light is lit.
2. Press the FAN pad to set HIGH, MEDIUM, or LOW fan speed.
3. Press + or - to set the desired temperature between 64°F and 86°F in 1°F increments.

After settings have been made, the display will not change back to show the room temperature.

The temperature control is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the temperature control at a lower number and the indoor air will become cooler. Set the temperature control at a higher number

and the indoor air will become warmer. NOTE: If the air conditioner is off and is then turned on while set to COOL, it will take approximately 3 minutes for the compressor to start and cooling to begin.

Cooling Descriptions

For Normal Cooling—Select the COOL mode and HIGH, MEDIUM, or LOW fan speed with a middle set temperature.

For Maximum Cooling—Select the COOL mode and HIGH fan speed with a lower set temperature.

For Quieter & Nighttime Cooling—Select the COOL mode and LOW fan speed with a middle set temperature.

NOTE: If you switch from COOL or DRY mode setting to OFF, wait 3 minutes before restarting.

DRY Mode—Dehumidification

Use the DRY mode to provide dehumidification only. The fan will run at a fixed speed at this setting, so a fan speed cannot be set. Keep windows and doors closed for the best dehumidifying effects.

To set the DRY mode:

• Press the MODE pad until the DRY indicator light is lit.
  In the DRY mode, a set temperature will not be displayed. After DRY mode has been set, the display will change back to show the room temperature.

NOTE: If you switch from a DRY setting to OFF or to a fan setting, wait at least 3 minutes before switching back to a DRY setting.

If using the unit in the DRY mode as a dehumidifier for an extended time.

1. Unplug the power cord.
2. Connect a 12 " Outer diameter flexible drain hose to the upper drain port and drain to floor drain.
3. Reconnect the power cord and press the MODE pad until the DRY indicator light is lit.

FAN Mode

Use the FAN mode to provide air circulation and filtering without cooling.

To set the FAN mode:

- Press the FAN pad until the desired indicator light for high, medium, or low fan speed is lit.

Since fan only settings do not provide cooling, a set temperature will not be displayed. After FAN speed has been set, the display will change back to show the room temperature.

The exhaust hose and window kit do not need to be installed when operating in fan mode."

Power Outage Recovery Feature

In the case of a power outage or interruption, the unit will automatically re-start in the settings last used after the power is restored.

NOTE: If the TIMER was set before the power outage, it will need to be reset after power is restored.

CONTROLS

Features and appearance may vary.

Icons on the remote control indicate the selected settings.

Remote Control

1. Power Button

Press the POWER button to turn unit ON/OFF.

2. Fan Speed Button

Press the FAN button to choose High/Low speed.

3. + / - Button for Temperature and Timer

In Cooling mode, press the + or - button to increase or decrease the temperature setting.

In Timer mode, press the + or - button to set time to turn the unit on.

Pressing the + or - buttons together will switch between °C and °F.

4. Mode Button

Press the Mode button to choose Cool, Fan, or Dry.

5. Timer Button

Pressing the Timer button in Standby mode will set the time for the unit to turn ON.

Pressing the Timer button in ON mode would set the time for the unit to turn OFF.

6. Temperature and Timer Display

The window will indicate temperature and time.

7. Temperature Switch Button (on remote)

Pressing the °C/°F button will switch between °C and °F.

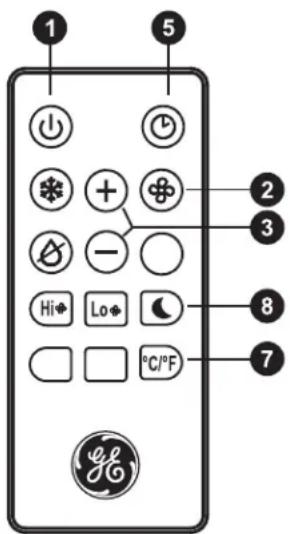

8. Sleep button (on remote)

Pressing the Sleep button is to choose sleep mode.

1 5 ① ② ③ ⑧ ⑦ Hi◆ Lo◆ °C/°F

CARE AND CLEANING

CLEANING

WARNING

Electrical Shock Hazard

Disconnect power before cleaning.

Failure to do so can result in death or electrical shock.

1. Unplug or disconnect power.

2. Use only a soft cloth dampened with water to clean the cabinet.

NOTE:

- Do not use a liquid or spray cleaner to clean the air conditioner.

- DO NOT use chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or scouring pads. Some of these chemicals/items may damage and/or discolor your air conditioner.

1. Dry thoroughly with a soft cloth.

2. Plug in or reconnect power.

Air Filter

The air filters should be cleaned at least every two weeks for your unit to operate at optimum efficiency.

CAUTION

DO NOT operate the air conditioner

without a filter because dirt and lint will clog it and reduce performance.

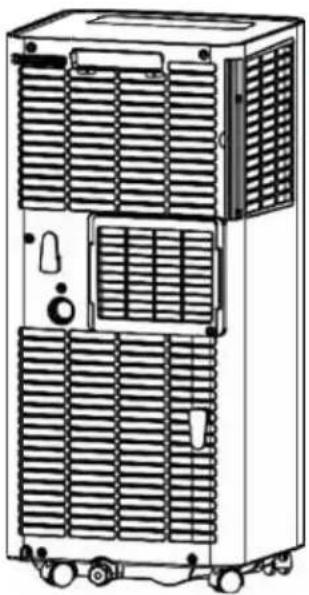

To remove:

1. Unplug or disconnect power.

2. Pull to remove upper filter panel.

3. Wash or vacuum the dust from the air filters.

NOTE: If washed, gently shake the filter to remove the excess water and dust particles trapped in the filter.

1. Reinstall the filters.

2. Plug in or reconnect power.

Line drawing of a multi-tiered industrial air conditioner unit with ventilation grilles and wheels (no text or symbols)

Diagram showing two grid panels with red arrows indicating direction (no text or symbols)

2

Illustration of a hand using a dropper to spray particles onto a grid surface (no text or symbols)

1

Line drawing of a hand using a tool to lift a grid-patterned object (no text or symbols)

CARE AND CLEANING

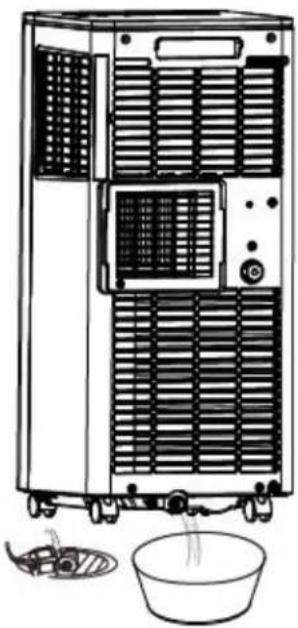

Internal Water Tank

The Water Full indicator ("FL" on the control panel display) illuminates when the internal water tank has filled with condensed water.

To Empty the Internal Water Tank:

1. Unplug or disconnect power.
2. Place a shallow 1 quart or larger pan (not included) below the lower drain located on the back (near the bottom) of the air conditioner.
3. Remove the cap and the rubber plug and drain the water tank.
4. Re-insert the drain plug and screw the cap snugly into place.
5. Plug in or reconnect power.

Line drawing of a large industrial air conditioner unit with cooling fans and a bowl nearby (no text or symbols)

Storage

If the unit is not being used for a long period of time: To Empty the Internal Water Tank:

1. Unplug or disconnect power.

2. Drain the water from the water tank. (See "Internal Water Tank section" above.)

3. Use the original packaging to repack the unit to avoid a buildup of dust or dirt.
4. Store the air conditioner in a cool, dry location.

How to Insert the Batteries in the Remote Control

1. Remove the battery cover by sliding it according to the arrow direction.
2. Insert new batteries, making sure that the (+) and (−) of battery are installed correctly.
3. Reattach the cover by sliding it back into position.

NOTES:

• Use 2 "AAA" (1.5 volt) alkaline batteries. Do not use rechargeable batteries.
• Remove the batteries from the remote control if the system is not going to be used for a long time.
• Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (ni-cad, ni-mh, etc) batteries.

INSTALLATION INSTRUCTIONS

Questions? Call Haier at 866.907.1566 or visit our Website at: haierappliances.com.

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT — Save these instructions for local inspector's use.
• IMPORTANT — Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical skills.
• Completion time – Approximately 1 hour
  • We recommend that two people install this product.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
• You MUST use all supplied parts and use proper installation procedures as described in these instructions when installing this air conditioner.

ELECTRICAL REQUIREMENTS

Some models require a 115/120-volt AC, 60-Hz grounded outlet protected with a 15-amp time-delay fuse or circuit breaker.

The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.

CAUTION

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

Do not change the plug on the power cord of this air conditioner.

Aluminium house wiring may present special problems—consult a qualified electrician.

RESET TEST

Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button while plugged into the outlet. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.

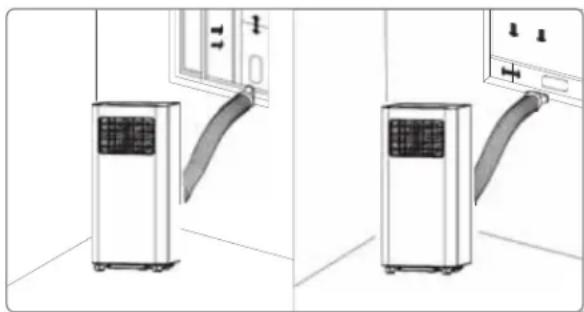

Location Requirements

• Place the air conditioner on a flat, level surface. For optimal performance place portable 20" from exterior wall. For all other sides a minimum distance of 30" should be maintained.
• Keep the air conditioner free of any obstructions such as drapes, curtains, blinds, etc.
• The exhaust hose should be free of any obstructions.
• Do not place the air conditioner on an unstable or raised surface because it could fall and cause damage or injury.
• Do not place the air conditioner in direct sunlight or near a heat source such as baseboard heaters, stoves, etc.
• The window panel can be installed in a window with a minimum 20" (55.88 cm) to a maximum 46" (121.92) opening.

Two-panel illustration showing a small air conditioner unit and its exterior panel with control buttons (no text or symbols)

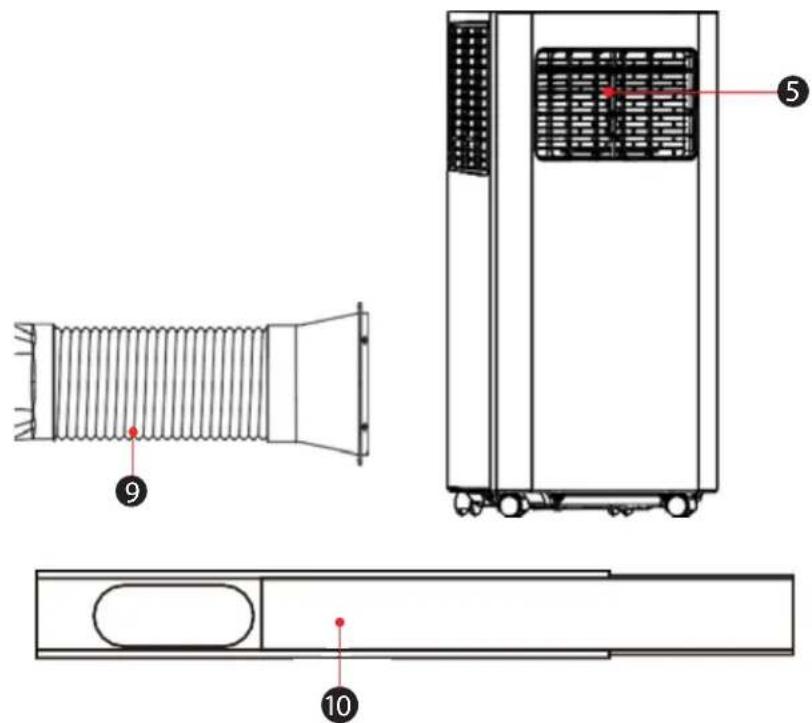

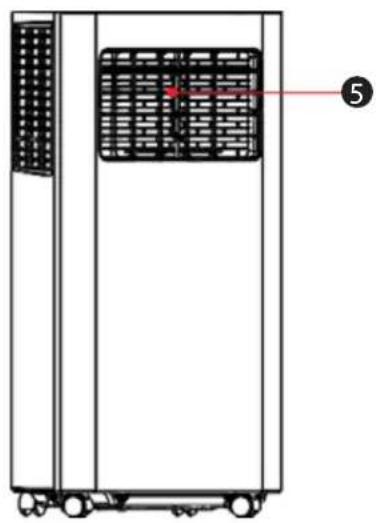

PARTS INCLUDED (Appearance may vary)

1. Handle
2. Air Inlet Grille (Up)
3. Control Panel
4. Casters
5. Louver
6. Air Outlet Grille
7. Drainage Hole
8. Air Inlet Grille (Down)
9. Air Exhaust Duct Assembly
10. Window Sealing Kit

Diagram of an industrial server rack with numbered components for identification

Diagram of a coiled spring with a numbered marker (9) at the end, no text or symbols present.

Technical line drawing of a vertical industrial machine with ventilation grilles and wheels (no text or symbols)

Pure technical diagram of a rectangular object with an oval cutout and a numbered marker (10), no text or symbols present.

INSTALLATION INSTRUCTIONS

1. UNPACK AIR CONDITIONER

WARNING

Excessive Weight Hazard

Use two or more people to move and install air conditioner.

Failure to do so can result in back or other injury.

• Remove packaging materials. Save the carton and the foam packaging for storing the air conditioner when not in use.
  NOTE: There are NO packing materials inside the air conditioner to remove—Do Not open the cabinet.
  • Properly dispose of/ recycle all packing material.
• Handle the air conditioner gently.
• Keep the air conditioner upright and level. Do not set the air conditioner on its side, front, back or upside down.

2. INSTALL EXHAUST HOSE ASSEMBLY TO BACK OF UNIT

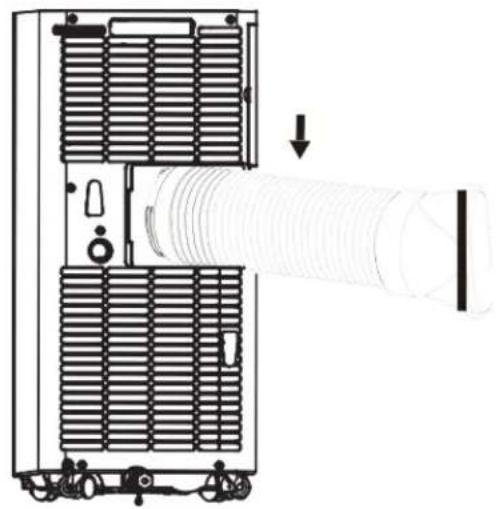

Install the exhaust hose assembly by twisting the round adapter counterclockwise into the exhaust port on the back of the Air Conditioner.

Technical diagram of a mechanical device with internal heat exchangers and a coiled pipe, showing no text or symbols.

3. INSTALL WINDOW PANELS

A. Measure the window opening. For a 20" opening, use just the middle panel of the Window Kit with the opening for the Exhaust Hose Adapter. For openings from 20" to 33", insert one side panel to the middle panel, for openings from 33" to 46", insert both side panels.

Cam lock

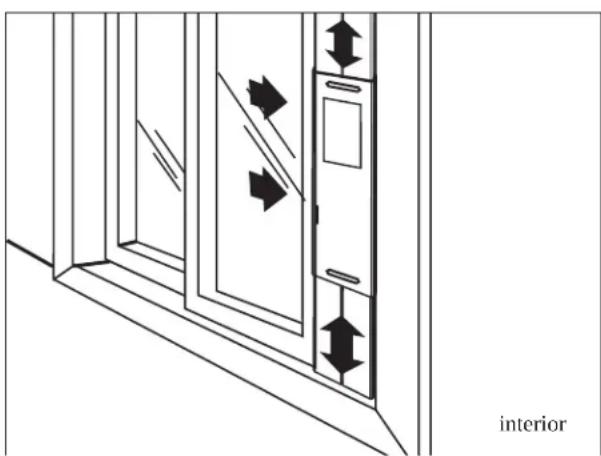

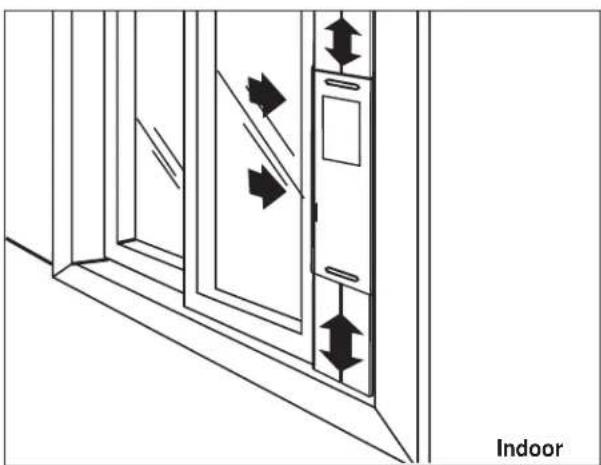

B. Place the Window Kit into the window opening (the Cam Locks should be towards you) and slide the side panels (if being used) outward to fill the opening. Lock the panels in place with the Cam Locks. Apply the foam seals to the top, bottom and ends to provide the best seal. Slide the window shut against the Window Kit.

Diagram of a room interior with directional arrows indicating airflow or movement, labeled 'Indoor' at bottom (no text or symbols on diagram itself)

Diagram of a door with directional arrows indicating movement, labeled 'Indoor' at bottom (no text or symbols on diagram itself)

4. CONNECT EXHAUST HOSE TO THE WINDOW PANEL

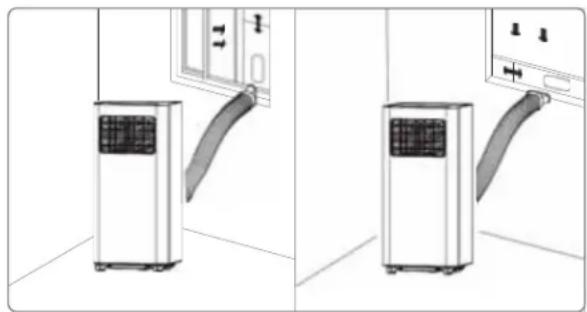

Place the Air Conditioner 20" from the wall and any other obstructions. Extend the hose so that it reaches the Window Kit. Insert the Exhaust Hose Adapter into the opening in the Window Kit and slide it into the locking position. Ensure that the hose runs straight to the window with no excess extension. Use the small screw to attach the exhaust hose assembly to the window sealing plate assembly.

Important: The Air Conditioner must be vented to the outside. Do not use a longer hose or extend the hose included with the Air Conditioner or the unit will not cool properly and will overheat.

Two-panel illustration showing a small air conditioner unit and its exterior panel with door and door symbols (no text or labels)

20"

5. COMPLETE INSTALLATION

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove the ground prong from the power cord plug.

Do not use an adapter.

Do not use an extension cord.

Failure to do so can result in death, fire or electrical shock.

1. Plug the power cord into a grounded 3 prong outlet.
2. Press the Reset button on the plug to ensure the safety plug is providing power to the Air Conditioner.
3. Allow 20" of clearance around the Air Conditioner for proper air circulation
4. When removing the Air Conditioner, be sure to remove the Window Kit.

RISFT TEST

TROUBLESHOOTING TIPS

Problem Possible Causes Solution
Unit does not start or operate	Power supply cord is not plugged into an outlet.	Plug the power cord into a grounded 3 prong outlet.
	Power supply cord has tripped. Press and release the RESET button on the power supply cord.
	The Power button has not been pressed. Press the Power button on the Control Panel or Remote Control to turn ON the air conditioner.
	There is no power to the electrical outlet. Plug a working lamp into the outlet to check for power.
	A household fuse has blown or a circuit breaker has tripped.	Replace the fuse or reset the circuit breaker.
	The control was programmed for a Time Delay.	Cancel the Time Delay. See “Control Panel.”
	The batteries in the remote control are dead. Replace the batteries.
	The internal water tank is full.NOTE: The air conditioner automatically turns off, and the Water Full indicator illuminates to alert you of this condition.	Empty the water tank. See “Air Conditioner Care.”
Remote control is not working	Batteries are dead. Replace the batteries.
	Batteries are installed incorrectly. Make sure the batteries are inserted in the correct position.
Air conditioner is working but the room is not cooling.	The room temperature is hot.NOTE: On extremely hot and humid days,the air conditioner will take longer to cool the room.	Allow time for the room to cool when you first turn on the unit.Make sure the air conditioner has an adequate BTU rating for the size of the room being cooled.
	The control is set incorrectly to Fan or DRY mode.	Set the Mode to Cool and the Fan Speed to High.
	Airflow is restricted. Remove any obstacles to the airflow and redirect airflow for uniform cooling.
	Temperature set too high. Lower the set temperature.
	Air filters are dirty or restricted.	Clean the air filter. See “Air Conditioner Care.”
	Air conditioner installed incorrectly	Check the exhaust hose and window panel for proper installation.
	Doors and windows are open.	Close the doors and windows to the room being cooled to prevent cooled air from escaping.

Error Codes

Error Codes	Meaning
E1	Abnormal sense of coil pipe sensor
E2	Abnormal sense of room temperature sensor
E4	Anti-frozen protection
FL	Full water

NOTES

LIMITED WARRANTY

For The Period Of: Haier Appliances Will Replace:

One YearFrom the date of the original purchase

Replacement, repair, or refund of the original retail price for any product which fails due to a defect in materials or workmanship. If the unit is exchanged, the replacement unit is warranted for the remainder of your product's original one-year warranty period. Haier Appliances will, at its sole discretion, replace the product with a product of the same or comparable functionality and quality or refund the original retail price.

In Order to Make a Warranty Claim During the First 90 Days from the Date of Original Purchase:

• Properly pack your unit. We recommend using the original carton and packing materials.
• Return the product to the retail location where it was purchased.

- Include in the package a copy of the sales receipt or other evidence of date of original purchase. Also print your name and address and a description of the defect.

In Order to Make a Warranty Claim During the Remainder of the One-Year Warranty:

• Locate your original sales receipt and make a note of your model and serial number.
• Visit haierappliances.com to initiate the product replacement process.
• You will be asked to provide your name, address, date of purchase, model and serial number.

• Haier Appliances will arrange for a carton to be sent to your home to recover the product.

• Please return all requested materials (postage pre-paid) in the carton provided. Please include a description of the defect.

• You should receive your replacement product or refund within 7 to 10 business days after your package is received.

What Will Not Cover:

• Customer instruction. This owner's manual provides information regarding operating instructions and user controls.
• Improper installation. If you have an installation problem, or if the air conditioner is of improper capacity, contact your dealer or installer. You are responsible for providing adequate electrical connecting facilities.

• Failure of the product resulting from modifications to the product or due to unreasonable use including failure to provide reasonable and necessary maintenance.

• Replacement of house fuses or resetting of circuit breakers.

• Failure due to corrosion on models not corrosion-protected.
• Damage to the product caused by improper power supply voltage, accident, fire, floods or acts of God.
• Incidental or consequential damage caused by possible defects with this air conditioner.
  • Damage caused after delivery.

EXCLUSION OF IMPLIED WARRANTIES - Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchant ability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

For US Customers: This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a Haier Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized Haier Appliances Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor US:

GE Appliances, a Haier company

Louisville, KY 40225

TABLE DES MATIÈRES

CONSIGNES DE SÉCURITÉ IMPORTANTES 18

COMMANDES....19

ENTRETIEN ET NETTOYAGE 22

INSTRUCTIONS D'INSTALLATION 24

CONSEILS DE DÉPANNAGE 28

GARANTIE LIMITÉE 29

CONSERVER DANS VOS DOSSIERS

Hi♦ Lo♦ °C/°F 8 7

COMMANDES

Diagram illustrating the installation and cleaning process of an air conditioner unit, showing steps from cooling to cleaning.

ENTRETIEN ET NETTOYAGE

Line drawing of an air purifier unit with cooling fans and a bowl, no text or symbols present

Entreposage

Two-panel illustration showing a small air conditioner unit and its exterior panel with a door (no text or symbols)

PIÈCES INCLUES

Diagram of an industrial server rack with numbered components for identification

Technical diagram of a mechanical ventilation system with labeled components and parts

INSTRUCTIONS D'INSTALLATION

Excessive Weight Hazard

Technical diagram of a mechanical device with internal components and a pipe connection (no text or symbols)

Verrou à came

Two-panel illustration showing a small air conditioner unit and its exterior panel with doors (no text or symbols)

20"

Line drawing of a handheld device with labeled buttons (no text or symbols beyond 'RESET' and 'TEST')

CONSEILS DE DÉPANNAGE

Garant : GE Appliances, a Haier company

Louisville, KY 40225

ÍNDICE

Hi♦ Lo♦ °C/°F 8 7

Line drawing of a large industrial air conditioner unit with cooling fans and a bowl nearby (no text or symbols)

RANGEMENT

Two-panel illustration showing a small air conditioner unit and its exterior panel with a door (no text or symbols)

Diagram of an industrial server rack with numbered components for identification

Diagram of a coiled spring with a labeled point (9) and a red arrow pointing to the center (no text or symbols beyond the label)

Technical line drawing of a vertical industrial or storage unit with a grid-patterned panel and labeled component (no text or symbols beyond label)

Pure diagram of a rectangular object with an oval cutout and a numbered marker (10) at the bottom, no text or symbols present.

Technical diagram of a mechanical device with internal components and a pipe connection (no text or symbols)

3. INSTALE LOS PANELES DE LA VENTANA

Diagram of a window with directional arrows indicating airflow or movement, labeled 'interior' at bottom (no text or symbols on diagram itself)

Interior view of a double door with directional arrows indicating movement, labeled 'interior' (no text or symbols on the diagram itself)

Two-panel illustration showing a small air conditioner unit and its exterior panel with control buttons (no text or symbols)

20"

GE Appliances, a Haier company

Louisville, KY 40225

NOTAS

IMPORTANT

Do Not Return This Product To The Store

If you have a problem with this product, please call 1-877-337-3639 for the name and telephone number of the nearest authorized service center.

DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE

IMPORTANTE
