USER MANUAL RIB 6K-3HM Kern

Digital balance scale with digital display and control panel (no visible text or symbols)

RIB-HM

Digital laboratory balance scale with digital display and control buttons (no visible text or symbols)

RIB-M

RIB-BA-def-2312

GB Further language versions you will find online under www.kern-sohn.com/manuals

Digital kitchen scale with digital display showing 0.000, 0.000, and 0.000 units (no visible text or labels)

Labeled diagram of a device rear panel with numbered components and directional arrows indicating ports or features.

Metallic container with a coiled cable or spring attached to top, showing internal texture and no visible text or symbols.

Close-up of a metallic electronic component with a coiled cable or connector attached (no visible text or symbols)

• und am Stativ

Diagram of a cable or connector inserted into a rectangular housing, with arrows indicating direction (no text or symbols present)

Diagram of a cable connector being inserted into an open terminal block (no text or symbols visible)

Close-up of a metallic mechanical component with two small arrows pointing to a central slot (no text or symbols visible)

Digital pressure scale with digital display showing 0.00 and 1.00 mm (no visible text or symbols on the scale itself)

Labeled diagram of a device rear panel showing components with numbered annotations

Close-up of a gray ergonomic device with a flat top and curved base, showing no text or symbols.

Close-up of a gray electronic device with a control panel and display (no visible text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Operating instructions

Price calculating balance

Contents

1 Technical data.... 3

1.1 Dimensions....4

2 Appliance overview 5

2.1 Overview of display 7

2.2 Keyboard overview 9

3 Basic Information (General).... 11

3.1 Intended use.... 11

3.2 Improper Use....11

3.3 Warranty 11

3.4 Monitoring of Test Resources 11

4 Basic Safety Precautions.... 12

4.1 Pay attention to the instructions in the Operation Manual.... 12

4.2 Personnel training.... 12

5 Transport and storage.... 12

5.1 Testing upon acceptance 12

5.2 Packaging / return transport 12

6 Unpacking, Setup and Commissioning 13

6.1 Installation Site, Location of Use 13

6.2 Unpacking....13

6.2.1 Placing 14

6.2.2 Scope of delivery / serial accessories: 14

6.3 Mains connection.... 14

6.4 Storage battery operation (optional) 14

6.5 Assembly of tripod (only H models).... 15

6.6 Initial Commissioning.... 17

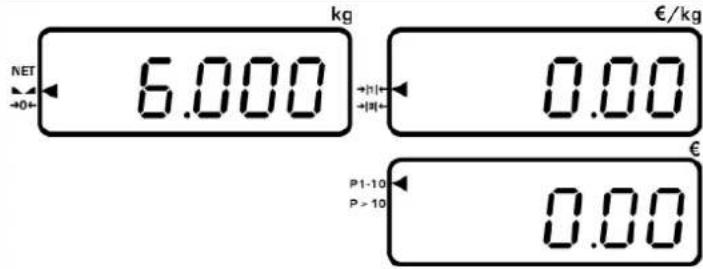

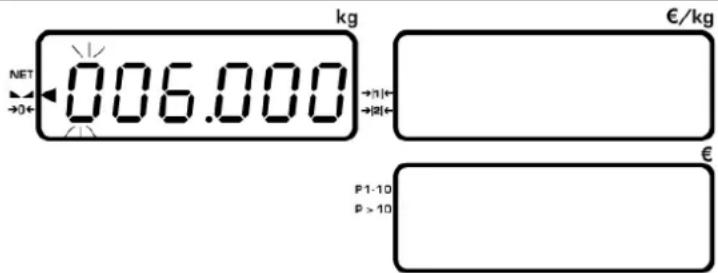

6.7 Adjustment....17

6.8 Verification....20

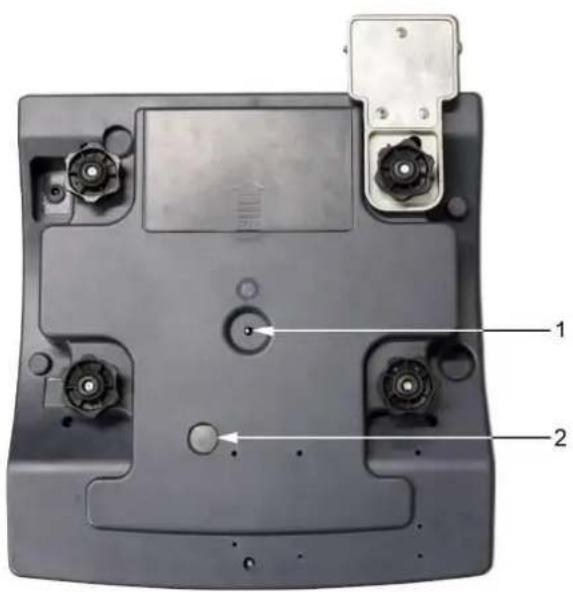

6.8.1 Adjustment switch and seals 21

6.9 Checking the balance verification settings 21

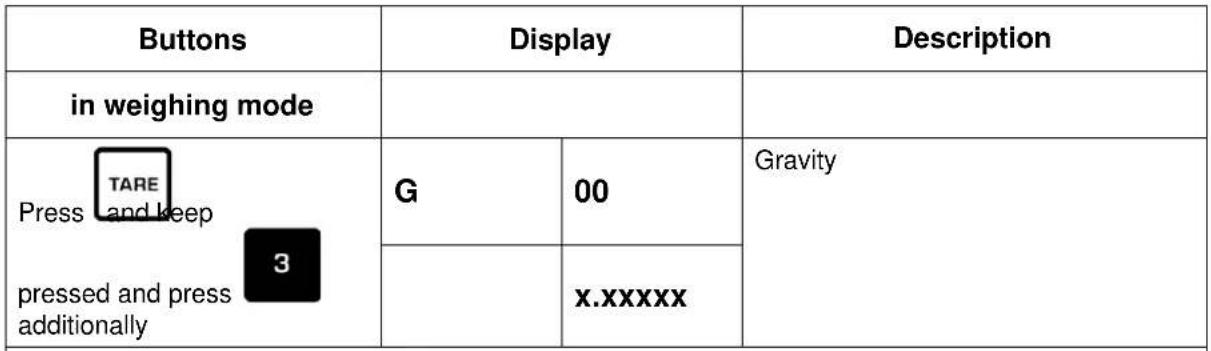

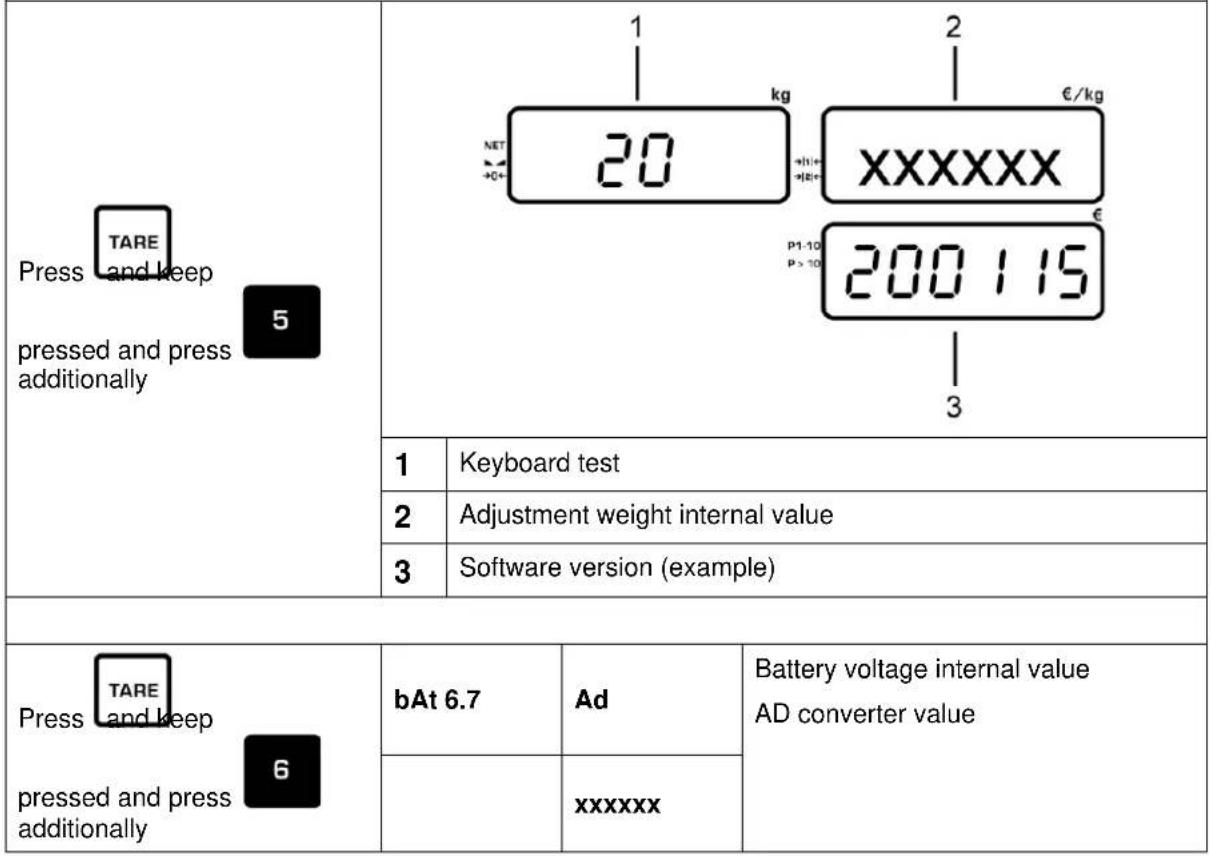

6.9.1 Service mode....22

7 Menu 23

7.1 Navigation in the menu....23

7.2 Menu overview 24

8 Operation....25

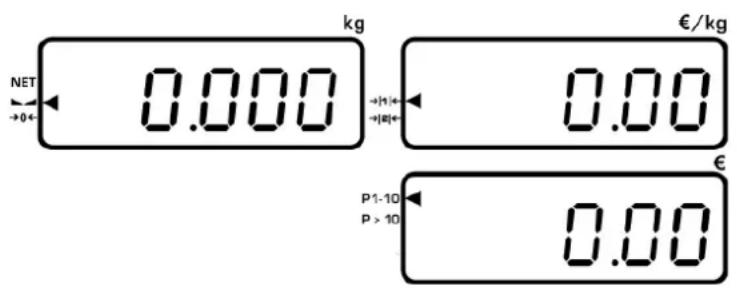

8.1 Turn on/off 25

8.2 Zeroing 25

8.3 Weighing with tare 25

8.4 Overload warning 26

9 Weighing with price determination 26

9.1 Basic price entry via keyboard 26

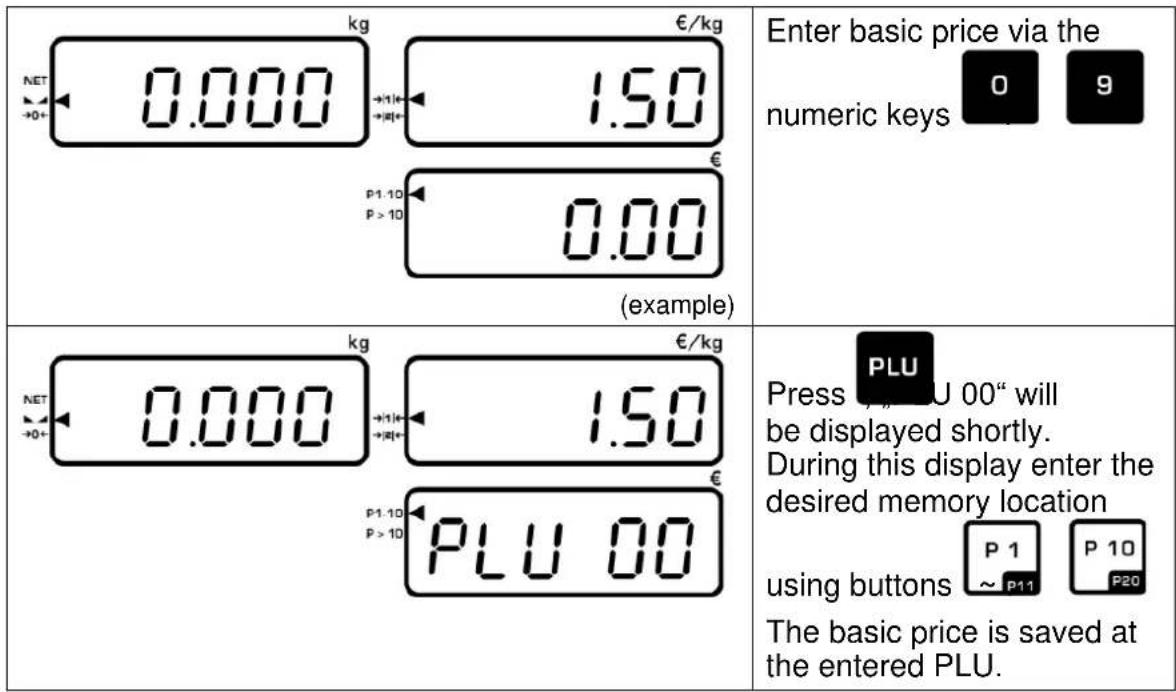

9.2 Memory for basic price (PLU = Price look up).... 27

10 Additional useful functions.... 28

10.1 Display background illumination....28

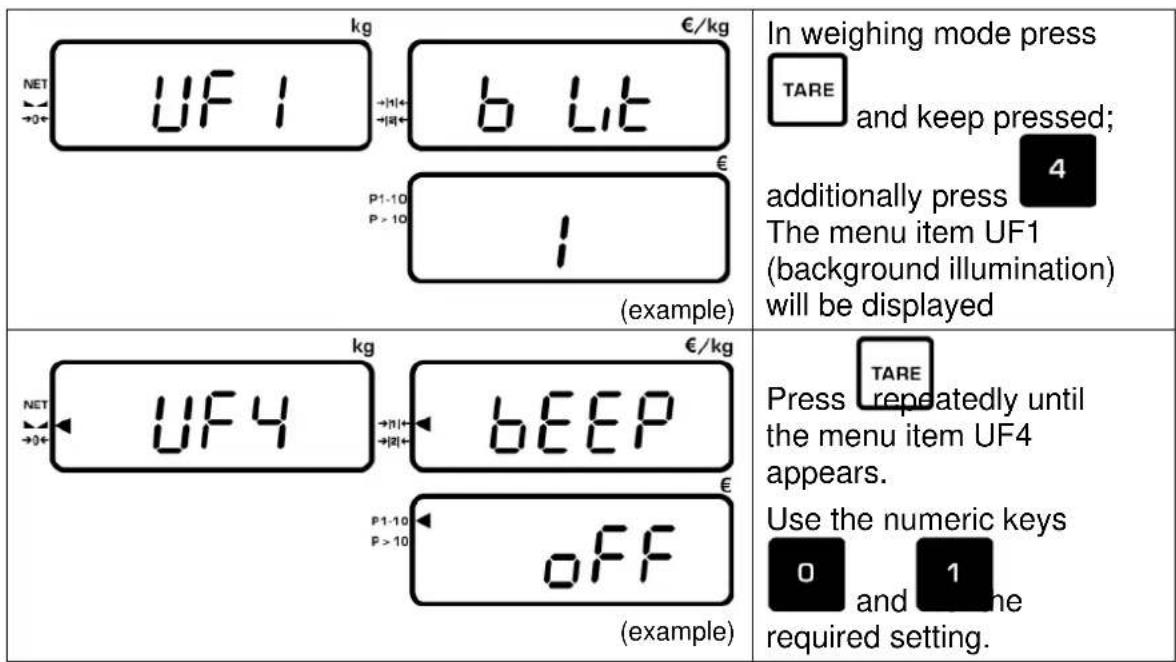

10.2 Signal tone....29

11 Servicing, maintenance, disposal 30

11.1 Cleaning 30
11.2 Servicing, maintenance 30
11.3 Disposal 30

12 Instant help.... 31

12.1 Error messages 31

1 Technical data

Models without vertical display:

KERN	RIB 6K-3M	RIB 10K-3M	RIB 30K-2M
Weighing range (max)	3 kg / 6 kg	6 kg / 15 kg	15 kg / 30 kg
Readability (d)	1 g / 2 g	2 g / 5 g	5 g / 10 g
Minimum load (Min)	20 g; 40 g	40 g; 100 g	100 g, 200 g
Verification value (e)	1 g / 2g	2 g / 5 g	5 g / 10 g
Verification class	III	III	III
Reproducibility	1 g / 2 g	2 g / 5 g	5 g / 10 g
Linearity	±1 g / ±2 g	±2 g /±5 g	±5 g / ±10 g
Recommended adjusting weight (not supplied)	5 kg; 1 kg (F2)	10 kg; 5 kg (M1)	20 kg;10 kg(M1)
Stabilization time	2 s
Heating time (operating temperature)	10 min
Net weight (kg)	3.2 kg
Admissible ambient temperature	-10°C to 40°C
Allowable air humidity	0% - 80% (non-condensing)
Electric power supply	Mains adapter 220 V – 240 V AC 50 Hz balance 12 V, 500 mA
Rechargeable battery (optional)	6 V, 4 Ah
	Operating time – background lighting OFF 80 hrs.
	Loading time approx. 14 hrs.

Models with post-mounted display:

KERN	RIB 6K-3HM	RIB 10K-3HM	RIB 30K-2HM
Weighing range (max)	3 kg / 6 kg	6 kg / 15 kg	15 kg / 30 kg
Readability (d)	1 g / 2 g	2 g / 5 g	5 g / 10 g
Minimum load (Min)	20 g; 40 g	40 g; 100 g	100 g; 200 g
Verification value (e)	1 g / 2g	2 g / 5 g	5 g / 10 g
Verification class	III	III	III
Reproducibility	1 g / 2 g	2 g / 5 g	5 g / 10 g
Linearity	± 1 g / ±2 g	± 2 g /± 5 g	± 5 g / ±10 g
Recommended adjusting weight (not supplied)	5 kg; 1 kg (F2)	10 kg; 5 kg (M1)	20 kg;10 kg (M1)
Stabilization time	2 s
Heating time (operating temperature)	10 min
Net weight (kg)	3.8 kg
Admissible ambient temperature	-10°C to 40°C
Allowable air humidity	0% - 80% (non-condensing)
Electric power supply	Mains adapter 220 V – 240 V AC 50 Hz balance 12 V, 500 mA
Rechargeable battery (optional)	6 V, 4 Ah
	Operating time – background lighting OFF 80 hrs.
	Loading time approx. 14 hrs.

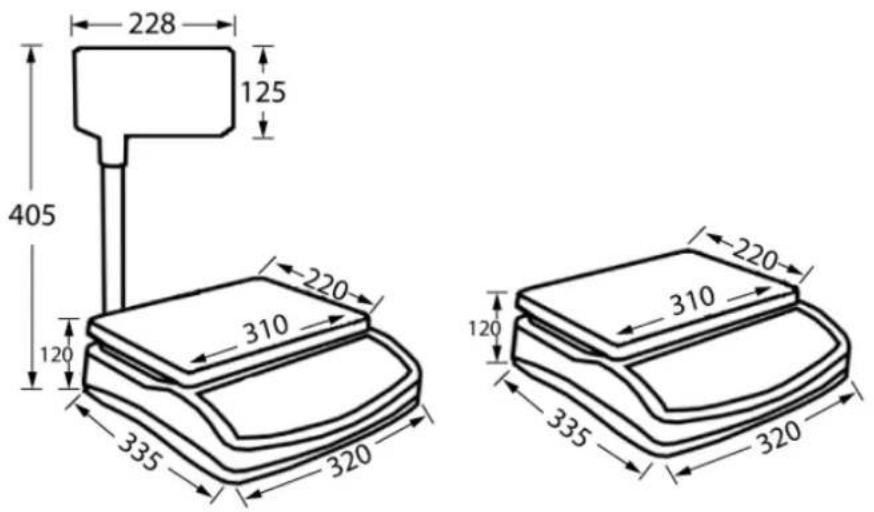

1.1 Dimensions

228 125 405 220 310 120 335 320 220 310 120 335 320

2 Appliance overview

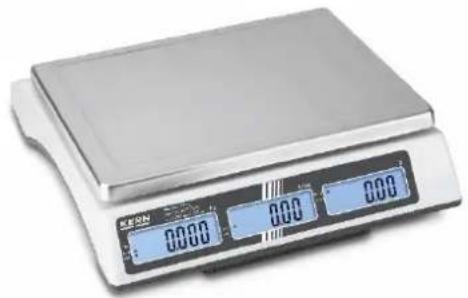

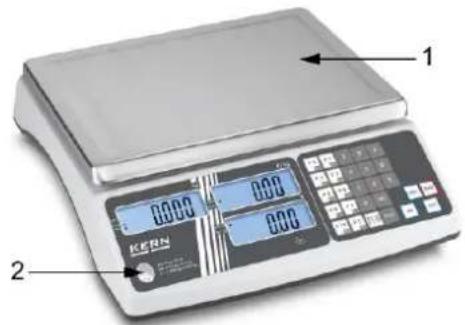

Models without post-mounted display:

Operating side

1 2 KERN

Rear

Digital kitchen scale with digital display showing 0.000, 0.00, and 0.00 units (no visible text or labels)

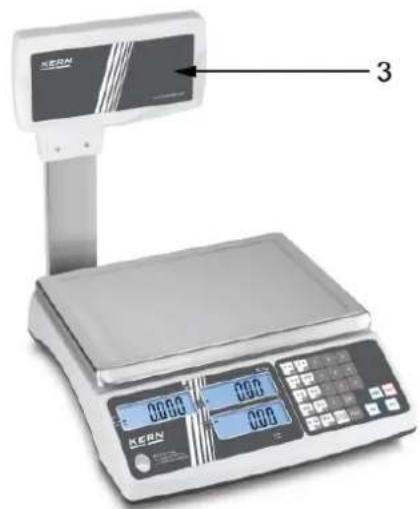

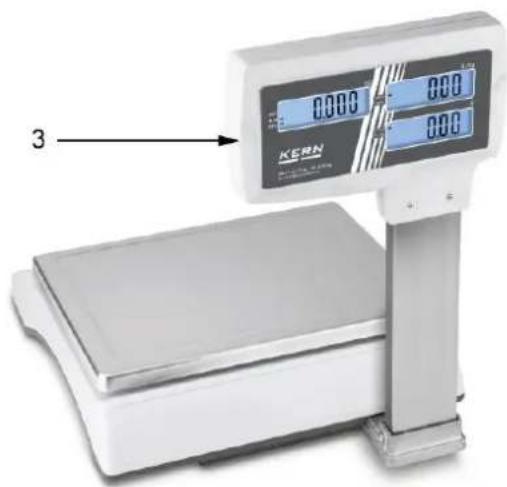

Models with post-mounted display:

Operating side

KERN 3

Rear

3 KEEN

1. Weighing plate / rechargeable battery compartment (under weighing plate)
2. Bubble level
3. Post-mounted display

Bottom of the balance

Labeled diagram of a device rear panel with numbered components and directional arrows indicating features.

1. Tripod holder (only H models)
2. Battery compartment
3. Adjustment switch
4. Footscrews
5. Mains adapter connection

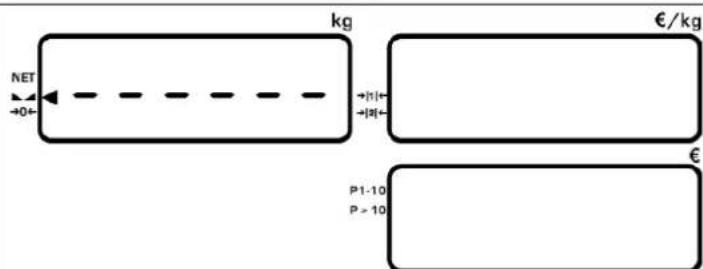

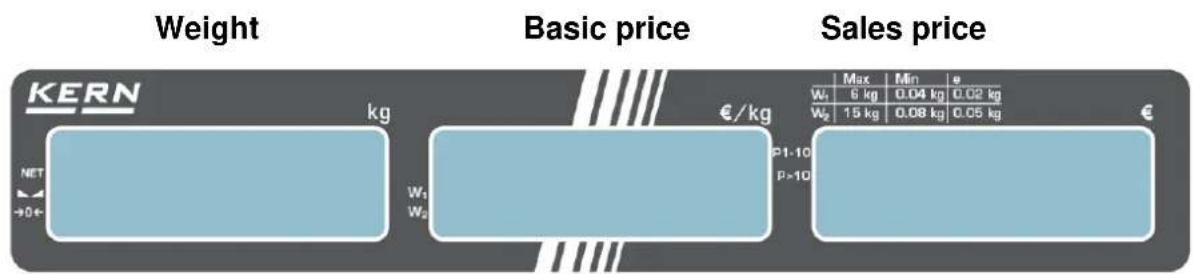

2.1 Overview of display

• Balance display (for all models)

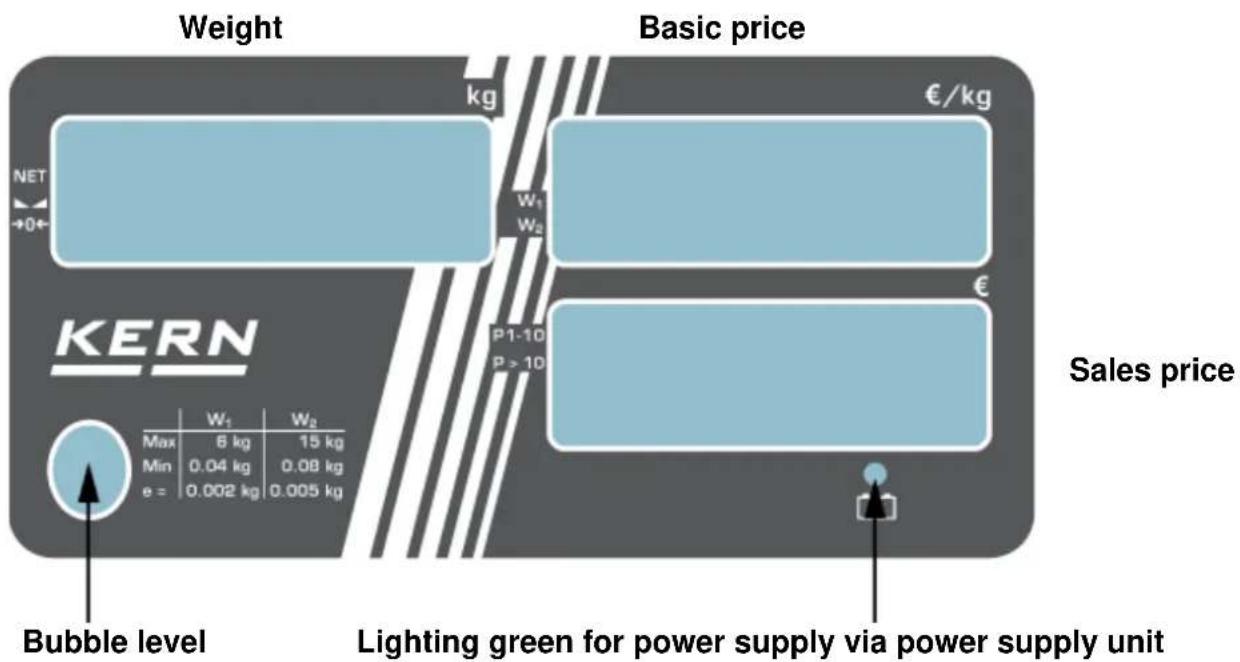

• Balance display and post-mounted display (only for models with tripod)

Weight Basic price €/kg kg NET +0+ W1 W2 P1-10 P > 10 € KERN Sales price Bubble level Lighting green for power supply via power supply unit W1 W2 Max 6 kg 15 kg Min 0.04 kg 0.08 kg e = 0.002 kg 0.005 kg

- Display on backside of balance (only for models without tripod)

Display weight

Here, the weight of your goods is displayed.

		Battery very low
		Weighing unit
		Net weight
		Stability display
		Zeroing display

Display basic price

		Battery very low
		Range
		Basic price in €/kg

Display sale price

Here the sales price is displayed in Euro [€].

◀

PLU'sMemory location 1-10Memory location 11-20

Display mains operation

	LED
	green	for connection to power supply

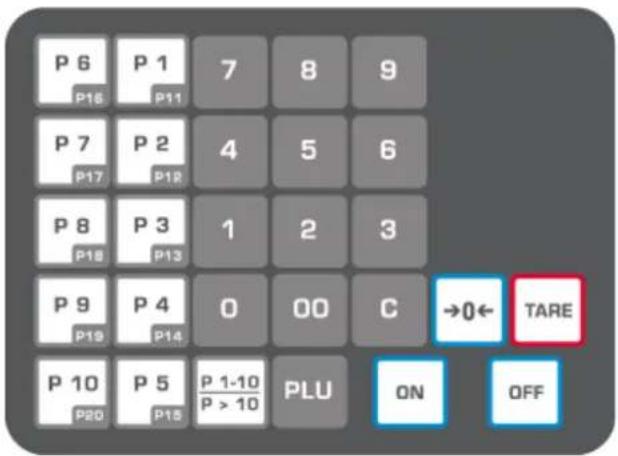

2.2 Keyboard overview

P 6 P16 P 1 P11 7 8 9 P 7 P17 P 2 P12 4 5 6 P 8 P18 P 3 P13 1 2 3 P 9 P19 P 4 P14 0 00 C →0← TARE P 10 P20 P 5 P15 P 1-10 P >10 PLU ON OFF

Selection	Function
	PLU keys
	Numeric keys
	Delete basic price- In menu: Exit function / back to weighing mode.
	Store basic priceIn menu: Confirm entry
	Change between the memory locations 1-10 and 11-20
	Calculate sales price
	· Zeroing- Change back in menu- For numeric entry:Move decimal point to the left
	· Taring	In menu:4Call menu together withChange forward in menuFor numeric entry:Move decimal point to the right
	· Switch on balance
	· Switch off the balance

3 Basic Information (General)

3.1 Intended use

The balance you purchased is intended to determine the weighing value of material to be weighed. It is intended to be used as a “non-automatic balance”, i.e. the material to be weighed is manually and carefully placed in the centre of the weighing pan. As soon as a stable weighing value is reached the weighing value can be read.

3.2 Improper Use

• Our balances are non-automatic balances and not provided for use in dynamic weighing processes. However, the balances can also be used for dynamic weighing processes after verifying their individual operative range, and here especially the accuracy requirements of the application.
• Do not leave permanent load on the weighing plate. This may damage the measuring system.
• Impacts and overloading exceeding the stated maximum load (max) of the balance, minus a possibly existing tare load, must be strictly avoided. Balance may be damage by this.
• Never operate the balance in explosive environment. The serial version is not explosion protected.
• The structure of the balance may not be modified. This may lead to incorrect weighing results, safety-related faults and destruction of the balance.
• The balance may only be used according to the described conditions. Other areas of use must be released by KERN in writing.

3.3 Warranty

Warranty claims shall be voided in case

• Our conditions in the operation manual are ignored
• The appliance is used outside the described uses
• The appliance is modified or opened
• Mechanical damage or damage by media, liquids, natural wear and tear
• The appliance is improperly set up or incorrectly electrically connected
• The measuring system is overloaded

3.4 Monitoring of Test Resources

In the framework of quality assurance the measuring-related properties of the balance and, if applicable, the testing weight, must be checked regularly. The responsible user must define a suitable interval as well as type and scope of this test. Information is available on KERN's home page (www.kern-sohn.com with regard to the monitoring of balance test substances and the test weights required for this. In KERN's accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost.

4 Basic Safety Precautions

4.1 Pay attention to the instructions in the Operation Manual

⇒ Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances.

4.2 Personnel training

The appliance may only be operated and maintained by trained personnel.

5 Transport and storage

5.1 Testing upon acceptance

When receiving the appliance, please check packaging immediately, and the appliance itself when unpacking for possible visible damage.

5.2 Packaging / return transport

→ Keep all parts of the original packaging for a possibly required return.
⇒ Only use original packaging for returning.
→ Prior to dispatch disconnect all cables and remove loose/mobile parts.
→ Reattach possibly supplied transport securing devices.
⇒ Secure all parts such as the wind screen, the weighing plate, power supply unit etc. against shifting and damage.

6 Unpacking, Setup and Commissioning

6.1 Installation Site, Location of Use

The balances are designed in a way that reliable weighing results are achieved in common conditions of use.

You will work accurately and fast, if you select the right location for your balance.

On the installation site observe the following:

• Place the balance on a firm, level surface.
• Avoid extreme heat as well as temperature fluctuation caused by installing next to a radiator or in the direct sunlight.

- Protect the balance against direct draughts due to open windows and doors.

- Avoid jarring during weighing.

- Protect the balance against high humidity, vapours and dust.

- Do not expose the device to extreme dampness for longer periods of time. Non-permitted condensation (condensation of air humidity on the appliance) may occur if a cold appliance is taken to a considerably warmer environment. In this case, acclimatize the disconnected appliance for ca. 2 hours at room temperature.

- Avoid static charge of goods to be weighed or weighing container.

- Do not operate in areas with hazard of explosive material or in potentially explosive atmospheres due to materials such as gasses, steams, mists or dusts.

- Keep away chemicals (such as liquids or gasses), which could attack and damage the balance inside or from outside.

- In the event of the occurrence of electromagnetic fields, static charges (e.g., when weighing / counting plastic parts) and unstable power supply, large display deviations (incorrect weighing results, as well as damage to the scale) are possible. Change location or remove source of interference.

6.2 Unpacking

Carefully remove the balance from the packaging, remove plastic cover and setup balance at the intended workstation.

6.2.1 Placing

Level balance with foot screws until the air bubble of the water balance is in the prescribed circle.

6.2.2 Scope of delivery / serial accessories:

• Balance, see chap. 2
- Mains adapter
- Protective cover
- Operating instructions
- Tripod (only for H models)

6.3 Mains connection

Power is supplied via the external mains adapter. The stated voltage value must be the same as the local voltage.

Only use KERN original mains adapter. Using other makes requires consent by KERN.

Important:

Before starting your weighing balance, check the mains cable for damage.
➢ Ensure that the power unit does not come into contact with liquids.
➢ Ensure access to mains plug at all times.

6.4 Storage battery operation (optional)

The optionally supplied battery is charged with the supplied power supply. Before the first use, the battery should be charged by connecting it to the mains power supply for at least 14 hours.

- The appearance of the battery symbol is the display windows indicates that the battery is almost exhausted. Charge the battery with the help of the supplied power pack.

is displayed	Rechargeable battery capacity below 5.6 V
Flashing	Rechargeable battery capacity below 5.5 V
Balance will switch off automatically if the rechargeable battery capacity is below 5.4 V

6.5 Assembly of tripod (only H models)

Metal container with a spring-loaded cable or connector inserted into it, showing internal texture and mounting points (no text or symbols visible)

Connection cable - on the balance

Close-up of a metallic electronic component with a white connector inserted (no visible text or symbols)

• and on the tripod

Fix the tripod on the balance as described below:

Diagram of a cable being inserted into a metallic container, showing internal structure and directional arrows (no text or symbols)

Diagram showing a cable being inserted into a device, with no visible text or symbols.

Loosen the side screws from the tripod holder of the balance

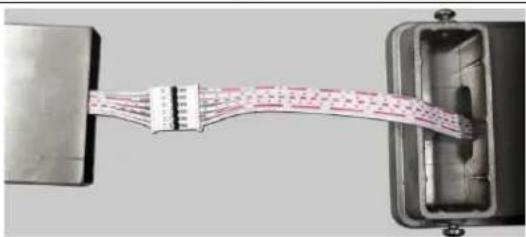

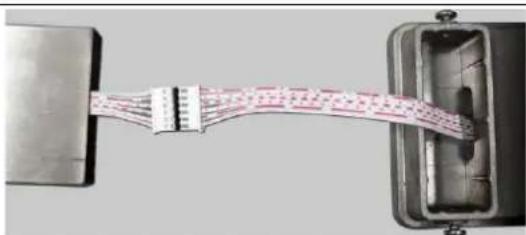

Plug together the both connections. Ensure that the cables are not twisted.

Close-up of a metallic mechanical component with two mounting holes and a central rectangular slot (no text or symbols visible)

Plug the tripod carefully into the tripod holder of the balance.

Ensure that the cables are not squeezed.

Align the display on the tripod towards the customer (see. fig. below).

Digital pressure scale with digital display showing 0.00 and 300 units (no visible text or symbols on the scale itself)

Fix the tripod using the two side screws of the tripod holder.

Switch on the balance and check if the tripod display works.

Should this not be the case, detach the tripod from the balance and check the connections.

6.6 Initial Commissioning

In order to obtain exact results with the electronic balances, your balance must have reached the operating temperature (see warming up time chap. During this warming up time the balance must be connected to the power supply (mains, accumulator).

The accuracy of the balance depends on the local acceleration of gravity.

Strictly observe hints in chapter Adjustment.

6.7 Adjustment

As the acceleration value due to gravity is not the same at every location on earth, each balance must be coordinated - in compliance with the underlying physical weighing principle - to the existing acceleration due to gravity at its place of location (only if the balance has not already been adjusted to the location in the factory). This adjustment process must be carried out for the first commissioning, after each change of location as well as in case of fluctuating environment temperature. To receive accurate measuring values it is also recommended to adjust the balance periodically in weighing operation.

• Carry out adjustment as near as possible to the balance's maximum weight (recommended adjustment weight see chap. 1). Weights of different nominal values or tolerance classes may be used for adjustment but are not optimal for technical measuring. The accuracy of the adjustment weight must correspond approximately to or, if possible, be better than, the readability [d] of the balance. Info about test weights can be found on the Internet at: http://www.kern-sohn.com
• Observe stable environmental conditions. A warm up time (see chapter 1) is required for stabilization.
• Ensure that there are no objects on the weighing plate.
• Avoid vibration and air flow.
• Always carry out adjustment with the standard weighing plate in place.
• The adjustment is locked in weighing scales with type approval certificate.

To disable the access lock, destroy the seal mark and actuate the adjustment switch. Position of the adjustment switch, see chap. 6.8.1.

- Attention:

After destruction of the seal the balance must be re-verified by an authorised agency and a new verification wire/seal mark fitted before it can be reused for applications subject to verification.

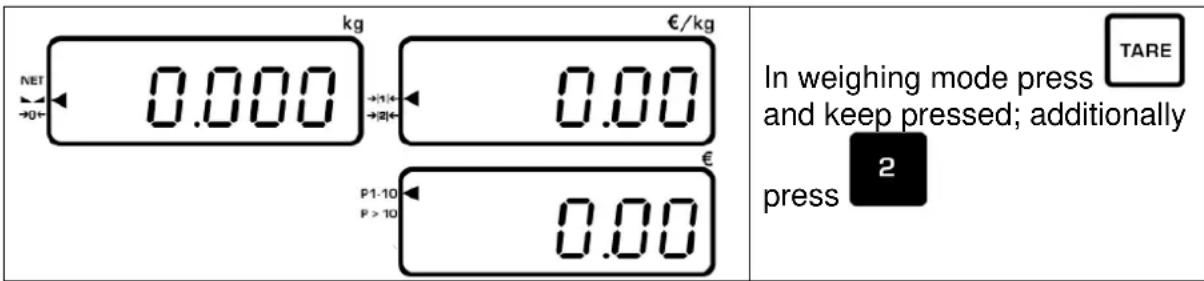

Procedure when adjusting:

Observe stable environmental conditions. A warming up time (see chapter 1) is required for stabilization. Ensure that there are no objects on the weighing pan.

Arrange adjustment weight, details see chap.1 „Technical data“

NET 0.000 →0← kg €/kg 0.00 →1/4← →2/4← P1-10 P > 10 € 0.00 In weighing mode press and keep pressed; additionally press TARE 2

If „CAL oFF“ appears in the window of the basic price or if the balance does not react, the verification switch on the lower side of the balance must be set to position „ON“, see chap. 6.8.1

kg €/kg NET 0.06.000 →|t| →|t| P1-10 P >10 €

The value of the adjustment weight appears.

The first digit is flashing.

Either

- Take over the displayed adjustment weight,

or

- use the numeric keys to enter a new adjustment weight

Put adjustment weight in the centre of the weighing plate

and confirm by

	„----“ will be displayed shortly, the balance will be adjusted and after that changes automatically into weighing mode.
	The weight value of the adjustment weight on the weighing plate will be displayed.Now the process of adjustment has been finished successfully.

In case of an adjustment error or incorrect adjusting weight the display will show an error message; repeat adjustment process.

6.8 Verification

General:

According to EU directive 2014/31/EU balances must be officially verified if they are used as follows (legally controlled area):

• For commercial transactions if the price of goods is determined by weighing.
• For the production of medicines in pharmacies as well as for analyses in the medical and pharmaceutical laboratory.
• For official purposes
• For manufacturing final packages

In cases of doubt, please contact your local trade in standard.

Balances in the legally controlled area (-> verified balances) must keep the error limits in the verification validity period – normally they are the double of the verification error limits.

When this verification validity period expires, a re-verification must be carried out. Should be necessary an adjustment of the balance to keep the verification error limits to satisfy the reverification requirements, this is not deemed a warranty case.

Verification notes:

An EU type approval exists for balances described in their technical data as verifiable. If the balance is used where obligation to verify exists as described above, it must be verified and re-verified at regular intervals.

Re-verification of a balance is carried out according to the respective national regulations. The validity for verification of balances in Germany is e.g. 2 years.

The legal regulation of the country where the balance is used must be observed!

Verification of the balance is invalid without the seal.

The seal marks attached on balances with type approval point out that the balance may only be opened and serviced by trained and authorised specialist staff. If the seal mark is destroyed, verification looses its validity. Please observe all national laws and legal regulations. In Germany a reverification will be necessary.

6.8.1 Adjustment switch and seals

Labeled diagram of a device rear panel showing components with numbered annotations

1. Adjustment switch
2. Verification switch

Close-up of a mechanical component with a curved base and mounting feet (no visible text or symbols)

Close-up of a gray electronic device with a control panel and buttons (no visible text or symbols)

Sealing points on both sides

6.9 Checking the balance verification settings

For the adjustment, the balance must be switched over to service mode.

In the service mode the parameters of the balance can be modified. If this happened accidentally, please contact KERN.

In calibrated scales the service mode is locked individually for each switch. To disable the access lock, destroy the seal and actuate the switch.

Attention:

After destruction of the seal the balance must be re-verified by an authorised agency and a new verification wire/seal mark fitted before it can be reused for applications subject to verification.

6.9.1 Service mode

This overview of the service parameters is merely for checking the parameters set by the appropriate Bureau of Standards. No changes may be made.

7 Menu

7.1 Navigation in the menu

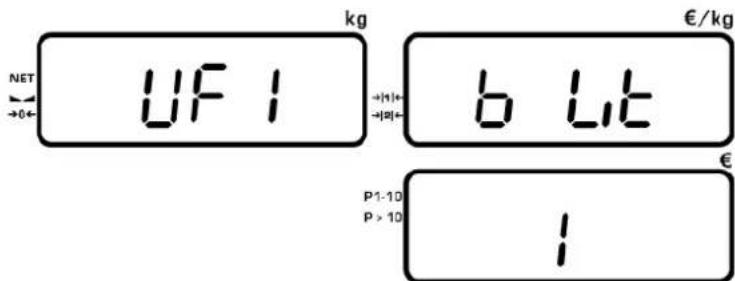

Call up menu	In weighing mode press and keep pressed; additionallypressThe first menu item UF1(background illumination) will be displayed
Select menu blockTAREUse to change menu item backward→0←Use to change menu item forward
Set parameterUsing numeric key 0 9
Confirm settingPLU⇒ Press
Back to weighing mode / exit function without savingC⇒ Press

7.2 Menu overview

Function		Settingsand		Description
UF1	b Lit			Background illumination, see chap. 10.1
	1 (example)	1		Background illumination automatically off
		0		Background lighting off
UF2	rS232			not documented
	1 (example)	0-3
UF3	bAUd			not documented
	9600 (example)	1200, 2400, 4800, 9600
UF4	bEEP			Signal tone when pressing button
	oFF (example)	0	off	Signal tone off
		1	on	Signal tone on

8 Operation

8.1 Turn on/off

To switch on, press ON The balance will carry out a self-test As soon as the weight display shows "0" in all the three display windows your balance is ready to weigh.

NET →0+ 0.000 kg →+|t|← →+|e| 0.00 €/kg P1-10 P > 10 0.00 €

To switch off, press OFF and keep pressed. In the weight display appears „oFF“, continue to press OFF until the display „oFF“ extinguishes. The balance is now switched off.

8.2 Zeroing

Resetting to zero corrects the influence of light soiling on the weighing plate.

→ Unload the balance

Press the balance starts resetting to zero. The indicator [◀] next to →0◀ appears.

8.3 Weighing with tare

⇒ Deposit weighing vessel. After successful standstill control press the button. Zero display and the indicator [◀] next to [NET] appear.

→ Weigh the material, the net weight will be indicated.

⇒ The weight of the weighing container will be displayed as a minus number after removing the weighing container.

⇒ To delete the TARE value unload the weighing plate and press, indicator [◀] next to [NET] extinguishes.

8.4 Overload warning

Overloading exceeding the stated maximum load (max) of the balance, minus a possibly existing tare load, must be strictly avoided. This could cause damage to the balance.

Exceeding maximum load is indicated by the display of „hhhhhh“ and a signal tone (if it before in the menu has been set to „on“). Unload balance or reduce preload.

9 Weighing with price determination

As soon as the goods to be weighed are placed on the balance and the basic price has been set the price is calculated automatically and displayed in the provided field.

9.1 Basic price entry via keyboard

When using the weighing container, tare by using see chap. 8.3.

€/kg NET 0.000 →|H| →|B| 0.00 P1-10 P > 10 0.00 (example)	Place weighing good A and enter basic price via the numeric keys 0 9
€/kg NET 2.000 →|H| →|B| 2.00 P1-10 P > 10 4.00 (example)	The sales price will be automatically calculated.

i

• The set basic price is deleted by
  • Calculating the change, see chap. 9.2

9.2 Memory for basic price (PLU = Price look up)

The balance is able to store up to 40 basic prices.

Save:

→ Unload weighing plate

€/kg NET 0.000 1.50 →0+ →1+ →2+ P1-10 P >10 0.00 (example) Enter basic price via the numeric keys 0 9 PLU Press "U 00" will be displayed shortly. During this display enter the desired memory location using buttons P 1 ~ P11 P 10 P20 The basic price is saved at the entered PLU.

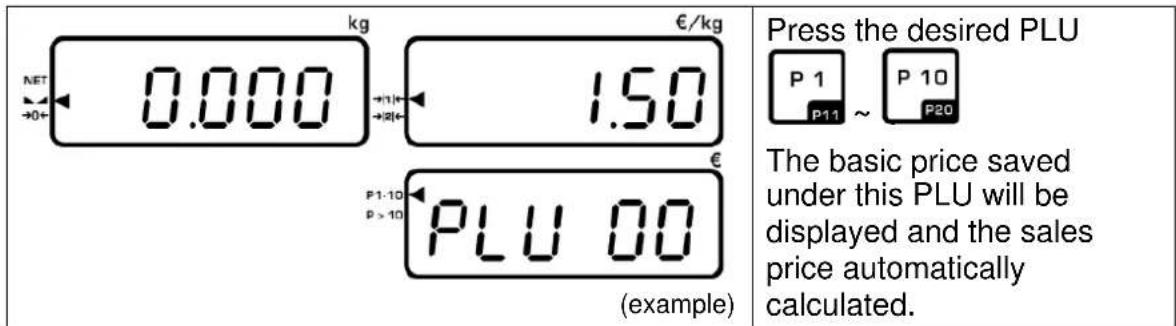

Retrieve / show sales price:

→ Place goods to be weighed

NET 0.000 €/kg 1.50 P 1 P11 ~ P 10 P 10 P > 10 PLU 00 example) Press the desired PLU The basic price saved under this PLU will be displayed and the sales price automatically calculated.

10 Additional useful functions

10.1 Display background illumination

€/kg NET UF1 +|t| +|t| P1-10 P > 10 (example) In weighing mode press TARE and keep pressed; 4 additionally press The menu item UF1 (background illumination) will be displayed €/kg NET UF1 +|t| +|t| P1-10 P > 10 (example) Use the numeric keys 0 and whene required setting.

0	Background lighting off	To save battery power
1	Background illumination automatically off	Backlighting automatically switched off 10 seconds after achieving stable weighing value to save battery power

€/kg UF1 bLit P1-10 P > 10 0 (example)	Select desired setting by PLU
€/kg 0.000 0.00 P1-10 P > 10 0.00	Then the balance changes automatically into weighing mode. The selected setting has been accepted.

10.2 Signal tone

There exists the possibility to activate a signal which sounds by pressing a key or with overload.

For this purpose proceed as follows:

€/kg In weighing mode press TARE and keep pressed; 4 additionally press The menu item UF1 (background illumination) will be displayed €/kg Press repeatedly until the menu item UF4 appears. Use the numeric keys 0 and 1 required setting. NET UF1 P1-10 P > 10 (bIT) 1 example) NF4 P1-10 P > 10 BEEP OFF example)

0	Signal tone off
1	Signal tone on

kg €/kg UF4 bEEP P1.10 P > 10 on (example)	Select desired setting by PLU
0.000 0.00 0.00 P1-10 P > 10 0.00	Then the balance changes automatically into weighing mode. The selected setting has been accepted.

11 Servicing, maintenance, disposal

Before any maintenance, cleaning and repair work disconnect the appliance from the operating voltage.

11.1 Cleaning

Please do not use aggressive cleaning agents (solvents or similar agents), but a cloth dampened with mild soap suds. Ensure that no liquid penetrates into the device. Polish with a dry soft cloth.

Loose residue sample/powder can be removed carefully with a brush or manual vacuum cleaner.

Spilled weighing goods must be removed immediately.

11.2 Servicing, maintenance

⇒ The appliance may only be opened by trained service technicians who are authorized by KERN.
⇒ Before opening, disconnect from power supply.

11.3 Disposal

Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used.

12 Instant help

In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning.

Fault

The displayed weight does not glow.

The displayed weight is permanently changing

The weighing result is obviously incorrect

Possible cause

• The balance is not switched on.
• The mains supply connection has been interrupted (mains cable not plugged in/faulty).
  • Power supply interrupted.
• Batteries are inserted incorrectly or empty
• No batteries inserted.
• Draught/air movement
• Glass doors not closed
• Table/floor vibrations
• Weighing pan has contact with other objects.
• Electromagnetic fields / static charging (choose different location/switch off interfering device if possible)
• The display of the balance is not at zero
• Adjustment is no longer correct.
• The balance is on an uneven surface.
• Great fluctuations in temperature.
• Electromagnetic fields / static charging (choose different location/switch off interfering device if possible)

Should other error messages occur, switch balance off and then on again. If the error message remains inform manufacturer.

12.1 Error messages

ERR 4	Zero range exceeded
ERR 5	Invalid entry
ERR 6	Damaged electronics

KERN RIB

Version 1.2 2023-12

8.4 Avertissement surcharge....27

Digital balance scale with labeled parts showing digital display and control buttons

Côté arrière

Digital kitchen scale with digital display showing 0.000, 0.00, and 0.00 units (no visible text or labels)

Labeled diagram of a device rear panel with numbered components and directional arrows indicating features.

Metal container with a spring-loaded cable or connector inserted into it, showing internal texture and mounting points (no text or symbols visible)

Close-up of a metallic electronic component with a white connector inserted (no visible text or symbols)

• et sur le statif

Diagram of a mechanical component with a coiled cable or spring attached to a metallic housing, showing directional arrows (no text or symbols)

Diagram showing a cable being inserted into a device, with no visible text or symbols.

Close-up of a metallic mechanical component with mounting holes and a central rectangular slot (no visible text or symbols)

Digital balance scale with digital display showing 0.00 and 0.00 units (no visible text or symbols on the scale itself)

Labeled diagram of a device rear panel showing components with numbered annotations

Close-up of a gray electronic device casing with a lid and mounting feet (no visible text or symbols)

Close-up of a gray electronic device with a control panel and display (no visible text or symbols)

8.4 Avertissement surcharge
