Einleitung

Technical diagram of a mechanical assembly with rotating components and directional arrows (no text or labels)

Diagram illustrating three steps of appliance cleaning: opening a door, moving a tray with a lid, and removing a bowl into a sink.

Technical diagram showing cross-sectional construction of a wall and foundation with labeled dimensions and material layers

Technical diagram of a mechanical assembly with rotating components and fan-like elements (no text or symbols)

⚠ WAARSCHUWING: Brandgevaar!

Technical diagram showing cross-section of a brick wall with labeled dimensions and structural elements

Technical diagram of a mechanical device with rotating components and fan mechanism (no text or symbols)

Diagram illustrating three steps of a device operation: adding a card, adding a box, and inserting into a container.

Diagram illustrating the process of recycling a waste bin with labeled components and recycling symbol

Secure the appliance adequately and protect it from the weather during transport.

Diagram illustrating airflow or ventilation system with labeled components and directional arrows

Modo recirculación

Diagram illustrating a mechanical or electrical system with labeled components and directional arrows indicating motion or force.

Modo de extracción

ADVERTENCIA:

Technical diagram showing structural components with Chinese labels, likely from an engineering or mechanical drawing.

Technical diagram of a mechanical assembly with rotating components and fan (no text or symbols)

Diagram illustrating three steps of a kitchen appliance: holding a tablet, adding a box to a bowl, and removing a lid.

Activated carbon filter for recirculation mode: ....

KF 571 (Art.-No. 257 100) no suministrado

Technical diagram showing a cross-section of a wall or structure with labeled components and dimension lines

Technical diagram of a mechanical assembly with rotating components and directional arrows (no text or labels)

Diagram illustrating three steps of a device operation: adding a paper, adding a box, and inserting into a container.

Diagram illustrating the process of a waste sorting system, showing fan rotation, recycling, and disposal steps.

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these instructions for se

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General notes

Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, also pass on the operating instructions.

i NOTE:

• Due to constant product modifications, your appliance may differ slightly from these operating instructions; Functions and methods of use remain unchanged.

• The illustrations in these operating instructions are for illustrative purposes only and may differ from the original appliance.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.

• The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries.
• Operate the appliance only properly installed.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• Do not operate the appliance without supervision.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible, the mains lead must be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil.

There is a danger of suffocation!

Special safety information for this unit

WARNING:

Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Note to your cooking appliance the manufacturer's instructions whether the operation of a cooker hood is allowed above it and possibly what safety distance must be maintained.

For the extraction mode:

• Provision shall be made for adequate ventilation in the room when the cooker hood is operated simultaneously with appliances that burn gas or other fuels.
• If the cooker hood and other devices which are powered other forms of energy as electricity, served together, the pressure in the room should not exceed 4 Pa (4x10 ^-5 bar).
• The extracted air may not be vented into a flue which is used for the waste gas from appliances which are powered by gas or other fuels.
• The requirements of the competent local authorities must be observed.

- Observe and follow further installation instructions that we give you in the chapter "Installation".

- ATTENTION: Accessible parts of the appliance may become hot when used with cooking utensils.

- Do not flambé under the cooker hood! You can fry under the hood due to fire hazard only under constant observation.

- Never allow a gas hotplate burning without cookware. Excess heat can damage the cooker hood.

• Overheated fats and oils can ignite easily. Never walk away from fat and oil when heating them.
• Do not check the filter condition while operation.
• NEVER use the appliance without fixed aluminum grease filter.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• The appliance must be cleaned regularly. Follow the instructions that we give you in the chapter “Cleaning and maintenance”. There is a risk of fire if cleaning is not carried out according to these instructions.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.

Transport and packaging

Transport the appliance

Secure the appliance adequately and protect it from the weather during transport.

Unpacking the appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.

Dispose of packaging materials that are no longer required in accordance with the locally applicable regulations.

- To prevent hazards, check the appliance for any transport damage.

- In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning and maintenance".

Appliance equipment

Appliance overview

1 Lower shaft 5 Glass front (grease filter
2 Upper shaft cover)
3 Motor unit 6 Control panel
4 Housing 7 Aluminum grease filter

Delivery scope

1x aluminum grease filter, 1x 2-part chimney shaft, 1x exhaust hose, 2x non-return valve, incl. installation material

Installation

The cooker hood is only intended to be installed over a hob with no more than four hob elements.

There must be a safety distance between the hot-plate of the cooking pot on the hob and the bottom part of the cooker hood:

The distance must be between 650 - 750 mm.

If the installation instructions for the gas cooker specify a greater distance, this distance must be taken into consideration.

Selecting the fume outlet

You can operate the cooker hood in two modes:

Extraction mode	Recirculation mode

Extraction mode

WARNING:

• The extracted air may not be vented into a flue which is used for the waste gas from appliances which are powered by gas or other fuels.
• When venting the extracted air, comply with the regulations of the relevant local authorities.

The hood has an upper air outlet to vent cooking odors to the outside.

The extracted air is normally vented vertically. The extracted air can be vented through the wall units and the loft floor to the roof ridge.

If there is a conduit under the wall units, the extraction duct can be routed so that the extracted air can be vented horizontally through the wall.

Recirculation mode

If you do not have a direct extraction vent to the outside; the hood can also work in recirculation mode (i.e. without an extraction vent to the outside; the filtered air is released back into the room). In this case, activated carbon filter as described under "Installing the activated carbon filter for recirculation mode", must be used.

Activated carbon filter are not supplied. You can order the carbon filter from your dealer or in our online accessories shop, www.bomann-germany.de.

Use the reference number found under "Technical data".

Assembly

WARNING:

• When assembling or inserting the extraction filter as well as the carbon filter, the appliance must not be connected to the mains.
• Failure to use the mounting fixtures may lead to a risk of electric shock.

CAUTION:

• Before mounting, check that the wall has enough load capacity to bear the cooker hood.
• When drilling the holes in the wall always make sure that no existing electrical cables or other objects are damaged.
• Make sure that the ventilation slots are clear of obstacles and are not covered.

NOTE: Recommendations for preparation work

• When installing, ask another person to assist.
• Wear protective gloves to prevent injuries from any sharp edges.

- Determine the position of the cooker hood centrally above the cooking area in accordance with the specified safety distances.

Totally 9x mounting holes with a diameter of approx. 8mm are necessary for the wall mounting. Insert the supplied dowels [08].

• Mark the holes required for wall mounting as shown in the drawing on page 3. First specify the extension length of the shaft cover for the position of the bracket [04] at the upper shaft end. Check the markings with a spirit level!
• Fix the bracket [05] for the housing with three screws St4*30mm [09] and the brackets [03] and [04] at the pre-marked positions, each with two screws St4*30mm [09].
• Before inserting the hood, affix the non-return valves [07] by gently bending them from above onto the exhaust duct.

For exhaust mode: Hereupon a flexible exhaust hose (included in delivery) with 150 mm inner diameter must be attached (using cable ties if necessary).

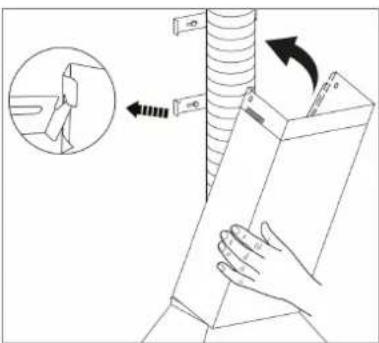

- Hang up the housing onto the bracket [05]. Check the secure hold and the horizontal position. Tighten the screws St4*30mm [09] through the housing.

For exhaust mode: Check the correct position of the exhaust hose and connect it with the outlet opening.

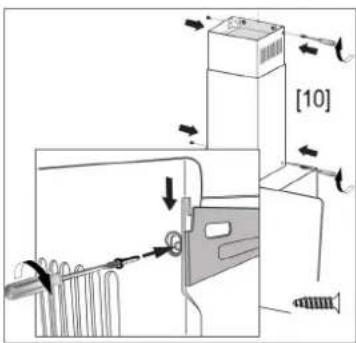

• Put on the telescope shaft unit and secure the lower shaft with the bracket [03].
• Pull up the inner shaft and fix the shaft cover sideways with the housing and the bracket [04] by screwing in each two screws St3*10mm [10].

Installing the activated carbon filter for recirculation mode

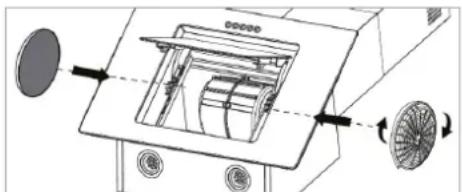

- Open the grease filter cover. Remove the aluminum grease filter(s) (see "Cleaning the aluminum grease filter").

Technical diagram of a mechanical assembly with rotating components and fan blades (no text or labels)

- Place the carbon filter onto the air intake of the extraction duct. Make sure that the mounting pins on the extraction duct engage the mounting slots of the carbon filter. Turn the filter clockwise until it clicks into place.

- Reinstall the aluminum grease filter(s). Close the cover.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!

WARNING:

• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.

• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

• Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the rating label.

• Connect the mains cable to a properly installed and earthed wall outlet.
• If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Startup / Operation

Control overview

The cooker hood is operated via push buttons:

0

Switch off operation

5

Low power level

[NO TEXT]

Medium power level

[NO TEXT]

High power level

[Non-Text]

Switch lighting on / off

Settings

Lowest power level: suitable for cooking on a low flame and for dishes which produce no or little steam to circulate the air around the kitchen.

[NO TEXT]

Medium power level: suitable for normal cooking.

[NO TEXT]

Highest power level: suitable if large quantities of smoke and steam need to be extracted or filtered (e.g. when frying).

Recommendation, with very strong vapor emission, the fan should continue running after cooking for a few minutes.

Energy saving tips

Information to reduce the environmental effect of cooking (acc. VO (EU) No. 66/2014 appendix I, No. 2)

• The diameter of the pot and pan floors should be according to the size of the cooking zone.
  ■ Use pans and pots with flat floors, uneven floors increase the energy consumption.
• Ensure that there is enough supply air for the operation of the cooker hood.

- Adjust the fan step intensity of the damp evolution of the cooking process.

- To product the optimal effect of the cooker hood, install it according to the installation instructions. Keep the distance between the upper edge of the cooker and the lower edge of the cooker hood.

- Clean the filter regularly.

■ Control the active carbon filter regularly and renew it as required.

■ Switch off the cooker hood after use.

- If your cooker hood has a switch-off delay, activate this function.

- Switch off the lighting after the cooking process.

■ We recommend the use of biological cleaners.

Cleaning and maintenance

WARNING:

• Always turn off the appliance and disconnect from the power supply before cleaning and user maintenance.
• Allow the appliance cool down sufficiently!
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts.
  • The unit must be dry before restarting operation.

CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive cleaners.

Maintenance of the cooker hood

• To clean the surface of the housing, use a mild detergent and a soft cloth to prevent scratching.
• The appliance can be used again after everything has dried properly.
• If you use your cooker hood in recirculation mode, you must replace the activated carbon filter regularly (see "Replacing the activated carbon filter").

Cleaning the aluminum grease filter

WARNUNG: Risk of fire!

Grease residue in aluminum grease filter may ignite at intense heat. Therefore, clean the grease filter regularly!

Depending on model there are one or two grease filters on the appliance. We recommend cleaning the grease filter(s) every month.

Diagram illustrating three steps of a kitchen appliance: opening, adding a box, and inserting into a sink with a handle.

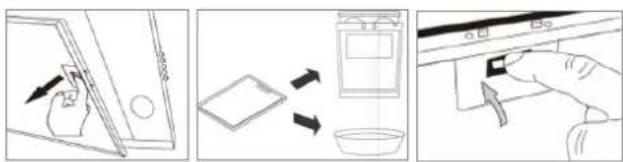

• Remove the aluminum grease filter by sliding back the lock in the handle recess, push the filter down gently and pull out towards the front.
• Rinse the grease filter in a solution of hot water and neutral detergent. Soak the filter in it.
• Then clean with a soft brush, rinse thoroughly with hot water and allow drying.
• Alternatively, the grease filter can also be cleaned in the dishwasher (up to 65°C). Slight discoloration may occur. This does not affect the function of the grease filter.

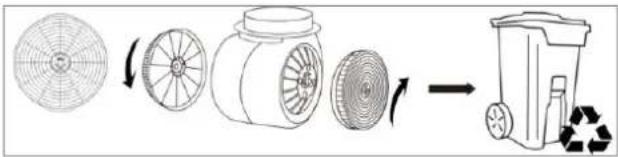

Replacing the activated carbon filter

The activated carbon filter prevents odors and must depend on the use but be changed at least every six months.

Order the carbon filter from your dealer or in our online accessories shop, www.bomann-germany.de. Use the reference number found under "Technical data".

Diagram illustrating the process of recycling a waste bin with labeled components and directional arrows.

• See "Installing the activated carbon filter for recirculation mode".
• Remove and dispose the old carbon filter.

Replacing the bulb

CAUTION:

Do NOT remove the LED lighting cover!

The bulb may only be replaced by an authorized specialist in case of a defect.

WARNING:

• The LED light is very bright and can damage the eyes. Never look directly into the LED light!
• Disconnect the appliance from the power supply and allow the lamps to cool down before changing the lamp. There is a risk of burns!

OTE:

Order the lamps from your dealer or in our online accessories shop www.bomann-germany.de.

This product contains a light source of energy efficiency class G.

Lamp data: LED max. 2 x 1.5 W, AC 110\~240 V

20 68 ↑↓

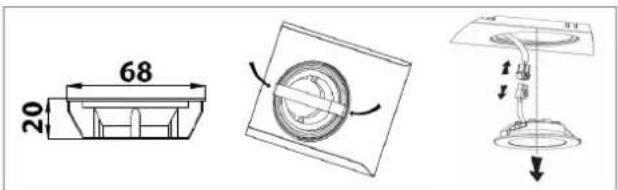

• Remove the grease filter(s). Carefully push the lamp out of the holder through the housing; pull out the lamp and release the plug connection.
• Replace defect LED module and connect the two ends of the plug-in device.
• Insert new lamp properly in the bulb holder. Replace the grease filter(s).

Troubleshooting

Before you contact an authorized specialist

Problem / cause / solution

Appliance is not working properly or at all

- Check the power supply.- Check the power level.

Appliance is not working efficiently

- Check the power level.- Is the kitchen properly ventilated?- Clean the grease filter(s).- At recirculation mode, check the carbon filter.- Check the air outlet.

Light does not work

Check the bulb, see “Replacing the bulb”.

Oil is dripping

Clean the grease filter(s).

i NOTE:

If a problem persists after following the steps above, contact your trader or an authorized technician.

Technical data

Electrical connection....

Connection voltage: 220-240 V\~ / 50 Hz

Connection power: 68 W

Lighting, LED: 2 × 1.5 W

Protection class: ....I

Dimension / weight......

Unit size: 78.9\~113.9 x 59.5 x 30.0 cm

Net weight: ....approx. 10.0 kg

Available accessory......

Activated carbon filter for recirculation mode: ....

KF 571 (Art.-No. 257 100) not supplied

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" symbol

This symbol indicates that this product must not be disposed of with household waste in accordance with the Waste Electrical and Electronic Equipment Directive (2012/19/EU) and national legislation. Improper handling of waste electrical and electronic equipment can have negative effects on the environment and human health due to potentially hazardous substances that are often contained in waste electrical and electronic equipment.

Consumers are legally obliged to dispose of electrical and electronic appliances separately from unsorted municipal waste at the end of their service life. By disposing of this product properly, you are also contributing to the effective utilization of natural resources.

Information on collection points for old appliances can be obtained from your local authority, the public waste disposal authority, an authorized body for the disposal of old electrical and electronic appliances or your waste collection service.

This product must be returned to a designated collection point. This can be done, for example, by returning it when purchasing a similar product or by handling it in at an authorized collection point for the recycling of old electrical and electronic equipment. The return of old appliances is free of charge. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.

Before disposing of the product, remove all batteries and rechargeable batteries as well as all lamps that can be removed without destroying them.

Please note that you are responsible for deleting personal data from the product to be disposed of.

WARNING:

Remove or destroy any existing latches and bolt locks when you take the appliance out of operation or dispose of it.

Information to professional users for disassembly (acc. VO (EU) No. 66/2014 appendix I, No. 2)

Information for non-destructive disassembly for maintenance purposes

• Please remove the filter and lamps as described in the manual.
  ■ Further steps of disassembly for maintenance are not provided.
• If you would like to exchange defective components, please contact our customer service.
  ■ Accumulators are not included.

Information for disassembly in terms of recycling, recovery and disposal at the end of the life of the appliance

• Check that the unit is disconnected from the power supply before removing all filter from the hood.
• First remove the chimney.

• When disassembling the hood, be sure that you first loosen the lower and then the upper screws.

• For the recycling and recovery of resources give the appliance, the lamps and the various filter to:

• a communal collection point of public waste disposal authorities,
• a dedicated disposal company, offering a return system,
• a resident electric trader, who voluntary withdraws electrical appliances.

Wstep

Technical diagram showing structural components with Chinese labels, including a brick wall and layered materials.

Technical diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Diagram illustrating three steps of a device operation: opening, adding to a screen, and inserting into a bowl.

CTC Clatronic Sp. z o.o

Ul. Brzeska 1

45-960 Opole

Usuwanie
