LIVBOJ 904.470.58 - Phone charger IKEA - Free user manual and instructions

Product type	Wireless phone charger
Brand	IKEA
Model	LIVBOJ 904.470.58
Charging technology	Qi (compliant with Qi standard 1.2.4 BPP)
Power supply	5.0 V DC, 2.0 A USB Type-C (adapter and cable not included)
Output power	33 dBμA/m at 3 m
Transmission frequency	112 kHz - 148 kHz
LED indicator	Yes: on for 3 s (power on), solid on (charging), off (complete), blinking (error)
Operating temperature	0 °C to 40 °C
Storage temperature	-20 °C to 25 °C
Usage	Indoor only
Cleaning	Wipe with a damp cloth; do not immerse
Safety	Temperature and charge control, interference protection
RF safety distance	Do not stand closer than 10 cm to the device
Repairability	Do not repair yourself; no spare parts available
Compliance	FCC Part 15, ISED RSS, license-exempt standards
Compatibility	Qi-compatible devices
Required cable type	USB Type-C (not included)

Frequently Asked Questions - LIVBOJ 904.470.58 IKEA

How to use the IKEA LIVBOJ wireless charger?

Connect the USB cable to the adapter and the LIVBOJ charger, then plug into a power outlet. Place your Qi-compatible phone on the (+) symbol on the charger. If necessary, enable wireless charging in the phone settings.

What does the LED indicator on the charger mean?

The LED indicator shows: on for 3 seconds when powered on, solid on during charging, off when charging is complete, and blinking in case of error.

Why is my phone not charging?

Check that your phone is Qi-compatible and properly positioned on the (+) symbol. Make sure the charger is plugged in and the cable is not damaged. If the battery is completely discharged, charging may take a few minutes to start.

Can I use any USB cable with this charger?

You can use a USB Type-C cable, but the length and quality of the cable affect charging speed. It is recommended to use a good quality cable for optimal performance.

Does the charger heat up normally?

Yes, it is normal for the charger to heat up during use. It will cool down gradually after charging is complete. The operating temperature is between 0 °C and 40 °C.

What safety precautions should be taken?

Only charge Qi-compatible devices. Use the charger in a dry location only. Do not attempt to repair it yourself. Unplug it before cleaning and when not in use. Do not stand closer than 10 cm from the device while in operation.

Can I repair the charger myself?

No, do not attempt to repair this product yourself. Opening or removing the cover may cause electric shock. Contact a professional or IKEA for any repairs.

What is the safety distance regarding radio frequencies?

According to regulations, the end user must not stand closer than 10 cm from the device under normal operation.

How to clean the charger?

Unplug the charger, then wipe it with a damp cloth. Never immerse the charger in water and do not use abrasive products.

What to do if the charger does not work or shows an error?

If the LED indicator blinks, check that the cable and adapter are properly connected and not damaged. Try another cable or adapter. If the problem persists, unplug the charger and contact IKEA.

USER MANUAL LIVBOJ 904.470.58 IKEA

Design and Quality IKEA of Sweden

English 6

Français 16

Español 28

Charger features

• USB power adapter (5.0V, 2.0A) and USB Type-C cable not included.
• Wirelessly charges Qi-certified devices.
  • Certified according to specification Qi 1.2.4 BPP.
  • Temperature and power monitor for safety.
  • LED status indicator.

Instructions for use

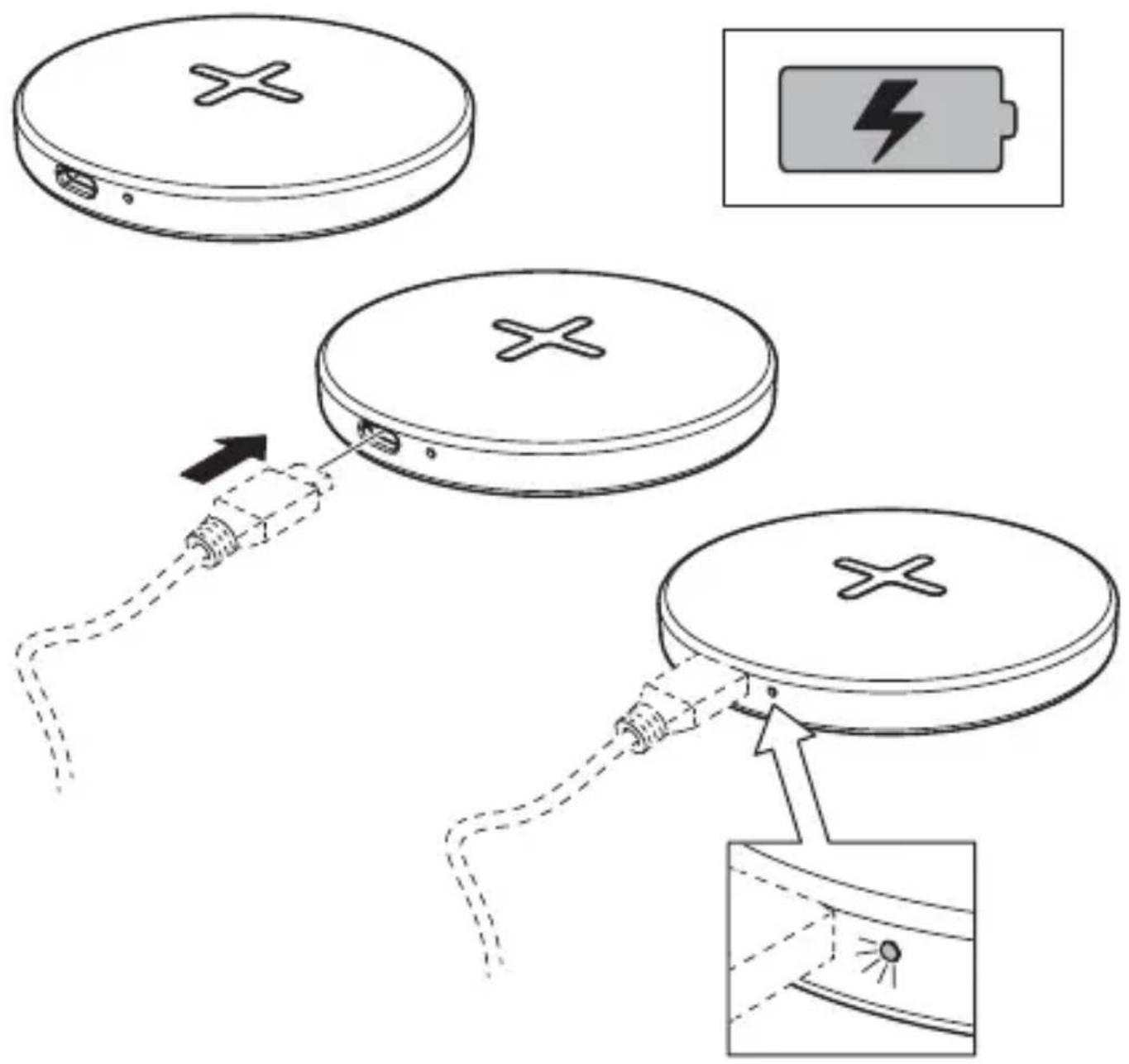

• Connect the USB cable to the power adapter and to LIVBOJ. Plug it into the wall socket.

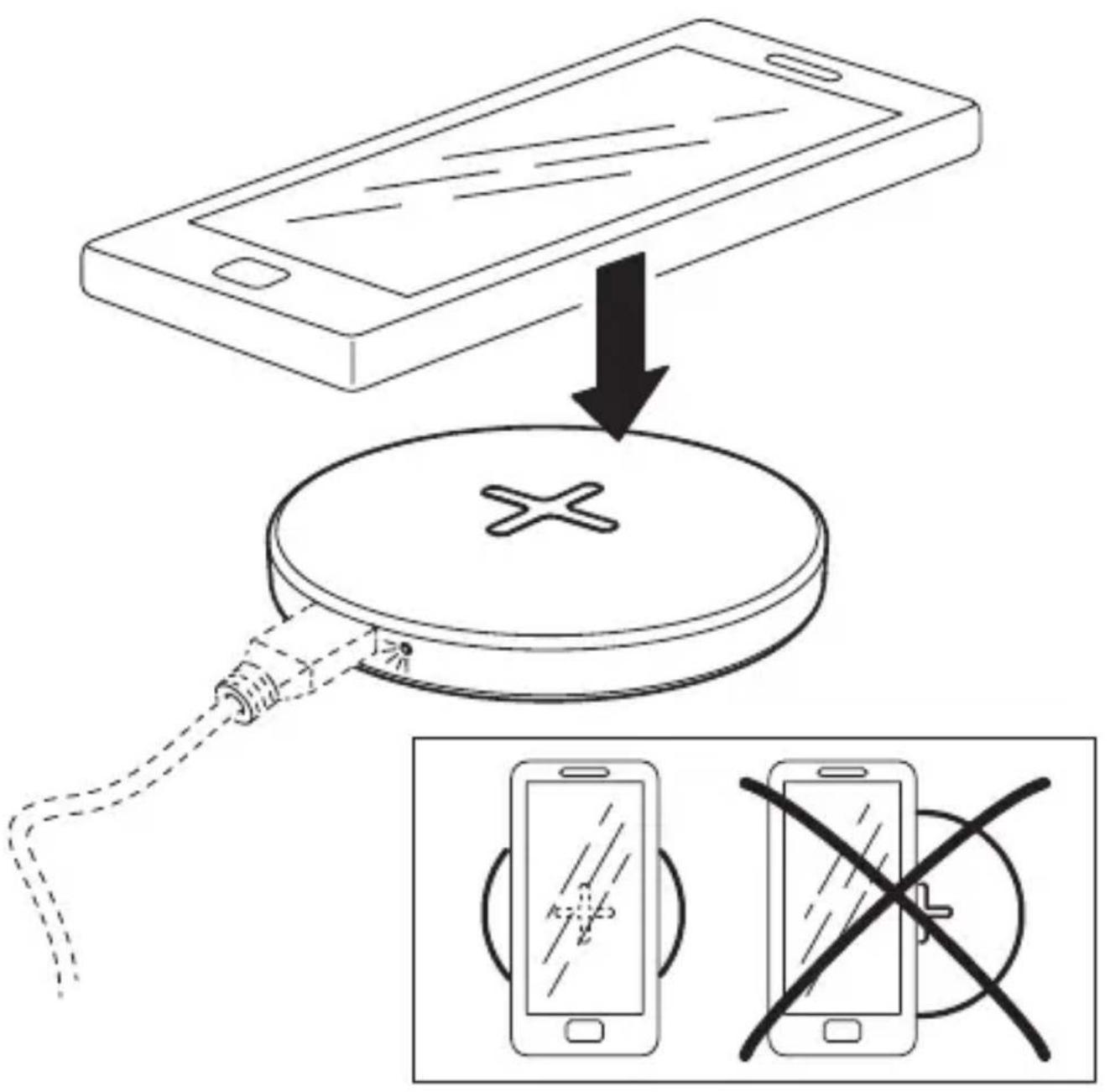

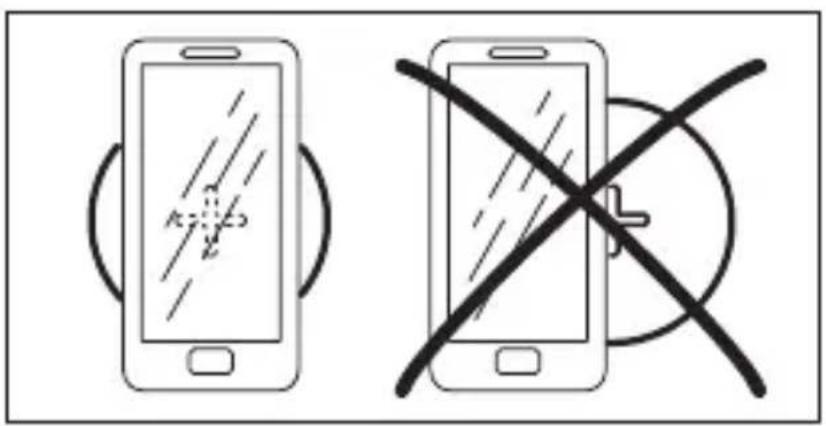

• For wireless charging, place the device to be charged on top of the plus sign (+) on the charger. The device must be placed directly over the plus sign (+) on the charger for the charging function to work optimally. Note that on some devices you may have to activate wireless charging in settings.

- If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.

LED indicator (see illustrations):

1. Power on: LED lights up for 3 seconds.

2. Charging: LED on.

3. Charging completed: LED off.

4. Error: LED flashes.

Good to know

- USB cable length and quality influences charging speed and performance.

• Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.

• Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
• Charger storage temperature: -20°C to 25°C (-4°F to 77°F).
• Charger operating temperature: 0°C to 40°C (32°F to 104°F).
• Unplug the charger from the power source before cleaning and when it is not in use.
  • To clean the charger, wipe with a moist cloth.
• Never submerge the charger in water.

Recommended precautionary measures and technical data: see the back of the charger.

Save these instructions for future use.

WARNING:

• Only charge devices that are Qi-certified.
• The wall socket must be located near the equipment and must be easily accessible.
• Only use in dry locations.
  • Children should be supervised to ensure they do not play with the product.
• Never use a damage or faulty USB cable for charging, since this can damage the appliance and harm your device.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E2130

Input: 5.0V DC, 2.0A USB Type-C

Indoor use only

Operating frequency: 112 kHz - 148 kHz

Output power: 33 dBμA/m at 3m

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The 'Qi' symbol is a trademark of the Wireless Power Consortium

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 10 cm from the device.

This device complies with Part 15 of the FCC Rules.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation Science and Economic Development Canada's licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation of the device.

WARNING:

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Fabricant : IKEA of Sweden AB

Adresse : Box 702, SE-343 81 Älmhult, SUÈDE
