USER MANUAL Moto Plus Majority

Majority Moto Plus Turntable

User Manual

MAJORITY

What's In the Box? 3

Controls And Functions.... 4

Instructions Guide.... 8

Basic Operation.... 8

Phono Mode - Play Vinyl Record.... 9

Bluetooth - Out Mode.... 10

Bluetooth - In Mode.... 10

USB Recording.... 11

USB Playback Mode.... 11

AUX – In Mode & Headphones.... 12

Tips for Better Turntable Performance.... 13

Troubleshooting.... 14

Specification and Warranty.... 15

Safety Information.... 16

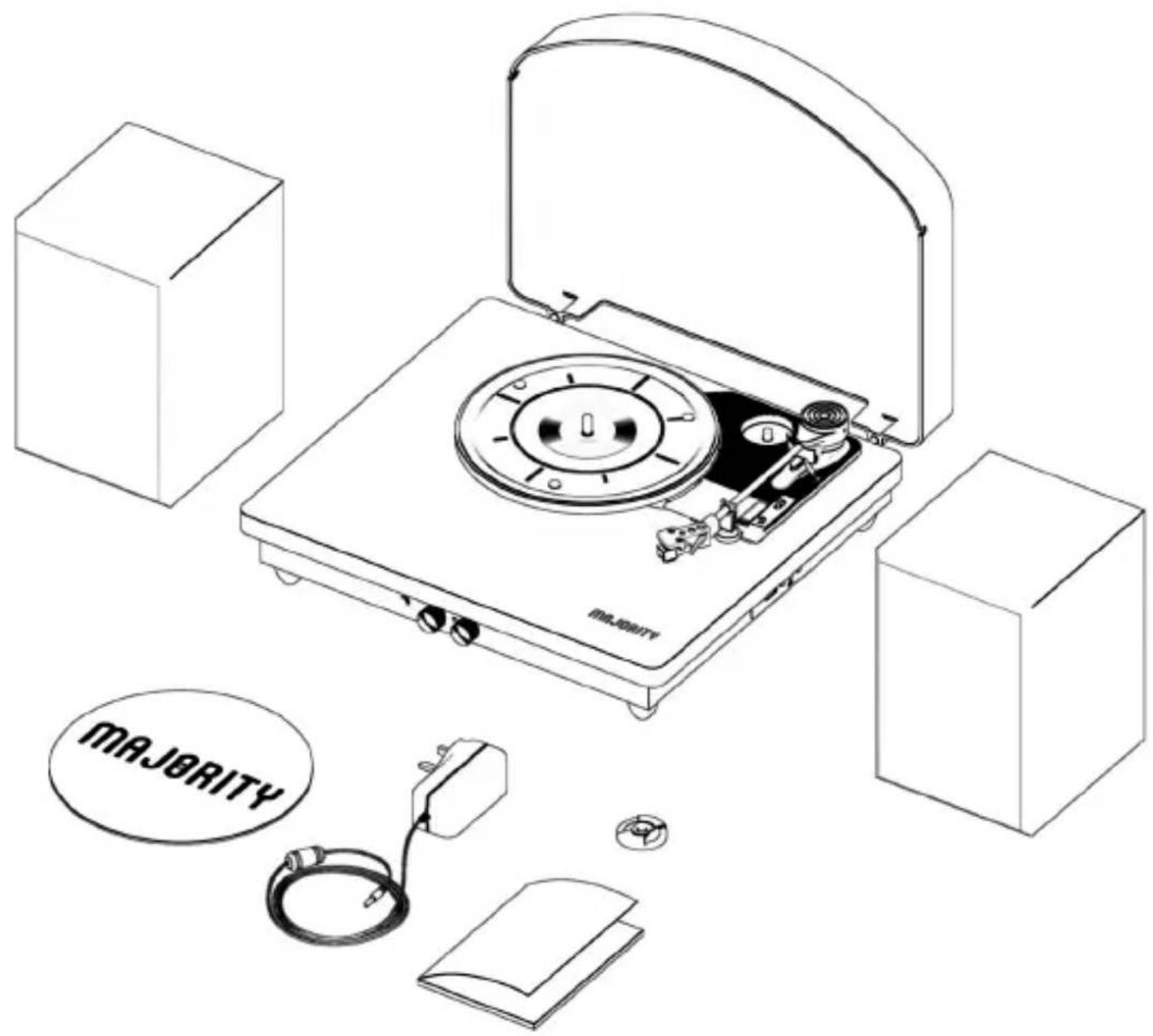

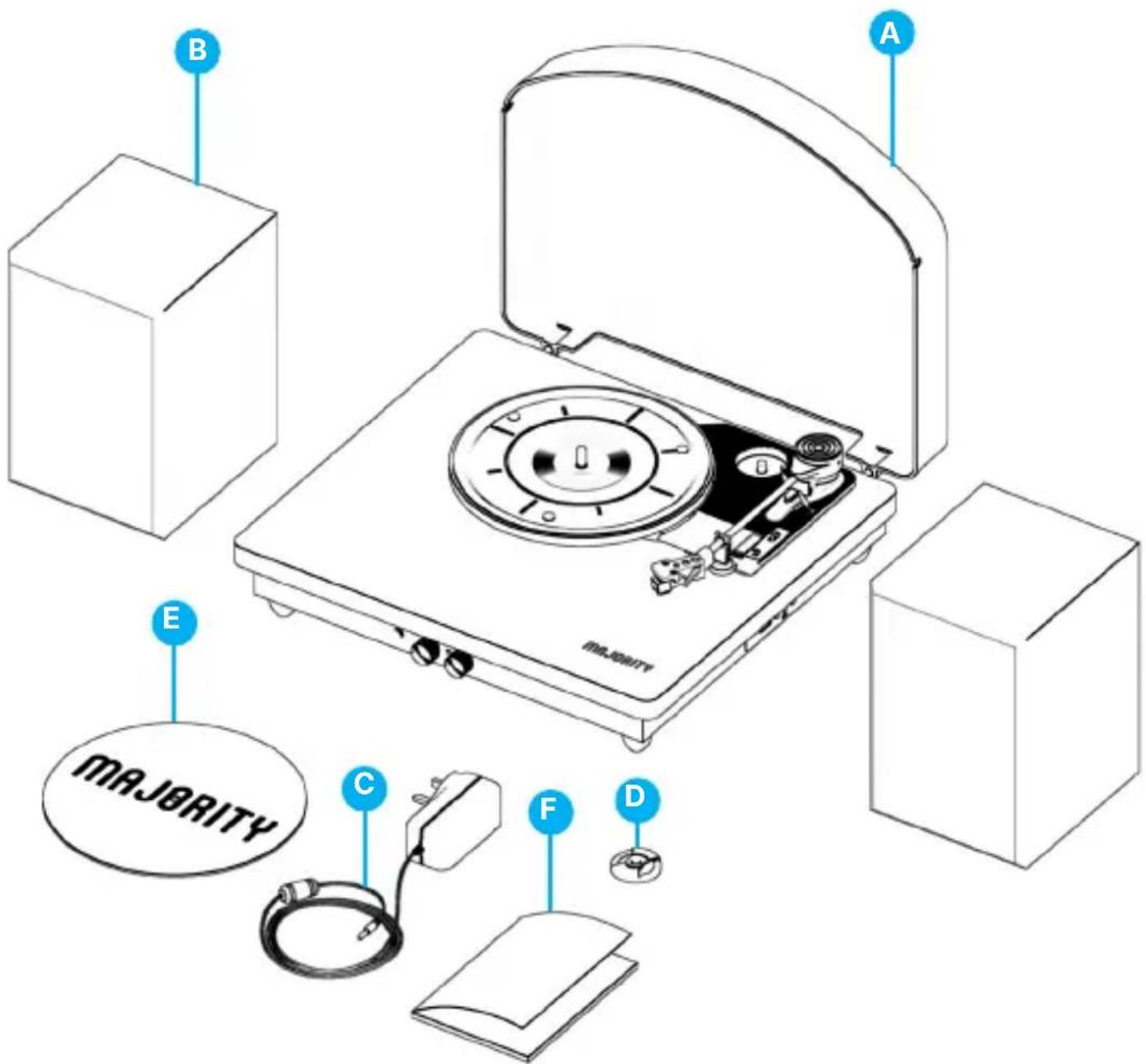

What's in the Box?

A. Majority Moto Plus Turntable

B. External speakers x 2

C. Power Adaptor

D. 45 RPM Adaptor

E. Felt Mat

F. User Manual

B A E MAJORITY C F D

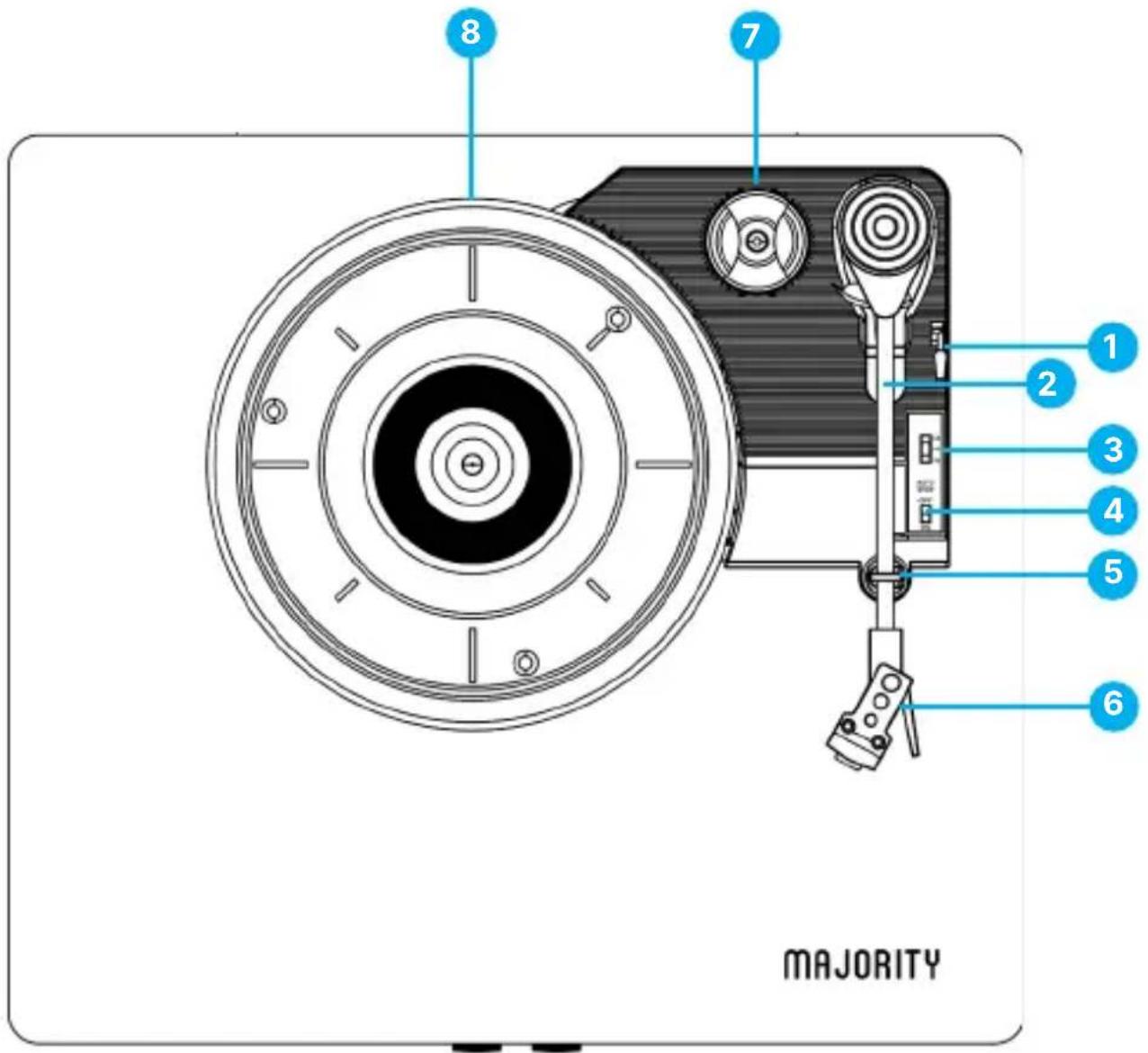

Top View

8 7 1 2 3 4 5 6 MAJORITY

1. Lift lever

1. Tone arm - The turntable comes with a ready-to-use pre-balanced tone arm and cartridge.

2. 33/45/78 RPM switch - This switch controls the speed of the turntable platter.

3. AUTO STOP ON/OFF switch

4. Tone arm clip
5. Audio-Technica cartridge stylus
6. 45 RPM adaptor – This is used for 45RPM vinyl records.
7. Platter- Place your record here.

Front View

O/VOL USB AUX BT PH 9 1 12 11

1. Headphones Jack
2. Power ON/OFF & Volume Control Knob
3. LED Light Indicator
4. Mode Selection Knob (USB /AUX IN /PH /BT IN)

Back View

13 15 14 16

1. External Speakers (with cable connection)
2. DC IN Port - Used to connect the power adaptor.
3. RCA Output - This is used to connect to the external speakers.
4. AUX IN Jack

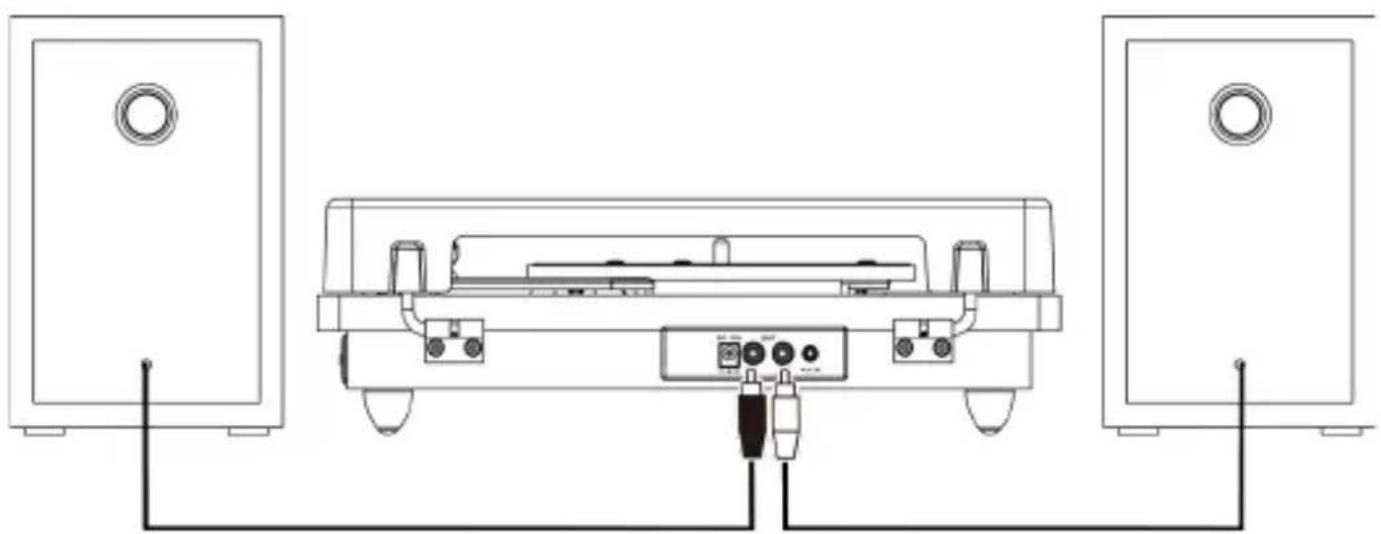

Connect the external speakers to the main unit. Plug the RIGHT / LEFT speakers' cable into the speaker output sockets at the rear of the unit (Ref.15).

Diagram of a CD-ROM drive with two speakers and connected cables (no text or labels)

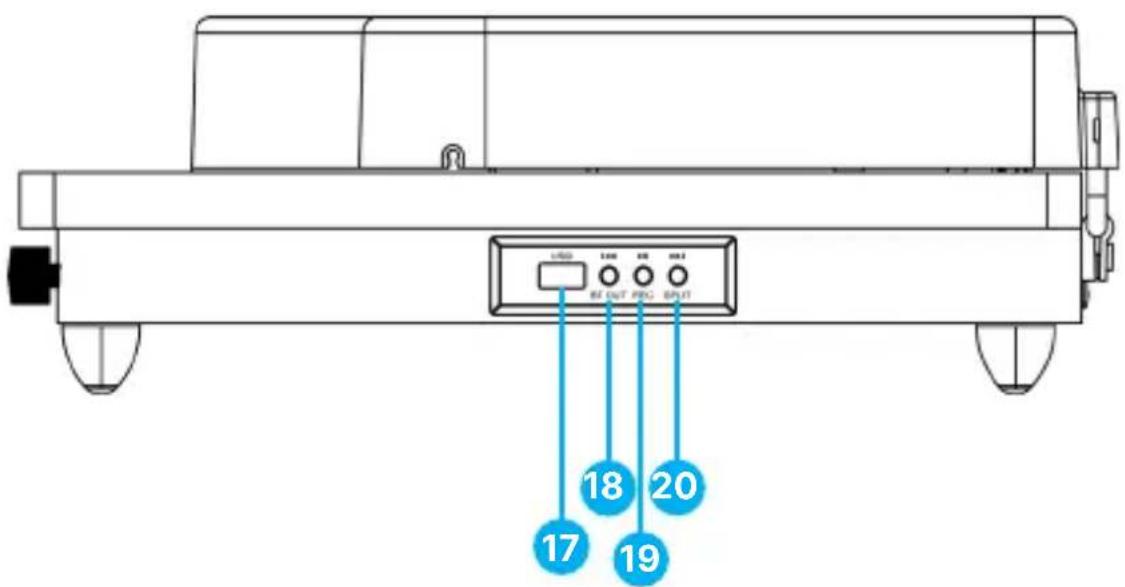

Side View

LED 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 20.00

1. USB Port
2. PREV and BT OUT button
3. PLAY/PAUSE/ REC button
4. NEXT and SPLIT button

Please note all (Ref.) refer to Page 4-7 Controls and Functions mapping guide.

IMPORTANT INFORMATION

Before using the Majority Moto Plus Record Player, choose a safe location to keep the unit away from direct sunlight or near any heat source.

Position the Majority Moto Plus with some space available at the rear of the cabinet, to allow room for a full-sized vinyl disc to be placed on the platter - Avoid a surface subject to vibrations, excessive dust, cold or moisture.

When cleaning the unit, use a dry cloth only. Do not attempt to clean the unit with chemical solvents as this might damage the finishing.

Do not open the internal parts of the cabinet as this may result in electrical shock. When removing the power plug from the wall outlet, pull directly on the plug, NOT the cord.

Keep this manual for future reference.

Setting up the Turntable

Remove the unit from all packaging and affix the dust cover to the turntable.

Connect the external speakers to the main unit with the RCA cable (see diagram, page 6).

Firmly and securely insert the DC plug of the adaptor to the DC IN Jack (Ref.14) at the back of the unit. Plug the adaptor's AC plugs into a power outlet.

Phono Mode - Play Vinyl Record

1. Turn the mode selection knob to PH (Ref.12).
2. Turn the power & volume control knob (Ref.10) clockwise to switch this on and set the volume. The indicator light will be red.
3. Place a record on the turntable platter and select the desired speed (33/45/78) according to the record.

Note: When playing a 45RPM record, please use the included 45RPM adaptor located in the holder next to the platter (Ref.7).

Remove the stylus protector and elastic band- keep this to protect the stylus when not in use.

1. Open the tone arm clip (Ref. 5) to release the tone arm (Ref.2). Lift the lever (Ref.1) to raise the tone arm and gently move this to the desired position over the record. The turntable will begin to spin when the tone arm is moved toward the record when the AUTO STOP switch is ON. Push the lift-lever forward to lower the position of the tone arm slowly onto the desired position of the record to start playback.
2. If the Auto-Stop Control Switch is turned ON (Ref.4), the record will stop automatically when finished. If the Auto Stop Control Switch is turned OFF, the record will NOT stop automatically when finished.

PLEASE NOTE The AUTO STOP function applies to most 33RPM vinyl records. However, for very few vinyl records with an unusual groove pattern, it will stop before it comes to an end. In this situation, turn the AUTO STOP switch to the 'OFF' position and then it will continue playing.

Bluetooth - Out Mode

The Moto Plus Turntable can be paired using this mode with a Bluetooth external speaker or headphones.

1. Set the main mode function to PH (Phono Mode) for vinyl playback.
2. Press the BT OUT button (Ref.18). The LED indicator will then start flashing a red light.
3. Turn on the BT function of the speaker or headphones and start pairing with the Majority Moto Plus. When the connection is successful, the LED will stop flashing a red light.

Once paired, the vinyl playback will be transmitted to the speaker or headphones wirelessly.

PLEASE NOTE: In this mode, the volume level can only be controlled from the external speakers or headphones that you are pairing with the turntable. The volume control knob of the record player is now blocked.

Bluetooth - In Mode

Majority Moto Plus can also be paired via Bluetooth with a phone, tablet or PC to play audio from via the Moto Plus Speakers.

1. Turn the MODE knob to BT. The LED indicator will flash a blue light.
2. Switch on the Bluetooth connectivity on your device and search for "Majority Moto Plus". Once successfully paired, the LED indicator will stop flashing a blue light.
3. Use the VOLUME CONTROL knob (Ref.10) to adjust the volume as per your preferences.

PLEASE NOTE: The volume on your device paired with the turntable via Bluetooth can also impact the playback volume, therefore make sure the volume level is also turned up on your device whilst playing.

USB Recording

Recording to USB stick is only available with Phono Mode and AUX Mode Playback.

1. Insert your USB stick into the USB port (Ref.17). Start playing a vinyl record under Phono Mode playback or play via AUX playback from another device connected to the turntable.
2. Press the REC button (Ref.19) to start a recording. The LED indicator will flash red and blue lights to confirm the recording has begun.
3. To save different files on the recording, press the SPLIT button (Ref.20) when recording. Press the SPLIT button again and it will generate another file.
4. Press the REC button (Ref.19) to stop the recording. The LED indicator will flash a red light to confirm recording has been ended, and it resumes to Phono Mode playback or AUX mode playback.

Files recorded onto the USB are saved in MP3 file format, under folders titled 'ALBUM_01' and the files titled 'REC_0000, 0001, 0002' etc.

PLEASE NOTE: The recording is made in a fixed-volume format. The volume level of the recorded file cannot be changed by any adjustments of the volume control on the turntable.

PLEASE NOTE: The maximum size of USB stick supported is 128GB and needs to be set to FAT format.

USB Playback Mode

Play audio from a USB stick via the Moto Plus speakers.

1. Turn the MODE knob to USB. The indicator light will turn solid red.
2. Insert the USB drive and play your chosen audio into the USB port (Ref.17).
3. Press PLAY/PAUSE/REC to play or pause (Ref.19). Press the PREV button (Ref.18) to play the previous track. Press the NEXT button (Ref.20) to play the next track.

PLEASE NOTE: The maximum size of USB stick supported is 128GB, and it needs to be set to FAT format. USB playback supports MP3, WAV, FLAC.

AUX In Mode

Connect your iPod, MP3 player, mobile phone, etc. to the AUX IN port (Ref.16) using a 3.5mm-3.5mm audio cable (not included).

1. Turn the MODE knob (Ref.12) to AUX. The LED indicator will show red and blue lights. You can now play music from an auxiliary device through the unit.
2. Turn the VOLUME CONTROL knob (Ref.10) on the Majority Moto Plus Turntable to adjust the volume. (The iPod, MP3 player and/or mobile phones' volume control may also impact the volume level, therefore, ensure this is also turned up).

Headphones

Connect wired headphones or earphones (not included) with 3.5mm jack, to the headphones port on the turntable (Ref.9), to listen to music privately.

Tips for Better Turntable Performance

1. When opening or closing the turntable cover, handle it gently, gripping it either at the centre or at each side.
2. Do not touch the needle tip with your fingers; avoid bumping the needle against the turntable platter or record edge.
3. Frequently clean the needle tip with a soft brush in a back-to-front motion only.
4. If you must use needle cleaning fluid, use it very sparingly.
5. Gently wipe the dust cover and turntable housing with a soft cloth. Use only a small amount of mild detergent to clean the turntable and dust cover.
6. Never apply harsh chemicals or solvents to any part of the turntable system.

Observation Potential Cause/Solution
No Power/Function	Check whether the power is switched on or off at the wall.Check that the power adaptor is properly connected to the power outlet.
No Sound	Check whether the unit is set to a very low volume.Check whether the MODE is correctly selected.Turn up the volume on your external device (if connected).Check that cables are properly installed.
Function disturbance	Switch off and unplug the unit. Leave it for 2 minutes and switch it on again.
Bluetooth is not connecting	Ensure that you are in Bluetooth mode on the speakers and the Bluetooth on your device is switched on. Select the Bluetooth device "Majority Moto Plus" and you should now be able to play audio.

Support

If you require further assistance with your Majority product, please contact our support team on the Majority website: www.majority.co.uk/support

Specification & Warranty

Specification

Power Supply 12V 2A
Frequency Response 30Hz-20KHz
SNR 70dB
Separation 45dB
Bluetooth V5.3
Dimension (W x H x D) for the turntable( main unit) and speakers	Turntable 34.6 × 12 × 38 cmEach speaker has : 16 × 21.3 × 14 cm

Warranty

All products come with a standard 12-month warranty. All items must be registered within 30 days of purchase on www.majority.co.uk for the warranty to be valid. Once on the web page, use the menu to find 'Register Your Product'. You will also be given the chance to extend your warranty for an additional 24 months, free of charge.
