USER MANUAL 5CG244FD0 BLAUPUNKT

First time use 21
Refrigerator compartment and food storage 21
How to store fresh food and beverages 21
Freezer compartment 22
Functional sounds. 23
Recommendation in case of no use of the appliance. 23

CLEANING AND MAINTENANCE 24

Refrigerator light 24
Shelves 24
Door 24

TROUBLESHOOTING 25

SUPPORT 26

OVERVIEW

GENERAL INFORMATION

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this quick guide. The light system inside the refrigerator compartment uses LEDs light, allowing a better lighting than traditional light bulbs as well as a very low energy consumption.

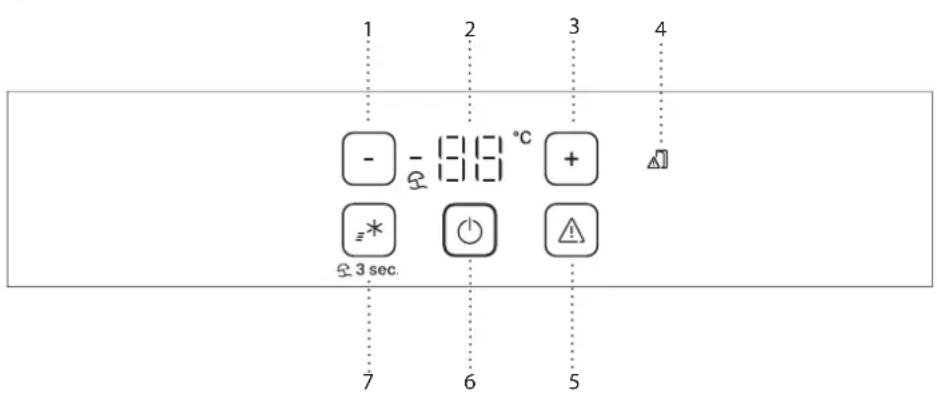

CONTROL PANEL

DISPOSAL

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

FRIDGE COMPARTMENT TEMPERATURE

To put the product in Stand-by, press and hold the On/ Stand By button. All the indicators turn off except On/ Standby indicator.

In Stand-by mode the light in the refrigerator compartment does not turn on Press again to reactivate the appliance.

Note: this does not disconnect the appliance from the power supply.

TEMPERATURE DISPLAY

The display shows the refrigerator compartment temperature (between 2^ and 8^ ).

To avoid food waste, please refer to the recommended setting and storage times found in the online user manual.

TURNING OFF THE SOUND ALARM

To turn off the sound alarm, briefly press the button.

To put the product in Stand-by, press and hold the On/ Stand By button. All the indicators turn off except On/Standby indicator.

In Stand-by mode the light in the refrigerator compartment does not turn on Press again to reactivate the appliance.

Note: this does not disconnect the appliance from the power supply.

FAST COOL FUNCTION (FAST COOLING)

Using Fast Cool function it is possible to increase the cooling capacity in the refrigerator compartment.

To avoid an increase of food waste, refer to recommended setting and Storage Time in OPERATION chapter

The use of this function is recommended when placing a very high quantity of food in the refrigerator compartment. Press the Fast Cool button to activate Fast Cool function. When activated, the Fast Cool indicator turns on. The function is automatically disabled after 6 hours, or can be manually disabled by pressing Fast Cool button again. Freezer compartment,press the fast Cool button and place the food to be frozen in the freezing zone. The function is automatically disabled after 24hours, or can be manually disabled by pressing Fast Cool button again.

3sec VACATION

You can use this function in the event of a prolonged absence from home. Press the Vacation button for 3 sec to engage Vacation Mode. The display will show the temperature of the refrigerator compartment (+12^) and the Vacation mode icon will light up. After activating this function, remove the food from the refrigerator compartment and keep door closed - the refrigerator will maintain a suitable temperature to prevent odours from forming. When you activate vacation mode, remember to remove food from the freezer compartment. A deep clean (of both refrigeration and freezer compartment) is recommended before activating this function in order to prevent the spread of bacteria. Press again the same button for 3 sec to deactivate Vacation. Changing the setpoint will automatically deactivate the function.

OPERATION

FIRST TIME USE

Wait at least two hours, after the installation, before connecting the appliance to the power supply. Connect the appliance to the power supply it starts the operation automatically. The ideal storage temperatures for the food are preset in the factory.

After turning the appliance on, you must wait for 4-6 hours for the correct storage temperature to be reached for a normally filled appliance. If the audible signal sounds, it means that the temperature alarm has intervened: press the button to switch off the acoustic alarms.

REFRIGERATOR COMPARTMENT AND FOOD STORAGE

The refrigerator compartment allows for the storage of fresh food and drink. The refrigerator compartment defrosts completely automatically. The occasional presence of drops of water on the internal back wall of the compartment is a sign of the automatic defrosting phase. The defrosting water is channelled into a drain and then collected in a container, where it evaporates.

Note: the ambient temperature, how often the doors are opened and the position of the appliance may affect the internal temperatures in the two compartments. Set the temperatures depending on these factors. In very humid conditions, condensation may form in the refrigerator compartment, especially on the glass shelves. In this case, it is recommended that you close containers with liquids in (e.g. a pot of stock), wrap up food with a high water content (e.g. vegetables) and turn on the fan, if there is one. All of the drawers, door shelves and shelves can be removed.

LIGHT SYSTEM

** For models with "0° ZONE" COMPARTMENT the "coolest area" is the one highlighted in the legend

This product contains 4 lateral light sources of energy efficiency class F

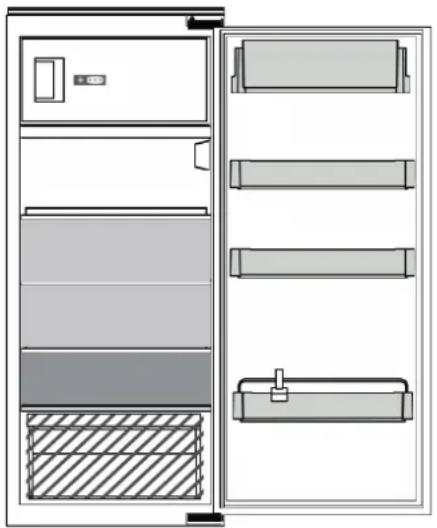

HOW TO STORE FRESH FOOD AND BEVERAGES

Foods which give off a large amount ethylene gas (apples, apricots, pears, peaches, avocado, figs, prunes, blueberries, mellons, beans) and those that are sensitive to this gas, such as fruit vegetables and salad, should always be separated or wrapped so as not to reduce the storage life; for example do not store tomatoes together with kiwi fruits or cabbage. Do not store food too close together to enable sufficient air circulation. Use recyclable plastic, metal, aluminum and glass containers and cling film to wrap foods. If you have a little quantity of food to store in the refrigerator, we recommend to use the shelves above the crisper for fruits and vegetables since this is the coolest area of the compartment. Always use closed containers for liquids and for food that may give off or be tainted by odor or flavor transfer or cover them. To avoid bottles falling over, you can use the bottle holder (available on selected models).

Legend

TEMPERATE ZONE

Suggested for storage of tropical fruit, cans, drink, eggs, sauces, pickles, butter, jam

COOL ZONE

Suggested for storage of cheese, milk, daily food, delicatessen, yoghurt

COOLEST AREA

Suggested for storage of cold cuts, desserts, meat and fish

FRUIT & VEGETABLE DRAWER

REMOVING THE DRAWERS

Pull the drawers outwards as far as they will go, lift them up and remove them. To get more volume, the freezer compartment can be used without the drawers.Make sure that the door is closed properly after putting the food back on the grilles/shelves.

FREEZER COMPARTMENT

Freezing fresh food

1. It is advisable to set the temperature colder or turn on the Fast Freeze/ Fast Cool* at least four hours before removing the food from the freezer compartment, to prolong the preservation of the food during the defrosting phase.
2. To defrost, unplug the appliance and remove the drawers. Leave the door open to allow the frost to melt. To prevent the water from escaping during the defrost, it is advised that you place an absorbent cloth on the bottom of the freezer compartment and wring it out regularly.
3. Clean the inside of the freezer compartment and dry it carefully.
4. Turn the appliance back on and put the food back inside. To remove the frost on the STOP FROST* accessory, follow the CLEANING.

Ice cubes

Fill 2/3 of the ice tray with water and put it back in the freezer compartment. Do not use sharp or pointed objects to remove the ice under any circumstances.

The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate.

Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading.

FUNCTIONAL SOUNDS

1. A buzz generated by the compressor is normal while the product is working.

1. Gurgling and crackles are generated by the passage of the refrigerant gas inside the cooling circuit, therefore these are normal noises.

1. It's possible to "hear" creaks when the compressor is active and inactive: it is a normal sound of the product's structure.

1. Check that the balconies on the inside of the refrigerator door, the shelves and the drawers in the refrigerator compartment are attached and positioned properly, to avoid possible vibrations.
2. Don't place glass containers (bottles, jars, etc.) in direct contact with each other, to avoid vibrations.
3. This device is equipped with a compressor that operates at an optimum speed to minimize energy consumption. So it may happen that in certain situations (in summer or if large quantities of food are introduced) that the compressor increases the speed and therefore it is more noisy than usual.

RECOMMENDATION IN CASE OF NO USE OF THE APPLIANCE

In the event of non-use of the applicance

Disconnect the appliance from the power supply, empty it, defrost it (if necessary) and clean it. Keep the doors slightly ajar to let air circulate inside the compartments. By doing this, you avoid the development of mould and bad odours.

In the event of an interruption to the power supply

Keep the doors closed so the food stays cold for as long as possible. Do not re-freeze food that has partially defrosted. If there is a prolonged power cut, the black out alarm may also activate (in products with electronics).

CLEANING AND MAINTENANCE

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.

Never use abrasives. Never clean refrigerator parts with flammable fluids.

Do not use steam cleaners.

The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth.

Clean the appliance occasionally with a cloth and a solution of warm water and neutral cleaning agents specifically for cleaning the inside of the refrigerator.

REFRIGERATOR LIGHT

The light system inside the refrigerator compartment uses LEDs light, allowing a better lighting than traditional light bulbs as well as a very low energy consumption. Contact the Technical Assistance Service if you need a replacement.

Important: The refrigerator compartment light switches on when the refrigerator door is opened.

SHELVES

All of the drawers, door shelves and shelves can be removed.

DOOR

DOOR REVERSIBILITY

Note: The direction of door opening can be changed. If this operation is not performed by After-sales Service it is not covered by the warranty. Follow instruction in Installation chapter.

What to do if... Possible reasons Solutions

The control panel is switched off, the appliance does not work.	The appliance may be in On/Stand-bymode. There may be an appliance power supply problem.	Turn the appliance on pressing the On/Stand-by button. Check that: · there is not a power outage; · the plug is properly inserted in the power socket and the mains double-pole switch (if present) is in the correct position (i.e. allows the appliance to be powered); · the household electrical system protection devices are efficient; · the power cable is not damaged.
The inside light does not work.	The light may need to be replace.	Models with LED lights: contact the authorised Technical Assistance Service.
	The appliance may be in On/Stand-bymode.	Turn the appliance on by briefly pressing the(1) button (see On/Stand-by function).
The temperature inside the compartments is not low enough.	There could be various causes (see "Solutions").	Check that: · the doors close properly; · the appliance is not installed near a heat source; · the set temperature is adequate; · the circulation of air through the ventilation grilles on the base of the appliance is not obstructed.
There is water on the bottom of the refrigerator compartment.	The defrost water drain is blocked.	Clean the defrosting water drain (see section "Cleaning and Maintenance").
The front edge of the appliance, at the door striker seal, is hot.	This is not a defect. It prevents condensation from forming.	No solution is necessary.
Door open alarm indicator and Alarm indicators blink, the acoustical alarm is activated.	Door open alarm The Fridge door remained open for more than 2 minutes	Close the door or press the Stop Alarm to mute the acoustical alarm.

SUPPORT

When contacting our Service Centre, please state the codes provided on your product's identification plate.
