5CK244FD0 - Fridge BLAUPUNKT - Free user manual and instructions

USER MANUAL 5CK244FD0 BLAUPUNKT

Line drawings of various hand tools including crutches, hammers, screwdriver, screwdriver, pliers, scissors, and gloves (no text or labels)

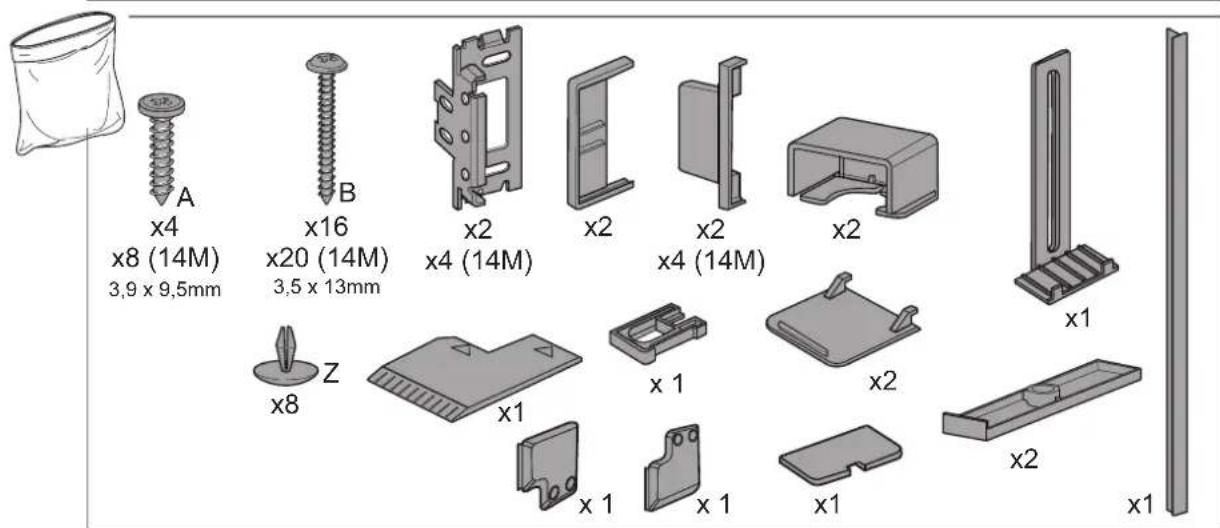

A x4 x8 (14M) 3,9 x 9,5mm B x16 x20 (14M) 3,5 x 13mm x2 x4 (14M) x2 x2 x4 (14M) x2 x1 x8 Z x1 x1 x1 x1 x2 x2 x1 x1 x1

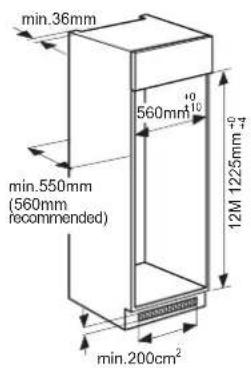

min.36mm 560mm⁺¹⁰ 12M 1225mm⁻⁴ min.550mm (560mm recommended) min.200cm²

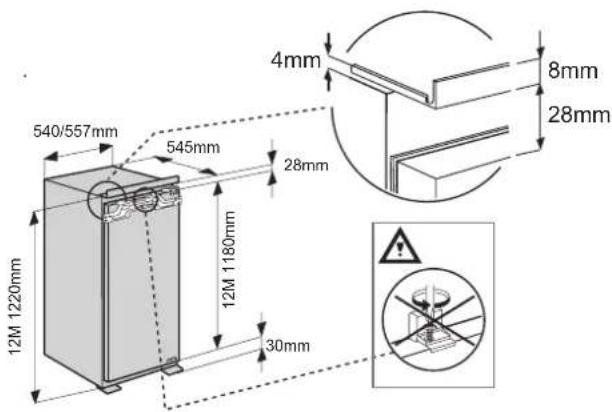

540/557mm 545mm 28mm 12M 1180mm 30mm 12M 1220mm 4mm 8mm 28mm

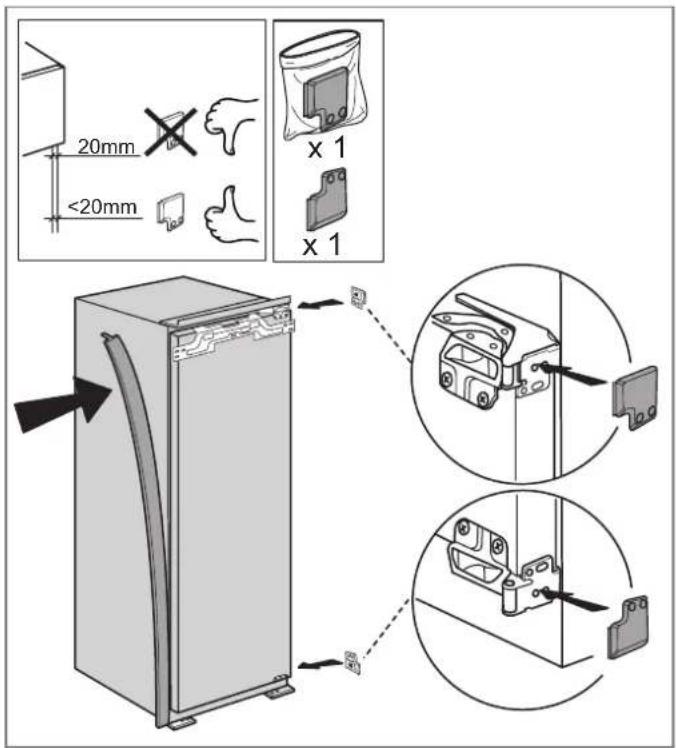

20mm <20mm x 1 x 1

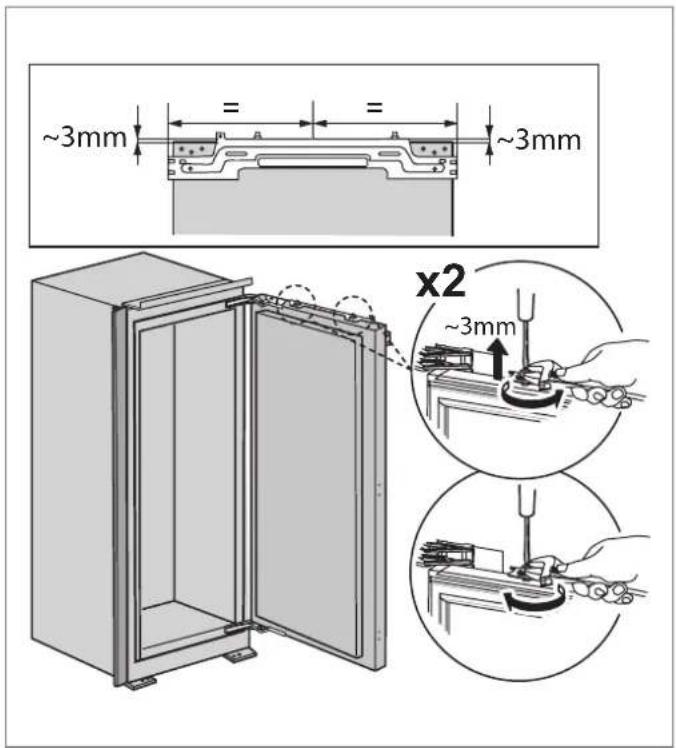

~3mm = = ~3mm x2 ~3mm

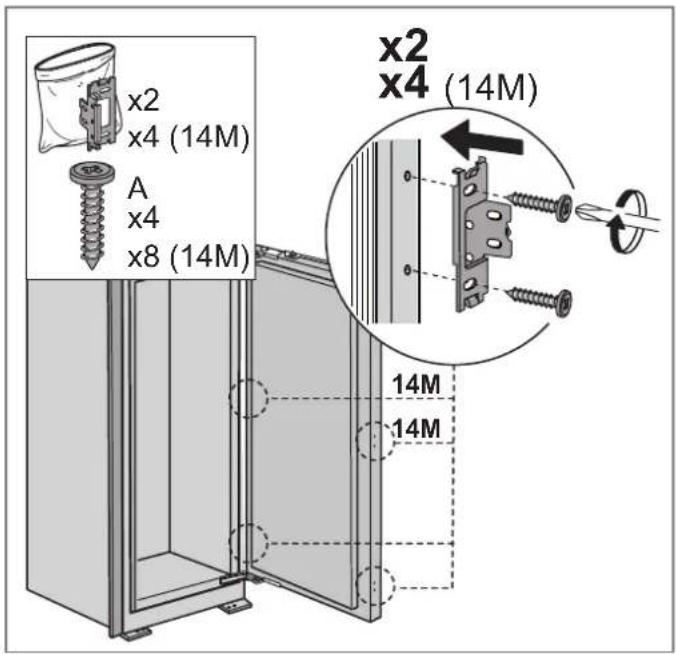

x2 x4 (14M) A x4 x8 (14M) x2 x4 (14M) 14M 14M

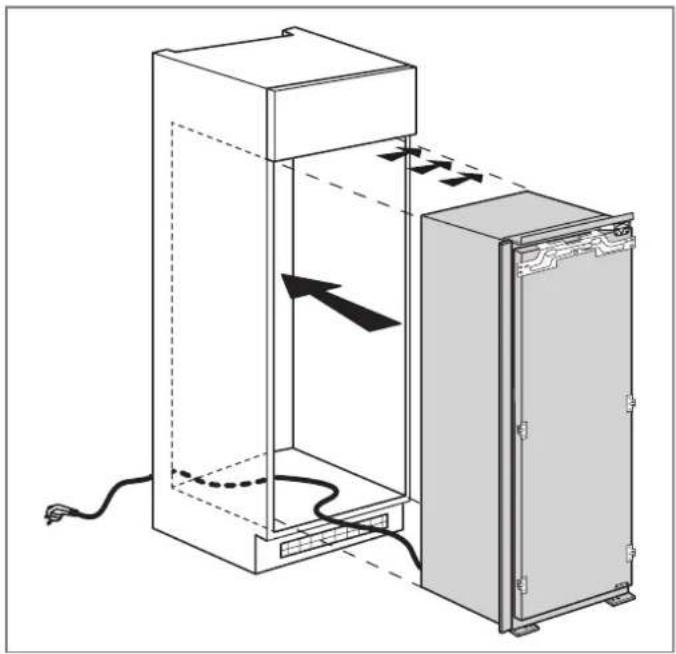

Diagram of a refrigerant oven with internal air duct and power outlet, showing airflow direction (no text or symbols)

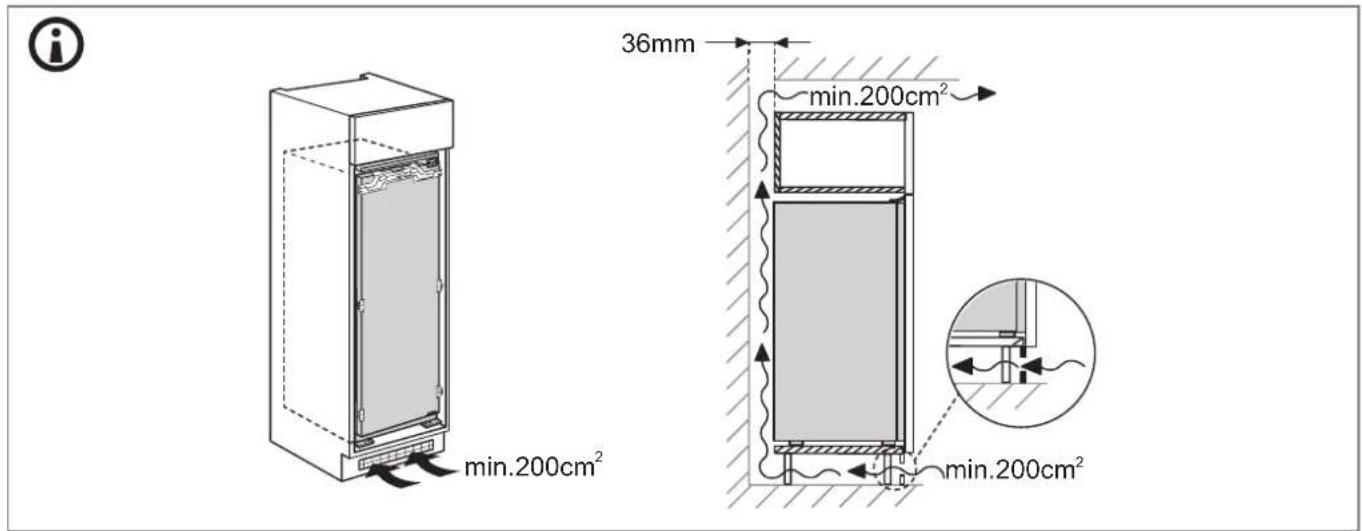

36mm min.200cm² min.200cm² min.200cm²

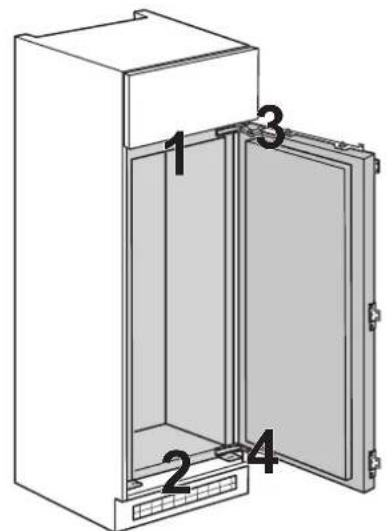

1 2 3 4

1

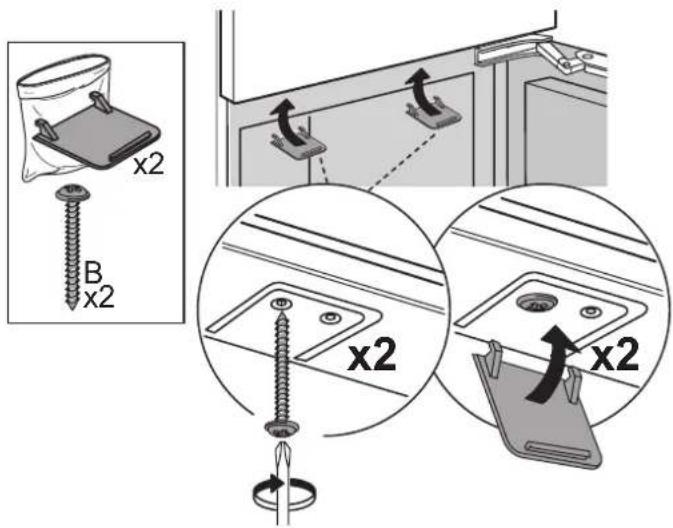

x2 B x2 x2 x2

2

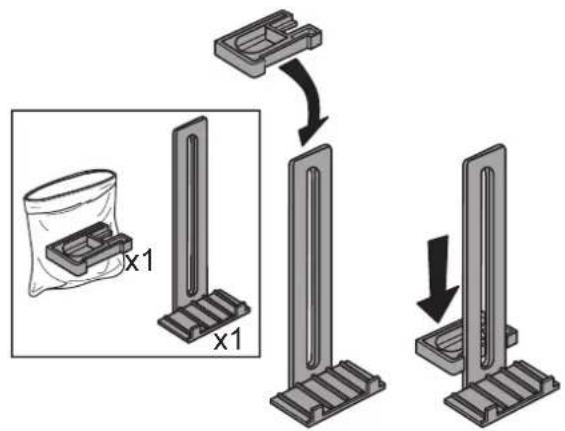

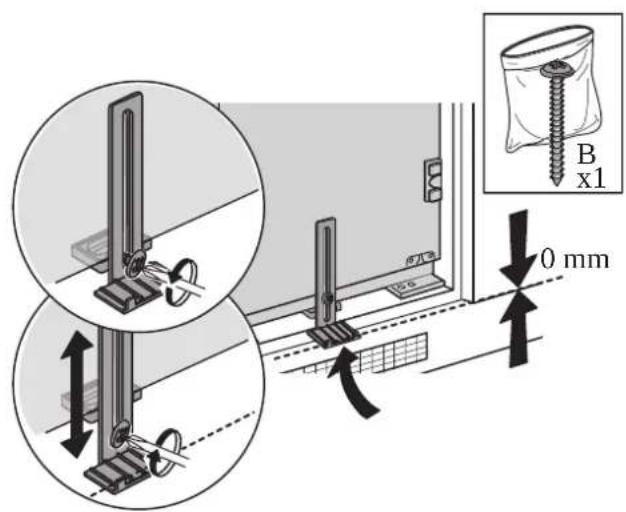

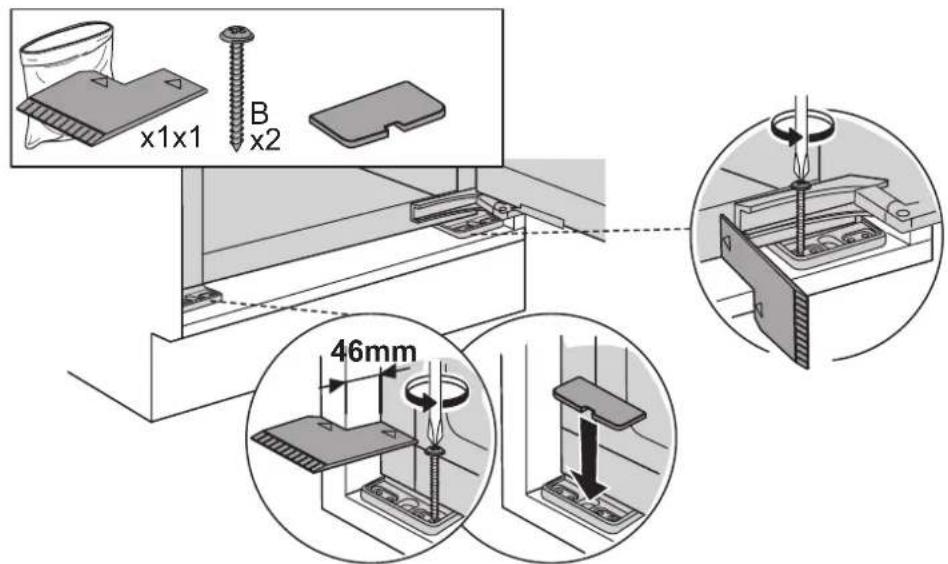

x1x1 B x2 46mm

3

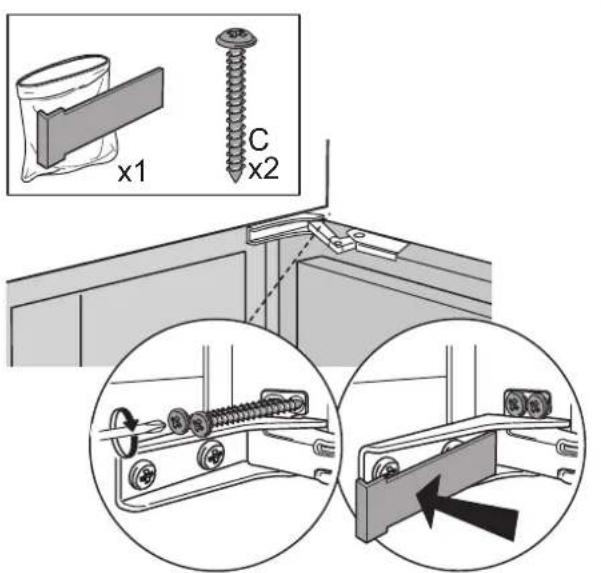

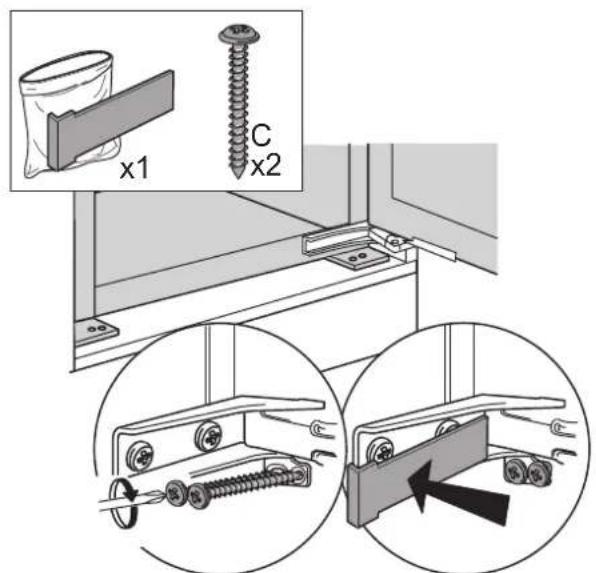

x1 C x2

4

Technical diagram showing assembly of a screw and nut with labeled components x1 and x2, including close-up views of mechanical parts.

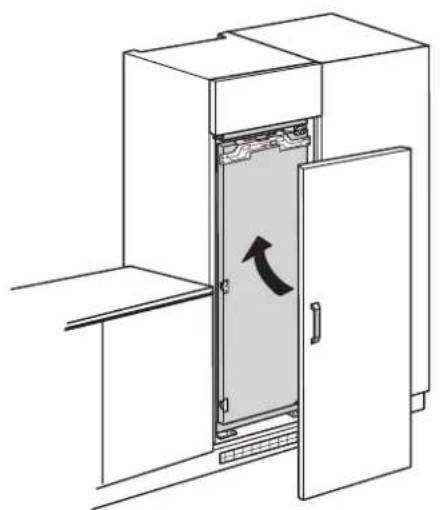

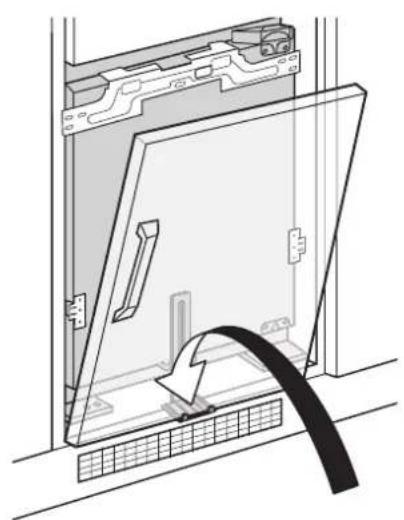

Line drawing of an open refrigerator with a curved arrow indicating rotation (no text or symbols)

1

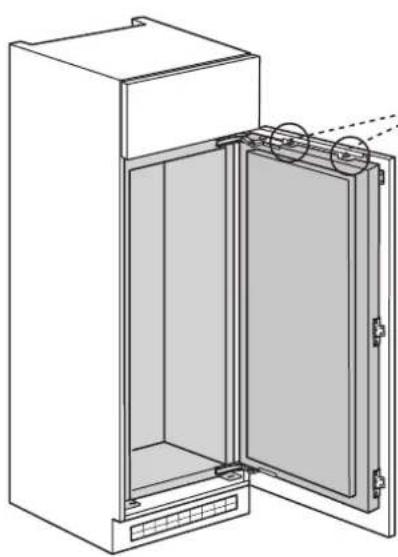

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating motion or transformation.

2

B x1 0 mm

3

Diagram of a device with a cable inserted into a panel, showing internal components and wiring (no text or symbols)

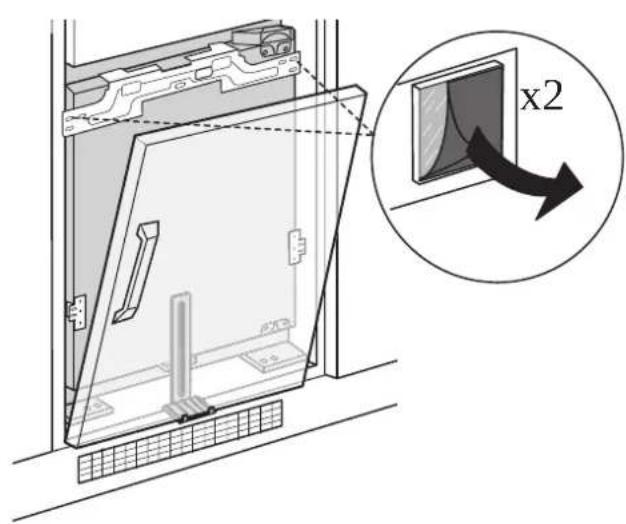

4 5

x2

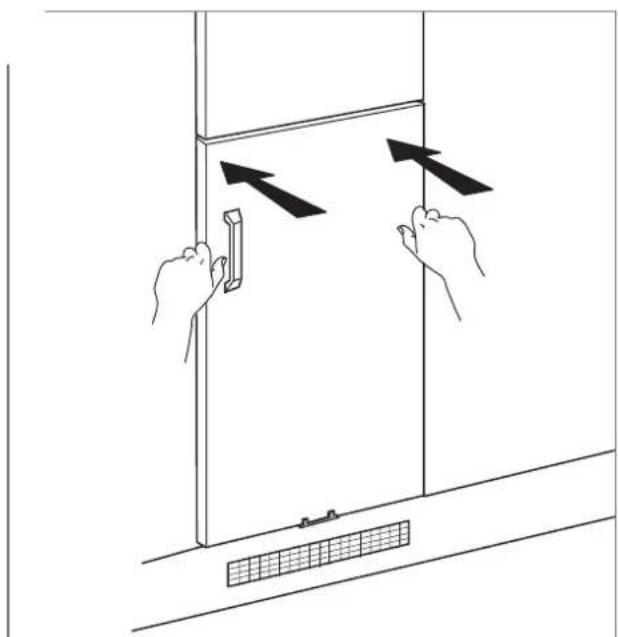

Diagram showing two hands adjusting a door panel with arrows indicating movement, no text or symbols present

6

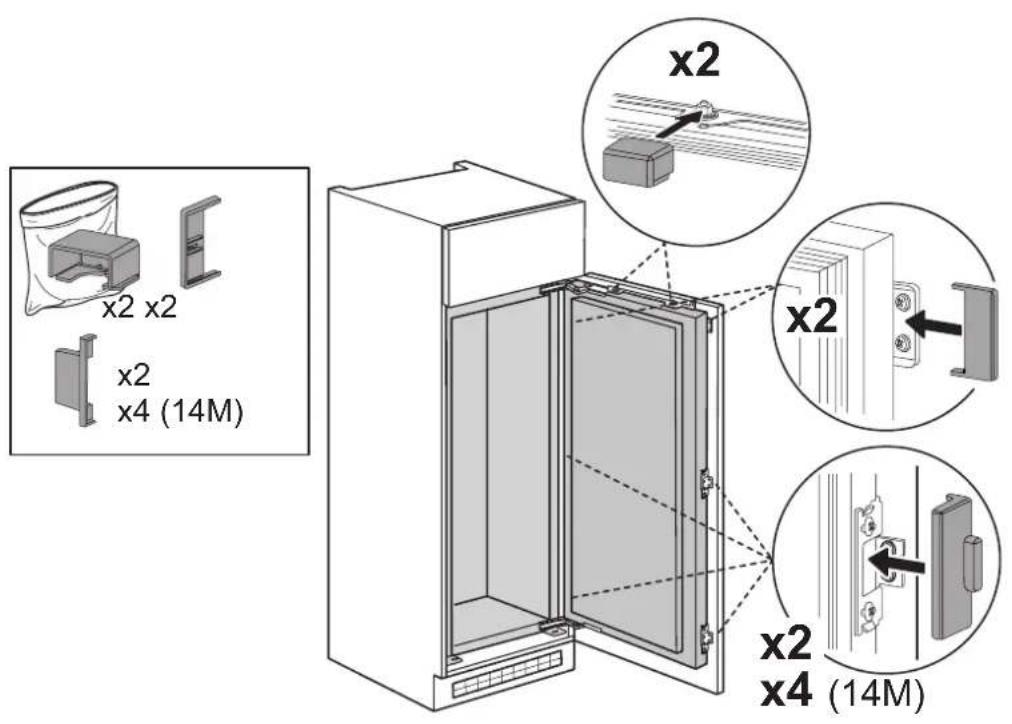

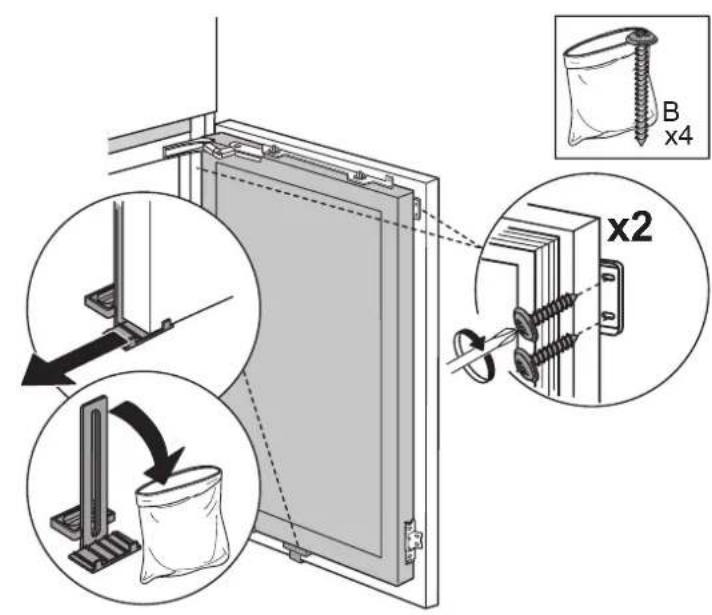

Diagram illustrating door frame installation steps with labeled components and magnified views of the assembly

7

Simple diagram of a door with bidirectional arrows indicating width and height (no text or symbols)

Pure diagram of a door with two curved arrows indicating clockwise motion, enclosed by dashed lines (no text or symbols)

Technical line drawing of an open industrial cabinet with internal doors and ventilation grilles (no text or symbols)

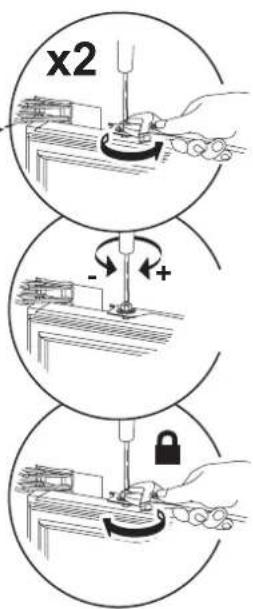

x2 - +

8

1 mm 1 mm

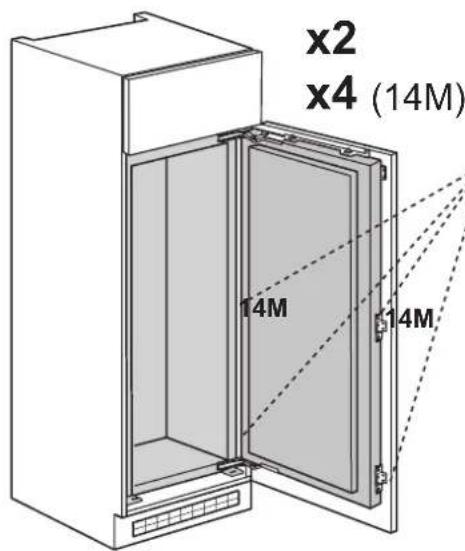

x2 x4 (14M) 14M 14M

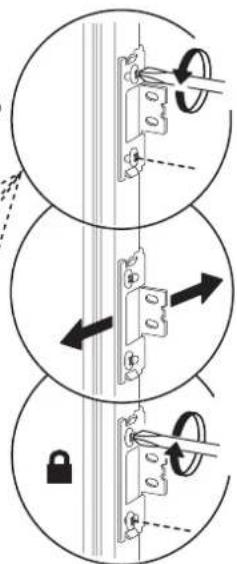

Diagram illustrating three-step lock mechanism: left panel shows lock assembly with clockwise arrow, right panel shows lock switch with clockwise arrow, and bottom panel shows lock lock.

8

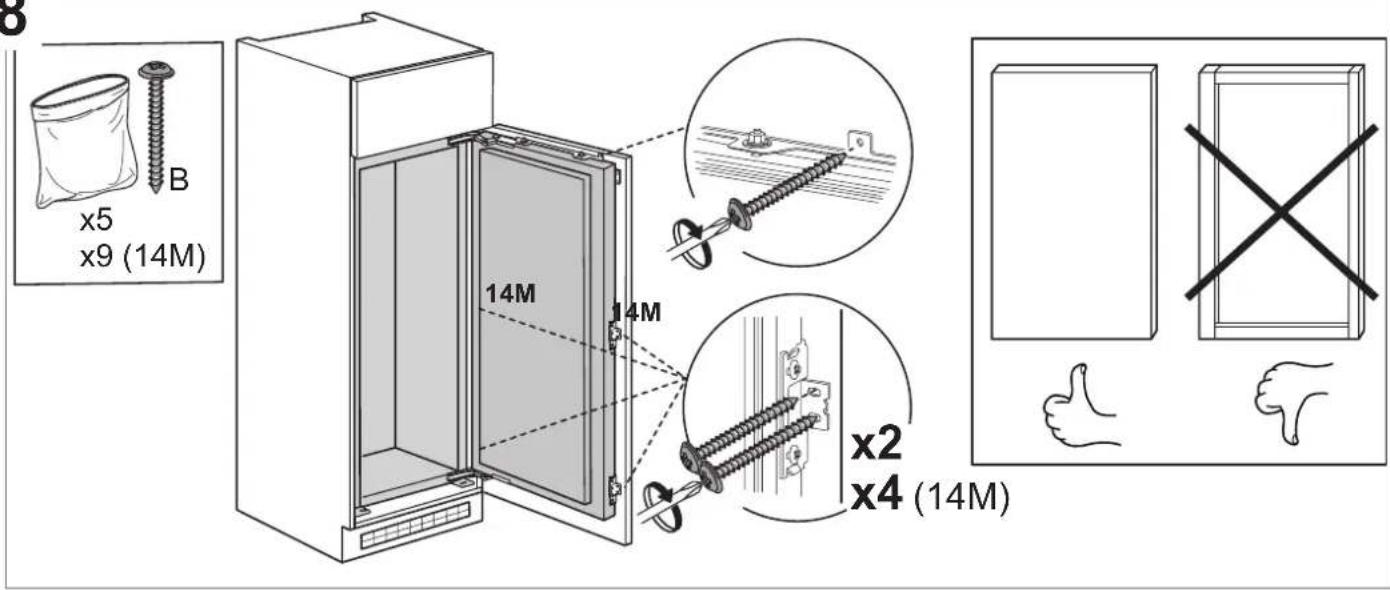

8 x5 x9 (14M) 14M 14M x2 x4 (14M)

9

x2 x2 x2 x4 (14M) x2 x2 x2 x4 (14M)

INHALT

ÜBERSICHT....11

Allgemeine Informationen.... 11

Bedientafel....11

FUNKTIONSWEISE....12

Diagram of a refrigerator interior with labeled compartments and doorways (no text or symbols)

Zeichenerklärung

TEMPERATURBEREICH

First time use....19

Refrigerator compartment and food storage 19

How to store fresh food and beverages....19

Functional sounds....20

Recommendation in case of no use of the appliance....20

CLEANING AND MAINTENANCE....21

Refrigerator light 21

Shelves 21

Door 21

TROUBLESHOOTING 22

SUPPORT 23

OVERVIEW

GENERAL INFORMATION

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this quick guide. The light system inside the refrigerator compartment uses LEDs light, allowing a better lighting than traditional light bulbs as well as a very low energy consumption.

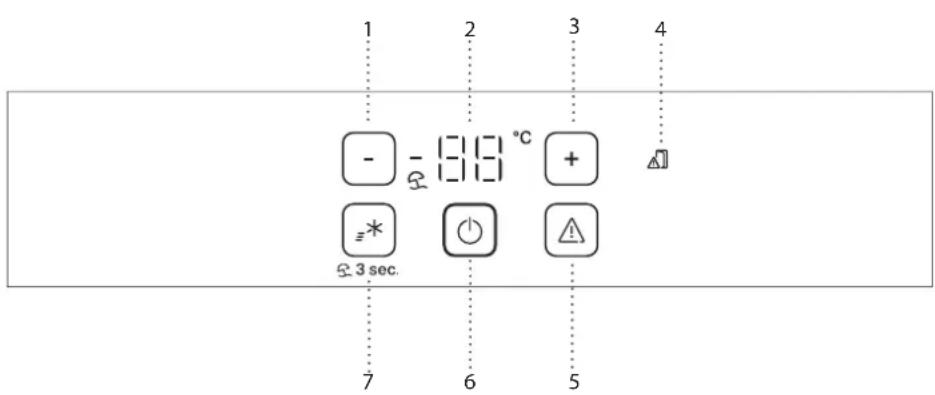

CONTROL PANEL

1 2 3 4 - - 18.0 °C + ∞ 3 sec. 6 5

DISPOSAL

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

1. Decrease Temperature Button
2. Temperature Display
3. Increase Temperature Button
4. Door open indicator
5. Turning off the sound alarm
6. On/stand-by
7. Fast Cool/ Vacation Mode

FRIDGE COMPARTMENT TEMPERATURE

To adjust the Fridge Temperature, press the Decrease - / Increase + Temperature button.

The Fridge Temperature can be adjusted between +2°C and +8°C, as shown by the Fridge Temperature display. Recommended setting for the refrigerator compartment is +4°C.

TEMPERATURE DISPLAY

The display shows the refrigerator compartment temperature (between 2^ C and 8^ C). To avoid food waste, please refer to the recommended setting and storage times found in the online user manual.

TURNING OFF THE SOUND ALARM

To turn off the sound alarm, briefly press the

ON/STAND-BY

To put the product in Stand-by, press and hold the On/ Stand By button. All the indicators turn except On/Standby indicator.

In Stand-by mode the light in the refrigerator compartment does not turn on Press again to reactivate the appliance.

Note: this does not disconnect the appliance from the power supply.

FAST COOL FUNCTION (FAST COOLING)

Using Fast Cool function it is possible to increase the cooling capacity in the refrigerator compartment.

To avoid an increase of food waste, refer to recommended setting and Storage Time in OPERATION chapter

The use of this function is recommended when placing a very high quantity of food in the refrigerator compartment. Press the Fast Cool button to activate Fast Cool function. When activated, the Fast Cool indicator turns on. The function is automatically disabled after 6 hours, or can be manually disabled by pressing Fast Cool button again.

VACATION

You can use this function in the event of a prolonged absence from home. Press the Vacation button for 3 sec to engage Vacation Mode.

The display will show the temperature of the refrigerator compartment (+12°C) and the Vacation mode icon will light up. After activating this function, remove the food from the refrigerator compartment and keep door closed - the refrigerator will maintain a suitable temperature to prevent odours from forming. When you activate vacation mode, remember to remove food from the freezer compartment.

A deep clean (of both refrigeration and freezer compartment) is recommended before activating this function in order to prevent the spread of bacteria. Press again the same button for 3 sec to deactivate Vacation.

Changing the setpoint will automatically deactivate the function.

OPERATION

FIRST TIME USE

Wait at least two hours, after the installation, before connecting the appliance to the power supply. Connect the appliance to the power supply it starts the operation automatically. The ideal storage temperatures for the food are preset in the factory.

After turning the appliance on, you must wait for 4-6 hours for the correct storage temperature to be reached for a normally filled appliance. If the audible signal sounds, it means that the temperature alarm has intervened: press the button to switch off the acoustic alarms.

REFRIGERATOR COMPARTMENT AND FOOD STORAGE

The refrigerator compartment allows for the storage of fresh food and drink. The refrigerator compartment defrosts completely automatically. The occasional presence of drops of water on the internal back wall of the compartment is a sign of the automatic defrosting phase. The defrosting water is channelled into a drain and then collected in a container, where it evaporates.

Note: the ambient temperature, how often the doors are opened and the position of the appliance may affect the internal temperatures in the two compartments. Set the temperatures depending on these factors. In very humid conditions, condensation may form in the refrigerator compartment, especially on the glass shelves. In this case, it is recommended that you close containers with liquids in (e.g. a pot of stock), wrap up food with a high water content (e.g. vegetables) and turn on the fan, if there is one. All of the drawers, door shelves and shelves can be removed.

LIGHT SYSTEM

This product contains 4 lateral light sources of energy efficiency class F

HOW TO STORE FRESH FOOD AND BEVERAGES

Foods which give off a large amount ethylene gas (apples, apricots, pears, peaches, avocado, figs, prunes, blueberries, mellons, beans) and those that are sensitive to this gas, such as fruit vegetables and salad, should always be separated or wrapped so as not to reduce the storage life; for example do not store tomatoes together with kiwi fruits or cabbage. Do not store food too close together to enable sufficient air circulation. Use recyclable plastic, metal, aluminum and glass containers and cling film to wrap foods. If you have a little quantity of food to store in the refrigerator, we recommend to use the shelves above the crisper for fruits and vegetables since this is the coolest area of the compartment. Always use closed containers for liquids and for food that may give off or be tainted by odor or flavor transfer or cover them. To avoid bottles falling over, you can use the bottle holder (available on selected models).

** For models with "0 ° ZONE" COMPARTMENT * the "coolest area" is the one highlighted in the legend

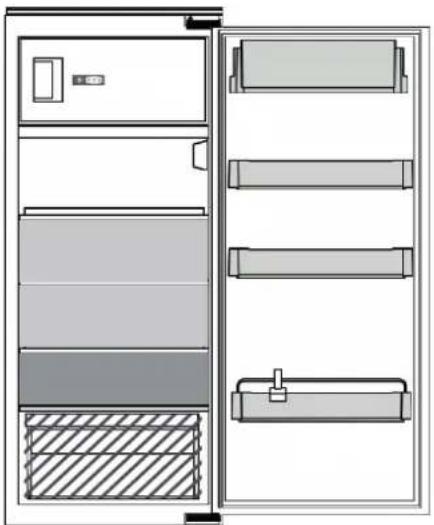

Diagram of a double-door refrigerator with doors, shelves, and storage compartments (no text or labels)

Legend

TEMPERATE ZONE

Suggested for storage of tropical fruit, cans, drink, eggs, sauces, pickles, butter, jam

COOL ZONE

Suggested for storage of cheese, milk, daily food, delicatessen, yoghurt

COOLEST AREA

Suggested for storage of cold cuts, desserts, meat and fish

FRUIT & VEGETABLE DRAWER

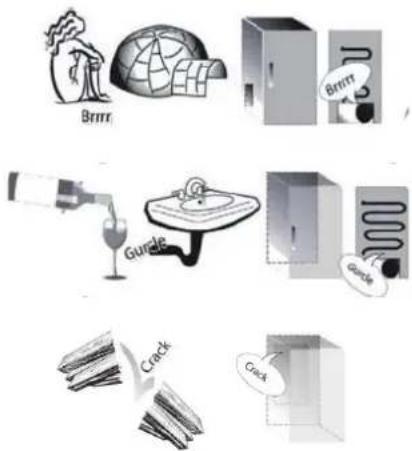

FUNCTIONAL SOUNDS

1. A buzz generated by the compressor is normal while the product is working.
2. Gurgling and crackles are generated by the passage of the refrigerant gas inside the cooling circuit, therefore these are normal noises.
3. It's possible to "hear" creaks when the compressor is active and inactive: it is a normal sound of the product's structure.
4. Check that the balconies on the inside of the refrigerator door, the shelves and the drawers in the refrigerator compartment are attached and positioned properly, to avoid possible vibrations.
5. Don't place glass containers (bottles, jars, etc.) in direct contact with each other, to avoid vibrations.
6. This device is equipped with a compressor that operates at an optimum speed to minimize energy consumption. So it may happen that in certain situations (in summer or if large quantities of food are introduced) that the compressor increases the speed and therefore it is more noisy than usual.

RECOMMENDATION IN CASE OF NO USE OF THE APPLIANCE

In the event of non-use of the applicance

Disconnect the appliance from the power supply, empty it, defrost it (if necessary) and clean it. Keep the doors slightly ajar to let air circulate inside the compartments. By doing this, you avoid the development of mould and bad odours.

In the event of an interruption to the power supply

Keep the doors closed so the food stays cold for as long as possible. Do not re-freeze food that has partially defrosted. If there is a prolonged power cut, the black out alarm may also activate (in products with electronics).

Brmm Gudge Crack Crack

CLEANING AND MAINTENANCE

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.

Never use abrasives. Never clean refrigerator parts with flammable fluids.

Do not use steam cleaners.

The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth.

Clean the appliance occasionally with a cloth and a solution of warm water and neutral cleaning agents specifically for cleaning the inside of the refrigerator

REFRIGERATOR LIGHT

The light system inside the refrigerator compartment uses LEDs light, allowing a better lighting than traditional light bulbs as well as a very low energy consumption. Contact the Technical Assistance Service if you need a replacement.

Important: The refrigerator compartment light switches on when the refrigerator door is opened

SHELVES

All of the drawers, door shelves and shelves can be removed?

DOOR

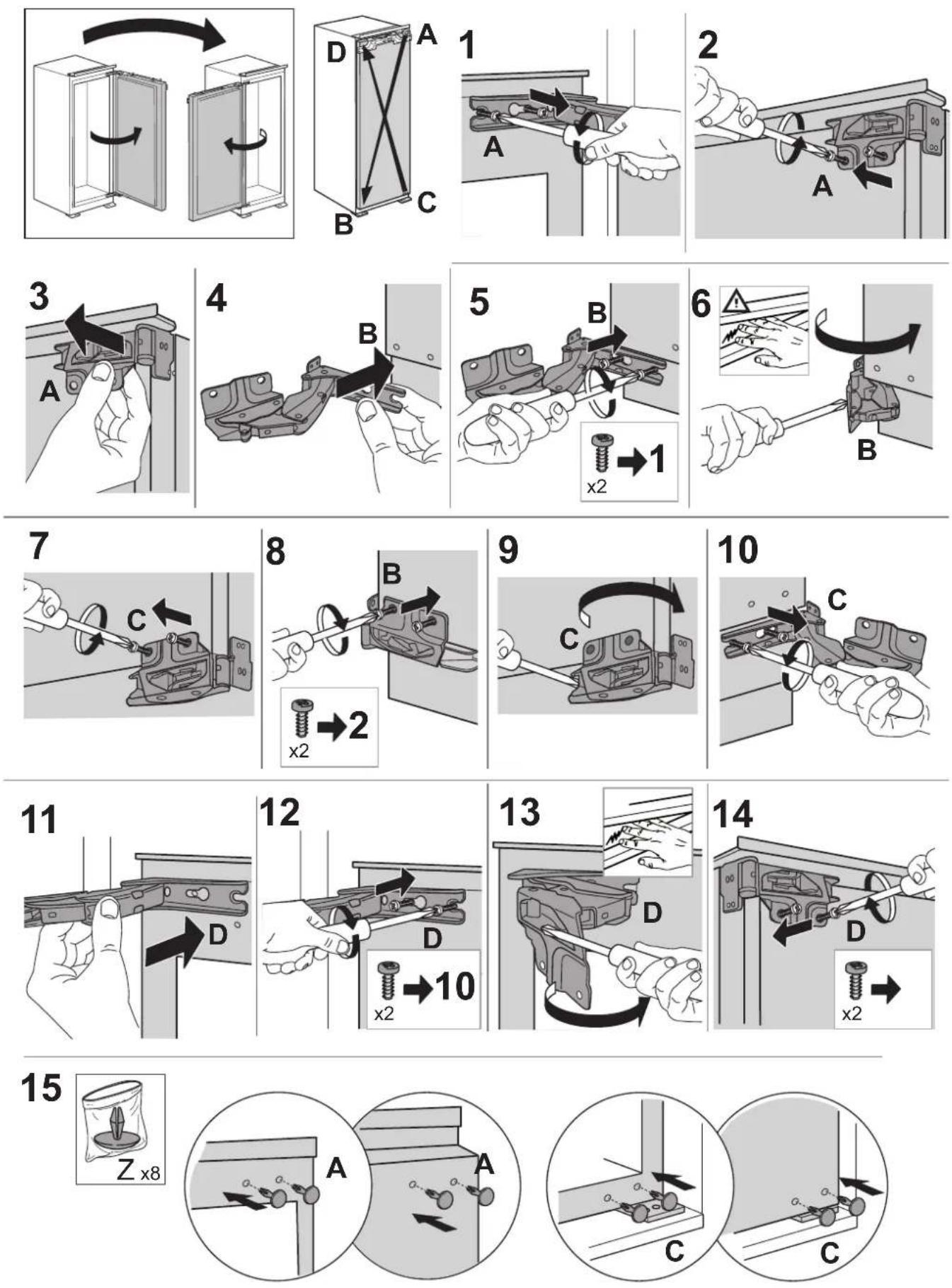

DOOR REVERSIBILITY

Note: The direction of door opening can be changed. If this operation is not performed by After-sales Service it is not covered by the warranty. Follow instruction in Installation chapter.

TROUBLESHOOTING

What to do if... Possible reasons Solutions

The control panel is switched off, the appliance does not work.	The appliance may be in On/Stand-bymode.There may be an appliance power supply problem.	Turn the appliance on pressing the On/Stand-by button. Check that:there is not a power outage;the plug is properly inserted in the power socket and the mains double-pole switch (if present) is in the correct position (i.e. allows the appliance to be powered);the household electrical system protection devices are efficient;the power cable is not damaged.
The inside light does not work.	The light may need to be replace.	Models with LED lights: contact the authorised Technical Assistance Service.
	The appliance may be in On/Stand-bymode.	Turn the appliance on by briefly pressing the(1)button (see On/Stand-by function).
The temperature inside the compartments is not low enough.	There could be various causes (see “Solutions”).	Check that:the doors close properly;the appliance is not installed near a heat source;the set temperature is adequate;the circulation of air through the ventilation grilles on the base of the appliance is not obstructed.
There is water on the bottom of the refrigerator compartment.	The defrost water drain is blocked.	Clean the defrosting water drain (see section “Cleaning and Maintenance”).
The front edge of the appliance, at the door striker seal, is hot.	This is not a defect. It prevents condensation from forming.	No solution is necessary.
Door open alarm indicator and Alarm indicators blink, the acoustical alarm is activated.	Door open alarmThe Fridge door remained open for more than 2 minutes	Close the door or press the Stop Alarm to mute the acoustical alarm.

SUPPORT

When contacting our Service Centre, please state the codes provided on your product's identification plate.
