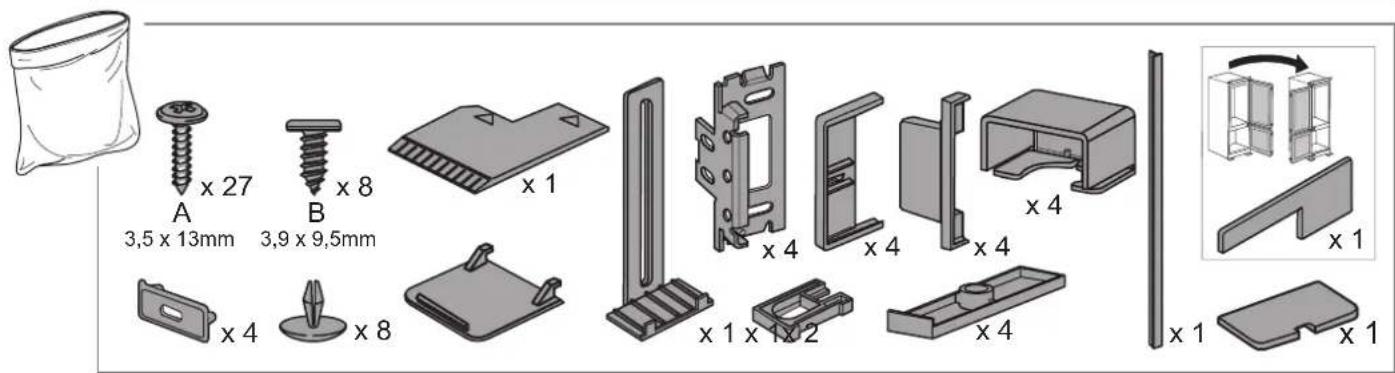

A x 27 3,5 x 13mm B x 8 3,9 x 9,5mm x 1 x 4 x 8 x 1 x 1x 2 x 4 x 4 x 4 x 4 x 1 x 1 x 1

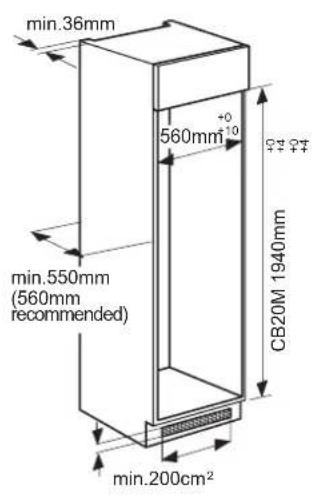

min.36mm 560mm +0 +4 +4 min.550mm (560mm recommended) min.200cm² CB20M 1940mm

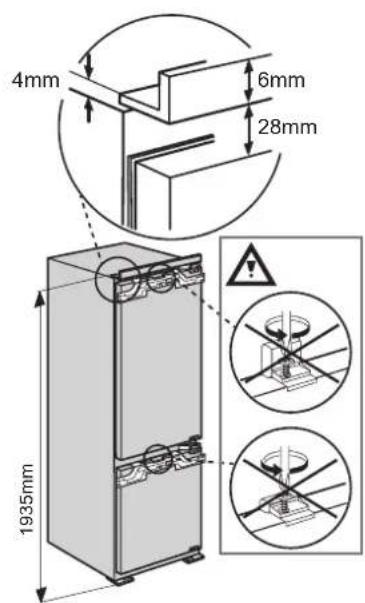

540/557mm 545mm 1935mm 75mm 20mm 1189,5mm 8mm 685,5mm 703,5mm

4mm 6mm 28mm 1935mm

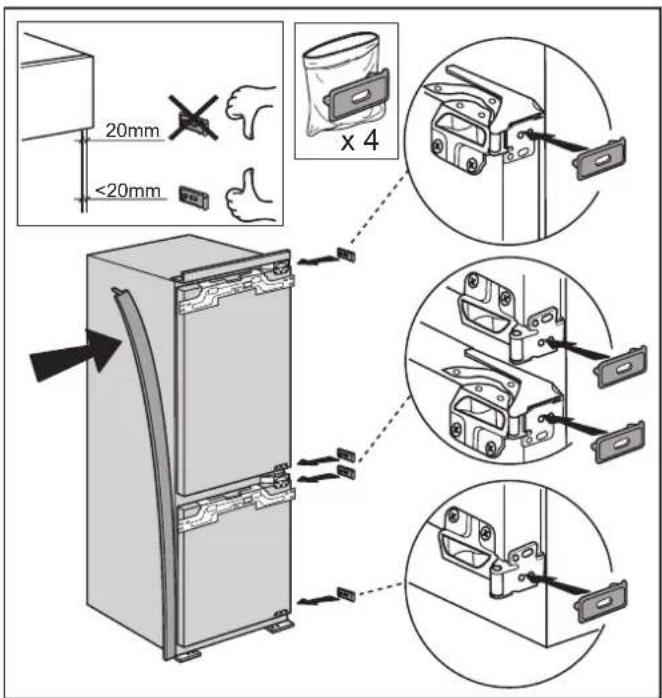

20mm <20mm x 4

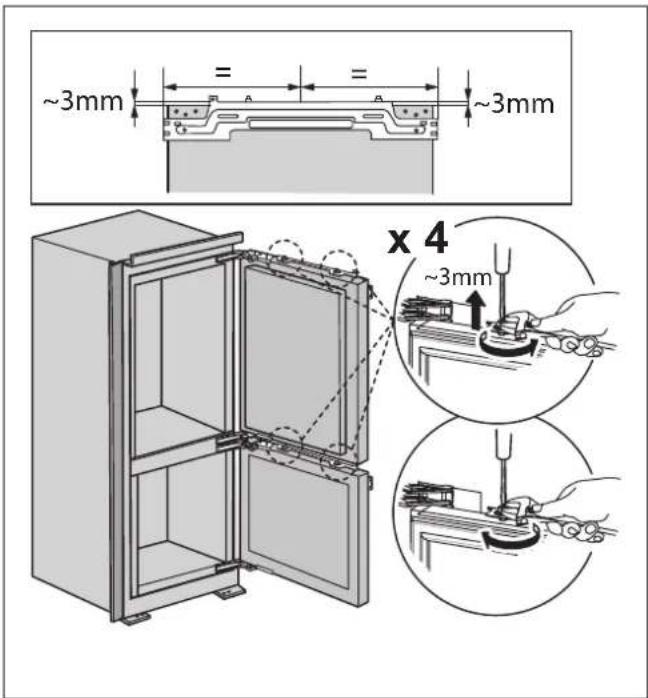

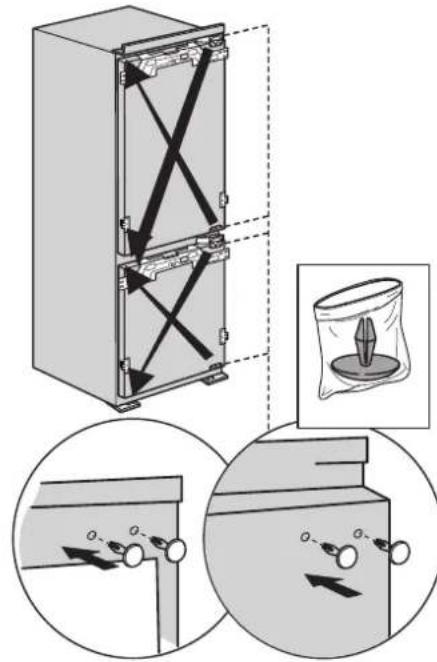

~3mm = = ~3mm x 4 ~3mm

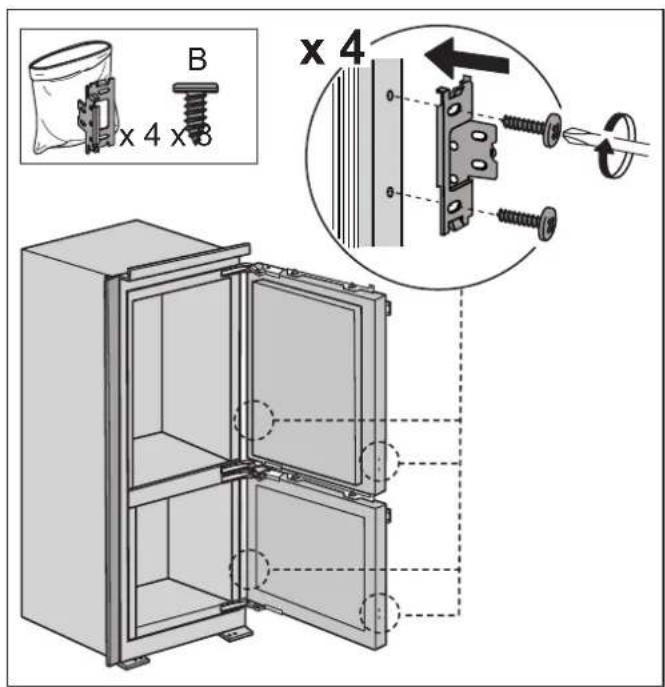

B x 4 x 3 x 4

Diagram of a refrigerator interior showing airflow and wiring, no text or symbols present

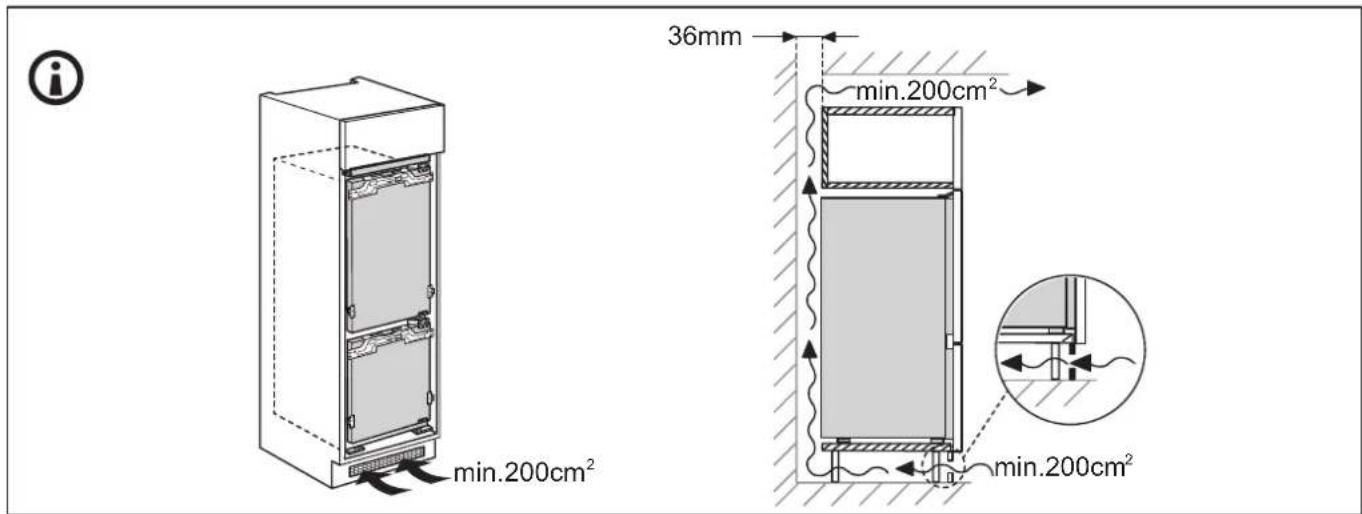

36mm min.200cm² min.200cm² min.200cm²

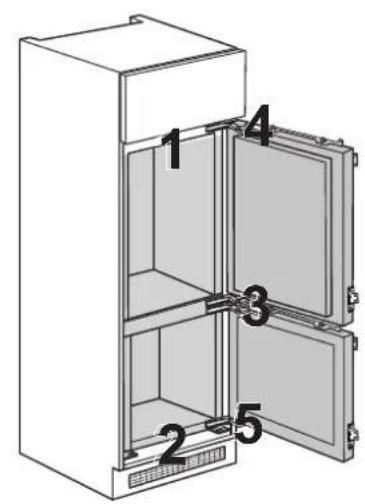

Diagram of a refrigerator interior with numbered compartments for identification

1

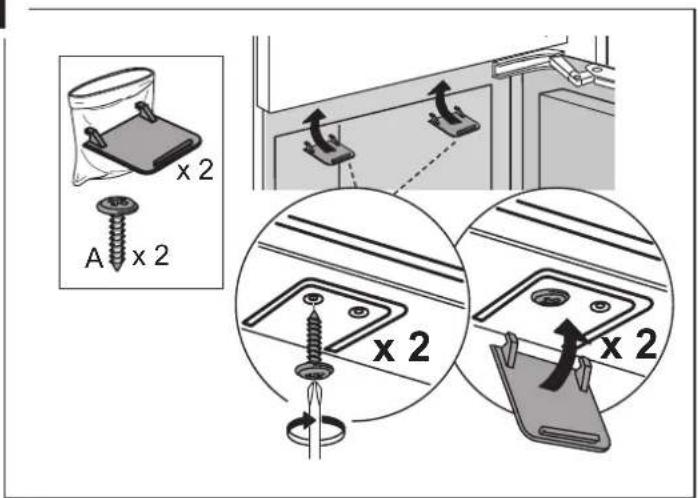

x 2 A x 2 x 2 x 2

2

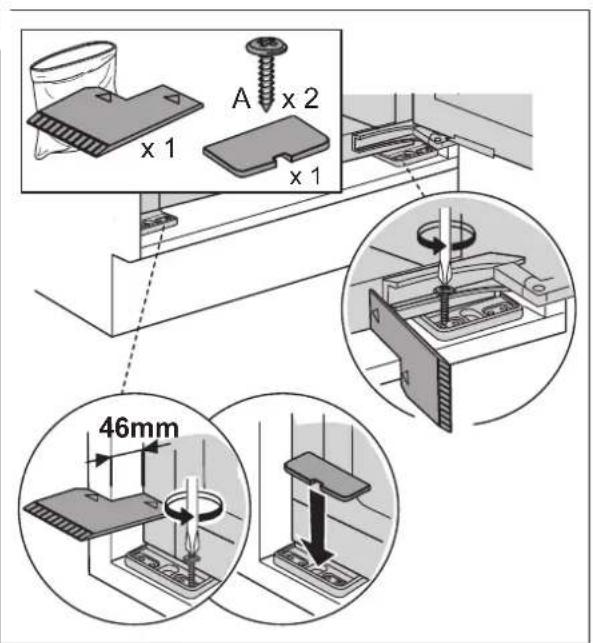

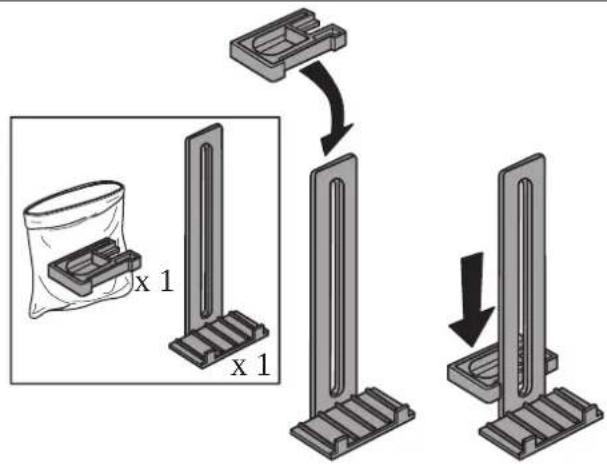

A x 2 x 1 x 1 46mm

3

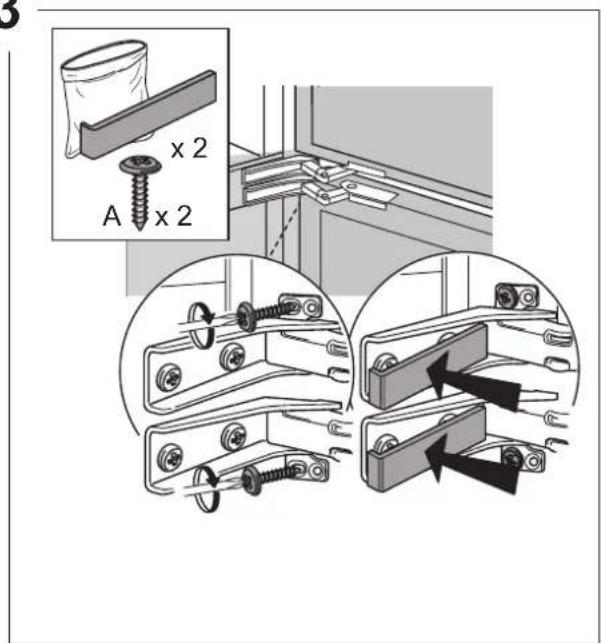

x 2 A x 2

4

Technical diagram showing a screw fastener installation with cross-sectional views and component details

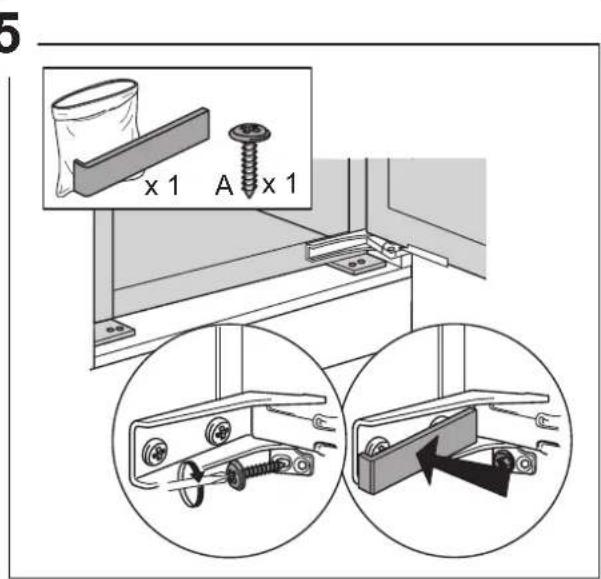

5

5 x 1 A x 1

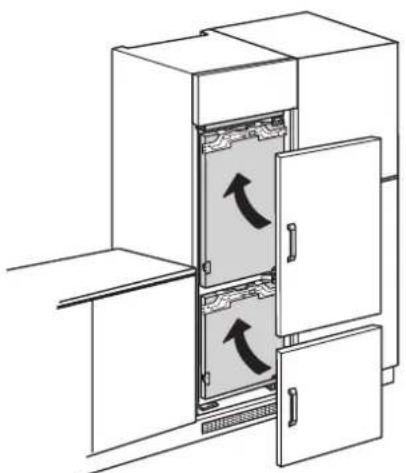

Diagram of a cabinet with two doors and an open door, showing internal airflow direction (no text or symbols)

1

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or transformation.

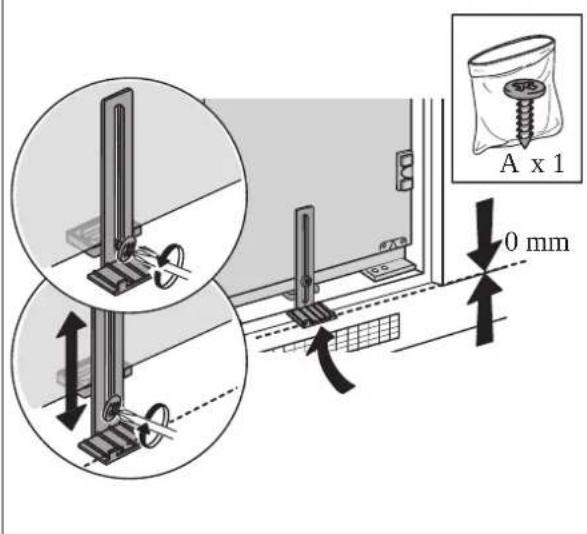

2

A x 1 0 mm

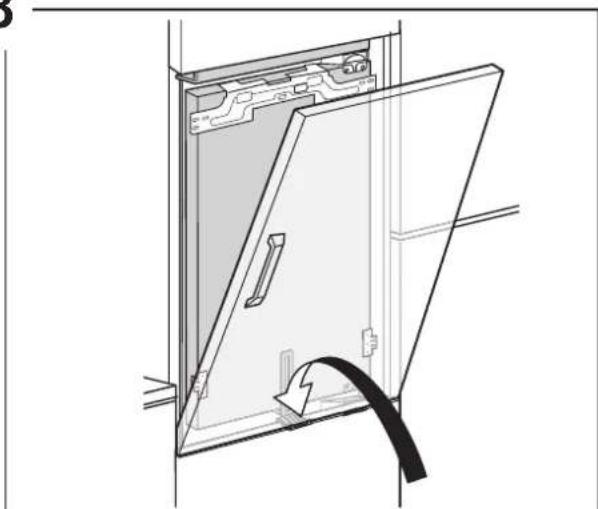

3

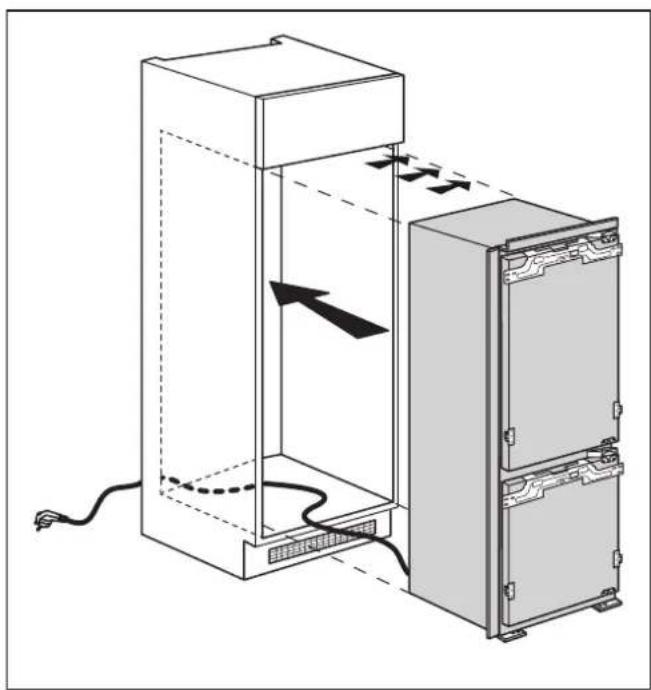

Diagram of a device with a cable inserted into a panel, showing internal components and wiring (no text or symbols)

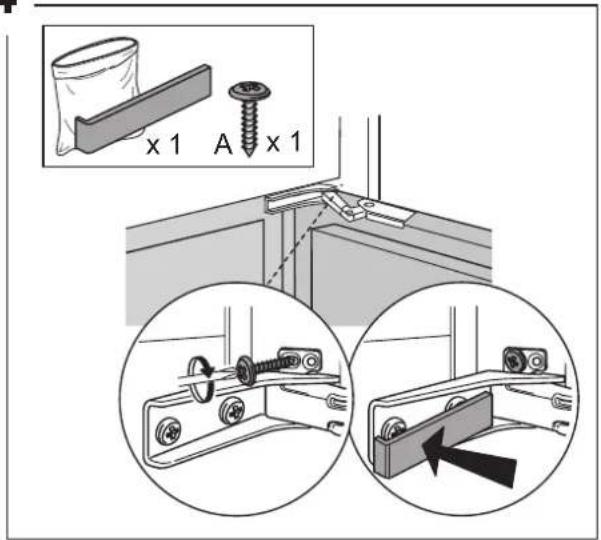

4

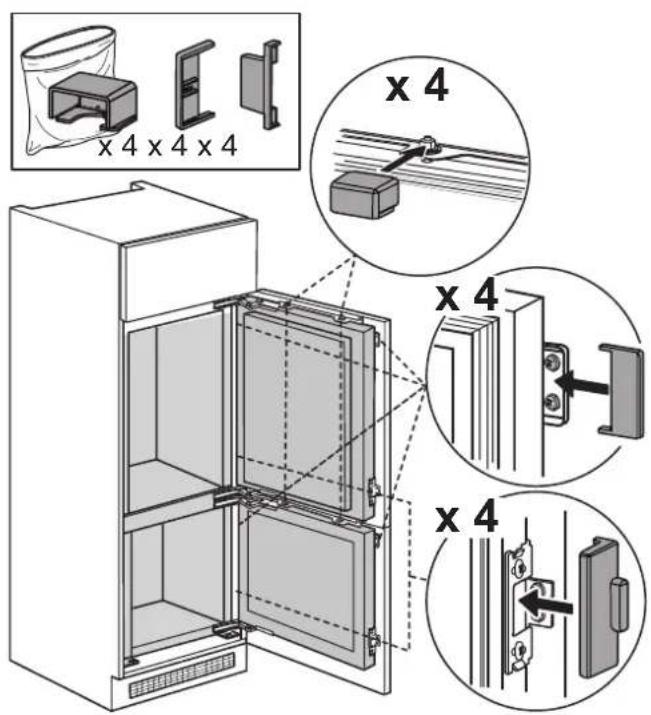

x 2

5

Diagram showing two hands installing or adjusting a window frame with directional arrows (no text or symbols)

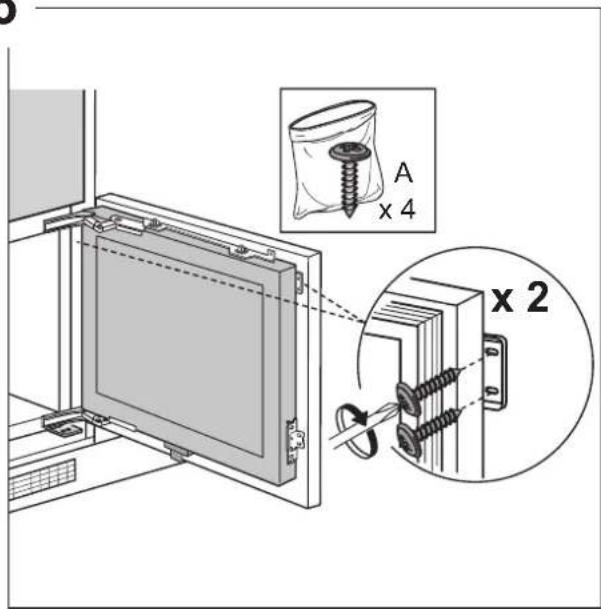

6

A x 4 x 2

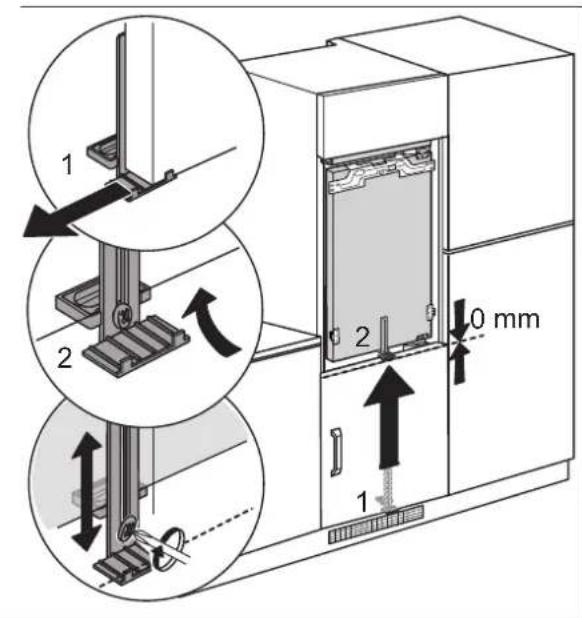

7

1 2 2 0 mm 1

8

Diagram of a door panel with a black cable inserted, showing internal components and a lightning bolt symbol (no text or labels)

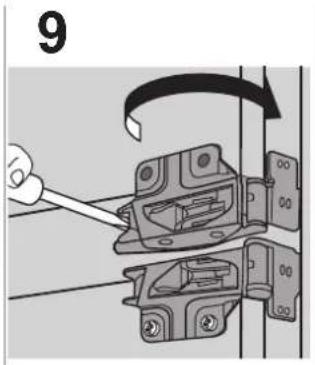

9

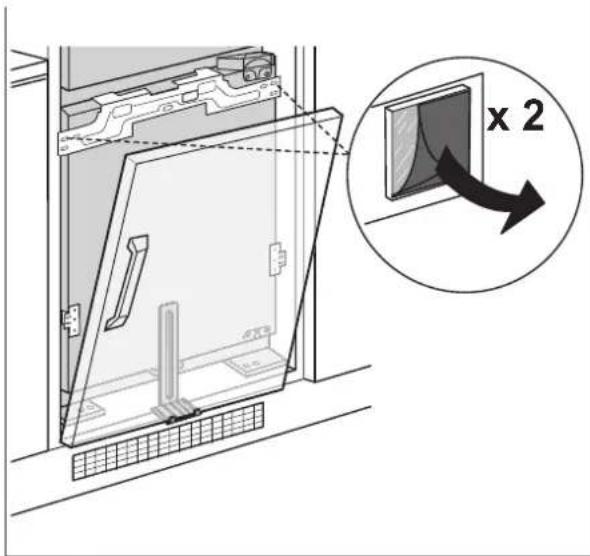

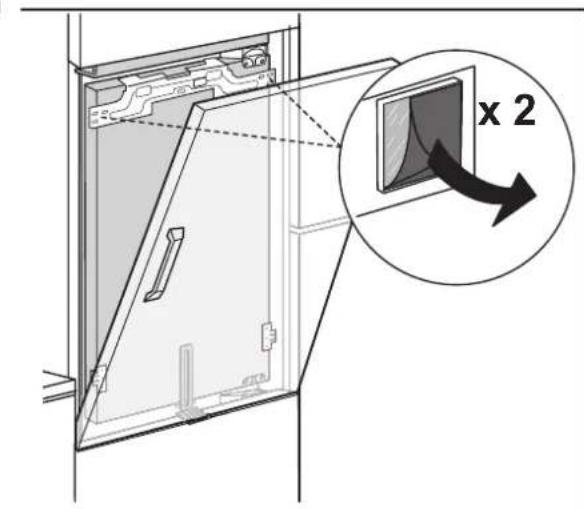

x 2

10

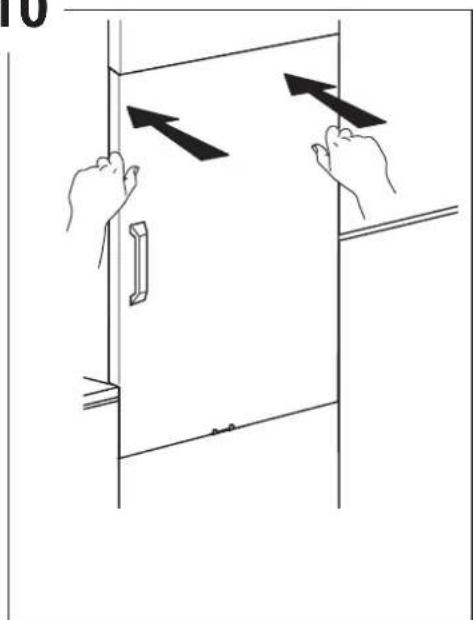

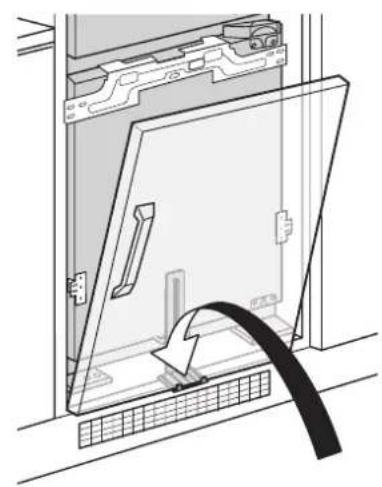

Illustration of two hands holding a door with arrows indicating direction (no text or symbols)

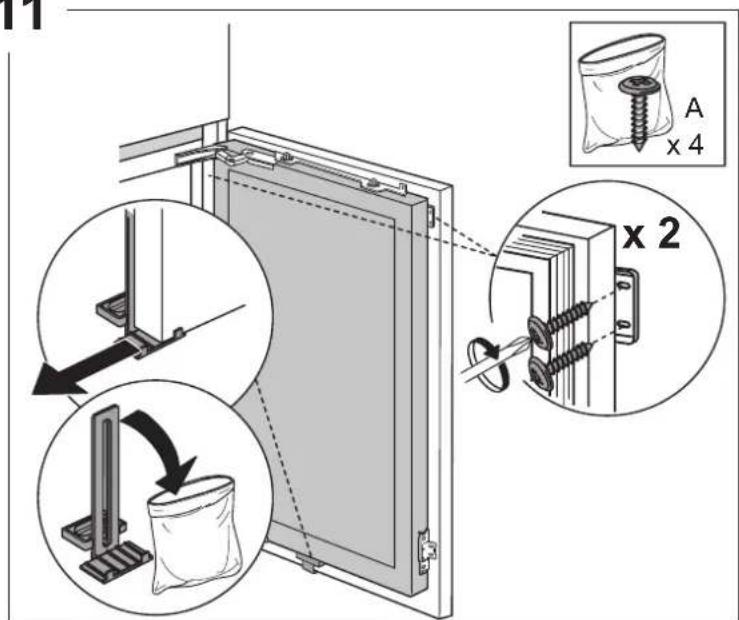

11

Diagram illustrating a door frame installation with labeled components and assembly steps

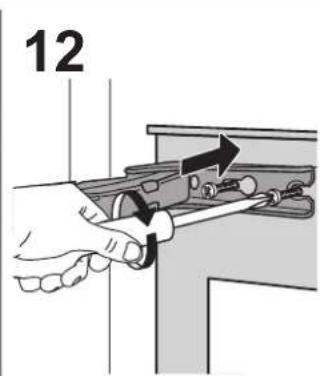

12

Diagram illustrating refrigerator interior and door assembly, showing folding, lifting, and mounting steps with magnified views.

13

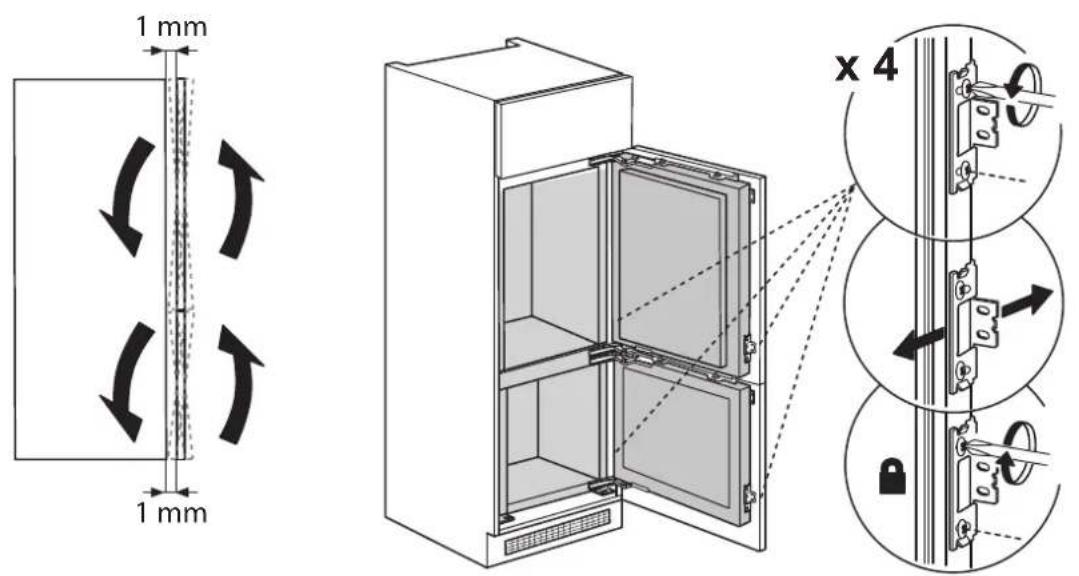

1 mm 1 mm x 4

14

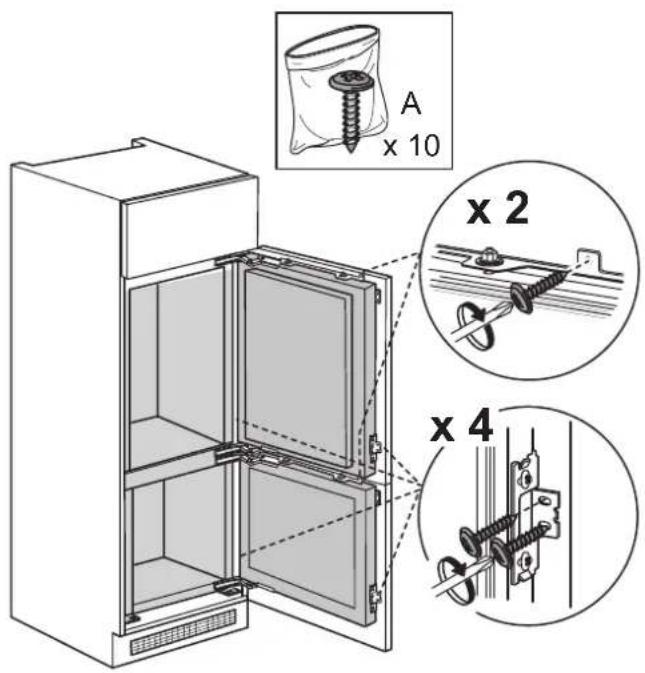

A x 10 x 2 x 4

Diagram showing two document shapes with thumbs and cross symbols, indicating incorrect or invalid views.

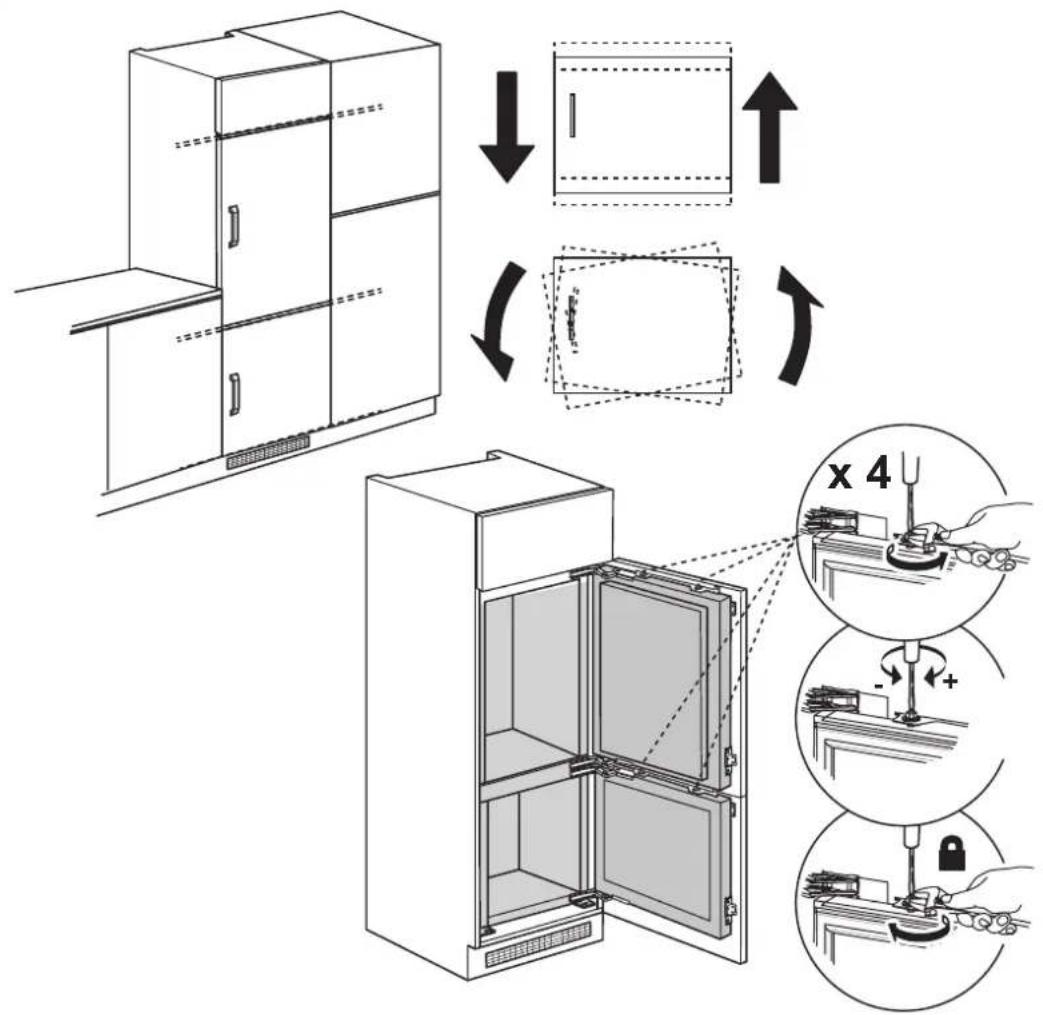

15

Technical diagram of a refrigerator with labeled components and cross-sectional views showing internal structure and mounting details.

Diagram showing two views of a refrigerator with doors open, one rotated to the other (no text or symbols)

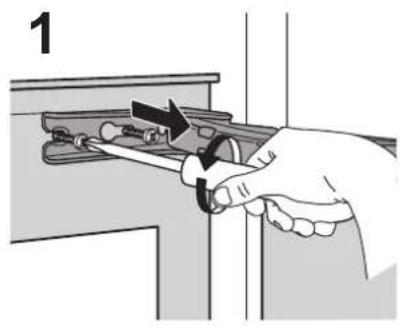

Hand holding a tool interacting with a mechanical component (no text or symbols visible)

2

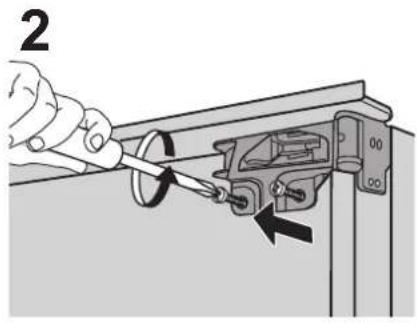

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or force directions.

Hand holding a door lock with a black arrow indicating the handle (no text or symbols present)

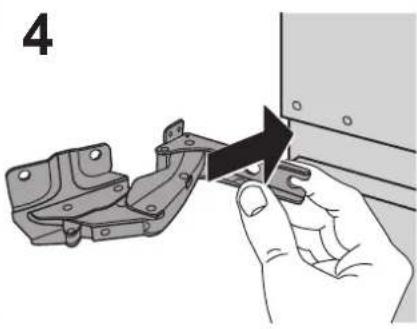

Hand holding a mechanical bracket with a black arrow indicating a process (no text or symbols present)

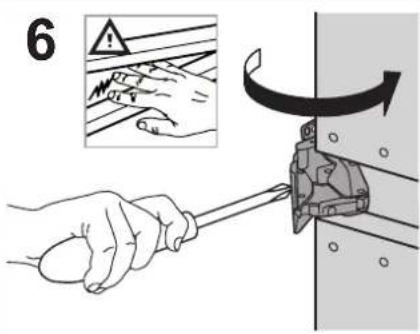

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

6

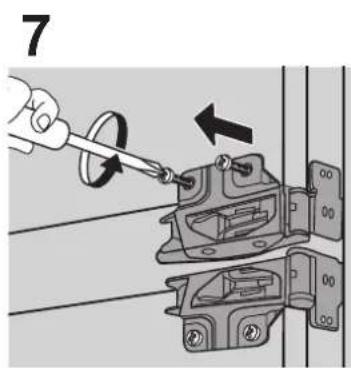

7

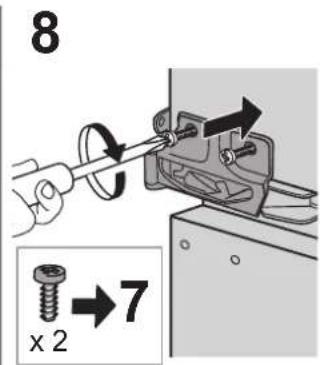

8 x 2 7

Mechanical assembly diagram showing a hand turning a component with an arrow indicating rotation (no text or symbols present)

10

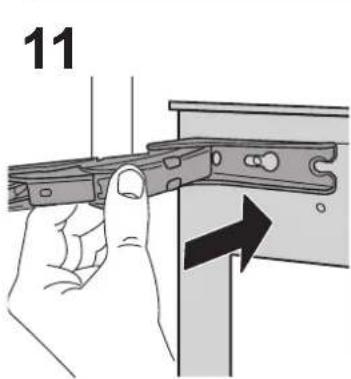

11

12

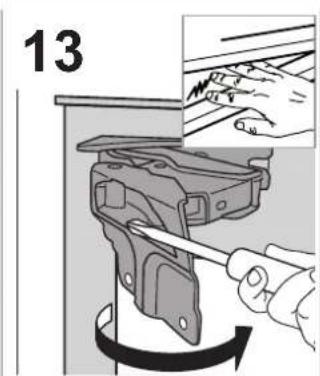

13

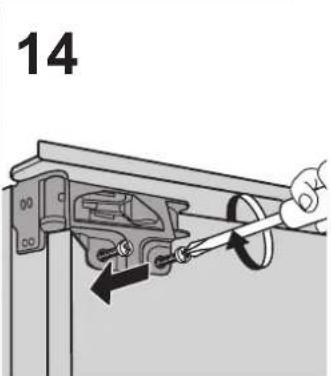

Mechanical assembly diagram showing a hand holding a ring and rotating components (no text or symbols)

INHALT

ÜBERSICHT....12

Allgemeine Informationen.... 12

Bedientafel....12

FUNKTIONSWEISE 13

1 2 3 4 5 6 7 8 3 sec. Total No Frost 3 sec. 3 sec.

Diagram of a refrigerator interior layout with labeled compartments and doorways (no text or symbols)

Zeichenerklärung

TEMPERATUR BEREICH

Two document icons: a gray clipboard with horizontal lines and a white sheet with horizontal lines, both without any text or symbols.

Zeichenerklärung

SCHUBFÄCHER DES GEFRIERRAUMS

GEFRIERBEREICH-FACH

(Max Kühlbereich)

Brm3 Gurdle Crack Crack

Refrigerator compartment and food storage 21

How to store fresh food and beverages....21

Freezer compartment food storage 22

Freezer compartment 22

Functional sounds....23

Recommendation in case of no use of the appliance....23

CLEANING AND MAINTENANCE....24

Refrigerator light 24

Shelves 24

Door....24

TROUBLESHOOTING 25

SUPPORT 26

OVERVIEW

GENERAL INFORMATION

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this quick guide. The light system inside the refrigerator compartment uses LEDs light, allowing a better lighting than traditional light bulbs as well as a very low energy consumption.

DISPOSAL

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

CONTROL PANEL

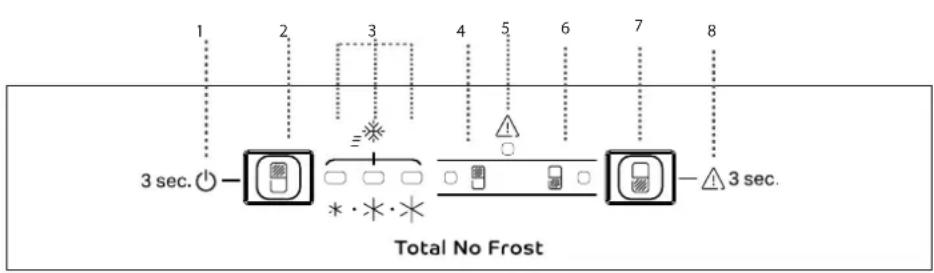

1 2 3 4 5 6 7 8 3 sec. Total No Frost 3 sec.

1. On/STAND-BY On/Stand-By
2. Refrigerator Temperature / Stand By
3. Temperature Indicator setting
4. Refrigerator Indicator
5. Alarm Indicator
6. Freezer Indicator
7. Freezer Temperature
8. Stop Alarm

SETTING THE TEMPERATURES

Press the Refrigerator Button ☐ to set a different temperature in the refrigerator compartment.

Recommended setting for Refrigerator compartment is MED

Press the Freezer Button ☐ to set a different temperature in the freezer compartment.

Recommended setting for Freezer compartment is MED

LEAST COLD MEDIUM COOLEST TEMP FAST FREEZING * * * Led off Led

ON/STAND-BY Press the Refrid

Press the Refrigerator Temperature button for 3 seconds to turn the appliance on stand-by. When in Stand-by mode the light in the refrigerator compartment does not turn on. Press the button again briefly to reactivate the appliance.

FAST FREEZE FUNCTION

In order to preserve at best, please use the Fast Freeze function before putting a large quantity of food in the freezer cavity.

Press the button (6) until all the three leds are on in order to set the function.

The function turns off automatically after 26 hours, or manually by selecting different freezer temperature.

Note: Please avoid a direct contact between the fresh food and the food already frozen. To optimise the freezing speed, drawers can be removed and the food can be placed directly on the bottom of the compartment.

To avoid an increase of food waste, refer to recommended setting and Storage Time in OPERATION chapter

FIRST TIME USE

Wait at least two hours, after the installation, before connecting the appliance to the power supply. Connect the appliance to the power supply it starts the operation automatically. The ideal storage temperatures for the food are preset in the factory.

After turning the appliance on, you must wait for 4-6 hours for the correct storage temperature to be reached for a normally filled appliance. If the audible signal sounds, it means that the temperature alarm has intervened: press the button to switch off the acoustic alarms.

REFRIGERATOR COMPARTMENT AND FOOD STORAGE

The refrigerator compartment allows for the storage of fresh food and drink. The refrigerator compartment defrosts completely automatically. The occasional presence of drops of water on the internal back wall of the compartment is a sign of the automatic defrosting phase. The defrosting water is channelled into a drain and then collected in a container, where it evaporates.

Note: the ambient temperature, how often the doors are opened and the position of the appliance may affect the internal temperatures in the two compartments. Set the temperatures depending on these factors. In very humid conditions, condensation may form in the refrigerator compartment, especially on the glass shelves. In this case, it is recommended that you close containers with liquids in (e.g. a pot of stock), wrap up food with a high water content (e.g. vegetables) and turn on the fan, if there is one. All of the drawers, door shelves and shelves can be removed.

MULTIFLOW AIR DISTRIBUTION

The multiflow helps to distribute evenly the cold air in the cavity for a better food preservation. Foods can be placed on any shelf of the appliance. Please pay attention to not obstruct the air distribution vents thus ensuring its free movement.

LIGHT SYSTEM

This product contains a top light source of energy efficiency class G

HOW TO STORE FRESH FOOD AND BEVERAGES

Foods which give off a large amount ethylene gas (apples, apricots, pears, peaches, avocado, figs, prunes, blueberries, mellons, beans) and those that are sensitive to this gas, such as fruit vegetables and salad, should always be separated or wrapped so as not to reduce the storage life; for example do not store tomatoes together with kiwi fruits or cabbage. Do not store food too close together to enable sufficient air circulation. Use recyclable plastic, metal, aluminum and glass containers and cling film to wrap foods.

If you have a little quantity of food to store in the refrigerator, we recommend to use the shelves above the crisper for fruits and vegetables since this is the coolest area of the compartment. Always use closed containers for liquids and for food that may give off or be tainted by odor or flavor transfer or cover them. To avoid bottles falling over, you can use the bottle holder (available on selected models).

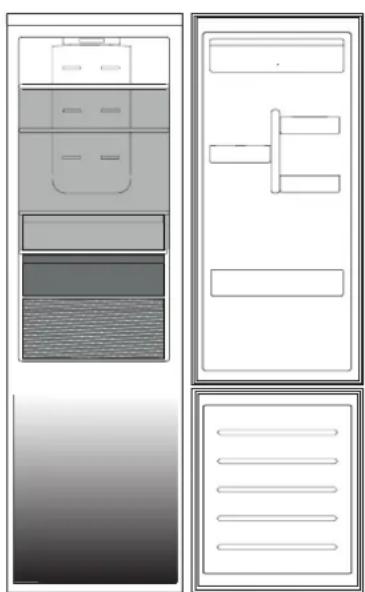

Diagram of a refrigerator interior layout with labeled compartments and doorways (no text or symbols)

Legend

TEMPERATURE ZONE

Suggested for the storage of tropical fruit, cans, drinks, eggs, sauces, pickles, butter, jam

COOL ZONE

Suggested for the storage of cheese, milk, daily food, delicatessen, yogurt

COOLEST AREA

Suggested for storage of cold cuts, desserts, meat and fish

FRUIT & VEGETABLE DRAWER

The load limits are determined by the particular construction (baskets, containers, flaps, drawers, shelves, etc.), or the load limits are determined by natural load limits.

FREEZER COMPARTMENT FOOD STORAGE

The freezer compartment - 100 allows long time storage of frozen food and freezing of fresh food. The quantity of fresh food that can be frozen in 24 hours is written on the rating plate. Arrange the fresh food in the freezing area inside the freezer compartment, leaving enough space around the food packages to allow air to circulate freely. It is advisable that you do not re-freeze food that has partially defrosted. It is important to wrap the food in a way that prevents the ingress of water, humidity or condensation.

Two document icons: a clipboard on the left and a blank sheet with horizontal lines on the right (no text or symbols)

Legend

FREEZER DRAWERS

FREEZING ZONE DRAWER
(Max cool zone)
Suggested to freeze fresh/cooked food

REMOVING THE DRAWERS

Pull the drawers outwards as far as they will go, lift them up and remove them. To get more volume, the freezer compartment can be used without the drawers. Make sure that the door is closed properly after putting the food back on the grilles/shelves.

FREEZER COMPARTMENT

Ice cubes

Fill 2/3 of the ice tray with water and put it back in the freezer compartment. Do not use sharp or pointed objects to remove the ice under any circumstances.

The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate.

Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading.

Easy Take Freezer Tray

Easy access zone in the freezer: easy to find and grab your favorite items.

Total No Frost system

The Total No Frost system effectively prevents ice formation, avoiding the hassle of manual defrosting both in freezer and fridge cavity.

Its ventilation system provides perfect circulation of cold air in both cavities thus avoiding ice builds up.

FUNCTIONAL SOUNDS

1. A buzz generated by the compressor is normal while the product is working.

Illustration of three industrial or commercial objects: a person with a globe, a dome structure, and a server unit (no visible text or symbols)

1. Gurgling and crackles are generated by the passage of the refrigerant gas inside the cooling circuit, therefore these are normal noises.

Guide

1. It's possible to "hear" creaks when the compressor is active and inactive: it is a normal sound of the product's structure.

1. Check that the balconies on the inside of the refrigerator door, the shelves and the drawers in the refrigerator compartment are attached and positioned properly, to avoid possible vibrations.
2. Don't place glass containers (bottles, jars, etc.) in direct contact with each other, to avoid vibrations.
3. This device is equipped with a compressor that operates at an optimum speed to minimize energy consumption. So it may happen that in certain situations (in summer or if large quantities of food are introduced) that the compressor increases the speed and therefore it is more noisy than usual.

RECOMMENDATION IN CASE OF NO USE OF THE APPLIANCE

In the event of non-use of the applicance

Disconnect the appliance from the power supply, empty it, defrost it (if necessary) and clean it. Keep the doors slightly ajar to let air circulate inside the compartments. By doing this, you avoid the development of mould and bad odours.

In the event of an interruption to the power supply

Keep the doors closed so the food stays cold for as long as possible. Do not re-freeze food that has partially defrosted. If there is a prolonged power cut, the black out alarm may also activate (in products with electronics).

CLEANING AND MAINTENANCE

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.

Never use abrasives. Never clean refrigerator parts with flammable fluids.

Do not use steam cleaners.

The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth.

Clean the appliance occasionally with a cloth and a solution of warm water and neutral cleaning agents specifically for cleaning the inside of the refrigerator.

REFRIGERATOR LIGHT

The light system inside the refrigerator compartment uses LEDs light, allowing a better lighting than traditional light bulbs as well as a very low energy consumption. Contact the Technical Assistance Service if you need a replacement.

Important: The refrigerator compartment light switches on when the refrigerator door is opened.

SHELVES

All of the drawers, door shelves and shelves can be removed.

DOOR

DOOR REVERSIBILITY

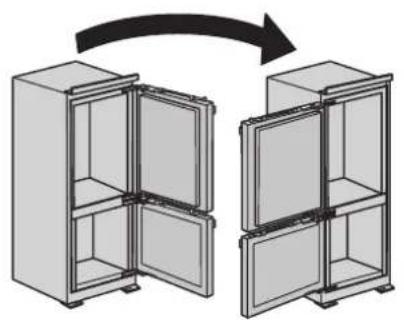

Note: The direction of door opening can be changed. If this operation is not performed by After-sales Service it is not covered by the warranty. Follow instruction in Installation chapter.

TROUBLESHOOTING

What to do if... Possible reasons Solutions

The control panel is switched off, the appliance does not work.	The appliance could be in On/Standby mode.There may be an appliance power supply problem.	Activate the appliance with the button 1.Make sure:there is not a power outagethe plug is properly inserted in the power socket and the mains double-pole switch (if present) is in the correct position (i.e. allows the appliance to be powered)the household electrical system protection devices are efficientthe power cable is not broken.
The inside light does not work.	The light may need replacing. Contact the	Authorized service center.
	The appliance could be in On/Standby mode.	Activate the appliance with the button 1.
The temperature inside the compartments is not low enough.	There could be various causes (see "Cures").	Make sure:the doors close properlythe appliance is not installed near a heat sourcethe set temperature is adequatethe circulation of air through the vents at the bottom of the appliance is not obstructed.
The front edge of the appliance, at the door striker seal, is hot.	This is not a defect. It prevents condensation from forming.	No cure is necessary.
Acoustic signal sounds. Door open alarmIt is activated when a door remains open for a long period of time.		Close the doors of the product to deactivate the acoustic signal.
	Black Out alarmIt is activated in case of a prolonged power outage causing an increase in the freezer compartment temperature.Note: A different product temperature cannot be set until the Black Out alarm is deactivated.	Before deactivating the acoustic signal, it is advisable to pay attention to the Freezer temperature leds, corresponding to the highest temperature reached in the freezer compartment during the black out. Press the "Stop Alarm" button briefly to deactivate the acoustic signal. After pressing the button, the temperature led shows the set temperatures again. If the freezer compartment has not yet reached the optimum food preservation temperature, the freezer compartment temperature alarm could be activated (see freezer compartment temperature alarm). Check the food before consuming it.
	Freezer compartment temperature alarmThe freezer compartment temperature alarm indicates that the compartment temperature is not optimum. This may happen: with first use, after defrosting and/or cleaning, if large amounts of food are placed inside the freezer or when the freezer door has not been closed properly.	Pressing button (1) or button (6) button the acoustic alarm is snoozed

SUPPORT

When contacting our Service Centre, please state the codes provided on your product's identification plate.

SOMMAIRE

APERÇU....28

1 2 3 4 5 6 7 8 3 sec. Total No Frost 3 sec.

Diagram of a refrigerator interior layout with labeled compartments and doorways (no text or symbols)

Légende

TEMPÉRATURE ZONE

Two document icons: a left-side clipboard with horizontal lines and a right-side blank sheet with horizontal lines (no text or symbols)

Légende

BACS DU CONGÉLATEUR

Illustration of industrial equipment including a globe, storage unit, and battery (no text or symbols)

PROBLEEMOPLOSSING....41

ONDERSTEUNING 42

GEBRUIKERSHANDLEIDING

OVERZICHT

ALGEMENE INFORMATIE

1 2 3 4 5 6 7 8 3 sec. Total No Frost 3 sec. 3 sec.

Pure diagram of stacked rectangular blocks with asterisks at the bottom, no text or symbols present

MINST KOUD | GEMIDDELD | KOUDSTE TEMP FAST FREEZING (SNELVRIEZEN)

Diagram showing two vertical panels: left panel with a refrigerator and water tank, right panel with a door and window (no text or symbols)

Legenda

TEMPERATUURZONE

Two document icons: a clipboard with horizontal lines and a blank sheet with horizontal lines (no text or symbols)

Legenda

LADEN VRIESVAK

LADE DIEPVRIESGEDEELTE (Max koelzone)

Illustration of industrial equipment including a globe, cabinet, and fan (no text or symbols)

1 2 3 4 5 6 7 8 3 sec. Total No Frost 3 sec.

Diagram showing two vertical panels: left panel with a refrigerator and water tank, right panel with a door and window (no text or symbols)

Legenda

ZONA TEMPERATA

Two document icons: a clipboard on the left and a blank sheet with horizontal lines on the right (no text or symbols)

Legenda

CASSETTI CONGELATORE

CASSETTO ZONA CONGELAMENTO

Illustration of three industrial or commercial components: a dome-shaped structure, a globe-like dome, and a server unit (no text or symbols visible)

1 2 3 4 5 6 7 8 3 sec. Total No Frost 3 sec.

ELIMINACIÓN

Diagram of a refrigerator interior layout with labeled compartments and doorways (no text or symbols)

Leyenda

ZONA DE TEMPERATURA

Two document icons: a left-side clipboard with horizontal lines and a right-side blank sheet with horizontal lines (no text or symbols)

Leyenda

Illustration of a person with a globe and a shield, next to a server unit and a speech bubble containing 'BRITT' (no text or symbols on objects)

1 2 3 4 5 6 7 8 3 sec. Total No Frost 3 sec.

BORTSKAFFELSE

Diagram of a refrigerator interior layout with labeled compartments and door frame (no text or symbols)

Forklaring

TEMPERATURZONE

Two document icons: a left-side clipboard with horizontal lines and a right-side blank sheet with horizontal lines (no text or symbols)

Forklaring

FRYSERSKUFFER

Total No Frost system

DRIFTSRELATEREDE LYDE

INNEHÅLLSFÖRTECKNING

ÖVERSIKT 68

Allmän information....68

Kontrollpanel....68

FUNKTION....69

1 2 3 4 5 6 7 8 3 sec. 3 sec. Total No Frost

Diagram showing two vertical panels with grayscale and patterned panels, one with a container and another with a door and window (no text or symbols)

Förklaring

TEMPERATURZON

Two document icons: a left-side clipboard with horizontal lines and a right-side blank sheet with horizontal lines (no text or symbols)

Illustration of three industrial or commercial objects: a person with a globe, a dome structure, and a server unit (no visible text or symbols)

Close-up of blue fabric with a medical or dental tool labeled 'BLAUPUNKT' inserted into a pocket (no other text or symbols visible)
