USER MANUAL KWA 3221 Koenic

Exterior view of a black electronic device with '红光M1C' branding (no other text or symbols visible)

Deutsche Bank	—
English	—
Brazil	—
Japanese Yen	—
Chinese Yuan	—
Morgan Stanley	—
Netherlands	—
Petrobras	—
Saudi Arabia	—
Singapore	—
Taiwan	—

2011.6.11

表决情况：

170/61-200741

C(1750)

法定代表人：

(1) 2017年1月1日

(1) 2023年1月1日

H:66327 18617 505

CE

Two views of a black WELF printer showing internal grid and tray structure (no text or symbols visible)

Step-by-step photo showing a robotic arm pressing down on a laptop keyboard, with red arrows indicating motion and control points.

Sicherheitshinweise

Risk of burning! Do not touch the product's hot surfaces.

Heat rises from the product during use.

Caution! Hot surface!

• Do not operate the product by means of an external timer or separate remote control system.
• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep this product and its power cord out of reach of children under the age of 8.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
• The product is designed for the preparation of normal household quantities in the home, or in household-like, noncommercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• Clean the product and all other accessories after each use.
• Follow the instructions in the chapter Cleaning and care.

English

Safety instructions

- Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

- Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.

- Never leave the product unsupervised while it is switched on.

- Do not place heavy objects on top of the product.

- Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.

- Do not under any circumstances attempt (e.g. damage in power cord, product is dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

- The mains voltage must match the information on the rating label of the product.

- Only unplug from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.

- Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

- Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.

- Only unplug from the power socket by the plug itself. Do not pull on the cord.

• Unplug the product ...

• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and

• before cleaning the product.

• Use this product in dry indoor areas only and never outdoors.

• Place the product on a flat, sturdy and slip-resistant surface.
• Never use, expose or put the product near to: - direct sunlight and dust;
• fire (fireplace, grill, candles), water (water splashes, vases, ponds, bath tube) or heavy moisture.
• This product is not intended for commercial use. It is designed for household use only.
• Hot surfaces and parts of this product may become very hot. Allow the product to cool down completely before it is cleaned or put away.
• Use heat-proof or wooden spatulas with the product to prevent damage to the heating plates' nonstick coating. Make sure that the spatulas used do not have any pointy or sharp edges.
• Do not place the product on hotplates (gas, electric, coal stoves, etc.).
• Risk of burning! Do not touch the product's hot surfaces. Touch the product only by its handle or temperature dial.

Congratulations!

Thank you for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is suitable for baking waffle only. Any other use may result in damage to product or injuries.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

Before first time use

To remove production residue, run the product for approx. 10 minutes without foodstuffs. Make sure there is sufficient ventilation as a slight odor and some smoke may occur. This is harmless and will disappear shortly.

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Baking waffle.

Disposal

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Waffle maker

1 x User manual

Technical data

Rated voltage: 230 V\~

Rated frequency : 50 Hz

Rated power input: 1000 W

Protection class : I

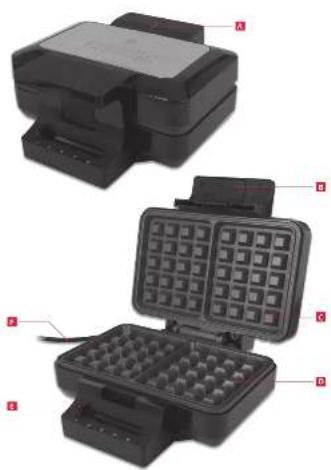

Part list

A Control lamp

B Handle with unlock button

Hotplate (top)

D Hotplate (bottom)

€ Temperature control

F Power cord with plug

Recipe basis batter (for approx. 9-10 pieces) Ingredients:

Flour : 250 g

Sugar:100g

Butter or magazine (soft): 125 g

Milk: 250 ml / 1/4 L

Eggs:2

Baking powder : 7 g (1/2 pack)

Vanilla sugar : 8 g (1 pack)

For alternative flavor, customer can add little bit of cinnamon, cacao powder or some grated coconut.

1. Stir eggs, sugar and butter/margarine to a smooth dough.

2. Add vanilla sugar. Stir in flour and baking powder.

3. Add and stir the milk bit by bit under the dough until the dough has a smooth and soft consistency.

4. For each waffle, put around 3 tablespoon of the batter onto the center of the baking plate.

Temperature setting: 5

Preheat time: approx. 3.5 minutes

Baking time: approx. 1:50 - 2:20 minutes

English

Baking waffle

Fig. 1 Connect the power plug to a suitable power outlet. The control lamp lights orange.
Fig. 2 Press and hold the release button to open the lid.
Fig. 3 Lightly grease the hotplates and then close the lid.
Fig. 4 Set the temperature dial to desired position 2-5. Once the temperature is reached, the control lamp lights green.

Caution

Do not touch the product's hot surfaces. Heat rises from the product during use.

Fig. 5 Open the product and spread the batter evenly over the bottom hotplate and close the lid.
Fig. 6 Open the lid carefully approx. after 2 minutes and check the baking result.

Note: You can determine the degree of browning either by adjusting the temperature dial or through the baking time.

Fig. 7 Use a heat-resistant plastic, silicon or wooden spatula to take out the finished waffle.

Note: The baking result depends on consistency and mixture of batter, the chosen temperature level and personal taste. Bake the waffles until your own desired level of browning has been achieved.

Reheat

Fig. 8 To reheat the cooled waffle, set the temperature dial to the position 1.

Note: Do not add batter, since the set temperature is for reheating only but not for baking.

Cleaning and care

Warning

• Unplug the product and let it cool down completely before cleaning. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning products and tools may scratch the surface(s).

Fig. 9 • Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly.

• Make sure that no water enters the product interior (for example, through the switch).
- Wipe the hotplates with paper towels or a soft damp cloth. If there are difficult to remove food residues, pour a little bit of edible oil on the hotplates and remove the residues after 5 minutes of exposure time.
- Keep the product in a dry, cool location which is protected against moisture and direct sunlight. Keep this product out of the reach of children under the age of 8.
