USER MANUAL RCFGDF-550 Royal Catering

Abstract white line drawing of a mythical creature on a blue background (no text or symbols)

DE	Produktname	Tiefkühltruhe mit Schiebeglasdeckel, 100 / 200 / 280 / 360 / 450 / 550 l
EN	Product name	Chest freezer with sliding glass lid, 100 / 200 / 280 / 360 / 450 / 550 l
PL	Nazwa produktu	Zamrażarka skrzyniowa z przesuwną szklaną pokrywą, 100 / 200 / 280 / 360 / 450 / 550 l
CZ	Název výrobku	Mraznička s posuvnym skleněným víkem, 100 / 200 / 280 / 360 / 450 / 550 l
FR	Nom du produit	Congélateur bahut avec couvercle en verre coulissant, 100 / 200 / 280 / 360 / 450 / 550 l
IT	Nome del prodotto	Congelatore a pozzetto con coperchio in vetro scorrevole, 100 / 200 / 280 / 360 / 450 / 550 l
ES	Nombre del producto	Congelador horizontal con tapa de vidrio deslizante, 100 / 200 / 280 / 360 / 450 / 550 l
HU	Termék neve	Fagyasztóláda tolóüveg fedéllel, 100 / 200 / 280 / 360 / 450 / 550 l
DA	Produktnavn	Kummefryser med skydelág i glas, 100 / 200 / 280 / 360 / 450 / 550 l
FI	Tuotteen nimi	Arkku pakastin liukulasikannella, 100 / 200 / 280 / 360 / 450 / 550 l
NL	Productnaam	Diepvrieskist met schuifbaar glazen deksel, 100 / 200 / 280 / 360 / 450 / 550 l
NO	Produktnavn	Fryseboks med skybart glasslokk, 100 / 200 / 280 / 360 / 450 / 550 l
SE	Produktnamn	Frysbox med skjutbart glaslock, 100 / 200 / 280 / 360 / 450 / 550 l
PT	Nome do produto	Arca congeladora com tampa de vidro deslizante, 100 / 200 / 280 / 360 / 450 / 550 l
SK	Názov produktu	Mraznička s posuvnym skleneným vekom, 100 / 200 / 280 / 360 / 450 / 550 l
BG	Име на продукта	Фризер с плъзгаш се стъклен капак, 100 / 200 / 280 / 360 / 450 / 550 л
EL	Όνομα προϊόντος	Καταψύκτης με συρόμενο γυάλινο κατάκι, 100 / 200 / 280 / 360 / 450 / 550 λίτρα
HR	Naziv proizvoda	Zamrzivač s kliznim staklenim poklopcem, 100 / 200 / 280 / 360 / 450 / 550 l
LT	Produkto pavadinimas	Šaldiklis su stumdomu stiklo dangčiu, 100 / 200 / 280 / 360 / 450 / 550 l
RO	Numele produsului	Lada frigorifică cu capac de sticlă glisant, 100 / 200 / 280 / 360 / 450 / 550 l
SL	Ime izdelka	Zamrzovalna skrinja s steklenim drsnim pokrovom, 100 / 200 / 280 / 360 / 450 / 550 l
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtélo προϊόντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka		RCFGDF-100RCFGDF-200RCFGDF-280RCFGDF-360RCFGDF-450RCFGDF-550
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Κατασκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec		expondo Polska sp. z o.o. sp. k.
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produsentens adresse | SE Tillverkarens adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адрес на производителя | EL: Διεύθυνοη κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca		ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Chest Freezer With Sliding Glass Lid, 100 L	Chest Freezer With Sliding Glass Lid, 200 L	Chest Freezer With Sliding Glass Lid, 280 L
Model	RCFGDF-100	RCFGDF-200	RCFGDF-280
Climatic class	4	4	4
Protective class	I	I	I
Rated voltage [V~] / frequency [Hz]	230/50	230/50	230/50
Rated current [A]	1.5	1.5	1.5
Refrigerant	R600a	R290	R290
Energy Consumption [kWh/24h]	4.108	5.212	6.169
Refrigerant amount [g]	52	54	64
Foaming material	Cyclopentane	Cyclopentane	Cyclopentane
Volume [l]	85	174	238
Energy class	E	E	E
Dimensions [width x depth x height; mm]	550 x 540 x 800	895 x 555 x 800	1040 x 680 x 820
Weight [kg]	25.95	33	50.5

Parameter description	Parameter value
Product name	Chest Freezer With Sliding Glass Lid, 360 L	Chest Freezer With Sliding Glass Lid, 450 L	Chest Freezer With Sliding Glass Lid, 550 L
Model	RCFGDF-360	RCFGDF-450	RCFGDF-550
Climatic class	4	4	4
Protective class	1	1	1
Rated voltage [V~] / frequency [Hz]	230/50	230/50	230/50
Rated current [A]	1.5	2.0	2.0
Refrigerant	R290	R290	R290
Energy Consumption [kWh/24h]	7.125	8.156	9.186
Refrigerant amount [g]	67	79	90
Foaming material	Cyclopentane	Cyclopentane	Cyclopentane
Volume [l]	310	389	471
Energy class	E	E	E
Dimensions [width x depth x height; mm]	1270 x 670 x 820	1540 x 680 x 840	1810 x 680 x 830
Weight [kg]	52.7	60.45	68.7

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

CE #

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

ATTENTION! Electric shock warning!

ATTENTION! Fire hazard - flammable materials!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Chest Freezer With Sliding Glass Lid

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
c) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
d) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
e) Do not use in very humid environments or in the direct vicinity of water tanks.
f) Before the first use, please check whether the main voltage type and current comply with the indicated data on the type plate.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
c) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
d) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
e) Use the device in a well-ventilated space.
f) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.
g) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
h) Keep packaging elements and small assembly parts in a place not available to children.
i) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
b) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
c) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. Safe device use

a) Do not overload the device. Use the appropriate tools for the given task. A correctly-selected device will perform the task for which it was designed better and in a safer manner.
b) Do not use the device if the "ON/OFF" switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
c) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
d) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
e) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
h) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
i) Do not move, adjust or rotate the device in the course of work.
j) Clean the device regularly to prevent stubborn grime from accumulating.
k) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
I) Keep the device away from sources of fire and heat.
m) Do not cover the ventilation openings!
n) NOTE: During operation, some elements of the device become very hot – scalding hazard!

o) Do not store heavy, poisonous or corrosive objects in the unit.
p) To avoid damage to the compressor during transport, do not tilt the refrigerator by more than 45°.
q) Do not operate the unit in unheated rooms or in areas of high humidity.
r) It is advisable to keep your hands dry when carrying out activities that involve inserting your hands into the unit, as otherwise frost damage to the skin may result.
s) ATTENTION! Do not use any electrical appliances or machines to speed up defrosting.
t) CAUTION: Take special care not to damage the coolant circuit components.
u) ATTENTION: Do not use any electrical appliances inside the food storage compartment of the appliance.
v) ATTENTION: The device in its construction contains flammable gases for insulation purposes. For this reason, the device should be handed over to a specialist for disposal at the end of its service life.
w) Explosive substances must not be stored in the unit, e.g.: cans containing compressed flammable gas.
x) Glassware with freezing liquids must not be stored in the unit.
y) Do not use a faulty or damaged device.
z) Spare parts or accessories not recommended by the manufacturer must not be used on the appliance. The use of parts not recommended by the manufacturer will invalidate the warranty and may lead to an immediate danger to the user's life or health.
aa) The appliance must not be placed near open sources of fire, electric cookers, coal cookers, etc., nor should it be placed in direct sunlight, as the effect of the heat may reduce cooling power and thus increase electricity consumption.
bb) The appliance must be connected directly to the wall plug socket; no splitters, etc. may be used.
cc) If the power supply to the unit is cut off, wait approximately 5 min before reconnecting the unit to the power supply to avoid damage to the unit.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The unit is used to store and freeze food.

The user is liable for any damage resulting from unintended use of the device.

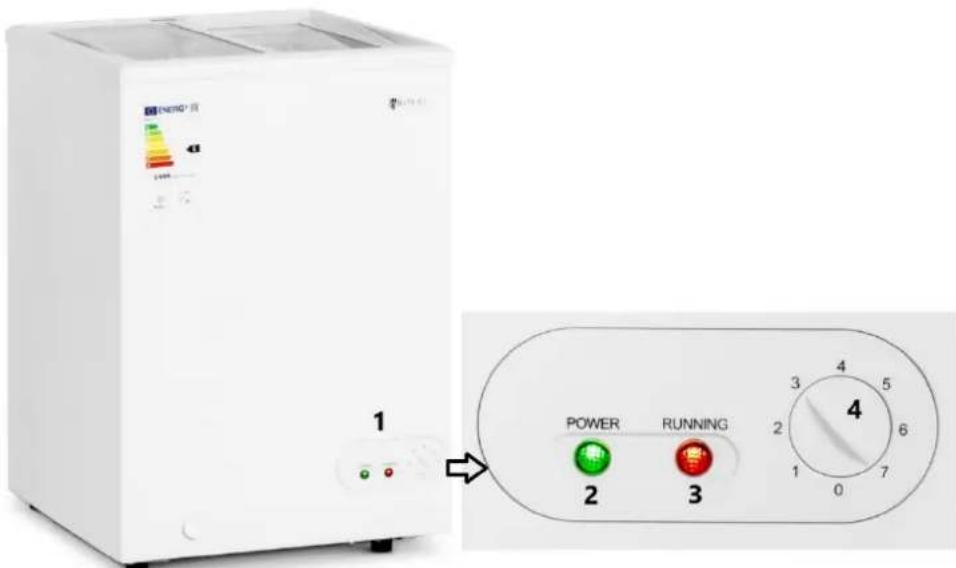

3.1. Device description

ENERGY® 1 POWER RUNNING 2 3 4 5 6 7 0 1 2 3 4

1 - Control panel

2 - Power indicator light (only for models Chest Freezer With Sliding Glass Lid, 100 L; Chest Freezer With Sliding Glass Lid, 200 L)

3 - Work indicator light (only for models Chest Freezer With Sliding Glass Lid, 100 L; Chest Freezer With Sliding Glass Lid, 200 L)

4 – Refrigeration / thermostat adjustment knob (0 – no refrigeration; 1 – slight refrigeration; 7 – maximum refrigeration).

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Disassemble the device and all its components and clean them before the first use.

3.3. Device use

1. Unpack the whole appliance.
2. Make sure that no packing material has been left in the compressor chamber.
3. Remove all documents and other accessories from the inside of the appliance.
4. Secure the device by placing wheel chocks against its wheels and/or engaging the device locks to prevent wheels from spinning.
5. Install all additional components of the appliance.
6. Clean and dry the interior.
7. Close the cover / door of the appliance.
8. Connect the appliance plug to the socket.
9. Set the optimal refrigeration power.
10. Wait for the device to attain the required temperature.
11. Insert frozen products into the freezer.
12. If you need to freeze fresh food, it is necessary to follow the instructions for freezing fresh food contained in this document.

Do not store any glass bottles with liquids, because they increase their volume during freezing and may be damaged. Never store explosive substances in the freezer.

The appliance is equipped with a lock which enables to protect the freezer against opening (key in the set).

FREEZING OF FRESH FOOD

1. Place the packaged fresh food in the freezer, paying attention so that it will not come in direct contact with already frozen products because they may defrost and shorten their shelf-life. It is recommended that fresh food will be placed near the wall or bottom of the freezer, in these places it is the coldest.
2. Increase refrigeration power for 4 – 6 hours.
3. After 24 hours it is necessary to change the location of the frozen food so that it will be possible to freeze other products
4. Set the cooling power which will be appropriate for filling of the freezer.

SWITCHING ON THE APPLIANCE

1. Close the appliance door.
2. Connect the appliance plug to the power supply. The appliance will start normal operation and the power light will switch on but the cooling will start only after setting a cooling power other than 0. (Setting cooling power to 0 stops the cooling process, but it does not turn off the appliance).

If the device is disconnected from its power source, the power source was cut off or if it was switched off, wait 3-5 min before turning on again. Otherwise the device will fail to start. In the event of a power cut, wait at least 5 minutes before reconnecting the device in order to prevent damaging the compressor or other elements.

DEFROSTING

Under normal conditions of use (3-4 openings per day), the freezer should be defrosted once or twice a year (in case of more frequent opening the freezer should be defrosted more often).

The appliance must be defrosted especially when the thickness of the ice layer on its walls will be about 5-7 mm. Ice layers on the internal walls of the appliance reduce its efficiency. Layers of ice can be scraped with a plastic scraper. Do not use metal things to scrap ice from the appliance.

Warning! Never use electrical appliances to defrost freezers (e.g. hair dryer) or open flames (e.g. candles). The plastic parts of the interior can melt and the emanate vapours can inflame through sparks or a flame.

In order to defrost it is necessary to proceed as follows:

1. Make sure the appliance plug is removed from the socket.
2. It is recommended to use a plastic bowl or other sealed container to collect leaking water in the course of defrosting.
3. Make sure that the hands are dry in the course of performing subsequent activities in order to avoid damages caused by a negative temperature (use of gloves is recommended).

4. Remove the frozen products and make sure that the water melting from them will not cause any danger or damages. It is recommended to place them in a sealed container.

5. It is recommended to scrape the thickest layers of ice.

6. If necessary, defrosting can be accelerated by inserting a dish with warm water dish (not boiling or hot!) into the freezer.
7. Wait until the ice from the inside of the freezer is melted, in the course of defrosting it is possible to remove the water from the inside of the freezer with a sponge.
8. Before using the appliance again, clean the inside of the appliance.
9. Close the cover / door and connect the appliance to the power supply.
10. Set the optimal refrigeration power.
11. Insert products to be frozen into the freezer.
12. After 4-6 hours set the refrigeration power appropriately to the freezer load.

3.4. Cleaning and maintenance

a) Always unplug the device before cleaning or putting it away.
b) Use only non-corrosive cleaners to clean the surface.
c) Use only mild, food-safe detergents to wash the device.
d) After cleaning the device, all parts should be dried completely before using it again.

e) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
f) Do not spray the device with a water jet or submerge it in water.
g) Do not allow water to get inside the device through vents in the housing of the device.
h) Clean the vents with a brush and compressed air.
i) The device must be regularly inspected to check its technical efficiency and spot any damage.
j) Use a soft, damp cloth for cleaning.
k) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
I) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

APPARATETS PLACERING

OPSTART AF APPARATET

PLAATS VAN HET APPARAAT

HET APPARAAT INSCHAKELEN

OBS! Brandrisk - brandfarliga material!

APPARATENS PLACERING

CE [IMAGE] ! lightning bolt ! flame

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
