USER MANUAL RCGK-40L Royal Catering

Abstract white line drawing of a stylized mythical creature on a dark blue background (no text or symbols)

DE	Produktname	Kühlschrank
EN	Product name	Fridge
PL	Nazwa produktu	Lodówka
CZ	Název výrobku	Lednice
FR	Nom du produit	Réfrigérateur
IT	Nome del prodotto	Frigorifero
ES	Nombre del producto	Frigorífico
HU	Termék neve	Hűtőszekrény
DA	Produktnavn	Køleskab
FI	Tuotteen nimi	Jääkaappi
NL	Productnaam	Koelkast
NO	Produktnavn	Kjøleskap
SE	Produktnamn	Kylskåp
PT	Nome do produto	Frigorífico
SK	Názov produktu	Chladnička
BG	Име на продукта	Хладилник
EL	Όνομα προϊόντος	Ψυγείο
HR	Naziv proizvoda	Hladnjak
LT	Produkto pavadinimas	Šaldytuvas
RO	Numele produsului	Frigider
SL	Ime izdelka	Hladilnik
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtéλο προϊόντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka		RCGK-40L
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Κατασκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec		expondo Polska sp. z o.o. sp. k.
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produsentens adresse | SE Tillverkarens adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адрес на производителя | EL: Διεύθυνση κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca		ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

Close-up of a keychain securing a black panel, with no visible text or symbols

Diagram showing a rectangular object with internal structure and directional arrows, no readable text or symbols present.

50mm

Pure diagram of a rectangular object with internal structure and directional arrows, no text or symbols present.

200cm² 20mm

Technical line drawing of an open oven with internal components (no text or symbols)

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

FOR YOUR SAFETY AND CORRECT OPERATION, PLEASE CAREFULLY READ THIS INSTRUCTION.

NOTE: All of the information reported herein is based on data available at the moment of printing. The factory reserves the right to modify its own products at any moment without notice and incur any sanction. So, it is suggested to always verify possible updates.

TECHNICAL DATA

Parameter description Parameter value
Product name Fridge
Model RCGK-40L
Voltage/frequency 230 V / 50 Hz
Rated power 65 W
Climate N
Insulation blowing gas Cyclopentane
Capacity 28 l

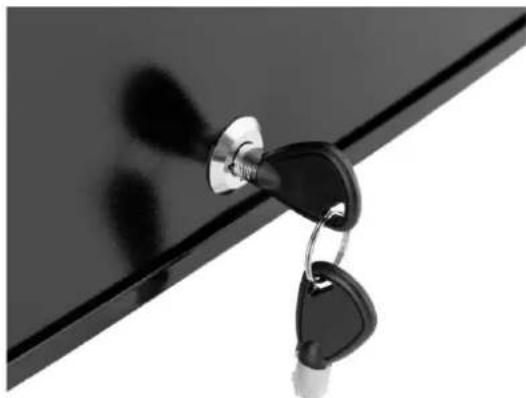

1. PRODUCT OVERVIEW

Close-up of a keychain securing a black panel, with no visible text or symbols

2. General product information

Minibar. Users must read this manual carefully, follow the instructions and procedures, and read all warnings when using this instrument.

3. Safety

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

When positioning the appliance, ensure the supply cord is not trapped or damaged.

Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Do not store explosive substances such as aerosol cans with flammable propellant in this appliance.

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments.
• farmhouses and by clients in hotels, motels and other residential type environments.
  • bed and breakfast type environments.
  • catering and similar non-retail applications.

To avoid contamination of drink, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h, flush the water system connected to a water supply if water has not been drawn for 5 days.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mold developing within the appliance.

4. Instructions before use

Note:

Position your refrigerator so that the plug is accessible.

Keep your refrigerator out of direct sunlight.

Do not place it next to a heat generating appliance.

Do not place directly on the ground. Provide suitable stand.

Very important

The refrigerator will have better performance at ambient of 20-25 degree; We suggest the refrigerator be powered off if the ambient temperature is lower than 10 degrees. After plugging the appliance, allow the unit to cool down for 2-3 hours before placing beverage into the refrigerator compartment.

Ventilation is very important for this kind of thermoelectric refrigerator; The inside PCB will break easily if the ventilation is bad; It will also reduce the life of the refrigerator. The refrigerator applies an automatic defrosting system, so there is no need to defrost it manually.

Power supply

The refrigerator must be connected to a properly earthed socket in line with relevant valid country regulations before operating.

Check the data label (which is on the side of the refrigerator) for voltage and frequency corresponds to your local one; If not, don't plug your cable into the socket.

Warning

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

5. Installation instructions

When install a Heat pipe Refrigerator, ventilation should be considered seriously, please refer to the following:

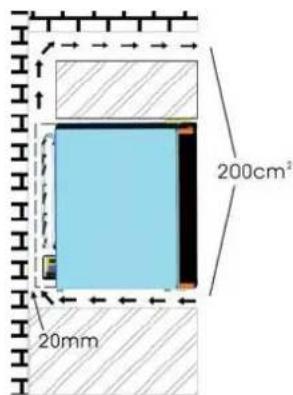

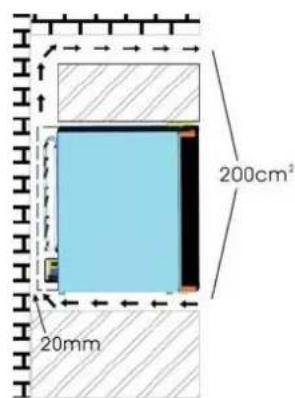

There should be left at least 200 cm ^3 for ventilation.

The distance between wall and refrigerator side should be at least 20mm.

The bottom should be left at least 50mm for air flowing air passing through must not be preheated.

Entire cooling system should be considered in the ventilation.

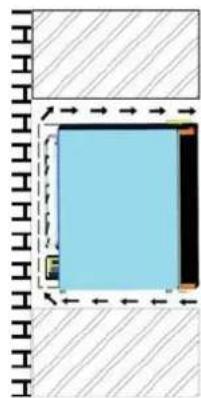

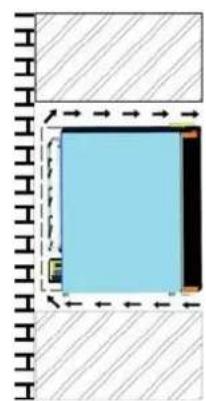

The following four pictures show four installation ways:

Diagram showing a rectangular object with internal structure and directional arrows, no readable text or symbols present.

50mm

Pure diagram of a rectangular object with internal structure and directional arrows, no text or symbols present.

200cm² 20mm

1. Trouble shooting guide

PROBLEM	POSSIBLE CAUSE
Refrigerator does not operate	Not plugged in.The circuit breaker tripped or a blown fuse.
The refrigerator does not operate.	The room temperature is hotter than normal. The door is opened too often.The door is not closed completely.The temperature control is not set correctly. The door gasket does not seal properly.The refrigerator does not have the correct clearances.Abnormal voltage.
The light does not work.	Not plugged in.The circuit breaker tripped or a blown fuse. The LED light has burned out.
Vibrations.	Check to ensure that the refrigerator is level.
The door will not close properly.	The refrigerator is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves, bins, or baskets are out of position.

7. Energy saving tips

The refrigerator should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.

Overloading the refrigerator forces the thermoelectric cooling system to run longer.

Reduce door openings and extended searches, remove as many items as needed at one time, and close the door as soon as possible.

One characteristic of heat-pipe units is the length of time it requires to recover from having the door opened and shut frequently. It may be necessary to wait longer for the temperature to return to its former level once the door has been opened for too long. This is normal for this type of unit.

Heat-pipe technology is environmentally friendly due to the lack of CFC's.

8. Product function description

• -It is intended to be used exclusively for the pantry.
• This refrigerating appliance is not suitable for freezing foodstuffs.
• The pantry is recommended to be designed at 17^ C .

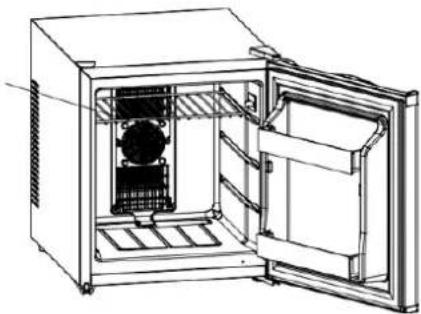

- The shelves placed in factory mode is the most efficient use of energy for refrigerating appliances.

- The following combination of shelves is recommended for energy to be used as efficiently as possible by the refrigeration unit.

Technical line drawing of an open industrial oven with internal components (no text or symbols)

• -When the ambient temperature is 25^ C and the pantry is empty, it takes about 3.5 hours to reduce the pantry temperature from 25^ C to 17^ C.
• -It is recommended to design the pantry at 17^ .
• -The energy consumption is 0.183 kWh/24h. If the setting temperature is higher than 17°C, the energy consumption will be lower. If the setting temperature is lower than 17°C, the energy consumption will be higher

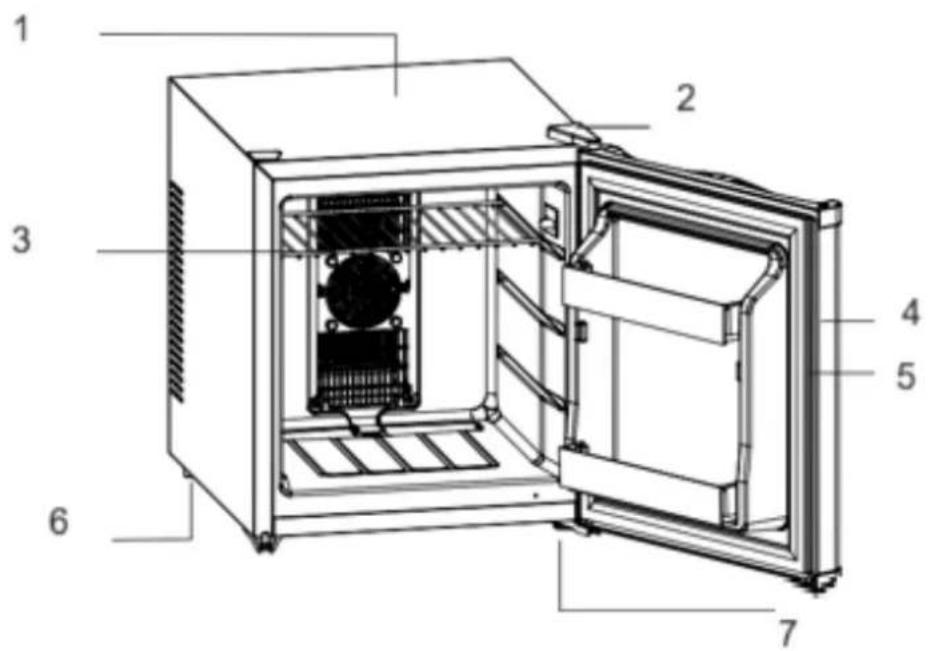

PART LIST

1 2 3 4 5 6 7

No.	Description
1.	Cabinet
2.	Upper hinge
3.	Shelf
4.	Door
5.	Door gasket
6.	Foot
7.	Bottom hinge

Correct disposal of this product

This symbol on the product, or in its packaging, indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment.By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product.For more detailed information about the recycling of this product, please contact your local council, your household waste disposal service, or the shop where you purchased the product.

Close-up of a keychain securing a black panel, with no visible text or symbols

Technical line drawing of an open industrial oven with internal components (no text or symbols)

Close-up of a keychain securing a black panel, with no visible text or symbols

Technical line drawing of an open industrial oven with internal components (no text or symbols)

Technical diagram of an open refrigerator with numbered parts labeled 1 through 7

1. APERÇU DU PRODUIT

Close-up of a keychain securing a black panel, with no visible text or symbols

Technical line drawing of an open industrial oven with internal components (no text or symbols)

Close-up of a keychain securing a black key against a dark surface (no text or symbols visible)

Close-up of a keychain securing a black panel, with no visible text or symbols

Technical line drawing of an open refrigerator with internal components (no text or symbols)

Close-up of a keychain securing a black key (no text or symbols visible)

Diagram showing a rectangular object with internal structure and directional arrows, no readable text or symbols present.

50mm

Pure diagram of a rectangular object with internal structure and directional arrows, no text or symbols present.

200cm² 20mm

Technical line drawing of an open industrial oven with internal components (no text or symbols)

Close-up of a keychain securing a black panel, with no visible text or symbols

2. Generel produktinformation

Technical line drawing of an open refrigerator with internal components (no text or symbols)

Close-up of a keychain securing a black panel, with no visible text or symbols

Diagram showing a rectangular object with internal structure and directional arrows, no readable text or symbols present.

50mm

Simple diagram with a light blue rectangle and black border, surrounded by diagonal hatching (no text or symbols)

200cm² 20mm

1. Vianetsintäopas

Line drawing of an open refrigerator with internal components (no text or symbols)

Close-up of a keychain securing a black panel, with no visible text or symbols

Technical line drawing of an open refrigerator with internal components (no text or symbols)

Close-up of a keychain securing a black panel, with no visible text or symbols

Technical line drawing of an open industrial oven with internal components (no text or symbols)

Close-up of a keychain securing a black panel, with no visible text or symbols

2. Allmän produktinformation

Technical line drawing of an open industrial oven with internal components (no text or symbols)

Close-up of a keychain securing a black key (no text or symbols visible)

Technical line drawing of an open industrial oven with internal components (no text or symbols)

Close-up of a keychain securing a black panel, with no visible text or symbols

Technical line drawing of an open industrial oven with internal components (no text or symbols)

Close-up of a keychain securing a black panel, with no visible text or symbols

Diagram showing a rectangular object with internal structure and directional arrows, no readable text or symbols present.

50mm

Pure diagram of a rectangular object with internal structure and directional arrows, no text or symbols present.

200cm² 20mm

Technical line drawing of an open industrial oven with internal components (no text or symbols)

Close-up of a keychain securing a black panel, with no visible text or symbols

Technical line drawing of an open refrigerator with internal components (no text or symbols)

Close-up of a keychain securing a black key against a dark surface (no text or symbols visible)

Technical line drawing of an open industrial oven with internal components (no text or symbols)

- -Kada je temperatura okoline 25 °C, a smočnica prazna, potrebno je oko 3,5 sata da se temperatura smočnice smanji s 25 °C na 17 °C.

-Preporuča se dizajn smočnice na 17 °C.

Close-up of a keychain securing a black panel, with no visible text or symbols

2. Bendra informacija apie gamini

Technical line drawing of an open refrigerator with internal components (no text or symbols)

Close-up of a keychain securing a black panel, with no visible text or symbols

Technical line drawing of an open industrial oven with internal components (no text or symbols)

Close-up of a keychain securing a black key against a dark surface (no text or symbols visible)

Technical line drawing of an open industrial oven with internal components (no text or symbols)

- Ko je temperatura okolice 25 °C in je shramba prazna, traja približno 3,5 ure, da se temperatura shrambe zniža s 25 °C na 17 °C.

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
