FIH 16760 - Basket TEKA - Free user manual and instructions

Brand	Teka
Model	FIH 16760
Product type	Cooker hood
Use	Domestic, kitchen odor removal
Control	Touch panel with LED display
Motor speeds	4 speeds (1-2-3) + intensive speed (b) timed 6 minutes
Delay function	Delayed shutdown after 15 minutes
FreshAir function	Motor at 1st speed 10 min/hour for 24h
Key lock	Yes, activation 3 seconds motor off
Filter alarm	After 152 hours of operation, displays F
Grease filter	Dishwasher-safe, every 2 months
Charcoal filter	Regenerable (follow kit instructions)
Minimum distance to cooking surface	650 mm (unless otherwise specified by hob manufacturer)
Exhaust duct diameter	120 mm minimum
Power supply	Mains, voltage indicated on rating plate
Insulation class	Class I (earthing mandatory)
Gas hob compatibility	Up to 5 burners, max total power 12.4 kW
Safety	Do not flambé under hood, monitor fryers
Exterior maintenance	Damp cloth and neutral liquid detergent

Frequently Asked Questions - FIH 16760 TEKA

What is the minimum installation height of the hood?

The minimum safety distance between the hob and the hood is 650 mm. If the hob instructions specify a greater distance, that takes precedence.

How to clean the grease filters?

Grease filters must be cleaned every 2 months (more often with heavy use). They are dishwasher-safe.

How to reset the filter saturation alarm?

When the alarm is active (displaying F), press the B button for about 3 seconds to reset the alarm. The display shows '8' three times.

What does the symbol F on the display mean?

The symbol F lights up after 152 hours of operation to indicate that the filters (grease and charcoal) need to be checked and cleaned or replaced.

How to activate the intensive speed?

Press the C button to increase speed until reaching intensive speed b. This speed runs for 6 minutes then automatically returns to the previous speed.

Can I use the hood with an induction hob?

Yes, the hood is compatible with all hob types (gas, electric, induction). Just ensure you respect the minimum distance of 650 mm.

How to activate the key lock?

With the motor off, press the A button for 3 seconds. The lock symbol lights up. Repeat to unlock.

Can the hood be used in recirculation mode?

Yes, the hood is equipped with a regenerable charcoal filter for recirculation mode. Follow the kit instructions for regeneration.

How to clean the exterior of the hood?

Use a damp cloth and a neutral liquid detergent. Avoid abrasive cleaners that could damage the surface.

What to do if the hood does not turn on?

First check that the hood is plugged in and the mains power is on. If the problem persists, contact authorized after-sales service.

USER MANUAL FIH 16760 TEKA

Modern kitchen interior with black cabinets and stainless steel appliances, featuring a 'TEKA' logo in the top right corner (no other text or symbols visible)

User Manual

FIH 16760 TOS BK

DE PT HU GR

EN IT CZ TR

FR RU RO BG

ES UK PL AR

ES MANUAL DE USO....15

PT LIVRO DE INSTRUÇÕES PARA UTILIZAÇÃO....19

IT LIBRETTO DI USO....23

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...). - Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop

where you purchased the product.

• This suction Hood can be used in combination with a Gas hob with the following characteristics:
• Total maximum power 12.4kW.

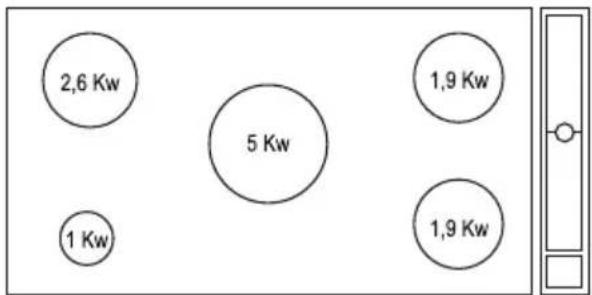

• 5 burners as shown in the figure

• Total maximum power 7.7kW.
• 4 burners as shown in the figure.

• Total maximum power 4.7kW.

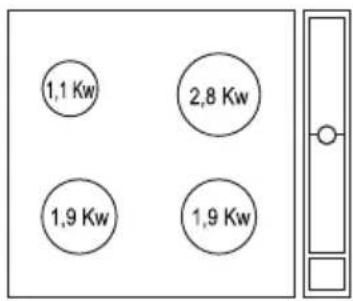

• 2 burners as shown in the figure.

• Total maximum power 9.4kW.

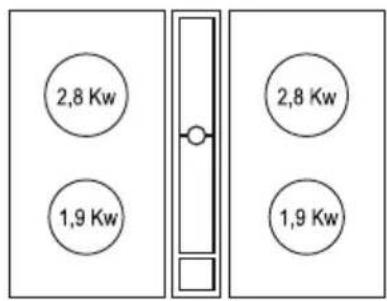

• 2 burners as shown in the figure.

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

• The Activated Charcoal odour filter can be regenerated. Follow the instructions provided on the Kit itself both for the regeneration method and for the replacement times.

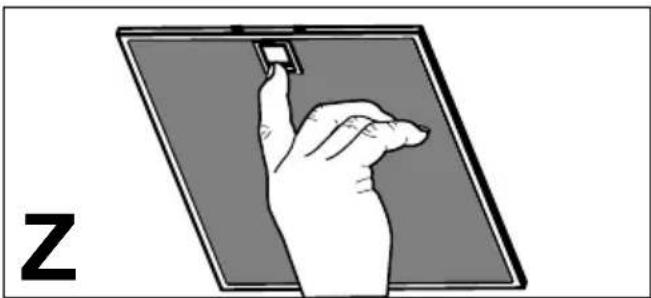

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

- Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

Button	Function	Display
A	Turns the motor on/off at Speed One.	Displays 1
	Press and hold for approximately 3 seconds to Activated / Deactivated the keypad lock.These indications are only visible when the motor is turned off.	Displays [IMAGE]
B	Decreases the motor Speed in 4 steps: b - 3 - 2 - 1b= Intensive speed timed to run for 6 minutes.	Displays 1, 2, 3, or b
	When the filters alarm is triggered, the alarm can be reset by pressing and holding this button for approximately 3 seconds. These indications are only visible when the motor is turned off.	Displays 8 three times
C	Increases the motor Speed in 4 steps: 1 - 2 - 3 - bb= Intensive speed timed to run for 6 minutes.	Displays 1, 2, 3, or b
D	Delay functionActivates / Deactivates the Delay Function, switching the motor off after 15 minutes.This function cannot be activated while at Intensive Speed.This function is deactivated after 15 minutes or by pressing the Motor OFF button.	Displays the symbol [IMAGE]
	Fresh Function – Odor free ambient for 24hPress and hold for approximately 3 seconds to Activated / Deactivated the FreshAir function.The FreshAir function activates the motor at first speed for 10 minutes every hour, for a 24-hour cycle.This function is deactivated after 24-hour or by pressing the Motor OFF button.	Display moving segments [ ]
E This	symbol lights up with Delay function activated.	On/Off.
F	This symbol lights up after 152 hours of operation of the hood, indicating the saturated filters alarm (both filters should be checked: Grease filter and Regenerative filter). The Display shown F.	On/Off.
G This	symbol lights up with keypad lock function activated.	On/Off.
