USER MANUAL AW9075RVS ETNA

0 I A C B 0 I II III

Inleiding

A In/uitschakelen verlichting
B In/uitschakelen + ventilatorstanden 1, 2, of 3
C Controlelampje

0 I A C B 0 I || ||

Diagram showing a mechanical assembly with arrows indicating motion or force direction (no text or symbols present)

Koolstofffilter

Mechanical assembly diagram showing a cylindrical component with a 90-degree angle indicator (no text or symbols present)

Diagram showing a device with labeled components and directional arrows, likely illustrating a system or control system.

Montage

Technical diagram of a rectangular electronic device with labeled components P, L, and part L

Sluitprofiel

Symbol of a trash bin with crossed lines indicating no waste or discharge, no text or numbers present.

Illustration showing a hand holding a tool near a window with arrows indicating motion (no text or symbols)

Filtres à charbon

Mechanical assembly diagram showing a 90-degree angle with no visible text or symbols

Diagram of a mechanical or electrical setup with a box, wires, and directional arrows (no text or symbols)

Montage

Technical diagram of a device with labeled components P, L, and directional arrows indicating assembly or positioning.

Profil de fermeture

Symbol of a trash bin with crossed x-marks and a blank rectangular base (no text or numbers)

Illustration showing a hand holding a device with a magnified inset view of the device (no text or symbols present)

Kohlefilter

Mechanical assembly diagram showing a cylindrical component with a 90-degree angle indicator (no text or symbols present)

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, likely representing signal or control paths.

Montage

Technical diagram of a rectangular device with labeled components P, L, and part P̅

Abdeckprofil

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a black rectangular base (no text or symbols)

	Cleaning	6
	Removing the grease filters	7
	Replacing the carbon filter	7
	Lighting	8

Installation

	General	9
	Electrical connection	10
	Mounting the canopy hood 11

Appendice

Disposal of appliance and packaging

12

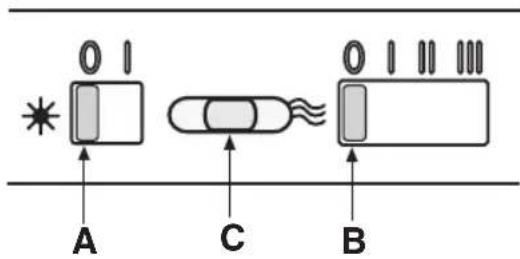

Description

0 A C B 0 | | | | | |

Introduction

A Switching on/off + fan speeds 1, 2 or 3
B Switching lighting on/off
C Indicator lamp

This user manual gives you a quick overview of all the possibilities offered by the appliance. You will find information on safety measures and maintaining the appliance.

Please retain this user manual and the installation guide.

They may be of use to future users of the appliance.

Read the separate safety instructions before using the device!

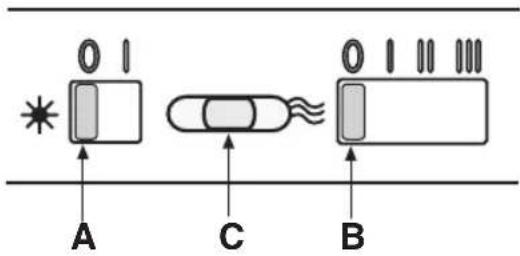

Controls

0 1 A C B 0 1 1 1 1

Switching fan on and off

1. Adjust the desired motor speed to 1, 2 or 3 with slide control B.
2. The extractor hood switches on in the corresponding position.
3. Set the slide control B to 0.
   • The fan will switch off.

Switching lighting on and off

1. Set the slide control A to 1.
   • The lighting switches on.
2. Set the slide control A to 0.
   • The lighting switches off.

Cleaning

Attention! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Do not use abrasive products. Do not use alcohol!

Attention! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend oserving these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Cooker hood

Clean the cooker hood with soapy water and a soft cloth. Then wipe with clean water to rinse. Do not use aggressive cleaning agents such as soda. The cooker hood paintwork will stay looking nice if you wax it occasionally.

Stainless steel canopy hoods

Do not use any sort of scourer. Treat with a stainless steel care product and polish with the structure of the stainless steel.

Metal grease filters

These must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. The openings must be placed downwards to let the water run out of the filters. The cleaning agents will make the aluminium filter turn dull, this is normal.

Grease filters

Illustration showing a hand cleaning a surface with a magnified inset (no text or symbols)

Carbon filter

Mechanical assembly diagram showing a cylindrical component with a 90-degree angle indicator (no text or symbols present)

Removing the grease filters

Switch off the electricity! Remove the plug from the socket or switch the electricity off at the mains. Remove the filters one by one, after having disconnected the relative fastening elements.

Replacing the carbon filter

The carbon filter must always be used if the cooker hood is not ducted.

1. Remove the grease filters.
2. Attach the carbon filters to the motor.
3. Replace the filter grids in the extractor hood.

Note:

• Saturation of the activated charcoal will eventually occur after more or less prolonged use, depending on the type of cooking and how frequently the grease filter is cleaned.
• In all cases it is necessary to replace the cartridge at least every four months.
• DO NOT wash or reuse the carbon filter. Saturated carbon is not environmentally friendly, change the filter regularly.

Lighting

Please note! Disconnect the appliance from the mains by removing the plug from the socket before the changing the light.

Changing the light bulbs

Model A4345TRVS

1. Remove the grease filters
2. Replace the lamp with a new lamp of the same type.
3. Replace the grease filters.

Lamp	Power (W)	Socket	Voltage (V)	Dimension (mm)	ILCOS Code
	3 E14 220-240	102 x 35	DRBB/C-3	-220-240	E14-35/102

Models AV760RVS and AV790RVS

• The hood is equipped with a lighting system based on LED technology.
• The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.
• For replacement, contact the technical service.

General

This appliance should be connected to the power supply by a recognized fitter who is familiar with, and works according to the correct safety regulations. This appliance meets the European requirements.

Important that you know:

• The minimum distance between the supporting surface for the cooking vessels on the gashob and the lowest part of the range hood must be not less than 65 cm. For use with an electric, ceramic or induction hob, this distance must be at least 55 cm.
• If the cooker hood is to be fitted to an existing duct no other appliances, such as a geyser or heater, may be connected to that same duct.
• Consider local regulations with respect to the ventilation of gas appliances.
• The shorter the duct, and the fewer the bends in it, the better the cooker hood will work.
• Before you start drilling check that there are no installation cables present.
• The connecting pipe for the cooker hood has a diameter of 150 mm. It is best also to use a flue pipe of the same diameter.
• The installation material supplied with this range hood is designed for fixing to reinforced concrete or masonry walls. For some types of walls you may need special plugs and screws.

Connection

Electric connection

The appliance has been manufactured as a class II, therefore no earth cable is necessary.

Make sure the supply voltage ratings correspond with those stated on the appliance data plate. The connection to the mains is carried out as follows:

BROWN = phase L

BLUE = phase N

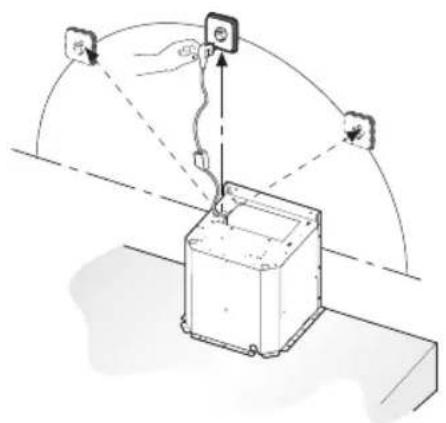

This canopy hood has been provided with a power plug. When installing the hood, make sure that this plug remains accessible. We recommend installing the wall socket out of view, behind the chimney cover.

Attention:

If you want to make a fixed connection, ensure that a multi-pole switch with a distance between contacts of 3 mm is installed in the supply cable.

max. 100 cm

Diagram of a mechanical or electrical setup with a box, wires, and three labeled components (no text or symbols present)

Mounting

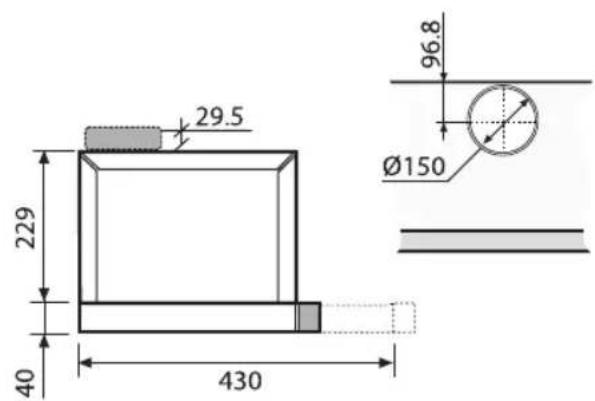

Drilling the Support surface and Fitting the Hood

• The hood support surface must be 229 mm above the bottom surface of the wall units.
• Saw an opening in the surface for the cooker hood outlet.
• Fit the hood to the surface using the screws.
• Connect the exhaust-air pipe to the motor flange.

501 - 801 14 48.5 42.9 64.5 130.7 42.9 281 598 - 898

29.5 229 40 430 Ø150 96.8

Technical diagram of a rectangular electronic device with labeled ports P and L

Closing element

- The space between the edge of the hood and the rear wall can be closed by applying the element 'L' provided, using the screws supplied for this purpose.

Disposal

Disposal of appliance and packaging

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The local authorities can provide you with the relevant information.

The packaging of this appliance is recyclable. It could have been made from:

• cardboard;
  • polythene foil (PE);
  • CFK-free polystyrene (PS-hard foam).

Symbol of a trash bin with crossed x-marks and a blank base (no text or numbers)

You need to dispose of these materials responsibly in accordance with official regulations.

To draw attention to the fact that the segregated processing of electric household appliances is compulsory, this appliance carries the symbol of a crossed-out dustbin. This means that at the end of its working life, you may not dispose of the appliance as household refuse. Instead, you should hand it in at a special refuse collection centre run by the local authority or at a dealer's providing this service.

Segregated processing of household appliances avoids any negative effects on the environment and public health that might otherwise occur.

It enables the recovery of the materials used in the production of this appliance, thus realising considerable savings in terms of raw materials and energy.

CE

Declaration of conformity

We hereby declare that our products satisfy the applicable European directives, orders and regulations, as well as the requirements stated in the referenced standards.

726657

726657 / VER 1 / 10-07-2018
