AP461RVS - Basket ETNA - Free user manual and instructions

Brand	Etna
Model	AP461RVS
Product type	Chimney extractor hood
Power supply	220-240 V ~ 50 Hz
Number of speeds	3
Lighting	Integrated (LED)
Grease filter	Metal, washable (monthly cleaning)
Charcoal filter	Quarterly replacement (ref. HF2028)
Evacuation system	External evacuation or recirculation
Controls	Electronic keys (A, B, C, D, E)
Maintenance	Regular cleaning exterior and interior
Safety	Disconnect before maintenance
Spare parts	Charcoal filter (HF2028)
Disposal	Selective collection of WEEE
Declaration of conformity	CE
Manual	Free download in PDF

Frequently Asked Questions - AP461RVS ETNA

How to turn on the AP461RVS hood?

Press one of the speed keys B, C or D to start ventilation. To turn off, press key A.

How to clean the metal grease filters?

The grease filters must be cleaned at least once a month. You can wash them by hand with soapy water or in the dishwasher at low temperature. Let them dry completely before putting them back.

When should the charcoal filter be replaced?

The charcoal filter should be replaced every three months. Saturation depends on usage. Use reference HF2028.

What to do if the hood's lighting no longer works?

The integrated lighting system must be replaced by an authorized technician. Do not try to replace it yourself. Contact customer service.

The hood makes an abnormal noise, what could be the causes?

Possible causes are: an exhaust that is too long or too many bends in the duct (modify the duct), a defective flap, or the use of charcoal filters (louder). If the problem persists, contact customer service.

Why doesn't the hood extract properly?

This may be due to a defective flap or control, a defective connection cable, or dirty grease filters. Clean the filters regularly. If nothing changes, call customer service.

Can I use the hood in recirculation mode?

Yes, but you must install a charcoal filter (sold separately, ref. HF2028). Note: this mode reduces performance and increases noise.

How to remove and replace the grease filters?

Turn off the appliance. Push the filter backwards by the notch and tilt the front downwards to remove it. To replace, open the closing mechanism, insert the rear cams into the openings, tilt upwards and release the mechanism.

Where can I order accessories like the charcoal filter?

Scan the QR code in the manual or contact your dealer. The replacement charcoal filter has reference HF2028.

Is the packaging recyclable?

Yes, the packaging is made of recyclable materials: cardboard, polyethylene (PE) and CFC-free polystyrene. Dispose of it according to local regulations.

USER MANUAL AP461RVS ETNA

Diagram of a building interior with brick walls, a chimney, and a cabinet, showing airflow direction (no text or symbols)

Diagram of a vertical structure with brick wall and rectangular base, showing directional arrows indicating movement or force (no text or symbols)

Simple diagram showing a white trapezoidal shape with a black pair of scissors cutting through it, next to a dark gray trapezoidal shape with diagonal lines (no text or symbols)

Diagram of a brick wall with a chimney and a cabinet, showing airflow direction (no text or symbols)

Diagram of a vertical structure with brick wall and adjacent panel, showing directional arrows indicating motion (no text or symbols)

Blank white rectangular frame with gray border and two small feet at bottom (no text or symbols)

Simple illustration of scissors cutting a gray rectangular block with two horizontal lines on the left (no text or symbols)

Simple geometric diagram with diagonal lines and a shaded rectangle (no text or symbols)

Diagram of a brick wall with a chimney and a cabinet, showing airflow direction (no text or symbols)

Diagram of a vertical structure with brick wall and adjacent panel, showing airflow or movement arrows (no text or symbols)

Blank white rectangular frame with gray border (no text or symbols)

Simple illustration of scissors cutting a gray rectangular block, with two horizontal lines on the left (no text or symbols)

Simple gray rectangular object with horizontal white lines on top and bottom, no text or symbols visible.

Introduction	4
Description	4
Extraction systems 5

Use

Controls 6

Maintenance

Cleaning	7
Grease filters 8
Carbon filters 9
Lighting	9

Faults

What should I do if... 10

Faults table 10

Matching accessories

Matching accessories 11

Appendice

Disposal of appliance and packaging 12

Introduction

Congratulations on your choice of this appliance. This product was designed with simple operation and optimum comfort in mind.

This manual describes the best way to use this appliance. In addition to information on operation, you will also find background information that may come in handy when using the appliance.

Please read the separate safety instructions carefully before using the appliance.

Read this manual before using the appliance and keep it in a safe place for future use.

Description

A Switch off
B Fan position 1
C Fan position 2
D Fan position 3
E Lighting

Exhaust systems

Diagram of a building interior with brick walls, a chimney, and a cabinet (no text or symbols)

The cooker hood can, depending on the model, be connected in one of two ways:

1. As a cooker hood connected to an exhaust duct.

The cooking fumes are drawn into the cooking hood, filtered, and exhausted outdoors. This is the best way!

Diagram of a vertical structure with brick wall and hanging panel, showing airflow direction (no text or symbols)

1. As a recirculation cooker hood.

The cooking fumes are drawn into the cooking hood and the grease droplets and odours are filtered out.

The filtered air is not exhausted outdoors, but is returned to the kitchen. You then need to fit a carbon filter.

Note! The carbon filter for recirculation must be ordered separately and replaced regularly.

Operation

Switching fan on and off

1. Press the speed button B, C or D The extractor hood switches on in the corresponding position.

2. Press the off button A. The fan will switch off.

Switching lighting on and off

1. Press the lighting button E. ▶The lighting switches on.
2. Press the lighting button E again. ▶The lighting switches off.

Cleaning

Attention! Before carrying out maintenance work, always disconnect the cooker hood from the power supply by pulling out the plug or switching off the power at the fuse box.

The hood must be cleaned regularly, both inside as well as outside (with at least the same regularity as used for cleaning the grease filters). Do not use any products that contain abrasive materials. Do not clean with alcohol!

Attention! If you do not follow these instructions with regards to the cleaning of the appliance and the cleaning or replacement of the filters, this can lead to fire. It is essential to follow these instructions!

The manufacturer is not liable for damage to the motor or damage as a result of fire that is due to improper servicing or not following the above safety requirements.

Cooker hood

Clean the cooker hood with soapy water and a soft cloth. Then treat with clean water. Do not use any aggressive cleaning agents such as soda. The lacquer of the cooker hood will remain in good condition if you rub the lacquer with wax once in a while.

Stainless steel hoods

Do not use scouring sponges or other abrasives on stainless steel hoods. Finish with a non-abrasive, non-polishing agent and scrub in the direction of the brushing of the stainless steel.

Metal grease filters

Metal grease filters should be cleaned once a month (or when indicated by the filter saturation indication system, if present on your model), using a neutral cleaning agent, preferably by hand or in the dishwasher on a short, low-temperature program. Place the grease filters with the openings facing downwards in the dishwasher so the water can drain out of the filter. Aluminum-colored and black grease filters become dull as a result of dishwasher cleaning agents. This is normal and does not effect the working.

Grease filters

Regular filter cleaning ensures optimal performance and prevents release of cooking odours when the appliance is not in use.

Clean the grease filters at least once a month. During cleaning, the aluminium parts of the filters may become dull as a result of the cleaning agents used, particularly when placed in the dishwasher. This is normal.

Removing the filter cassette

1. Switch off the appliance and the lighting.
2. Using the recess, press the filter backwards and tip it downwards at the front.
3. Remove the filter from the hood.

Cleaning

• The filters can be easily cleaned by hand. Clean the filters in water and washing-up liquid and rinse them. Afterwards, let the filters drain and dry thoroughly before replacing them.
• You can also clean the filters in the dishwasher if necessary. Afterwards, let the filters drain and dry thoroughly before replacing them.
• The underside of the extractor hood can be cleaned with a mild cleaning agent and a moist cloth.

Reinstalling filter cassette

Make sure the filters are thoroughly dry before replacing them. The filter has to be installed with the locking mechanism at the front.

1. Open the locking mechanism. This pulls the projections at the front of the filter inwards. When installing the filters hold the locking mechanism in this position.
2. Push the projections at the back of the filter into the openings provided for this purpose at the rear of the extractor hood.
3. Hinge the filter upwards.
4. Release the locking mechanism. The projections at the front of the filter move outwards into the openings provided for this purpose at the front of the extractor hood.

Carbon filters

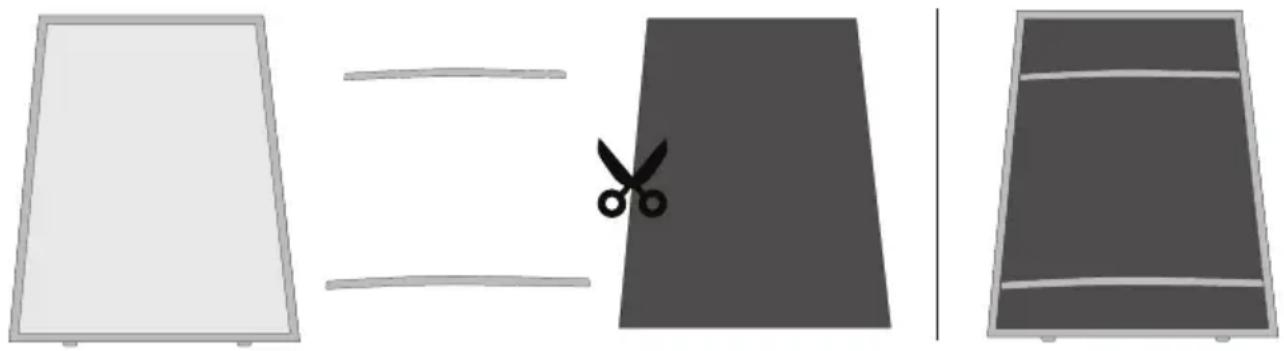

Three-panel image showing a white rectangular panel, a dark gray rectangular panel with a cutout of scissors, and a separate dark gray rectangular panel with horizontal stripes (no text or symbols)

• If the appliance cannot drain to the outside, you will need to install an carbon filter to neutralise cooking odours.
• Cut the filter material to fit the filter and attach it to the grease filter frame using the two brackets provided as shown in the drawing.
• If the appliance cannot drain to the outside, you will need to install an carbon filter to neutralise cooking odours.

• Cut the filter material to fit the filter and attach it to the grease filter frame using the two brackets provided as shown in the drawing.

• Note that this application causes a sharp increase in noise and significantly reduces the performance of the appliance.

• The internal filter should be replaced every 3 months as it becomes saturated sooner.

Important:

• Filter saturation depends on the intensity of use, cooking methods and the regularity with which the grease filters are cleaned.
• The applied carbon filters are for single use and should be disposed of via the residual waste.

Lighting

This hood is fitted with a light system. This light system has to be replaced by an authorized technician. Do not attempt to replace it by yourself.

The lamp in this household appliance is only suitable for illumination of this appliance. The lamp is not suitable for household room illumination.

What should I do if...

If the appliance does not work properly, this does not always mean that it is defective. Try to deal with the problem yourself first. Phone the service department if the advice given below does not work.

Attention!

Disconnect the appliance from the mains before starting the repair, preferably by removing the plug from the socket or setting the main switch to zero.

Faults table

Symptom Possible cause Solution
Lighting is not functioning. Light system defective. The light system has to be replaced by an authorized technician. Do not attempt to replace it by yourself.
Extractor hood makes a noise.	Discharge too long or too many bends in the duct.	Change the discharge ducting (see installation guide).
	Flap defective. Phone the service department.
	Carbon filters inserted. More noise is produced when carbon filters are used than when the cooker hood is used with an exhaust vent.
No extraction. Flap or controle defective. Phone the service department.

Matching accessories

• HF2028 carbon filter set (replace every 4 months).

Scan the QR code to order the above accessories for your appliance.

Disposal of packaging and appliance

Sustainable materials were used in the manufacture of this appliance. At the end of its life cycle, this appliance must be disposed of in a responsible manner. You can obtain more information from the authorities.

The packaging of the appliance is recyclable. The following materials may have been used:

• cardboard;
  • polyethylene foil (PE);
  • CFC-free polystyrene (PS hard foam).

Dispose of these materials in a responsible manner and in accordance with governmental provisions.

To designate the requirement of sorted processing of electrical household equipment, the symbol of a crossed-out waste container is displayed on the product. This means that at the end of its life span, the appliance may not be added to the regular household waste. The appliance must be brought to a special municipal centre for sorted waste collection or to a dealer that provides this service.

The separate processing of a household appliance prevents possible negative consequences for the environment and health which exist due to inappropriate processing. Separate processing ensures that the materials of which the appliance is made can be recovered to obtain a considerable savings of energy and raw materials.

Conformity declaration

We declare that our products comply with the applicable European Directives, Resolutions and Regulations, as well as all requirements specified in the standards to which reference is made.

Op onze website kunt u de meest recente versie van de gebruiksaanwijzing vinden. Vous pouvez trouver la version la plus récente de le mode d'emploi sur notre site Web. You can find the most recent version of the instructions for use on our website. Die neueste Version der Bedienungsanleitung finden Sie auf unserer Website.

www.etna.nl

www.etna.be

960390
