Read these instructions thoroughly before using the product. Keep this instruction manual for future reference or new users.

• Cecotec shall not be liable for any problem caused by product misuse or non-compliance of both the traffic rules and the instructions in this manual.
• This electric scooter is an entertainment device. However, in some jurisdictions, it is allowed to be used on public roads. Make sure you comply the local traffic rules when using the electric scooter in these situations, as it will be considered a vehicle. Ride in a civilised manner and pay attention to people and obstacles around you to prevent accidents.
• Remember that, if you follow the instructions and warnings in this manual, as well as the traffic rules in your area, you will reduce the risks, but you will not completely prevent them.
• Remember that the higher the speed, the greater the braking distance. Remember that hard braking can cause slips and falls.
• Keep a safe distance with other people and vehicles. Respect pedestrians and give them way whenever possible. When you come closer to a pedestrian, reduce the speed and stay on the right side. Avoid frightening or surprising pedestrians. Overtake other vehicles on the left whenever possible (applicable to countries where vehicles drive on the right).
• Use safety equipment, like a helmet, elbow pads, and knee pads knee pads to avoid or reduce injuries in case of accidents or falls. You must use footwear.
• We recommend you practice with the electric scooter before riding it in public areas.
• Make sure both you and people using the electric scooter

read and understand these instructions completely. Do not allow anyone to use the electric scooter if they do not understand its operation.

• Avoid jumping over obstacles such as kerbs, steps, or manholes with the electric scooter. Match the speed and trajectory to those of a pedestrian to cross these obstacles. It is recommended to get off the electric scooter when these obstacles become dangerous due to their height, shape, or slipperiness.
• Make sure the wheels are not damaged and all parts and components of the electric scooter are correctly installed before each use. If you notice any of the parts is loose, hear strange noises, or the electric scooter does not work correctly, stop using it immediately and contact the Cecotec official Technical Support Service.
• Do not use the electric scooter in a manner that could damage other objects or other people.
• It is not allowed to modify the electric scooter in any manner, as this could alter its performance or damage its structure and cause harm. Do not use any accessories or parts not approved by the manufacturer. Do not modify or alter the structure of the electric scooter, including the steering tube and sleeve, power, folding system, and/or braking system. Any unauthorised change will void the product guarantee.
• To prevent the electric scooter from being damaged or causing an accident, do not use it under water.
• The electric scooter is not intended to be used by children from 0 to 16 years old. It can be used by children over the age of 16, as long as they are given continuous supervision. Check the current local regulations.
• This appliance can be used by children aged 16 and above, and persons with reduced physical, sensory, or mental

capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Do not allow children to play with the appliance.

• Supervise children to prevent them from playing with the appliance. Close supervision is necessary when the electric scooter is being used by or near children.
• Do not modify the braking system, as it could reduce its safety.
• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
• Check the charger cord and casing regularly for visible damage. Do not use the electric scooter if the charger cord, socket, or structure are damaged, do not work properly, or have fallen, and contact the Cecotec official Technical Support Service immediately.
• When you wish to disconnect the charger, pull from the plug, never the cord. Do not handle the plug or the electric scooter with wet hands.
• Remember that the wheel change is a complicated process, and it is advisable to let it be carried out by authorised personnel or by the Cecotec official Technical Support Service. Damages caused by misuse will void the guarantee.
• Check the wheels' pressure before each use. Remember that a low pressure may reduce the battery life.
• Use this electric scooter only with the power supply provided with the electric scooter and with original batteries from Cecotec compatible with this model.
• We recommend you charge the battery after every use and before it runs out of battery completely.

WARNING! Keep plastic packaging out of the reach of children to prevent suffocation.

Battery safety instructions

• This electric scooter includes a lithium-ion battery.
• Unplug the battery from the charger before riding the electric scooter and before folding or unfolding it.
• Charge the battery at a room temperature between 0^ C and 35^ C so the electric scooter operates efficiently.
• Do not burn or expose batteries to high temperatures, as they may explode.
• Batteries may leak under extreme conditions. Should that be the case, do not touch the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Avoid contact between the battery and small metallic objects such as paper clips, coins, keys, nails, or screws.
• Never modify the charger in any way.
• The battery must be removed from the appliance for safe disposal.
• Keep batteries out of the reach of children if they can be swallowed.
• Battery ingestion can cause burns, perforation of soft tissue, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical help immediately.

• WARNING: to recharge the battery, use only the power supply unit provided with the appliance, reference XVE053-4200150.

• Non-rechargeable batteries should not be recharged.

• The battery supply terminals must not be short-circuited.
• If the device is stored for a long period of time, you should remove the battery.
• The battery must be inserted in the correct position. Pay attention to polarity when inserting them.

INSTRUCTIONS DE SÉCURITÉ

You must read and follow the safety instructions in this manual before riding the electric scooter. Use approved safety equipment such as helmets or knee pads. This product is intended for use as a personal mobility vehicle for the purpose of transporting a single person in a public or private place.

Fig. 2

Do not use the vehicle with rainy weather.

Fig. 3

The electric scooter cannot be used by more than a person at a time.

Fig. 4

This product cannot be used by children under 16. Check the current local regulations. Strictly consider your health and body condition. You should consult your doctor to determine if you have any physical or health conditions that could create a risk to your safety or prevent you from using the electric scooter properly.

Fig. 5

Minimum weight allowed: 20 kg. Maximum weight allowed: 100 kg. Recommended maximum user height: up to 1.90 metres.

Fig. 6

Do not ride the electric scooter under the influence of alcoholic drinks, drugs, or medicine whose intake is not compatible with driving.

Fig. 7

Do not use the phone or listen to music while riding the electric scooter.

Fig. 8

Pay special attention when riding when there is sand, puddles, mud, ice, snow, or stairs and when it is dark, or the floor is wet. Do not touch the brake disc in poor lighting conditions or after use, as it may still be hot.

Fig. 9

Do not use the electric scooter in hazardous areas where there could be flammable or explosive substances, liquids, or dirt.

Fig. 10

This electric scooter is not designed to be driven on motorways, highways, or intercity roads. Check the current legislation of your local authority on where electric scooters are allowed to be ridden.

Fig. 11

Do not place heavy objects on the handlebar. Any load attached to the handlebar will affect the stability of the electric scooter.

Fig. 12

Avoid climbing up and down the stairs with the electric scooter.

Fig. 13

Always ride with both hands on the handlebar.

Fig. 14

Do not ride the electric scooter with just one foot.

Fig. 15

Do not press the accelerator when walking along with the electric scooter.

Fig. 16

Note that the braking distance will be longer in puddles, wet surfaces, and/or in wet-weather conditions. The electric scooter is intended for use on flat, level, and dry surfaces.

Fig. 17

Be careful with your head when riding under roofed areas, like a door.

Fig. 18

When riding at high speed, do not turn the handlebar abruptly.

Fig. 19

Do not ride at high speed over obstacles like steps, kerbs, or speed bumps.

Fig. 20

Do not hit obstacles with the wheels.

Fig. 21

Do not touch the motor immediately after riding the electric scooter, as it may be hot.

WARNING! Regularly check the condition of components or parts subject to wear or fatigue, such as the chassis, fork, tyres, brakes, etc. This will allow you to detect cracks or damage in

68

bongo

ORIGINAL MANUAL TRANSLATION

BONGO SERIE S- MAX INFINITY / UNLIMITED

ENGLISHENGLISH

high-stress areas that may indicate the component's service life has been exceeded and needs to be replaced. Regular maintenance of the electric scooter and its components will extend its service life. Periodically check the tightness of bolted parts, especially the wheel axles and the folding, steering, and braking systems.

• Contact your vendor to be referred to an appropriate training organisation.
• Avoid high traffic or overcrowded areas and anticipate your path and speed by respecting the road's traffic code and watching out for pedestrians.
• Indicate your presence when approaching a pedestrian or cyclist and when you are not seen and/or heard. Remember to cross at the pedestrian crossing when walking and always take care of yourself and others. Remove any sharp edges that may have been caused using the vehicle.
• Do not modify the use of the vehicle. This vehicle is not designed for stunt use.

Using the scooter properly

• Do not wear loose clothing, scarves, necklaces, or other items with long chains or strings.
• Do not drive with objects in your pockets, hands, or mouth.
• Do not rest your feet on the ground while driving.
• Do not get off the vehicle while in movement.
• Do not attempt to do jumps or stunts while on top of the electric scooter.
• Do not read, write, drink, or eat while driving.
• Avoid riding the electric scooter on unstable or dangerous surfaces such as roads with sinkholes or elevation changes.
• Do not drive the vehicle in an awkward position and/or use your feet for braking.

2. PARTS AND COMPONENTS

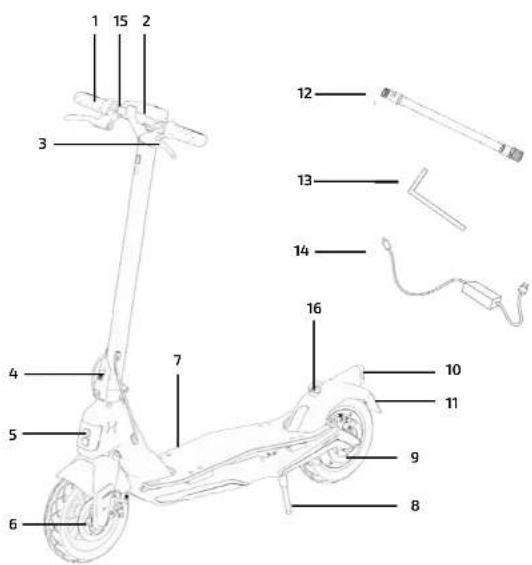

Electric scooter

Fig. 22
1. Handlebar
2. Control panel
3. Brake(s)
4. Folding system
5. Headlight
6. Front disc brake
7. Deck
8. Kickstand
9. Rear disc brake
10. Rear light
11. Number-plate holder

1. Adapter to inflate the wheels
2. Tools
3. Charger
4. Accelerator
5. Folding system's locking mechanism

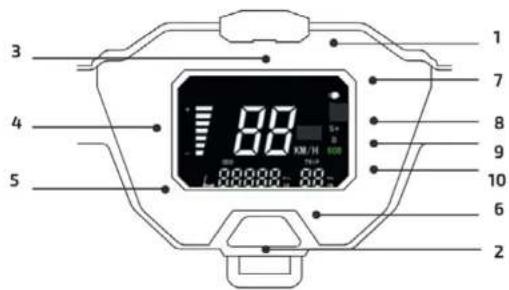

Display details

Fig. 23

1. Display
2. Power button
3. Speed/Error
4. Battery
5. Odometer
6. Km
7. Indicator light
8. Sport mode
9. Normal mode
10. Pedestrian Mode

PLEASE NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

3. BEFORE USE

This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
- Make sure all parts and components are included and in good conditions. If there is any piece missing or not in good condition, immediately contact the Technical Support Service of Cecotec.

Box contents. Fig. 24

1. Bongo Cecotec series 5+ Max Infinity/Unlimited electric scooter
2. Charger
3. Tools required for assembly
4. Adapter to inflate the wheels (x1)
5. Instruction manual

ENGLISHENGLISH

4. ASSEMBLING AND ADJUSTING THE SCOOTER

Note:

This electric scooter is delivered folded as shown in figure 25.

Assembling the handlebar. Fig. 26

1. Adjust the brake levers to the desired height and secure them.
2. Align and insert the handlebar base into the handlebar fixing hole.
3. Adjust the direction and secure the handlebar with four screws.

Unfolding the bar

1. Press the folding system's locking mechanism on the scooter's rear mudguard while lifting the bar.
2. Raise the bar until the folding system gets automatically locked by the first tab.
3. Secure the bar by closing the second tab
4. Make sure it is locked into place

Folding the bar. Fig. 27

1. Lift the tab latch
2. Move the folding lever
3. Lower the folding tab and the second tab will open automatically.
4. Align the latch hook with the locking mechanism on the rear mudguard and press downwards to fix it.

Assembling the battery. Fig. 28

The battery is already installed and connected.

To extract the battery:

1. Turn the key and unplug the connector cable.
2. Once done, the battery will be loose and ready for extraction in the scooter's cavity.

To insert the battery:
1. Lift the deck.
2. Insert the battery, plug the connector to activate the electrical circuit, and turn the key for the pivot to lock the battery into place.

Adjusting the front and rear brakes

Check that the brakes are correctly positioned on the handlebars. Fig. 29
- The brakes should be about 5-6 cm away from the handlebar grip.
- Stand on the vehicle to check the distance between the handlebar grip and the brake.
- Should the brakes exceed the recommended distance, turn the brake washer (A) to adjust it.

72

bongo

ORIGINAL MANUAL TRANSLATION

The front and rear brakes require regular adjustment. Fig. 30

- To adjust the brakes, loosen the nut (B) with the hexagon spanner. Then tighten the brake cable, (shorten the brake cable upwards if too tight, pull downwards if too loose) and then tighten the nut. The adjustment method is the same for the front and rear brakes. This will allow the wheel to turn easily when the brake is not in use and will simultaneously cause the electric scooter to stop immediately when activated:

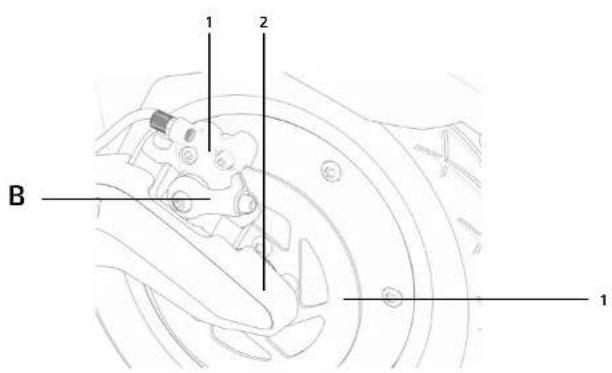

1. Brake caliper
2. Locknut
3. Brake disc
4. Brake pads (inside the brake caliper)

Note:

- The Cecotec Bongo S+ Max Infinity series electric scooter features only a front disc brake.

- For each adjustment you make, tighten the corresponding bolts on the calipers, discs, and brake pads in addition to the locknut.

5. OPERATION

Power and operation

1. Hold down the button for 2 seconds.
2. Step on the deck with one foot and use the other one to propel yourself forward.
3. Place both feet on the deck.
4. Press the accelerator with your right hand. The electric motor will deliver power when the speed of the scooter is equal to or greater than 3 km/h.
5. Press the accelerator to increase the speed.

WARNING

Do not ride too fast.

1. Use the brake to stop or to ride more slowly. Step on the rear mudguard softly to help during the braking process.
2. Get off the electric scooter only when you ride at a very low speed or when you are still.
3. Fold down the kickstand (item no. 8 - Fig. 22) to park your electric scooter when not in use.

Control panel

Fig. 23

Button

Power button:

BONGO SERIE S+ MAX INFINITY / UNLIMITED

ENGLISHENGLISH

- Hold down this button for a few seconds to turn the electric scooter on or off.

- Hit the button once to turn the lights on or off.

- Hit the button twice to select the mode. Choose from:

• Pedestrian Mode: the display will show an icon of a person walking. In this mode, the electric scooter can reach 6 km/h.
  NORMAL mode: the display will show 'ECO'. In this mode, the electric scooter can reach 15 km/h.
  o SPORT mode: the display will show "S+". In this mode, the electric scooter can reach 25 km/h.

Throttle: use to initiate movement and accelerate.

Brake: hold it down to stop.

Display

• ODO: total kilometres travelled.
• TRIP: km travelled since the scooter has been switched on.
• Battery: shows the battery level.
• Speed/error: shows speed in Km/h or Mph. An error code will be displayed in case of faults.
• Light indicator: indicates when the lights are on.

Charging the battery

1. Lift the deck.
2. Connect the charger to the charging port.
3. Once fully charged, remove the charger and place the deck back in position.

Note:

• Although this electric scooter is delivered fully charged, it is recommended to charge it 6 to 8 hours before first use.
• Charge the electric scooter after each use and before storing it for a long time.
• Do not allow the electric scooter's battery to completely run dry to avoid damaging it.

Tyre use

• For a correct operation of the electric scooter, you should check and ensure the correct pressure on your tyres before every use.
• The optimum tyre pressure is 44 PSI / 3 bar.
• We recommend you carry out periodic tests to ensure the pressure is between the recommended values to achieve an efficient operation.
• During the shelf life of these tyres, we recommend using heat-sealing gels to prevent punctures and maintain maximum effectiveness and performance.

6. CLEANING AND MAINTENANCE

Cleaning

• Clean the electric scooter with a soft cloth, soap, and water if necessary.
• After cleaning it, dry it thoroughly, especially the metal parts, as they may corrode or rust.
• Do not use alcohol, petrol, paraffin, or other corrosive, or chemical solvents.
• Do not clean the electric scooter with pressurised water.
• Make sure the charger is unplugged before cleaning the electric scooter and that the rubber cover is placed over the charging port to avoid risk of electric shock and other damage.

General maintenance

• Maintenance tasks must always be carried out by qualified personnel.
• Always use original Cecotec spare parts.
• All repairs must be carried out with the electric scooter resting on the kickstand, switched off, and unplugged from the mains.
• If the electric scooter will not be used for some time, store it in a sheltered, dry, and shaded place. Refrain from storing it outdoors.
• Exposure to sunlight and external temperatures may damage the scooter and its battery and reduce the overall shelf life.
• Charge the battery after each use and before storing the scooter for a long time. Doing so will prolong its shelf life.
• Do not expose the battery to temperatures above 50°C and below -20°C.

Brake discs

You must check the brake discs are in perfect condition, matching the brake caliper. To set this easily, there is an Allen key included. Brake pads are consumable parts and must be replaced when its shelf life expires.

Storage

• Make sure the electric scooter is charged before storing it for long periods of time. Charge it at least once a month.
• Charge it only if the room temperature is between 0°C and 35°C and store it at a temperature between -10°C and 35°C.
• Do not store the electric scooter outdoors. Store it in a safe and dry place. Cover it to protect it from dust if necessary.

Tests to carry out

• After a fall, check that the throttle grip is working properly. To do this, try accelerating and decelerating several times.
• Regularly check that the brakes are working properly. To do this, manually push the scooter and press down the brakes suddenly to see how it responds.

ENGLISHENGLISH

• Check that all parts of the electric scooter are in position and securely fastened.
• Check tyre wear and pressure.

• Check the brakes and throttle cables for wear.

• TROUBLESHOOTING

Error Possible causes Possible solutions
The motor does not operate	The battery is not connected. Check the connectors.
	Low battery. Charge the battery
	Electrical problem. Check all connectors.
The motor turns off during operation.	Overheating Release the throttle and wait until the motor cools down.
After charging it, the electric scooter switches off.	The battery is not fully charged. Charge the battery
	The battery is frozen. Heat up the battery.
	The battery is old or not working properly.	Replace the battery.
Battery does not charge The charger is broken. Replace the charger.

Error codes: If any of the following error codes appear on the display, stop using the electric scooter immediately and contact Cecotec's official Technical Support Service.

• E1: Motor fault

• E2: Controller-indicator fault

• E3: Throttle fault

• E4: MOS-controller fault
• E5: Phase-current fault
• E6: Average-current fault
• E7: Battery-voltage fault

• E8: Handlebar-brake fault

• TECHNICAL SPECIFICATIONS

Model	Bongo Cecotec Serie 5+ Max Infinity/Unlimited
Reference	07304/07305
Features	Measuring units	Specifications
Dimensions	Folded	110x50x50
	Unfolded	110 x 50 x 117 cm (1)
Infinity's weight	Electric scooter weight	15,5 kg
Unlimited weight	Electric scooter weight	16 kg
Use requirements	Min-max weight	20-100 kg
	Min-max height	190-130 cm
	Age bracket	16-80 years (2)
Technical specifications	Infinity's autonomy Up to 30 km (3)
	Unlimited's autonomy	Up to 40 km (3)
	Max. speed	25 km/h
	Max. inclination 15°
	Operating temperature	0°/45°C
	Storage temperature	-15°/45°C
	IP protection rating IPX4
Motor	Max. power	0.750 KW
	Rated power	0.350 KW

ENGLISHENGLISH

Infinity's battery Type	RYD lithium ion
	Charge time 5 hours
	Capacity 7800 mAh
	Nominal voltage 36 V
	Max. charge voltage 42 V
	Max. charging current 1.5A
	Rated capacity 280.8 Wh
Unlimited's battery Type	RYD lithium ion
	Charge time 6 h
	Capacity 10400 mAh
	Nominal voltage 36 V
	Max. charge voltage 42 V
	Max. charging current 1.5A
	Rated capacity 374.4 Wh
Tyres Tubeless tyres 10'
Charger Input		110-240V ~ 50/60Hz 1.5A MAX
	Outlet	42 V DC 1.5A 63W
	Protection	IPX0, Ta=40°C
Infinity's riding modes and autonomy (4)	Pedestrian	32 km
	Normal	29 km
	Sport	26 km
Unlimited's riding modes and autonomy (4)	Pedestrian	42 km
	Normal	39 km
	Sport	33 km

(1) Height from the floor to the upper part of the handlebar.
(2) Check the current local regulations.
(3) Autonomy has been measured with an 80 kg weight, completely charged battery, Normal mode on a flat surface, no wind, and a room temperature of approximately 25 °C.
(4) It has been measured with an 80 kg weight, completely charged battery, flat surface, no

wind, and a room temperature of approximately 25 °C.

The total value of the exposed vibration in the hand-arm system does not exceed 2.5 m/s ^2 . The weighted acceleration to which the whole body is submitted does not exceed 0.5 m/s ^2 . The A-weighted emission sound pressure level at workstations is less than or equal to 70 dB. Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of

old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec official Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

12. STATEMENT OF COMPLIANCE

MANUFACTURER: CECOTEC INNOVACIONES S.L.

ADDRESS: C/ Pinadeta, S/N, 46930, Quart de Poblet, Valencia (Spain).

DESCRIPTION: Electric scooter

MACHINE IDENTIFICATION: Bongo Serie S+ Max Infinity / Bongo Serie S+ Max Unlimited

FUNCTION: Electric vehicle with motor.

MODEL: 07304 / 07305

It certifies the product described has been designed, manufactured and tested and complies with all applicable provisions.

EU DIRECTIVES IMPLEMENTED

- Directive 2006/42/CE on machinery.

- Directive 2011/65/EU and delegated directive (EU) 2015/863 on the restriction of the

use of certain hazardous substances in electrical and electronic equipment.

- Directive 2014/30/EU on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.

APPLICABLE HARMONISED NORMS:

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019
- EN ISO 12100:2010
- EN 17128:2020
- EN IEC 61000-6-3:2021
EN IEC 61000-6-1:2019

1. AVERTISSEMENTS

Img.1

PRODUCENT CECOTEC INNOVACIONES, S.L.

ADRES: C/ Pinadeta S/N, 46930, Quart de Poblet, Valencia (España).

STOSOWANE DYREKTYWY UE:

Illustration showing a person using a scooter with a hand holding a smartphone, accompanied by a magnified circular diagram and a question mark.

Fig./Img./Abb./Afb./Rys./Obr.15

Fig./Img./Abb./Afb./Rys./Obr.16

Fig./Img./Abb./Afb./Rys./Obr.11

Fig./Img./Abb./Afb./Rys./Obr.12

Simple line drawing of a person riding a scooter with a star above their head (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr.17

Fig./Img./Abb./Afb./Rys./Obr. 18

Simple line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Fig./img./Abb./Afb./Rys./Obr. 19

Fig./img./Abb./Afb./Rys./Obr. 20

Fig./img./Abb./Afb./Rys./Obr.21

1 15 2 3 12 13 14 16 4 7 5 10 11 9 8

Fig./Img./Abb./Afo./Rys./Obr.22

3 4 5 1 7 8 9 10 6 2 88 KM/H 0.0000 0.00

Fig./Img./Abb./Afb./Rys./Obr. 23

Line drawing of a scooter body with wheels and suspension components (no text or symbols)

Technical diagram of an electric scooter with labeled parts including body, handle, and control unit

Fig./Img./Abb./Afb./Rys./Obr. 24

Hand holding a pen and stylus, with a red circle highlighting a point of interest (no text or symbols present)

Fig./Img./Abb./Afb./Rys./Obr.25

Pure architectural line drawing of a symmetrical tower structure without any text, numbers, or symbols

Fig./Img./Abb./Afb./Rys./Obr. 26

Line drawing of a car front bumper with handle and seat (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 28

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Simple line drawing of a mechanical joint or bracket with a curved arrow indicating direction (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr.27

Technical line drawing of a mechanical device with labeled component A (no text or symbols beyond label)

Fig./Img./Abb./Afb./Rys./Obr. 29

1 2 B 1

Fig./Img./Abb./Afb./Rys./Obr.29

www.cecotec.es

Quart de Poblet, Valencia (Spain)

YV_01220820
