USER MANUAL AVH-120BT PIONEER

Thank you for buying this Pioneer product.

Please read through these instructions so you will know how to operate your model properly. After you have finished reading the instructions, keep this document in a safe place for future reference.

Important

The screen shown in the examples may differ from actual screens, which may be changed without notice for performance and function improvements.

■ Precaution 2

■ Parts and controls...... 5

■Basic operation 6

Bluetooth....7

■AV source....10

■ Smartphone connection for AV source.... 11

■Radio.... 11

Disc.... 12

■ Compressed files...... 13

AUX 15

■Settings.... 16

Displaying the setting screen 16

System settings 16

Audio settings.... 18

Video settings 19

■Favorite menu 20

■ Other functions ...... 21

■Connection 21

■Installation......24

Appendix 25

Precaution

Information to user

-MODEL NO.: AVH-120BT

FCC ID: AJDK106

IC: 775E-K106

This device contains licence-exempt transmitter(s)/receiver(s) that complies with Part 15 of FCC Rules and Innovation, Science, and Economic Development Canada licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.

-The Bluetooth antenna cannot be removed (or replaced) by user.

This equipment complies with FCC/ISED radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the ISED radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE).

- This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the Instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

USE OF CONTROL OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION:

THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.

CAUTION

This product is a Class 1 laser product classified under the safety standard, IEC 60825-1:2014, and contains a class 1M laser module. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.

CLASS 1 LASER PRODUCT

CAUTION—CLASS 1M VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN, DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

FEDERAL COMMUNICATIONS COMMISSION SUPPLIER'S DECLARATION OF CONFORMITY Product Name: DVD RDS AV RECEIVER

Model Number: AVH-120BT

Responsible Party Name: PIONEER ELECTRONICS (USA), INC. SERVICE SUPPORT DIVISION Address: 2050 W. 190TH STREET, SUITE 100, TORRANCE, CA 90504, U.S.A.

Phone: [phone]

URL: http://www.ploneerelectronics.com

• This product contains chemicals known to the State of California and other governmental entities to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
• Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as papers, floor mat, cloths).

CAUTION

This product is evaluated in moderate and tropical climate condition under the Audio, video and similar electronic apparatus - Safety requirements, IEC 60065.

The Safety of Your Ears is in Your Hands

Get the most out of your equipment by playing it at a safe level—a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving.

Over time, your hearing "comfort level" adapts to higher volumes of sound, so what sounds "normal" can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

• Set your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, without distortion.

- Once you have established a comfortable sound level, set the dial and leave it there.

▶BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:

• Do not turn up the volume so high that you can't hear what's around you.
  – Use caution or temporarily discontinue use in potentially hazardous situations.
• Do not use headphones while operating a motorized vehicle; the use of headphones may create a traffic hazard and is illegal in many areas.

Important safety information

WARNING

• Do not attempt to install or service this product by yourself. Installation or servicing of this product by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock, injury or other hazards.
• Do not allow this product to come into contact with liquids. Electrical shock could result. Also, damage to the product, smoke, and overheating could result from contact with liquids.
• If liquid or foreign matter should get inside this product, park your vehicle in a safe place, turn the ignition switch off (ACC OFF) immediately and consult your dealer or the nearest authorized Pioneer Service Station. Do not use this product in this condition because doing so may result in a fire, electric shock, or other failure.
• If you notice smoke, a strange noise or odor from this product, or any other abnormal signs on the LCD screen, turn off the power immediately and consult your dealer or the nearest authorized Pioneer Service Station. Using this product in this condition may result in permanent damage to the system.
• Do not disassemble or modify this product, as there are high-voltage components inside which may cause an electric shock. Be sure to consult your dealer or the nearest authorized Pioneer Service Station for internal inspection, adjustments or repairs.
  Before using this product, be sure to read and fully understand the following safety information:

- Do not operate this product, any applications, or the rear view camera option (if purchased) if doing so will divert your attention in any way from the safe operation of your vehicle. Always observe safe driving rules and follow all existing traffic regulations. If you experience difficulty in operating this product, pull over, park your vehicle in a safe location and apply the parking brake before making the necessary adjustments.

- Never set the volume of this product so high that you cannot hear outside traffic and emergency vehicles.

- To promote safety, certain functions are disabled unless the vehicle is stopped and the parking brake is applied.

- Keep this manual handy as a reference for operating procedures and safety information.

- Do not install this product where it may (i) obstruct the driver's vision, (ii) impair the performance of any of the vehicle's operating systems or safety features, including air bags or hazard lamp buttons or (iii) impair the driver's ability to safely operate the vehicle.

• Please remember to fasten your seat belt at all times while operating your vehicle. If you are ever in an accident, your injuries can be considerably more severe if your seat belt is not properly buckled.
• Never use headphones while driving.
• Rear visibility systems (backup cameras) are required in certain new vehicles sold in the U.S. and Canada. U.S. regulations began according to a two year phase-in on May 1, 2016, and both the U.S. and Canada require that all such vehicles manufactured on or after May 1, 2018 have rear visibility systems. Owners of vehicles equipped with compliant rear visibility systems should not install or use this product in a way that alters or disables that system's compliance with applicable regulations. If you are unsure whether your vehicle has a rear visibility system subject to the U.S. or Canadian regulations, please contact the vehicle manufacturer or dealer.

If your vehicle has a compliant backup camera that displays the backup view through the factory receiver, do not use the Pioneer receiver unless it is connected to and displays the same view as the factory backup camera. Connection to the factory backup camera will require an adaptor, sold separately. Not all vehicles may be able to connect. Please check with a qualified professional installer for installation options specific to your vehicle.

Parking brake interlock

Certain functions (such as viewing of video image and certain touch panel key operations) offered by this product could be dangerous (possibly resulting in serious injury or death) and/or unlawful if used while driving. To prevent such functions from being used while the vehicle is in motion, there is an interlock system that senses when the parking brake is set and when the vehicle is moving. If you attempt to use the functions described above while driving, they will become disabled until you stop the vehicle in a safe place, and (1) apply the parking brake, (2) release the parking brake, and then (3) apply the parking brake again. Please keep the brake pedal pushed down before releasing the parking brake.

To ensure safe driving

WARNING

• LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED STATUS AND MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE PARKING BRAKE SWITCH. IMPROPER CONNECTION OR USE OF THIS LEAD MAY VIOLATE APPLICABLE LAW AND MAY RESULT IN SERIOUS INJURY OR DAMAGE.
- Do not take any steps to tamper with or disable the parking brake interlock system which is in place for your protection. Tampering with or disabling the parking brake interlock system could result in serious injury or death.
- To avoid the risk of damage and injury and the potential violation of applicable laws, this product is not for use with a video image that is visible to the driver.

• In some countries the viewing of video image on a display inside a vehicle even by persons other than the driver may be illegal. Where such regulations apply, they must be obeyed. If you attempt to watch video image while driving, the warning "Viewing of front seat video source while driving is strictly prohibited." will appear on the screen. To watch video image on this display, stop the vehicle in a safe place and apply the parking brake. Please keep the brake pedal pushed down before releasing the parking brake.

To avoid battery exhaustion

Be sure to run the vehicle engine while using this product. Using this product without running the engine can drain the battery.

WARNING

Do not install this product in a vehicle that does not have an ACC wire or circuitry available.

Rear view camera

With an optional rear view camera, you are able to use this product as an aid to keep an eye on trailers, or backing into a tight parking spot.

WARNING

• SCREEN IMAGE MAY APPEAR REVERSED.
- USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY RESULT IN INJURY OR DAMAGE.

CAUTION

The rear view mode is to use this product as an aid to keep an eye on the trailers, or while backing up. Do not use this function for entertainment purposes.

Handling the USB connector

CAUTION

• To prevent data loss and damage to the storage device, never remove it from this product while data is being transferred.
• Pioneer cannot guarantee compatibility with all USB mass storage devices and assumes no responsibility for any loss of data on media players, iPhone*, smartphone, or other devices while using this product.

Failure to operate

After-sales service for Pioneer products

Please contact the dealer or distributor from which you purchased the product for after-sales service (including warranty conditions) or any other information. In case the necessary information is not available, please contact the companies listed below. Please do not ship your product to the companies at the addresses listed below for repair without making advance contact. -USA&CANADA Pioneer Electronics (USA) Inc. CUSTOMER SUPPORT DIVISION P.O. Box 1760 Long Beach, CA 90801-1760 800-421-1404 For warranty Information, please see the Limited Warranty sheet Included with your product.

Visit our website

Visit us at the following site:

http://www.pioneerelectronics.com

http://www.pioneerelectronics.ca

1 Register your product.
2Receive updates on the latest products and technologies.
3 Download owner's manuals, order product catalogs, research new products, and much more.
4Receive notices of software upgrades and software updates.

Protecting the LCD panel and screen

• Do not expose the LCD screen to direct sunlight when this product is not used. This may result in LCD screen malfunction due to the resulting high temperatures.
• When using a cellular phone, keep the antenna of the cellular phone away from the LCD screen to prevent disruption of the video in the form of spots, colored stripes, etc.
• To protect the LCD screen from damage, be sure to touch the touch panel keys only with your finger and do so gently.

Notes on internal memory

• The information will be erased by disconnecting the yellow lead from the battery (or removing the battery itself).
• Some of the settings and recorded contents will not be reset.

About this manual

This manual uses diagrams of actual screens to describe operations. However, the screens on some units may not match those shown in this manual depending on the model used.

Meanings of symbols used in this manual

	This indicates to touch the appropriate soft key on the touch screen.
	This indicates to touch and hold the appropriate soft key on the touch screen.

Parts and controls

Main unit

Diagram of a device panel with numbered components and a central display area

1	VOL (+/-)
2	(HOME) Press	to display the top menu screen. Press and hold to power off. To power back on, press any button.
3	(MUTE) Press	and hold to display off.
4	USB port
5	RESET Press to reset the microprocessor (page 6).

Microphone The Bluetooth microphone is built in the grill of the product. Speak toward the microphone when you make a call.

Depending on the usage condition of the vehicle such as the wind from the air conditioner when using the hands-free function, it may be difficult for the other party to hear your voice at their end.

(EJECT) Refer to Inserting and ejecting a disc (page 12).

Disc-loading slot

LCD screen

Basic operation

CAUTION

• Pressing the RESET button resets settings and recorded contents to the factory settings.
  – Do not perform this operation when a device is connected to this product.
  – Some of the settings and recorded contents will not be reset.
  • The microprocessor must be reset under the following conditions:
  – Prior to using this product for the first time after installation.
• If this product fails to operate properly.
• If there appears to be problems with the operation of the system.

1 Turn the ignition switch OFF.

2Press RESET with a pen tip or other pointed tools.

Settings and recorded contents are reset to the factory settings.

The remote control is sold separately. For details concerning operations, see the remote control manual.

1 Start the engine to boot up the system.

The [Select Program Language] screen appears.

From the second time on, the screen shown will differ depending on the previous conditions.

2 Touch the language.

3Touch

The top menu screen appears.

You can operate this product by touching the keys on the screen directly with your fingers.

To protect the LCD screen from damage, be sure to touch the screen only with your finger gently.

Common touch panel keys

Switches between playback and pause.

Skips files/tracks/chapters forward or backward.

Performs fast reverse or fast forward.

Touch again to change the playback speed.

Stops playback.

Text

information

When all characters are not displayed, the rests are automatically scrolled on the display. The characters are displayed by touching the text information.

This function is available only when you stop your vehicle in a safe place and apply the parking brake.

Returns to the previous screen.

Close the screen.

Operating list screens
	Touching an item on the list allows you to narrow down the options and proceed to the next operation.
	Appears when all characters are not displayed on the display area.If you touch the key, the rests are scrolled for display.NOTEThis function is available only when you stop your vehicle in a safe place and apply the parking brake.
	Appears when items cannot be displayed on a single page.Touch to view any hidden items.

Operating the time bar
	You can change the playback point by dragging the key.
	NOTE
	The time bar function may vary depending on the activating source.

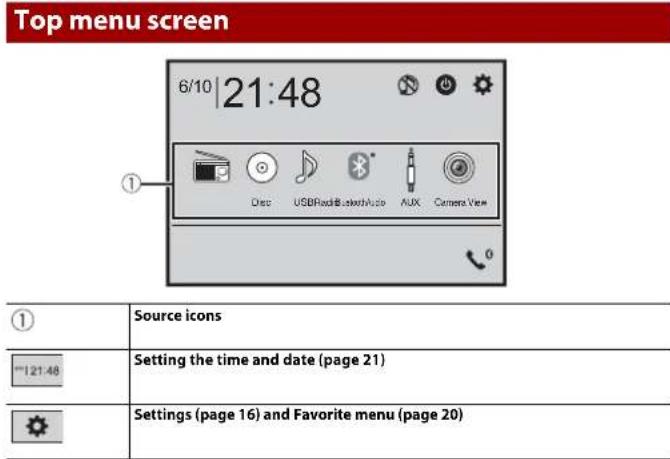

Top menu screen 6/10 | 21:48 ① Dsc USBRad&LakeshAuto AUX Camera View ① Source icons #121:48 Setting the time and date (page 21) Settings (page 16) and Favorite menu (page 20)

	Hands-free phoning (page 8)
	AV source off
	If you selectyou can turn off almost all functions.The unit turns on by operating following functions:An incoming call is received (only for hands-free phoning via Bluetooth).A rear view camera image is input when the vehicle is in reverse.A button on this unit is pressed.The ignition switch is turned off (ACC OFF), then turned on (ACC ON).

Bluetooth

Bluetooth connection

1 Turn on the Bluetooth function on the device.

2Press

3Touch

The Bluetooth menu screen appears.

4Touch [Connection].

5Touch

The unit starts to search for available devices, then displays them in the device list.

6 Touch the Bluetooth device name.

After the device is successfully registered, a Bluetooth connection is established by the system. Once the connection is established, the device name is displayed on the list.

NOTES

• If three devices are already paired, [Memory Full] is displayed. Delete a paired device first (page 8).
• If your device supports SSP (Secure Simple Pairing), a six-digit number appears on the display of this product. Touch [Yes] to pair the device.
• Q is invalid when the device is already connected, during connection or disconnected
• Before connecting from the Bluetooth device, make sure that the connection of this product and other Bluetooth device is disconnected.

TIP

The Bluetooth connection can also be made by detecting this product from the Bluetooth device. Before registration, make sure that [Visibility] in the [Bluetooth] menu is set to [On] (page 8). For details on Bluetooth device operations, refer to the operating instructions supplied with the Bluetooth device.

Bluetooth settings

1Press
2Touch		then.

CAUTION

Never turn this product off and disconnect the device while the Bluetooth setting operation is being processed.

Menu Item Description
[Connection] Connect, disconnect, or delete registered Bluetooth device manually.Touch [to] delete registered device.To connect a registered Bluetooth device manually, touch the name of the device.To disconnect the device, touch the name of the connected device in the list.NOTEConnect the Bluetooth device manually in the following cases:• Two or more Bluetooth devices are registered, and you want to manually select the device to be used.• You want to reconnect a disconnected Bluetooth device.• Connection cannot be established automatically for some reason.
[Auto Connect][On] [Off]	Select [On] to connect the last connected Bluetooth device automatically.NOTEIf two Bluetooth devices were connected the last time, the two devices are connected to this product automatically in the order that they are registered in the device list.
[Visibility][On] [Off]	Select [On] to make this product visible to the other device.
[PIN Code Input] Change the PIN code for Bluetooth connection.The default PIN code is "0000".1Touch [0] to [9] to input the pin code (up to 8 digits).2Touch [→]
[Device Information] Displaying the device name and address of this product.
[Bluetooth Memory Clear] Touch [Clear] then [OK] to clear the Bluetooth memory.

Switching the connected Bluetooth device

You can switch among the connected Bluetooth devices using the switch devices key in the Bluetooth menu.

• You can register up to three Bluetooth devices on this product (page 7).
• The Bluetooth audio player can be switched to other Bluetooth devices on the Bluetooth audio playback screen.
• Only one device can be connected as a hands-free phoning.
• The hands-free phoning is also switched when the connected device via Bluetooth is switched.

Hands-free phoning

To use this function you need to connect your cellular phone to this product via Bluetooth in advance (page 7).

CAUTION

For your safety, avoid talking on the phone as much as possible while driving.

Making a phone call

1 Press

, then touch

The phone menu screen appears.

2 Touch one of the call icons on the phone menu screen.

	The following items are displayed.· Name of the current cellular phone· List number of the current cellular phone· Reception status of the current cellular phone· Battery status of the current cellular phone
ABC	Initial searches the phone book.Touch the list area to stop initial search.
	Using preset dial list (page 9)
	Using phone bookSelect a contact from the phone book. Touch the desired name on the list then select the phone number.TIPS· The contacts on your phone will be automatically transferred to this product.· Update the phone book manually.
	Using call historyMake a phone call from the received call, or missed call.
	Direct phone number inputEnter the number keys to enter the phone number then touch to make a call.

▶ To end the call

Using the preset dial lists

▶Registering a phone number

You can easily store up to six phone numbers per device as presets.

2 Touch 📄 🙏 . On the [Phone Book] screen, touch the desired name to display the contact's phone number.

▶Dialing from the preset dial list

2 Touch the desired entry on the list to make a call. The dial screen appears and dialing starts.

▶Deleting a phone number

3 Touch [Yes].

Receiving a phone call

1 Touch to answer the call. Touch to end the call.

TIPS

- Touch while getting a call waiting, switch to the talking person. - Touch while getting a call waiting to reject the call.

Phone settings

1 Press

Menu Item	Description
[Auto Answer] [On] [Off]	Select [On] to answer an incoming call automatically.
[Ring Tone] [On] [Off]	Select [On] if the ring tone does not come out from the car speakers.
[Invert Name]	Select [Yes] to change the order of the first and last names in the phone book.

Setting the private mode

During a conversation, you can switch to private mode (talk directly on your cellular phone). ____ ____

1 Touch or to turn private mode on or off.

Adjusting the other party's listening volume

This product can be adjusted to the other party's listening volume.

1 Touch to switch between the three volume levels.

Notes for hands-free phoning

▶General notes

• Connection to all cellular phones featuring Bluetooth wireless technology is not guaranteed.
• The line-of-sight distance between this product and your cellular phone must be 10 meters or less when sending and receiving voice and data via Bluetooth technology.
• With some cellular phones, the ring sound may not be output from the speakers.
• If private mode is selected on the cellular phone, hands-free phoning may be disabled.

▶Registration and connection

• Cellular phone operations vary depending on the type of cellular phone. Refer to the instruction manual that came with your cellular phone for detailed instructions.
• When phone book transfer does not work, disconnect your phone and then perform pairing again from your phone to this product.

▶Making and receiving calls

- You may hear a noise in the following situations:

- When you answer the phone using the button on the phone.

- When the person on the other end of the line hangs up the phone.

• If the person on the other end of the line cannot hear the conversation due to an echo, decrease the volume level for hands-free phoning.
• With some cellular phones, even after you press the accept button on the cellular phone when a call comes in, hands-free phoning may not be performed.
• The registered name will appear if the phone number is already registered in the phone book. When the same phone number is registered under different names, only the phone number will be displayed.

The received call and dialed number histories

• You cannot make a call to the entry of an unknown user (no phone number) in the received call history.
• If calls are made by operating your cellular phone, no history data will be recorded in this product.

▶Phone book transfers

• If there are more than 1 000 phone book entries on your cellular phone, not all entries may download completely.
• Depending on the phone, this product may not display the phone book correctly.
• If the phone book in the phone contains image data, the phone book may not be transferred correctly.
• Depending on the cellular phone, phone book transfer may not be available.

Bluetooth audio

Before using the Bluetooth audio player, register and connect the device to this product (page 7).

NOTES

• Depending on the Bluetooth audio player connected to this product, the available operations with this product may be limited to the following two levels:
• A2DP (Advanced Audio Distribution Profile): Only playing back songs on your audio player is possible.
• A2DP and AVRCP (Audio/Video Remote Control Profile): Playing back, pausing, selecting songs, etc., are possible.
• Depending on the Bluetooth device connected to this product, the available operations with this product may be limited or differ from the descriptions in this manual.
• While you are listening to songs on your Bluetooth device, refrain from operating the phone function as much as possible. If you try operating, the signal may cause noise for song playback.
• When you are talking on the Bluetooth device connected to this product via Bluetooth, it may pause playback.

1Press

2Touch then

The system setting screen appears.

3 Touch [AV Source Settings].

4 Confirm that [Bluetooth Audio] is turned on.

5Press

6Touch [Bluetooth Audio].

The Bluetooth audio playback screen appears.

Basic operation

Description of Bluetooth audio playback screen

9999	Track number indicator
	Sets a repeat play range.
	Plays files in random order.
	Switches the devices.

AV source

Supported AV source

You can play or use the following sources with this product.

- Radio

• CD

• ROM (compressed audio or video files on discs)

• DVD-Video

• USB

The following sources can be played back or used by connecting an auxiliary device.

- Bluetooth® audio

• AUX

Selecting a source

Source on the AV source selection screen

1 Press

2 Touch the source icon.

When you select, the AV source is turned off.

Source on the source list

1 Touch on the AV Source screen.

2 Touch the source key.

When you select [Source OFF], the AV source is turned off.

Smartphone connection for AV source

When using a smartphone with this product, the settings are automatically configured according to the device to be connected.

NOTES

• Operation methods may vary depending on the smartphone and its software version.

- Depending on the version of smartphone OS, it may not be compatible with this unit.

Smartphone (Android™ device)

These are the methods to connect a smartphone to this product. The available sources vary depending on the connection method.

- Connecting via Bluetooth (page 11)

- Connecting via USB (page 11)

Compatible smartphones

Compatibility with all smartphones is not guaranteed. For details about smartphone compatibility with this product, refer to the information on our website.

Connecting via Bluetooth

The following sources are available when a smartphone is connected to the unit via Bluetooth.

- Bluetooth audio

1 Connect a smartphone with this product via Bluetooth (page 7).
2 Press
3 Touch compatible desired source.

Connecting via USB

The following sources are available when a smartphone is connected to the unit via USB. - USB storage device

1 Connect a smartphone with this product via USB (page 23)
2 Press
3 Touch compatible desired source.

Radio

Starting procedure

1Press

2Touch [Radio].

The Radio screen appears.

Basic operation

Description of Radio screen

Recalls the preset channel stored to a key from memory.

Stores the current broadcast frequency to a key.

	Displays the preset channel list.Select an item on the list ([1] to [6]) to switch to the preset channel.
FM1 AM	Selects the FM1, FM2, FM3, or AM band.
BSM	Performs BSM (best stations memory) function (page 12).
	Manual tuning
	Seek tuning or non stop seek tuningReleasing the key in a few seconds skips to the nearest station from the current frequency. Keep holding the key for long seconds to perform, performs non stop seek tuning.

Storing the strongest broadcast frequencies (BSM)

The BSM (best stations memory) function automatically stores the six strongest broadcast frequencies under the preset channel keys [1] to [6].

NOTES

• Storing broadcast frequencies with BSM may replace those you have already saved.
• Previously stored broadcast frequencies may remain stored if the number of frequencies stored has not reached the limit.
  1 Touch to begin search.

While searching, the six strongest broadcast frequencies will be stored under the preset channel keys in the order of their signal strength.

To cancel the storage process

1 Touch [Cancel].

Radio settings

1Press

2Touch

The system setting screen appears.

3 Touch [AV Source Settings].
4Touch [Radio settings].

The menu items vary according to the source.

Menu Item Description
[Local][Off]FM: [Level1] [Level2] [Level3] [Level4]AM: [Level1] [Level2]	Local seek tuning allows you to only tune into radio stations with sufficiently strong signals.
	NOTEThe FM [Level4] (AM [Level2]) setting allows reception of only stations with the strongest signals.

Disc

Inserting and ejecting a disc

You can play a normal music CD, Video-CD, or DVD-Video using the built-in drive of this product.

CAUTION

Do not insert anything other than a disc into the disc-loading slot.

Insert the disc

1 Insert a disc into the disc-loading slot.

The source changes and then playback will start.

NOTE

If the disc is already set, select [Disc] as the playing source.

Ejecting a disc

1 Press

Basic operation

TIPS

• If a Video-CD with PBC (playback control) ON is being played, appears.
• You can set the screen size for the video image (page 21).

Audio source

Description of Audio source screen

Track 99	Track number indicator
	Sets a repeat play for the current disc/the current track.
	Plays or does not play tracks in random order.
	Selects a track from the list.Touch a track on the list to play back.

Video source

CAUTION

For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video images, stop in a safe place and apply the parking brake.

Description of Video source screen

TIP

Touch anywhere on the screen, the touch panel keys appear.

	Performs frame-by-frame playback.
	Performs slow-motion playback.Each time you touchchanges the speed in four steps in the following order: 1/16 -> 1/8 -> 1/4 -> 1/2TIPReverse slow-motion playback is only for Video CD.
MENU TOP MENU	Displays the DVD menu.NOTEThis function may not work properly with some DVD disc content. In that case, use touch panel keys to operate the DVD.
	Sets a repeat play for all files/the current chapter/the current title.
	Switches the audio/subtitle language.

	Performs frame-by-frame playback.
	Performs slow-motion playback.Each time you touchchanges the speed in four steps in the following order: 1/16 -> 1/8 -> 1/4 -> 1/2TIPReverse slow-motion playback is only for Video CD.
MENU TOP MENU	Displays the DVD menu.NOTEThis function may not work properly with some DVD disc content. In that case, use touch panel keys to operate the DVD.
	Sets a repeat play for all files/the current chapter/the current title.
	Switches the audio/subtitle language.

	Displays the hidden function bar.
	Searches for the part you want to play.Touch [Title], [Chapter], [10Key], or [Track] then input the desired number from [0] to [9].To start playback from the number you registered, touchTIPSTo cancel an input number, touch [C].For DVD-Videos, you can select [Title], [Chapter] or [10Key].For Video-CDs, you can select [Track] or [10Key).*
	Selects the audio output from [L+R], [Left], [Right], [Mix].This function is available for Video-CDs and DVDs recorded with LPCM audio.
	Changes the viewing angle (Multi-angle).This function is available for DVDs featuring multi-angle recordings.
	Resumes playback (Bookmark).This function is available for DVD-Video. You can memorize one point as a Bookmark for a disc (up to five discs). To clear the bookmark on the disc, touch and hold this key.
Return	Returns and begins playback from the specified point.This function is available for DVD-Video and Video-CDs featuring PBC (playback control).

* PBC (playback control) only

Compressed files

Inserting and ejecting media

You can play compressed audio, compressed video, or still image files stored in a disc or an external storage device.

CAUTION

Do not insert anything other than a disc into the disc-loading slot.

Insert a disc

1 Insert a disc into the disc-loading slot.

The source changes and then playback will start.

NOTE

If the disc is already set, select [Disc] as the playing source.

Ejecting a disc

1 Press

Plugging a USB storage device

1 Open the USB port cover.

2 Plug in the USB device/smartphone (Android device) using an appropriate cable.

NOTES

• This product may not achieve optimum performance with some USB storage devices.

- Connection via a USB hub is not possible.

CAUTION

Use a USB cable (sold separately) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous.

Unplugging a USB storage device

1 Pull out the USB storage device from the USB cable.

NOTES

- Check that no data is being accessed before pulling out the USB storage device.

- Turn off (ACC OFF) the ignition switch before unplugging the USB storage device.

Starting procedure

For Disc

1 Insert the disc (page 13).

TIP

If the disc is already set, select [Disc] as the playing source.

For USB

1 Plug in the USB device/smartphone (Android device) using an appropriate cable.

TIP

If the USB is already set, select [USB] as the playing source.

Basic operation

TIP

You can set the screen size for the video and image files (page 21).

Audio source

Description of Audio source screen (Example: USB)

TIP

When you touch text information, all information is displayed by scrolling only when the parking brake is applied.

	Sets a repeat play range for all files/the current folder/the current file. NOTE The types of repeat play range depend on the source.
	Plays files or does not play in random order.
	Displays the hidden function bar.
	Switches the following media file types. [Music]: Compressed audio files [Video]: Compressed video files [CD-DA]: Audio data (CD-DA) [Photo]: Image files
	Selects a file from the list. Touch a file on the list to playback. TIP Touching a folder on the list shows its contents. You can play a file on the list by touching it.
	When you touch the memory select icon while connecting an Android device, it switches between internal memory and external memory.
	Selects the previous folder or the next folder.
	Switches the current music information display.

	Sets a repeat play range for all files/the current folder/the current file. NOTE The types of repeat play range depend on the source.
	Plays files or does not play in random order.
	Displays the hidden function bar.
	Switches the following media file types. [Music]: Compressed audio files [Video]: Compressed video files [CD-DA]: Audio data (CD-DA) [Photo]: Image files
	Selects a file from the list. Touch a file on the list to playback. TIP Touching a folder on the list shows its contents. You can play a file on the list by touching it.
	When you touch the memory select icon while connecting an Android device, it switches between internal memory and external memory.
	Selects the previous folder or the next folder.
	Switches the current music information display.

Video source

CAUTION

For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video images, stop in a safe place and apply the parking brake.

Description of Video source screen (Example: Disc)

TIP

Touch anywhere on the screen, the touch panel keys appear.

	Performs frame-by-frame playback.
	Performs slow-motion playback.
	Sets a repeat play range for all files/the current folder/the current file.NOTEThe types of repeat play range depend on the source.
	Switches the audio/subtitle language.
	Switches the following media file types.[Music]: Compressed audio files[Video]: Compressed video files[CD-DA]: Audio data (CD-DA)[Photo]: Image files
	Selects a file from the list.Touch a file on the list to playback.TIPTouching a folder on the list shows its contents. You can play a file on the list by touching it.

Still image source

Description of Still image screen

TIP

Touch anywhere on the screen, the touch panel keys appear.

Selects the previous folder or the next folder.

	Rotates the displayed picture 90 ^ clockwise.
	Sets a repeat play range for all files/the current folder.
	Plays all files in the current repeat play range or does not play them in random order.
	Switches the following media file types.[Music]: Compressed audio files[Video]: Compressed video files[Photo]: Image files
	Selects a file from the list.Touch a file on the list to playback.TIPTouching a folder on the list shows its contents. You can play a file on the list by touching it.

AUX

The video image or sound can be played via the device connected to AUX input.

CAUTION

For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video images, stop in a safe place and apply the parking brake.

NOTE

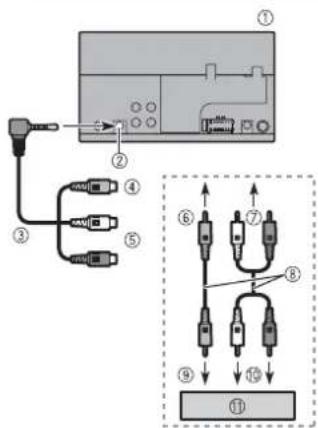

A Mini-jack AV cable (sold separately) is required for connection. For details, refer to External video component and the display (page 24).

Starting procedure

1Press

2Touch

onfirm that [AUX Input] is turned on.

4Press

ouch [AUX].

The AUX screen appears.

Basic operation

Description of AUX screen

TIPS

• Touch anywhere on the screen, the touch panel keys appear.
• You can set the screen size for the video image (page 21).

Switches between the video input and audio input.

Settings

You can adjust various settings in the main menu.

Displaying the setting screen

1Press

2Touch

3 Touch one of the following categories, then select the options.

System settings (page 16)
Theme settings (page 18)
Audio settings (page 18)
Video settings (page 19)
0 Bluetooth settings (page 8)

System settings

The menu items vary according to the source.

[AV Source Settings]

Menu Item Description
[Radio Settings] (page 12)
[Bluetooth Audio][On] [Off]	Setting Bluetooth audio source activation.

[AUX Input]

Menu Item Description

[AUX Input] [On] [Off]

Set to [On] for AUX source (page 15).

[Camera Settings]

A separately sold rear view camera (e.g. ND-BC8) is required for utilizing the rear view camera function. (For details, consult your dealer.)

▶Rear view camera

This product features a function that automatically switches to the full-screen image of the rear view camera installed on your vehicle when the shift lever is in the REVERSE (R) position.

Camera View mode also allows you to check what is behind you while driving.

▶Camera for Camera View mode

Camera View can be displayed at all times. Note that with this setting, the camera image is not resized to fit, and that a portion of what is seen by the camera is not viewable. To display the camera image, touch [Camera View] on the AV source selection screen (page 11).

NOTE

To set the rear view camera as the camera for Camera View mode, set [Back Camera Input] to [On] (page 16).

CAUTION

Pioneer recommends the use of a camera which outputs mirror reversed images, otherwise the screen image may appear reversed.

• Immediately verify whether the display changes to the rear view camera image when the shift lever is moved to REVERSE (R) from another position.
• When the screen changes to full-screen rear view camera image during normal driving, switch to the opposite setting in [Camera Polarity].
• If you touch ☑ while the camera image is displayed, the displayed image turns off temporarily.

Menu Item Description

[Back Camera Input] [Off] [On]

Setting rear view camera activation.

[Camera Polarity] Setting the polarity of the rear view camera.

[Battery] The polarity of the connected lead is positive.

[Ground] The polarity of the connected lead is negative.

NOTE

This function is available when [Back Camera Input] is set to [On].

[System Language]
Menu Item Description
[System Language] Select the system language.
	NOTESIf the embedded language and the selected language setting are not the same, the text information may not display properly.Some characters may not be displayed properly.
[Restore Settings]
Menu Item Description
[Restore Settings] Touch [Restore] to restore the settings to the default settings.
	CAUTIONDo not turn off the engine while restoring the settings.
	NOTESThis setting is available only when you stop your vehicle in a safe place and apply the parking brake.The source is turned off and the Bluetooth connection is disconnected before the process starts.

[Beep Tone]
Menu Item Description
[Beep Tone][On] [Off]	Select [Off] to disable the beep sound when the button ispressed or the screen is touched.

[Touch Panel Calibration]

If you feel that the touch panel keys on the screen deviate from the actual positions that respond to your touch, adjust the response positions of the touch panel screen.

NOTES

Do not use sharp pointed tools such as ballpoint or mechanical pens. They may damage the screen.

Do not turn off the engine while saving the adjusted position data.

This setting is available only when you stop your vehicle in a safe place and apply the parking brake.

Menu Item Description

[Touch Panel Calibration] 1Touch [Yes].2Touch four corners of the screen along the arrows.3PressThe adjustment results are saved.4Pressonce again.Proceed to 16-point adjustment.5Gently touch the center of the [+] mark displayed onthe screen.The target indicates the order.When you pressthe previous adjustmentposition returns.When you press and holdthe adjustment iscanceled.6Press and hold .The adjustment results are saved.

[Dimmer Settings]
Menu Item Description
[Dimmer Trigger] Setting the dimmer brightness.
[Auto] Switches the dimmer to on or off automatically according to your vehicle's headlight turning on or off.
[Manual] Switches the dimmer to on or off manually.
[Time] Switches the dimmer to on or off at the time you adjusted.
[Day/Night]	Setting the dimmer duration by day or night.You can use this function when [Manual] is set to [Dimmer Trigger].
[Day]	Turns the dimmer function to off.
[Night]	Turns the dimmer function to on.

Menu Item Description

[Dimmer Duration] Adjust the time that the dimmer is turned on or off by dragging the cursors or touching ☑. ▶You can use this function when [Dimmer Trigger] is set to [Time].

TIPSEach touch of ☑ move the cursor backward or forward in the 15 minute width.When the cursors are placed on the same point, the dimmer available time is 0 hours.When the cursor for off time setting is placed on the left end and the cursor for on time setting is placed on the right end, the dimmer available time is 0 hours.When the cursor for on time setting is placed on the left end and the cursor for off time setting is placed on the right end, the dimmer available time is 24 hours.

NOTESThe time display of the dimmer duration adjusting bar depends on the clock display setting (page 21).This setting is available only when you stop your vehicle in a safe place and apply the parking brake.

[Picture Adjustment]

You can adjust the picture for each source and rear view camera.

CAUTION

For safety reasons, you cannot use some of these functions while your vehicle is in motion. To enable these functions, you must stop in a safe place and apply the parking brake.

To adjust following menu, touch ▼, □ to adjust

Menu Item Description
[Brightness][-24] to [+24]	Adjust the black intensity.
[Contrast][-24] to [+24]	Adjust the contrast.
[Color]*[-24] to [+24]	Adjust the color saturation.
[Hue]*[-24] to [+24]	Adjust the tone of color (which color is emphasized, red, or green).
[Dimmer][+1] to [+48]	Adjust the brightness of the display.

* With some pictures, you cannot adjust [Hue] and [Color].

NOTES

• The adjustments of [Brightness], [Contrast], and [Dimmer] are stored separately when your vehicle's
  headlights are off (daytime) and on (nighttime).
  • [Brightness] and [Contrast] are switched automatically depending on the setting of [Dimmer
  Settings].
• [Dimmer] can be changed the setting or the time to switch it to on or off (page 17).
  • The picture adjustment may not be available with some rear view cameras.
  • The setting contents can be memorized separately.

Theme settings

Menu Item Description

[Background] [Home] [AV]	Select the wall paper from the preset items in this product. The wall paper can be set from selections for the top menu screen and AV operation screen.
Preset Display Select the desired preset background display.
OFF (off) Hides the background display.
[Theme]* Select the theme color.

* You can preview the top menu screen or the AV operation screen by touching [Home] or [AV] respectively.

Audio settings

The menu items vary according to the source. Some of the menu items become unavailable when the volume is set to mute.

Menu Item Description
[Graphic EQ] [Super Bass] [Powerful] [Natural] [Vocal] [Flat] [Custom1] [Custom2]	Select or customize the equalizer curve.Select a curve that you want to use as the basis of customizing then touch the frequency that you want to adjust.TIPSI·If you make adjustments when a curve [Super Bass], [Powerful], [Natural], [Vocal], or [Flat] is selected, the equalizer curve settings will be changed to [Custom1] mandatorily.·If you make adjustments when the [Custom2] curve is selected for example, the [Custom2] curve will be updated.·[Custom1] and [Custom2] curves can be created common to all sources.
[Preout] [Rear] [Subwoofer]	Select the rear speaker output.This function is available when the source is off.
[Fader/Balance]	Touch to adjust the front/rear speaker balance. Set [Front] and [Rear] to [0] when using a dual speaker system.Touch to adjust the left/right speaker balance.TIPYou can also set the value by dragging the point on the displayed table.NOTEOnly the fader can be adjusted when [Rear] is selected as the speaker mode.
[Source Level Adjuster] [-4] to [+4]	Adjust the volume level of each source to prevent radical changes in volume when switching between sources other than FM.Touch to adjust the source volume after comparing the FM tuner volume level with the level of the source.TIPIf you directly touch the area where the cursor can be moved, the SLA (source level adjustment) setting will be changed to the value of the touched point.NOTES• Settings are based on the FM tuner volume level, which remains unchanged.• This function is not available when the FM tuner is selected as the AV source.
[Subwoofer] [On] [Off]	Select enable or disable subwoofer output from this product.
[Speaker Level][Front Left] [Front Right][Rear Left] [Rear Right][Subwoofer] [Listening Position]	Adjust the speaker output level of the listening position.1Touch to select the listening position then select the output speaker.2Touch to adjust the selected speaker output level.NOTEFor rear speaker, this function is available only when [Rear] is selected in [Preout].
[Subwoofer Settings] Select the subwoofer phase and LPF cut-off frequency(page 19).
[Listening Position][Off] [Front Left] [Front Right] [Front] [All]	Select a listening position that you want to make as the center of sound effects.
[BASS Boost][0] to [+6]	Adjust the bass boost level.

Menu Item	Description
[Loudness][Off] [Low] [Mid] [High]	Compensates for deficiencies in the low-frequency and high-frequency ranges at low volume.
Adjusting the LPF cutoff frequency value
You can adjust the LPF cutoff frequency value for subwoofer.
NOTE[Subwoofer Settings] is available only when [Subwoofer] is [On].1 Press2 Touch3 Touch [Subwoofer Settings].4 Touch of to set the cutoff position.The following items can also be set.
	Switches the subwoofer phase between normal and reverse position.
LPF	Switches the LPF setting to [On] or [Off].
Video settings
The menu items vary according to the source.
[DVD Setup]
This setting is available when the selected source is [Disc].
Menu Item	Description
[Subtitle Language]*1*2*3	Set a subtitle language preference. When you select [Others], a language code input screen is shown. Input the four-digit code of the desired language then touch
[Audio Language]*1*2*3
[Menu Language]*1*2*3

Menu Item Description
[Parental] Set restrictions so that children cannot watch violent or adult-oriented scenes. You can set the parental lock level in steps as desired.1Touch [0] to [9] to input a four-digit code number.2Touch 📋 Registers the code number, and you can now set the level.3Touch any number between [1] to [8] to select the desired level.The lower the level is set, the tighter the restriction is applied.4Touch 📋 Sets the parental lock level.NOTESWe recommend keeping a record of your code number in case you forget it.The parental lock level is recorded on the disc. You can confirm it by looking at the disc package, the included booklet, or the disc itself. You cannot use parental lock with discs that do not feature a recorded parental lock level.With some discs, parental lock operates to skip certain scenes only, after which normal playback resumes. For details, refer to the disc's instructions.
[DVD Auto Play][On] [Off]	Set to display the DVD menu automatically and start playback from the first chapter of the first title when a DVD disc with a DVD menu is inserted.NOTESome DVDs may not operate properly. If this function is not fully operable, turn this function off and start playback.

*1 You can switch the language by touching the switch languages key during playback.
*2 The setting made here will not be affected even if the language is switched during playback using the appropriate key.
*3 If the selected language is not available, the language specified on the disc is displayed.

[Time Per Photo Slide]
Menu Item Description
[Time Per Photo Slide][5sec] [10sec] [15sec][Manual]	Select the interval of image file slideshows on this product.

[Video Signal Setting]
Menu Item Description
[AUX][Auto] [PAL] [NTSC] [PAL-M] [PAL-N] [SECAM]	Select the suitable video signal setting when you connect this product to an AUX equipment.
[Camera][Auto] [PAL] [NTSC] [PAL-M] [PAL-N] [SECAM]	Select the suitable video signal setting when you connect this product to a rear view camera.

Favorite menu

Registering your favorite menu items in shortcuts allows you to quickly jump to the registered menu screen by a simple touch on the [Favorites] screen.

NOTE Up to 12 menu items can be registered in the favorite menu.

Creating a shortcut
1Press then touch.
2Touch the star icon of the menu item.The star icon for the selected menu is filled in.
TIPTo cancel the registration, touch the star icon in the menu column again.

Selecting/removing a shortcut
1Press the touch.
2Tou d★.

3To select, touch the menu item. To remove, touch and hold the favorite menu column. The selected menu item is removed from the [Favorites] screen.

Other functions

Setting the time and date

1 Touch the current time on the screen.

2 Touch or to set the correct time and date.

You can operate the following items: Year, month, date, hour, minute.

TIPS

• You can change the time display format to [12hour] or [24hour].
• You can change the order of date display format: Day-month, Month-day.

Changing the wide screen mode

You can set the screen mode for AV screen and image files.

1 Touch the screen display mode key.

Screen display mode key

2 Touch the desired mode.

[Full] Displays 16:9 images on the full screen without changing the ratio.

NOTES

• Images other than 16:9 images for DVD may be displayed in the full screen with the ratio change.
• Enlarges and displays images of USB sources keeping the ratio of the original source image.

[Zoom] Displays the images enlarging them vertically.

[Normal] Displays images without changing the 4:3 aspect ratio.

NOTES

• For USB sources, 4:3 aspect ratio may not be displayed.
  • Devices connected with USB MTP are not supported.

[Trimming] An image is displayed across the entire screen with the horizontal-to-vertical ratio left as is. If the screen ratio differs from the image, the image may be displayed partly cut off either at the top/bottom or sides.

NOTE

[Trimming] is for image files only.

TIPS

• Different settings can be stored for each video source.
• When a video is viewed in wide screen mode that does not match its original aspect ratio, it may appear different.
  • The video image will appear coarser when viewed in [Zoom] mode.

NOTE

Image files can be set to either [Normal] or [Trimming] in wide screen mode.

Restoring this product to the default settings

You can restore settings or recorded content to the default settings from [Restore Settings] in the [System] menu (page 17).

Connection

Precautions

Your new product and this manual

• Do not operate this product, any applications, or the rear view camera option (if purchased) if doing so will divert your attention in any way from the safe operation of your vehicle. Always observe safe driving rules and follow all existing traffic regulations. If you experience difficulty in operating this product, pull over, park your vehicle in a safe location and apply the parking brake before making the necessary adjustments.
• Do not install this product where it may (i) obstruct the driver's vision, (ii) impair the performance of any of the vehicle's operating systems of safety features, including airbags, hazard lamp buttons, or
  (iii) impair the driver's ability to safely

operate the vehicle.

In some cases, it may not be possible to install this product because of the vehicle type or the shape of the vehicle interior.

Important safeguards

WARNING

Pioneer does not recommend that you install this product yourself. This product is designed for professional installation only. We recommend that only authorized Pioneer service personnel, who have special training and experience in mobile electronics, set up and install this product. NEVER SERVICE THIS PRODUCT YOURSELF. Installing or servicing this product and its connecting cables may expose you to the risk of electric shock or other hazards, and can cause damage to this product that is not covered by warranty.

Precautions before connecting the system

WARNING

Do not take any steps to tamper with or disable the parking brake interlock system which is in place for your protection. Tampering with or disabling the parking brake interlock system could result in serious injury or death.

CAUTION

• Secure all wiring with cable clamps or electrical tape. Do not allow any bare wiring to remain exposed.
• Do not directly connect the yellow lead of this product to the vehicle battery. If the lead is directly connected to the battery, engine vibration may eventually cause the insulation to fail at the point where the wire passes from the passenger compartment into the engine compartment. If the yellow lead's insulation tears as a result of contact with metal parts, short-circuiting can occur, resulting in considerable danger.
• It is extremely dangerous to allow cables to become wound around the steering column or shift lever. Be sure to install this product, its cables, and wiring away in such so that they will not obstruct or hinder driving.
• Make sure that the cables and wires will not interfere with or become caught in any of the vehicle's moving parts, especially the steering wheel, shift lever, parking brake, sliding seat tracks, doors, or any of the vehicle's controls.

• Do not route wires where they will be exposed to high temperatures. If the insulation heats up, wires may become damaged, resulting in a short circuit or malfunction and permanent damage to the product.

• Do not shorten any leads. If you do, the protection circuit (fuse holder, fuse resistor or filter, etc.) may fail to work properly.

• Never feed power to other electronic products by cutting the insulation of the power supply lead of this product and tapping into the lead. The current capacity of the lead will be exceeded, causing overheating.

Before installing this product

• Use this unit with a 12-volt battery and negative grounding only. Failure to do so may result in a fire or malfunction.
• To avoid shorts in the electrical system, be sure to disconnect the (−) battery cable before installation.

To prevent damage

WARNING

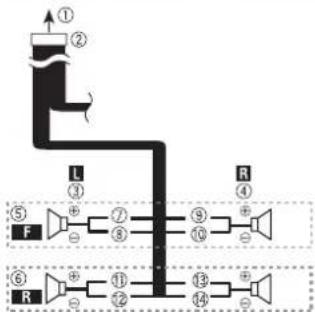

• When speaker output is used by 4 channels, use speakers over 50 W (Maximum input power) and between 4 Ω to 8 Ω (impedance value). Do not use 1 Ω to 3 Ω speakers for this unit.
• The black cable is ground. When installing this unit or power amp (sold separately), make sure to connect the ground wire first. Ensure that the ground wire is properly connected to metal parts of the car's body. The ground wire of the power amp and the one of this unit or any other device must be connected to the car separately with different screws. If the screw for the ground wire loosens or falls out, it could result in fire generation of smoke or malfunction.

Ground wire
POWER AMP

Pure electrical circuit lines without any symbols

Other devices Metal parts of car's (Another electronic body device in the car)

*1 Non supplied for this unit

• When replacing the fuse, be sure to only use a fuse of the rating prescribed on this product.
• This product cannot be installed in a vehicle without ACC (accessory) position on the ignition switch.

ACC position

No ACC position

• To avoid short-circuiting, cover the disconnected lead with insulating tape. It is especially important to insulate all unused speaker leads, which if left
uncovered may cause a short circuit.
- For connecting a power amp or other devices to this product, refer to the manual for the product to be connected.
• The graphical symbol placed on the product means direct current.

Notice for the blue/white lead

- When the ignition switch is turned on (ACC ON), a control signal is output through the blue/white lead. Connect to

an external power amp's system remote control terminal, the auto-antenna relay control terminal, or the antenna booster power control terminal (max. 300 mA 12 V DC). The control signal is output through the blue/white lead, even if the audio source is switched off.

Rear panel

① This product
② Antenna jack
③ Wired remote input Connect to steering wheel control interface of your vehicle. For more details, consult your dealer.
④ Power supply
⑤ Fuse (10 A)
⑥ Front output
⑦ Rear/Subwoofer output

Power cord

Technical diagram of a heat exchanger or cooling system with numbered components and airflow indicators

① To power supply
② Power cord
③ Yellow

To terminal supplied with power

regardless of ignition switch position.

④ Red
To electric terminal controlled by ignition switch (12 V DC) ON/OFF
⑤ Orange/white
To lighting switch terminal.
⑥ Black (ground)
To vehicle (metal) body.
⑦ Violet/white

Of the two lead wires connected to the back lamp, connect the one in which the voltage changes when the gear shift is in the REVERSE (R) position. This connection enables the unit to sense whether the car is moving forward or backward.

⑧ Blue/white

Connect to system control terminal of the power amp (max. 300 mA 12 V DC).

⑨ Light green

Used to detect the ON/OFF status of the parking brake. This lead must be

connected to the power supply side of the parking brake switch.

⑩ Power supply side
⑪ Parking brake switch
⑫ Ground side

Speaker leads

① To power supply
② Power cord
③ Left
④ Right
⑤ Front speaker
⑥ Rear speaker
⑦ White
⑧ White/black
⑨ Gray
10 Gray/black
⑪ Green
⑫ Green/black
⑬ Violet
⑭ Violet/black

NOTE

With a two-speaker system, do not connect anything to the speaker leads that are not connected to speakers.

Power amp (sold separately)

Without internal amp

Important

The speaker leads are not used when this connection is in use.

With internal amp

Important

Front speaker and Rear speaker are output from the speaker leads when this connection is in use.

① System remote control
Connect to Blue/white cable.
② Power amp (sold separately)
③ Connect with RCA cable (sold separately)
④ To Rear or subwoofer output
⑤ Rear speaker or subwoofer
⑥ To Front output
⑦ Front speaker
⑧ Subwoofer

NOTES

• You can change the RCA output of the subwoofer depending on your subwoofer system.
  • The subwoofer output of this product is monaural.

Smartphone (Android™ device)

Compatible smartphones

Compatibility with all smartphones is not guaranteed.

Connecting via the USB port

Diagram showing connection between a device via cable and a monitor, labeled with components ①, ②, and ③.

① USB port
② USB - micro USB cable (Type USB A - micro USB B) (supplied with CD-MU200 (sold separately)) USB Type-C cable (Type USB A - USB C) (supplied with CD-CU50 (sold separately))
③ Smartphone

NOTE

The length of Type USB A - micro USB B cable cannot exceed 2 m (6 ft. 6 in.) and Type USB A - USB C cannot exceed 4 m (13 ft. 1 in.) according to the USB cable standard. When using a cable other than the above conditions, the main unit function may not operate properly.

Camera

About rear view camera

When you use the rear view camera, the rear view image is automatically switched from the video by moving the shift lever to REVERSE (R). Camera View mode also allows you to check what is behind you while driving.

WARNING

USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY RESULT IN INJURY OR DAMAGE.

CAUTION

• The screen image may appear reversed.
- With the rear view camera you can keep an eye on trailers, or back into a tight parking spot. Do not use for entertainment purposes.
- Objects in rear view may appear closer or more distant than in reality.
- The image area of full-screen images displayed while backing or checking the rear of the vehicle may differ slightly.

Diagram showing labeled components of a device or electronic component with numbered parts and connection arrows

① Rear view camera (ND-BC8) (sold separately)
② To video output
③ RCA cable (supplied with ND-BC8)

④ This product
⑤ Rear view camera input (R.C IN)
⑤ Power supply
⑦ Power cord
⑧ Violet/white (REVERSE-GEAR SIGNAL INPUT)
Refer to Power cord on page 23.

NOTES

• For mounting the camera, follow the instructions for mounting the camera. Use a camera whose power lead is connected to the ACC switch.
• Connect only the rear view camera to R.C IN. Do not connect any other equipment.
• Some appropriate settings are required to use rear view cameras. For details, refer to [Camera Settings] (page 16).

External video component and the display

Diagram showing audio signal connection with labeled components and a zoomed-in view of connected cables

① This product
② AUX input
③ Mini-jack AV cable (sold separately)
④ Yellow
⑤ Red, white
⑥ To Yellow
⑦ To Red, white
⑧ RCA cables (sold separately)
⑨ To video output
⑩ To audio outputs
⑪ External video component (sold separately)

NOTE

The appropriate setting is required to use the external video component. For details, refer to AUX (page 15).

CAUTION

Be sure to use a mini-jack AV cable (sold separately) for wiring. If you use other cables, the wiring position might differ resulting in disturbed images and sounds.

L: Left audio (White)
R: Right audio (Red)
V:Video (Yellow)
G: Ground

Installation

Precautions before installation

CAUTION

Never install this product in places where, or in a manner that:

• Could injure the driver or passengers if the vehicle stops suddenly.
- May interfere with the driver's operation of the vehicle, such as on the floor in front of the driver's seat, or close to the steering wheel or shift lever.
• To ensure proper installation, be sure to use the supplied parts in the manner specified. If any parts are not supplied with this product, use compatible parts in the manner specified after you have the part compatibility checked by your dealer. If parts other than supplied or compatible ones are used, they may damage internal parts of this product or

they may work loose and the product may become detached.

• Do not install this product where it may (i) obstruct the driver's vision, (ii) impair the performance of any of the vehicle's operating systems or safety features, including airbags, hazard lamp buttons or (iii) impair the driver's ability to safely operate the vehicle.
• Never install this product in front of or next to the place in the dashboard, door, or pillar from which one of your vehicle's airbags would deploy. Please refer to your vehicle's owner's manual for reference to the deployment area of the frontal airbags.

Before installing

- Consult with your nearest dealer if installation requires drilling holes or other modifications of the vehicle.

- Before making a final installation of this product, temporarily connect the wiring to confirm that the connections are correct and the system works properly.

Installation notes

- Do not install this product in places subject to high temperatures or humidity, such as: - Places close to a heater, vent or air conditioner. - Places exposed to direct sunlight, such as on top of the dashboard. - Places that may be exposed to rain, such as close to the door or on the vehicle's floor. - Install this product horizontally on a surface within 0 to 30 degrees tolerance (within 5 degrees to the left or right). Improper installation of the unit with the surface tilted more than these tolerances increases the potential for errors in the vehicle's location display, and might otherwise cause reduced display performance.

- When installing, to ensure proper heat dispersal when using this product, make sure you leave ample space behind the rear panel and wrap any loose cables so they are not blocking the vents.

5 cm Leave ample space 5 cm

Installation using the screw holes on the side of this product

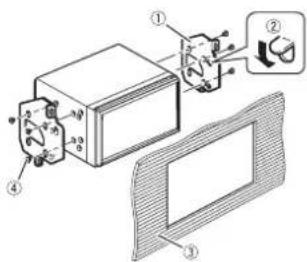

1 Fastening this product to the factory radio-mounting bracket. Position this product so that its screw holes are aligned with the screw holes of the bracket, and tighten the screws at three locations on each side. Use either the truss head screws or flush surface screws, depending on the shape of the bracket's screw holes.

Technical diagram of a microwave oven assembly with labeled components and parts

① Factory radio-mounting bracket
② If the pawl interferes with installation, you may bend it down out of the way.
③ Dashboard or console
④ Truss head screw or flush surface screw Be sure to use the screws supplied with this product.

Appendix

Troubleshooting

If you have problems operating this product, refer to this section. The most common problems are listed below, along with likely causes and solutions. If a solution to your problem cannot be found here, contact your dealer or the nearest authorized Pioneer service facility.

Common problems

A black screen is displayed, and operation is not possible using the touch panel keys.

→Power off mode is on.

-Press any button on this product to release the mode.

Problems with the AV screen

CD or DVD playback is not possible.

→The disc is inserted upside down. -Insert the disc with the label upward.
→The disc is dirty.

-Clean the disc.

→The disc is cracked or otherwise damaged.
Insert a normal, round disc.
→The files on the disc are in an irregular file format.
-Check the file format.
→The disc format cannot be played back. -Replace the disc.
→The loaded disc is a type this product cannot play.

-Check what type of disc it is.

The screen is covered by a caution message and the video cannot be shown.

→The parking brake lead is not connected or the parking brake is not applied.

-Connect the parking brake lead correctly, and apply the parking brake.

→The parking brake interlock is activated.

–Park your vehicle in a safe place and apply the parking brake.

No sounds are produced. The volume level will not rise.

→The system is performing still, slow motion, or frame-by-frame playback with DVD-Video.
-There is no sound during still, slow motion, or frame-by-frame playback with DVD-Video.
→The system is paused or performing fast reverse or forward during the disc playback.
-For the media other than music CD (CD-DA), there is no sound on fast reverse or forward.

The icon is displayed, and operation is impossible.

→The operation is not compatible with the video configuration.
- The operation is not possible. (For example, the DVD playing does not feature that angle, audio system, subtitle language, etc.)

The picture is extremely unclear/ distorted and dark during playback.

→The disc features a signal to prohibit copying. (Some discs may have this.)
- Since this product is compatible with the copy guard analog copy protect system, the picture may suffer from horizontal stripes or other imperfections when a disc with that kind of protection signal is viewed on some displays. This is not a malfunction.

No back camera image when the vehicle is in reverse.

→The back camera input setting on the receiver is set to Off.
- Change the back camera setting to On in the settings menu. (Refer to the System Settings section of this manual to adjust.)
→The camera input may be loose or not connected.
- Check the connection and make sure the male end of the camera is connected to the brown input on the back of the receiver. Refer to Camera (page 24).
→The reverse lead on the receiver may not be connected to the proper wire at the reverse lamp.
- Check the connection and make sure that the violet/white lead of the receiver is connected to the lead whose voltage changes when the shift lever is put in reverse. Refer to Camera (page 24).

Black screen displayed when the vehicle is in reverse, with no camera installed.

→Back camera input is set to On.
Turn the setting to Off in the settings menu. (Refer to the System Settings section of this manual to adjust.)

Back image displayed when vehicle is not in reverse.

→The camera polarity is not set properly in the Camera settings menu.
Review System Settings section of this manual for steps to switch the camera polarity. Park in a safe place, then while keeping your foot firmly on the brake, put the vehicle in reverse, access the System Settings menu, and change the camera polarity setting. Put vehicle back in park. (Refer to the System Settings section of this manual to adjust.)

Problems with the phone screen

Dialing is impossible because the touch panel keys for dialing are inactive.

→Your phone is out of range for service. - Retry after re-entering the range for service.
→The connection between the cellular phone and this product cannot be established.
- Perform the connection process. →Of the two cellular phones connected to this product at the same time, if the first phone is dialing, ringing or a call is in progress, dialing cannot be performed on the second phone.
- When the operation on the first of the two cellular phones is completed, use the switch devices key to switch to the second phone and then dial.

Error messages

When problems occur with this product, an error message appears on the display. Refer to the table below to identify the problem, then take the suggested corrective action. If the error persists, record the error message and contact your dealer or your nearest Pioneer service center.

Common

AMP Error

→This product fails to operate or the speaker connection is incorrect; the protective circuit is activated.
- Check the speaker connection. If the message fails to disappear even after the engine is switched off/on, contact your dealer or an authorized Pioneer Service Station for assistance.

Disc

Error-02-XX

→The disc is dirty.
-Clean the disc.
→The disc is scratched.
- Replace the disc.
→The disc is loaded upside down.
- Check that the disc is loaded correctly.
→There is an electrical or mechanical error.
-Press RESET.

Skipped

→The inserted disc contains DRM protected files.
The protected files are skipped.

Protect

→All the files on the inserted disc are embedded with DRM. - Replace the disc.

TEMP

→The temperature of this product is outside the normal operating range. - Wait until this product returns to a temperature within the normal operating limits.

USB storage device

Error-02-9X/-DX

→Communication failed.
- Turn the ignition switch OFF and back ON.
- Disconnect the USB storage device.
- Change to a different source. Then, return to the USB storage device.

Skipped

→The connected USB storage device contains DRM protected files.
– The protected files are skipped.

Protect

→All the files on the connected USB storage device are embedded with DRM. - Replace the USB storage device.

Bluetooth

Error-10

→The power failed for the Bluetooth module of this product. - Turn the ignition switch to OFF and then to ON.

If the error message is still displayed after performing the above action, please contact your dealer or an authorized Pioneer Service Station.

Handling and care of discs

Some basic precautions are necessary when handling your discs.

Built-in drive and care

• Use only conventional, fully circular discs. Do not use shaped discs.
• Do not use cracked, chipped, warped, or otherwise damaged discs as they may damage the built-in drive.
• Use 12-cm discs. Do not use 8-cm discs or an adapter for 8-cm discs.
• When using discs that can be printed on label surfaces, check the instructions and the warnings of the discs. Depending on the discs, inserting and ejecting may not be possible. Using such discs may result in damage to this equipment.
• Do not attach labels, write on or apply chemicals to the surface of the discs.
• Do not attach commercially available labels or other materials to the discs.
  • To clean a disc, wipe it with a soft cloth, moving outward from the center.
• Condensation may temporarily impair the built-in drive's performance.
• Playback of discs may not be possible because of disc characteristics, disc format, recorded application, playback environment, storage conditions and so on.
  • Road shocks may interrupt disc playback.
• Read the precautions for discs before using them.

Ambient conditions for playing a disc

- At extremely high temperatures, a temperature cutout protects this product by switching it off automatically.

- Despite our careful design of the product, small scratches that do not affect actual operation may appear on the disc surface as a result of mechanical wear, ambient conditions for use or handling of the disc. This is not a sign of the malfunction of this product. Consider it to be normal wear and tear.

playable discs

DVD-Video

- trademark of DVD Format/Logo Licensing Corporation. - It is not possible to play DVD Audio discs. This DVD drive may not be able to play all discs bearing the marks shown above.

CD

AVCHD recorded discs

This unit is not compatible with discs recorded in AVCHD (Advanced Video Codec High Definition) format. Do not insert in AVCHD discs. If inserted, the disc may not be ejected.

Playing DualDisc

• DualDiscs are two-sided discs that have a recordable CD for audio on one side and a recordable DVD for video on the other.
• Playback of the DVD side is possible with this product. However, since the CD side of DualDiscs is not physically compatible with the general CD standard, it may not be possible to play the CD side with this product.
• Frequent loading and ejecting of a DualDisc may result in scratches to the disc.
• Serious scratches can lead to playback problems on this product. In some cases, a DualDisc may become stuck in the disc-loading slot and will not eject. To prevent this, we recommend you refrain from using DualDisc with this product.
• Please refer to the manufacturer for more detailed information about DualDiscs.

Dolby Digital

This product will down-mix Dolby Digital signals internally and the sound will be output in stereo.

• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

Detailed information for playable media

Compatibility

Common notes about disc compatibility

• Certain functions of this product may not be available for some discs.
• Compatibility with all discs is not guaranteed.
• It is not possible to play DVD-RAM discs.
• Playback of discs may become impossible with direct exposure to sunlight, high temperatures, or depending on the storage conditions in the vehicle.

DVD-Video discs

- DVD-Video discs that have incompatible region numbers cannot be played on this DVD drive. The region number of the player can be found on this product's chassis.

DVD-R/DVD-RW/DVD-R SL (Single Layer)/DVD-R DL (Dual Layer) discs

• Unfinalized discs which have been recorded with the Video format (video mode) cannot be played back.
  • Discs which have been recorded with the Video Recording format (VR mode) cannot be played back.
• DVD-R DL (Dual Layer) discs which have been recorded with Layer Jump recording cannot be played back.
• For detailed information about recording mode, please contact the manufacturer of media, recorders, or writing software.

CD-R/CD-RW discs

• Unfinalized discs cannot be played back.
• It may not be possible to playback CD-R/CD-RW discs recorded on a music CD recorder or a computer because of disc

characteristics, scratches or dirt on the disc, or dirt, scratches or condensation on the lens of the built-in drive.

• Playback of discs recorded on a computer may not be possible, depending on the recording device, writing software, their settings, and other environmental factors.
• Please record with the correct format. (For details, please contact manufacturer of media, recorders, or writing software.)
• Titles and other text information recorded on a CD-R/CD-RW disc may not be displayed by this product (in the case of audio data (CD-DA)).
• Read the precautions with CD-R/CD-RW discs before using them.

Common notes about the USB storage device

• Do not leave the USB storage device in any location with high temperatures.
• Depending on the kind of the USB storage device you use, this product may not recognize the storage device or files may not be played back properly.
• The text information of some audio and video files may not be correctly displayed.
• File extensions must be used properly.
• There may be a slight delay when starting playback of files on an USB storage device with complex folder hierarchies.
• Operations may vary depending on the kind of an USB storage device.
• It may not be possible to play some music files from USB because of file characteristics, file format, recorded application, playback environment, storage conditions, and so on.

USB storage device compatibility

• For details about USB storage device compatibility with this product, refer to Specifications (page 30).
• Protocol: bulk

- You cannot connect a USB storage device to this product via a USB hub.

• Partitioned USB storage device is not compatible with this product.
• Firmly secure the USB storage device when driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or gas pedal.
• There may be a slight delay when starting playback of audio files encoded with image data.
• Some USB storage devices connected to this product may generate noise on the radio.
• Do not connect anything other than the USB storage device.

The sequence of audio files on USB storage device.

For USB storage device, the sequence is different from that of USB storage device.

Handling guidelines and supplemental information

• This product is not compatible with the Multi Media Card (MMC).
• Copyright protected files cannot be played back.

Common notes about DivX files

Notes specific to DivX files

• Only DivX files downloaded from DivX partner sites are guaranteed for proper operation. Unauthorized DivX files may not operate properly.
• This product corresponds to a DivX file display of up to 1 590 minutes 43 seconds. Search operations beyond this time limit are prohibited.
• For details on the DivX video versions that can be played on this product, refer to Specifications (page 30).
• For more details about DivX, visit the following site: https://www.divx.com/

DivX subtitle files

• Srt format subtitle files with the extension ".srt" can be used.
• Only one subtitle file can be used for each DivX file. Multiple subtitle files cannot be associated.
• Subtitle files that are named with the same character string as the DivX file before the extension are associated with the DivX file. The character strings before the extension must be exactly the same. However, if there is only one DivX file and one subtitle file in a single folder, the files are associated even if the file names are not the same.
• The subtitle file must be stored in the same folder as the DivX file.
• Up to 255 subtitle files may be used. Any more subtitle files will not be recognized.
• Up to 64 characters can be used for the name of the subtitle file, including the extension. If more than 64 characters are used for the file name, the subtitle file may not be recognized.
  • The character code for the subtitle file should comply with ISO-8859-1. Using characters other than ISO-8859-1 may cause the characters to be displayed incorrectly.
• The subtitles may not be displayed correctly if the displayed characters in the subtitle file include control code.
• For materials that use a high transfer rate, the subtitles and video may not be completely synchronized.
• If multiple subtitles are programmed to display within a very short time frame, such as 0.1 seconds, the subtitles may not be displayed at the correct time.

Media compatibility chart

General

• Maximum playback time of audio file stored in the disc: 60 h

• Maximum playback time of audio file stored on an USB storage device: 7.5 h (450 minutes)

CD-R/-RW

File system: ISO 9660 level 1 and level 2, Romeo, Joliet

Maximum number of folders: 300 Maximum number of files: 999 Playable file types: MP3, WMA, AAC, DivX, MPEG-1, MPEG-2, MPEG-4

DVD-R/-R SL/-R DL/DVD-RW

Maximum number of folders: 300 Maximum number of files: 3 500 Playable file types: MP3, WMA, AAC, DivX, MPEG-1, MPEG-2, MPEG-4

* Tag information can be displayed only in the language set in the system.

USB storage device

File system: FAT16/FAT32

Maximum number of directory: 8 Maximum number of folders: 300 Maximum number of files: 15 000 Playable file types: MP3, WMA, AAC, WAV, DivX, MPEG-2, MPEG-4, JPEG, BMP

MP3 compatibility

• Ver. 2.x of ID3 tag is prioritized when both Ver. 1.x and Ver. 2.x exist.
• This product is not compatible with the following: MP3i (MP3 interactive), mp3 PRO, m3u playlist
- tag information can be displayed with the language set by the system language setting.

CD-R/-RW, DVD-R/-R SL/-R DL/DVD-RW File extension: .mp3

Bit rate: 8, 16, 24, 32, 40, 48, 56, 64, 80, 96, 112, 128, 144, 160, 192, 224, 256, 320 kbps (CBR), VBR

Sampling frequency: 16, 22.05, 24, 32, 44.1, 48 kHz

ID3 tag: ID3 tag Ver. 1.0, 1.1, 2.2, 2.3

USB storage device

File extension: .mp3

Bit rate: 8, 16, 24, 32, 40, 48, 56, 64, 80, 96,

112, 128, 144, 160, 192, 224, 256, 320 kbps (CBR), VBR

Sampling frequency: 16, 22.05, 24, 32, 44.1, 48 kHz

ID3 tag: ID3 tag Ver. 1.0, 1.1, 2.2, 2.3, 2.4

WMA compatibility

• This product is not compatible with the

following: Windows Media™ Audio 9

Professional, Lossless, Voice

CD-R/-RW, DVD-R/-R SL/-R DL/DVD-RW

File extension: .wma

Bit rate: 8, 16, 24, 32, 40, 48, 56, 64, 80, 96,

112, 128, 144, 160, 192 kbps (CBR)

Sampling frequency: 8, 11.025, 12, 16,

22.05, 24, 32, 44.1, 48 kHz

USB storage device

File extension: .wma

Bit rate: 8, 16, 24, 32, 40, 48, 56, 64, 80, 96,

112, 128, 144, 160, 192 kbps (CBR)

Sampling frequency: 8, 11.025, 12, 16,

22.05, 24, 32, 44.1, 48 kHz

WAV compatibility

• The sampling frequency shown in the

display may be rounded.

• WAV files on the CD-R/-RW, DVD-R/-RW/-

R SL/-R DL cannot be played.

USB storage device

File extension: .wav

Format: Linear PCM (LPCM)

Bit rate: Approx. 1.5 Mbps

Sampling frequency: 16, 22.05, 24, 32, 44.1,

48 kHz

AAC compatibility

• This product plays back only LC-AAC files

encoded by iTunes.

CD-R/-RW, DVD-R/-R SL/-R DL/DVD-RW

File extension: .m4a, .aac

Bit rate: 8, 16, 24, 32, 40, 48, 56, 64, 80, 96, 112, 128, 144, 160, 192, 224, 256, 320 kbps (CBR), VBR

Sampling frequency: 11.025, 12, 16, 22.05, 24, 32, 44.1, 48, 64, 88.2, 96 kHz

USB storage device

File extension: .aac, .m4a

Bit rate: 8, 16, 24, 32, 40, 48, 56, 64, 80, 96,

112, 128, 144, 160, 192, 224, 256, 320 kbps

(CBR), VBR

Sampling frequency: 8, 11.025, 12, 16,

22.05, 24, 32, 44.1, 48, 64, 88.2, 96 kHz

DivX compatibility

- This product is not compatible with the following: DivX Ultra format, DivX files without video data, DivX files encoded with LPCM (Linear PCM) audio codec

• Depending on the file information

composition, such as the number of

audio streams, there may be a slight

delay in the start of playback on discs.

• If a file contains more than 4 GB, playback

stops before the end.

• Some special operations may be

prohibited because of the composition of DivX files.

- Files with high transfer rates may not be

played back correctly. The standard

transfer rate is 4 Mbps for CDs and 10.08

Mbps for DVDs.

CD-R/-RW, DVD-R/-R SL/-R DL/DVD-RW

File extension: .avi/.divx

Profile (DivX version): Home Theater Profile

Maximum image size: 720 pixels × 576

pixels

Video files compatibility (USB)

- Files may not be played back properly depending on the environment in which the file was created or on the contents of the file.

• This product is not compatible with

packet write data transfer.

- Folder selection sequence or other operations may be altered, depending on the encoding or writing software.

- Regardless of the length of blank section between the songs of original recording, compressed audio discs play with a short pause between songs.

.avi

Format: MPEG-4/DivX

Compatible video codec: MPEG4 (part2)/

DivX (Home Theater Profile)

Maximum resolution: 720 pixels × 576

pixels

Maximum frame rate: 30 fps

- Files may not be able to be played back

depending on the bit rate.

.mpg/.mpeg

Format: MPEG-1 PS/MPEG-2 PS

Compatible video codec: MPEG-1/MPEG-2

Maximum resolution: 720 pixels x 576

pixels

Maximum frame rage: 30 fps

.divx

Format: MPEG-4/DivX

Compatible video codec: MPEG4 (part2)/

DivX (Home Theater Profile)

Maximum resolution: 720 pixels × 576

pixels

Maximum frame rate: 30 fps

- Files may not be able to be played back

depending on the bit rate.

Example of a hierarchy

NOTE

This product assigns folder numbers. The user cannot assign folder numbers.

Bluetooth

The Bluetooth* word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other

trademarks and trade names are those of their respective owners.

WMA

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

• This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

DivX

DivX® Home Theater Certified devices have been tested for high-quality DivX Home Theater video playback (including .avi, .divx). When you see the DivX logo, you know you have the freedom to play your favorite videos.

DivX ^® , DivX Certified ^® and associated logos are trademarks of DivX, LLC and are used under license.

This DivX Certified* device can play DivX* Home Theater video files up to 576p (including .avi, .divx).

Download free software at www.divx.com to create, play and cast digital videos.

AAC

AAC is short for Advanced Audio Coding and refers to an audio compression technology standard used with MPEG-2 and MPEG-4. Several applications can be used to encode AAC files, but file formats and extensions differ depending on the application which is used to encode. This unit plays back AAC files encoded by iTunes.

Notice regarding video viewing

Remember that use of this system for commercial or public viewing purposes may constitute an infringement on the author's rights as protected by the Copyright Law.

Notice regarding DVD-Video viewing

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Using the LCD screen correctly

Handling the LCD screen

• When the LCD screen is subjected to direct sunlight for a long period of time, it will become very hot, resulting in possible damage to the LCD screen. When not using this product, avoid exposing it to direct sunlight as much as possible.
• The LCD screen should be used within the temperature ranges shown in Specifications on page 30.
• Do not use the LCD screen at temperatures higher or lower than the operating temperature range, because the LCD screen may not operate normally and could be damaged.
• The LCD screen is exposed in order to increase its visibility within the vehicle.

Please do not press strongly on it as this may damage it.

• Do not push the LCD screen with excessive force as this may scratch it.
• Never touch the LCD screen with anything besides your finger when operating the touch panel functions. The LCD screen can scratch easily.

Liquid crystal display (LCD) screen

• If the LCD screen is near the vent of an air conditioner, make sure that air from the air conditioner is not blowing on it. Heat from the heater may break the LCD screen, and cool air from the cooler may cause moisture to form inside this product, resulting in possible damage.
• Small black dots or white dots (bright dots) may appear on the LCD screen. These are due to the characteristics of the LCD screen and do not indicate a malfunction.
• The LCD screen will be difficult to see if it is exposed to direct sunlight.
• When using a cellular phone, keep the antenna of the cellular phone away from the LCD screen to prevent disruption of the video in the form of disturbances such as spots or colored stripes.

Maintaining the LCD screen

• When removing dust from or cleaning the LCD screen, first turn this product off and then wipe the screen with a soft dry cloth.
• When wiping the LCD screen, take care not to scratch the surface. Do not use harsh or abrasive chemical cleaners.

LED (light-emitting diode) backlight

A light emitting diode is used inside the display to illuminate the LCD screen.

• At low temperatures, using the LED backlight may increase image lag and degrade the image quality because of the characteristics of the LCD screen. Image quality will improve with an increase in temperature.
• The product lifetime of the LED backlight is more than 10 000 hours. However, it may decrease if used in high temperatures.
• If the LED backlight reaches the end of its product lifetime, the screen will become dimmer and the image will no longer be visible. In that case, please consult your dealer or the nearest authorized Pioneer Service Station.

Specifications

General

Rated power source: 14.4 V DC (10.8 V to 15.1 V allowable)

Grounding system: Negative type

Maximum current consumption:

10.0 A

Dimensions (W × H × D):

D

Chassis:

178 mm × 100 mm × 159 mm (7 in. × 3-7/8 in. × 6-1/4 in.)

Nose:

171 mm × 97 mm × 5 mm (6-3/4 in. × 3-7/8 in. × 1/4 in.)

Weight:

1.3 kg (2.9 lbs)

Display

Screen size/aspect ratio:

6.2 inch wide/16:9 (effective display area: 137.52 mm × 77.232 mm) (5-3/8 in. × 3

in.)

Pixels:

1 152 000 (2 400 × 480)

Display method:

TFT Active matrix driving

Color system:

PAL/NTSC/PAL-M/PAL-N/SECAM compatible

Temperature range:

-10 °C to +60 °C (+14 °F to +140 °F)

Audio

Maximum power output:

- 50 ~W × 4 ch / 4

Continuous power output:

22 W × 4 (50 Hz to 15 kHz, 5 %THD, 4 Ω

LOAD, Both Channels Driven)

Load impedance:

4 Ω (4 Ω to 8 Ω allowable)

Preout output level (max): 2.0 V

Equalizer (7-Band Graphic Equalizer):

Frequency:

50 Hz/125 Hz/315 Hz/800 Hz/2 kHz/5

kHz/12.5 kHz

Gain: ±12 dB (2 dB/step)

Subwoofer/LPF

Frequency:

80 Hz/120 Hz/160 Hz

Phase: Normal/Reverse

Bass boost:

Gain: +6 dB to 0 dB (1 dB/step)

Speaker level:

+6 dB to -24 dB (1 dB/step)

DVD drive

System:

DVD-V, VCD, CD, MP3, WMA, AAC, DivX,

MPEG player

Usable discs:

DVD-VIDEO, VIDEO-CD, CD, CD-R, CD-

RW, DVD-R, DVD-RW, DVD-R DL

Region number: 1

Signal Format:

Sampling frequency:

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Number of quantization bits:

16 bit/20 bit/24 bit; linear

Frequency response:

5 Hz to 22 000 Hz (with DVD, at sampling frequency 48 kHz)

Signal-to-noise ratio:

91 dB (1 kHz) (IHF-A network) (RCA level)

Output level:

Number of channels: 2 (stereo)

MP3 decoding format:

MPEG-1 & 2 & 2.5 Audio Layer 3

WMA decoding format:

Ver. 7, 7.1, 8, 9, 9.1, 9.2 (2 ch audio)

(Windows Media Player)

AAC decoding format:

MPEG-4 AAC (iTunes encoded only):

.m4a (Ver. 10.6 and earlier)

DivX decoding format:

Home Theater (Except ultra and HD):

.avi.divx

MPEG video decoding format:

MPEG1 (Low Level), MPEG2 (Main

Level), MPEG4 (part2) (Main Level)

USB

USB 1.1, USB 2.0 full speed, USB 2.0 high speed

Max current supply: 0.5 A

USB Class:

MSC (Mass Storage Class), MTP (Media

Transfer Protocol)

File system: FAT16, FAT32

MP3 decoding format:

MPEG-1 & 2 & 2.5 Audio Layer 3

WMA decoding format:

Ver. 7, 7.1, 8, 9, 9.1, 9.2 (2 ch audio)

(Windows Media Player)

AAC decoding format:

MPEG-4 AAC (iTunes encoded only) (Ver.

10.6 and earlier)

WAV signal format:

Linear PCM : wav

Sampling frequency:

Linear PCM:

16 kHz/22.05 kHz/24 kHz/32 kHz/44.1

kHz/48 kHz

JPEG decoding format:

.jpeg, jpg, jpe, .bmp

Pixel Sampling: 4:2:2, 4:2:0

Decode Size:

Home Theater (Except ultra and HD): .avi,

.divx

MPEG video decoding format:

MPEG1 (Low Level), MPEG2 (Main Level),

MPEG4 (part2) (Main Level)

Bluetooth

Version:

Bluetooth 4.1 certified

Output power:

3.0 dBm (-6 dB/+2 dB) (Power class 2)

Frequency band(s):

2 400 MHz to 2 483.5 MHz

FM tuner

Frequency range:

87.9 MHz to 107.9 MHz

Usable sensitivity:

12 dBf (1.1 μV/75 Ω, mono, S/N: 30 dB)

Signal-to-noise ratio:

72 dB (IEC-A network)

AM tuner

Frequency range:

530 kHz to 1 710 kHz

Usable sensitivity:

28 μV (5/N: 20 dB)

Signal-to-noise ratio:

62 dB (IEC-A network)

CTA2006 Specifications

Power output:

14 W RMS × 4 Channels (4 Ω and ≤1 %

THD+N)

S/N ratio:

91 dBA (reference: 1 W into 4 Ω)

NOTE

Specifications and design are subject to possible

modifications without notice due to

improvements.

Table des matières

PRODUIT LASER DE CLASSE 1

ATTENTION—ÉMISSIONS DE RADIATIONS LASER VISIBLES ET INVISIBLES DE CLASSE 1M SI OUVERT. NE PAS OBSERVER DIRECTEMENT AVEC DES INSTRUMENTS OPTIQUES.

http://www.pioneerelectronics.com

http://www.pioneerelectronics.ca

Diagram of a device panel with numbered components and labeled parts, likely for assembly or labeling.

[Restauration param.]

Technical diagram of a heat exchanger or cooling system with numbered components and airflow indicators

Diagram showing connection between a device with labeled components: power input, switch, and battery.

Diagram of a device panel with numbered components and labeled connection points

Diagram showing audio signal connection with labeled components and a zoomed-in view of the connector pin layout.

Technical diagram of a device with labeled components and parts, including a box, panel, and control panel.

Dimensions (L × H × P):

D

Boîtier :

178 mm × 100 mm × 159 mm

Nez :

171 mm × 97 mm × 5 mm

Poids :

1,3 kg

Afficheur

8 kHz/16 kHz/32 kHz/44,1 kHz/48 kHz

(Windows Media Player)

MSC (Mass Storage Class), MTP (Media

Transfer Protocol)

(Windows Media Player)

16 kHz/22,05 kHz/24 kHz/32 kHz/

44,1 kHz/48 kHz

Diagram of a device panel with numbered components, likely illustrating a physical or engineering setup.

6/10|21:48 ① Disc USB/USB Switch Audio AUX Camera View

Technical diagram of a heat exchanger or cooling system with numbered components and airflow indicators

Diagram showing a device connected to a battery via labeled components, with numbered parts indicating connection points.

① Puerto USB

Diagram of a device panel with numbered components and labeled connectors

Diagram showing cable connector connections with numbered labels and a zoomed-in view of the connector's internal structure.

Technical diagram showing a device with labeled components and parts, including a box, panel, and directional arrows indicating assembly or operation.

16 bits/20 bits/24 bits; lineal

Register your product at

http://www.pioneerelectronics.com

in Canada http://www.pioneerelectronics.ca

PIONEER CORPORATION

28-8, Honkomagome 2-chome, Bunkyo-ku,

Tokyo 113-0021, Japan

PIONEER ELECTRONICS (USA) INC.

P.O. Box 1540, Long Beach, California 90801-1540, U.S.A.

TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium/Belgique

TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

2 Jalan Kilang Barat, #07-01, Singapore 159346

TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202 Australia

TEL:[phone]

PIONEER ELECTRONICS DE MÉXICO S.A. DE C.V.

Blvd. Manuel Avila Camacho 138, 10 piso

Col.Lomas de Chapultepec, México, D.F. 11000

Tel: [phone], Fax: [phone]

先鋒股份有限公司

台北市內湖區瑞光路407號8樓

電話：886-(0)2-2657-3588

先鋒電子（香港）有限公司

香港九龍長沙灣道909號5樓

電話：852-2848-6488

© 2019 PIONEER CORPORATION. All rights reserved.
