Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have received instructions concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
  • Children must not play with the product.
• Cleaning and user maintenance shall not be carried out by children unless they are supervised.
• A damaged power cord may only be replaced by an authorised service agent in order to avoid hazards.
• The product is designed for the storage of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• Warning: Keep ventilation openings in the appliance enclosure clear of obstruction.

English

Safety Instructions

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the product, unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this product.
• The light source (LED) is only to be replaced by a recognized electrician/qualified person. *
• Follow the instructions in the chapter Cleaning and care.
• Warning: The refrigerant and insulation blowing gas are flammable. When disposing of the product, do so only at an authorized waste disposal center or contact the service agent.
• To avoid contamination of food, please observe the following instructions:
  -Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

Safety Instructions

-Clean surfaces, that can come in contact with food and accessible drainage systems, on a regular basis.

-Store raw meat and fish in suitable containers in the refrigerator, so that it does not come into contact with or drip onto other food.

-Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

-One-, two- and three-star compartments are not suitable for the freezing of fresh food.

-If the refrigerating appliance is left empty for long periods, switch it off, defrost, clean, dry, and leave the door open to prevent mold from developing within the appliance.

English

Safety Instructions

1. Read this manual thoroughly before first use. It contains important information for your safety as well as for the use and maintenance of the equipment.
2. Do not place any objects on top of the product.
3. Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.
4. Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
5. The mains voltage must match the information on the rating label of the product.
6. Only unplugging from the power socket can separate the product completely from the mains.
7. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
8. Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
9. Only unplug from the power socket by the plug itself. Do not pull on the cord.
10. Unplug the product ...
11. when the product is not being used,
12. in case of malfunctions,
13. before attaching / detaching accessories and
14. before cleaning the product.
15. Use this product in dry indoor areas only and never outdoors.
16. This product is not intended for commercial use. It is designed for household use only.

17. Make sure that electrical components, live parts and the power cord do not become wet.

18. Use accessories supplied with the device or recommended by the manufacturer only!

19. Do not cover the product while in use. Fire hazard!
20. WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.
21. WARNING! Do not locate portable socket-outlets at the rear of the appliance to avoid the possibility of electrical shocks due to water leakage.

Caution: Risk of fire!

Flammable materials.

WARNING! During use, service and disposal of the appliance, please pay attention to the symbol which is located on the rear of the appliance (rear panel or compressor). It is the risk of fire warning symbol. There are flammable materials in the refrigerant pipes and the compressor. Please keep clear from it during using, service and disposal.

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is suitable for refrigerating and freezing food and beverages only. Any other use may damage the device or cause injuries.

• This product is not intended to be used as a built-in appliance.
• This product is intended to be used at ambient temperatures ranging from 10°C to 43°C. The product is only intended to be used in private households and shall not be used for commercial purposes.
  The Imtron GmbH assumes no liability for damages to the product, for property damages or for personal injuries due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Warranty and spare parts

The warranty period of the product, as well as the applicable conditions of the warranty can be found in the warranty card provided with the product. The spare parts, which are listed in the corresponding ecodesign directive, can be obtained by contacting the customer service center, for a period of at least 7 years, respectively 10 years.

English

Delivery contents

1 x Fridge and freezer combination
2 x Egg holder for 12 eggs
1 x Ice cube maker
1 x Set for reversing the doors
1 x User manual

Controls and components

A Lighting
B Refrigerator
C Glass shelf (3x)
D Extra fridge compartment
E Vegetable compartment (fresh food compartment)
F Freezer
G Freezer compartments (3x)
H Power cord with plug (not shown)
1 Adjustable feet, front
Freezer door
K Fridge door
L Bottle rack
M Door shelf (3x)
N Control panel with indicators

N1 Temperature display refrigerator
N2 Temperature display freezer
N3 Super freeze mode indicator
N4 Vacation mode indicator
NS Keylock indicator
N6 Super cool mode indicator
N7 Temperature button Fridge/ Vacation mode button 3sec.- Vacation
N8 Temperature button Freezer
N9 Special functions button Super Cool / Super Frz. / 3sec.- Unlock

Accessories

• 2x egg holder for 12 eggs (not shown)
• Ice cube maker (not shown)
• Set for reversing the doors

Installation

Fig. 1 Place the unit on a level and stable surface. Keep the minimum distances to all sides.
Fig. 2 Unevenness can be compensated with the adjustable front feet. Usa a spirit level for correct positioning.
Fig. 3 The refrigerator is equipped with three glass shelves, which, if desired can be removed by pulling them forward. The upper two glass shelves can be inserted at different heights.

Warning

If the refrigerator has been tipped sideways during transport or installation, it must be placed in an upright poisson for 12 hours before being connected to the mains.

Operation

Fig. 4 Plug the power plug into an appropriate mains socket outlet.

Note:

Allow the product to precool for at least 2-3 hours before storing food in it.

Setting the freezer temperature

Fig. 5 By pressing the Freezer temperature setting button set the temperature of the freezer in 1°C steps from -16 to -24°C. Note, that the energy consumption will increase, the lower the set temperature is.

Setting the refrigerator temperature

Fig. 6 By pressing the Fridge temperature setting button set the temperature of the refrigerator in 1°C steps from 2 to 8°C. Note, that the energy consumption will increase, the lower the set temperature is.

Vacation mode

Fig. 7 Press the refrigerator temperature setting button for 3 seconds to activate or cancel vacation mode. When vacation mode is activated, the fridge will turn off, the fridge temperature display will turn off and the freezer will be automatically set to -18°C. Adjusting the fridge or freezer temperatures using the temperature buttons, or activating super cool or freeze mode will cancel vacation mode. When vacation mode is stopped, the previously set fridge and freezer temperatures will be restored.

Super Cool and Freeze modes

Fig. 8 Pressing the Super Cool / Super Frz. button activates Super Cool or Super Freeze mode, which is indicated by the corresponding indicator light. In super freezing mode, the temperature of the freezer is automatically adjusted to -24°C, and the temperature in the freezer is reduced quickly, but the energy consumption increases. Use this mode, for example, if you want to freeze a large number of foods. The temperature of the refrigerator remains unaffected and can still be changed. After 24 hours, the device automatically returns to the previous setting of the freezer compartment. In the super cooling mode, the temperature of the refrigerator is automatically adjusted to 2°C and the temperature in the refrigerator is reduced quickly, but the energy consumption increases. Use this mode, for example, if you want to cool down food quickly. The temperature of the freezer remains unaffected and can still be changed. After 6 hours, the device automatically returns to the previous setting of the refrigerator.

Adjust the sides of the doors

Note:

• If necessary, or if the premises require it, the mounting of the doors can be changed. To do this, follow below instructions in the given order.
• The following tools are required: hex-wrench 13 mm, wrench 8 and 10 mm, phillips screwdriver. Due to the uniqueness of the appropriate tools, those are not mentioned separately in the following instructions.
• For this work a different cover is needed, which is provided with the unit.
• For safety, remove the door trays to prevent them from being damaged.

Top door

Loosen and remove the screws in the upper right plastic cap and remove the cap. Disconnect the electric connection 1 and 2 on the right side. Unscrew the upper hinge plate. When unscrewing, be sure to hold the refrigerator door firmly, otherwise it will be damaged.
② Unscrew and remove the cap on the left by pulling it off.
③ Pull out the door and place it on a soft and clean surface.
4 Remove the screws, the stop bracket, and the stop.
5 Take the stop bracket and the additionally provided stop and screw them onto the left side of the door.
6 Pry out the cap on the top of the refrigerator door and remove it. The cap on the left top of the refrigerator door will be left over. Keep it at a safe place. Take the provided cap and insert it on the right side of the fridge door top.

English

Bottom door

Hold the freezer door and remove the two screws on the middle hinge.
② Pull the freezer door upwards and place it on a soft and clean surface.
3 Remove the blind caps above the freezer compartment and insert them into the holes on the other side.
4 Remove the blind plug and sleeve on the top of the freezer door and insert them into the holes on the opposite sides. Unscrew the fitting on the bottom side of the door. Use the additionally provided fitting and install it on the opposite side.

Refrigerator bottom

Caution

Pull out the mains plug!

1 Tilt the refrigerator so you can work at the bottom or place the refrigerator fully on its back. Make sure the back is placed on a soft and clean surface.
Unscrew the feet on both sides. Loosen the screws and remove the lower hinge plate.
② Remove the door hinge pin and insert it into the hole beside.
3 Attach the hinge plate onto the left side by screws. Screw the feet into the plates on both sides.
Place the refrigerator back on its feet and adjust them if necessary.

Mounting the doors

Caution

After you have placed the refrigerator upright on its feet, wait for at least 2 hours before you connect it to the mains to permit the cooling system to regain full capacity.

1 Place the freezer door on the lower hinge. Turn the middle hinge and insert the bolt into the left hole of the freezer door and screw the hinge firmly. The freezer door is now fixed. Check for correct function and fitting.
2 Place the hole provided on the left side of the refrigerator door onto the bolt of the middle hinge and hold the door firmly. Insert the top hinge bolt into the left hole provided on the top of the refrigerator door. Screw the upper hinge plate to the refrigerator. Check for correct function and fitting.
3 Connect the electrical wires and plugs 4 to 1 and 2 to 3.
4 Screw the cover cap onto the upper hinge plate with the refrigerator door open. Make sure the cable is stowed properly and not pinched.
⑤ Clip the cap of the left side into the holes of the right side. The two pins must be cut off to do this.
Make sure the cable is stowed properly on the right side and is not pinched.

Energy saving tips

• Do not place the product in the vicinity of a heat source (radiator or kitchen stove, etc.).
• Ensure unobstructed air flow around the refrigerator and freezer.
• If a layer of ice has built, defrost the unit. A thick layer of ice affects the transmission of the cold, thus the energy consumption will be increased.

• When opening the door and taking out food, only open the door shortly. A shorter door opening time causes less ice to deposit on the freezer walls.

• Select the temperature regulator setting according to the filling amount of the product.

• Use the provided drawers, baskets or shelves to store the food. If the energy of the product is used efficiently, the overall energy consumption can be minimized.
• It's advised not to remove all accessories, such as drawers, shelves balconies, as this might increase the energy consumption.

Cleaning and care

Warning

• Unplug the product before cleaning.
- When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning materials and tools may scratch the surface(s).
- Never use oil or grease on the door seal. This will make it porous over time.
- Do not use steam cleaning equipment. The steam may come in contact with electrical parts of the product, causing a short circuit.

• Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly.
  • Make sure that no water enters the product interior (for example, through the display).
• Wipe the door seal with clean water only, and dry it thoroughly afterwards.
• Removable parts e.g. glass shelves, can be taken out for cleaning.

Decommissioning

If a longer break should occur during operation of the refrigerator, the following steps must be carried out:

• Empty the product.
• Unplug the product.
• Clean the interior of the freezer compartment and let it dry.
• Carefully clean all the accessories (vegetable containers, door compartments, glass shelves, etc.).
• Let the door open to avoid the formation of unpleasant odors and mold.

Technical data

KFK 611 A NF IN

Rated current : 1.1 A

Energy consumption

kWh/24h : 0.309 kWh

kWh/Jahr : 113 kWh

Net capacity of refrigerator : 216 L

Net capacity of chiller : 40 L

Net capacity of freezer : 122 L

Freezing capacity : 8.5 kg/24h

Ambient temperature : 10°C - 43°C

Dimensions : 595 x 700 x 2010 mm

Depth with door open : 1280 mm

Refrigerant : R600a, 55g

Light : LED, 4.5 W

This product contains a light source of energy efficiency class G

English

KFK 611 B NF IN

Rated current : 1.1 A

Energy consumption

kWh/24h : 0.383 kWh

kWh/Jahr : 140 kWh

Net capacity of refrigerator : 216 L

Net capacity of chiller : 40 L

Net capacity of freezer : 122 L

Freezing capacity : 8.5 kg/ 24h

Ambient temperature : 10°C - 43°C

Dimensions : 595 x 700 x 2010 mm

Depth with door open : 1280 mm

Refrigerant : R600a, 55g

Light : LED, 4.5 W

This product contains a light source of energy efficiency class G

KFK 621 C NF IN

Rated current : 1.1 A

Energy consumption

kWh/24h : 0.468 kWh

kWh/Jahr : 171 kWh

Net capacity of refrigerator : 176 L

Net capacity of chiller : 40 L

Net capacity of freezer : 122 L

Freezing capacity : 8.5 kg/ 24h

Ambient temperature : 10°C - 43°C

Dimensions : 595 x 700 x 1850 mm

Depth with door open : 1280 mm

Refrigerant : R600a, 55g

Light : LED, 2.5 W

This product contains a light source of energy efficiency class G

This product is intended to be used in climate classes from SN to T.

Climate class	Ambient temperature
SN +10 to	+32 °C
N	+16 to +32 °C
ST	+16 to +38 °C
T	+16 to +43 °C

Troubleshooting

If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution or if spare parts for self-repair are necessary, please contact the service center. The respective hotlines are noted in the warranty card, provided with this product. Please note, that improper self-repair can lead to hazards as well as voidance of the warranty and should be refrained from, if in doubt.

Problem Possible causes	Solution
Product does not work • Interrupted power supply • Check the power supply
Temperature in the compartments is not low enough	• The door is not closed firmly or it is opened to often	• Re-arrange the food so that the door can be closed firmly
	• The ambient temperature is lower than 10°C or higher than 43°C	• The product is intended to be operated in an ambient temperature of 10°C to 43°C
Water gathers in the lower part of the compartment	• The food comes in contact with the rear wall of the compartment	• Move away the food or container from the rear wall
The interior lamp doesn’t shine	• Lamp is defect • Contact service center

Error codes

If there is fault, the display will show ERROR codes

Cause Codes
Temperature sensor of refrigerator compartment failure E1
Temperature sensor of freezer compartment failure E3
Defrost temperature sensor in freezer compartment failure E4
Fan motor in evaporator room of freezer compartment failure F1
Main control board received signal from display control failure Ec
Display control board received signal failure Er

When you find ERROR codes, please contact the customer service. The respective hotlines are noted in the provided warranty card.

Storage of food and beverages

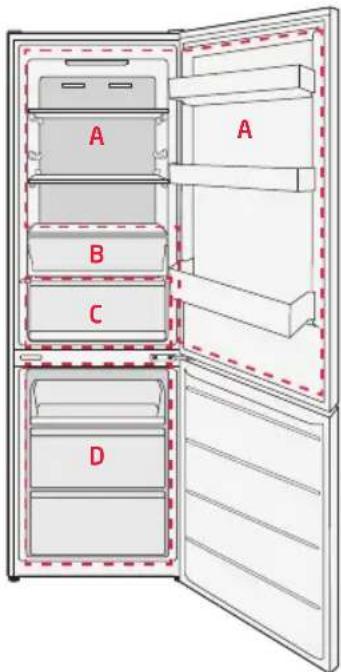

	Area Recommended food and temperature setting
	A Fridge compartment (4°C)- Storage of food for daily consumption, delicacies,yogurt, sauces, pickled vegetables, desserts- Storage of meat, fish, sausages, fresh filled pasta,cooked foods, leftovers
	Door shelf (4°C)Storage of drinks, milk, yogurt, eggs and butter.
	B Fruit and vegetable compartment (4°C)
	C Extra fridge (0°C - 6°C)Storage of fish, raw meat that's about to be cooked.
	D Freezer (-18°C)Foods for long-term storage- Top drawer: Storage of frozen food and ice cream.- Middle drawers: storage for raw meat, poultry, fish- Bottom drawers: storage for frozen vegetables,chips

How to store food and beverages for best preservation over the longest period, in order to avoid food waste?

Fridge compartment

• Use containers made from recycled plastic, metal, aluminum and glass as well as plastic wrap to pack food.
• Coverage should be made for liquids as well as foods that lead to odor formation or can easily spoil or that can transfer taste.
• If only a small amount of food is to be stored, the use of the shelves above the fruit and vegetable compartment is recommended.
• Foods that give off a large amount of ethylene gas and those that are sensitive to them, such as fruits, vegetables and lettuce, must always be kept separately from one

another or packaged in order not to shorten the storage time; for example, do not keep tomatoes with kiwi or cabbage together.

• Use the bottle holder to prevent bottles from tipping over.
• Do not store food too close to one another to allow sufficient air circulation.
• The recommended temperature setting for the fridge compartment is 4°C. If set, foodstuffs can be usually stored for a few days.

Recommendations when refrigerating food

• Store food when fresh and undamaged. The quality and freshness will then be retained for longer.
• In the case of convenience products and bottled goods, do not exceed the sell-by date or use-by date specified by the manufacturer.
• To retain aroma, colour and freshness, pack or cover food well before placing it in the appliance. This will prevent flavours being transferred between foods and the plastic parts from becoming discoloured.
• Leave warm food and beverages to cool down before placing them in the refrigerator compartment.

Freezer

• Ideal for storing frozen food, preparing ice cubes and freezing fresh food.
• If you only store small amounts of food in the freezer, it is recommended to use the coldest area in the freezer (corresponds to the middle area).
• The recommended temperature for the freezer compartment is -18^ .
• The storage period specified on the packaging is decisive for commercially available frozen products.

Recommendations when freezing food

• Freeze larger quantities of food in the lower frozen food containers. This is where the food will freeze especially quickly and gently.
• Distribute food in the compartments or frozen food containers.
• Do not bring food which is to be frozen into contact with frozen food. If required, restack frozen food in the frozen food containers.
• Important for unrestricted air circulation in the appliance: push in frozen food containers up to the limit stop.

Note: Storage of foods at the wrong temperature may lead to an increase of food waste.

Storage times and temperature

Note: Overlong storage or storage at inappropriate freezing temperature may cause spoiled foods, which causes food waste, is inedible and may cause food poisoning. The minimum temperature in most cases should be -18°C or colder. Follow the maximum recommended storage times below:

• Stew, ice cream, sausages, bread: 2-6 months.
• Fish, shrimp, lamb, meat: 4-8 months.
  • Vegetables, fruits, poultry, beef: 6-12 months.

1 x conjunto inverter as portas

1 x Manual do utilizador

Controlo e componentes
