USER MANUAL BBQ Plancha Grill Guru

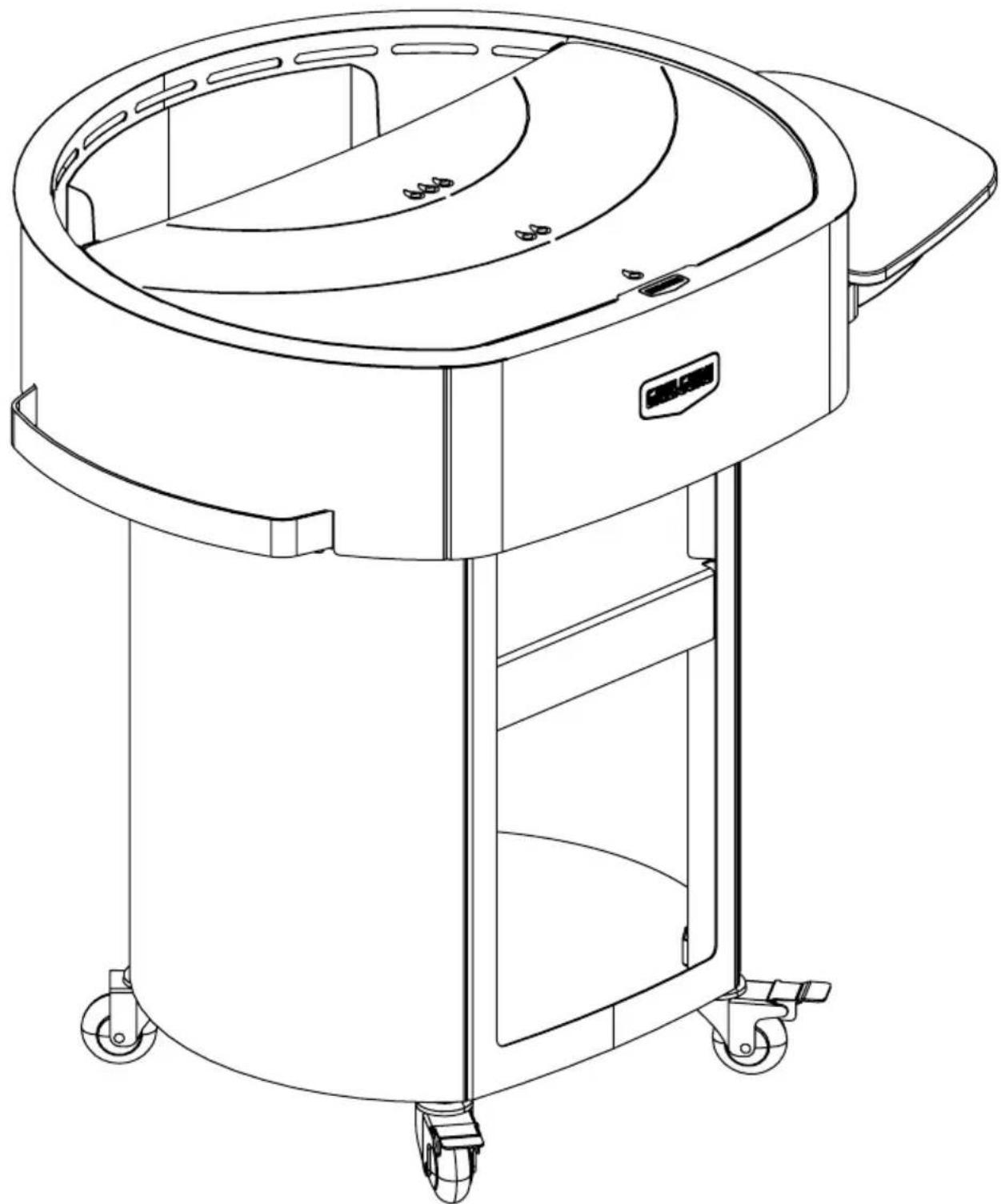

Line drawing of a cylindrical appliance with wheels and a curved lid (no text or symbols)

GRILLGURU	OWNERS MANUAL SKU GB3B75W
	GRILL GURU BBQ PLANCHA EAN 87208821	15549
		DOCUMENT V02

EN

NL|BE

FR

DE

RO

CS

NO

SV

FI

DA

ES

PT

IT

PL

SK

HR

HU

UK

AR

LT

LV

ET

12 16

20 24 28 32

36 40 44

48 52

6 60 64

68 72 76

80 84

88 92 96

Technical diagram of a mechanical device with numbered parts for identification

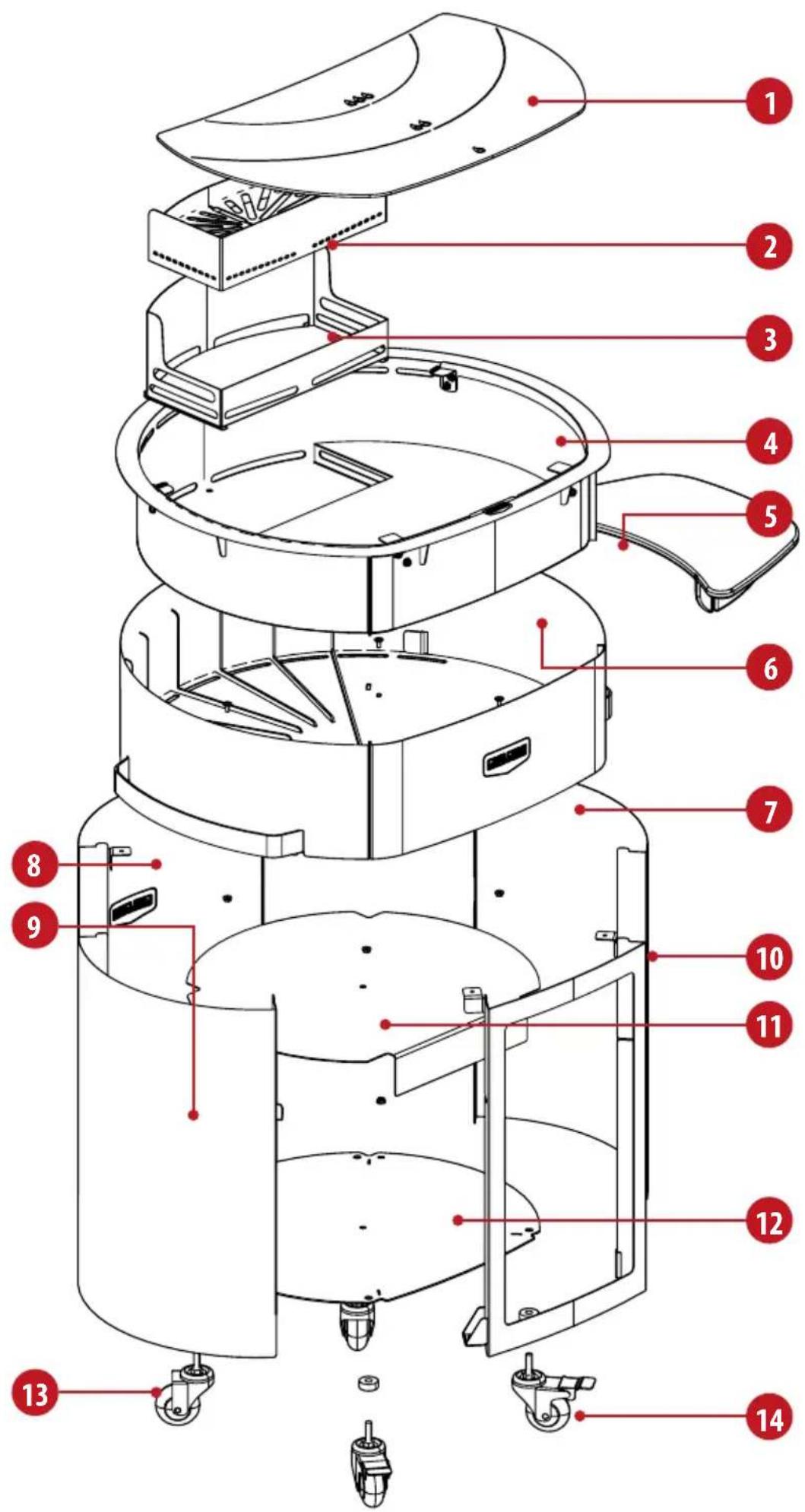

EXPLODED VIEW

1 Cooking plate

2 Ashtray Top

3 Ashtray Base

4 Top inner part

5 Side table

6 Top outer part

7 Bottom side panel 1

8 Bottom back panel

9 Bottom side panel 2

10 Bottom front panel

11 Bottom top panel

12 Bottom bottom panel

13 Wheel

14 Wheel with brake

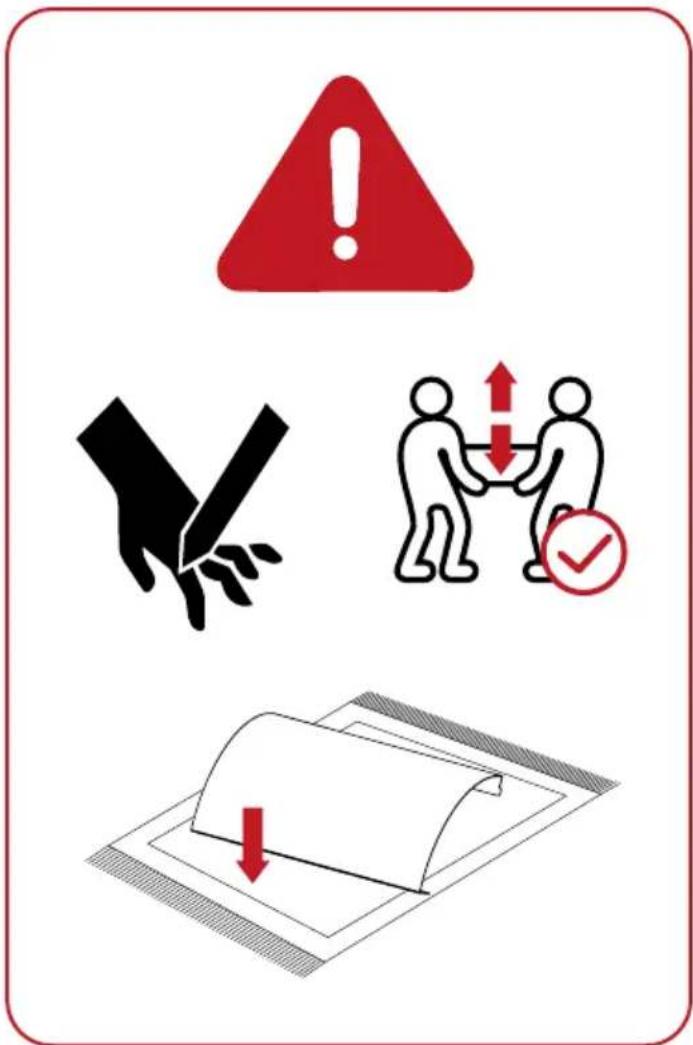

Warning sign with warning triangle, hand holding pencil, and document with checkmark indicating correct or incorrect actions

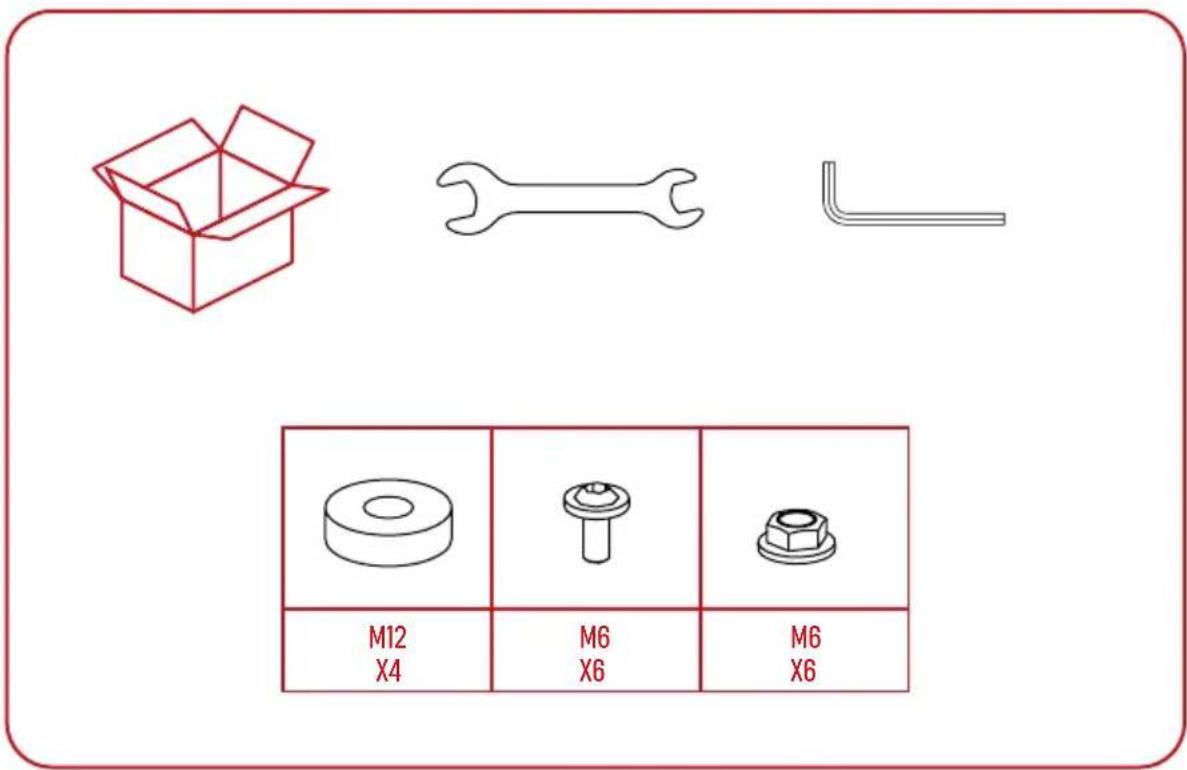

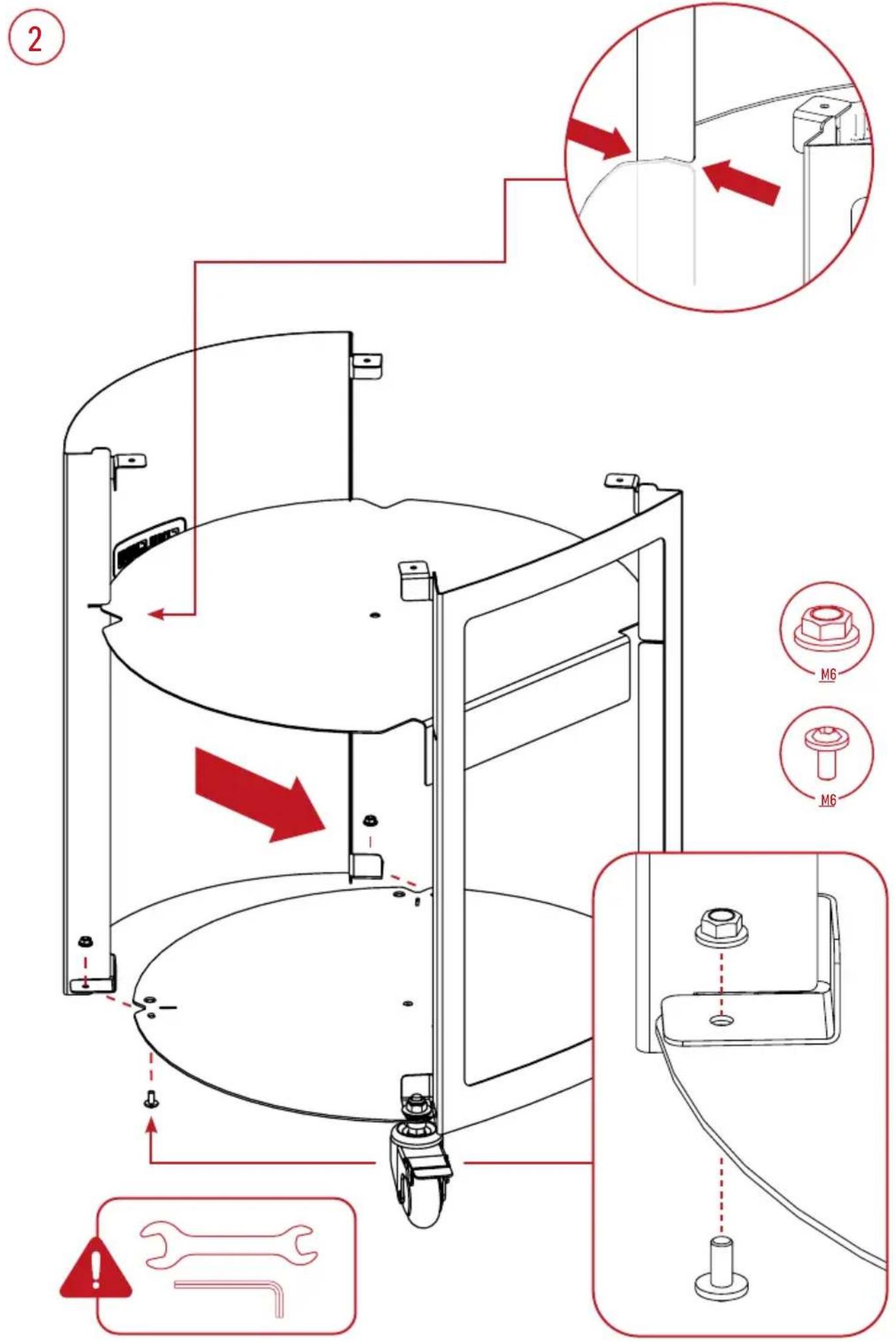

M12 X4 M6 X6 M6 X6

Technical diagram illustrating the installation and repair process of a mechanical device, with labeled components and warning indicators.

Technical diagram illustrating mechanical assembly steps with labeled parts and directional arrows, including annotations for M6 components.

GRILL GURU BBQ PLANCHA MANUAL

Technical diagram of a mechanical device with labeled parts and warning indicators for tool installation

4

Technical diagram showing mechanical assembly with red arrows indicating motion or force directions, including a magnified inset of the component.

Diagram illustrating the installation of an electronic device with warning icons and safety symbols in Chinese.

6

Technical diagram illustrating the assembly of a mechanical device with labeled parts and warning icons for repair or maintenance.

Technical diagram of a cleaning machine with numbered steps and warning icons for safety warnings.

Line drawing of a cylindrical industrial machine with wheels and a curved top opening (no text or symbols)

WARNING! Please read this manual carefully, it contains information on the proper assembly and safe use of the barbecue. Please read and follow all warnings and instructions before assembling and using the barbecue. Please keep this manual for future reference.

WARNING! Failure to follow these instructions could result in fire, explosion or burn hazard which could cause property damage, personal injury or death.

CARBON MONOXIDE HAZARD! Burning wood gives off carbon monoxide, which has no odor and can cause death. Only use this barbecue outdoors and ensure proper ventilation.

WARNING! Do not use spirit or petrol for lighting or relighting! Use only firelighters complying to EN 1860-3!

WARNING! This barbecue will become very hot, do not move it during operation.

WARNING! Keep children and pets away.

Do not cook before the fuel has a coating of ash.

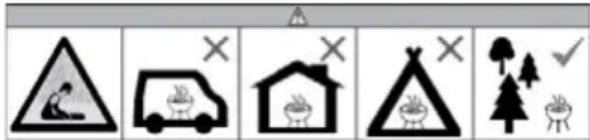

Do not use indoors! Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality.

Weather safety icons showing hazard symbols and corresponding pictograms for heating, vehicle use, house, campfire, and tree.

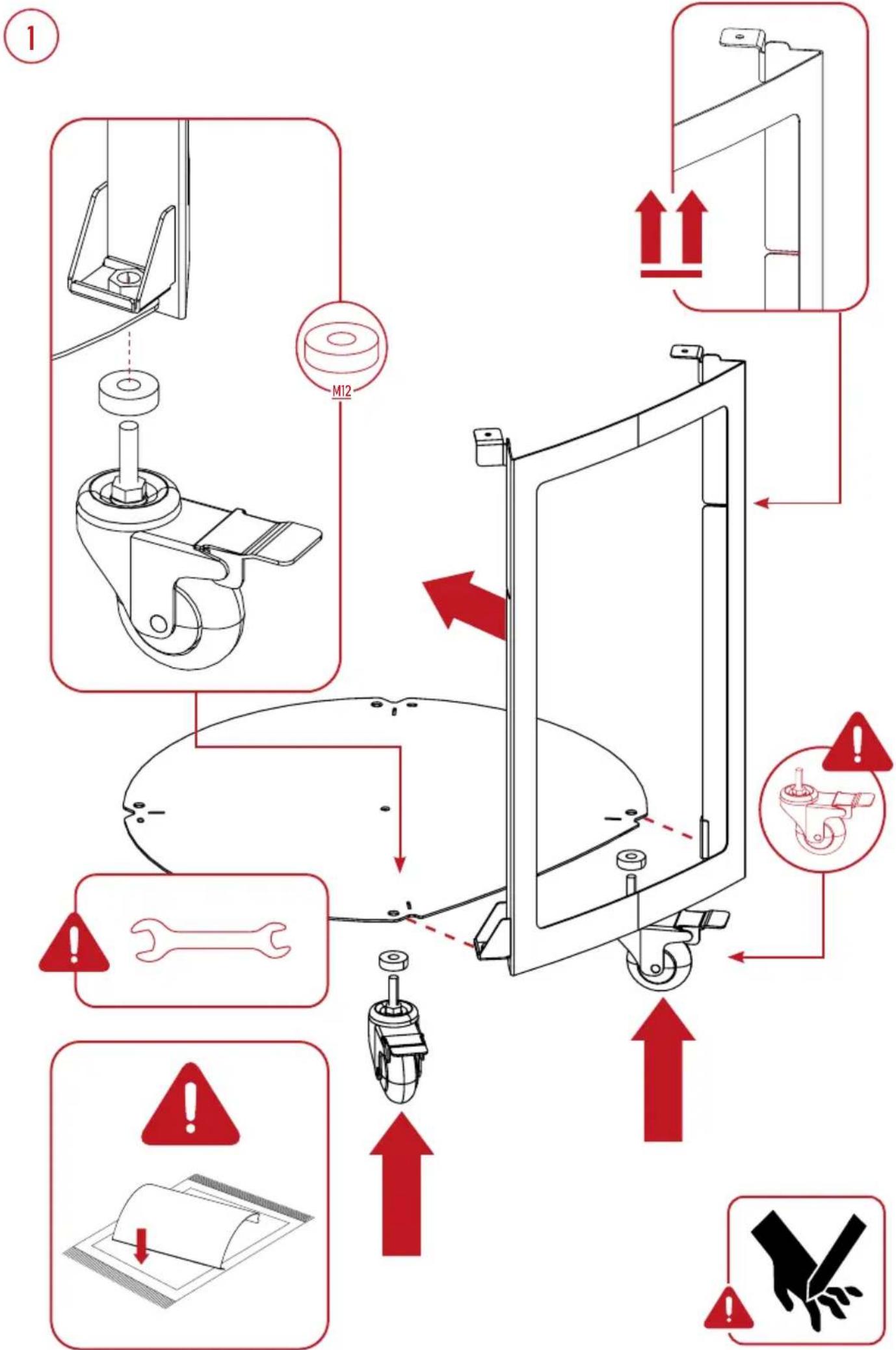

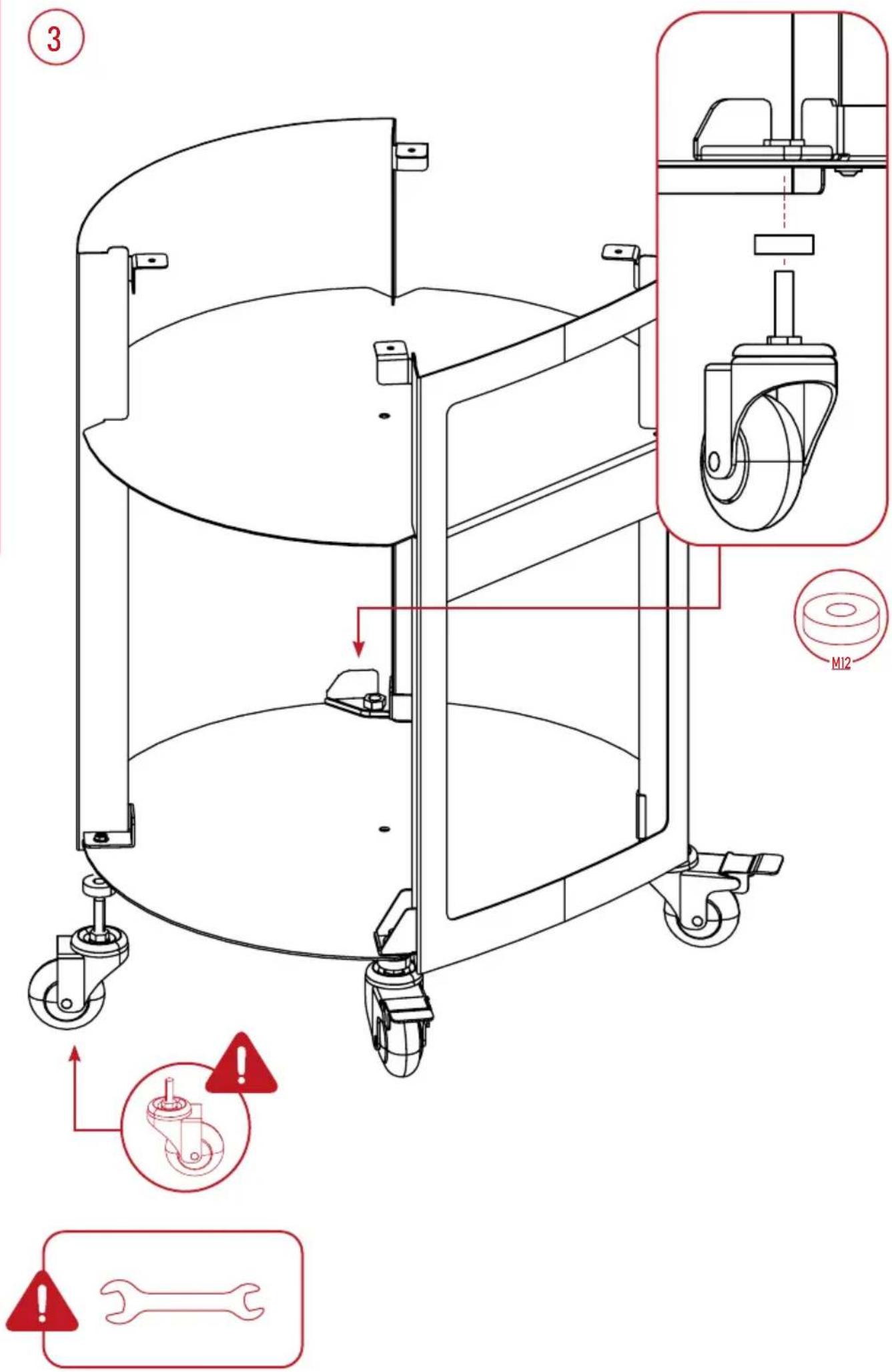

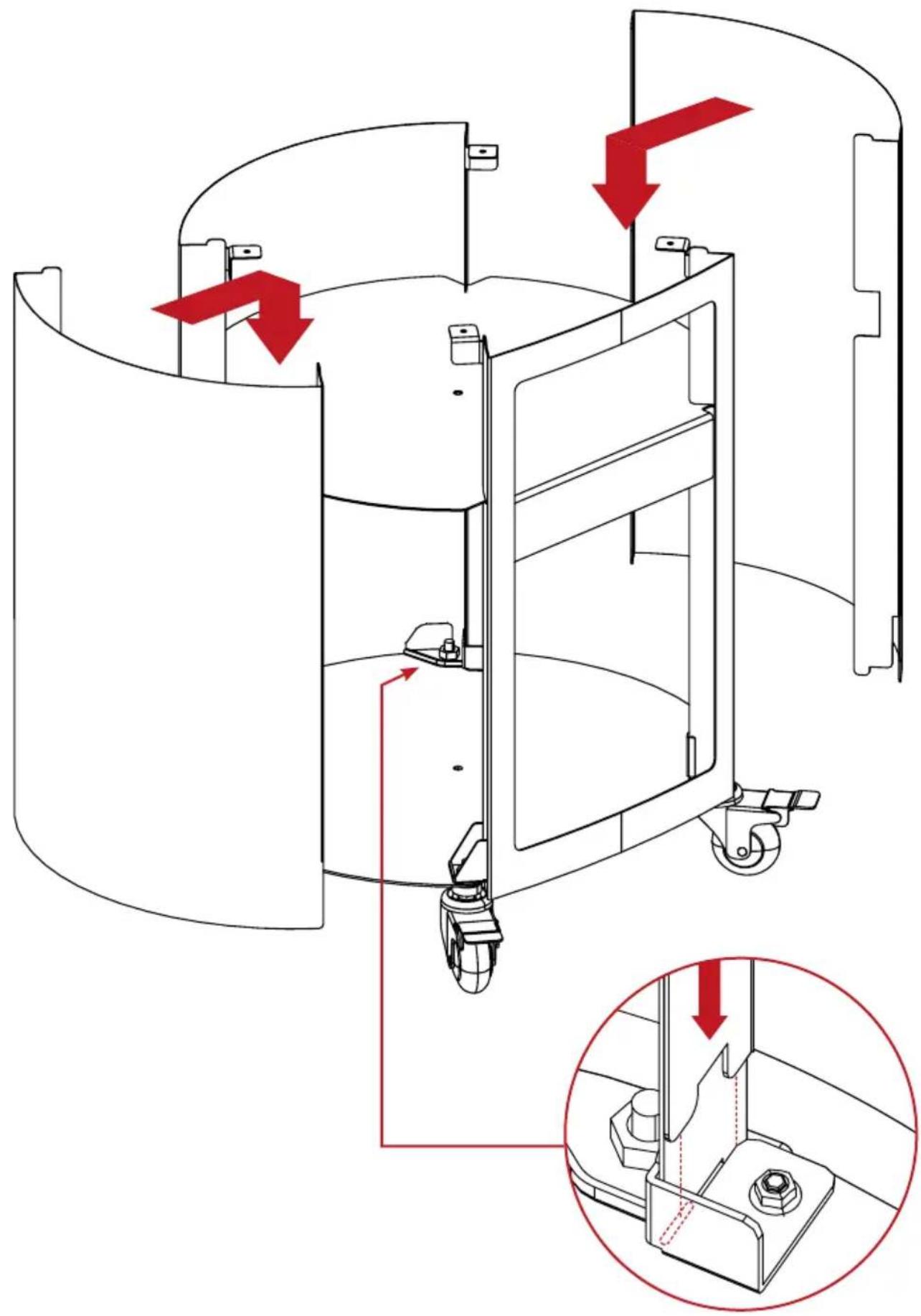

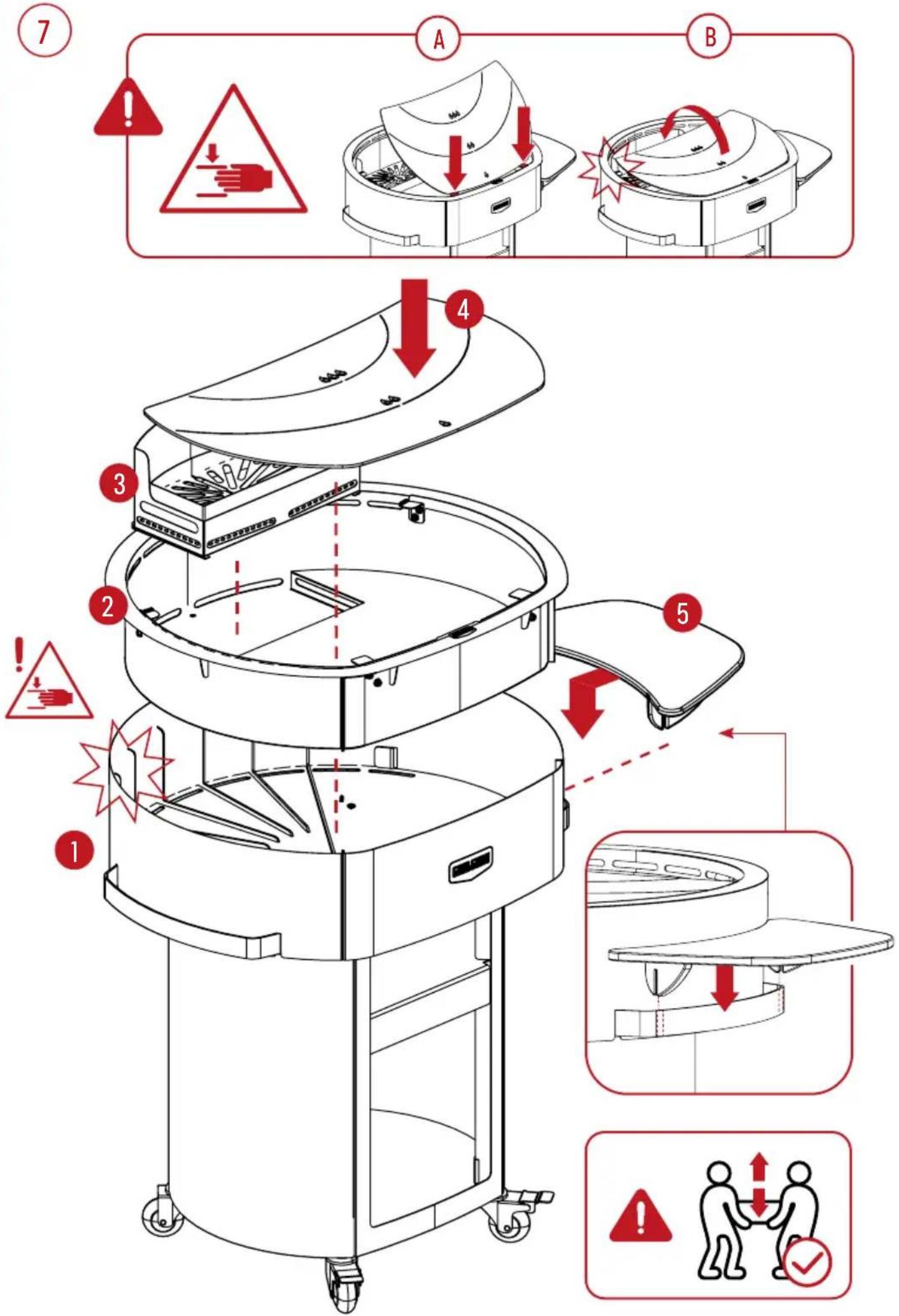

ASSEMBLY OF THE BARBECUE

Beware of the packages placed around the barbecue. When removing the outer packaging, parts can fall out and get damaged.

Simple line drawing of a box with an upward arrow and two black exclamation marks (no text or symbols)

Ensure barbecue is assembled correctly, following this manual, before use.

Be careful when handling parts of the barbecue, there is danger of entrapment.

Handle with caution; product has sharp edges.

Only use the product when the cooking surface is mounted in the appropriate brackets following this manual.

Be cautious with the powdercoated steel parts of the barbecue as they could scratch easily.

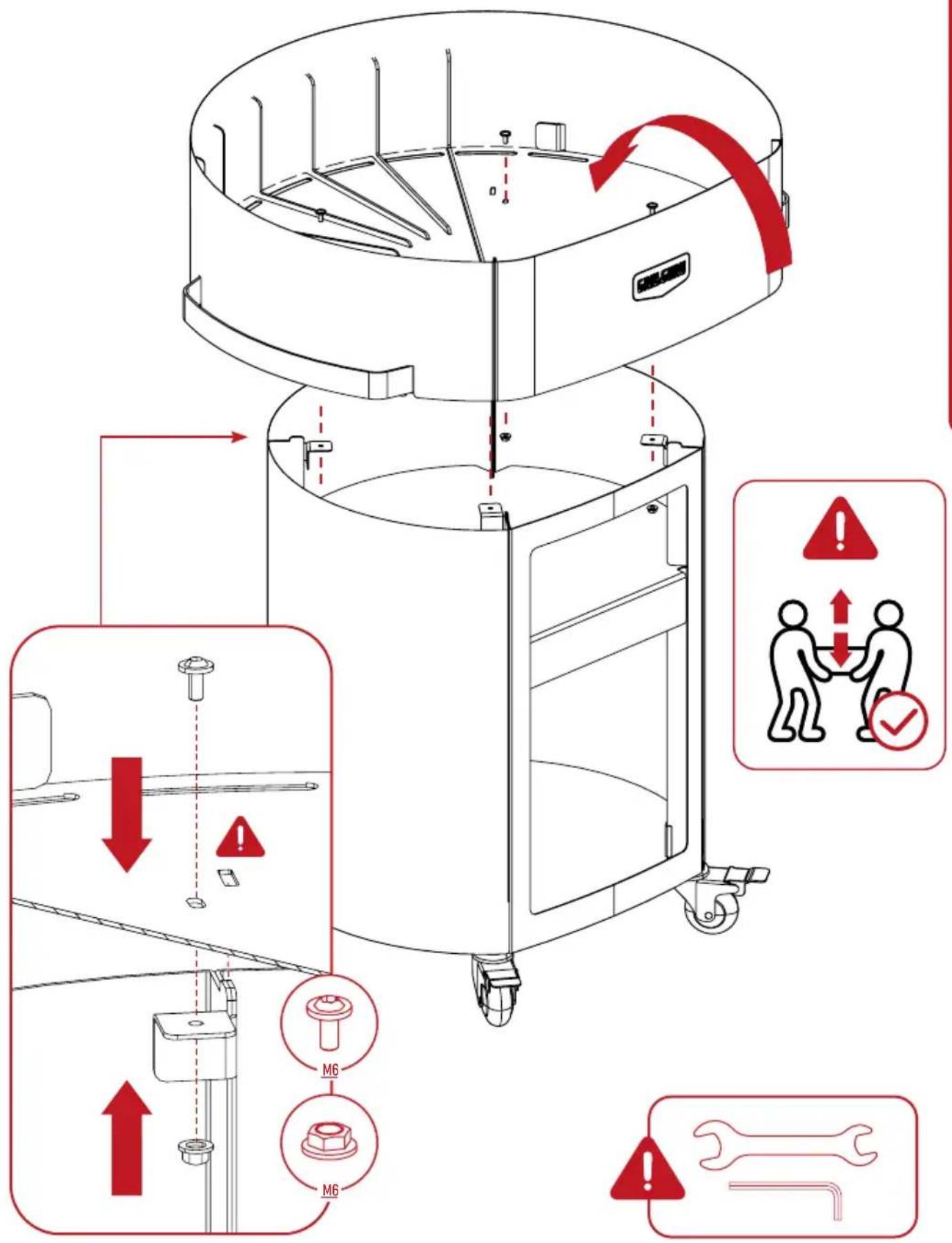

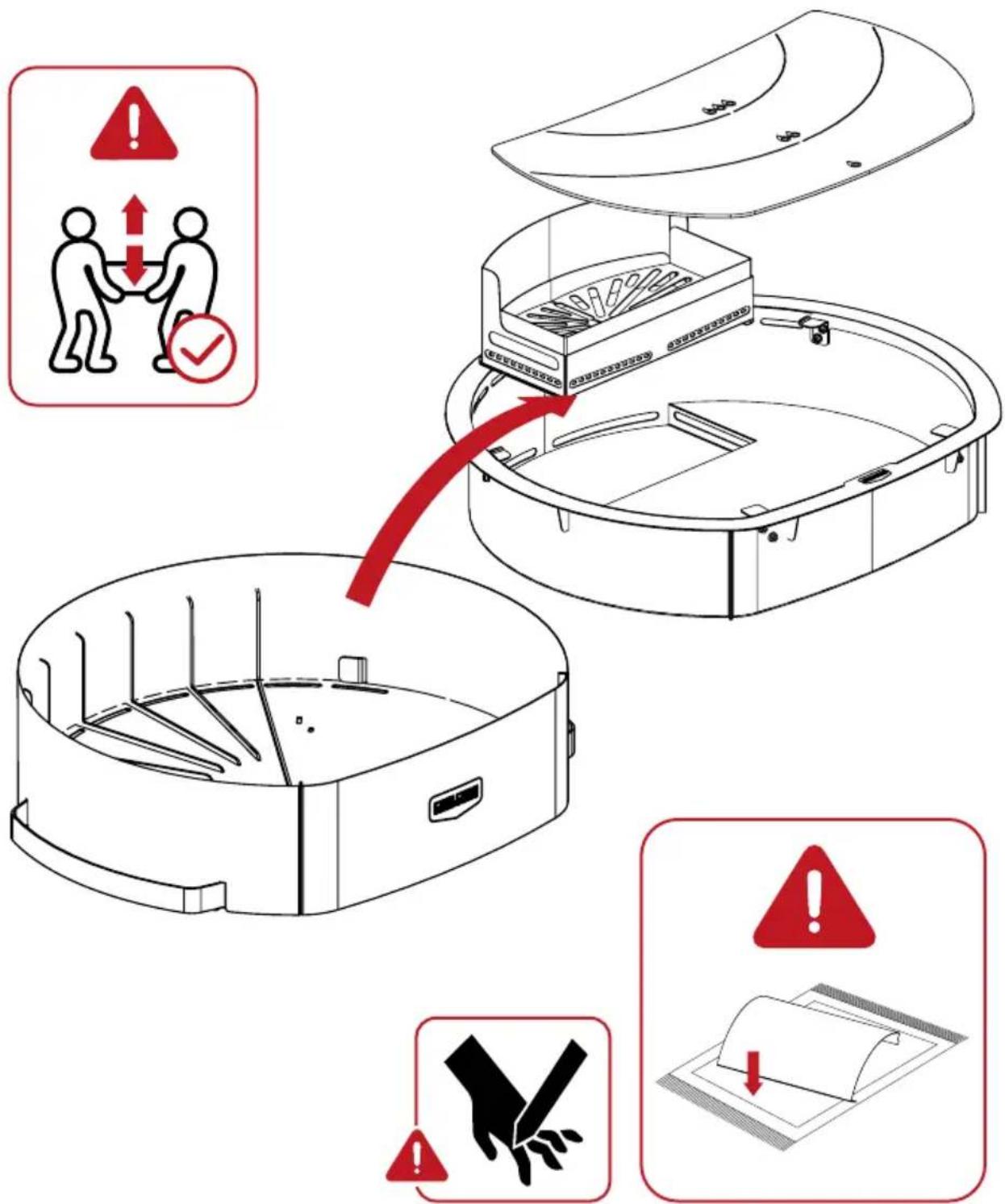

When placing the top part of the barbecue on the stand, always lift with at least 2 people.

SETTING UP THE BARBECUE

The barbecue has to be installed on a secure level base prior to use

Always use the barbecue in accordance with all applicable local, state and federal fire codes.

Before each use check all nuts, screws and bolts to make sure they are tight and secure.

Keep a minimum 3 meter (10ft.) clearance of all combustible materials such as wood, dry plants, grass, brush, paper or canvas.

Pure diagram of a light bulb with directional arrows, no text or symbols present

Maintain a minimum distance of 3 meters (10ft.) from overhead construction, walls, rails or other structures.

Simple line drawing of a mechanical device with no text or symbols

Keep a fire extinguisher (BC or ABC) accessible at all times while operating the barbecue.

Do not move the barbecue over uneven surfaces.

Do not use the barbecue on wooden or flammable surfaces.

Ensure that the ash tray is installed before using the product, not doing so may damage the product.

Make sure the brakes are applied before using the product.

When using the side table accessory, make sure the table is properly installed following this manual

LIGHTING THE BARBECUE

It is recommended not to exceed a maximum wood usage of 1.3kg

Use of alcohol, prescription or non-prescription drugs may impair user's ability to assemble or safely operate the barbecue.

Never overfill. Only place wood inside the ashtray and do not stack higher or underneath the cooking surface. Doing so may cause damage or injury.

We recommend using completely dry softwood to fuel the barbecue. We advise against the use of hardwood, as it may damage the product.

Next to following the 1st use instructions in this manual, it is recommended that the barbecue shall be heated up and the wooden coals kept red hot for at least 30 min prior to the first cooking.

During first use, light the wood in one spot only. Lighting the wood in multiple spots creates a rapid temperature rise which can cause damage to the barbecue.

Be cautious; the heated food storage can become too hot when not following the correct lighting and fuel instructions. This may result in damage or injury.

TUNING AND HANDLING THE BARBECUE

Do not use more oil than necessary when cooking on the plancha, as this can cause flare-ups.

Water or other moisture on product during use can cause flare ups.

In the event of an oil or grease fire do not attempt to extinguish with water. Immediately call the fire department. Using a type “BC” or “ABC” fire extinguisher may, in some circumstances, contain the fire.

The barbecue has an open flame. Keep hands, hair and face away from flames. Do NOT lean over the grill when lighting. Loose hair and clothing may catch fire.

Do not touch HOT surfaces of the barbecue without the use of suitable protective gloves.

Always read the manual of the protective gloves used, and respect its limitations.

Product stays hot for a long period after use. Let the product cool down completely before storage or placing near flammable surfaces.

Be cautious of smoke, as it can cause eye irritation.

Do not load one sidetable of the plancha with more than 15 kg.

Ash and coals can smolder for a long time, make sure they are completely extinguished before you dispose of them.

Never leave the barbecue unattended while it is lit.

Be careful when removing food from grill. All surfaces are HOT and may cause burns. Use protective gloves/ mitts and long, sturdy cooking tools for protection from hot surfaces or splatter from cooking liquids.

Never leave the barbecue unattended. Especially during the initial uses, it's important to become familiar with how the temperatures behave across the cooking plate. We strongly advise closely monitoring your food products during this time.

Do not obstruct flow of combustion and ventilation. Doing so can cause damage to the barbecue.

Never extinguish the wooden fire with water, this can cause damage to the barbecue.

During the first three times you use the barbecue, let the temperature gradually increase to prevent damage to the barbecue.

CLEANING AND CARE FOR THE BARBECUE

Due to extended exposure to humidity and sunlight, the coating and steel elements of the barbecue may undergo degradation and corrosion over time. During at least the warranty period, any such deterioration should not impair the functionality of the barbecue.

Always clean cooking surface from any residual matter before cooking.

Protect the product from rain by placing a protective cover or store in a dry location. Always store the side tables indoors to prevent damage.

The cooking plate is prone to increased corrosion if it's not adequately seasoned with oil. If the cooking plate remains unused for an extended period, it is advisable to apply oil or a care spray every 15-30 days. We recommend using plant-based oils exclusively for this purpose.

If the cooking plate has not been utilized for an extended duration, we recommend warming up the barbecue and cleaning the surface thoroughly before cooking.

For other tips and tricks, visit https://help.grillguru.nl/

TO ACTIVATE YOUR ADDITIONAL MANUFACTURER'S WARRANTY, PLEASE REGISTER YOUR PRODUCT

QR code image containing encoded data, no visible human-readable text

Register your Grill Guru through www.grillguru.com/registration

To utilise your additional manufacturer's warranty, please register your Grill Guru within 3 months after purchase.

1 30 min.

② +200°C

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

First use instructions

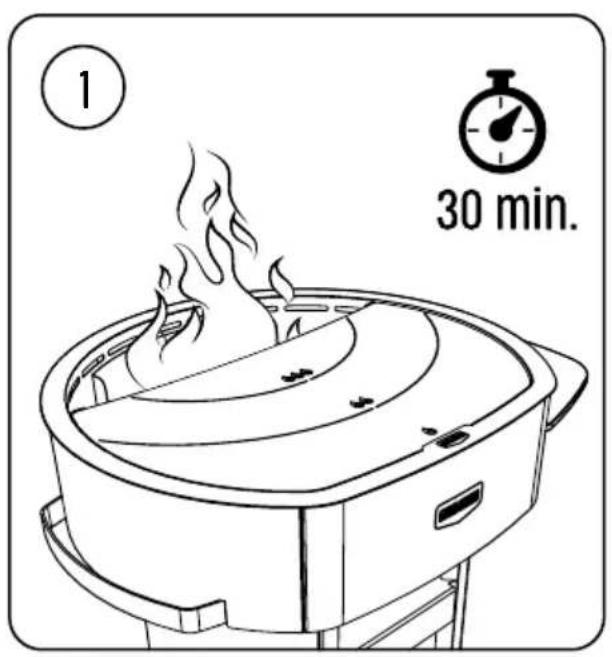

1. Ignite the fire and let it burn for at least 30 minutes.

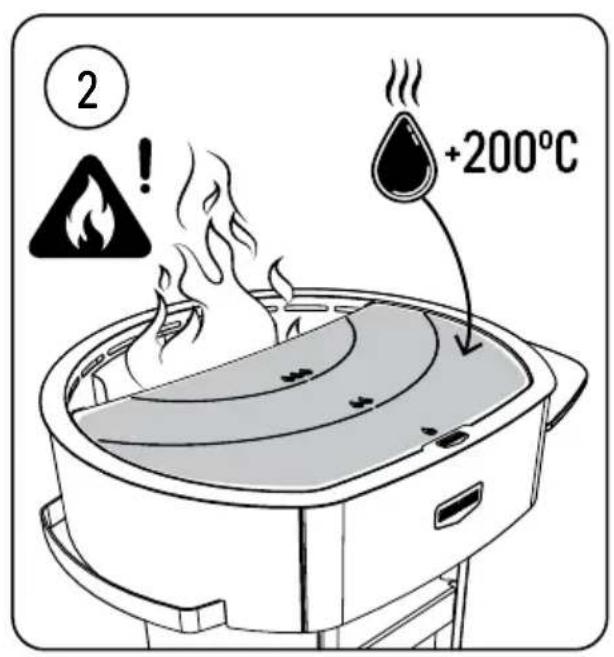

2. Add oil with a high smoke point (+200° celsius) to the cooking plate and let it mix with the oil already applied. WARNING! Be careful around the fire, oil ignites easily when coming into contact with the fire.

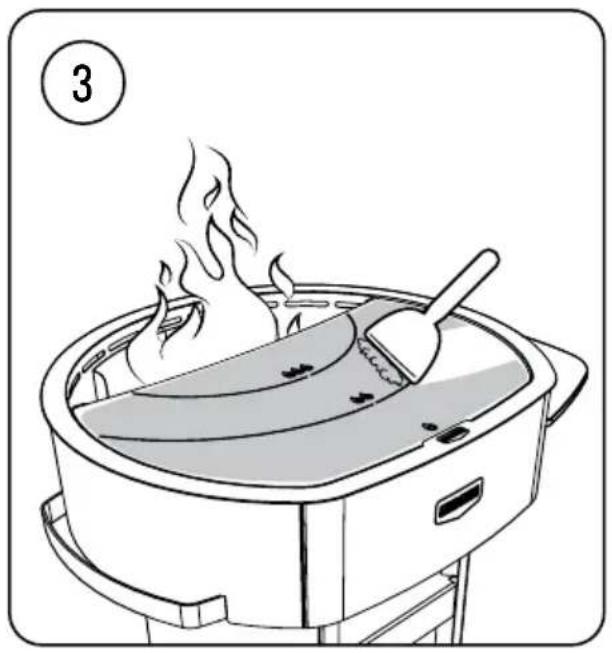

3. Clean the cooking plate by scraping off the oil.

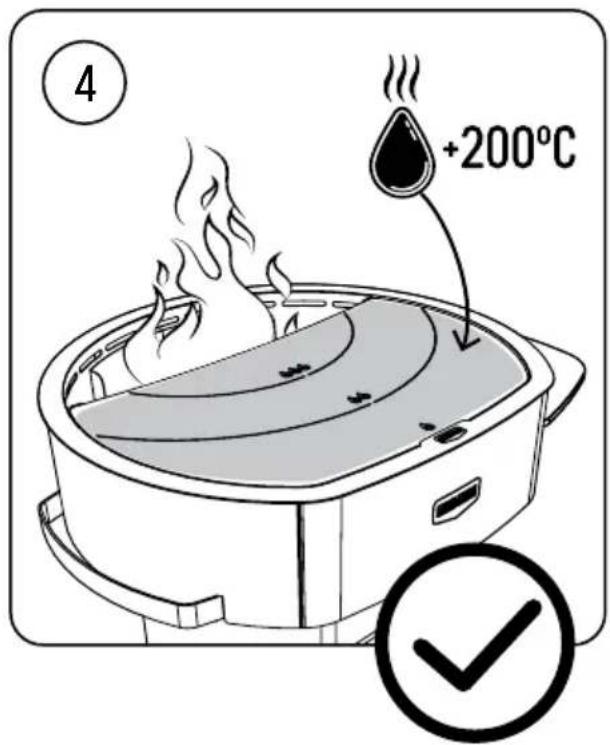

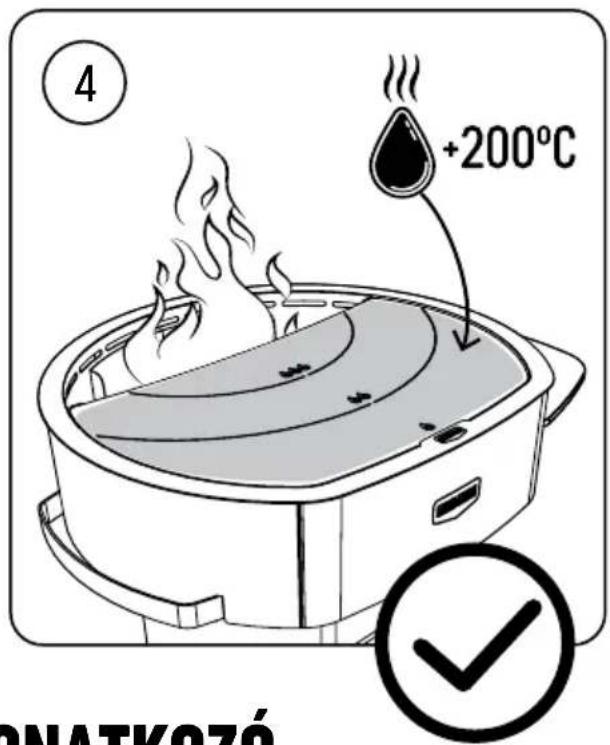

4. Apply oil to the cooking plate and you can start cooking! After use, always make sure the cooking plate remains fully covered in oil to minimize rust build-up.

This product is mostly made of steel parts. We have selected the best materials for this product, however over time corrosion will occur. Our warranty does not cover surface corrosion. Make sure to check the product's stability and strength (tighten bolts and nuts) before every use. Some tips on minimizing rust: Prevent the product from standing in the rain by storing it in a dry space or cover it with a raincover. Oil in steel parts, including the cooking plate.

POWDERCOATING

Due to weather and sunlight the coating can be subject to discolouration.

SIDE TABLE

Always remove the bamboo side table after use and store it indoors to prevent damage for water and humidity.

OIL & FOOD LIQUIDS

During cooking oil and food liquids can spatter on and inside the product. The top of the product has been designed to be able to dissemble and clean properly. Always, after a couple of uses and letting it completely cool down, clean the barbecue to prevent dirt and oil build-up.

HOT COALS & ASHES

Always leave the fire to burn out completely. Dependent on ambient weather and temperatures this may take a very long time. Do not throw away ashes until you've let them cool down completely to prevent accidental fires or injury.

Weather warning icons showing occupational hazards, vehicle accidents, houses, and trees with symbols indicating hazard or failure.

MONTAGE VAN DE BARBECUE

Simple line drawing of a box with an upward arrow and two exclamation marks (no text or symbols)

Pure diagram of a lens system with no text, numbers, or symbols

Pure mechanical diagram showing a cart and lever system without any text, numbers, or symbols

QR code image containing encoded data, no visible human-readable text

Registreer je Grill Guru via www.grillguru.com/registration

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

Weather warning icons showing occupational hazards, heating, and outdoor scenes with symbols for heating, cooking, and gathering.

ASSEMBLAGE DU BARBECUE

Simple line drawing of a computer monitor with an upward arrow and warning symbols (no text or labels)

Simple line drawing of a trash bin with arrows indicating flow direction (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

Warning symbols and icons for outdoor activities including a person, a van, houses, a tent, and trees with checkmarks

MONTAGE DES GRILLS

Simple line drawing of a box with an upward arrow and two warning symbols (no text or labels)

Pure diagram of a symmetrical object with directional arrows, no text or symbols present

Simple line drawing of a mechanical device with arrows indicating direction (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

Weather warning icons showing hazard, vehicle, house, and tree symbols with Chinese labels

ASAMBLAREA GRĂTARULUI BARBECUE

Simple line drawing of a box with an upward arrow and two exclamation marks, no text or symbols present.

Pure diagram of a symmetrical object with directional arrows, no text or symbols present

Simple line drawing of a trash bin with an outlet and directional arrows (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

Weather safety icons with symbols for heating, cooking, heating room, camping, and tree planting

SESTAVENÍ GRILU

Simple line drawing of a box with an upward arrow and two black exclamation marks (no text or symbols)

Pure diagram of a light bulb with directional arrows, no text or symbols present

Simple line drawing of a mechanical device with no text or symbols

QR code image containing encoded data, no visible human-readable text

Svůj gril Guru zaregistrujte na www.grillguru.com/registration

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

Weather warning icons with symbols for heating, cooking, heating, and deforestation

MONTERING AV GRILLEN

Simple line drawing of a box with an upward arrow and two black exclamation marks (no text or symbols)

Pure diagram of a human eye with lens and pupil, no text or symbols present

Pure mechanical diagram showing a cart and a vertical pipe with dashed arrows indicating direction (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Registrer din Grill Guru gjennom www.grillguru.com/registration

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

Bruksønvisning

VEDLIKEHOLD OG OPPBEVARING

KORROSJON

Weather safety icons showing traffic, vehicle, house, and tree symbols with checkmarks and crosses indicating failure or hazard.

MONTERING AV GRILLEN

Simple line drawing of a computer monitor with an upward arrow and two warning symbols (no text or labels)

Pure diagram of a lens system with no text, numbers, or symbols

Simple line drawing of a trash bin with an outlet and directional arrows (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Registrera din Grill Guru via www.grillguru.com/registration

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

Weather warning icons with symbols for heating, cooking, and deforestation

GRILLIN KOKOAMINEN

Simple line drawing of a computer monitor with an upward arrow and two warning symbols (no text or labels)

Pure diagram of a lens system with no text, numbers, or symbols

Pure mechanical diagram showing a cart and a vertical pipe with directional arrows (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

Safety warning icons with symbols for heating, vehicle use, house, and outdoor gear protection

MONTERING AF GRILLEN

Simple line drawing of a box with an upward arrow and two black exclamation marks (no text or symbols)

Pure diagram of a lens system with no text, numbers, or symbols

Simple line drawing of a mechanical device with no text or symbols

Hav altid en ildslukker (BC eller ABC) klar, när du bruger grillen.

RENG∅RING OG PLEJE AF GRILLEN

QR code image containing encoded data, no visible human-readable text

Registrer din Grill Guru gennem www.grillguru.com/registration

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

QR code image containing encoded data, no visible human-readable text

Registrar el Grill Guru a través de www.grillguru.com/registration

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

Weather warning icons with symbols for heating, deforestation, and outdoor activities

MONTAGEM DO GRELHADOR

Isometric illustration of a mechanical device with an upward arrow and two warning symbols (no text or labels)

Pure diagram of a light bulb with directional arrows, no text or symbols present

Simple line drawing of a trash bin with an outlet and directional arrows (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

Weather warning icons with symbols for heating, cooking, and natural activities

MONTAGGIO DEL BARBECUE

Simple line drawing of a box with an upward arrow and two warning symbols (no text or labels)

Pure electrical circuit lines without any symbols

Simple line drawing of a trash bin with an outlet and directional arrows (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

Weather warning icons with symbols for heating, deforestation, and drought conditions

MONTAŻ GRILLA

Simple line drawing of a mechanical device with an upward arrow and warning symbols (no text or labels)

Pure diagram of a light bulb with directional arrows, no text or symbols present

Simple line drawing of a trash bin with an outlet and directional arrows (no text or symbols)

ABY AKTYWOWAĆ DODATKOWĄ GWARANCJĘ PRODUCENTA, NALEŻY ZAREJESTROWAĆ SWÓJ PRODUKT

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

Weather warning icons with symbols for heating, cooking, and deforestation

MONTÁŽ GRILU

Simple line drawing of a box with an upward arrow and two exclamation marks (no text or symbols)

Simple line drawing of a trash bin with an outlet and directional arrows (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Zaregistrujte svoj Gril Guru prostredníctvom www.grillguru.com/registration

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

Pokyny na 1. Pou itie

Weather warning icons showing different types of activities: heating, cooking, heating room, camping, and tree planting.

MONTAŽA ROŠTILJA

Simple line drawing of a box with an upward arrow and two black exclamation marks (no text or symbols)

Simple line drawing of a trash bin with an arrow indicating direction (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Registrirajte Grill Guru putem www.grillguru.com/registration

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

Weather warning icons showing occupational hazards, vehicle accidents, houses, tents, and trees with symbols indicating hazard or failure.

Simple line drawing of a computer monitor with an upward arrow and two warning symbols (no text or labels)

Pure diagram of a symmetrical object with directional arrows, no text or symbols present

Simple line drawing of a trash bin with an arrow indicating direction (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C ONATKOZÓ

ELSŐ HASZNÁLATRA VONATKOZÓ HASZNÁLATI UTASÍTÁS

Safety warning icons with symbols for heating, cooking, and outdoor activities

МОНТАЖ БАРБЕКЮ

Simple line drawing of a box with an upward arrow and two warning symbols (no text or labels)

Pure diagram of a light bulb with directional arrows, no text or symbols present

Simple line drawing of a trash bin with an outlet and directional arrows (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

Weather warning icons with symbols for heating, cooking, and deforestation

KEPSNINÈS SURINKIMAS

Simple line drawing of a computer monitor with an upward arrow and two warning symbols (no text or labels)

Pure diagram of a lens system with no text, numbers, or symbols

Pure mechanical diagram showing a cart and lever system without any text, numbers, or symbols

QR code image containing encoded data, no visible human-readable text

Užregistruokite savajj Grill Guru adresu www.grillguru.com/registration

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

NAUDOJIMAS PIRMA KARTA

Weather warning icons with symbols for heating, cooking, and deforestation

GRILA MONTĀŽA

Simple line drawing of a box with an upward arrow and two black exclamation marks (no text or symbols)

Pure diagram of a light bulb with directional arrows, no text or symbols present

Simple line drawing of a trash bin with an outlet and directional arrows (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Reğistrējiet savu Grill Guru šeit: www.grillguru.com/registration

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C

PIRMĀ LIETOŠANAS REIZE

Safety warning icons with symbols for heating, cooking, and outdoor activities

GRILLI KOKKUPANEK

Simple line drawing of a box with an upward arrow and two black exclamation marks (no text or symbols)

Pure diagram of a light bulb with directional arrows, no text or symbols present

Simple line drawing of a trash bin with an outlet and directional arrows (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Registreerige oma Grill Guru aadressil www.grillguru.com/registration

Line drawing of a cooking pot with steam rising, no text or symbols present

4 +200°C
