USER MANUAL Kamado Classic Large Grill Guru

Grill Guru Kamado Large

READ THIS BEFORE YOU ASSEMBLE OR USE YOUR GRILL GURU!

200^ Fahrenheit

GG-L-2022-01

G60221

GRILGURU

KAMADO

GEBRUIKERS

HANDLEIDING

Grill Guru Komado Large

LEES DIT VOORDAT U UW GRILL GURU MONTEERT OF GEBRUIKTI!

200^ Fahrenheit

WARNING!

INSTALLATIE INSTRUCTIES

LARGE

2/2

98

INSTALLATION INSTRUCTIONS THE FIRE BOX

VOOR HET ACTIVEREN VAN UW GARANTIE MOET U UW PRODUCT REGISTREREN

Registraruw Grill Guru via www.grillguru.nl/registration

Please read this manual carefully. It contains information on the proper assembly and safe use of the kamado barbecue. Please read and follow all warnings and instructions before assembling and using the kamado barbecue. Please keep this manual for future reference.

WARNING!

Failure to follow these instructions could result in fire, explosion or burn hazard which could cause property damage, personal injury or death.

CARBON MONOXIDE HAZARD!

Burning charcoal gives off carbon monoxide, which has no odor and can cause death. Only use this kamao barbecue outdoors where it is ventilated properly.

SAFETY INSTRUCTIONS

PLEASE READ THESE SAFETY INSTRUCTIONS AND TIPS CAREFULLY

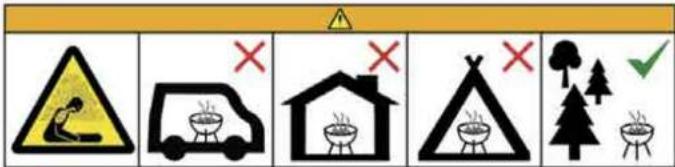

Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, corovons, motor homes, boats. Donner of carbon monoxide poisoning fatality.
Always use grill in accordance with all applicable local, state and federal fire codes.
Before each use check all nuts, screws and bolts to make sure they are tight and secure.
- Never operate grill under overhead construction such as roof coverings, carports, awnings or overhangs
- Grill is for OUTDOOR USE ONLY.
Maintain a minimum distance of 10 ft (3m) from overhead construction, walls, rails or other structures.

Keep a minimum 10 ft. (3m) clearance of all combustible materials such as wood, dry plants, grass, brush, paper or canvas

Never use grill for anything other than its intended use. This grill is NOT for commercial use.
- Accessory attachments not supplied by Grill Guru are Not recommended and may cause injury.
Use of alcohol, prescription or non-prescription drugs may impo
- Keep a fire extinguisher accessible at all times while operating grill
- When cooking with oil or grease, have a type BC or ABC fire extinguisher readily available
In the event of an oil or grease fire do not attempt to extinguish with water. Immediately call the fire department. A type BC or ABC fire extinguisher may, in some circumstances, contain the fire.
- use grill on a level, non-combustible, stable surface such as dirt, concrete, brick or rock. An asphalt surface (thicktop) may not be acceptable for this purpose.
- Grill MUST be on the ground. Do not place grill on tables or counters. DO NOT move grill across uneven surfaces.
Do not use grill or wooden or flammable surfaces. Keep grill clear and free from combustible materials such as gasoline and other flammable vapors and liquids.

• No net leave grill unattended.

Do not allow anyone to conduct activities around grill during or following its use until it has cooled.
Never use gloss, plastic or ceramic cookware in grill. Never place empty cookware in grill while in use.
Never move grill while in use. Allow grill to cool completely (below 15^ F ( 45^ C ) before moving or storing.
- Do not store grill with hot oines or charcoal inside grill. Store only when fire is completely put and all surfaces are cold.

• Never use grill as a heater. CARBON MONOXIDE HAZARD

The grill is HOT while in use and will remain HOT for a period of time afterwards and during cooling process. Use CAUTION Wear protective gloves/ritms.
CO NOT bump or impact the grill to prevent personal harm, damage to grill or spilling/spashing of hot cooking liquid.
- Be careful when removing food from grill. All surfaces are HOT and may cause burns. Use protective gloves/mits or long, sturdy cooking tools for protection from hot surfaces or splatter from cooking liquids.
- Do not touch HOT surfaces.
GrillisHot during use.To avoidburns,keep face and body away from vents and when opening lid. Steam and hot air are expelled during use.

When cooking above 350^ (75^) carefully open the grill (or burp the grill) each time you lift the grill dome to prevent flashbock - a surge of white hot heat caused by a rush of oxygen. Portiony opening the lid 2-3 inches (5-8cm) and allowing heat to escape for about 5 seconds should prevent this
- Air dampers are HOT while the grills in use and during cooling. Wear protective gloves when adjusting
- Grill has an open flame. Keep hands, hair and face away from fame. Do NOT lean over grill when lighting. Loose hair and clothing may catch fire.
CO NOT obstruct flow of combustion and ventilation.
- Do not cover cooking rocks with metal foil. This will trap heat and may cause damage to the grill.
- Never leave HOT cools or ashes unattended.
Fuel should be kept red hot for at least 30 minutes prior to use.
Do not cook before the fuel has a coating of ash.
- Do not remove ash drawer while ashes and charcoal are hot.
- Use protective gloves when handling this grill or working with fire. Use protective gloves or long, sturdy tools when adding wood or charcoal.
- Never use charcoal lighting fluid, gasoline, alcohol or other highly volatile fluids to ignite charcoal. These fluids can explode and cause injury or death.
- Never overfill the charcoal basket. This can cause serious injury as well as damage to the grill. A maximum of 1.6 kg charcoal is recommended for this barbecue.
Disposc of cold ashes by placing them in aluminum foil, soaking with water and discoring in a non-combustible container.

PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

GRILGURU

GRILGURU

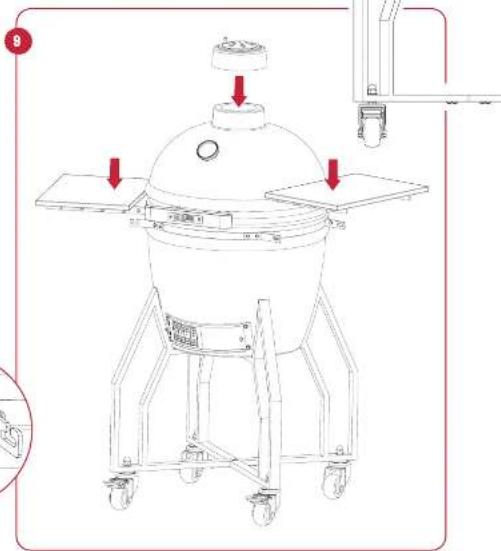

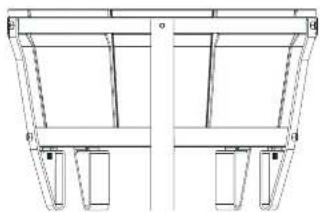

INSTALLATION INSTRUCTIONS

L

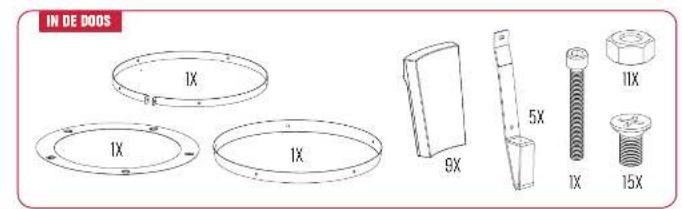

IN THE BOX

F

GRILGURU

INSTALLATION INSTRUCTIONS

LARGE

2/2

27

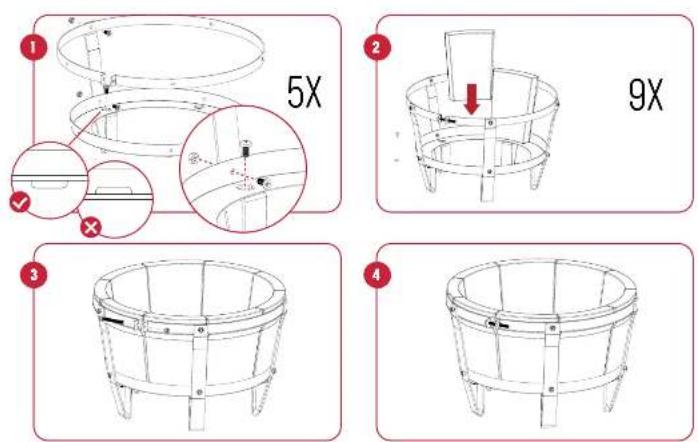

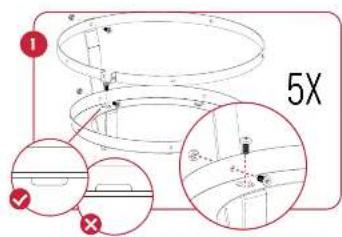

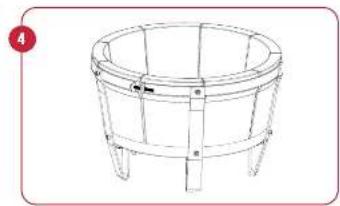

INSTALLATION INSTRUCTIONS THE FIRE BOX

TO ACTIVATE YOUR WARRANTY, PLEASE REGISTER YOUR PRODUCT

Register your Grill Guru through www.grillguru.nl/registrar

To utilise your warranty, please register your Grill Guru kamado within 3 months after purchase.

2928

THE FIRST 3 BURNS!

Make sure the temperature does not rise above 200 degrees celcius with the first 3 times using the kamado

PREPARATION

Make sure the Grill Guru kamado is always properly and securely mounted in its stand. Check that all nuts and bolts of the stand are tightened and that the wheels have brakes.
Test the opening and closing of the kamado and check that the bolts on the steelwork are properly tightened and that there is no major play on the hinge.
Open the Top Cap and the air slide both a little before the first 3 uses of the kamado. If they are opened too far there is a risk of cracking the ceramics.
Fill the firebox halfway with charcoal only. Do not put more than 1.6kg of charcoal in the firebox. The use of briquettes is strongly discouraged. Briquettes are made of pressed residual materials and can negatively influence the taste of your food.

LIGHTING THE KAMADO

When all the steps of the preparation have been completed, it is time to light the kamado.

During the first 3 uses of the kamado, the charcoal should be lit in one place only. If the charcoal is lit in several places at once, the temperature rises too quickly and there is a risk of the ceramic cracking.
For lighting the kamado, several tools and articles can be used. One of these tools is the Grill Guru One Minute Lighter. With this tool, the charcoal can be lit quickly and safely. Other options are fire starters, but make sure they are made of natural material!
- Never use chemical fire starters, methylated spirits or other flammable substances with a kamado. These are dangerous and can also soak into the ceramics, which can negatively affect the taste of your dishes.
- When you have lit the charcoal in one place, place the Plate Setter back on the firebox. also place the ceramic Plate Setter stone in the Plate Setter. Finally, the grill can be placed on the Plate Setter. Now the lid of the kamado can be closed.

TIPS &TRICKS

BUILDING UP THE TEMPERATURE

The charcoal is lit and you are almost ready to prepare your first kamado dish. Before you can start, the temperature has to rise a little bit more, but don't do it too fast. Temperatures rising too quickly can be bad for the ceramics. Let the temperature rise slowly during at least 60 minutes to reach 200 degrees celcius during the first three uses.

In the preparation steps, you have checked whether the chimney and the top vent are ojar, please check again if this is the case.
By further opening and/or closing the air slide and top ventilation, the temperature of the kamado can be adjusted. Later, we will look at this in detail. For now, it is important to have both open a little.
During the first three uses, Let the temperature of the kamado gradually climb to 200 degrees Celsius in 60 minutes so that moisture which has been drawn into the ceramics can slowly evaporate and the ceramics will be ready for BBQ for a long time.
If the temperature rises too quickly, close the air slide and top ventilation further.

If the kamado does not reach the desired temperature and remains stuck, open the chimney and the air slide bit by bit and wait for the temperature to react.
Never leave the kamado unattended when it is burning.

BBQING

You and your kamado are now ready for it: the first dish! A nice start is a delicious roasted chicken. perfectly grillable at a temperature of 200 degrees Celsius. To prepare this or any other tasty meal, some rules must be followed.

Never open a hot kamado at once! Always open the lid a little, wait a few seconds and then open it fully. If the lid is opened in one movement, there is a risk of a flame jet due to a sudden excess of oxygen.
Stay close to the komado. The first few times you have to get used to the way the temperature of the BBO is adjusted, so we recommend you always stay close by and keep a close eye on the thermometer.
Use suitable tools and gloves when moving food, the grill and the Plate Setter stone. A kamado gets very hot and can cause serious burns if used incorrectly.

EXTINGUISHING AND CLEANING

The dish has been prepared and the Grill Guru can be put out. For this action, here are handy steps to follow...

Close the Top Cap and air slider. Due to a lack of oxygen, the coals in the firebox will slowly extinguish and the BBQ will slowly cool down again. This will leave coals that can be used next time. Cooling down can take some time as the ceramic can hold its heat for a long time. Never extinguish the kamado with water.
Leave the kamado closed until it has cooled down completely. The coals in the kamado can smolder for a long time and may catch fire again if the kamado is opened too soon.
When the komado is completely cooled down, the grids can be removed and cleaned.
Charcoal left over after a BBQ session can stay in the firebox and be used next time.
We advise to cover the kamado with a rain cover when it is completely cooled down.

Congratulations! If you have followed these steps 3 times, you are on your way to becoming a real Grill Guru and you are ready to prepare delicious dishes on your kamado.

CAUTION!

Use caution when lighting charcoal, touching the outside of the kamado, or handling hot grill surfaces. Wear heat-resistant gloves such as the High Heat Gloves. Use the Grid Lifter or Grill Clipper to grip and lift hot cooking grids. Place the hot cooking grids in a place where contact with flammable surfaces is avoided.
Never remove the interior of the kamado when it still contains hot charcoal or is hot. The ceramic and charcoal remain hot for a long time because the kamado insulates so well. Also - do not remove hot charcoal from the Grill Guru.
Never move a hot grill guru from its place of origin. The hot charcoal can cause personal injury or material damage if it falls.
- Be careful when transporting, loading or unloading the grill Guru. The komado is heavy and can cause physical injury or material damage if dropped.
Do not lean on the handle, the bamboo side tables, the base or the hinge of the Grill Guru.

Take core and be careful when using the Grill Guru. Avoid injury from metal parts: be careful when handling the hinge. Top Cap and air slide parts to avoid injury from metal edges.
Prevent flash fires by carefully opening the lid of a lit grill guru slightly before opening the entire lid. Slowly lift the lid by about 5cm so that the air slowly flows in. Take extra care when opening a lit grill guru if both air regulators are closed. Dangerously high flames can occur due to the sudden inflow of air. If there are high flames: close the lid and the air vents to control the flames.
When you have finished grilling, close the Top Cap and the air vent to shut off the air supply and prevent the kamado from reaching high temperatures again. Be even more careful when you open the lid while the Grill Guru has not yet completely cooled down. Bear in mind that the inflow of fresh air can rekindle the fire.

GRILGURU

Always keep children, pets, clothing or flammable objects away from the Grill Guru when in use. Do not allow children to open the lid or play near the Grill Guru.
- Do not place the Grill Guru on an uneven surface, a slope or a place where it can be knocked over. Lock the caster wheels when the Grill Guru is in place.
- Do not grill on the Grill Guru when the Top Cap is off - the temperature will rise quickly when it is removed. Do not leave the Grill Guru unattended in this case!
Regularly check the area around the Grill Guru to see if it is not affected by heat transfer.
The Grill Guru must be used outside, with sufficient air circulation and never inside or near flammable objects. Always follow local laws and regulations.
Always keep a fire extinguisher or fire blanket close to the Grill Guru in case of fire.
Keep in mind the risk of fire. Always keep an eye on a lit grill guru when the lid is open. Do not place the kamado directly on wood, on the ground or in the vicinity of flammable materials or combustible places; the ceramic can become hot when in use.
Glowing charcoal emits carbon monoxide, which can be extremely dangerous! Never place the grill Guru in a construction where people or pets are present. Always allow the grill Guru to cool down and remove the ashes before storing it indoors

PRODUCT-SPECIFIC HAZARDS!

The Grill Guru caster wheels are not designed to roll on uneven or soft ground. Make sure you stand firmly and someone helps you.
Pull - do not push! Never push the Grill Guru. Place both hands on the hinge and pull the Grill Guru behind you.
Regularly check whether the bolts are properly secured. Do you move the Grill Guru? Then regularly check the

castor wheels and bolts of the stand.

Never use charcoal briquettes, lighter fluid or other flammable liquids in a Grill Guru; the warranty will lapse. Grill Guru charcoal ignites quickly when a Grill Guru One Minute Lighter is used - so you do not need lighter fluid.
Never use water to extinguish the charcoal in the Grill Guru.

For more information, please visit https://grillguru.com/ Also check out our Grill Guru Genius Guides on ....

GG-L-2022-01

GG0221

GRILGURU

KAMADO-

NUTZERANLEITUNG

Grill Guru Kamado Large

Grill Guru Kamado Large

LÁS DETTA INNAN DU MONTERAR ELLER ANVÄNDER DIN GRILL GURU!

200^ Fahrenheit

WARNING!

Lásdennda brukansvisning noggrant,den innehaller information om

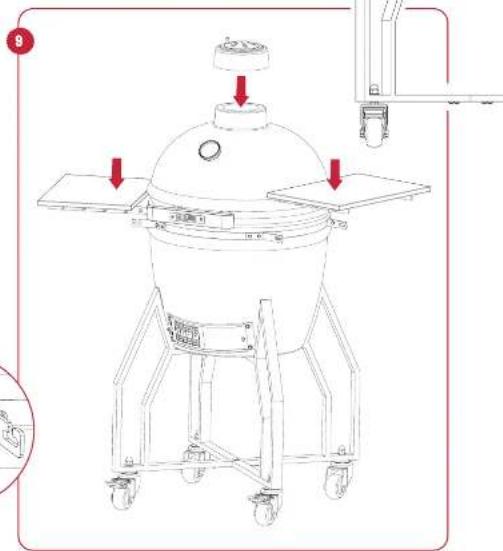

INSTALLATIONS INSTRUCTIONS

L

GRILGURU

INSTALLATIONS INSTRUCTIONS

L

2/2

9998

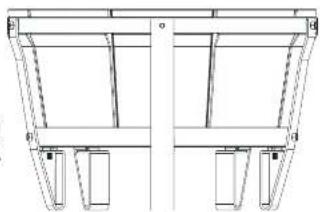

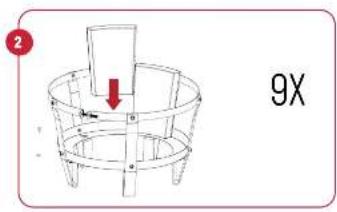

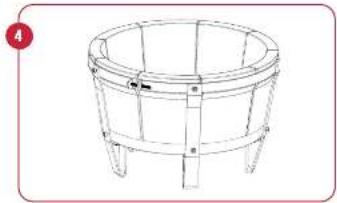

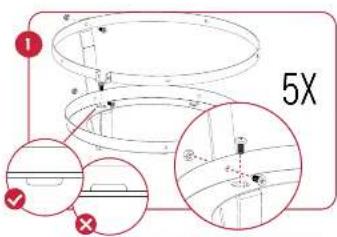

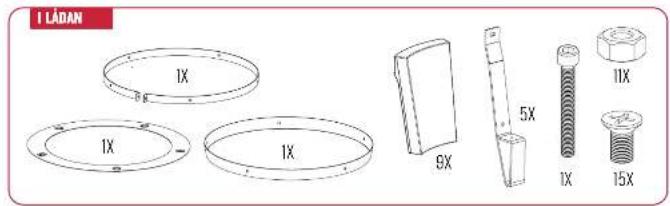

INSTALLATIONS INSTRUKTIONER ELDSTAD

FOR ATT AKTIVERA DIN GARANTI, REGISTRERA DIN PRODUKT

Registrar a din Grill Guru genom www. grillguru.nl/registrar

For att giltigforklara din garanti, vänligen registrera din Grill Guru kamado inom 3 manader after kopet.

101100

WARNING:

BYGGA UPP TEMPERATUREN
