Conga Rockstar Wet & Dry Steel Pro - Vacuum Cleaner CECOTEC - Free user manual and instructions

Product type	Wet and dry vacuum cleaner
Brand	Cecotec
Model	Conga Rockstar Wet & Dry Steel Pro
Reference	08115
Power supply	220-240 V~, 50/60 Hz, 1600 W
Protection rating	IP24
Filters included	High-efficiency filter (solids), liquid filter
Accessories included	Floor brush, extension tube, flexible hose, 2-in-1 accessory, crevice tool
Usage modes	Vacuuming solids, vacuuming liquids, blowing
Tank capacity	Not specified
Cable length	Not specified
Weight	Not specified
Dimensions	Not specified
Recommended use	Household only
Filter maintenance	Clean after each use, replace every 30-50 hours
Spare parts	Tank, main unit, wheels, filters, accessories
Repairability	Repairs by qualified personnel, contact Cecotec after-sales service
Warranty	According to applicable regulations

Frequently Asked Questions - Conga Rockstar Wet & Dry Steel Pro CECOTEC

How to use the vacuum cleaner to vacuum liquids?

Install the liquid filter before use. Plug in the device, turn it on with the On/Off button. After vacuuming, empty the tank immediately and clean the filter.

How to clean the vacuum cleaner filters?

Unplug the device. Remove the main unit by pressing the tabs. Take out the filter, vacuum and shake it to remove dust. Wash the liquid filter with clean water if necessary, but let it dry completely before reinstalling.

What to do if suction power decreases?

Check if the tank is full or if the filter is clogged. Clear any obstruction in the hose or accessories. If the problem persists, replace the filter (every 30 to 50 hours of use).

Can I vacuum hot ashes or flammable liquids?

No, never vacuum burning or smoldering materials (cigarette butts, matches, hot ashes) or flammable liquids like gasoline. This could cause a fire or damage the appliance.

How to change the vacuum cleaner filter?

Unplug the device. Press the tabs to remove the main unit. Replace the used filter with a new one of the same type (high-efficiency or liquid). Replace the main unit by snapping the tabs back.

Can the vacuum cleaner work without a filter?

No, never use the vacuum cleaner without a filter properly installed. This could damage the motor and reduce suction performance.

What to do if water comes out of the blowing connector?

This means the liquid filter is not properly in place or the tank has exceeded its maximum capacity. Unplug the device immediately, empty the tank and reinstall the filter correctly.

How to store the vacuum cleaner after use?

Empty and clean the tank and filters. Store the device in a cool and dry place, away from direct sunlight and humidity.

Can I use an extension cord with the vacuum cleaner?

Yes, you can use an extension cord, but make sure it is suitable for the appliance's power (1600 W) and that the plug is in good condition. Avoid running the vacuum cleaner over the cable.

How to contact Cecotec after-sales service?

For any incident or problem, contact the Official After-Sales Service of Cecotec at [phone]. Do not attempt to repair the appliance yourself.

USER MANUAL Conga Rockstar Wet & Dry Steel Pro CECOTEC

Black and white photo of a vacuum cleaner with coiled tubing and blue filter (no text or symbols visible)

cecòtec

Safety instructions 7

1. Parts and components 33

2. Before use 33

3. Assembly 34

4. Operation 34

5. Cleaning and maintenance 34

6. Troubleshooting 35

7. Technical specifications 35

8. Disposal of old electrical and

electronic appliances 36

1. Technical support and warranty 36

2. Copyright 36

SOMMAIRE

Read these instructions thoroughly before using the product. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the device.
• When using electrical and electronic devices, basic precautions must always be followed to reduce the risk of fire, electrical shock, and injury.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Check the power cord for visible damage. If the cord is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel in order to avoid a hazard.
• Do not immerse the cord, plug, or any other part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.
• This device can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved. Children must not play with the device. Cleaning and user maintenance should not be carried out by unsupervised children.
• Supervise children to prevent them from playing with the device. Close supervision is necessary if the device is used by or near children.
• The plug of the power cord must be removed from the base before cleaning or servicing the device.
• Make sure that the mains voltage matches the voltage

stated on the rating label of the device and that the wall outlet is earthed.

• Avoid operating the device under extremely high or low temperatures.
• If the device does not work as described in this manual, has suffered a major impact, falls from a height, is damaged, or falls into water, do not use it and contact Cecotec's Technical Support Service immediately.
• Do not try to repair the device by yourself. Contact the official Cecotec Technical Support Service for advice.
• Keep the packaging materials out of the reach of children, as they could be dangerous.
• Do not allow the cord to touch hot surfaces. Pay special attention when cleaning stairs. Do not run the vacuum cleaner over the cord. Do not use the device if the cord or plug is damaged.
• Keep hair, clothing, fingers, and other body parts away from openings and moving or suction parts.
• The device is not intended to be operated by means of an external timer or separate remote-control system.
• Do not vacuum burning or smouldering materials such as cigarette butts, matches, hot ashes, flammable liquids, or combustible materials such as gasoline.
• Switch the vacuum cleaner off before unplugging it. Do not leave the vacuum cleaner unattended during operation. Unplug the cord when not in use and before cleaning.
• Liability for damages resulting from non-compliance with these operating instructions or any other improper use is excluded.

INSTRUCTIONS DE SÉCURITÉ

1. Hose handle
2. Hose
3. On/Off button
4. Handle
5. Top cover
6. Blowing connector
7. Drain plug
8. Hook
9. Tank
10. Base
11. Caster
12. Wet&Dry suction connector
13. High-efficiency filter
14. Tank for liquids
15. Floor brush
16. Flexible hose
17. 2-in-1 accessory
18. Accessory for corners
19. Extensible tube

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

- This device is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.

- Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content:

- Conga Rockstar Wet&Dry Steel Pro wet & dry vacuum cleaner

- Floor brush

ENGLISH

• Extensible tube
• Flexible tube
• 2-in-1 accessory
• Accessory for corners

3. ASSEMBLY

1. Attach the wheels to the base as shown in Figure 2.
2. Insert the high-efficiency filter if you want to vacuum solids or the filter for liquids you want to vacuum liquids.
3. Place the main body on top of the tank and use the hooks on both sides to secure it in place. Fig. 3
4. Insert the hose into the Wet&Dry or blowing connector and turn it clockwise to secure it. Fig. 4
5. Choose the accessory you wish to use and attach it to the flexible hose connector.

4. OPERATION

Before switching on the device, make sure that the high-efficiency filter when vacuuming solids or the filter for liquids when vacuuming liquids is properly installed.

1. Insert the end of the hose into the suction or blowing connector, depending on which you wish to use. Make sure that the hose assembly is properly installed to ensure correct operation of the device.
2. Connect the device to a mains socket and switch it on by pressing the on/off button.
3. Unplug the device after every use.

5. CLEANING AND MAINTENANCE

• Make sure the device is not plugged to a mains socket before cleaning it or carrying out maintenance on it.
• Clean the tank, filters, and main body after every use.
• If the tank fills up during operation, empty it immediately so that it does not affect the correct operation of the device.
• It is recommended to replace the filter after 30-50 hours of use (depending on how it is used).
• If the device is not going to be used for a long period of time, it is recommended to store it as described above, in a cool and dry place. Do not store it under direct sunlight or in damp places.

Cleaning the tank

1. Unlock the hooks and take out the main body and the high-efficiency filter or the one for liquids.
2. Empty the tank.
3. Vacuum and shake the filters to remove any particle of dirt that may block them and hinder proper air circulation. Avoid using the vacuum cleaner without the filter properly assembled.

6. TROUBLESHOOTING

Before contacting our Customer Service, please check the following:

Problem Possible cause Possible solution
The motor does not start.	The power cord is not plugged into a socket.The power socket is damaged.The vacuum cleaner was not switched on.	Properly plug in the device.Check that the socket is not damaged.Switch the device on.
Suction power has decreased.	The device is obstructed.It's necessary to change the filter.	Clear the obstruction.Change the filter.
Water comes out of the blowing connector.	The filter for liquids is not in place or the maximum tank capacity has been exceeded.	Unplug the power cord.Put the filter back in place.

7. TECHNICAL SPECIFICATIONS

Model: Conga Rockstar Wet&Dry Steel Pro

Reference: 08115

Voltage: 220-240V\~, 50/60Hz

Power: 1600 W

IP24

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old devices and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs are carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

6. PROBLEEMOPLOSSING

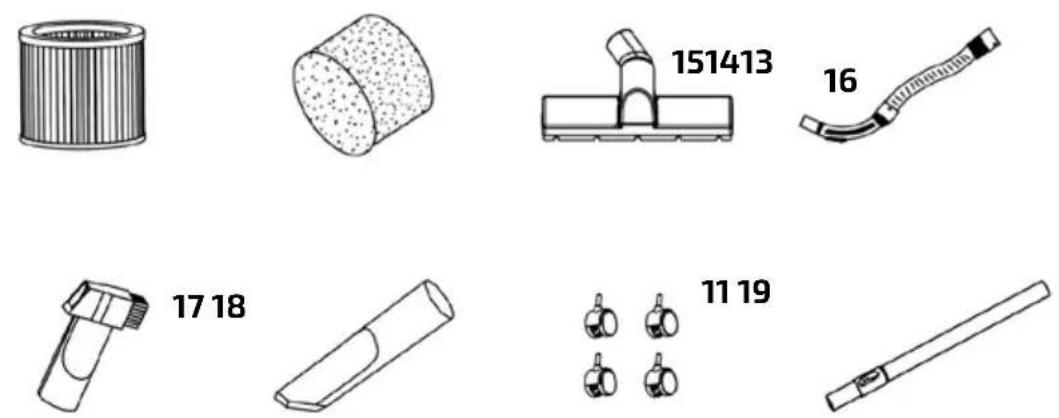

Labeled diagram of a vacuum cleaner with numbered parts for identification

Fig./Img./Abb./Afb./Rys./Obr.1

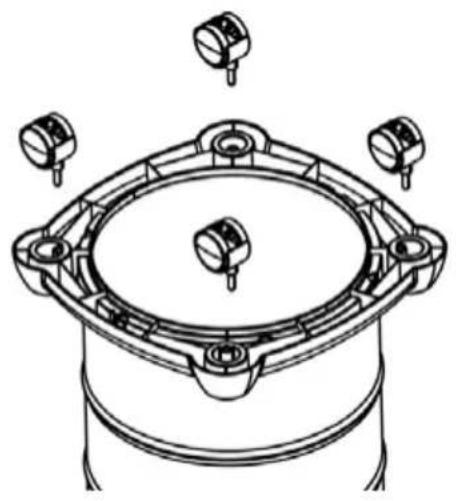

Technical line drawing of a mechanical component with multiple cylindrical features and mounting holes (no text or symbols)

Fig. / Img. / Rys. / Obr. 2

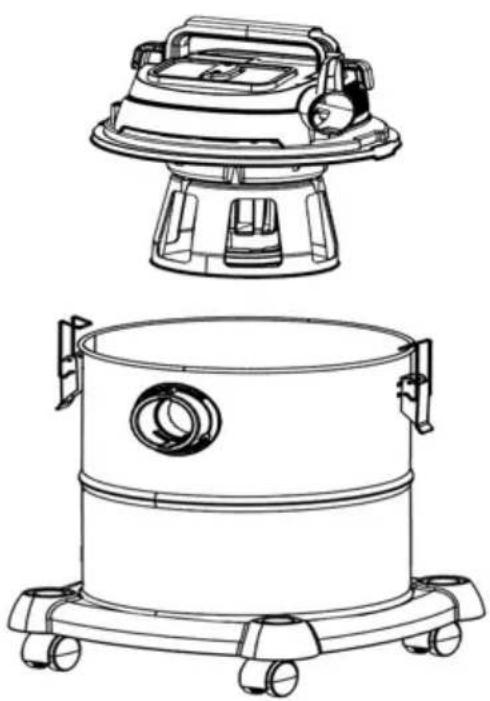

Technical line drawing of a vacuum cleaner device (top) and its internal components (bottom), no text or symbols present.

Fig. / Img. / Rys. / Obr. 3

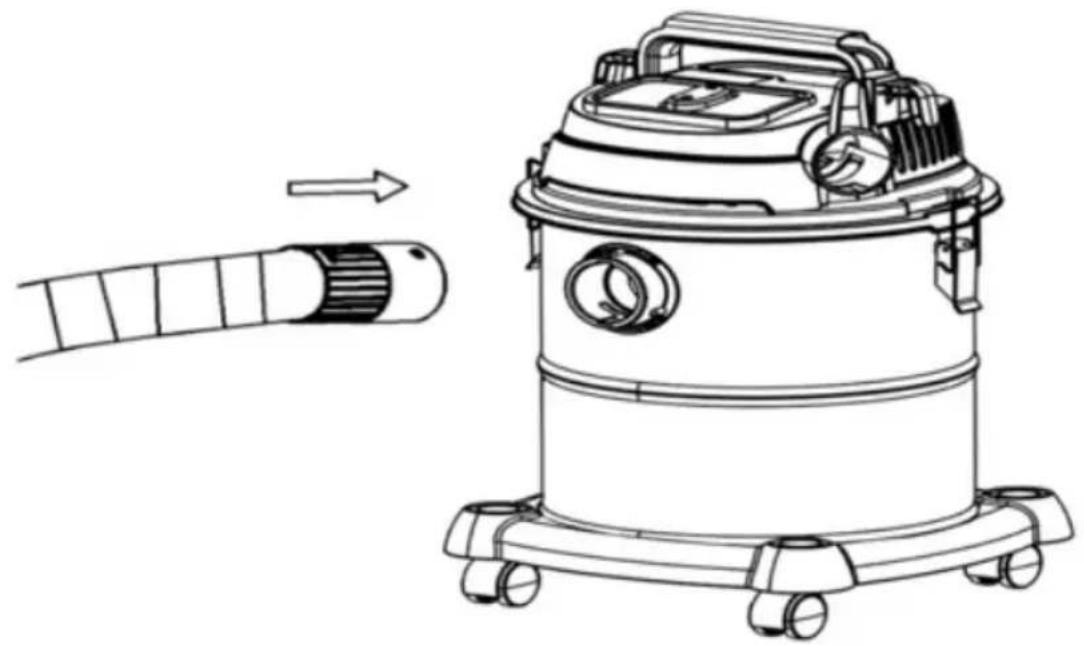

Line drawing of a vacuum cleaner with a slide and arrow indicating process (no text or symbols)

Fig. / Img. / Rys. / Obr. 4

www.cecotec.es

Quart de Poblet, Valencia (Spain)

YV01220228
