USER MANUAL Conga Rockstar Wet & Dry Compact CECOTEC

Blue and black vacuum cleaner with coiled teal tubing against a dark background (no text or symbols visible)

cecòtec

1. Parts and components 31
2. Before use 31
3. Operation 32
4. Cleaning and maintenance 33
5. Technical specifications 34
6. Disposal of old electrical and electronic appliances 34
7. Technical support and warranty 34
8. Copyright 34

SOMMAIRE

Read these instructions thoroughly before using the product. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• When using electrical and electronic appliances, basic precautions must always be followed to reduce the risk of fire, electrical shock, and injury.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Check the power cord for visible damage. If the cord is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel in order to avoid a hazard.
• Do not immerse the cord, plug, or any other part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Supervise children to prevent them from playing with the appliance. Close supervision is necessary if the appliance is used by or near children.

• The plug of the power cord must be removed from the base before cleaning or servicing the appliance.

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is earthed.

• Avoid operating the appliance under extremely high or low temperatures.
• If the appliance does not work as described in this manual, has suffered a major impact, falls from a height, is damaged, or falls into water, do not use it and contact Cecotec's Technical Support Service immediately.
• Do not try to repair the appliance by yourself. Contact the official Cecotec Technical Support Service for advice.
• Keep the packaging materials out of the reach of children, as they could be dangerous.
• Do not allow the cord to touch hot surfaces. Pay special attention when cleaning stairs. Do not run the vacuum cleaner over the cord. Do not use the appliance if the cord or plug is damaged.
• Keep hair, clothing, fingers, and other body parts away from openings and moving or suction parts.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Do not vacuum burning or smouldering materials such as cigarette butts, matches, hot ashes, flammable liquids, or combustible materials such as gasoline.
• Switch the vacuum cleaner off before unplugging it. Do not leave the vacuum cleaner unattended during operation. Unplug the cord when not in use and before cleaning.
• Liability for damages resulting from non-compliance with these operating instructions or any other improper use is excluded.

INSTRUCTIONS DE SÉCURITÉ

1. Hose connector
2. Flexible hose
3. Wey&Dry connector inlet
4. Main body
5. On/Off button
6. Handle
7. Blowing connector inlet
8. Hooks
9. Tank
10. Wheels
11. Floor brush
12. High-efficiency filter
13. Tank for liquids
14. 2-in-1 accessory
15. Rigid tube
16. Flexible tube
17. Accessory for corners

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content:

• Conga Rockstar Wet&Dry Compact Wet & Dry vacuum cleaner
• Rigid tube
• Flexible hose

ENGLISH

• Floor brush
• 2-in-1 accessory
• Accessory for corners

3. ASSEMBLY

1. Attach the wheels to the base as shown in Figure 2.
2. Insert the high-efficiency filter if you want to vacuum solids or the filter for liquids you want to vacuum liquids.

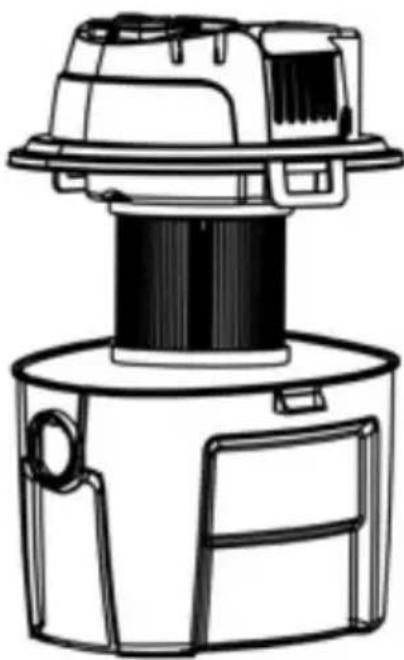

3. Place the main body on top of the tank and use the hooks on both sides to secure it in place. Fig. 3

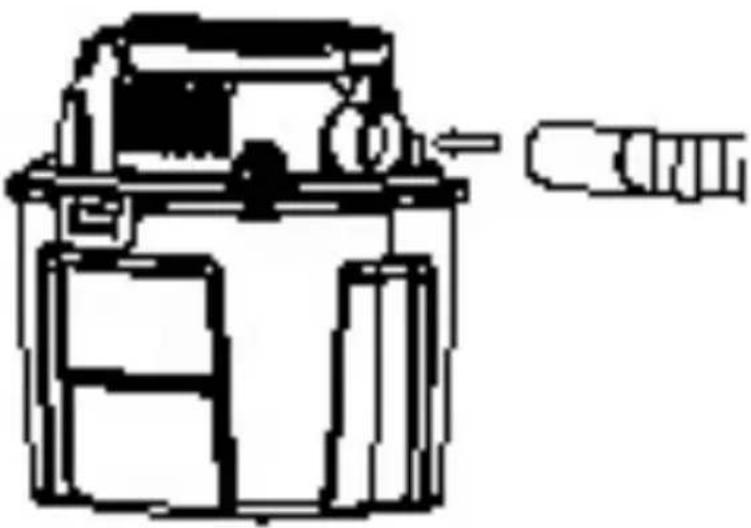

4. Insert the hose into the Wet&Dry or blowing connector and turn it clockwise to secure it. Fig. 4
5. Choose the accessory you wish to use and attach it to the flexible hose connector.

4. OPERATION

Before switching on the appliance, make sure that the high-efficiency filter for solids or the filter for liquids is properly installed.

1. Insert the end of the hose into the suction or blowing connector, depending on which you wish to use. Make sure that the hose assembly is properly installed to ensure correct operation of the appliance.

2. Connect the appliance to a mains socket and switch it on by pressing the on/off button.

3. Unplug the device after every use.

5. CLEANING AND MAINTENANCE

• Make sure the appliance is not plugged to a mains socket before cleaning it or carrying out maintenance on it.
• Clean the water tank, filers, and main body after every use.
• If the water tank fills up during operation, empty it immediately so that it does not affect the correct operation of the appliance.
• It is recommended to replace the filter after 30-50 hours of use (depending on how it is used).
• If the appliance is not going to be used for a long period of time, it is recommended to store it as described above, in a cool and dry place. Do not store it under direct sunlight or in damp places.

Cleaning the tank

1. Unlock the hooks and take out the main body and the high-efficiency filter or the one for liquids.
2. Empty the tank.
3. Vacuum and shake the filters to remove any particle of dirt that may block them and hinder proper air circulation. Avoid using the vacuum cleaner without the filter properly assembled.

6. TROUBLESHOOTING

Before contacting our Customer Service, please check the following:

Problem Possible cause	Possible solution
The motor does not start.	The power cord is not plugged into a socket.The power socket is damaged.The vacuum cleaner was not switched on.	Properly plug in the appliance.Check that the socket is not damaged.Switch the appliance on.
Suction power has decreased.	The product is obstructed.It's necessary to change the filter.	Clear the obstruction.Change the filter.
Water comes out of the blowing connector.	The filter for liquids is not in place or the maximum tank capacity has been exceeded.	Unplug the power cord and properly install the filter.

7. TECHNICAL SPECIFICATIONS

Model: Conga Rockstar Wet&Dry Compact

Reference: 08111

Voltage: 220-240V\~, 50/60Hz

Power: 1000 W

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities. Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries. Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs are carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

6. PROBLEEMOPLOSSING

Simple line drawing of a table with four hanging objects (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr.2

Technical line drawing of a mechanical device with a cylindrical component and housing (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr.3

Pure mechanical diagram of a device with no text, numbers, or symbols

Fig./Img./Abb./Afb./Rys./Obr. 4
